Low-Profile Dual-Polarized Antenna Integrated with Horn and Vivaldi Antenna in Millimeter-Wave Band

,
,
,
,
and
1
School of Electronic and Information Engineering, Xi’an Jiaotong University, Xi’an 710049, China
2
Unit 93128, The Chinese People’s Liberation Army, Beijing 100000, China
3
Zhengzhou Key Laboratory of Electronic Information Functional Materials and Devices, Huanghe Science and Technology College, Zhengzhou 450061, China
*
Author to whom correspondence should be addressed.

Abstract

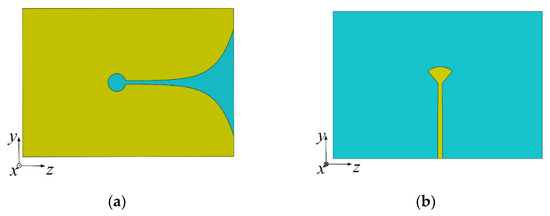

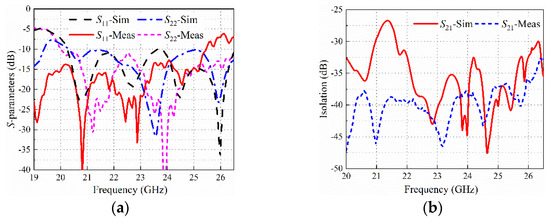

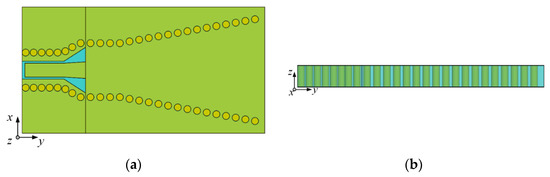

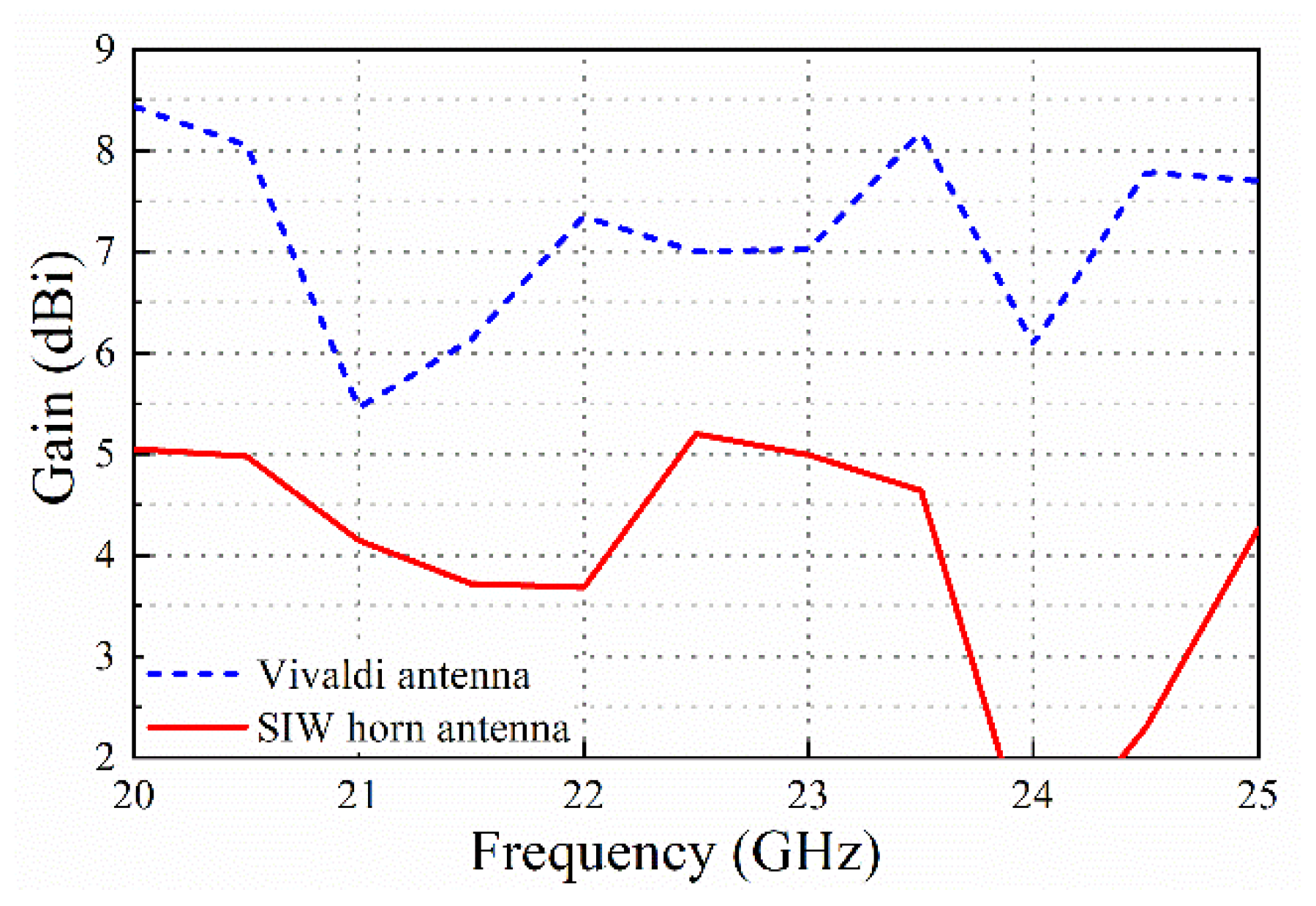

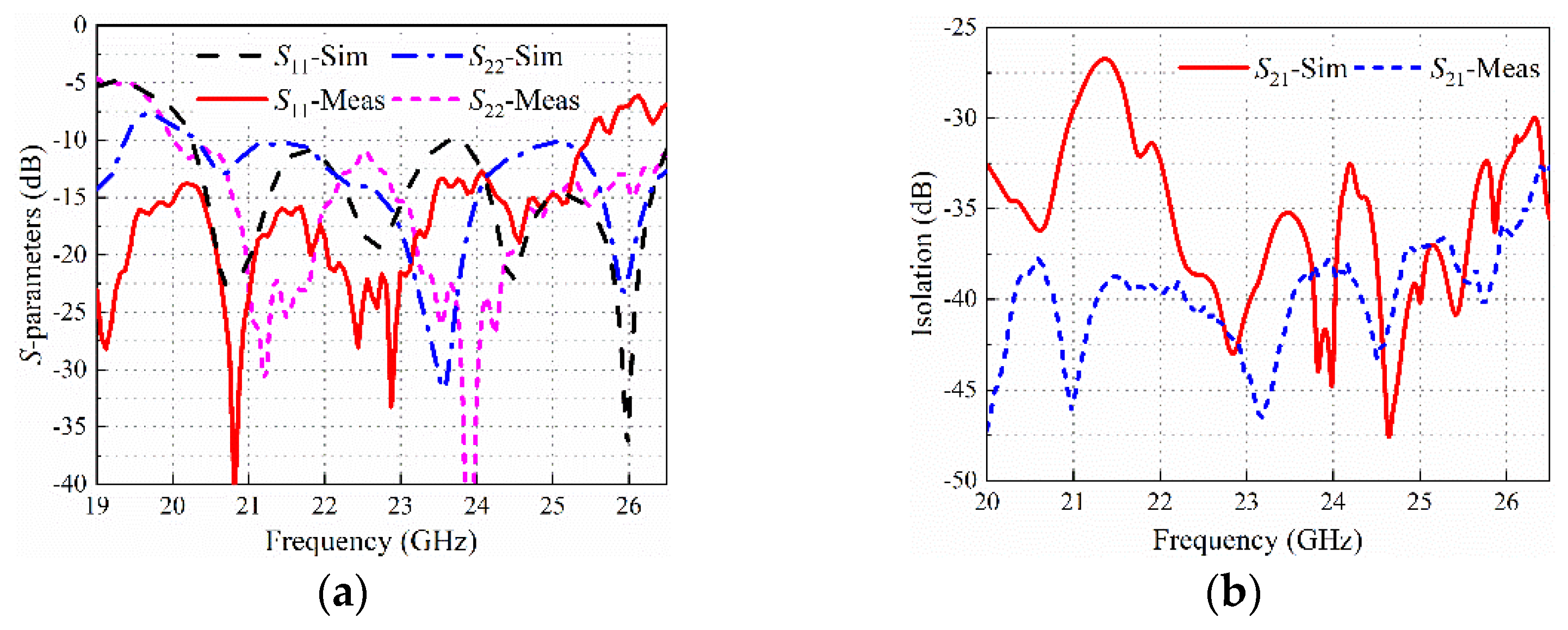

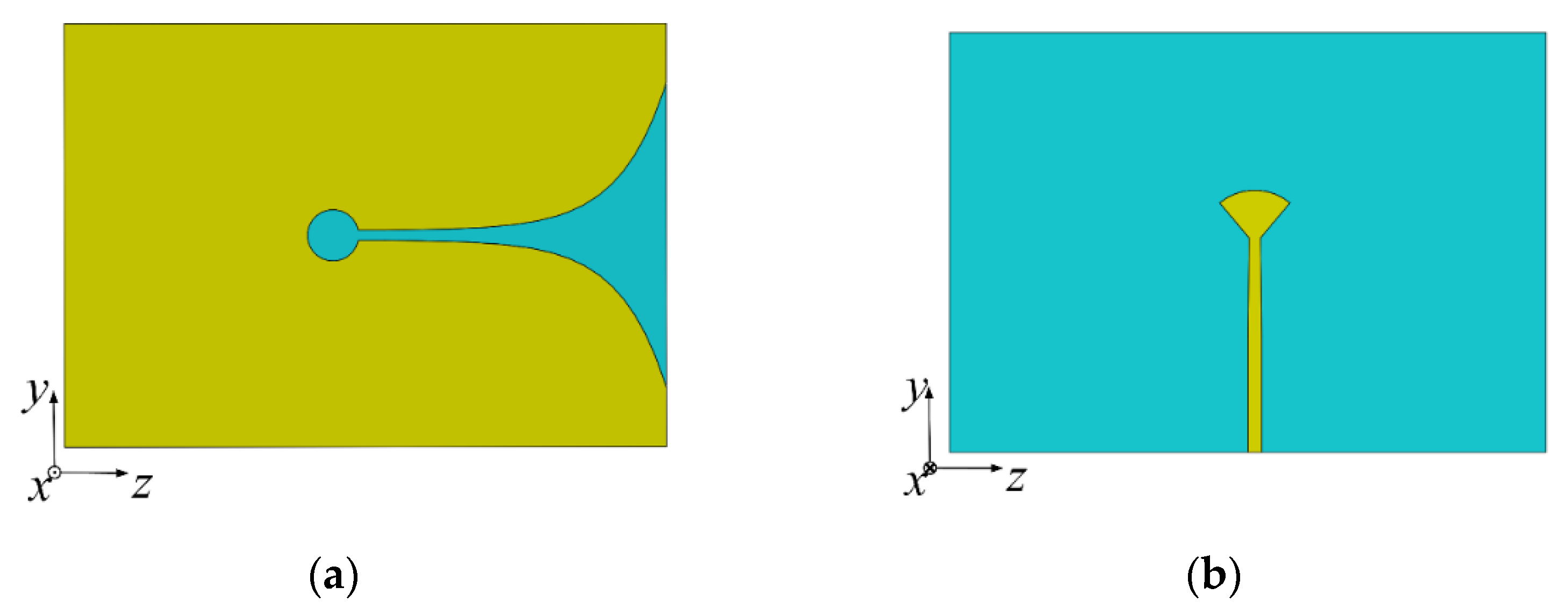

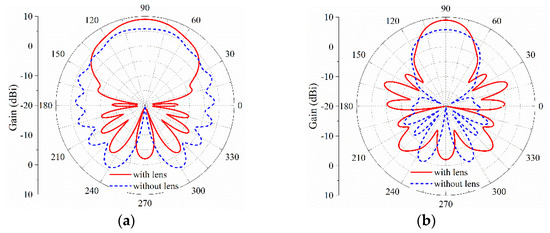

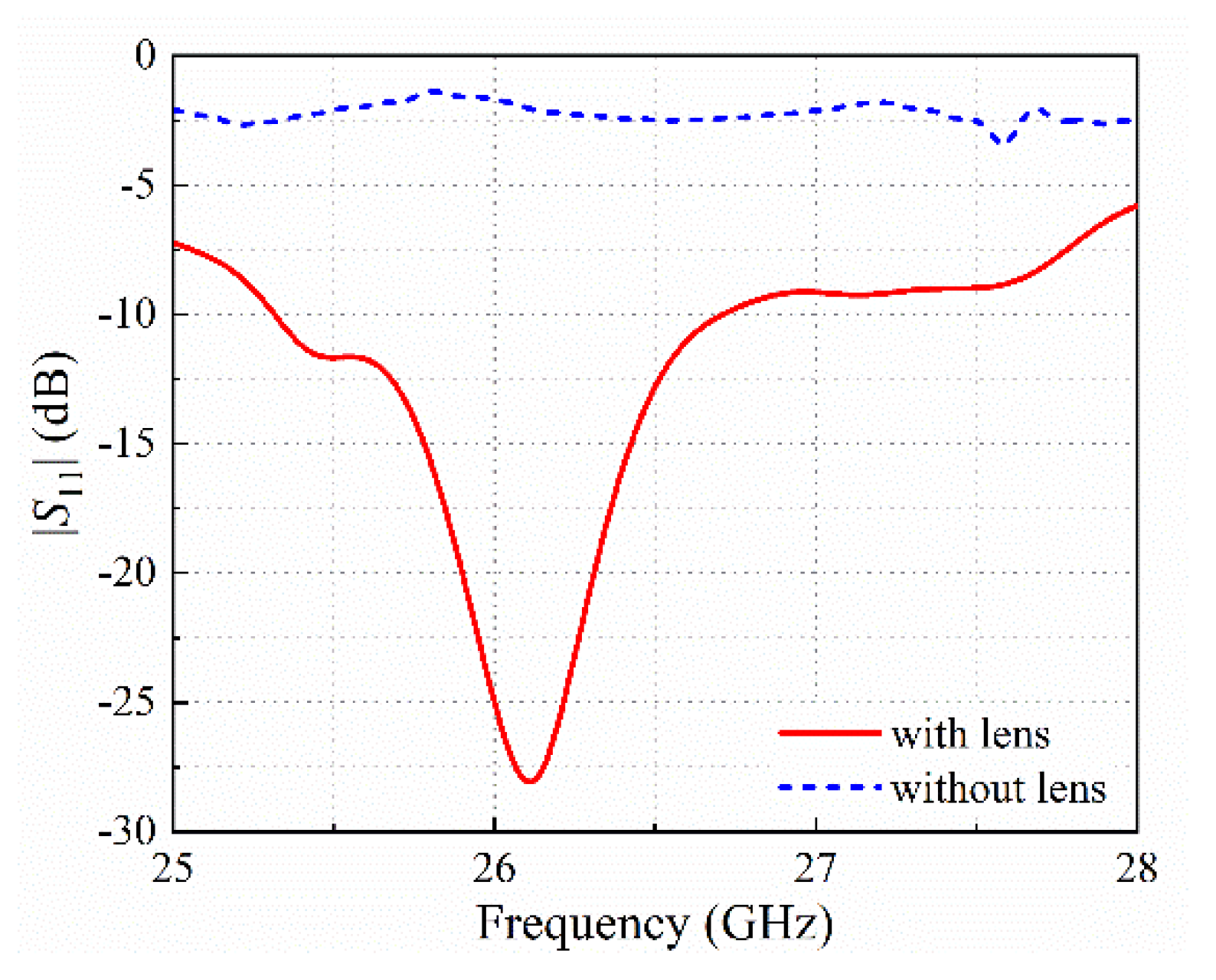

In this paper, a dual-polarized antenna based on a substrate-integrated waveguide (SIW) horn antenna and Vivaldi antenna is proposed. The horizontal polarization (HP) is achieved by using the H-plane SIW horn antenna, while the vertical polarization (VP) is realized by a typical Vivaldi antenna etched on the surface of the SIW horn antenna. In front of the horn aperture, a dielectric lens is designed to optimize impedance matching and enhance directivity. Different feeding structures of the two polarizations are used to enhance the isolation between the two ports. The measured results demonstrate a 20.04–25.5 GHz (23.97%) overlapped dual-polarized impedance bandwidth, and the measured maximum gains of the HP and VP are 5.2 dBi and 8.2 dBi, respectively. A good isolation of 35 dB within the operating band is realized. The proposed dual-polarized antenna meets the demand to transmit and receive signals in two polarization directions simultaneously for wireless communication well.
