Evaluation of the Accuracy of 3D Printed Patient-Specific Brain Biopsy Guide Using 3D Volume Rendering Technique in Canine Cadavers

,
,
and
College of Veterinary Medicine, Jeonbuk National University, Iksan 54596, Republic of Korea
*
Author to whom correspondence should be addressed.
This article belongs to the Section Companion Animals

Simple Summary

Diagnosing brain diseases in animals presents significant challenges, particularly due to the difficulty of obtaining brain tissue samples with high precision. In this study, we developed a novel tool to assist veterinarians in performing brain biopsies more accurately in dogs. Customized guides were created through 3D printing using CT scans of the dogs’ skulls as a foundation to ensure precise needle placement. When tested on ten dog cadavers, the tool demonstrated a high level of accuracy with minimal placement errors. This innovation has the potential to improve the diagnosis and treatment of brain diseases in dogs, leading to better health outcomes for pets with neurological conditions. By enhancing the biopsy precision, this method can benefit both veterinarians and pet owners by providing more reliable diagnostic information.

Abstract

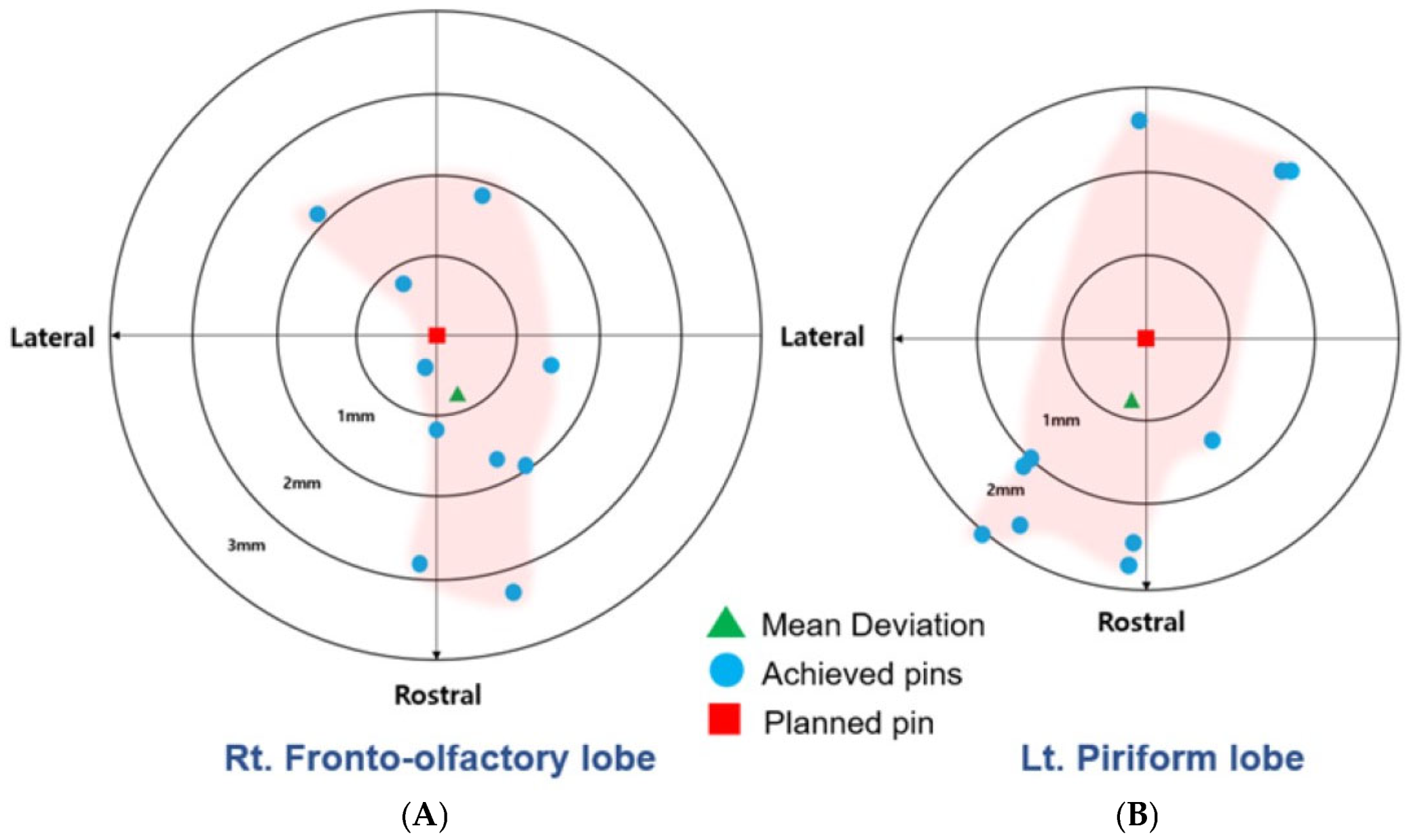

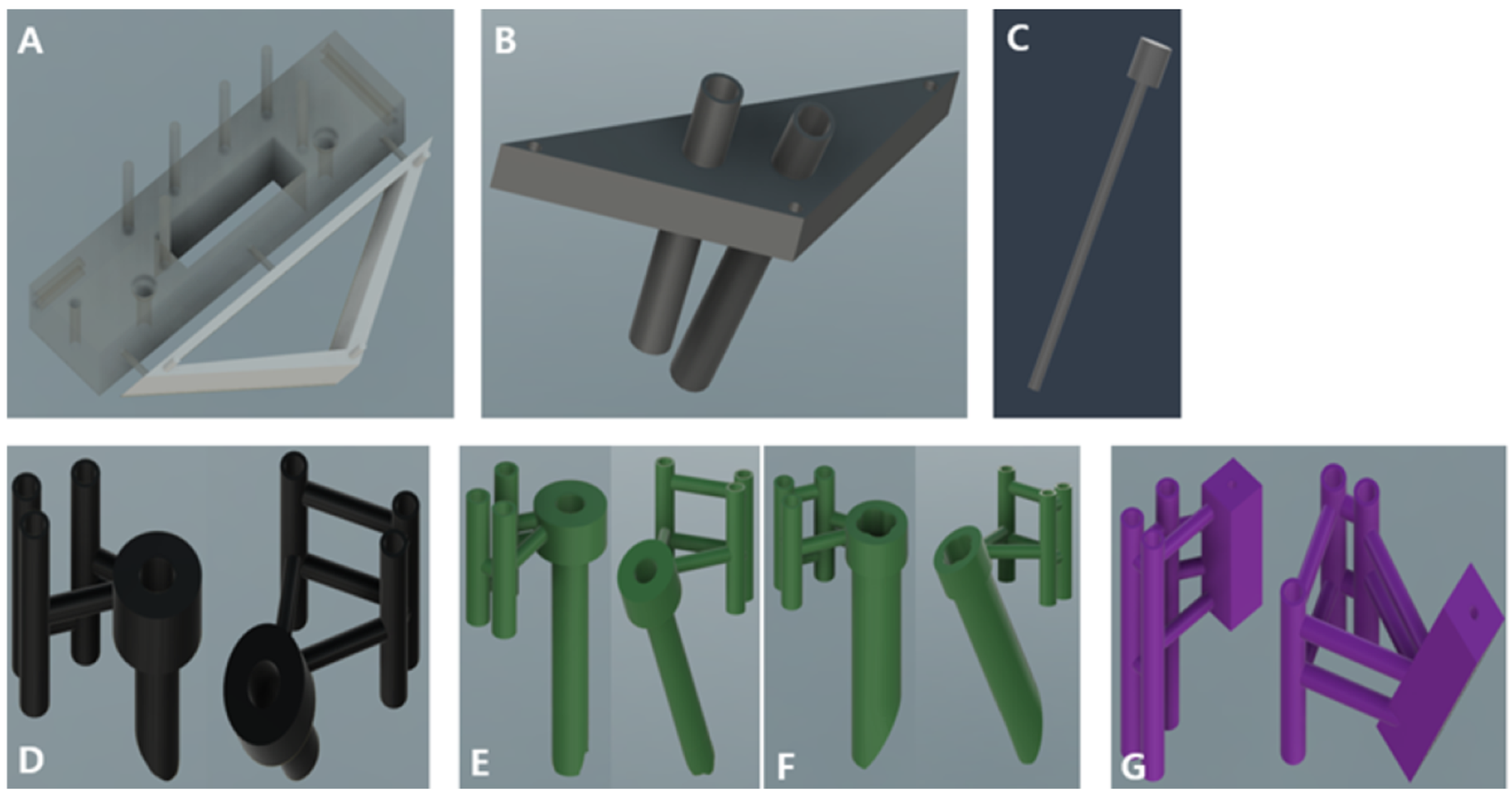

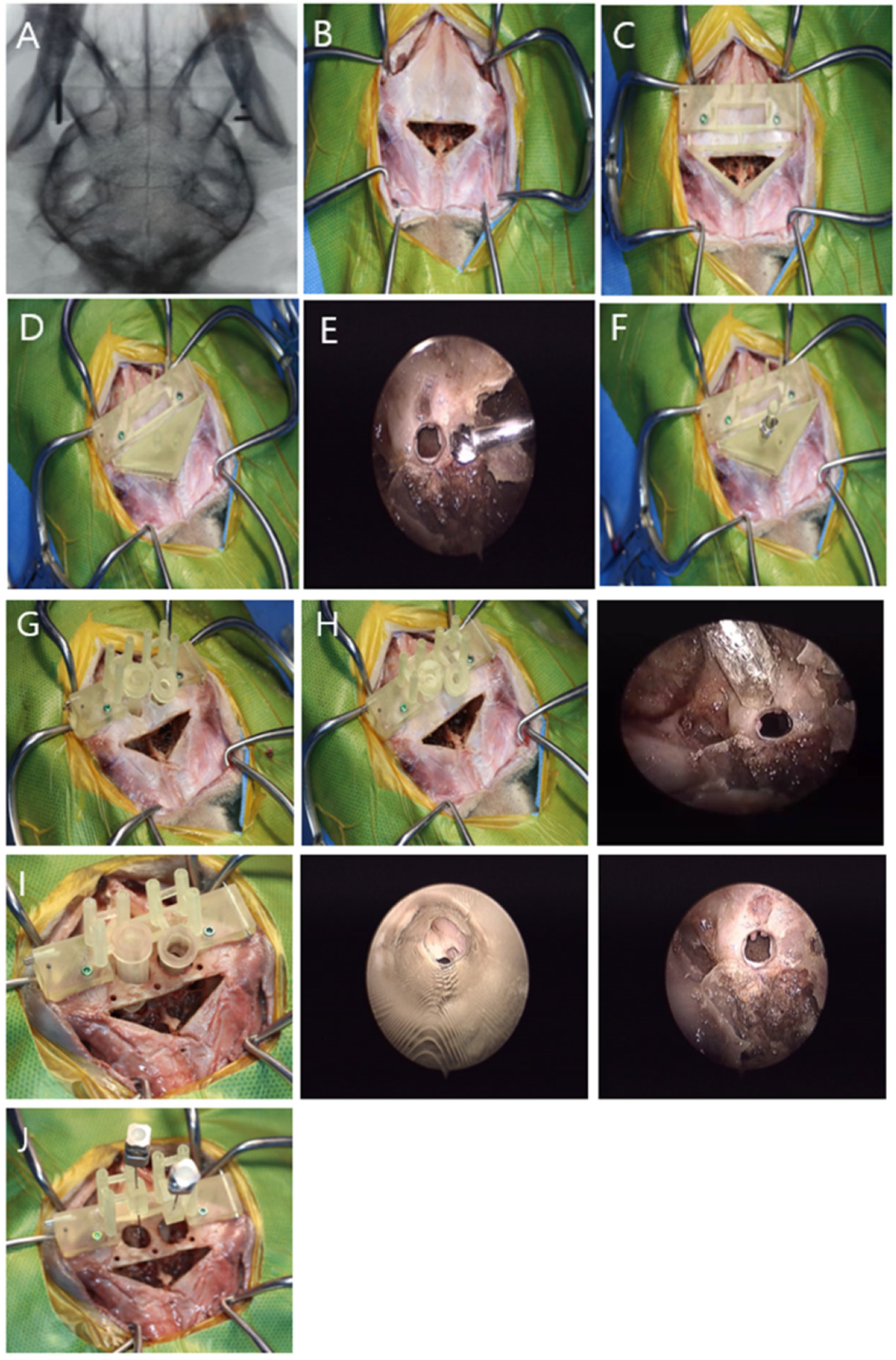

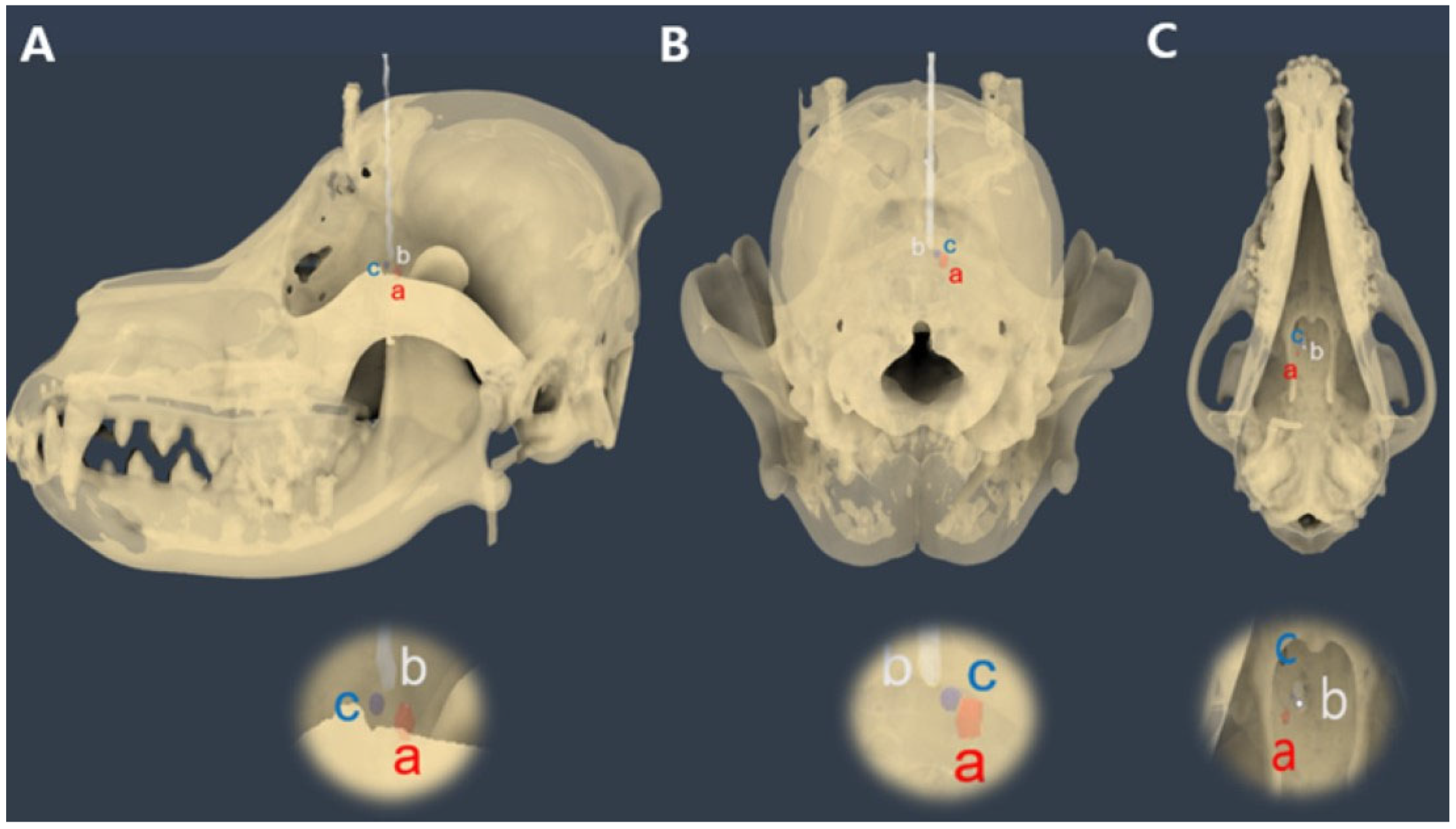

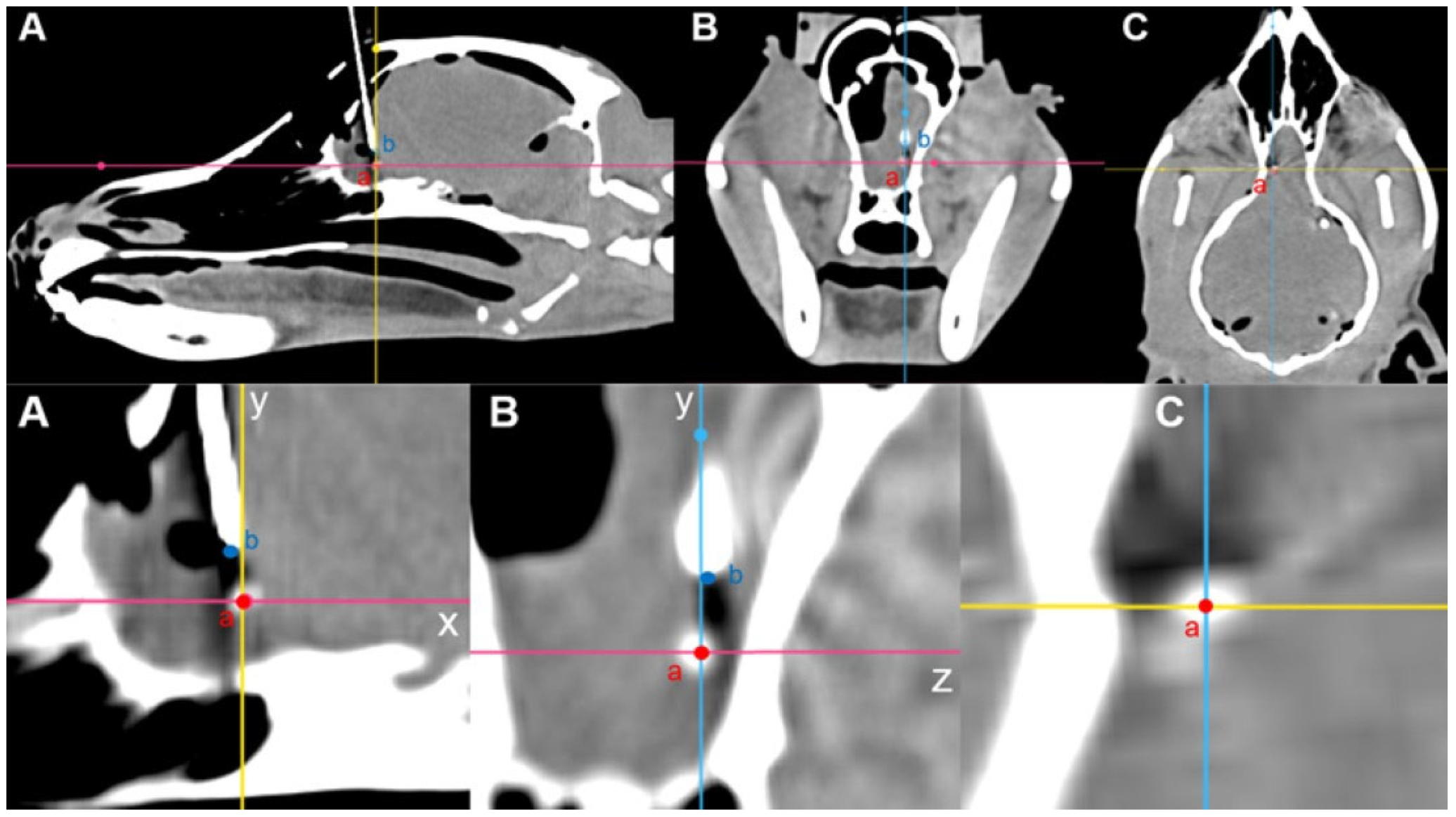

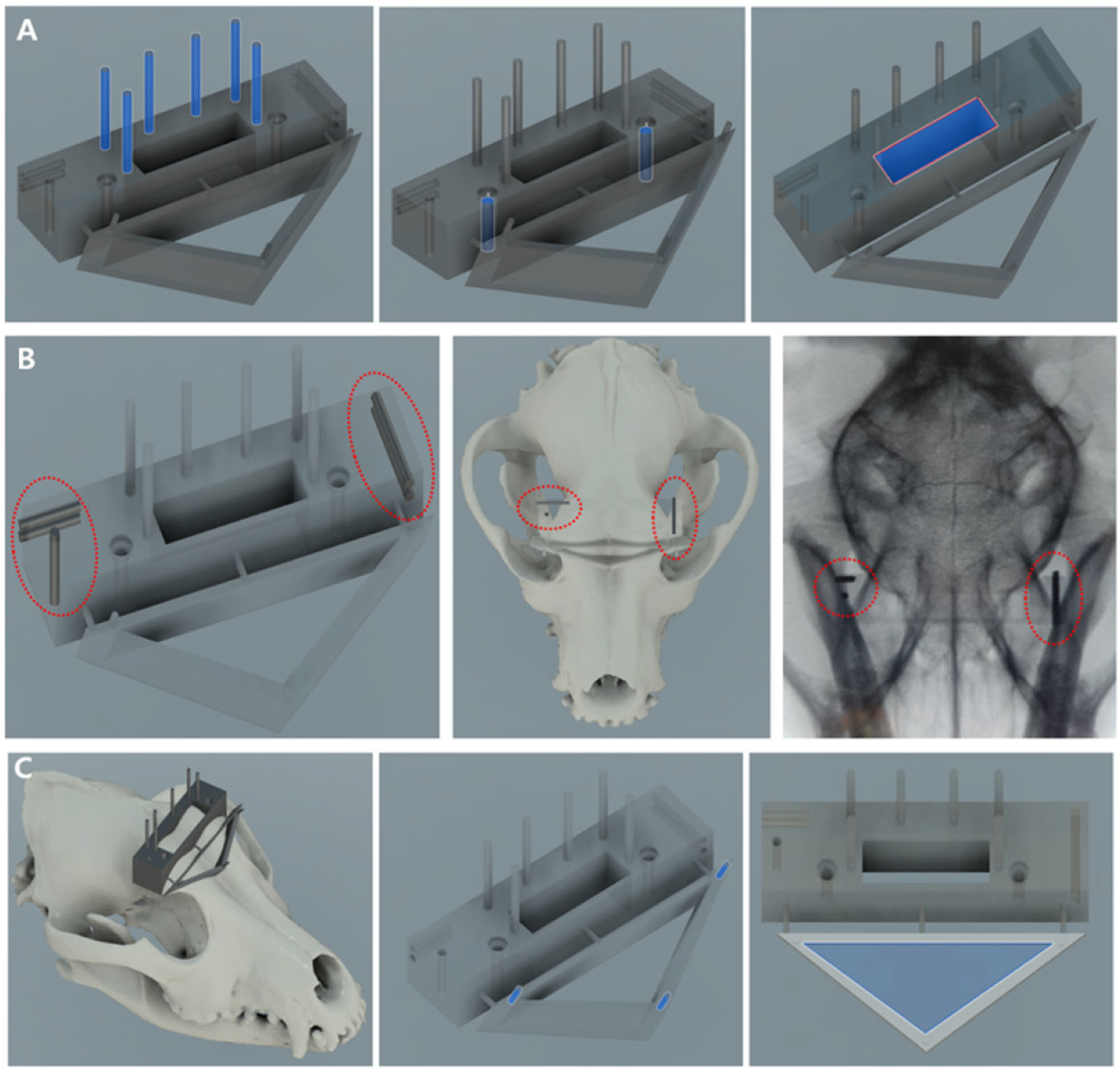

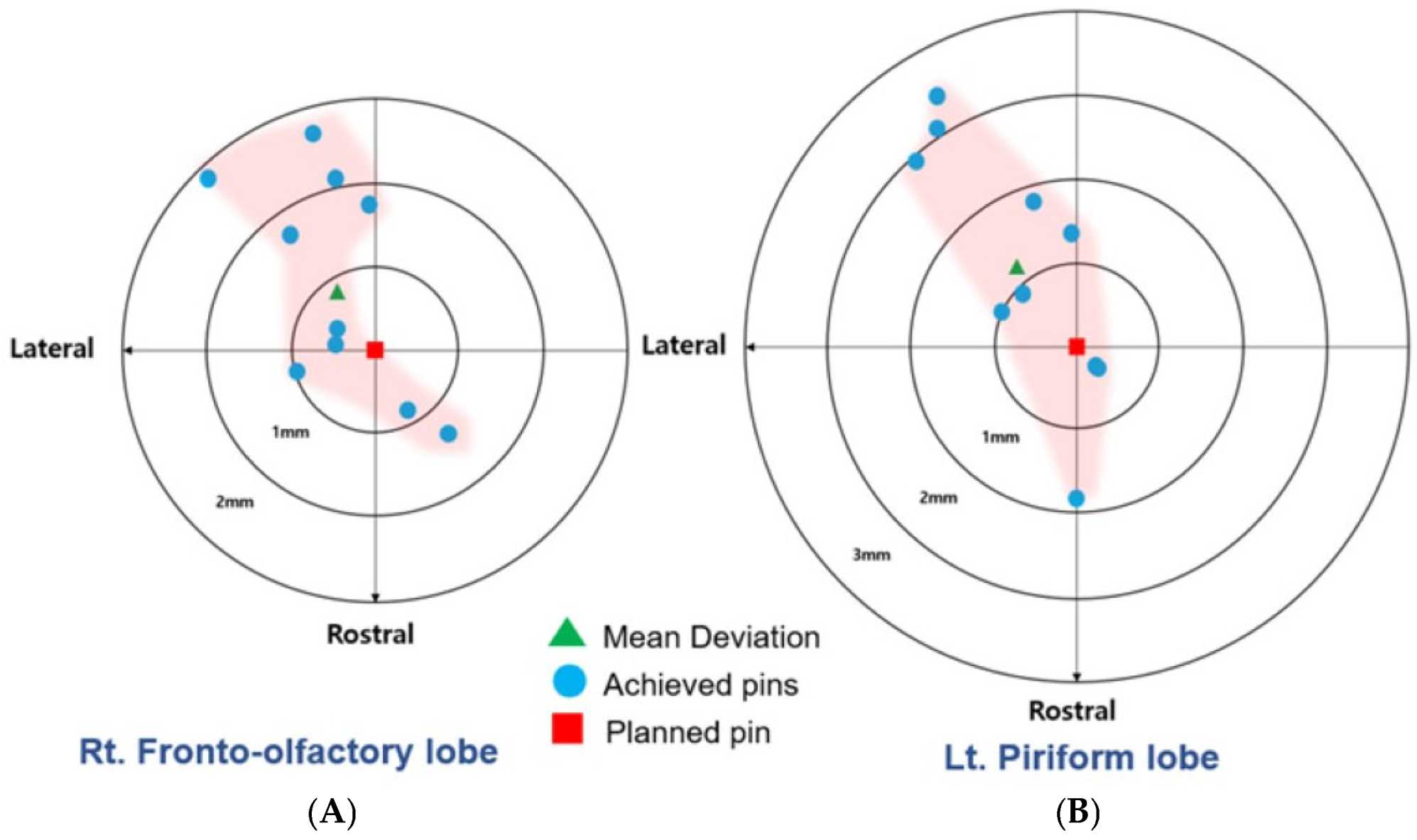

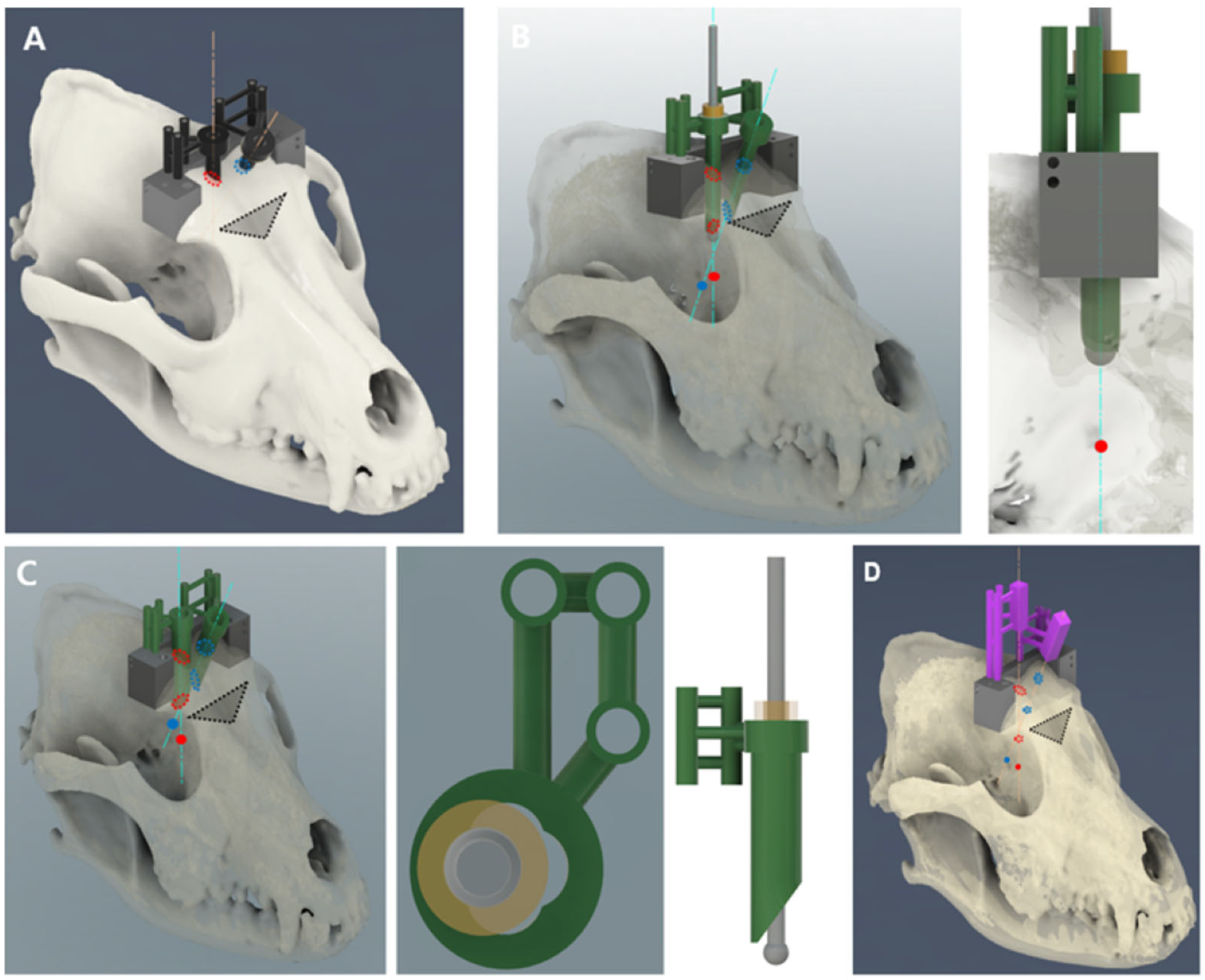

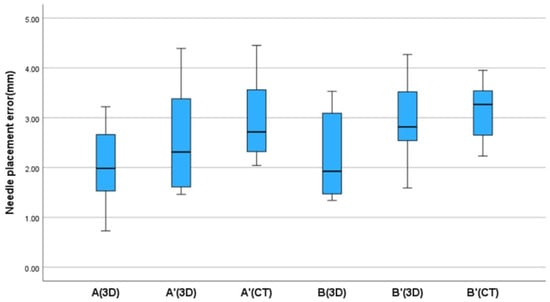

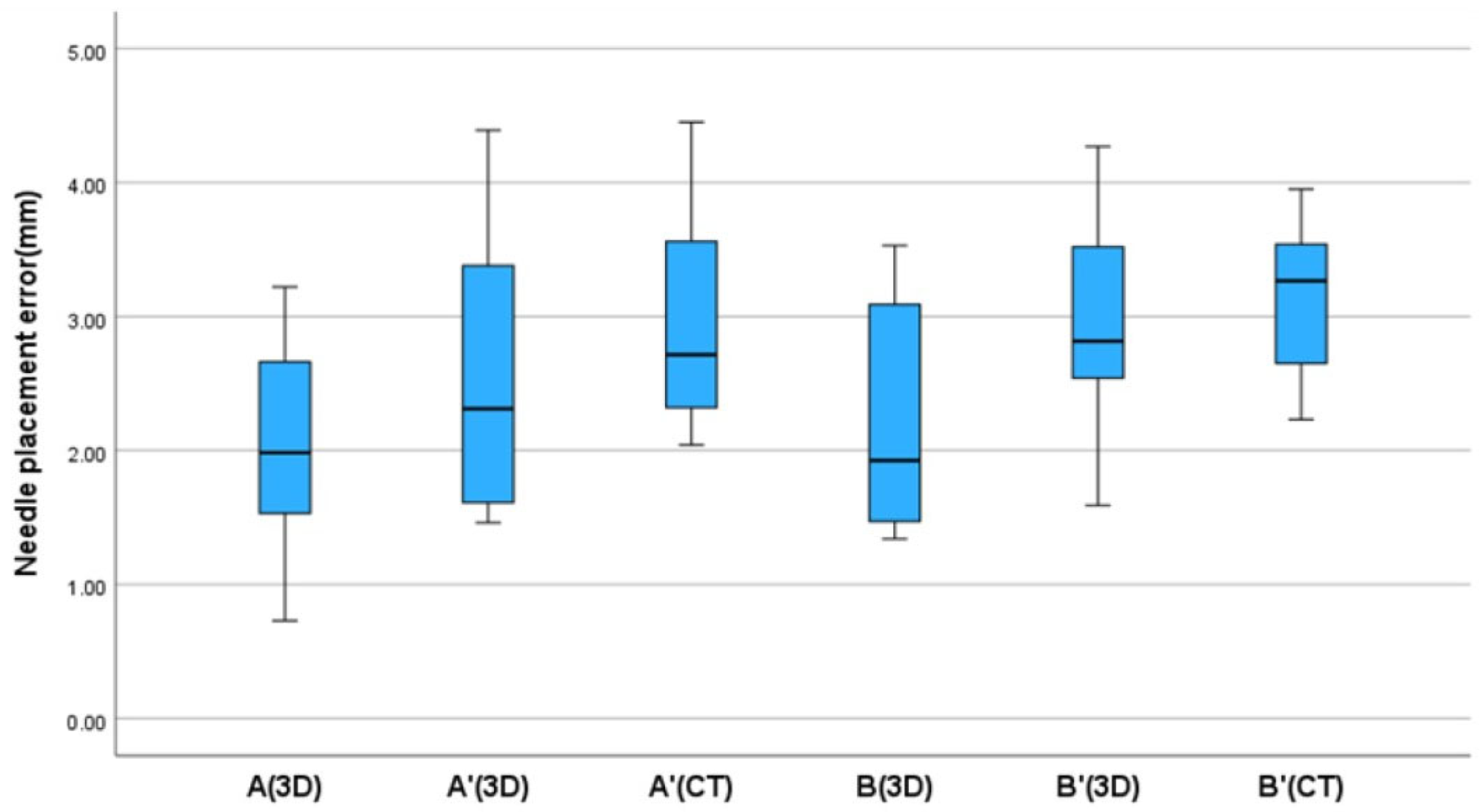

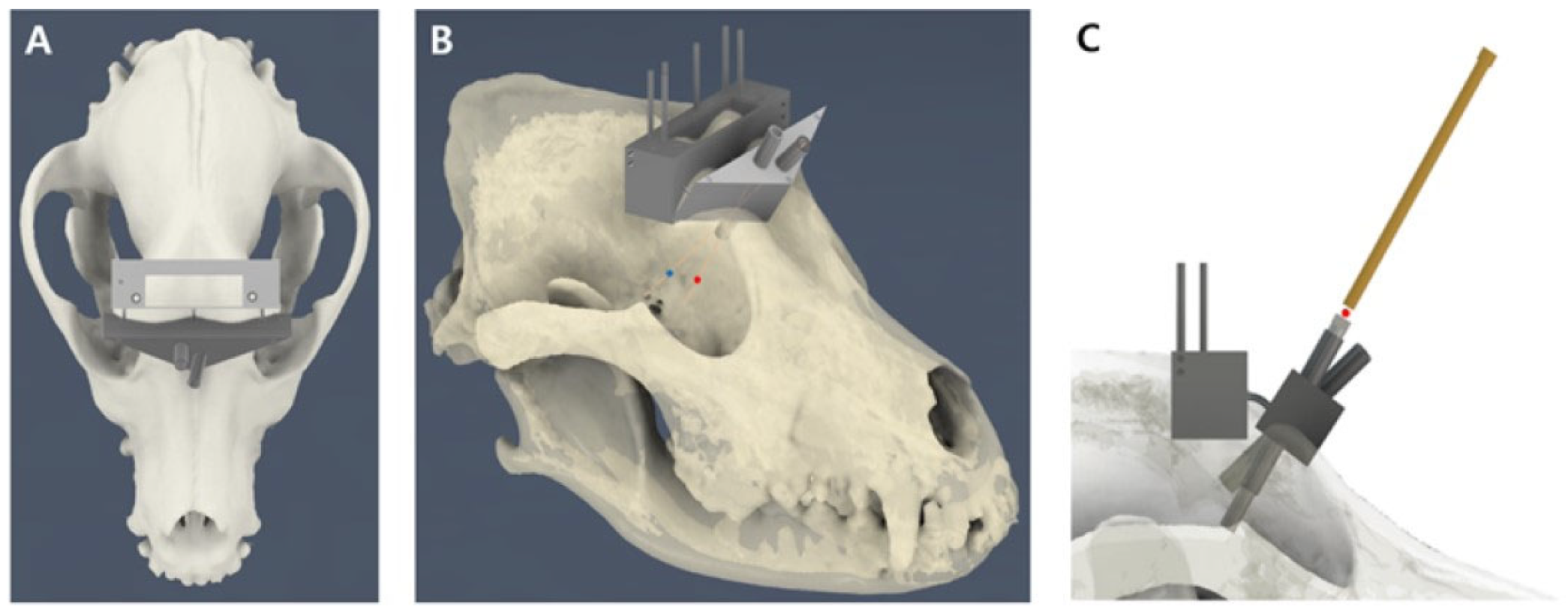

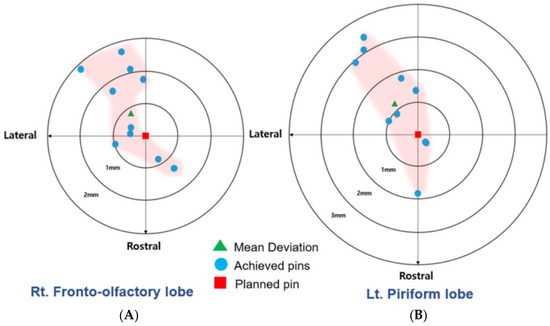

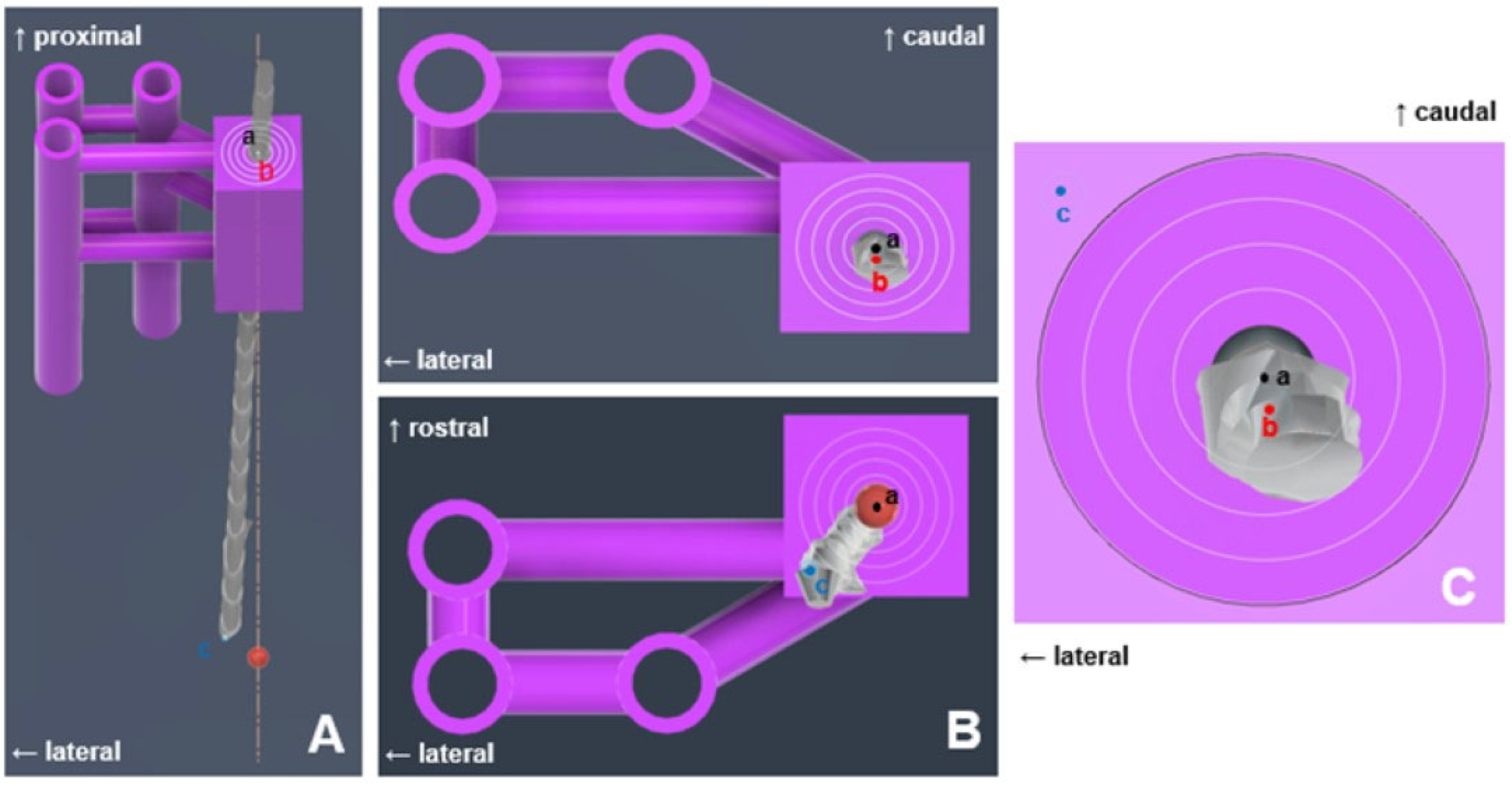

The objective of this study was to evaluate the accuracy of a CT-based, 3D-printed, patient-specific brain biopsy guide (3D-psBBG) through the application of a transfrontal approach in canine cadavers. A total of ten canine cadavers, with weights ranging from 4.36 to 14.4 kg, were subjected to preoperative CT scans to generate 3D skull models. Customized biopsy guides were created based on these models and manufactured using 3D printing technology. Twenty spinal needle insertions were performed, and the accuracy of needle placement was evaluated through both CT and 3D volume-rendering techniques. The mean needle placement error was 2.1 mm, with no significant differences observed between insertions targeting the fronto-olfactory and piriform lobes. The 3D volume-rendering method demonstrated superior accuracy compared to the CT method, with statistically significant differences in placement errors for both targets. The average time required for the design and manufacture of the guides was 249 min. These findings indicate the high accuracy and potential clinical application of CT-based 3D-psBBG for improving diagnostic outcomes in veterinary neurology.
