Fire Evacuation Performance Simulation of Staircases Under Two Renovation Strategies for Early Modern Brick–Timber Buildings: A Case Study of a Hui-Shaped Chinese Baroque Architecture in Harbin

Abstract

It is a common phenomenon that the stairs of modern historical brick–timber buildings cannot meet existing fire protection specifications, something which has become a difficulty in their renovation. In response, this study proposes two different renovation strategies for the Hui-shaped Chinese Baroque brick–timber building in Harbin and constructs multiple fire scenarios. Using a coupled PyroSim–Pathfinder (version 2023.2.0816) simulation approach, a finite element model of the building under fire and a corresponding evacuation model are established. The aim is to investigate how variations in stair width, number, position, and overall building scale under the two renovation strategies influence evacuation movement time and the number of evacuation failures, and to compare the effectiveness of common fire protection measures. The results show that, for the same stair configuration and building mass, the fire development patterns of the two renovation strategies are similar. Increasing the stair width from the original 0.9 m to 1.1 m produces no significant improvement in evacuation performance. When the number of indoor existing stairways increases from one to two, the proportion of occupants evacuated safely rises from 68% to 91%. External corridor staircases provide the best evacuation performance, and a single such stair can satisfy the safe evacuation of all occupants. When the same additional floor area is provided, increasing the number of storeys extends the evacuation movement time by approximately twice that caused by increasing the building footprint. Automatic sprinkler systems and mechanical smoke exhaust systems exhibit more pronounced fire protection effects.

1. Introduction

According to existing research statistics, about 70% of Chinese modern historical buildings are built with wood or brick–timber structures, of which about 55% are seriously damaged due to lack of effective protection [1]. At the same time, most modern brick–timber buildings generally have the problem that the width and number of stairs cannot meet the existing fire safety codes. The renovation design is faced with the difficult contradiction between retention and demolition, which requires fire experts to conduct performance-based demonstrations for the scheme. However, it is often difficult to choose such a design because of the lack of effective experiments or scientific data.

Harbin’s Chinese Baroque Historic District (Daowai) is one of the city’s major conservation areas and contains over 280 modern brick–timber buildings. Multiple fires have been recorded in recent decades (Figure 1), highlighting the urgency of improving evacuation safety while maintaining architectural authenticity. However, experimental data for this building type are scarce, and comparative evidence on alternative renovation strategies remains limited.

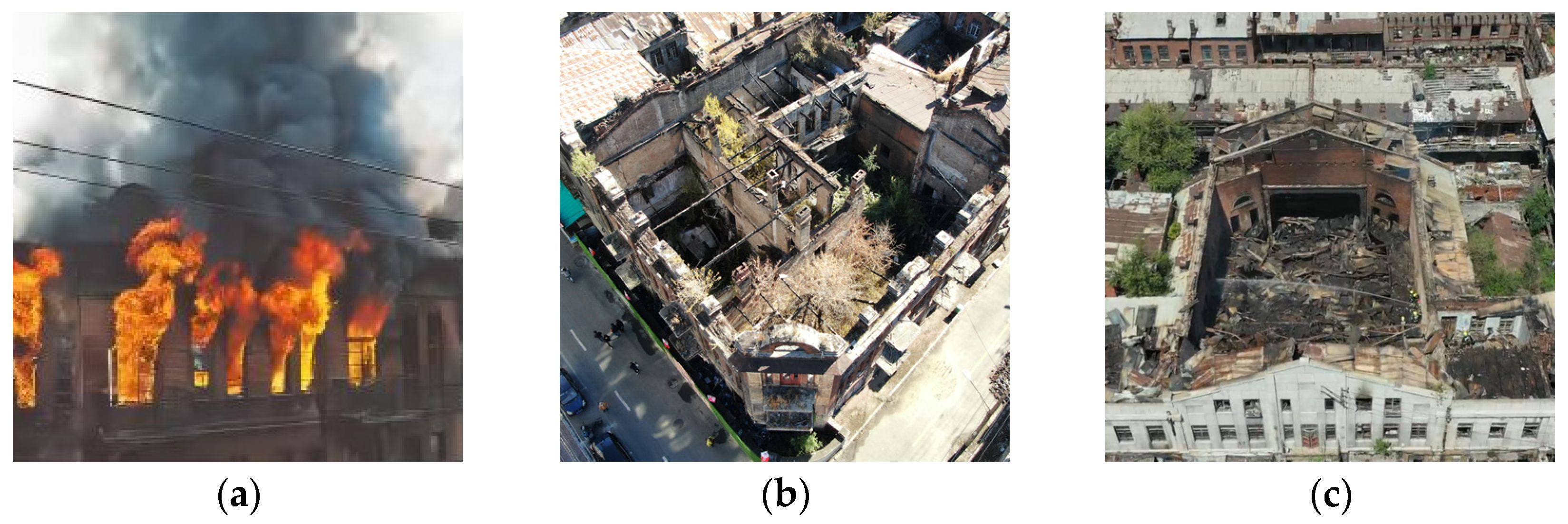

Figure 1. Chinese Baroque buildings damaged by fire: (a) Fire scene at Zhong Hua Inn; (b) current status of Zhong Hua Inn; (c) current status of Song Guang Cinema.

Theoretical research on building fire evacuation can be traced back to the 19th century, when studies primarily relied on case analyses and combustion experiments [2]. Combustion tests allow for the relatively accurate determination of material burning characteristics and pyrolysis behavior, but they are not suitable for investigating fire safety and evacuation at the whole-building scale. A methodological breakthrough occurred in the early 20th century. In 1983, Kumar proposed the fire field model, which has since become the basis of widely accepted mathematical models for fire simulation [3]. On this foundation, a series of fire simulation programs were developed and have been extensively applied to evacuation studies in commercial buildings, high-rise office towers, hospitals and other public buildings [4,5,6]. In 1988, the Society of Fire Protection Engineers published the first systematic SFPE Handbook of Fire Protection Engineering, which compiled fundamental data on occupant evacuation, combustion parameters of common fuels and basic fire characteristics, thereby providing an important foundation for subsequent research. Early on, the National Institute of Standards and Technology proposed empirical models for smoke development based on experimental data, and Emmons at Harvard University later introduced zone models; however, both approaches have inherent limitations [4,5].

Some of these modelling tools have been applied to assess the fire evacuation performance of individual historic buildings or historic building complexes. Chorlton et al. compared the fire resistance of heritage timber with contemporary engineered timber, and found that the fire performance of historic timber is inferior to that of glulam, with a charring rate approximately 20% higher; this work focused mainly on material pyrolysis behavior under fire [7]. Hu et al. used Pathfinder to simulate the evacuation of people with disabilities in historic buildings under fire-risk conditions [8]. Li Minghai et al. employed FDS to model fire development in the main hall of a traditional building [9]. Caliendo et al. conducted fire evacuation simulations for a multi-storey historic building, confirming the effectiveness of the existing fire protection systems under fire scenarios and suggesting that installing control systems at entrance corridors can help alleviate excessive congestion [10]. Węgrzyński et al. investigated smoke control in a historic building where a closed underground wine cellar was converted into a restaurant; using CFD to compare a conventional smoke exhaust and an intelligent smoke control system, they demonstrated that the intelligent system significantly improves smoke removal efficiency [11].

More recent work has coupled fire scenario construction with structural and evacuation response analysis. Xiaolie Yi et al. determined representative fire scenarios and heat release characteristics for historic timber buildings using fire-load surveys, and coupled PyroSim-derived ASET with Pathfinder-derived RSET [12]. Zhang B et al. developed a multi-scenario fire risk analysis framework and used an FDS–ABAQUS coupled model to evaluate fire spread, temperature evolution, and structural response, while extracting smoke, visibility, CO, and temperature fields to assess evacuation safety margins and propose mitigation measures [13]. The review article by B. Zhou and others on the analysis and fire safety research of historical buildings in China points out that the current research findings on these issues lack universality [14]. Although coupled fire–evacuation simulation has been widely adopted for large public buildings, its use in modern brick–timber heritage buildings remains limited, particularly for comparative evaluation of alternative renovation strategies under conservation constraints.

This study, based on existing research methods and foundational data on fire safety in historic buildings, selects the representative “Hui-shaped” brick–timber structure in the Harbin China Baroque District as a case study. The study employs the PyroSim–Pathfinder coupled approach to compare the effectiveness of 44 typical renovation strategies, including spatial micro-adjustment and courtyard capping. The focus is on discussing the impact of different renovation strategies, including stair width, number, and location, as well as building scale changes (expanding the footprint and adding floors), on evacuation movement time and failure rates. Additionally, the effectiveness of common fire safety measures is further evaluated.

2. Materials and Methods

2.1. Main Characteristics of Chinese Baroque Architecture

The historical buildings of the Harbin China Baroque District were constructed between the 1900s and 1950s, representing a typical example of modern brick-and-timber architecture. Although this architectural style is referred to as ‘China Baroque,’ it is not strictly Baroque in style, nor is it Neo-Baroque. The facades incorporate both Western and Chinese traditional symbols as decorative elements, making it an example of eclectic architecture in architectural history. In the 1980s, the architect Takahiko Nishi conducted a survey of modern architecture in Northeast China and found that the facades of modern buildings in the Daowai District of Harbin featured both Western Baroque characteristics and Chinese traditional decorative elements. The overall layout also followed the traditional Chinese courtyard style. He referred to this fusion of Western and Chinese cultural forms in both space and facades as “China Baroque architecture.” Therefore, this term has been used historically and remains in common use today due to the unique historical context of the architecture.

In the 1980s, Nishizawa Taihiko investigated modern architecture in Northeast China and noted that many buildings in Harbin’s Daowai District combine Baroque-inspired composition and detailing with traditional Chinese decorative symbols on their façades. In terms of spatial organization, these buildings often follow the courtyard-based layout of the traditional siheyuan (quadrangle dwelling). Owing to this cross-cultural fusion of spatial typology and façade vocabulary, he coined the term “Chinese Baroque architecture” to describe this building type. Since then, the term has been widely adopted in both academic and professional contexts and remains the conventional designation for these buildings and the district today [15].

• Facade Form

The whole building inherits the Western three-stage facade composition method. The entrance is mostly decorated with columns, the waist line of the building is decorated with layers of progressive moldings, the lower part of the cornice is set with scroll-shaped decorative components, and the parapet is mostly in the form of vase columns and bars with Art Nouveau movement symbols (Figure 2).

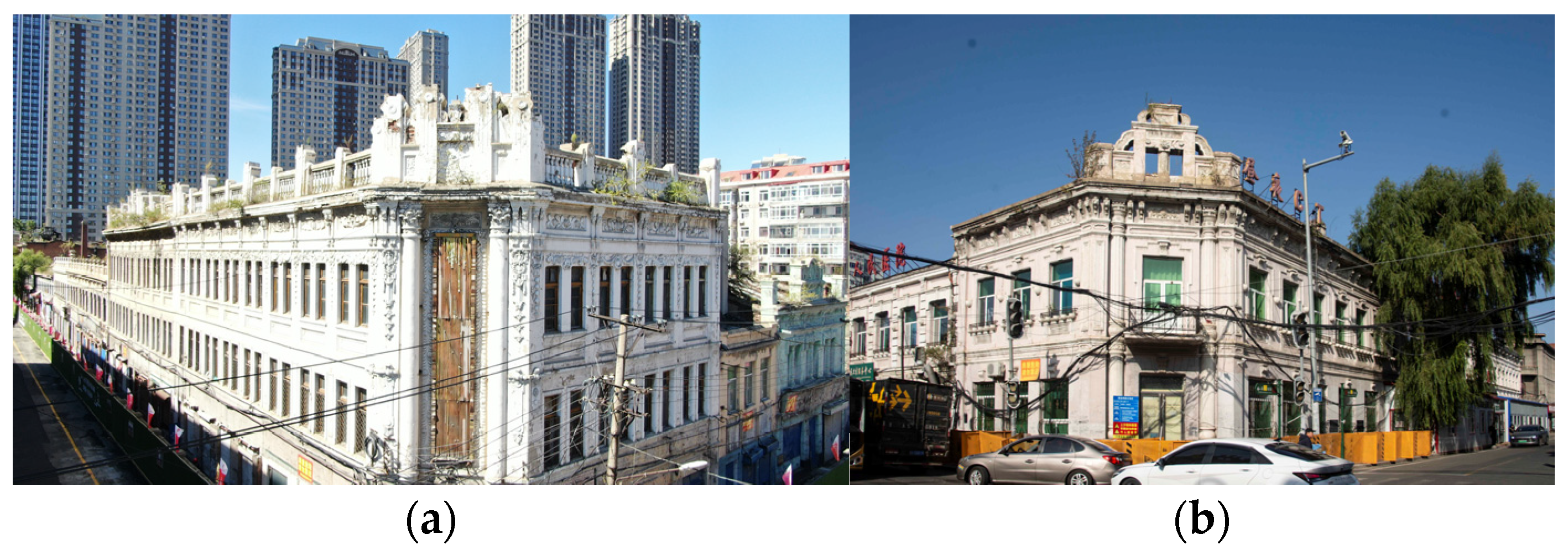

Figure 2. Typical building facade overall form: (a) Tailai Ren Shoes and Hats Store and (b) the current status of Zhong Hua Inn Daowai District People’s Hospital.

In terms of detail decoration, a large number of combinations of China and the West are adopted. Here, the western style is dominated by the Russian traditional wood decorative geometry, brick geometric geometry and arc arch in the Art Nouveau movement, while the Chinese style is represented by a decorative symbol with beautiful symbolic meaning (Figure 3).

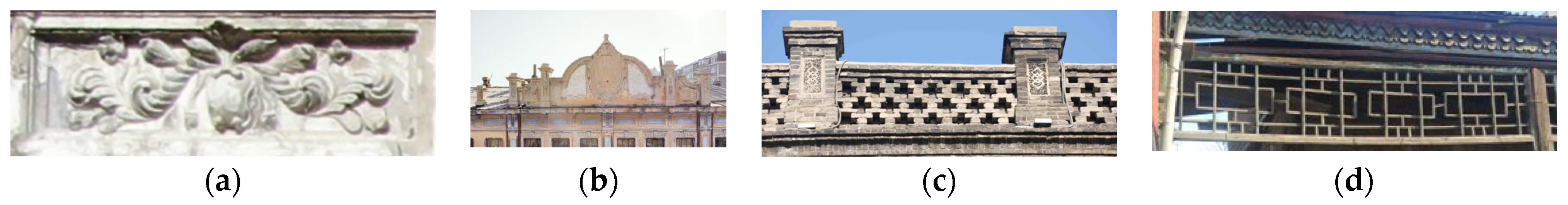

Figure 3. Detail decoration: (a) Traditional symbolic decoration; (b) Art Nouveau movement decoration; (c) brick geometric decoration; (d) wooden geometric decoration.

2.

Characteristics of Building Structure

The Chinese Baroque architecture in the Harbin Daowai historic district adopts the Western brick–timber structure, using brick walls as vertical load-bearing components and wood as horizontal load-bearing components. This structural system can increase the number of floors of the building and enrich the facade forms. The doors and windows are mostly built with brick arches, making the building more elegant as a whole. The roof adopts a galvanized iron slope roof design, which effectively avoids rain and snow accumulation and leakage, and significantly improves the durability of the building. At the same time, the closed roof space formed by the roof can block the cold air in winter and improve the comfort of use (Table 1).

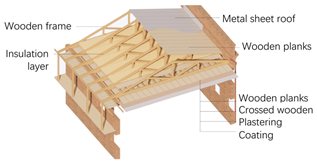

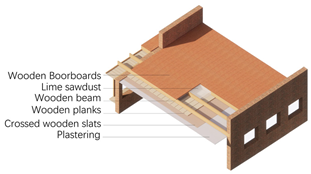

Table 1. Roof and floor structure.

	Roof Structure	Floor Structure
Construction model
Actual photos

3.

Spatial Layout Features

At the early stage of development, the Harbin Chinese Baroque district primarily served commercial and residential purposes, and many of the building patrons were ethnic industrialists and merchants from southern China. To accommodate mixed functions of retail, living, and production, a large proportion of buildings adopted a courtyard-based layout characterized by a “front shop–rear workshop” organization, among which the Hui-shaped plan is the most typical. The term “Hui-shaped” (a transliteration of the Chinese character “回”, referring to a courtyard-centered, loop-shaped spatial layout characteristic of traditional Chinese architecture.) denotes a courtyard-centered configuration in which the built mass encloses an internal courtyard as the spatial core (Figure 4). Collectively, these courtyard compounds form a cluster of 257 large courtyard buildings within the district [16]. Given the prevalence and representativeness of the Hui-shaped layout in the area, this study selects a Hui-shaped building as the research object.

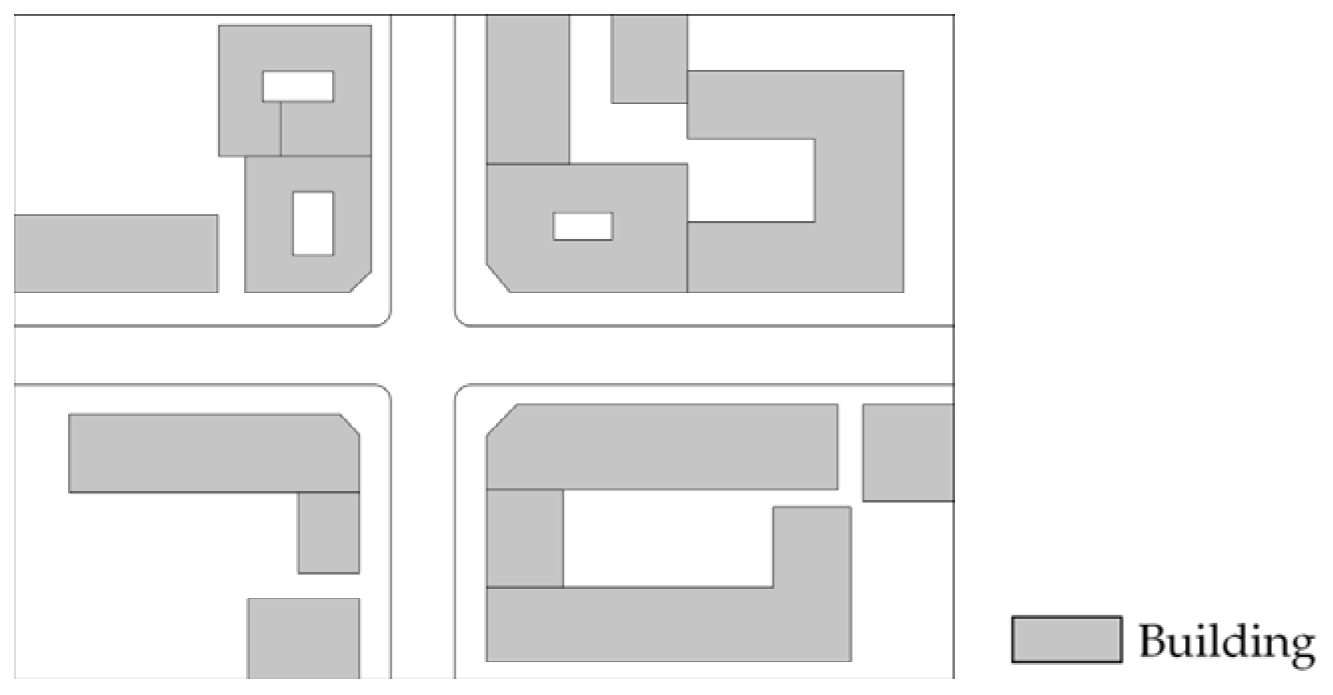

Figure 4. Extraction of typical spatial styles in blocks.

Among these buildings, there are single buildings in the shape of “Hui,” as well as the “Hui” layout formed by the combination of “I,” “L” and “concave” in the later stage. In this paper, the buildings with the initial layout of “Hui” shape are selected for research (Table 2).

Table 2. Typical single Hui-shaped buildings in the block.

	Representative Building	Floor Plan Style	Evacuation Style	Layers
Hui-shaped building at a typical scale				2F
	Yanshou Tang Pharmacy		External corridor staircases
	Name unknown, under renovation			2F
			Open stairwell
				3F
	Da Dong Bookstore		External corridor staircases
				2F
	Inn		Open stairwell
Hui-shaped building with an increased footprint area				2F
	Global pharmacy		Open stairwell
				3F
	Taihua pharmacy		Open stairwell
Building Open stairwell External corridor

2.2. Building Fire Hazards

There are many hidden dangers associated with historical buildings in the Harbin Zhonghua Baroque block, and it is common that these buildings do not meet existing fire protection design specifications. This is mainly reflected in the insufficiency of regional roads in terms of evacuation, in the use of flammable wood materials, in the narrow width and small number of stairs, etc. Among these, the choice of the repair design of stairs is the most difficult under the current principle of emphasizing the protection of historical buildings. According to incomplete statistics, the main fire hazards of the remaining stairs in the block are as follows below (Table 3).

Table 3. Fire hazards of remaining stairs in the block. (上: Up, 下: Down).

Insufficient Quantity	Narrow Space	Poor Location
Some buildings only have one step of stairs or no stairs.	The clear width of building stairs in the block is about 0.9 m.	The two staircases are close to each other and arranged randomly.

2.3. Proposed Renovation Strategies

There are three main directions for the renovation of modern historical buildings. First, for important buildings that are well preserved, attention should be paid to maintaining the original appearance and spatial structure, such as the renovation of the Bund in Shanghai. Second, it is important to show the original structural characteristics of the building by exposing the masonry, truss and other structures. The third direction encompasses the use of contemporary technology and reversible means to appropriately update the building on the basis of retaining historical elements, such as decoration, lighting or door and window reconstruction [17].

According to the spatial characteristics of the Chinese Baroque architecture in Harbin, and with the purpose of making efficient use of modern brick–timber buildings, this paper puts forward the renovation strategies of “Spatial micro-adjustment” and “Courtyard capping” on the basis of inheriting the characteristics of Chinese Baroque architecture.

• “Spatial Micro-Adjustment” Mode

At present, there are a large number of privately built partition walls on the first floor of historical buildings in the block. The second floor and above are mainly for office or residential functions, and the space division is relatively fragmented. After the renovation, the function is mainly commercial, and the business format may change at any time, so an open and flexible spatial layout is required. Therefore, the most reasonable and effective renovation method is to dismantle the existing light partition wall to form a large-scale variable space (Table 4).

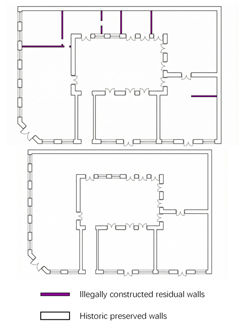

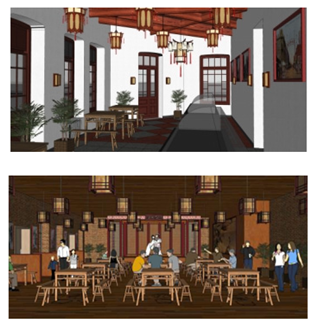

Table 4. Measures and effects of “spatial micro-adjustment” mode.

Operation Measures	Effect After Renovation
Demolition of partition wall	Regular and open space is conducive to commercial applications

This renovation approach aims to enhance spatial usability while preserving historical value. For the upper floors, which were originally subdivided into small rooms and later affected by added partitions and material deterioration, an initial assessment by experts is conducted to identify the partitions to be removed and the areas to be re-planned to meet contemporary commercial functions. Meanwhile, historical elements are carefully documented and retained. Subsequently, non-load-bearing partitions are demolished to reopen the interior space while maintaining the integrity of the original structural system. Finally, interior finishes and commercially oriented decorative interventions are designed in accordance with the building’s historic character, creating a renewed spatial atmosphere and contributing positively to improved functionality, attractiveness, and commercial vitality.

2.

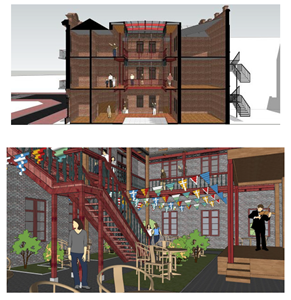

“Courtyard Capping” Mode

Due to the limitation of climate conditions, the building courtyard is not conducive to outdoor operation in winter, and the utilization rate is low. Therefore, under the “spatial micro-adjustment” mode, the courtyard with appropriate scale and allowable conditions is equipped with a daylighting roof, which makes half of the courtyard space an indoor space, thus increasing the use frequency of the courtyard in winter (Table 5).

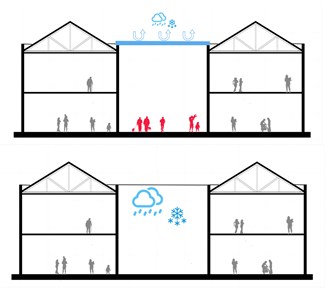

Table 5. Measures and effects of “courtyard capping.”

Operation Measures	Effect After Renovation
Add skylight outdoor courtyard indoor	Suitable for winter use

2.4. Key Points for Safe Evacuation

2.4.1. Key Fire Effluents

High temperature burns the human body, low visibility causes people to stay at a fire site for a long time, and serious physiological reactions caused by toxic gas inhalation are the main reasons for fire evacuation failures. The height of smoke, temperature, concentration of carbon monoxide and visibility of evacuees are the main factors affecting safety [18,19,20]. In previous studies on fire evacuation, the criteria for determining the failure of personnel evacuation are also centered on the above indicators, so this paper selects the temperature, visibility and carbon monoxide concentration in the fire environment as the indicators for safe evacuation.

2.4.2. Safety Evacuation Conditions

The real fire evacuation process is complex, divided into multiple stages, and there are many emergencies [17] (Figure 5). This study assumes that all personnel in the building are awake and that there are no emergencies. Due to the small building volume, the ignition duration of the fire source itself is not considered. Therefore, the evacuation movement time and its corresponding fire growth stage are selected for research. Coupling the evacuation process with the development process of the fire, and in combination with the boundary conditions, it is confirmed that the fire effluents affect the time required for safe evacuation (T_effect). The time from the start of personnel movement to the T_effect is the safe movement time. If the movement time is less than the T_effect, the evacuation is successful, otherwise, the evacuation fails (Figure 5).

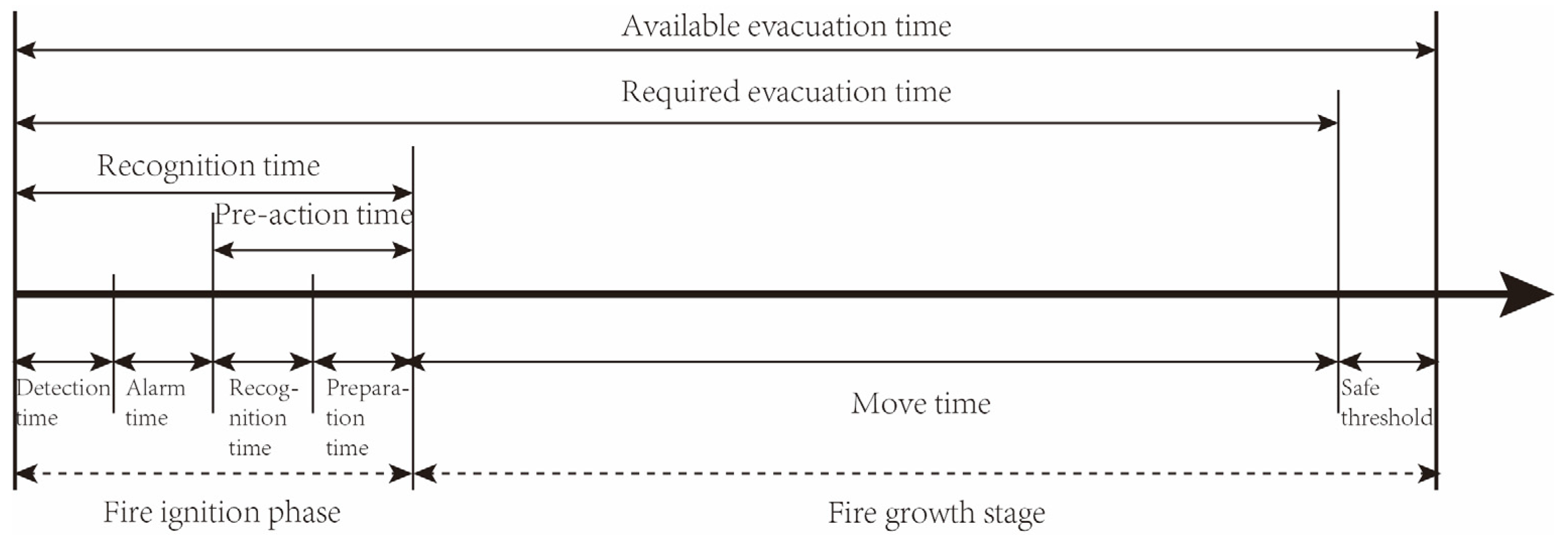

Figure 5. Illustration of the safety evacuation assessment process.

According to the existing research and relevant fire prevention codes, the boundary conditions of evacuation failure under the influence of various fire effluents are established (Table 6).

Table 6. Boundary conditions for safe evacuation.

Key Fire Effluents	Establishment Basis	Boundary Conditions for Safe Evacuation
Temperature	Australian fire engineering guidelines	When the height of a human head exceeds 60 °C at 1.7 m and exceeds 200 °C at 3.7 m under the ceiling, evacuation will fail
Visibility	In the basic principle of the impact of visibility on evacuees in fire, it is pointed out that personnel will not lose the ability to evacuate immediately due to reduced visibility [21]. According to existing research and calculation, when the visibility is 2 m, the evacuation speed will drop to 0.91 m/s, which will have a great impact on people [22].	If the visibility of personnel crossing is less than 2 m and lasts for 10 s or more, the evacuation will fail
CO concentration	Use the Stewart equation to calculate the time to reach different carboxyhemoglobin concentrations and the 1400 ppm concentration specified in SFPE [23].	100 ppm	300 s
		300 ppm	96 s
		500 ppm	60 s
		1400 ppm	Immediate failure

2.4.3. Simulation Method and Software Selection

This paper studies the fire evacuation of buildings by coupling the real-time development process of fire effluents generated by PyroSim with the evacuation process of Pathfinder. Both results can be displayed in the form of animation and can generate real-time slices and probe data of different fire effluents, which is conducive to observing the law of fire development and the impact of fire on evacuation.

PyroSim is a fire simulation software based on fire dynamics simulator (FDS). The FDS model has been extensively verified by experts from the National Institute of Standards and Technology (NIST) and other organizations in the United States, and its reliability for fire simulation has been fully confirmed [24]. Pathfinder is an agent-based simulator, which uses steering behavior to simulate human movement, and has passed the IEEE standard. The simulation results of PyroSim and Pathfinder can be mutually coupled.

2.5. Simulation Scheme

2.5.1. Establishment of Technical Route

The technical route of the simulation experiment is mainly divided into four stages. The preparation stage summarizes the building structure, materials and spatial forms in the block. In the experimental stage, the boundary conditions of the simulation are established based on the existing research. In the data reading stage, the fire simulation data and evacuation simulation data are coupled. Finally, in the result analysis stage, by comparing the coupling results with the boundary conditions, we can determine whether the working conditions can be safely evacuated. The specific process is as follows below (Figure 6).

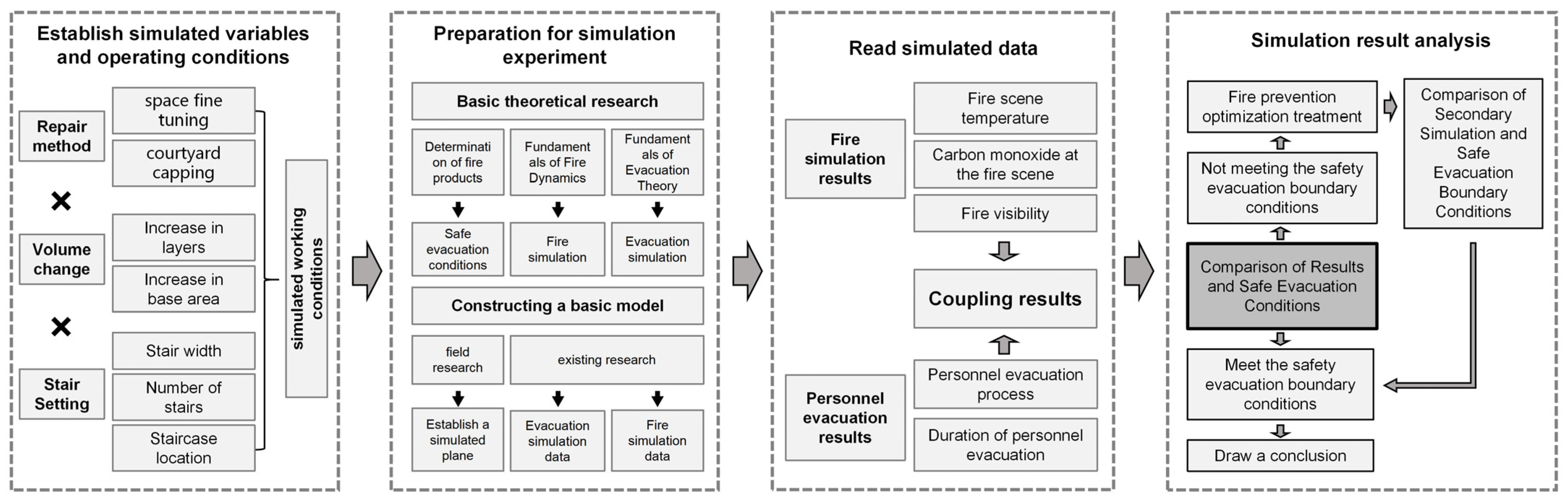

Figure 6. Technology roadmap.

2.5.2. Establishment of Simulation Scenarios Conditions

To address the fire evacuation challenges encountered in the restoration of Harbin Chinese Baroque buildings, this study employs computer-based simulation to achieve the following objectives:

(1)

To examine the fire development patterns and their differences under two restoration approaches: “spatial micro-adjustment” and “courtyard capping”.

(2)

For both restoration approaches, to investigate the influence of the existing staircase widths on fire evacuation performance, and to further assess the impact when the widths are increased to the minimum code requirement of 1.1 m.

(3)

For both restoration approaches, to analyze how different numbers of staircases affect fire evacuation.

(4)

For both restoration approaches, to explore the effects of different staircase locations on fire evacuation.

(5)

For both restoration approaches, to evaluate how changes in building volume—considered in both the horizontal and vertical dimensions—affect the performance of staircase configurations during fire evacuation.

Based on these objectives, the study selects restoration approach, building volume, and staircase width, number, and location as variables, resulting in a total of 44 fundamental simulation scenarios (Figure 7). In the case of large-volume buildings using indoor staircases for evacuation, scenarios A-L-2O-0.9 m, A-L-3O-0.9 m, and A-L-4O-0.9 m serve as the baseline, with corresponding sub-scenarios developed to examine variations in staircase locations.

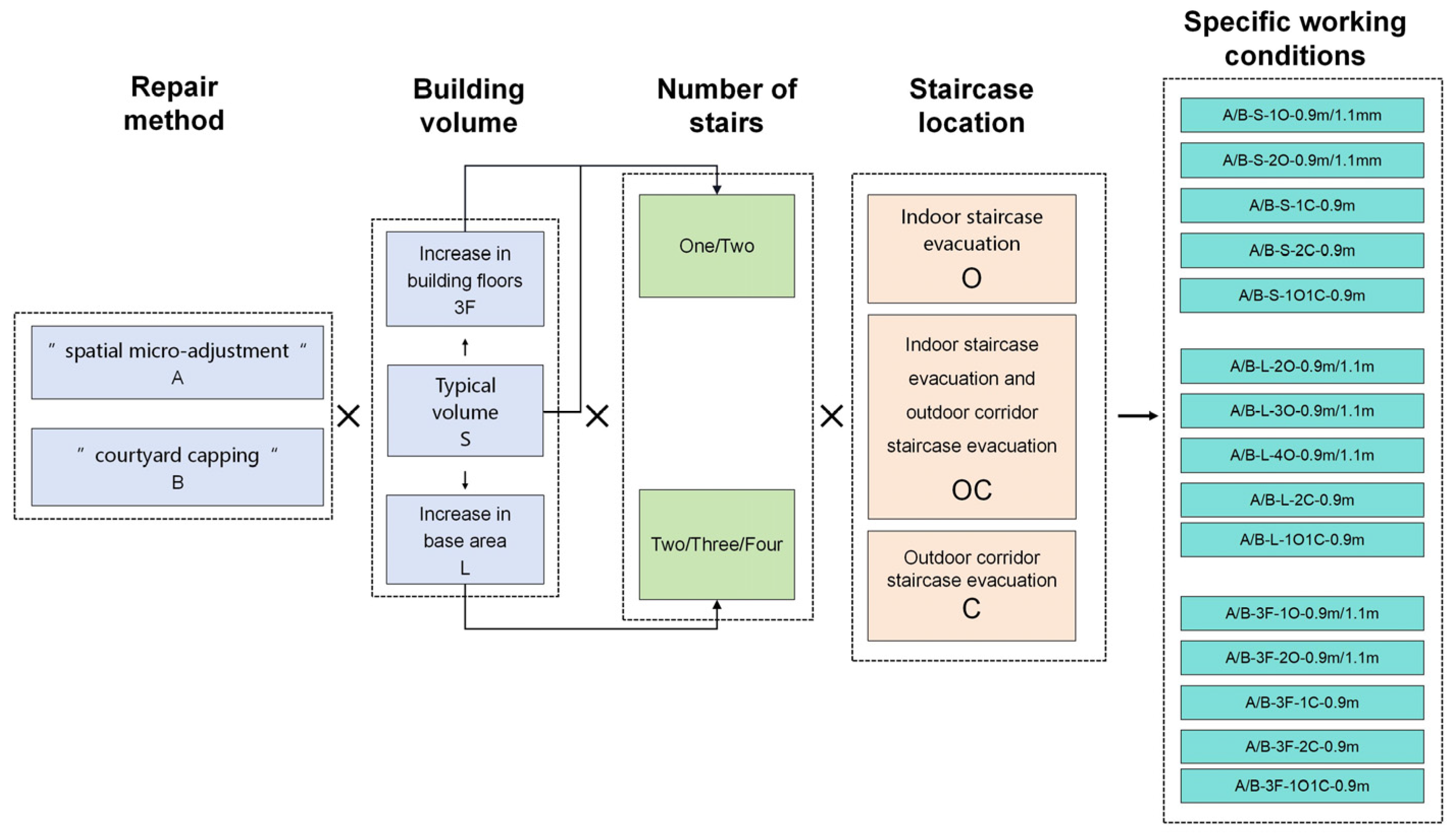

Figure 7. Establishment of simulation scenarios conditions.

2.5.3. Determination of Simulation Plane

By analyzing typical-scale Hui-shaped buildings within the block, their length-to-width ratios generally range from 1:1 to 3:2. The long side measures approximately 23–33 m, while the short side ranges from 13–31 m. The distance between the street-facing exterior wall and the courtyard-facing interior walls is 4–10 m.

For larger Hui-shaped buildings formed by increasing the base area, the length-to-width ratios tend to fall between 3:2 and 2:1. The long side measures around 60 m, the short side ranges from 23–33 m, and the distance between the street-facing exterior wall and the courtyard-facing interior walls is 6–13 m.

Considering that the primary post-restoration function is commercial use, and referencing nearby commercial buildings, the area occupied by obstacles is calculated as 20% of the usable floor area of the building and represented in the form of counters (Table 7).

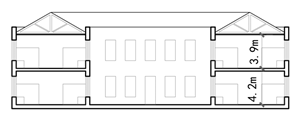

Table 7. Basic simulation model.

Building Volume	Plan	Section
Typical-scale foundation model
	First floor plan	Section-2F
	Second/third floor plan	Section-3F
Increased footprint area foundation model
	First/second floor plan	Section-2F

Determine the position of stairs in each simulation scenarios condition on the foundation plane (Table 8).

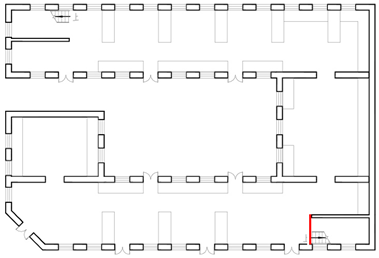

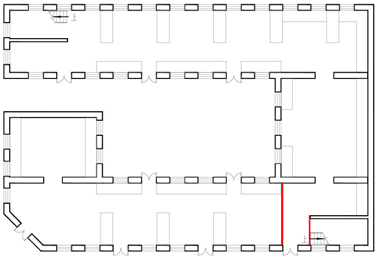

Table 8. Stair location.

Number of Stairs	Corridor Evacuation	Open Stairwell Evacuation	Combination of Two Ways of Evacuation
One step staircase
Two step staircases
Two step staircases
Three step staircases
Four step staircases

2.6. Establishment of the Fire Simulation Model

• Simulated Fire Source

The fire source is assumed to originate from the ignition of accumulated miscellaneous materials, with an ignition area of 1 m × 1 m. The heat release rate per unit area is set to 550 kW/m², and the growth rate of the heat release follows the system’s default settings [21].

The fire locations are selected at positions near the shelves in the central areas of the largest spaces on the first and second floors. These locations affect the greatest number of occupants, contain evacuation staircases, and provide spacious conditions conducive to observing the fire development process, thereby offering strong representativeness (Figure 8).

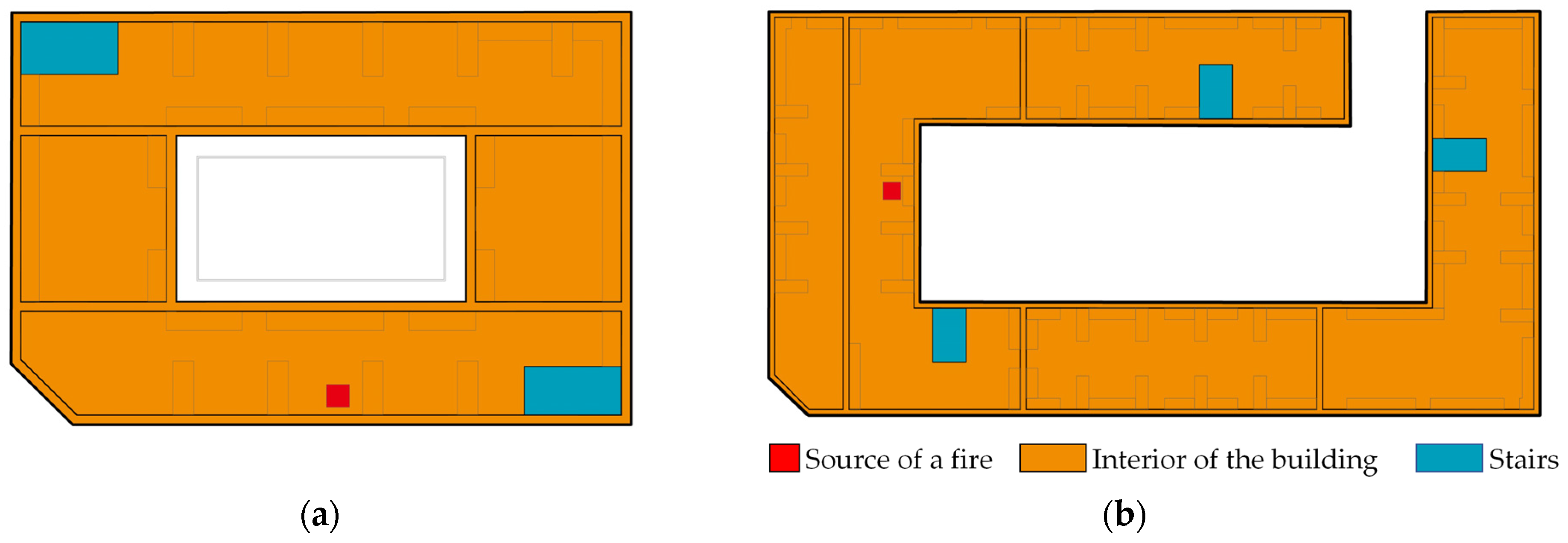

Figure 8. (a) Fire source location of a typical-scale building and (b) Location of fire source of an increased footprint area building.

2.

Combustion Material Setting

The exterior walls of the building are constructed of load-bearing red brick, while all horizontal load-bearing components are made of timber. Due to the age of the wooden structural elements and the building’s commercial function—where interior shelves accumulate large quantities of combustible goods and decorative materials—an ultra-fast fire growth rate is selected to simulate the worst-case fire scenario. Based on existing research, the following parameters are adopted [20] (Table 9).

Table 9. Combustion material parameters.

Combustion Material	Heat Release Rate	Ignition Temperature	Time Required for Full Combustion
Horizontal bearing member	390 kw/m2	270 °C	45 s
Obstacle	550 kw/m2	300 °C	54 s

3.

Simulated Environment

The simulated fires and combustibles are mainly concentrated in the building interior and are less affected by the outdoor wind environment, so the indoor wind speed is set as 0 m/s in the fire simulation. The number of open doors and windows of the building is set to 30% of the total number. The indoor temperature, visibility and CO concentration before the fire adopt the default values in the software (Table 10).

Table 10. Indoor basic environment.

Indoor Temperature	Visibility	CO Concentration
20 °C	30 m	0 ppm

4.

Simulation Grid

The FDS user manual does not provide explicit dimensions but suggests that the grid validity is typically assessed by the ratio of the characteristic fire diameter $D^{\ast }$ to the grid size $\delta x$ [25]. Referring to the existing research, when the research object is the local space or components in the building, the grid division is usually 0.1–0.3 m. When the space of the research object is simple and the volume is large, the grid division is between 0.3–0.5 m. The research object of this paper is a brick–timber structured building with a relatively simple internal space, and which does not include complex details. The window opening size is 1.2 m × 2.4 m, the door opening size is 1.2 m × 3.3 m, the wall thickness is 0.49 m, and the amount of obstacles is large. Considering the balance between simulation accuracy and computational efficiency, a base mesh size of 0.4 m × 0.4 m × 0.4 m was adopted in PyroSim. In the simulation, the primary building space where the fire source is located has been subdivided by a factor of 4 using mesh refinement zones, equivalent to a 0.1 m × 0.1 m × 0.1 m grid in FDS. The calculation shows that $D^{\ast }/\delta x\approx 11$, which complies with the FDS user manual’s recommendation of $4<D^{\ast }/\delta x<16$. As the fire spreads and develops, the $D^{\ast }/\delta x$ ratio for the 0.4 m grid will exceed 4.

5.

Slice and Probe Location

Determine the location of slices and probe points according to the boundary conditions of personnel safety evacuation and pre simulation. T represents temperature, D represents visibility, and co represents carbon monoxide. The temperature slices and probe points are taken as examples in the table. Among these, the location of slices and probing points on the third floor is the same as their relative positions on the second floor. Indoor probe points are set at the projection position, 0.5 m, 1.7 m, and 3.7 m away from the indoor floor of each floor, and the courtyard probe points are set at the projection position, 1.7 m, 3.7 m, 5.7 m, and 7.7 m away from the outdoor floor (Table 11).

Table 11. Location map of sections and probe points.

	Slice Layout		Probe Point Layout
Typical-scale building
Building with an increased footprint area

2.7. Establishment of Evacuation Simulation Model

A reasonable evacuation simulation model can truly reflect the evacuation time and movement characteristics of people inside the building. The model is first built based on specific scenario assumptions, and the number of people can be estimated according to the building function, city level and geographical location. The personnel attribute parameters are determined by integrating relevant domestic and foreign specifications, research literature and local actual conditions.

• Basic assumptions of evacuation simulation

The actual evacuation situation in fire is complex and changeable, so assumptions and limitations should be made before simulation.

• (1)

  The research object is a historical district with a strong business atmosphere. Only those who have the ability to evacuate independently are considered, excluding those who need assistance from others.

  (2)

  The walking speed of personnel is determined according to the existing literature, assuming that the speed of all evacuees is consistent. When the traffic density increases or the passage is narrow, congestion may occur and affect the speed and route of subsequent personnel.

  (3)

  In the simulation, sudden behaviors such as retrograde and panic are not considered, and it is assumed that all personnel evacuate to the nearest exit.

  (4)

  It is assumed that the fire alarm system is activated manually by occupants upon the onset of the fire, initiating evacuation throughout the entire building. The movement time during the evacuation phase is calculated without considering potential device failure.

2.

Evacuation Parameters

According to the research on the density of people in business rooms and the walking speed of people during evacuation, and in combination with the characteristics of the block itself, the basic characteristics of evacuees are set as follows [20,26,27,28] (Table 12).

Table 12. Personnel characteristic parameters.

Evacuation Speed at Walkway	Evacuation Speed of Staircase	Male Shoulder Width	Female Shoulder Width
1.25 m/s	1.0 m/s	0.41 m	0.39 m

When determining the specific number and density of users inside the building, the main factors to be considered include the function of the building, users, urban grade, location, etc. Referring to the existing research on the density of people in business rooms, and comparing with the same type of blocks in the city, it is determined that the peak density of building personnel is 0.25 people/m². People are randomly distributed in each zone, and there are no evacuees on the stairs. The total number of people evacuated under different schemes is shown in the table below [29,30,31] (Table 13).

Table 13. Total number of evacuees under different schemes.

	Typical-Scale Hui-Shaped Building -2F	Typical-Scale Hui-Shaped Building -3F	Hui-Shaped Building with an Increased Footprint Area -2F
Total number	154	233	461

3. Results

3.1. Effect of Staircase Configuration on Safe Evacuation Under a Typical-Scale Building

3.1.1. Effect of Stair Width on Safe Evacuation

First, based on a two-storey typical-scale building, one open staircase is set indoors, and two different widths of 0.9 m and 1.1 m are selected for simulation (Table 14).

Table 14. Simulation scenario conditions of different stair widths (A-S-1O-0.9 m and A-S-1O-1.1 m).

Typical-Scale	A-S-1O-0.9 m	A-S-1O-1.1 m

When the stair width increases from 0.9 m to 1.1 m, the duration of evacuation movement decreases by 7.1%, and the optimization effect is not obvious (Figure 9).

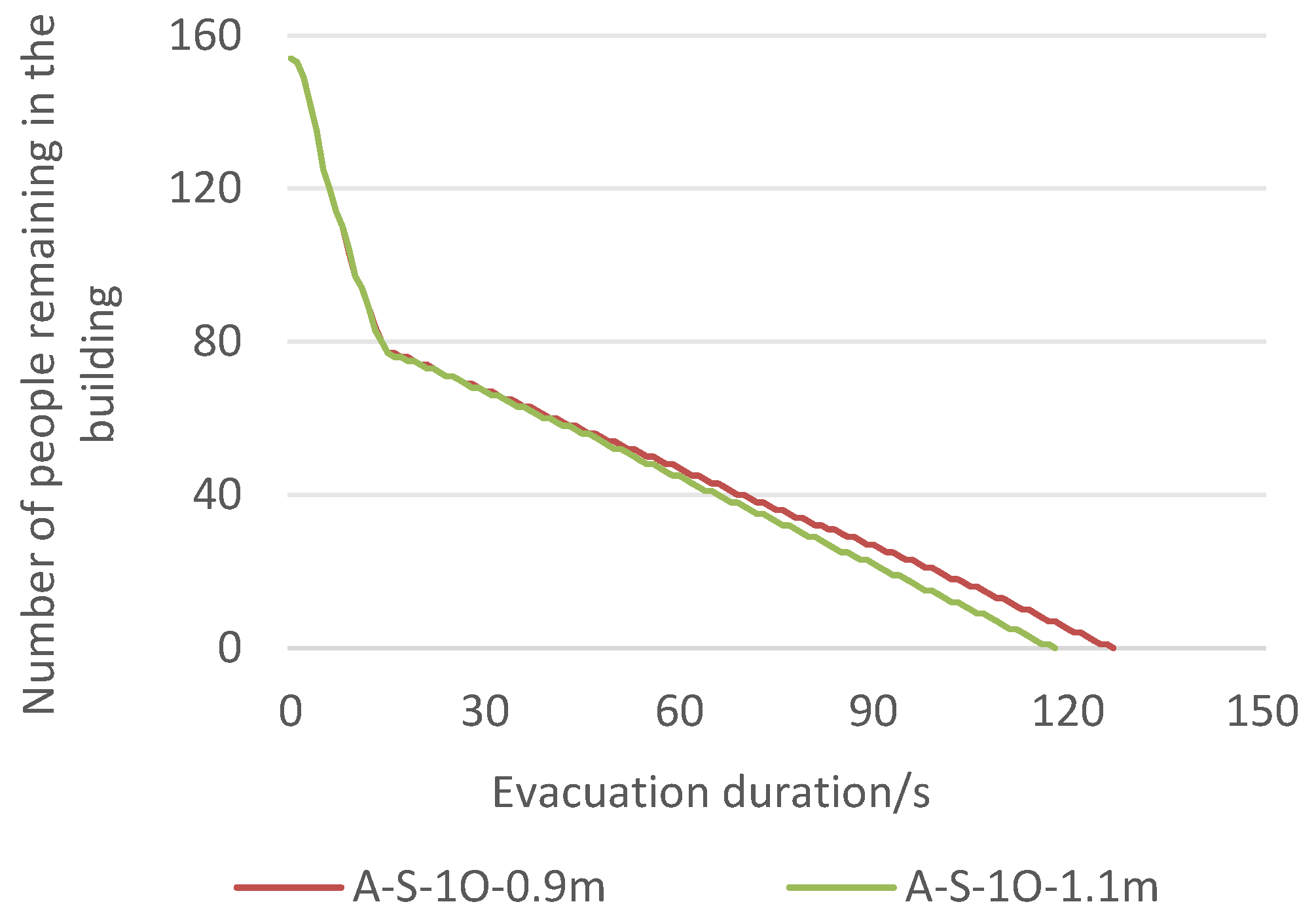

Figure 9. Evacuation duration under different stair widths.

By comparing the impact of fire effluents on evacuation under the two renovation strategies, it can be seen that only B-S-1O-0.9 m T_effct was advanced after adding skylights in the courtyard, which led to a slight increase in the number of evacuation failures (Table 15).

Table 15. Comparison of the number of evacuation failures under the two renovation strategies.

		A-S-O-0.9 m	B-S-O-0.9 m
Temperature effect	Teffect	111 s	109 s
	Total number of evacuees/ Number of evacuation failures	154/3	154/4
Visibility impact	Teffect	95 s	91 s
	Total number of evacuees/ Number of evacuation failures	154/11	154/13

This outcome is mainly attributed to the fact that the indoor fire development trends under the two renovation strategies are generally similar. However, under the courtyard-capping strategy, the heat release rate becomes slightly higher than that of the spatial micro-adjustment strategy after 80 s. When the fire source is on the first floor, the fire hazard under the courtyard roofing strategy is more pronounced than that under spatial micro-adjustment; when the fire source is on the second floor, the fire growth rates under the two renovation strategies are similar (Figure 10).

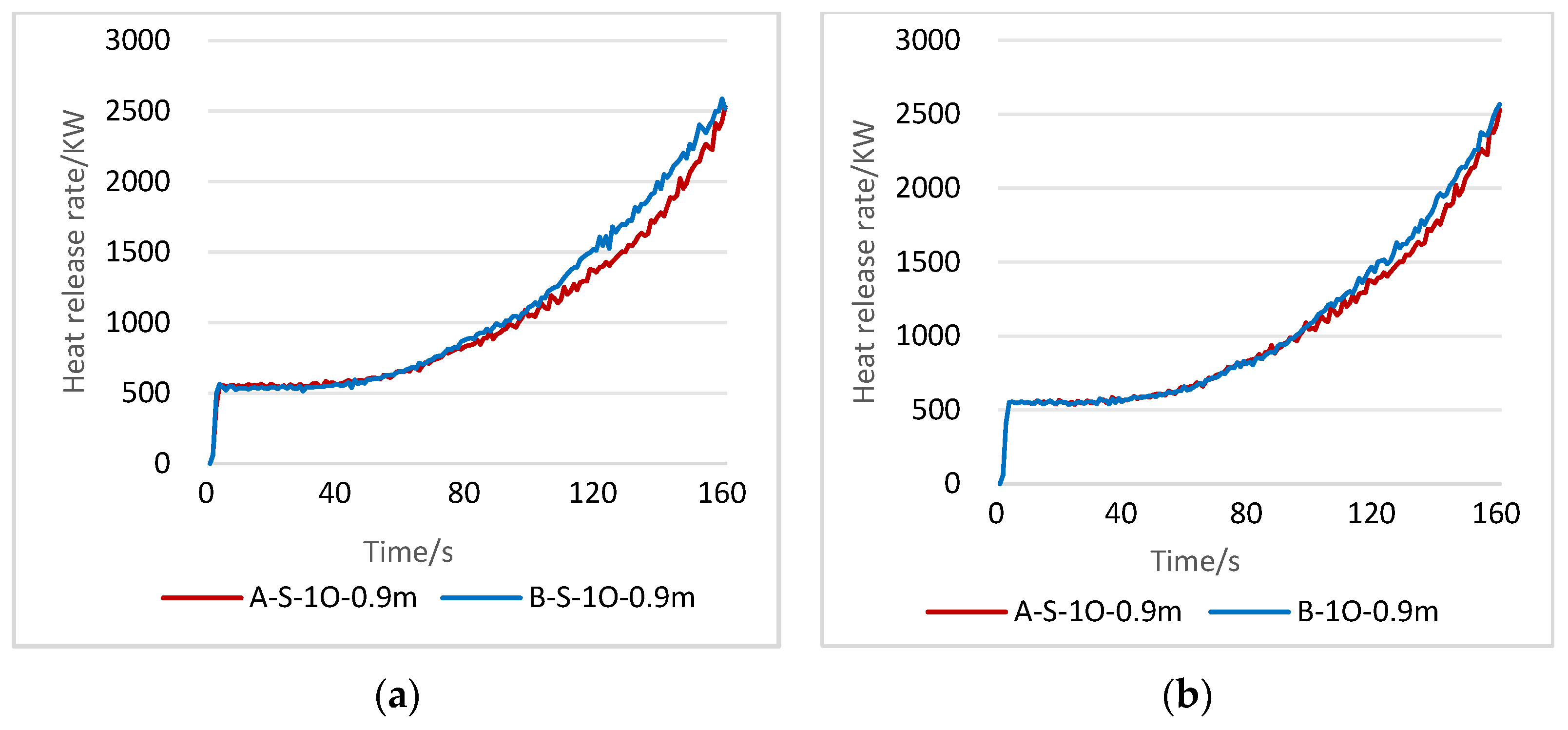

Figure 10. (a) The fire source is located on the first floor. (b) The fire source is located on the second floor.

The increased heat release rate accelerates the accumulation of smoke and heat, causing tenability indicators to reach critical thresholds earlier, which is reflected by an earlier occurrence of T_effect in the cases where T_effect > 80 s. As the tenability margin decreases, adverse conditions along the evacuation routes affect occupants at an earlier stage, resulting in a higher number of evacuation failures under the courtyard-capping strategy when compared with the spatial micro-adjustment strategy.

Under both renovation strategies, the adverse impact of reduced visibility on evacuation is generally greater than that of temperature. However, the dominant hazard depends on the floor of fire origin: when the fire starts on the first floor, temperature-related exposure is more critical (Table 16), whereas when the fire starts on the second floor, visibility becomes the primary limiting factor (Table 17). In addition, increasing the clear stair width from 0.9 mm to 1.1 mm does not necessarily reduce evacuation failures; instead, the wider stair may accelerate upward smoke spread, thereby aggravating visibility-related risks on the upper floor (Table 17).

Table 16. Coupled results of temperature and evacuation process (A-S-1O-0.9 m and A-S-1O-1.1 m).

	A-S-1O-0.9 m	A-S-1O-1.1 m
The fire source is located on the first floor
	2F-S-TY = 1.8 m	2F-S-TY = 2.0 m
	Under the temperature criterion, Teffect = 111 s, and 3 occupants failed to evacuate.	All occupants cleared the second floor by 99 s; a high-temperature region (≥60 °C) appeared in the stairwell by 121 s, and no evacuation failures occurred.
The fire source is located on the second floor
	2F-S-TZ = 1.7 m	2F-S-TZ = 1.7 m
	When occupants cleared the second floor, more than 85% of temperatures in the S–D zone were within 30–40 °C, while temperatures along the two gable wall zones were mainly 40–45 °C	When occupants cleared the second floor, more than 85% of temperatures in the S–D zone were within 30–35 °C, while temperatures along the two gable wall zones were mainly 35–45 °C.

Table 17. Coupling results of visibility and the evacuation process (A-S-1O-0.9 m and A-S-1O-1.1 m).

	A-S-1O-0.9 m	A-S-1O-1.1 m
The fire source is located on the first floor
	2F-S-DZ = 1.7 m	2F-S-DZ = 1.7 m
	Under the visibility criterion Teffect=95, 11 occupants failed to evacuate.	Under the visibility criterion Teffect=61, 30 occupants failed to evacuate.
The fire source is located on the second floor
	2F-S-DZ = 1.7 m	2F-S-DZ = 1.7 m
	In both scenarios, the most adverse conditions occurred at stairwell O-1. At 31 s, the visibility in the second-floor waiting area of the stairwell and in the strip-shaped zone formed between the stairwell and the gable wall decreased to below 2 m. Under the visibility criterion Teffect = 41 s 50 occupants failed to evacuate in A-S-1O-0.9 m and 43 occupants failed in A-S-1O-1.1 mm.

When the fire source is located on the second floor, the visibility is more threatening. This is because the area with visibility less than 2 m first gathers on the gables on both sides, resulting in the failure of evacuation of a large number of people waiting here (Table 17).

The overall distribution of CO is similar to that of high temperature and low visibility. The high concentration area is mainly distributed in the higher space. The CO concentration at the 1.7 m section is mainly distributed in the range of 30–150 ppm. The evacuees in all working conditions are not affected by CO.

3.1.2. Effect of Staircase Number on Safe Evacuation

Based on the situation in 3.1.1, an identical stairwell is added indoors to explore the impact of the number of stairwells on the duration of evacuation (Table 18).

Table 18. Simulation conditions of different number of stairs (A-S-2O-0.9 m and A-S-2O-1.1 m).

Typical scale	A-S-2O-0.9 m	A-S-2O-1.1 m

After adding one additional staircase, the evacuation movement time decreased by approximately 40% in both scenarios. Further increasing the clear stair width from 0.9 m to 1.1 m reduced the evacuation movement time by about 10% (Figure 11).

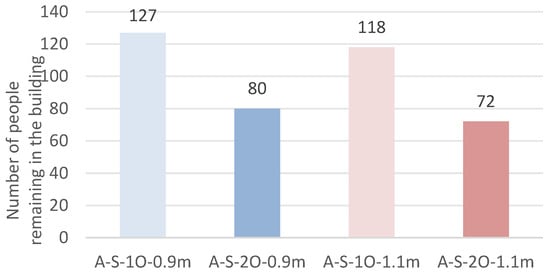

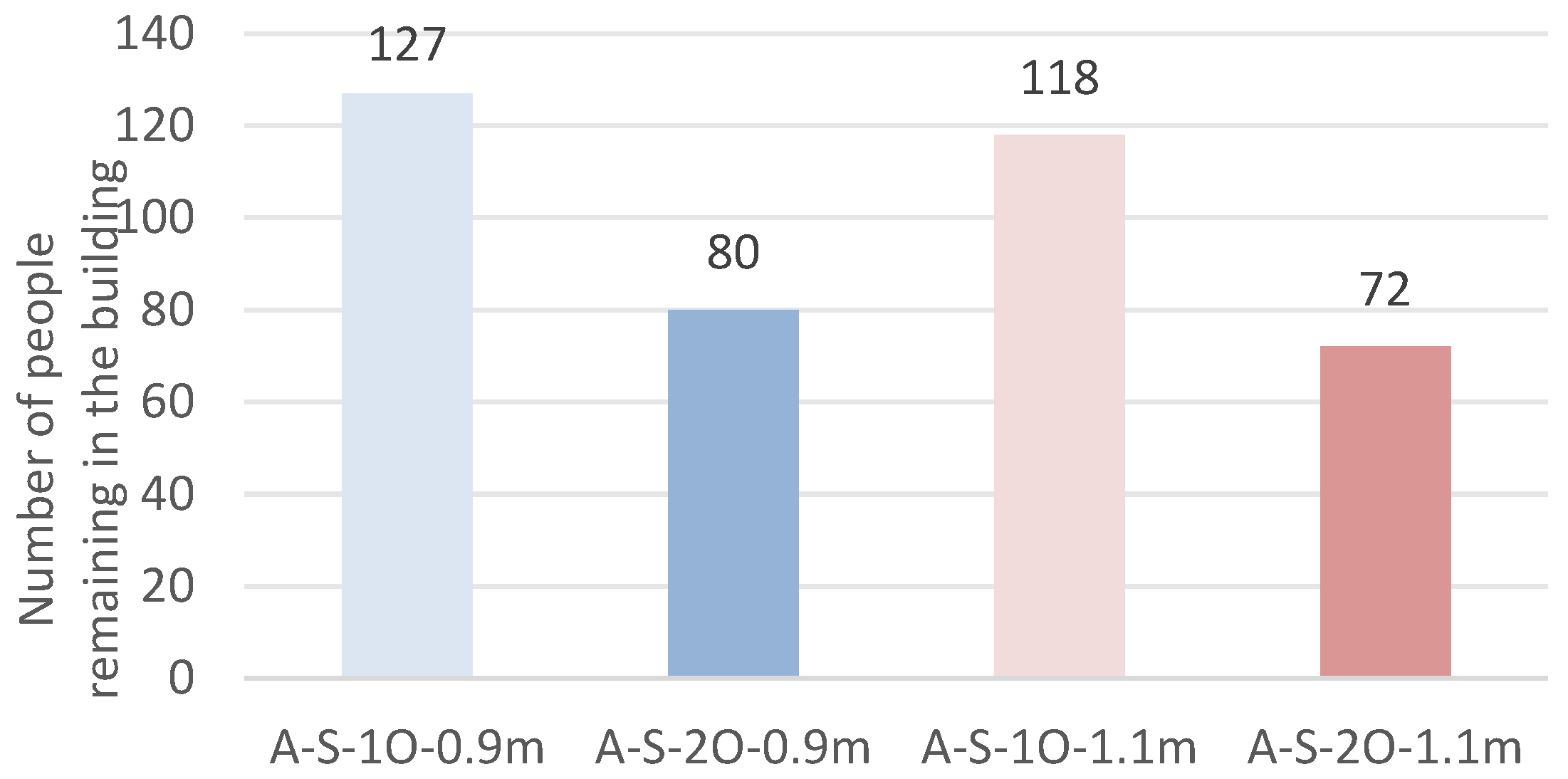

Figure 11. Evacuation movement duration with different number of stairs.

A comparison of the effects of fire effluents on evacuation under the two renovation strategies shows that, after increasing the number of staircases, the evacuation movement time for all stair width configurations remained below 80 s. Accordingly, the fire heat release rates during the evacuation period were comparable between the two strategies, and no additional evacuation failures were observed. With two staircases, none of the scenarios experienced temperature-induced evacuation failures. However, when the fire originated on the second floor, visibility remained the governing constraint: across the two scenarios (A-S-2O-0.9 m and A-S-2O-1.1 m), a total of 22 occupants failed to evacuate, representing a 73.2% reduction when compared with the single-staircase condition (Table 19).

Table 19. Coupling results of visibility and the evacuation process (A-S-2O-0.9 m and A-S-2O-1.1 m).

	A-S-2O-0.9 m	A-S-2O-1.1 m
The fire source is located on the second floor
	S-DZ = 1.7 m	S-DZ = 1.7 m
	In both scenarios, the most adverse conditions occurred at stairwell O-1. At 31 s, the visibility in the second-floor waiting area of the stairwell and in the strip-shaped zone formed between the stairwell and the gable wall dropped to below 2 m, yielding a visibility-based Teffect of 41 s. Under the visibility criterion, 14 occupants failed to evacuate in A-S-2O-0.9 m, whereas 8 occupants failed in A-S-2O-1.1 m.

3.1.3. Effect of Staircase Location on Safe Evacuation

When the width of the stair is 0.9 m, the different positions of the stair are simulated (Table 20).

Table 20. Simulation conditions of different number of stairs (A-S-1C-0.9 m, A-S-2C-0.9 m and A-S-1C1O-0.9 m).

Typical-scale	A-S-1C-0.9 m	A-S-2C-0.9 m	A-S-1C1O-0.9 m

When only one staircase is provided, its location has almost no effect on the evacuation movement time. In contrast, when two staircases are available, adopting an exterior corridor stair reduces the evacuation movement time by approximately 8.6–11.2%. This is because the exterior corridor stair is typically located closer to the building center and enables a more balanced use of the staircases (Figure 12).

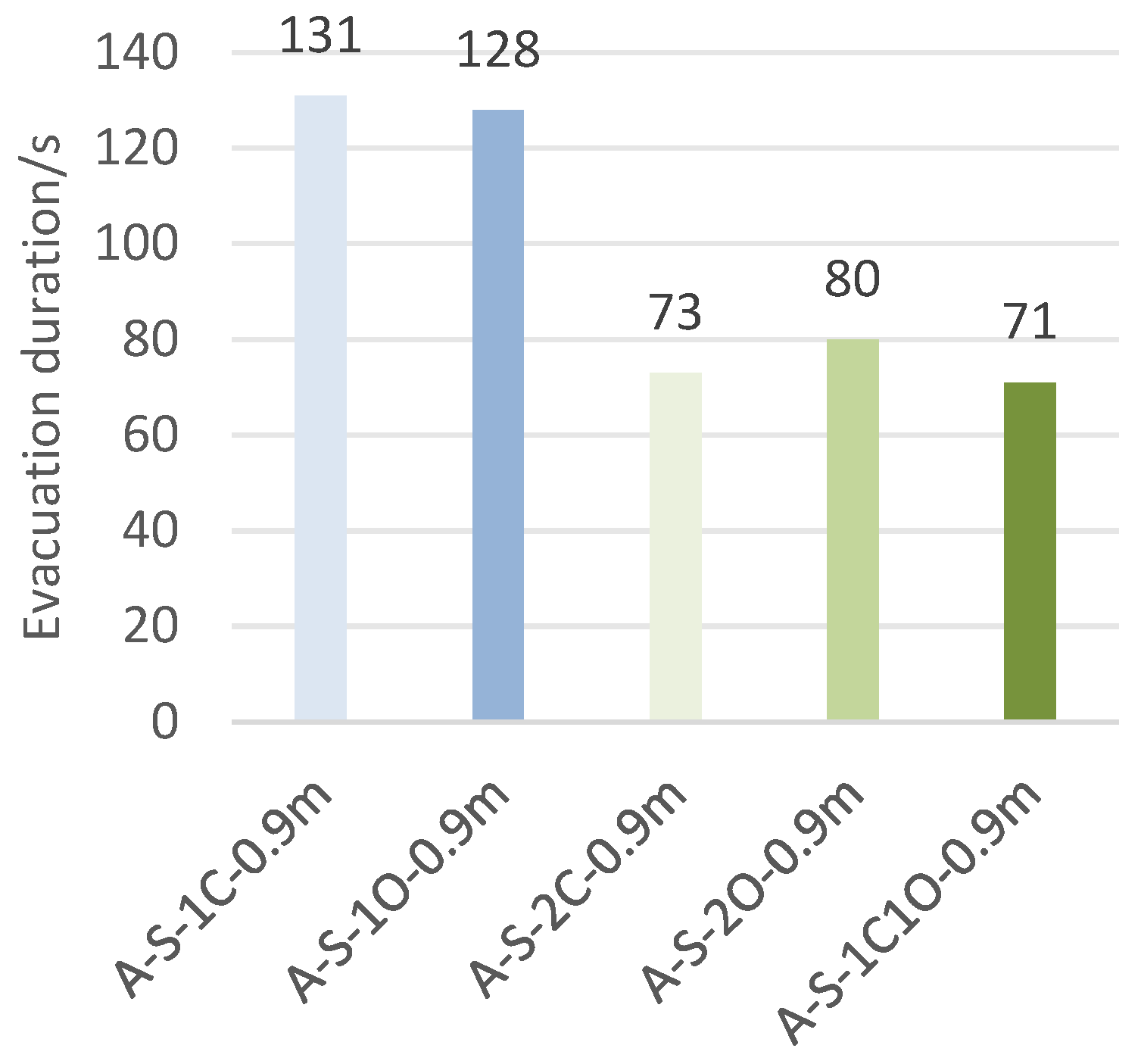

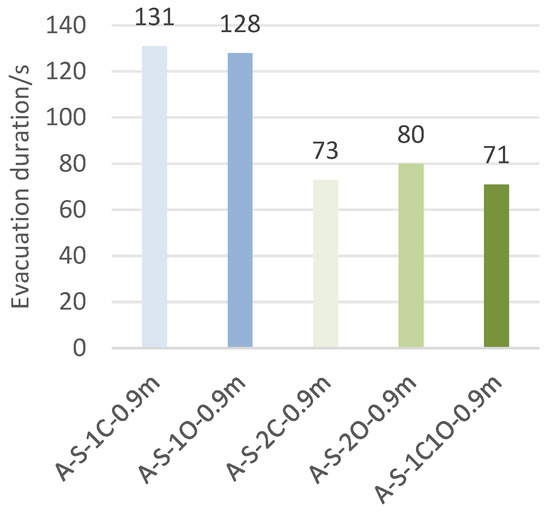

Figure 12. Duration of evacuation movement under different stair positions.

Evacuation via an exterior corridor stair can effectively reduce occupants’ exposure to indoor fire effluents. Therefore, when both an exterior corridor stair and an open stairwell are available, occupants should be preferentially guided to use the exterior corridor stair so as to minimize the adverse effects of fire effluents on evacuation. The renovation strategy of “courtyard capping” did not increase the number of people who failed to evacuate.

3.2. Effect of Staircase Configuration on Safe Evacuation After Scale Increase

3.2.1. Effect of Staircase Configuration on Safe Evacuation After Increased Footprint Area

• Effect of Stair Width on Evacuation

After the base area was increased, the building’s total floor area became approximately 2.7 times that of a prototypical building. Using the staircase arrangement of the prototypical building as a reference, simulations were carried out (Table 21).

Table 21. Simulation scenario conditions of different stair widths(A-S-1C-0.9 m and A-S-2C-0.9 m).

Increased footprint area	A-S-1C-0.9 m	A-S-2C-0.9 m

The evacuation movement time was approximately 1.4 times that of the typical-scale building. Increasing the clear stair width from 0.9 m to 1.1 m reduced the evacuation movement time by 8.3%. Although evacuation took longer after footprint enlargement, the increase in internal space facilitated heat dispersion, (Table 22) leading to a noticeable reduction in the number of evacuation failures attributable to reduced visibility. The additional evacuation time did not reach the threshold at which fire effluents posed a threat to occupants. These results suggest that, within a certain range, enlarging the building footprint can be beneficial for evacuation performance.

Table 22. Coupled results of temperature and evacuation process (A-L-2O-0.9 m and A-L-2O-1.1 m).

	A-L-2O-0.9 m	A-L-2O-1.1 m
Fire source on the first floor
	S-TX = 14.3 m	S-TX = 14.3 m
	The worst conditions occur at O1. Occupants evacuating via O1 clear the second floor at 165 s, when stairwell temperatures are mainly 35–43 °C; by 180 s, gases hotter than 60 °C enter the O1 stairwell.	The worst conditions occur at O1. Occupants evacuating via O1 clear the second floor at 148 s, when stairwell temperatures are mainly 33–40 °C; by 180 s, gases hotter than 60 °C enter the O1 stairwell.

2.

Effect of Staircase Number on Safe Evacuation

The number of stairs is increased from two to three and four to explore the impact of changes in the number of stairs on evacuation (Table 23).

Table 23. Simulation conditions of different number of stairs(Three Stairs and Four Stairs).

Increased footprint area	ThreeStairs	FourStairs
	A-L-3O-0.9 m	A-L-4O-0.9 m
	A-L-3O-1.1 m	A-L-4O-1.1 m

When the number of stairs increased from two to three, the evacuation movement time decreased by about 25%, which was more obvious. When the number of stairs increased from three to four, the evacuation movement time was not significantly reduced, and the reduction was within 10%.

The above reasons are mainly due to the fact that, when the stairs are increased from two to three, the evacuation pressure of the original stairs is greatly relieved and the overall evacuation efficiency is improved. When the stairs are increased from three to four, the use efficiency of O₃ and O₄ is not high, which leads to the overall efficiency improvement becoming less clear.

3.

Effect of Staircase Location on Safe Evacuation

Staircases with a clear width of 0.9 m were selected for simulation under conditions with two, three, and four staircases, to analyze the impact of different staircase locations (Table 24).

Table 24. Simulation conditions of different number of stairs (Position Change).

	Stair Position Change Condition
Two stairs
	A-L-2O-1	A-L-2O-2	A-L-2O-0.9 m	A-L-2O-3	A-L-2O-4
	A-L-2O-5	A-L-2O-6	A-L-2C-0.9 m	A-L-1C1O-0.9 m
Three stairs
	A-L-3O-1	A-L-3O-0.9 m	A-L-3O-2	A-L-3O-3	A-L-3O-4
Four stairs
	A-L-4O-0.9 m	A-L-4O-1	A-L-4O-2

• (1)

  Two Stairs

When the two stairs are located at the end of the long side, the evacuation time is shortest. When the distance between the two stairs is within 25 m, and one of them is less than 15 m from the end of the corridor, the evacuation movement duration is the longest, which is not conducive to evacuation. When the distance between the two staircases’ exits is between 35 m and 90 m, the evacuation time is close. Unlike smaller buildings, when the base area increases, the evacuation time for exterior corridor staircases becomes longer than that of the open staircases located in the same position (Figure 13).

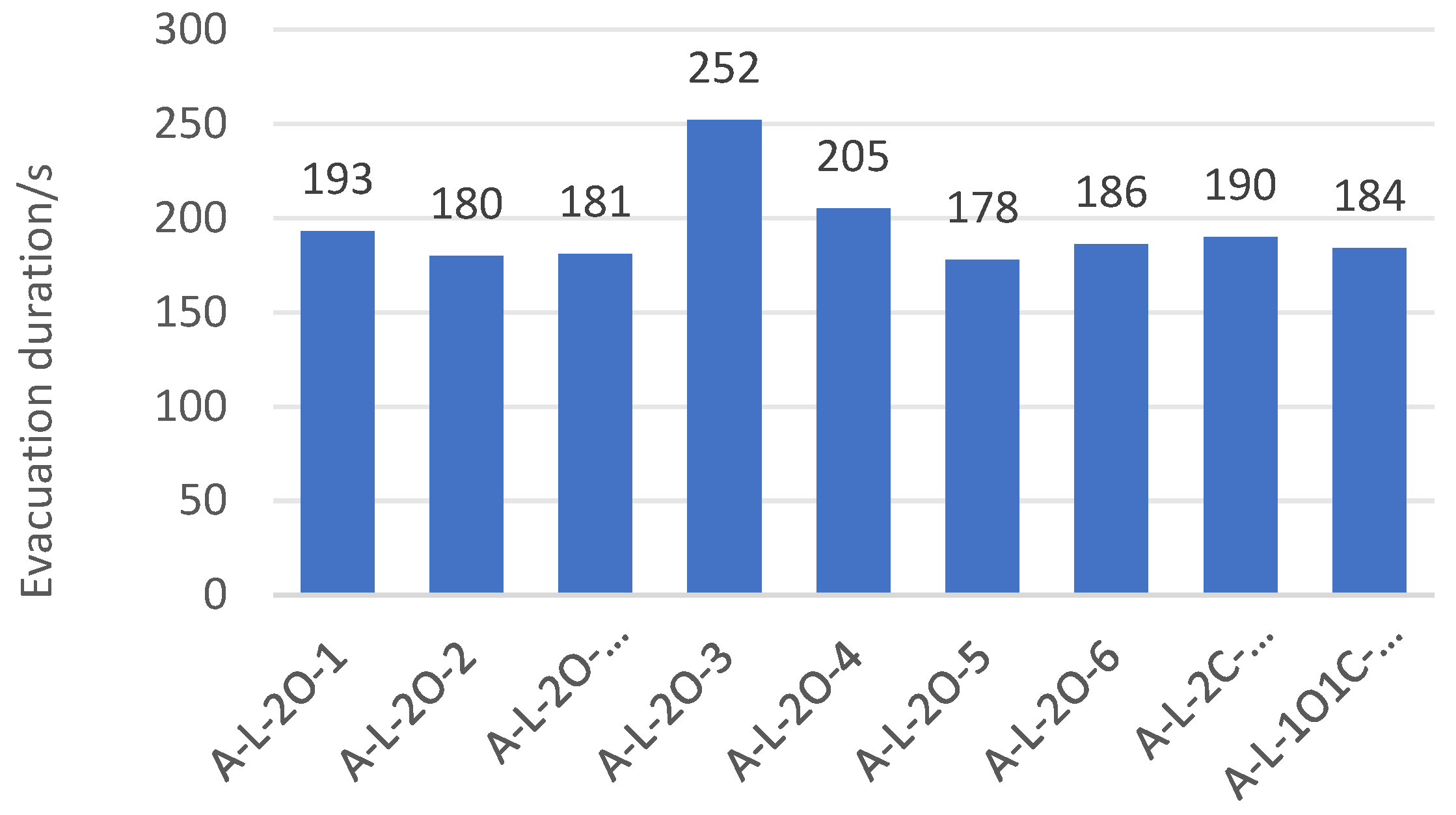

Figure 13. Evacuation duration at different locations.

This is because, when the corridor is used for evacuation, there are too many directions for evacuees at the entrance of the corridor. This results in a certain amount of congestion, which will prolong the evacuation time (Table 25—a comparison of evacuation between open stairs and corridor stairs).

Table 25. Comparison of evacuation between open stairs and corridor stairs.

A-L-2O-0.9 m	A-L-2C-0.9 m
When an open staircase is used for evacuation, there are at most people from two directions at the entrance of a single staircase.	When the corridor stairs are used for evacuation, there are at most people from three directions at the entrance of a single staircase.

When the distance between two stair exits is less than 25 m and one of the exits is located within 15 m of the corridor dead end, congestion or arching phenomena are highly likely to occur. Compared with the scenario with the shortest evacuation movement time, the evacuation time is extended by 29.6%. If a fire occurs in the stairwell area, a large number of casualties may result (Table 26).

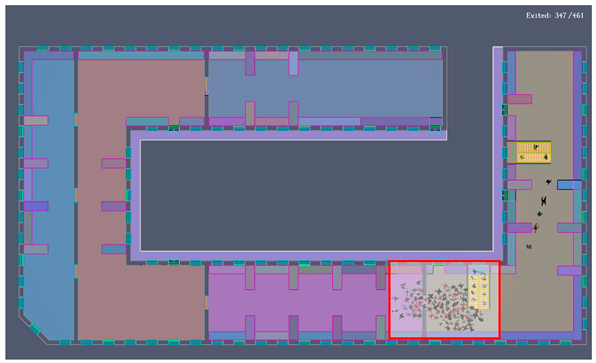

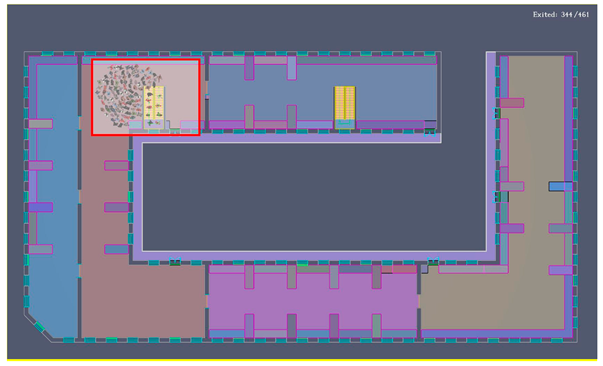

Table 26. Evacuation in working conditions A-L-2O-3 and A-L-2O-5.

A-L-2O-3	A-L-2O-5
As the base area increases, the number of evacuees will increase. When the stairs are arranged in an area, the people in front will crowd into the stairwell, and the people in the rear will not be able to choose other evacuation exits.

In order to form a comparison with small-scale buildings, working conditions A-L-2C-0.9 m and A-L-1O1C-0.9 m were selected to couple with the occurrence laws of different fire effluents. It was found that the fire effluents did not affect the personnel when the corridor stairs were used for evacuation. However, one of the two staircases is an internal open staircase and is located in the area where the fire source is located, so people must avoid evacuating from this stairway.

In the renovation mode of “courtyard capping,” the evacuation duration of the two working conditions increased by about 20%. This is because, according to Chinese fire safety regulations, once occupants reach a covered atrium or a courtyard with a roof, the evacuation process cannot be regarded as fully completed; evacuation must continue until an open outdoor space is reached [32]. By contrast, if the courtyard is open to the sky and directly connected to outdoor circulation routes, the evacuation process can be considered complete upon arrival at the courtyard. Therefore, under the courtyard capping mode, the evacuation time is prolonged.

• (2)

  Three Staircases

When the number of staircases is three, the evacuation movement times are similar across all scenarios except for scenario A-L-3O-1. This exception is attributed to the occurrence of an arching phenomenon at one staircase in scenario A-L-3O-1, which causes crowd congestion and results in the staircase located near the gable wall remaining unused.

• (3)

  Four Staircases

When the number of staircases is four, and the staircases are evenly distributed and located on the long side as far as possible, the evacuation movement duration is the smallest. Compared with other working conditions, the evacuation movement duration of A-L-3O-1 is reduced by about 20%.

4.

Effect of Fire Effluents on Safe Evacuation under Two Renovation Strategies

When the base area of the building increases, the heat release rate per unit area of the fire becomes lower, and the evacuation is not affected by the high temperature in each working condition, but is only affected by the visibility. When only the fire source is located on the first floor after the skylight is added, due to the visibility, the number of people who failed to evacuate under condition B-L-2O-0.9 m increased by 4, the number of people who failed to evacuate under condition B-L-2O-1.1 m increased by 13, and the number of people who failed to evacuate under condition B-L-2O-1.1 m increased by 20 s. This is because the heat release rate of the two renovation strategies is basically the same, but the skylight will prevent the smoke from spreading outward in the stairwell on the second floor. However, the speed of spreading from the stairwell on the first floor to the stairwell on the second floor is not affected.

3.2.2. Effect of Staircase Configuration on Evacuation After Increasing the Number of Storeys

• Effect of Stair Width on Safe Evacuation

The positions of the staircases in the typical-scale building were kept unchanged, and one additional floor was added to investigate the influence of stair width on fire evacuation performance under increased building height (Table 27).

Table 27. Simulation scenarios conditions of different stair widths.

Typical scale	A-S-3F-1O-0.9 m	A-S-3F-1O-1.1 m

After the base area of the building was expanded by 2.7 times, the evacuation duration under various conditions increased by about 1.4 times. When the number of floors increased from two to three, the building area increased by 1.5 times, but the evacuation time increased by about 1.8 times. It can be seen that the increase of building floors has a more significant impact on the evacuation time. The main reason is that it is easy to form congestion at the stairway entrance and stairwell, as the travel speed of people in this area is low, and the increase in the number of floors leads to the extension of the vertical evacuation path, which significantly prolongs the overall evacuation time.

In addition, when the clear width of stairs in a three-storey building increases from 0.9 m to 1.1 m, the reduction of evacuation time is about 2.5 times that of two storeys. This shows that, with the increase of the number of floors, the increase of the width of stairs has a more obvious effect on the improvement of evacuation efficiency.

2.

Effect of Staircase Number on Safe Evacuation

Based on the typical-scale building, the staircase locations were kept unchanged and one additional storey was added to investigate how the number of staircases influences fire evacuation performance after an increase in the number of storeys (Table 28).

Table 28. Simulation scenarios with different numbers of staircase.

Typical-scale	A-S-3F-2O-0.9 m	A-S-3F-2O-1.1 m

For the three-storey building, increasing the number of staircases to two reduced the evacuation movement time by approximately 40% in both scenarios. When the clear stair width was 1.1 m, the evacuation movement time was 9.7% shorter than that with a width of 0.9 m, indicating that increasing stair width provides only a limited reduction in evacuation movement time.

3.

Effect of Staircase Location on Safe Evacuation

In the typical-scale building, one additional floor was added to investigate the effect of staircase location on fire evacuation as the number of building storeys increases (Table 29).

Table 29. Simulation scenario conditions of different stair positions.

Typical-scale	A-S-3F-1C-0.9 m	A-S-3F-1C-1.1 m	A-S-3F-1C1O-0.9 m

In the “spatial micro-adjustment” restoration strategy, when a single staircase was used, the evacuation movement time through the open staircase was slightly shorter than that through the exterior corridor staircase, with only a 6.9% difference. When two stairs are used, one of which is corridor stairs or both are corridor stairs, the evacuation time is reduced by 8.3% compared with the open stairwell. It can be seen that the open stairwell can shorten the safe movement time, but the effect is not obvious.

The main reason for the above phenomenon is that, when one step staircase is used, the corridor staircase will cause congestion at the corridor for evacuees. When two stairs are used for evacuation, the corridor stairs are located in the center of the building, which can improve the efficiency of the stairs.

The indoor courtyard prolongs the evacuation time by using the veranda, especially when there are two kinds of evacuation methods. The simulation results show that, in the indoor courtyard scheme, people prefer to use the indoor open stairwell for evacuation, which prolongs the evacuation time by 43% when compared with the case of fine-tuning the space division.

4.

Effects of Fire Effluents on Safe Evacuation Under Two Renovation Strategies

After the number of floors increased, the fire heat release rate of the “courtyard capping” renovation method was basically the same as that of the “spatial micro-adjustment” renovation method. After the courtyard is covered, the speed of high temperature invading into the open stairwell will be slowed down, but the total number of people who fail will still increase under the influence of visibility. This is because the chimney effect of the open stairwell in the three-storey building is more obvious. When the skylight is added, the chimney effect of the stairwell is slowed down when the fire source is located on the first floor, and then the time when the temperature reaches the boundary conditions is delayed. However, the rate of gas flow decreases, which will also make it difficult to exhaust the smoke in the stairwell, thus increasing the number of people who fail to evacuate under the influence of visibility (Table 30).

Table 30. Comparison of evacuation failure changes under the spatial micro-adjustment strategy.

		B-S-1O- 0.9 m	B-S-1O- 1.1 m	B-S-2O- 0.9 m	B-S-2O- 1.1 m	B-S-1C- 0.9 m
Temperature effect	Teffect	+6 s	+4 s	+6 s	+4 s	−1 S
	Number of evacuation failures	−4	−3	−4	−2	+2
Visibility impact	Teffect	+2 s	0	+2 s	0	−28 S
	Number of evacuation failures	+5	0	−2	0	+6

A comparison with the spatial micro-adjustment scenario indicates that, although the introduction of a skylight delays the effective time affected by reduced visibility (T_effect), the number of evacuation failures in scenario B-S-1O-0.9 m increases. This increase can be attributed to the delayed appearance of regions with a visibility below 2 m on the third floor, resulting from the weakened chimney effect. However, when only a single staircase is provided, the overall evacuation duration remains excessively long. After the skylight is added, smoke in the second-floor stairwell cannot be discharged efficiently, which in turn leads to an increase in evacuation failures on the second floor.

It can be seen from the exploration that, with the development of fire, the “courtyard capping” method can effectively slow down the chimney effect of the open stairwell in the fire, and slow down the rate of temperature rise in the stairwell (Figure 14).

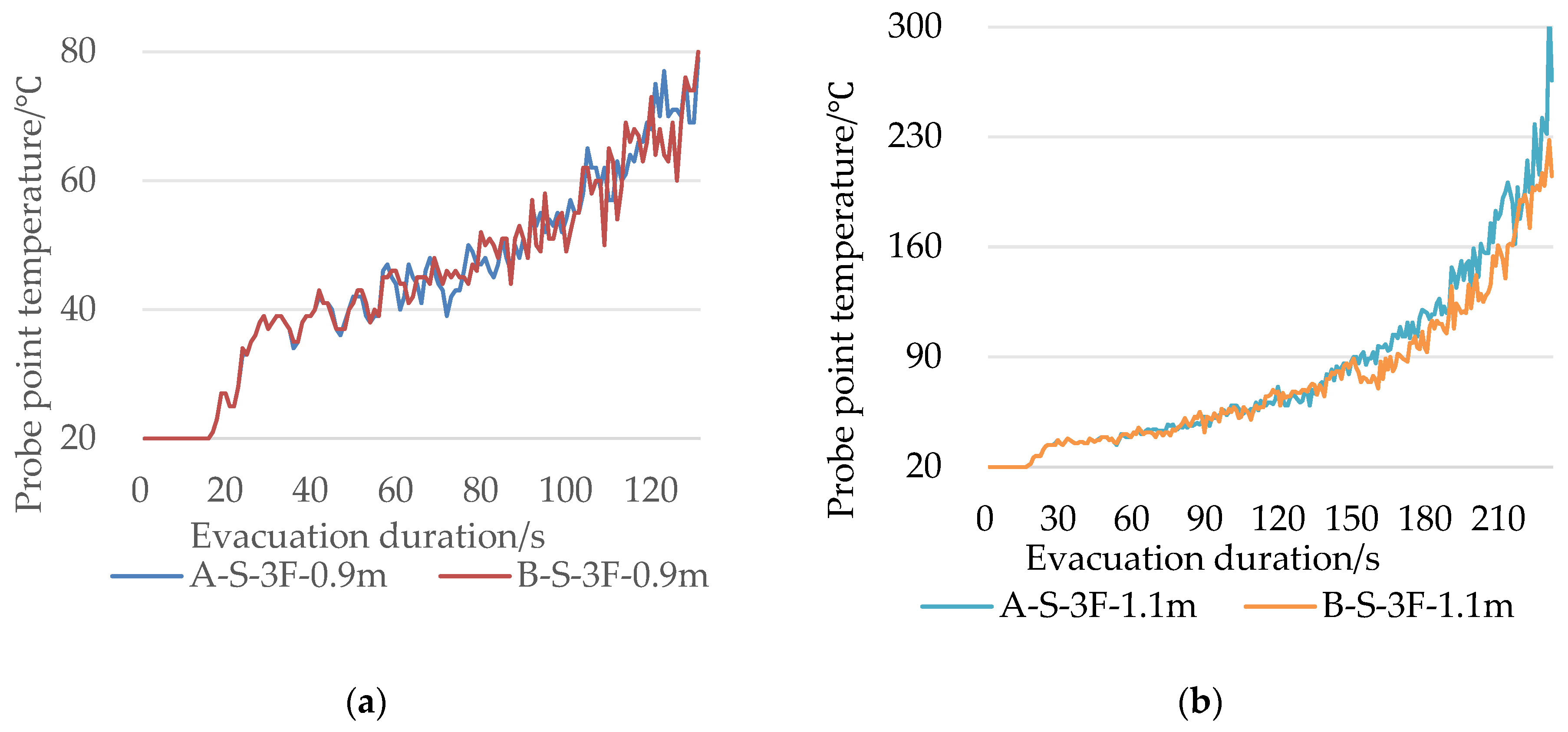

Figure 14. Probe temperature in a stairwell under different working conditions: (a) Probe point temperature when staircase is 0.9 m wide; (b) probe point temperature when staircase is 1.1 m wide.

3.3. Effectiveness Analysis of Measures to Improve Safe Evacuation

The gables on both sides of the building and the belt formed by stairs and gables should gather fire effluents, which will lead to the failure of personnel evacuation waiting here. When the fire source is located on the first floor, the fire effluents invading the stairwell will lead to the failure of personnel evacuation. In view of the above problems, taking the unfavorable conditions A-S-1O-0.9 m, A-L-2O-0.9 m and B-S-3f-1C-0.9 m as the objects, five common fire prevention methods, namely, changing the form of stairwell, adding a smoke-retaining vertical wall, adding an automatic sprinkler, adding a mechanical smoke exhaust, and adding natural ventilation, are proposed to optimize the two renovation modes, and their effectiveness is analyzed.

3.3.1. Indoor Fire Safety Optimization Measures

• Use enclosed staircase

The optimization effects of the two renovation strategies are consistent. In typical-scale buildings, only when the fire source is located on the first floor, does the addition of closed stairs have a significant barrier effect on fire effluents. When the fire source is located on the second floor, the effect is weak, and only an additional 6S safe evacuation time is provided (Table 31). Adding closed staircases in large-scale buildings has an obvious effect.

Table 31. Comparison between open staircase and closed staircase.

	The Fire Source Is Located on The First Floor		The Fire Source Is Located on The Second Floor
Before optimization
After optimization
	The effect of blocking high temperature gas is obvious.	Some smoke intruded into the stairwell, but the visibility was more than 2 m, which had no impact on personnel evacuation.	The effect of blocking high temperature gas is obvious.	There was no smoke intrusion inside the stairwell, but a large amount of smoke still accumulated in the waiting area, causing personnel evacuation failure.

Under condition A-L-2O-0.9 m, the use of closed staircases can meet the safe evacuation of all people in the building, and the effect is better than that of setting closed staircases in small buildings (Table 32).

Table 32. Comparison between open staircases and closed staircases in increased footprint area volume buildings.

	The Fire Source Is Located on The First Floor		The Fire Source Is Located on The Second Floor
Before optimization
After optimization
	Up to 181 s, the effect of blocking high temperature gas is obvious	As of 165 s, when people were evacuated from the second floor, the visibility in the stairwell was mainly distributed at 3 m, which had no impact on personnel evacuation.	The effect of blocking high temperature gas is obvious.	There is no smoke intrusion inside the stairwell, and there is smoke accumulation in the waiting area, but it does not cause personnel evacuation failure.

2.

Adding a smoke-retaining vertical wall in staircase

The stairwell and the gable are the key areas for high-temperature gas and flue gas accumulation. Smoke-retaining vertical walls of heights of 0.5 m, 1 m and 1.5 m are installed beneath the ceilings of the corridor and stairwell near the gable wall. Take A-S-1O-0.9 m working condition as an example to explore the effect of a smoke-retaining vertical wall on fire product optimization at different heights and positions (Table 33).

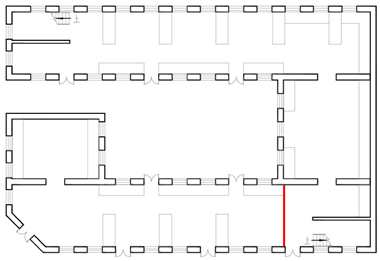

Table 33. Position of smoke retaining vertical wall.

	Layout at Staircase	Walkway Layout	Arrangement of Staircases and Walkways
Layout location
Section position

The simulation found that the optimization effect of the two renovation strategies was basically the same, that the smoke-retaining vertical wall had an obvious optimization effect on high-temperature gas, and that the safe movement time under the influence of temperature could be extended by 10–25 s when the height was 0.5 m. However, the optimization effect of visibility is weak. Only 1.5 m high smoke-retaining vertical walls are set in staircases and corridors at the same time, which can effectively block smoke (Figure 15).

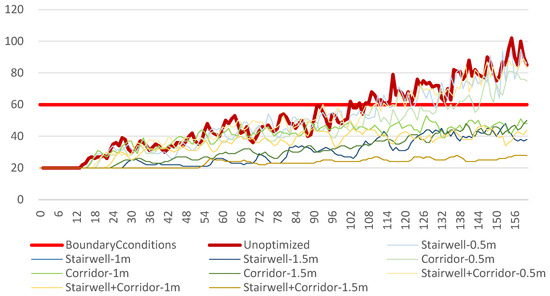

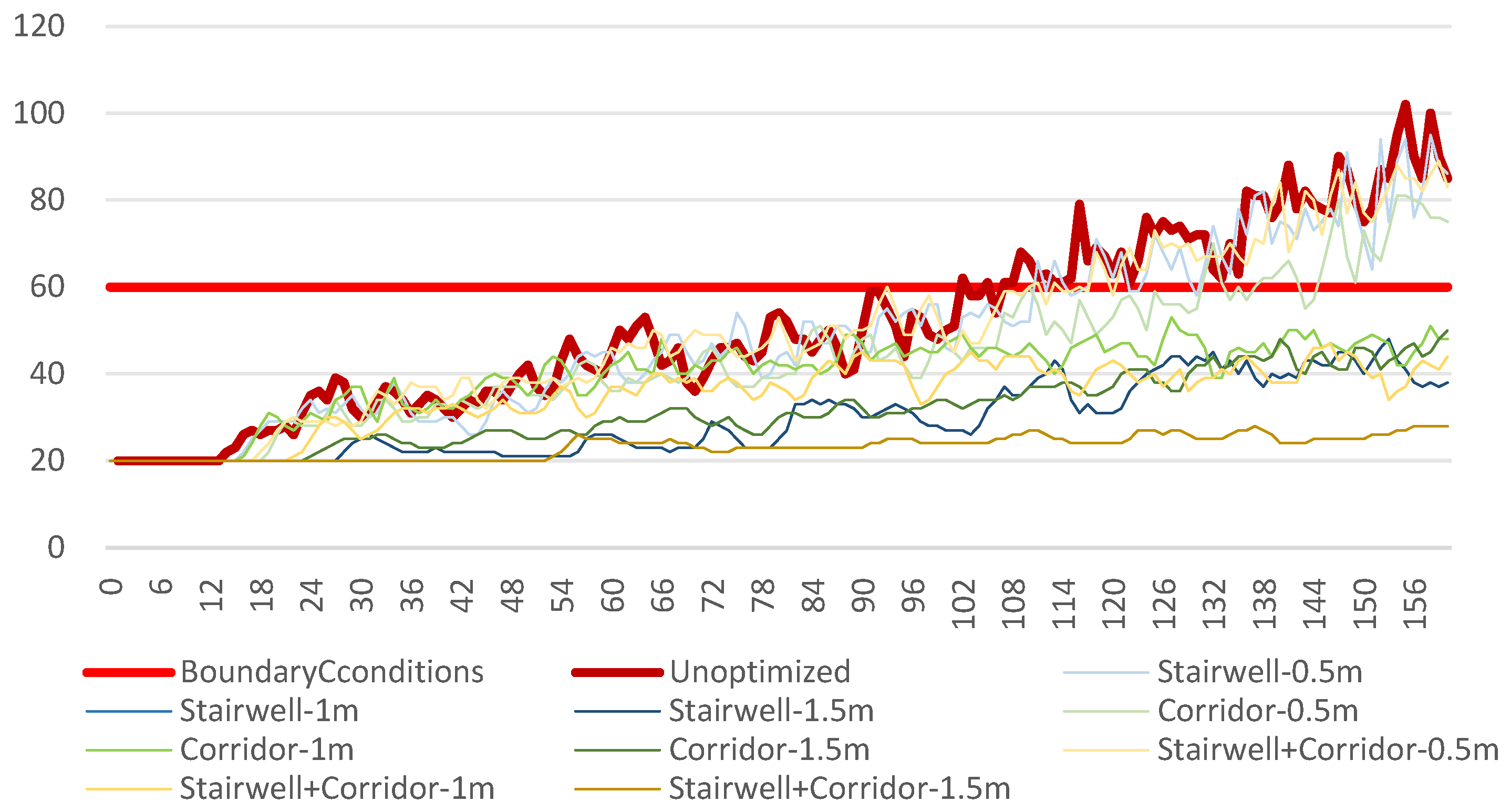

Figure 15. Temperature time curve under different smoke retaining vertical wall optimization schemes.

3.

Add automatic sprinkler system

According to the characteristics of the building, the moderate risk level I in the specification is selected to arrange the spray [33]. The simulation shows that the optimization effect of adding an automatic sprinkler system is good, and that the fire source has not spread by 160S. In fact, the fire source can be extinguished to fundamentally solve the fire, and the building itself can also be well protected.

4.

Add mechanical smoke exhaust

The smoke exhaust outlet is set according to the minimum value of the current building smoke control code and the cross-sectional area of the chimney, and the maximum allowable wind speed is 10 m/s for simulation [34]. The results show that the optimization effect of a mechanical smoke exhaust is obvious, which can ensure a safe evacuation under any working condition (Figure 16).

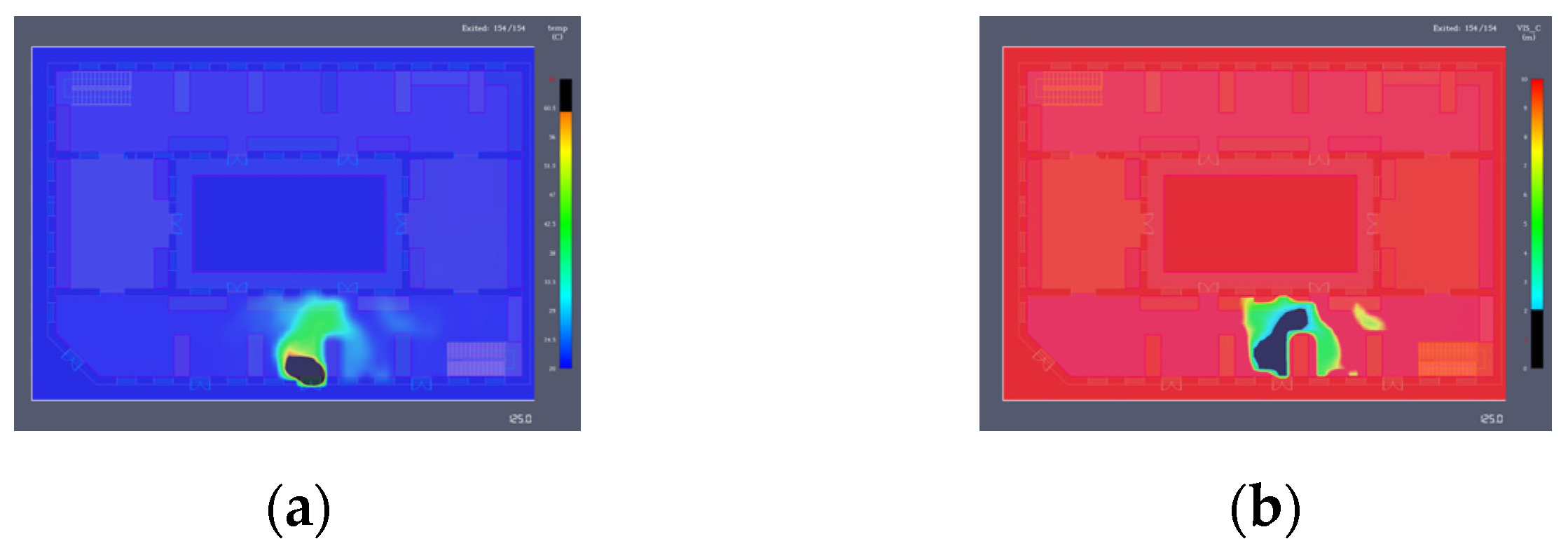

Figure 16. Temperature visibility slice at 1.7 m after adding a mechanical smoke exhaust. (a) Temperature slice and (b) visibility slice.

3.3.2. Courtyard Fire Optimization Measures

• Natural ventilation and smoke exhaust

In the building interior, the existing flue and other decorations can be used to hide the smoke exhaust system, but adding a mechanical smoke exhaust in the courtyard will greatly affect the original artistic atmosphere of the historical building. Therefore, the skylight is set at the corner for natural ventilation and smoke exhaust, and three different sizes of the same area, 1 m², 2 m² and 3 m², respectively, are selected to explore the most suitable window size (Figure 17).

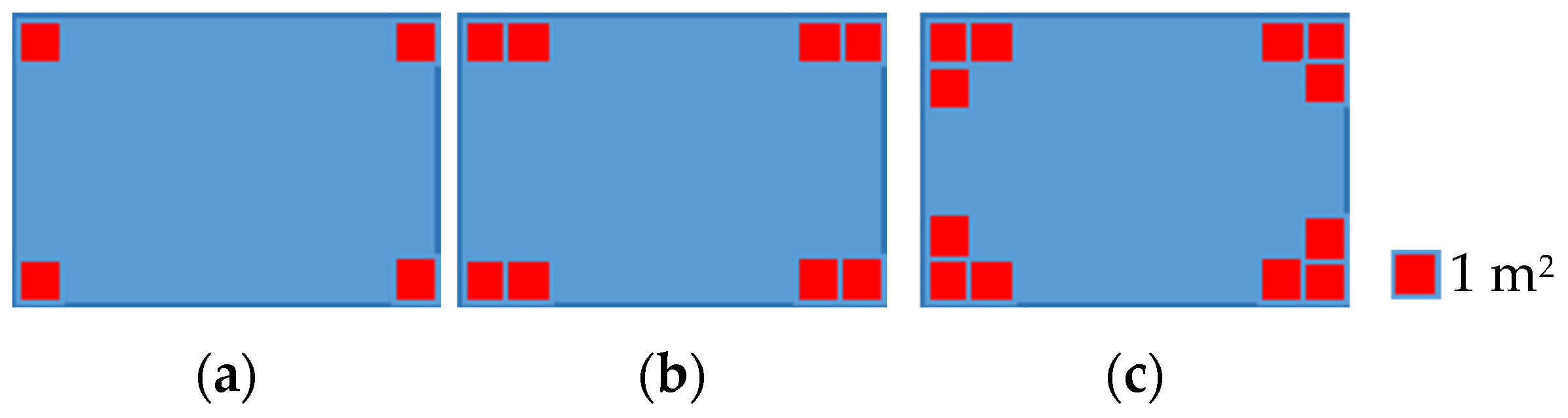

Figure 17. Natural ventilation and smoke exhaust scheme. (a) Vent opening area: 4 m²; (b) vent opening area: 8 m²; (c) vent opening area: 12 m².

The simulation shows that, when the single area of the natural vent is more than 2 m², the waiting personnel on the third floor can avoid the visibility from affecting the evacuation failure, but it does not affect the change of fire effluents on the second floor. When the personnel are evacuated to the second floor, the evacuation failure will still be affected by the temperature (Table 34).

Table 34. Effect of different window opening methods on visibility.

Not Optimized	Mode 1	Mode 2	Mode 3
When the area of a single ventilation opening is 1 m2, no significant improvement in visibility is observed at the 3F-DZ = 1.7 m level. When the area is increased to 2 m2, the stair entrance on the third floor is affected by regions with visibility below 2 m at 206 s. With an opening area of 3 m2, the third-floor stair entrance is affected by regions with visibility below 2 m at 216 s. In both scenarios, occupants waiting on the third floor are able to evacuate without an evacuation failure caused by reduced visibility.

4. Discussion

4.1. Effects of Stair Configuration on Safe Evacuation

Our results show that staircase number and placement have a stronger influence on evacuation performance than moderate widening of a single stair. For the typical-scale building, increasing the clear stair width from 0.9 m to 1.1 m produced only a limited reduction in evacuation movement time (≈7.1%). This outcome is consistent with evacuation theory and simulation practice: when pre-movement delay and emergency behaviors (e.g., frictional interactions, pushing, falls) are not explicitly represented, the apparent benefit of small geometric changes can be muted when compared with real-world emergencies [10,20]. This also agrees with pedestrian-dynamics studies indicating that the marginal gain from widening exits diminishes as network topology and behavioral constraints become dominant [35,36].

When fire effluents, particularly smoke-induced visibility loss, govern tenability, widening a stair can coincide with a faster upward smoke transport and earlier visibility degradation. This coupling can lead to a situation where movement time decreases slightly, yet evacuation failures do not decrease accordingly. Such behavior reflects a common trade-off in performance-based design: if vertical-opening ventilation/relief conditions are not improved in parallel, enlarging the opening may destabilize smoke stratification and accelerate the formation of low-visibility zones. In this case, RSET may decrease marginally, while ASET decreases more rapidly, narrowing the safety margin [37,38,39].

By contrast, increasing the number of staircases yields a clearer and more robust improvement. In the typical-scale building, increasing from one to two stairs reduced movement time by approximately 40%, and increased the safe-evacuation proportion from about 68% to 91%. Mechanistically, this represents a shift from a single-bottleneck system to multi-route diversion, which shortens the travel and queuing time for the most disadvantaged occupants [10,20,35].

However, the benefit shows diminishing returns. Under enlarged-footprint conditions, increasing stairs from two to three reduced movement time by roughly 25%, whereas adding a fourth stair typically reduced it by <10%. The limited gain arises because additional stairs can be underutilized when accessibility, recognizability, and route choice favor the primary stairs [10,20]. This dependence on “effective use” is consistent with prior evacuation simulations in multi-storey historical buildings [5,20].

Stair location and evacuation organization become more influential once multiple stairs exist. With two stairs, introducing an exterior corridor stair (C) reduced movement time by 8.6–11.2%, which is consistent with findings that external egress facilities can improve survivability for vulnerable users [20]. However, after footprint enlargement, the entrance of a corridor-based route may attract flows from multiple approach directions. When exit spacing is unfavorable (e.g., exit-to-exit distance < 25 m and one exit within <15 m of a corridor dead end), congestion and arching/clogging are more likely, and movement time can increase by about 29.6% relative to the best-performing case. This pattern mirrors crowd-dynamics evidence on arch formation and pre-bottleneck accumulation [6,8]. Therefore, for larger buildings, designers should optimize stair placement together with corridor geometry and flow-splitting/wayfinding, rather than replicating layouts that perform well in smaller buildings.

4.2. Effects of Renovation Strategy on Safe Evacuation

When stair form and building scale are held constant, spatial micro-adjustment and courtyard capping exhibit broadly similar fire development in the early stage, while differences become more evident later. In particular, under courtyard capping, the heat release rate becomes slightly higher after approximately 80 s than under spatial micro-adjustment, which can advance cases with T_effect > 80 s and increase evacuation failures. This indicates that small differences in spatial connectivity, vertical openings, and smoke-vent pathways may amplify as the fire grows, consistent with related work (e.g., X. Yi et al.) and with performance-based analyses of smoke layering and thermal fields in connected spaces [12,20,25]. Importantly, many baseline fire-protection measures appear applicable across both strategies.

For three-storey configurations, courtyard capping tends to weaken the stack effect within the open stairwell (O) and delays the reaching of temperature-based tenability limits. At the same time, it may reduce gas-flow rates and hinder smoke discharge from the stairwell, thereby increasing visibility-driven failures. Consequently, courtyard capping should not be interpreted as intrinsically safer or more hazardous; its net effect depends on whether the design provides reliable smoke exhaust and make-up air routes, and whether the stairwell is supported by appropriate smoke-control strategies [40,41].

4.3. Effects of Building Scale on Safe Evacuation

After footprint enlargement, the building area becomes approximately 2.7 times that of the typical-scale case, while evacuation movement time increases to about 1.4 times. Under the same enlarged-footprint setting, widening the stair from 0.9 m to 1.1 m reduces movement time by about 8.3%. Notably, although evacuation takes longer, the larger internal volume and dispersion pathways reduce the effective heat release per unit area and slow fire development. As a result, visibility-related evacuation failures decrease. This behavior can be interpreted as RSET increasing while ASET decreases more slowly, consistent with performance-based analyses of smoke stratification and thermal evolution in larger spaces [20,42].

Practically, for larger footprints, risk control may shift from “insufficient passage capacity” toward local congestion management and route-choice/wayfinding organization.

Increasing the number of storeys amplifies RSET more strongly than footprint enlargement because it increases vertical travel distance and intensifies flow merging [4]. In this study, a three-storey building with an area about 1.5 times that of the two-storey case produced movement time up to 1.8 times. Moreover, the relative benefit of stair widening was more pronounced than in the two-storey case (≈2.5 times larger improvement). These findings suggest that, for adaptive reuse involving an added storey, feasibility should be evaluated primarily through vertical egress capacity. Adding a second stair (or an exterior corridor stair) and coordinating it with smoke control is often more effective than widening a heritage stair alone [8,12]. From a planning perspective, the movement–time penalty associated with adding storeys appears to be roughly twice that associated with increasing footprint by an equivalent added area, which is relevant when extra floors are introduced to increase commercial yield.

4.4. Effects of Different Fire Effluents on Safe Evacuation

In this study, evacuation failures were mainly triggered by tenability thresholds for temperature and visibility, consistent with commonly used tenability frameworks [10,17,18]. Visibility generally exerted stronger control than temperature. In some configurations, stair widening also accelerated upward smoke transport, causing visibility to cross the critical threshold earlier and enlarging the affected region, which in turn increased evacuation failures.

After footprint enlargement, the reduced heat release per unit area meant that temperature was no longer the primary trigger. Failures were concentrated around visibility loss. Therefore, future analyses should focus less on whether temperature exceeds a limit and more on the mechanisms governing smoke accumulation near stair entrances, gable-side strip zones, and waiting areas, together with occupant queuing and dwelling behavior. Overall, the coupled results suggest that visibility is often the controlling tenability factor, whereas temperature becomes dominant only under specific configurations—consistent with fire-safety engineering practice where smoke obscuration can impair wayfinding and cause delay well before thermal limits are reached.

4.5. Practical Implications and Alternative Retrofit Options

Combining the present findings with prior research supports a practical prioritization for renovating historical brick–timber buildings. First, within conservation and structural constraints, designers should prioritize an increase in the number of staircases and the optimization of their spatial distribution to achieve balanced diversion. Second, selective widening may be used to relieve local congestion, but its potential influence on smoke transport and early low-visibility formation should be evaluated concurrently. Third, for larger buildings, designs should avoid high-intensity multi-direction merging at corridor ends and local nodes to prevent arching/clogging and severe crowd accumulation [10,20]. These recommendations are consistent with studies on multi-storey historical buildings and converted underground spaces emphasizing the prevention of local overload, the provision of effective egress options, and the management of inflow rates [10,12].

Our comparison of automatic sprinklers, mechanical smoke exhaust, and vertical smoke barriers indicates that these measures can markedly delay T_effect and reduce evacuation failures, especially in multi-storey buildings with an open stairwell (O). This is broadly consistent with studies reporting that advanced smoke-control strategies can outperform conventional approaches and substantially improve smoke removal efficiency [11]. In addition, evidence suggests that HRR curves derived from fire-load surveys and multi-scenario analyses, together with coupled structure–occupant modeling, can help balance safety, conservation, and functionality in adaptive reuse [8,12,42].

Beyond the strategies evaluated here, practical alternatives include enclosing or pressurizing stair compartments to improve smoke protection; improving detection and alarm systems to reduce pre-movement time; and operational measures such as entry-flow control and occupancy management, which have been shown to mitigate excessive crowding in historical settings. A complete fire-safety strategy for adaptive reuse should also address firefighting water supply and manual suppression capability, not only sprinklers and smoke exhaust [43]. This typically involves fire hydrants, standpipes, indoor hose connections, and external connection points for firefighting equipment [44,45]. Because the effectiveness of these systems depends strongly on human intervention (response time, tactics, hose deployment) and water-supply reliability, they were not explicitly modeled in the present PyroSim–Pathfinder coupling. Nevertheless, they remain essential for comprehensive risk control—particularly for brick–timber heritage buildings, where early manual suppression can limit fire spread and protect egress routes. In cold regions such as Harbin, freeze protection, maintenance, and the accessibility of hydrants/standpipes are critical to ensure reliable operation.

4.6. Limitations and Future Research

This work used a PyroSim–Pathfinder-coupled framework guided by NIST documentation and the SFPE Handbook. Although the study explored multiple stair configurations and building scales under two renovation strategies, uncertainties remain in ignition specification, mesh resolution, boundary conditions, and system assumptions. First, occupants were assumed to be alert, able-bodied, and compliant, without panic-related behaviors such as falls or pushing. This assumption may underestimate the benefit of widening and overestimate route compliance in real emergencies. Second, only selected ignition locations and an idealized system operation were considered. Uncertainties in door states, fuel distribution, and system reliability could alter fire development. Third, hydrant effectiveness and firefighter intervention were not explicitly simulated.

Future research could therefore undertake the following:

1. Conduct systematic verification, sensitivity, and uncertainty analyses aligned with ASTM E1355 and relevant ISO technical reports.

2. Validate stair-configuration effects through drills or measured flow capacity in historical buildings and, where feasible, targeted measurements or small-scale experiments to corroborate smoke/temperature fields. To investigate the similarity and validity of the simulation results under different mesh configurations, a mesh-sensitivity analysis was conducted.

3. Perform multi-scenario probabilistic risk assessments for courtyard building clusters, extending from a single-building scope to district-level evacuation and fire-spread risk within historical blocks.

4. Couple evacuation analysis with structural fire response to estimate worst-case collapse timelines and their implications for egress safety.

5. Conclusions

Through the fire evacuation simulation of the modern Chinese Baroque brick–timber buildings in Harbin, this paper draws the following conclusions.

(1) Both renovation approaches are feasible. When the same type of staircase (number, width, and location of staircases) is adopted, the indoor fire development characteristics are similar, indicating that identical fire protection measures can be utilized.

(2) The change of stair location and number has the most significant impact on the evacuation performance, while the change of stair width has a relatively small impact on the evacuation performance. The corridor staircase has good evacuation effect, and even if only a 0.9 m wide corridor staircase remains in a small building, it can still meet the safety evacuation requirements of all people. When using indoor open stairs for evacuation, it is necessary to set two as, when using one residual staircase for evacuation in small-scale buildings, only 65% of the people can be safely evacuated, but when the number of stairs is increased to two, at least 91% of the people can be evacuated. Without considering the emergency, the two stairs can meet the safe evacuation under all working conditions with reasonable guidance. Increasing from 0.9 m to 1.1 m of the remains does not significantly improve the evacuation performance. The reduction of evacuation duration under various conditions is mainly within 10%, and the number of evacuation failures has not been reduced under some conditions.

(3) The increase of base area can slow down the aggregation rate of fire effluents in the room, which is conducive to the safe evacuation of people. However, the increase of building floors will significantly reduce the safe evacuation performance of stairs. For a small three-storey building, one can consider the addition of active fire-fighting optimization measures or the addition of corridor stairs as evacuation stairs when renovating, so as to improve the fire prevention and evacuation effect.

(4) Among the common safety evacuation measures, the use of an automatic sprinkler shows the best fire prevention effect and can extinguish the fire source. The optimization effect of a mechanical smoke exhaust is obvious, and can extend the safe movement time to the end of the evacuation. The optimization effect of a smoke-retaining vertical wall on fire effluents invading into the staircase is greatly affected by its location and height. When it is set at the lower part of the inner and outer corridors of the courtyard, the height of 1 m has an obvious optimization effect, one which can make the evacuation of people using the corridor stairs from the impact of fire effluents fail. The optimization effect of a closed staircase is not clear in small-scale buildings, but it is obvious in large-scale buildings.

The above research conclusions will provide a reference for the determination of the special provisions and methods for fire protection in building renovation.
