Dynamic Response Analysis of Intake Tower-Hydrodynamic Coupling Boundary Based on SV Wave Spatial Incidence

,
,
,
and
1
College of Water Resources and Hydropower, Hebei University of Engineering, Handan 056001, China
2
Hebei Key Laboratory of Intelligent Water Resources of Hebei Province, Handan 056038, China
3
Hebei Province Water Conservancy Engineering Bureau Group Co., Ltd., Shijiazhuang 050021, China
4
Hebei Hydraulic Research Institute, Shijiazhuang 050000, China
This article belongs to the Section Building Structures

Abstract

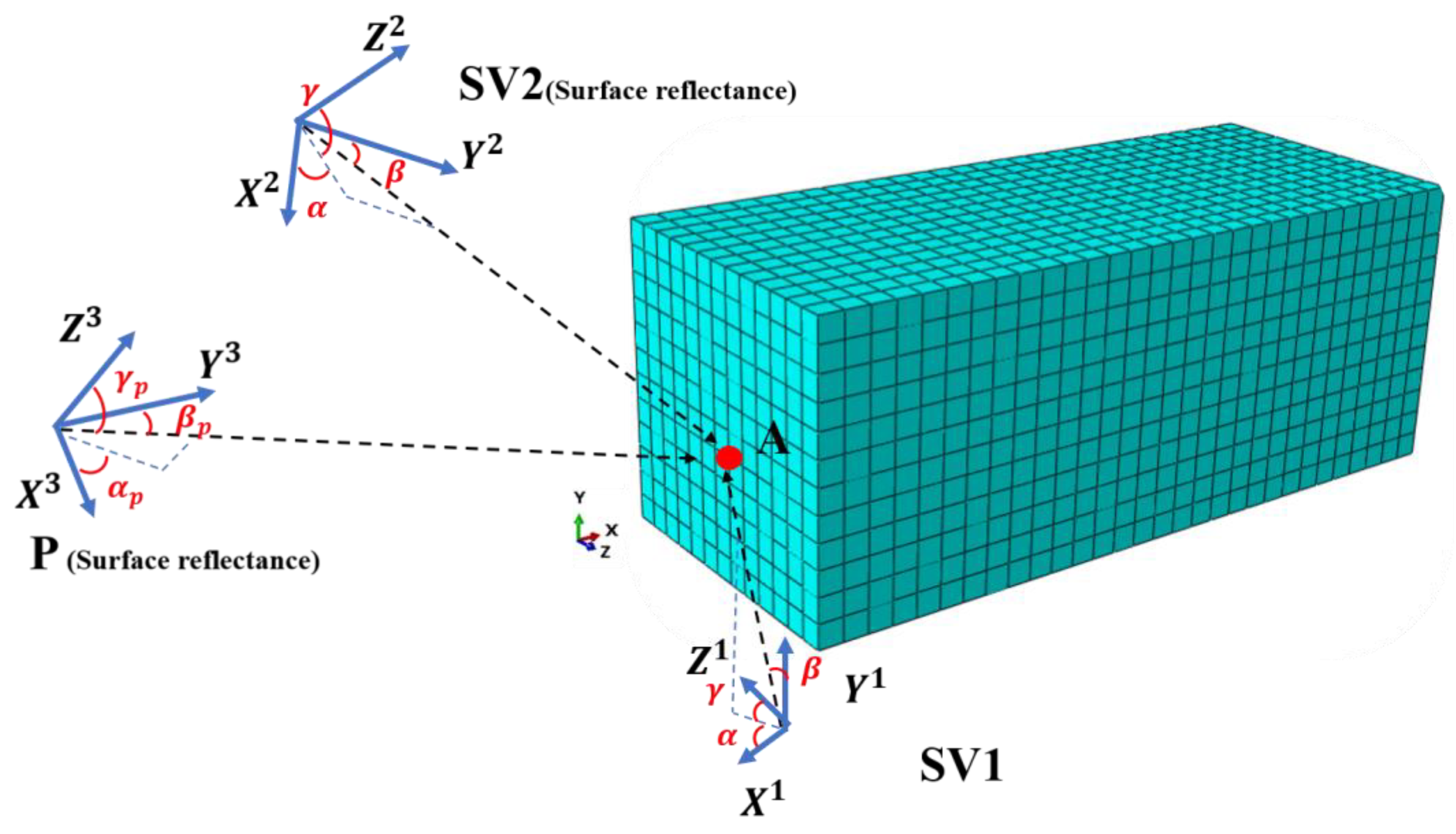

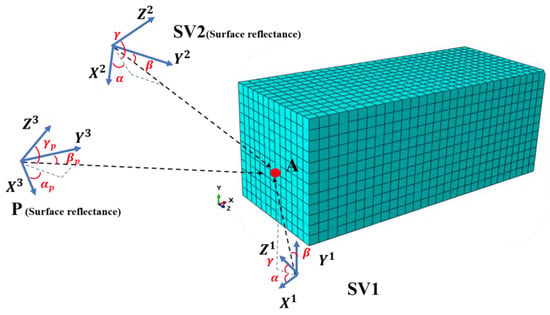

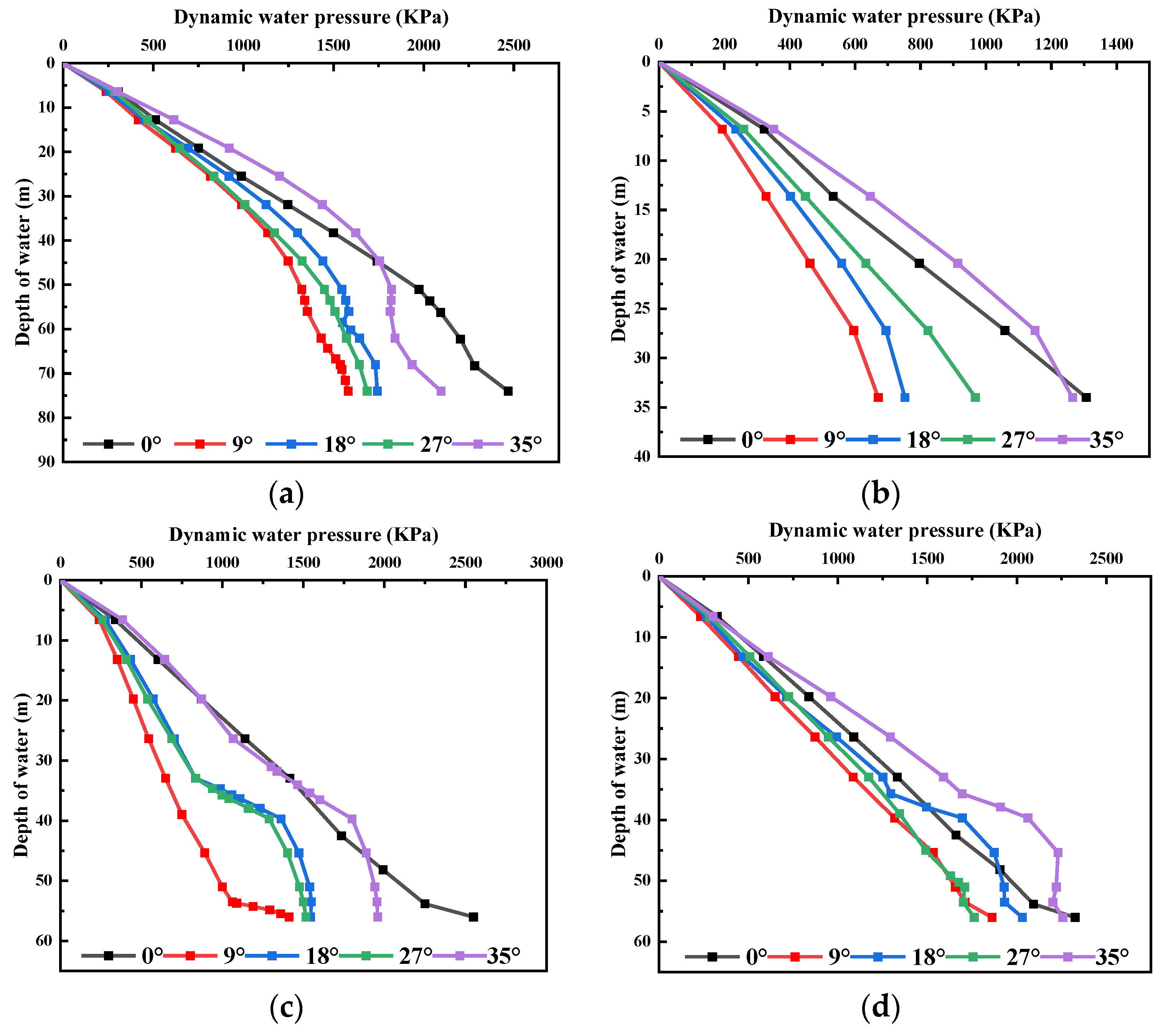

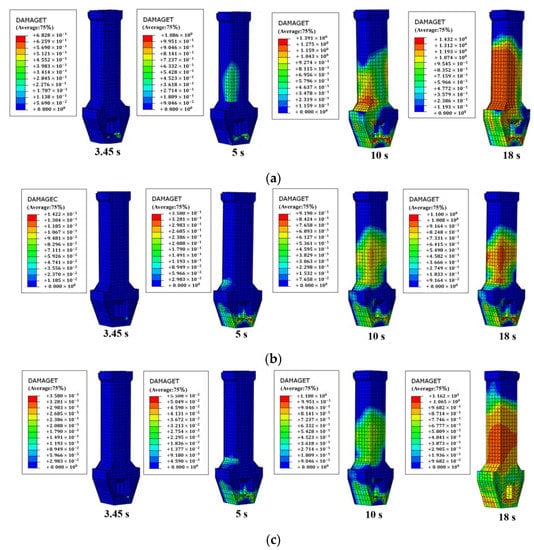

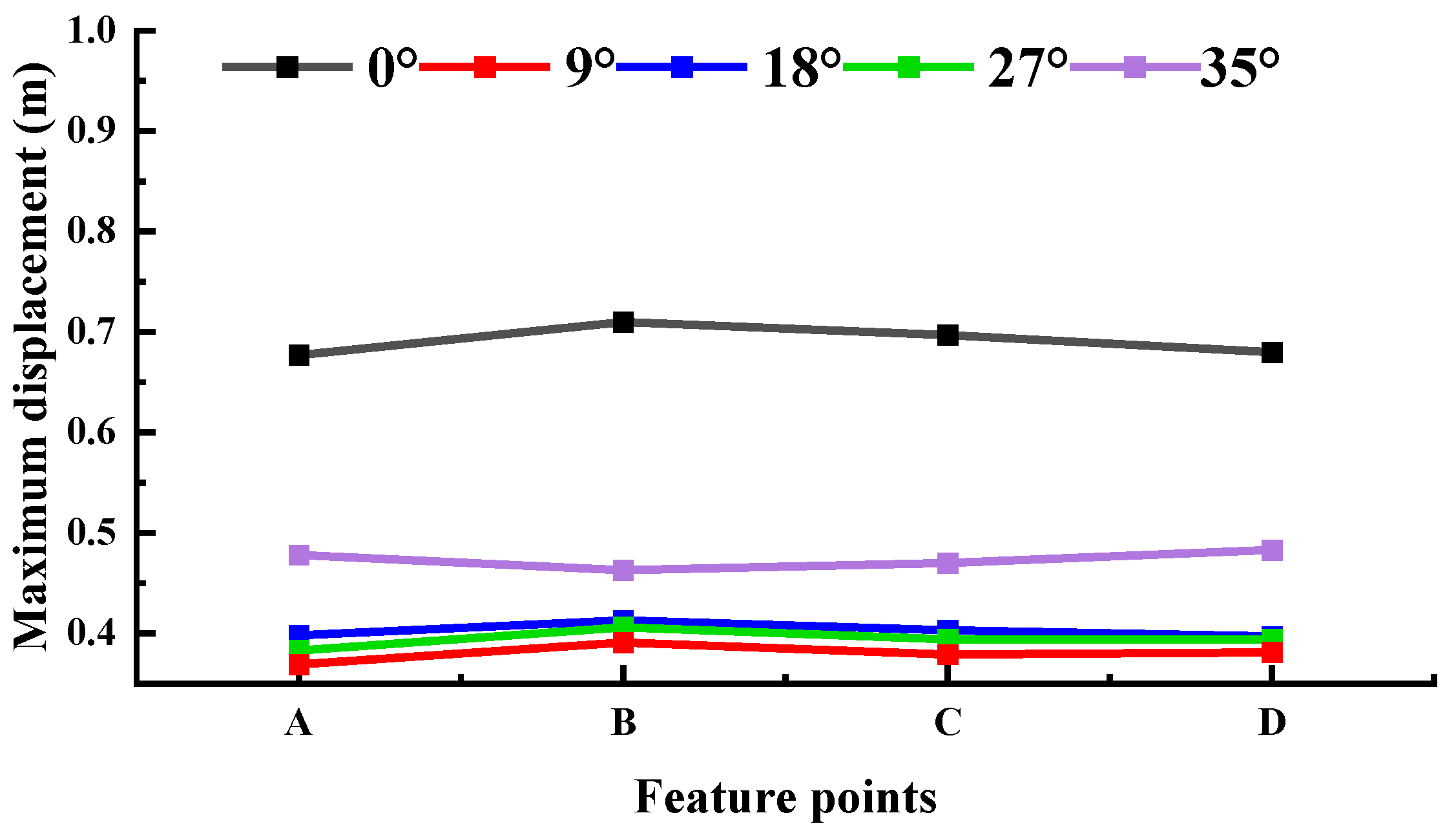

In view of the insufficient analysis of the coupled joint seismic response of the intake tower–reservoir water–foundation boundary under the oblique incidence of SV wave space, a three-dimensional dynamic equation of the oblique incidence of SV wave space is established in this paper. The external wave input method of viscoelastic artificial boundary combined with equivalent load and the acoustic medium theory are used to simulate the action of reservoir water, and the angle change in the SV wave incidence is realized by controlling the incident vector. The dynamic response of the structure is analyzed and the dynamic response characteristics of the structure at different incidence angles are discussed. The results show that the dynamic response and damage degree of the intake tower decreases first and then increases with the change in angle. When the vertical incidence is 0°, the maximum displacement drop is 82.05%, and the displacement response of the intake tower is more sensitive to the change in SV wave incidence angle. When SV wave is vertically incident at 0° and 35° (near the maximum critical angle of incident), the dynamic response, dynamic water pressure, damage diffusion velocity, damage area, and damage degree of the intake tower are relatively large, which seriously affects the safety and stability of the intake tower. Therefore, the influence of the oblique incidence should be considered comprehensively in the aseismic stability design of the water intake tower to provide a new idea for the safety evaluation of the same type of engineering.
