Identification of Simulated Damage in Prestressed Anchorage Using Admittance-Based Active Sensing Technique

,
,
,
,
,
and
1
Faculty of Civil Engineering, Ho Chi Minh City University of Technology (HCMUT), 268 Ly Thuong Kiet, District 10, Ho Chi Minh City 700000, Vietnam
2
Vietnam National University Ho Chi Minh City (VNU-HCM), Linh Trung Ward, Thu Duc City, Ho Chi Minh City 700000, Vietnam
3
Industrial Maintenance Training Center, Ho Chi Minh City University of Technology (HCMUT), 268 Ly Thuong Kiet Street, District 10, Ho Chi Minh City 700000, Vietnam
4
Faculty of Applied Science, Ho Chi Minh City University of Technology (HCMUT), 268 Ly Thuong Kiet, District 10, Ho Chi Minh City 700000, Vietnam

Abstract

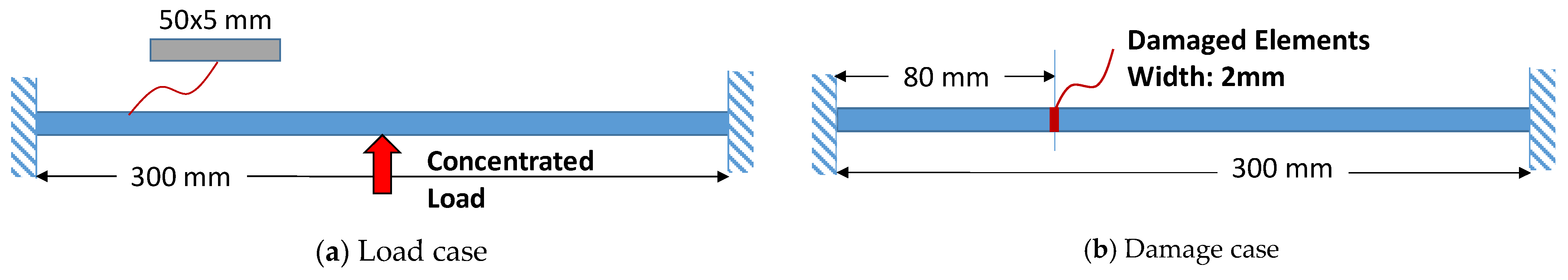

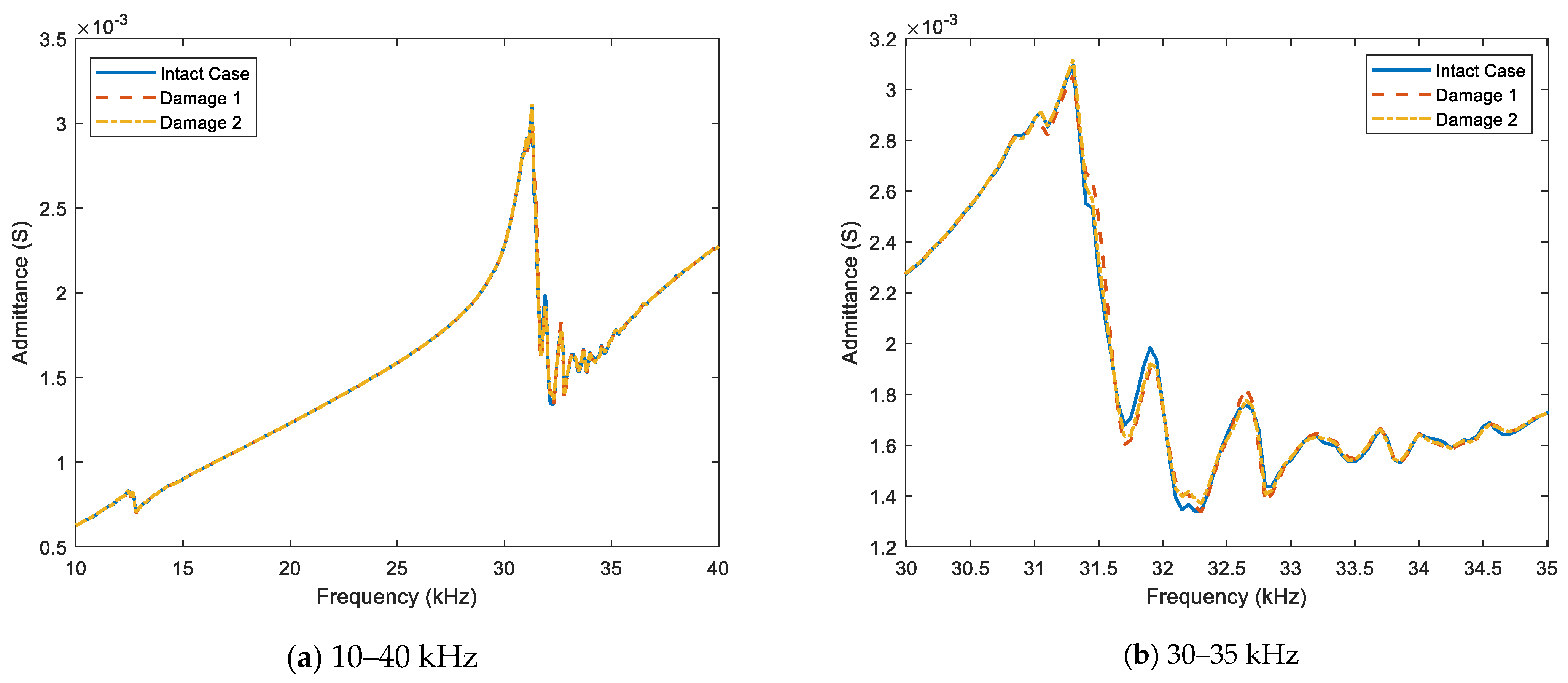

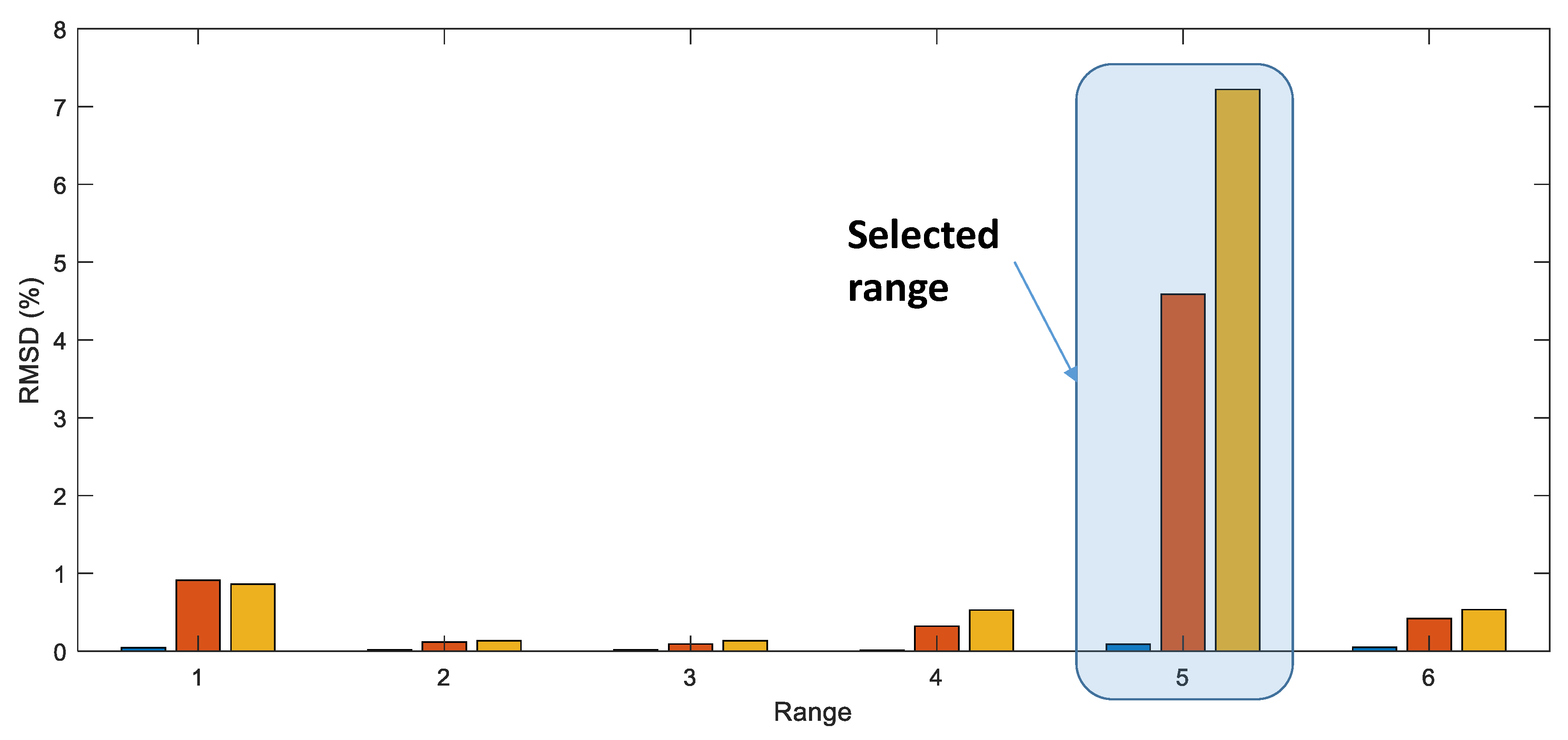

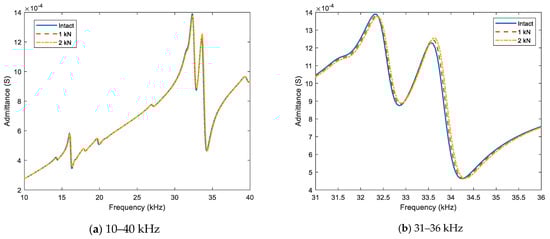

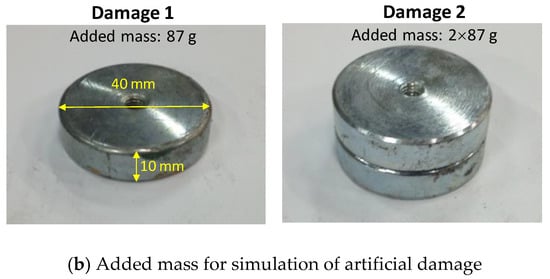

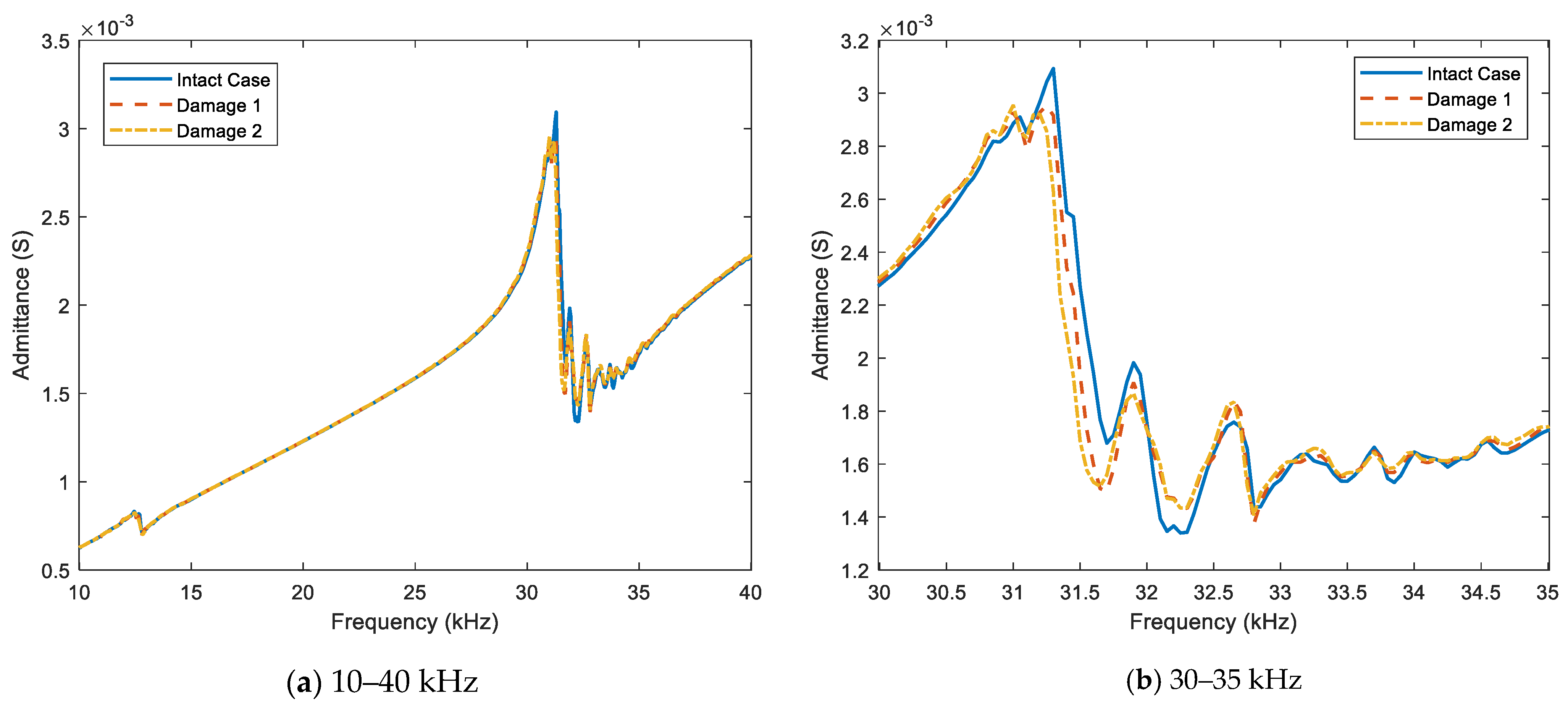

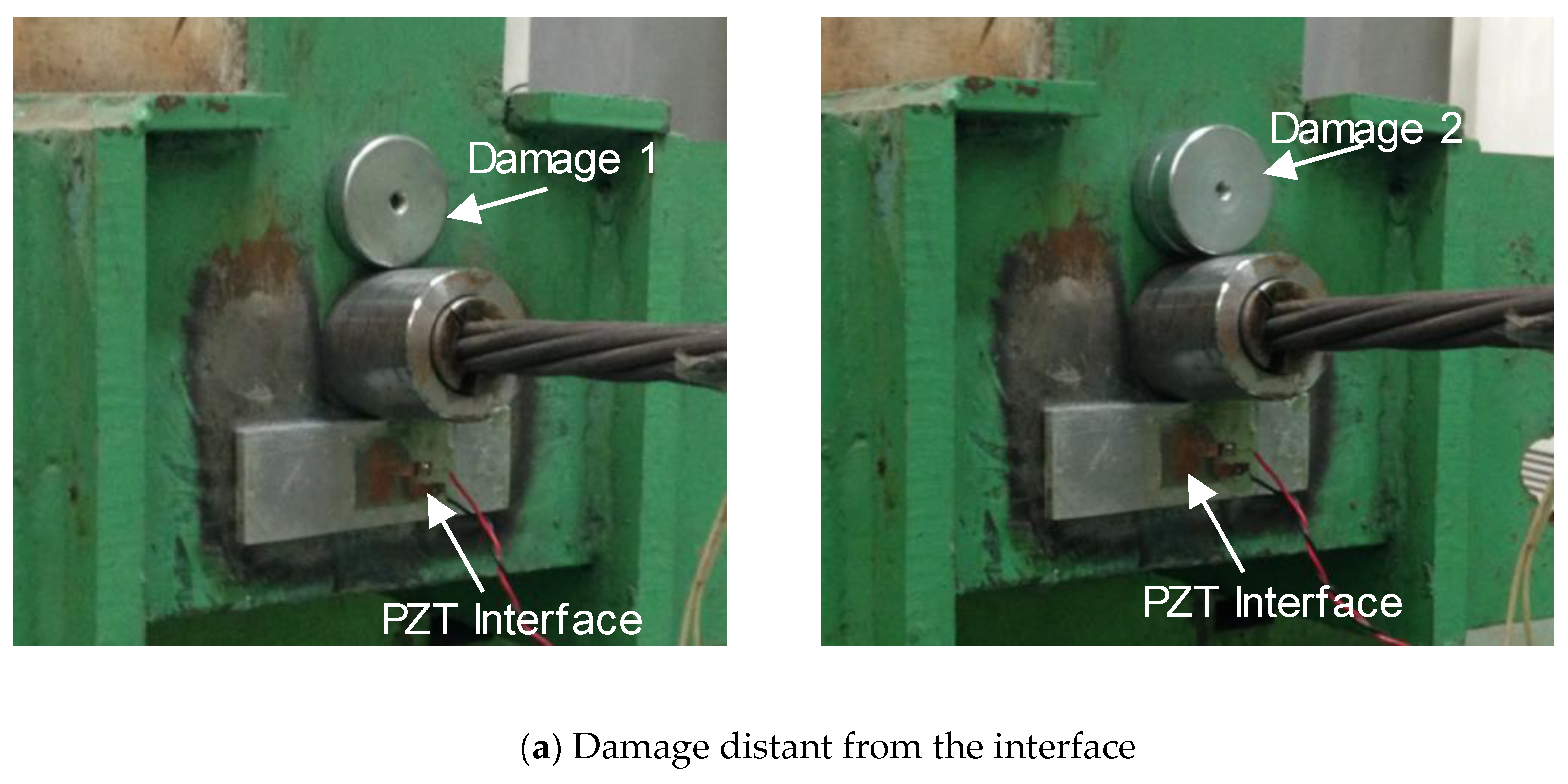

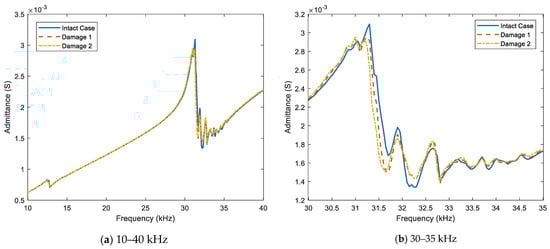

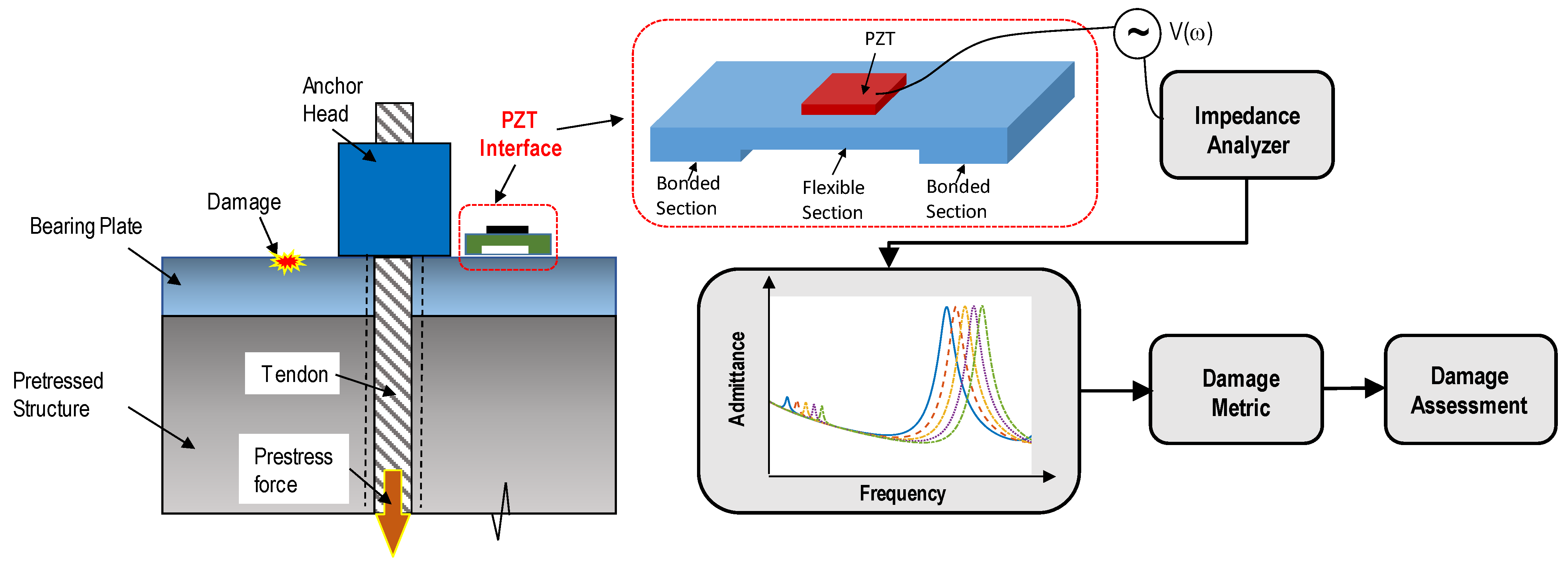

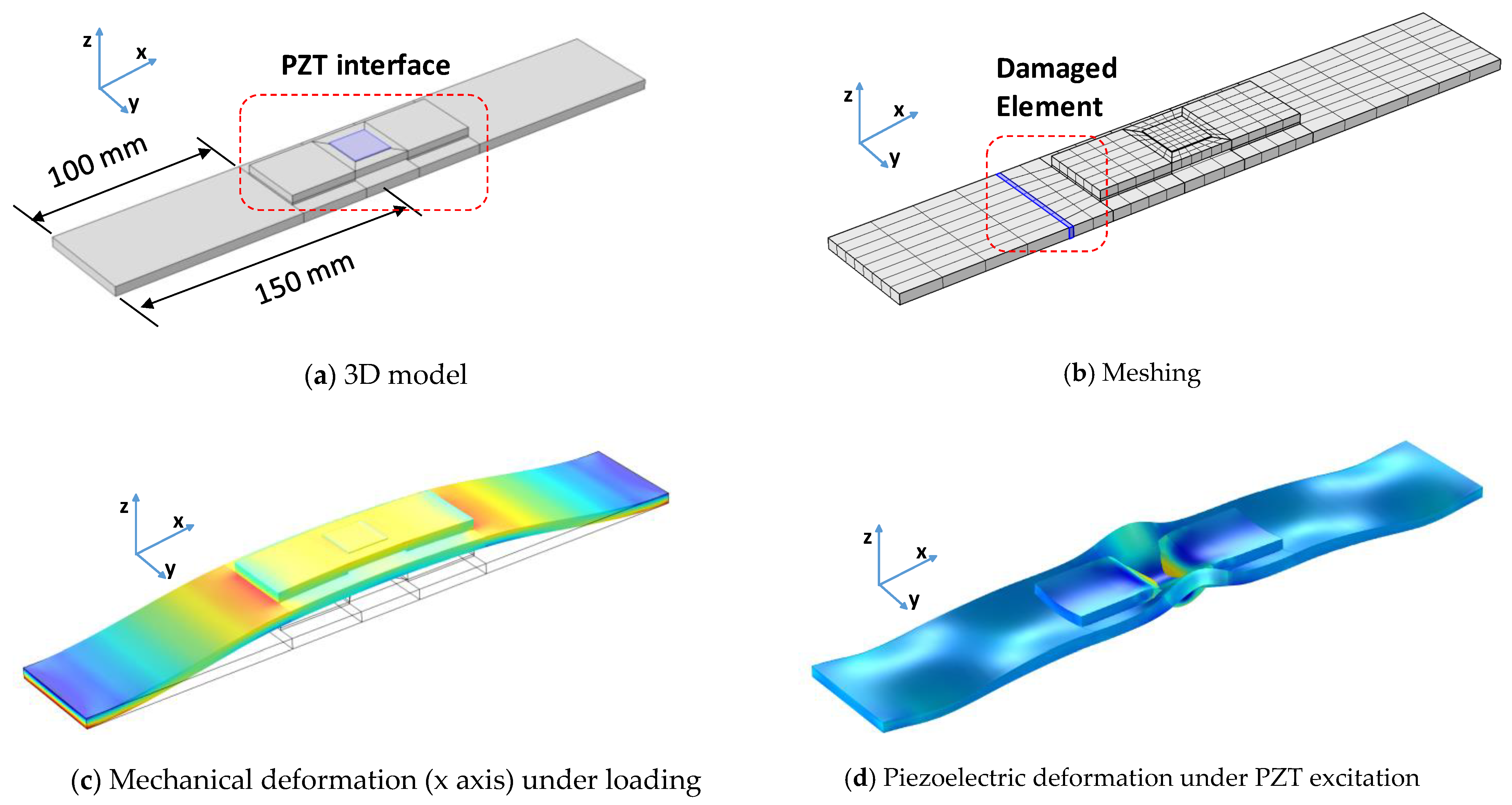

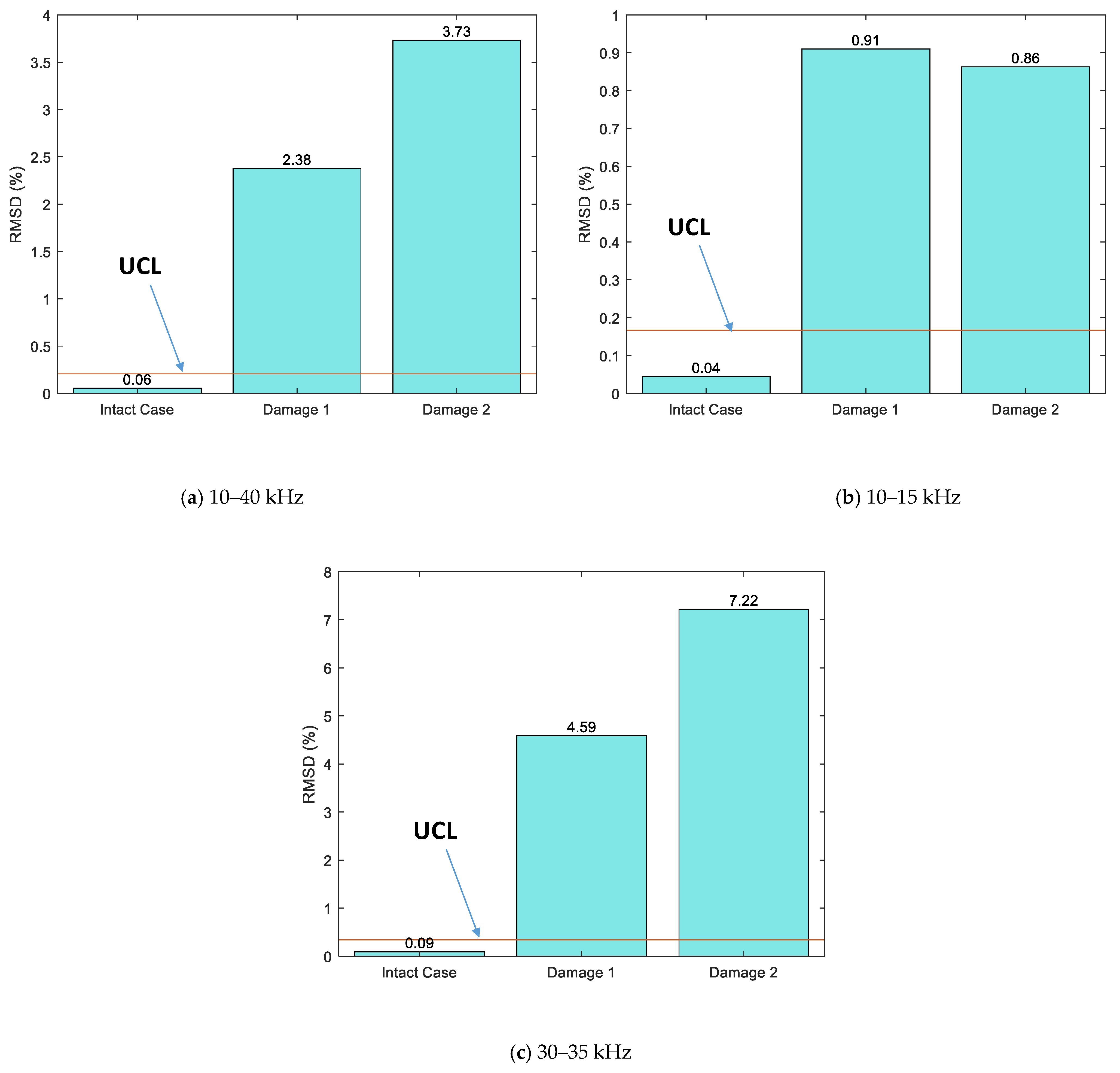

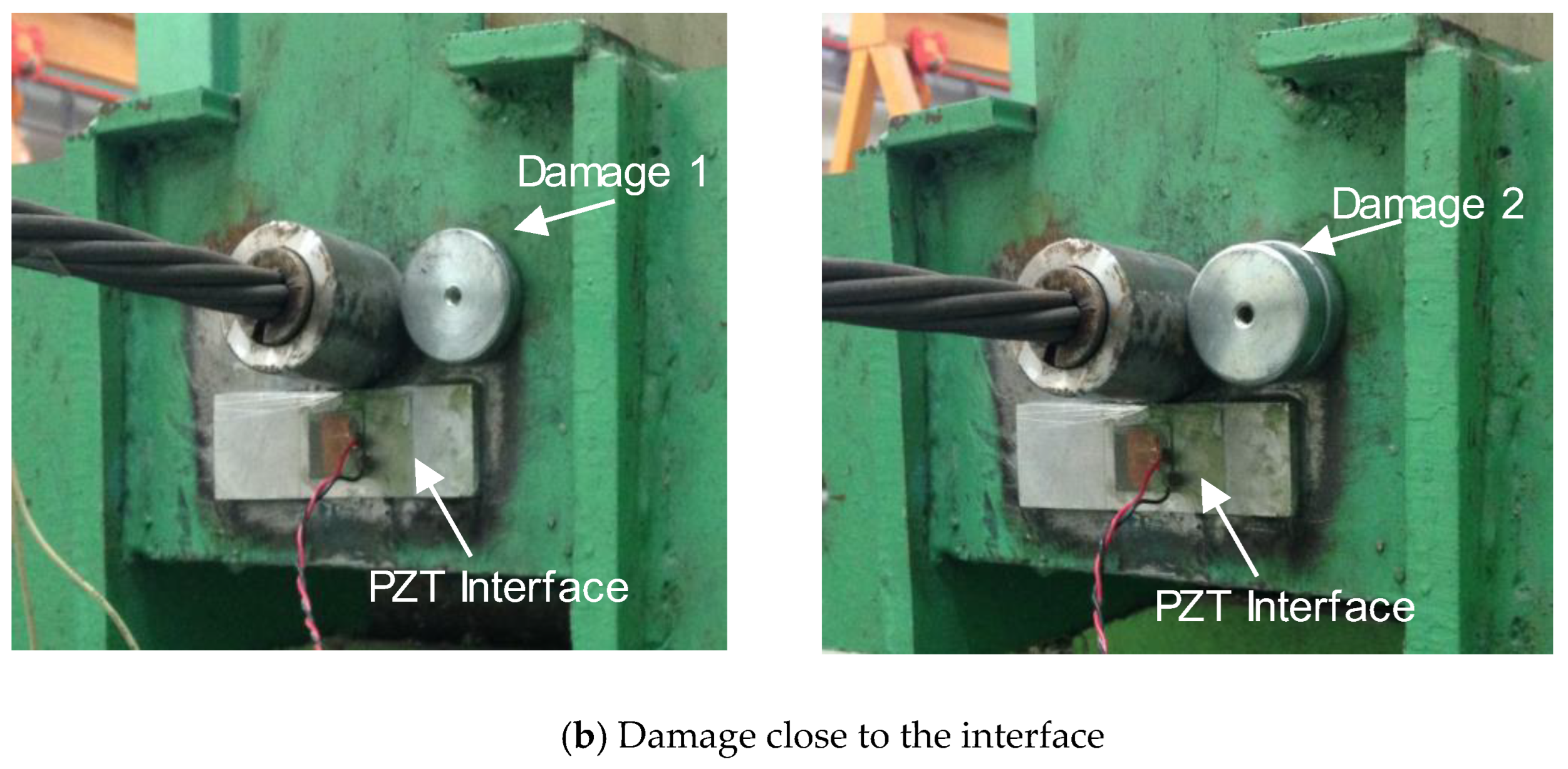

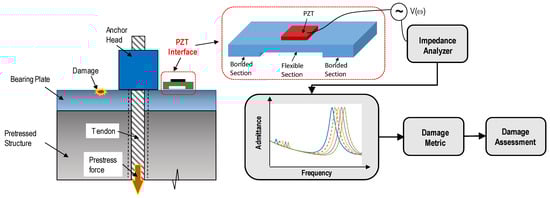

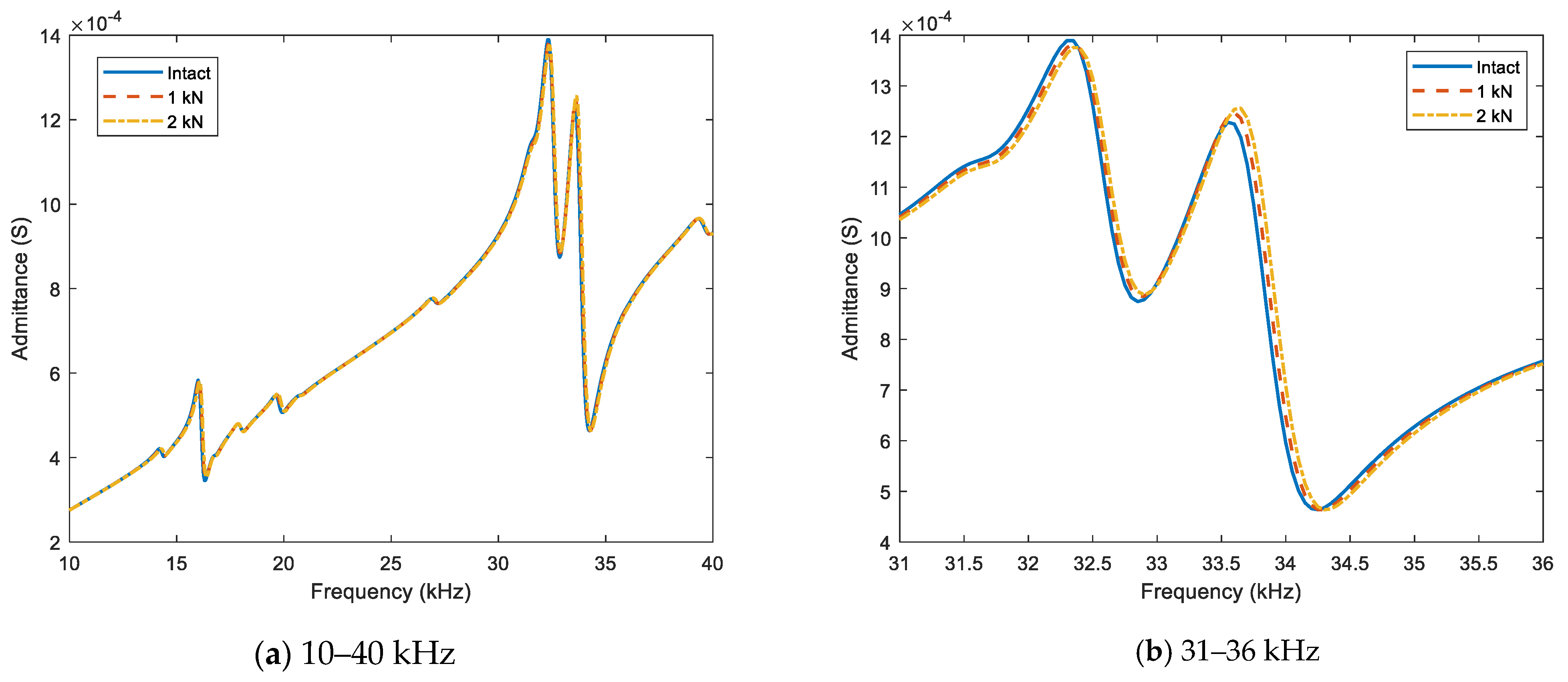

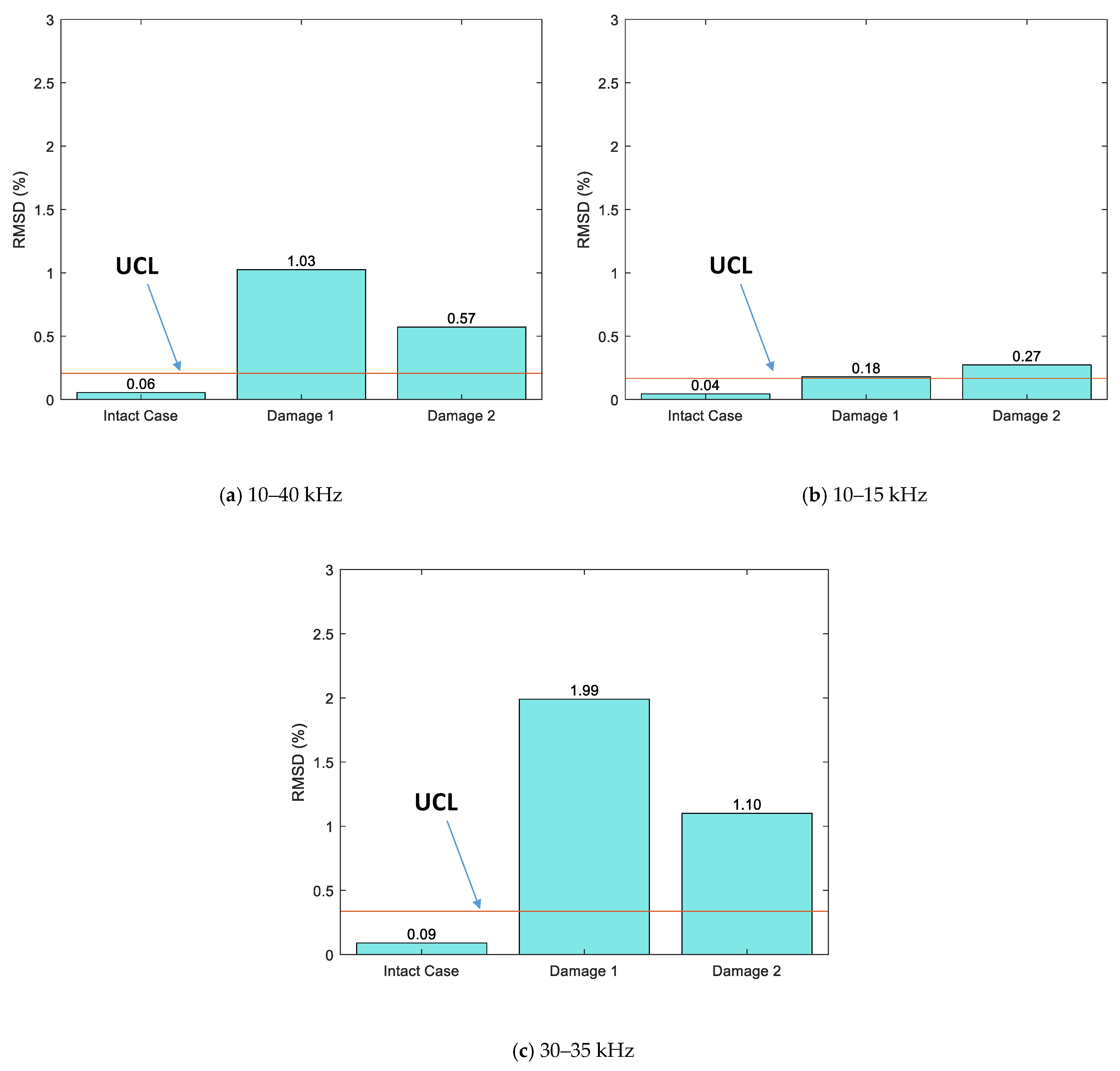

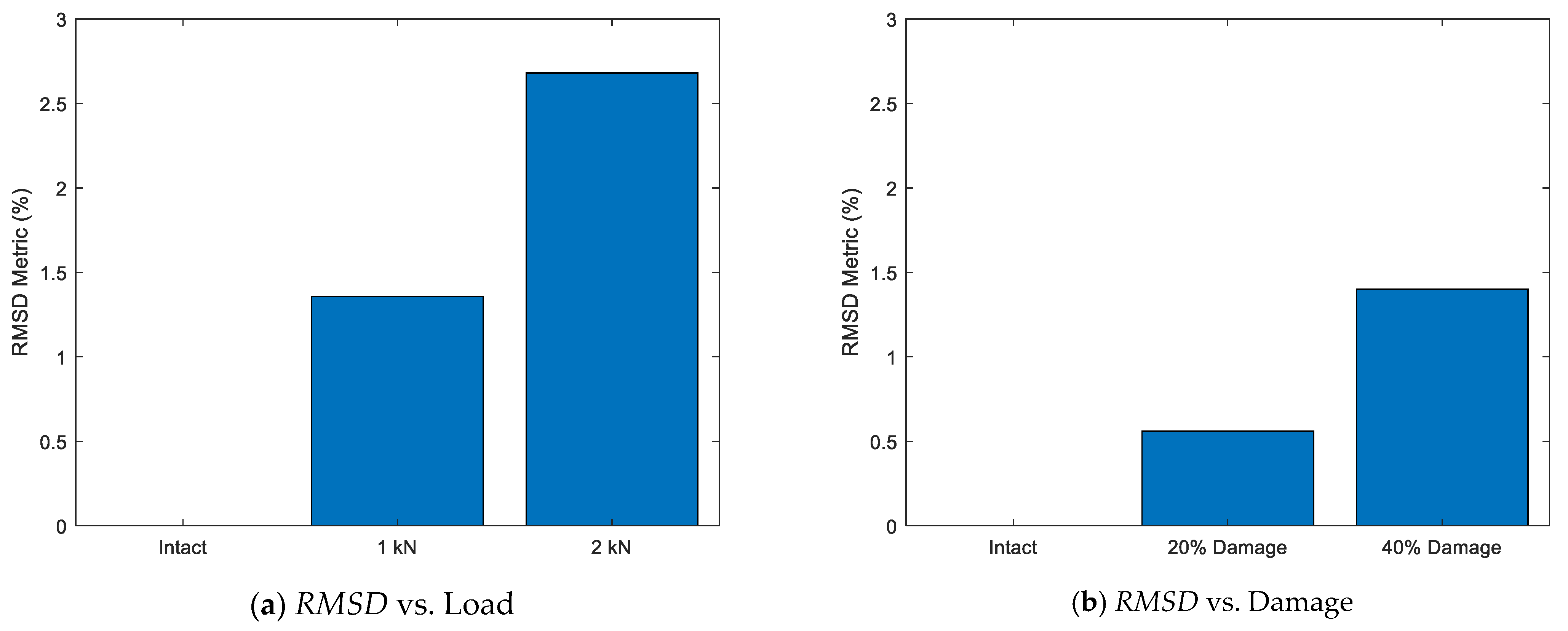

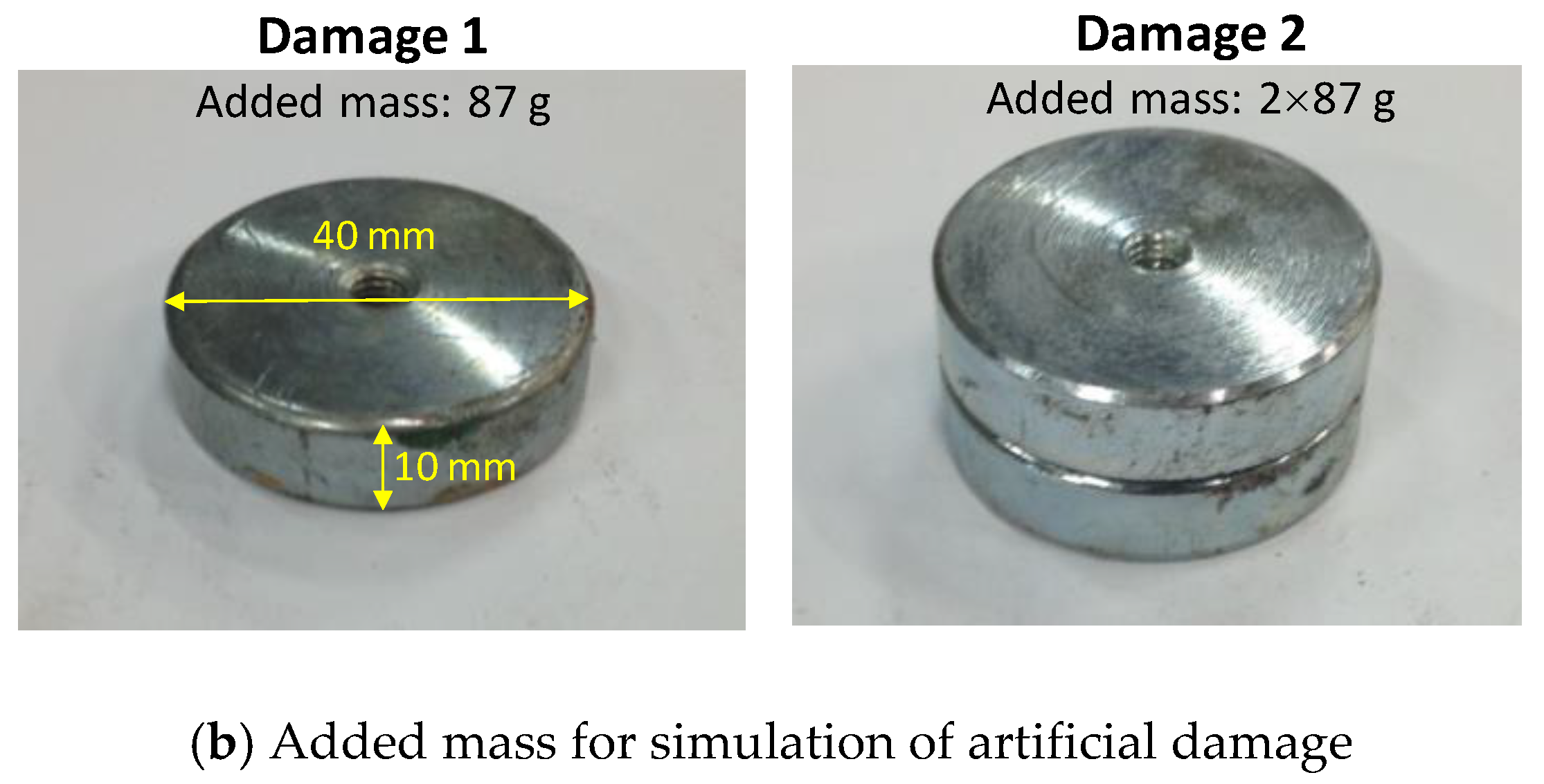

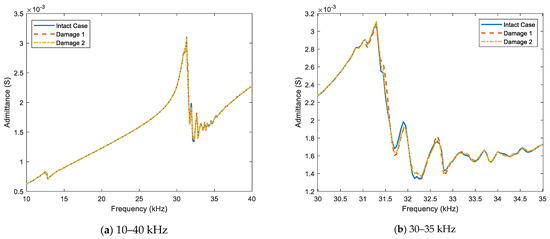

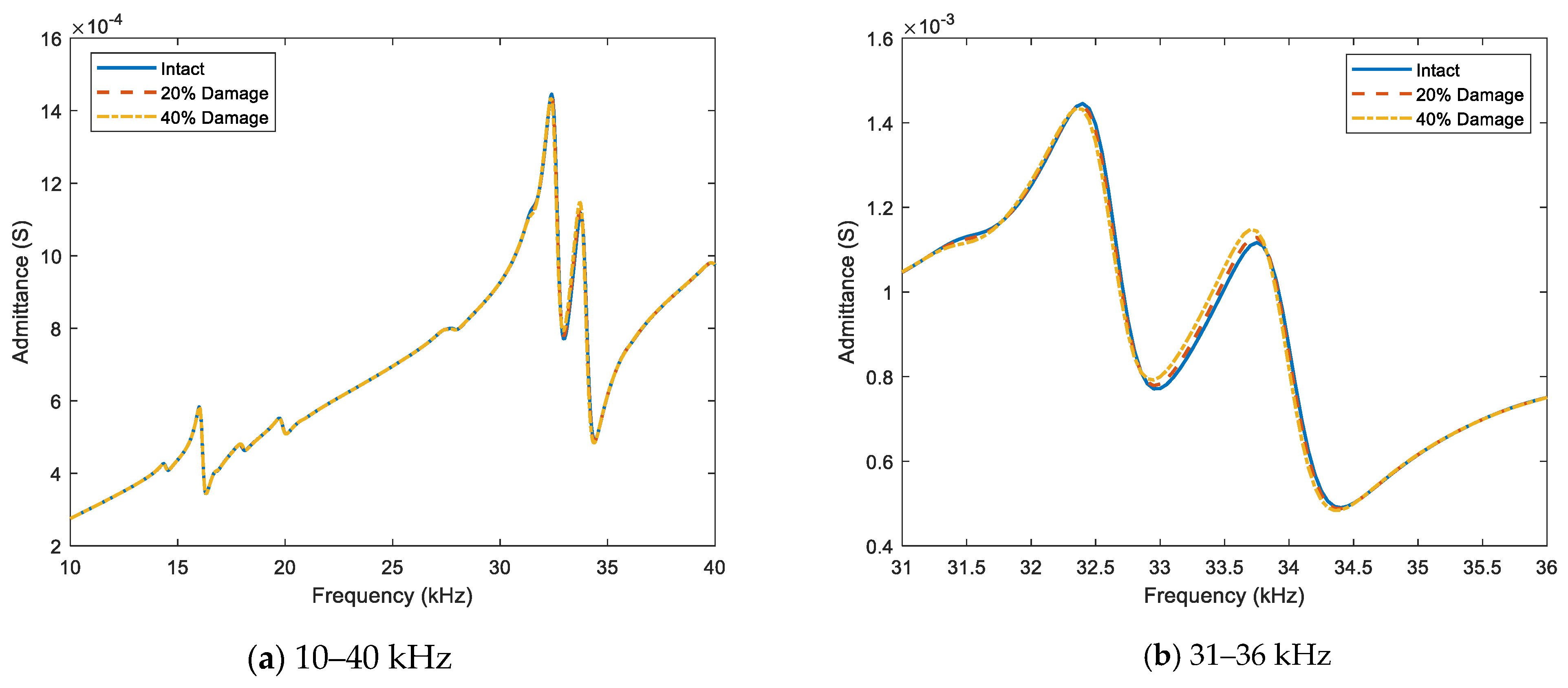

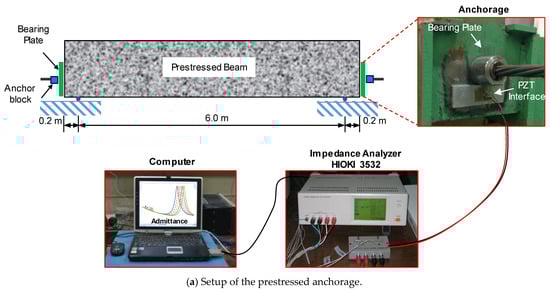

This study examined the feasibility of the admittance-based method for detecting simulated damage in the bearing plate of a prestressed anchorage. The proposed method utilized the PZT (lead zirconate titanate) interface technique to acquire a strong admittance response from the anchorage. Firstly, the numerical feasibility of the method was demonstrated by detecting the presence of fatigue cracks and preload changes in a fixed–fixed beam-like structure. Next, the experimental verification was carried out using a lab-scale prestressed anchorage model. A PZT interface prototype was designed and surface-mounted on the bearing plate. The admittance response of the PZT interface was measured before and after the simulated damage cases of the bearing plate. Afterwards, a statistical damage metric, root-mean-square deviation (RMSD) was used to quantify the change in the admittance spectrum and identify the damage’s presence. It was shown that the experimental admittance response was consistent with the numerical simulation result in the same effective frequency band. Both the numerical and experimental results showed clear shifts in the admittance spectrum due to structural damage. The simulated damages in the bearing plate were successfully identified by the RMSD evaluation metric.
