Next Article in Journal
Gas Metal Arc Welding Using Novel CaO-Added Mg Alloy Filler Wire
Previous Article in Journal
Dynamic Recrystallization and Hot Workability of 316LN Stainless Steel
Previous Article in Special Issue
Designing of Synergistic Waste Mixtures for Multiphase Reactive Smelting
Open AccessArticle

One-Step Extraction of Antimony in Low Temperature from Stibnite Concentrate Using Iron Oxide as Sulfur-Fixing Agent

1
School of Metallurgy and Environment, Central South University, Changsha 410083, China
2
Qinghai Provincial Research and Design Academy of Environmental Sciences, Xining 810000, China
*
Authors to whom correspondence should be addressed.
Academic Editor: Corby G. Anderson
Metals 2016, 6(7), 153; https://doi.org/10.3390/met6070153
Received: 28 April 2016 / Revised: 5 June 2016 / Accepted: 16 June 2016 / Published: 7 July 2016
(This article belongs to the Special Issue Recycling of Metals)

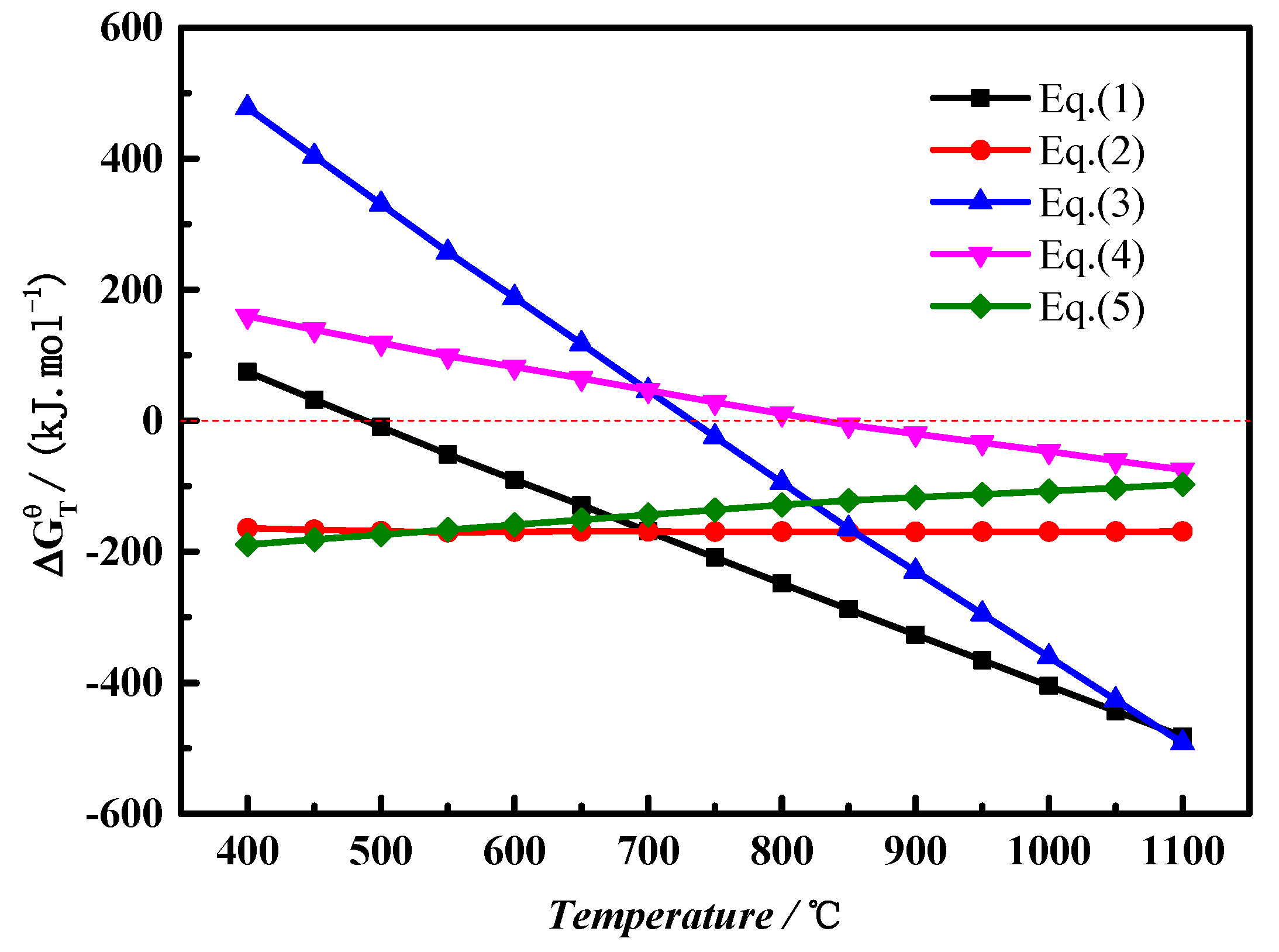

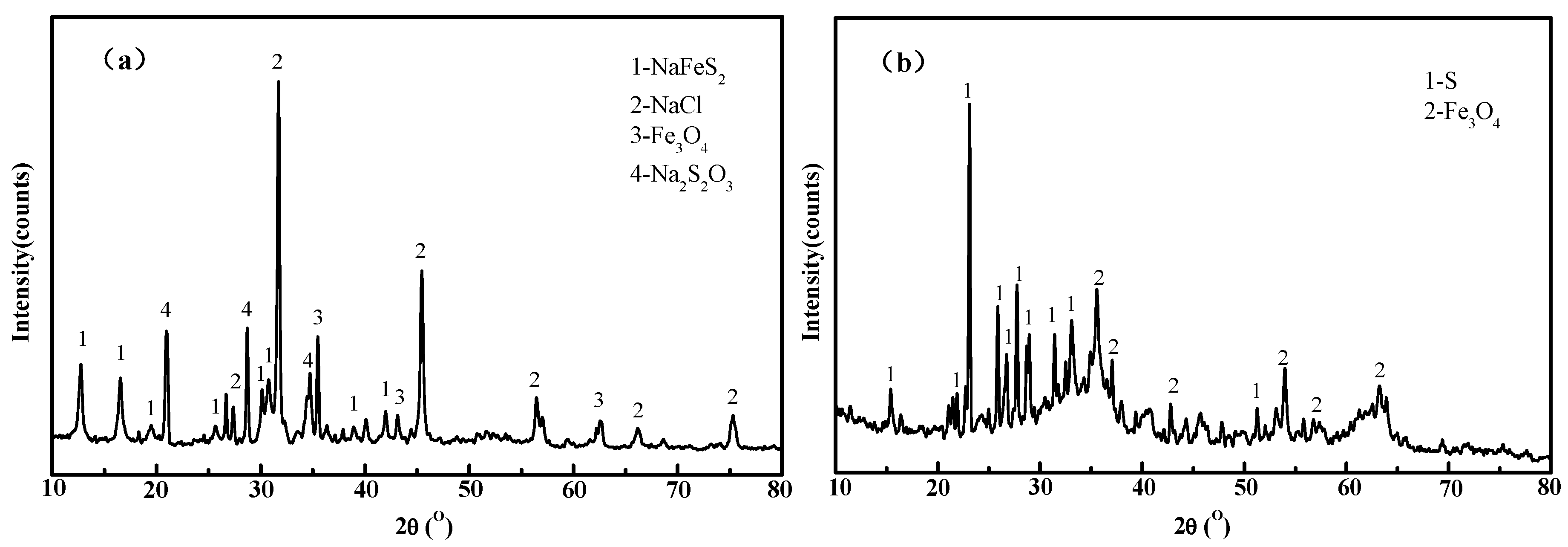

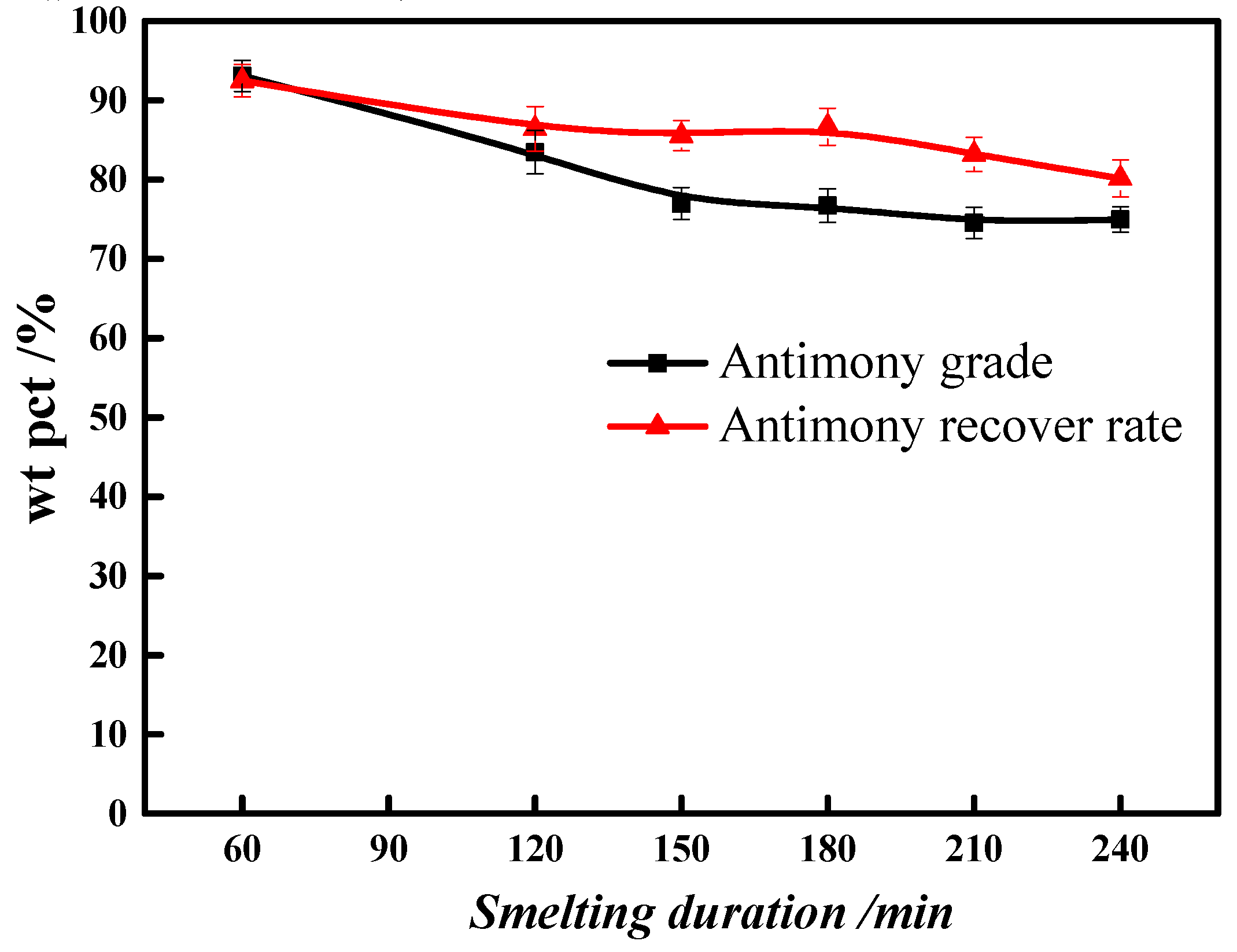

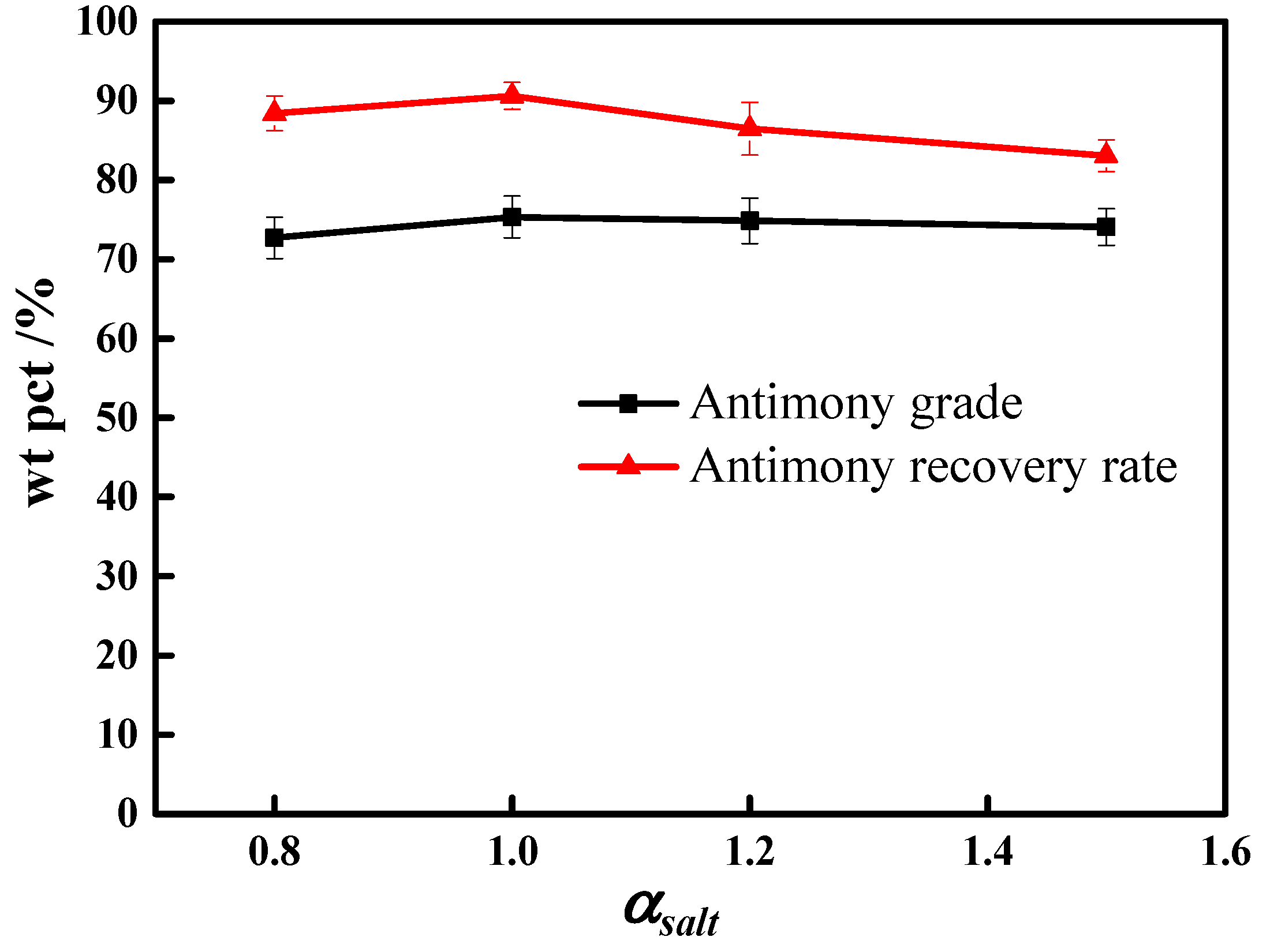

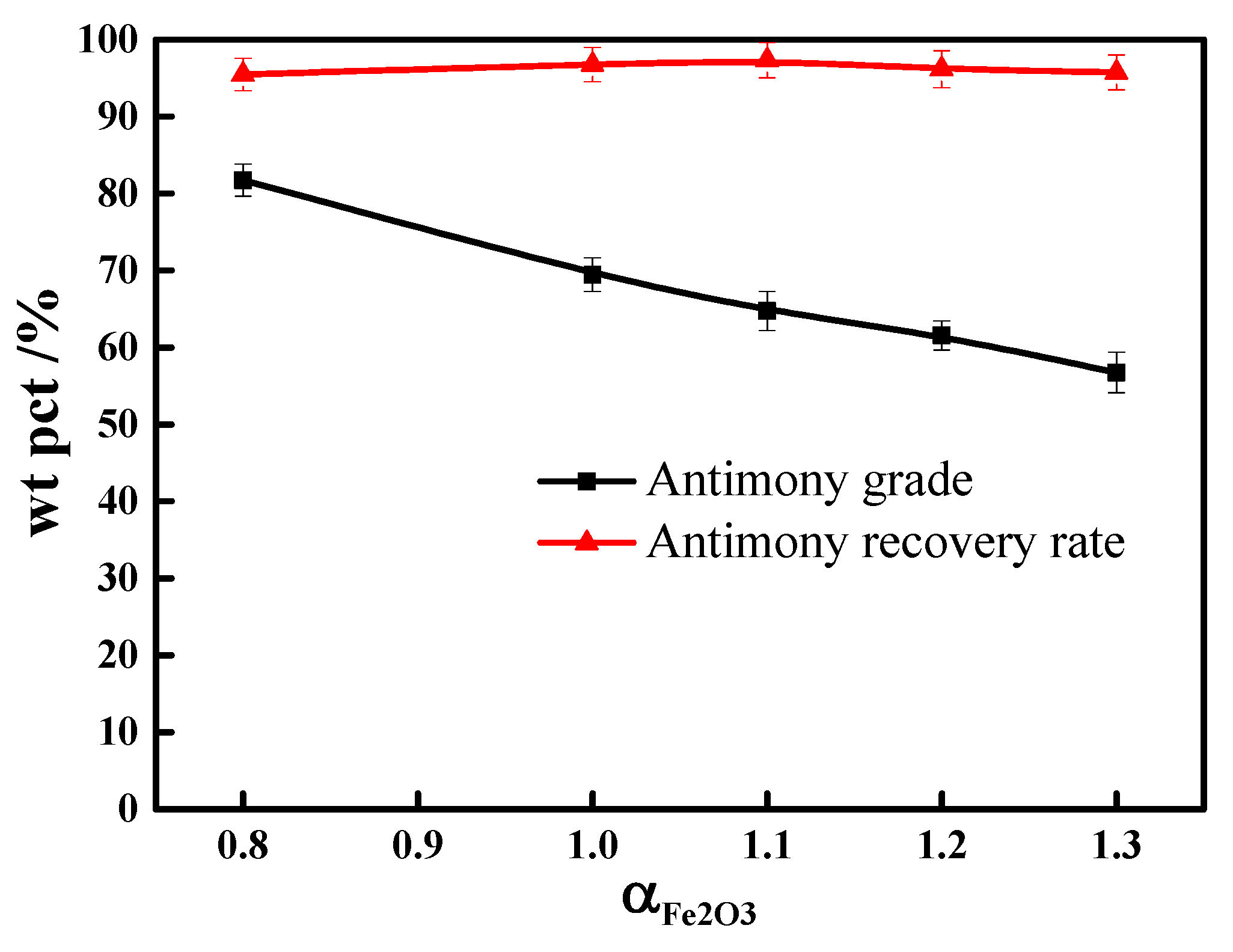

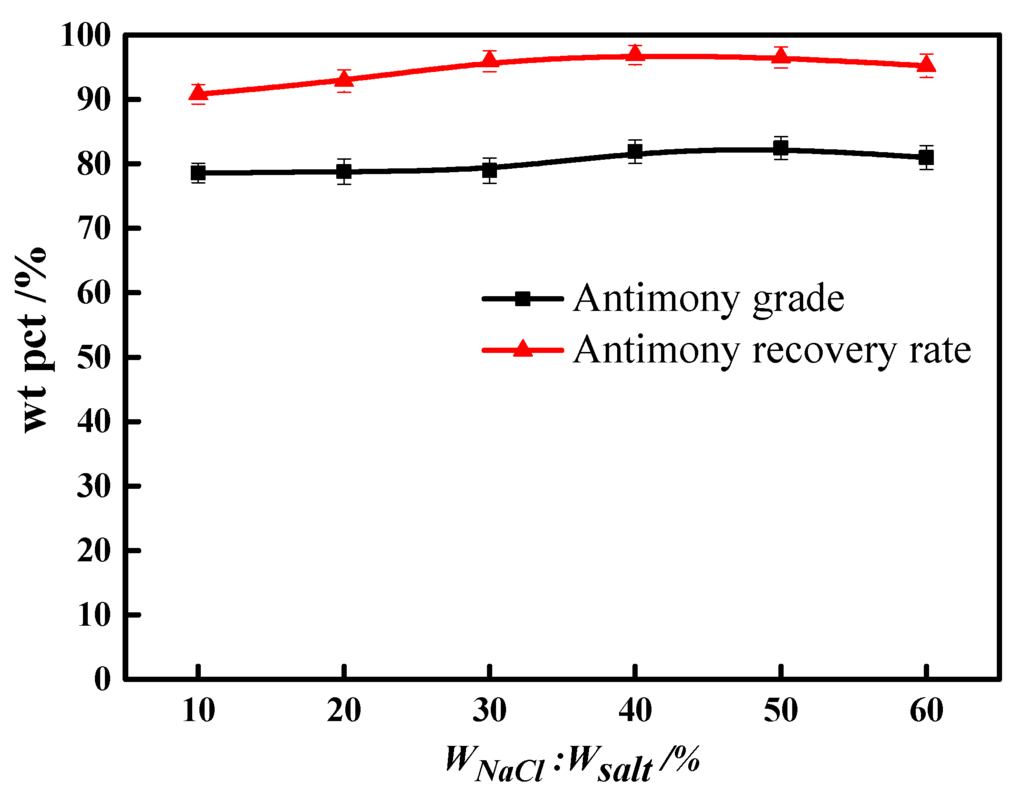

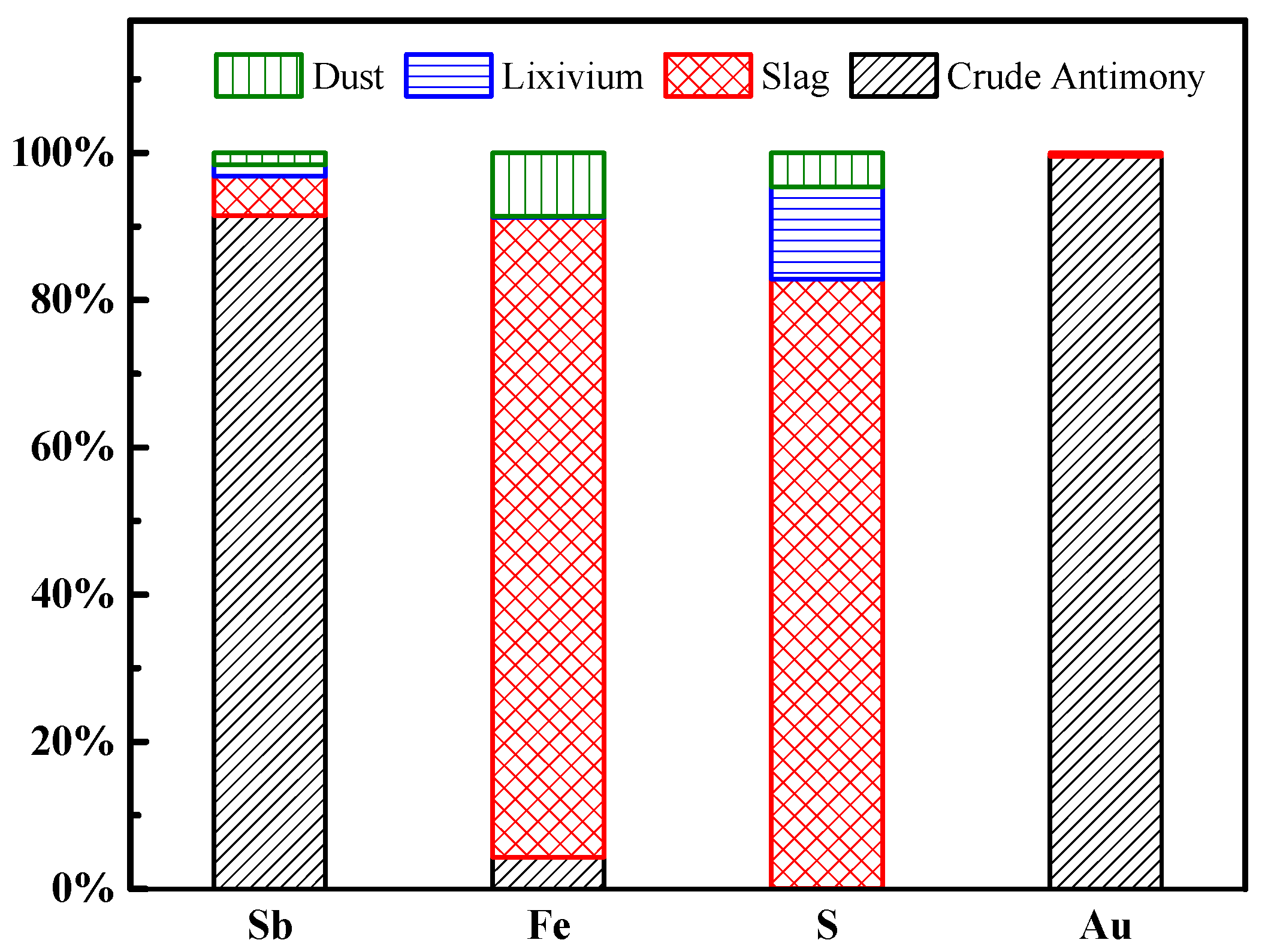

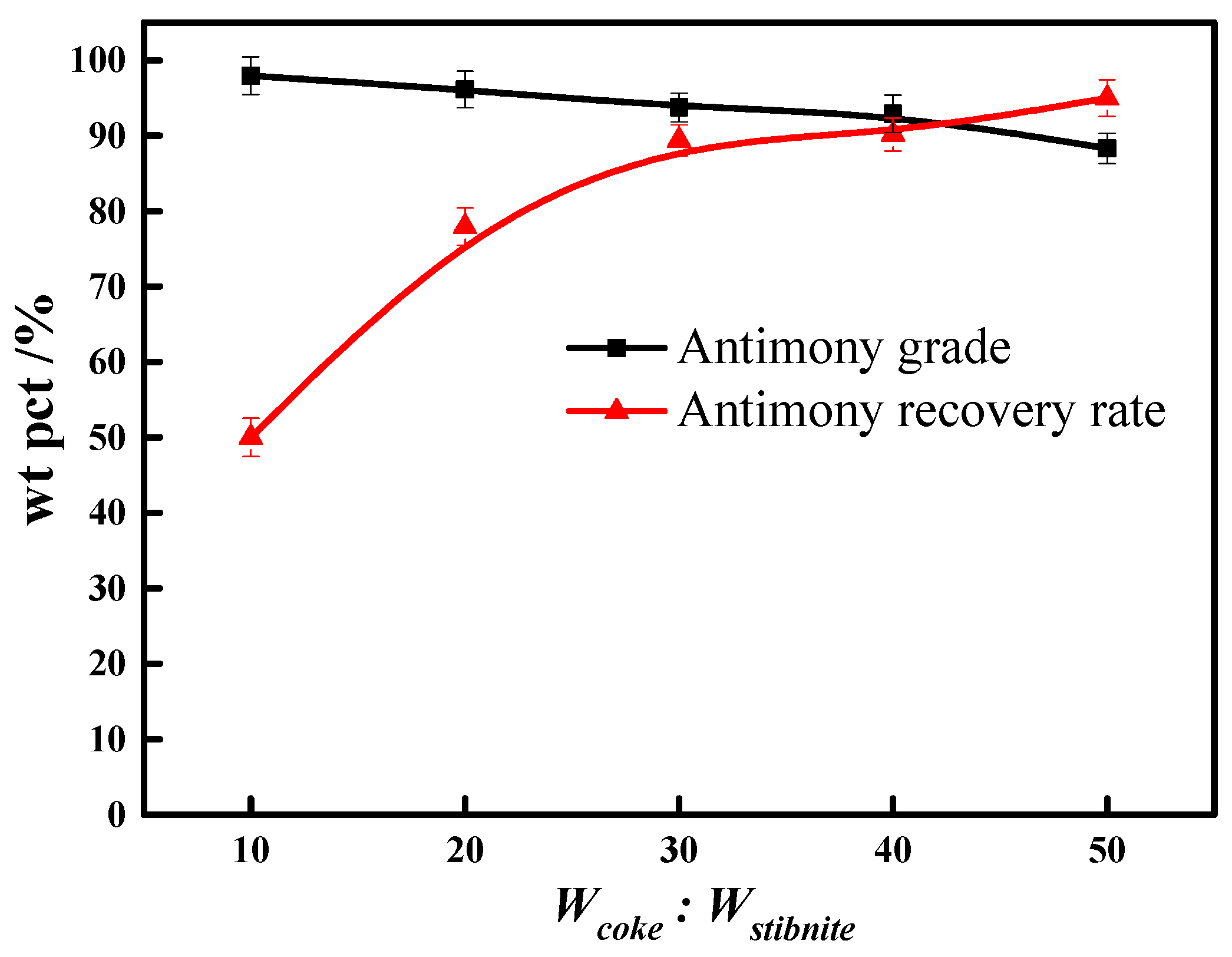

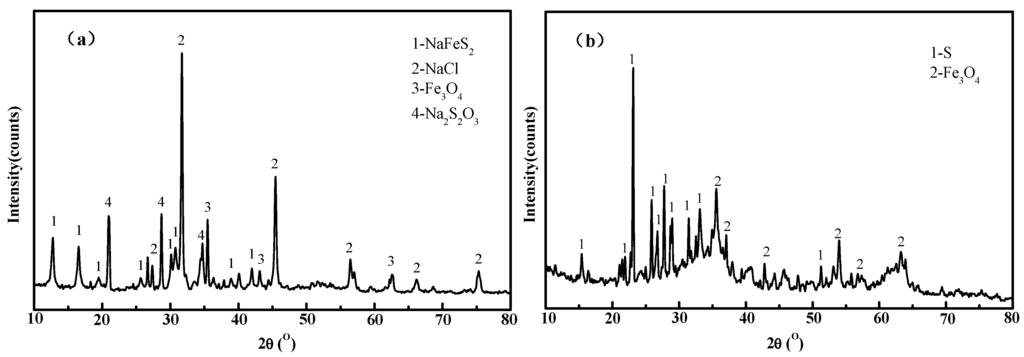

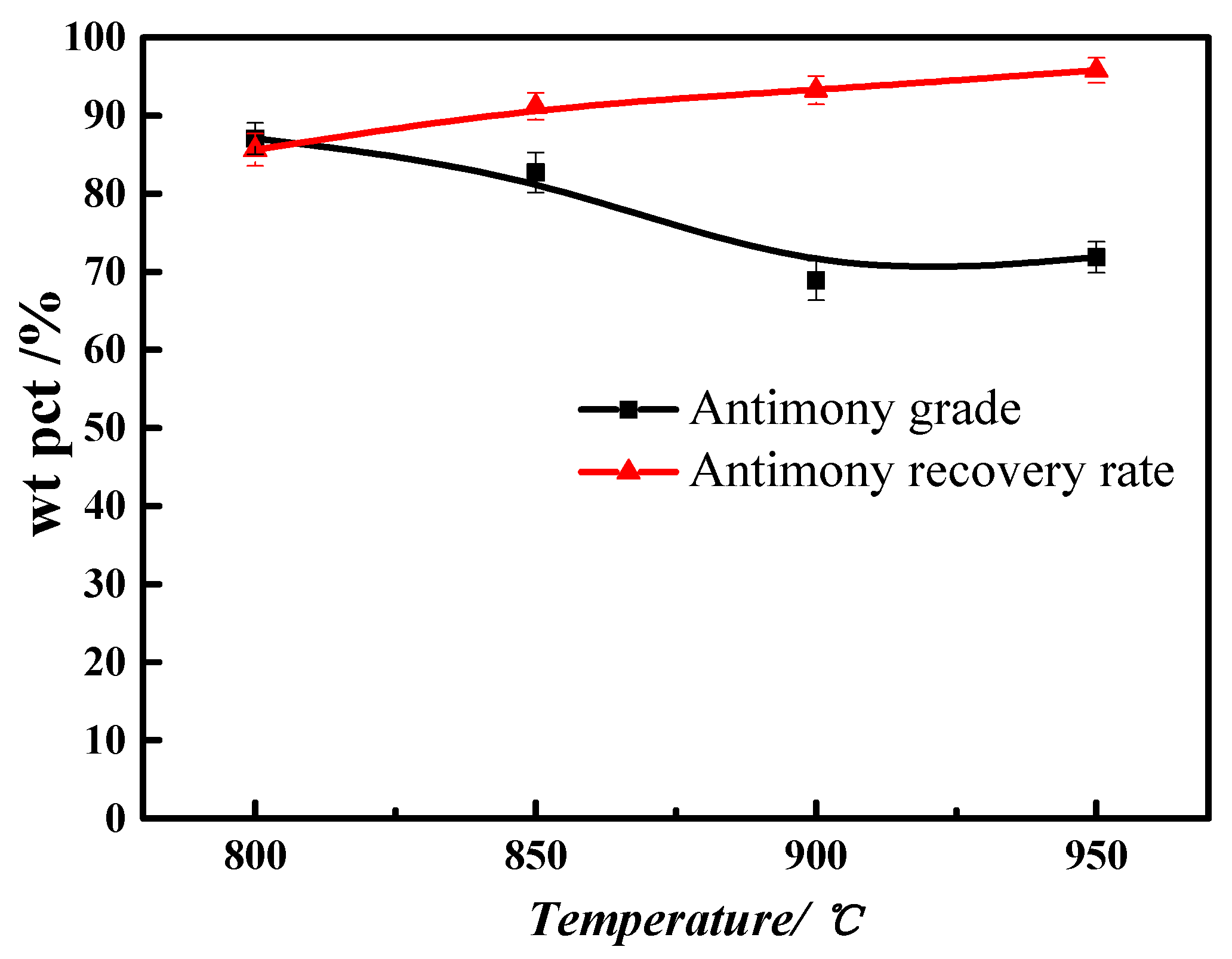

A new process for one-step extraction of antimony in low temperature from stibnite concentrate by reductive sulfur-fixation smelting in sodium molten salt, using iron oxide as sulfur-fixing agent, was presented. The influences of molten salt addition and composition, ferric oxide dosage, smelting temperature and duration on extraction efficiency of antimony were investigated in details, respectively. The optimum conditions were determined as follows: 1.0 time stoichiometric requirement (α) of mixed sodium salt (αsalt = 1.0), WNaCl:Wsalt = 40%, αFe2O3 = 1.0, Wcoke:Wstibnite = 40%, where W represents weight, smelting at 850 °C (1123 K) for 60 min. Under the optimum conditions, the direct recovery rate of antimony can reach 91.48%, and crude antimony with a purity of 96.00% has been achieved. 95.31% of sulfur is fixed in form of FeS in the presence of iron oxide. Meanwhile, precious metals contained in stibnite concentrate are enriched and recovered comprehensively in crude antimony. In comparison to traditional antimony pyrometallurgical process, the smelting temperature of present process is reduced from 1150–1200 °C (1423–1473 K) to 850–900 °C (1123–1173 K). Sulfur obtained in stibnite is fixed in FeS which avoids SO2 emission owing to the sulfur-fixing agent. Sodium salt can be regenerated and recycled in smelting system when the molten slag is operated to filter solid residue. The solid residue is subjected to mineral dressing operation to obtain iron sulfide concentrate which can be sold directly or roasted to regenerate into iron oxide. View Full-Text
Keywords: stibnite concentrate; extraction of antimony; reductive sulfur-fixing smelting; low-temperature; molten sodium salt stibnite concentrate; extraction of antimony; reductive sulfur-fixing smelting; low-temperature; molten sodium salt
Show Figures

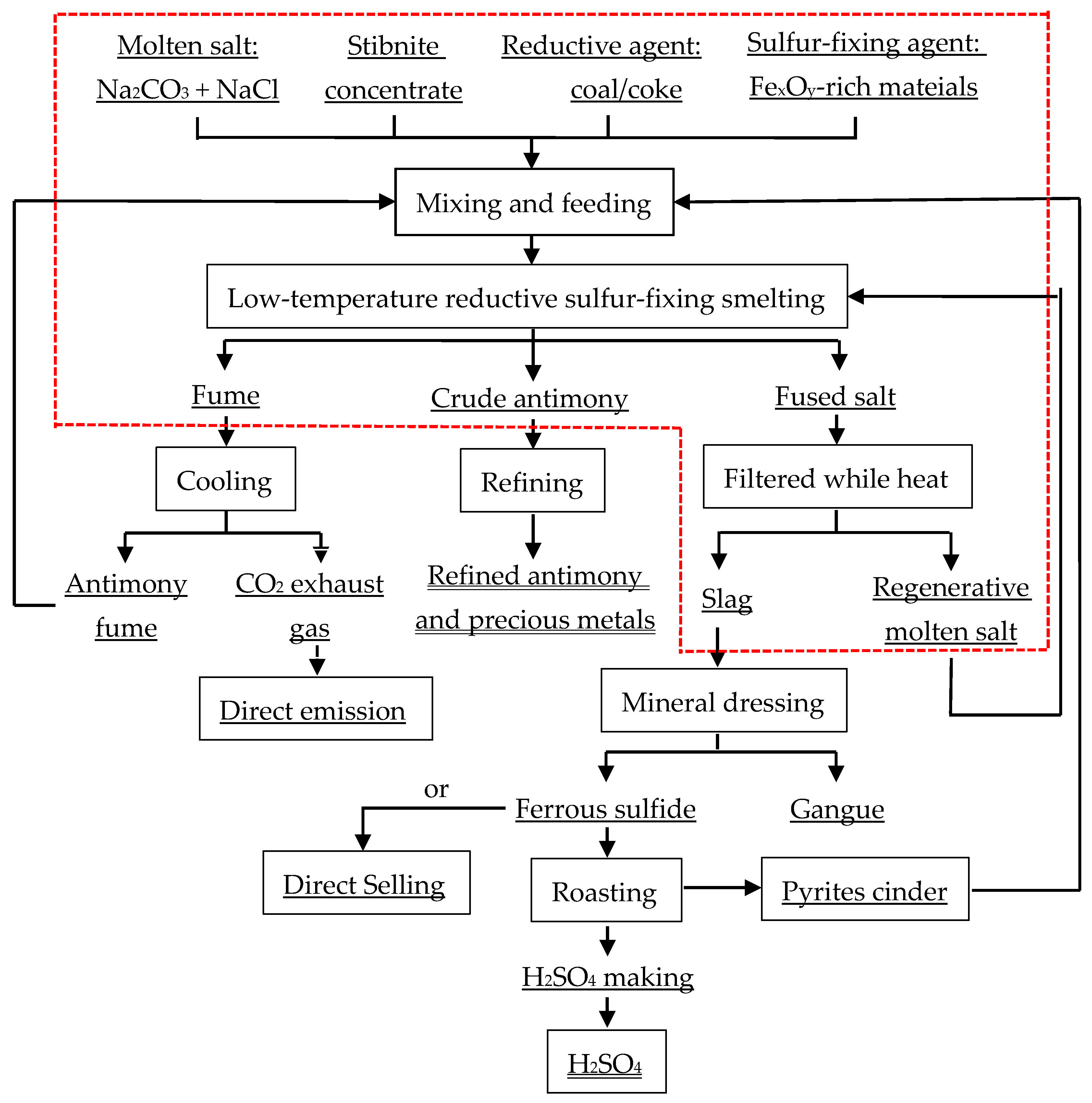

Figure 1

MDPI and ACS Style

Li, Y.; Chen, Y.; Xue, H.; Tang, C.; Yang, S.; Tang, M. One-Step Extraction of Antimony in Low Temperature from Stibnite Concentrate Using Iron Oxide as Sulfur-Fixing Agent. Metals 2016, 6, 153.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
