Phase Equilibrium Studies of the CaO-MgO-Al2O3-SiO2 System for Iron Blast Furnace Slag: A Review
Abstract
1. Introduction
2. Research Techniques Used in Phase Equilibria Studies of BF Slag

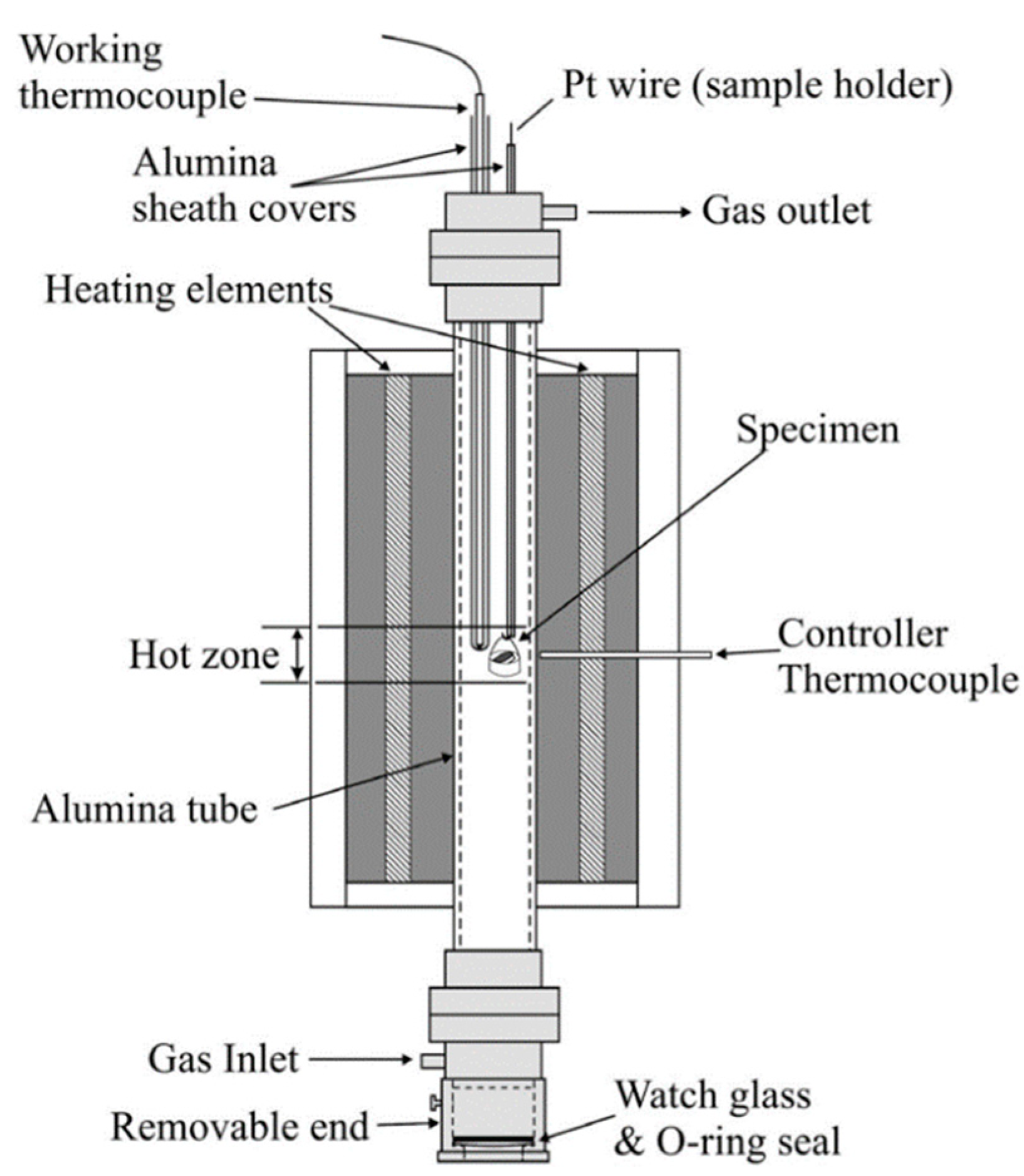

2.1. Liquidus Temperature

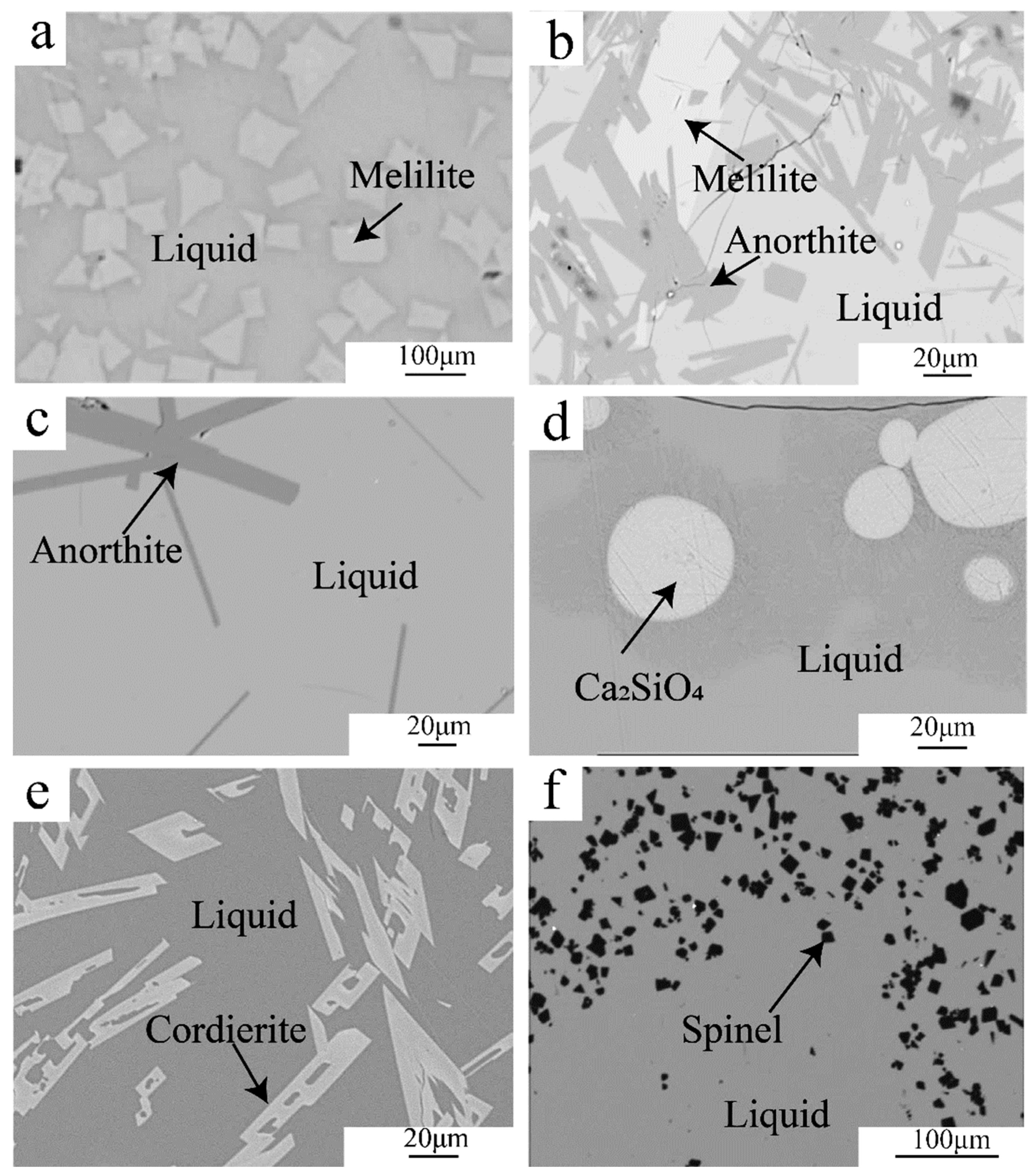

2.2. Solid Solutions
2.3. Thermodynamic Software
3. Experimentally Determined Phase Diagrams

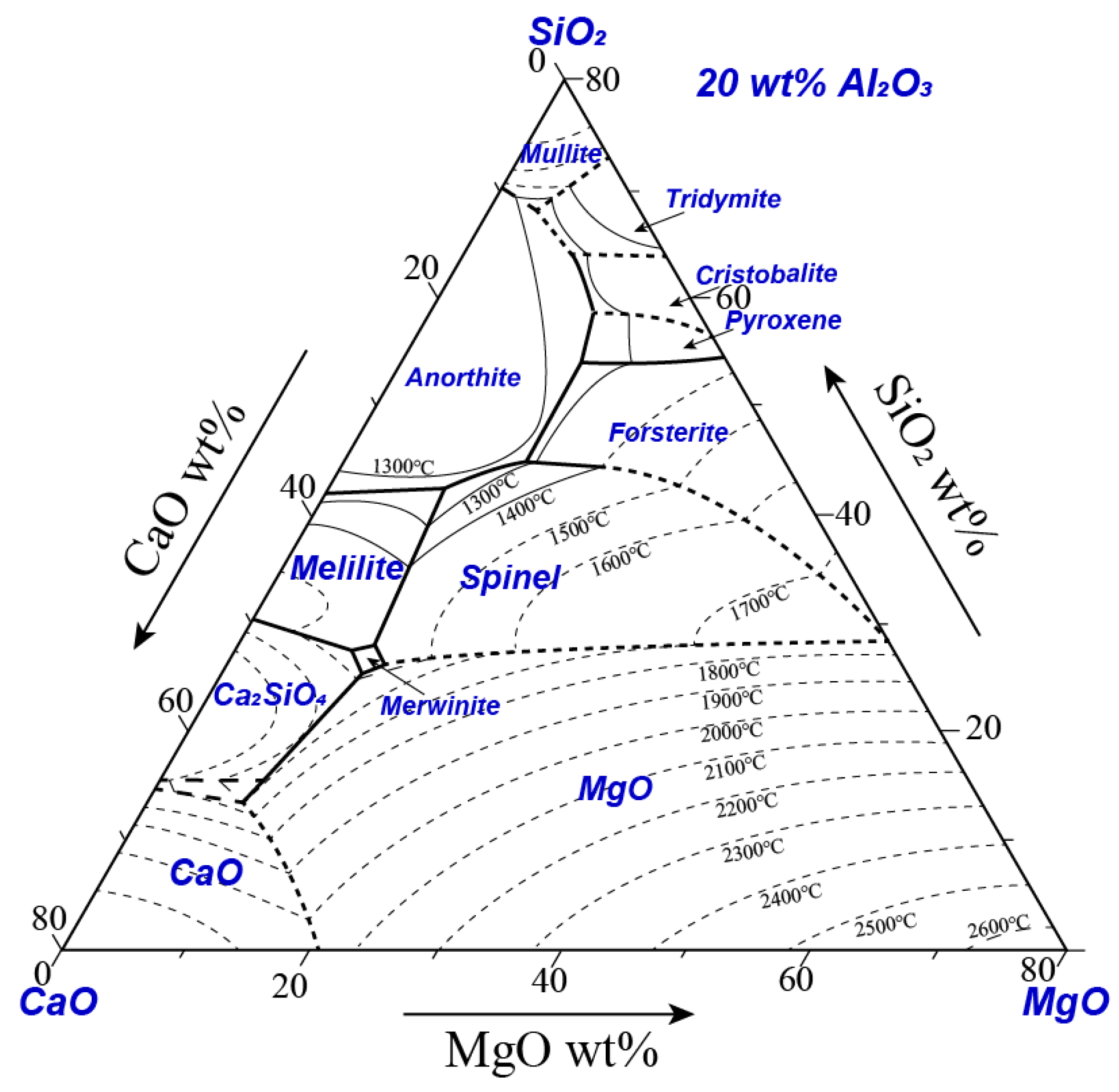

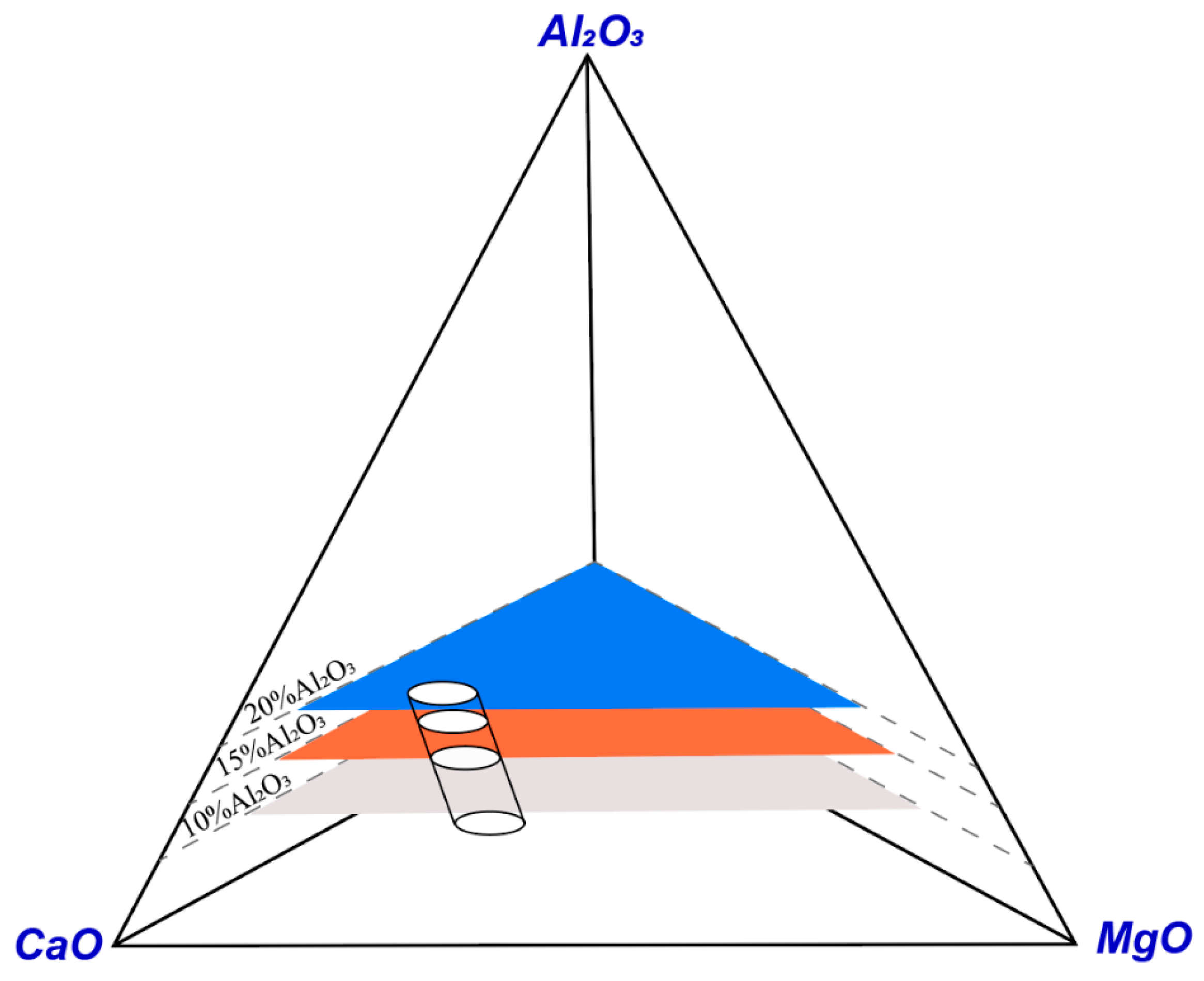

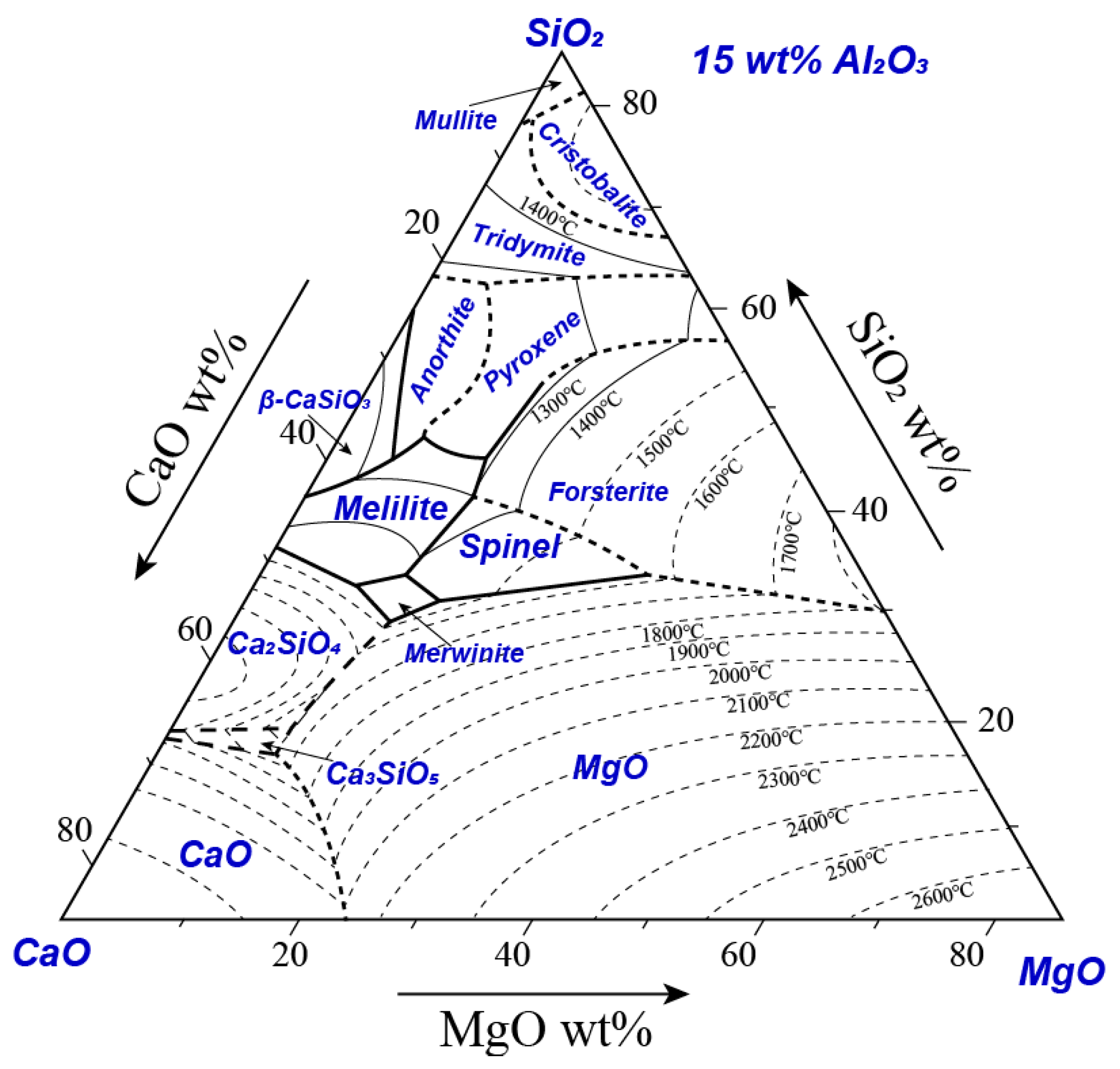

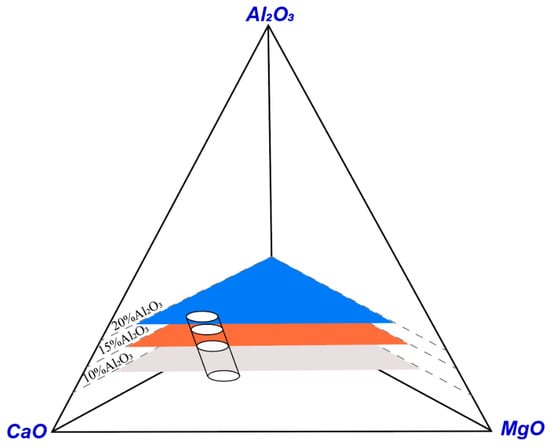

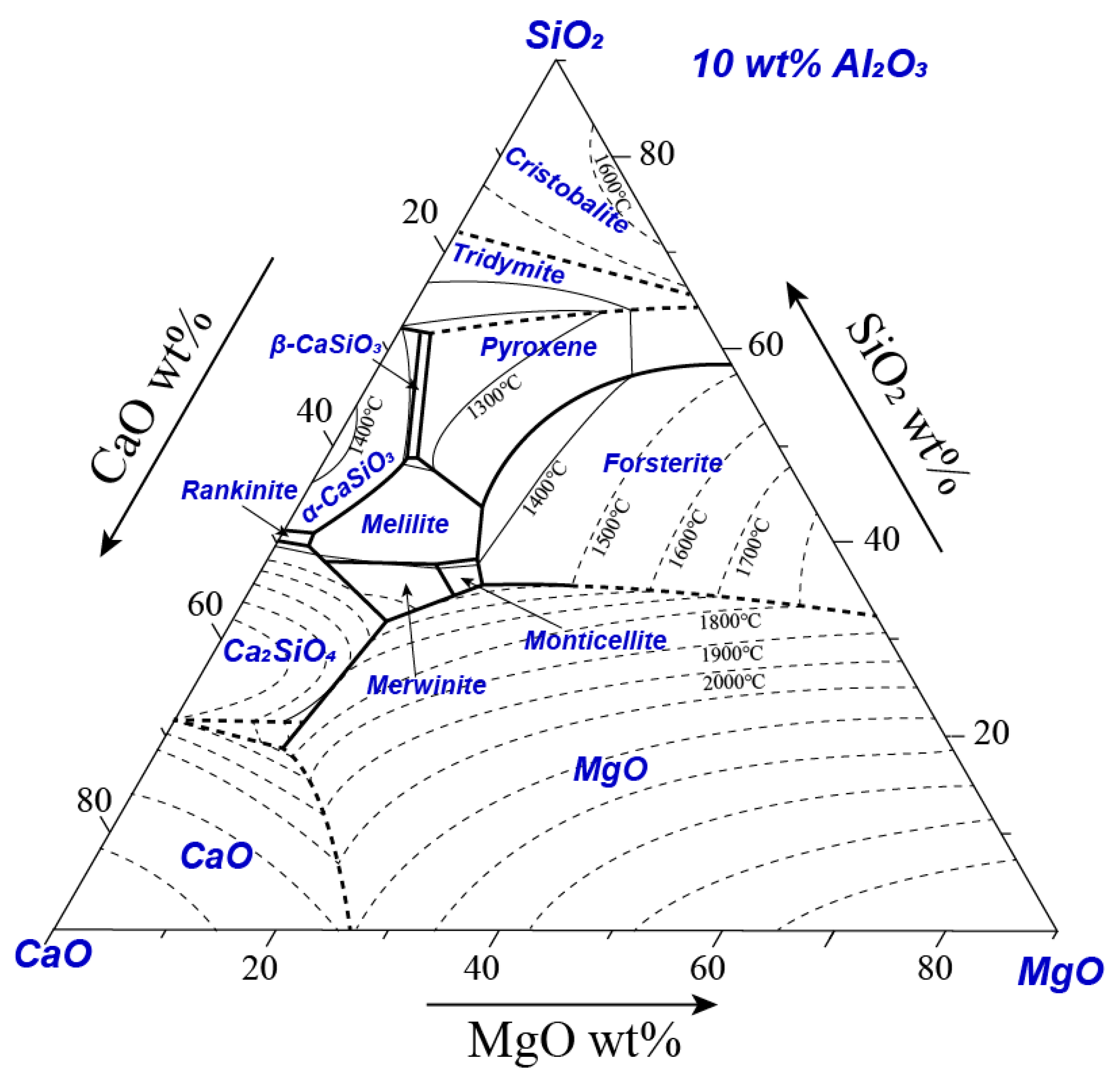

3.1. CaO-MgO-Al2O3-SiO2 System at Constant Al2O3 Content

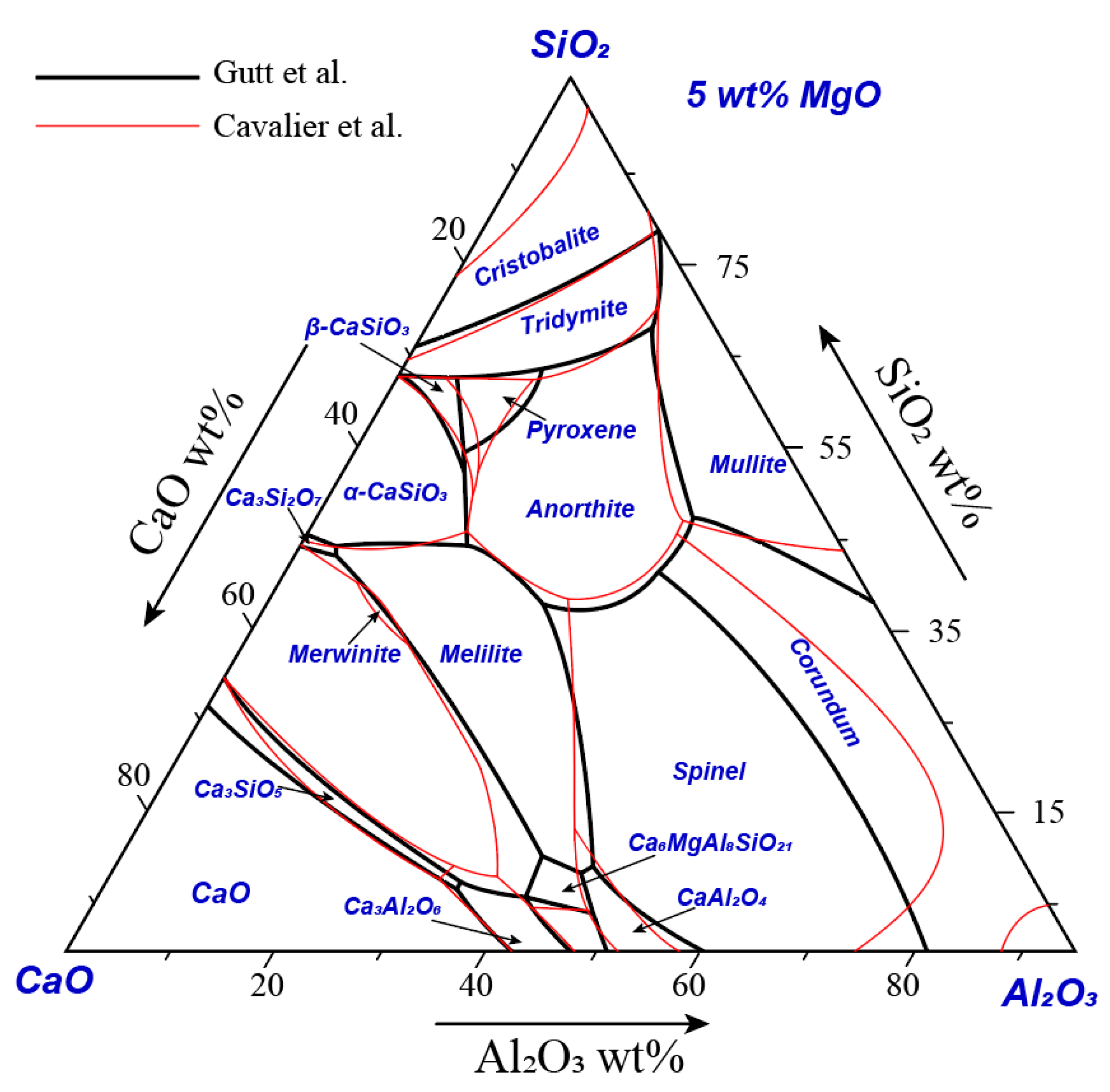

3.2. CaO-MgO-Al2O3-SiO2 System with Fixed MgO

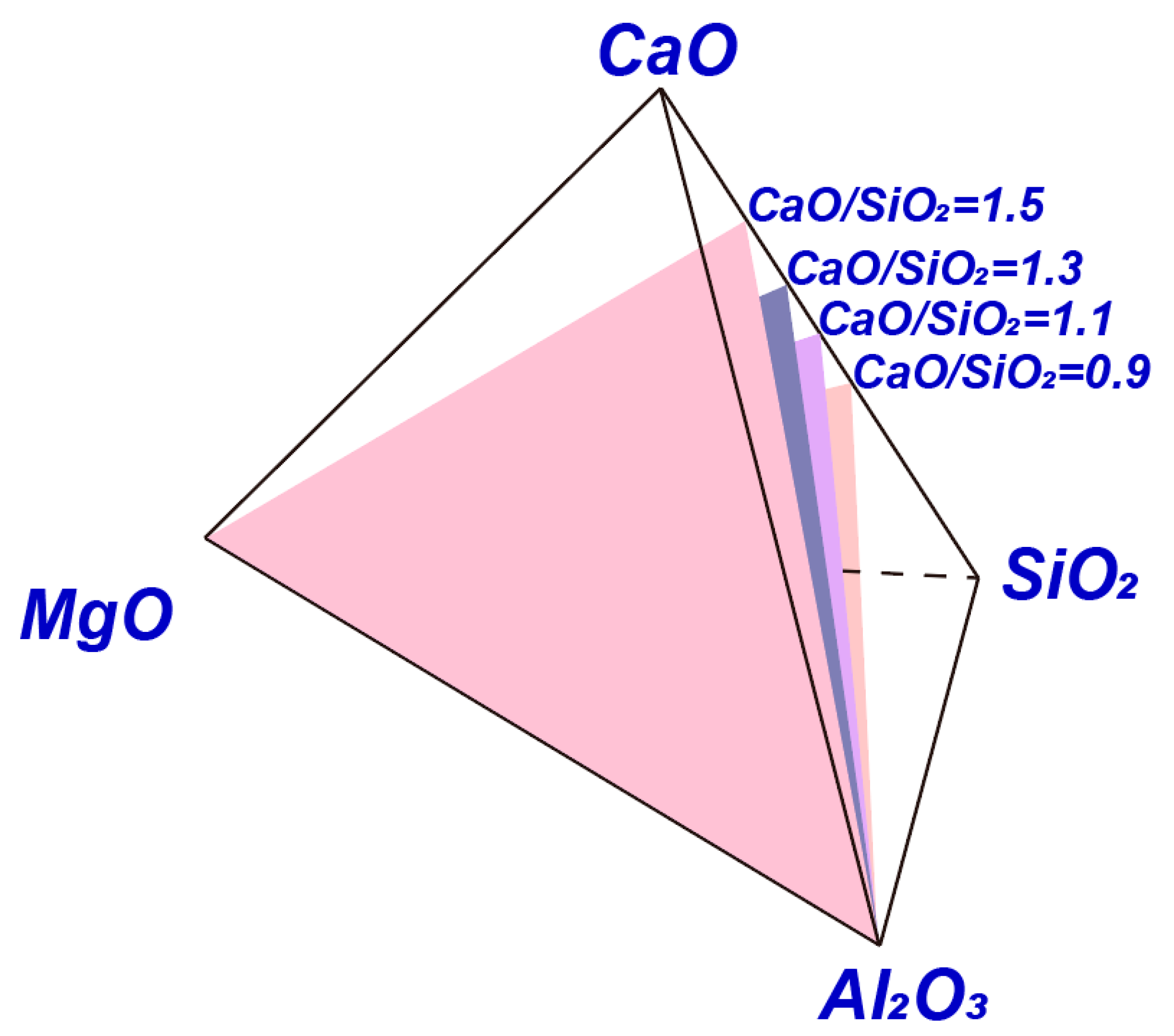

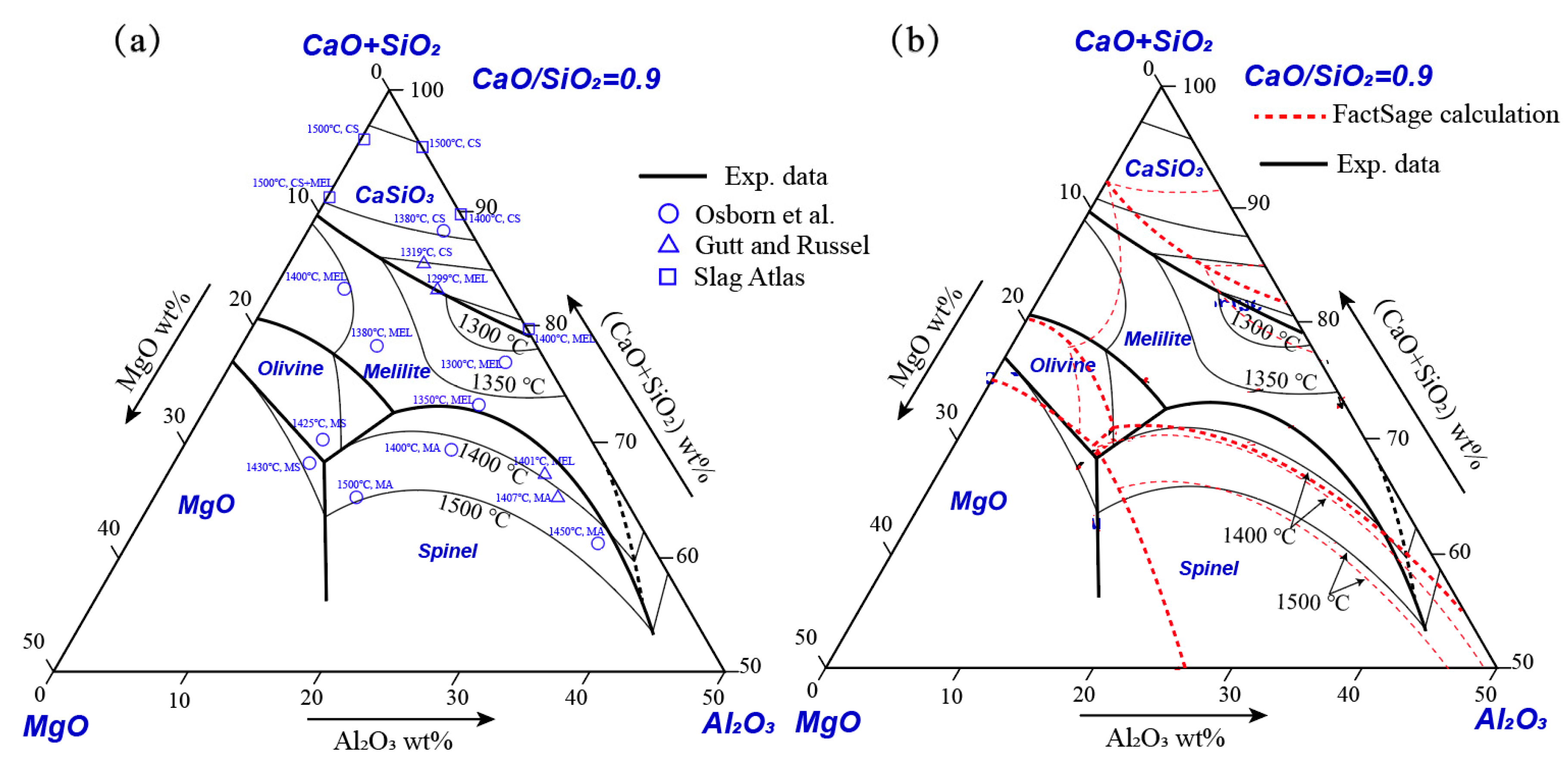

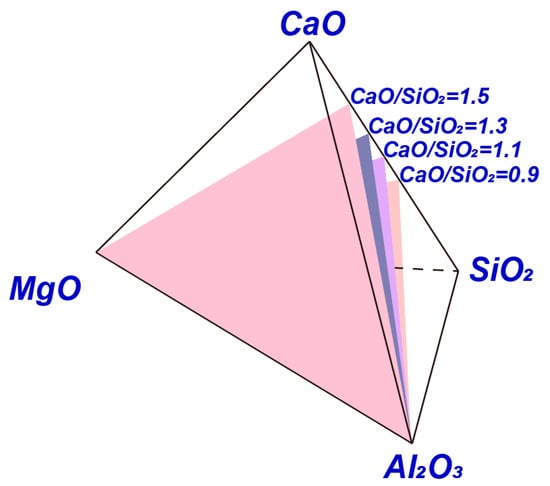

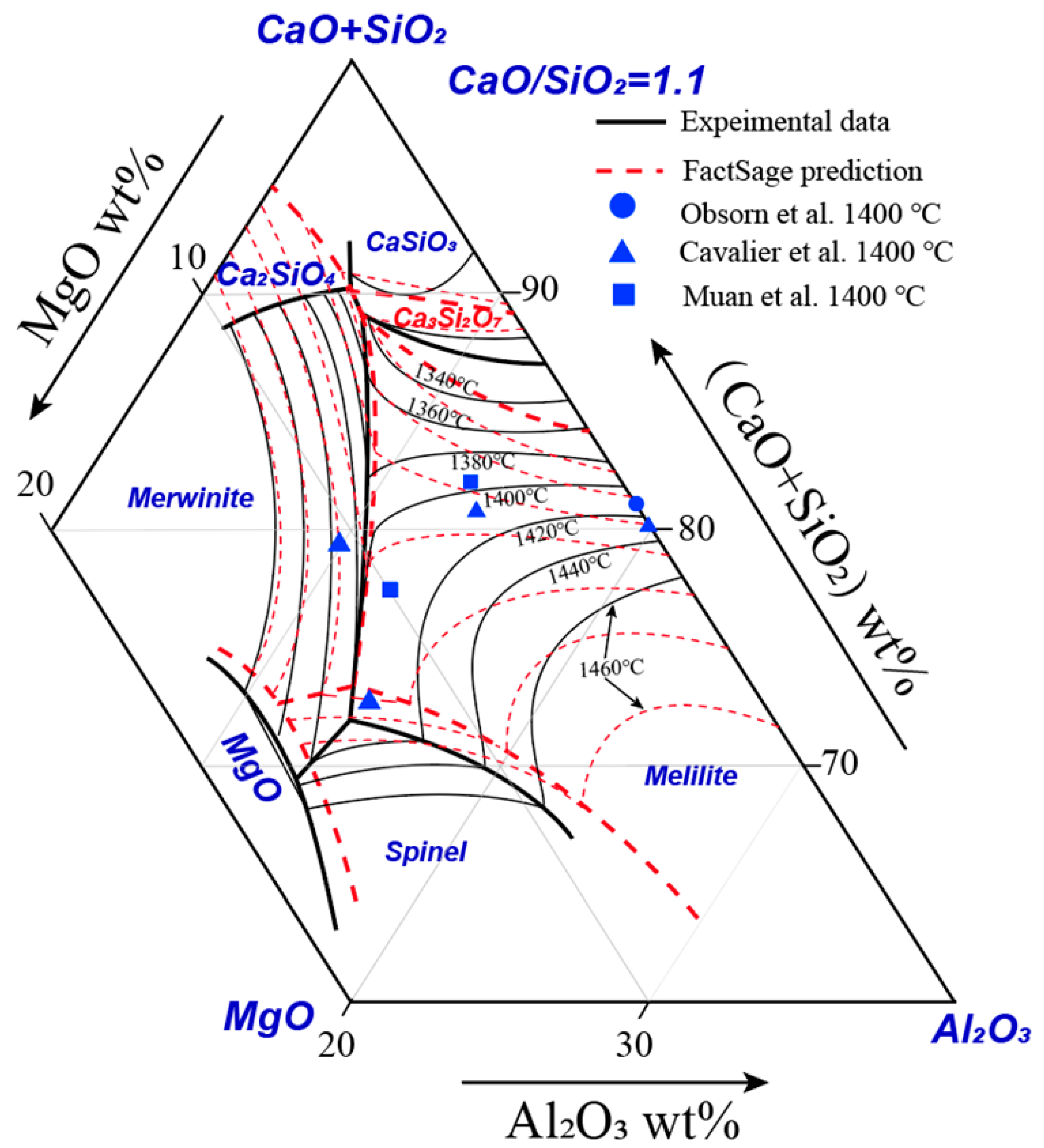

3.3. (CaO + SiO2)-Al2O3-MgO System at Constant CaO/SiO2

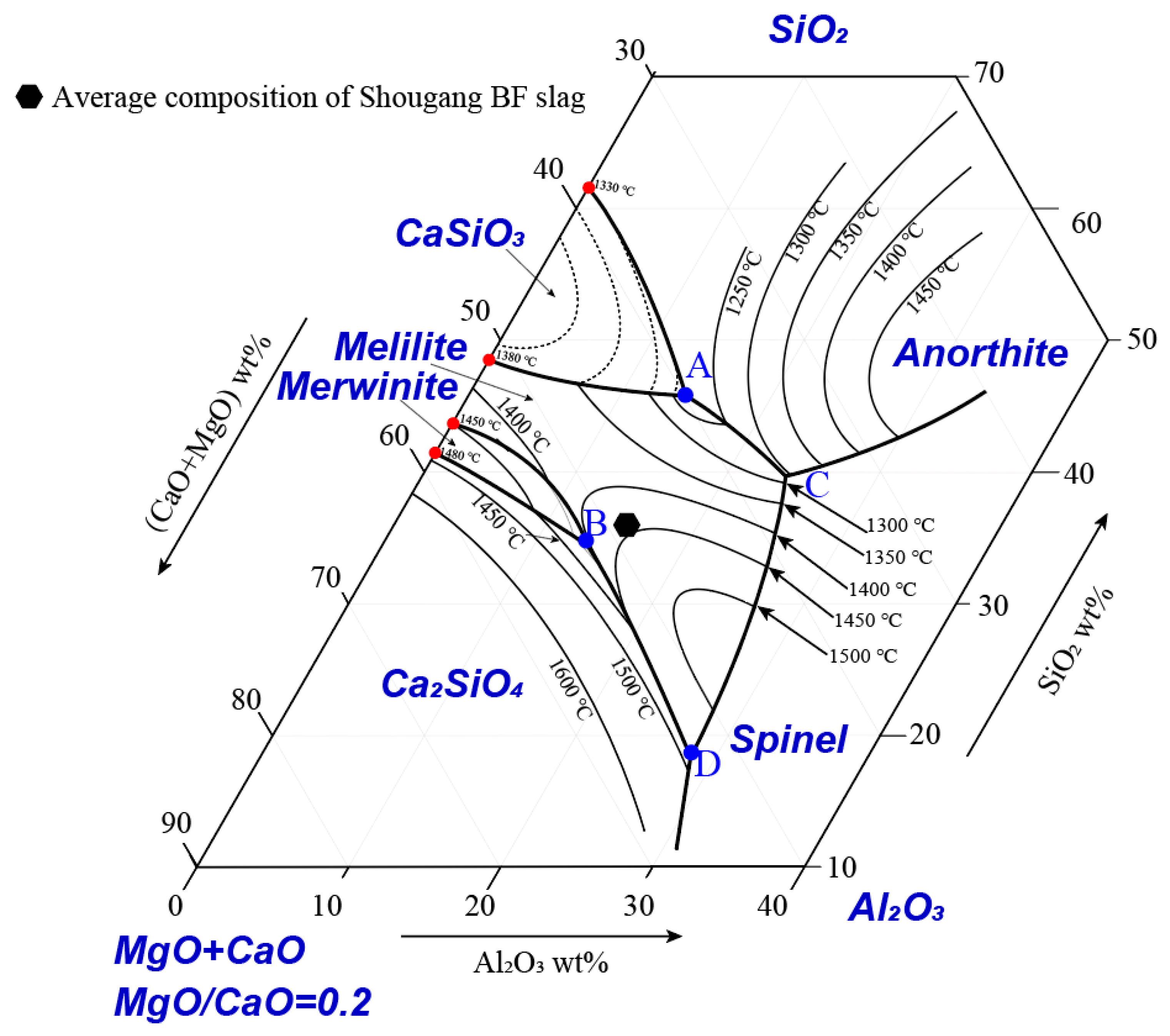

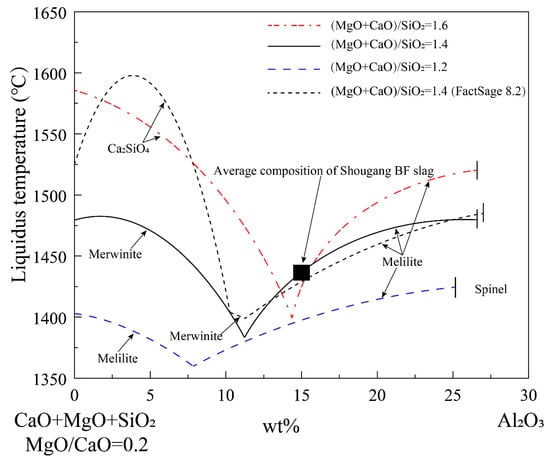

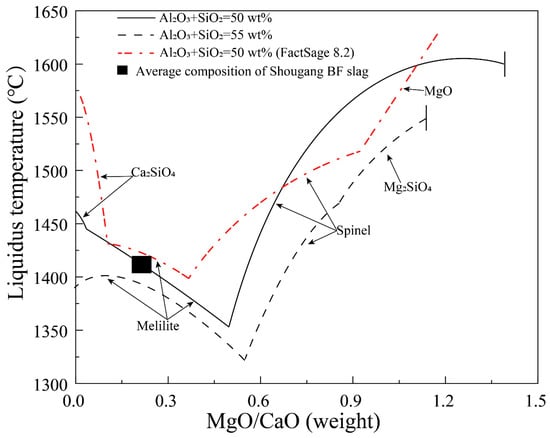

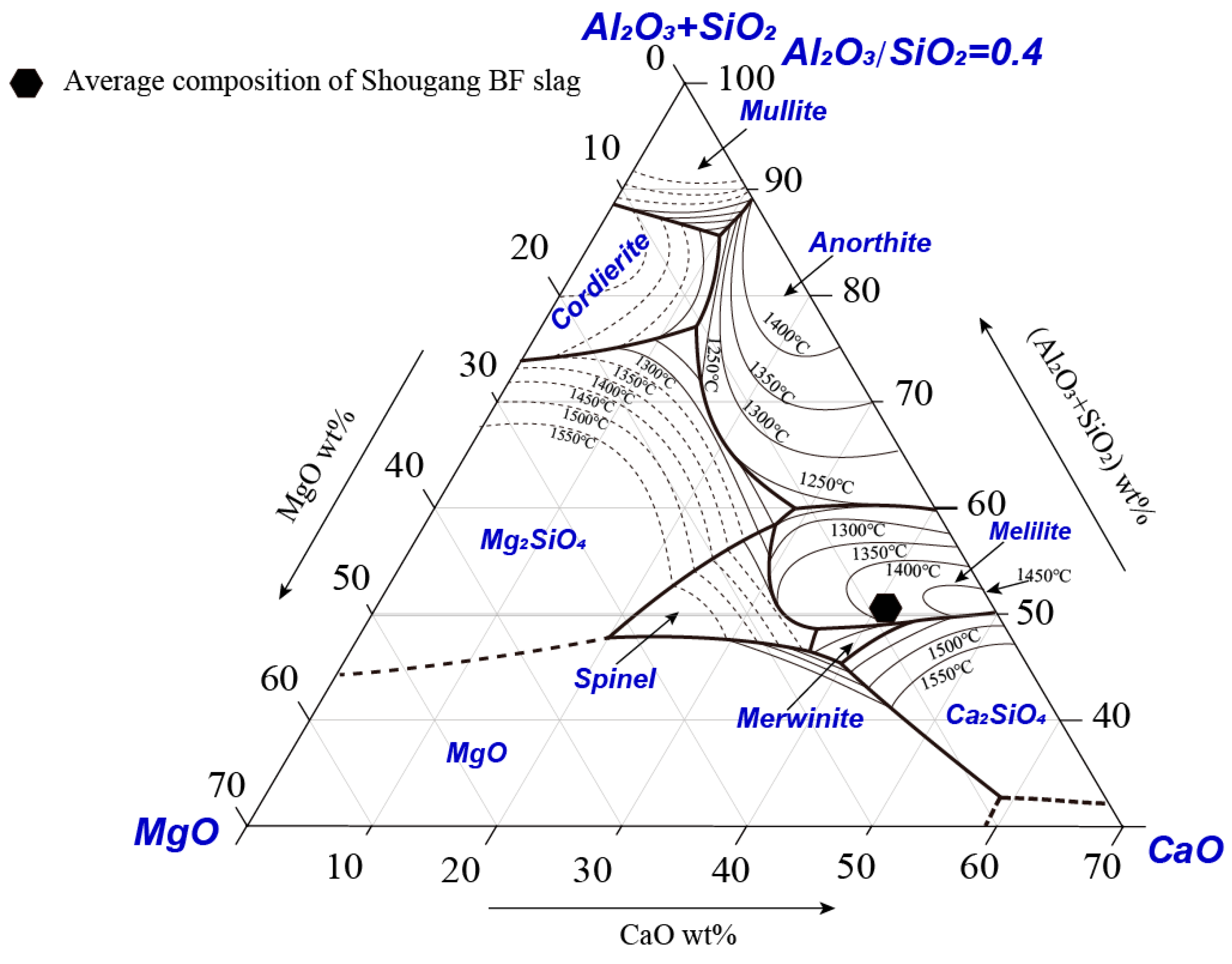

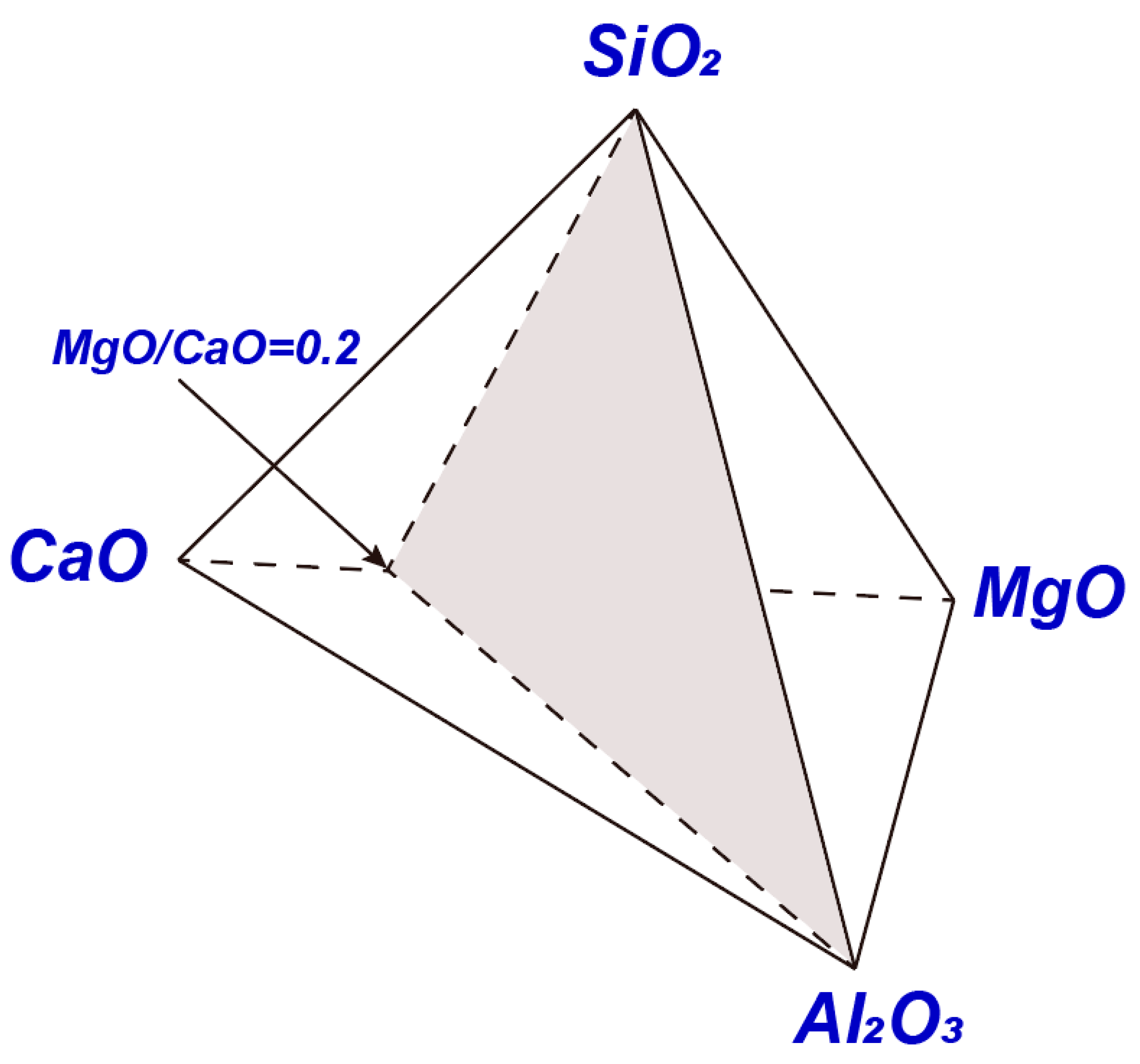

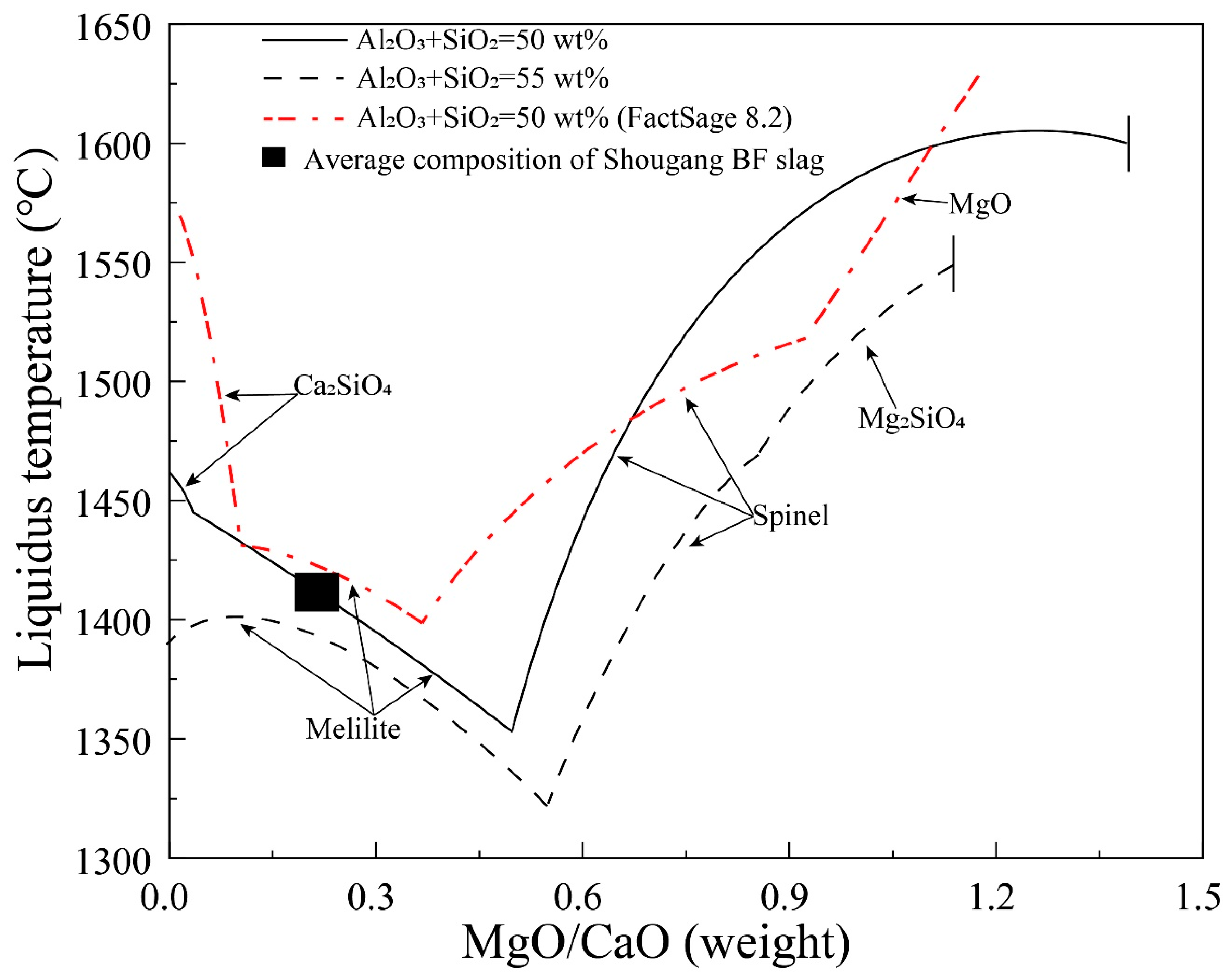

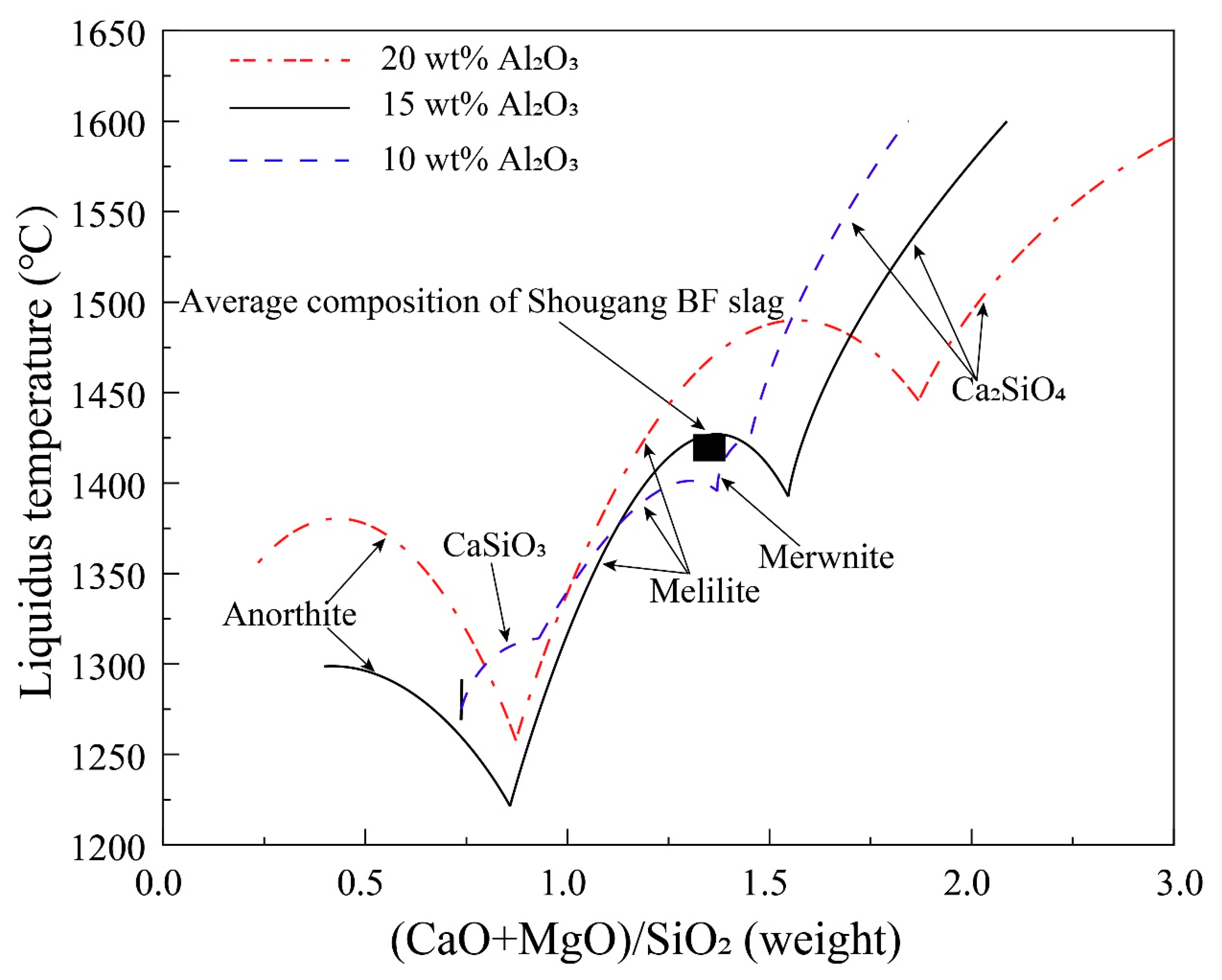

3.4. CaO-MgO-Al2O3-SiO2 System at Constant Al2O3/SiO2 or MgO/CaO

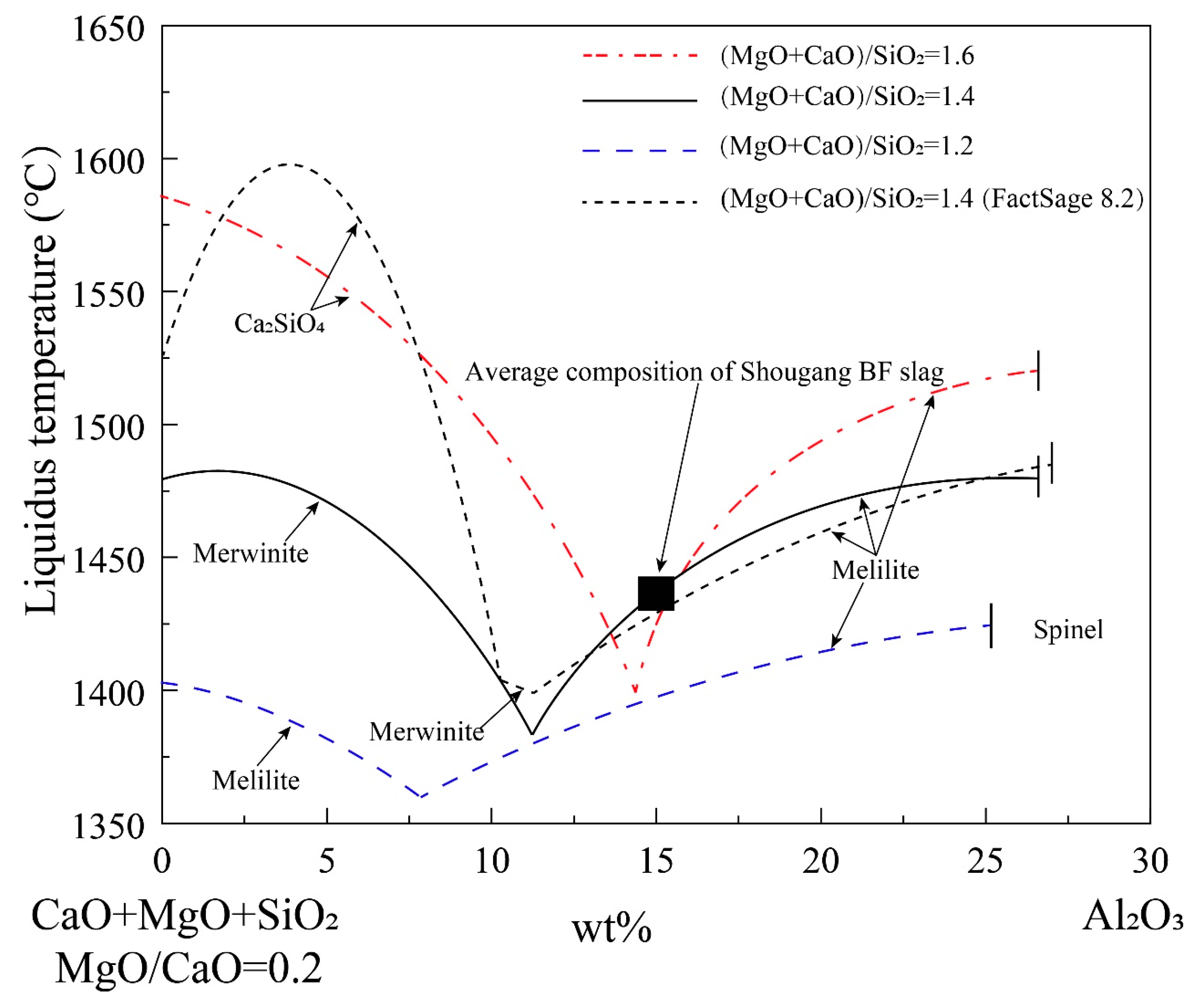

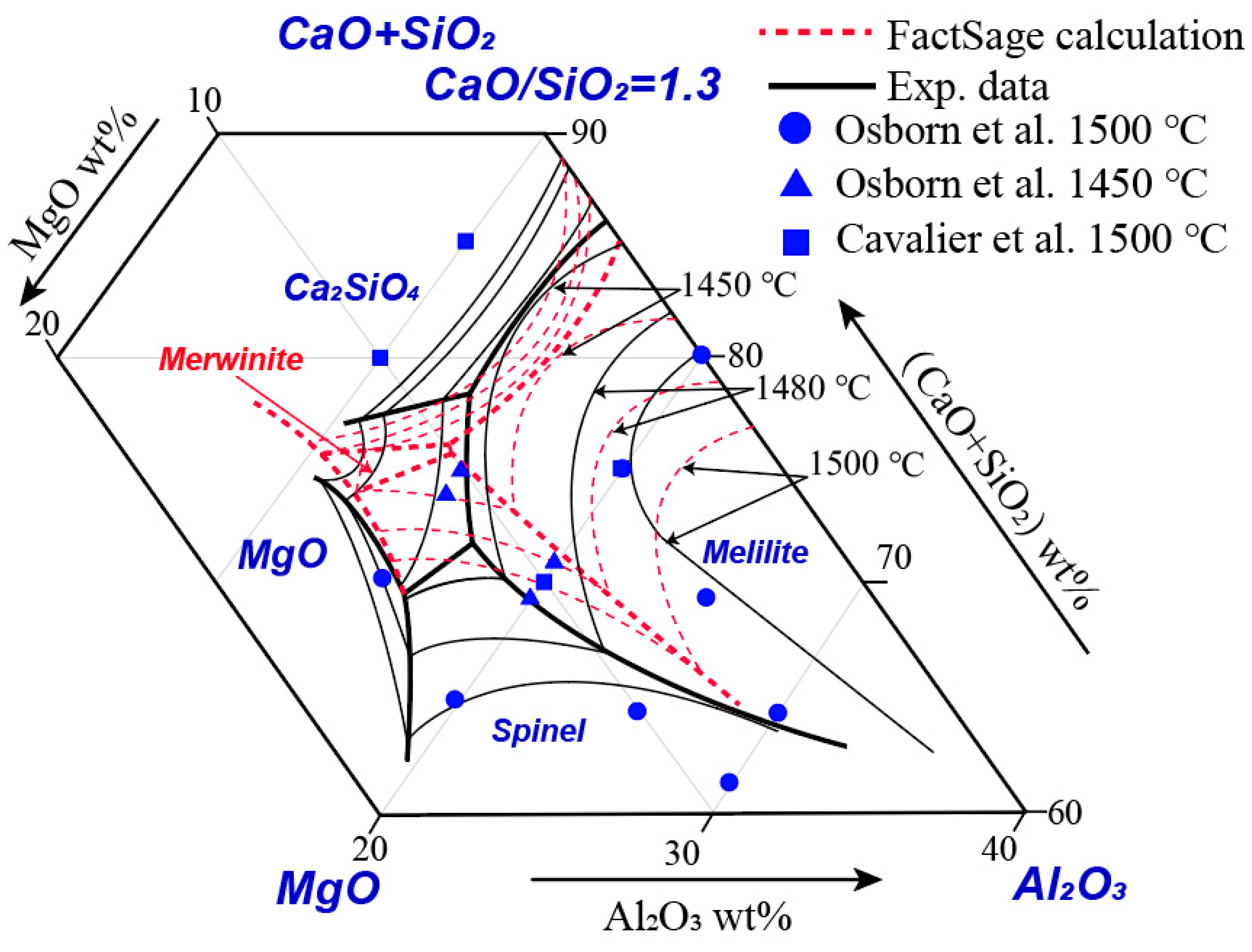

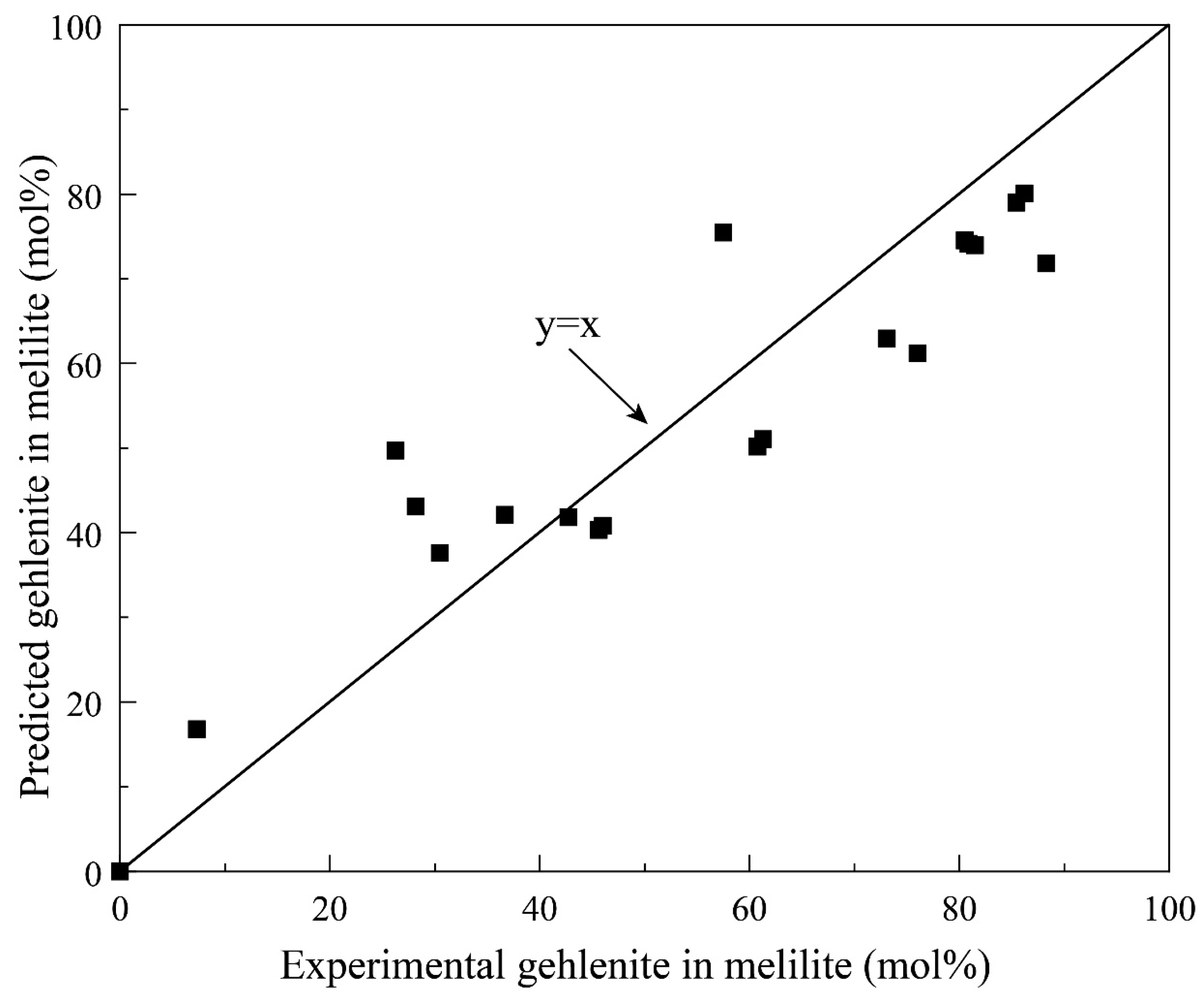

4. Comparison between Experimental Results and Thermodynamic Predictions
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Wang, Y.; Zuo, H.; Zhao, J. Recent progress and development of ironmaking in China as of 2019: An overview. Ironmak. Steelmak. 2020, 47, 640–649. [Google Scholar] [CrossRef]
- Geerdes, M.; Chaigneau, R.; Lingiardi, O. Modern Blast Furnace Ironmaking: An Introduction, Chapter XI- Operation Challenges, 4th ed.; IOS Press: Amsterdam, The Netherlands, 2020. [Google Scholar]
- Zhang, X.; Jiao, K.; Zhang, J.; Guo, Z. A review on low carbon emissions projects of steel industry in the world. J. Clean. Prod. 2021, 306, 127259. [Google Scholar] [CrossRef]
- Mousa, E. Modern blast furnace ironmaking technology: Potentials to meet the demand of high hot metal production and lower energy consumption. Metall. Mater. Eng. 2019, 25, 69–104. [Google Scholar] [CrossRef] [PubMed][Green Version]
- Osborn, E.F.; Schairer, J.F. The ternary system pseudo wollastonite-akermanite-gehlenite. Am. J. Sci. 1941, 239, 715–763. [Google Scholar] [CrossRef]
- Prince, A. Phase equilibrium relationships in a portion of the system MgO–Al2O3–2CaO·SiO2. J. Am. Ceram. Soc. 1951, 34, 44–51. [Google Scholar] [CrossRef]
- Osborn, E.F.; DeVries, R.C.; Gee, K.H.; Kraner, H.M. Optimum composition of blast furnace slag as deduced for the quaternary system CaO-MgO-Al2O3-SiO2. Trans. AIME 1954, 6, 33–45. [Google Scholar] [CrossRef]
- Prince, A. Liquidus relationships on 10% MgO plane of the system lime-magnesia-alumina-silica. J. Am. Ceram. Soc. 1954, 37, 402–408. [Google Scholar] [CrossRef]
- DeVries, R.C.; Osborn, E.F. Phase equilibria in High-alumina part of the system CaO-MgO-Al2O3-SiO2. J. Am. Ceram. Soc. 1957, 40, 6–15. [Google Scholar] [CrossRef]
- Cavalier, G.; Sandrea-Deudon, M. Quaternary slags CaO-MgO-Al2O3-SiO2: Liquidus surfaces and crystallization paths for constant magnesia concentrations. Rev. Metall. 1960, 5, 1143–1157. [Google Scholar] [CrossRef]
- Gutt, W.; Russel, A.D. Studies of the system CaO-SiO2-Al2O3-MgO in relation to the stability of blast furnace slag. J. Mater. Sci. 1977, 12, 1869–1878. [Google Scholar] [CrossRef]
- Dahl, F.; Brandberg, J.; Du, S. Characterization of melting of some slags in the Al2O3-CaO-MgO-SiO2 quaternary system. ISIJ Int. 2006, 46, 614–616. [Google Scholar] [CrossRef][Green Version]
- Wang, D.; Chen, M.; Jiang, Y.; Wang, S.; Zhao, Z.; Evans, T.; Zhao, B. Phase equilibria studies in the CaO–SiO2–Al2O3–MgO system with CaO/SiO2 ratio of 0.9. J. Am. Ceram. Soc. 2020, 103, 7299–7309. [Google Scholar] [CrossRef]
- Ma, X.; Zhang, D.; Zhao, Z.; Evans, T.; Zhao, B. Phase equilibria studies in the CaO–SiO2–Al2O3–MgO system with CaO/SiO2 ratio of 1.10. ISIJ Int. 2016, 56, 513–519. [Google Scholar] [CrossRef][Green Version]
- Ma, X.; Wang, G.; Wu, S.; Zhu, J.; Zhao, B. Phase equilibria in the CaO–SiO2–Al2O3–MgO System with CaO/SiO2 ratio of 1.3 relevant to iron blast furnace slags. ISIJ Int. 2015, 55, 2310–2317. [Google Scholar] [CrossRef][Green Version]
- Kou, M.; Wu, S.; Ma, X.; Wang, L.; Chen, M.; Cai, Q.; Zhao, B. Phase equilibrium studies of CaO–SiO2–Al2O3–MgO system with binary basicity of 1.5 related to blast furnace slag. Metall. Mater. Trans. B 2016, 47, 1093–1102. [Google Scholar] [CrossRef]
- Gran, J.; Wang, Y.; Du, S. Experimental determination of the liquidus in the high basicity region in the Al2O3 (30 mass%)-CaO-MgO-SiO2 system. Calphad 2011, 35, 249–254. [Google Scholar] [CrossRef]
- Gran, J.; Yan, B.; Du, S. Experimental determination of the liquidus in the high-basicity region in the Al2O3 (25 mass pct)-CaO-MgO-SiO2 and Al2O3 (35 mass pct)-CaO-MgO-SiO2 systems. Metall. Mater. Trans. B 2011, 42, 1008–1016. [Google Scholar] [CrossRef]
- Lyu, S.; Ma, X.; Chen, M.; Huang, Z.; Wang, G. Application of phase equilibrium studies of CaO–SiO2–Al2O3–MgO system for oxide inclusions in Si-deoxidized steels. Calphad 2020, 68, 101721. [Google Scholar] [CrossRef]
- Lyu, S.; Ma, X.; Huang, Z.; Yao, Z.; Lee, H.; Jiang, Z.; Wang, G.; Zou, J.; Zhao, B. Inclusion characterization and formation mechanisms in spring steel deoxidized by silicon. Metall. Mater. Trans. B 2019, 5, 732–747. [Google Scholar] [CrossRef]
- Yao, Z.; Ma, X.; Lyu, S. Phase equilibria of the Al2O3–CaO–SiO2-(0%, 5%, 10%) MgO slag system for non-metallic inclusions control. Calphad 2021, 72, 102227. [Google Scholar] [CrossRef]
- Liao, J.; Qing, G.; Zhao, B. Phase equilibria studies in the CaO-MgO-Al2O3-SiO2 system with Al2O3/SiO2 weight ratio of 0.4. Metals 2023, 13, 224. [Google Scholar] [CrossRef]
- Liao, J.; Qing, G.; Zhao, B. Phase equilibrium studies in the CaO–SiO2–Al2O3–MgO system with MgO/CaO ratio of 0.2. Metall. Mater. Trans. B 2023, 54, 793–806. [Google Scholar]
- Muan, A.; Osborn, E.F. Phase Equilibria Among Oxides in Steelmaking; Addison-Wesley Publishing Company: Boston, MA, USA, 1965; pp. 148–157. [Google Scholar]
- Verein Duetscher Eisenhuttenleute: Slag Atlas; Verlag Sthaleisen GmbH: Düsseldorf, Germany, 1995; Volume 156.
- Bale, C.W.; Bélisle, E.; Chartrand, P.; Decterov, S.; Eriksson, G.; Gheribi, A.; Hack, K.; Jung, I.H.; Kang, Y.B.; Melançon, J.; et al. Reprint of: FactSage thermochemical software and databases, 2010–2016. Calphad 2016, 55, 1–19. [Google Scholar] [CrossRef]
- Davies, R.; Dinsdale, A.; Gisby, J.; Robinson, J.; Martin, S. MTDATA-thermodynamic and phase equilibrium software from the national physical laboratory. Calphad 2002, 26, 229–271. [Google Scholar] [CrossRef]
- Andersson, J.; Helander, T.; Höglund, L.; Shi, P.; Sundman, B. Thermo-Calc & DICTRA, computational tools for materials science. Calphad 2002, 26, 273–312. [Google Scholar]
- Jak, E.; Hayes, P.; Lee, H. Improved methodologies for the determination of high temperature phase equilibria. Met. Mater. 1995, 1, 1–8. [Google Scholar] [CrossRef]
- Bowen, N.L.; Schairer, J.F.; Posnjak, E.B. The System Ca2SiO4-Fe2SiO4. Am. J. Sci. 1933, 25, 273–297. [Google Scholar] [CrossRef]
- Bowen, S. The system FeO-SiO2. Am. J. Sci. 1932, 24, 177–213. [Google Scholar] [CrossRef]
- Jung, I.V.; Ende, M. Computational thermodynamic calculations: FactSage from CALPHAD thermodynamic database to virtual process simulation. Metall. Mater. Trans. B 2020, 51, 1851–1874. [Google Scholar] [CrossRef]
- Centre for Research in Computational Thermochemistry. FactSage 8.2 News. 2022. Available online: https://www.factsage.com/FS82_news.HTM (accessed on 5 December 2022).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Liao, J.; Qing, G.; Zhao, B. Phase Equilibrium Studies of the CaO-MgO-Al2O3-SiO2 System for Iron Blast Furnace Slag: A Review. Metals 2023, 13, 801. https://doi.org/10.3390/met13040801
Liao J, Qing G, Zhao B. Phase Equilibrium Studies of the CaO-MgO-Al2O3-SiO2 System for Iron Blast Furnace Slag: A Review. Metals. 2023; 13(4):801. https://doi.org/10.3390/met13040801
Chicago/Turabian StyleLiao, Jinfa, Gele Qing, and Baojun Zhao. 2023. "Phase Equilibrium Studies of the CaO-MgO-Al2O3-SiO2 System for Iron Blast Furnace Slag: A Review" Metals 13, no. 4: 801. https://doi.org/10.3390/met13040801
APA StyleLiao, J., Qing, G., & Zhao, B. (2023). Phase Equilibrium Studies of the CaO-MgO-Al2O3-SiO2 System for Iron Blast Furnace Slag: A Review. Metals, 13(4), 801. https://doi.org/10.3390/met13040801
