Investigation of Applicability Flowdrill Technology for Joining Thin-Walled Metal Sheets

,
,
,
,
,
,
and
1
Department of Technology, Materials and Computer Supported Production, Faculty of Mechanical Engineering, Technical University of Košice, Mäsiarska 74, 040 01 Košice, Slovakia
2
Prototyping and Innovation Centre, Faculty of Mechanical Engineering, Technical University of Košice, Park Komenského 12a, 042 00 Košice, Slovakia
3
Department of Automotive Production, Faculty of Mechanical Engineering, Technical University of Košice, Mäsiarska 74, 040 01 Košice, Slovakia
4
Institute of Materials and Quality Engineering, Faculty of Materials, Metallurgy and Recycling, Technical University of Košice, Letná 1/9, 042 00 Košice, Slovakia
This article belongs to the Special Issue Advances in Dissimilar Welding and Joining

Abstract

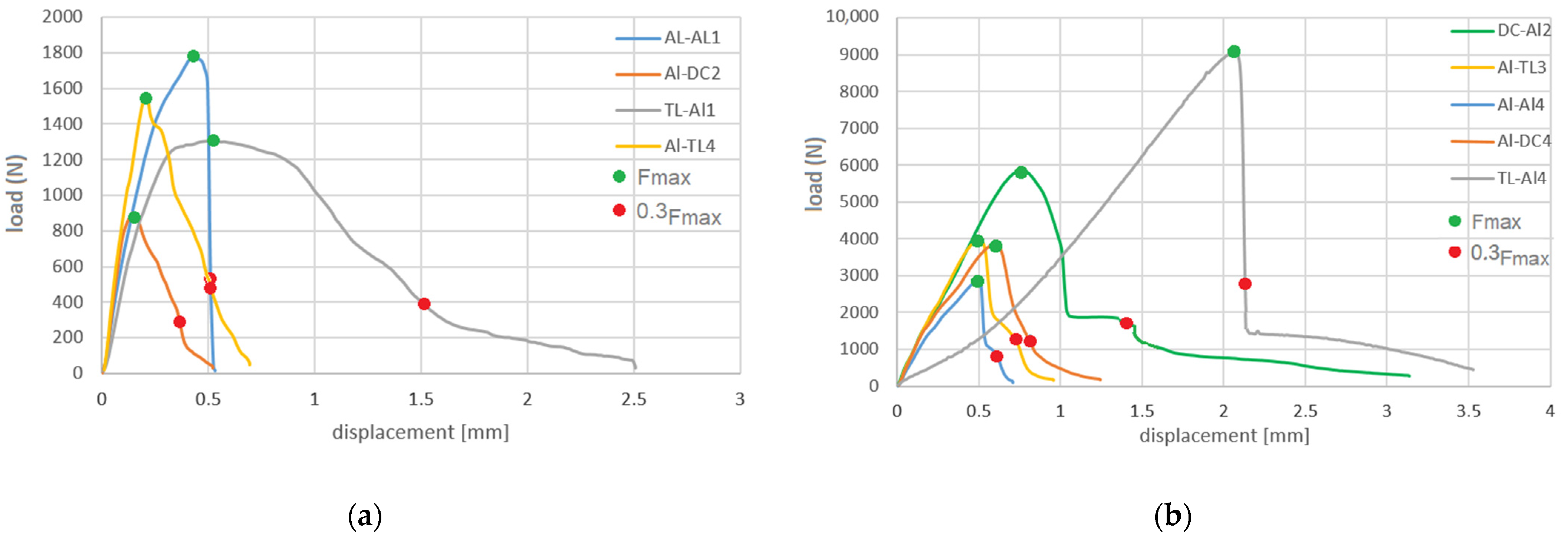

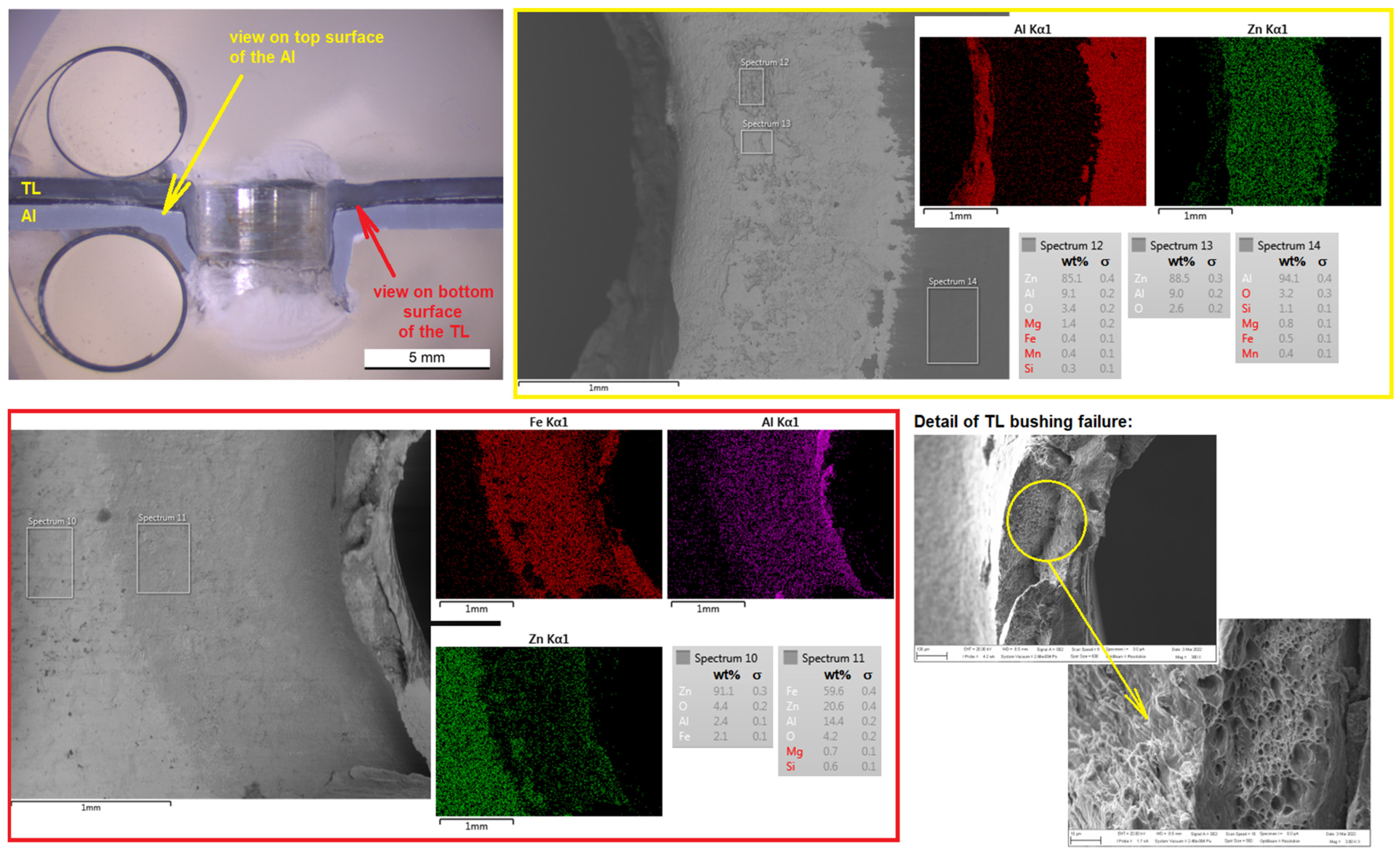

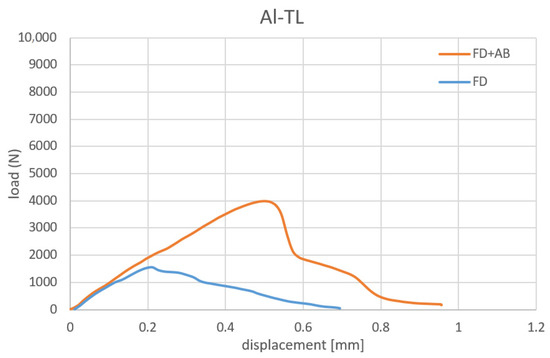

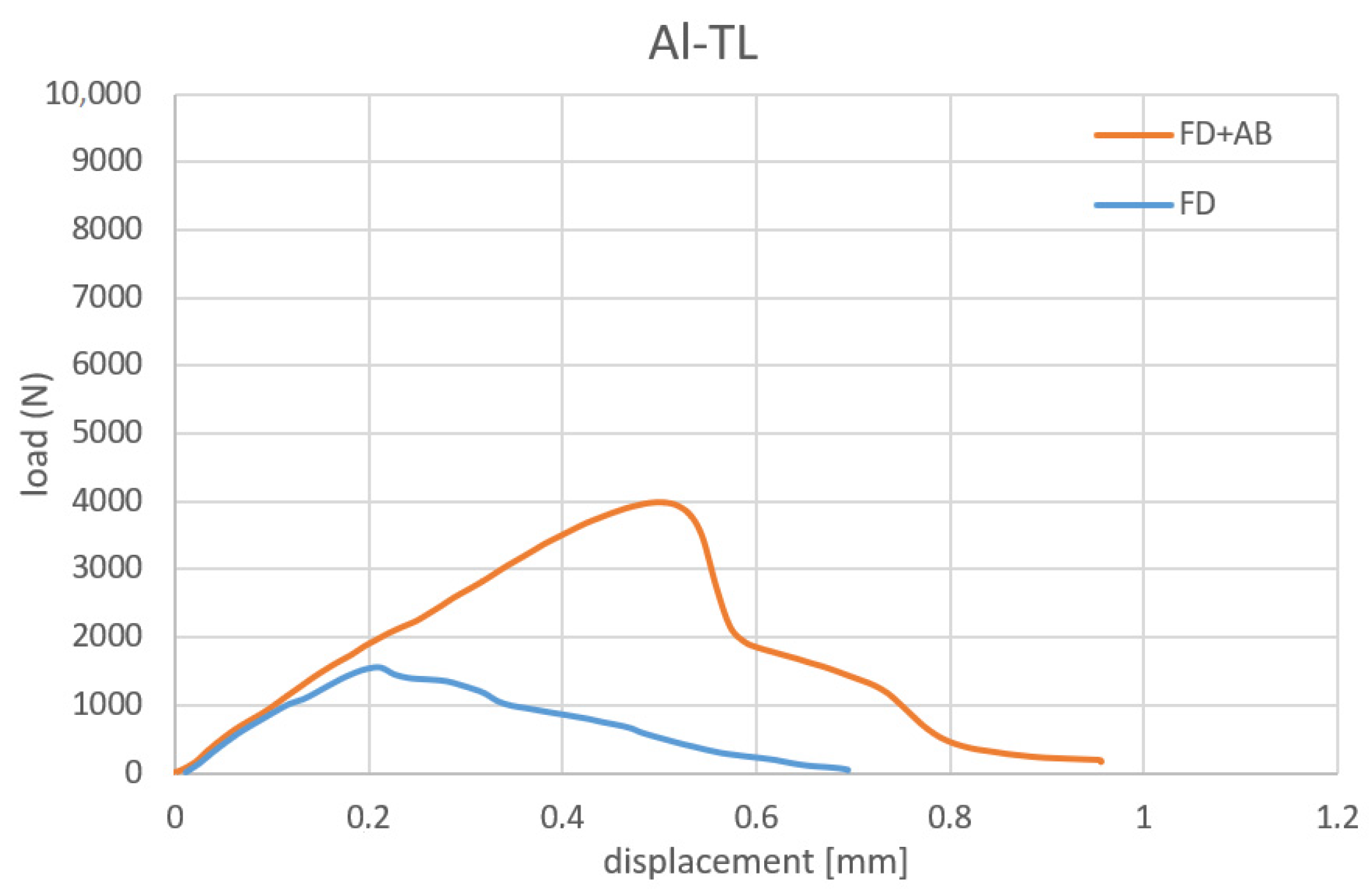

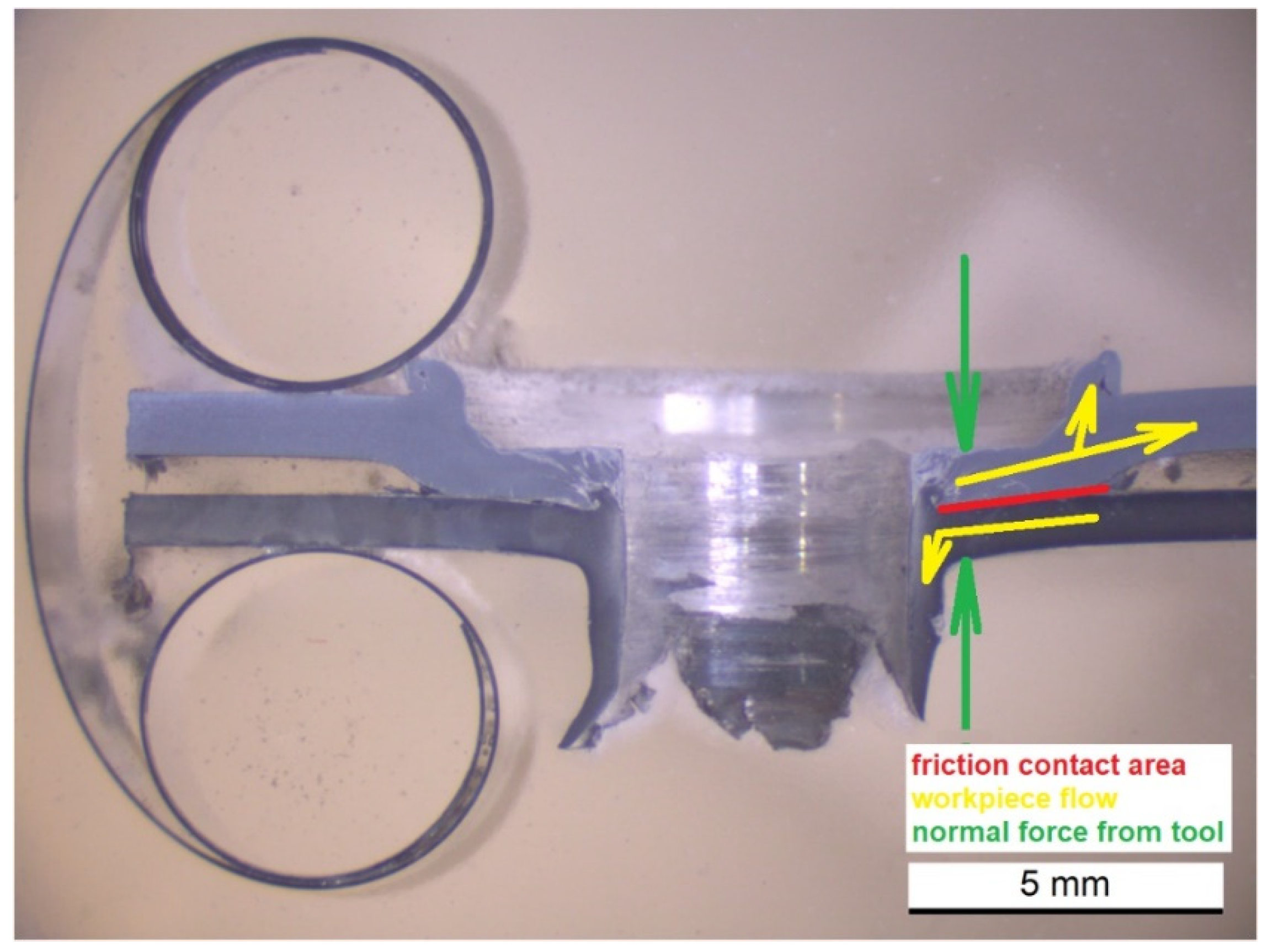

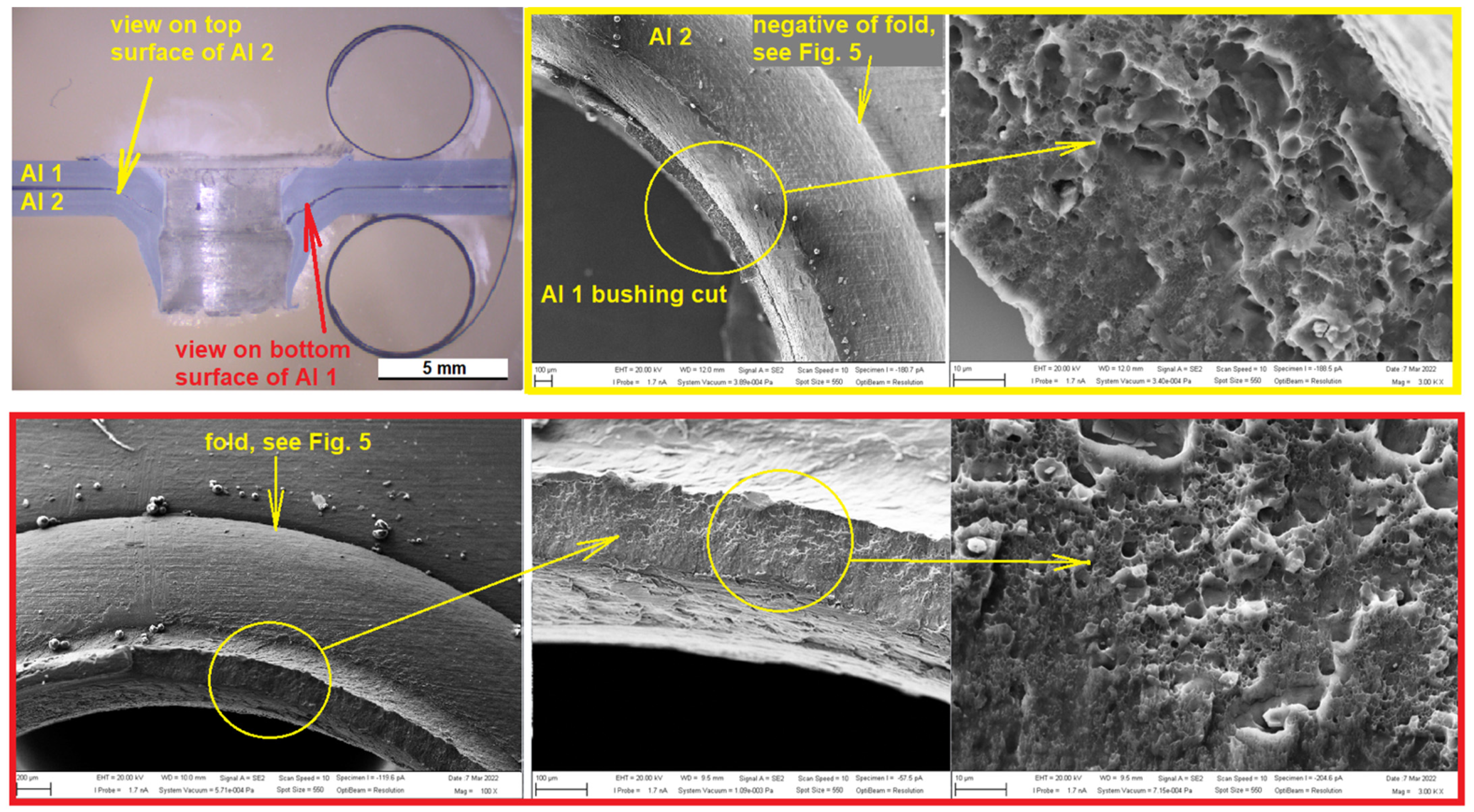

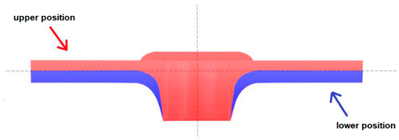

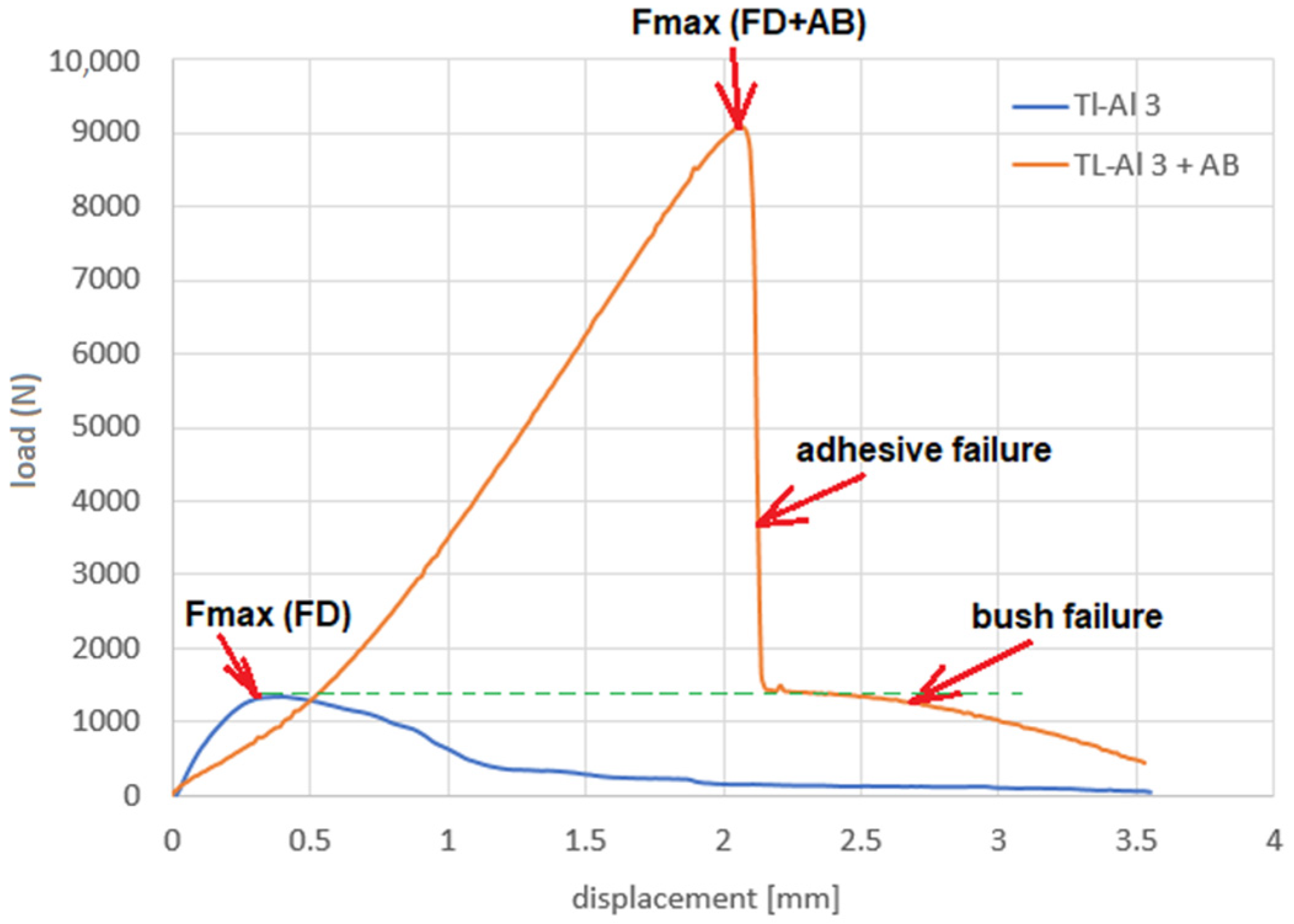

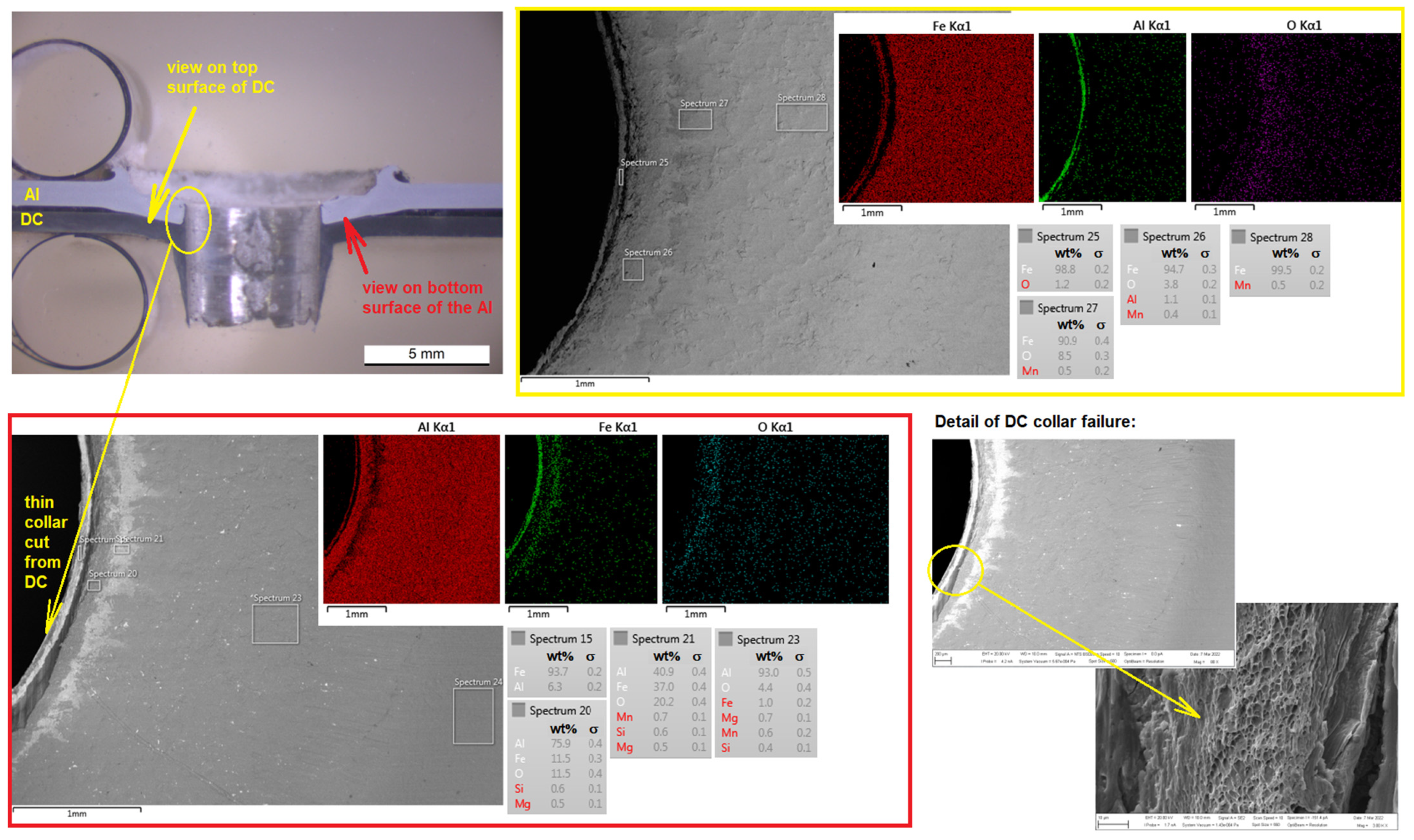

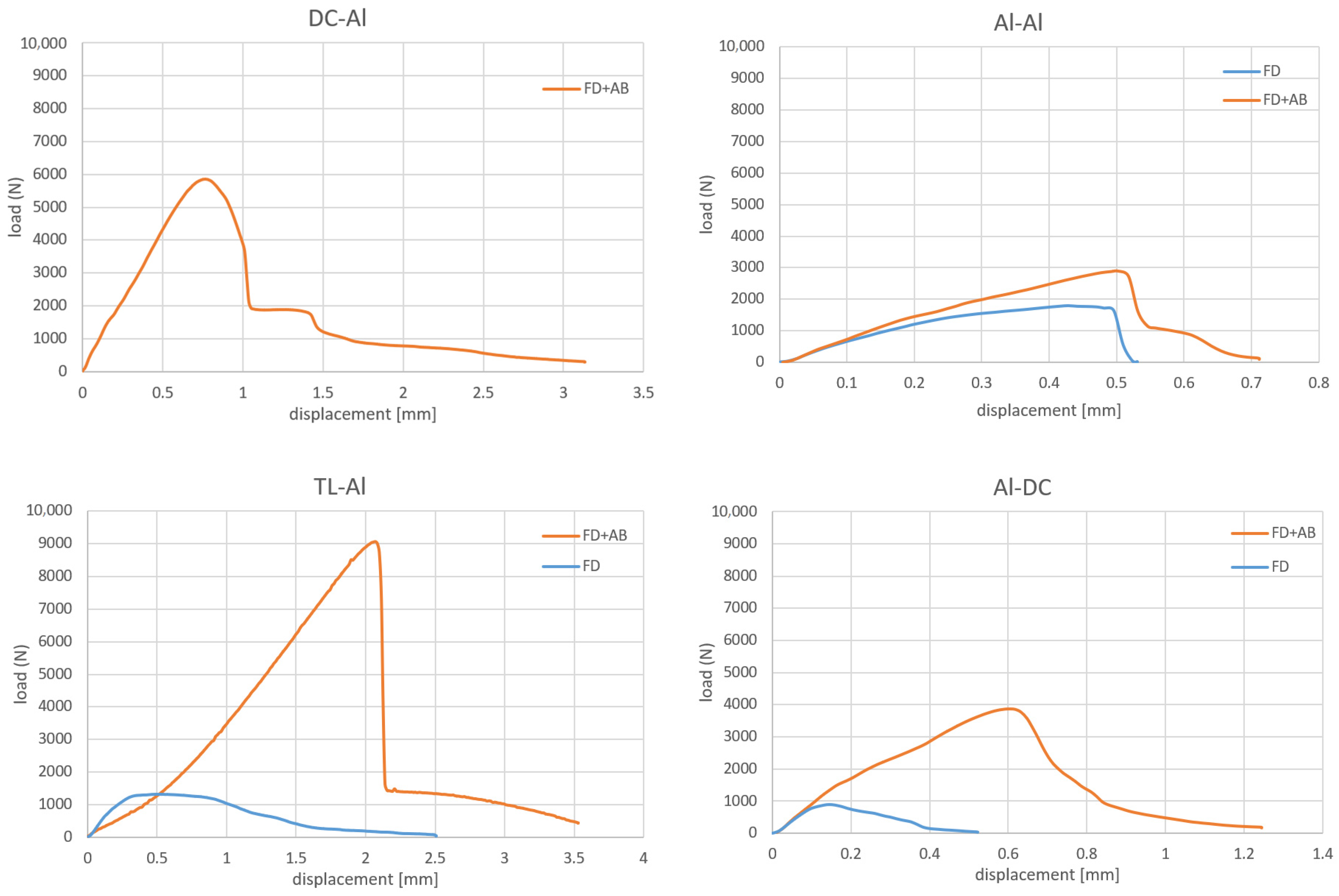

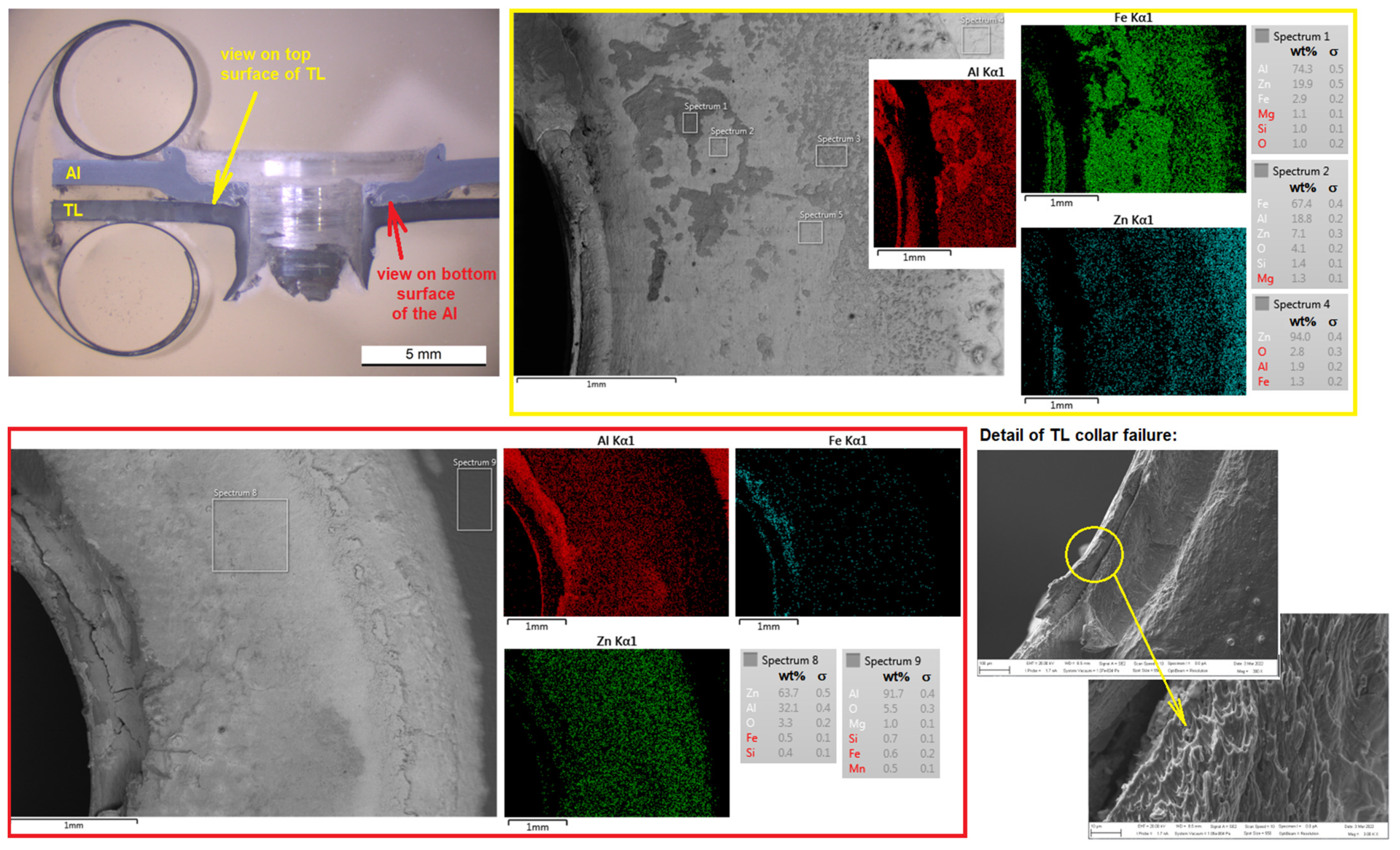

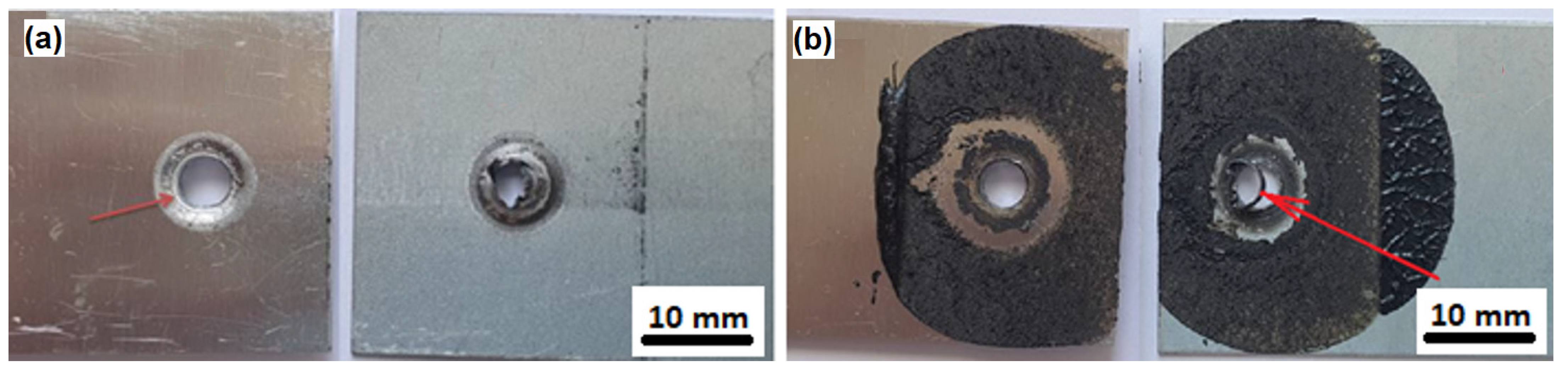

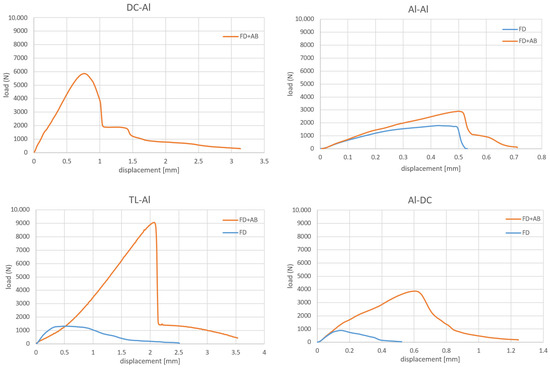

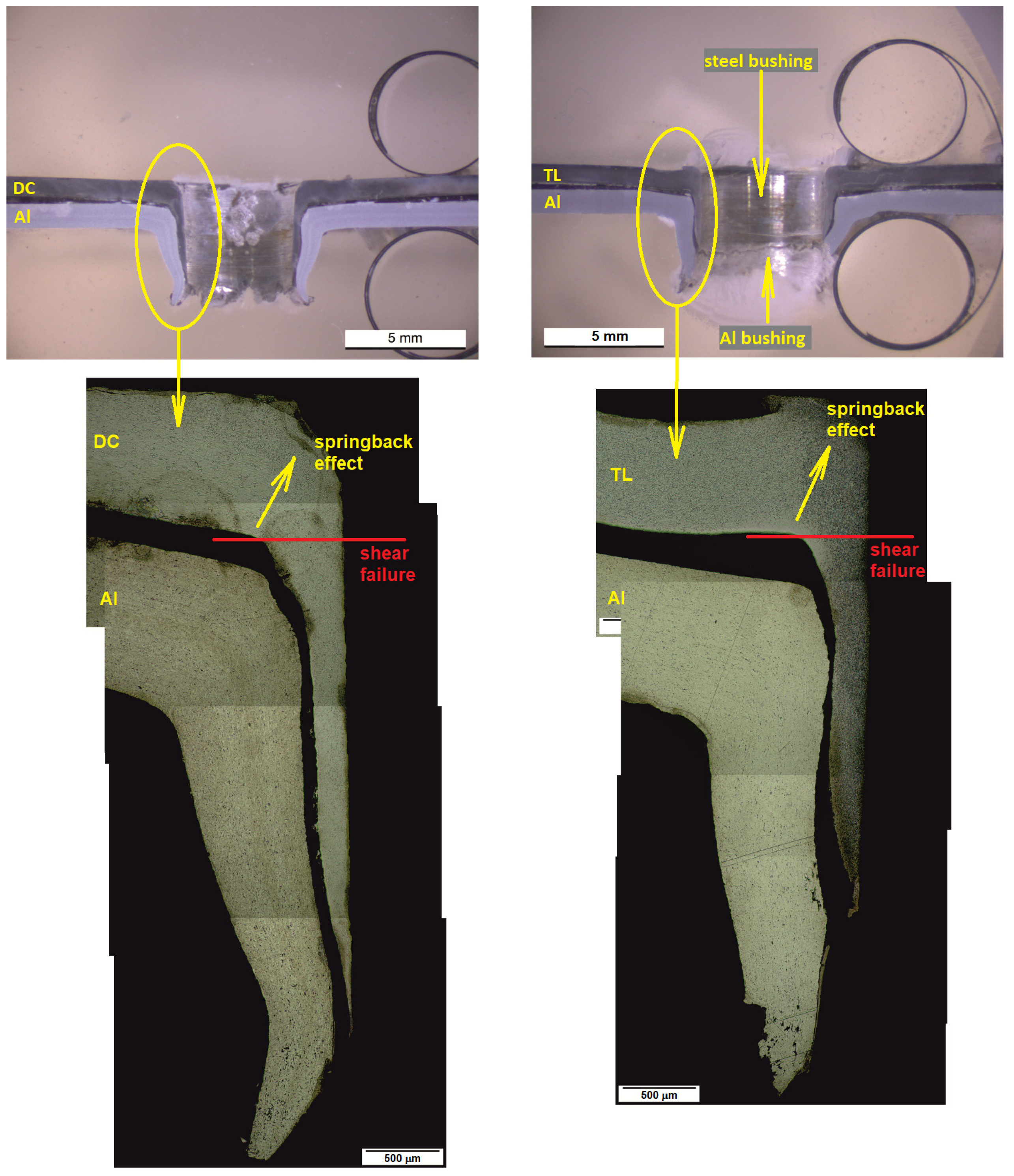

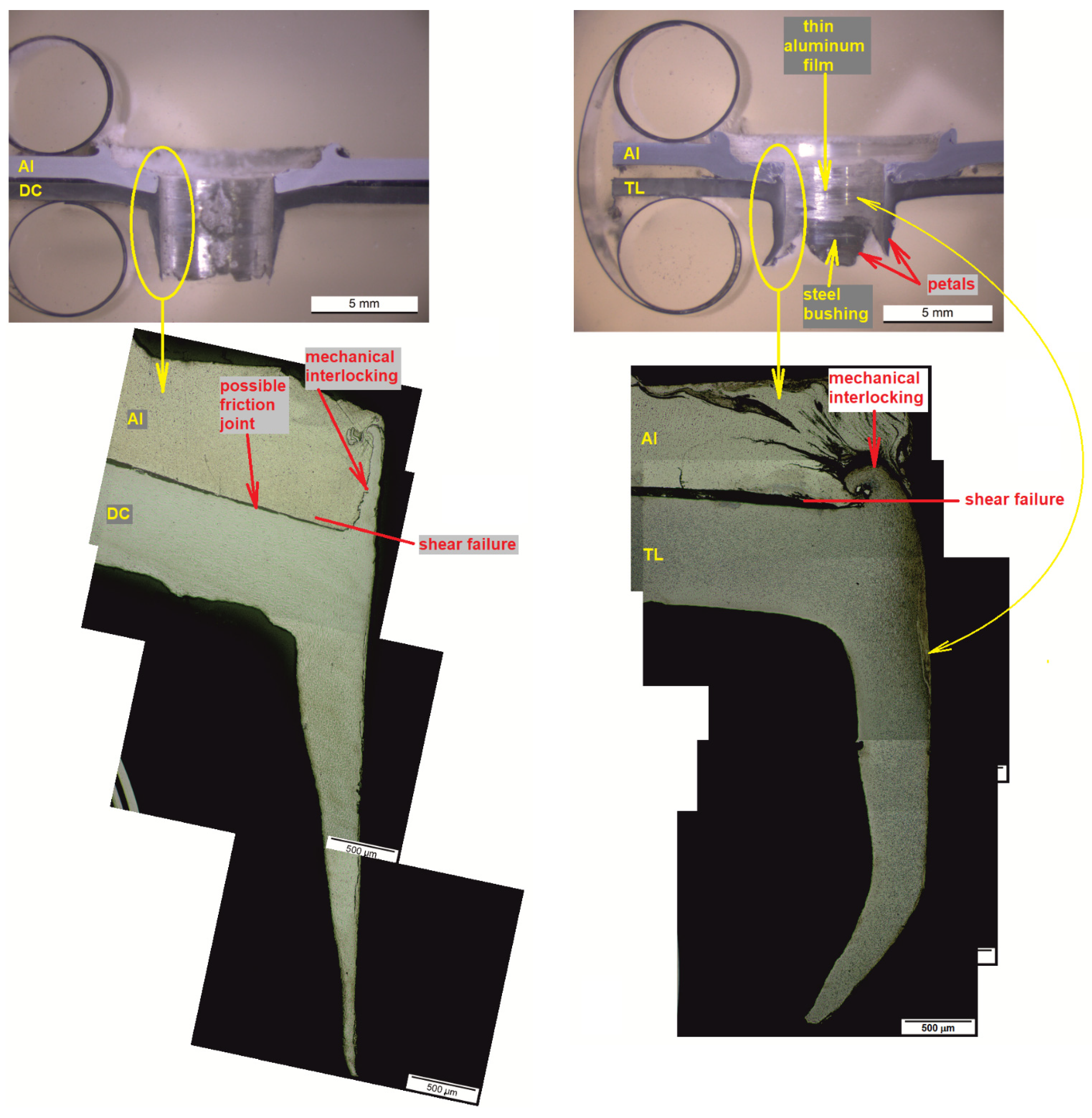

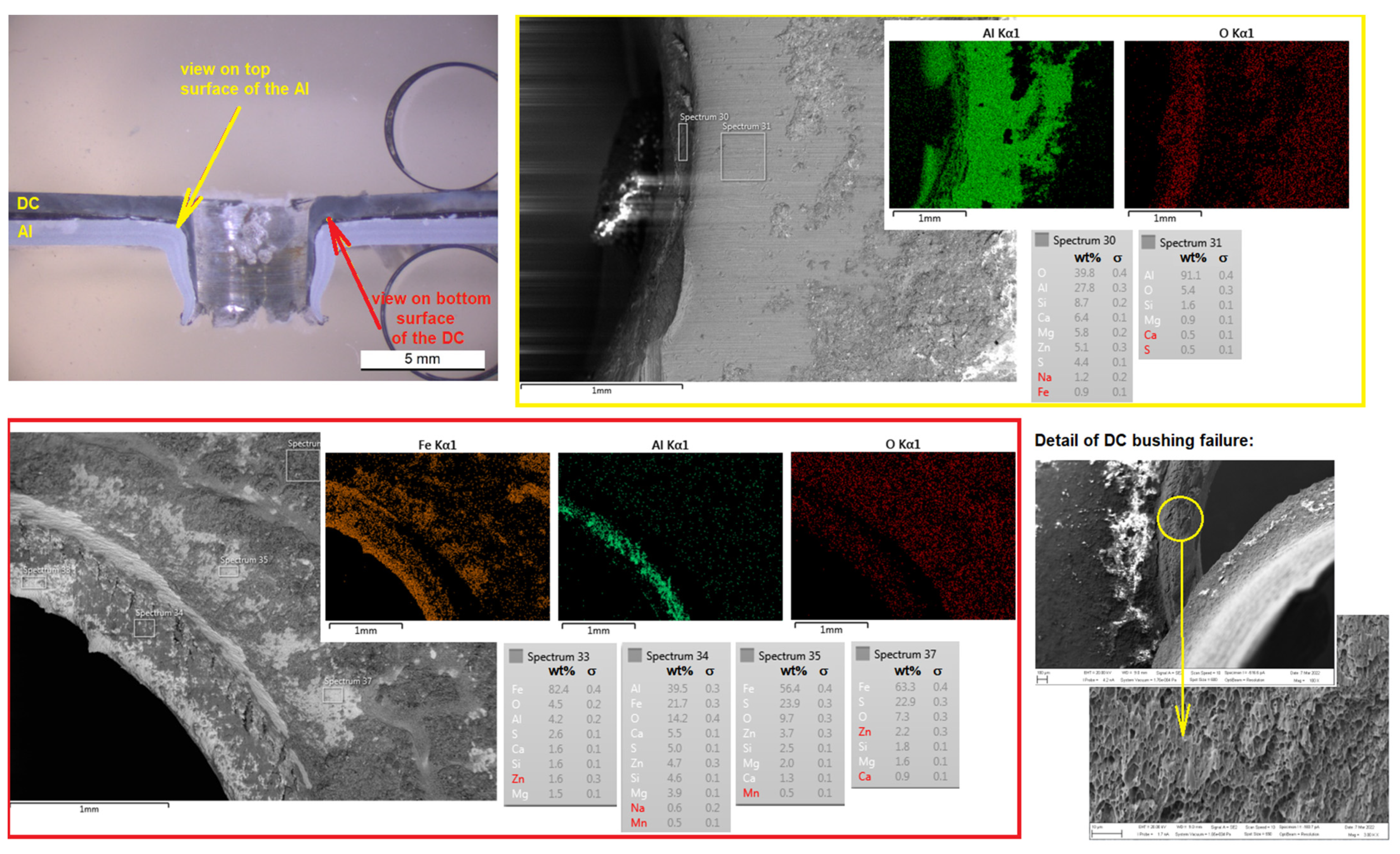

The applicability of flowdrill technology to join steel and aluminum alloys is studied. When used to flowdrill two overlapped thin-walled materials, a joint is formed as a secondary effect. The quality of the resulting bushings forming the interference fit joint was investigated by metallography. The joints were formed using a combination of uncoated deep drawn steel, galvanized high-strength low alloy steel and aluminum alloy, in different positions in the joint. Subsequently, tensile shear testing of single joints was performed. The load-carrying capacity of the joints was also tested in combination with adhesive bonding. The combination of both technologies yields an increase in the dissipated energy of the joint at failure. The bonded connection provides a high maximum force at failure, the mechanical connection through bushings leads to an increase in the displacement value at failure, thereby increasing the area under the loading curve. The DC-Al joint showed the highest load-carrying capacity, up to 9 kN, as well as dissipative energy, up to 10.3 J. The joints were fractured by shearing of the inner bushing under tensile stress. The failure surfaces exhibited a typical ductile character with dimpled morphology. It was found that from the point of view of the load-carrying capacity of the joint, it is advisable to place a material with a higher melting temperature in the upper position in the joint. The combination of flowdrill technology with adhesive bonding results in a sealed joint with high load-bearing capacity, reduction in the risk of crevice and galvanic corrosion.
