Numerical Simulation on Structural Optimization and Solid–Liquid Two-Phase Flow Energy Conversion of Mud High-Shear Mixer for Deepwater Drilling

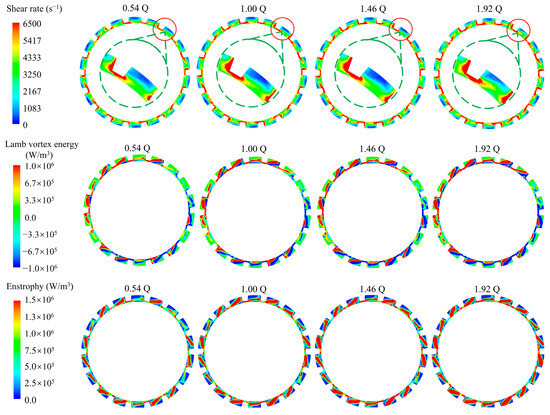

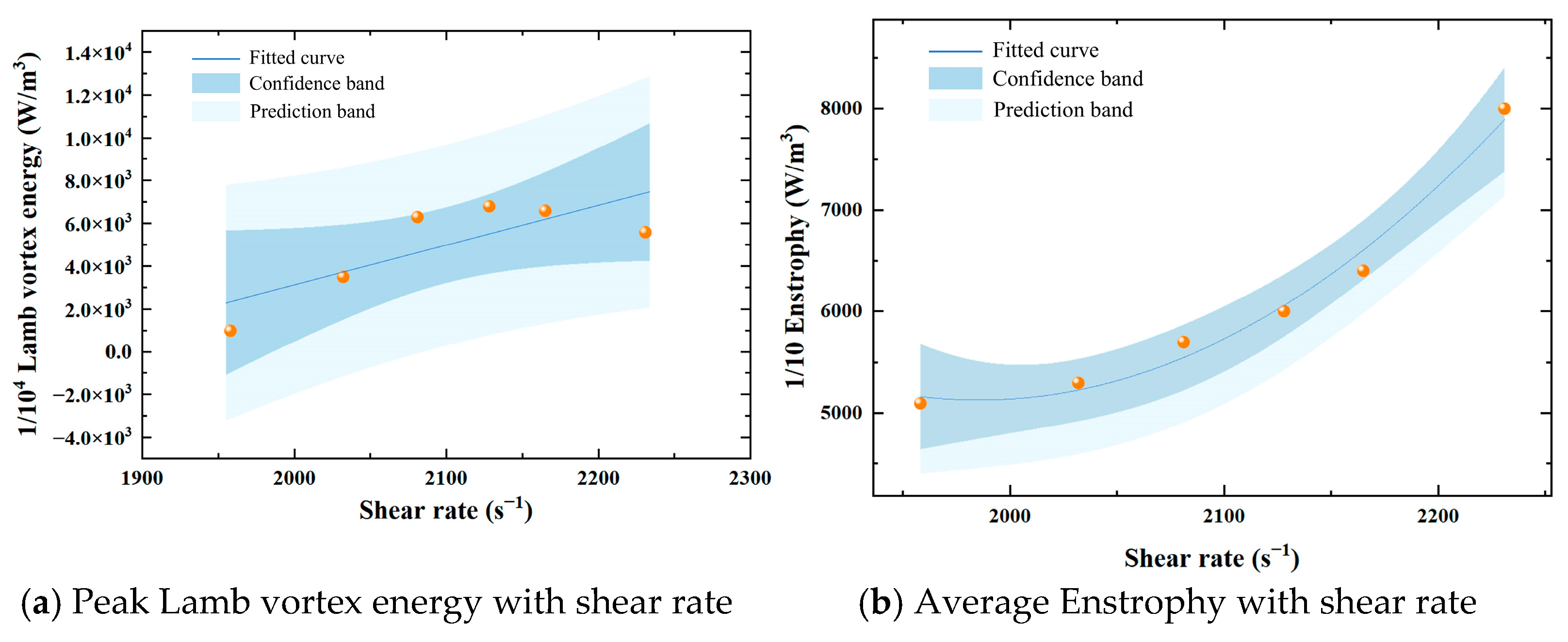

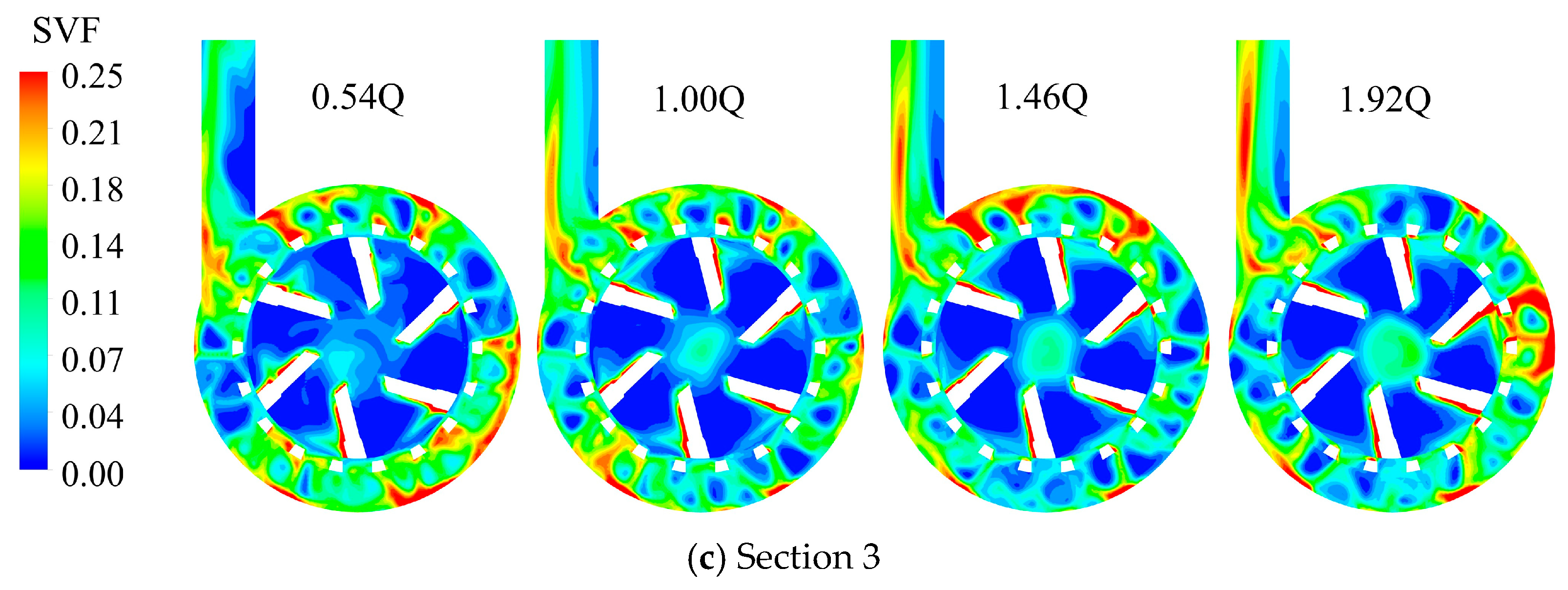

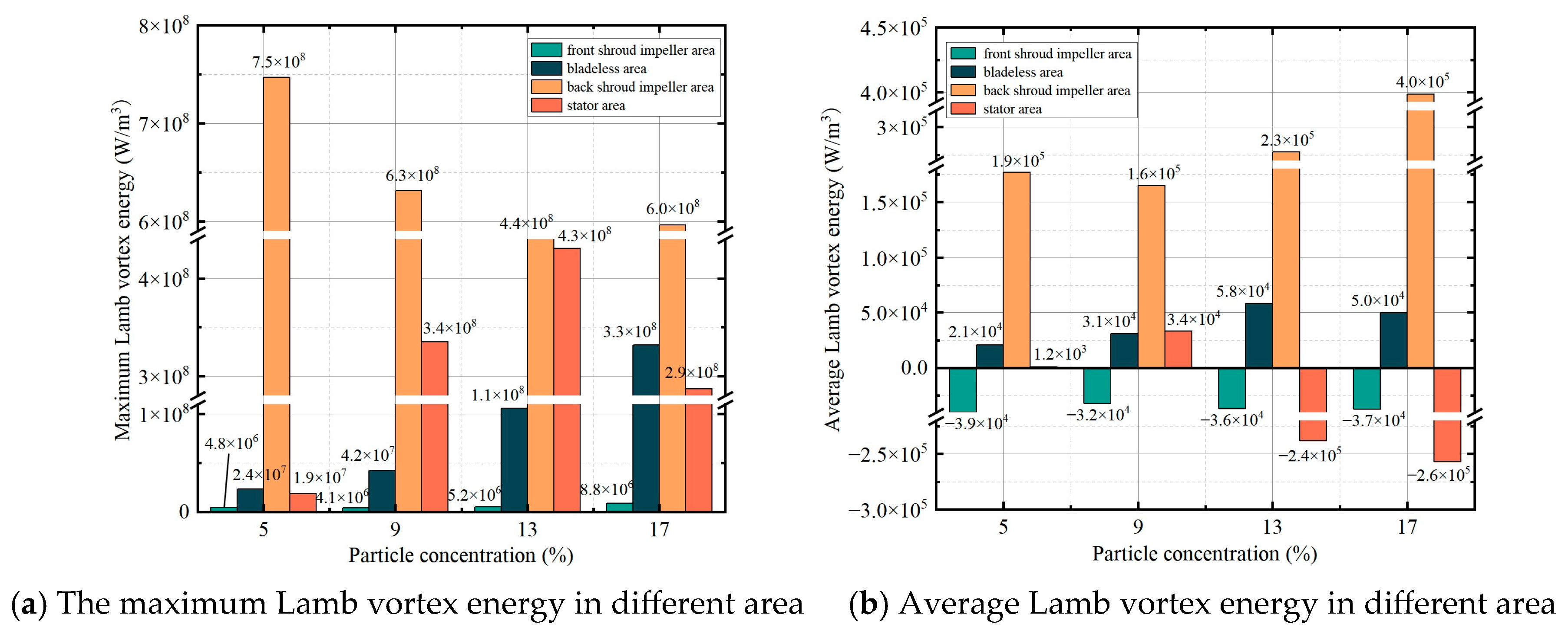

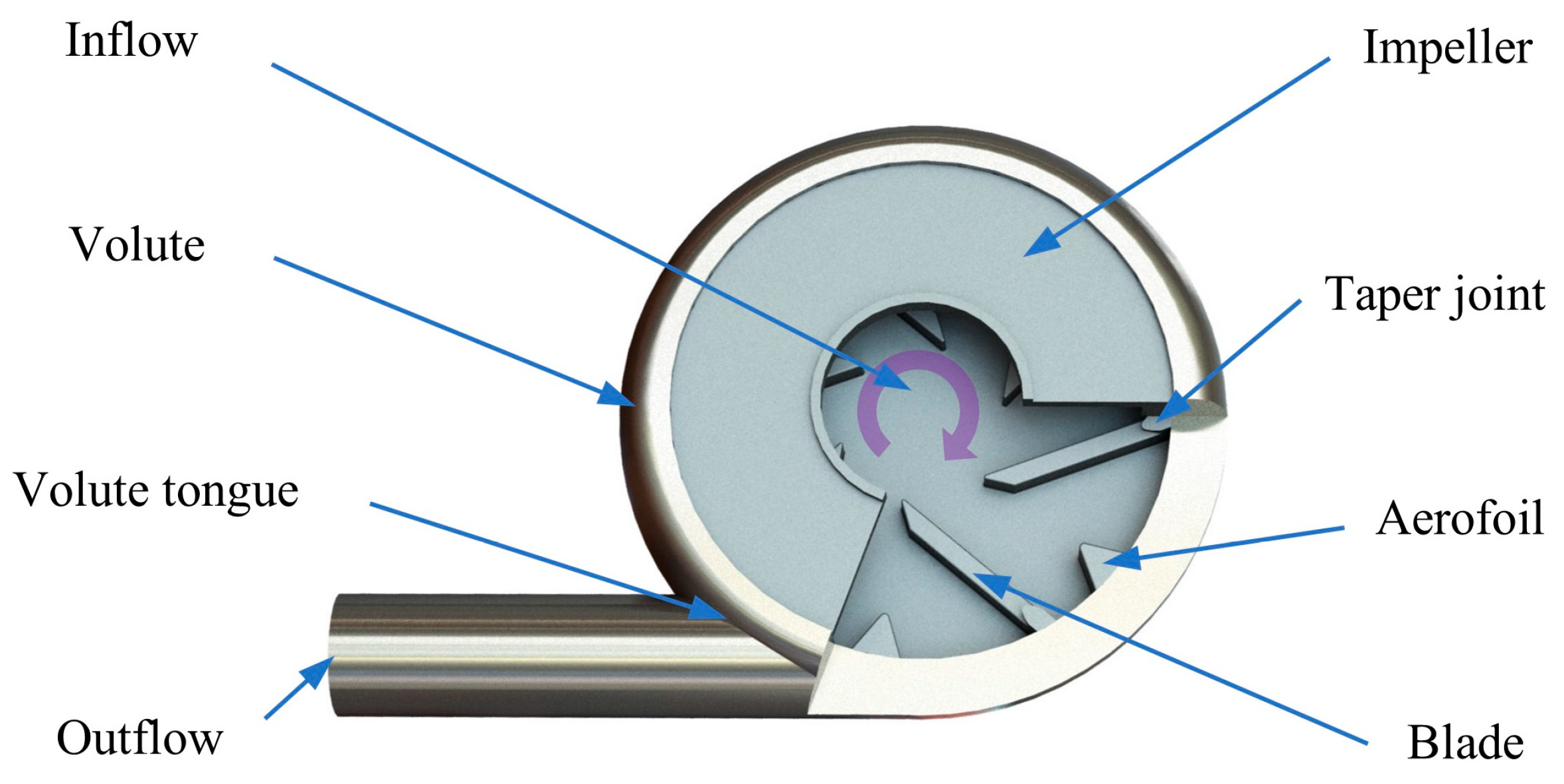

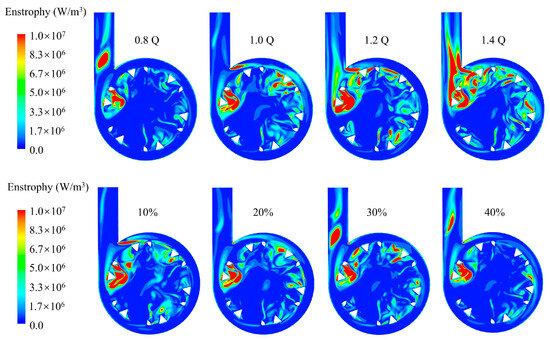

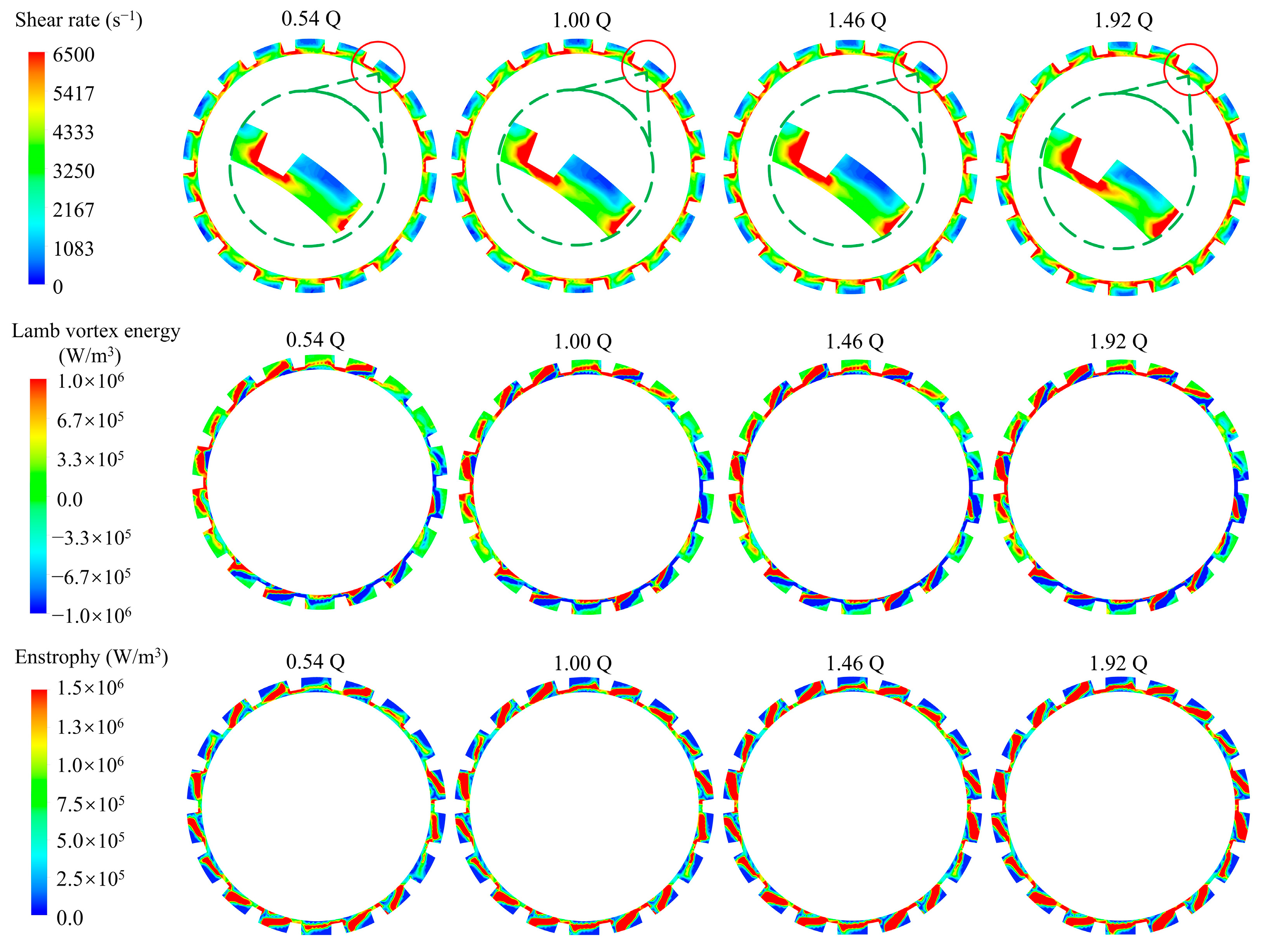

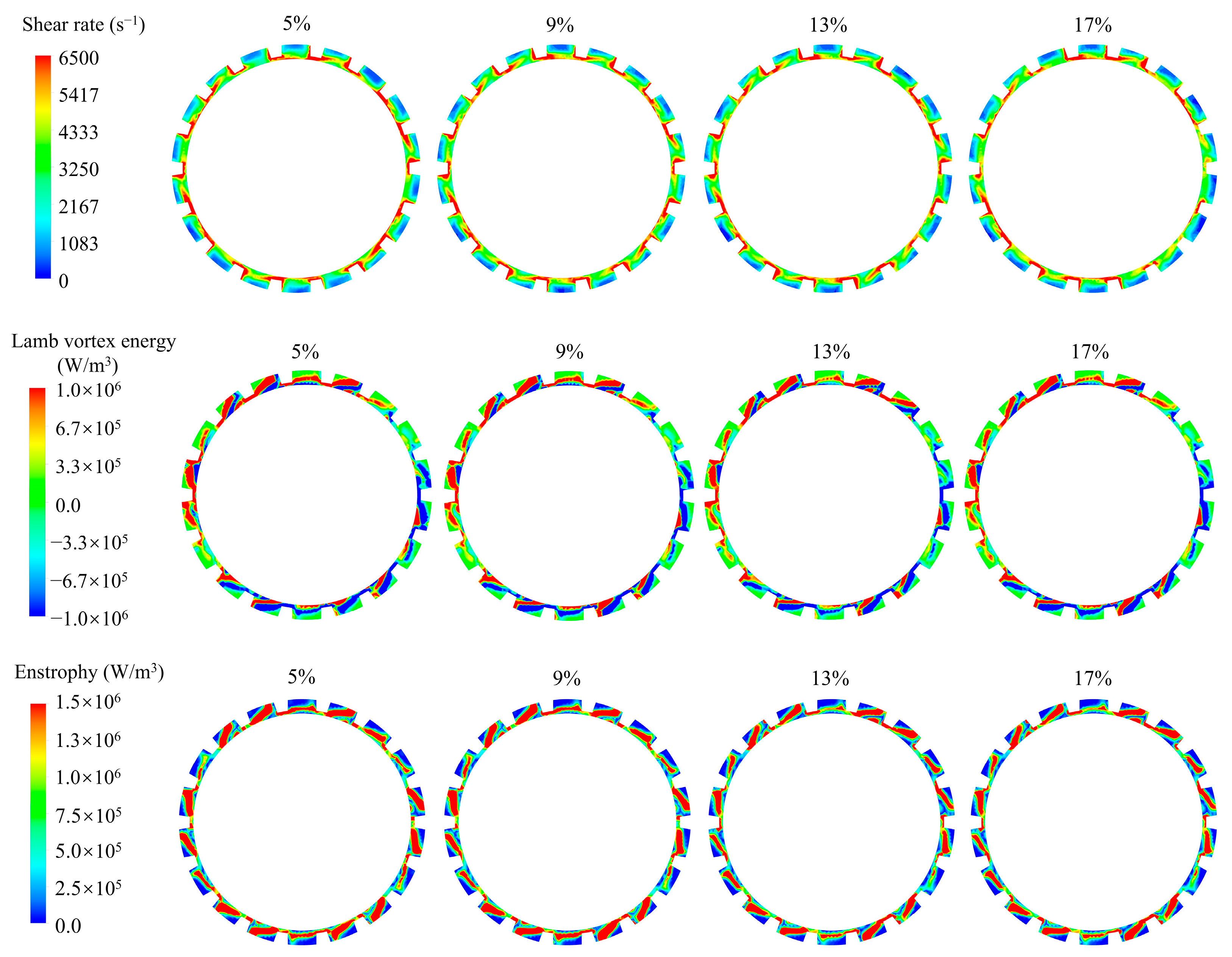

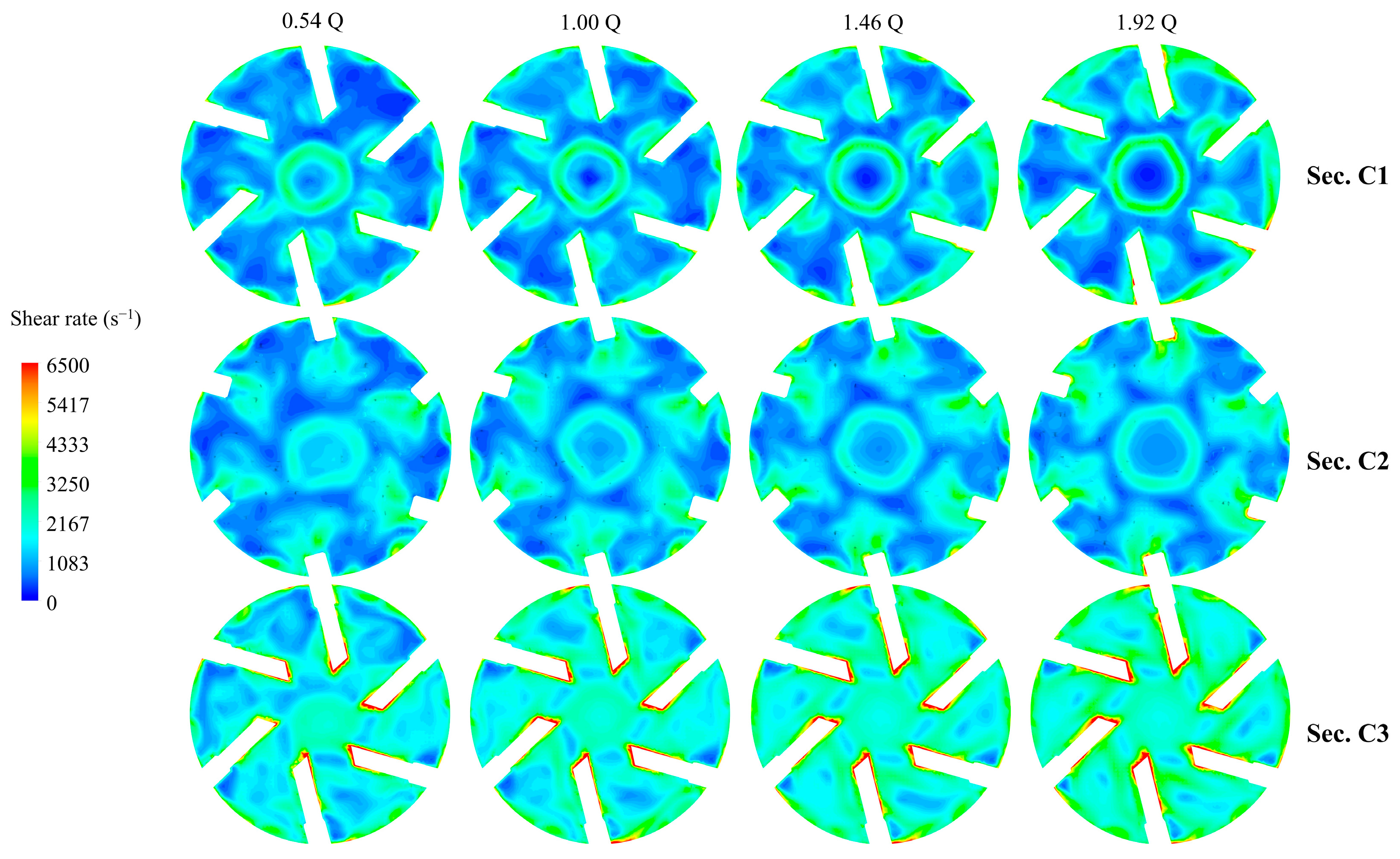

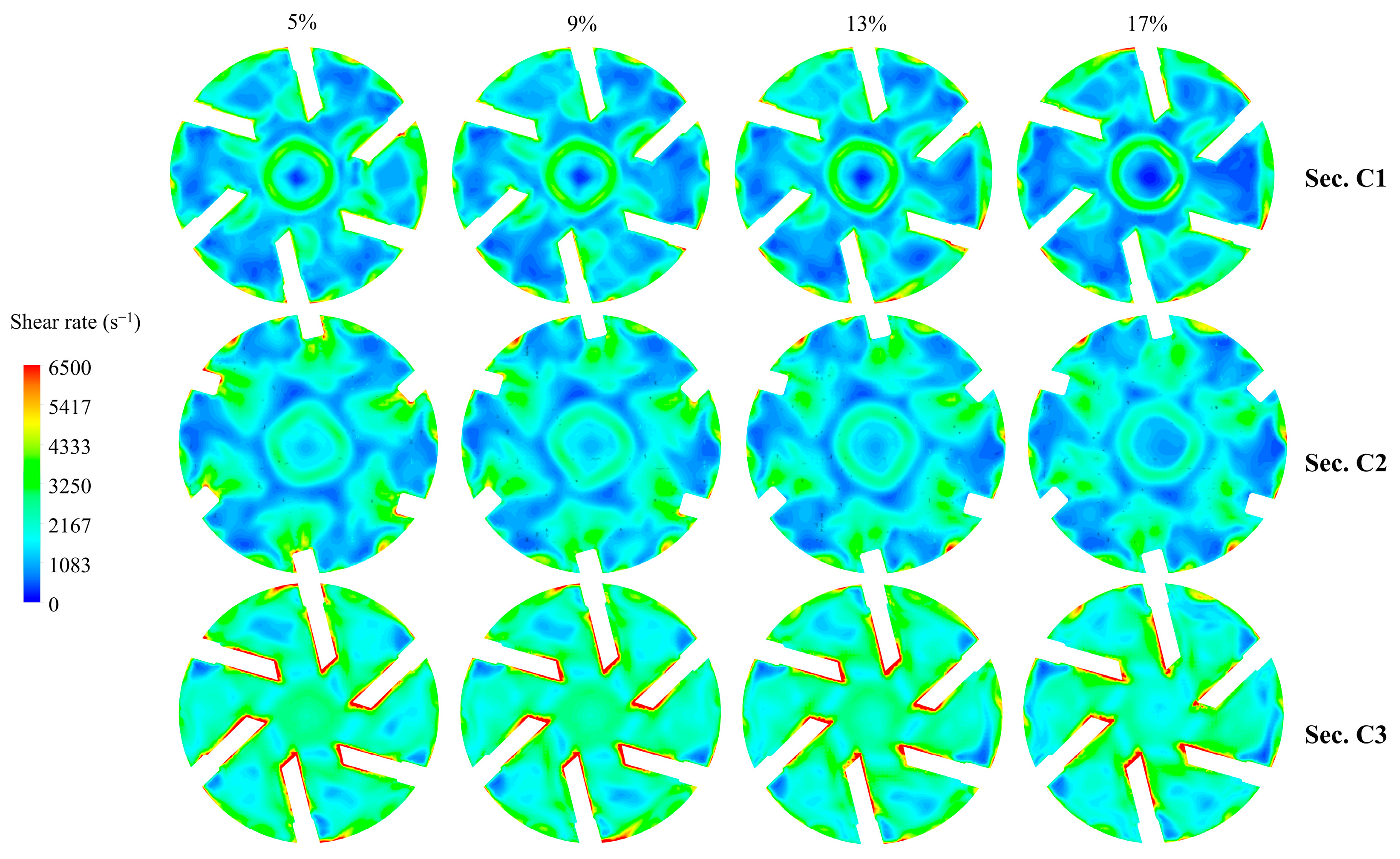

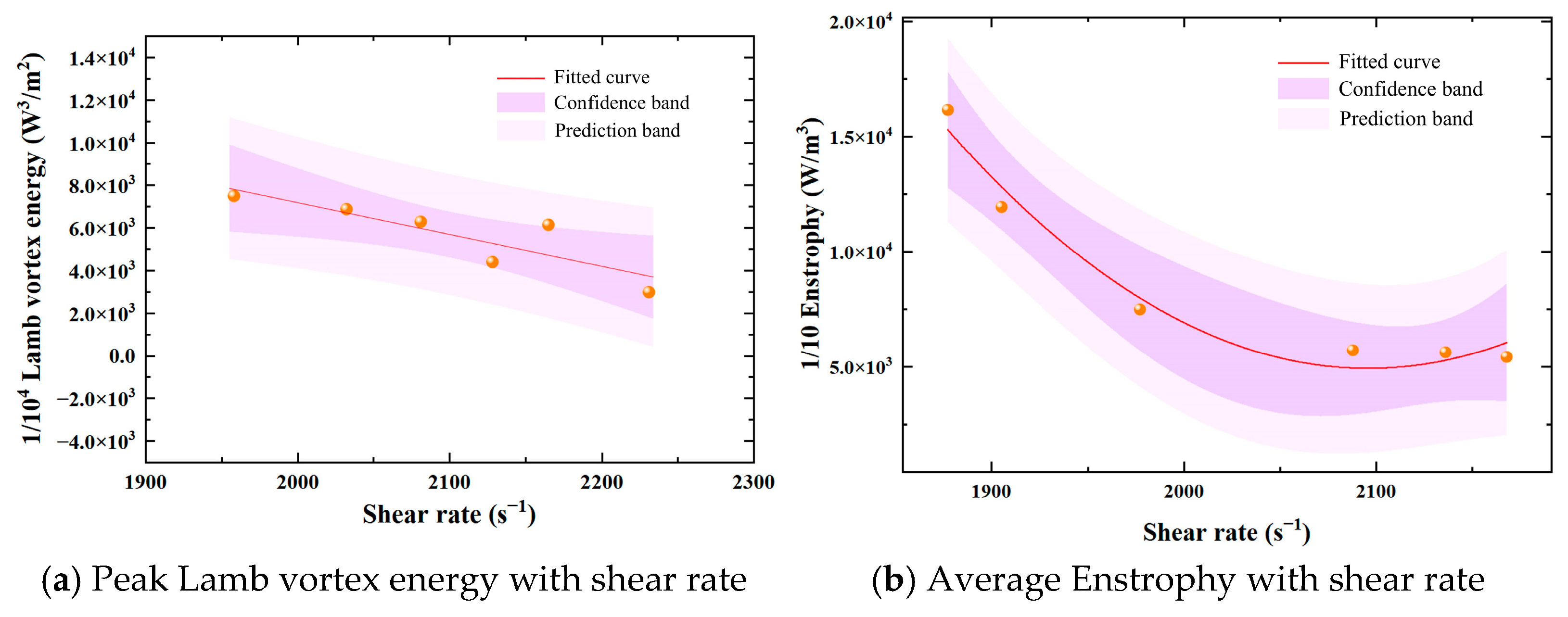

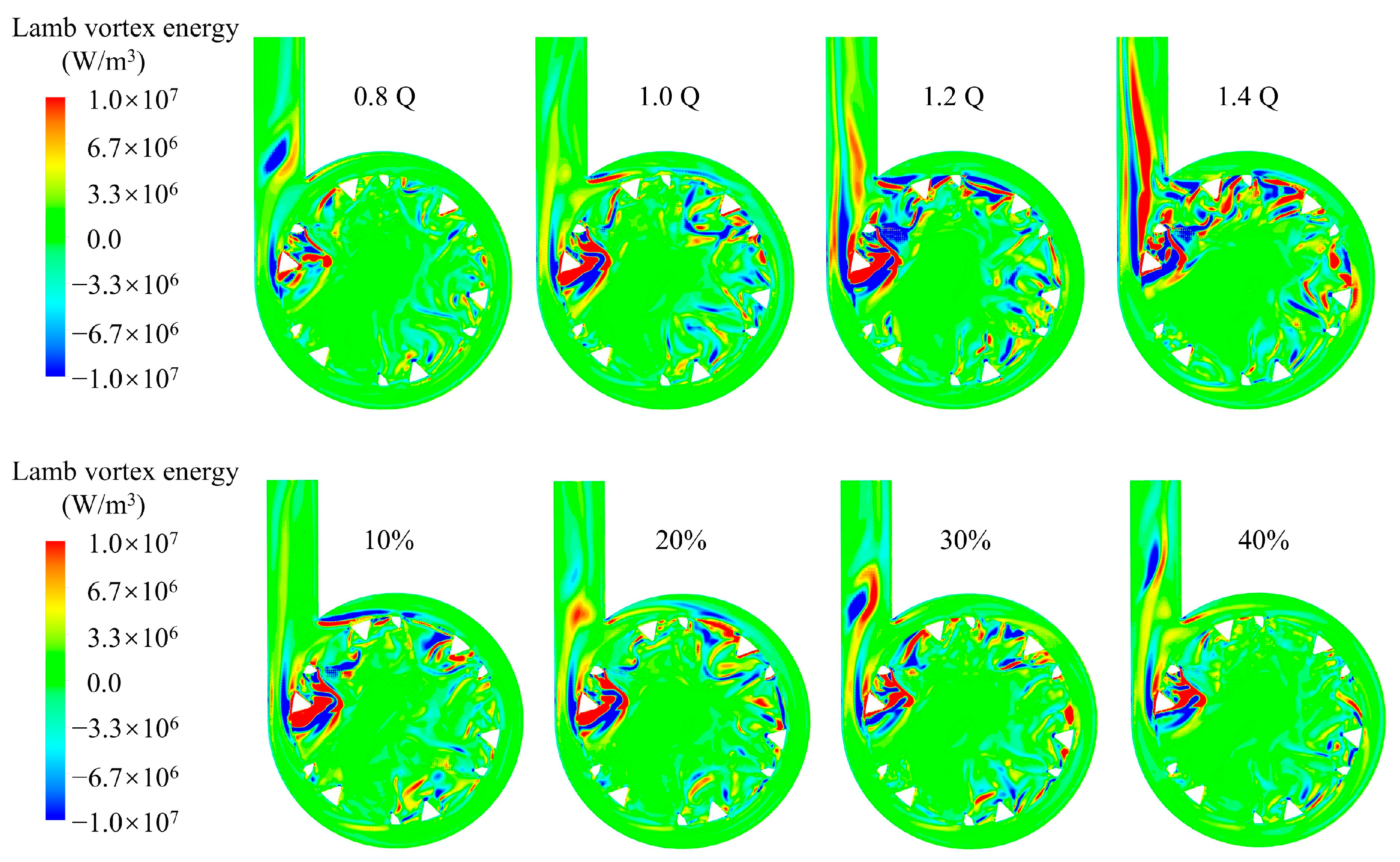

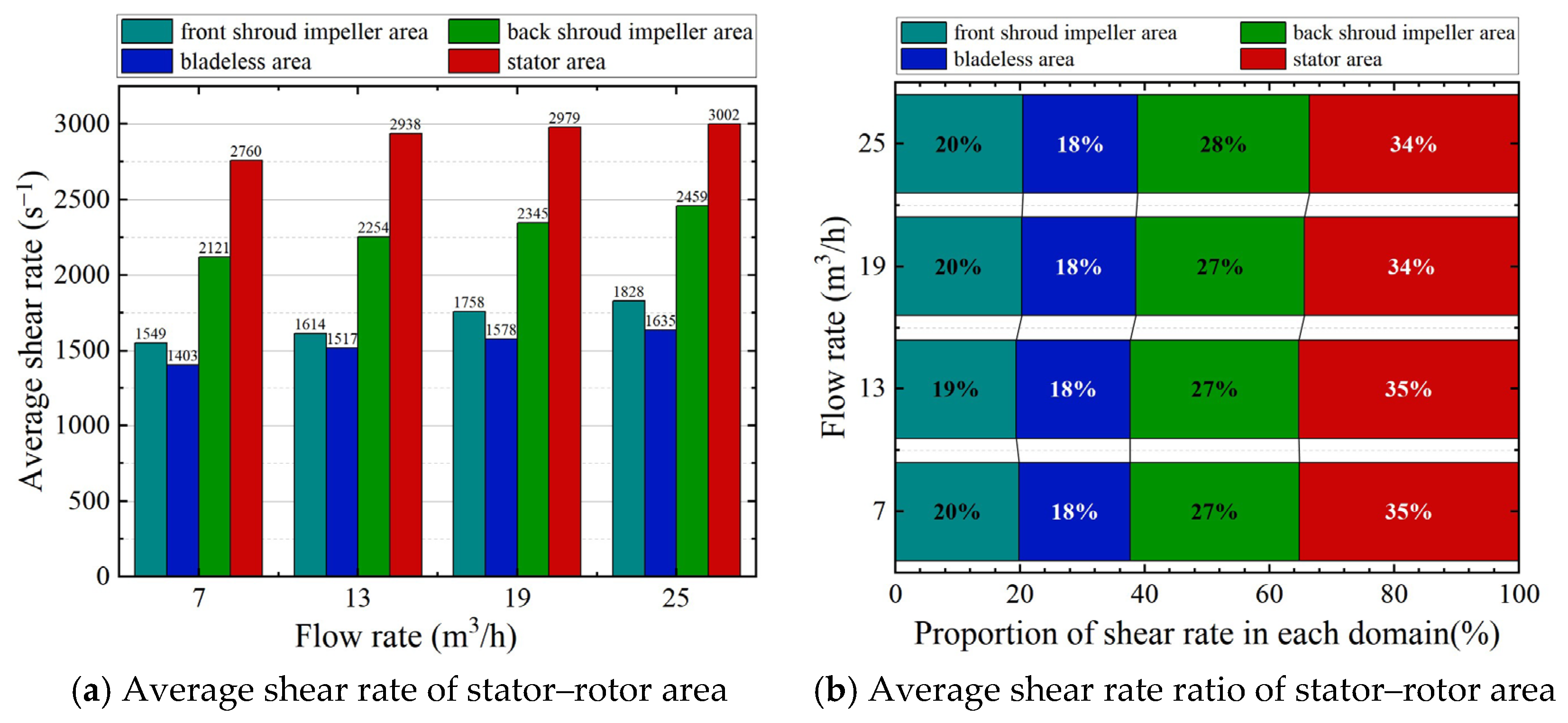

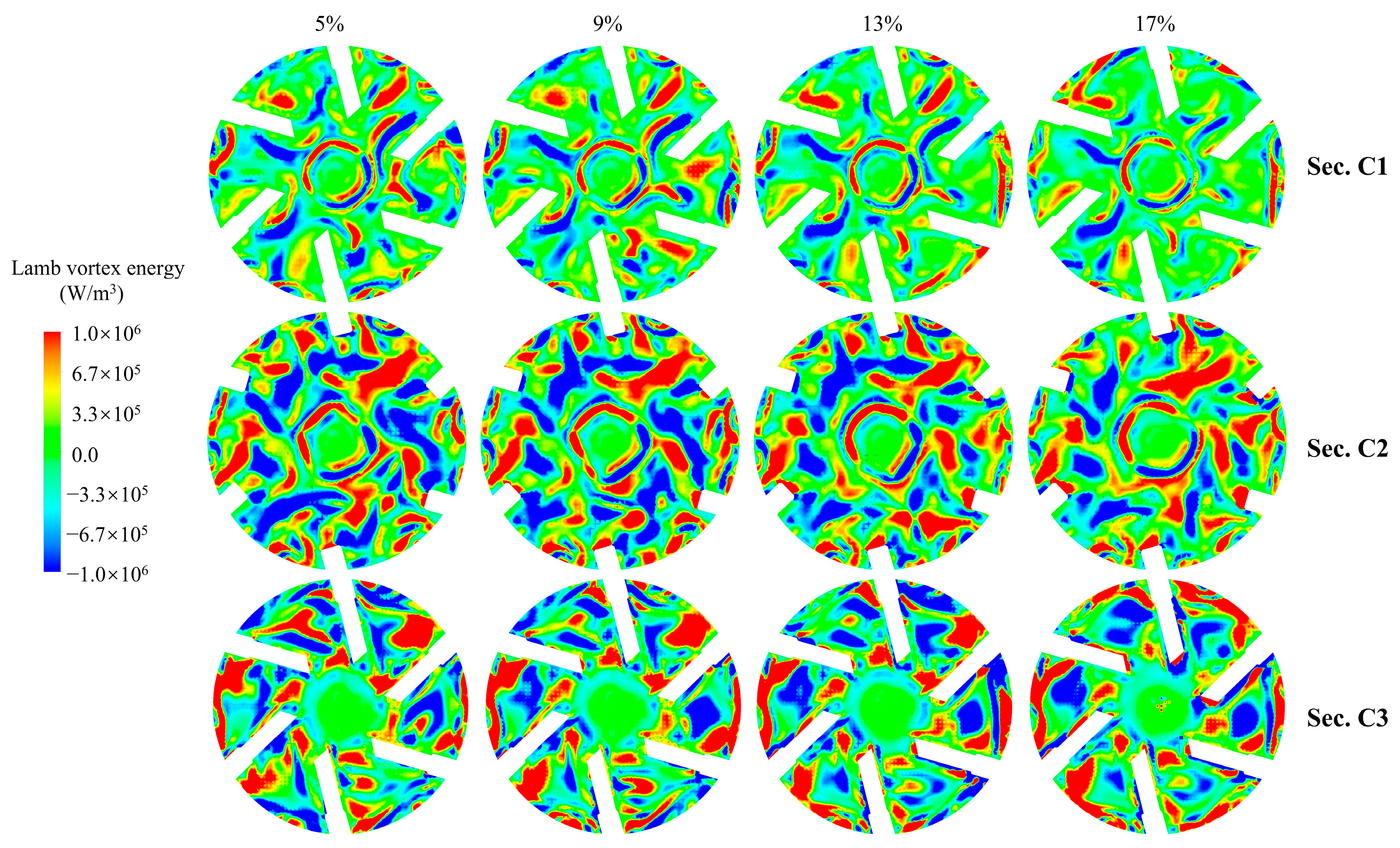

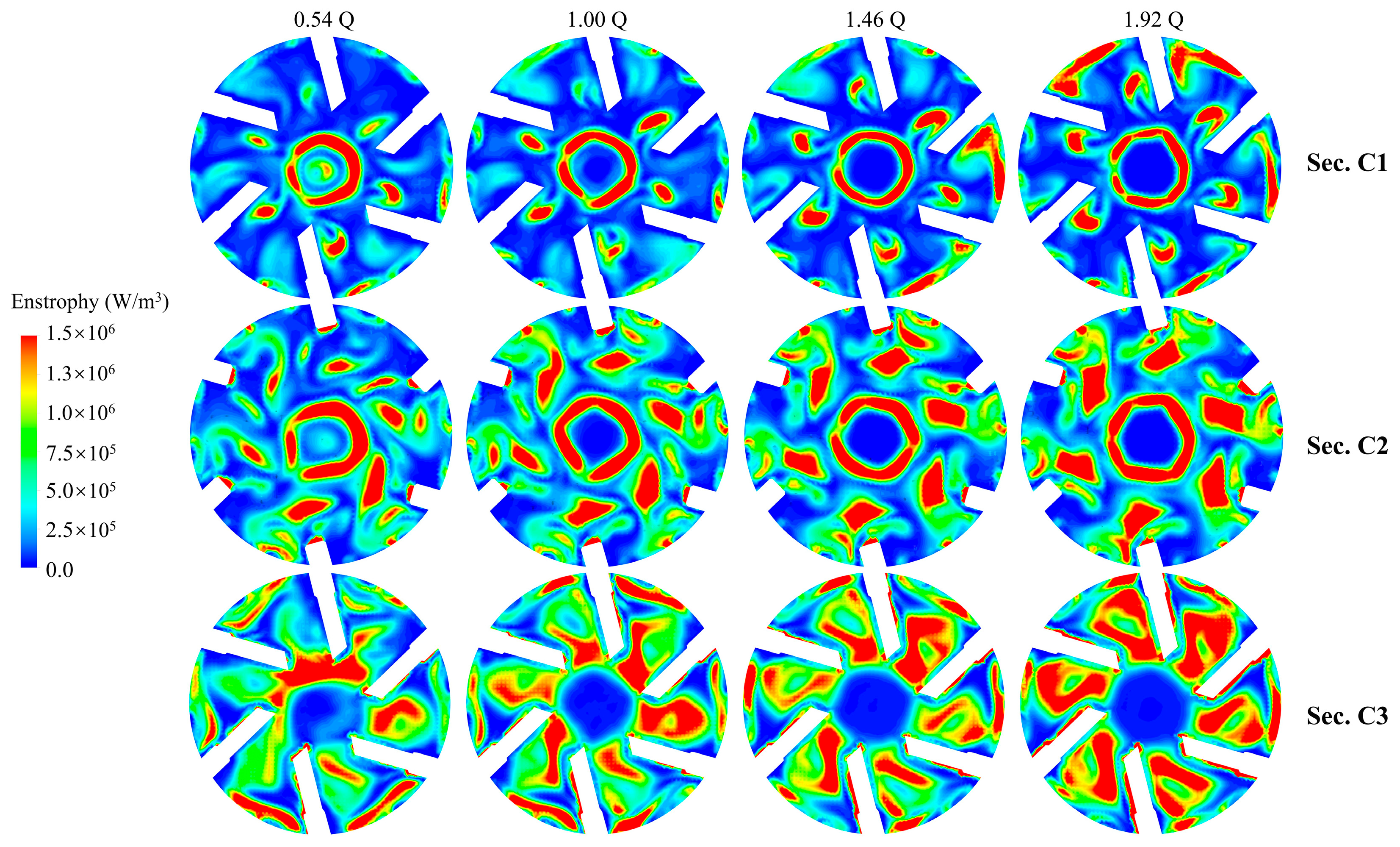

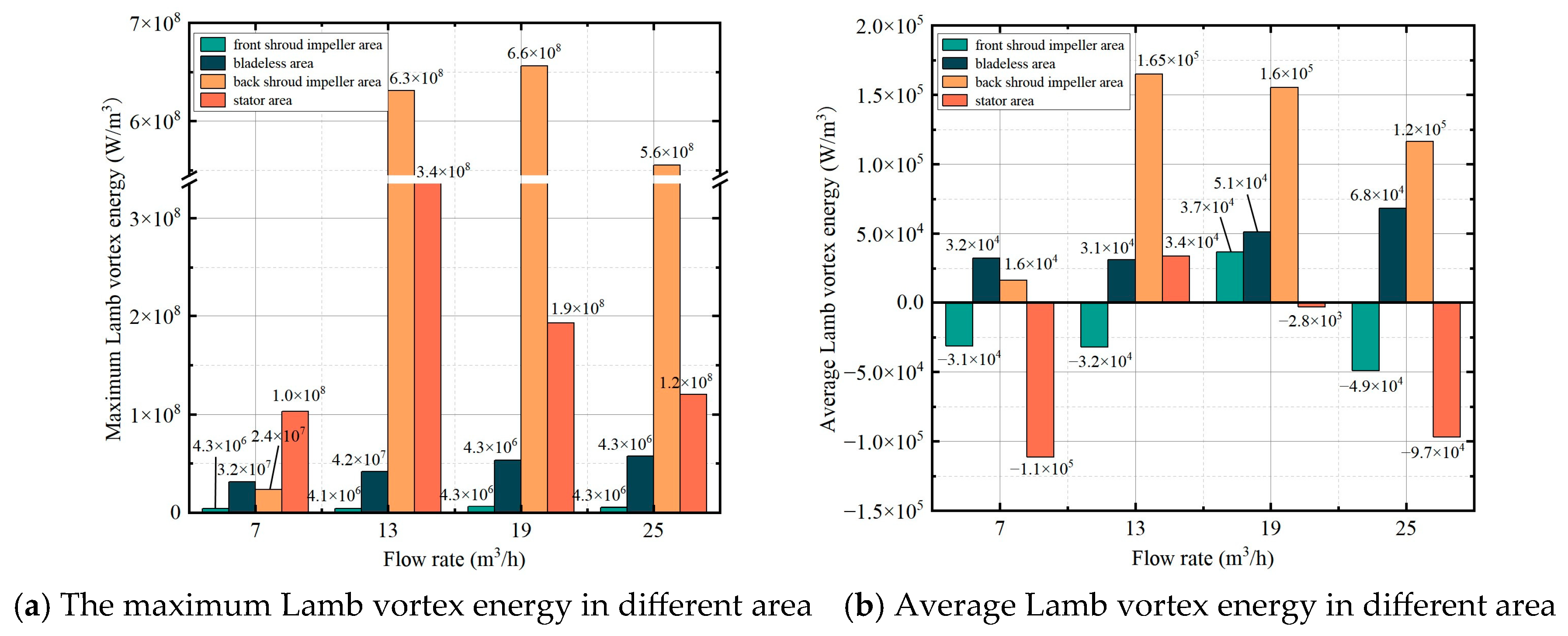

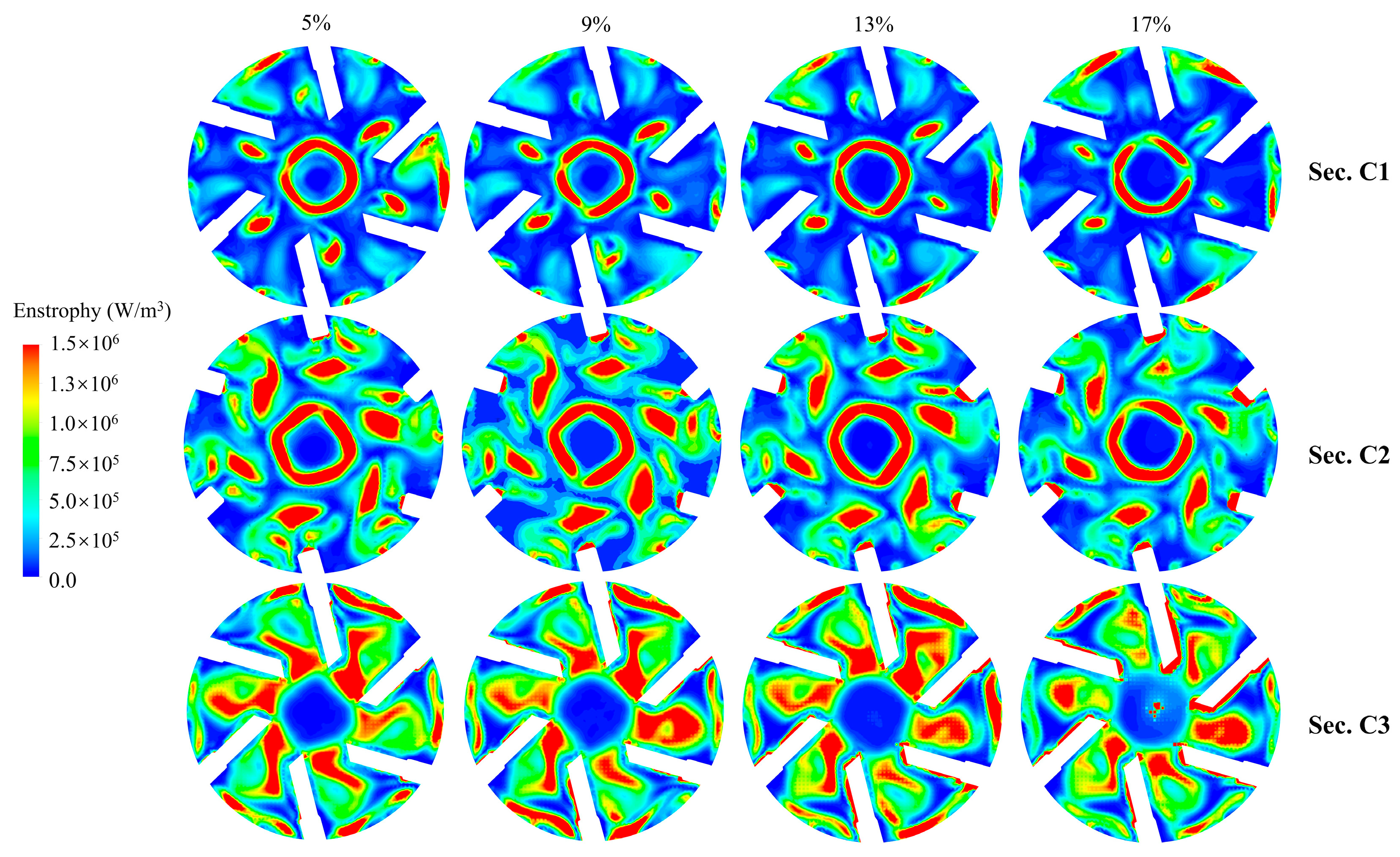

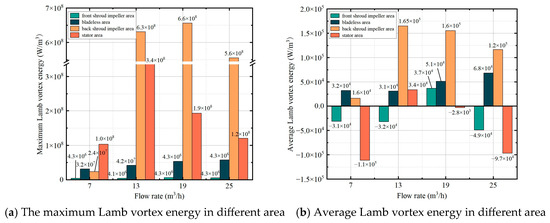

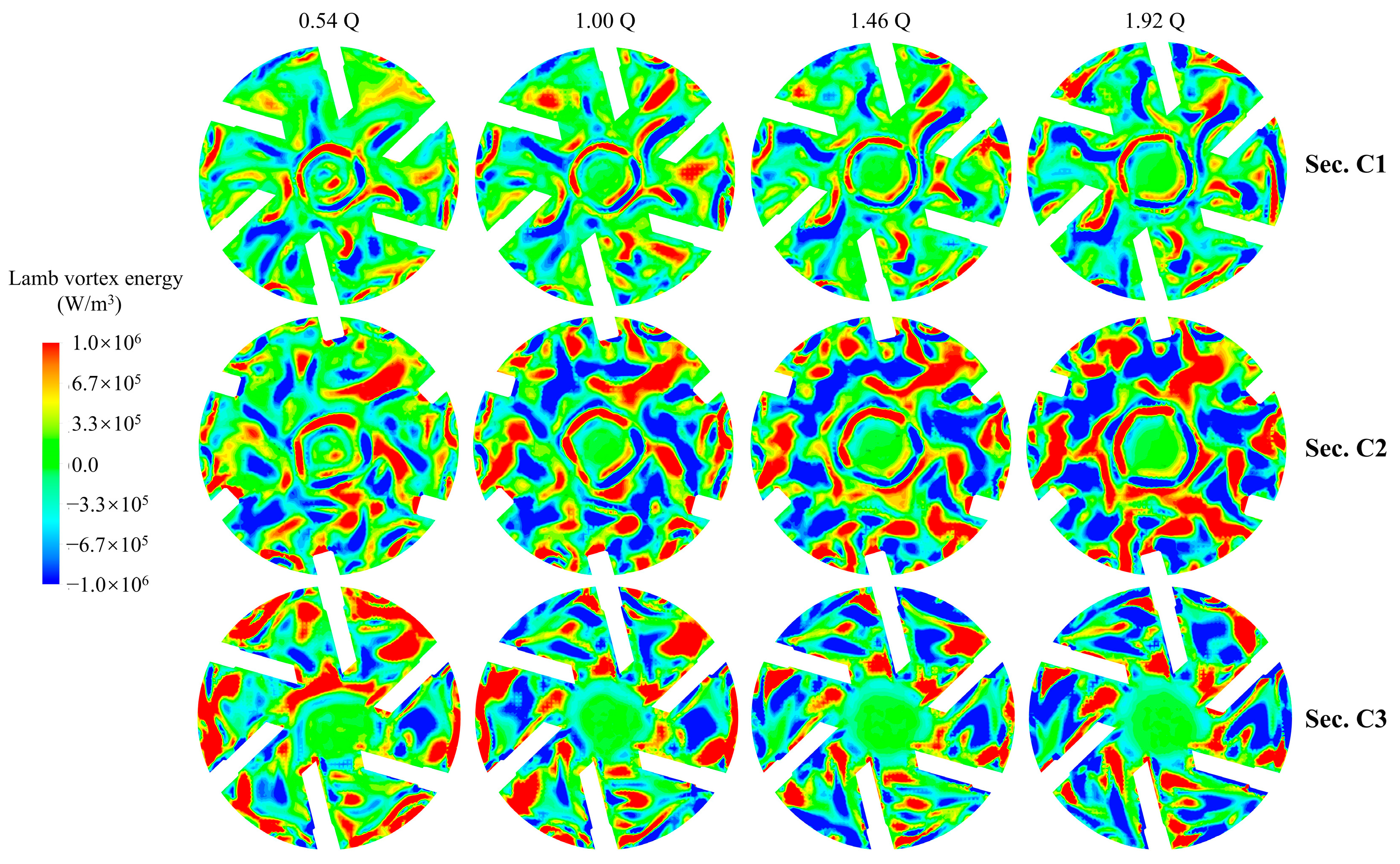

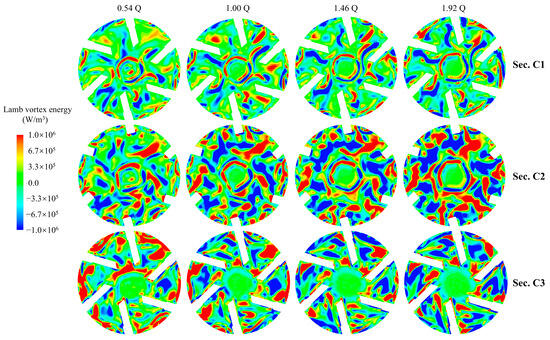

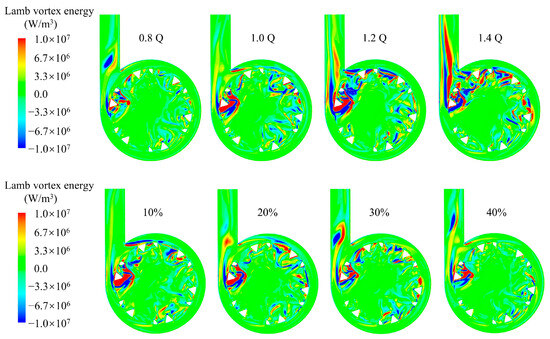

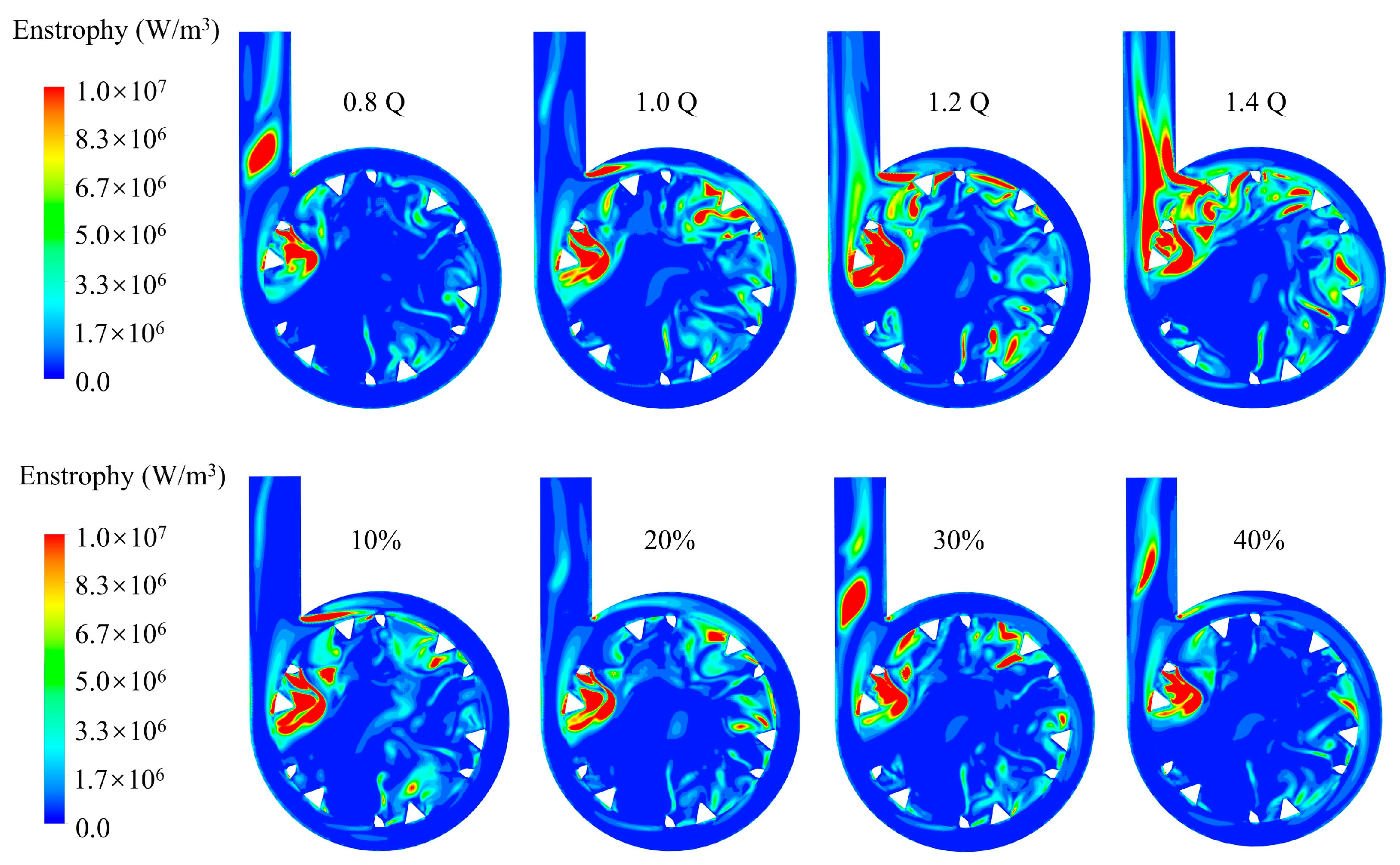

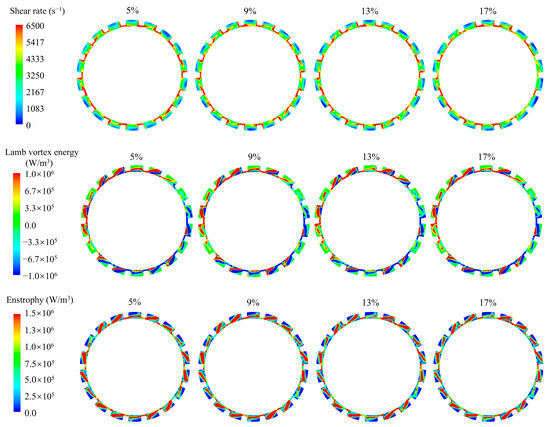

To address the imbalance between the shearing–mixing quality and energy efficiency of deepwater drilling mud mixers and breakthrough the limitations of existing independent single-objective analytical perspectives, the Eulerian solid–liquid two-phase numerical simulation was adopted in this study. Combined with a modified shear rate algorithm and a triple energy coupling analysis of shear rate, Lamb vortex energy and Enstrophy, the energy conversion and particle dispersion mechanisms inside the mixer under variable flow rates and solid concentrations were systematically investigated, and the performance differences between the first-generation and optimized mixers were clarified. Structural optimizations including an additional modular stator with a designed shear gap of 2 mm, improved blade profiles and shear angles to 14.2°, and miniaturized radial dimensions of the impeller and volute were implemented to achieve compact structural upgrading. The results demonstrate that high-energy regions are concentrated in the rotor–stator gap. After optimization, the peak shear rate increases from 12,010 s⁻¹ to 17,092 s⁻¹, representing a 42.3% enhancement. The peak Lamb vortex energy and the mean Enstrophy rise by 8.6% and 18.9%, respectively. Shear rate correlates weakly positively with Lamb vortex energy and strongly negatively with Enstrophy, revealing vortex sensitivity to flow velocity and tight coupling of viscous dissipation to particle concentration. The outlet coefficient of variation C_v decreases by 59.6%. Higher flow rates strengthen the coupling of shear and vortex energy, and higher solid concentrations weaken stator shear performance. The optimized mixer achieves synergistic improvements in shear efficiency and mixing quality, with over 50% enhancement in mud dispersion stability and more than 15%.
