Post-Mineralization, Cogenetic Magmatism at the Sungun Cu-Mo Porphyry Deposit (Northwest Iran): Protracted Melting and Extraction in an Arc System

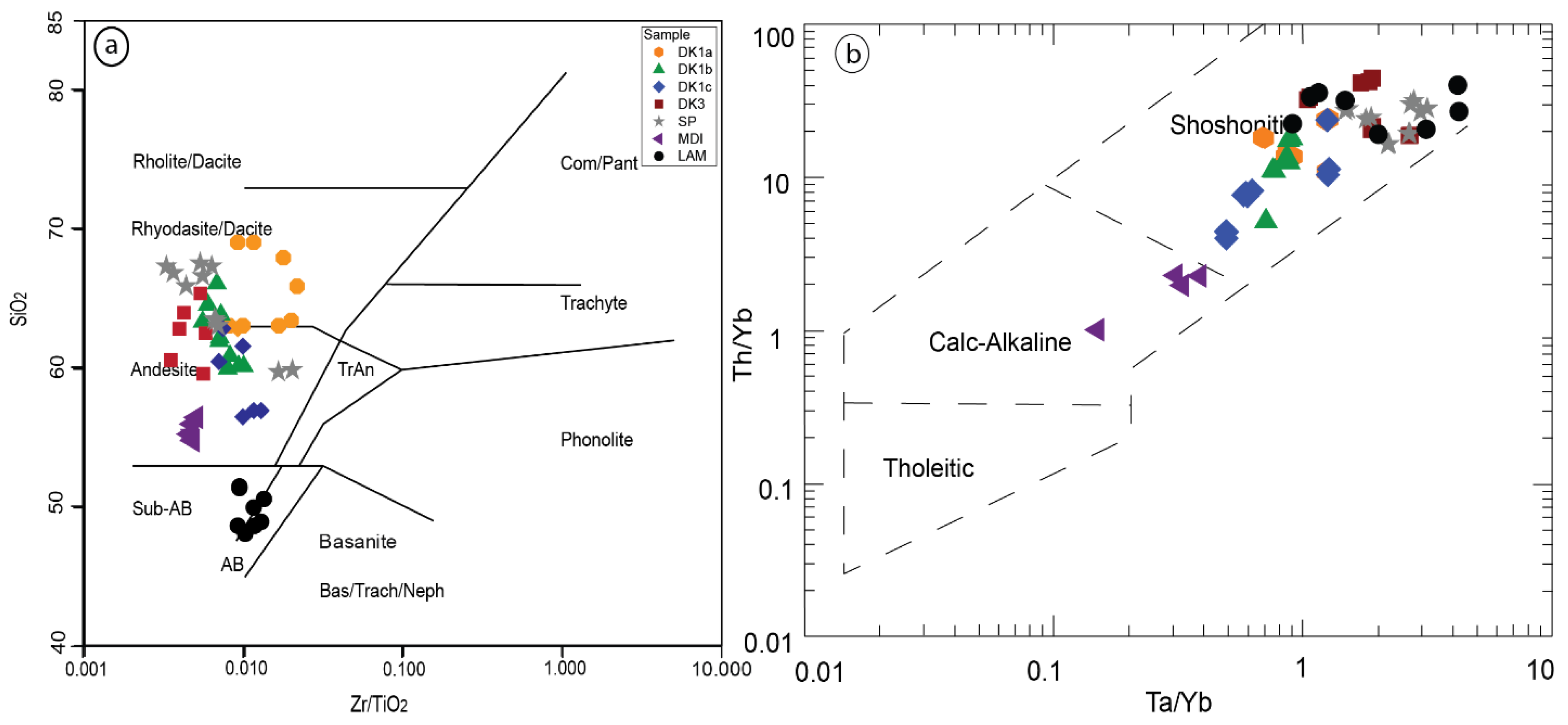

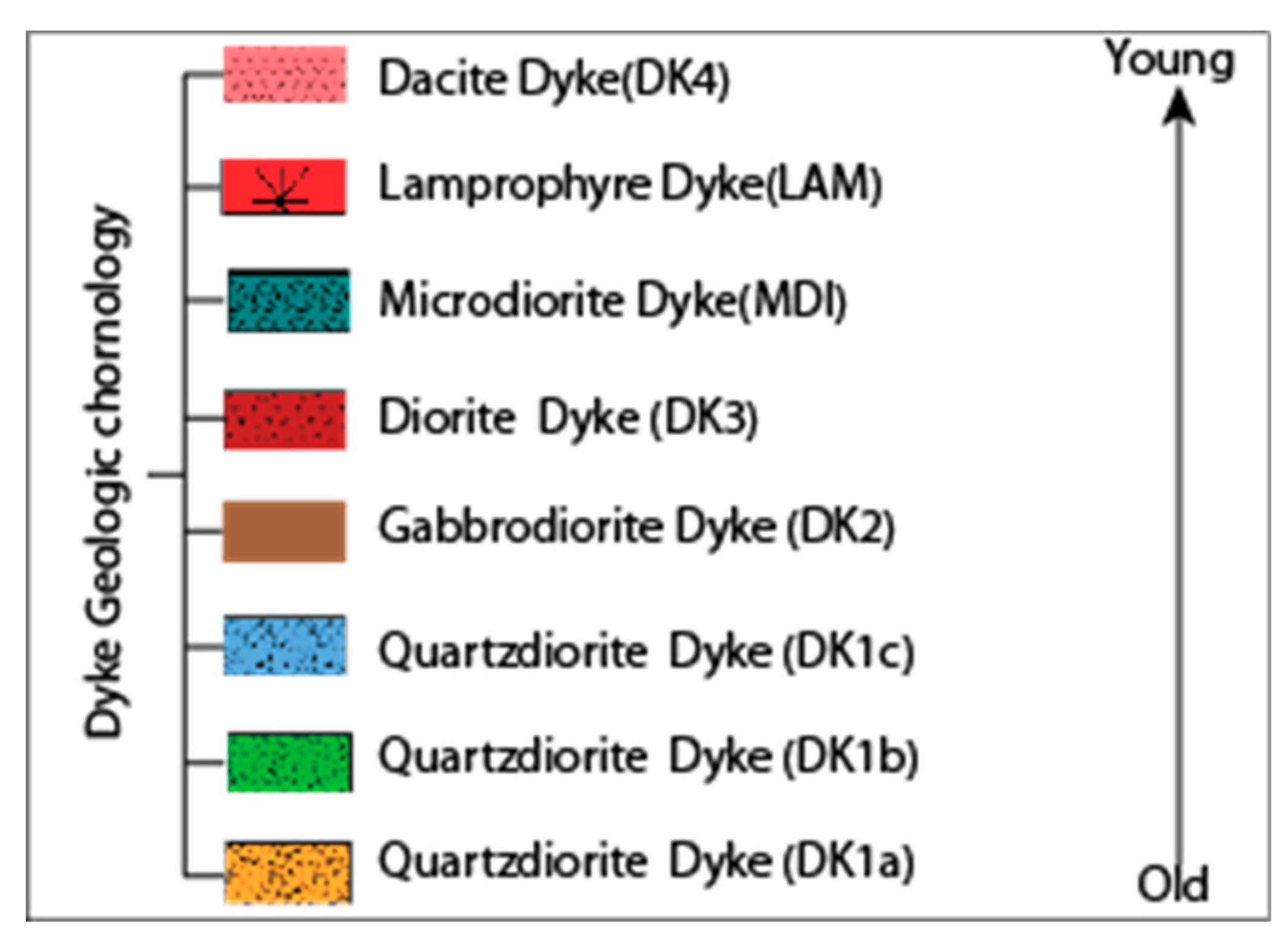

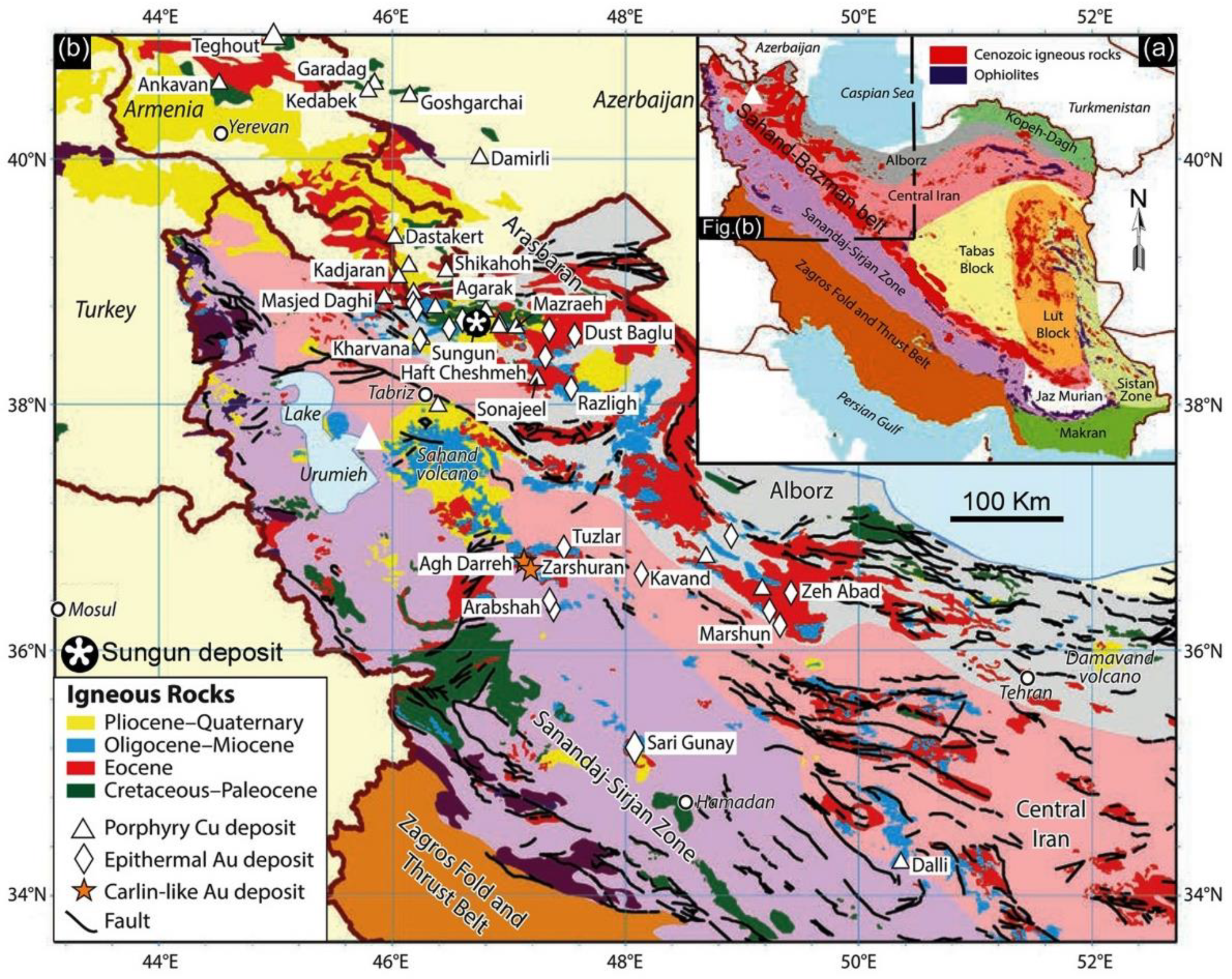

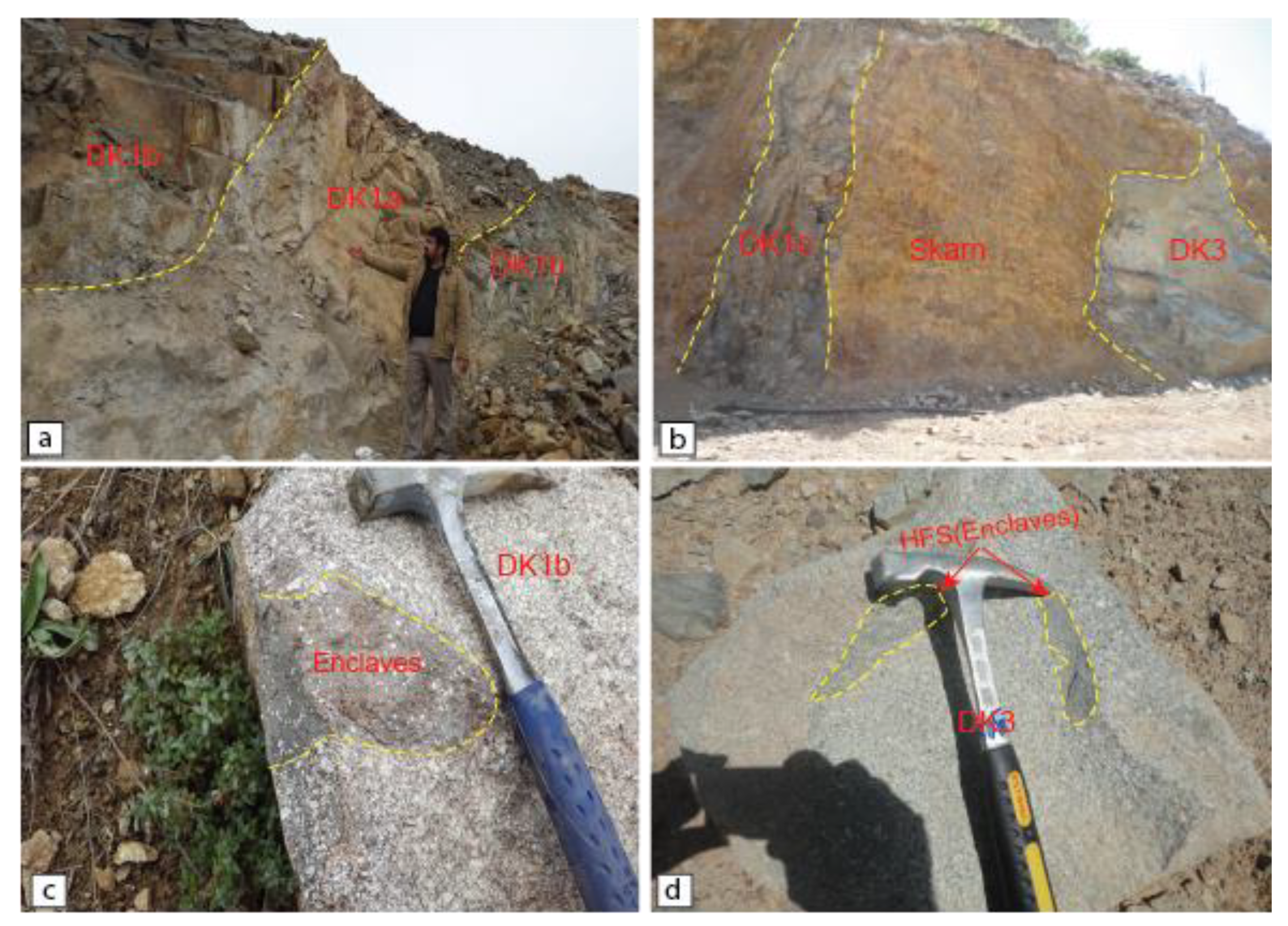

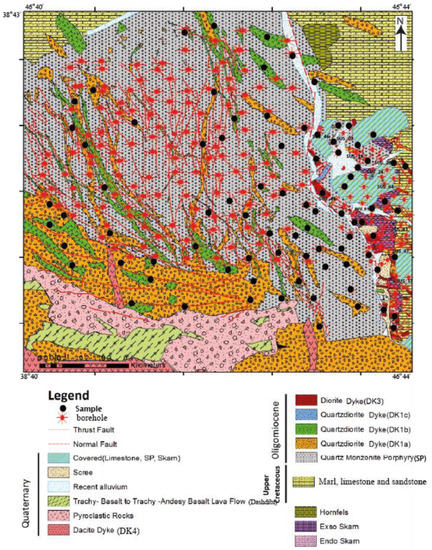

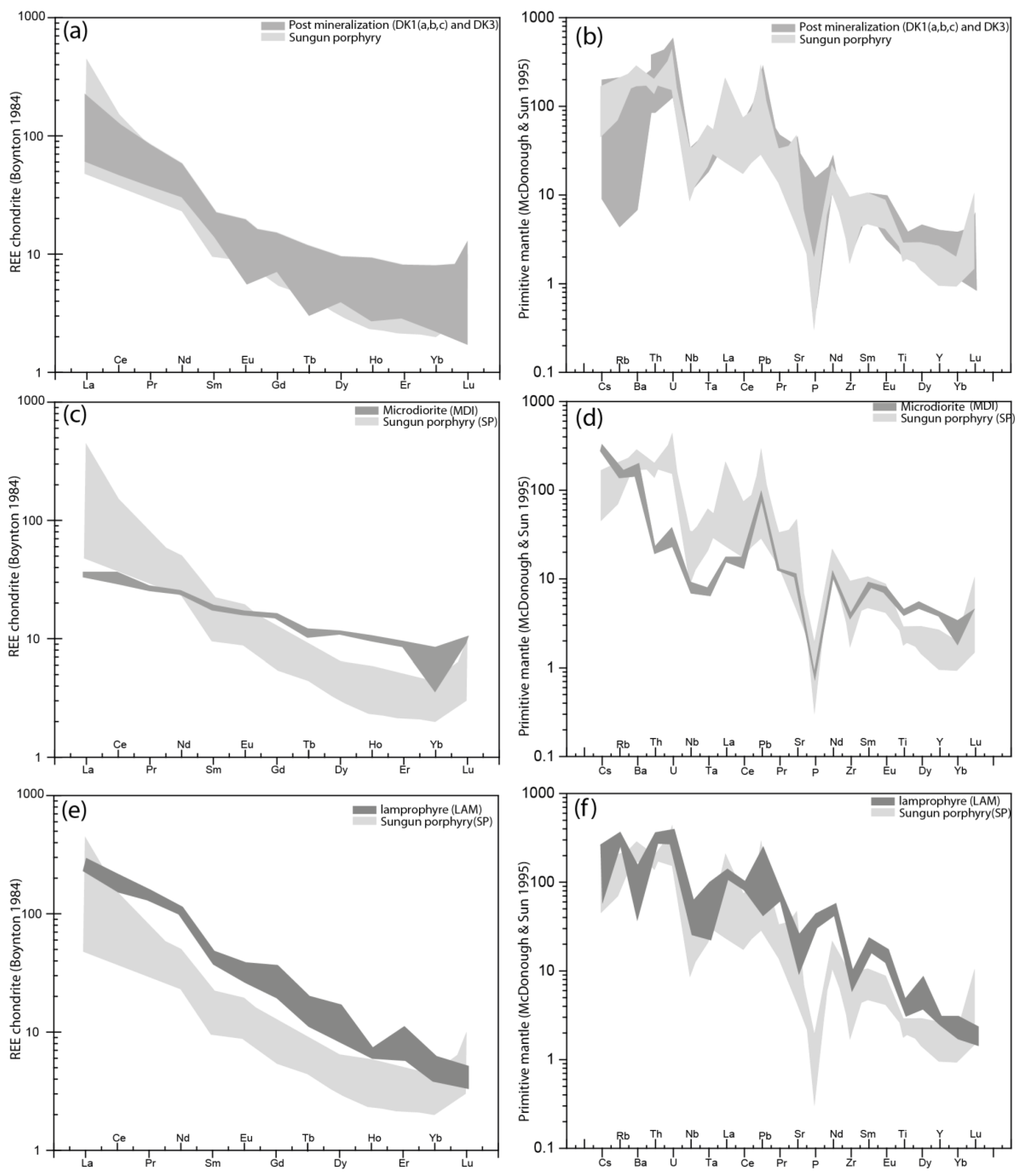

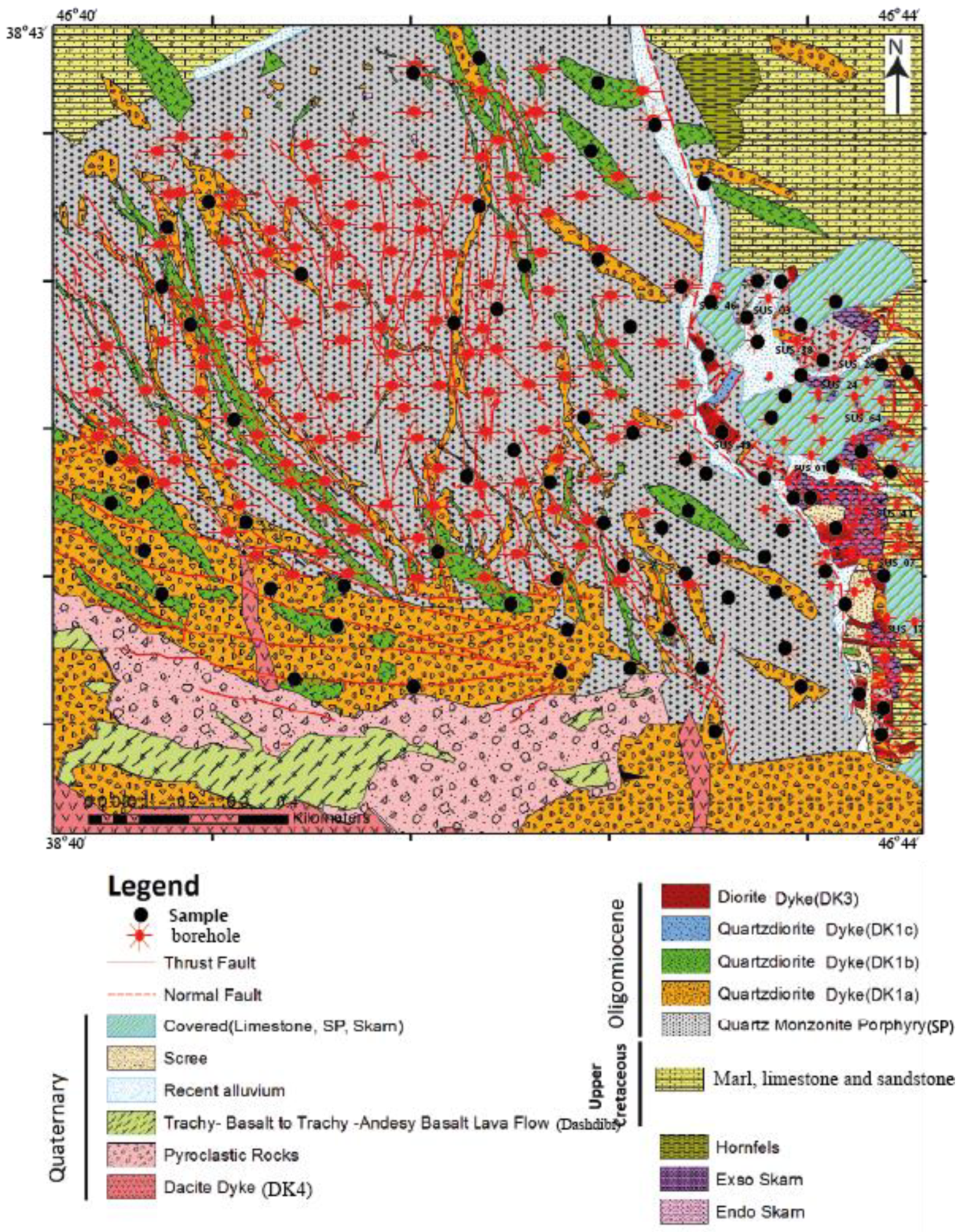

The Sungun porphyry ore deposit is located in Eastern Azarbaijan province, Northwestern Iran. The oldest intrusive pulse in the region is a quartz-monzonite pluton, which hosts the porphyry copper-molybdenum mineralization. The Sungun Copper Mine includes the mineralized Sungun porphyry as well as six groups of cross-cutting and lithologically distinct post-mineralization dykes. The composition of these dykes ranges from quartz diorite, gabbro, diorite, dacite, lamprophyre, and microdiorite. Quartz diorite and dacite dykes are the oldest and youngest dykes, respectively. Based on their cross-cutting relationships, the composition of the dykes tend to become more primitive through time. The dykes strike Northwest–Southeast with Southwest dip, sub-parallel to the reverse faults within the deposit area. The lamprophyric dykes range from phonotephrite, to trachybasalt, tephrite, and basanite. The quartz-monzonite porphyry (SP) and the post-mineralization dykes (DK1-DK3) have clear and distinct negative anomalies of Ti, Zr, P, Pr, Ce, and Nb, as well as positive anomalies of Cs, U, K, Pb, and Nd with respect to primitive mantle. Microdioritic dykes (MDI) show depletion of Ti, Nb, P, Ta, Th, Yb, and Zr, and enrichment of Cs, Ba, U, Pb, Nd. The similarities in trace element abundances and patterns in the porphyry and post-mineralization calc-alkaline dykes implies a single source and fractional crystallization as the main mechanism controlling magmatic evolution in a collisional environment. Lamprophyric dykes have enrichment of LREE and LILE and depletion of HREE and HFSE such as Ti, Nb, and Ta. The parent magma of the lamprophyric dykes (LAM) was likely derived by low degrees of melting of a garnet lherzolite mantle peridotite. The ⁸⁷Sr/⁸⁶Sr and ¹⁴³Nd/¹⁴⁴Nd ratios range from 0.704617 to 0.706464 and from 0.512648 to 0.512773 for the dykes suggesting that the parental magmas came from a progressively more enriched mantle. Isotope ratios of ⁸⁷Sr/⁸⁶Sr and ¹⁴³Nd/¹⁴⁴Nd support a cogenetic relationship of porphyry and calc-alkaline dykes, except for the microdiorite ones. A common primary melt underwent gravity differentiation in a deep magmatic chamber to form a dioritic magma. This subsequently migrated to shallower levels to evolve further and feed individual dyke groups into the Sungun porphyry. View Full-Text
