The Symmetry and Stability of the Flow Separation around a Sphere at Low and Moderate Reynolds Numbers

and
Science and Technology on Transient Physics Laboratory, Nanjing University of Science and Technology, Nanjing 210094, China
*
Author to whom correspondence should be addressed.
This article belongs to the Special Issue Geophysical Fluid Dynamics and Symmetry

Abstract

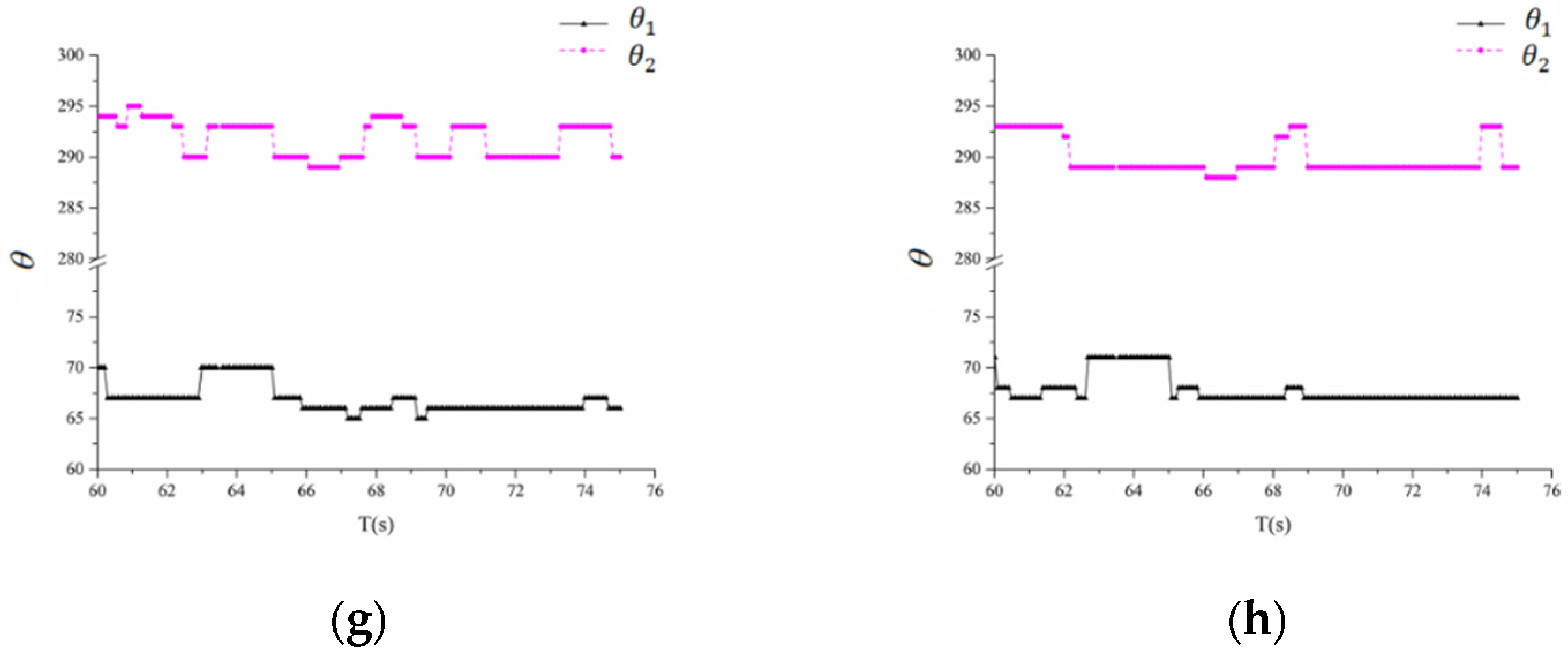

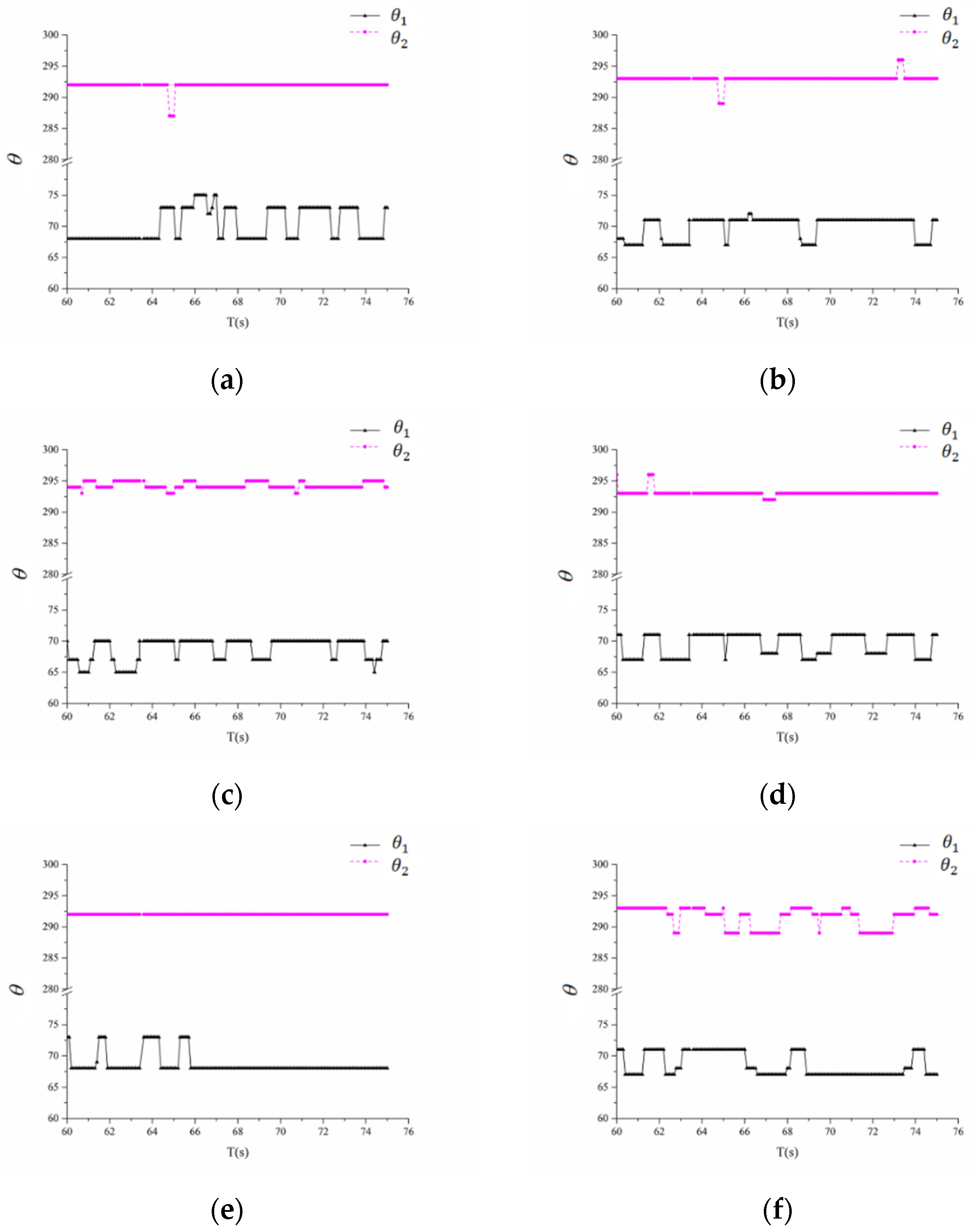

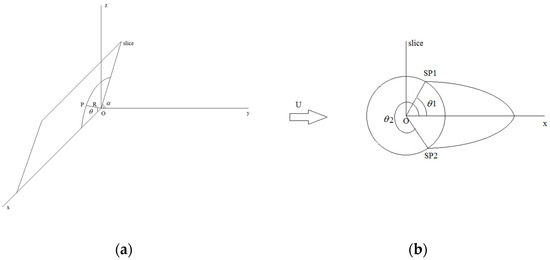

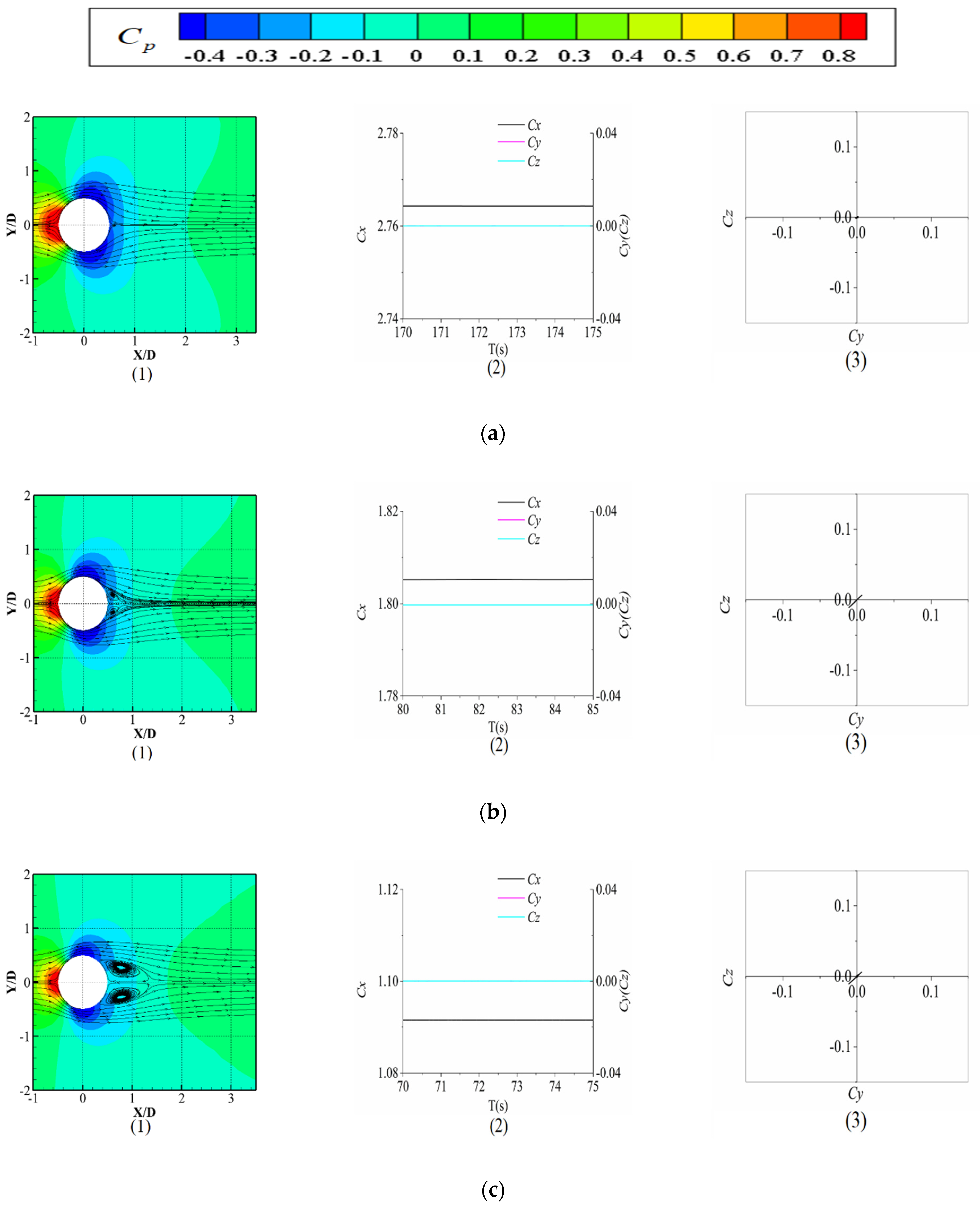

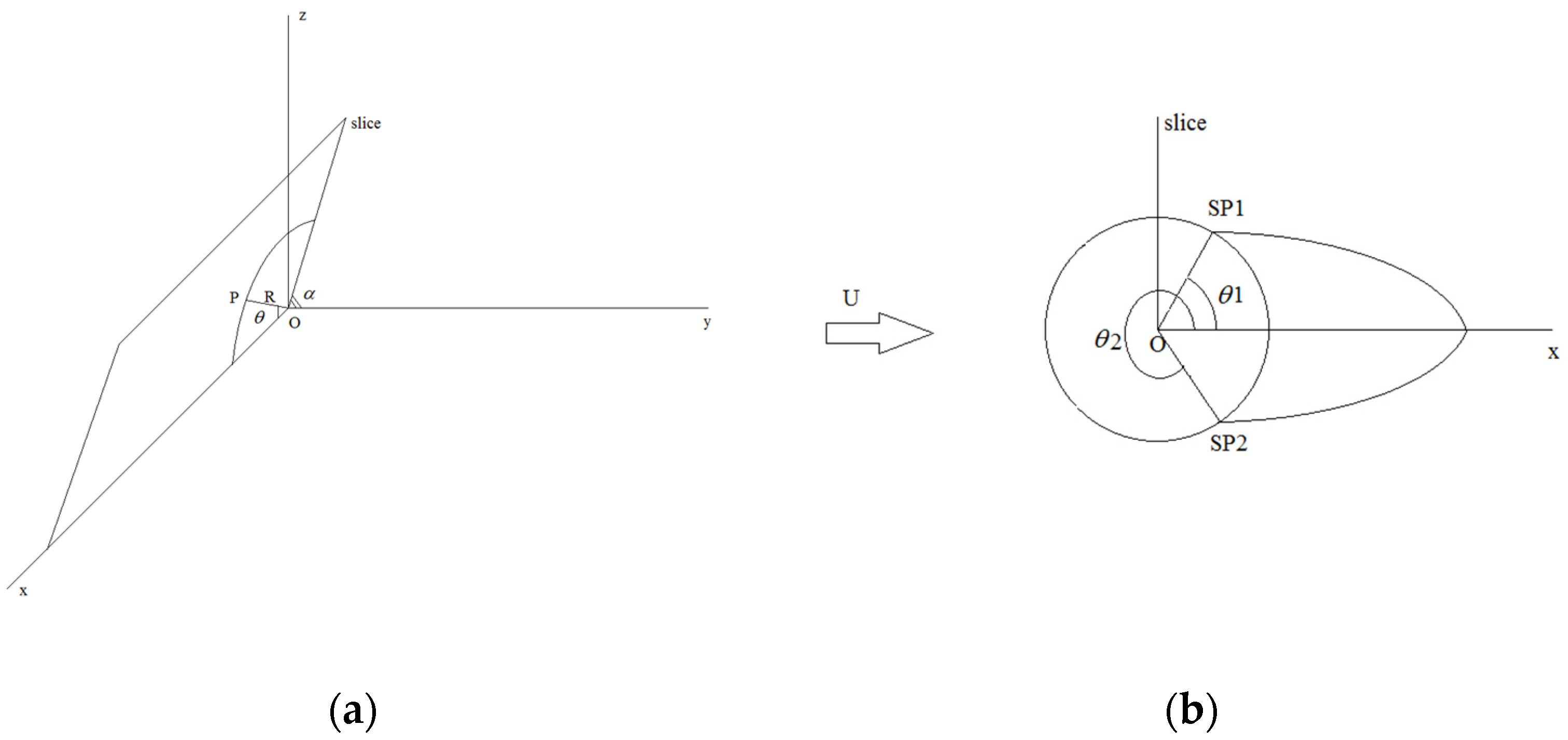

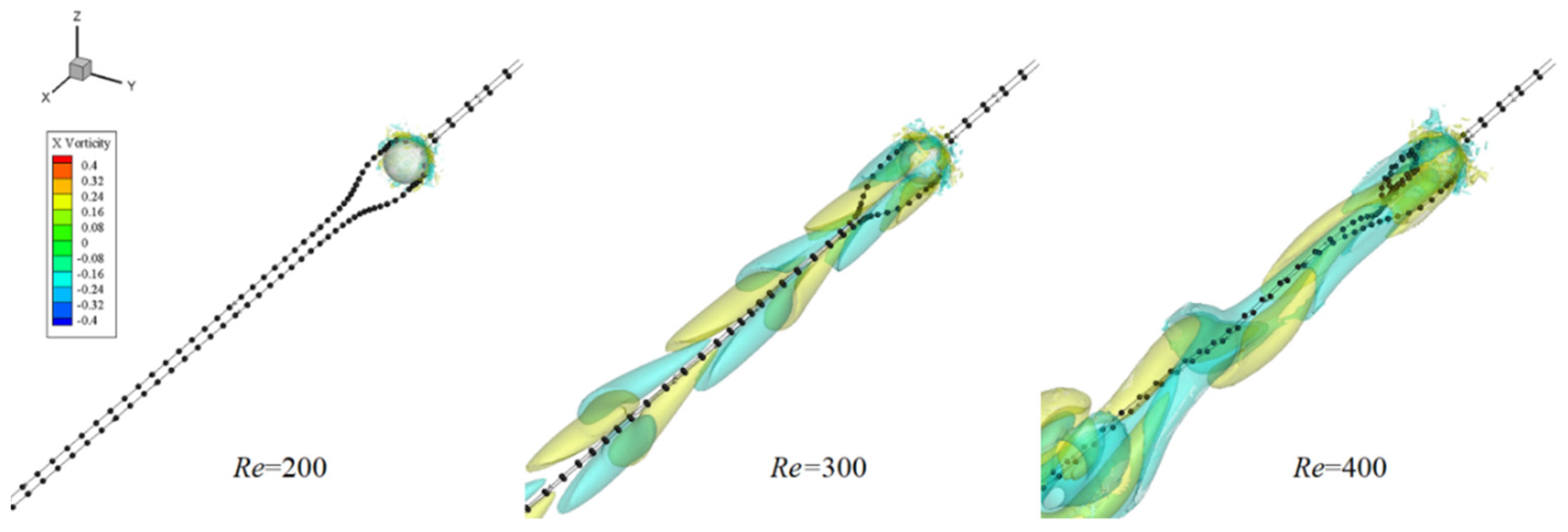

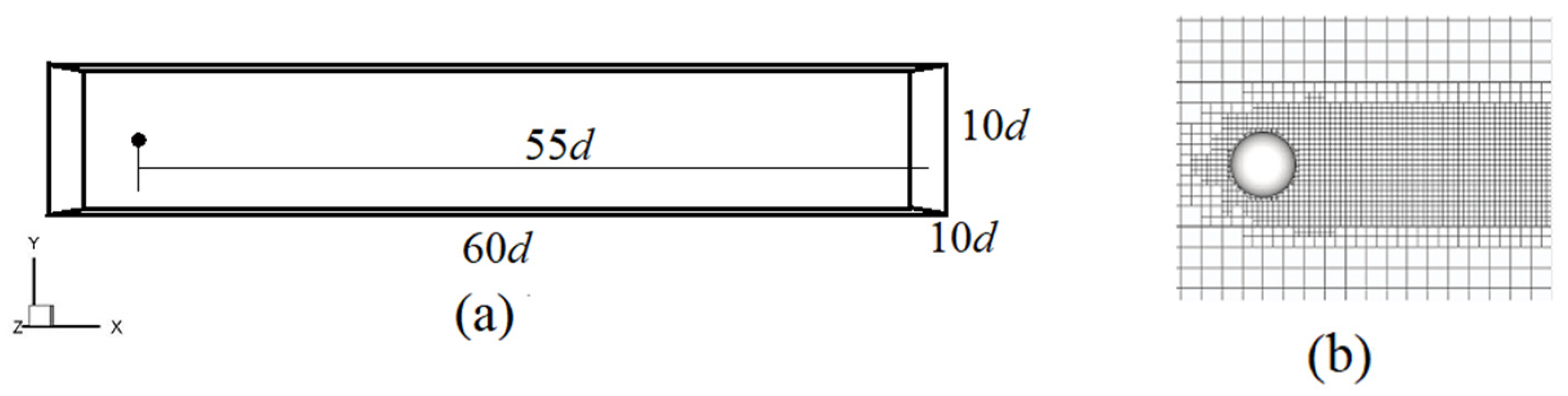

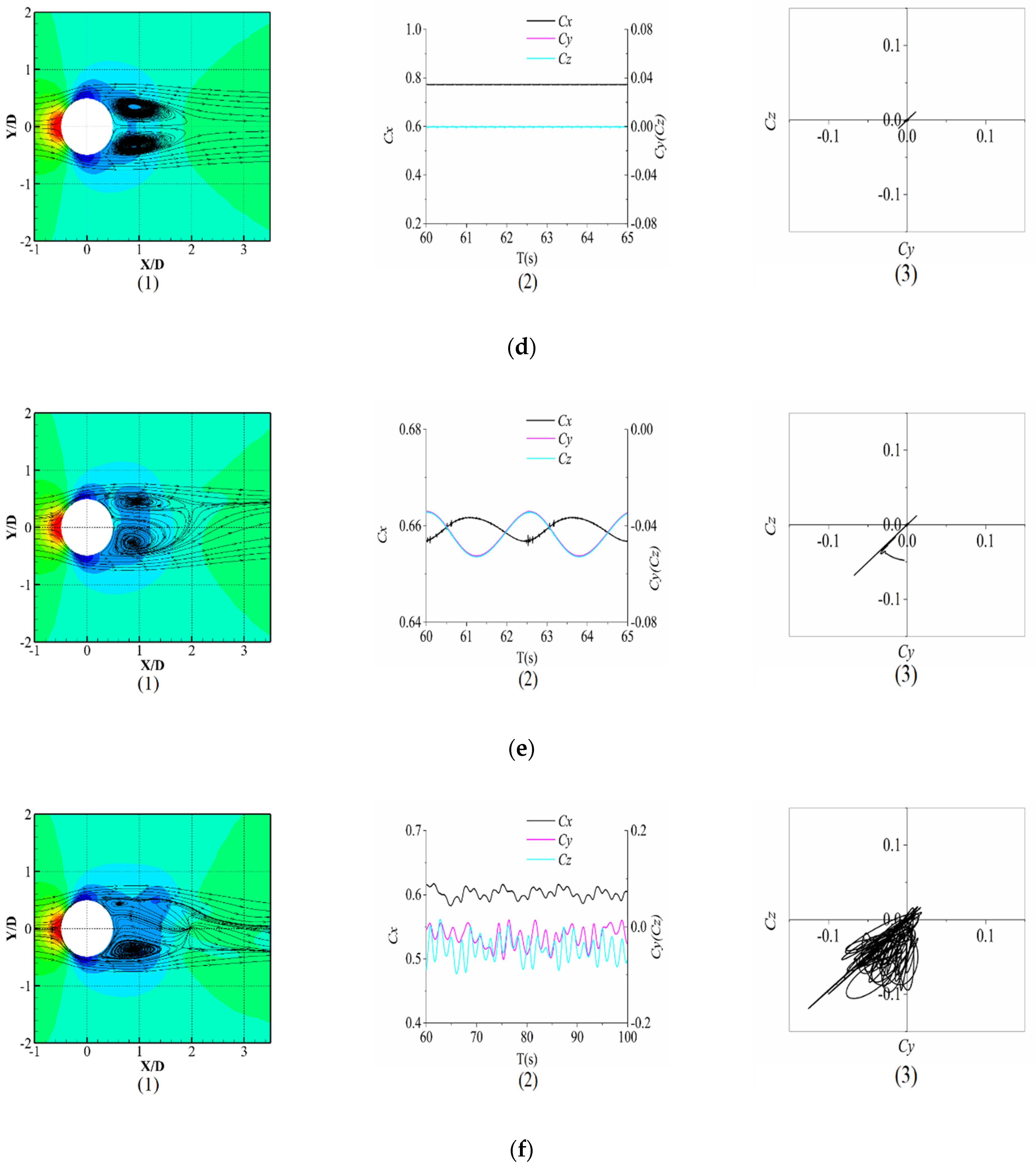

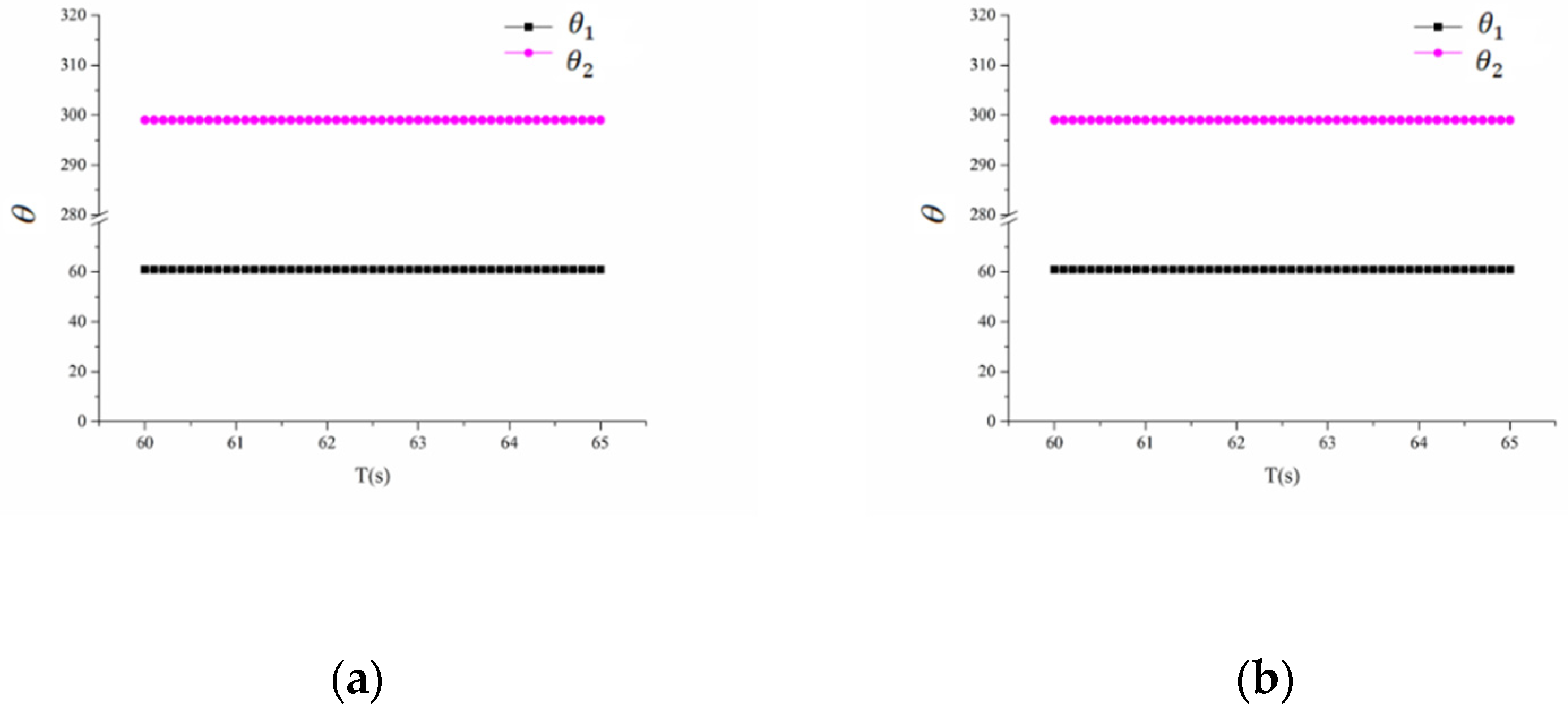

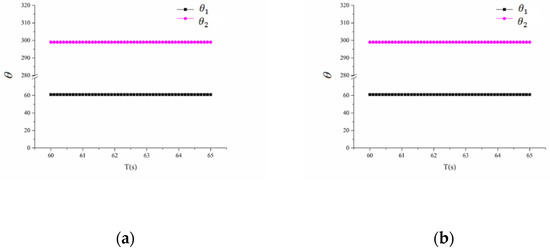

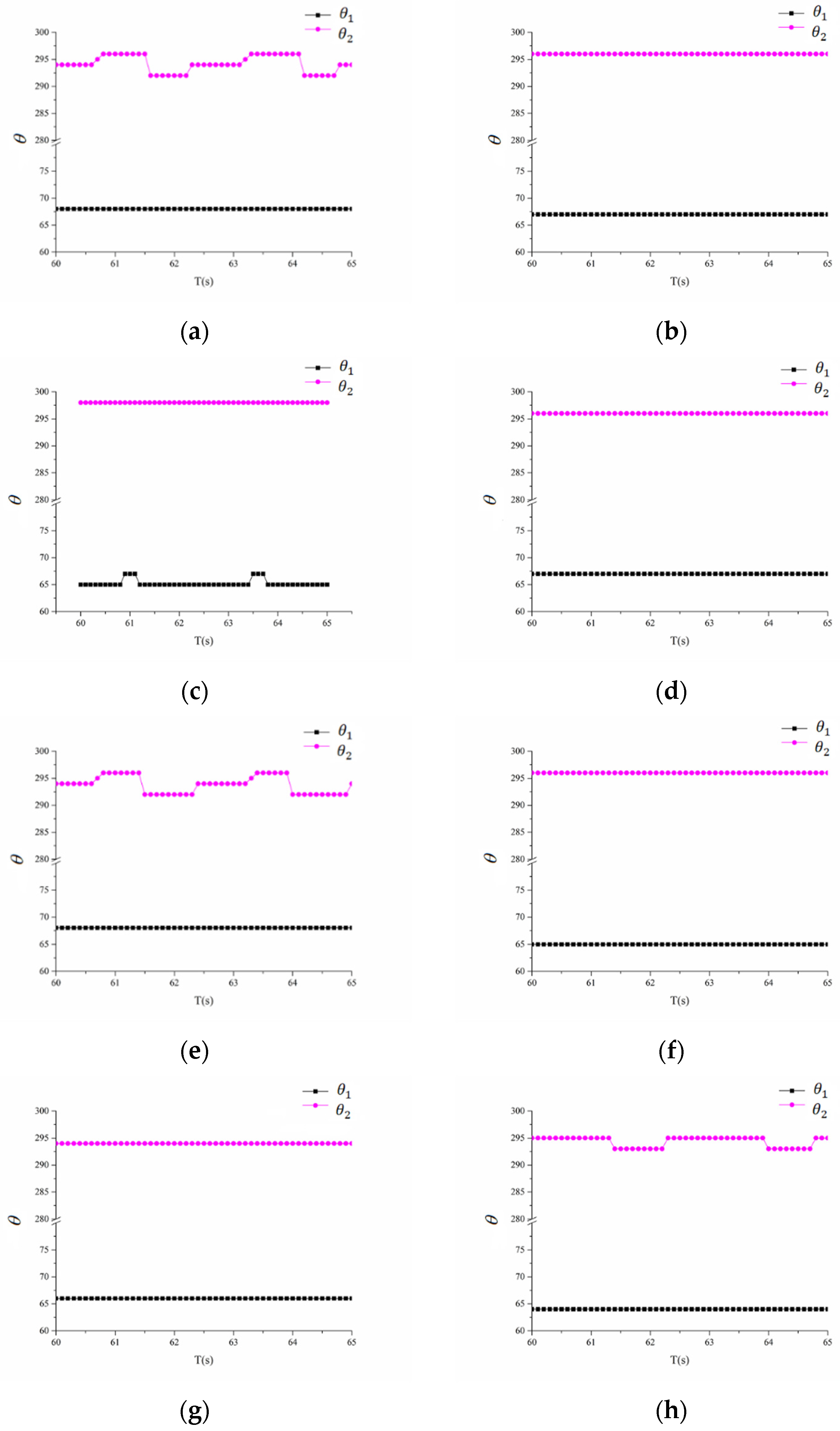

The flow separation state reflects the symmetry and stability of flow around spheres. The three-dimensional structures of flow around a rigid sphere at moderate Reynolds number (Re) between 20 and 400 by using finite volume method with adaptive mesh refinement are presented, and the process of separation angles changing from stable to oscillating state with increasing of Re is analyzed. The results show that the flow is steady, and the separation angles are stable and axisymmetric at Re in less than 200. The flow is unsteady and time-periodic, and the flow separation becomes regular fluctuations and asymmetric at Re = 300, which leads to the nonzero value of lateral force and the phase difference between lift and lateral force. At Re = 400, the flow is unsteady, non-periodic, and asymmetric, as is the flow separation. It’s concluded that the flow separation angle increases when Re increases within a range between 40 and 200. With Re continues to increase, the flow separation state changes from stable to periodically regular until quasi-periodically irregular. The vortex structure changes from no shedding to asymmetric periodic shedding, and finally to asymmetric and intermittently periodic vortex shedding. These results have important implications for the stability of flow around spheres.
