Urea Excretion and Arginase Activity as New Biomarkers for Nitrite Stress in Freshwater Aquatic Animals

Abstract

Background: In recent years, the concern has been growing on increasing aquatic nitrite levels due to anthropogenic activities. Crustaceans and fish easily uptake nitrite via the chloride uptake system of gills. High nitrite body levels may interfere with nitric oxide (NO) production by nitric oxide synthase (NOS). The arginase, which catalyzes arginine conversion to ornithine and urea, is central to NO homeostasis. In vivo, changes in the arginase activity alter urea body levels and urea excretion and modulate NOS by altering arginine availability for NO synthesis. Excess arginase activity may uncouple NOS and induce oxidative stress. Methods: We tested muscle arginase activity and urea excretion in two fish species, zebrafish and convict cichlid, and the crustacean Yamato shrimp, under sub-lethal nitrite stress. Results: Exposure to nitrite (2 mM in the fish, 1 mM in the shrimp) significantly increased blood nitrite concentration in all species. Concomitantly, nitrite stress significantly increased arginase activity, urea excretion, and urea levels in the blood. In Yamato shrimp, urea levels also increased in muscle. Conclusion: Our results agree with the hypothesis that nitrite stress affects NO homeostasis by arginase stimulation and urea excretion. These parameters might function as markers of sub-lethal nitrite stress in freshwater fish and crustaceans.

1. Introduction

In recent years, the harmful effects of nitrite (NO₂⁻) on aquatic organisms have attracted much attention due to the rapid growth of urban and industrial areas that cause an increased influx of nitrogenous compounds into aquatic ecosystems. Nitrite is an intermediate of the nitrogen cycle, a primary regulator of the functional organization and integrity of ecosystems, which can be affected by numerous factors, including pH, temperature, and oxygen availability, as well as a diversity of inorganic and organic compounds [1]. The nitrite levels in aquatic environments are usually low. They depend on the balance between nitrification (reduction of ammonia to nitrite and nitrate) and denitrification (nitrate/nitrite conversion to N₂). The global increase in availability and mobility of nitrogenous compounds by human activity can favor nitrification over denitrification and as such it can increase nitrite concentrations in aquatic environments even into the mM range [1]. High nitrite levels may also occur in closed intensive culture systems due to excessive ammonia release and insufficient, inefficient, or malfunctioning water filtration [2]. Elevated nitrite levels in the environment have toxic effects on living organisms [1,3]. Freshwater crustaceans and fish can uptake and even accumulate nitrite with several detrimental consequences. The problem of freshwater animals with nitrite pollution derives from the high affinity of nitrite for the chloride uptake system [4,5]. When nitrite is present in the ambient water, a part of the Cl⁻ uptake will be shifted to NO₂⁻ uptake [4]. Consequently, most freshwater fish and crustaceans actively uptake this ion in their plasma and, to a lesser extent, in various organs and tissues, including gills, liver, brain, and muscles [6,7].

Nitrite is usually present in the animal body as an essential component of the nitric oxide homeostatic system [8]. It is produced mainly as an oxidative metabolite of nitric oxide (NO) and can function as an NO reservoir. For example, under hypoxia, when the shortage of O₂ compromises NOS activity, nitrite can be recycled to NO by many proteins (e.g., deoxyhemoglobin, deoxymyoglobin, and xanthine reductase, etc. [8]). Physiological extracellular levels of nitrite in fish and crustaceans are in the micromolar range [4]. Higher nitrite levels in the body can affect body metabolism, including methemoglobin or metahemocyanin formation and metabolic hypoxia, reduction in plasmatic chloride, and excess NO production [1,9]. Alterations of NO metabolism have relevant consequences with inhibition of enzyme activities, endocrine disruption, nitrosative stress, and oxidative stress. NO compromises Na⁺/K⁺ ATPase activity in gills and kidneys of salmonids, thus reducing the osmoregulation capacity of animals [10]. Moreover, the excess NO production is likely involved in nitrite-dependent alterations in embryo development and reduced fecundity in Daphnia magna [9]. NO also influences mitochondrial cytochrome oxidase activity, compromising cellular adaptations to environmental oxygen concentrations [11]. A delicate homeostatic balance tightly regulates NO levels. This process involves nitric oxide synthase (NOS) and arginase activities. NOS catalyzes the incorporation of molecular oxygen and the release of NO from the guanidino nitrogen terminal group of arginine. The reaction produces citrulline as a by-product [12]. The arginase is a metalloenzyme containing manganese in the active site and catalyzes the conversion of arginine to ornithine and urea. Therefore, it determines urea production and excretion in ammoniotelic organisms [13]. Arginase activity is highly regulated, and changes in its activity can significantly impact many critical physiological and pathophysiological processes [14]. In particular, arginase can effectively compete with NOS for the substrate arginine and may function as a modulator of arginine-NO homeostasis [13,15]. However, when arginase activity is excessive, the supply of arginine required for NO production is insufficient, thus resulting in oxidative stress. In fact, with a low arginine supply NOS will uncouple, producing lesser NO and generating superoxide from molecular oxygen [16]. The superoxide will react rapidly with any available NO to form peroxynitrite, further decreasing NO and further uncoupling NOS by oxidizing the cofactor BH₄ [17].

Several pieces of evidence show that nitrite accumulation may cause excessive production of NO, so disturbing NO homeostasis, and it contributes to nitrite toxicity [4,9,18]. Little is known on the putative involvement of arginase involvement in the response to the environmental nitrite stress in aquatic animals. To test this hypothesis, we compared the effects of acute nitrite exposition in three experimental models, the two freshwater fish zebrafish (Danio rerio, Hamilton 1822) and convict ciclid (Amatitlania nigrofasciata, Gunther, 1866), and the crustacean Yamato shrimp (Caridina multidentata, Stimpson, 1860). The choice of these species relies on their different susceptibility to nitrite exposure. Fishes are more resistant with respect to crustacean models, even though differences within classes of freshwater animals exist [1]. We evaluated nitrite accumulation in blood/hemolymph, arginase activity, and urea levels in the blood and muscular tissues, as well as urea excretion rate. Muscle tissue was selected as the most massive component of the body so that any change in the arginase activity will have a significant impact on the whole-body arginine homeostasis. The results suggest that the stimulation of arginase and urea excretion is a common response to nitrite stress in both fish and crustaceans.

2. Materials and Methods

2.1. Animals

The freshwater fish species chosen for the experiments were the zebrafish and convict ciclid. Yamato shrimps were used to compare fish responses with the reactions of crustaceans.

Local supply store (CARMAR, Italy) furnished juveniles specimens of both sexes of zebrafish (body length, BL, <1.5 cm, average weight ~0.5 g), convict cichlid (BL < 10 cm, average weight ~10 g), and Yamato shrimp (BL < 1.5 cm, average weight ~0.4 g).

Fish were acclimated in indoor 200 L, 27 °C glass aquaria with dechlorinated, continuously filtered, and aerated freshwater, for a minimum of 40 days with a 10 h:14 h light-dark photoperiod before being used for experiments.

Zebrafish were maintained in low conductivity water (<1000 µs) in schools of at least 50 individuals. Convict cichlid, a territorial species, was kept in tap water at a low density (≤10 individuals per thank). Tanks were enriched with rocks and other structures to provide shelter and hiding places for the animals [19]. Yamato shrimps were placed in 35 L maintenance tanks equipped with Grey Quartz Gravel (Blue Line) and filled with dechlorinated, continuously filtered, aerated freshwater whose conductivity was ≤350 µs. Pots and plastic plants were added to create refuges. The water temperature was 27 °C. During acclimation, temperature, pH (6 < Ph < 7), conductivity, and levels of ammonia, nitrite, and nitrate were checked once a week.

Fish were fed daily with commercial pelleted fish food (Tetramin, Tetra, Germany; 47% crude protein content, 6% humidity, 20.1 kJ/g dry weight). Twice a week, Tetramin was replaced with Chironomus larvae (Eschematteo s.r.l., Parma, Italy, 7.01% crude protein content, 89% humidity, 21.9 kJ/g dry weight). Yamato shrimps were fed daily with micro pellets (SERA).

Acclimated animals were divided into experimental groups, control and treated, according to the experimental protocols described below. The animals were selected randomly and isolated into appropriate net cages set in the same tank used for acclimation and were fasted for 48 h before use [20]. Animal procedures on fish were approved by the Institutional Animal Care and Use Committee (CESA) of the University of Naples Federico II, Naples, Italy (Approval number 47339-2013).

2.2. Nitrite Stress Procedure

After the acclimatization period, treated animals were exposed to submaximal concentrations of sodium nitrite (NaNO₂, Merck KGaA, Darmstadt, Germany) dissolved in water containing less than 100 mM chloride (N = 6 for each species). Simultaneously, control groups (N = 6 for each species) were exposed to the same water but without adding sodium nitrite. Convict cichlid and Yamato shrimp were exposed to NaNO₂ for 3 h (2 mM and 1 mM final concentrations, respectively for convict cichlid and Yamato shrimp), while zebrafish was exposed for 24 h (2 mM final concentration) [18,21]. Preliminary tests on concentration and time-dependent mortality allow setting nitrite concentrations and exposure time. We chose the minimal concentrations and exposure time not inducing mortality. During exposure, water samples were collected at intervals to determine the average urea excretion. At the end of the treatment, blood/hemolymph samples were collected to measure nitrite accumulation. Fish were euthanized with benzocaine (0.05–0.1 mg mL⁻¹). Muscle tissue from all animals was dissected, weighed, quickly frozen in liquid nitrogen, and stored at −80 °C. Frozen tissues were successively used for the preparation of homogenates. Samples from all animals in each treatment trial were pooled. Treatments were replicated five times on each species.

2.3. Blood/Hemolymph Sample Collection and Evaluation of Nitrite Accumulation

Blood samples and hemolymph were treated according to Dalla Via [22]. Nitrite (N-NO₂) determination was performed using the Griess reagent spectrophotometric method [23]. In brief, 50 µL of heparinized blood or hemolymph was added to 0.3 mL of 4.31% ZnSO₄ (Sigma-Aldrich, Munich, Germany). After mixing, 0.2 mL of distilled water and 50 µL of 4% NaOH were added. The suspension was kept at 0 °C for 1 h and centrifuged at 15,000× g for 15 min to eliminate the protein component [6,24]. The resulting supernatants, diluted to a final volume of 1 mL, were added with 0.1 mL of Griess reagent (Sigma-Aldrich, Munich, Germany), kept to dark for 15 min, and read at 520 nm in a DR/2400 Hach spectrophotometer (Hach, Loveland, CO, USA). Nitrite concentrations of samples were obtained using a calibration curve of N-NO₂.

2.4. Preparation of Tissue Homogenates

Muscle homogenates preparations are dependent on the parameter determined.

For the determination of urea levels, samples were treated according to Dunn [25]. In brief, the muscle tissue was gently homogenized (20% weight: volume) in 7% perchloric acid using a glass Potter-Heidolph homogenizer (Schwabach, Germany) set at a standard velocity (500 rpm) for 1 min. Tissue homogenates were centrifuged at 20,000× g for 15 min at 4 °C. The resulting supernatants were neutralized at pH 7.5 with a solution containing 3 M K₂CO₃ and 0.1 M triethanolamine. The samples were re-centrifuged at 20,000× g for 15 min at 4 °C. The resulting supernatants were used for the determination of protein concentration by the Biuret method [26] and subsequent analysis.

For the determination of arginase activity, muscle tissue samples were gently homogenized (20% weight: volume) in a homogenization buffer (0.05 M KCl, 0.05 M Hepes, 0.5 mM EDTA, 1 mM DTT, pH 7.5) [27] using a glass Potter-Heidolph homogenizer set at a standard velocity (500 rpm) for 1 min. The homogenate was sonicated with a Sonic Vibra Cell sonicator (Newtown, CT, USA) for one minute and centrifuged at 15,000× g for 20 min at 4 °C [28]. The resulting supernatants, that contain the soluble fraction plus the content of the mitochondrial matrix, were used for the determination of protein concentration (by the Biuret method) [26] and subsequent analysis.

2.5. Determination of Urea Excretion and Tissue Urea Levels

Urea levels in water samples, blood and muscle homogenates were colorimetrically measured using the diacetyl–monoxime method (modified from Rahmatullah and Boyde [29]). Briefly, 1 mL samples were added to 0.5 mL of urea reactant (8.3 mg mL⁻¹ 2,3-Butanedion monoxime, 0.2 mg mL⁻¹ Thiosemicarbazide, and 0.1 mg mL⁻¹ FeCl₃ in 32% H₂SO₄), and the mixture reaction was heated in dark (100 °C, 10 min). After cooling (in dark, for 12 min), urea levels were determined spectrophotometrically at 535 nm in a DR/2400 Hach spectrophotometer (Hach, Loveland, CO, USA). Time variation of urea levels in the exposure water allowed to determine urea excretion (M_urea), expressed as mmol–N h⁻¹ kg⁻¹. Thiosemicarbazide and 2,3-Butanedion monoxime were from Sigma-Aldrich (Munich, Germany).

2.6. Determination of Muscle Arginase Activity

Muscle arginase activity was assayed in terms of the rate of urea formation according to Romero [16]. In brief, 1 mL of muscle were incubated for 1 h with MnSO₄ (100 mM, pH 7.0 at 27 °C) to activate the enzyme. Successively, L -Arginine (0.4 mL, 713 mM, pH 9.5) was added and incubated for 30 min at 27 °C. Urea levels were measured as described above, and the arginase activity was expressed as µm of urea h⁻¹ g⁻¹. Arginine was from Sigma-Aldrich (Munich, Germany).

2.7. Statistical Analysis

All data are presented as means ± standard error (S.E.). Differences in control values among the three species were tested by one-way ANOVA, with Bonferroni or Dunnett post hoc test (p < 0.05). The comparison between treated and control animals was tested within each species by Student-t test (p < 0.05).

3. Results

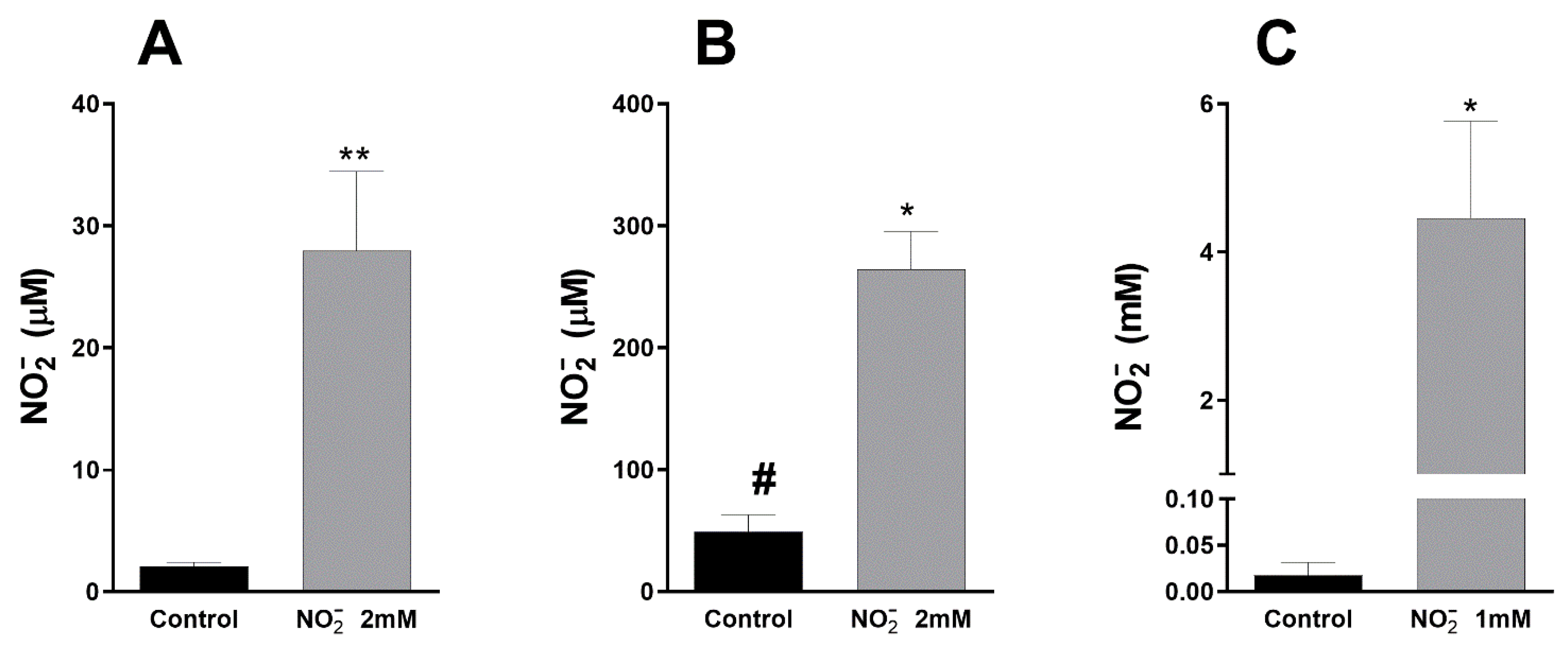

In all species, the treatment with sub-lethal environmental levels of nitrite ([NO₂⁻]_e = 1 mM in the crustacean Yamato shrimp and 2 mM in the two fish species, convict cichlid, and zebrafish) significantly increased the nitrite concentration in the inner fluids (Figure 1). Only in Yamato shrimp did a significant accumulation occur ([NO₂⁻]_i/[NO₂⁻]_e = 4.1). In both fish species, the blood nitrite concentration remained in the µM range. However, in zebrafish, blood nitrite concentration reached levels 10 times higher than in convict cichlid. Interestingly, the control nitrite concentration was significantly higher in zebrafish than in convict cichlid (Figure 1).

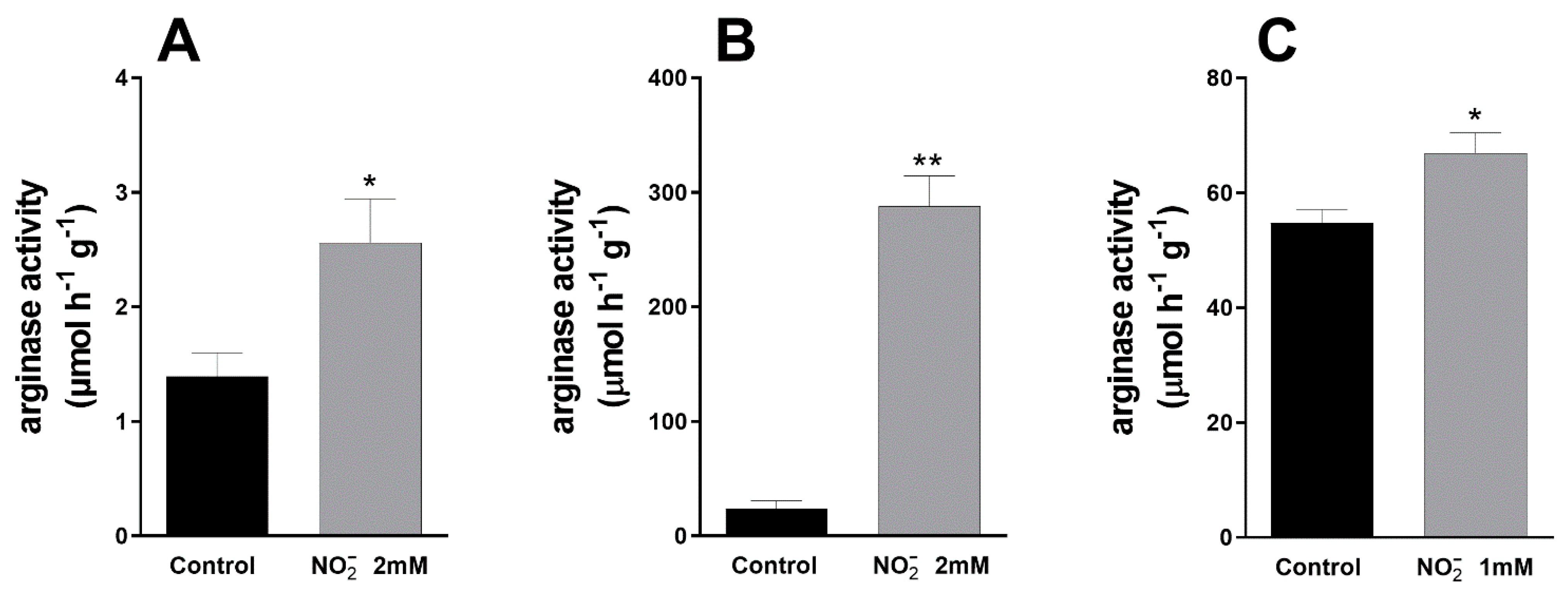

Parallel to the increase in body fluid nitrite concentration, a significant increase in the activity of muscular arginase occurred (Figure 2). This increase was relatively small in Yamato shrimp (treated/control ratio = 1.22) and convict cichlid (treated/control ratio = 1.83) but was very high in zebrafish (treated/control ratio = 12.0).

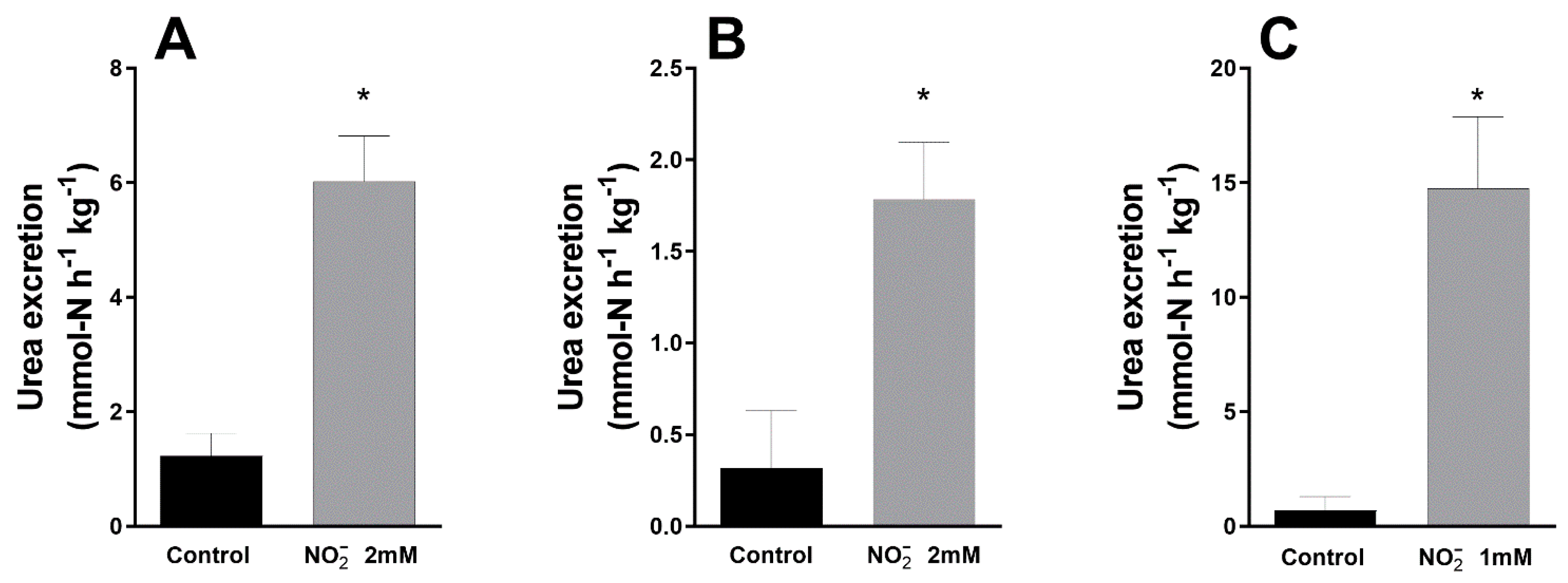

Considering that the muscle tissue is a relatively high percentage of body mass, the stimulation of arginase activity could significantly increase whole body urea production in vivo in all three species. In effect, a significant increase in urea excretion was observed (Figure 3), higher in Yamato shrimp (about 21 times than the control) than in the two fish species (about 5 fold increase, and 5.5 fold increase, in convict cichlid and zebrafish, respectively).

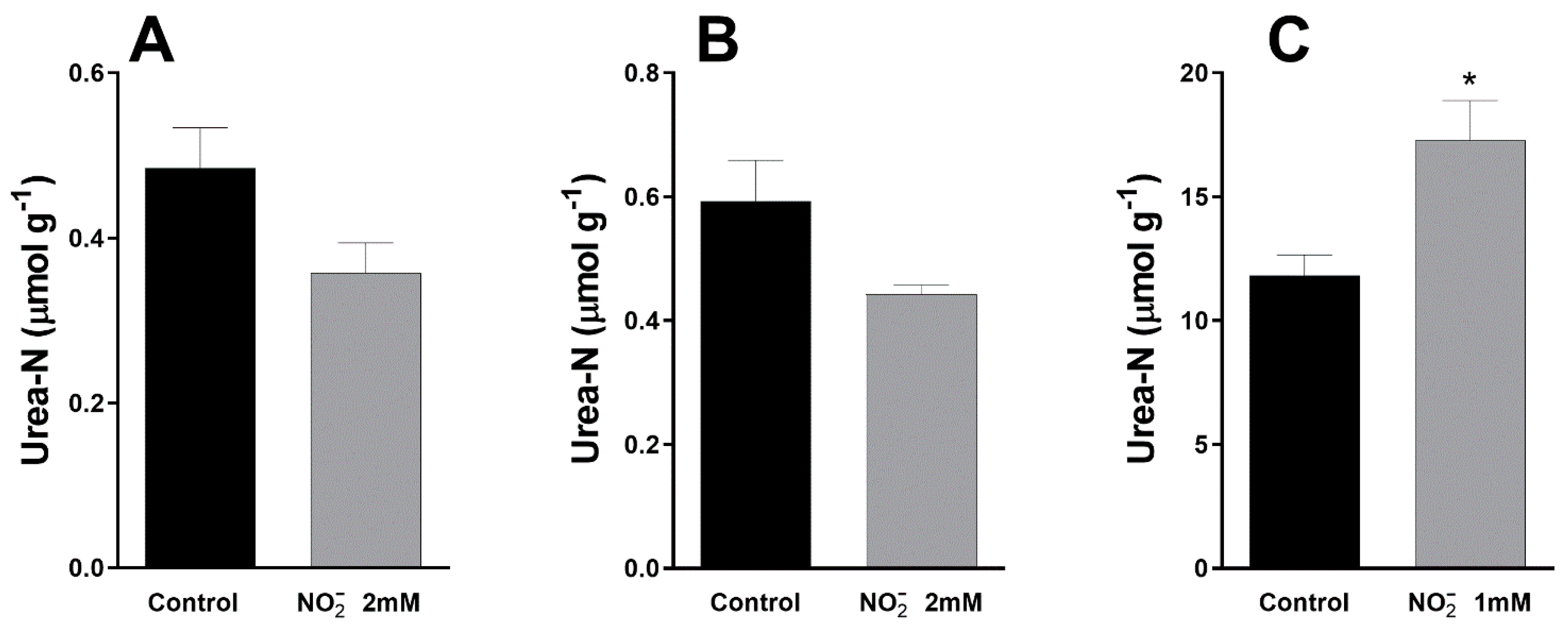

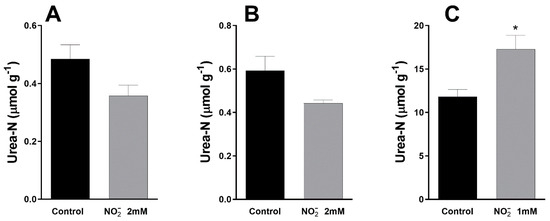

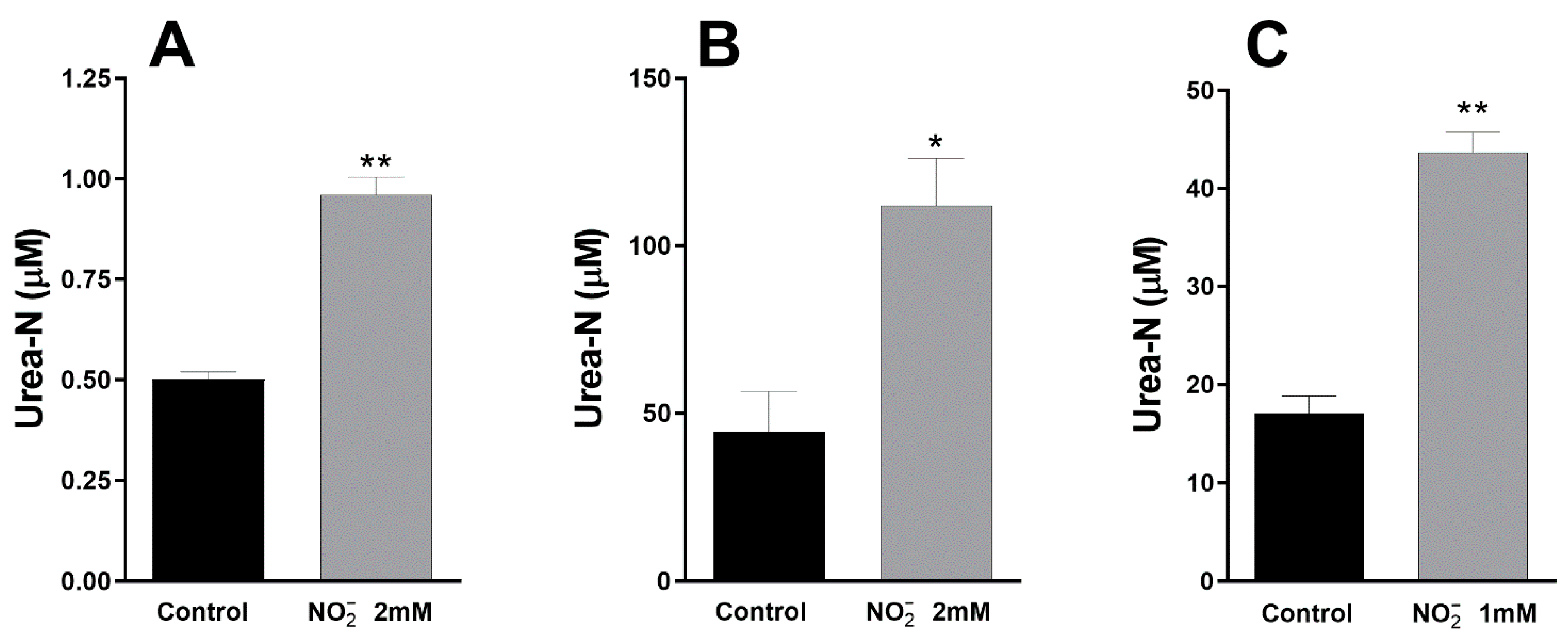

In Yamato shrimp, this increase in urea production was associated with higher urea levels in muscle (Figure 4), while blood urea levels were significantly increased in all three species (Figure 5).

4. Discussion

The results reported in our study show that nitrite exposure stimulates arginase activity and urea excretion with specie-specific effects (see synopsis in

Table 1. Summary of the main results of the present study, highlighting the stimulatory effect of nitrite sublethal stress on the arginase activity and urea excretion in the freshwater animals tested. 0 = no effect; + = increase/stimulation; ++ = strong increase/stimulation.

	Convict Cichlid	Zebrafish	Yamato Shrimp
Blood/hemolymph nitrite level	+	+	++
Urea excretion	+	+	++
Muscle arginase activity	+	++	+
Muscle urea levels	0	0	+
Blood/hemolymph urea level	+	+	+

). Under exposition to nitrites, most freshwater fish and crustaceans actively accumulate this ion within their plasma [3,4]. Accordingly, the three model species increased their blood or hemolymph nitrite levels. However, different rates of uptake were observed. Only Yamato shrimp accumulates nitrite in the hemolymph. In zebrafish and convict cichlid blood, nitrite increases to levels that remain much lower than the exposure value (2 mM). As high circulating nitrite levels are believed to be the primary source of nitrite stress in aquatic animals [2], these differences may reflect different sensitivity to nitrite stress among species [1]. Nitrite concentrations within the hemolymph of freshwater crustaceans often far exceed the concentration of the external medium so explaining higher nitrite toxicities [3]. For example, the European crayfish (Astacus astacus, Linnaeus) displayed hemolymph nitrite levels up to four times higher than trout when exposed to the same nitrite concentrations under the same environmental conditions [30,31]. The reason for this nitrite accumulation in crustacean hemolymph remains unknown yet. In comparison with fish, freshwater crayfish and shrimps were supposed to manifest a higher rate of chloride uptake and/or a higher affinity to nitrite of the gills ion exchange system [32].

The increased nitrite levels in blood or hemolymph are associated with a significant urea excretion for all three animal models. This effect is very high in the shrimp Yamato shrimp. Urea production may derive from the ornithine-urea cycle (OUC), hydrolysis of arginine (argininolysis), and degradation of uric acid in the uricolytic pathway [33]. Decapod crustaceans excrete nitrogen mainly as ammonia (accounting for 60–70% of the total excreted nitrogen), with small amounts of urea and uric acid [34]. Lee and Chen [35] showed an eight-fold increase in urea-N excretion, following 24 h exposure to nitrite at 1.39 mM in the prawn M. japonicus. They concluded that the animals spent energy to produce urea as organic nitrogenous waste to reduce joint toxicities of ammonia and incorporated nitrite. We can hypothesize that the significant nitrite accumulation in Yamato shrimp hemolymph stimulates urea-N excretion as an adaptative mechanism to preserve the crustacean’s well-being. Fishes, being aquatic animals, release ammonia as the product of nitrogen excretion, and it is supposed that the urea cycle for urea production is suppressed in all freshwater fishes [36]. However, being OUC function lost in adult ammoniotelic fishes and the capacity to produce urea low, the retainment of urea transporters suggests that these proteins may be helpful under given circumstances [37]. Different authors reported an association between the increased cortisol levels and the activation of gluconeogenesis and proteolysis under stress conditions in teleost fish [37,38]. These biochemical pathways result in elevated plasma ammonia levels [37,38] and the stimulation of urea synthesis as a detoxification pathway [39].

Higher production of urea under stress conditions may imply stimulation of arginolysis, as suggested by our experiments that show an increased muscle arginase activity in all three tested species. Arginase is a manganese metalloenzyme that catalyzes the conversion of L-arginine to L-ornithine, the precursor for polyamines and prolines, and urea [13]. Our results on Yamato shrimp are in part supported by Lee and Chen [35]. They showed that M. japonicus individuals exposed to elevated environmental nitrite increased nitrogen excretions, including urea excretion, and arginase activity and concluded that nitrite stimulated arginolysis [35]. Recently it has been reported that nitrite induces changes in the hepatopancreas gene expression of a high number of metabolic pathways, including those related to arginine and proline metabolism [40]. These results support the putative involvement of arginase in the crustacean’s nitrite stress response. It is of note that, despite the greater excretion of urea in Yamato shrimp than in both fish species, the increase in muscle arginase activity in the crustacean model was relatively small. It is possible that the arginase localized in other tissue may significantly contribute to urea production in Yamato shrimp. In fact, in the freshwater shrimp Astacus Leptodactylus, the arginase activity is greater in gills and ovaries than in muscle and hepatopancreas [41]. Interestingly, the increased muscle arginase activity is not associated with urea retention in convict cichlid and zebrafish. Compared to the fish models, in Yamato shrimp, the arginase activity in the muscle is accompanied by an increase in the tissue levels of urea. This observation may be linked to differences in the urea transport capacity of muscle cells between crustaceans and fish. There are three fundamental ways by which urea crosses membranes: through specialized membrane transporters, lipid phase permeation, or paracellular channels. The traditional view of urea transport is that urea crosses all cell membranes by lipid phase permeation. However, the permeability of lipid bilayers to urea is low, so active or facilitated urea transports are present in several tissues [42]. Specific urea transporters can locate in the muscle tissues of convict cichlid and zebrafish to translocate urea in blood and facilitate its excretion. This hypothesis could also explain the increase in blood urea levels in both species of fish. However, available data do not allow us to give an exhaustive explanation for the difference in urea muscle retention between fish and crustaceans, as little information is available for muscle urea transporters in crustaceans. Nitrite stress has been reported to induce oxidative stress both in fish [43] and crustaceans [44]. Moreover, it can affect heart development by altering the NO signaling pathway in zebrafish [45]. Oxidative stress, a condition in which free radical and reactive oxygen species (ROS) generation exceed the cell antioxidant capacity [46], has been associated with the arginase activity increase [47]. Wang and co-workers showed that an imbalance between prooxidant forces and antioxidant defenses is one of the toxicity mechanisms of nitrite on prawn P. vannamei [48]. It is also reported that in Megalobrama amblycephala 72 h of nitrite exposure was associated with increased ROS generation and reduced antioxidant enzymes activity catalase, glutathione peroxidase, and superoxide dismutase [49]. Moreover, the increased tissue levels of urea deriving from increased arginase activity could affect the redox state since it may play a role in the stress response as an antioxidant molecule [50,51].

5. Conclusions and Perspectives

Exposure to elevated nitrite environmental concentration affects the arginase pathway and urea metabolism in a species-specific way according to a different susceptibility.

Despite the species-specificity differences in the response, the stimulation of arginase activity and urea excretion rate appears to be common responses that can be proposed as biomarkers of nitrite stress. However, further study is required to understand the mechanisms, limits, and long-term consequences of this response. In future experiments, we aim to analyze the redox state unbalance associated with nitrite exposure and its interference into homeostatic processes regulated by the enzyme, as it appears to be a crucial step in fully understanding the risk posed by high nitrite levels to the aquatic animals.
