Next Article in Journal
Electroactive Textile Actuators for Breathability Control and Thermal Regulation Devices
Previous Article in Journal
Hydroxypropylsulfonation/Caproylation of Cornstarch to Enhance Its Adhesion to PLA Fibers for PLA Sizing
Open AccessArticle

Crystallization Behavior and Properties of Glass Fiber Reinforced Polypropylene Composites

1
Shanghai Key Laboratory of Advanced Polymeric Materials, Key Laboratory for Ultrafine Materials of Ministry of Education, School of Materials Science and Engineering, East China University of Science and Technology, Shanghai 200237, China
2
Department of Polymer Science, The University of Akron, Akron, OH 44325-3909, USA
*
Author to whom correspondence should be addressed.
Polymers 2019, 11(7), 1198; https://doi.org/10.3390/polym11071198
Received: 10 June 2019 / Revised: 30 June 2019 / Accepted: 1 July 2019 / Published: 17 July 2019

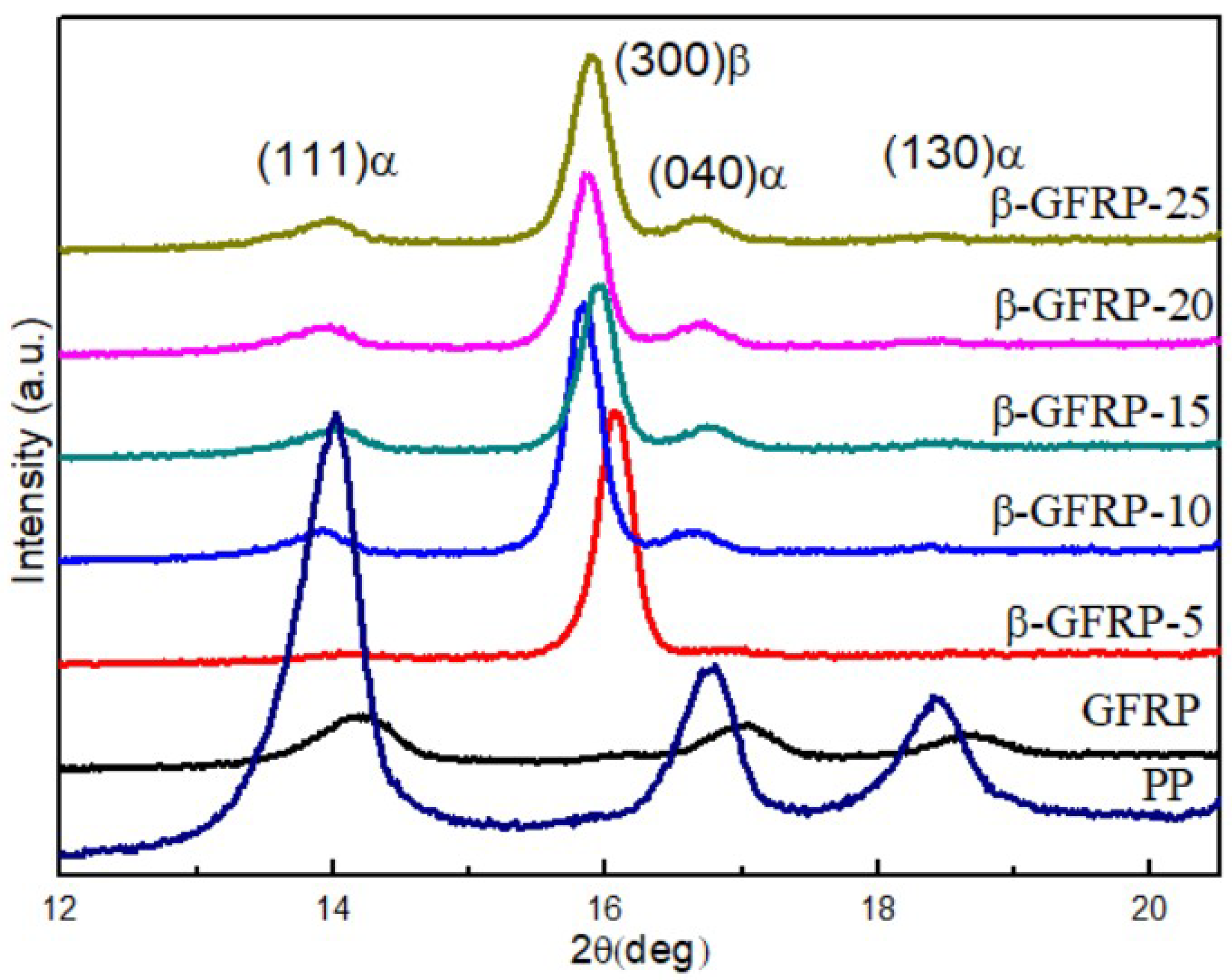

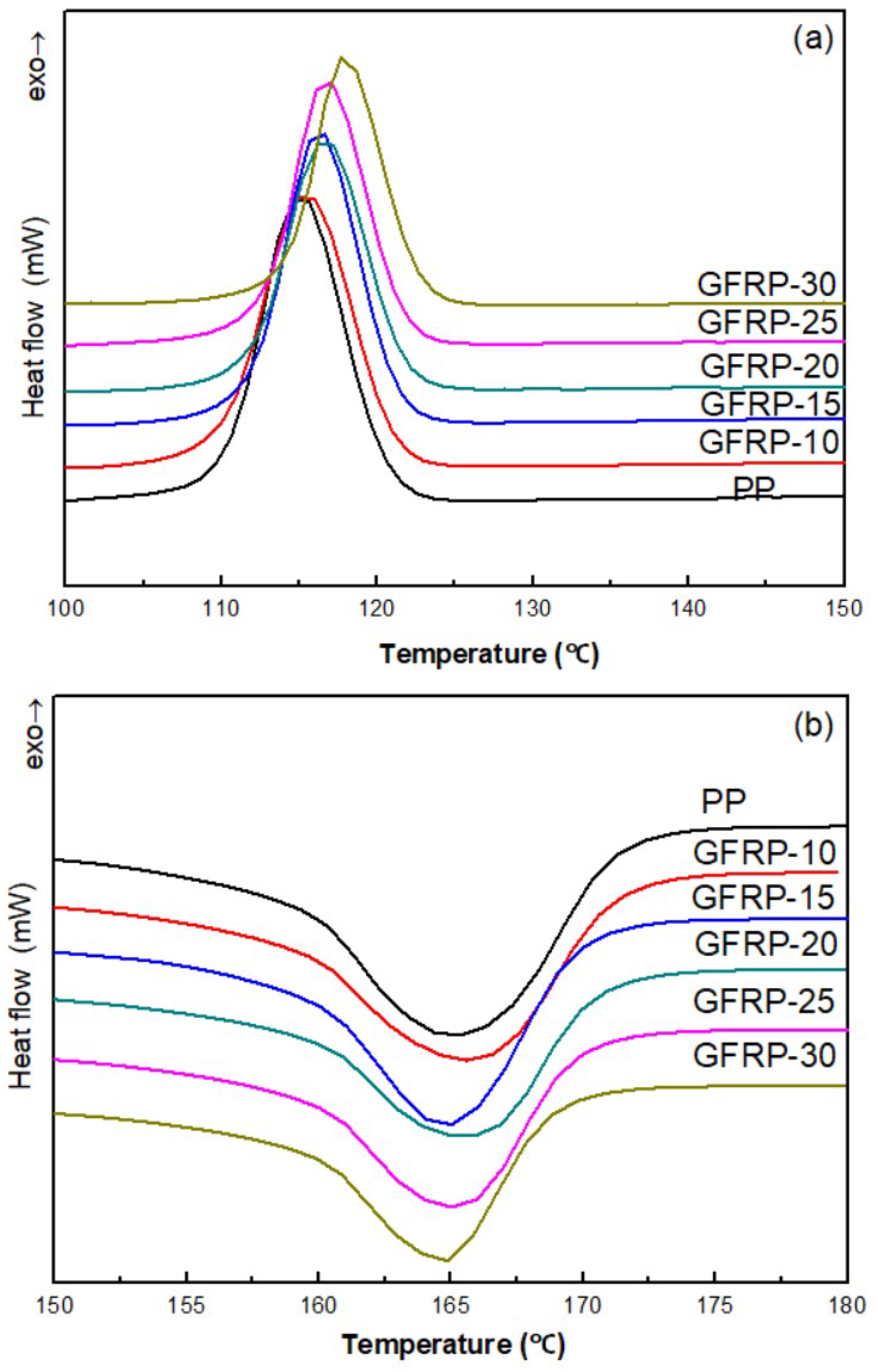

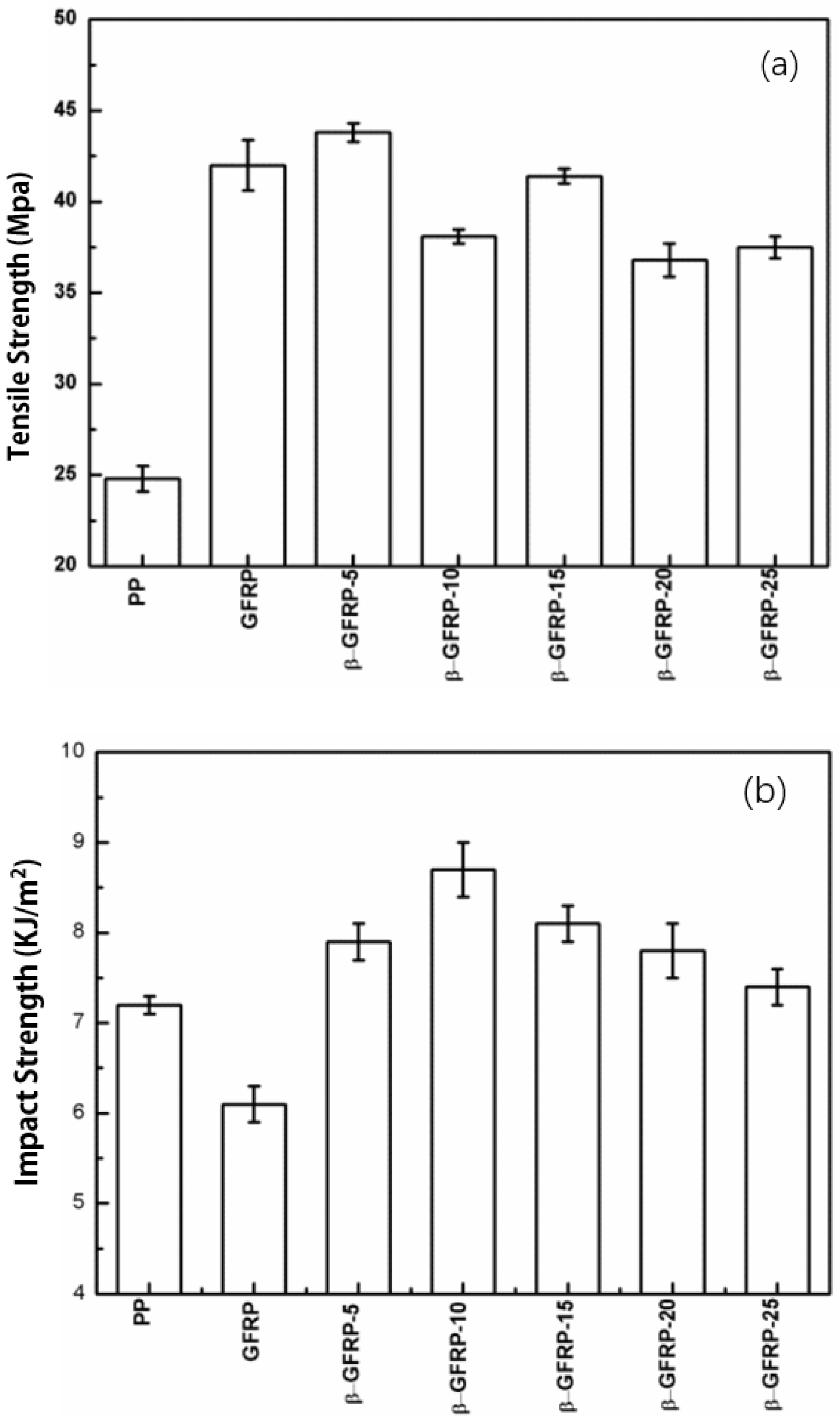

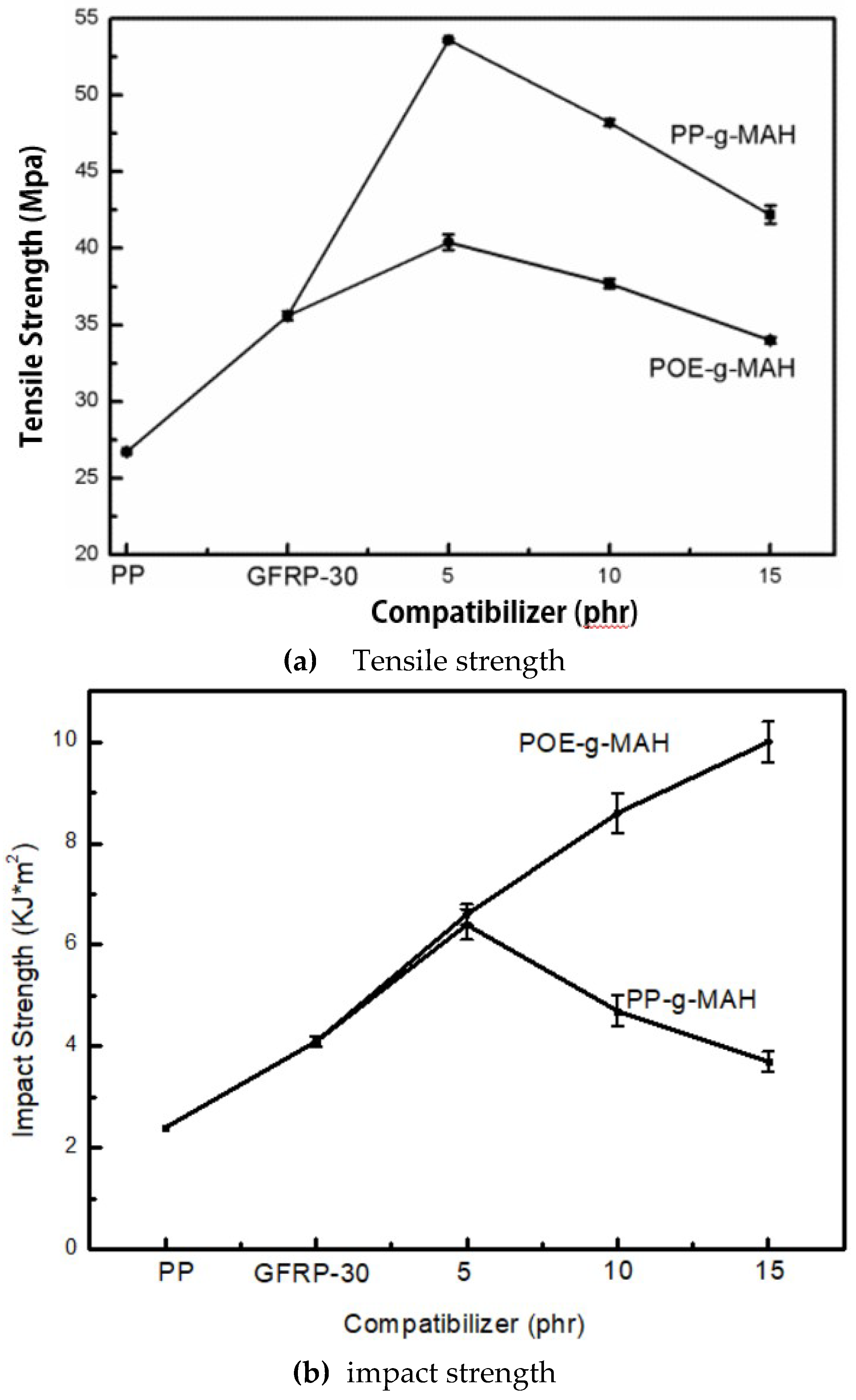

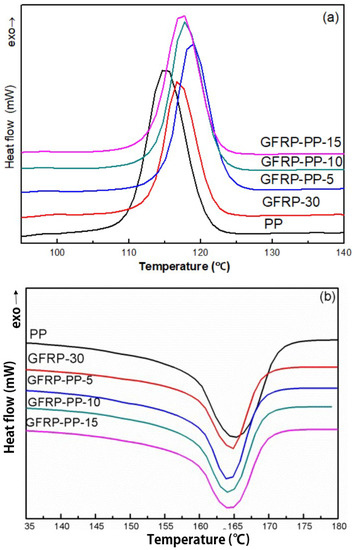

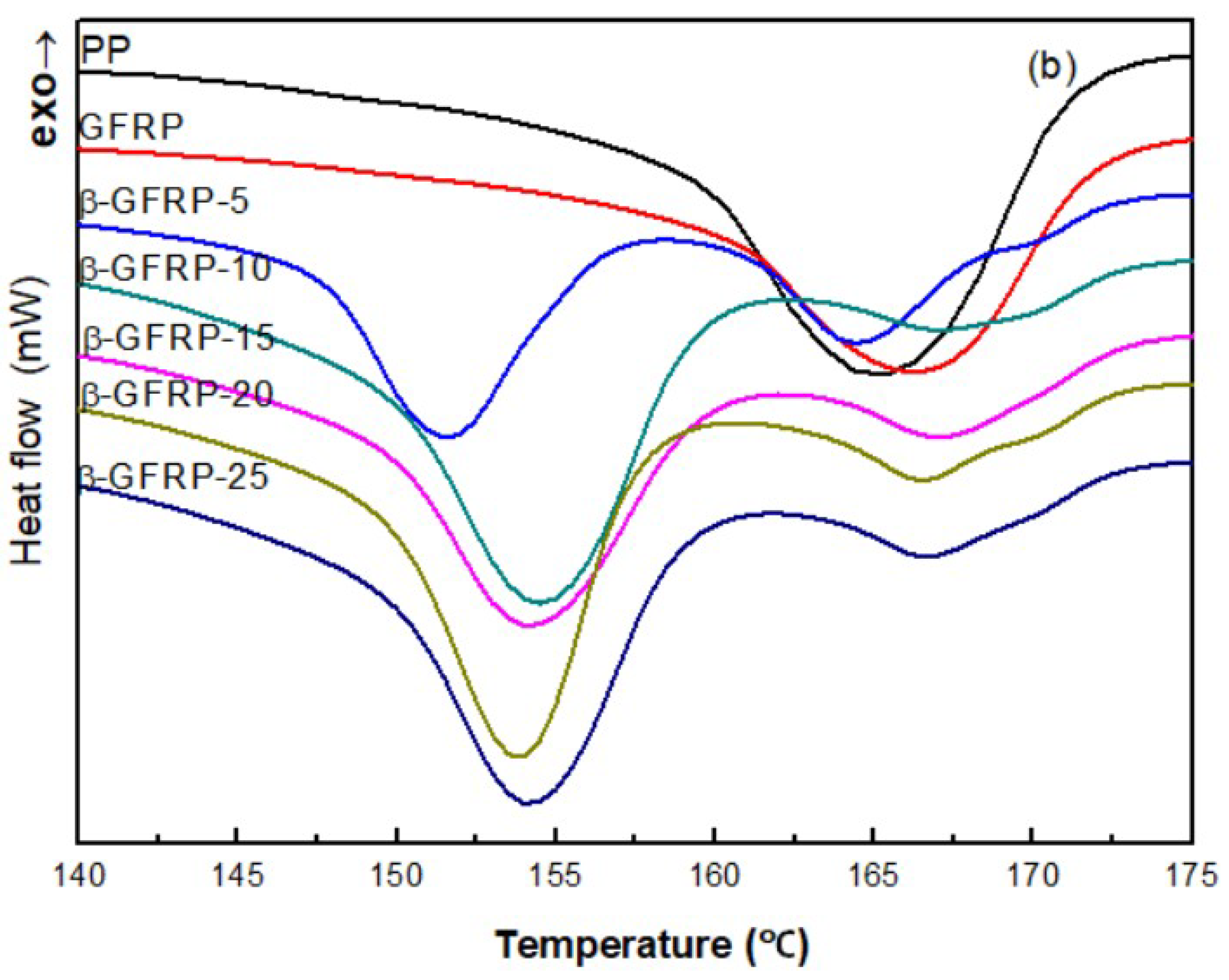

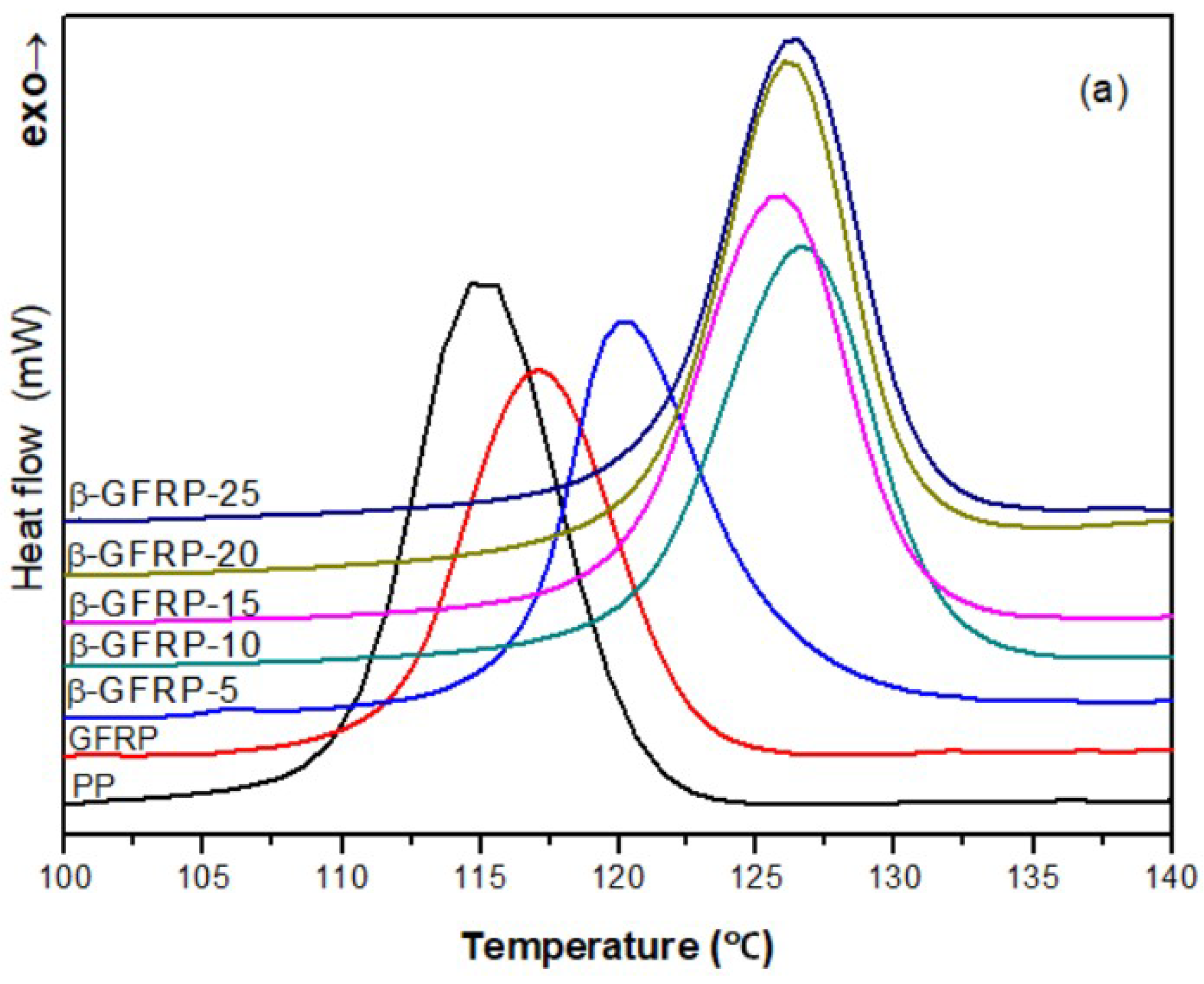

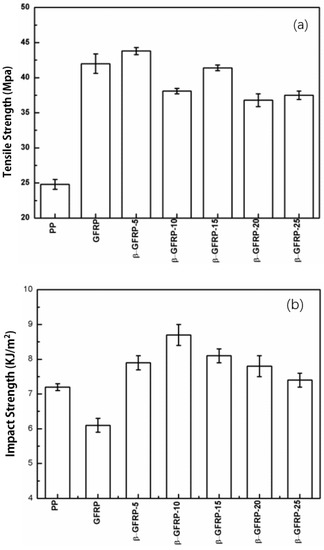

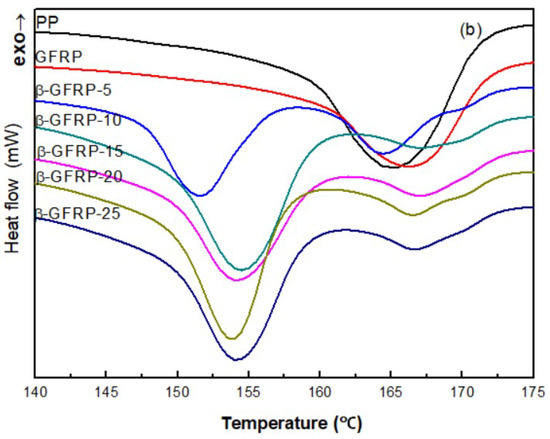

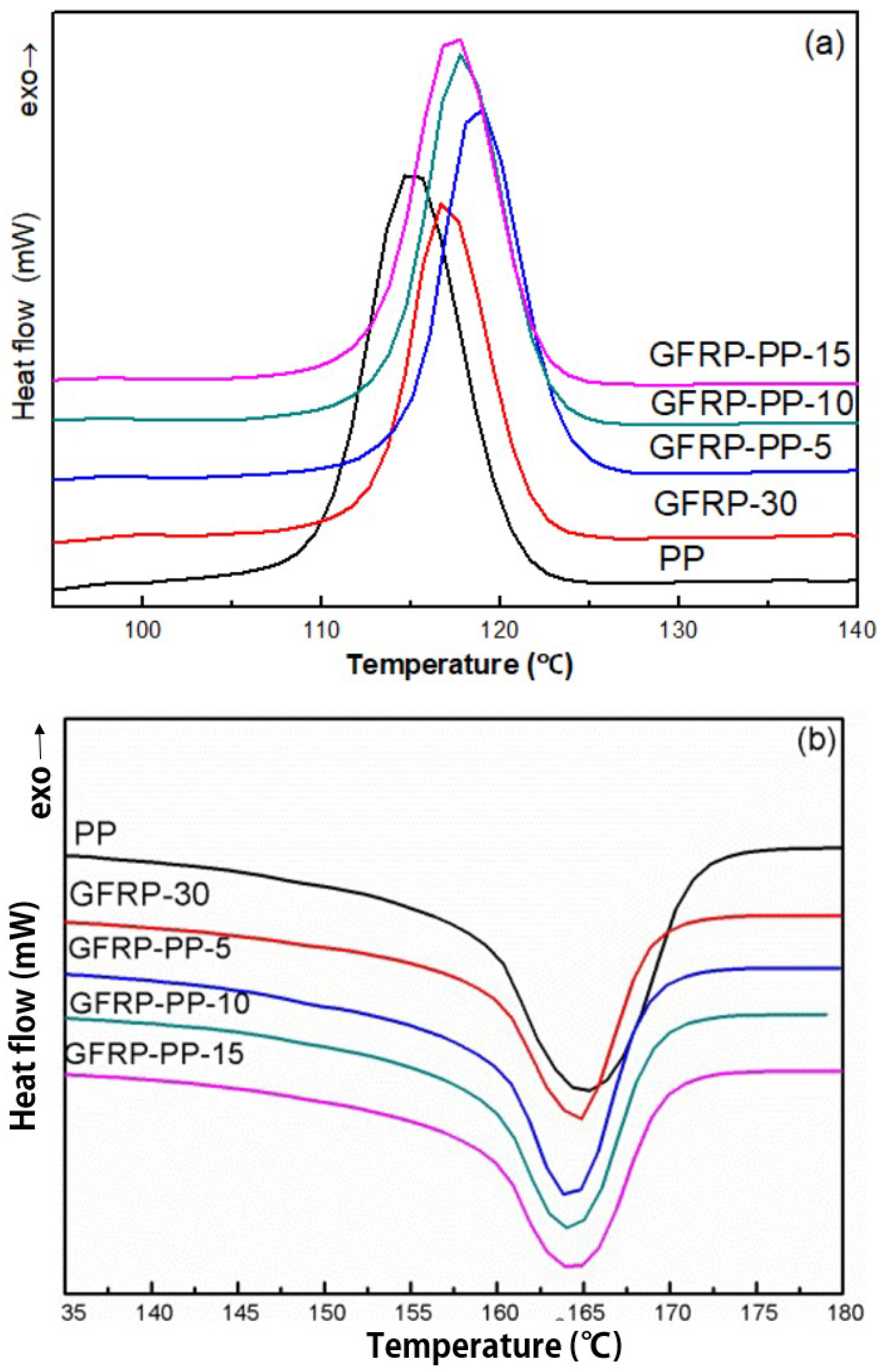

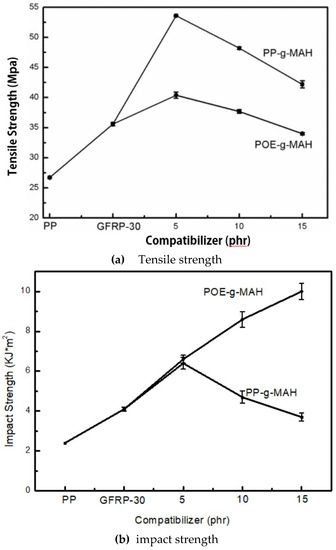

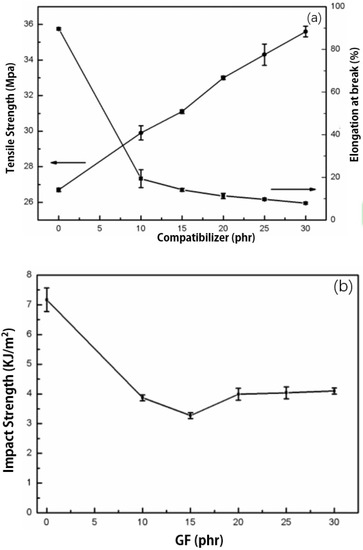

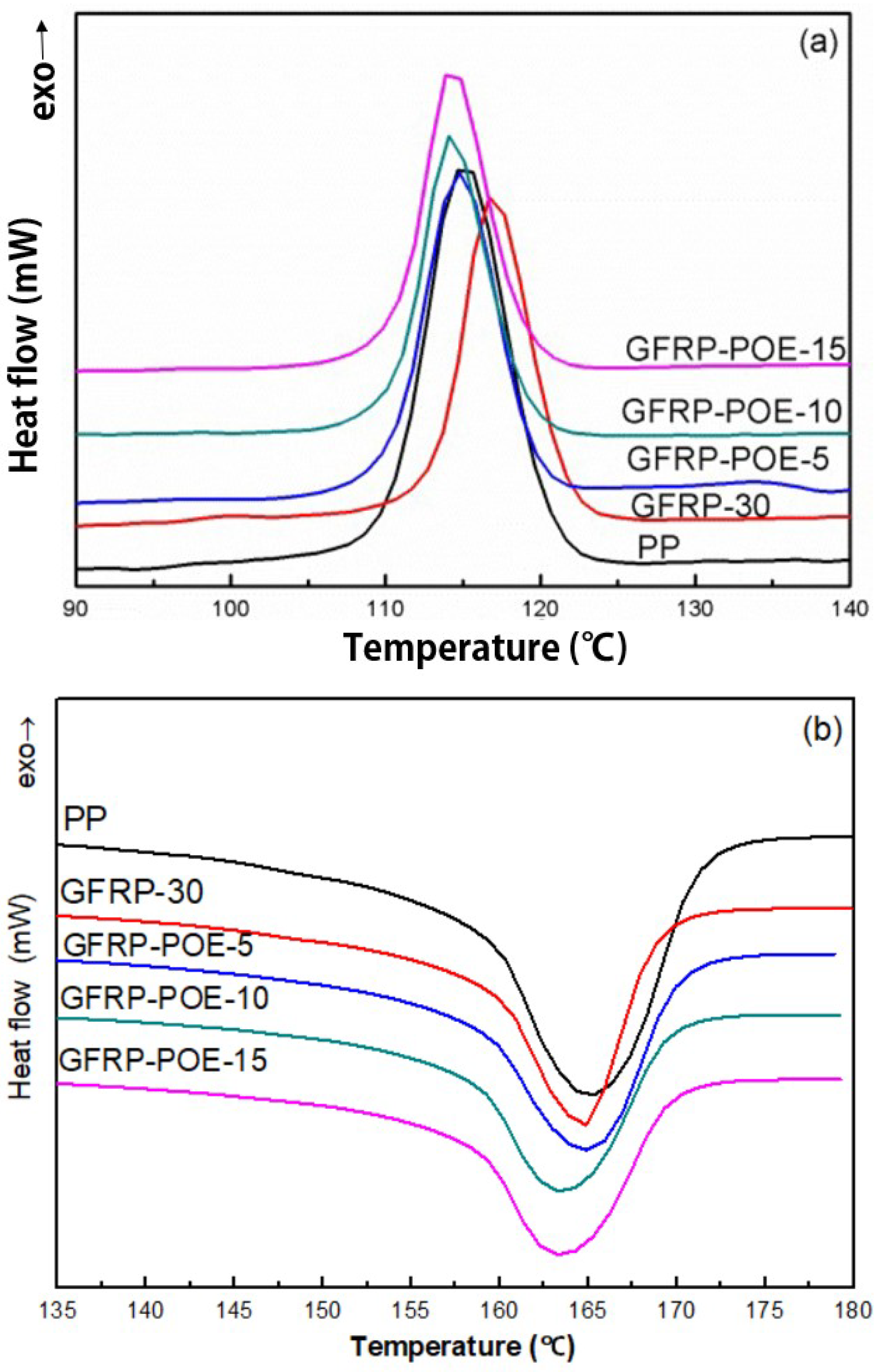

Glass fiber with different content and different kinds of compatibilizers were used to prepare glass fiber-reinforced polypropylene (GFRP) composites. β-nucleating agent with different content was used to prepare β-polypropylene (PP), after which the toughness, crystallization ability and heat resistance were all enhanced. Differential scanning calorimetry (DSC) and wide-angle X-ray diffraction (WAXD) showed that the crystallite degree and crystallization ability were all greatly improved and β-PP was in dominant position. At last, both β-nucleating agent and glass fiber were used to modify the PP composites (β-GFRP). The formation of β-form PP made the matrix softer, which was beneficial for energy absorption and enhancement of toughness. The tensile strength, flexural strength and flexural modulus were improved dramatically, which were attributed to the coeffect of framework structure of GF and β-form PP. View Full-Text
Keywords: β-nucleating agent; glass fiber; polypropylene; crystallization; properties β-nucleating agent; glass fiber; polypropylene; crystallization; properties

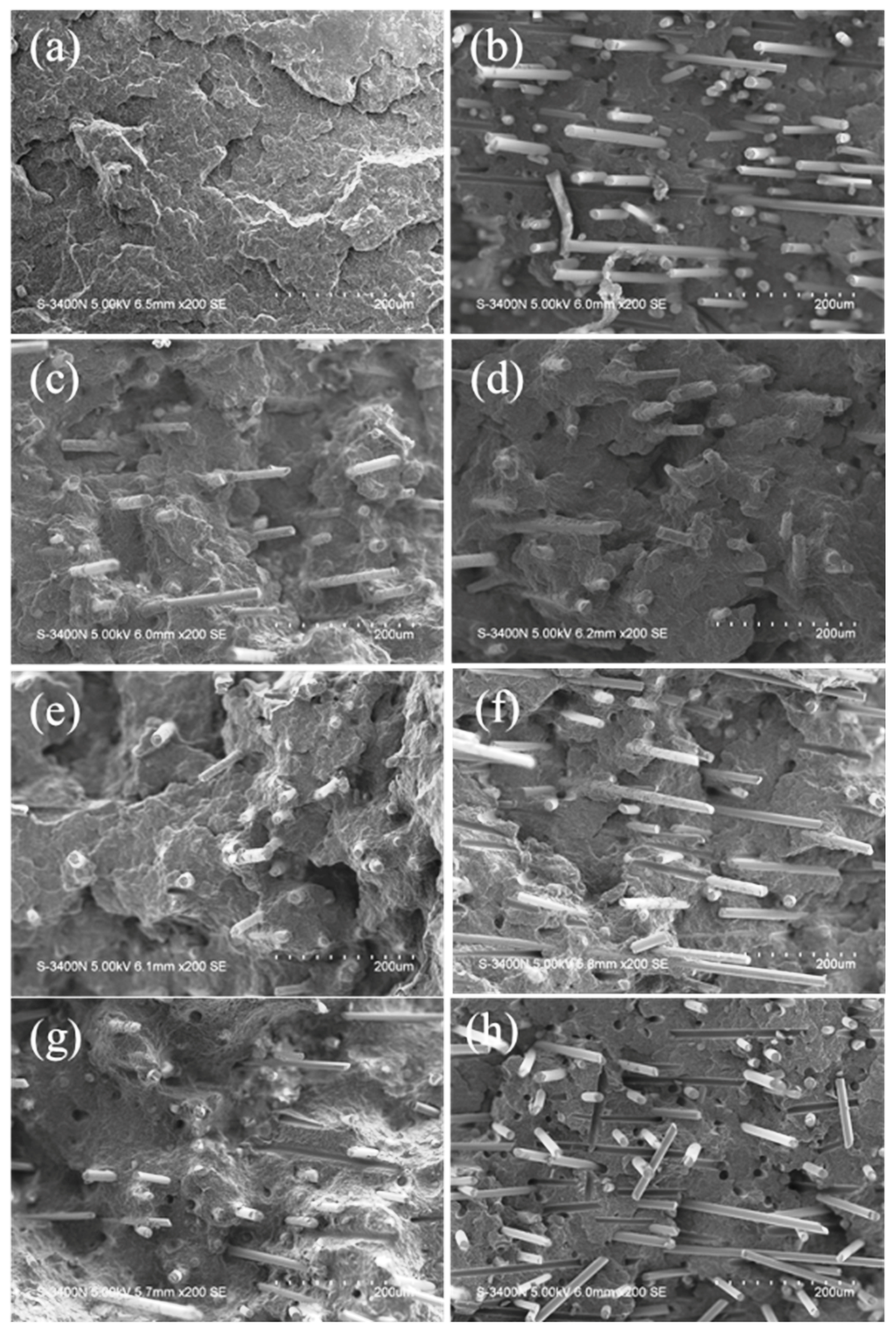

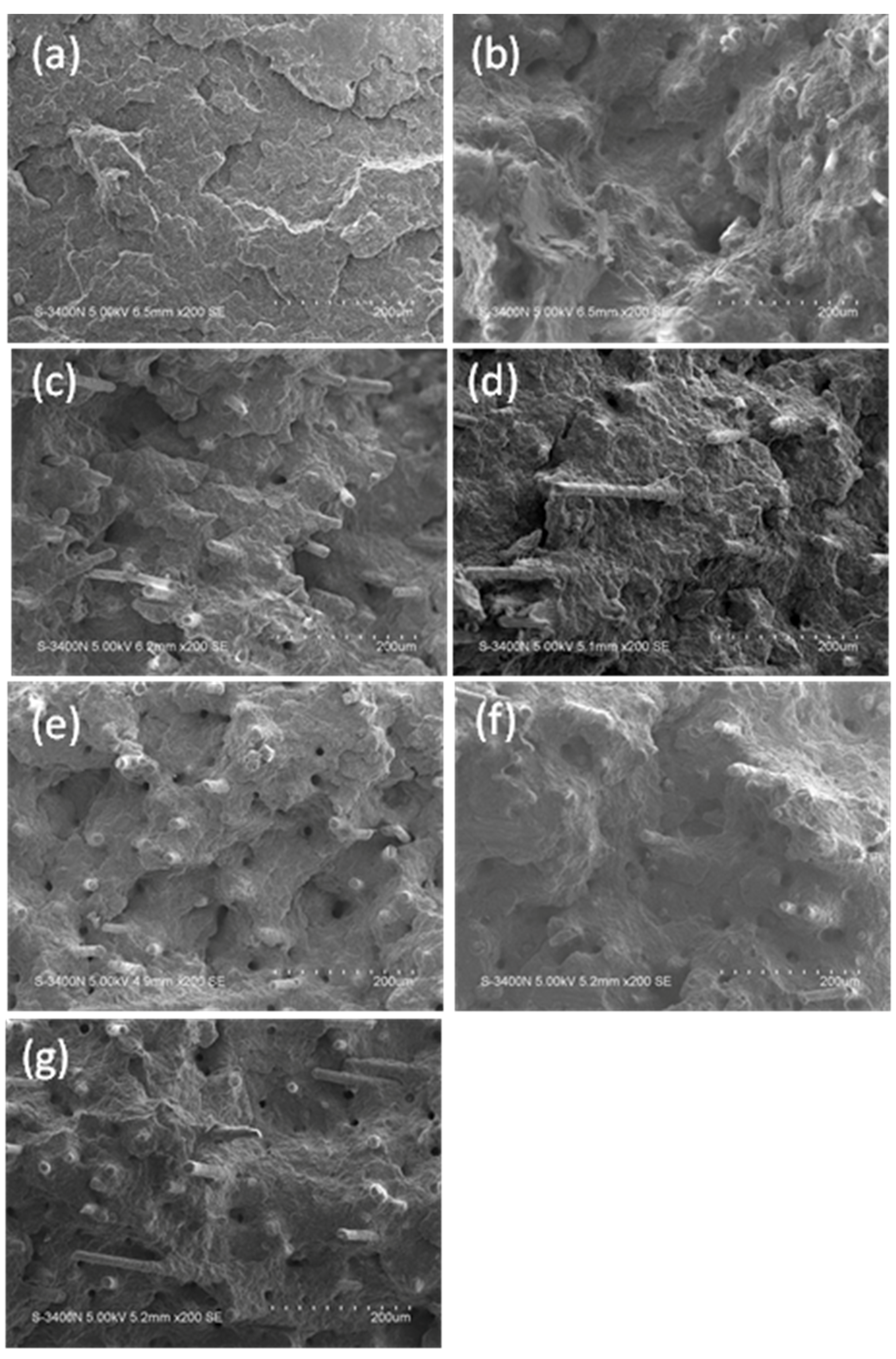

Show Figures

Graphical abstract

MDPI and ACS Style

Wang, Y.; Cheng, L.; Cui, X.; Guo, W. Crystallization Behavior and Properties of Glass Fiber Reinforced Polypropylene Composites. Polymers 2019, 11, 1198.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
