Open AccessArticle
Crystals 2018, 8(9), 356; https://doi.org/10.3390/cryst8090356

Microstructure and Mechanical Properties of Mg–6Al–1Sn–0.3Mn Alloy Sheet Fabricated through Extrusion Combined with Rolling

1
Department of Material Science, College of Materials Science and Engineering, Chongqing University, Chongqing 400044, China
2
National Engineering Research Center for Magnesium Alloys, Chongqing University, Chongqing 400044, China
3
Chongqing Academy of Science and Technology, Chongqing 401123, China
*
Authors to whom correspondence should be addressed.
Received: 30 July 2018 / Revised: 29 August 2018 / Accepted: 2 September 2018 / Published: 5 September 2018
Full-Text   |   PDF [4771 KB, uploaded 5 September 2018]   |

Abstract

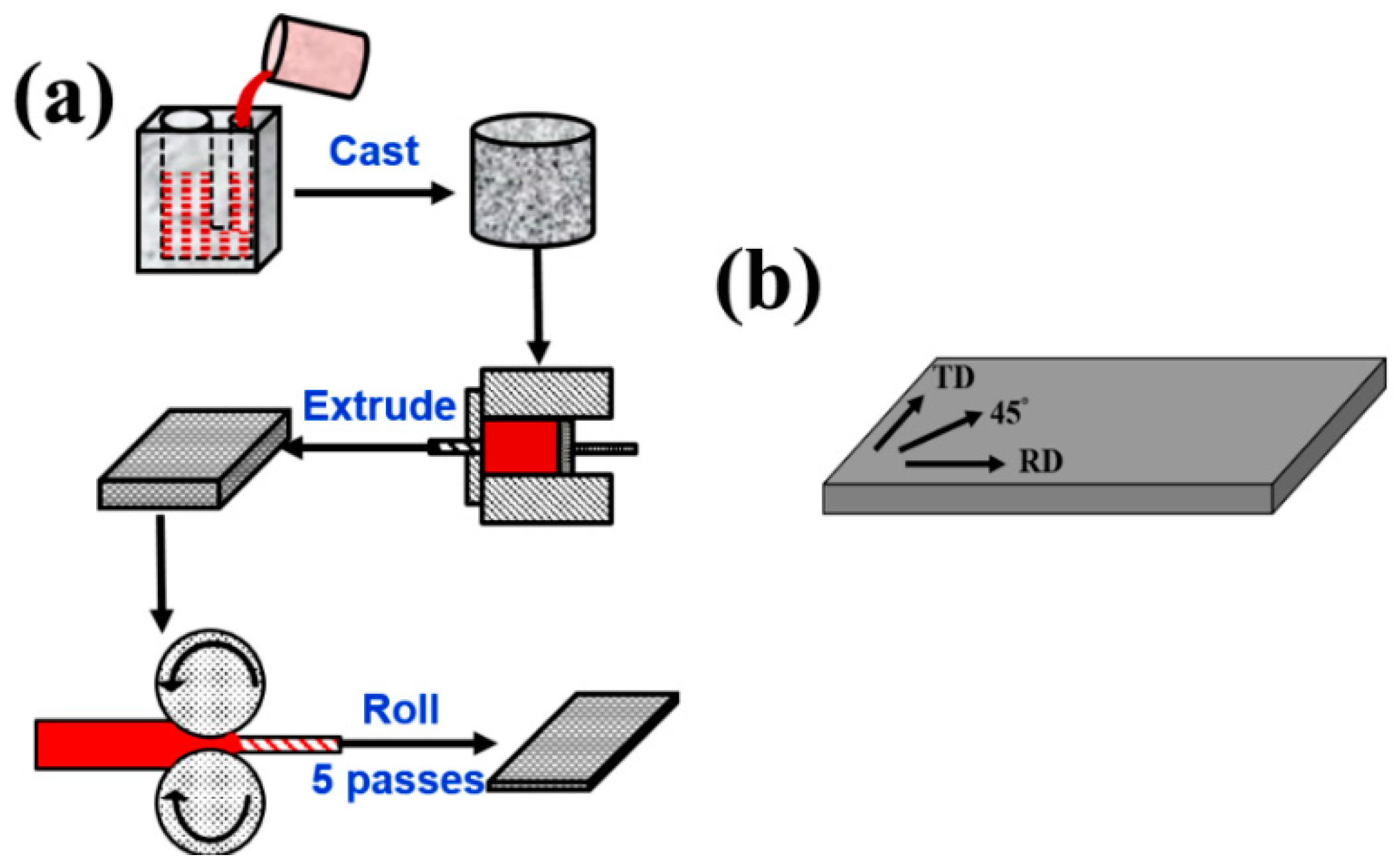

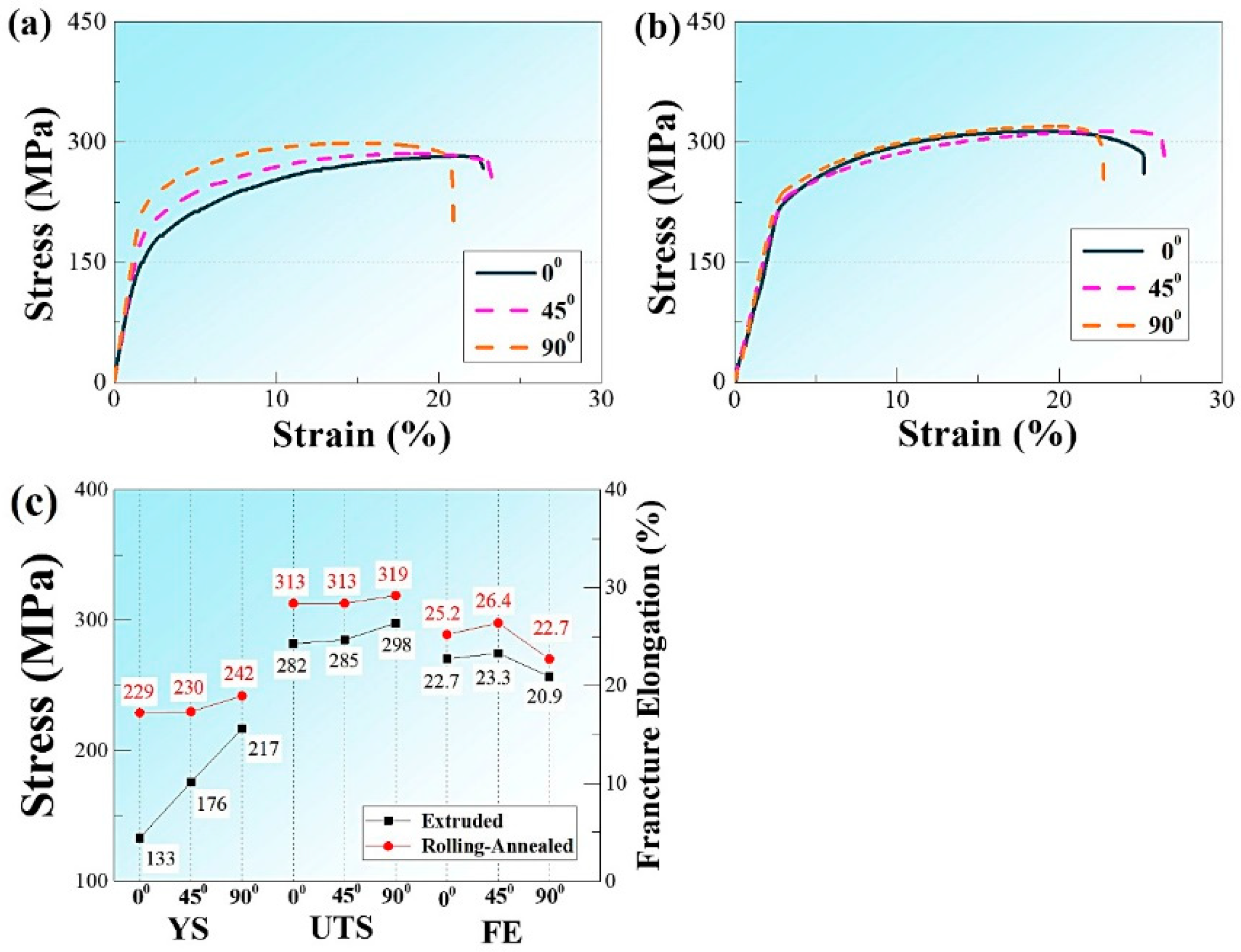

Hot rolling was carried out in this study to modify the microstructures of an extruded Mg–6Al–1Sn–0.3Mn alloy sheet and investigate its effects on mechanical properties. After hot rolling, the grains and second phase of the extruded alloy sheet were remarkably refined, and the c-axis of a few grains was parallel to the transverse direction. The strength improvement was mainly attributed to the grain and Mg17Al12 particle refinement due to the Hall–Petch effect and the Orowan mechanism. The random orientation of the fine grains resulted in improving ductility and anisotropy. View Full-Text
Keywords: metallic and alloys; microstructure; mechanical properties metallic and alloys; microstructure; mechanical properties
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Peng, P.; Tang, A.; Chen, X.; She, J.; Zhou, S.; Song, J.; Pan, F. Microstructure and Mechanical Properties of Mg–6Al–1Sn–0.3Mn Alloy Sheet Fabricated through Extrusion Combined with Rolling. Crystals 2018, 8, 356.
