Grayscale Image Display Based on Nano-Polarizer Arrays

,
,
,
,
and
Shaanxi Province Key Laboratory of Thin Films Technology and Optical Test, School of Optoelectronic Engineering, Xi’an Technological University, Xi’an 710032, China
*
Author to whom correspondence should be addressed.

Abstract

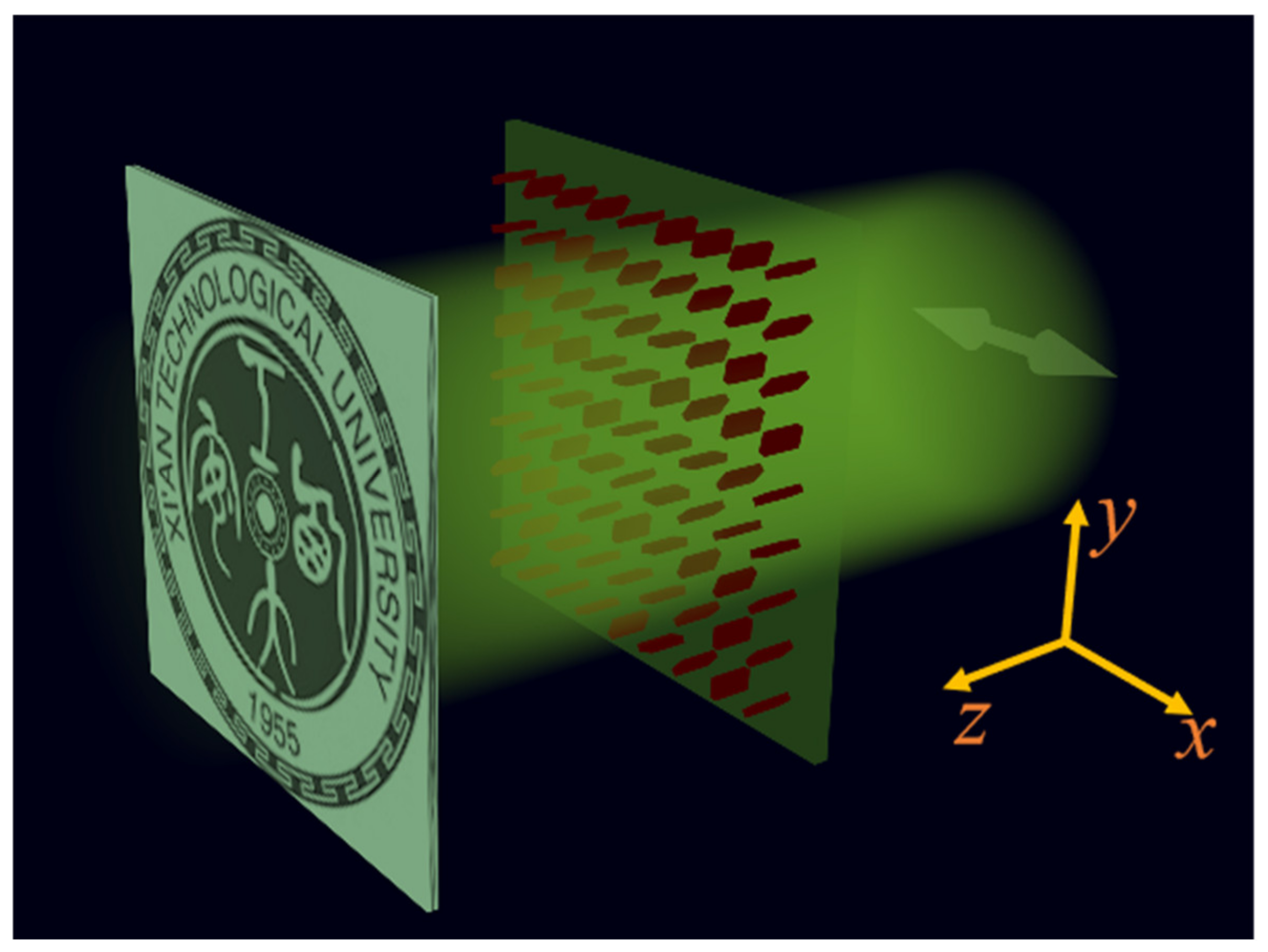

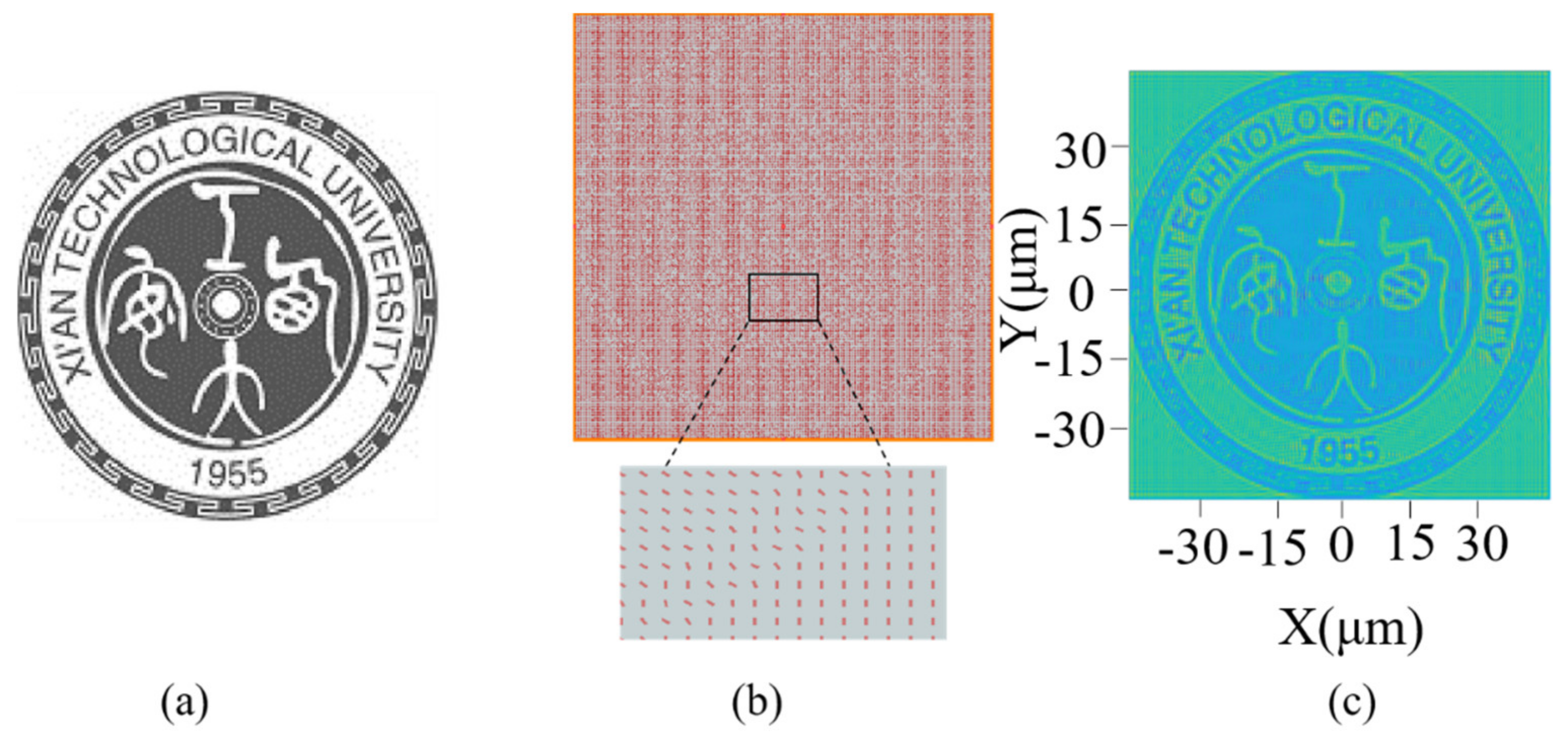

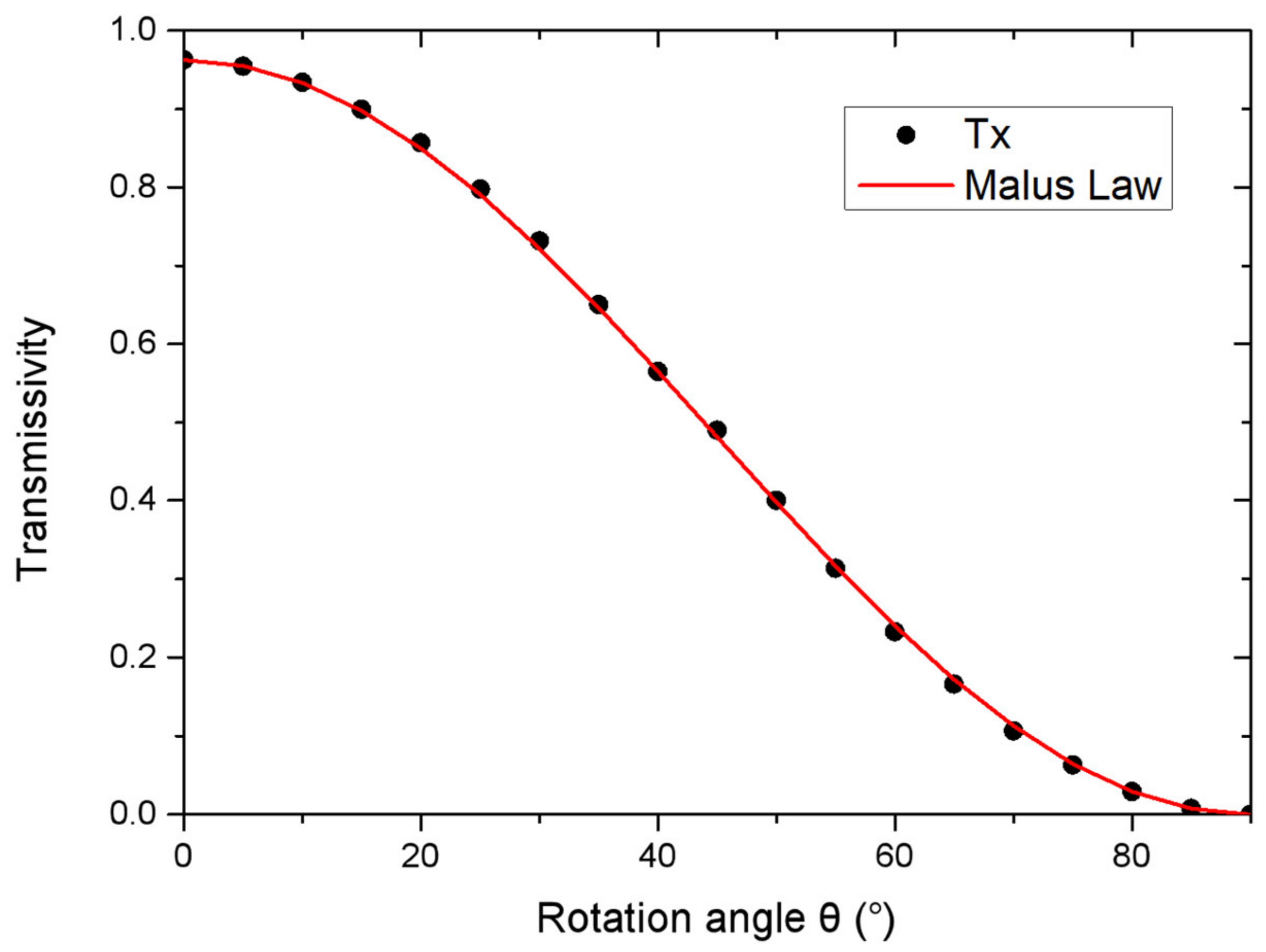

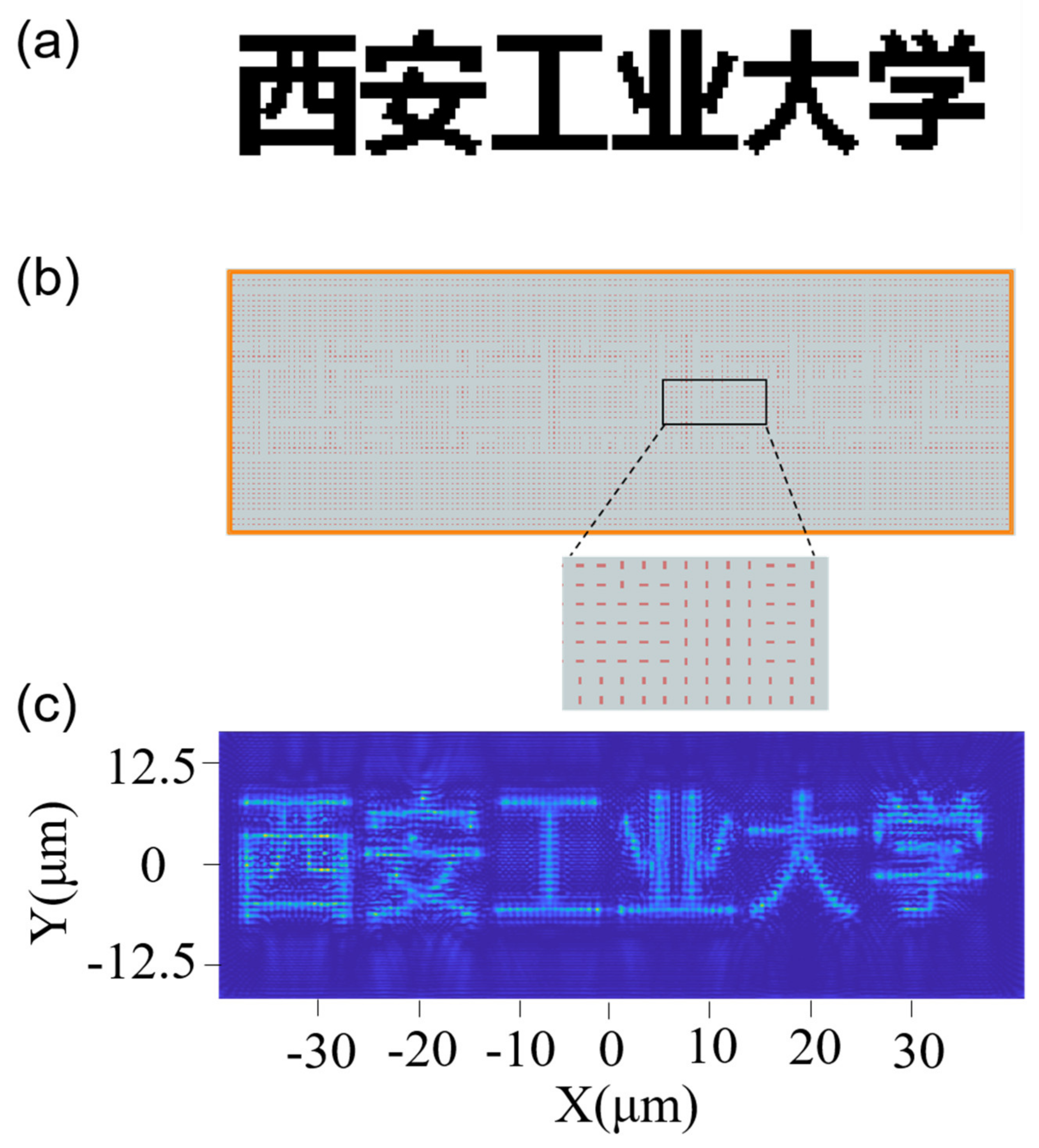

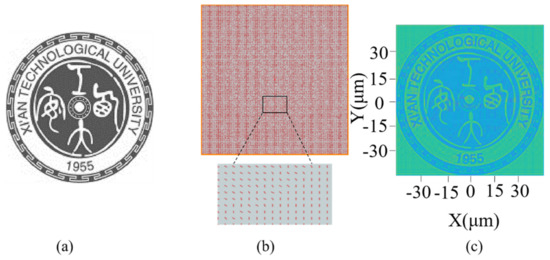

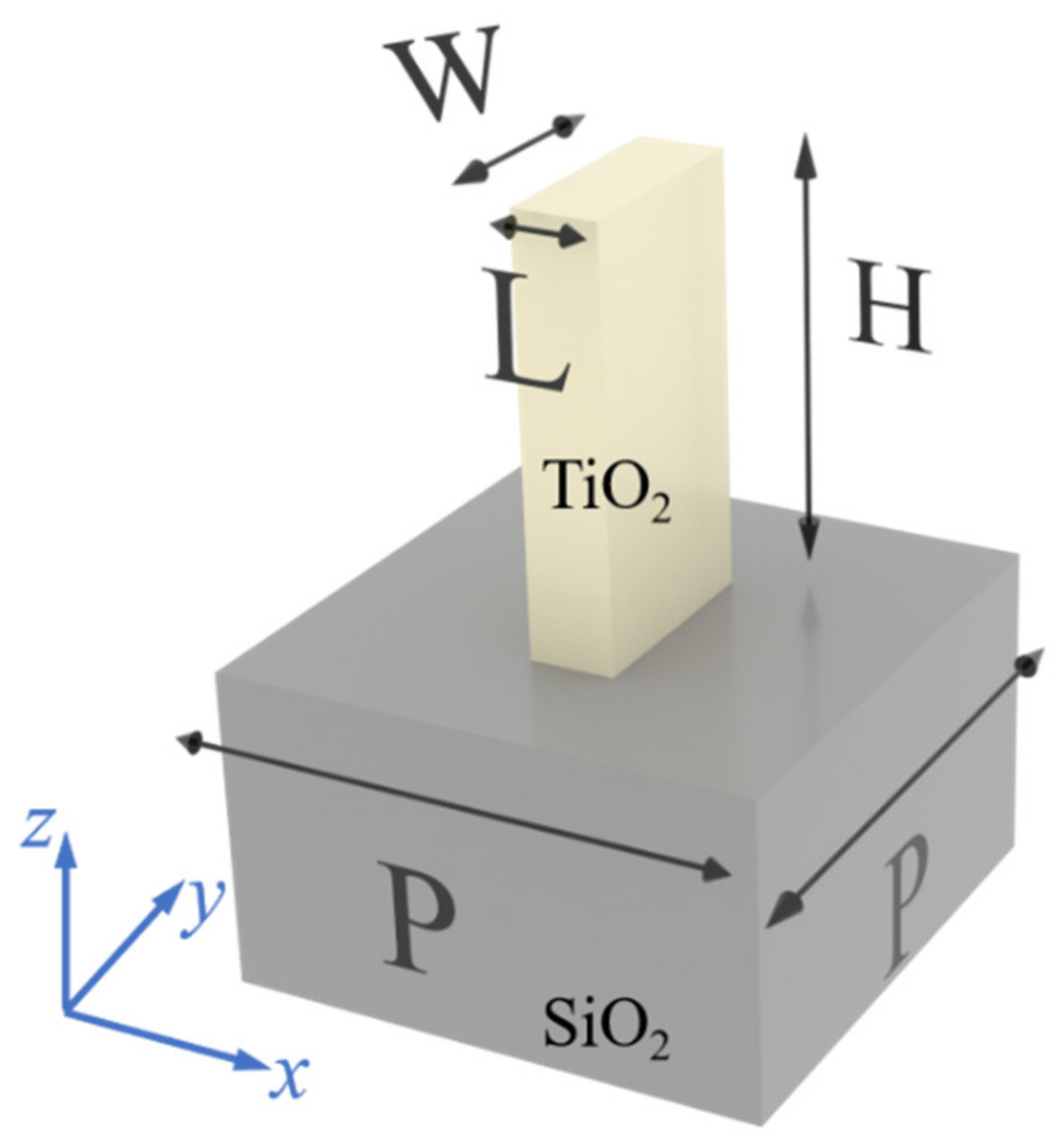

Optical metasurfaces have shown unprecedented capabilities to control the two-dimensional distributions of phase, polarization, and intensity profiles of optical waves. Here, a TiO2 nanostructure functioning as a nano-polarizer was optimized considering that an anisotropic nanostructure is sensitive to the polarization states of incident light. We demonstrate two metasurfaces consisting of nano-polarizer arrays featured with different orientations, which can continuously manipulate the intensity distribution of the output light cell by cell according to Malus law and clearly display the detailed information of the target image. These metasurfaces have potential application in ultracompact displays, high-density optical information storage, and many other related polarization optics fields.
