Artificial Sweeteners Disrupt Tight Junctions and Barrier Function in the Intestinal Epithelium through Activation of the Sweet Taste Receptor, T1R3

1
Biomedical Research Group, School of Life Sciences, Anglia Ruskin University, Cambridge CB1 1PT, UK
2
London Epithelial Group, Department of Neuroscience, Physiology and Pharmacology, University College London, London NW3 2PF, UK
*
Author to whom correspondence should be addressed.
Nutrients 2020, 12(6), 1862; https://doi.org/10.3390/nu12061862
Received: 1 May 2020 / Revised: 18 June 2020 / Accepted: 20 June 2020 / Published: 22 June 2020
(This article belongs to the Section Nutrition and Metabolism)

Abstract

The breakdown of the intestinal epithelial barrier and subsequent increase in intestinal permeability can lead to systemic inflammatory diseases and multiple-organ failure. Nutrition impacts the intestinal barrier, with dietary components such as gluten increasing permeability. Artificial sweeteners are increasingly consumed by the general public in a range of foods and drinks. The sweet taste receptor (T1R3) is activated by artificial sweeteners and has been identified in the intestine to play a role in incretin release and glucose transport; however, T1R3 has not been previously linked to intestinal permeability. Here, the intestinal epithelial cell line, Caco-2, was used to study the effect of commonly-consumed artificial sweeteners, sucralose, aspartame and saccharin, on permeability. At high concentrations, aspartame and saccharin were found to induce apoptosis and cell death in intestinal epithelial cells, while at low concentrations, sucralose and aspartame increased epithelial barrier permeability and down-regulated claudin 3 at the cell surface. T1R3 knockdown was found to attenuate these effects of artificial sweeteners. Aspartame induced reactive oxygen species (ROS) production to cause permeability and claudin 3 internalization, while sweetener-induced permeability and oxidative stress was rescued by the overexpression of claudin 3. Taken together, our findings demonstrate that the artificial sweeteners sucralose, aspartame, and saccharin exert a range of negative effects on the intestinal epithelium through the sweet taste receptor T1R3.
Keywords: intestinal epithelium; permeability; sweeteners; claudin; Caco-2 intestinal epithelium; permeability; sweeteners; claudin; Caco-2

1. Introduction

Under normal conditions, the intestinal epithelial barrier maintains selective gut permeability to allow for nutrient absorption but provide a robust barrier and prevent the entry of pathogens and pathogenic molecules into circulation. The disruption of the intestinal epithelial barrier results in a ‘leaky gut,’ a key pathophysiological event seen in several chronic inflammatory disorders such as diabetes, pancreatitis, multiple organ failure, and autoimmune diseases [1,2,3]. The impairment of the intestinal barrier and the subsequent increase in leakage predominantly occurs in the distal small intestine and large intestine, and it can result in increased systemic inflammatory responses, tissue injury, and, in some severe cases, sepsis and increased mortality [4]. There are a variety of treatments for impaired gut permeability, including prebiotics and metformin [5,6]; however, there have been limited large-scale clinical trials to establish the efficacy of interventions in reducing permeability and its associated inflammation.
The intestinal barrier is maintained by two key mechanisms: epithelial cell homeostasis to regulate cell numbers forming the barrier and homotypic junctional complexes to regulate paracellular permeability across the barrier [7]. Intestinal epithelial homeostasis is established by equilibrium between cell proliferation and cell death, with dysregulated or excessive epithelial cell death associated with diseases of impaired barrier integrity and leakage across the paracellular space [4]. The paracellular space is largely modulated by tight junction (TJ) proteins that control the movement of water, nutrients, and electrolytes across the epithelium into the interstitial fluid [8]. TJ proteins are a family of around 50 proteins of which the main TJ proteins are occludins, claudins, and junctional-adhesion molecules (JAMs) [9]. Despite this, knockout studies have demonstrated a key role for claudins, rather than occludins and JAMs, in maintaining barrier integrity [10]. Some claudins, e.g., claudins 1, 3, 4, 5, 8, 11, and 14, can form homotypic or heterotypic interactions at the epithelial cell–cell junction to form a seal and reduce leakage, and some claudins, e.g., claudins 2, 7, 10, and 15, form a pore to increase leak [9,11,12]. Expression of claudins at the TJ can be regulated via protein kinase (PKC)-mediated phosphorylation and downstream intracellular trafficking pathways, such as reduced lysosomal degradation or increased trafficking to the TJ complex at the epithelial cell surface, to influence barrier integrity [13,14,15,16]. As such, diseases associated with a leaky gut, such as Crohn’s disease and ulcerative colitis, have been demonstrated to impact the expression of claudins in the small and large intestine; however, the mechanism for this is not clear [16,17]. Studies are therefore required to understand the mechanisms that regulate the expression and function of claudins in the intestinal epithelium and how these proteins may be involved in controlling leakage across the gut.
There is increasing evidence that the consumption of a high-fat diet and excessive alcohol intake leads to intestinal permeability and metabolic endotoxemia [18,19,20]. These changes in permeability are associated with increased oxidative stress and the reorganization of claudin expression at the tight junction [21,22]. While a link between the Western diet and intestinal permeability has been established, the effect of food additives found in the diet is not well-understood. A range of artificial sweeteners are increasingly being utilized as non-caloric sugar substitutes, of which aspartame, sucralose, and saccharin are most commonly consumed in both food and beverages [23,24]. There is controversy regarding the metabolic effects of these acutely-sweet molecules, with studies demonstrating both a positive and negative role for artificial sweeteners in the diet [25,26,27,28]. Studies in humans and mice have demonstrated that the consumption of artificial sweeteners in the diet is linked with the dysbiosis of gut microbiota and an associated increase in levels of endotoxins secreted from these bacteria, such as lipopolysaccharide (LPS) [27,28]. LPS released from the gut microbiota is linked to an increase in intestinal permeability [29]; however, while changes in the gut microbiota are a potential regulator of this permeability, the direct effect of artificial sweeteners on intestinal permeability is not well-understood.
In the study presented here, we used the well-established intestinal epithelial cell line, Caco-2, to study the effect of the commonly-consumed artificial sweeteners aspartame, sucralose, and saccharin on intestinal epithelial cell viability, monolayer permeability, claudin expression, and oxidative stress response. This study utilized a variety of concentrations that could be achieved in the diet to address the impact of these sweeteners on the intestinal epithelium. As artificial sweeteners stimulate the sweet taste receptors T1R2 and T1R3 to elicit a taste response pathway [30], we also sought to demonstrate the role of these G protein-coupled receptors in regulating the effect of aspartame, sucralose, and saccharin on the intestinal epithelium. We anticipate that findings from this study could expand our understanding of the physiological effect of artificial sweeteners and indicate the effect of dietary components on gut health.

2. Materials and Methods

2.1. Cell Lines and Reagents

Human colon carcinoma cells (Caco-2) were purchased from Sigma-Aldrich (Dorset, UK), cultured in Eagle’s Minimum Essential Media containing 10% fetal bovine serum and 1% penicillin/streptomycin, and used between passages 35 and 50. Silencing RNA (siRNA) and a DharmaFECT reagent were obtained from Dharmacon (Cambridge, UK). Claudin 3 and control vector cDNA were purchased from GenScript (Piscataway, USA). A Lipofectamine 3000 reagent was purchased from Thermo Fisher Scientific (Paisley, UK). DCFDA (2′,7′-dichlorofluorescin diacetate) and antibodies directed against claudins 2, 3, 4, and 7 were purchased from Abcam (Cambridge, UK), while a claudin 15 antibody was obtained from Novus Biologicals (Abingdon, UK) and T1R3 and actin antibodies were obtained from Santa Cruz Biotechnology (Santa Cruz, CA). An annexin V kit was purchased from BD Pharmingen (Wokingham, UK). All other reagents, including the artificial sweeteners saccharin, sucralose, and aspartame, were purchased from Sigma Aldrich (Dorset, UK).

2.2. Animals and Ethics

The study used six male C57BL/6 mice bred at the Comparative Biology Unit at UCL’s Royal Free Campus. Animals were allowed ad libitum access to water and a standard rat chow (Diet RM1, SDS Ltd., Witham, Essex, UK) until the time of experimentation. Animals were housed in groups of 3–4 and were maintained on 12-h light–dark cycling (7a.m.–7p.m.) at a temperature of 15–22 °C. At 8–10 weeks, mice were anaesthetized with an intraperitoneal injection of 60 mg.kg−1 of pentobarbitone sodium (Pentoject, Animalcare Ltd., York, UK), and the monitoring of the pedal and corneal reflex was undertaken to ensure that deep anesthesia was achieved before the small and large intestine were removed. Euthanasia was performed by cervical dislocation, with death confirmed by the cessation of the heartbeat. The gut was separated into the following sections: duodenum (beginning at the stomach and ending at the ligament of Treitz), jejunum (from the ligament of Treitz until halfway along the small intestine), ileum (remaining half of the small intestine until the caecum), proximal (1st half of the colon), and distal colon (2nd half of the colon). Each segment was flushed with ice cold 0.9% saline to remove any contents and transferred to a cold glass surface at 4 ºC and cut open. The mucosa was scraped off using a glass slide and placed in 1 ml of RNAlater, snap frozen, and stored at −80 °C until use. All procedures were carried out in accordance with the UK Animals (Scientific Procedures) Act, 1986, Amendment Regulations 2012. The protocols were approved by the University College London (Royal Free Campus) Comparative Biology Unit Animal Welfare and Ethical Review Body (AWERB) committee.

2.3. RT-PCR

Total RNA was extracted from mucosal scrapes of the distinct regions of the mouse small and large intestine, or from Caco 2 cells, using a Trizol reagent (Life Technologies, Paisley, UK) according to the manufacturer’s instructions. RNA was DNase treated and reverse transcribed using a Transcriptor First Strand cDNA Synthesis Kit (Roche Diagnostics, Mannheim, Germany). A negative control was included for each sample. Claudin, taste receptor. and β-actin transcripts were analyzed by real-time PCR using a Fast Start Essential Green Master kit (Roche Diagnostics, Mannheim, Germany) on a Roche LightCycler 96 (Roche Diagnostics, East Sussex, UK) using the specific primers shown in Table 1 and Table 2. For all primers, the cycling conditions were as follows: 95 °C for 10 min followed by 40 cycles of 95 °C for 10 sec, 60 °C for 10 sec, and 72 °C for 10 sec. Relative gene expression compared to β-actin was established using the LightCycler 96 software.

2.4. Annexin V Assay

Caco-2 cells were grown to 60% confluence in T-25 flasks prior to exposure with artificial sweeteners (range of concentrations) for 24 h. Artificial sweeteners were dissolved in the vehicle control (H2O) and sterile-filtered to prepare a working stock solution. Adhered and floating cells were collected and incubated with a binding buffer, annexin V, and propidium iodide for 15 min in the dark. Cells were then analyzed with an Accuri C6 Flow cytometer (BD Biosciences), and the percentage of positive cells for annexin V and propidium iodide was calculated with FlowJo (V10.2, Oregon, USA).

2.5. siRNA and cDNA Transfections

Caco-2 cells were transiently transfected with siRNA specific to T1R3 or non-specific control siRNA using a DharmaFect 2 reagent, as per manufacturer’s guidelines. Alternatively, Caco-2 cells were transiently transfected with wild-type human claudin 3 cDNA (clone ID: OHu26411, vector: pcDNA3.1+/C-(K)DYK, or DYK control vector cDNA) using Lipofectamine 3000, as per manufacturer’s guidelines. Cells were transfected at a seeding density of 0.5 × 104 cells per well of a 96-well plate, 2.5 × 104 cells per well of a Transwell insert, or 1.5 × 105 cells per well of a 6-well plate. Transfected cells were plated onto Transwell inserts or 96-well plates for an analysis of permeability and whole-cell ELISA, respectively. At 24 h post-transfection, cells were exposed to artificial sweetener (100 µM) or vehicle control (H2O) in the presence and absence of the positive control LPS (1 µg/mL) for a further 24 h. Experiments were then performed as outlined in ‘permeability’ and ‘whole-cell ELISA.’ To confirm knockdown of T1R3 or the overexpression of claudin 3, at 48 h post-transfection, cells were lysed with a radioimmunoprecipitation assay buffer, resuspended in a Laemmli buffer, and subjected to immunoblot analysis. Immunoblot analyses were performed on 10% SDS-PAGE using a primary antibody specific to T1R3, the DYK tag, and β-actin at a dilution of 1:1000 and secondary antibody dilutions of 1:5000.

2.6. ROS Assay

Caco-2 cells (1 × 104 cells per well) were plated on black-walled 96-well plate for 24 h, followed by exposure to the cell permeant, fluorogenic dye DCFDA (10 µM), or dimethyl sulfoxide (DMSO) control for 30 min at 37 °C in the dark. DCFDA was then removed and replaced with artificial sweeteners (range of concentrations), the vehicle control (H2O), or the positive control LPS (1 µg/mL) for 1.5 h. DCFDA fluorescence was measured at 488 nm using a fluorescent plate reader (Victor, Perkin Elmer), and measurements were compared to cells cultured in the absence of DCFDA.

2.7. Whole Cell ELISA

Caco-2 cells (1 × 104 cells per well) were plated on black-walled 96-well plate for 24 h, followed by exposure to artificial sweeteners (range of concentrations), the vehicle control (H2O), or the positive control LPS (1 µg/mL) for a further 24 h. Where stated, cells were first transfected with siRNA or also exposed to N-acetyl cysteine (NAC) (1 mM) or the vehicle for NAC (H2O). Cells were then rinsed once with Dulbecco’s phosphate-buffered saline (DPBS) and fixed using 1% paraformaldehyde at room temperature for 10 min. Whole cell ELISA was then performed as previously described [34] in non-permeabilized Caco-2 cells using antibodies specific to claudins 2 (ab76032), 3 (ab214487), 4 (ab210796), 7 (ab207300), and 15 (NBP1-59267). Antibodies were specific to the αα 150 region of claudins [35]. Fluorescent-conjugated secondary antibodies were measured at a 1 sec exposure time using a florescent plate reader (Victor, Perkin Elmer), and measurements from blank wells (no primary antibody) were subtracted to provide the presented data.

2.8. Epithelial Monolayer Permeability

Epithelial monolayer permeability was assessed using the fluorescein isothiocyanate (FITC)-dextran permeability assay and validated with transepithelial resistance (TER) (EVOM2; World Precision Instruments, Herts, UK). For the analysis of monolayer permeability, Caco-2 cells were plated onto Transwell filters for 24 h, followed by exposure to artificial sweeteners (range of concentrations), the vehicle control (H2O), or the positive control LPS (1 µg/mL) for a further 24 h. Where stated, cells were first transfected with siRNA or exposed to NAC (1 mM) or the vehicle for NAC (H2O). Permeability was measured by adding FITC-conjugated to 20 kDa dextran (FD20) to media in the upper chamber of the Transwell filter to a concentration of 5 µg/µl. FD20 was allowed to equilibrate for 180 sec at 37 ºC, and a sample (100 µl) of media from the lower chamber was collected and analyzed at 488 nm using a fluorescent plate reader (Victor, Perkin Elmer). Permeability (%) was calculated by fluorescence accumulated in the lower chamber divided by fluorescence in the upper chamber, which was then multiplied by 100.

2.9. Cell Viability and Morphology Studies

Caco-2 cell viability was assessed using the Cell Counting Kit-8 (CCK-8). Cells were exposed to artificial sweeteners or the vehicle control (H2O) for 24 h, followed by incubation with the CCK-8 reagent for 2 h at 37 °C. Absorbance was then assessed at 450 nm using a microplate reader (Tecan Sunrise), and viability was calculated as % normalized to vehicle.

2.10. Statistical Analysis

The experimental number is presented in the legend for each experiment. In vitro experiments with Caco-2 cells were performed in duplicates. Data were analyzed using GraphPad Prism 7.0. For two groups, the variance in data sets was analyzed using the Mann–Whitney test followed by the T-test. For three or more groups, variance was assessed by using Bartlett’s test with data sets not reaching significance studied by Kruskal–Wallis test followed by Dunn’s test. For all other data sets, differences among the means were tested for significance in all experiments by ANOVA with Tukey’s range significance difference test. Significance was reached when p < 0.05. Values are presented as mean ± standard error mean (S.E.M.).

3. Results

3.1. High Physiological Concentrations of Artificial Sweeteners Decrease Viability and Increase Apoptosis of Caco2 Cells through the Sweet Taste Receptor (T1R3)

Artificial sweeteners stimulate the sweet-taste receptors T1R2 and T1R3, which are G protein-coupled receptors [30]. We and others have demonstrated the expression of T1R2 and T1R3 protein and mRNA in the intestinal epithelium where they have been identified to act as sensors to stimulate glucose absorption and modulate incretin release [36,37,38]. Given the wide range of concentrations of different artificial sweeteners consumed in the diet [23], we sought to understand the dose-dependent effect of the commonly consumed artificial sweeteners sucralose, aspartame, and saccharin on Caco-2 cell viability, apoptosis, and cell death. Caco-2 cell viability was significantly decreased by aspartame and saccharin at concentrations of ≥1000 µM (Figure 1a). Interestingly, there was a significant increase in cell viability following exposure to 1000 µM sucralose; however, at higher concentrations (10,000 µM), the sweeteners decreased cell viability (Figure 1a). Whilst there have been limited studies to indicate the concentration of sweeteners found in the intestine, following the consumption of artificial sweeteners, this range of concentrations (1–10 mM) is potentially achievable in the intestine and thus physiologically-relevant for members of the general population who regularly consume significant amounts of artificially sweetened foods. For example, a single chewing gum contains 0.01 mM, one can of soft drink contains up to 2 mM of artificial sweetener, and, more generally, the main additives in a range of products including diet drinks, sports drinks, snacks, and confectionary are artificial sweeteners [23]. Given that the acceptable daily intake for these sweeteners is high (between 14 and 40 mg/kg of body weight), it is likely that the public can consume high quantities of sweetener in the diet to achieve up to 10 mM exposure to sweeteners [23]. Artificial sweeteners have been established to bind to the sweet taste receptors T1R2 and T1R3; therefore, we next sought to establish the mRNA expression and cell surface protein levels of T1R2 and T1R3 in Caco-2 cells. Both the mRNA (ratio: 1.48 × 10−6 ± 1.11 × 10−7) and protein (83.84 ± 2.13 r.f.u.) expressions of T1R3 were identified in untreated Caco-2 cells; however, T1R2 mRNA was not detected in the cells (undetected), and only a low abundance of the protein was detected at the cell surface (13.69 ± 0.33 r.f.u.). We therefore next studied whether artificial sweeteners affected cell viability through T1R3 using the siRNA knockdown of the sweet taste receptor (63.5 ± 2.7% decrease, p < 0.05, n = 6); see Figure 1b. The significant decrease in cell viability following exposure to sucralose, saccharin, and aspartame at 10,000 µM was abolished by T1R3 knockdown (Figure 1c). These findings were supported by experiments with propidium iodide and annexin V staining in Caco-2 cells exposed to 0–1000 µM artificial sweeteners to measure cell death and apoptosis, respectively. A significant increase in cell death was observed at 1000 µM saccharin and aspartame (Figure 1d), matched by an increase in apoptosis at 10 and 100 µM (Figure 1e). As for cell viability studies, sucralose had no impact on Caco-2 cell death or apoptosis at concentrations of ≤1000 µM (Figure 1d,e). These findings demonstrated that saccharin and aspartame induce apoptosis at lower concentrations (up to 100 µM) and cell death at higher concentrations (≤1000 µM). Taken together, these findings indicated that, at high but physiologically-relevant concentrations in the small intestine, artificial sweeteners sucralose, aspartame, and saccharin decrease cell viability by binding to the sweet taste receptor T1R3. The findings also demonstrated a differential effect of aspartame and saccharin versus sucralose on Caco-2 cell apoptosis and death.

3.2. Low Physiological Concentrations of Artificial Sweeteners Sucralose and Aspartame Disrupt the Intestinal Epithelial Barrier through the Sweet Taste Receptor

Given the detrimental effect of high concentrations (≥1000 µM) of artificial sweeteners on Caco-2 cell viability, we next sought to establish the impact of a lower concentration (100 µM) on intestinal barrier function. The bacterial endotoxin LPS has been demonstrated to increase permeability of the intestinal epithelium [39]. Indeed, we demonstrated an increased epithelial monolayer permeability when using both 1 and 10 µg/mL of LPS using an FITC-dextran permeability assay (% permeability—1 µg/mL: 185 ± 6.9%, p < 0.05 versus vehicle; 10 µg/mL: 213.7 ± 10.7%, p < 0.05 versus vehicle, n = 6) and TER measurements (1 µg/mL: −263 ± 9.8 ohms, p < 0.05 versus vehicle; 10 µg/mL: −304 ± 15.2 ohms, p < 0.05 versus vehicle, n = 6). Caco-2 cell viability, however, was only decreased at 10 µg/mL of LPS exposure (% viability—10 µg/mL: 70 ± 1.5%, p < 0.05 versus vehicle, n = 6)). Therefore, 1 µg/mL of LPS was used as a positive control for subsequent experiments. The exposure of Caco-2 cells to the artificial sweeteners sucralose and aspartame significantly increased the permeability of the epithelial barrier to a similar level as seen for LPS (Figure 2a). Conversely, saccharin had no effect on epithelial barrier integrity (Figure 2a). Interestingly, the siRNA knockdown of the sweet taste receptor T1R3 attenuated sucralose- and aspartame-induced permeability but had no impact on LPS-induced leakage across the epithelial barrier (Figure 2b). These findings demonstrated the effect of the artificial sweeteners, sucralose, and aspartame on intestinal epithelial barrier function.

3.3. Sucralose and Aspartame Modulate Claudin 3 and 15 Expression in Intestinal Epithelial Cells through T1R3

Given the effect of sucralose and aspartame on epithelial barrier function, we next sought to establish the mechanisms regulating this process. Claudins are a key component of the tight junction complex and regulate epithelial barrier integrity. Though 26 claudins have been identified [40], in keeping with other studies [32,41], we demonstrated the expression of claudins 2, 3, 4, 7, 8, 15, and 23 using the RT-PCR analysis of the small and large intestine of mice (Figure 3a). From this data, we chose the most abundant claudins and determined their expression levels in our Caco-2 cell model. Interestingly, claudin 4 was most abundantly expressed in Caco-2 cells, while claudin 7 was almost undetectable in the cells in comparison to the high levels present in the murine intestine (Figure 3b).
Claudins regulate permeability when expressed at the tight junction of the epithelial cell surface, with claudins 2 and 15 associated with pore formation and leakage and claudins 3, 4, and 7 linked to tight junction sealing and reduced leakage [40]. Therefore, we next studied the effect of sucralose and aspartame on the cell surface protein expression of claudins, using LPS as a control to mimic the breakdown of the epithelial barrier. Similar to mRNA expression, claudin 2 protein levels were found at low levels at the cell surface, with no significant effect of LPS on the protein (Figure 4a). In contrast, LPS exposure resulted in a significant decrease in claudin 3, 4, and 7 and a significant increase in claudin 15 protein expression at the cell surface (Figure 4b–e). Interestingly, both sucralose and aspartame significantly decreased claudin 3 surface expression and increased claudin 15 surface expression, similar to LPS exposure (Figure 4b,e), while the sweeteners had no effect on claudin 4 and 7 expression at the epithelial cell surface (Figure 4c,d). To assess the role of the sweet taste receptor T1R3 in regulating the effect of sucralose and aspartame on claudin 3 and 15 expression, these experiments were repeated in Caco-2 cells with T1R3 siRNA. The knockdown of T1R3 levels significantly abrogated the sweetener-induced decrease in claudin 3 surface expression but had no impact on the increase in claudin 15 levels (Figure 4f,g). Interestingly, the LPS-mediated decrease in claudin 3 was unaffected by T1R3 knockdown (Figure 4f).
Taken together, these data highlight the differential expression of claudins in the murine intestine and cultured intestinal epithelial cells, and they demonstrate a key role for sucralose and aspartame in regulating the expression of claudin 3 and 15 at the epithelial cell surface. The data further indicated that sweeteners modulate claudin 3 and 15 expression at the tight junction through T1R3-dependent and T1R3-independent signaling pathways, respectively.

3.4. Overexpression of Claudin 3 Rescues Sweetener-Induced Barrier Leakage Across the Intestinal Epithelium

To confirm that sucralose and aspartame regulate barrier leakage across the intestinal epithelium through claudin 3, our next experiments were performed in Caco-2 cells overexpressing wild-type CLDN3-DYK cDNA, or the vector control (DYK). Western blotting and whole-cell ELISA confirmed the overexpression of the construct at protein and cell surface levels, respectively (Figure 5a,b). The overexpression of claudin 3 had no impact on Caco-2 cell viability (Figure 5c), indicating no negative side effects of the transfection on the cells. Interestingly, leakage across the intestinal epithelial cell monolayer, induced by aspartame and sucralose, was abrogated by claudin 3 overexpression (Figure 5d). These data demonstrated a key role for claudin 3 in regulating the sweetener-induced permeability of the intestinal epithelium.

3.5. Aspartame, But Not Sucralose, Increases Oxidative Stress in Intestinal Epithelial Cells Linked to Barrier Leakage

Finally, we sought to establish the mechanism through which the sweet taste receptor and the artificial sweeteners sucralose and aspartame regulate claudin 3 expression at the cell surface. Oxidative stress is an important regulator of claudin 3 localization in the intestinal epithelium and is linked to LPS-induced permeability [42,43], so we studied the effect of the artificial sweeteners sucralose and aspartame on the production of reactive oxygen species (ROS) in intestinal epithelial cells, using LPS as a positive control. The exposure of Caco-2 cells to LPS and aspartame, but not sucralose, significantly increased ROS production (Figure 6a). Interestingly, aspartame-induced ROS production was attenuated by exposure to the antioxidant NAC (Figure 6b) and the knockdown of T1R3 (Figure 6c). We next studied the role that oxidative stress plays on the sweetener-induced permeability of the Caco-2 cell monolayer and claudin 3 surface expression. Whilst NAC significantly attenuated aspartame-induced monolayer permeability, the antioxidant had no effect on sucralose-mediated leakage (Figure 6d). Similarly, the reduction in claudin 3 expression at the cell surface, induced by aspartame, was abrogated by NAC (Figure 6e), while sucralose-induced claudin 3 downregulation was unaffected by NAC (Figure 6e). Interestingly, aspartame-induced ROS production was significantly attenuated by the overexpression of wild-type claudin 3 (Figure 6f), thus indicating a reciprocal relationship between oxidative stress and claudin 3.
Taken together, these data demonstrate that aspartame, but not sucralose, mediates claudin 3 expression at the tight junction and increases permeability of the epithelium through the production of ROS. The data further demonstrate a role for T1R3 in regulating aspartame-induced ROS accumulation in the intestinal epithelial cell.

4. Discussion

At present, a large proportion of the population consumes artificial sweeteners, primarily aspartame, sucralose, and saccharin [23]; however, there is significant controversy regarding the impact that artificial sweeteners in the diet exert on health. In particular, the effect of sweeteners on both the diversity and function of the gut microbiota, a key factor that regulates intestinal permeability, has been previously established with associated metabolic disruption linked to this dysbiosis [27,28]. However, whether there is a direct effect of these sweet-taste molecules on intestinal permeability is not well-understood. In the present study, we demonstrated the effect of the artificial sweeteners, saccharin, sucralose, and aspartame on intestinal epithelial cell claudin expression, barrier integrity and ROS production. Our experiments showed the detrimental and differential effects of these non-nutritive sweeteners at concentrations that would be typically found in the diet. Findings from this study also further our understanding of the mechanisms that regulate the permeability of the intestinal epithelium and contribute to the controversy regarding the use of artificial sweeteners in the diet.
The intestinal epithelial barrier is vital in maintaining selective permeability between the small and large intestine, as well as circulation. The integrity of this barrier is maintained, in part, through cell survival, with an increase in epithelial cell apoptosis resulting in permeability, both in vitro and in vivo [44]. Tight junctions comprise another mechanism that regulates epithelial permeability, in particular the localization of claudins in the tight junction complex. In this study, we identified the expression of claudins 3, 4, 7, and 15 in the murine small and large intestine and in Caco-2 cells; however, only claudin 3 and 15 were downregulated and upregulated, respectively, in response to sucralose and aspartame treatment. Previous studies have demonstrated that dietary components, such as gluten, alter claudin 3 and 15 expression [45,46]; however, this is the first study to indicate that artificial sweeteners regulate these tight junction proteins. We further demonstrated the importance of claudin 3, rather than claudin 15, in regulating sweetener-induced permeability through T1R3. This may not be surprising given that claudin 3 is a barrier-sealing tight junction protein that is down-regulated in settings of intestinal permeability, while the pore-forming claudin 15 is associated with mucosal differentiation in the small intestine [47,48]. Interestingly, our experiments also demonstrated a role for claudin 3 in regulating aspartame-induced oxidative stress in the intestinal epithelial cell. Previous in vivo studies have demonstrated a role for oxidative stress in the dysregulation of claudin 1, 2, and 4 expression at the tight junction due to reduced levels of the antioxidant and superoxide dismutase or increased levels of hypoxia-inducible factor-1 [49,50]. In addition, in gastric epithelial cells, claudin 3 was identified to be sensitive to oxidative stress, with the siRNA knockdown of the tight junction protein exacerbating the permeability of the monolayer [51]. Our experiments indicated T1R3 as a key regulator of claudin 3-associated oxidative stress and the monolayer permeability of the intestinal epithelial barrier.
Claudin expression is maintained through coordinated cell signaling processes in the intestinal epithelial cell. The shuttling of claudin proteins to the epithelial cell surface, to form the TJ complex, is dynamically regulated through intracellular trafficking processes [52]. Our experiments demonstrated that the artificial sweeteners aspartame and sucralose bind T1R3 to cause the reduced cell surface expression of claudin 3. The internalization of claudin 3, associated with the disruption of the TJ, has been observed to be caveolin- and flotillin-dependent [53,54]. It is therefore possible that downstream T1R3 signaling promotes these trafficking molecules to increase claudin 3 internalization; however, further studies are needed to establish this mechanism. Furthermore, the phosphorylation of TJ proteins, including claudin 3, by PKCζ has been demonstrated to play a key role in maintaining the TJ complex and therefore barrier function in the intestine [14,55]. Whilst the link between PKCζ and sweet taste sensing is not yet known, T1R3 stimulation by aspartame and sucralose may inhibit this PKC isoform and therefore promote the disruption of the TJ. Finally, β-catenin, Forkhead box O4 (FOXO4), and hepatocyte nuclear factor alpha bind to claudin promoters to regulate the expression of the TJ proteins; therefore, sucralose and aspartame may affect claudin 3 levels by blocking these transcription factors to reduce expression in the intestinal epithelium [56,57,58]. Further studies are needed to understand the molecular mechanisms through which sweeteners reduce claudin 3 expression at the TJ, as well as the resulting downstream effects on barrier permeability and ROS production.
The expression of the sweet taste receptors T1R2 and T1R3 has been established in the intestinal epithelium [26,36,38]. Similar to a study by O’Brien and Corpe [59], data from the present study demonstrate the expression of T1R3, but not T1R2, in Caco-2 cells. Artificial sweeteners have been demonstrated to bind to the sweet taste receptor in extra-oral locations to regulate a range of processes including glucose transport and insulin secretion [38,60]. In the present study, we demonstrated that the artificial sweeteners saccharin and aspartame exert a toxic effect on intestinal epithelial cells at high concentrations, sucralose and aspartame increase epithelial permeability, and only aspartame causes oxidative stress. These findings are in contrast to previous findings where saccharin, but not aspartame or sucralose, was demonstrated to disrupt epithelial barrier integrity [61]. This difference in findings may have been due to the short time point of 3.5 h studied by Santos et al. as opposed to the 24 h time point assessed in the current experiment. This time-dependent difference in tight junction formation and permeability has been observed in other epithelial tissues. In the choroidal plexus epithelium, a comparison of acute (three hours) versus chronic (20 h) exposure to phorbol myristate acetate demonstrates alternate effects on paracellular permeability [62]. This form of ‘claudin-switching’ has also been observed in the intestinal epithelium of mice in settings of obesity [21]. Therefore, it is possible that the impact of aspartame and sucralose on the intestinal epithelium, in the short term, is minimal due to tight junction compensation, while a delayed, more comprehensive rearrangement of claudin proteins causes the detrimental response which we note at 24 h. This highlights the complex and dynamic nature of the claudin organization and barrier function of the epithelium, and it indicates that artificial sweeteners may have different effects on the intestinal epithelium in short and long term studies.
In vivo studies have demonstrated that a saccharin-enriched diet causes the accumulation of water in the stool of rats which may be indicative of leakage across the intestinal epithelium [63]. Therefore, while further in vivo studies are needed to demonstrate the exact cellular effects of sucralose, saccharin, and aspartame on leakage across the intestinal epithelium, the in vivo experiments performed by Anderson and Kirkland over a 10-day period matched our in vitro findings at 24 h with regards to saccharin. However, it is worth noting that these experiments utilized exceedingly high concentrations of saccharin (>250 mM). Furthermore, whilst sucralose and saccharin are resistant to hydrolysis in the small intestine, aspartame is hydrolyzed into aspartic acid, methanol, and phenylalanine [64,65,66]. Though peak levels of hydrolysis products are observed in the plasma of humans at one-to-two hours post-consumption, it takes up to 24 h for levels to become undetectable [67,68,69]. Aminopeptidase A, the enzyme that is key for aspartame hydrolysis [64], is predominantly expressed and active in the mid and distal regions of the small intestine [70]. Proximal sections of the small intestine, the duodenum, and early jejunum may therefore be exposed to unmetabolized aspartame, which is able to bind to the sweet taste receptor, T1R3, expressed in these regions [71]. In contrast, the late jejunum and ileum are more likely to be exposed to the hydrolysis products of aspartame that do not bind to T1R3. It is worth noting that findings from the present study used an in vitro model of the intestinal epithelium, so further assessments with vivo experiments is necessary to confirm the physiological relevance of these findings.
Our experiments did, however, show that T1R3 is key to the observed cellular effects, with the knockdown of the receptor attenuating the permeability, decreased viability, and ROS production induced by sweeteners. While these findings need to be confirmed using an in vivo permeability model to establish the physiological relevance of consuming sweeteners at these concentrations, previous studies have demonstrated that results from Caco-2 cell culture closely correlate with in vivo measurements of permeability [44]. The differential effects may have been a result of altered intracellular signaling downstream of T1R3 for each artificial sweetener. These differences may have been due, in part, to the structure of the artificial sweeteners, with the region of ligand binding in T1R3 mediating the signaling response. However, further studies are needed to identify the specific characteristics of each sweetener, their binding affinity to the sweet taste receptor T1R3, and the resulting effect on intracellular signaling.
Artificial sweeteners are consumed by the general public at a range of concentrations, depending on the perceived sweet taste of the molecule and dietary choices, with one can of soft drink containing between 0.5 and 2 mM of sweetener [23]. A study of new food products launched in the USA between 1999 and 2004 showed that sucralose and aspartame are two of the most commonly-used artificial sweeteners, while saccharin is typically found in food and drinks blended with aspartame [23,72]. Our experiments established a detrimental effect of sucralose, saccharin, and aspartame on cell viability at a concentration of 10 mM, which, although high, is physiologically-achievable and within the acceptable daily intake given the increasing consumption of these sweeteners in both food and drinks [23,73]. Indeed, many studies in the field have utilized concentrations of up to 10 mM of artificial sweeteners [38,61]. Interestingly, at the significantly lower concentration of sucralose and aspartame (0.1 mM), we observed leakage across the intestinal epithelial barrier. These in vitro findings indicate that both low and high amounts of these two sweeteners disrupt intestinal epithelial cells.

5. Conclusions

In the intestinal epithelial cell line, Caco-2, the commonly-consumed artificial sweeteners, sucralose, aspartame and saccharin, all have an impact on permeability. At high concentrations, aspartame and saccharin induce apoptosis and cell death, while at low concentrations, sucralose and aspartame increased epithelial barrier permeability and down-regulated claudin 3 at the cell surface. Whilst findings demonstrate that the artificial sweeteners sucralose, aspartame, and saccharin exert a range of negative effects on the intestinal epithelium through the sweet taste receptor T1R3, further study is needed to demonstrate the in vivo effect of these sweeteners on the intestinal epithelium.

Author Contributions

Acquisition of data: A.S., B.F., O.O., Z.G., H.C., and J.M.; conception and design: H.C., J.M., and A.S.; analysis and interpretation of data: H.C., J.M., A.S., B.F., O.O., and Z.G.; and drafting the manuscript for intellectual content: H.C. and J.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Diabetes UK grant number 15/0005284 (H. Chichger) and an intercalated degree award funded by Kidney Research UK (Z. Ghufoor and J. Marks).

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

CCK-8, cell counting kit; DCFDA, 2′,7′-dichlorofluorescin diacetate; DPBS, Dulbecco’s phosphate-buffered saline; FD20, fluorescein isothiocyanate (FITC)-labelled dextran 20 kDa; FOXO4, Forkhead Box O4; JAMs, junctional adhesion molecules; LPS, lipopolysaccharide; NAC, N-acetyl cysteine; PKC, protein kinase C; ROS, reactive oxygen species; siRNA, silencing RNA; T1R2 and T1R3, sweet taste receptor 2 and 3; TER, transepithelial resistance; TJ, tight junction.

References

  1. Damci, T.; Nuhoglu, I.; Devranoglu, G.; Osar, Z.; Demir, M.; Ilkova, H. Increased Intestinal Permeability as a Cause of Fluctuating Postprandial Blood Glucose Levels in Type 1 Diabetic Patients. Eur. J. Clin. Invest. 2003, 33, 397–401. [Google Scholar] [CrossRef] [PubMed]
  2. de Haan, J.J.; Lubbers, T.; Derikx, J.P.; Relja, B.; Henrich, D.; Greve, J.W.; Marzi, I.; Buurman, W.A. Rapid Development of Intestinal Cell Damage Following Severe Trauma: A Prospective Observational Cohort Study. Crit. Care 2009, 13, R86. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Fishman, J.E.; Levy, G.; Alli, V.; Zheng, X.; Mole, D.J.; Deitch, E.A. The Intestinal Mucus Layer is a Critical Component of the Gut Barrier that is Damaged during Acute Pancreatitis. Shock 2014, 42, 264–270. [Google Scholar] [CrossRef][Green Version]
  4. Bischoff, S.C.; Barbara, G.; Buurman, W.; Ockhuizen, T.; Schulzke, J.D.; Serino, M.; Tilg, H.; Watson, A.; Wells, J.M. Intestinal Permeability—A New Target for Disease Prevention and Therapy. BMC Gastroenterol. 2014, 14, 189. [Google Scholar] [CrossRef][Green Version]
  5. Rayes, N.; Seehofer, D.; Hansen, S.; Boucsein, K.; Muller, A.R.; Serke, S.; Bengmark, S.; Neuhaus, P. Early Enteral Supply of Lactobacillus and Fiber Versus Selective Bowel Decontamination: A Controlled Trial in Liver Transplant Recipients. Transplantation 2002, 74, 123–127. [Google Scholar] [CrossRef] [PubMed]
  6. Zhou, Z.Y.; Ren, L.W.; Zhan, P.; Yang, H.Y.; Chai, D.D.; Yu, Z.W. Metformin Exerts Glucose-Lowering Action in High-Fat Fed Mice Via Attenuating Endotoxemia and Enhancing Insulin Signaling. Acta Pharmacol. Sin. 2016, 37, 1063–1075. [Google Scholar] [CrossRef]
  7. Konig, J.; Wells, J.; Cani, P.D.; Garcia-Rodenas, C.L.; MacDonald, T.; Mercenier, A.; Whyte, J.; Troost, F.; Brummer, R.J. Human Intestinal Barrier Function in Health and Disease. Clin. Transl. Gastroenterol. 2016, 7, e196. [Google Scholar] [CrossRef] [PubMed]
  8. Madara, J.L.; Pappenheimer, J.R. Structural Basis for Physiological Regulation of Paracellular Pathways in Intestinal Epithelia. J. Membr. Biol. 1987, 100, 149–164. [Google Scholar] [CrossRef]
  9. Furuse, M.; Furuse, K.; Sasaki, H.; Tsukita, S. Conversion of Zonulae Occludentes from Tight to Leaky Strand Type by Introducing Claudin-2 into Madin-Darby Canine Kidney I Cells. J. Cell Biol. 2001, 153, 263–272. [Google Scholar] [CrossRef]
  10. Vetrano, S.; Rescigno, M.; Cera, M.R.; Correale, C.; Rumio, C.; Doni, A.; Fantini, M.; Sturm, A.; Borroni, E.; Repici, A.; et al. Unique Role of Junctional Adhesion Molecule-a in Maintaining Mucosal Homeostasis in Inflammatory Bowel Disease. Gastroenterology 2008, 135, 173–184. [Google Scholar] [CrossRef][Green Version]
  11. Furuse, M.; Sasaki, H.; Tsukita, S. Manner of Interaction of Heterogeneous Claudin Species within and between Tight Junction Strands. J. Cell Biol. 1999, 147, 891–903. [Google Scholar] [CrossRef]
  12. Hou, J.; Renigunta, A.; Yang, J.; Waldegger, S. Claudin-4 Forms Paracellular Chloride Channel in the Kidney and Requires Claudin-8 for Tight Junction Localization. Proc. Natl. Acad. Sci. USA 2010, 107, 18010–18015. [Google Scholar] [CrossRef][Green Version]
  13. Banan, A.; Zhang, L.J.; Shaikh, M.; Fields, J.Z.; Choudhary, S.; Forsyth, C.B.; Farhadi, A.; Keshavarzian, A. Theta Isoform of Protein Kinase C Alters Barrier Function in Intestinal Epithelium through Modulation of Distinct Claudin Isotypes: A Novel Mechanism for Regulation of Permeability. J. Pharmacol. Exp. Ther. 2005, 313, 962–982. [Google Scholar] [CrossRef]
  14. Corr, S.C.; Palsson-McDermott, E.M.; Grishina, I.; Barry, S.P.; Aviello, G.; Bernard, N.J.; Casey, P.G.; Ward, J.B.; Keely, S.J.; Dandekar, S.; et al. MyD88 Adaptor-Like (Mal) Functions in the Epithelial Barrier and Contributes to Intestinal Integrity Via Protein Kinase C. Mucosal Immunol. 2014, 7, 57–67. [Google Scholar] [CrossRef][Green Version]
  15. Barmeyer, C.; Erko, I.; Awad, K.; Fromm, A.; Bojarski, C.; Meissner, S.; Loddenkemper, C.; Kerick, M.; Siegmund, B.; Fromm, M.; et al. Epithelial Barrier Dysfunction in Lymphocytic Colitis through Cytokine-Dependent Internalization of Claudin-5 and -8. J. Gastroenterol. 2017, 52, 1090–1100. [Google Scholar] [CrossRef]
  16. Luettig, J.; Rosenthal, R.; Barmeyer, C.; Schulzke, J.D. Claudin-2 as a Mediator of Leaky Gut Barrier during Intestinal Inflammation. Tissue Barriers 2015, 3, e977176. [Google Scholar] [CrossRef][Green Version]
  17. Tanaka, H.; Takechi, M.; Kiyonari, H.; Shioi, G.; Tamura, A.; Tsukita, S. Intestinal Deletion of Claudin-7 Enhances Paracellular Organic Solute Flux and Initiates Colonic Inflammation in Mice. Gut 2015, 64, 1529–1538. [Google Scholar] [CrossRef][Green Version]
  18. Massey, V.L.; Arteel, G.E. Acute Alcohol-Induced Liver Injury. Front. Physiol. 2012, 3, 193. [Google Scholar] [CrossRef][Green Version]
  19. Moreira, A.P.; Texeira, T.F.; Ferreira, A.B.; Peluzio Mdo, C.; Alfenas Rde, C. Influence of a High-Fat Diet on Gut Microbiota, Intestinal Permeability and Metabolic Endotoxaemia. Br. J. Nutr. 2012, 108, 801–809. [Google Scholar] [CrossRef]
  20. Pendyala, S.; Walker, J.M.; Holt, P.R. A High-Fat Diet is Associated with Endotoxemia that Originates from the Gut. Gastroenterology 2012, 142, 1100–1101. [Google Scholar] [CrossRef][Green Version]
  21. Ahmad, R.; Rah, B.; Bastola, D.; Dhawan, P.; Singh, A.B. Obesity-Induces Organ and Tissue Specific Tight Junction Restructuring and Barrier Deregulation by Claudin Switching. Sci. Rep. 2017, 7, 5125–5128. [Google Scholar] [CrossRef][Green Version]
  22. Gil-Cardoso, K.; Gines, I.; Pinent, M.; Ardevol, A.; Terra, X.; Blay, M. A Cafeteria Diet Triggers Intestinal Inflammation and Oxidative Stress in Obese Rats. Br. J. Nutr. 2017, 117, 218–229. [Google Scholar] [CrossRef][Green Version]
  23. Gardner, C.; Wylie-Rosett, J.; Gidding, S.S.; Steffen, L.M.; Johnson, R.K.; Reader, D.; Lichtenstein, A.H.; American Heart Association Nutrition Committee of the Council on Nutrition; Physical Activity and Metabolism; American Diabetes Association. Nonnutritive Sweeteners: Current use and Health Perspectives: A Scientific Statement from the American Heart Association and the American Diabetes Association. Diabetes Care 2012, 35, 1798–1808. [Google Scholar] [CrossRef][Green Version]
  24. Martyn, D.; Darch, M.; Roberts, A.; Lee, H.Y.; Yaqiong Tian, T.; Kaburagi, N.; Belmar, P. Low-/no-Calorie Sweeteners: A Review of Global Intakes. Nutrients 2018, 10, 357. [Google Scholar] [CrossRef][Green Version]
  25. Nichol, A.D.; Holle, M.J.; An, R. Glycemic Impact of Non-Nutritive Sweeteners: A Systematic Review and Meta-Analysis of Randomized Controlled Trials. Eur. J. Clin. Nutr. 2018, 72, 796–804. [Google Scholar] [CrossRef]
  26. Pepino, M.Y.; Bourne, C. Non-Nutritive Sweeteners, Energy Balance, and Glucose Homeostasis. Curr. Opin. Clin. Nutr. Metab. Care 2011, 14, 391–395. [Google Scholar] [CrossRef]
  27. Suez, J.; Korem, T.; Zeevi, D.; Zilberman-Schapira, G.; Thaiss, C.A.; Maza, O.; Israeli, D.; Zmora, N.; Gilad, S.; Weinberger, A.; et al. Artificial Sweeteners Induce Glucose Intolerance by Altering the Gut Microbiota. Nature 2014, 514, 181–186. [Google Scholar] [CrossRef]
  28. Nettleton, J.E.; Reimer, R.A.; Shearer, J. Reshaping the Gut Microbiota: Impact of Low Calorie Sweeteners and the Link to Insulin Resistance? Physiol. Behav. 2016, 164, 488–493. [Google Scholar] [CrossRef]
  29. Guo, S.; Nighot, M.; Al-Sadi, R.; Alhmoud, T.; Nighot, P.; Ma, T.Y. Lipopolysaccharide Regulation of Intestinal Tight Junction Permeability is Mediated by TLR4 Signal Transduction Pathway Activation of FAK and MyD88. J. Immunol. 2015, 195, 4999–5010. [Google Scholar] [CrossRef]
  30. Nelson, G.; Hoon, M.A.; Chandrashekar, J.; Zhang, Y.; Ryba, N.J.; Zuker, C.S. Mammalian Sweet Taste Receptors. Cell 2001, 106, 381–390. [Google Scholar] [CrossRef][Green Version]
  31. Kubota, H.; Chiba, H.; Takakuwa, Y.; Osanai, M.; Tobioka, H.; Kohama, G.; Mori, M.; Sawada, N. Retinoid X Receptor Alpha and Retinoic Acid Receptor Gamma Mediate Expression of Genes Encoding Tight-Junction Proteins and Barrier Function in F9 Cells during Visceral Endodermal Differentiation. Exp. Cell Res. 2001, 263, 163–172. [Google Scholar] [CrossRef]
  32. Fujita, H.; Chiba, H.; Yokozaki, H.; Sakai, N.; Sugimoto, K.; Wada, T.; Kojima, T.; Yamashita, T.; Sawada, N. Differential Expression and Subcellular Localization of Claudin-7, -8, -12, -13, and -15 Along the Mouse Intestine. J. Histochem. Cytochem. 2006, 54, 933–944. [Google Scholar] [CrossRef][Green Version]
  33. Mineta, K.; Yamamoto, Y.; Yamazaki, Y.; Tanaka, H.; Tada, Y.; Saito, K.; Tamura, A.; Igarashi, M.; Endo, T.; Takeuchi, K.; et al. Predicted Expansion of the Claudin Multigene Family. FEBS Lett. 2011, 585, 606–612. [Google Scholar] [CrossRef][Green Version]
  34. Harrington, E.O.; Vang, A.; Braza, J.; Shil, A.; Chichger, H. Activation of the Sweet Taste Receptor, T1R3, by the Artificial Sweetener Sucralose Regulates the Pulmonary Endothelium. Am. J. Physiol. Lung Cell. Mol. Physiol. 2018, 314, L165–L176. [Google Scholar] [CrossRef]
  35. Krause, G.; Winkler, L.; Mueller, S.L.; Haseloff, R.F.; Piontek, J.; Blasig, I.E. Structure and Function of Claudins. Biochim. Biophys. Acta 2008, 1778, 631–645. [Google Scholar] [CrossRef][Green Version]
  36. Bueter, M.; Miras, A.D.; Chichger, H.; Fenske, W.; Ghatei, M.A.; Bloom, S.R.; Unwin, R.J.; Lutz, T.A.; Spector, A.C.; le Roux, C.W. Alterations of Sucrose Preference After Roux-En-Y Gastric Bypass. Physiol. Behav. 2011, 104, 709–721. [Google Scholar] [CrossRef][Green Version]
  37. Daly, K.; Al-Rammahi, M.; Moran, A.; Marcello, M.; Ninomiya, Y.; Shirazi-Beechey, S.P. Sensing of Amino Acids by the Gut-Expressed Taste Receptor T1R1-T1R3 Stimulates CCK Secretion. Am. J. Physiol. Gastrointest. Liver Physiol. 2013, 304, 271. [Google Scholar] [CrossRef][Green Version]
  38. Mace, O.J.; Affleck, J.; Patel, N.; Kellett, G.L. Sweet Taste Receptors in Rat Small Intestine Stimulate Glucose Absorption through Apical GLUT2. J. Physiol. 2007, 582, 379–392. [Google Scholar] [CrossRef]
  39. Nighot, M.; Al-Sadi, R.; Guo, S.; Rawat, M.; Nighot, P.; Watterson, M.D.; Ma, T.Y. Lipopolysaccharide-Induced Increase in Intestinal Epithelial Tight Permeability is Mediated by Toll-Like Receptor 4/Myeloid Differentiation Primary Response 88 (MyD88) Activation of Myosin Light Chain Kinase Expression. Am. J. Pathol. 2017, 187, 2698–2710. [Google Scholar] [CrossRef][Green Version]
  40. Garcia-Hernandez, V.; Quiros, M.; Nusrat, A. Intestinal Epithelial Claudins: Expression and Regulation in Homeostasis and Inflammation. Ann. N. Y. Acad. Sci. 2017, 1397, 66–79. [Google Scholar] [CrossRef]
  41. Holmes, J.L.; Van Itallie, C.M.; Rasmussen, J.E.; Anderson, J.M. Claudin Profiling in the Mouse during Postnatal Intestinal Development and Along the Gastrointestinal Tract Reveals Complex Expression Patterns. Gene Expr. Patterns 2006, 6, 581–588. [Google Scholar] [CrossRef] [PubMed]
  42. Kratzer, E.; Tian, Y.; Sarich, N.; Wu, T.; Meliton, A.; Leff, A.; Birukova, A.A. Oxidative Stress Contributes to Lung Injury and Barrier Dysfunction Via Microtubule Destabilization. Am. J. Respir. Cell Mol. Biol. 2012, 47, 688–697. [Google Scholar] [CrossRef] [PubMed][Green Version]
  43. Shukla, P.K.; Gangwar, R.; Manda, B.; Meena, A.S.; Yadav, N.; Szabo, E.; Balogh, A.; Lee, S.C.; Tigyi, G.; Rao, R. Rapid Disruption of Intestinal Epithelial Tight Junction and Barrier Dysfunction by Ionizing Radiation in Mouse Colon in Vivo: Protection by N-Acetyl-L-Cysteine. Am. J. Physiol. Gastrointest. Liver Physiol. 2016, 310, 705. [Google Scholar] [CrossRef] [PubMed][Green Version]
  44. Chen, W.Y.; Wang, M.; Zhang, J.; Barve, S.S.; McClain, C.J.; Joshi-Barve, S. Acrolein Disrupts Tight Junction Proteins and Causes Endoplasmic Reticulum Stress-Mediated Epithelial Cell Death Leading to Intestinal Barrier Dysfunction and Permeability. Am. J. Pathol. 2017, 187, 2686–2697. [Google Scholar] [CrossRef][Green Version]
  45. Abiko, Y.; Kojima, T.; Murata, M.; Tsujiwaki, M.; Takeuchi, M.; Sawada, N.; Mori, M. Changes of Tight Junction Protein Claudins in Small Intestine and Kidney Tissues of Mice Fed a DDC Diet. J. Toxicol. Pathol. 2013, 26, 433–438. [Google Scholar] [CrossRef][Green Version]
  46. Wu, R.L.; Vazquez-Roque, M.I.; Carlson, P.; Burton, D.; Grover, M.; Camilleri, M.; Turner, J.R. Gluten-Induced Symptoms in Diarrhea-Predominant Irritable Bowel Syndrome are Associated with Increased Myosin Light Chain Kinase Activity and Claudin-15 Expression. Lab. Invest. 2017, 97, 14–23. [Google Scholar] [CrossRef][Green Version]
  47. Prasad, S.; Mingrino, R.; Kaukinen, K.; Hayes, K.L.; Powell, R.M.; MacDonald, T.T.; Collins, J.E. Inflammatory Processes have Differential Effects on Claudins 2, 3 and 4 in Colonic Epithelial Cells. Lab. Invest. 2005, 85, 1139–1162. [Google Scholar] [CrossRef]
  48. Tamura, A.; Kitano, Y.; Hata, M.; Katsuno, T.; Moriwaki, K.; Sasaki, H.; Hayashi, H.; Suzuki, Y.; Noda, T.; Furuse, M.; et al. Megaintestine in Claudin-15-Deficient Mice. Gastroenterology 2008, 134, 523–534. [Google Scholar] [CrossRef]
  49. Li, H.; Wu, Q.; Xu, L.; Li, X.; Duan, J.; Zhan, J.; Feng, J.; Sun, X.; Chen, H. Increased Oxidative Stress and Disrupted Small Intestinal Tight Junctions in Cigarette Smoke-Exposed Rats. Mol. Med. Rep. 2015, 11, 4639–4644. [Google Scholar] [CrossRef][Green Version]
  50. Oshima, T.; Sasaki, M.; Kataoka, H.; Miwa, H.; Takeuchi, T.; Joh, T. Wip1 Protects Hydrogen Peroxide-Induced Colonic Epithelial Barrier Dysfunction. Cell Mol. Life Sci. 2007, 64, 3139–3147. [Google Scholar] [CrossRef]
  51. Hashimoto, K.; Oshima, T.; Tomita, T.; Kim, Y.; Matsumoto, T.; Joh, T.; Miwa, H. Oxidative Stress Induces Gastric Epithelial Permeability through Claudin-3. Biochem. Biophys. Res. Commun. 2008, 376, 154–157. [Google Scholar] [CrossRef] [PubMed]
  52. Ivanov, A.I.; Nusrat, A.; Parkos, C.A. The Epithelium in Inflammatory Bowel Disease: Potential Role of Endocytosis of Junctional Proteins in Barrier Disruption. Novartis Found. Symp. 2004, 263, 115–118. [Google Scholar] [PubMed]
  53. Hewlett, L.J.; Prescott, A.R.; Watts, C. The Coated Pit and Macropinocytic Pathways Serve Distinct Endosome Populations. J. Cell Biol. 1994, 124, 689–703. [Google Scholar] [CrossRef] [PubMed][Green Version]
  54. Hopkins, A.M.; Walsh, S.V.; Verkade, P.; Boquet, P.; Nusrat, A. Constitutive Activation of Rho Proteins by CNF-1 Influences Tight Junction Structure and Epithelial Barrier Function. J. Cell. Sci. 2003, 116, 725–742. [Google Scholar] [CrossRef][Green Version]
  55. Jain, S.; Suzuki, T.; Seth, A.; Samak, G.; Rao, R. Protein Kinase Czeta Phosphorylates Occludin and Promotes Assembly of Epithelial Tight Junctions. Biochem. J. 2011, 437, 289–299. [Google Scholar] [CrossRef][Green Version]
  56. Farkas, A.E.; Hilgarth, R.S.; Capaldo, C.T.; Gerner-Smidt, C.; Powell, D.R.; Vertino, P.M.; Koval, M.; Parkos, C.A.; Nusrat, A. HNF4alpha Regulates Claudin-7 Protein Expression during Intestinal Epithelial Differentiation. Am. J. Pathol. 2015, 185, 2206–2218. [Google Scholar] [CrossRef]
  57. Huang, J.; Zhang, L.; He, C.; Qu, Y.; Li, J.; Zhang, J.; Du, T.; Chen, X.; Yu, Y.; Liu, B.; et al. Claudin-1 Enhances Tumor Proliferation and Metastasis by Regulating Cell Anoikis in Gastric Cancer. Oncotarget 2015, 6, 1652–1665. [Google Scholar] [CrossRef][Green Version]
  58. Miwa, N.; Furuse, M.; Tsukita, S.; Niikawa, N.; Nakamura, Y.; Furukawa, Y. Involvement of Claudin-1 in the Beta-Catenin/Tcf Signaling Pathway and its Frequent Upregulation in Human Colorectal Cancers. Oncol. Res. 2001, 12, 469–476. [Google Scholar] [CrossRef]
  59. O’Brien, P.; Corpe, C.P. Acute Effects of Sugars and Artificial Sweeteners on Small Intestinal Sugar Transport: A Study using CaCo-2 Cells as an in Vitro Model of the Human Enterocyte. PLoS ONE 2016, 11, e0167785. [Google Scholar] [CrossRef][Green Version]
  60. Hamano, K.; Nakagawa, Y.; Ohtsu, Y.; Li, L.; Medina, J.; Tanaka, Y.; Masuda, K.; Komatsu, M.; Kojima, I. Lactisole Inhibits the Glucose-Sensing Receptor T1R3 Expressed in Mouse Pancreatic Beta-Cells. J. Endocrinol. 2015, 226, 57–66. [Google Scholar] [CrossRef][Green Version]
  61. Santos, P.S.; Caria, C.R.P.; Gotardo, E.M.F.; Ribeiro, M.L.; Pedrazzoli, J.; Gambero, A. Artificial Sweetener Saccharin Disrupts Intestinal Epithelial Cells’ Barrier Function in Vitro. Food Funct. 2018, 9, 3815–3822. [Google Scholar] [CrossRef] [PubMed]
  62. Angelow, S.; Zeni, P.; Hohn, B.; Galla, H.J. Phorbol Ester Induced Short- and Long-Term Permeabilization of the Blood-CSF Barrier in Vitro. Brain Res. 2005, 1063, 168–179. [Google Scholar] [CrossRef]
  63. Anderson, R.L.; Kirkland, J.J. The Effect of Sodium Saccharin in the Diet on Caecal Microflora. Food Cosmet. Toxicol. 1980, 18, 353–355. [Google Scholar] [CrossRef]
  64. Hooper, N.M.; Hesp, R.J.; Tieku, S. Metabolism of Aspartame by Human and Pig Intestinal Microvillar Peptidases. Biochem. J. 1994, 298, 635–639. [Google Scholar] [CrossRef] [PubMed][Green Version]
  65. John, B.A.; Wood, S.G.; Hawkins, D.R. The Pharmacokinetics and Metabolism of Sucralose in the Mouse. Food Chem. Toxicol. 2000, 38, 107. [Google Scholar] [CrossRef]
  66. Renwick, A.G. The Disposition of Saccharin in Animals and Man—A Review. Food Chem. Toxicol. 1985, 23, 429–435. [Google Scholar] [CrossRef]
  67. Filer, L.J.; Stegink, L.D. Aspartame Metabolism in Normal Adults, Phenylketonuric Heterozygotes, and Diabetic Subjects. Diabetes Care 1989, 12, 67–74. [Google Scholar] [CrossRef][Green Version]
  68. Horton, V.L.; Higuchi, M.A.; Rickert, D.E. Physiologically Based Pharmacokinetic Model for Methanol in Rats, Monkeys, and Humans. Toxicol. Appl. Pharmacol. 1992, 117, 26–36. [Google Scholar] [CrossRef]
  69. Stegink, L.D.; Filer, L.J.; Baker, G.L.; Bell, E.F.; Ziegler, E.E.; Brummel, M.C.; Krause, W.L. Repeated Ingestion of Aspartame-Sweetened Beverage: Effect on Plasma Amino Acid Concentrations in Individuals Heterozygous for Phenylketonuria. Metabolism 1989, 38, 78–84. [Google Scholar] [CrossRef]
  70. Haines, D.J.; Swan, C.H.; Green, J.R.; Woodley, J.F. Mucosal Peptide Hydrolase and Brush-Border Marker Enzyme Activities in Three Regions of the Small Intestine of Rats with Experimental Uraemia. Clin. Sci. (Lond.) 1990, 79, 663–668. [Google Scholar] [CrossRef][Green Version]
  71. Bezencon, C.; le Coutre, J.; Damak, S. Taste-Signaling Proteins are Coexpressed in Solitary Intestinal Epithelial Cells. Chem. Senses 2007, 32, 41–49. [Google Scholar] [CrossRef] [PubMed][Green Version]
  72. Yang, Q. Gain Weight by “Going Diet?” Artificial Sweeteners and the Neurobiology of Sugar Cravings: Neuroscience 2010. Yale J. Biol. Med. 2010, 83, 101–108. [Google Scholar] [PubMed]
  73. Magnuson, B.A.; Carakostas, M.C.; Moore, N.H.; Poulos, S.P.; Renwick, A.G. Biological Fate of Low-Calorie Sweeteners. Nutr. Rev. 2016, 74, 670–689. [Google Scholar] [CrossRef] [PubMed][Green Version]

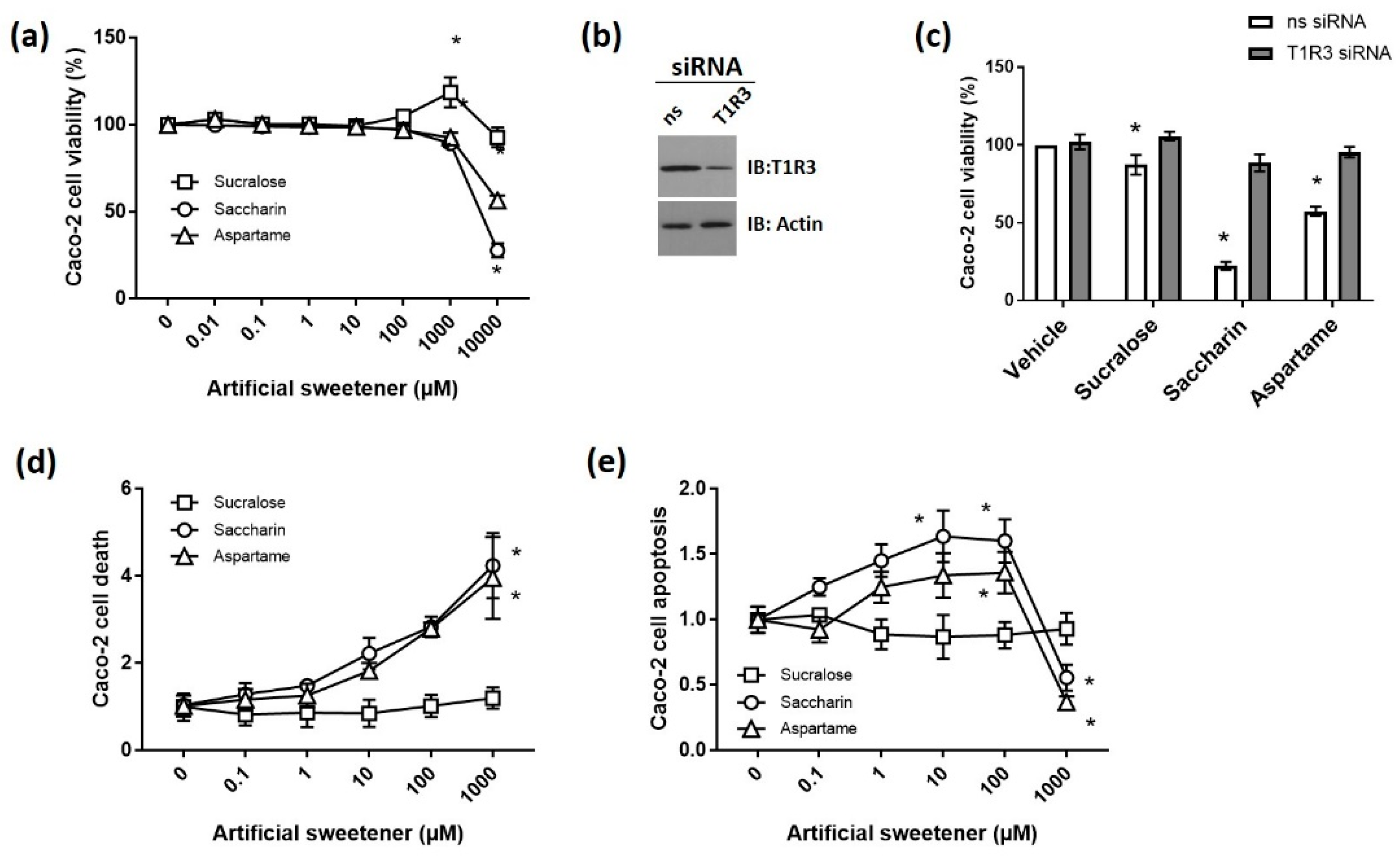

Figure 1. High physiological concentrations of artificial sweeteners decreased the viability and increase apoptosis of Caco2 cells through the sweet taste receptor (T1R3). (a) Caco-2 cell viability was measured using the Cell Counting Kit-8 (CCK8) assay following 24 h exposure to the artificial sweeteners sucralose, saccharin, and aspartame at concentrations ranging from 0.01 to 10,000 µM. Absorbance was normalized to a 0 µM control and expressed as percentage viability. n = 8. (b,c) Caco-2 cell viability was measured as for (a) following the siRNA knockdown of T1R3 for 24 h and exposure to sucralose, saccharin, and aspartame (10 mM) for a further 24 h. A representative blot of T1R3 and load control actin were shown to confirm siRNA knockdown using 50 µg of protein (b). Caco-2 cells were collected following exposure to sucralose, saccharin, and aspartame at concentrations ranging from 0.1 to 1000 µM for 24 h and analyzed by flow cytometry. Cell death (d) and apoptosis (e) were measured as propidium iodide and annexin V-positive and annexin V-positive cells, respectively. n = 5–6. Data are expressed as mean ± S.E.M. * p < 0.05 versus vehicle (0 µM).
Figure 1. High physiological concentrations of artificial sweeteners decreased the viability and increase apoptosis of Caco2 cells through the sweet taste receptor (T1R3). (a) Caco-2 cell viability was measured using the Cell Counting Kit-8 (CCK8) assay following 24 h exposure to the artificial sweeteners sucralose, saccharin, and aspartame at concentrations ranging from 0.01 to 10,000 µM. Absorbance was normalized to a 0 µM control and expressed as percentage viability. n = 8. (b,c) Caco-2 cell viability was measured as for (a) following the siRNA knockdown of T1R3 for 24 h and exposure to sucralose, saccharin, and aspartame (10 mM) for a further 24 h. A representative blot of T1R3 and load control actin were shown to confirm siRNA knockdown using 50 µg of protein (b). Caco-2 cells were collected following exposure to sucralose, saccharin, and aspartame at concentrations ranging from 0.1 to 1000 µM for 24 h and analyzed by flow cytometry. Cell death (d) and apoptosis (e) were measured as propidium iodide and annexin V-positive and annexin V-positive cells, respectively. n = 5–6. Data are expressed as mean ± S.E.M. * p < 0.05 versus vehicle (0 µM).
Nutrients 12 01862 g001
Figure 2. Low physiological concentrations of artificial sweeteners sucralose and aspartame disrupt the intestinal epithelial barrier through the sweet taste receptor. (a) The permeability of the epithelial monolayer was measured with an FITC-dextran assay, following exposure to sucralose, saccharin, and aspartame (0.1 mM) for 24 h using lipopolysaccharide (LPS) (1 µg/mL) as a positive control. (b) The permeability of the Caco-2 cell monolayer was measured with an FITC-dextran assay following the siRNA knockdown of T1R3 for 24 h and exposure to sucralose, saccharin, and aspartame (0.1 mM) for a further 24 h. % permeability was calculated normalized to vehicle treatment. n = 6. Data are expressed as mean ± S.E.M. * p < 0.05 versus vehicle (0 µM).
Figure 2. Low physiological concentrations of artificial sweeteners sucralose and aspartame disrupt the intestinal epithelial barrier through the sweet taste receptor. (a) The permeability of the epithelial monolayer was measured with an FITC-dextran assay, following exposure to sucralose, saccharin, and aspartame (0.1 mM) for 24 h using lipopolysaccharide (LPS) (1 µg/mL) as a positive control. (b) The permeability of the Caco-2 cell monolayer was measured with an FITC-dextran assay following the siRNA knockdown of T1R3 for 24 h and exposure to sucralose, saccharin, and aspartame (0.1 mM) for a further 24 h. % permeability was calculated normalized to vehicle treatment. n = 6. Data are expressed as mean ± S.E.M. * p < 0.05 versus vehicle (0 µM).
Nutrients 12 01862 g002

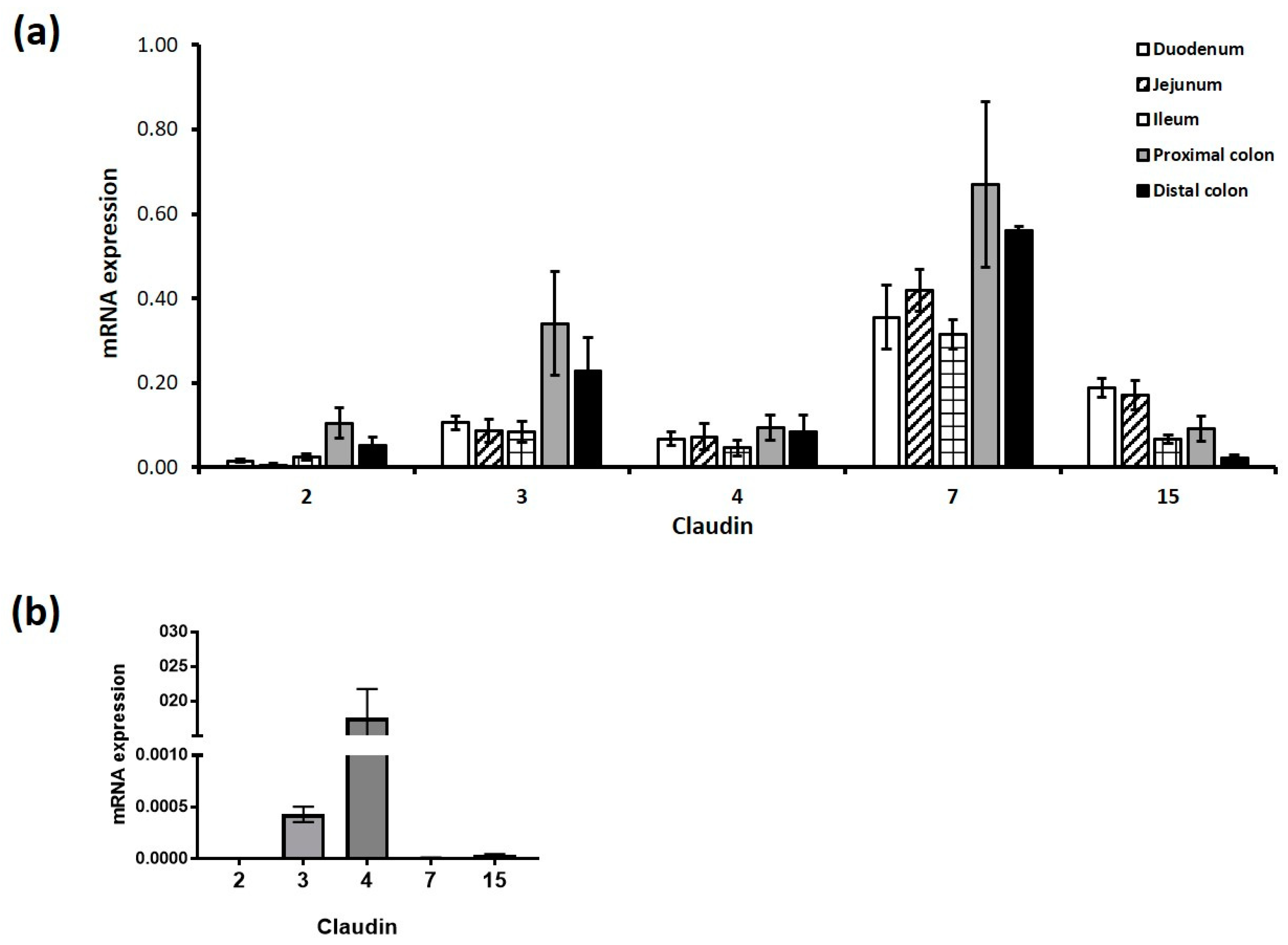

Figure 3. Claudin mRNA expression profile in the intestinal epithelium in vitro and in vivo. Claudin mRNA transcripts were profiled in the small and large intestine and in cultured Caco-2 cells. (a) Three segments of the murine small intestine, the duodenum (stomach to ligament of Treitz), the jejunum (ligament of Treitz until mid-small intestine), the ileum (remaining half of small intestine until the caecum), and two segments of the large intestine (proximal (first half of the colon) and distal colon (second half of the colon)) were collected for RT-PCR analysis. (b) Untreated Caco-2 cells were collected for RT-PCR analysis. The relative ratio was calculated as claudin compared to actin mRNA expression levels. Data are expressed as the mean ± S.E.M of PCR reactions. n = 6.
Figure 3. Claudin mRNA expression profile in the intestinal epithelium in vitro and in vivo. Claudin mRNA transcripts were profiled in the small and large intestine and in cultured Caco-2 cells. (a) Three segments of the murine small intestine, the duodenum (stomach to ligament of Treitz), the jejunum (ligament of Treitz until mid-small intestine), the ileum (remaining half of small intestine until the caecum), and two segments of the large intestine (proximal (first half of the colon) and distal colon (second half of the colon)) were collected for RT-PCR analysis. (b) Untreated Caco-2 cells were collected for RT-PCR analysis. The relative ratio was calculated as claudin compared to actin mRNA expression levels. Data are expressed as the mean ± S.E.M of PCR reactions. n = 6.
Nutrients 12 01862 g003
Figure 4. Sucralose and aspartame modulate claudin 3 and 15 expression in intestinal epithelial cells through T1R3. (ae) The cell surface expression of claudins 2, 3, 4, 7, and 15, respectively, was determined, with whole-cell indirect ELISA using chemiluminescence, in Caco-2 cells exposed to sucralose or aspartame (0.1 mM) or LPS (1 µg/mL) for 24 h. (f,g) The cell surface expression of claudins 3 and 15, respectively, was determined in Caco-2 cells following siRNA knockdown of T1R3 for 24 h and exposure to sucralose or aspartame (0.1 mM) for a further 24 h. n = 6. Data are expressed as mean ± S.E.M. * p < 0.05 versus vehicle (0 µM).
Figure 4. Sucralose and aspartame modulate claudin 3 and 15 expression in intestinal epithelial cells through T1R3. (ae) The cell surface expression of claudins 2, 3, 4, 7, and 15, respectively, was determined, with whole-cell indirect ELISA using chemiluminescence, in Caco-2 cells exposed to sucralose or aspartame (0.1 mM) or LPS (1 µg/mL) for 24 h. (f,g) The cell surface expression of claudins 3 and 15, respectively, was determined in Caco-2 cells following siRNA knockdown of T1R3 for 24 h and exposure to sucralose or aspartame (0.1 mM) for a further 24 h. n = 6. Data are expressed as mean ± S.E.M. * p < 0.05 versus vehicle (0 µM).
Nutrients 12 01862 g004

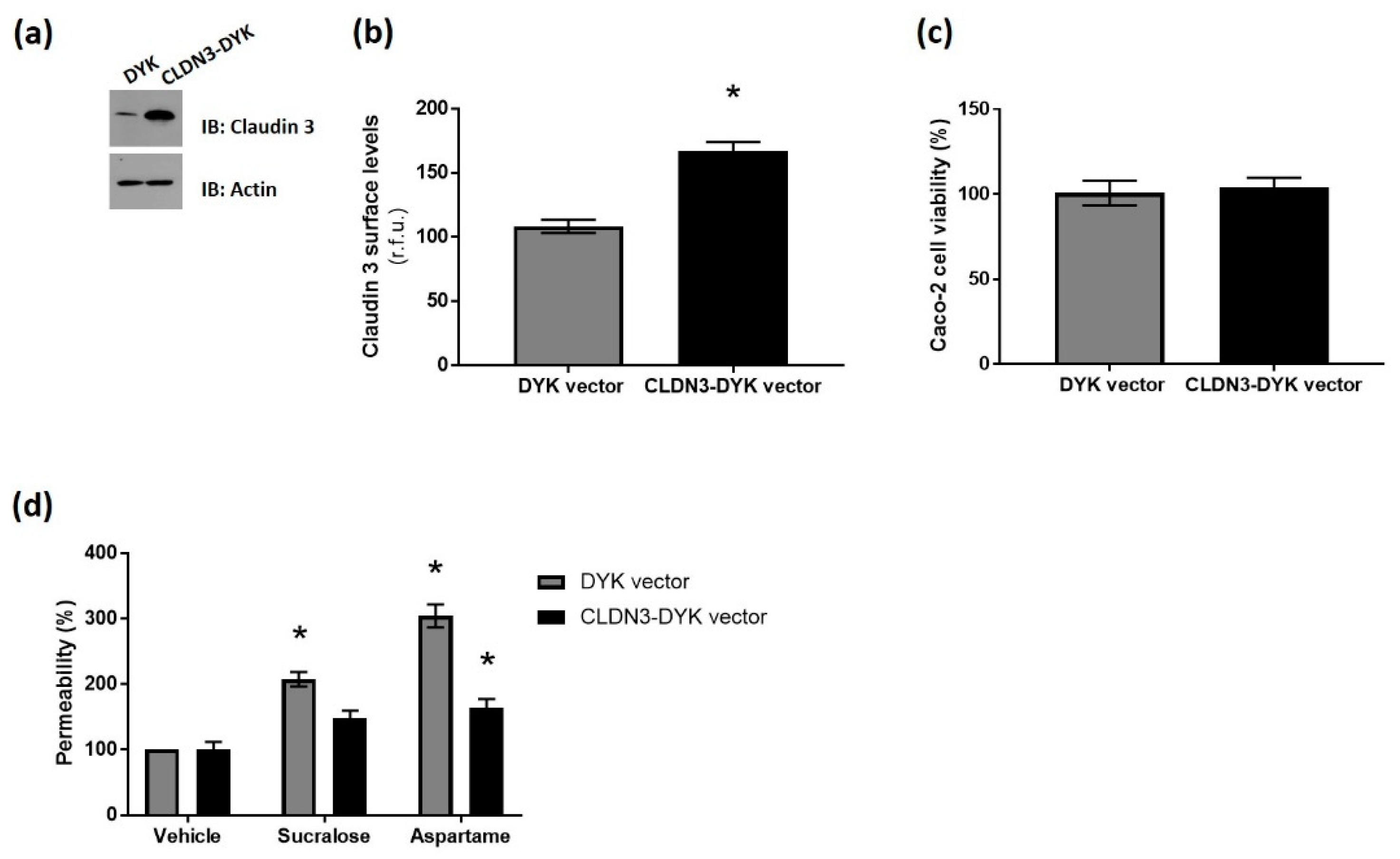

Figure 5. Overexpression of claudin 3 rescues sweetener-induced barrier leakage across the intestinal epithelium. Caco-2 cells were transiently transfected with cDNA encoding wild-type claudin 3 (CLDN3-DYK) or the vector control (DYK), or untransfected (UT) for 48 h. (a) The total protein levels of claudin 3 in cells were measured by the Western blot analysis of cell lysates using 50 µg protein. (b) The cell surface expression of claudin 3 was determined by whole-cell indirect ELISA using chemiluminescence in transfected Caco-2 cells. (c) The viability of transfected Caco-2 cells was assessed by a CCK8 assay. Absorbance values were normalized to untransfected control and expressed as percentage viability. (d) The permeability of the transfected Caco-2 cell monolayer was measured by an FITC-dextran assay following exposure to sucralose and aspartame (0.1 mM) for 24 h. % permeability was calculated normalized to vehicle treatment. n = 6. Data are expressed as mean ± S.E.M. * p < 0.05 versus untransfected cells or vehicle (0 µM).
Figure 5. Overexpression of claudin 3 rescues sweetener-induced barrier leakage across the intestinal epithelium. Caco-2 cells were transiently transfected with cDNA encoding wild-type claudin 3 (CLDN3-DYK) or the vector control (DYK), or untransfected (UT) for 48 h. (a) The total protein levels of claudin 3 in cells were measured by the Western blot analysis of cell lysates using 50 µg protein. (b) The cell surface expression of claudin 3 was determined by whole-cell indirect ELISA using chemiluminescence in transfected Caco-2 cells. (c) The viability of transfected Caco-2 cells was assessed by a CCK8 assay. Absorbance values were normalized to untransfected control and expressed as percentage viability. (d) The permeability of the transfected Caco-2 cell monolayer was measured by an FITC-dextran assay following exposure to sucralose and aspartame (0.1 mM) for 24 h. % permeability was calculated normalized to vehicle treatment. n = 6. Data are expressed as mean ± S.E.M. * p < 0.05 versus untransfected cells or vehicle (0 µM).
Nutrients 12 01862 g005

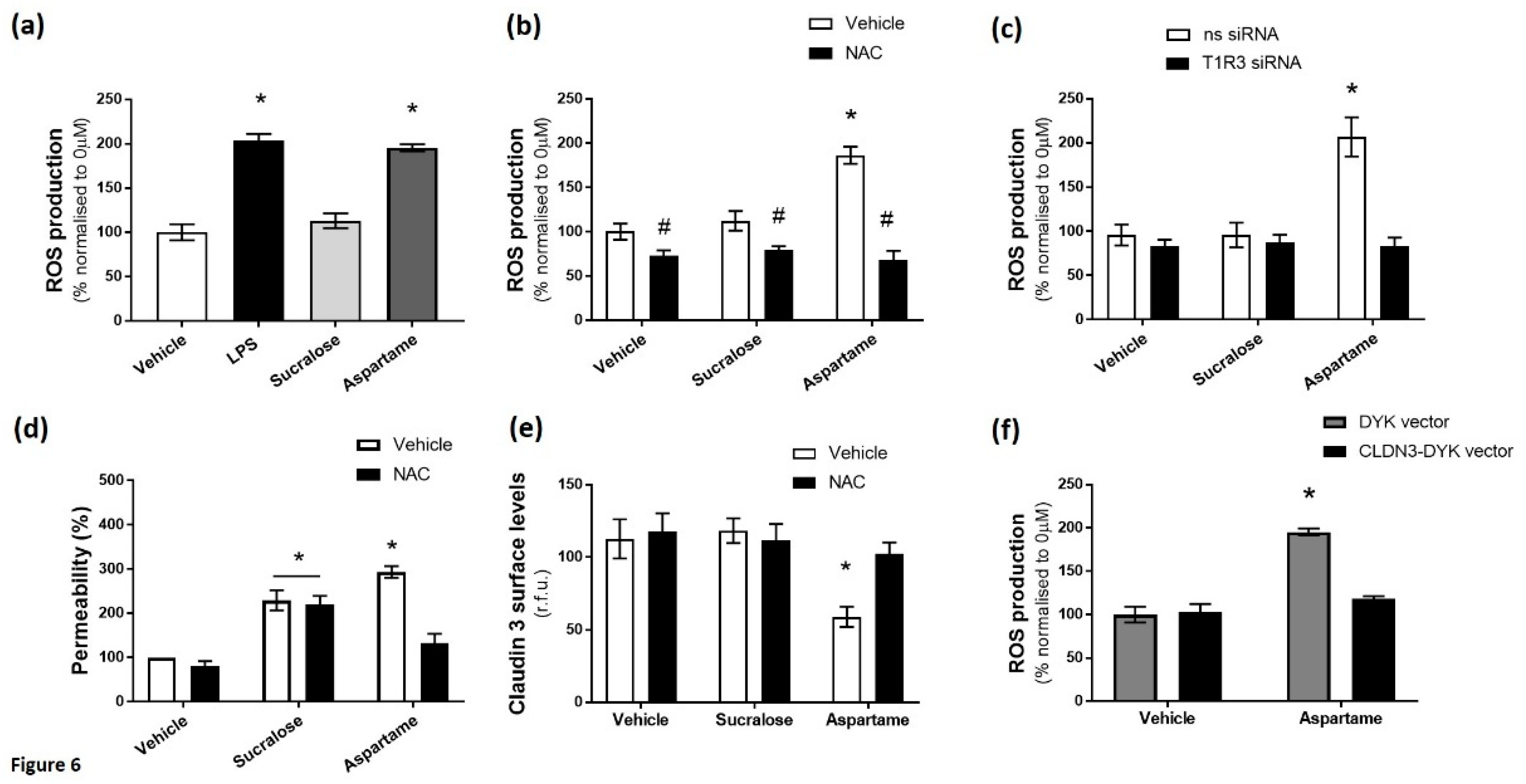

Figure 6. Aspartame, but not sucralose, increases oxidative stress in intestinal epithelial cells linked to barrier leakage. Reactive oxygen species (ROS) production in Caco-2 cells was measured by fluorescence of DCFDA following exposure to sucralose or aspartame (0.1 mM) or LPS (1 µg/mL) as a positive control (a) in the presence and absence of the anti-oxidant N-acetyl cysteine (NAC; 1 mM) (b) or following siRNA knockdown of T1R3 (c). (d) The permeability of the Caco-2 cell monolayer was measured by an FITC-dextran assay, following exposure to sucralose and aspartame (0.1 mM) for 24 h in the presence and absence of NAC. % permeability was calculated normalized to vehicle treatment. (e) The cell surface expression of claudin 3 was determined by whole-cell indirect ELISA using chemiluminescence in Caco-2 cells exposed to sucralose or aspartame (0.1 mM) in the presence and absence of NAC. (f) ROS production was measured by fluorescence of DCFDA in Caco-2 cells transiently transfected with CLDN3-DYK or control vector, exposed to aspartame (0.1 mM). % permeability was calculated normalized to vehicle treatment. ROS production was calculated as % normalized to 0 µM. n = 5–6. Data are expressed as mean ± S.E.M. * p < 0.05 versus vehicle (0 µM); # p < 0.05 versus vehicle for NAC.
Figure 6. Aspartame, but not sucralose, increases oxidative stress in intestinal epithelial cells linked to barrier leakage. Reactive oxygen species (ROS) production in Caco-2 cells was measured by fluorescence of DCFDA following exposure to sucralose or aspartame (0.1 mM) or LPS (1 µg/mL) as a positive control (a) in the presence and absence of the anti-oxidant N-acetyl cysteine (NAC; 1 mM) (b) or following siRNA knockdown of T1R3 (c). (d) The permeability of the Caco-2 cell monolayer was measured by an FITC-dextran assay, following exposure to sucralose and aspartame (0.1 mM) for 24 h in the presence and absence of NAC. % permeability was calculated normalized to vehicle treatment. (e) The cell surface expression of claudin 3 was determined by whole-cell indirect ELISA using chemiluminescence in Caco-2 cells exposed to sucralose or aspartame (0.1 mM) in the presence and absence of NAC. (f) ROS production was measured by fluorescence of DCFDA in Caco-2 cells transiently transfected with CLDN3-DYK or control vector, exposed to aspartame (0.1 mM). % permeability was calculated normalized to vehicle treatment. ROS production was calculated as % normalized to 0 µM. n = 5–6. Data are expressed as mean ± S.E.M. * p < 0.05 versus vehicle (0 µM); # p < 0.05 versus vehicle for NAC.
Nutrients 12 01862 g006
Table 1. List of primers used for Caco-2 cell experiments. Taste receptor and claudin primers were purchased from QIAGEN, while the actin primers were purchased from Sigma-Aldrich.
Table 1. List of primers used for Caco-2 cell experiments. Taste receptor and claudin primers were purchased from QIAGEN, while the actin primers were purchased from Sigma-Aldrich.
PrimerCatalogue Number
T1R2QT01026508
T2R3QT00214270
Claudin 2 QT0089481
Claudin 3QT00201376
Claudin 4QT00241073
Claudin 7QT00236061
Claudin 15QT00202048
β-actinForward TCACCCTGAAGTACCCCATC
Reverse TAGCACAGCCTGGATAGCAA
Table 2. List of primers used for murine intestine claudin expression experiments. Primer sequences used were either published sequences or designed by Dr Rajagopal. The compiled list was kindly supply by Professor A Yu of the University of Kansas Medical Center.
Table 2. List of primers used for murine intestine claudin expression experiments. Primer sequences used were either published sequences or designed by Dr Rajagopal. The compiled list was kindly supply by Professor A Yu of the University of Kansas Medical Center.
GeneNucleotide Accession NumberForward PrimerReverse PrimerReference
Claudin 1NM_016674CCTTCGGGAGCTCAGGTGCGCCGCGTTGGCCATGGCTCTT[31]
Claudin 2NM_016675TGGCGTCCAACTGGTGGGCTACCGCCGTCACAATGCTGGC[31]
Claudin 3NM_009902GGGCAGTCTCTGTGCGAGCCCGGACGTCTGTCGCCGGGAA[31]
Claudin 4BC132376TGGGGACAGGCAAACCCGGACTTGCCGGCCGTAAGGAGCC[31]
Claudin 5NM_013805GCTCAGTGCACCACCTGCGTGAACCAGCAGAGCGGCACGA[31]
Claudin 6NM_018777AGCACTCGCCCCCTCAACCTCCATGGGCAGGGCACAGGACAC[31]
Claudin 7NM_001193619CACGCAGAGCACCGGCATGAAGGGCGAGCACCGAGTCGTABlast
Claudin 8NM_018778TCCCTGTCAGCTGGGTTGCCAGCTCGCGCTTTAGGGCCACA[31]
Claudin 9NM_020293TCCCAAGTGGCACCTCACGGTCGCGTTCCTCTCTGCTGGCTG[32]
Claudin 10aNM_023878GTGGCAGCAGGCAAGGCTGACACAGACGACGCTCGGGTGGBlast
Claudin 10bNM_001160099CTCCATCTCGGGCTGGGTGCCAACGCCAGCATGGAGGGGABlast
Claudin 11NM_008770TGGTTCCAGCTCGCCAACGCTTACAGCACCTCGGCGGGCA[32]
Claudin 12NM_001193659AGGTATTCCCGAGCGGAGCCACCCGGAGGCTTCAGGGAACCA[32]
Claudin 13NM_020504TGACTCGTCCTGGTCCTGCCAGGTCACCCTCCAAACGGGCA[32]
Claudin 14NM_001165926GCAGCTGCGGCAAAGGAGTCTACGGCCGTCTAATGGGTCCCT[32]
Claudin 15NM_021719TATGAACTGGGCCCCGCCCTATCCGAGGTGGCACGGGGTA[32]
Claudin 16NM_053241CCACGAACCAGGATGTGCCCGGCGAGGGTCGTGGAGGTCAC[32]
Claudin 17NM_181490CTCCAGCGAGAGGGTCAAAGAGCAGCAATATCCGCAGAGC[32]
Claudin 18NM_001194921CCTGACACCAGATGACAGCAGGCAACATTTTGGCCAGAGG[32]
Claudin 19NM_153105CAGAGCCGGAGAGGGCGAACATCTGGGCAAGAGGGTTGCTGG[32]
Claudin 20NM_001101560GCACTCTAAAATACTCCATTCTGAAGCAGACTCCTCCAGCBlast
Claudin 21 CTGGGACTATTGGGACTTCTGAGGAGACTGGAAAGAGGGTAG[33]
Claudin 22NM_029383TTCCGAACGGCAACGCAGGCCCCATCCCAGCAGGGAGAGCABlast
Claudin 23NM_027998CGACGGACAGCATCGGCCTCGGACTTGGGTGGCGGTCGTGBlast
Claudin 24NM_001111318GAACGGCCATGCAATCAGTAGGGCGACGCAGGATTTCCAGAGCCCCBlast
Claudin 25NM_171826GAGAGGATGGGCGTATGCAGACTGCTCCAAGATGCTACGGBlast
Claudin 26NM_029070GTGCGGGTGGGATCGCGTAACCCACGCTCCCCGTCTGTTCBlast
Claudin 27NM_001085535TGGGTAGCCGGTGCCTCGAAGCAGGCACCTAGCACAGGGG[33]
β-actinNM_007393ATATCGCTGCGCTGGTCGTCAGGATGGCGTGAGGGAGAGCBlast
Back to TopTop
