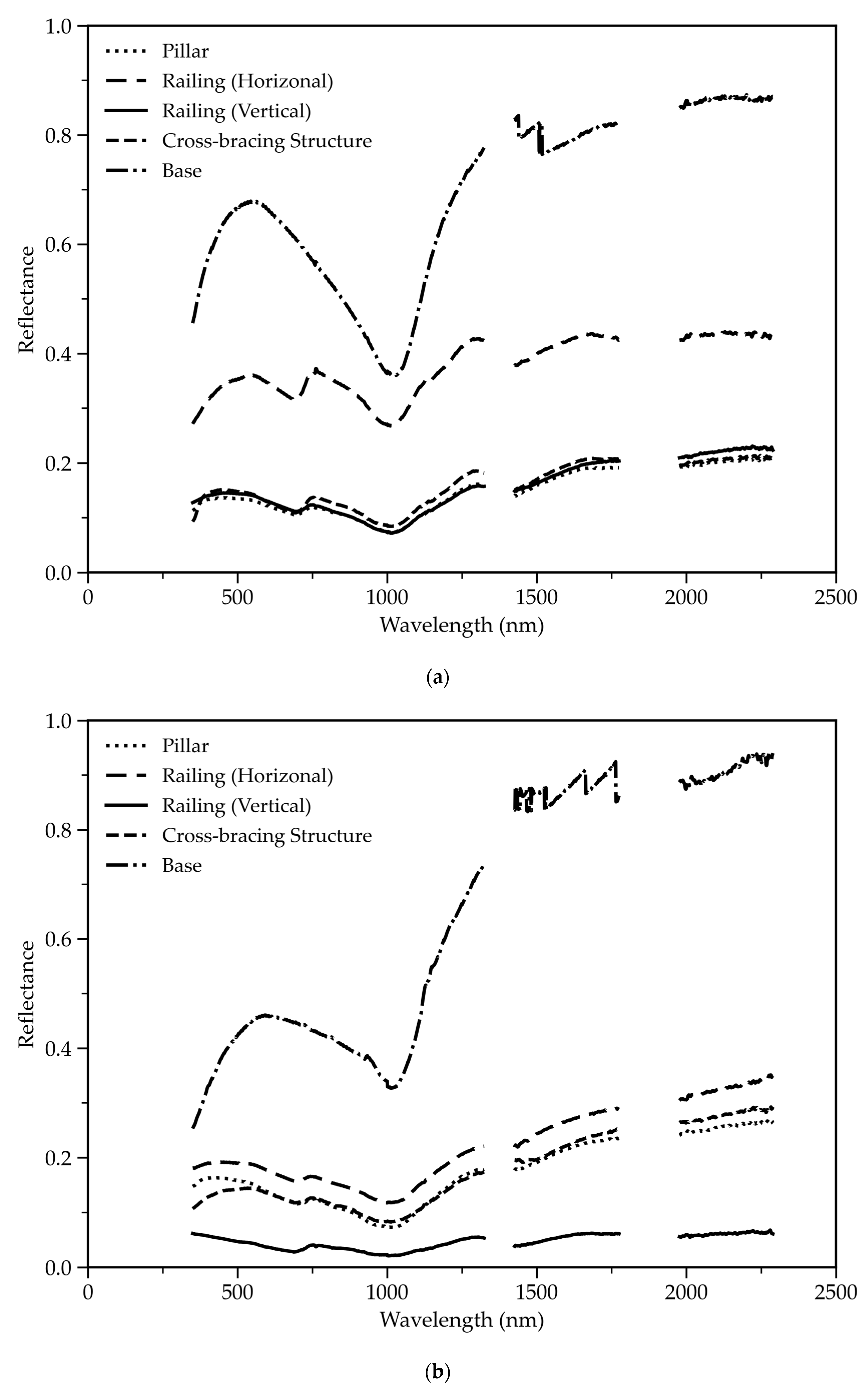

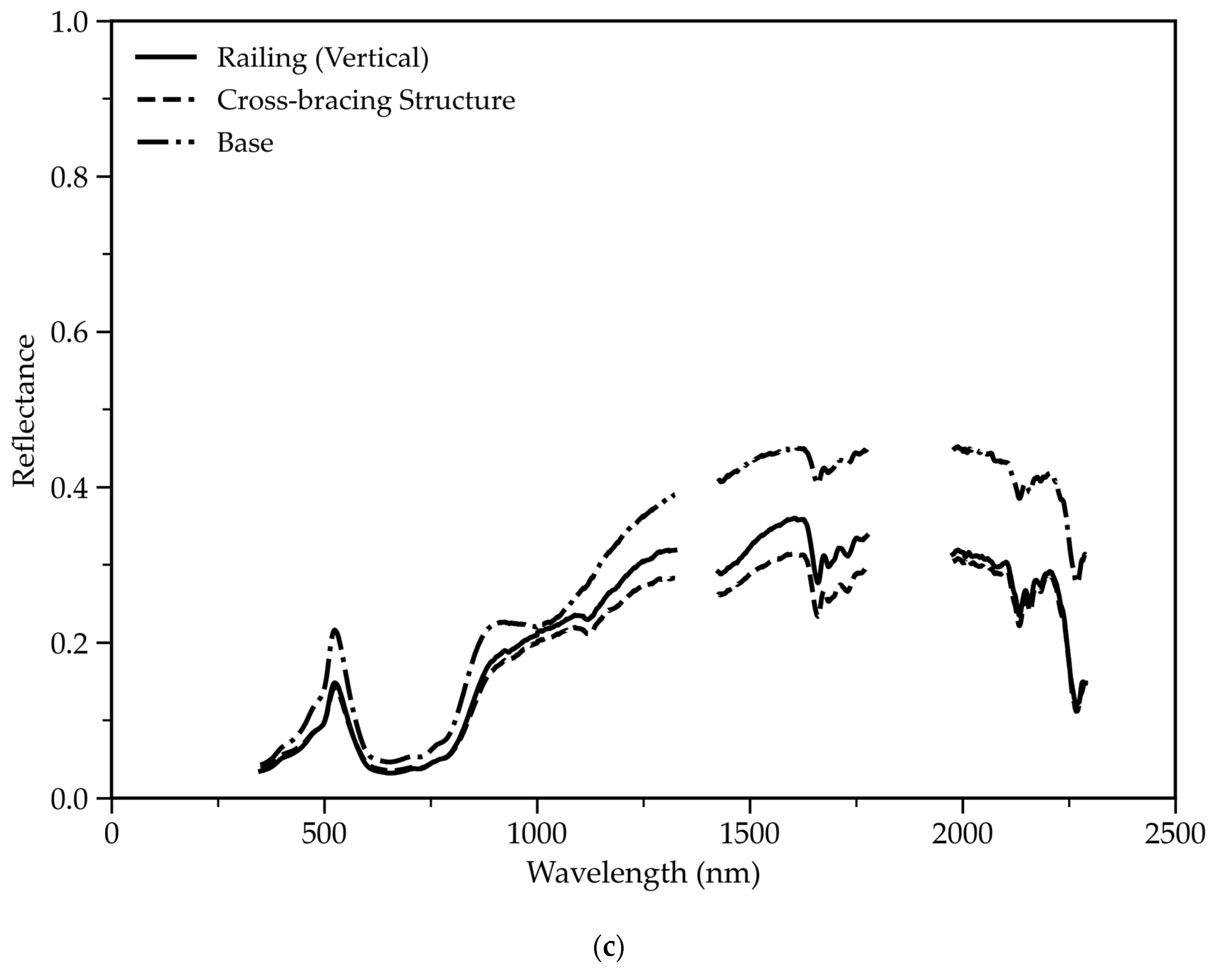

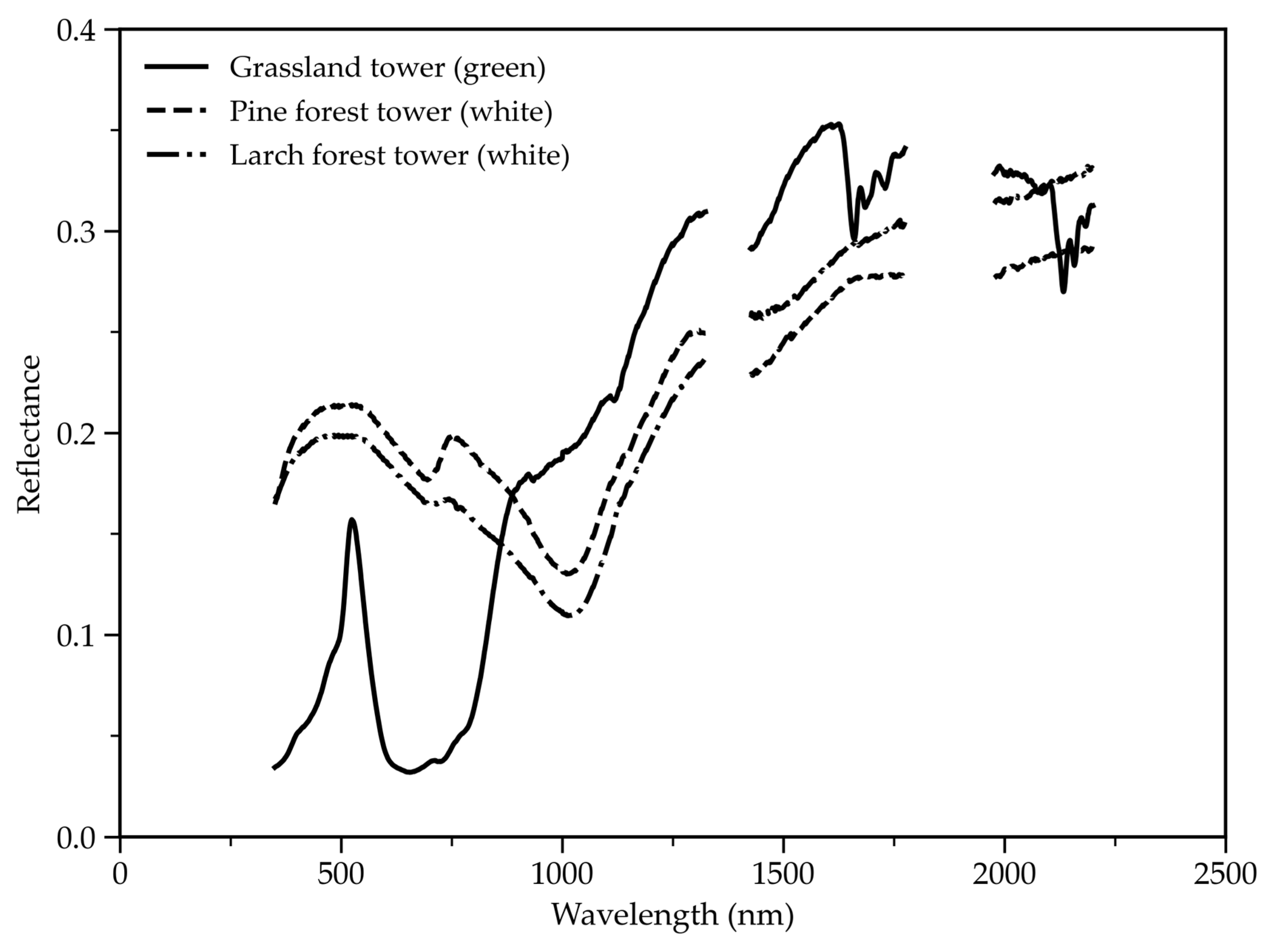

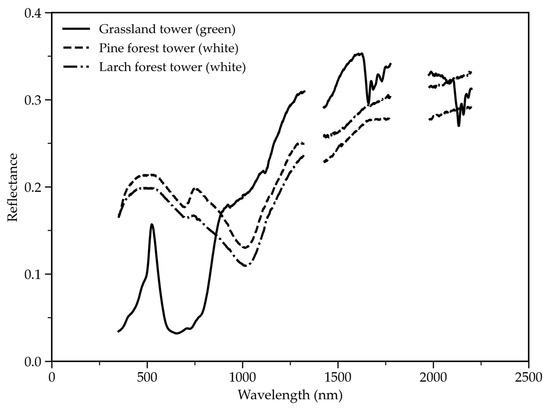

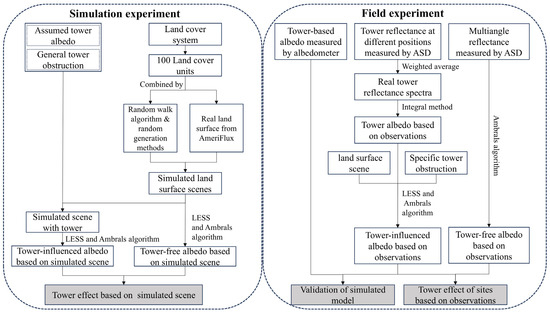

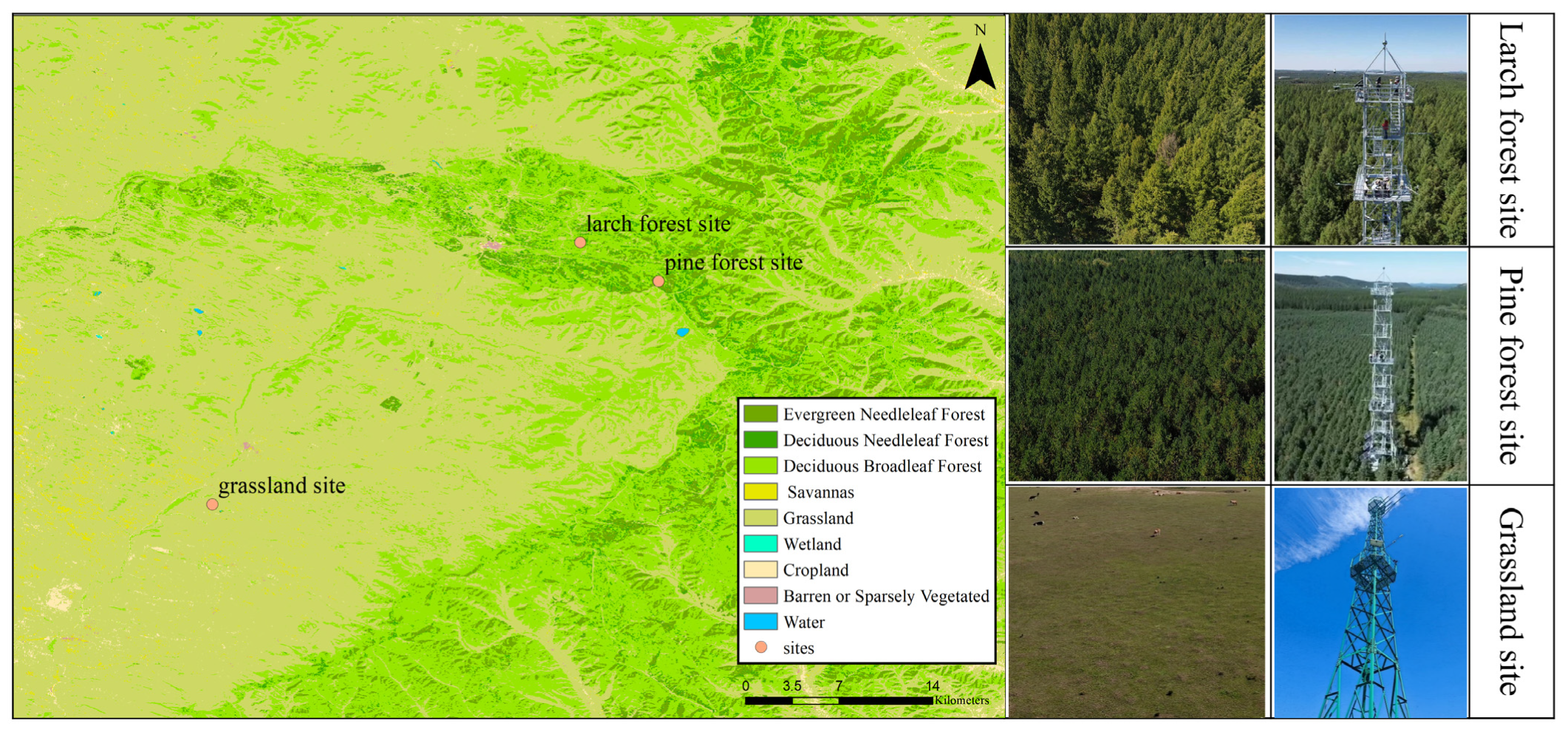

Second, a field validation experiment was conducted using actual observations to complement the simulation. The tower-based albedo was directly measured by an albedometer mounted on the tower. In parallel, the tower reflectance at different positions was measured using a Malvern Panalytical (Malvern, UK) ASD hyperspectral spectrometer. These tower reflectance spectra were processed through weighted averaging and integral methods to obtain the tower albedo on the basis of observations. In this calculation, the weight for each position was assigned on the basis of the estimated area ratio relative to the tower obstruction structure. This, together with the actual land surface scene and specific tower obstruction, was fed into the LESS and Ambrals algorithms. This yielded a tower-influenced albedo based on observations, acting as a modeled proxy for comparison with direct tower-based albedo. This comparison validated the model’s capacity to replicate physical tower effects. Moreover, the tower-free albedo based on observations was retrieved through multiangle reflectance measurements using the ASD instrument and subsequently processed with the AMBRALS algorithm. By comparing these results with the tower-influenced albedo based on observations, we quantified the tower effect across various sites. This comparison reveals the extent of albedo deviation caused by physical tower structures under real-world conditions.

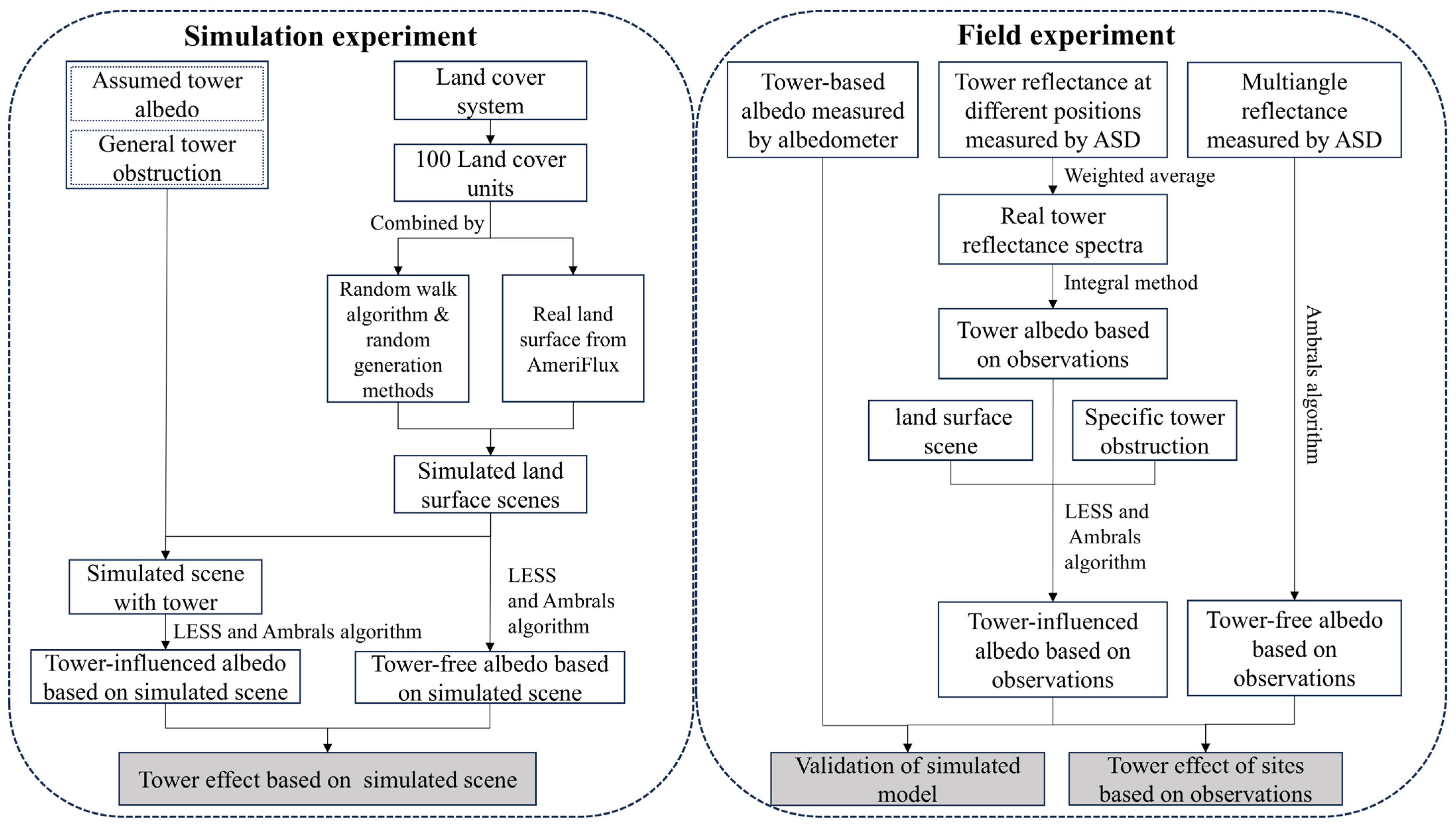

The individual steps of the simulation and field experiments are described in detail below:
2.3.1. Simulation Experiments

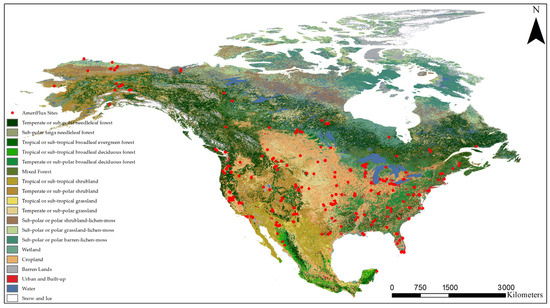

To increase simulation efficiency, the study established standard units of 30 m × 30 m as the foundational spatial resolution for all the simulations. Large-scale simulated land surface scenes were generated by stitching and combining these standard units in various configurations. Each standard unit comprised basic elements (objects), which were three-dimensional models of representative plants sourced from the RAdiation transfer Model Intercomparison-V (RAMI-V) 3D scenes available on the Discrete Anisotropic Radiative Transfer (DART) model website. The corresponding component spectral curves were obtained from the ENVI 5.3 spectral library. On the basis of the reclassification of the 30 m global fine land cover product (GLC_FCS30), 13 major natural land surface types were identified, excluding ice and snow, tundra, built-up areas, and water bodies (
Table 2). By adjusting the density of the basic element distribution within each unit, a total of 100 standard units were generated, each representing a specific natural land cover type in detail.

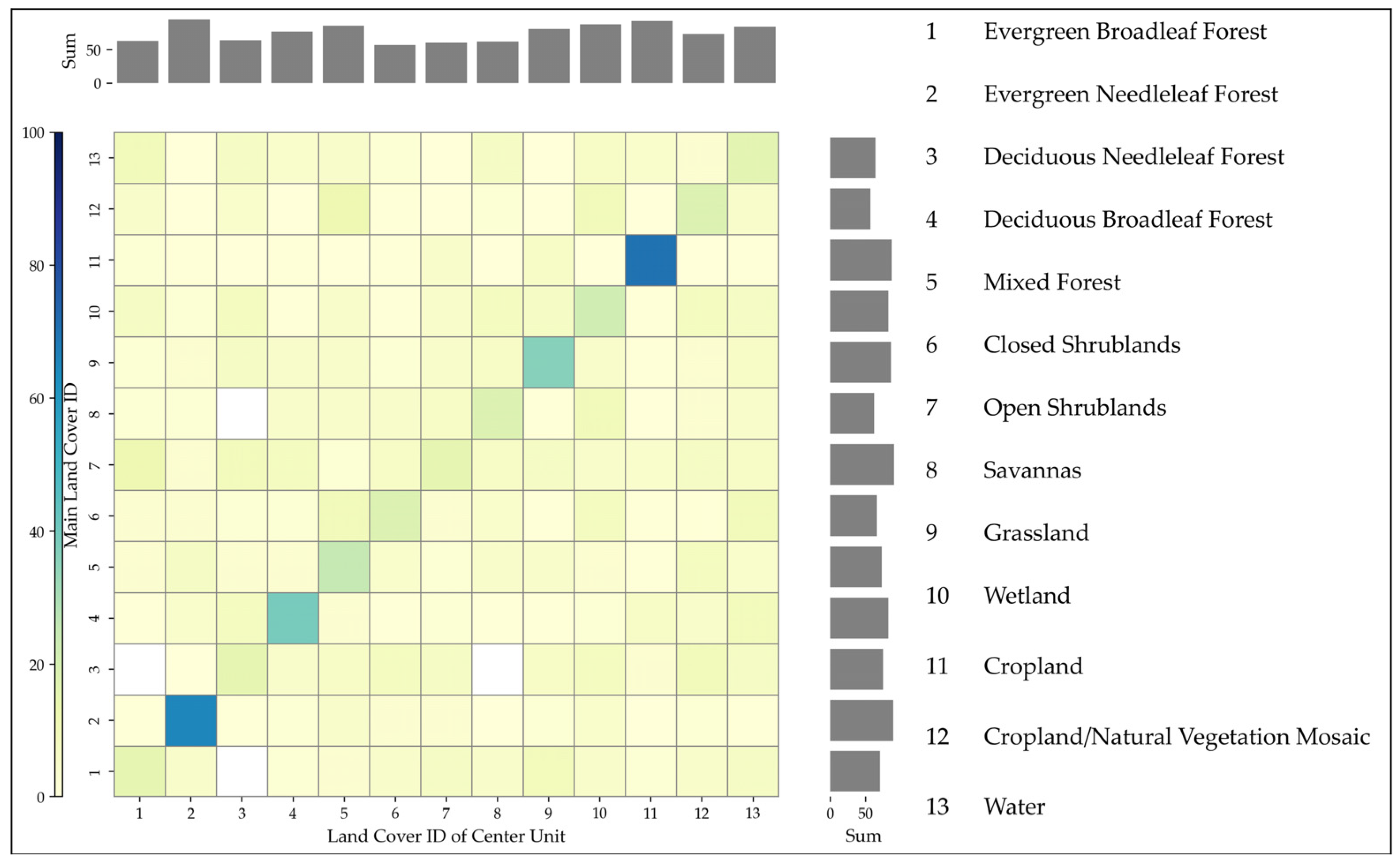

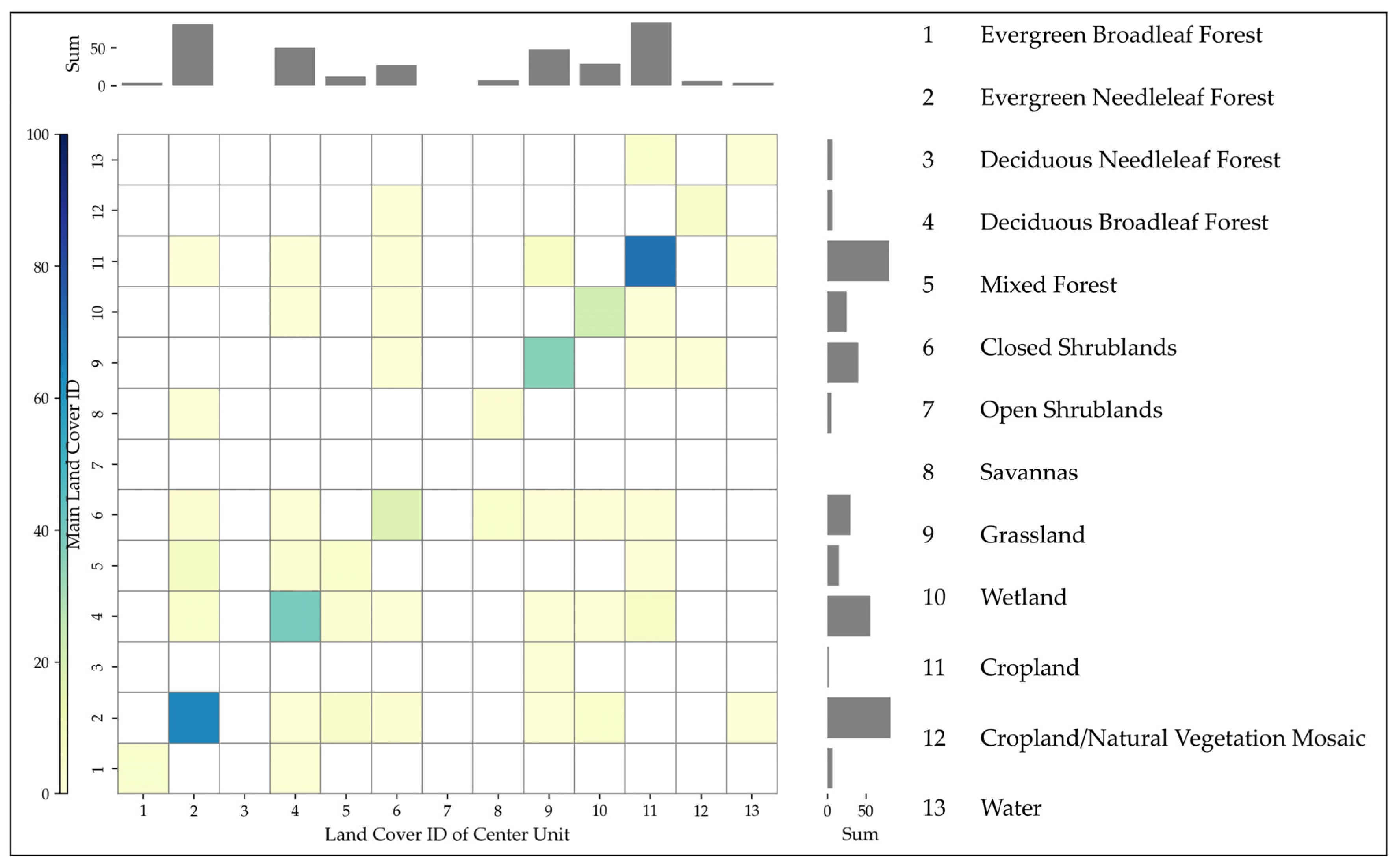

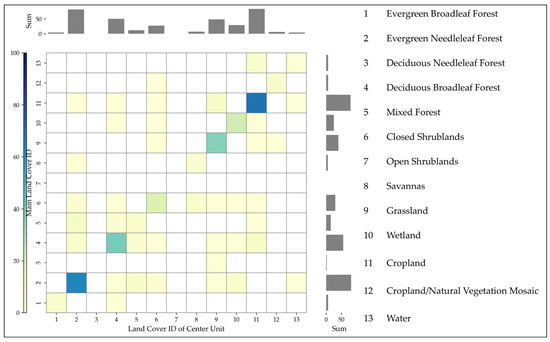

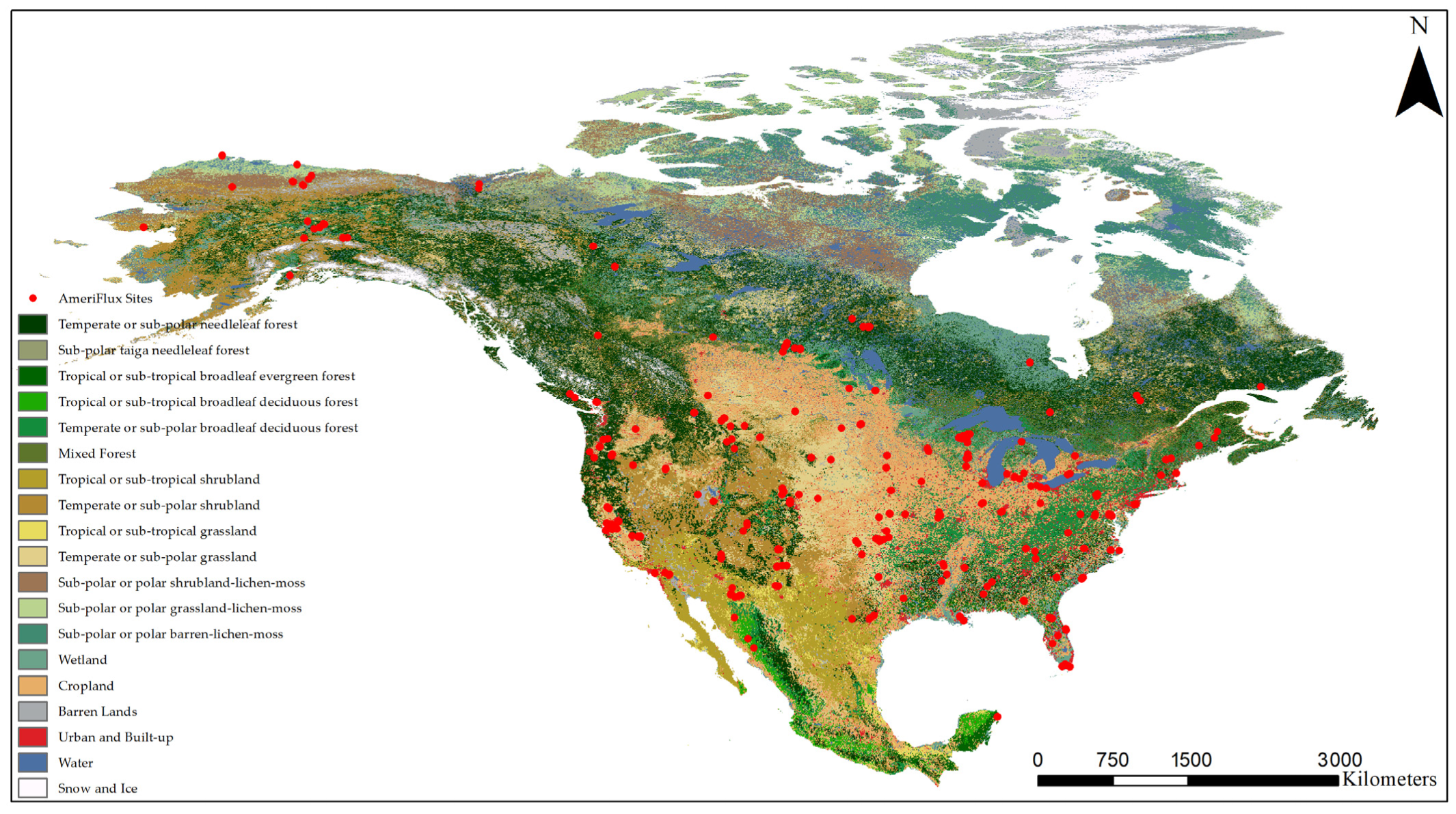

To enhance the realism of the simulated scenes, widely distributed AmeriFlux sites—featuring diverse and representative land cover types—were used as references. For each simulated scene, the central pixel was assigned the land cover type of the corresponding AmeriFlux site (central land cover), while the dominant land cover type within a 1 km × 1 km area surrounding the site was assigned the main land cover type. However, as real AmeriFlux sites often exhibit relatively homogeneous land cover and some combinations of central and main land cover types are absent, some of the simulated scenes were supplemented using algorithm-based generation to increase diversity and ensure the representation of all major land cover categories. Given that all land cover types in this study focus on vegetation-dominated natural terrestrial surfaces, a two-dimensional random walk algorithm, in conjunction with stochastic generation methods, was utilized to construct additional scenes. The random walk algorithm, widely recognized in ecological modeling for simulating vegetation spread, competition, and spatial patterning, allowed the construction of robust and varied simulated scenes.
To simulate tower-induced effects, each generated tower-free surface scene was assumed to contain an observation tower at its center. The tower-influenced scene represents the portion of the land surface visible to the instruments mounted on the tower, and the magnitude of the influence depends on factors such as the tower structure, instrument installation height, and tower surface albedo.

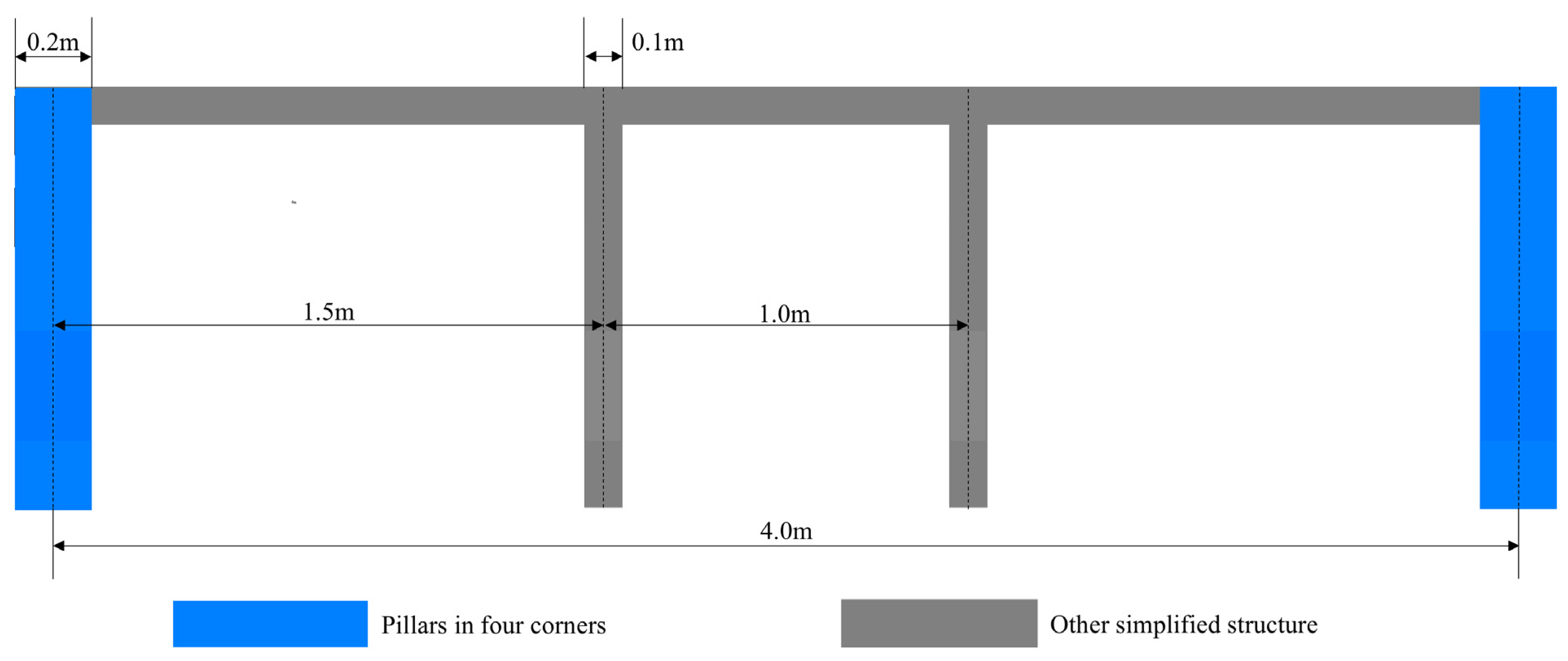

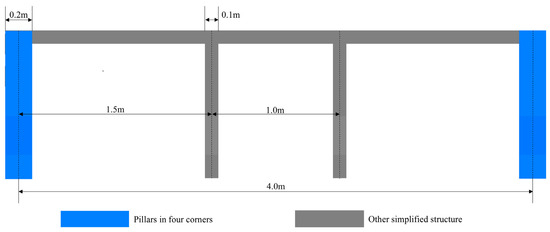

For general applicability, large-volume, structurally complex self-supporting towers were considered in this study. The tower body was simplified with reference to typical self-supporting tower designs, as there is no unified construction standard. The section of the tower most affecting the observations is the portion adjacent to the mounted instruments. In the simplified model, the tower was represented as a column with a 4 m × 4 m square base. The actual tower structure includes openwork support frames, stairs, handrails, and intermediate platforms. These three-dimensional vertical and horizontal components were projected onto the four sides of the column, forming a “slice unit” on each side (
Figure 4). The basic tower body was represented as a cube enclosed by four slice units, with changes in tower height simulated by stacking such cubes.
The effect of tower obstruction is determined primarily by the instrument installation height and the tower surface albedo. The installation height defines the spatial extent of the observed scene. Although the maximum scene size in
Section 3.1.1 was 1 km × 1 km, such an extent cannot be covered fully by actual albedometer observations. Therefore, installation heights of 10 m, 20 m, 35 m, and 50 m were simulated, representing the range commonly found at existing observation sites. At an installation height of 35 m, the observation footprint (~450 m) is comparable to the coarse spatial resolution of the satellite imagery. The heights of 10 m, 20 m, and 50 m served as complementary cases for comparison.
The tower surface albedo was determined by its color. In practice, tower bodies are most often painted white or green. In the visible spectrum, white surfaces exhibit higher reflectance than surrounding natural vegetation does, whereas green surfaces have lower reflectance. Under the assumption of Lambertian reflection, the albedo values were set to 0.6 for white towers and 0.3 for green towers (
Table 3).

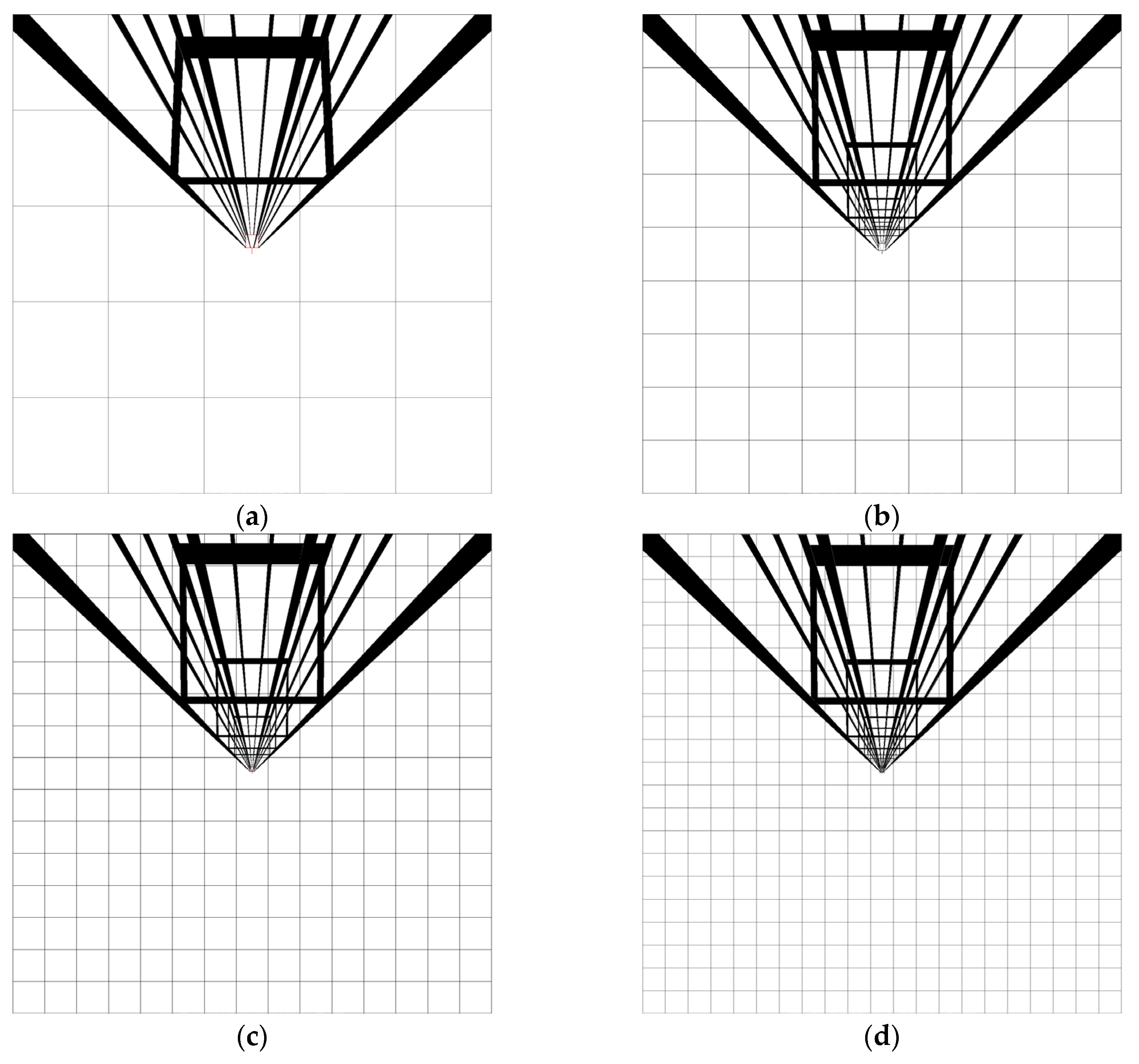

On the basis of the tower geometry and instrument height, the obstruction shape (

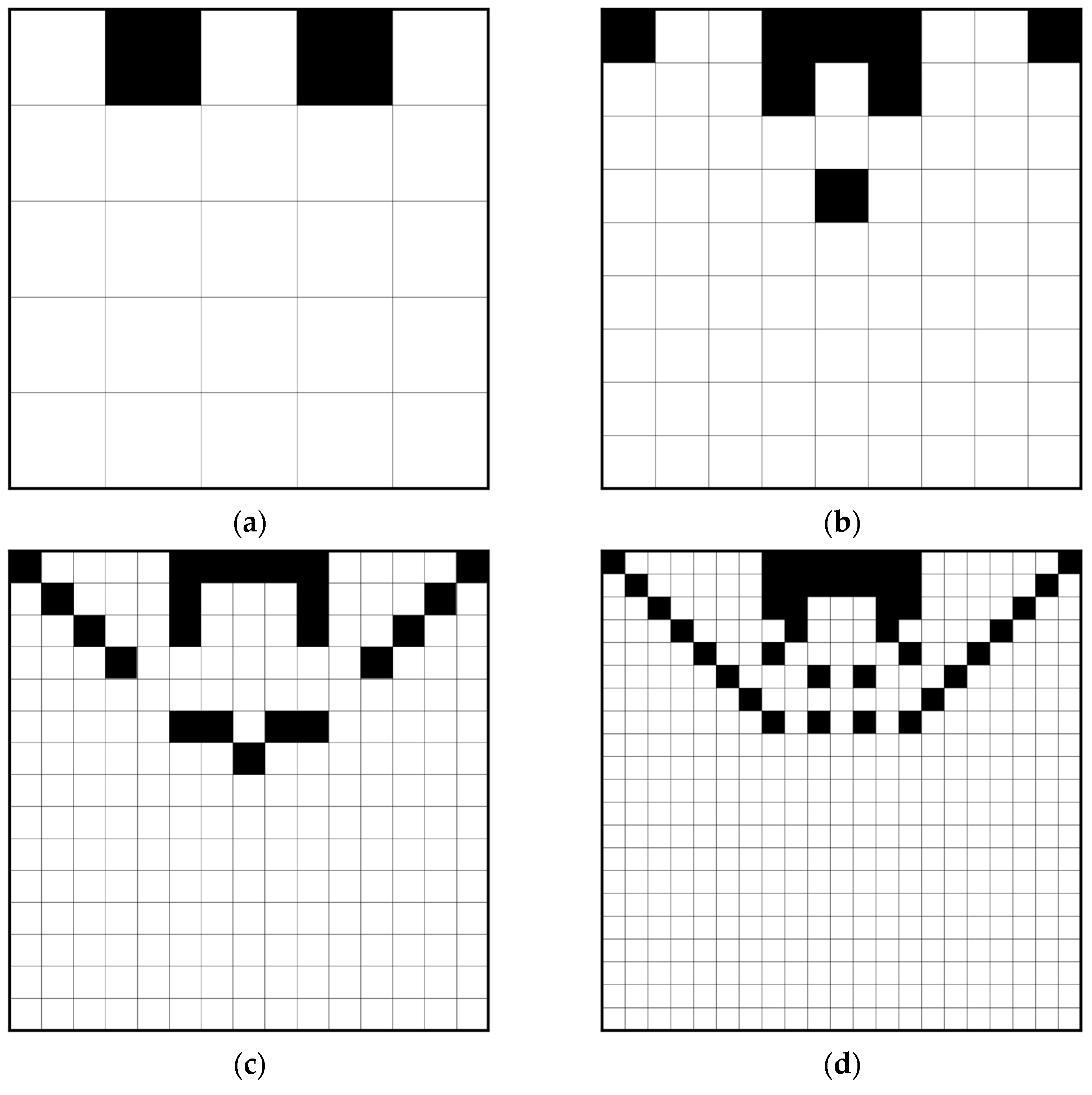

Figure 5) was derived in CAD 2020 software using central projection rules. This obstruction shape was then overlaid onto the tower-free surface scenes to produce tower-influenced observation scenarios. Because obstruction shapes are irregular, a special standard unit (tower unit) was defined, consisting of a flat surface with the assumed tower albedo (white or green). If the obstruction shape fully covered a standard unit, that unit was replaced with a tower unit. For partial coverage, a 40% threshold was applied: units with ≥40% coverage were replaced, whereas those with <40% coverage were left unchanged.
In this study, the forward photon-tracing mode of the Large-Scale remote sensing data and image Simulation framework (LESS) was employed to obtain multi-angle reflectance of simulated tower-free and tower-influenced surface scenes.
LESS is a three-dimensional realistic-structure radiative transfer model based on the ray-tracing principle. It simulates the transport and interaction of incident light within a scene—including absorption, reflection, and transmission—and outputs the corresponding simulation data. Here, “realistic structure” refers to scene elements with arbitrarily complex geometries represented by triangular meshes, in contrast to the simplified representations (e.g., imaginary ellipsoids or continuous homogeneous media) commonly used in traditional remote sensing models. In ray tracing, the reflection, transmission, and refraction of light rays emitted from a virtual light source are computed as they propagate through the defined scene, enabling the derivation of radiance information detectable by a sensor [
35]. The equation is represented as follows:
where
represents the outgoing radiance from point
along the
direction within the scene.
denotes the radiance emitted from point
in the
direction (e.g., thermal radiation).
represents the bidirectional scattering distribution function (BSDF) near point
.
is the incident radiance to point
in the
direction, and
represents the angle between the incoming light and the local surface normal. The entire formula indicates that the outgoing radiance from the
point along the
direction is equal to the radiance emitted by the object itself at that point plus the sum of all incident radiance scattered at that point in the outgoing direction.
A complete LESS simulation process involves the following steps: defining the three-dimensional virtual scene, generating light sources, calculating the intersections between light rays and scene elements, determining changes in light energy and direction at the intersections, and computing the resulting radiative information. In practical applications, this requires the input of fundamental parameters such as the three-dimensional scene structure, component spectra, observation geometry, and illumination settings, which are then processed through the ray-tracing-based radiative transfer model to generate simulated remote sensing data.
For all the simulations, the solar zenith angle was set to 0°, and the solar azimuth angle was oriented south. The solar zenith angle was specified to maintain consistency with the solar geometry of the satellite observations being evaluated, whereas a southward solar azimuth was assumed given that all the study sites are located in the Northern Hemisphere. The upper hemisphere above each scene was evenly divided into 150 small solid angles to represent combinations of observation azimuth and zenith angles. To balance computational accuracy and efficiency, the illumination resolution—expressed as incident photon density—was set to 0.05.
