Abstract

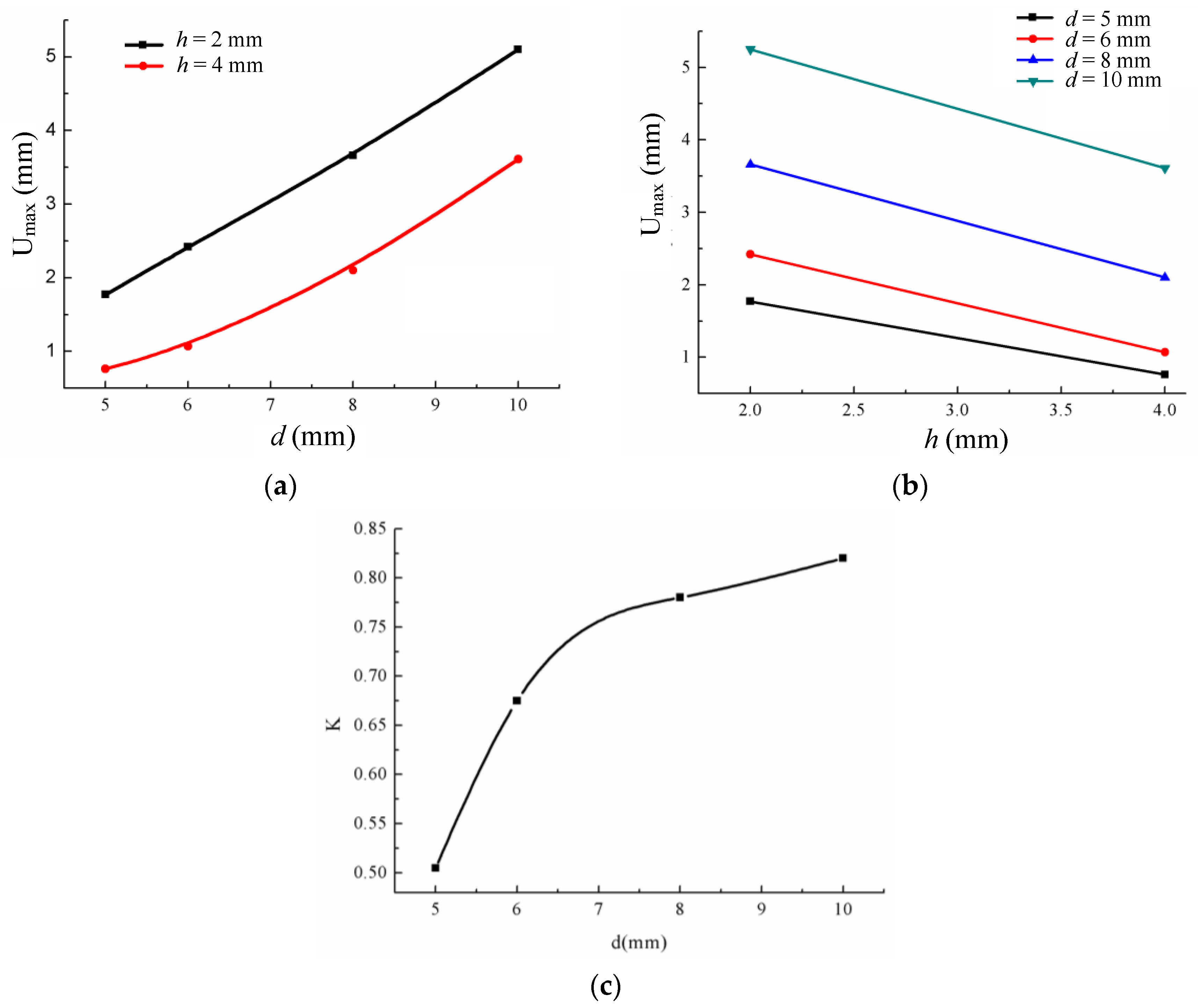

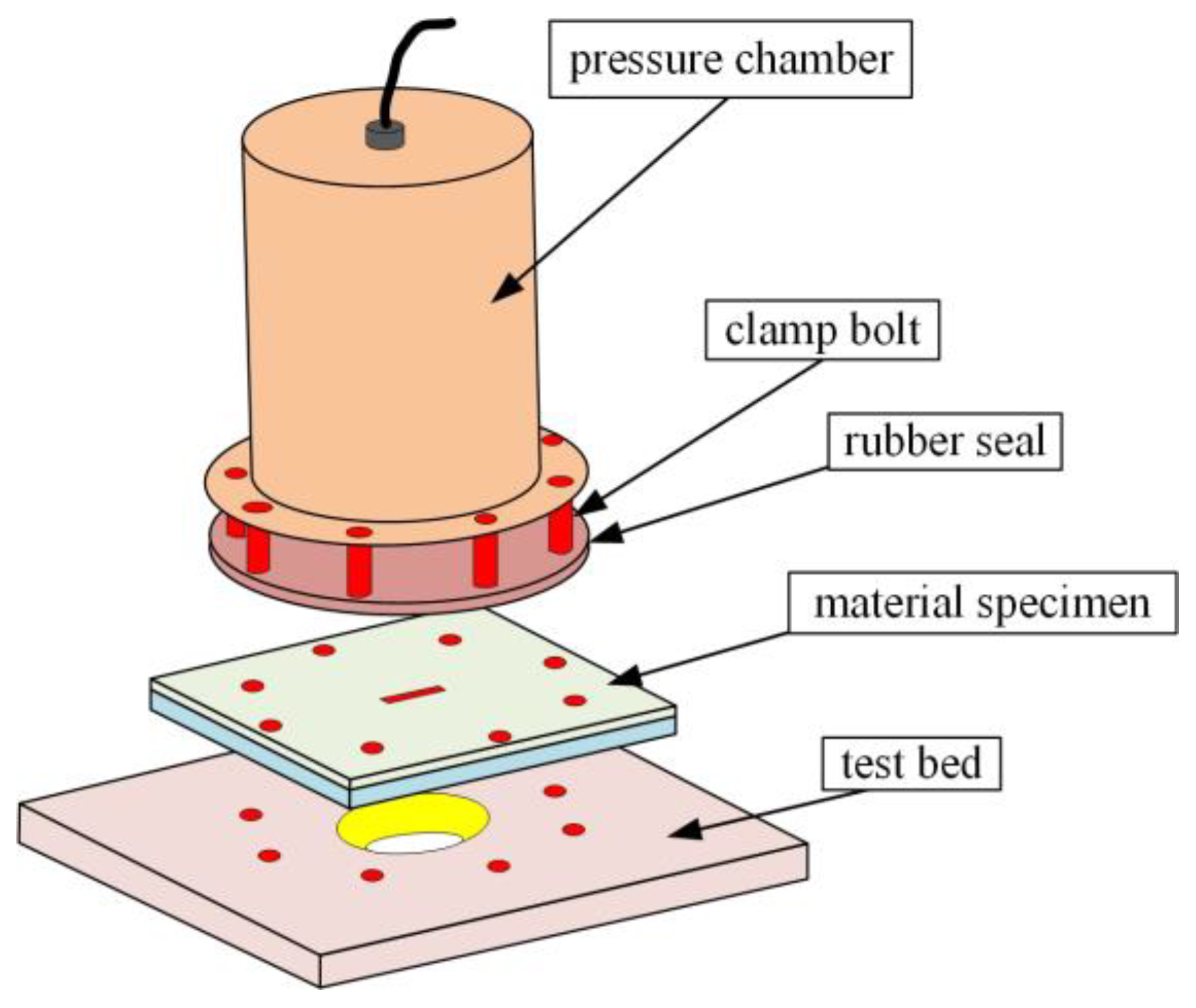

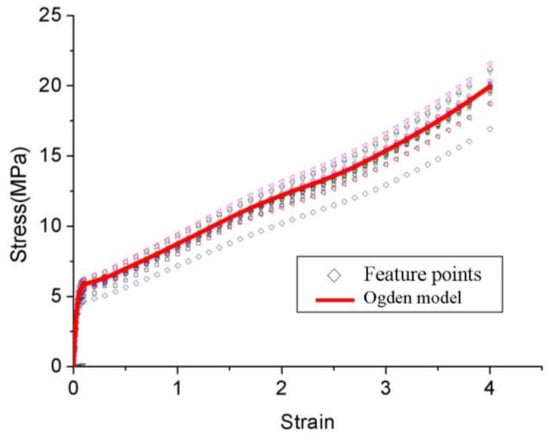

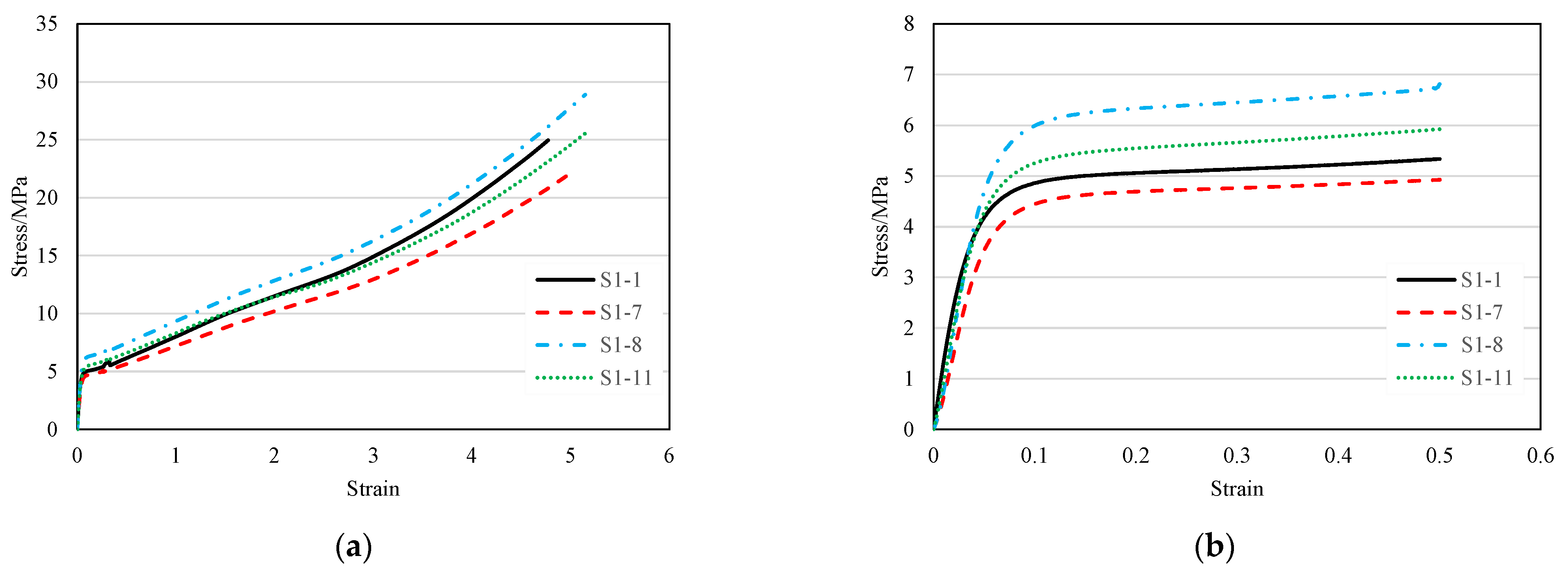

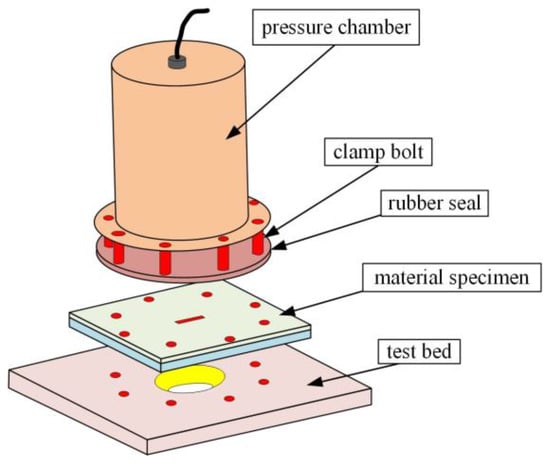

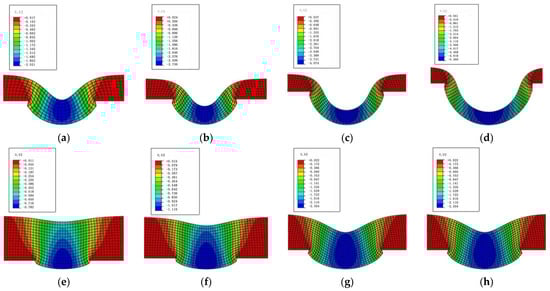

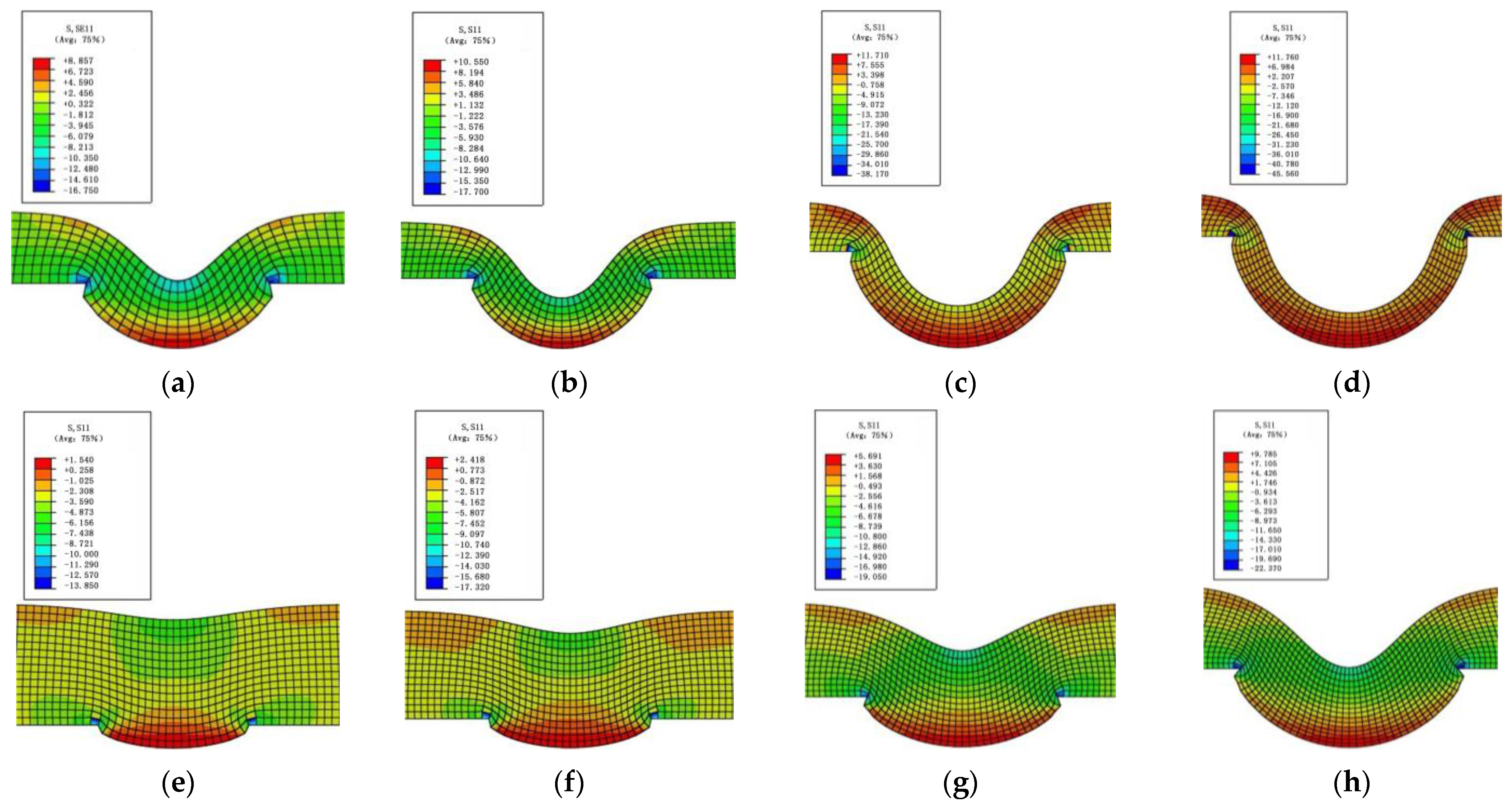

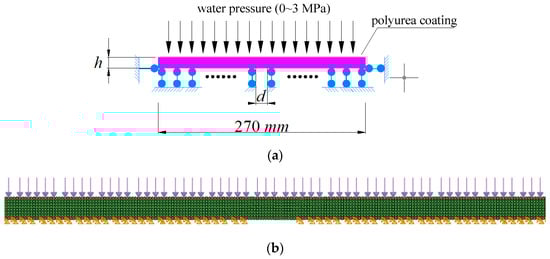

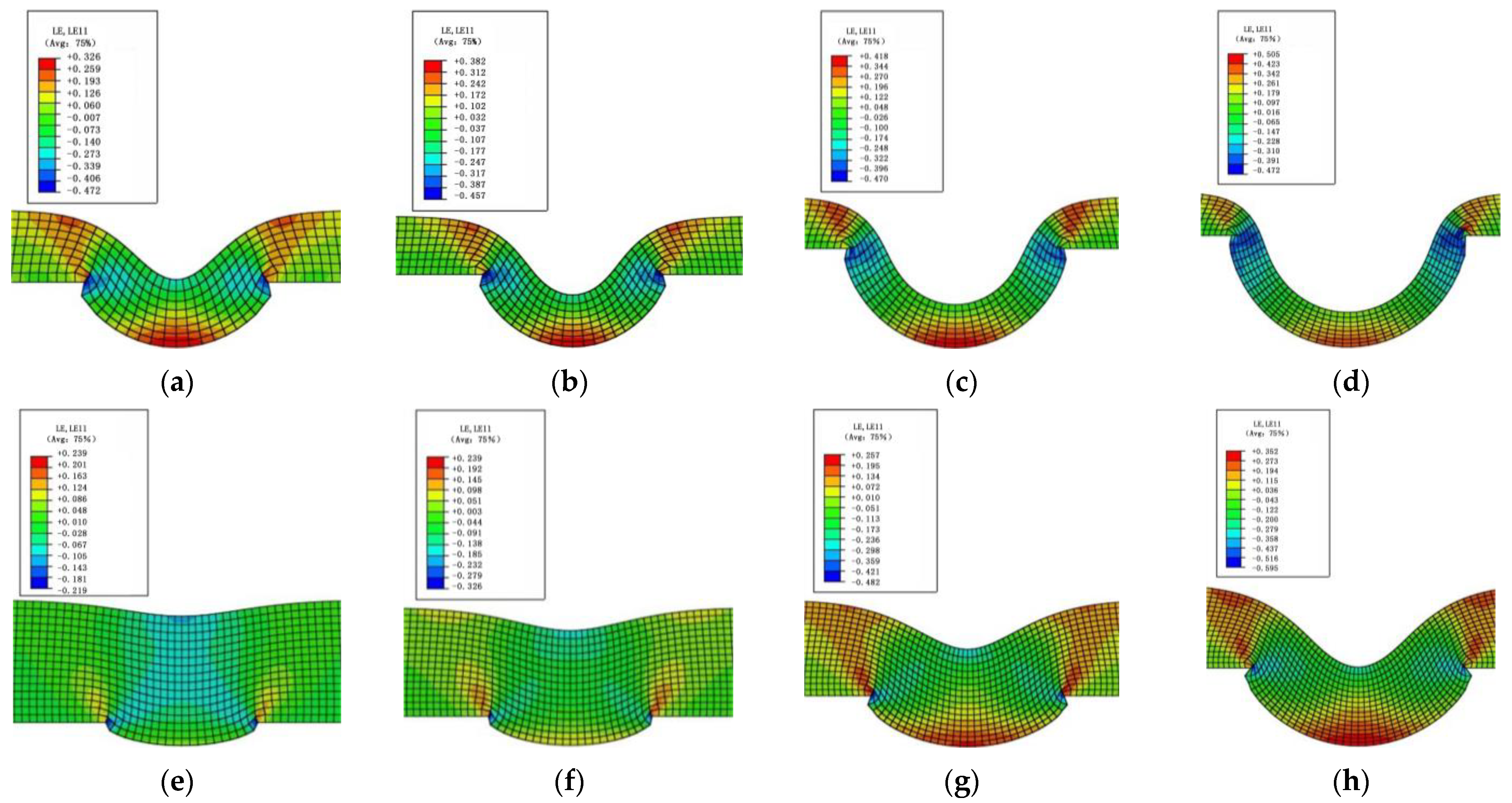

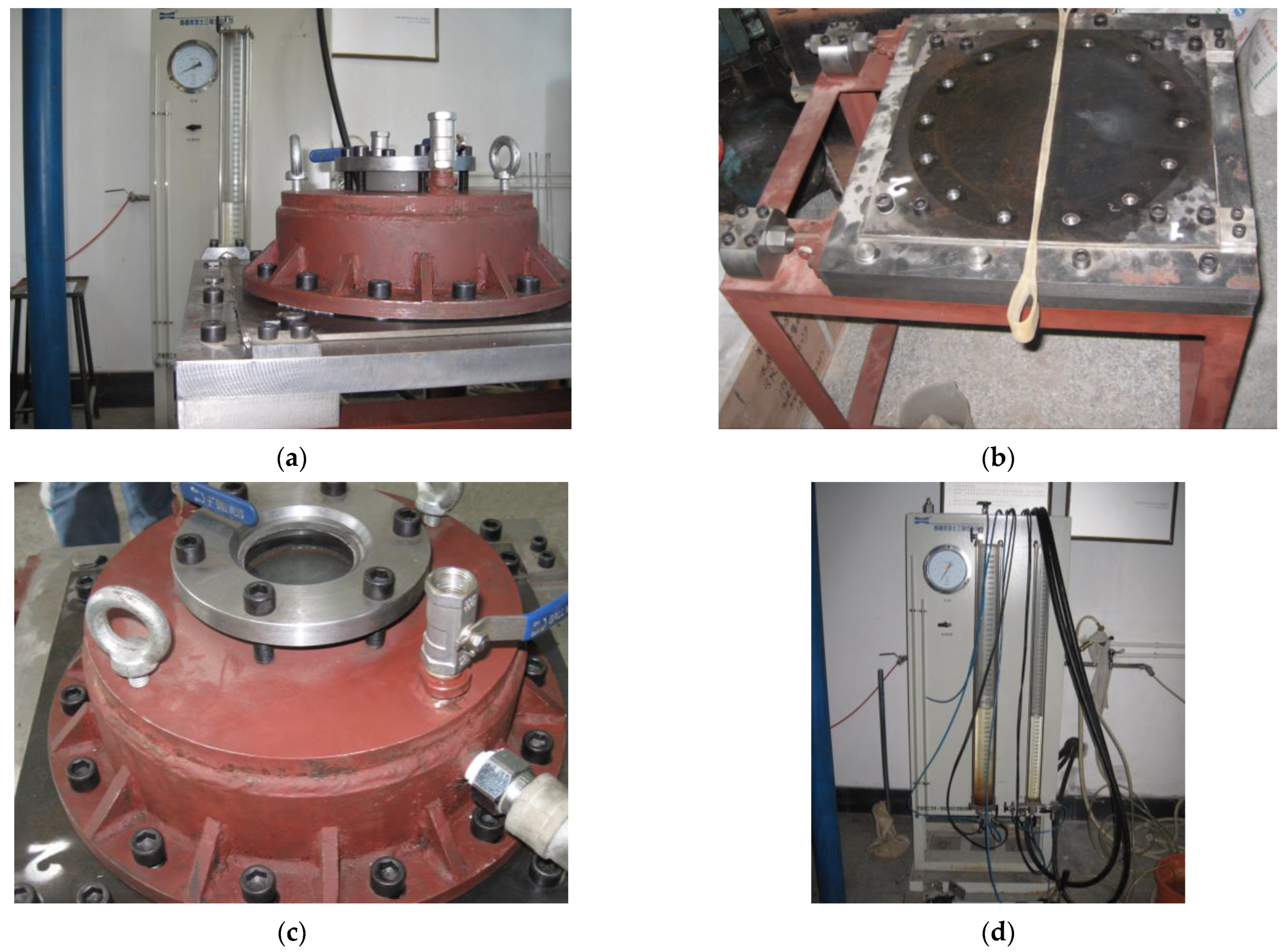

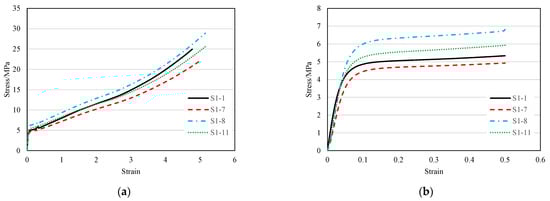

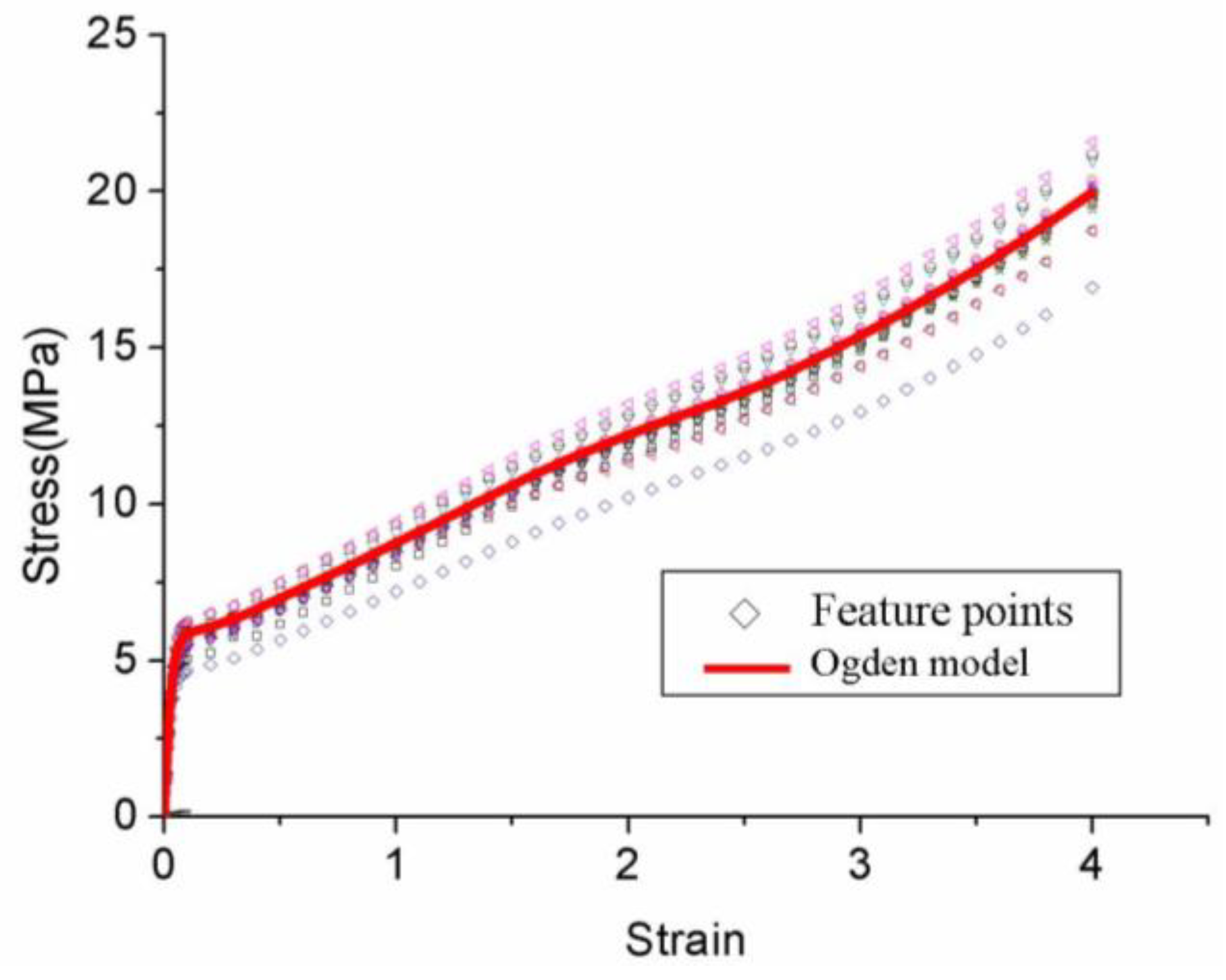

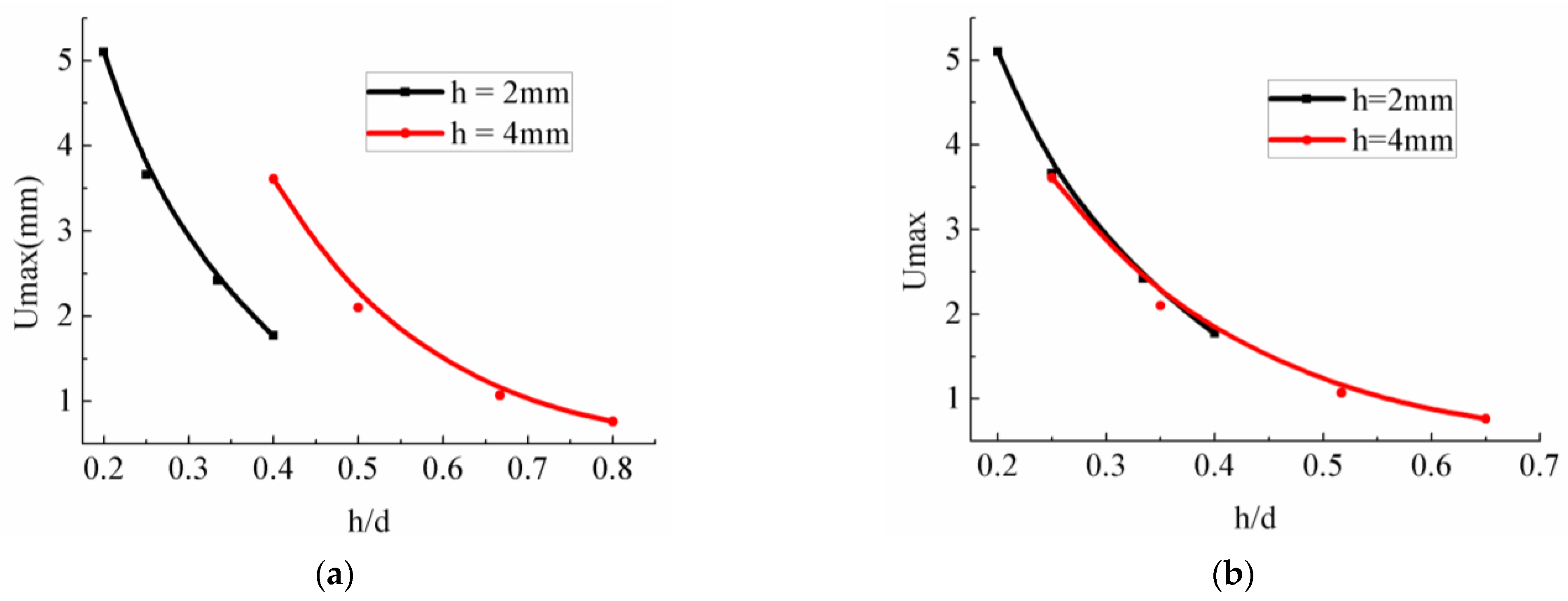

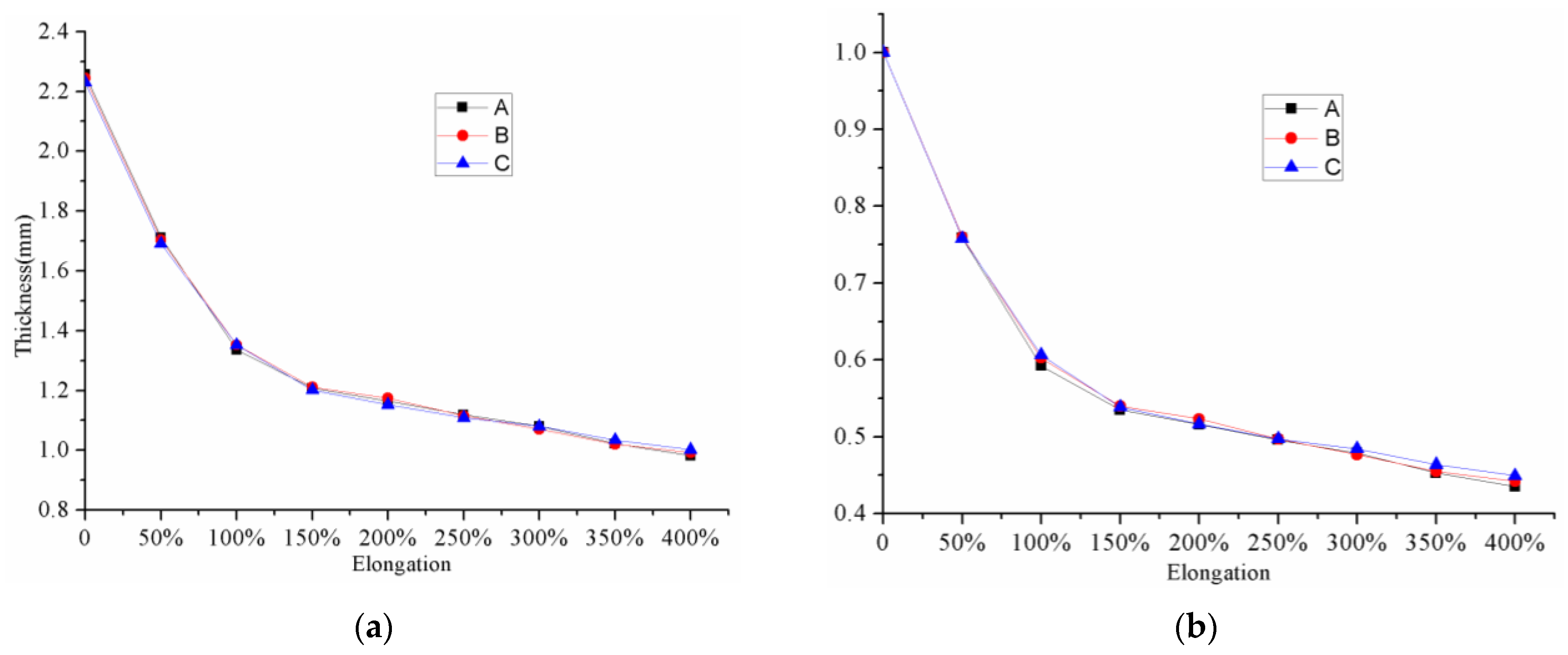

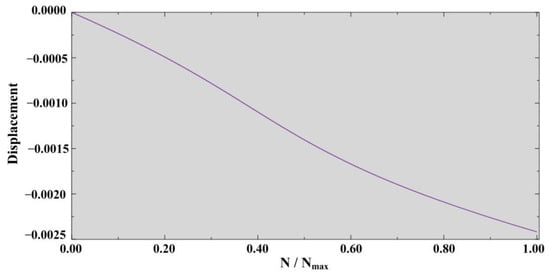

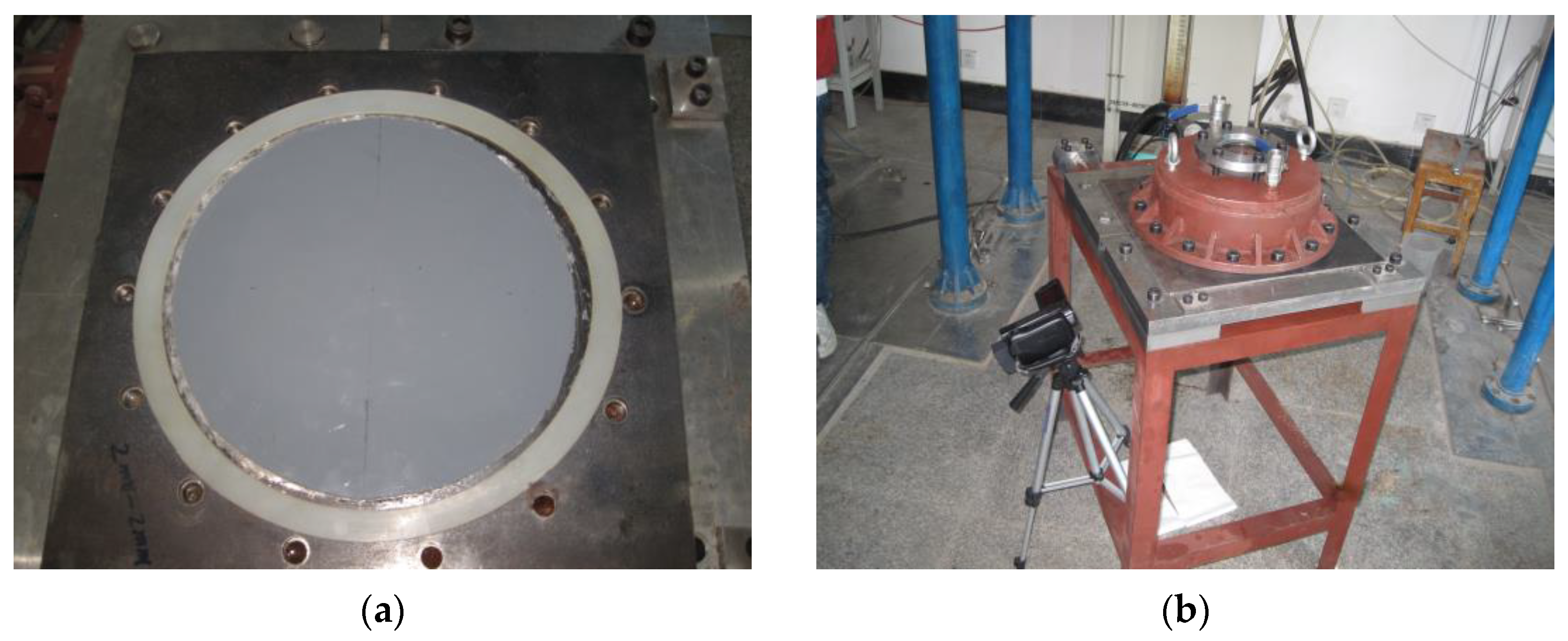

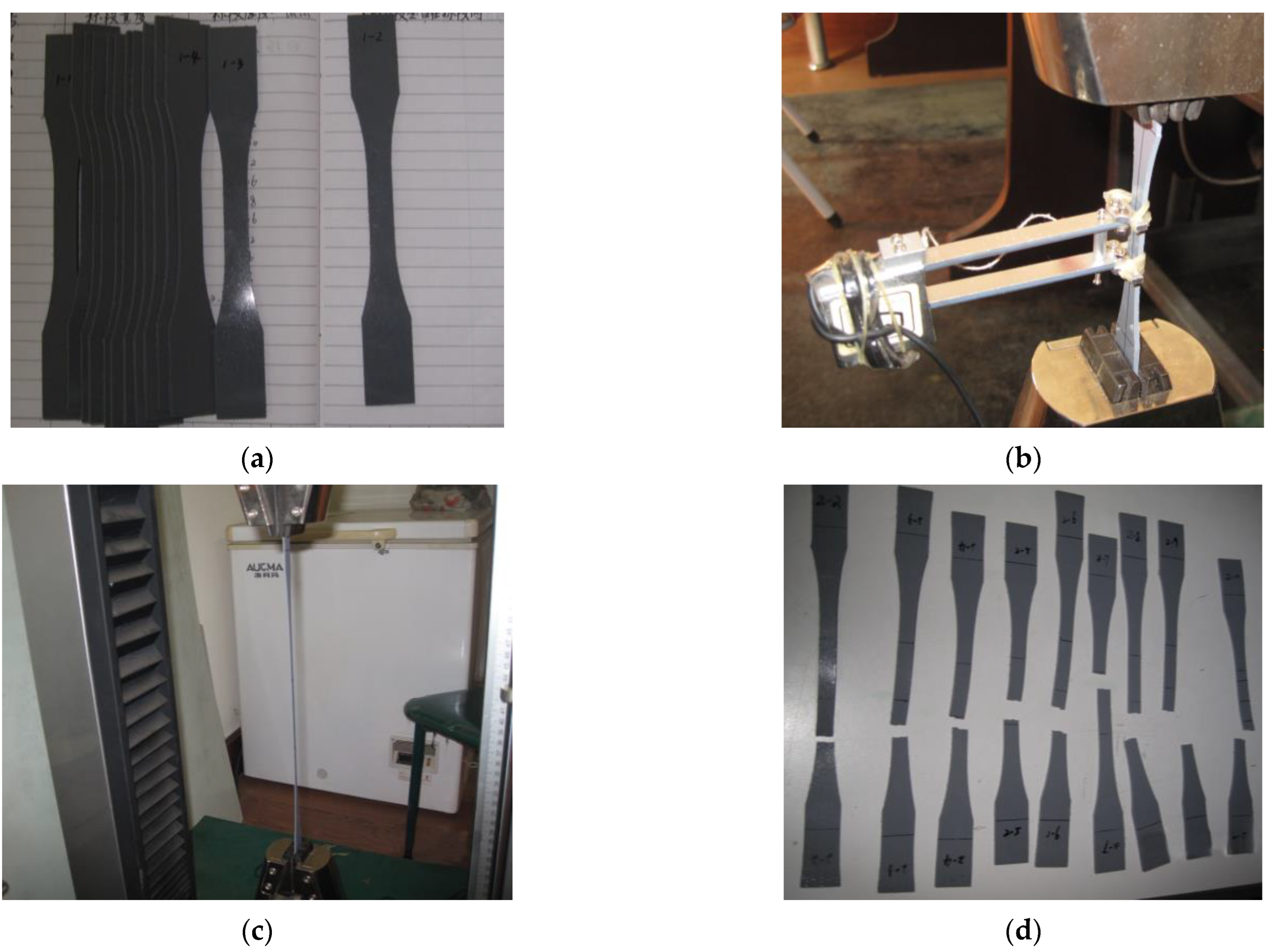

The surfaces of hydraulic structures are vulnerable to damage and cracking, which can result in high-pressure reservoir water entering cracks and endangering the safety of the structures. Therefore, it is necessary to strengthen the anti-seepage treatment and protection on the surfaces of the structures. In this paper, we explore the tensile and high-water-pressure breakdown resistance properties of polyurea coating material. To do so, we independently designed and manufactured a high-water-pressure breakdown test device for coating. Our experimental results indicated that the thickness of the polyurea coating decreased with an increase in elongation. Furthermore, we found that the breakdown resistance of the polyurea coating was related to the coating thickness and the bottom free section width. We then fitted the stress–strain curve obtained from the experimental test using the Ogden constitutive model. Based on this, we numerically simulated the high-water-pressure breakdown performance of the polyurea coating using the finite element software ABAQUS 2022. We obtained the relationships among maximum displacement, free section width, and coating thickness under high water pressure. Our numerical findings indicated that the vertical displacement of the midpoint increased linearly with width in the case of the same coating thickness under water pressure load. Conversely, for the same free section width, the vertical displacement decreased with increasing coating thickness.
