Large Deflection Analysis of Bimodular Functionally Graded Truncated Thin Conical Shells Under Mechanical and Thermal Loads

,
,
and
1
School of Civil Engineering, Chongqing University, Chongqing 400045, China
2
Key Laboratory of New Technology for Construction of Cities in Mountain Area (Chongqing University), Ministry of Education, Chongqing 400045, China
*
Author to whom correspondence should be addressed.

Highlights

  1. Large deflection problem of bimodular FGM truncated thin conical shells under two load types and boundary constraints is investigated;
  2. An energy method established on bimodular FGM is developed to obtain variation solution;

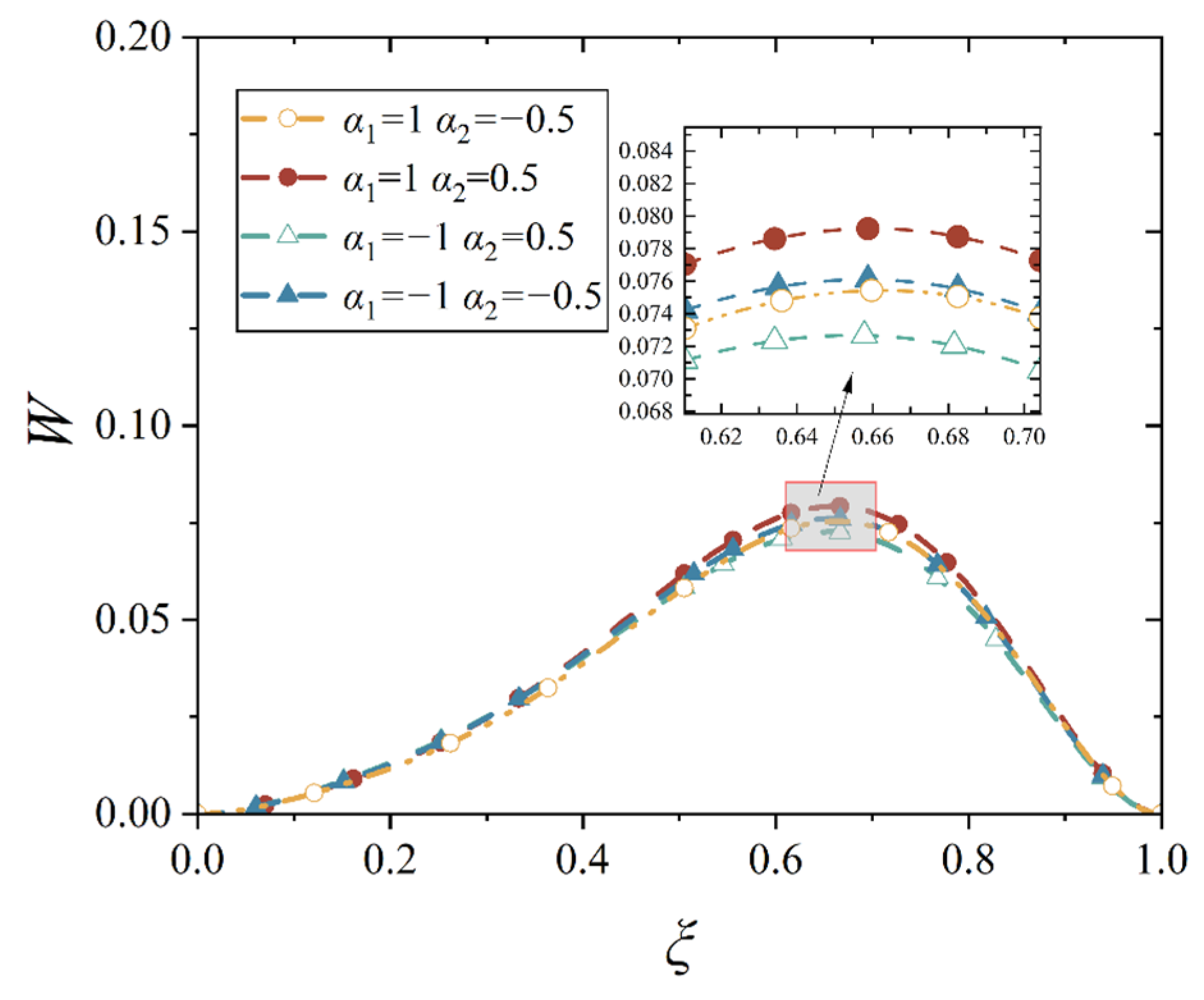

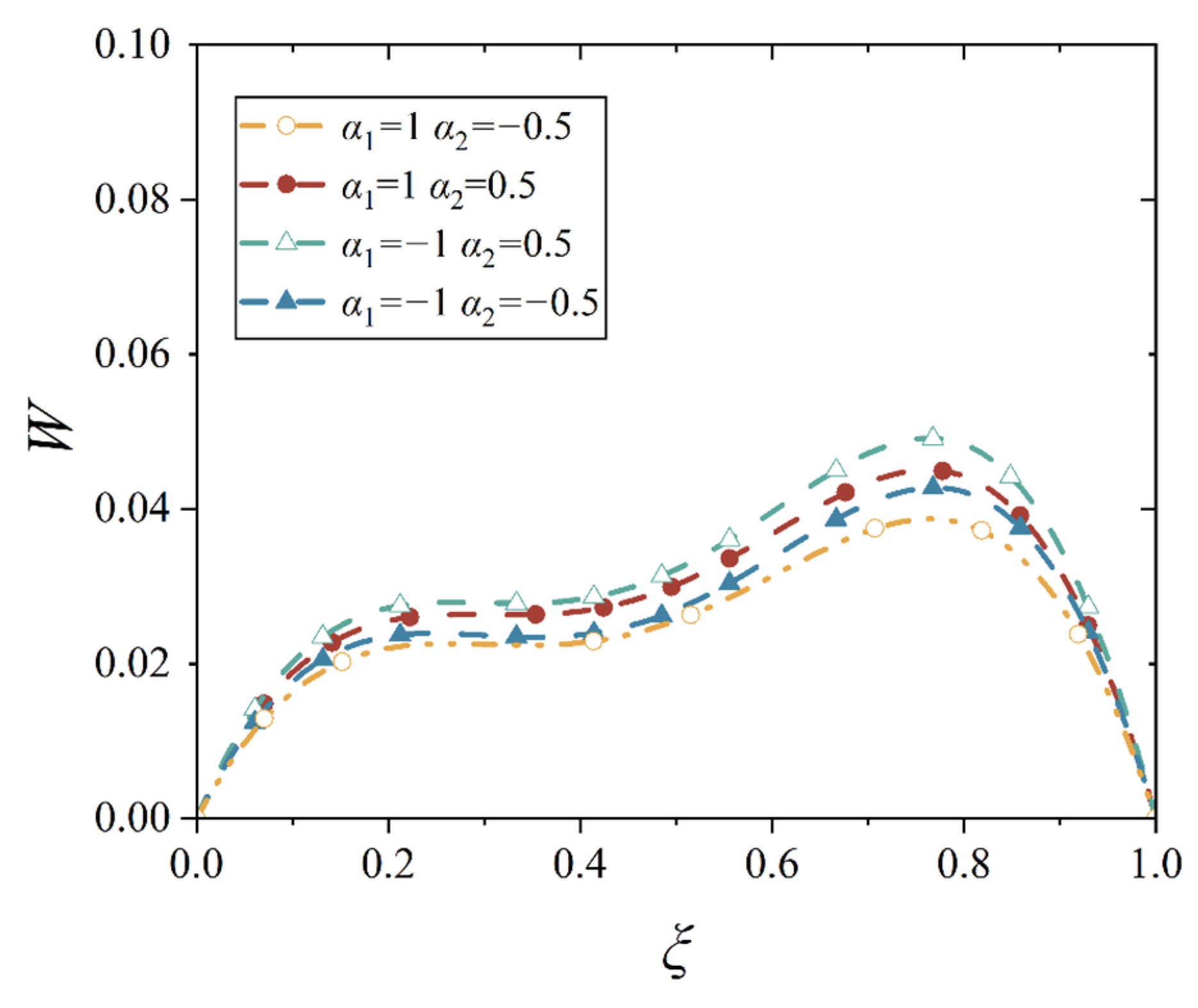

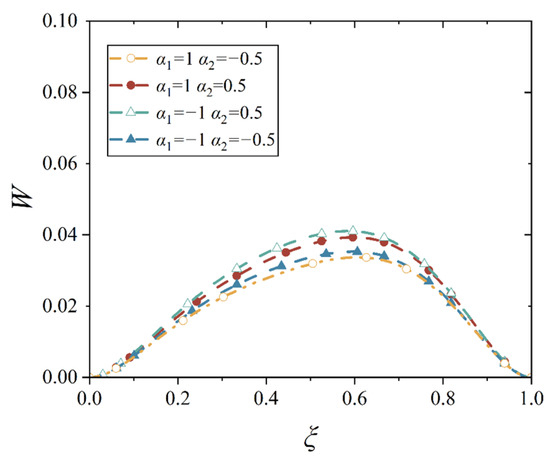

  3. Bimodular functionally graded properties influence the maximum displacement and its position;

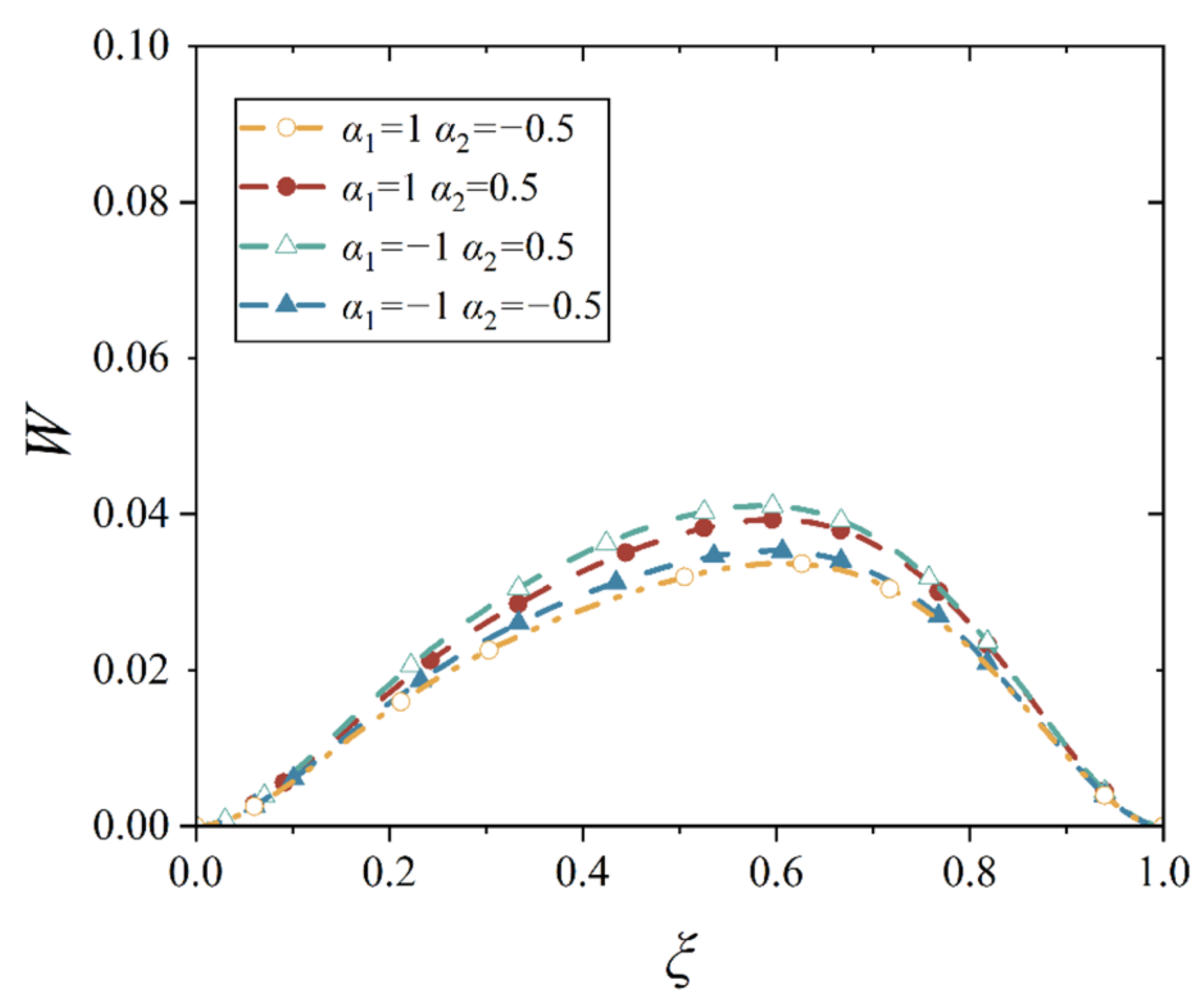

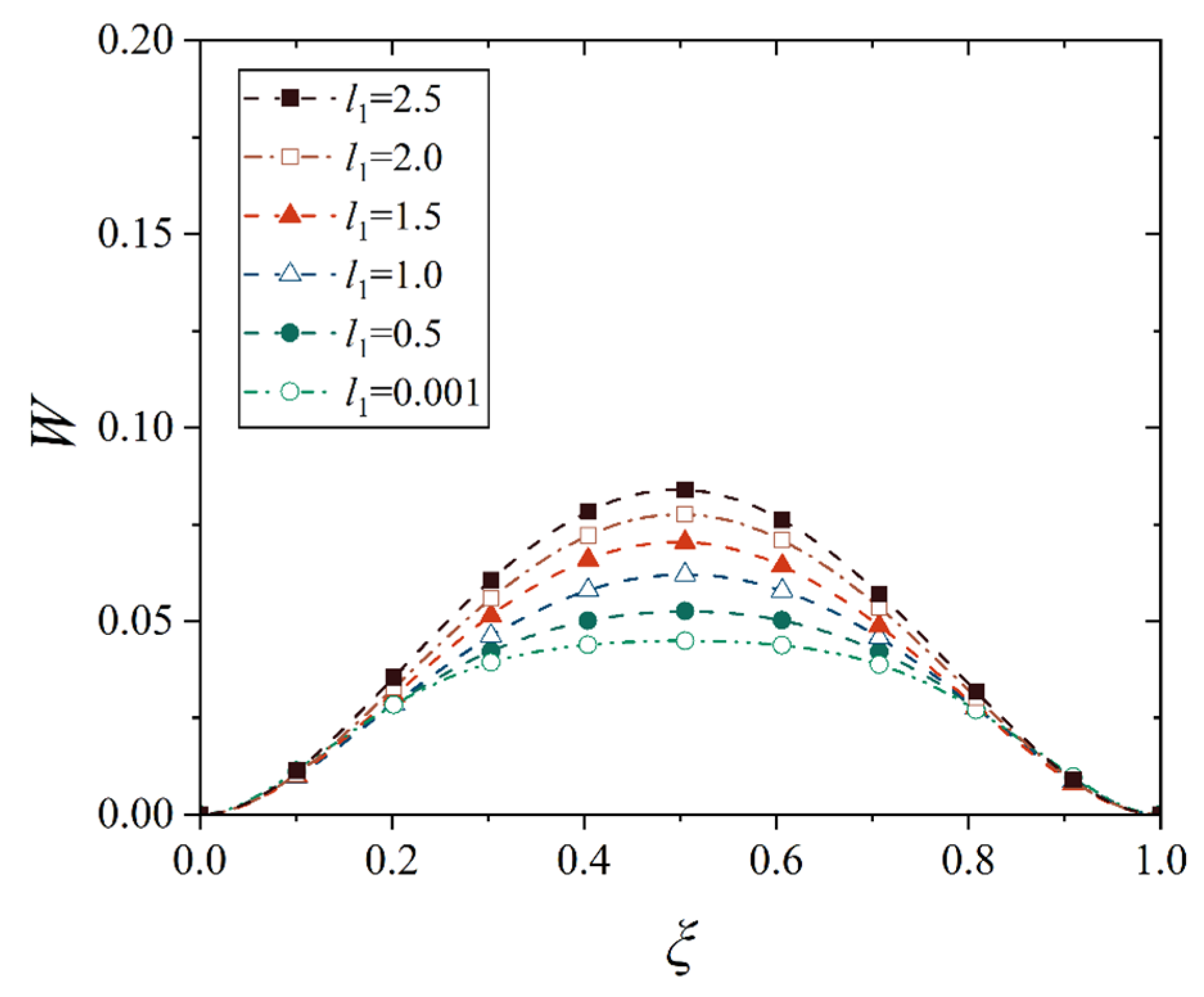

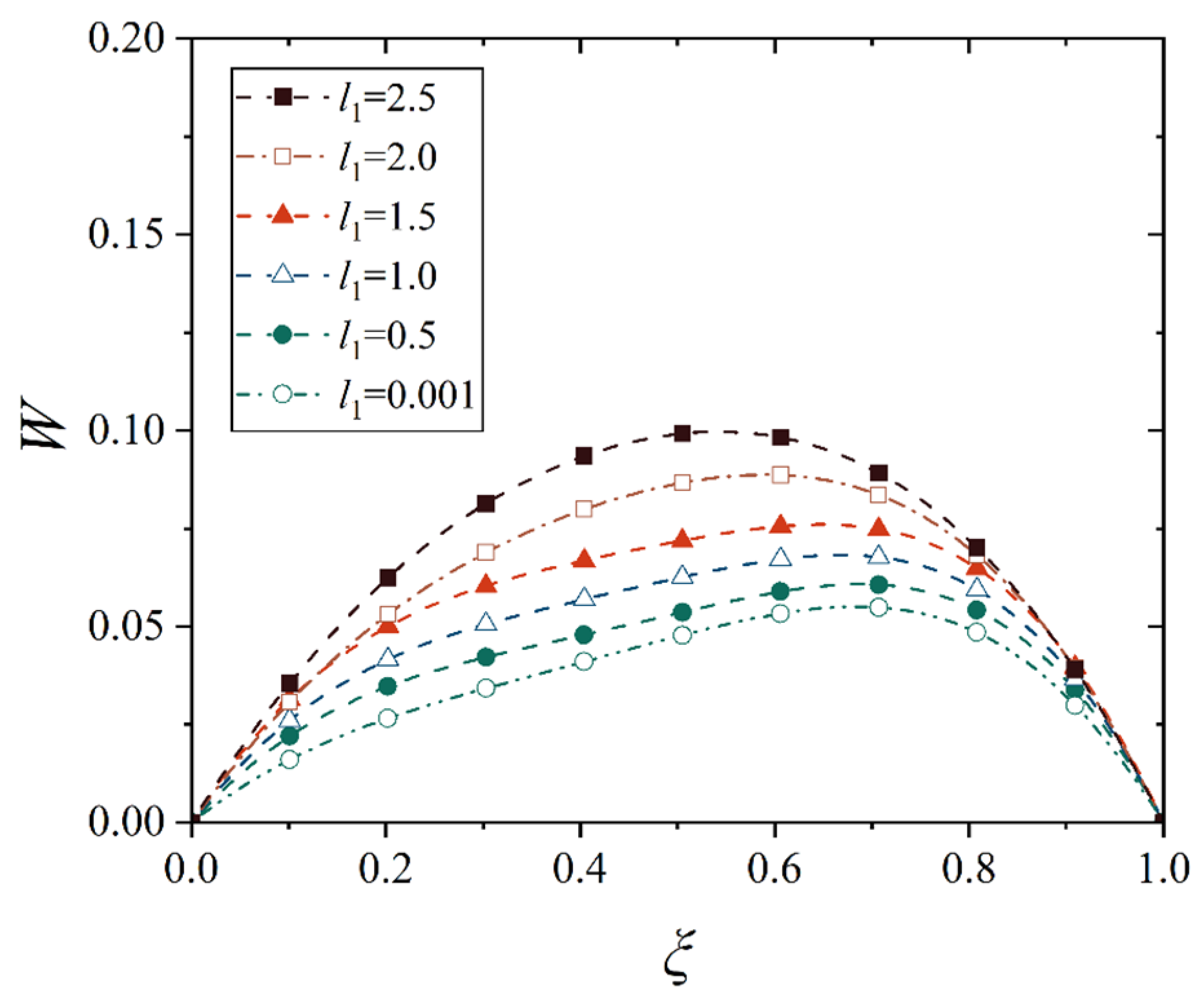

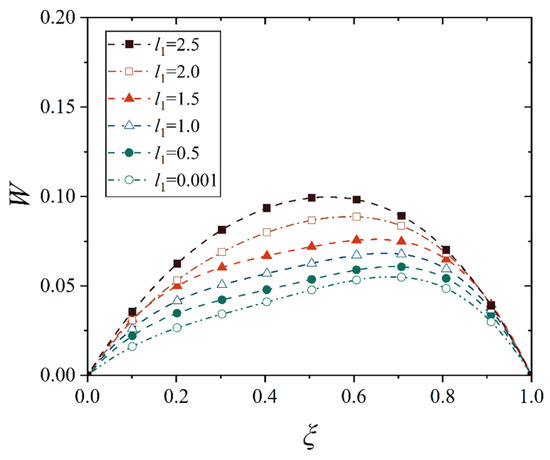

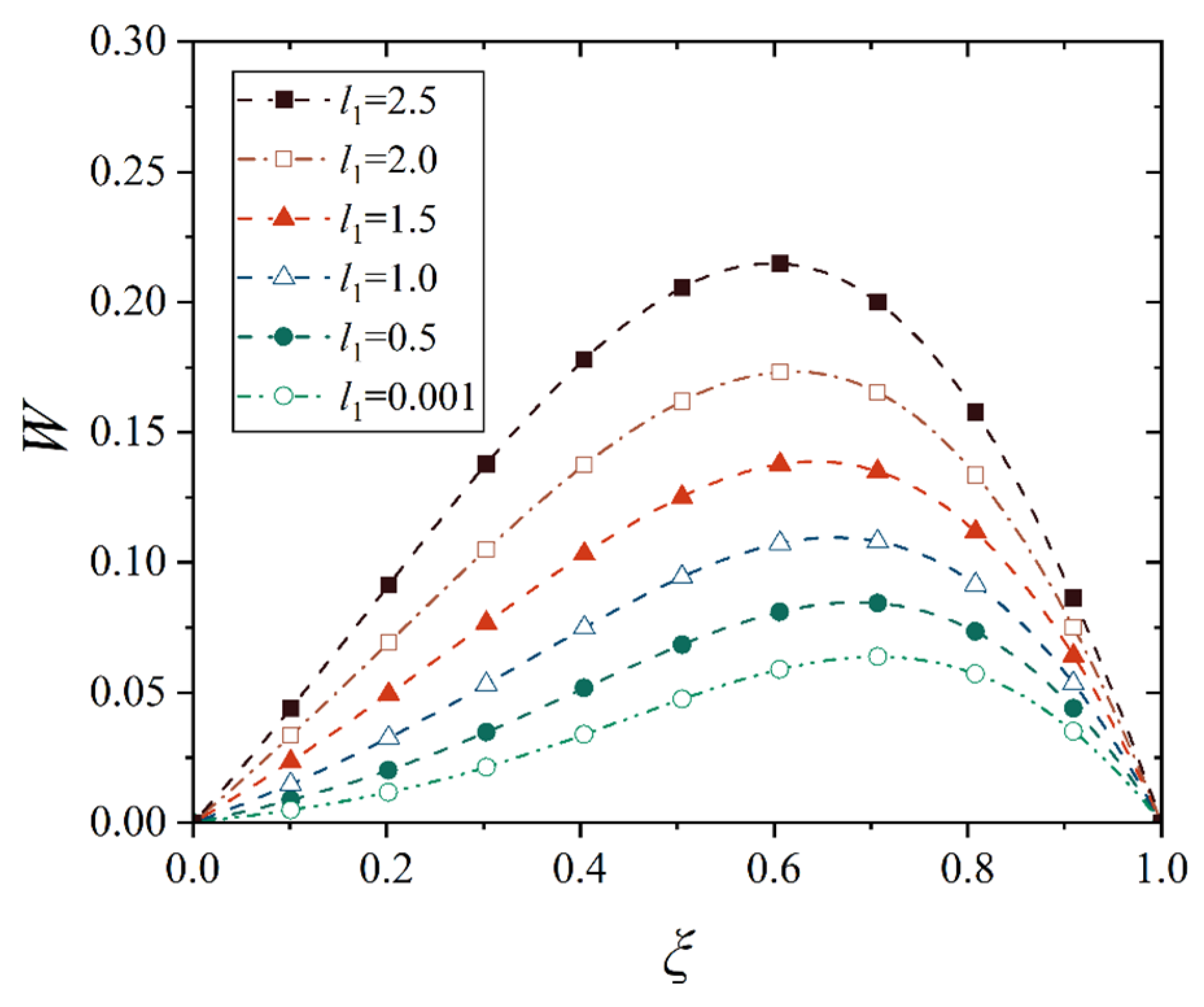

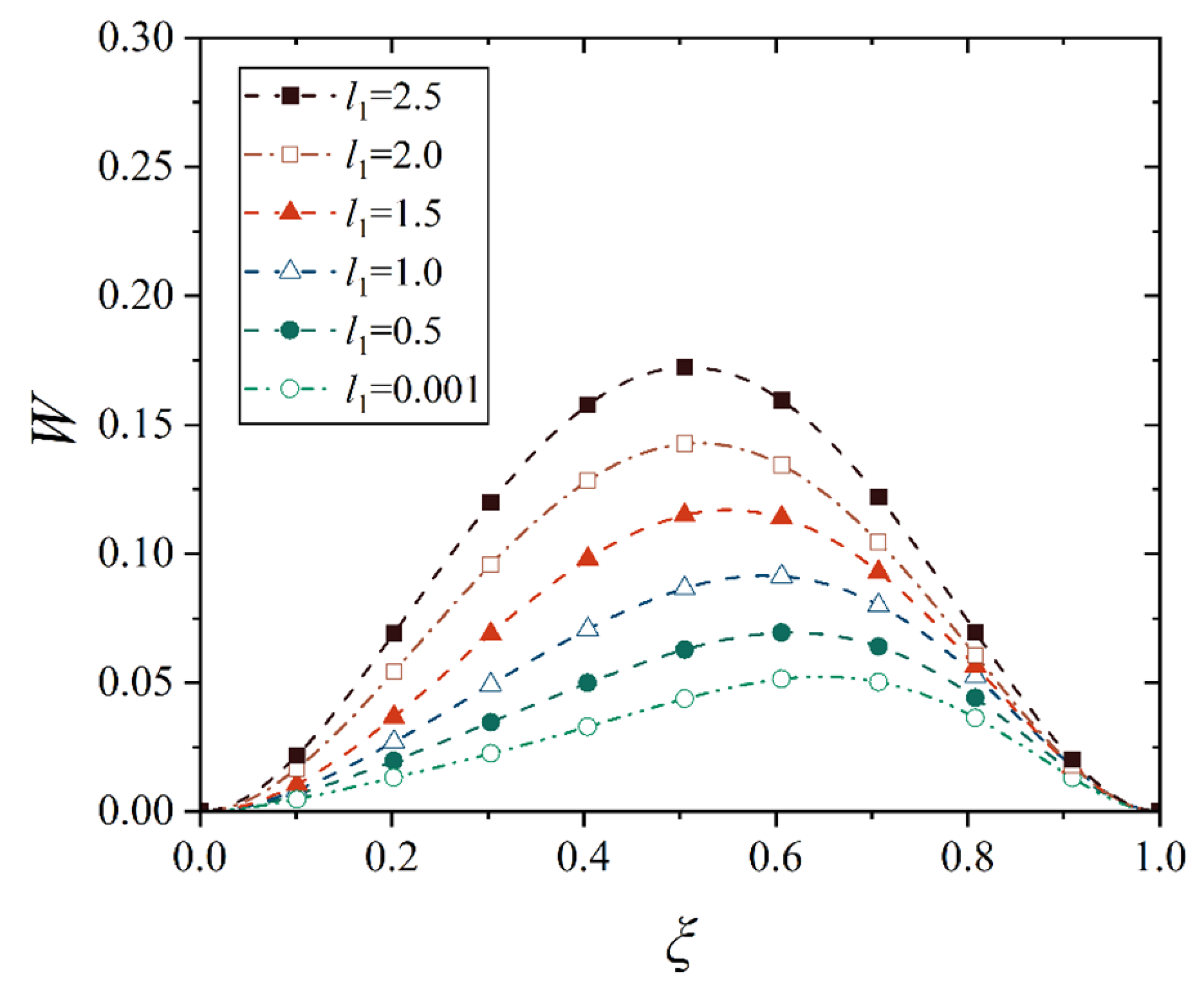

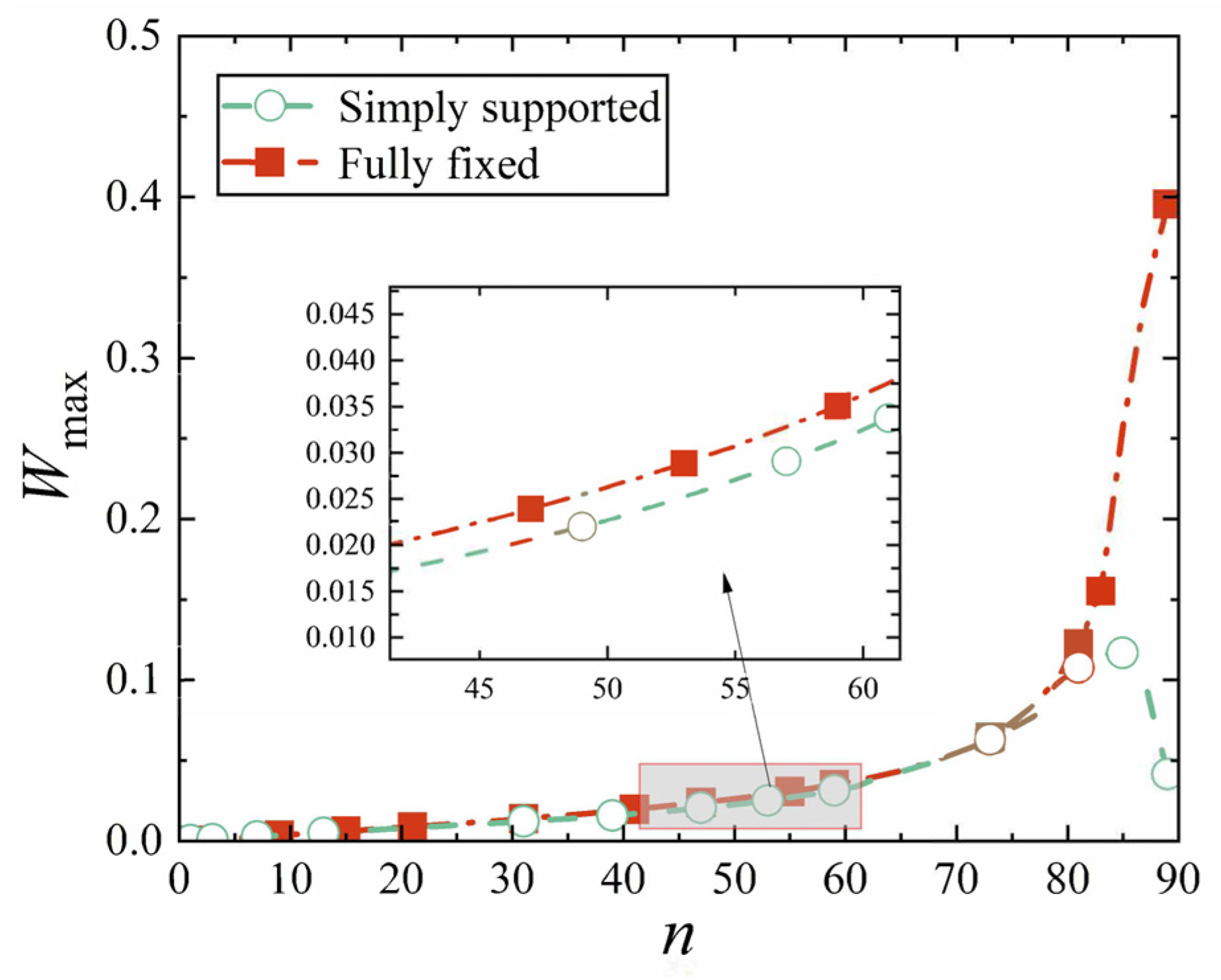

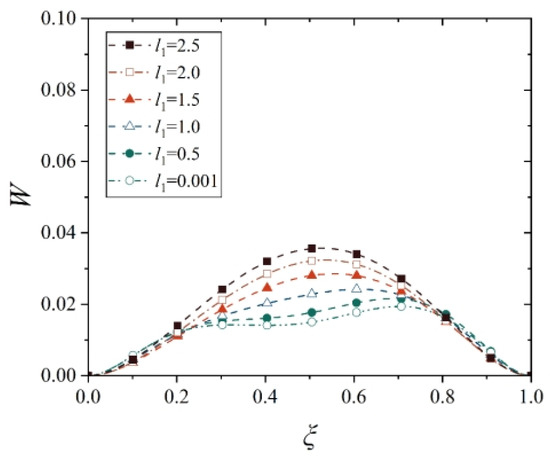

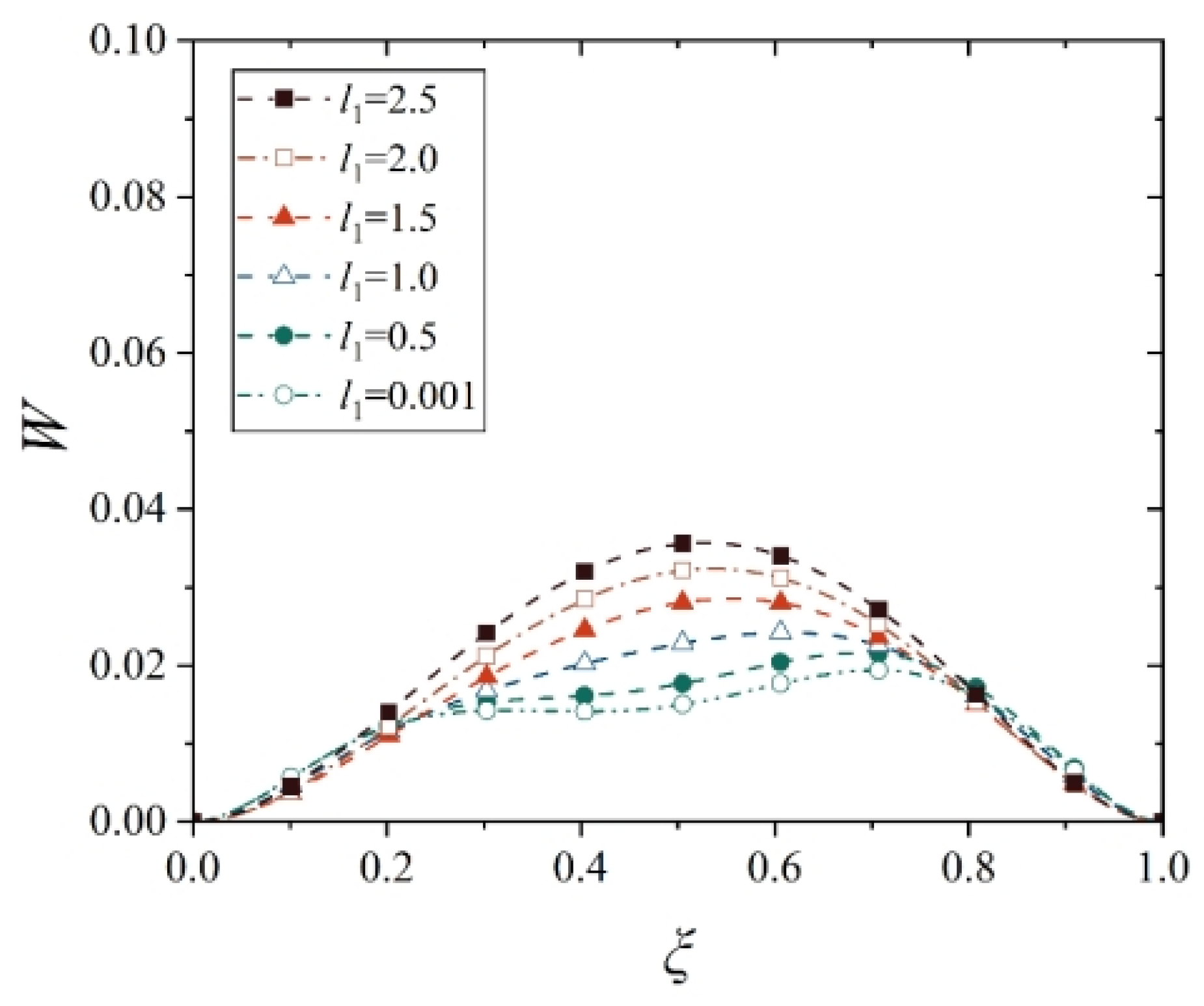

  4. Cone apex angle and truncated length influence the maximum displacement and its location;

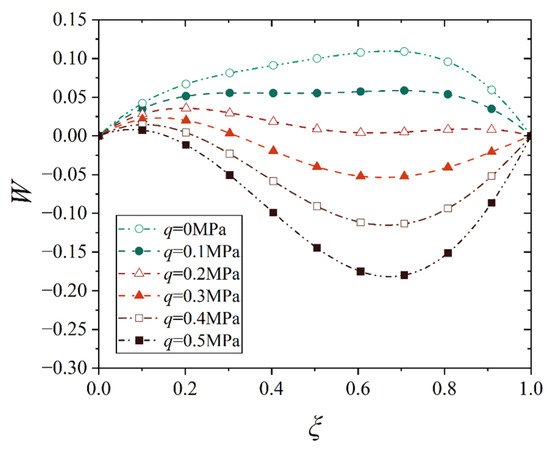

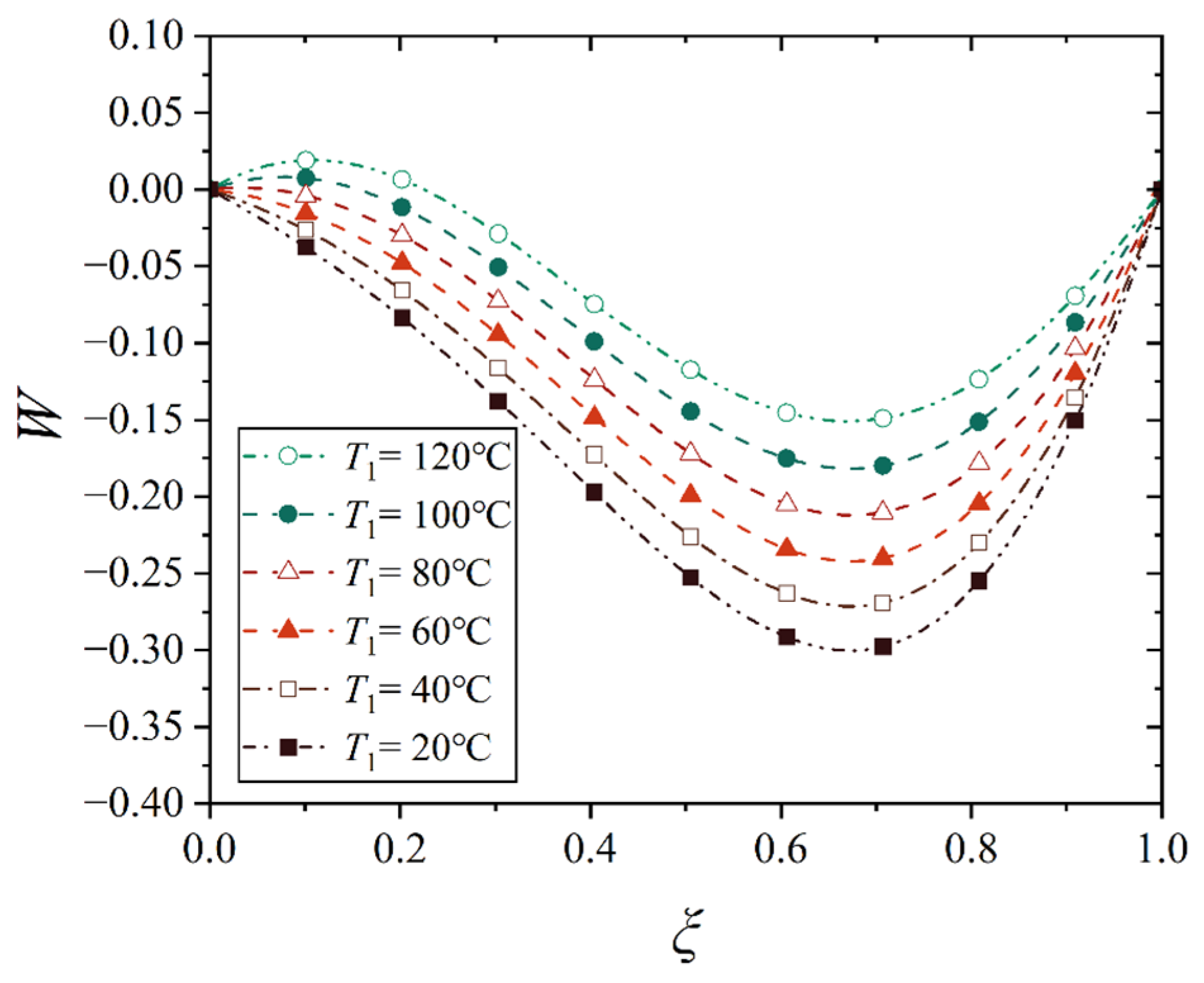

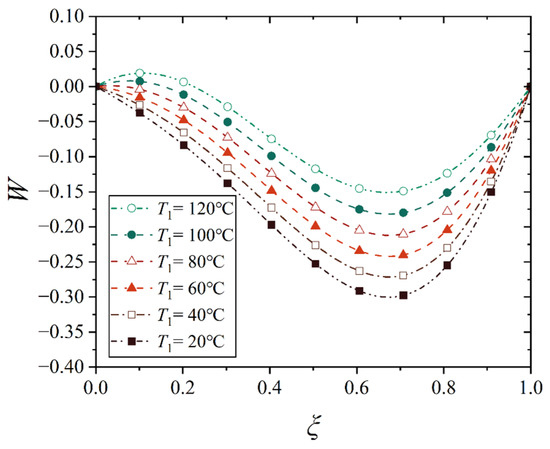

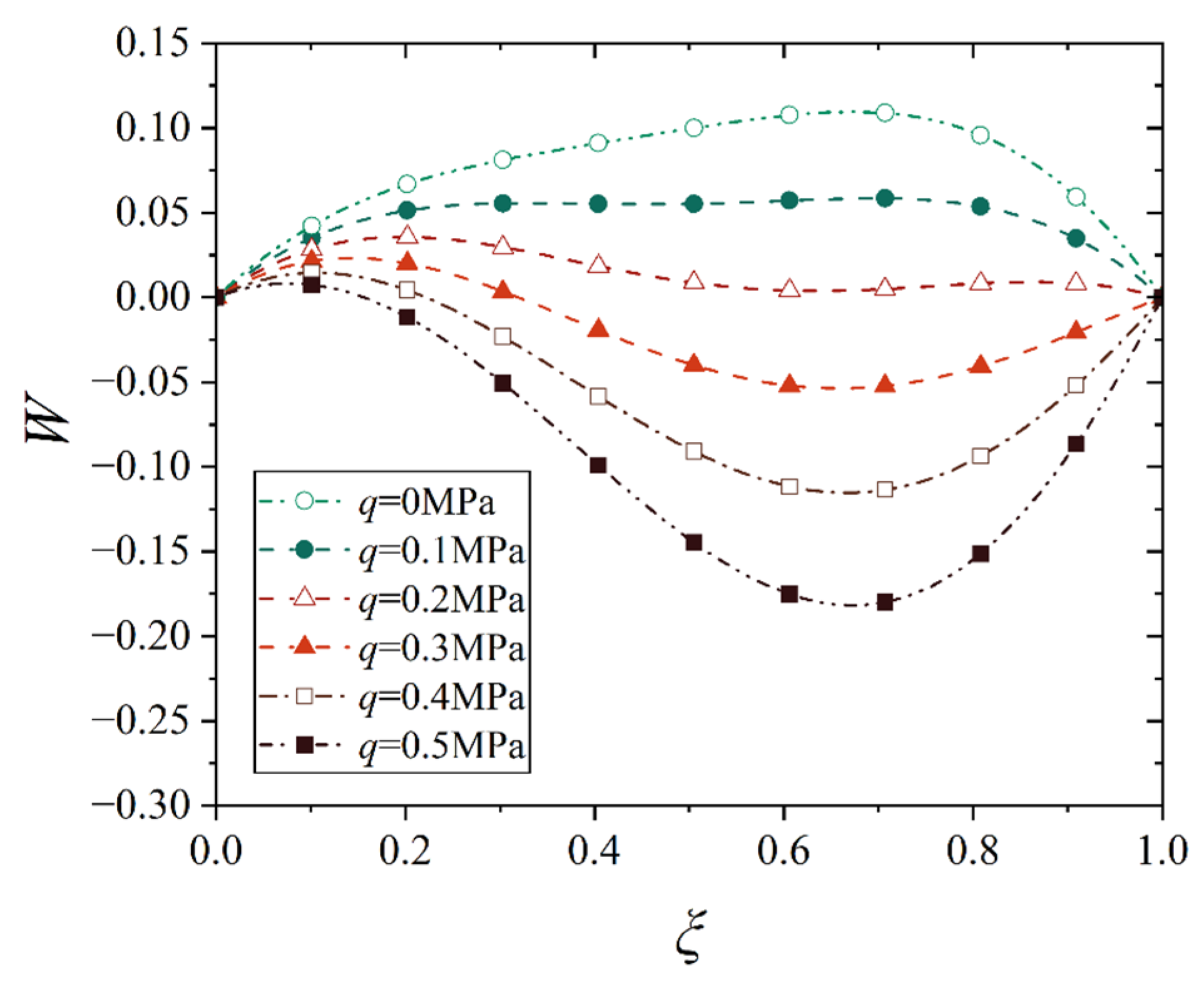

  5. Conical shells may have positive or negative displacement under the combined loads.

Abstract

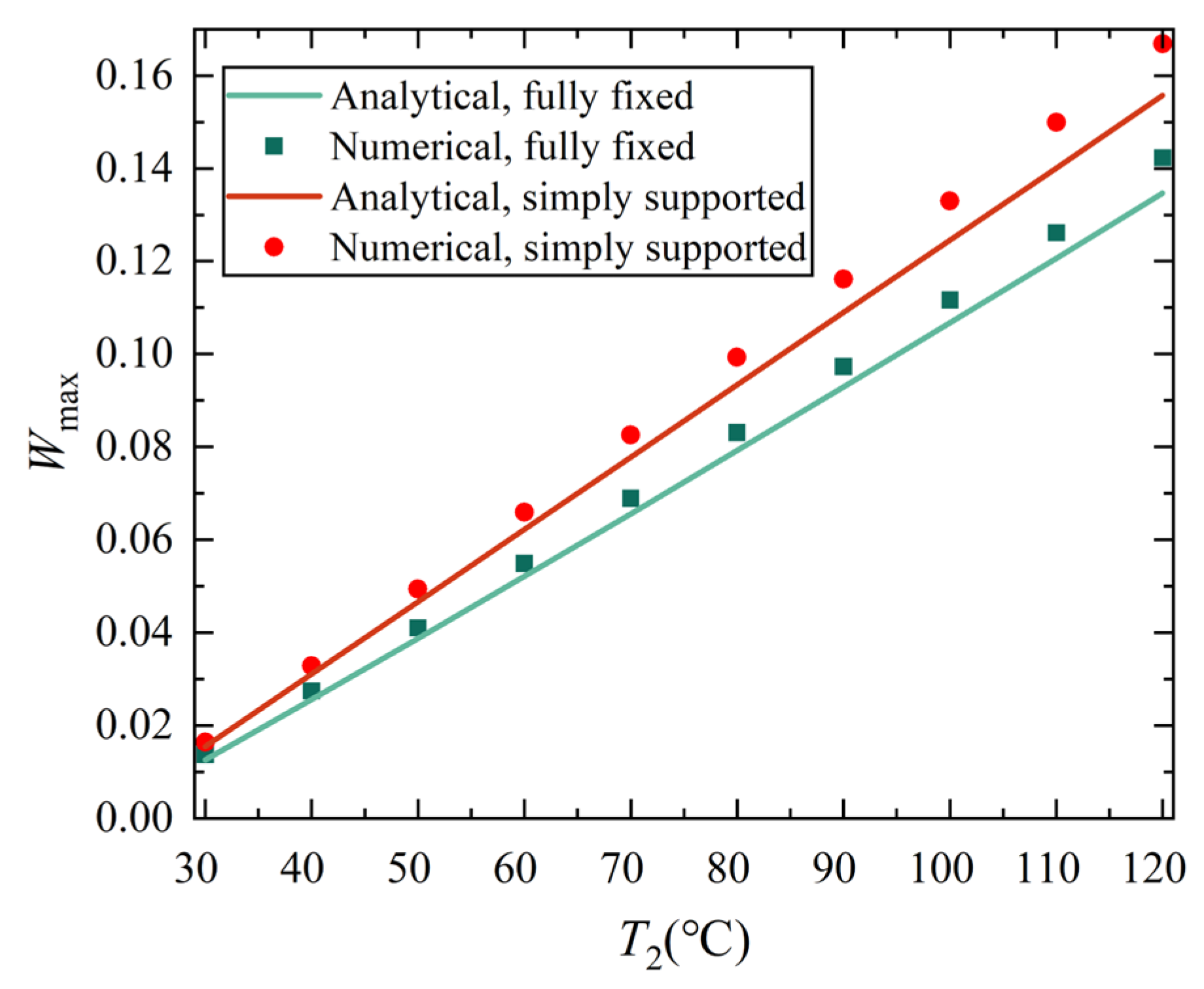

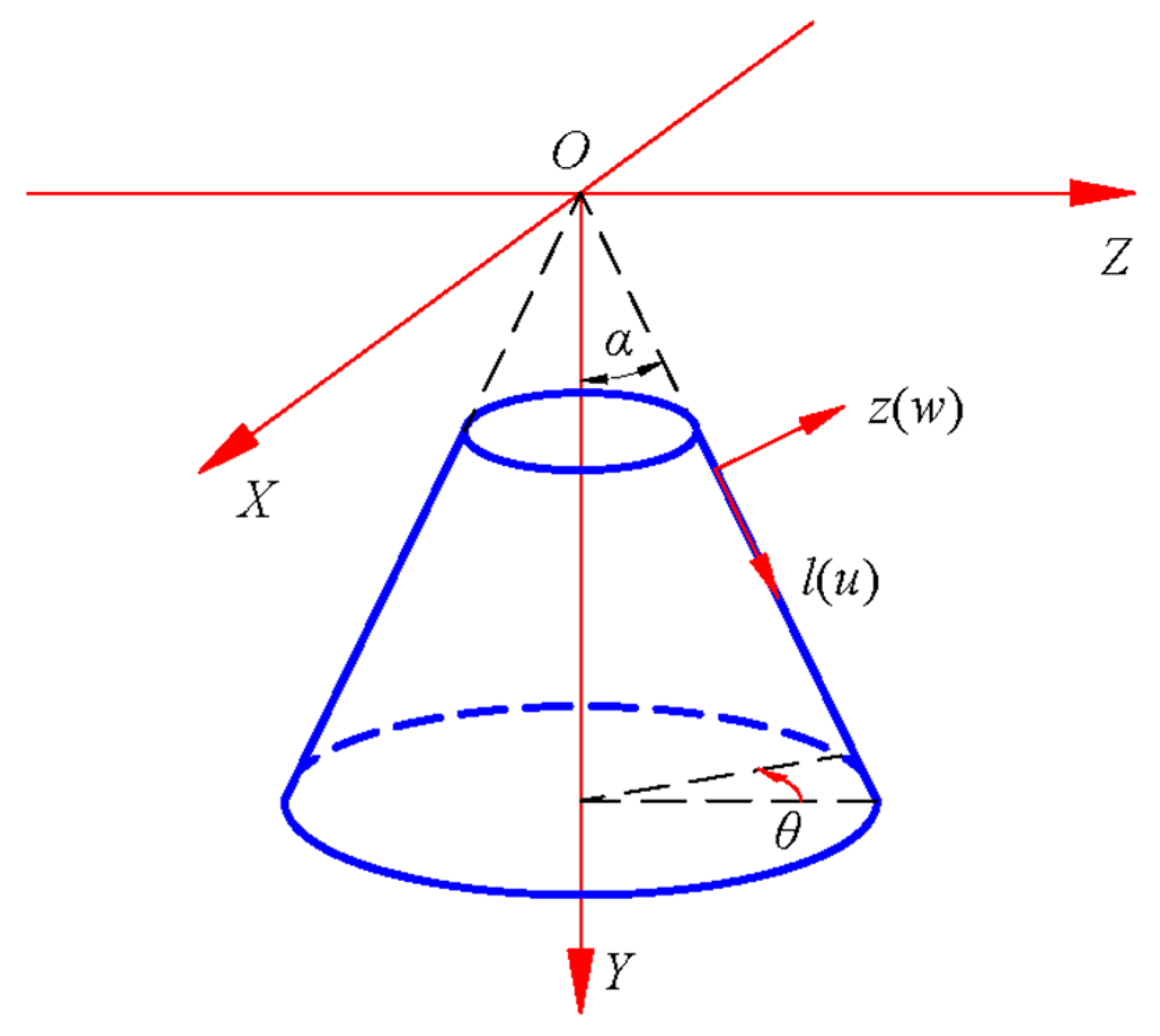

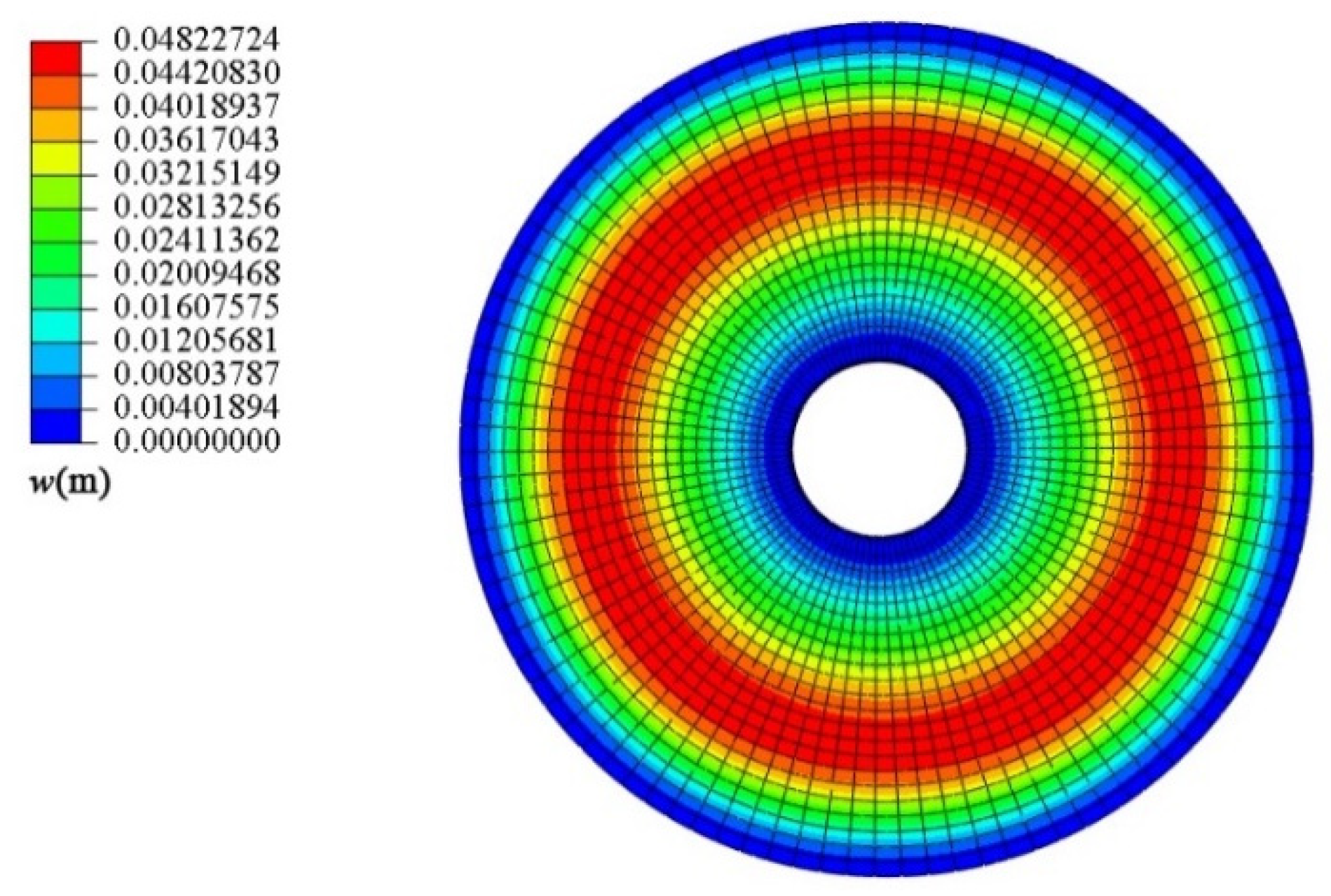

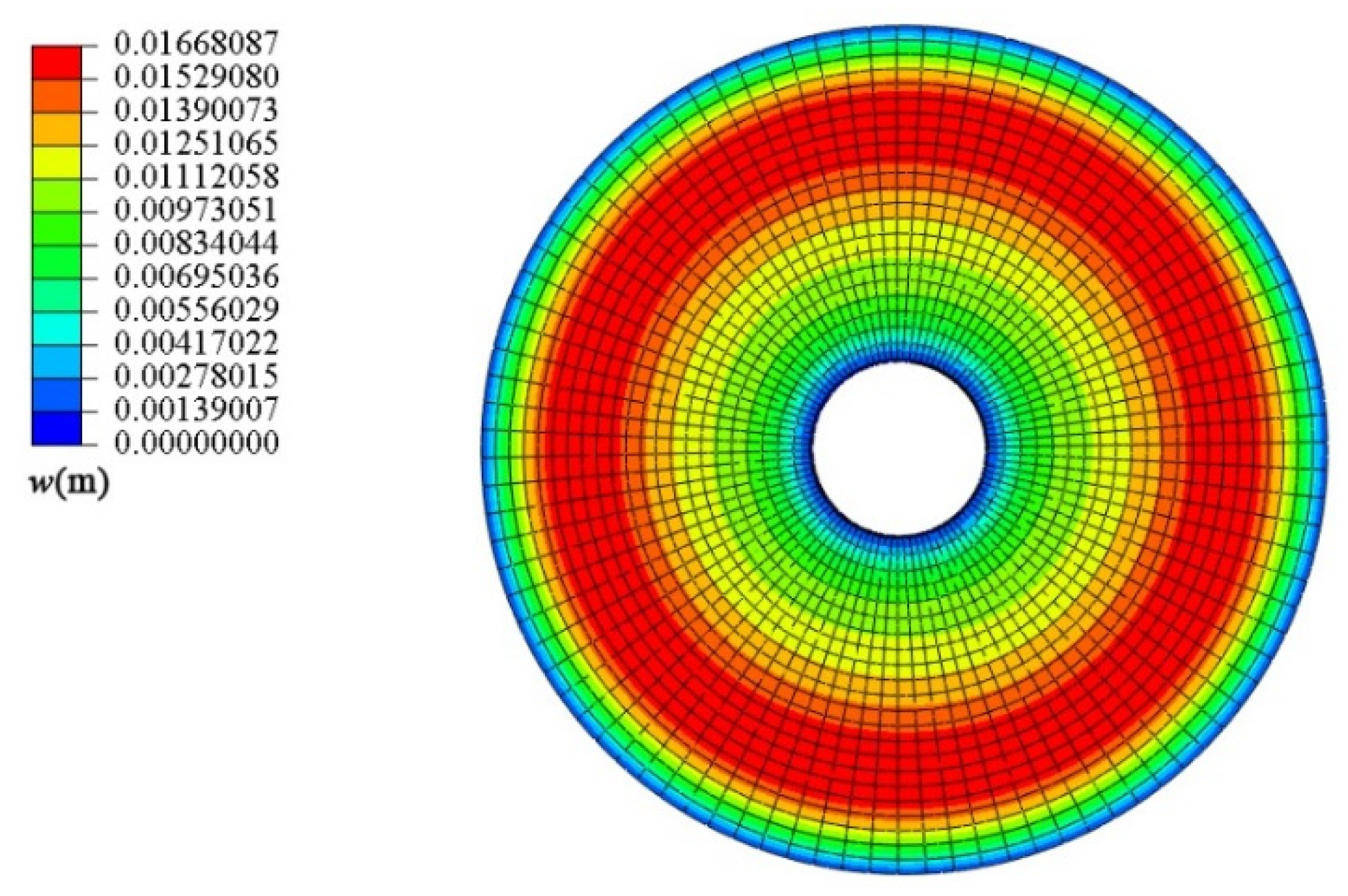

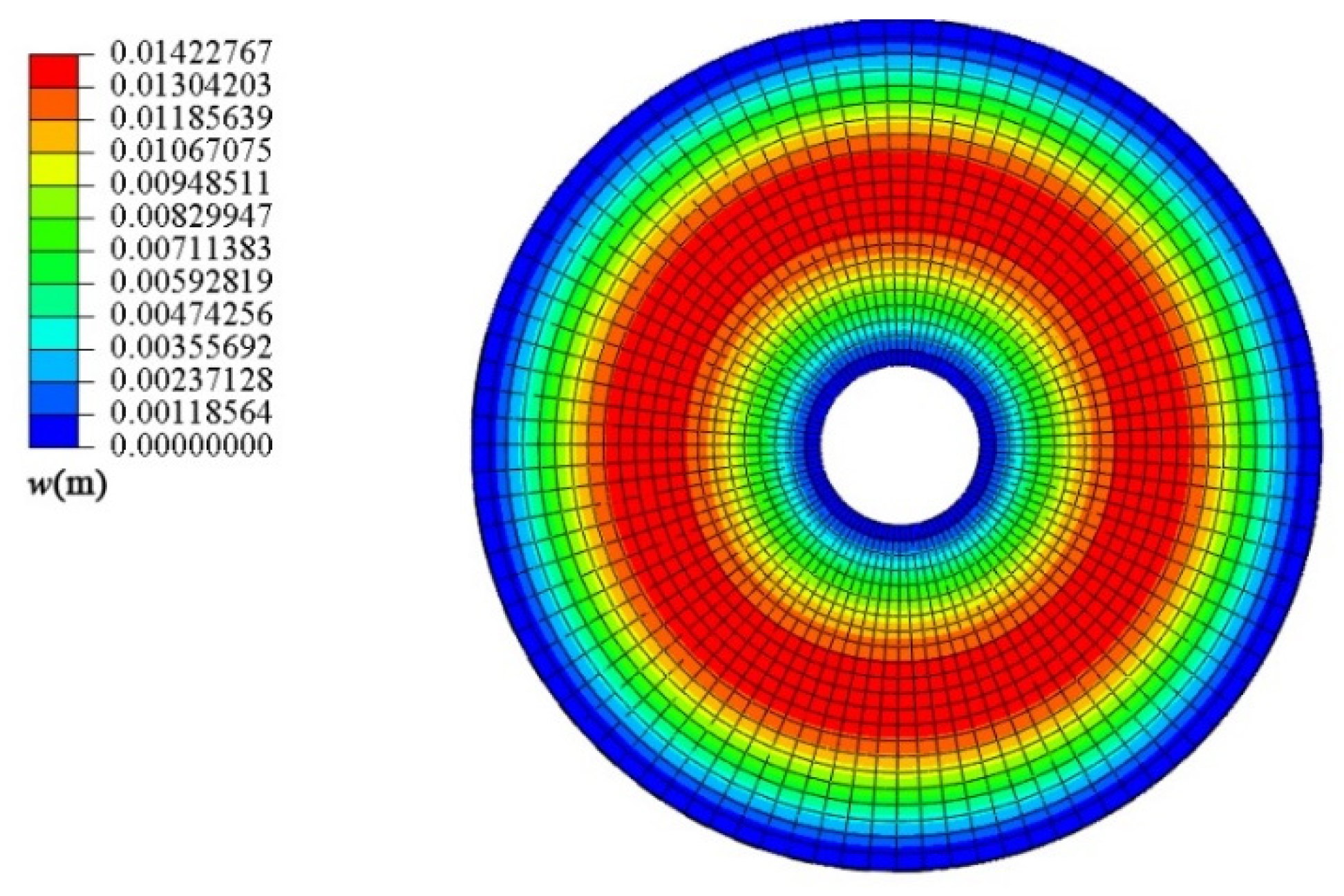

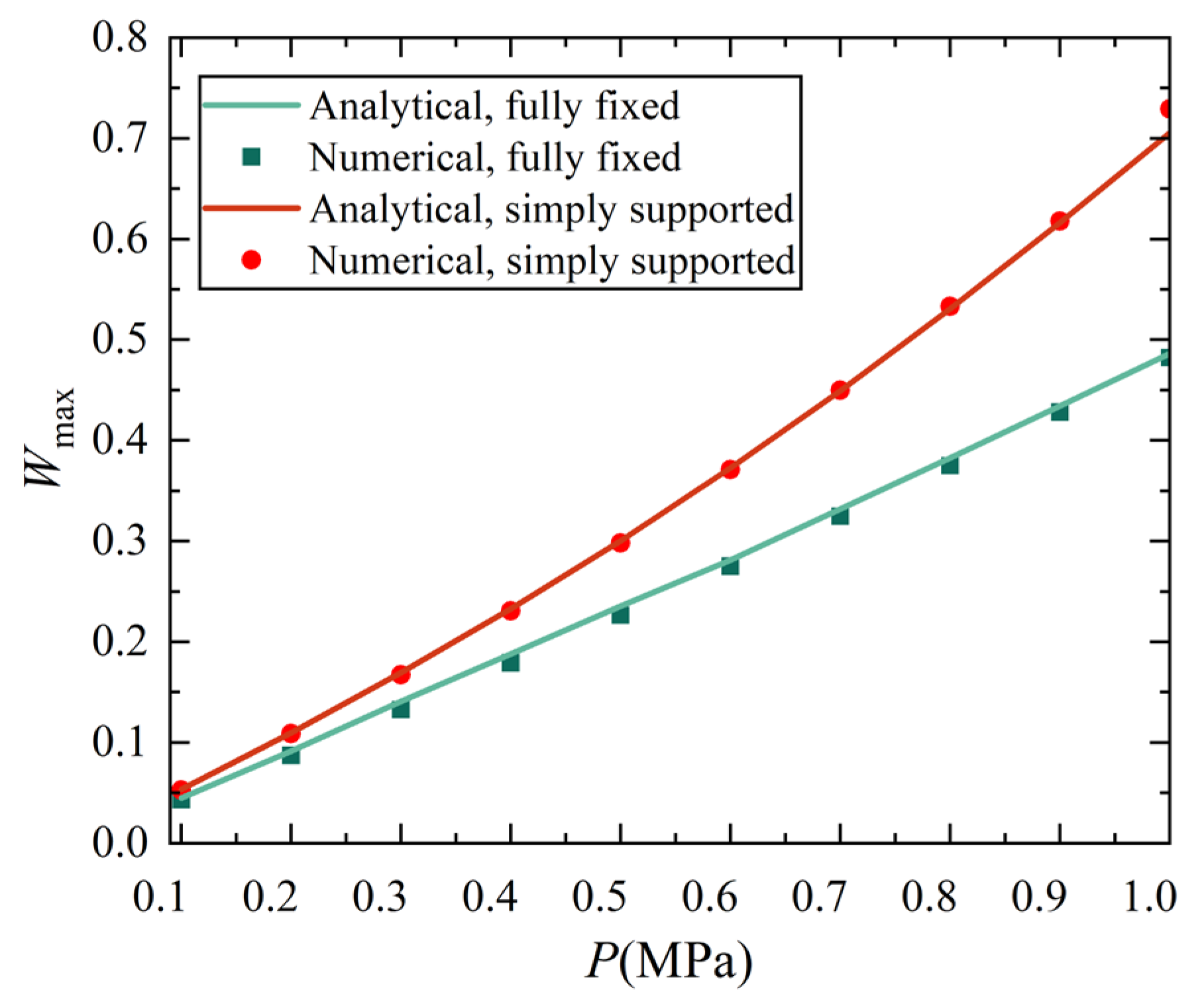

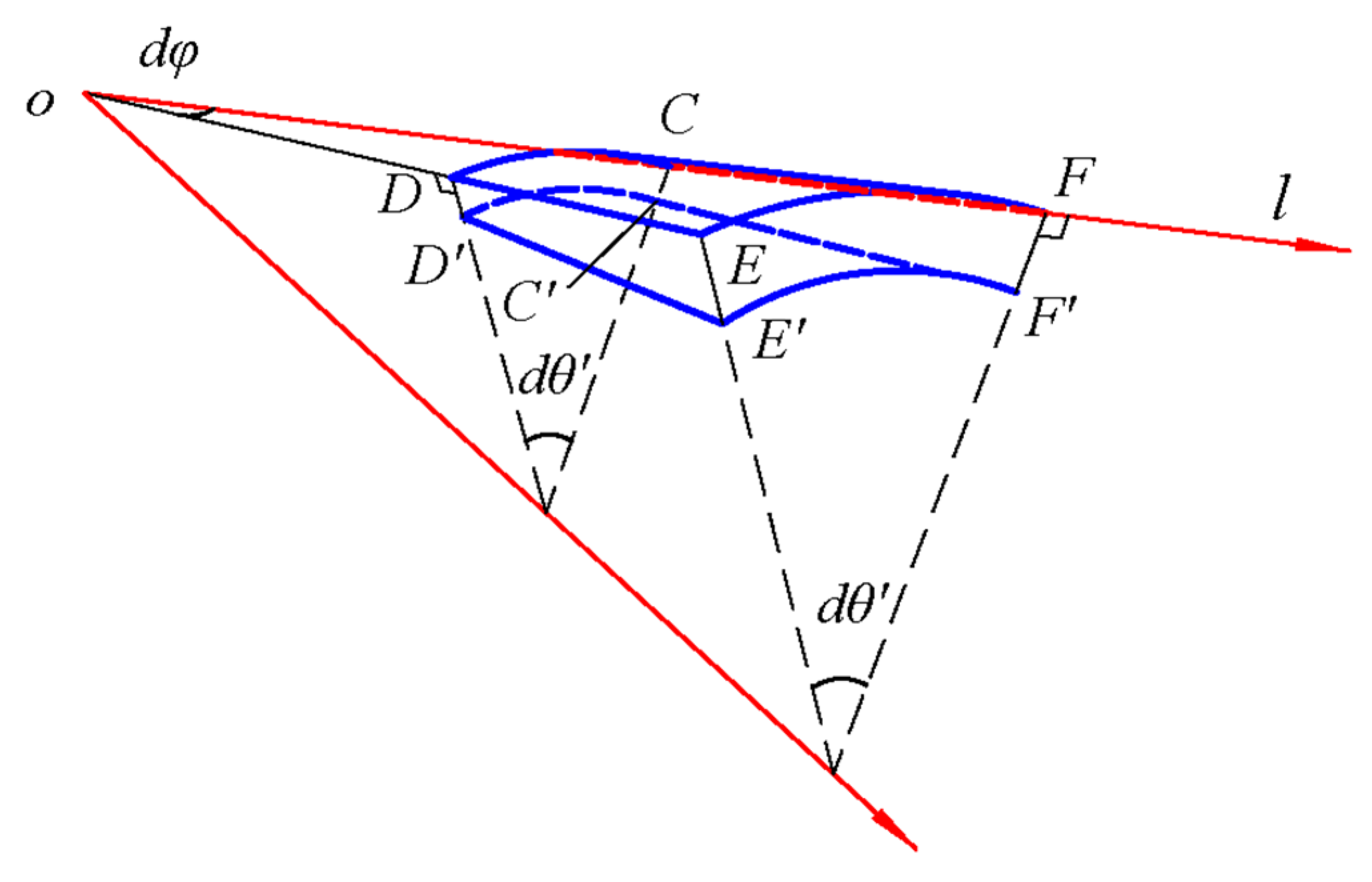

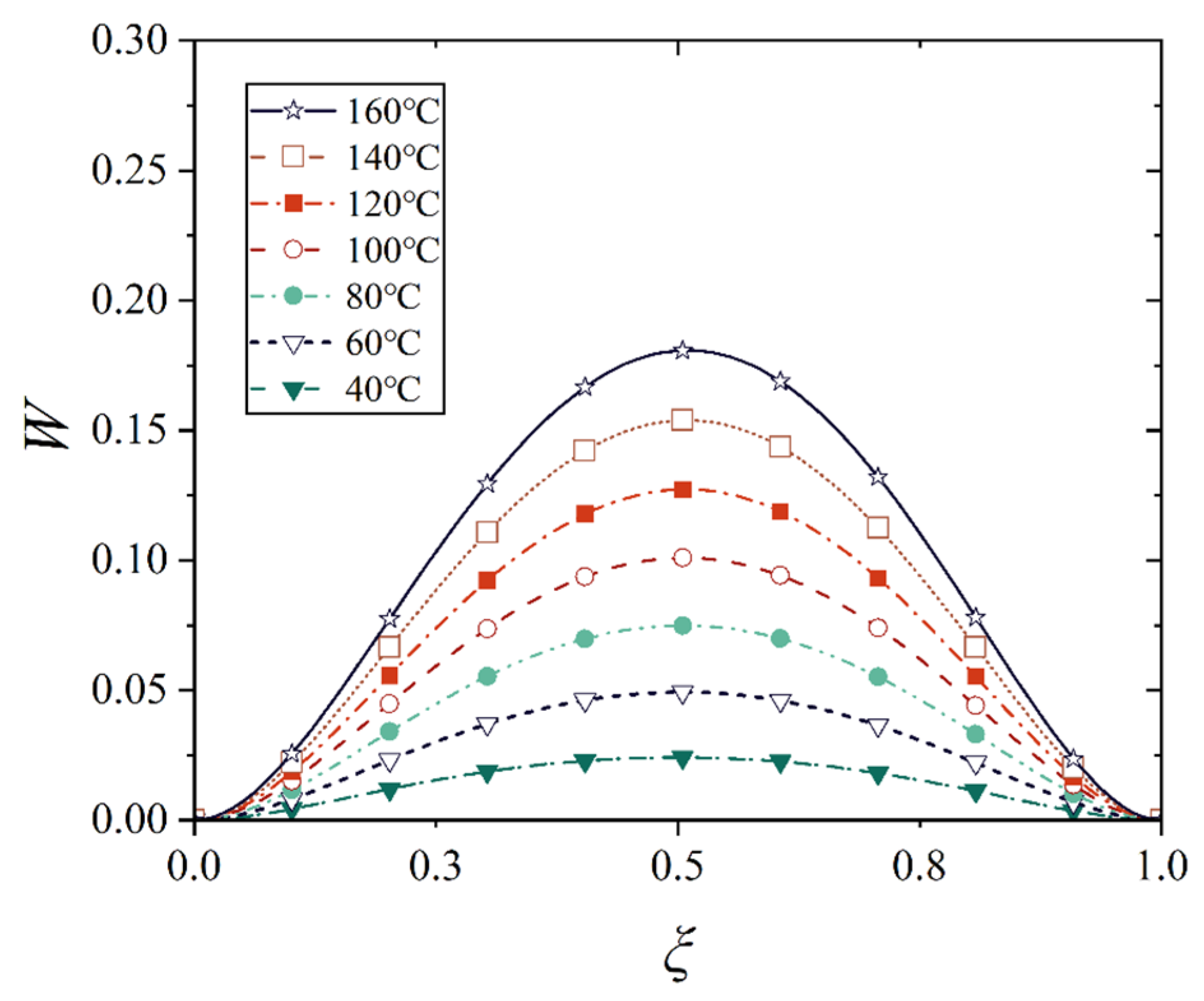

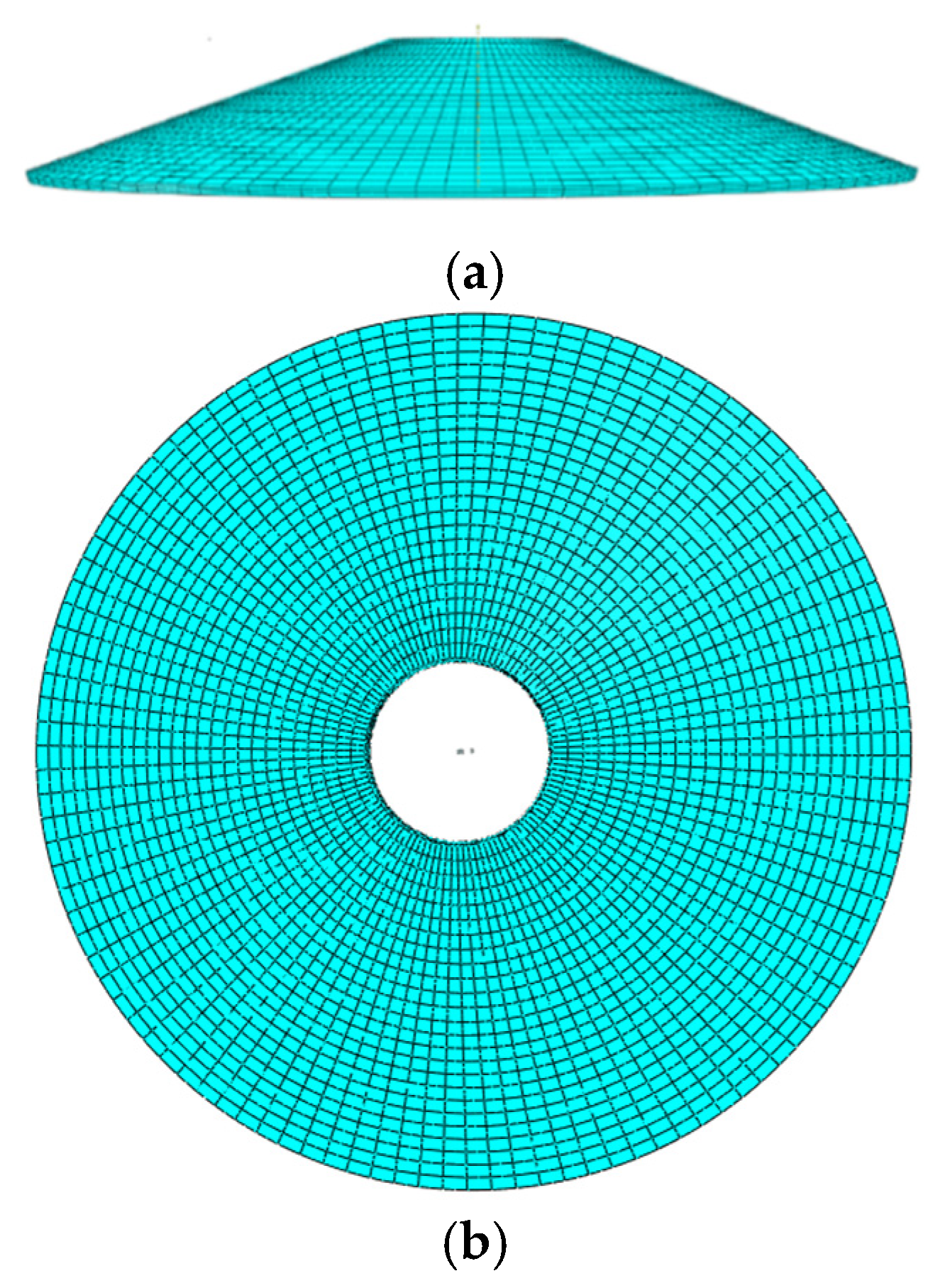

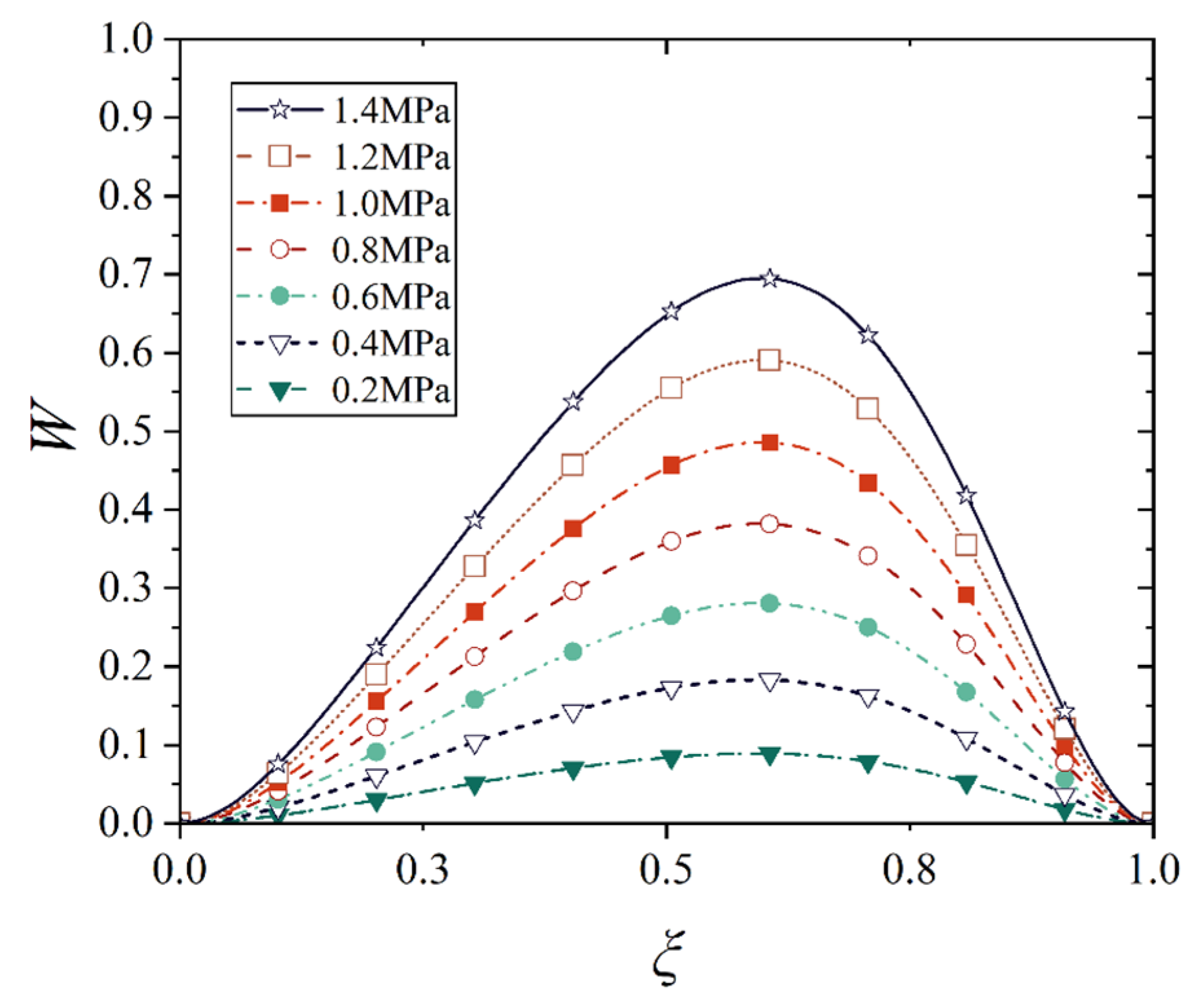

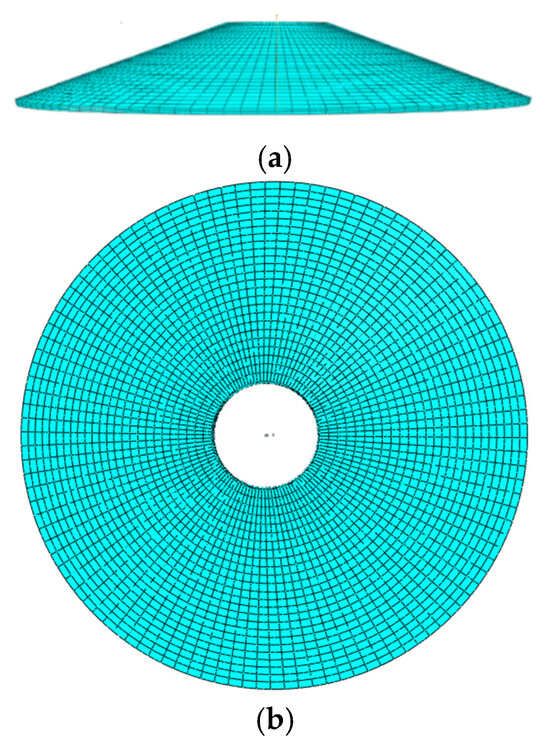

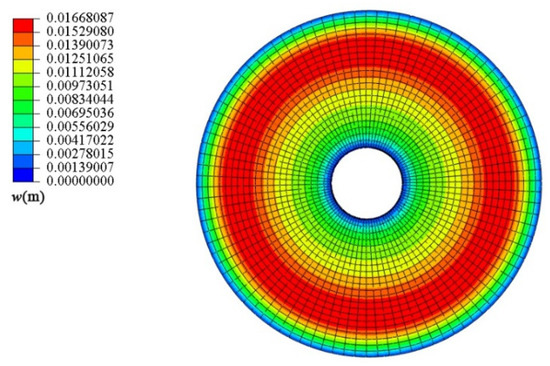

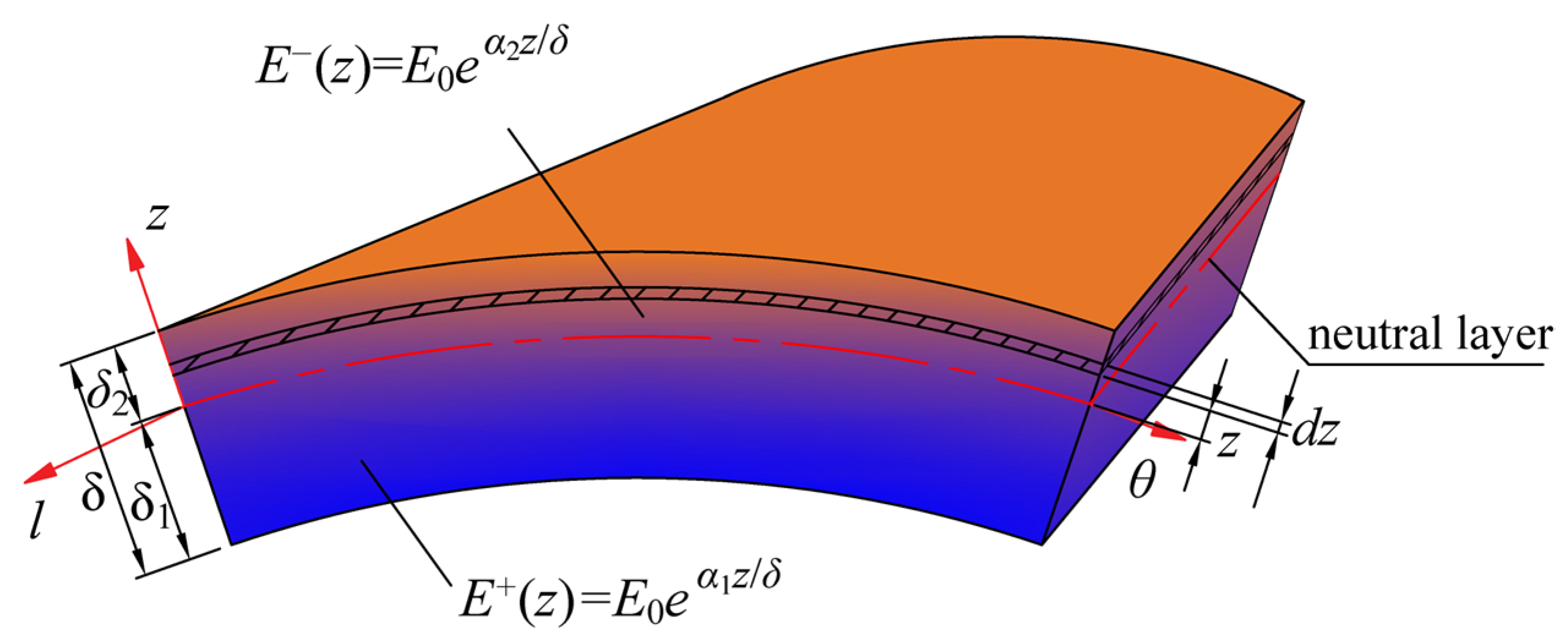

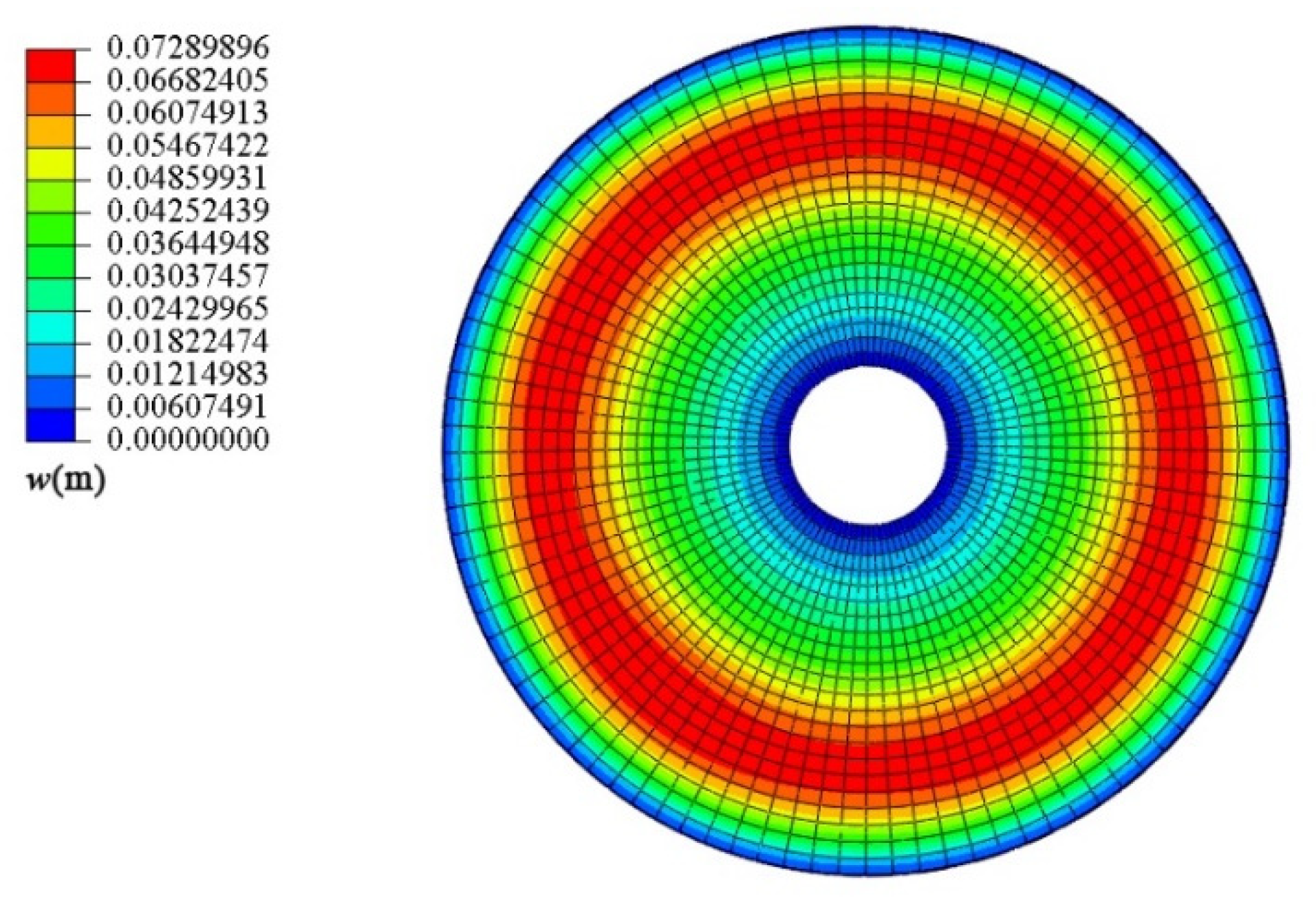

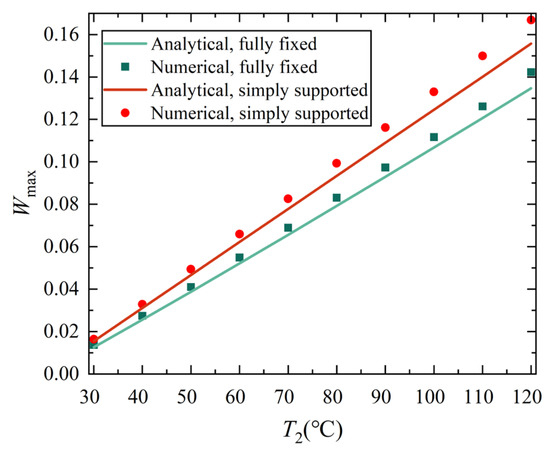

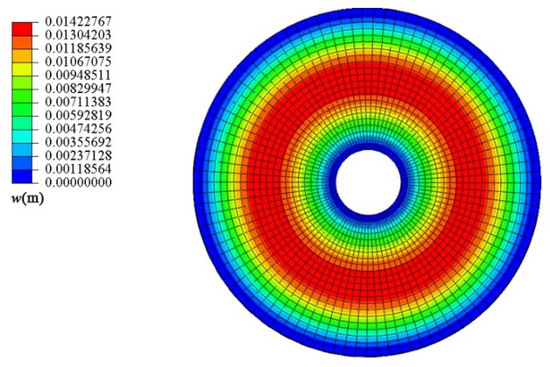

The purpose of this study is to analyze the large deflection problem of bimodular functionally graded truncated thin conical shells under the transverse mechanical load and non-uniform thermal load, in which two different boundary constraints of the truncated shell with two ends simply supported and fully fixed are considered. It is assumed that the temperature distribution along the thickness direction satisfies the Fourier law of heat transfer, and the material properties change exponentially along the thickness direction while different properties in tension and compression are considered. The geometric equation of the conical shell is established based on the equivalent method of curvature correction of von-Kármán deformation theory, and the analytical solution of the problem is obtained by Ritz method. Numerical simulation of bimodular functionally graded conical shells under the thermal and mechanical loads is carried out by Abaqus, and the numerical solution agrees with the theoretical solution. The results show that the introduction of bimodular functionally graded material will affect the maximum displacement and this effect has different rules under the mechanical load and thermal load. In addition, factors such as the cone apex angle and the truncated distance have a great influence on the maximum displacement and its location of the conical shell.
