Numerical Analysis on Dynamic Response of CFRP-Wrapped RC Columns under Lateral Impact Loading

,
,
,
and
1
School of Civil Engineering, Hunan University of Science and Technology, Xiangtan 411201, China
2
Department of Architecture Engineering, Kyonggi University, Suwon 16227, Republic of Korea
3
Department of Safety Engineering, Korea National University of Transportation, Chungbuk 27469, Republic of Korea
*
Authors to whom correspondence should be addressed.
This article belongs to the Special Issue Impact Behaviour of Materials and Structures

Abstract

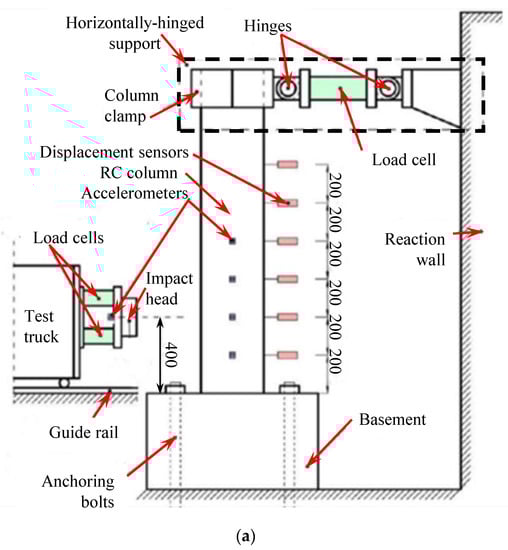

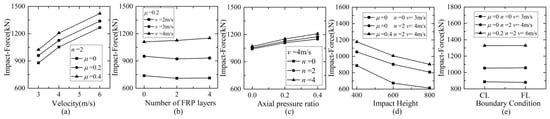

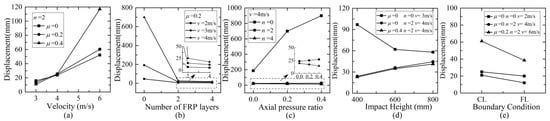

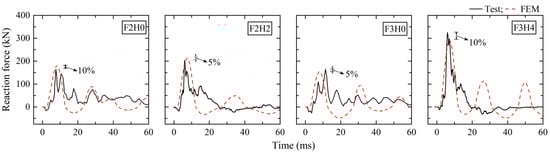

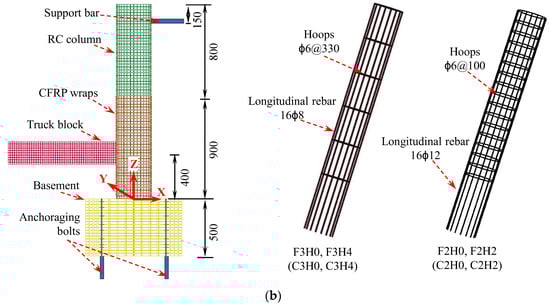

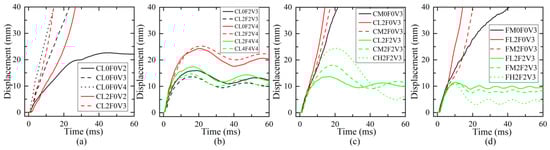

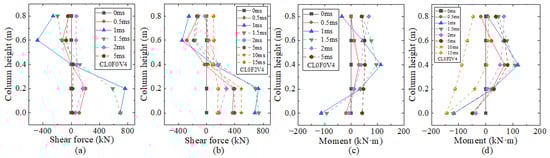

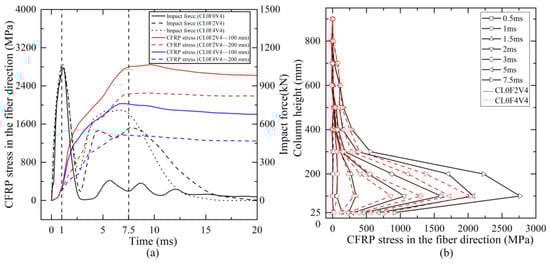

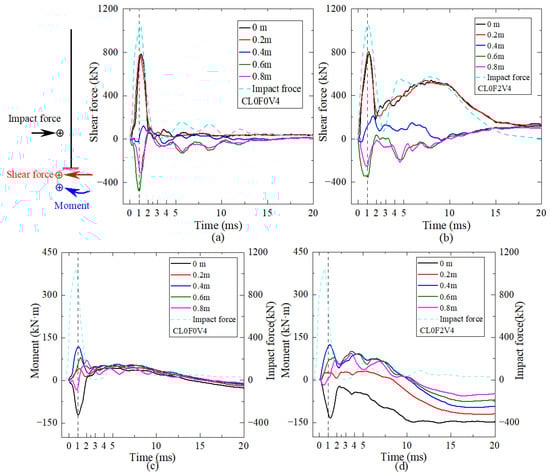

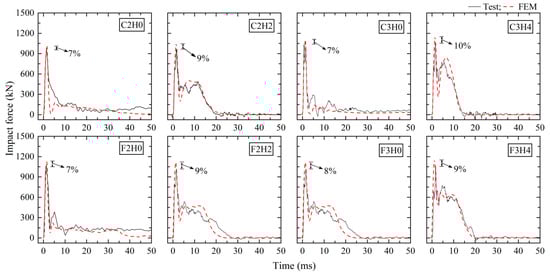

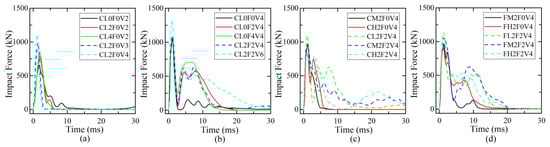

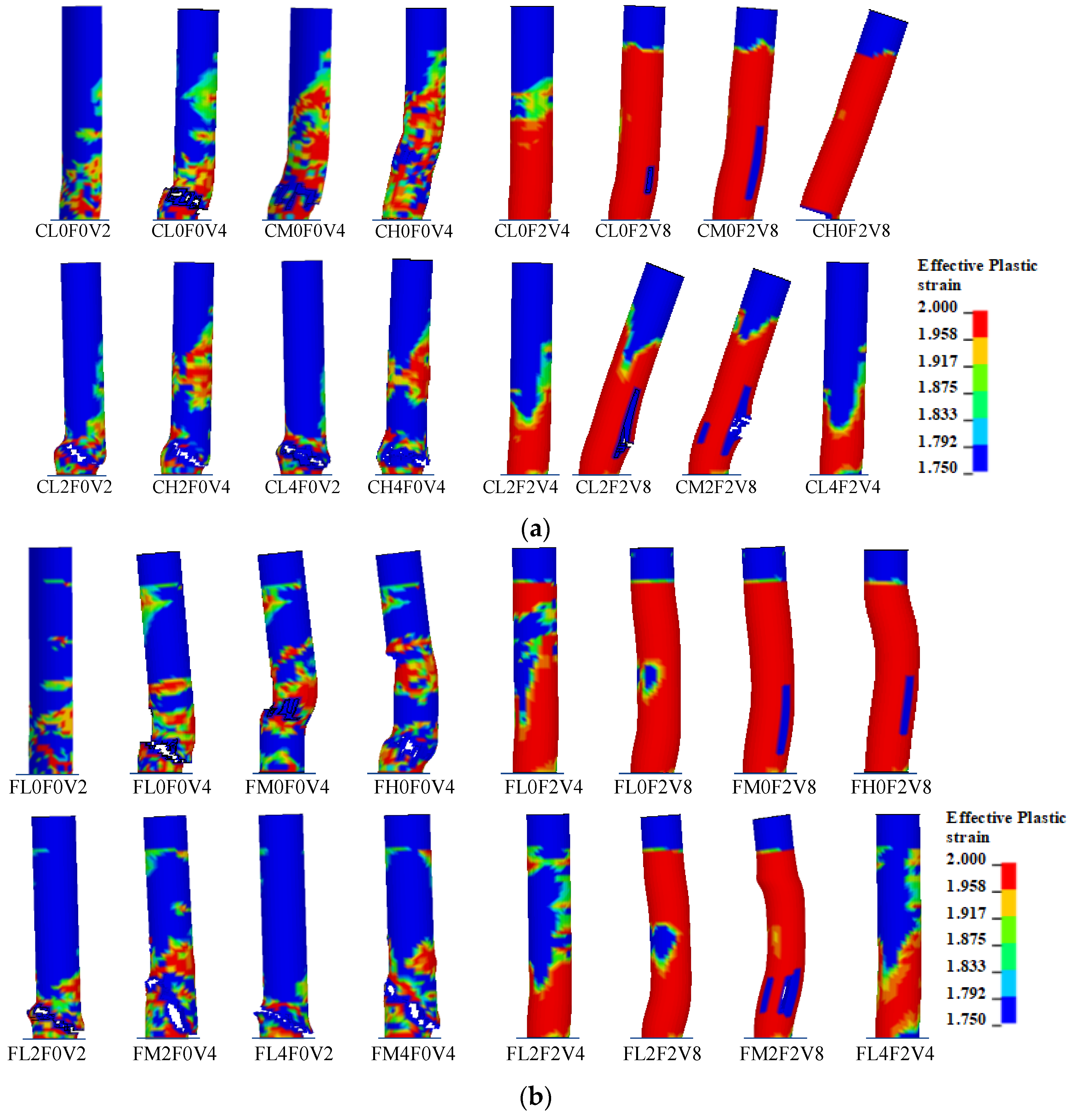

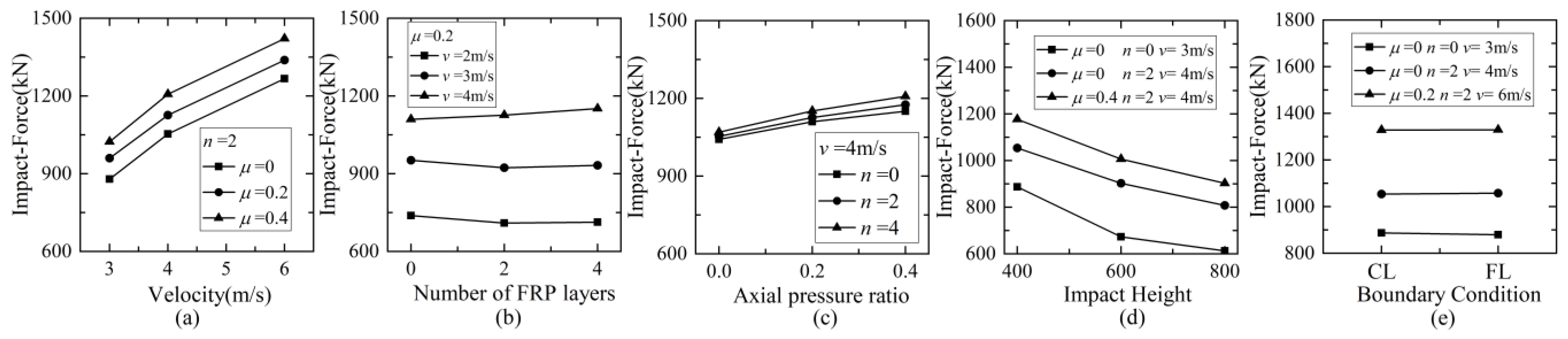

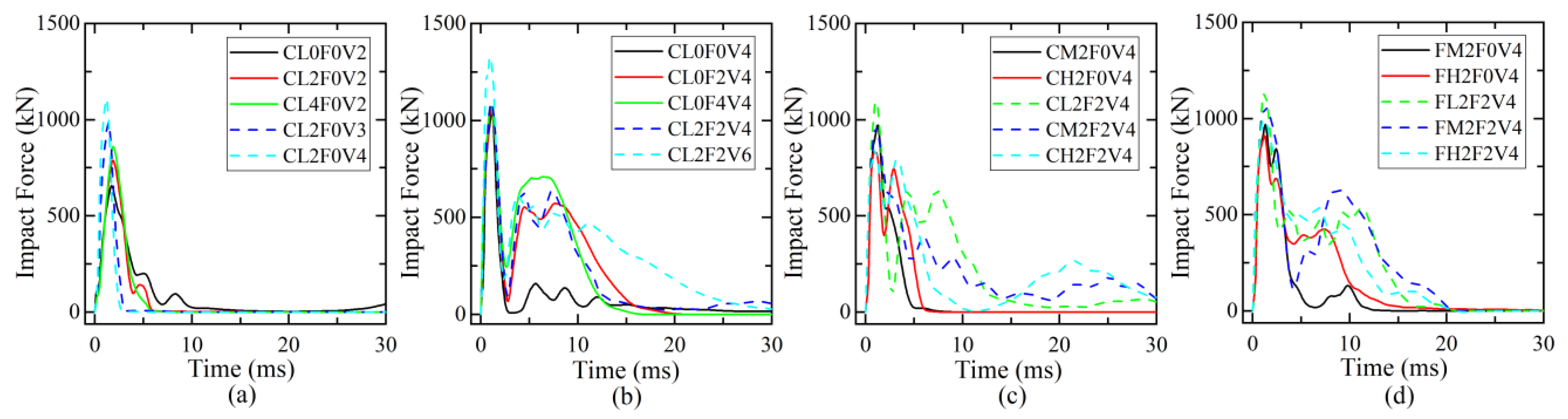

This paper presents a numerical study examining the dynamic response and resistance mechanism of reinforced concrete (RC) columns strengthened with or without carbon-fiber-reinforced polymer (CFRP) wraps under lateral impact loading by using the software LS-DYNA. First, the information of eight column models was briefly introduced as part of the laboratory experimental program from the literature. Secondly, finite element (FE) models were established in terms of the geometries of impact tests. Then, a detailed comparison between numerical results and experimental results was made, and FE models showed a relatively high simulation accuracy. Subsequently, a series of parametric analyses were carried out with a focus on the effects of axial compression ratio, the boundary condition at the column top, the layer number of CFRP wraps, and the impact velocity and impact height on the dynamic responses of plain and strengthened columns. The results demonstrated that the CFRP retrofit mechanism was not activated during the initial Stage-I when the impact force rapidly increased to the first peak and then decreased to zero. CFRP strengthening came into play in the second stage, Stage-II, and affected the response of the shear force and moment along the column height, as well as had a great influence on the control of shear damage. The dynamic response of RC columns was more sensitive to the impact velocity than to other parameters, regardless of whether CFRP wrapping was applied. The axial compression ratio would have a different influence on the column failure mode if the impact velocity was varied. The variation in impact height and boundary condition at the column top had little influence on the damage mode of strengthened columns.
