Fluid Flow in Continuous Casting Mold for Ultra-Wide Slab

,
,
,
and
College of Materials Science and Engineering, and Chongqing Key Laboratory of Vanadium–Titanium Metallurgy and Advanced Materials, Chongqing University, Chongqing 400044, China
*
Authors to whom correspondence should be addressed.

Abstract

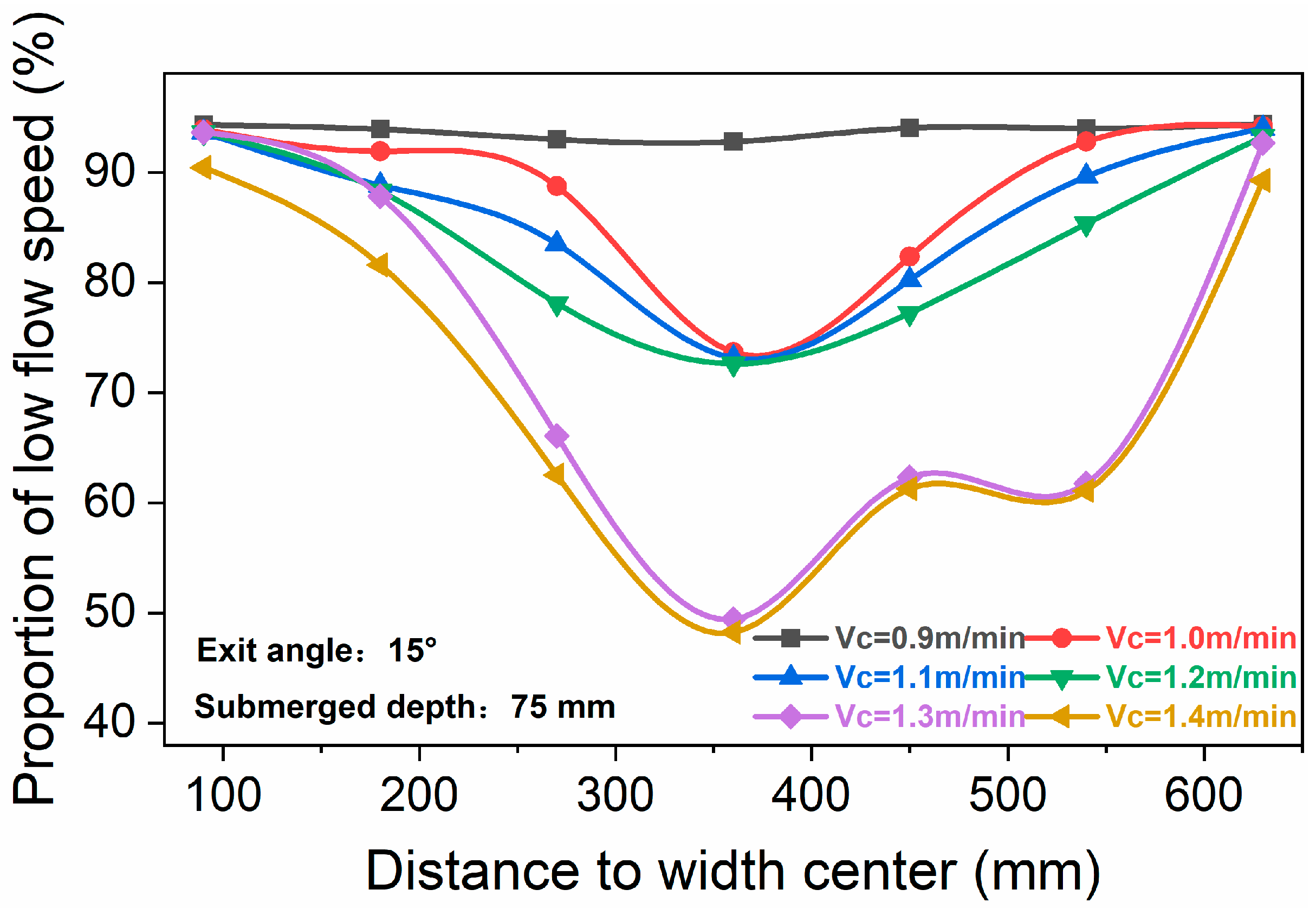

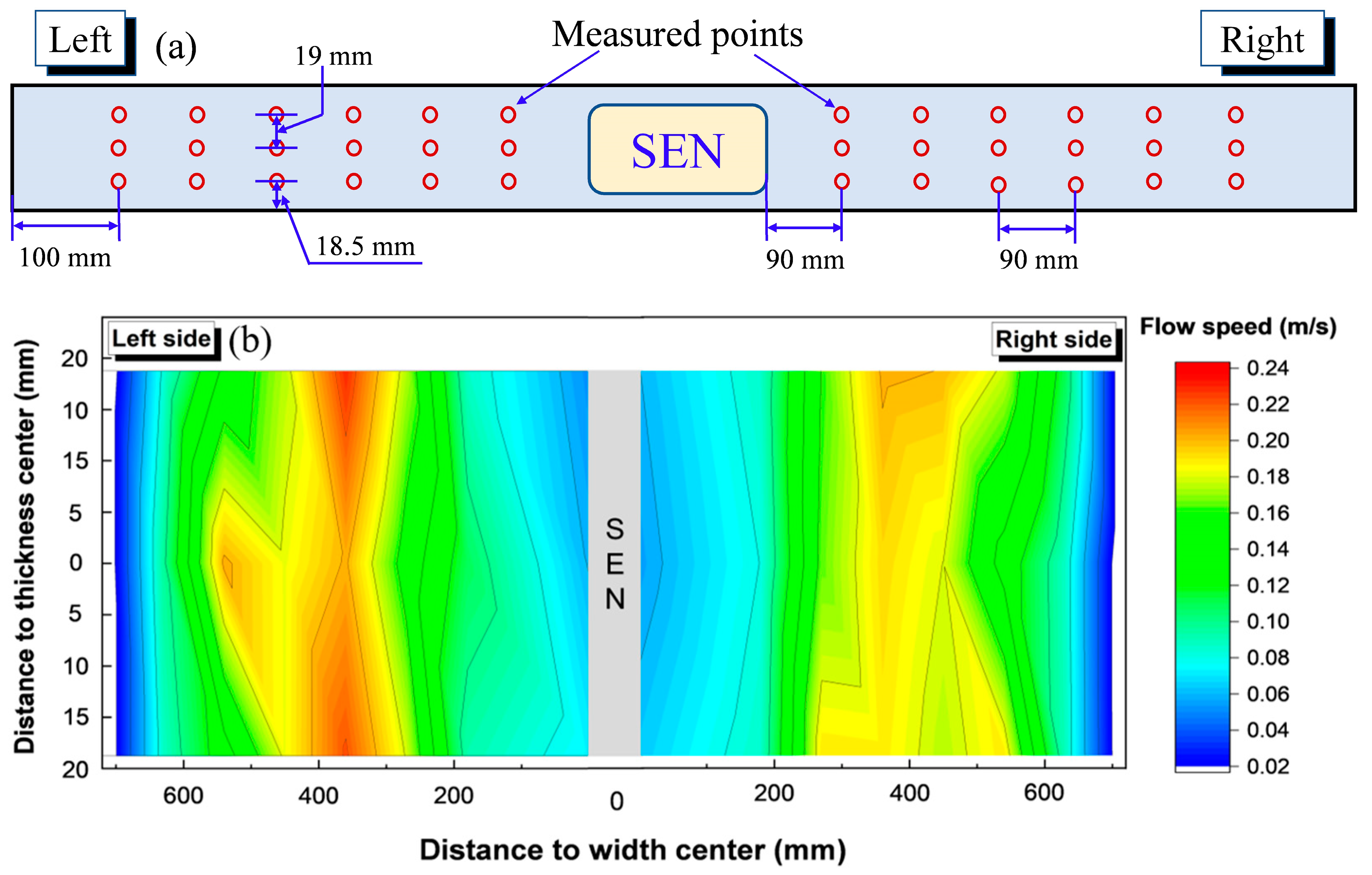

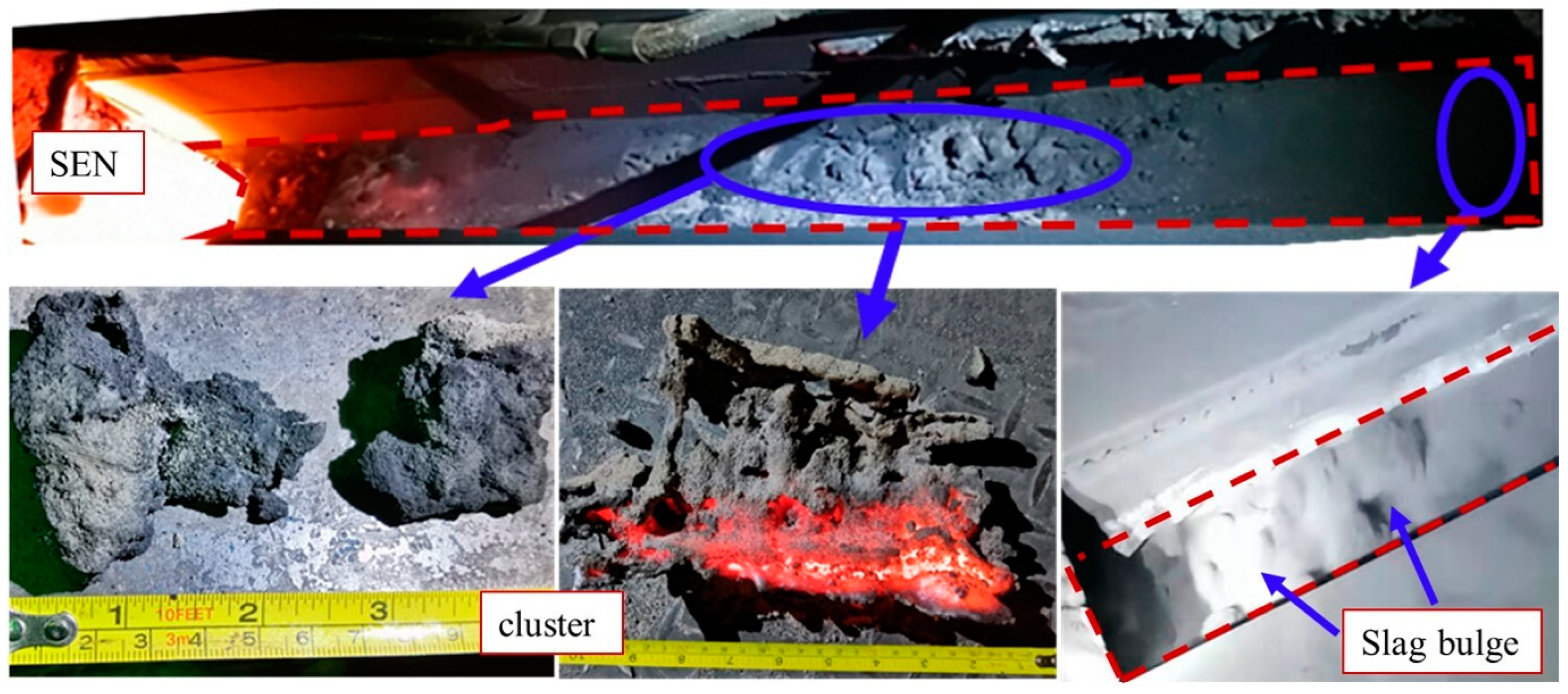

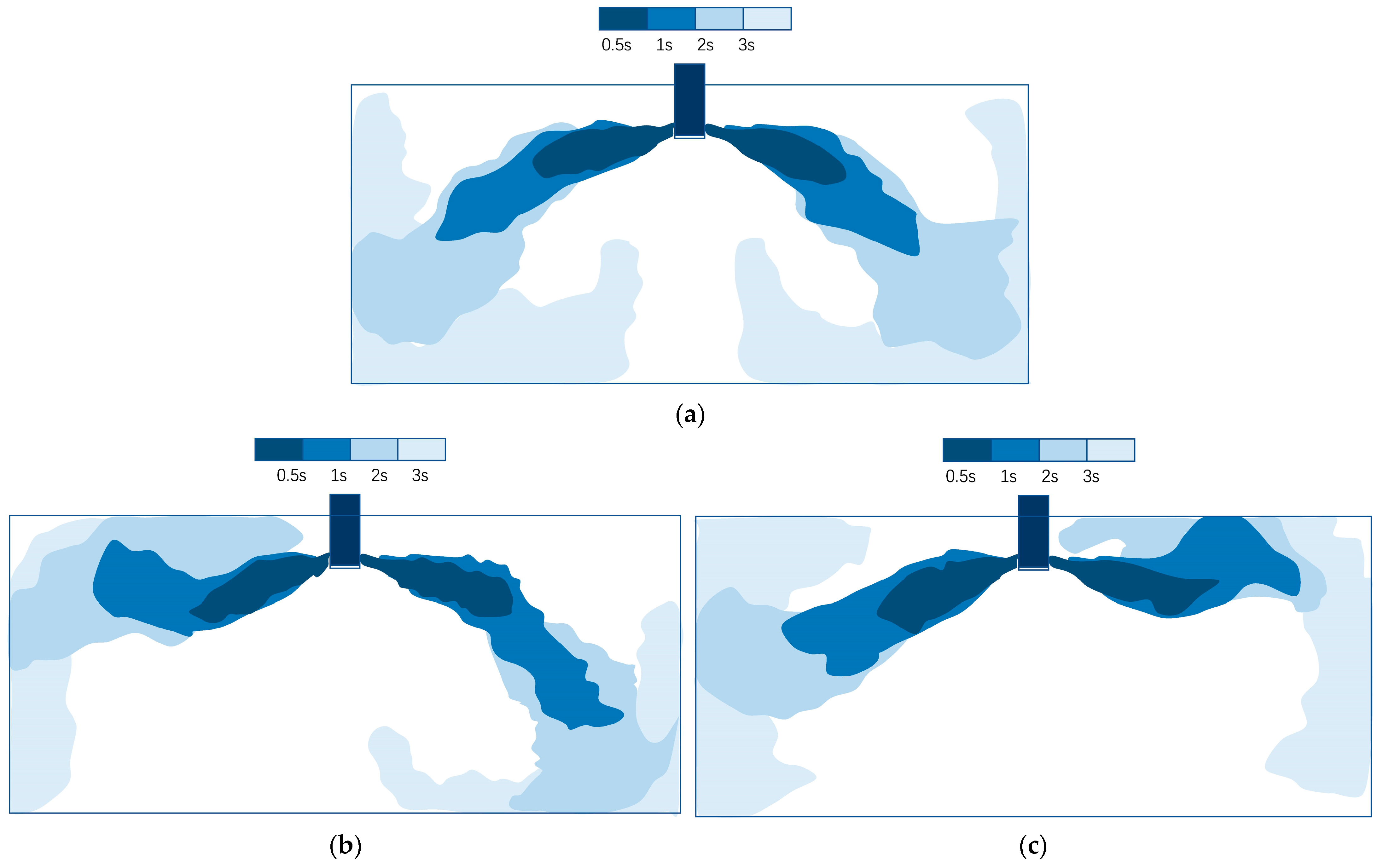

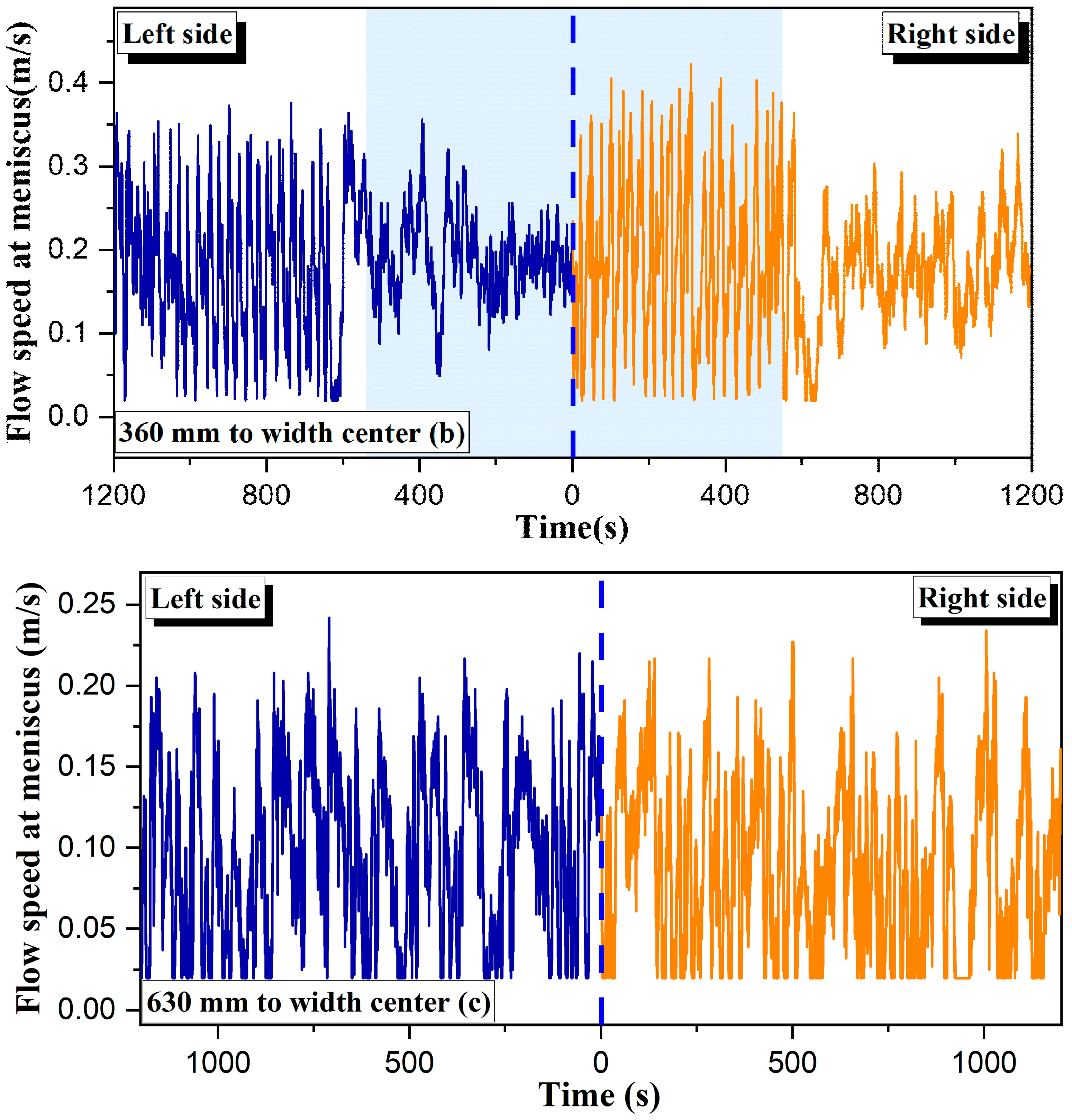

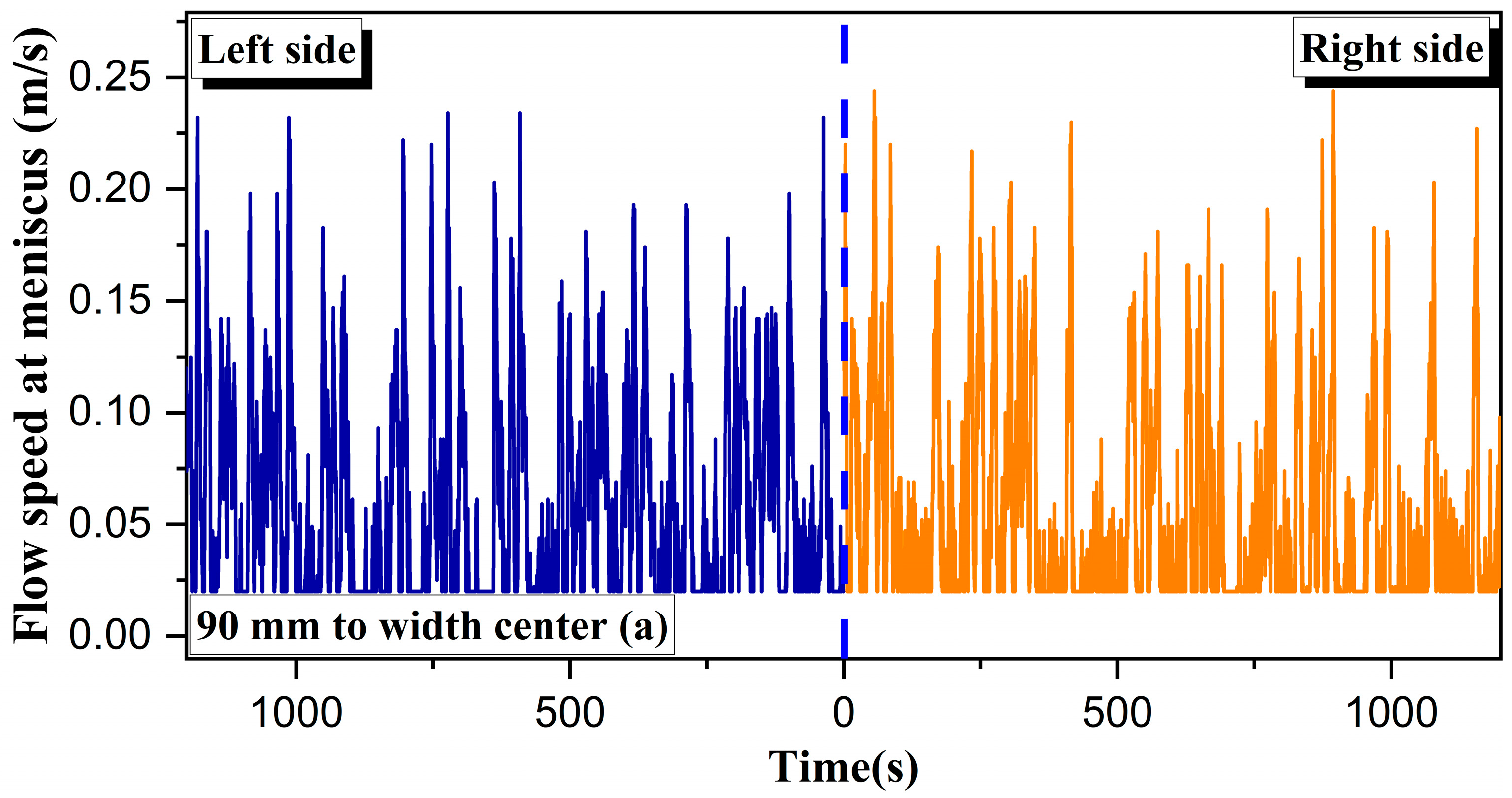

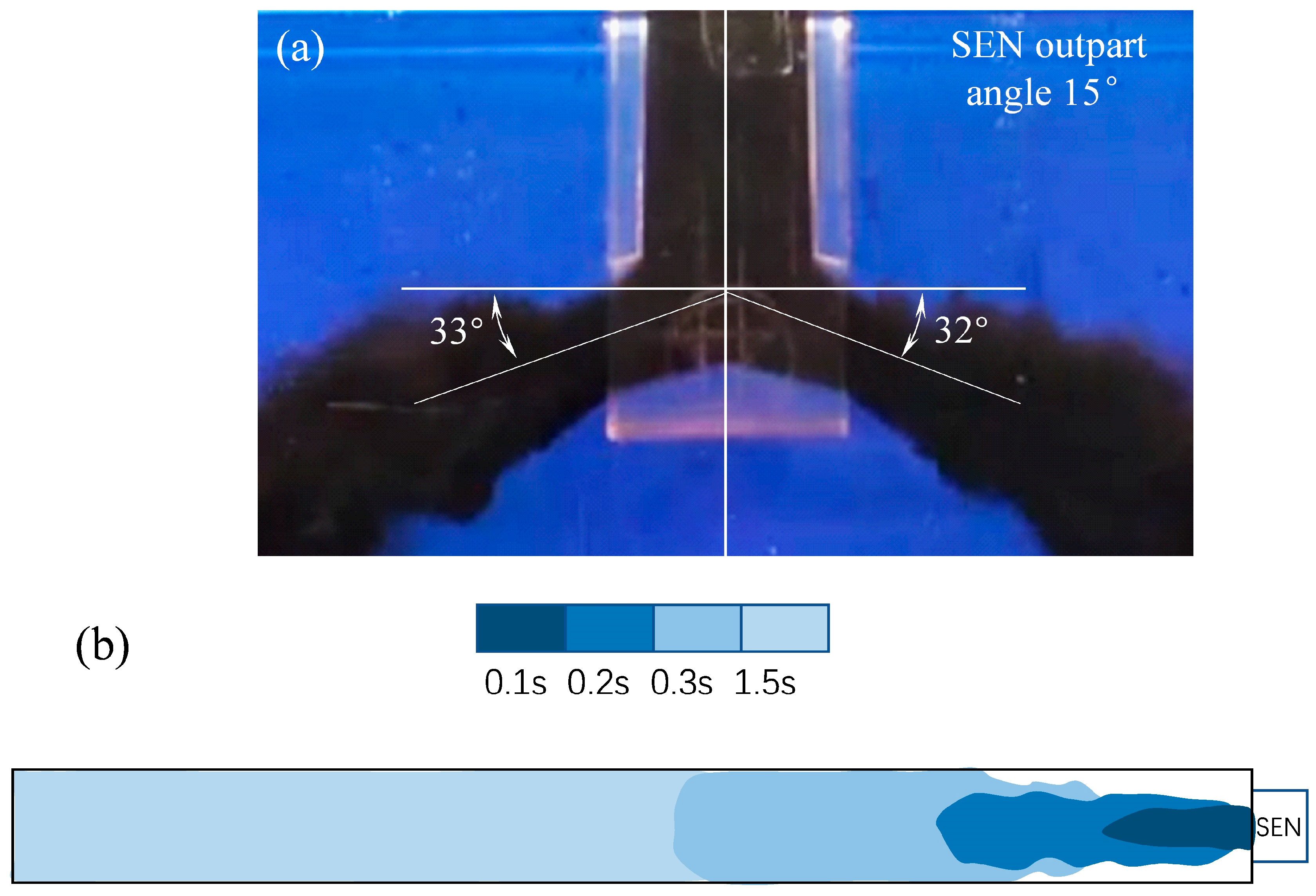

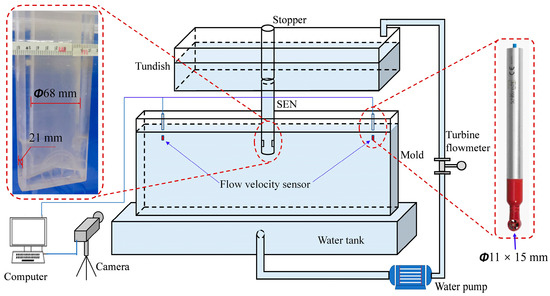

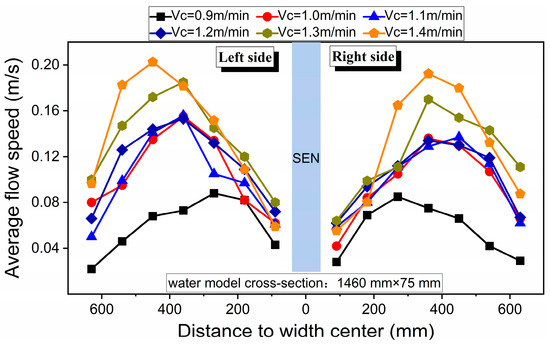

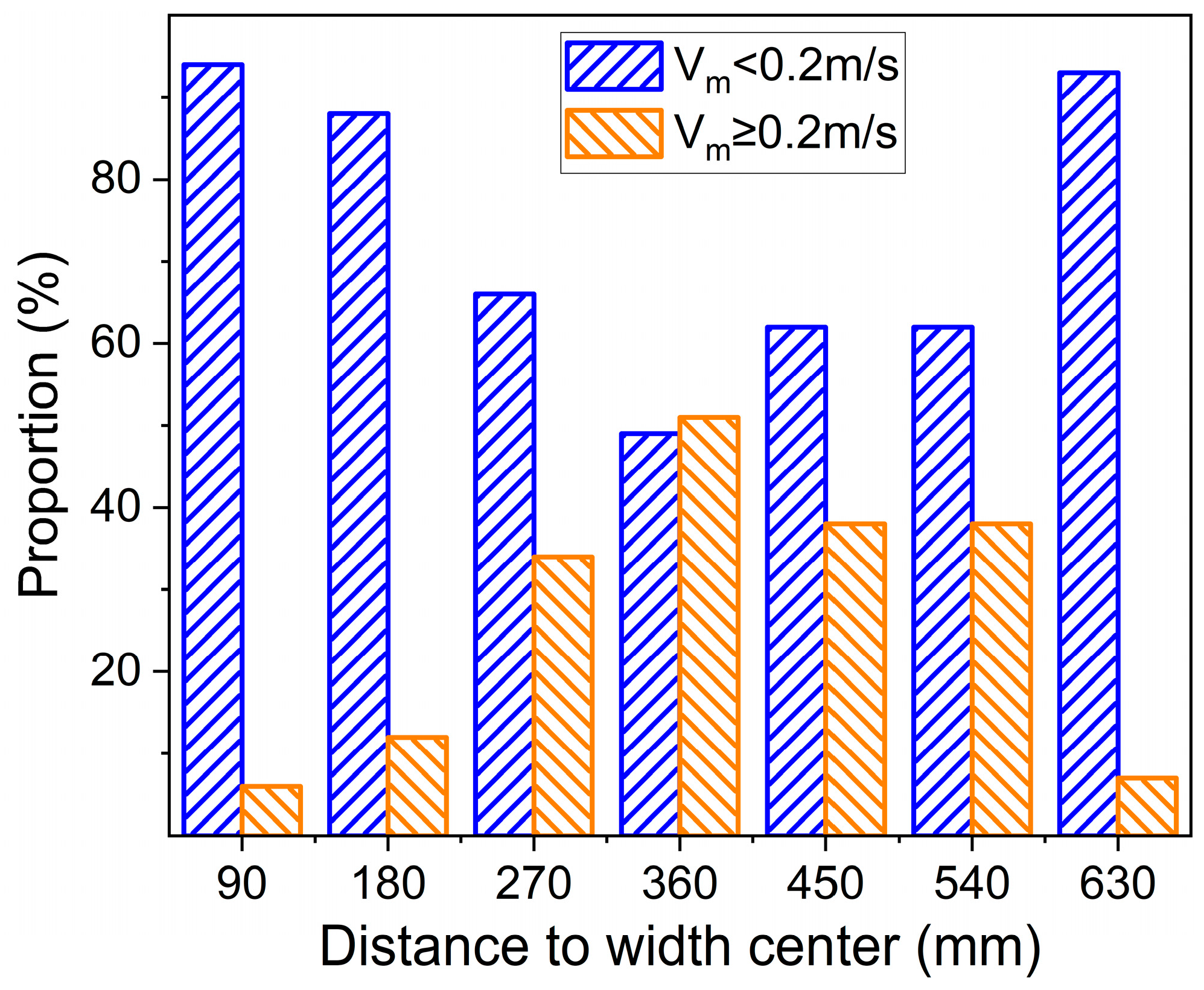

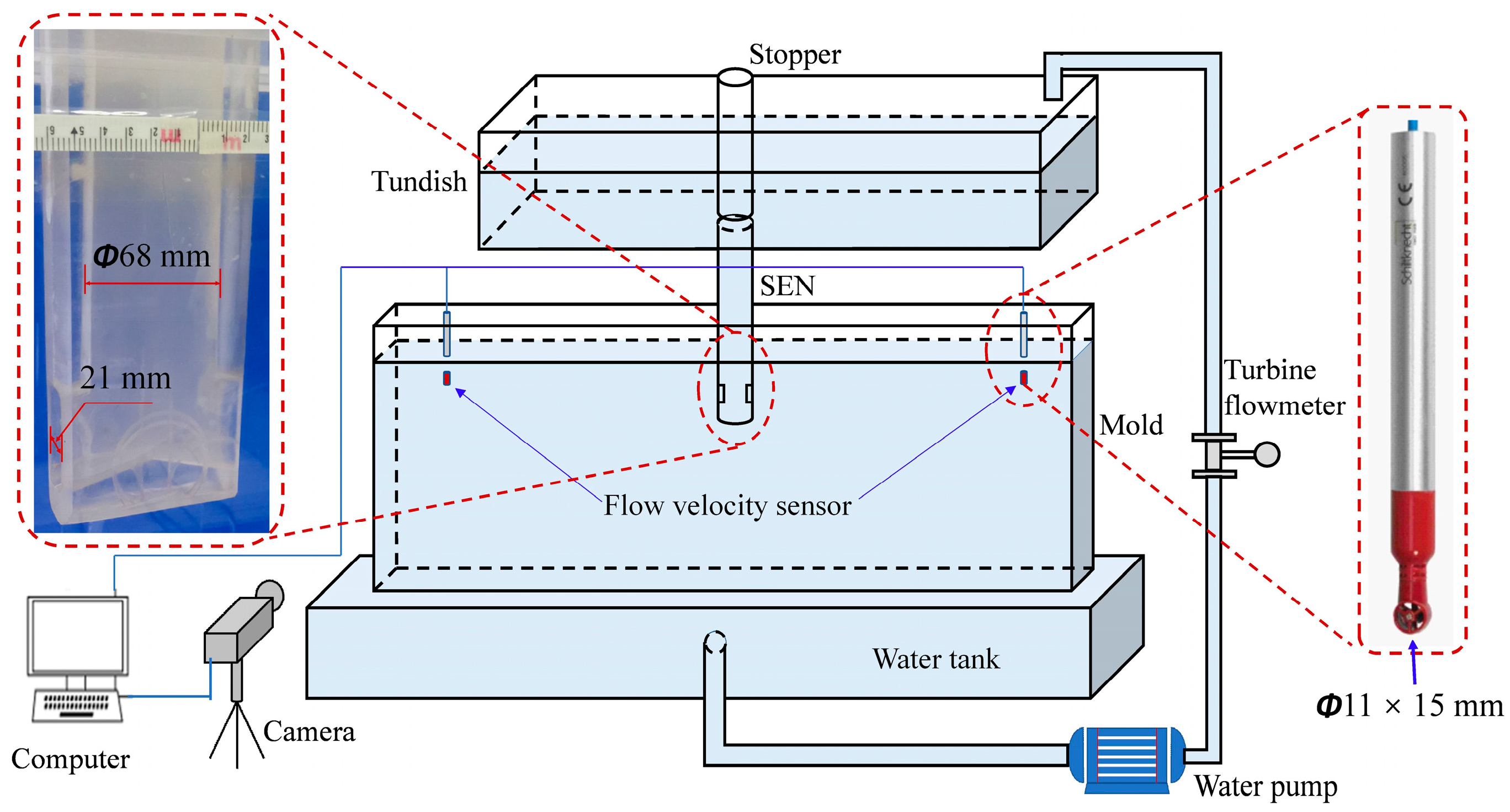

Ultra-wide slabs have a good application market and prospect, but there is still a lack of research on the flow field. To explore the characteristics of its flow field, this study built a 0.5-scale physical model of mold using Perspex. The effect of casting speed on flow field and surface flow speed was investigated by using an ink tracer experiment and contact measurement. There were various flow patterns in the ultra-wide slab mold, and they continue to transform each other. The jet momentum from the nozzle ports was diffused by colliding with the wide face, which lowered its kinetic energy and affected its subsequent diffusion. Compared with the conventional mold, the upper flow intensity of the ultra-wide slab mold was weaker, which made its liquid surface inactive and caused it to produce a flux rim or slag strip. At different casting speeds, the average flow speed distribution of the ultra-wide slab was C-shaped. When it increased from 0.9 to 1.4 m/s, the corresponding maximum average flow speed increased from 0.08 to 0.2 m/s. At the same time, the proportion of the low-flow speed zone at the most active part of the surface also gradually decreased from more than 90% to about 49%.
