Hot Tensile Deformation Behavior and Constitutive Models of GH3230 Superalloy Double-Sheet

,
,
,
,
,
and
1
School of Materials Science and Engineering, Northwestern Polytechnical University, Xi’an 710072, China
2
Shaanxi Key Laboratory of High-Performance Precision Forming Technology and Equipment, Northwestern Polytechnical University, Xi’an 710072, China
3
AVIC Manufacturing Technology Institute, Beijing 100024, China
*
Author to whom correspondence should be addressed.
This article belongs to the Special Issue Feature Papers in "Metals and Alloys" Section

Abstract

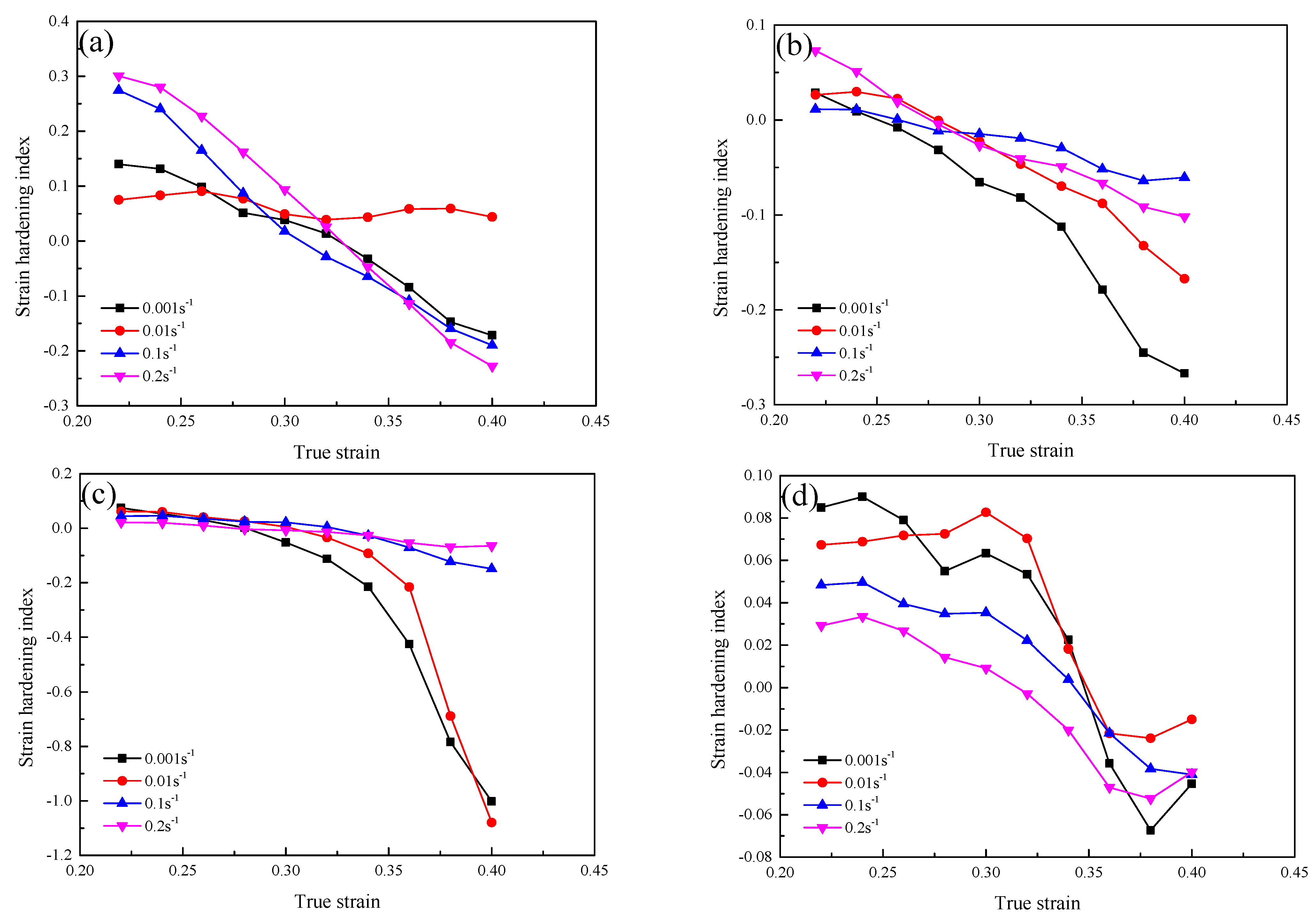

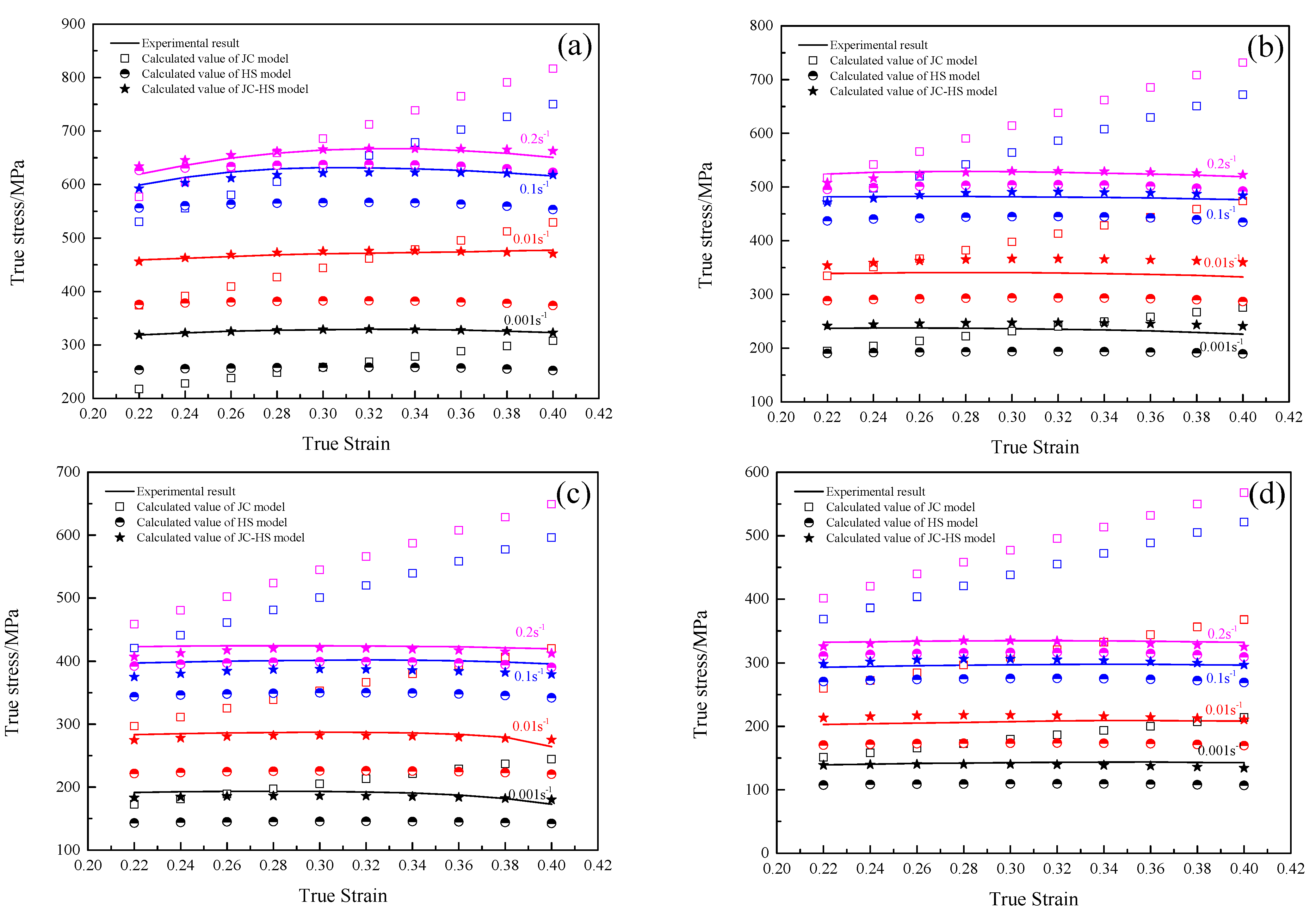

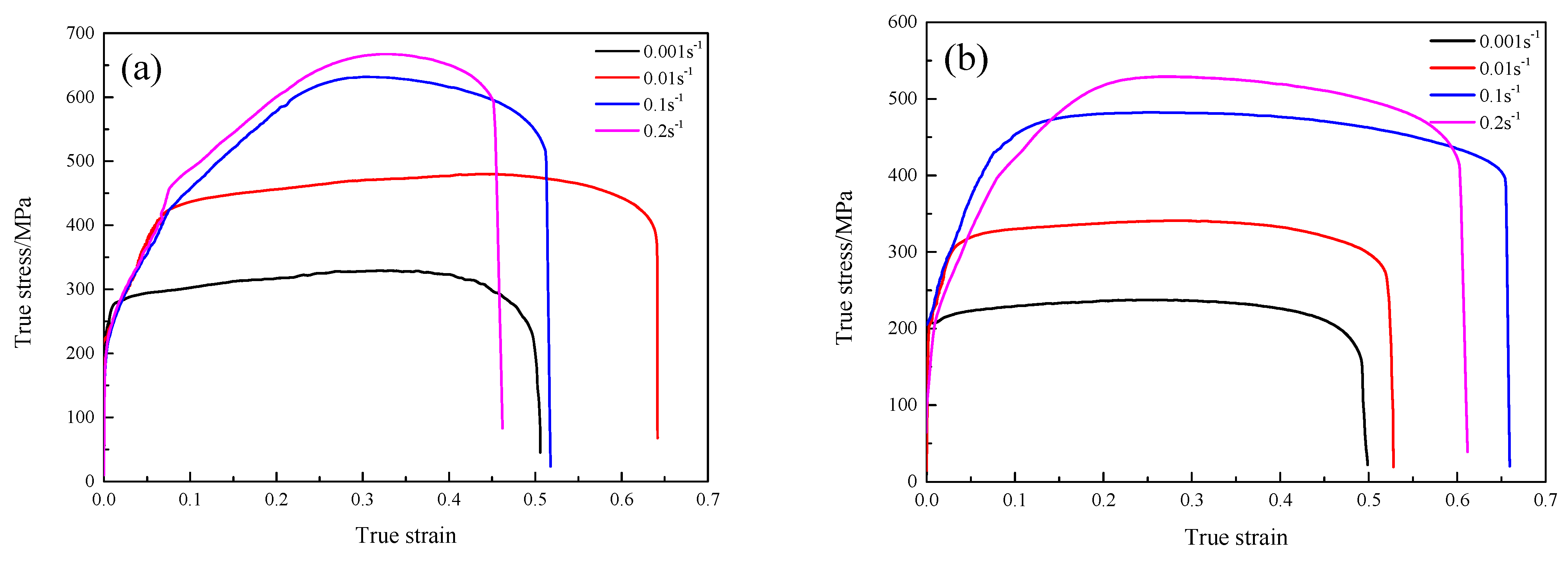

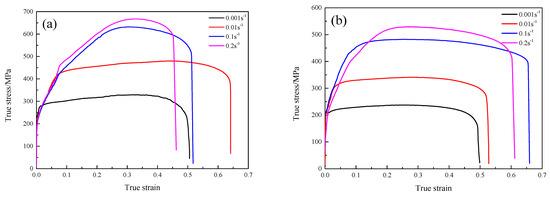

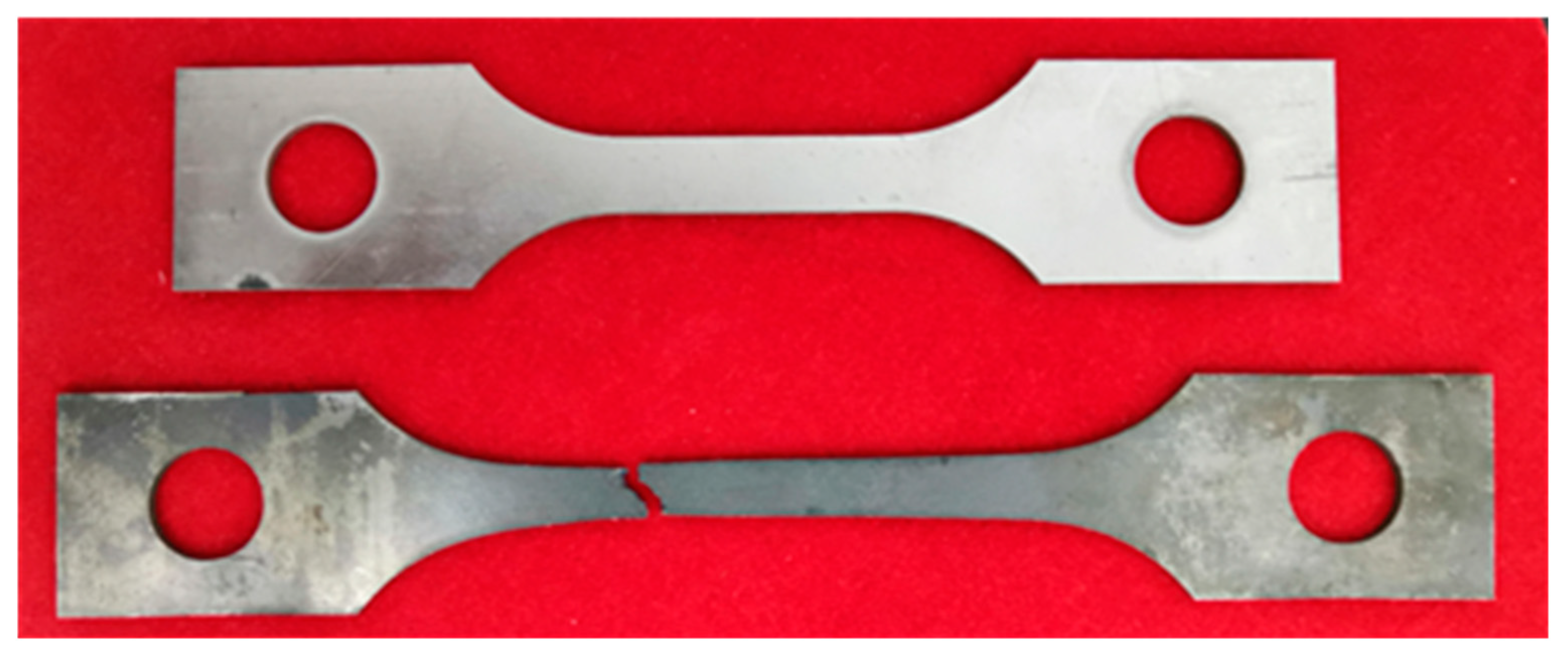

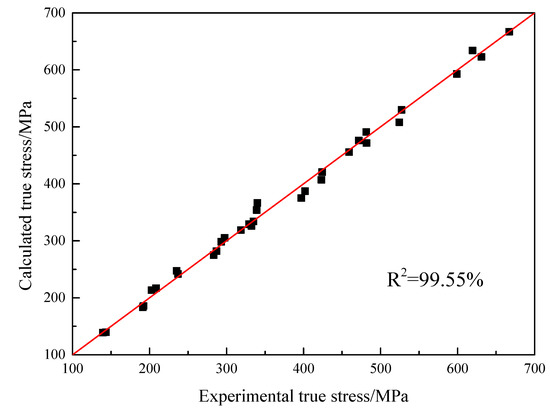

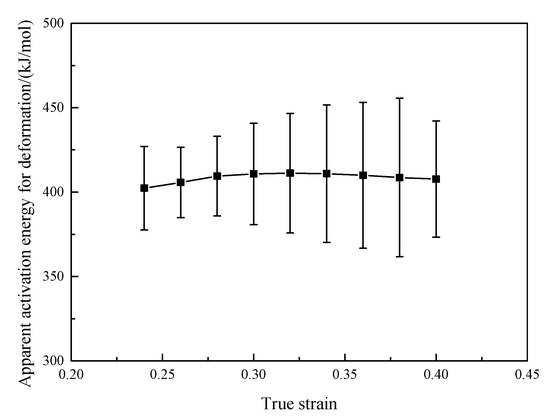

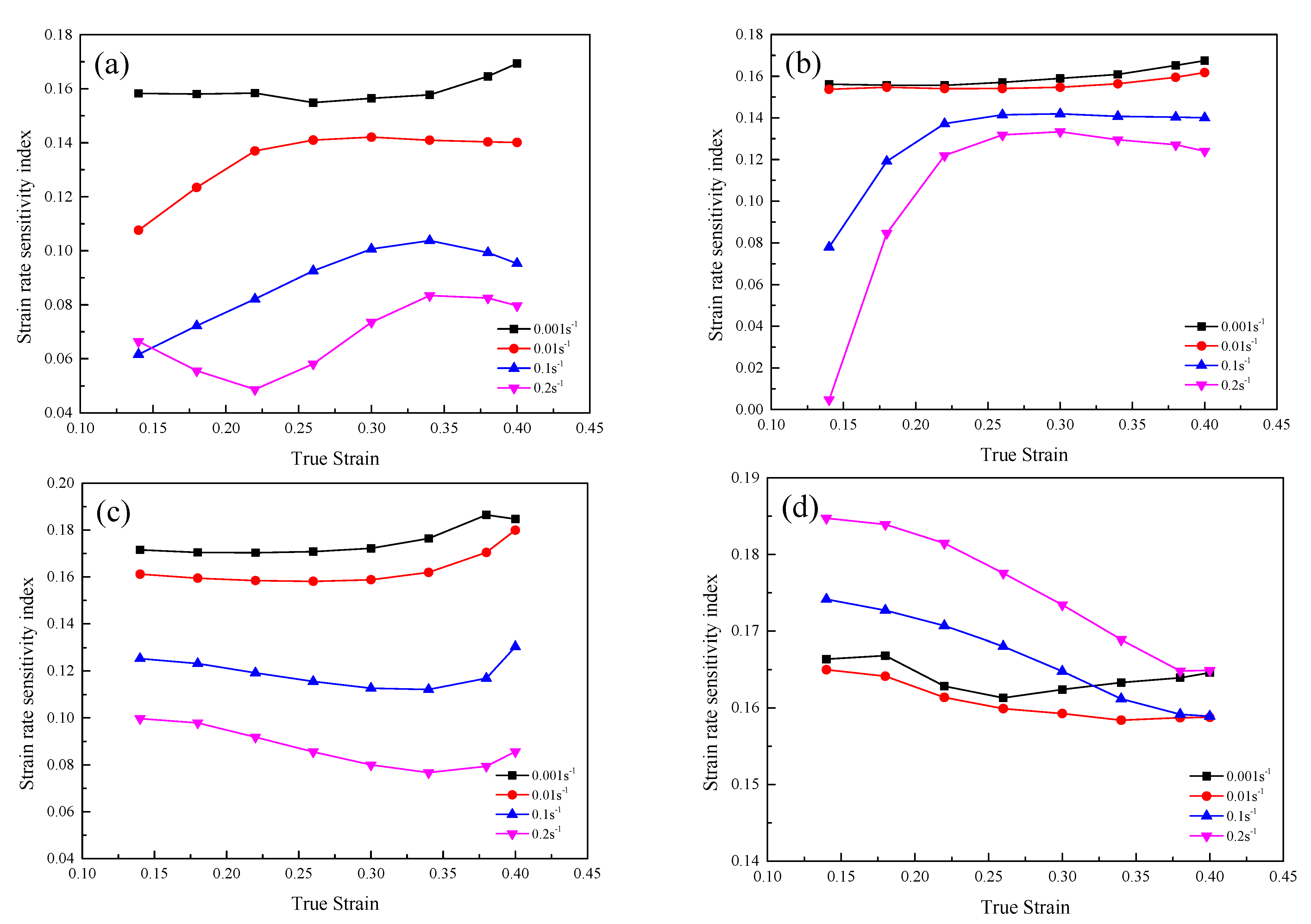

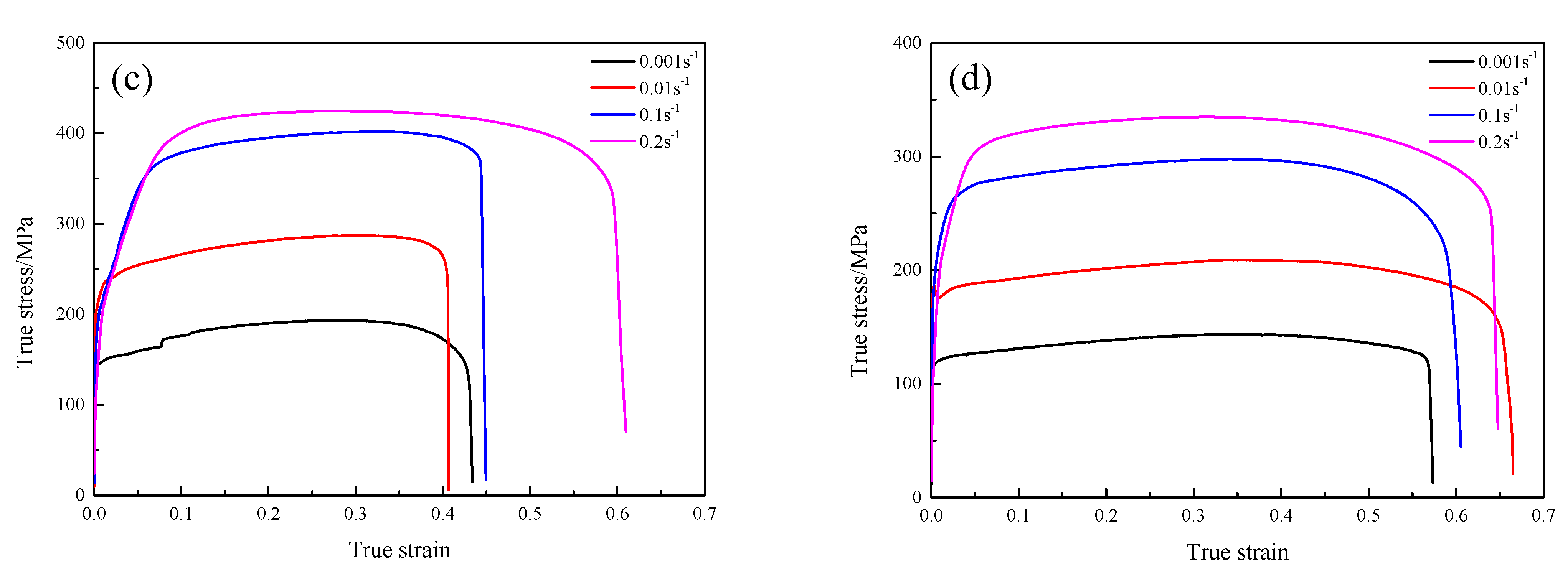

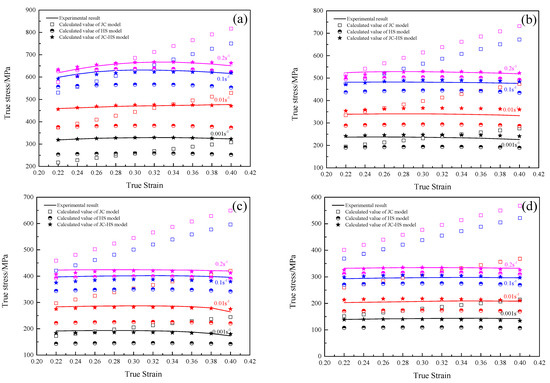

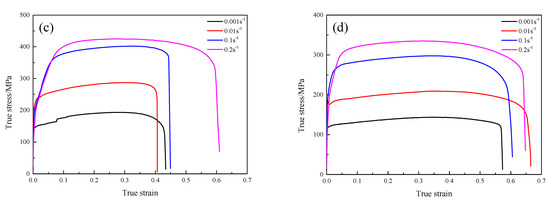

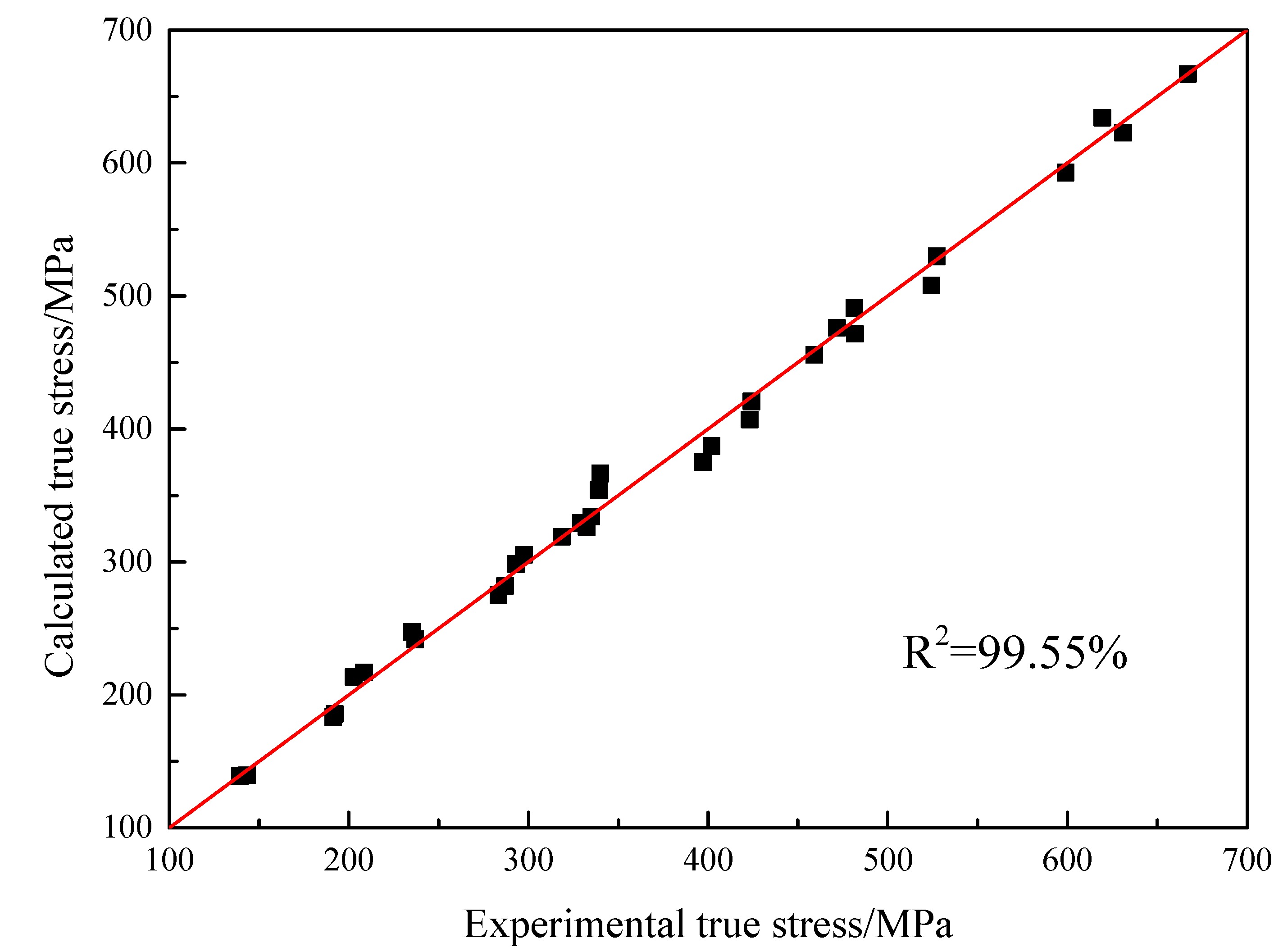

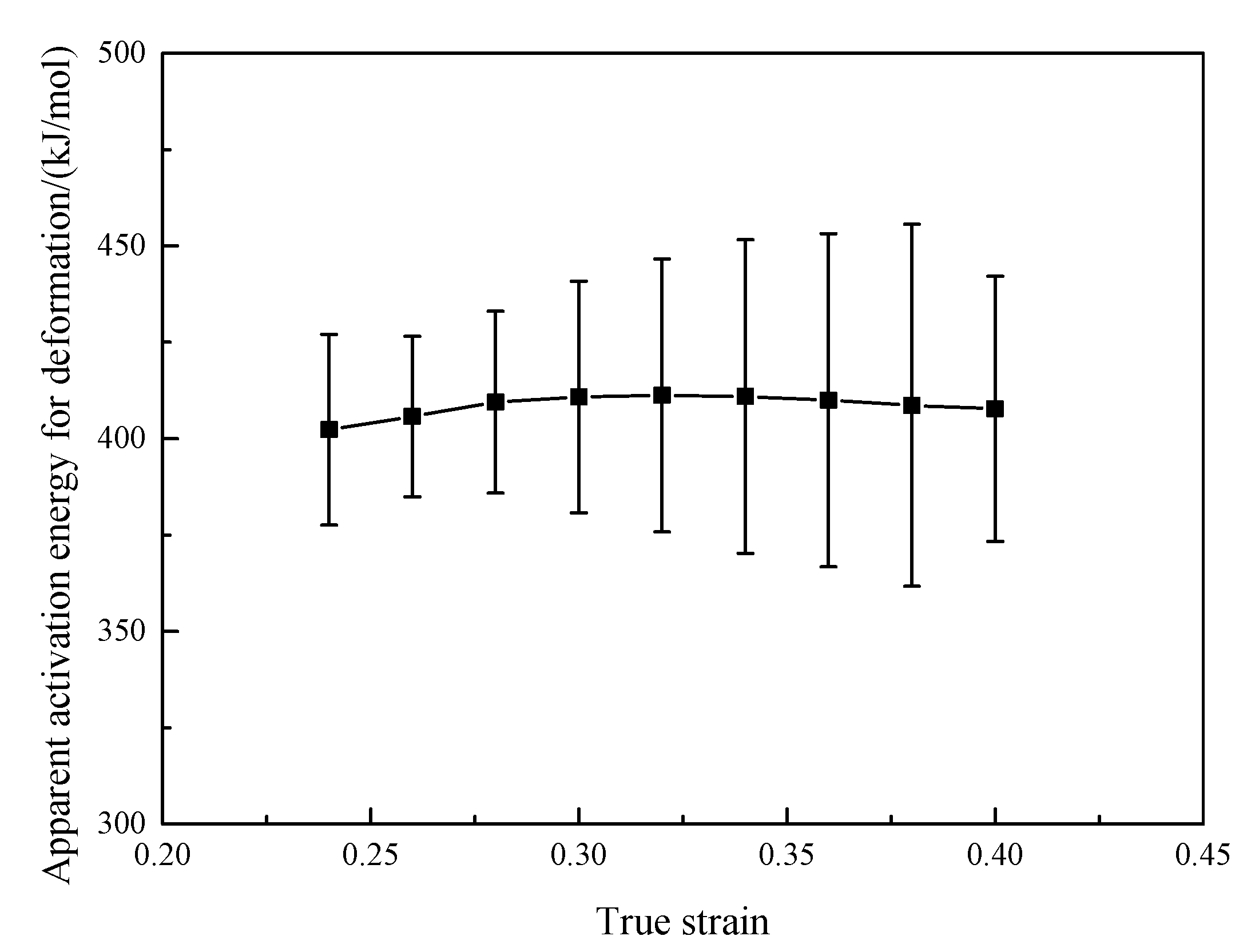

In this paper, the hot tensile deformation of a GH3230 superalloy double-sheet was conducted under deformation temperatures ranging from 1123~1273 K and strain rates ranging from 0.001~0.2 s−1. The flow behavior of the GH3230 superalloy double-sheet was analyzed in detail. The hot tensile deformation process of the GH3230 superalloy double-sheet includes four stages of elastic deformation, strain hardening, steady state and fracture. The true stress decreases with the increasing deformation temperature and decreasing strain rate. The variation of the strain rate sensitivity index and strain hardening index with processing parameters were discussed. The average apparent activation energy for hot tensile deformation is 408.53 ± 46.96 kJ·mol−1. A combined Johnson-Cook and Hensel-Spittle model considering the couple effect of strain hardening, strain rate hardening and thermal softening was established to describe the hot tensile behavior of the GH3230 alloy double-sheet. Compared to Johnson-Cook model and Hensel-Spittle model, this model has the highest predicting accuracy. The average absolute relative error of true stress between the experimental and the predicted is only 2.35%.
