Article

Study on the Impact-Induced Energy Release Characteristics of Zr68.5Cu12Ni12Al7.5 Amorphous Alloy

1
School of Mechatronical Engineering, Beijing Institute of Technology, Beijing 100086, China
2
Department 2, Beijing Institute of Space Long March Vehicle, Beijing 100076, China
*
Author to whom correspondence should be addressed.
Academic Editor: Mihai Stoica
Materials 2021, 14(6), 1447; https://doi.org/10.3390/ma14061447
Received: 19 February 2021 / Revised: 8 March 2021 / Accepted: 14 March 2021 / Published: 16 March 2021
(This article belongs to the Section Energy Materials)

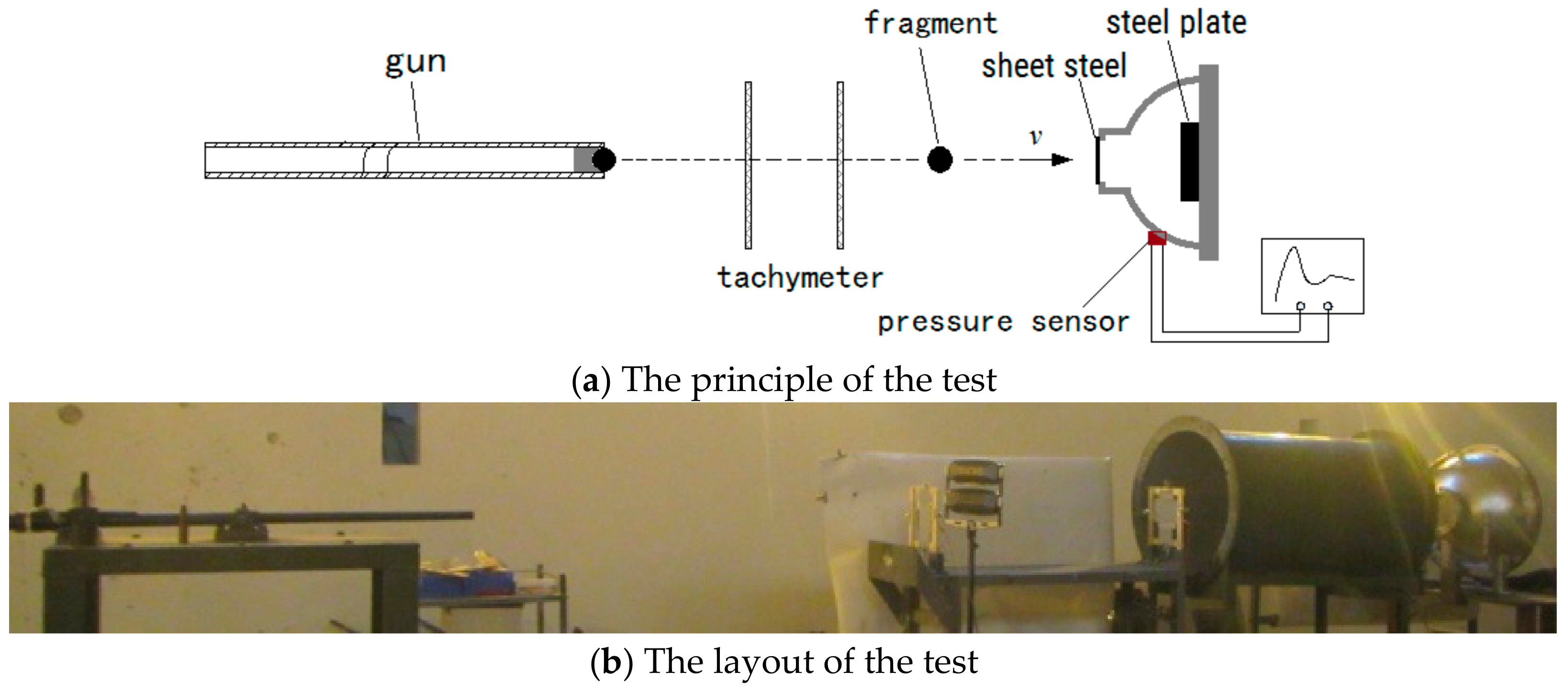

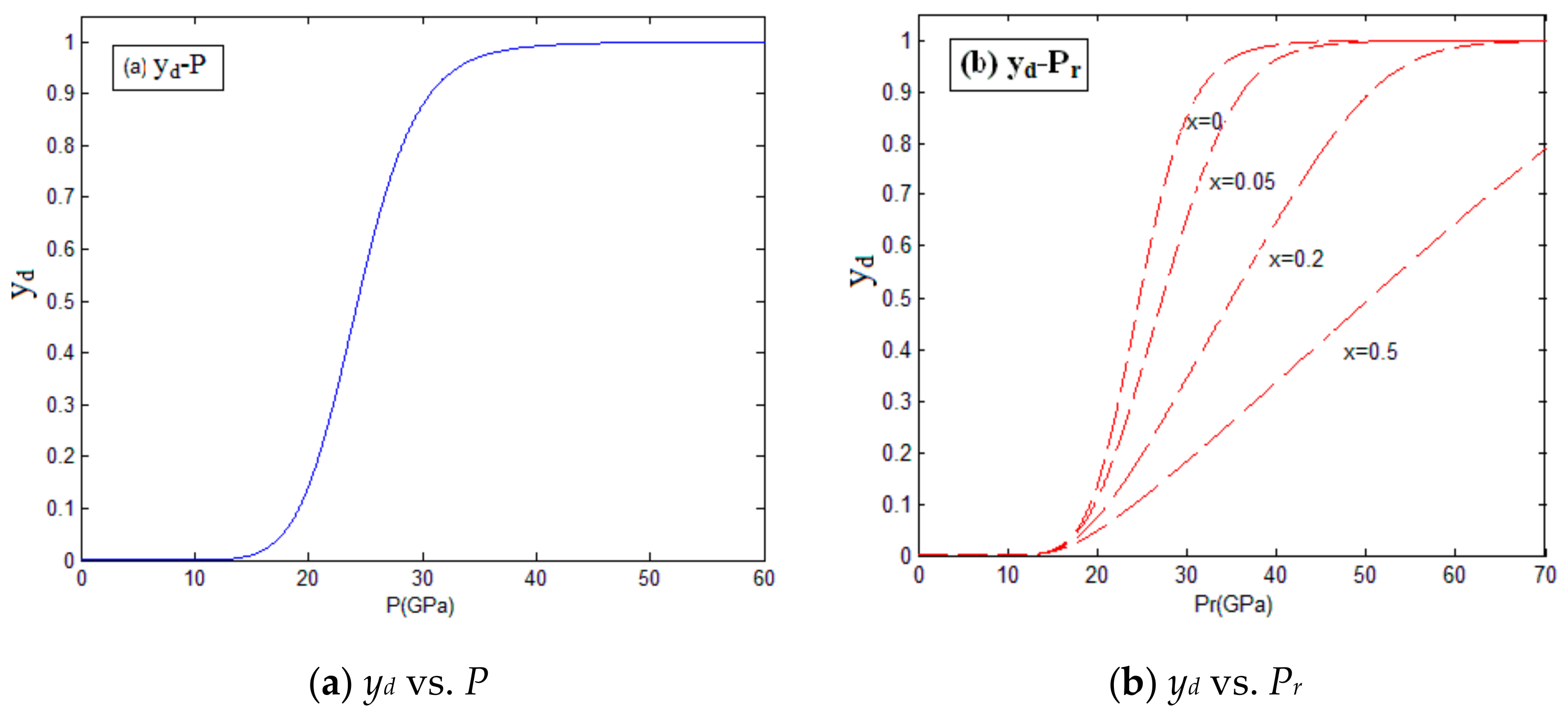

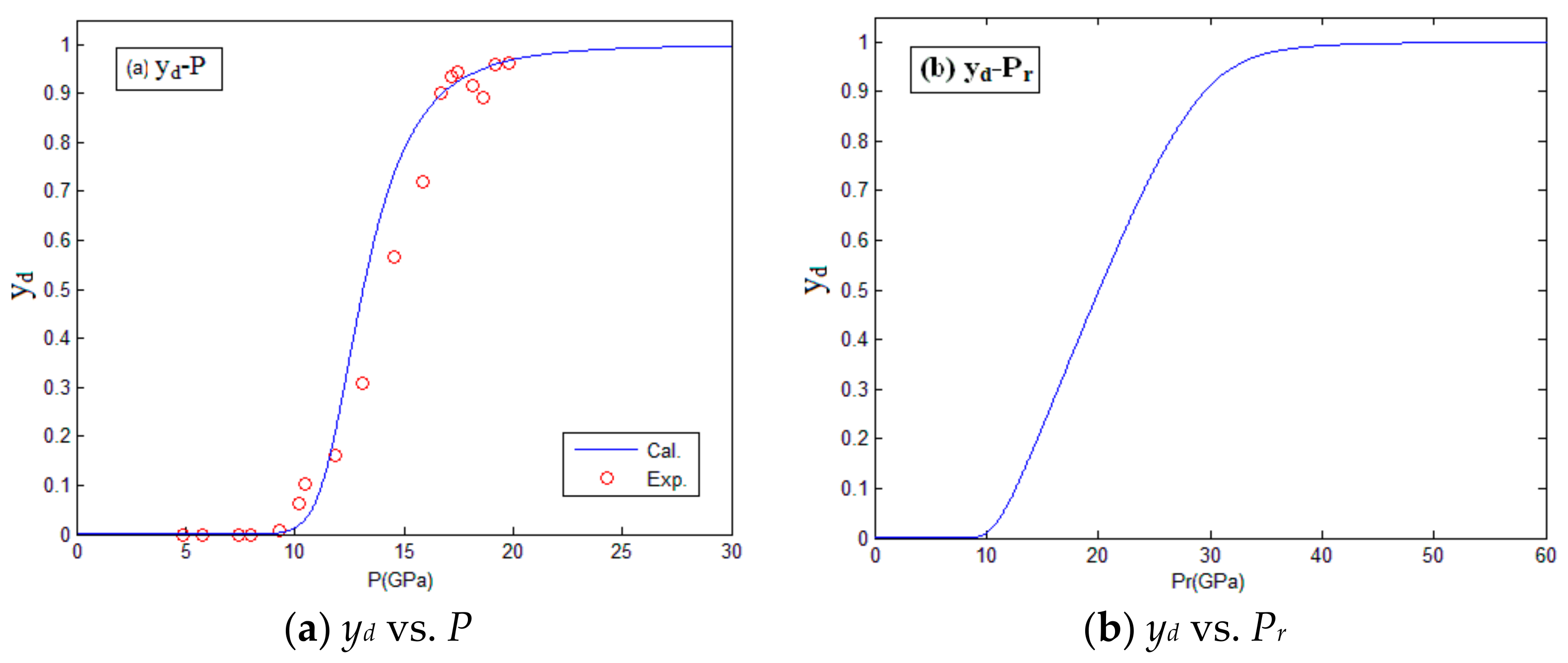

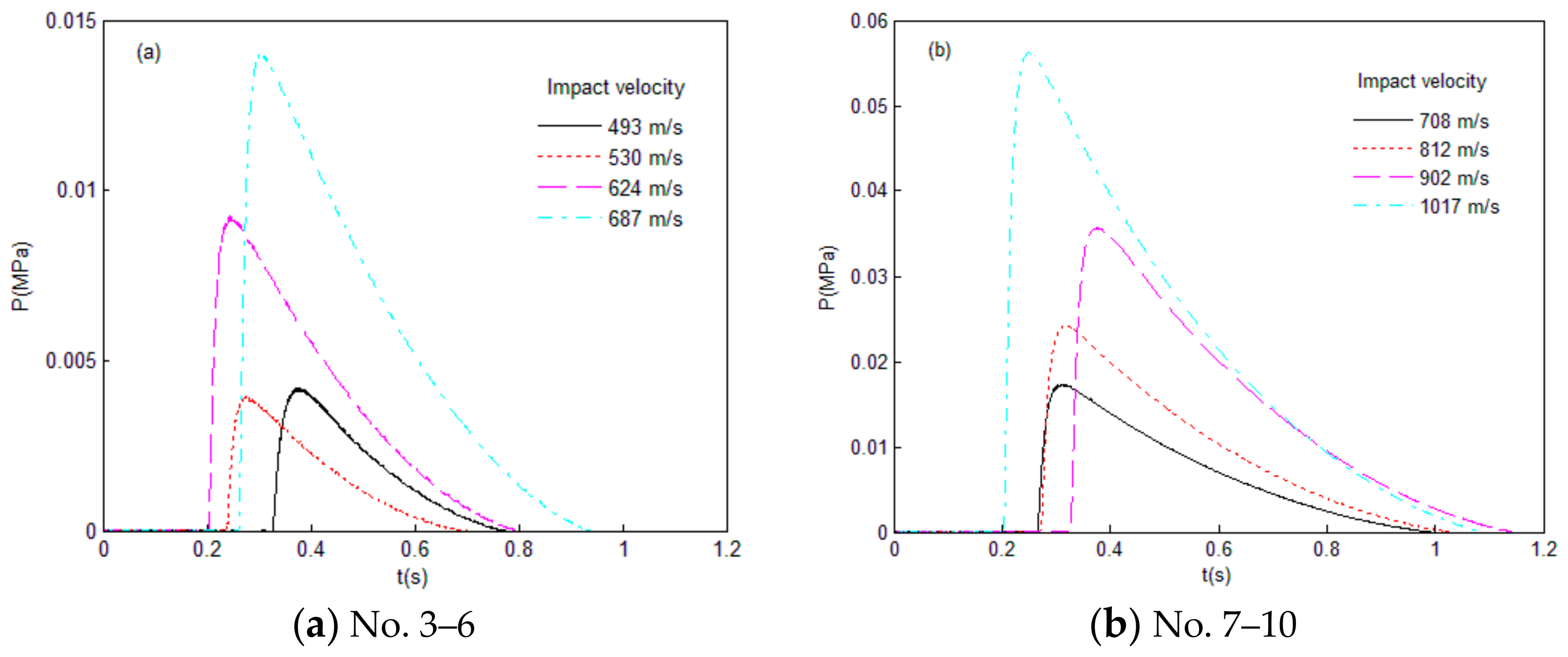

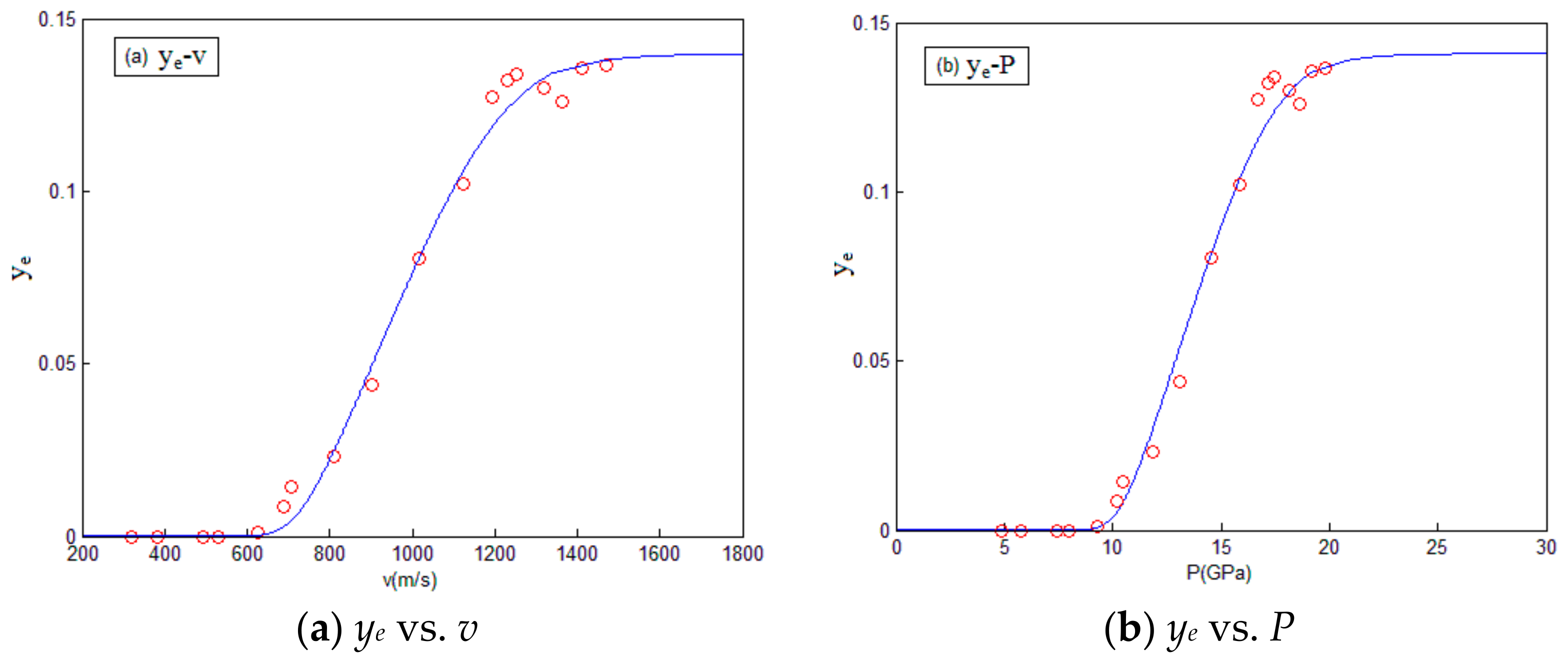

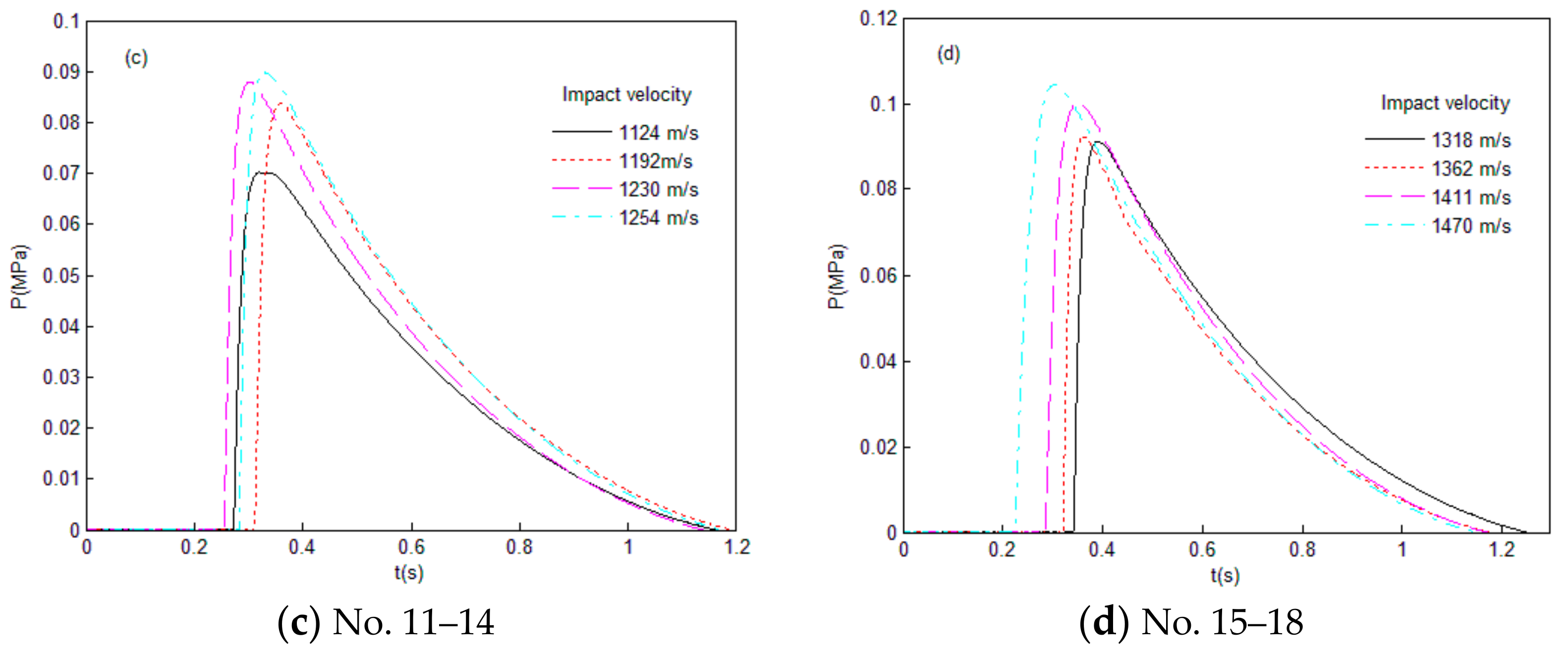

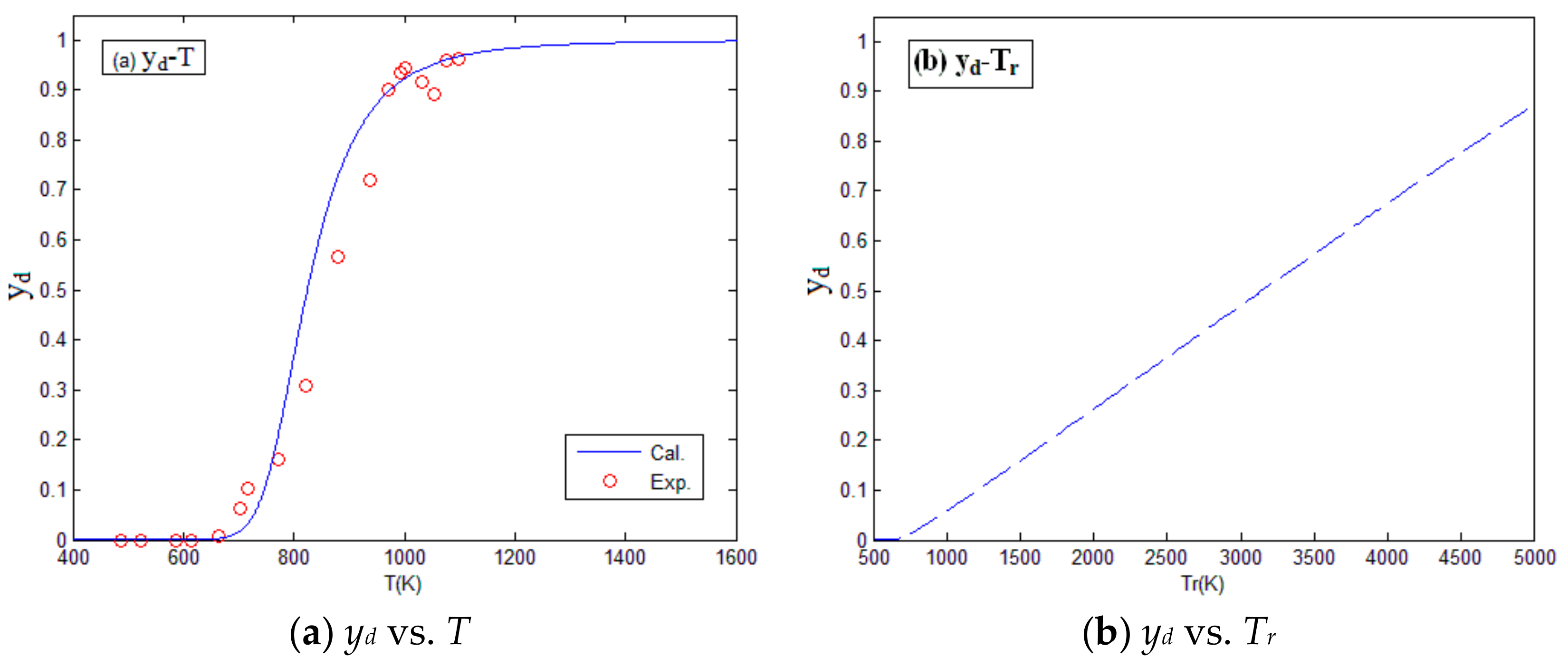

As a new kind of multifunctional energetic structural material (MESM), amorphous alloy will undergo a chemical reaction and release energy under impact load. In this paper, an analysis method for the impact-induced reaction parameters of solid materials was derived based on a three-term equation of state and Avrami–Erofeev equation. The relation between the degree of reaction, pressure, and temperature of Zr68.5Cu12Ni12Al7.5 amorphous alloy was obtained. The influence of participation of an oxidizing reaction on the material energy release efficiency was analyzed. The relation between the energy release efficiency and impact velocity was achieved by an experiment in which Zr68.5Cu12Ni12Al7.5 amorphous alloy fragments impact a steel plate. The variations of pressure and temperature during the impact process were obtained. In the end, a reaction kinetic model was modified, and the kinetic parameters for the impact-induced reaction of materials in an air environment were obtained. View Full-Text
Keywords: amorphous alloy; impact-induced reaction; shock compression; energetic structural materials amorphous alloy; impact-induced reaction; shock compression; energetic structural materials
Show Figures

Figure 1
