Next Article in Journal
Prediction of the Long-Term Performance and Durability of GFRP Bars under the Combined Effect of a Sustained Load and Severe Environments
Previous Article in Journal
Anisotropic Compressive Behavior of Metallic Foams under Extreme Temperature Conditions
Open AccessArticle

Corrosion Resistance of Modified Hexagonal Boron Nitride (h-BN) Nanosheets Doped Acrylic Acid Coating on Hot-Dip Galvanized Steel

1
School of Materials Science and Engineering, Hebei University of Technology, 29 Guangrong Road, Tianjin 300132, China
2
Beijing Zhongke Pujin Special Material Technology Development Co., Ltd., 9 Zhongguancun South Avenue, Beijing 100081, China
3
Beijing Jitai Cold-Forging Technology Co., Ltd., 9 Zhongguancun South Avenue, Beijing 100081, China
*
Authors to whom correspondence should be addressed.
Materials 2020, 13(10), 2340; https://doi.org/10.3390/ma13102340
Received: 14 February 2020 / Revised: 30 April 2020 / Accepted: 14 May 2020 / Published: 19 May 2020
(This article belongs to the Section Thin Films)

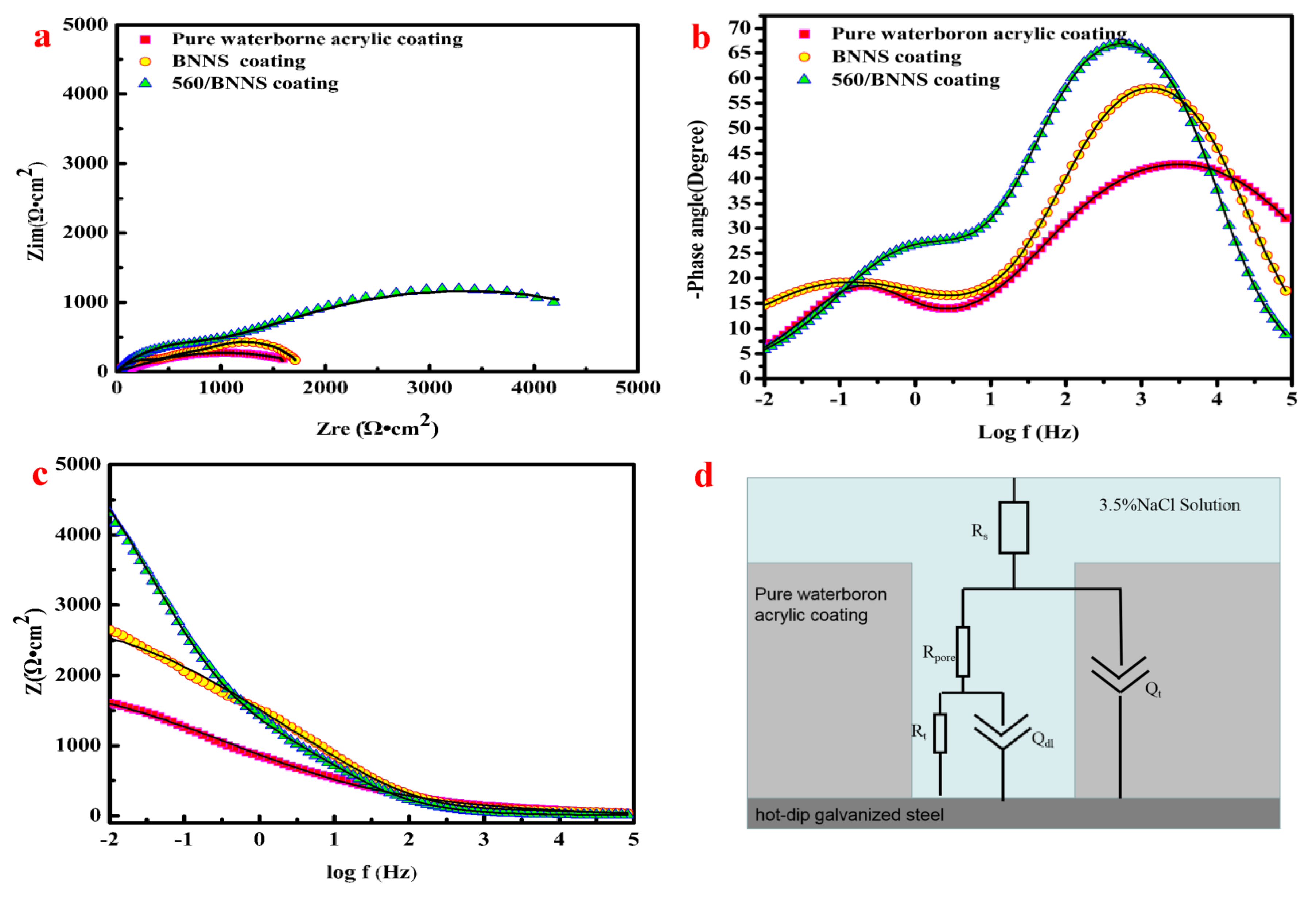

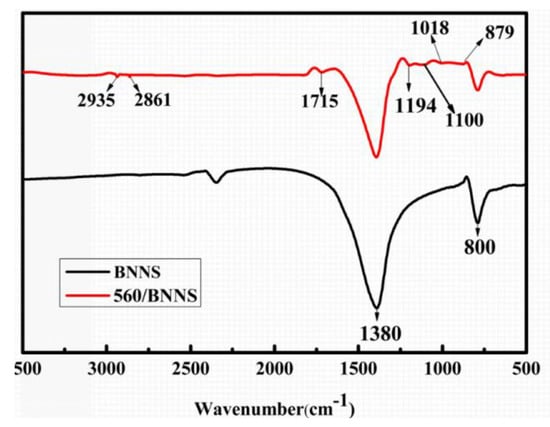

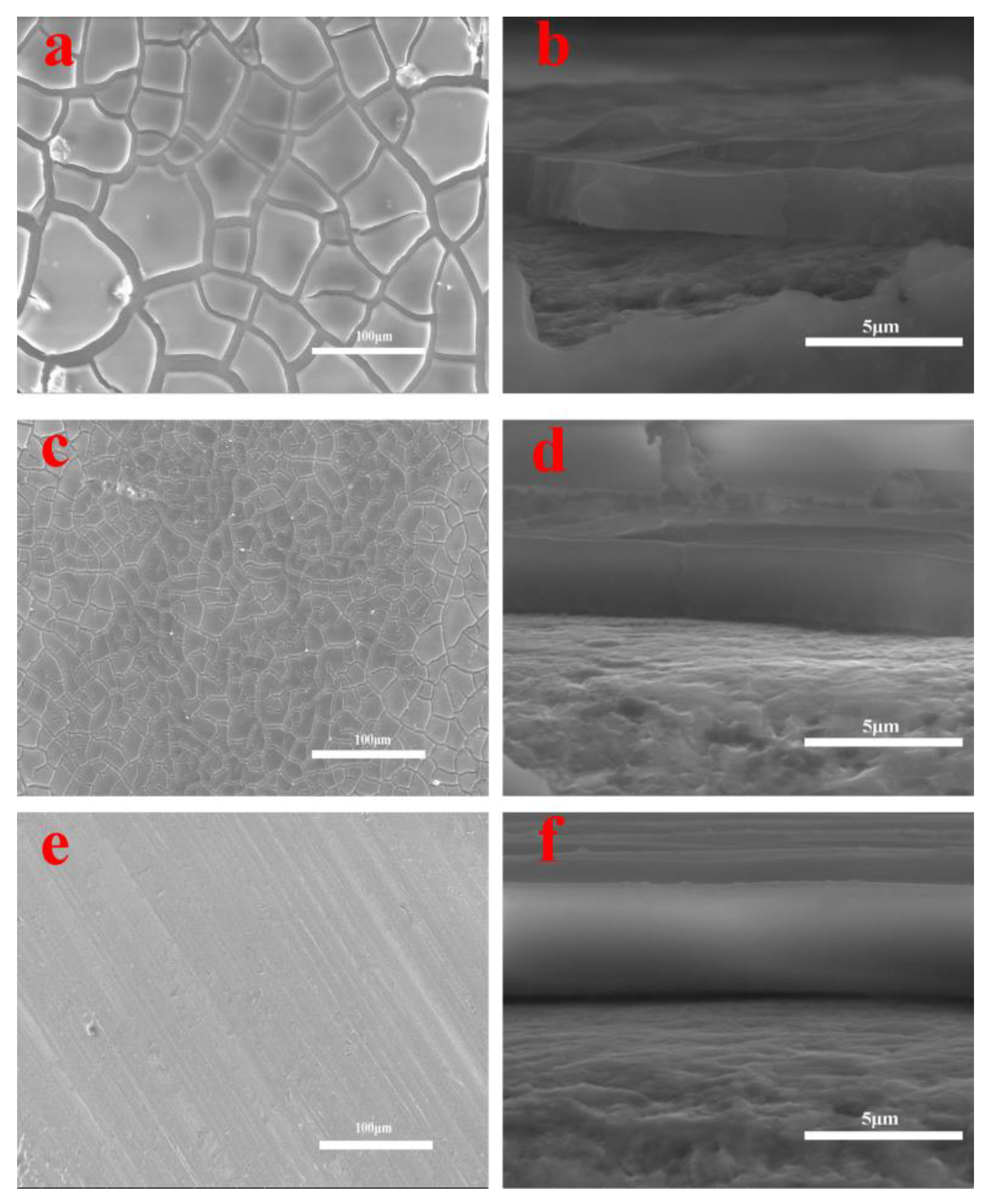

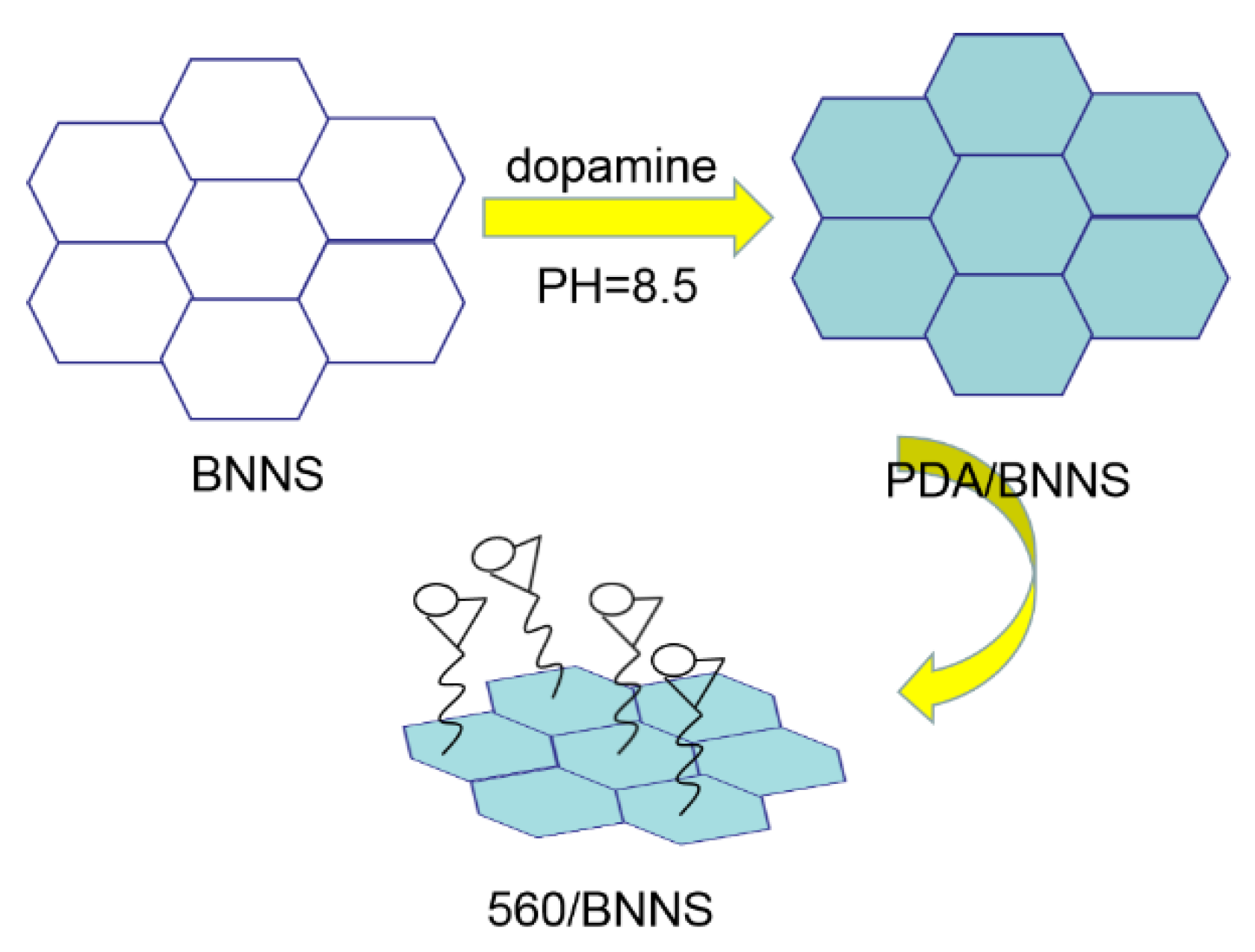

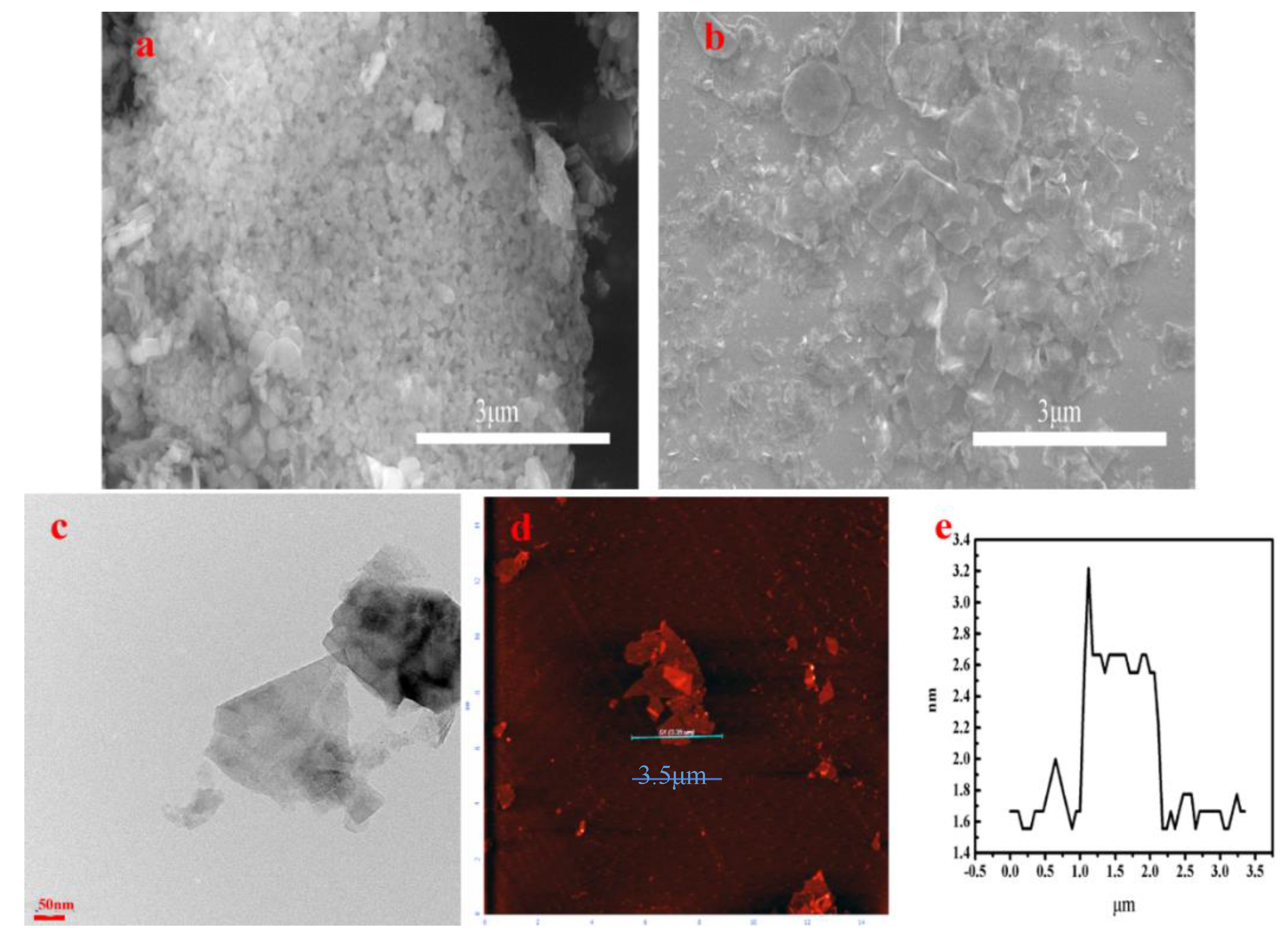

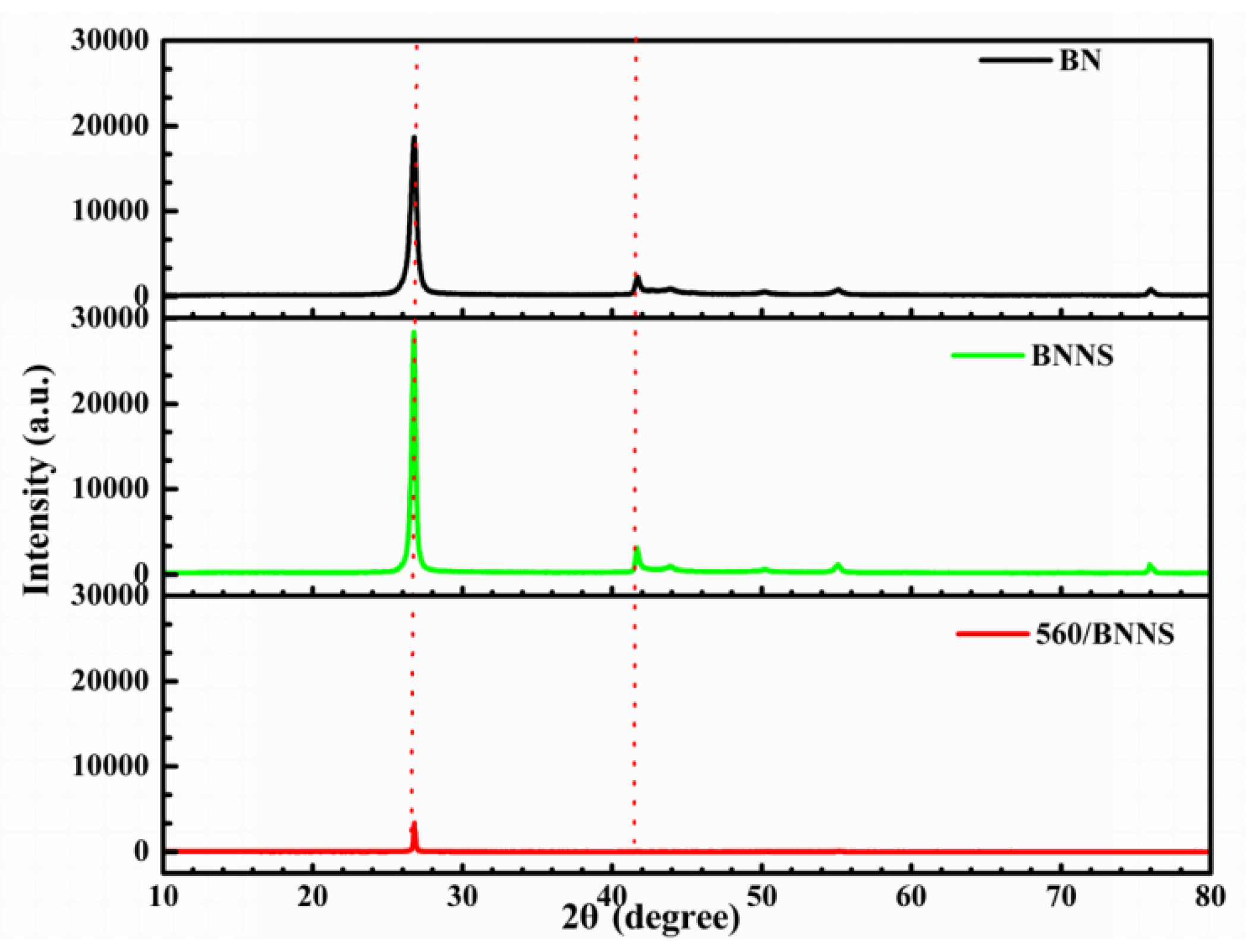

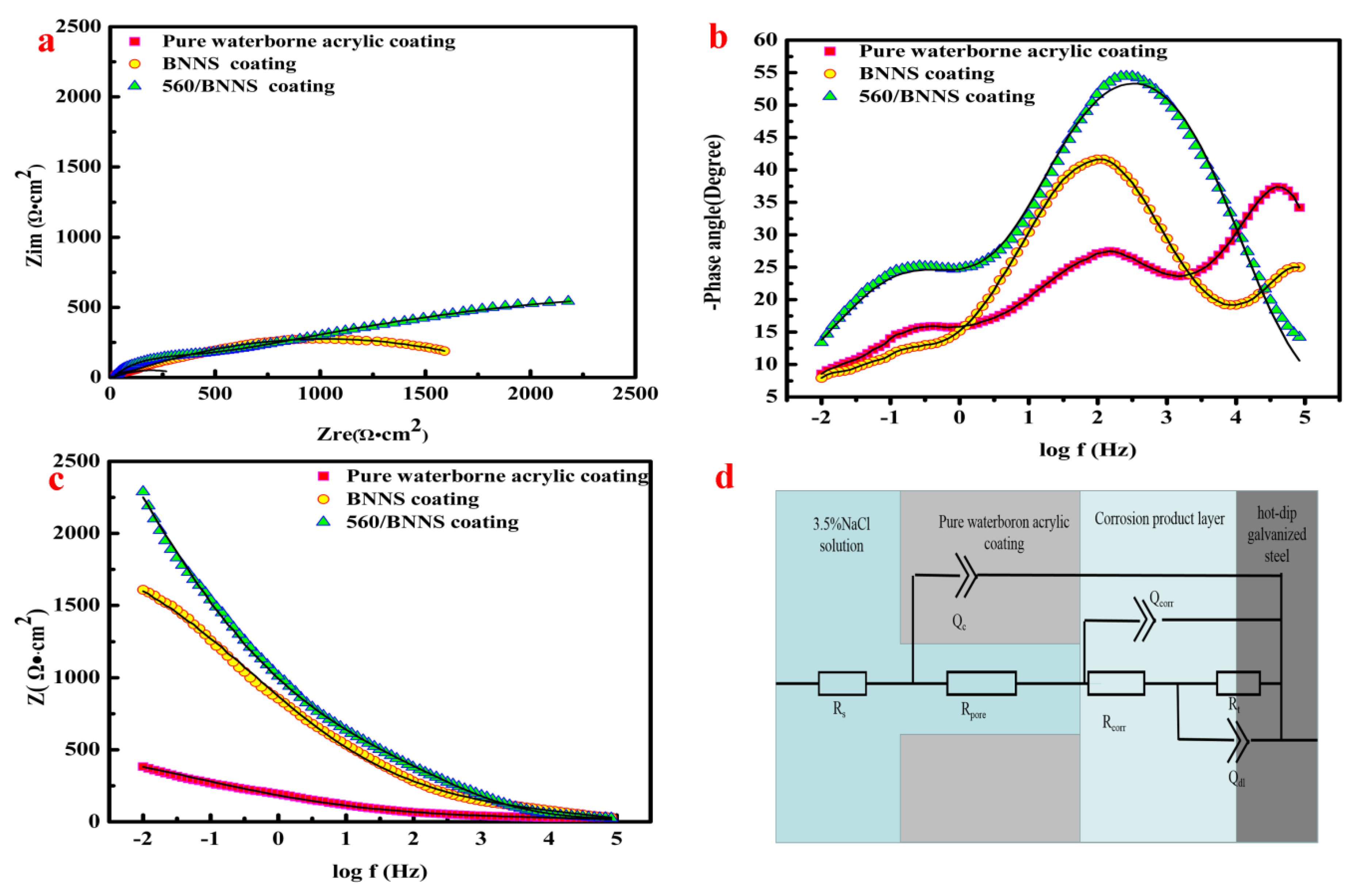

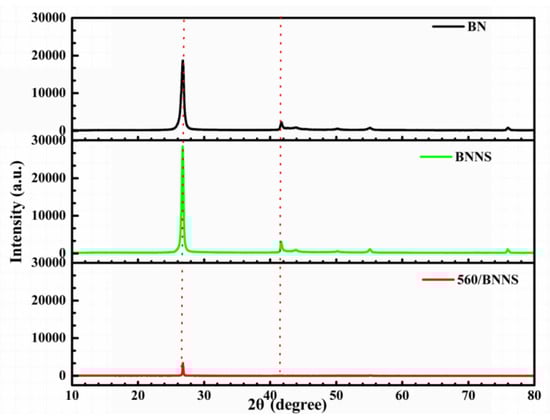

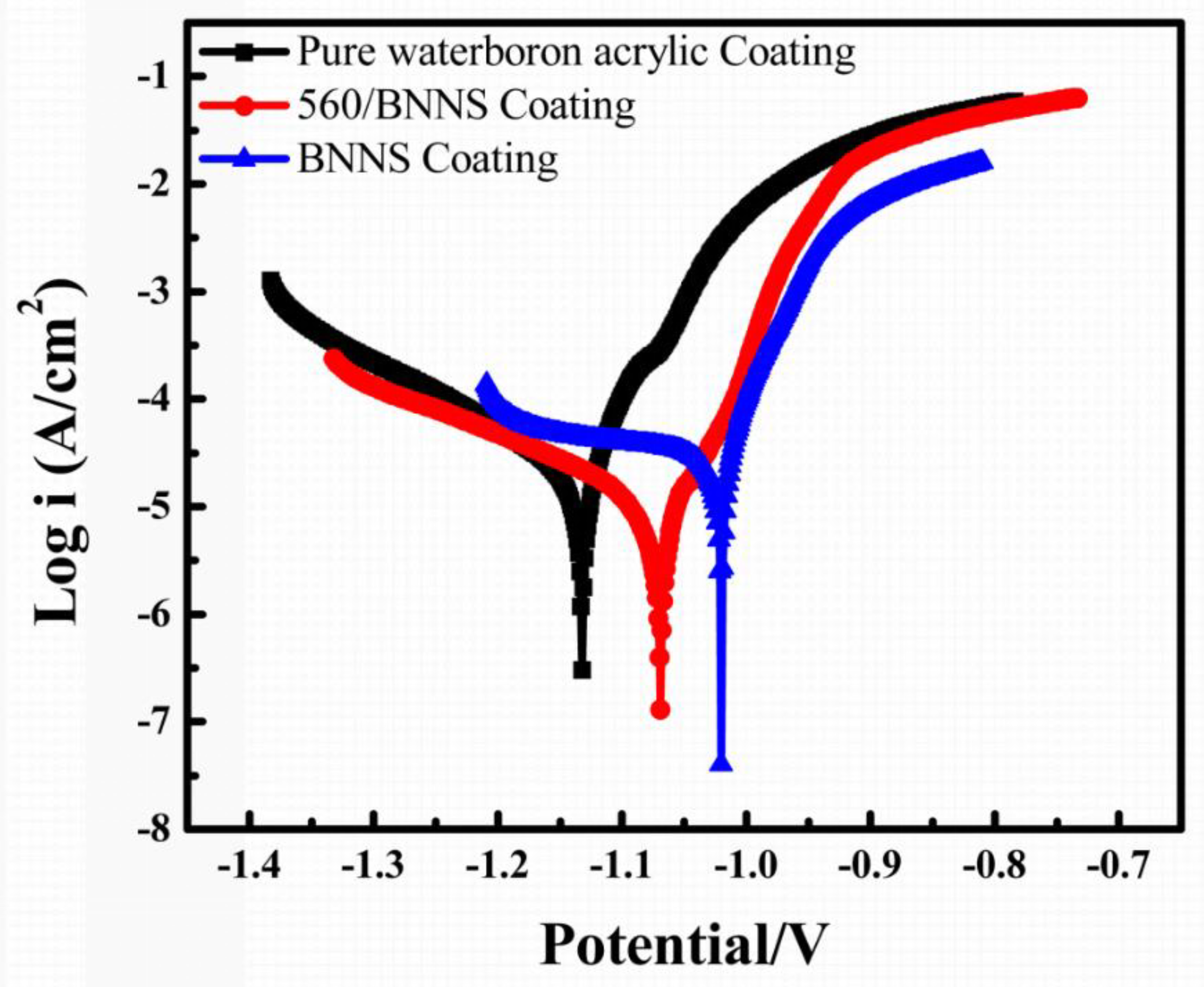

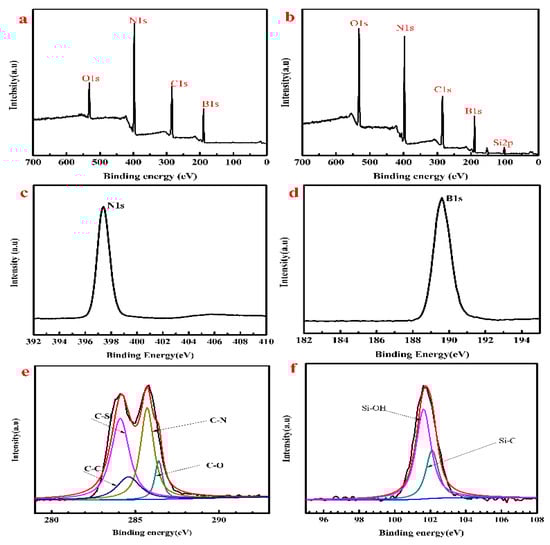

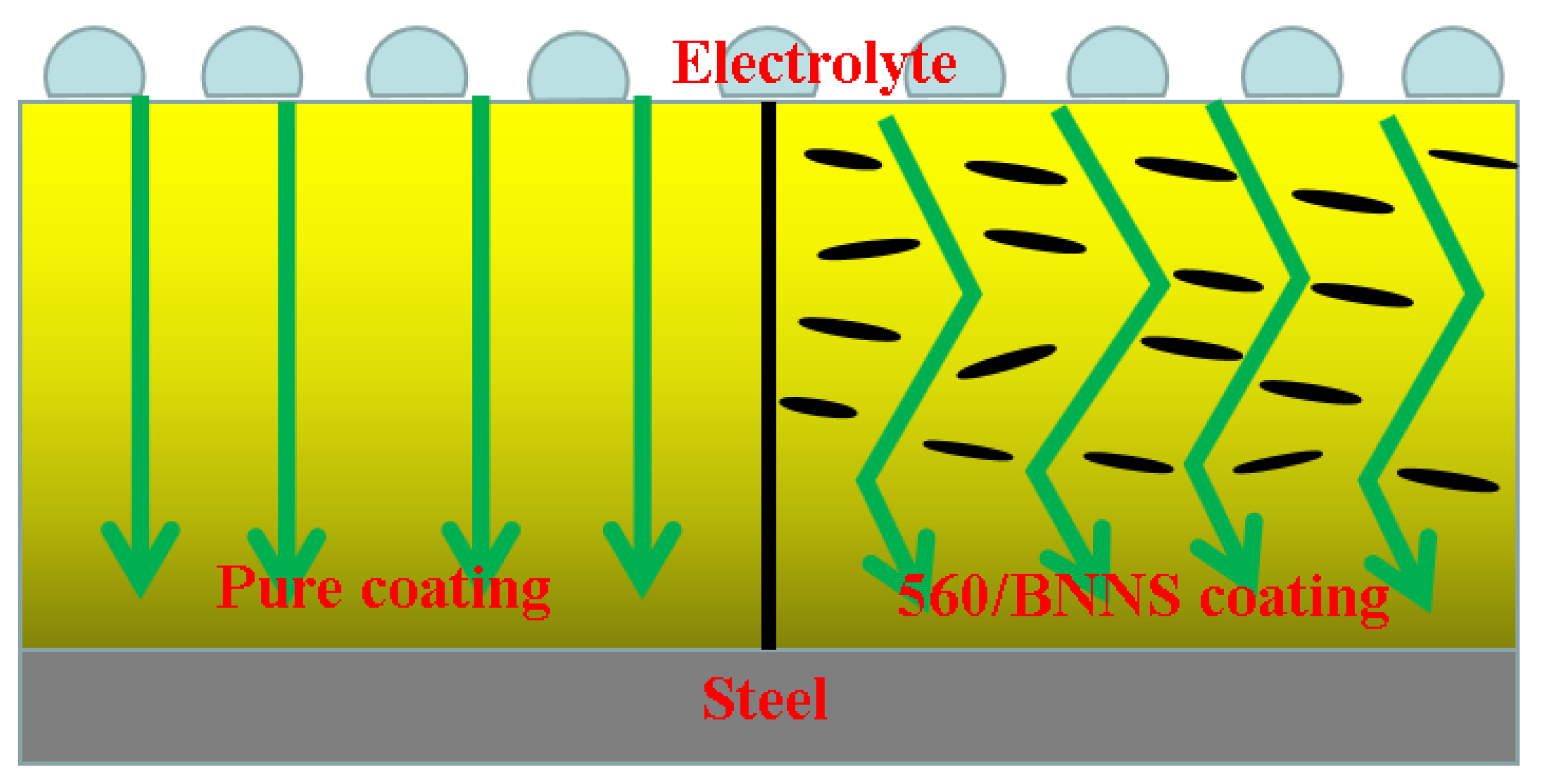

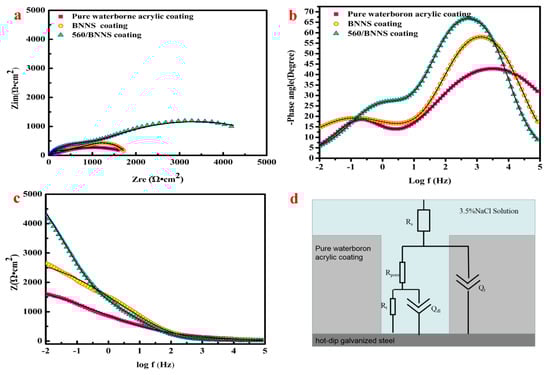

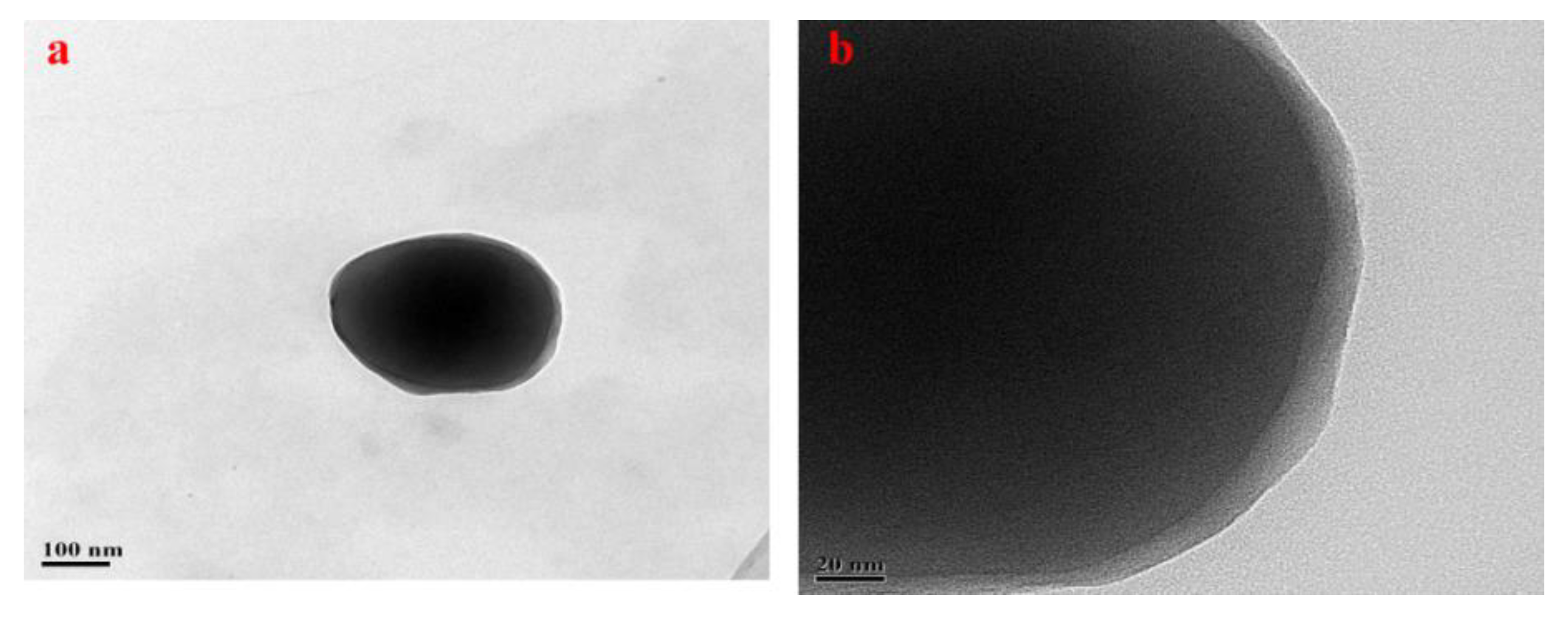

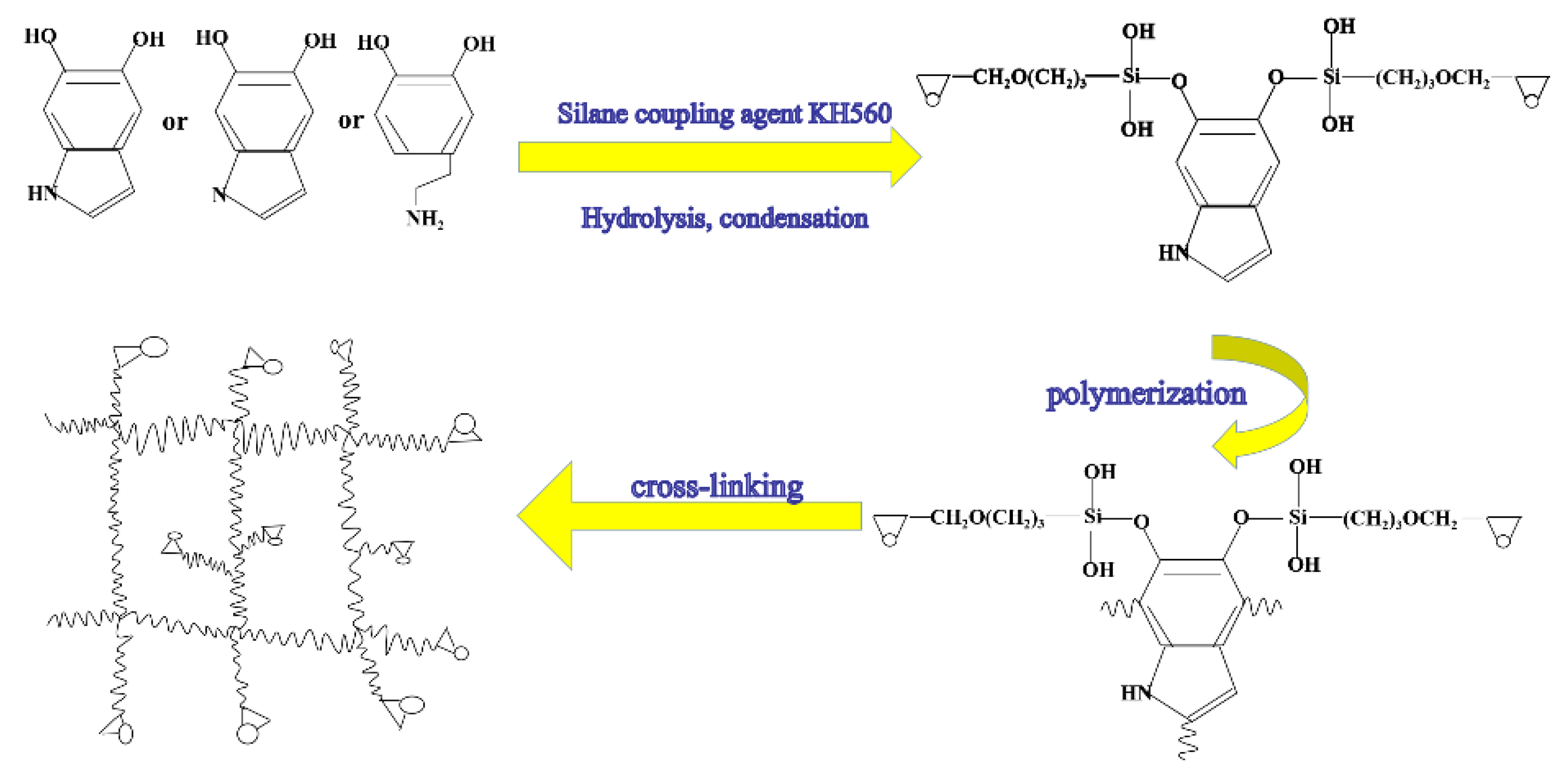

The hexagonal boron nitride (h-BN) nanosheets modified by silane coupling agent (KH560) were doped into acrylic acid coating on the surface of galvanized steel to improve its corrosion resistance. H-BN nanosheets modified by KH560 were prepared and characterised by scanning electron microscopy, transmission electron microscopy, atomic force microscopy, X-ray diffraction, and Fourier-transform infrared spectroscopy. The corrosion resistance of the acrylic acid coatings was measured by electrochemical testing. The results show that the corrosion current density of the coating with modified h-BN nanosheets was reduced from 2.2 × 10−5 A/cm2 to 2.3 × 10−7 A/cm2 compared with the acrylic acid coating. The impedance of the composite coating with modified h-BN is 4435 Ω·cm2, higher than the BNNS coating (2500 Ω·cm2) and the acrylic acid coating (1500 Ω·cm2). This is due to the physical barrier and electrical insulation properties of the hexagonal boron nitride (h-BN) nanosheets. View Full-Text
Keywords: hot-dip galvanized steel; boron nitride nanosheet; corrosion resistance; acrylic coating hot-dip galvanized steel; boron nitride nanosheet; corrosion resistance; acrylic coating
Show Figures

Figure 1

MDPI and ACS Style

Fan, Y.; Yang, H.; Fan, H.; Liu, Q.; Lv, C.; Zhao, X.; Yang, M.; Wu, J.; Cao, X. Corrosion Resistance of Modified Hexagonal Boron Nitride (h-BN) Nanosheets Doped Acrylic Acid Coating on Hot-Dip Galvanized Steel. Materials 2020, 13, 2340.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
