Analysis of the Functionally Step-Variable Graded Plate Under In-Plane Compression

and
Department of Strength of Materials, Lodz University of Technology, 90-924 Lodz, Poland
*
Author to whom correspondence should be addressed.

Abstract

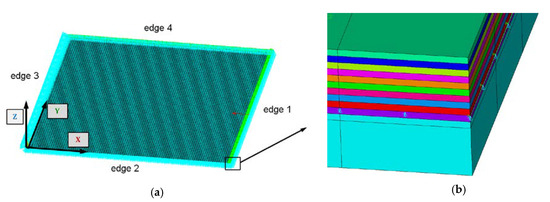

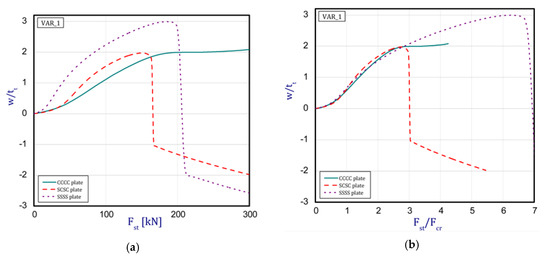

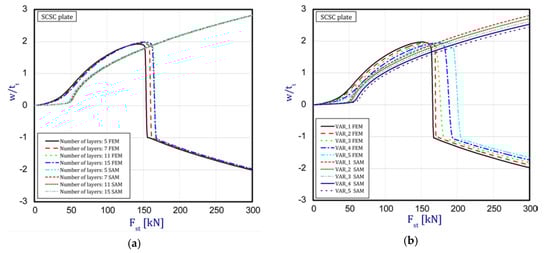

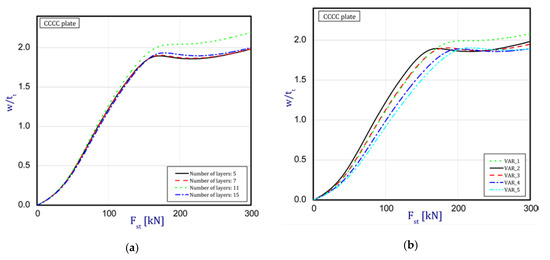

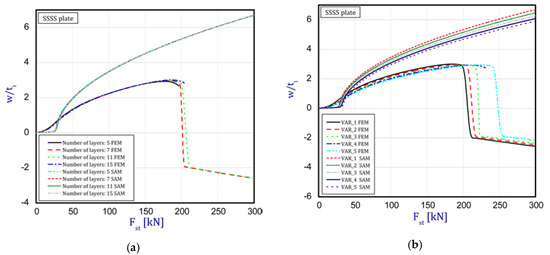

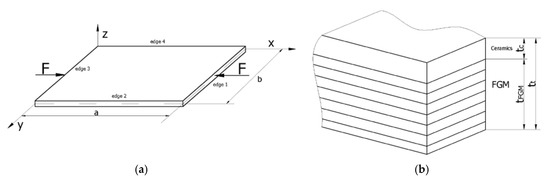

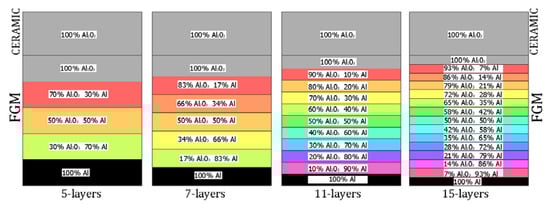

A study of the pre- and post-buckling state of square plates built from functionally graded materials (FGMs) and pure ceramics is presented. In contrast to the theoretical approach, the structure under consideration contains a finite number of layers with a step-variable change in mechanical properties across the thickness. An influence of ceramics content on a wall and a number of finite layers of the step-variable FGM on the buckling and post-critical state was scrutinized. The problem was solved using the finite element method and the asymptotic nonlinear Koiter’s theory. The investigations were conducted for several boundary conditions and material distributions to assess the behavior of the plate and to compare critical forces and post-critical equilibrium paths.
