Next Article in Journal
Micro-Mechanical Response of an Al-Mg Hybrid System Synthesized by High-Pressure Torsion
Next Article in Special Issue
Estimation of Articular Cartilage Surface Roughness Using Gray-Level Co-Occurrence Matrix of Laser Speckle Image
Previous Article in Journal
Rapid Prototyping of Slot Die Devices for Roll to Roll Production of EL Fibers
Previous Article in Special Issue
Enhanced Thermo-Optical Switching of Paraffin-Wax Composite Spots under Laser Heating
Open AccessArticle

Characterization of a Laser Surface-Treated Martensitic Stainless Steel

1
National Institute of Laser Enhanced Sciences (NILES), Cairo University, Giza 12611, Egypt
2
Faculty of Engineering, Cairo University, Giza 12611, Egypt
3
Central Metallurgical Research and Development Institute (CMRDI), Helwan 11731, Egypt
*
Author to whom correspondence should be addressed.
Materials 2017, 10(6), 595; https://doi.org/10.3390/ma10060595
Received: 10 February 2017 / Revised: 24 May 2017 / Accepted: 24 May 2017 / Published: 29 May 2017
(This article belongs to the Special Issue Laser in Nanotechnology and Biomedical Applications)

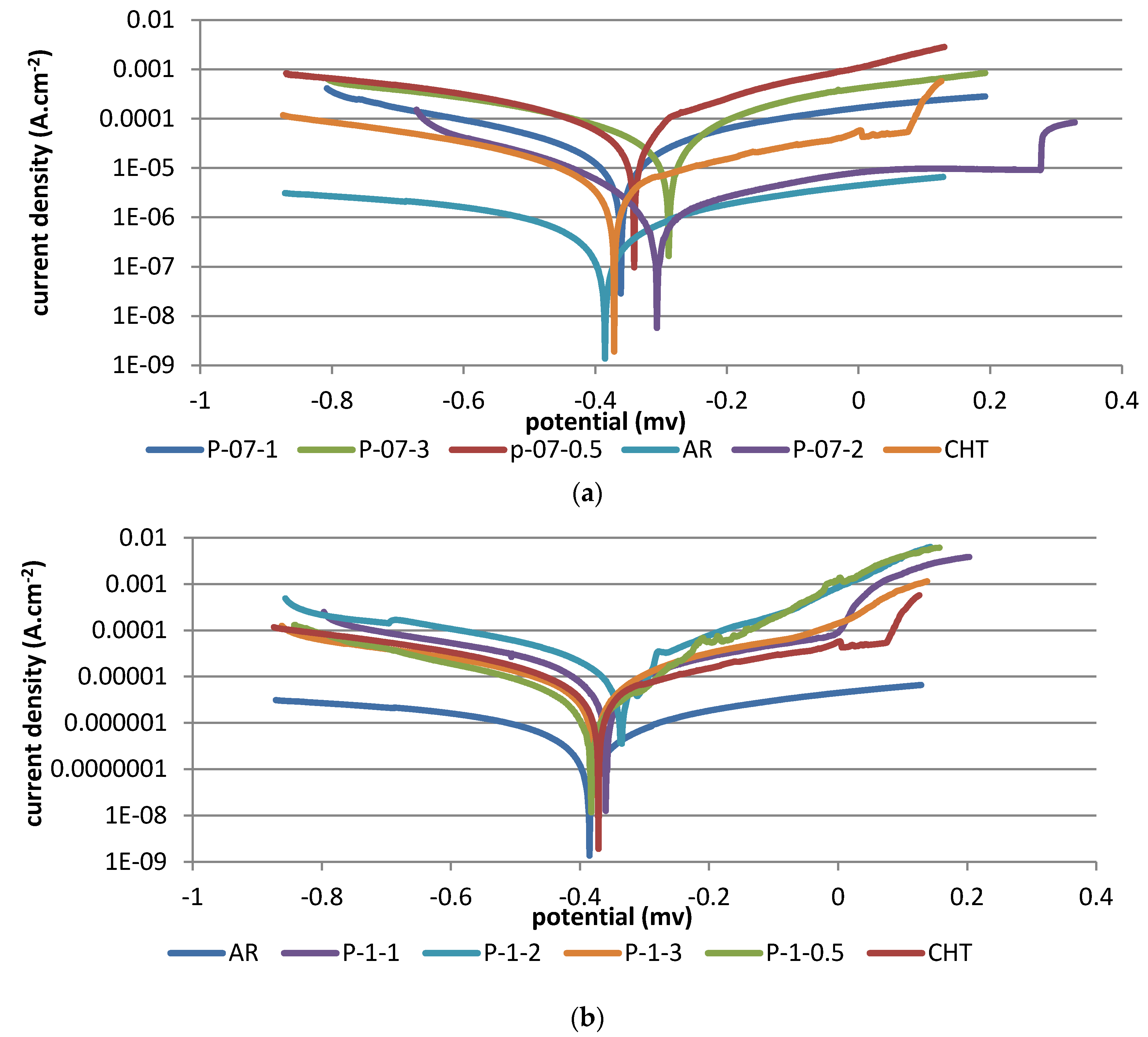

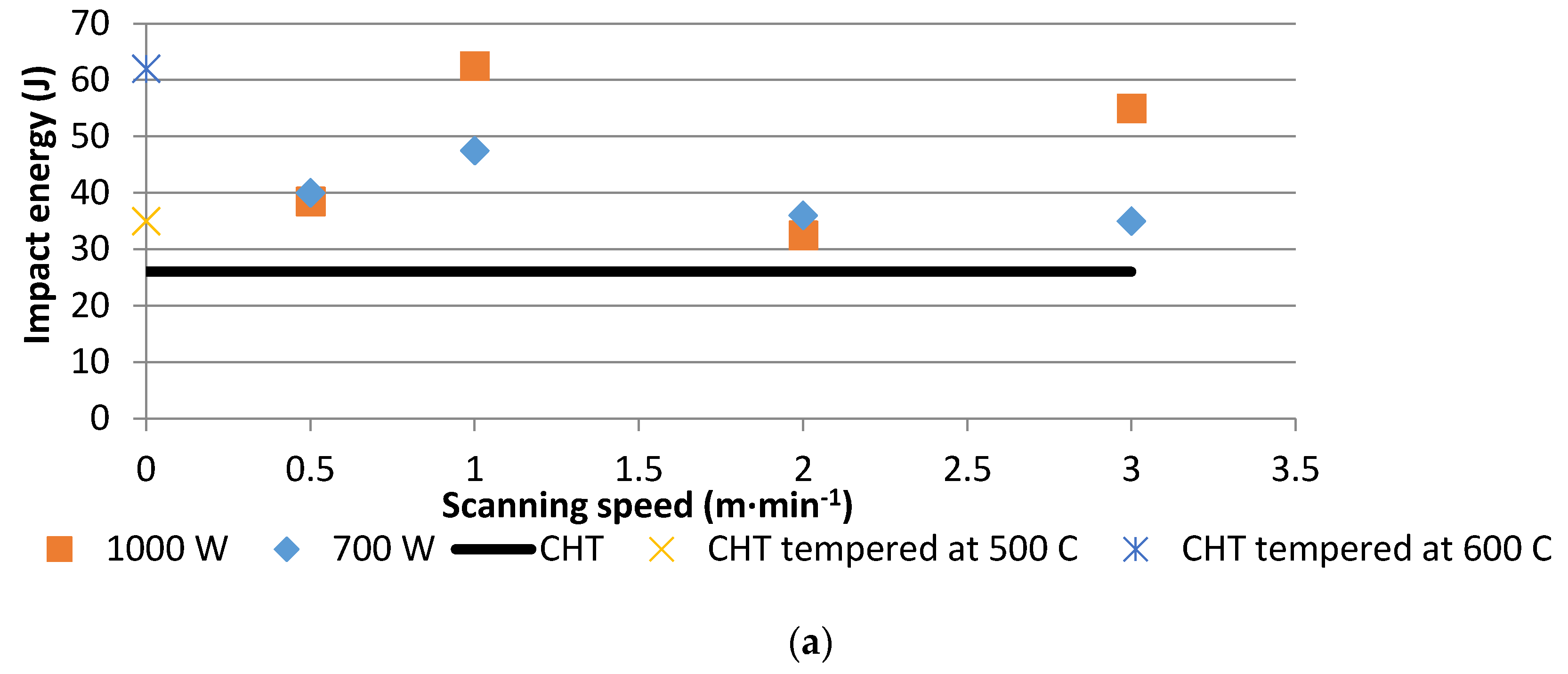

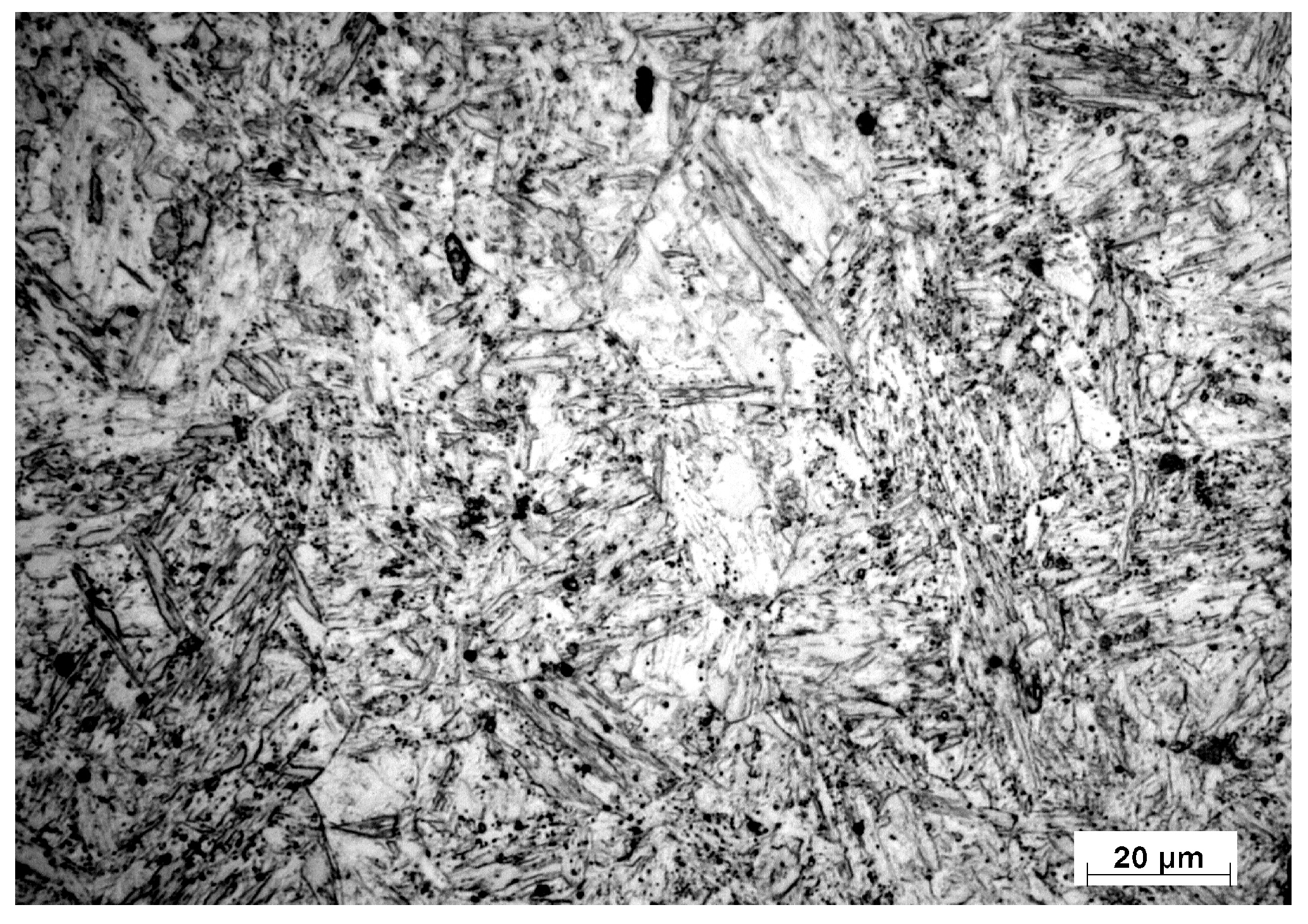

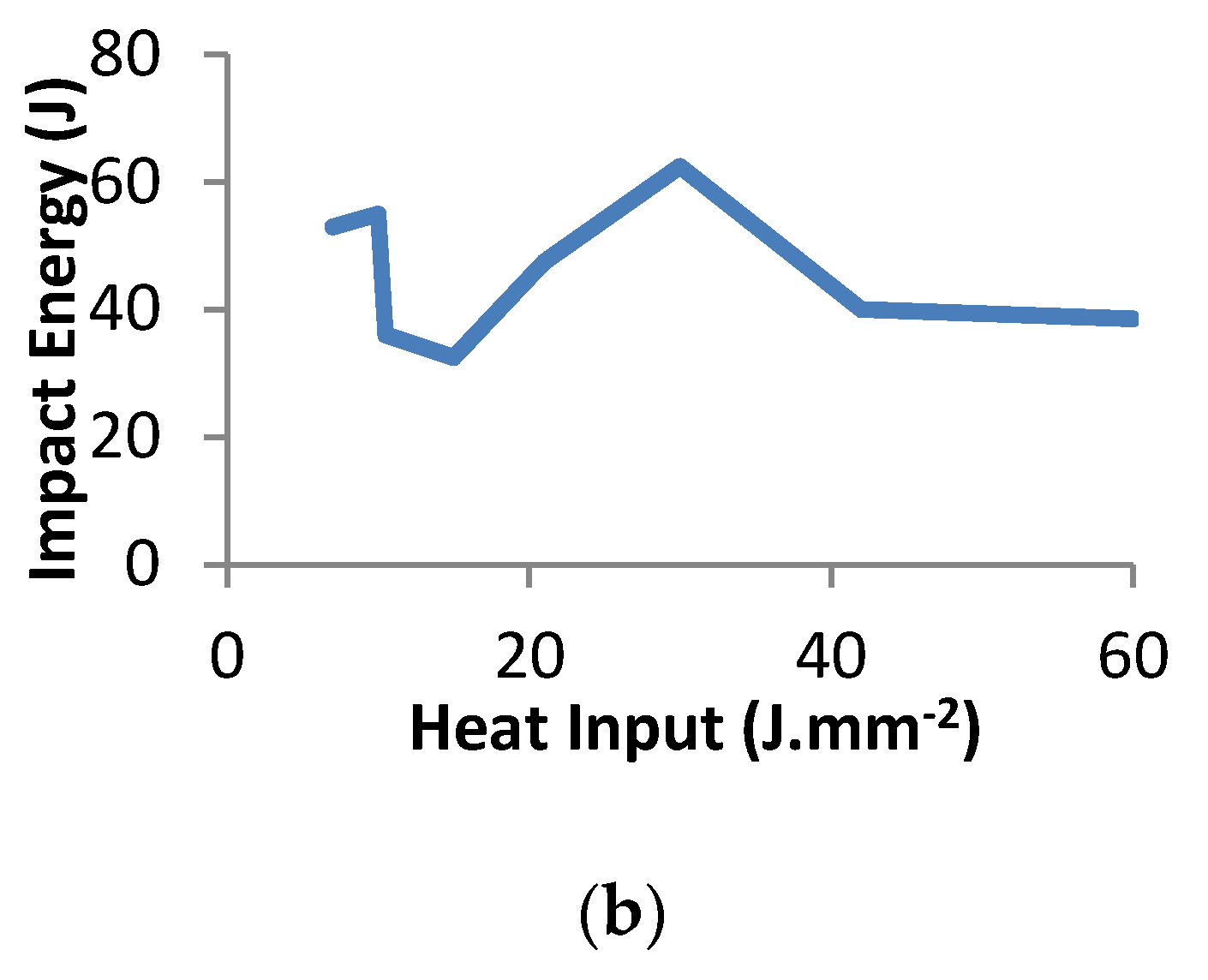

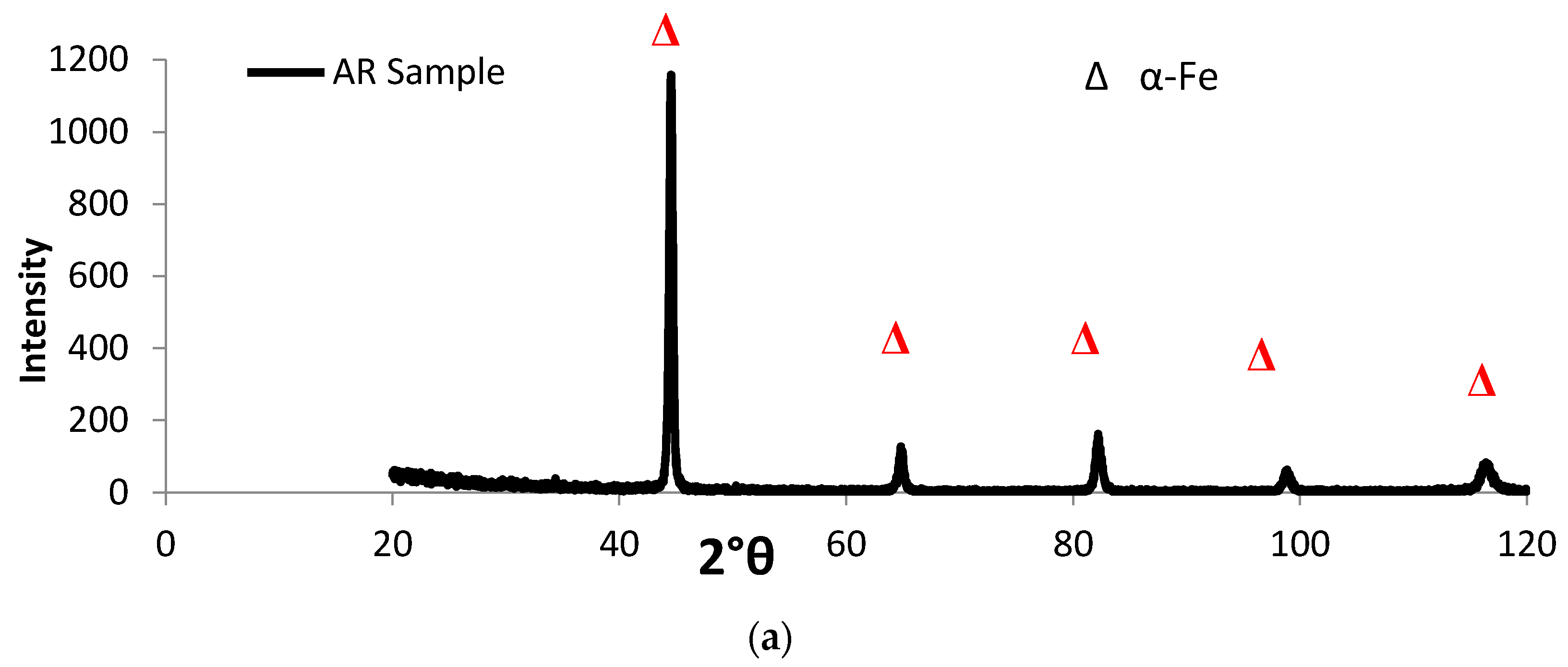

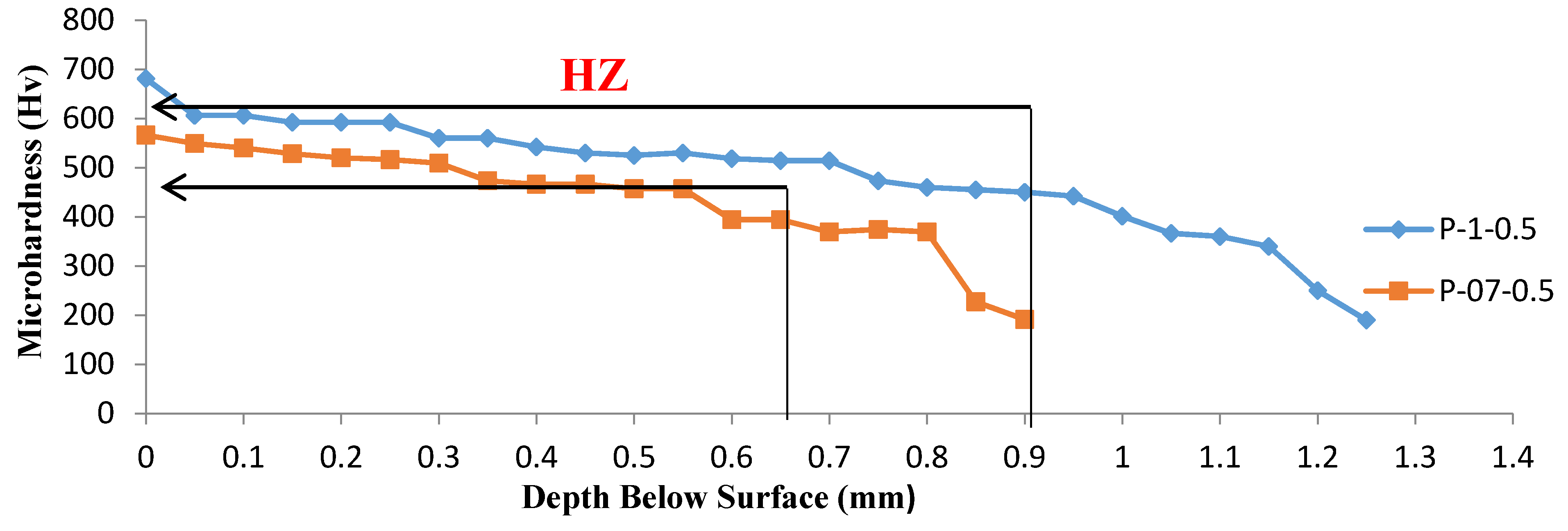

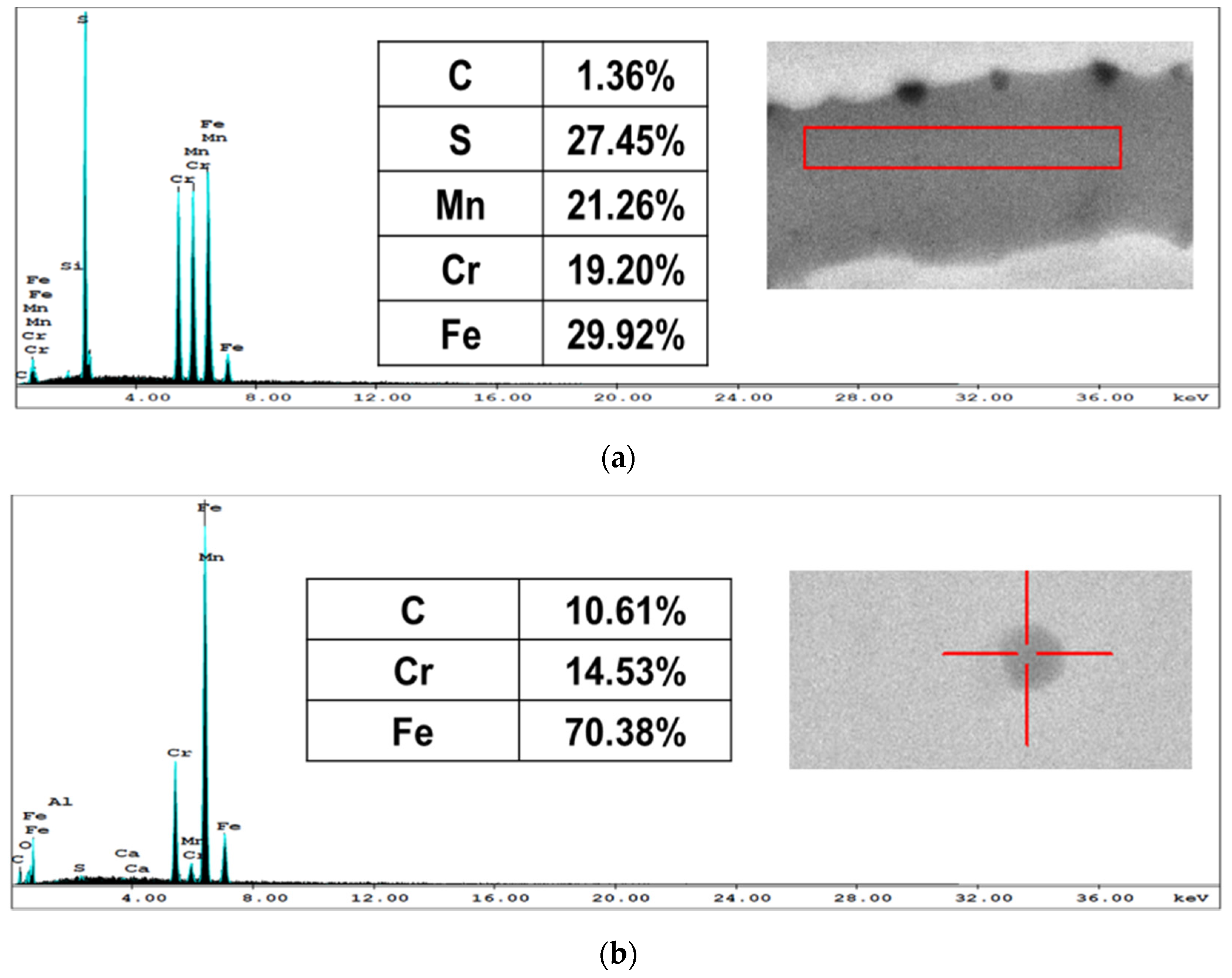

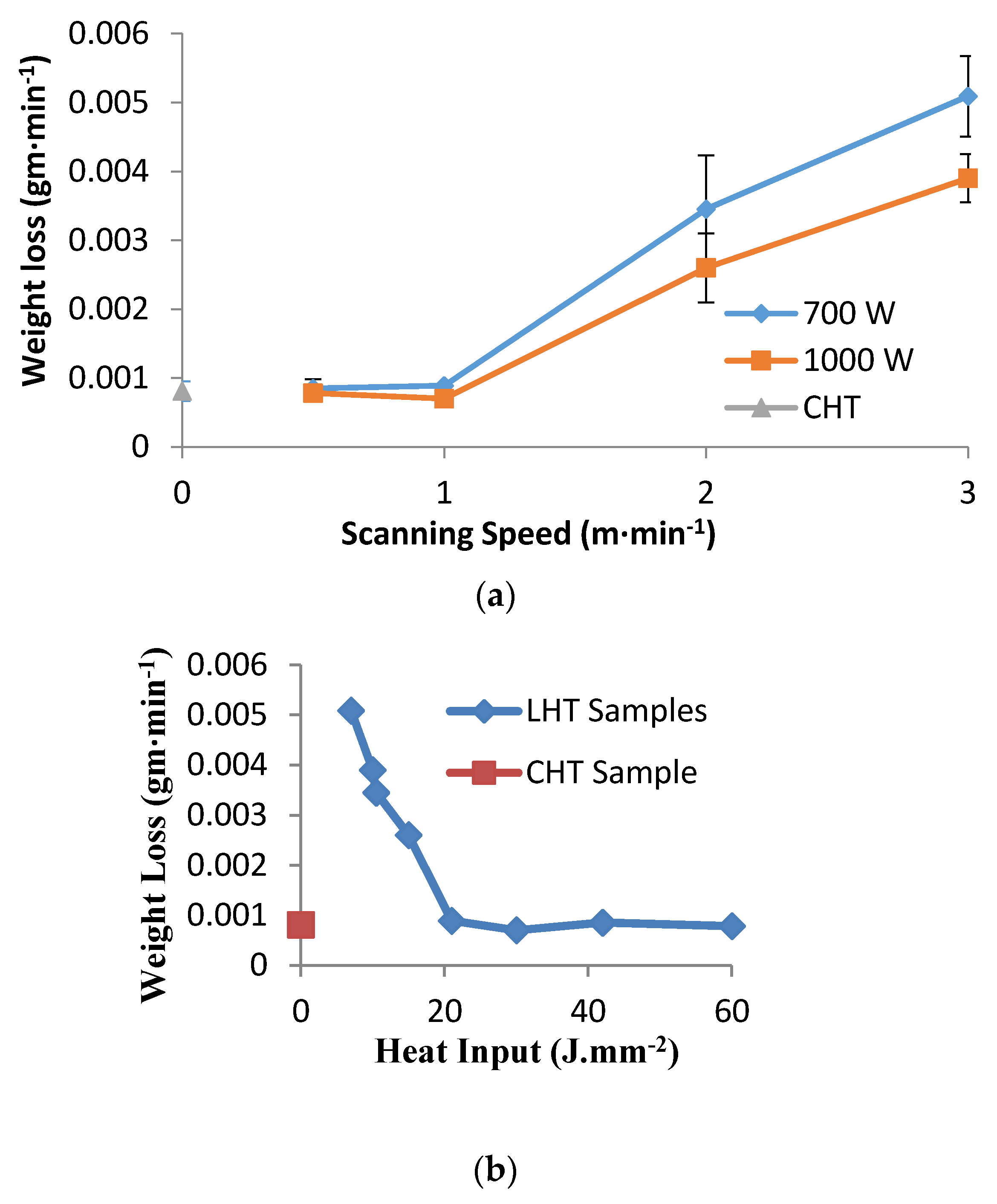

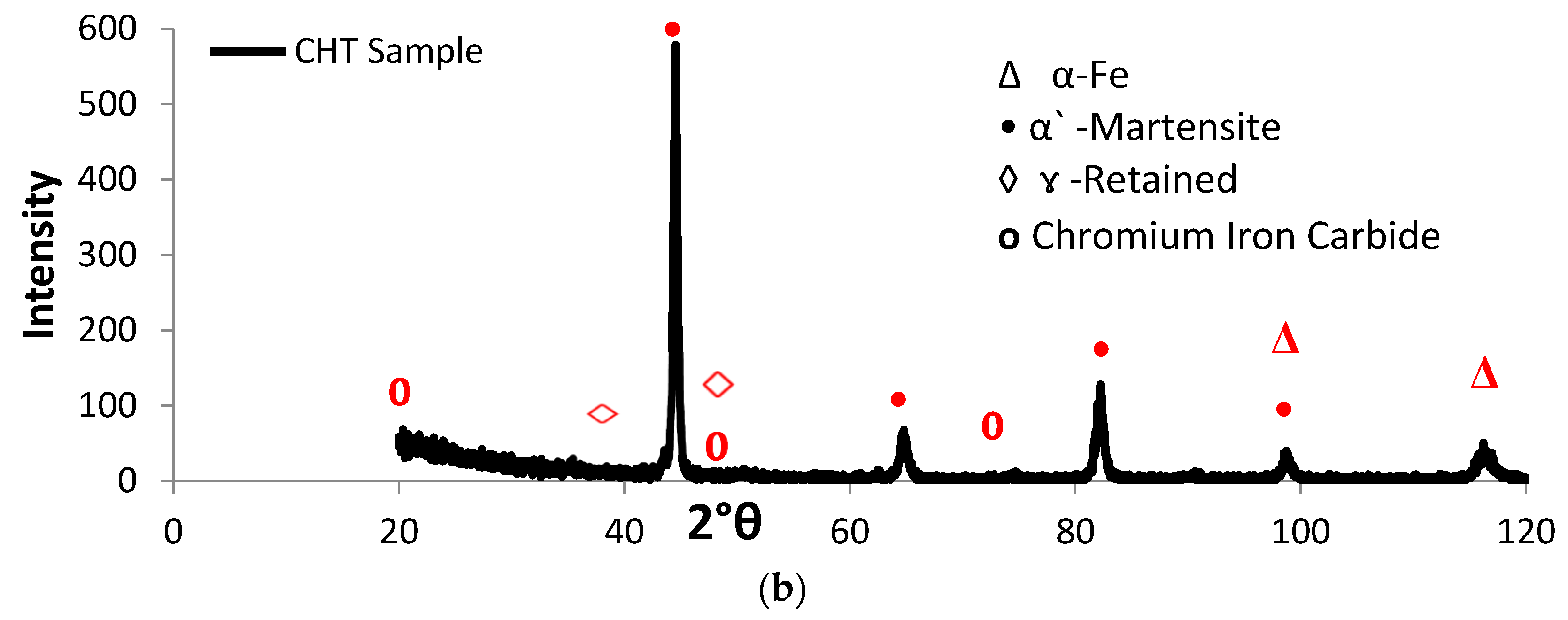

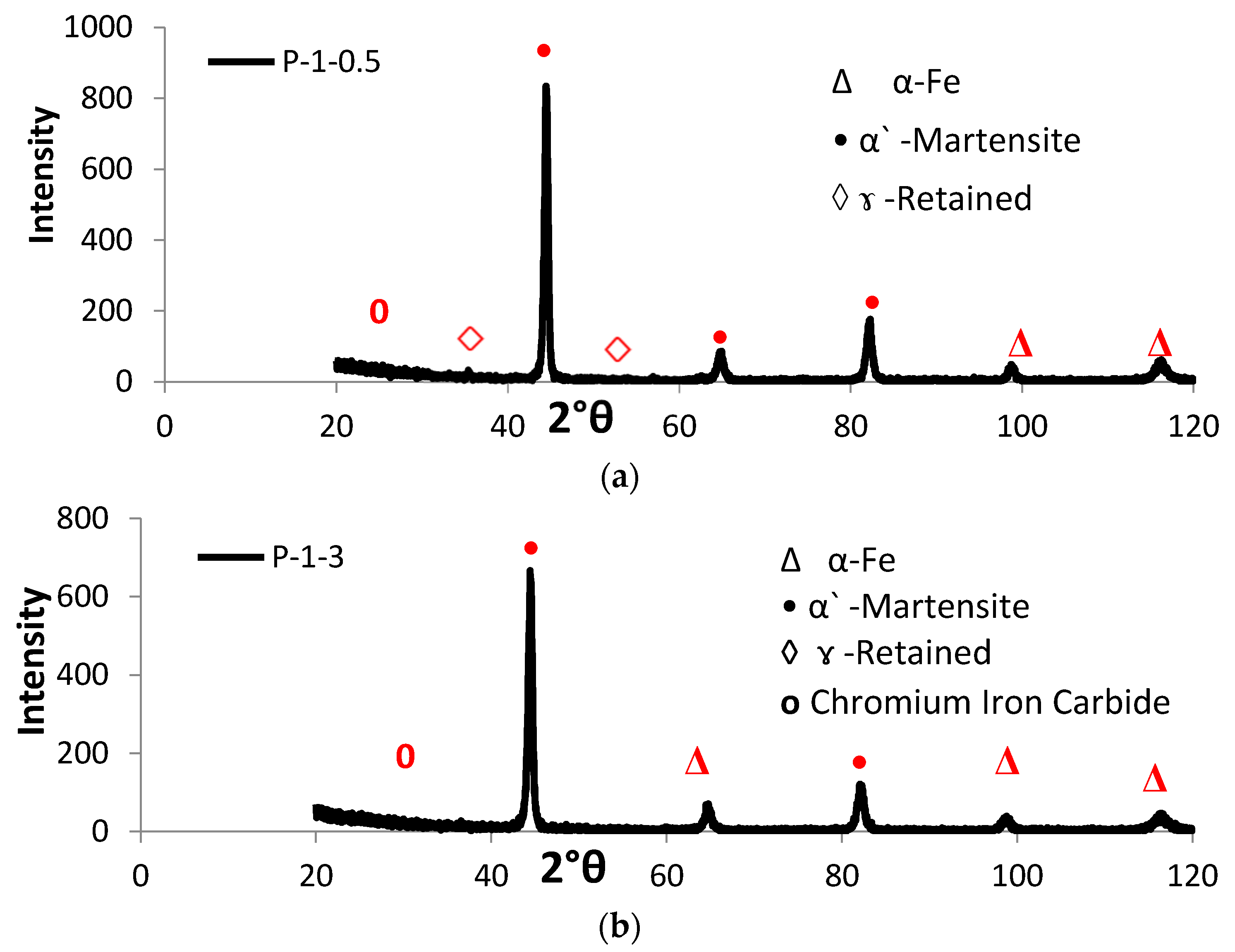

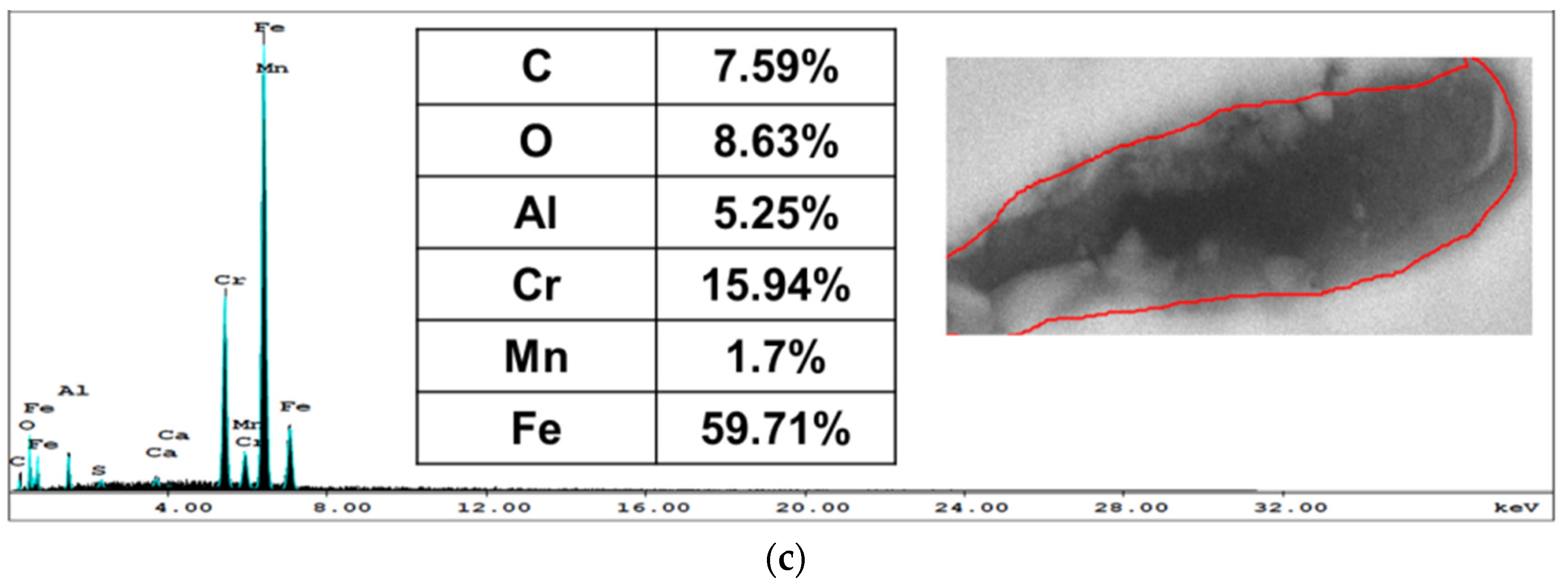

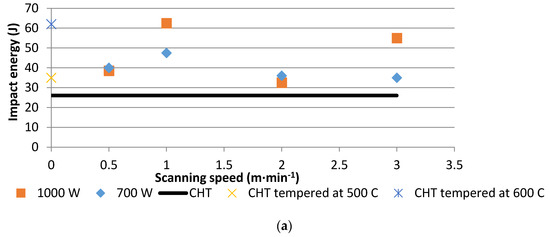

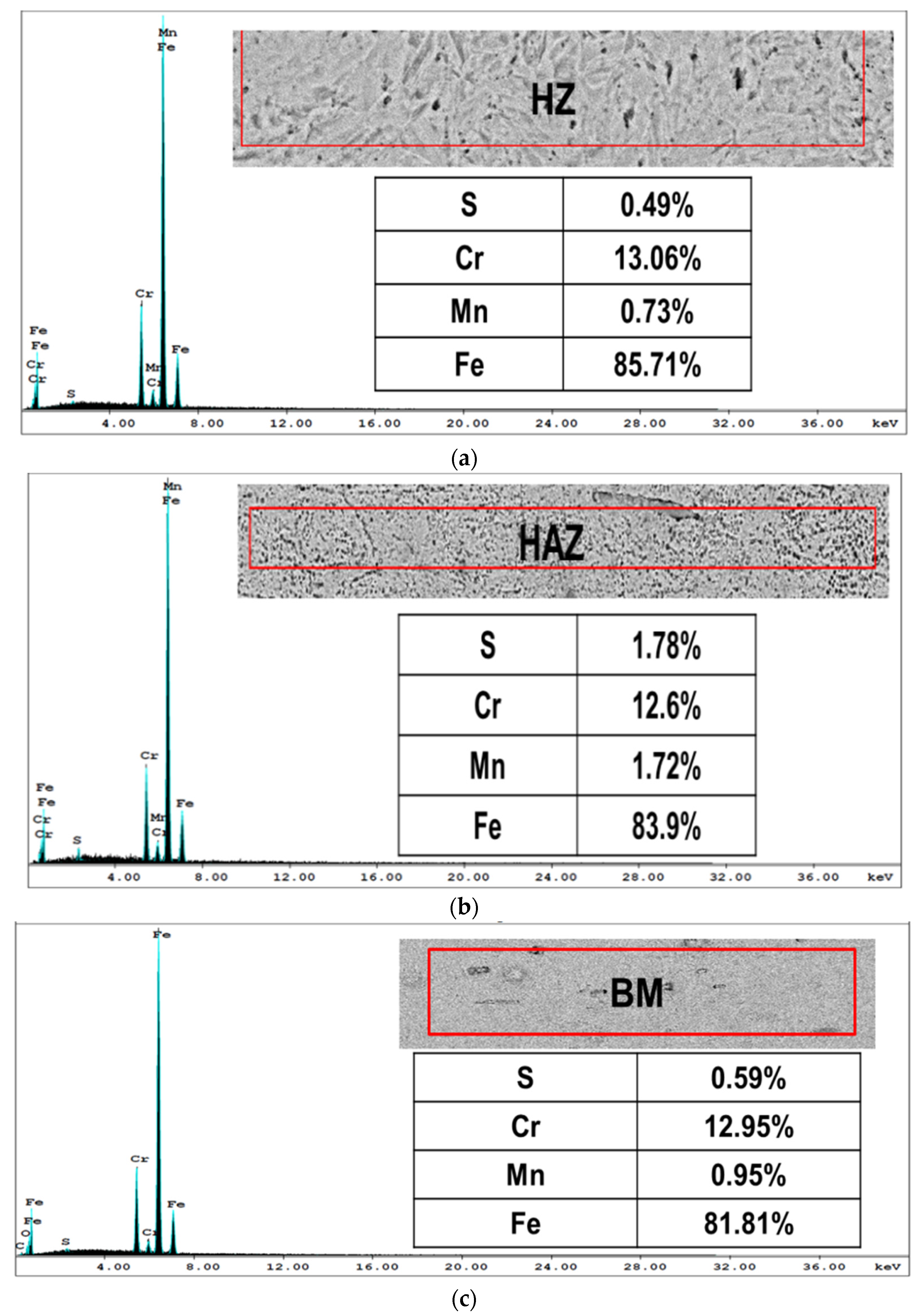

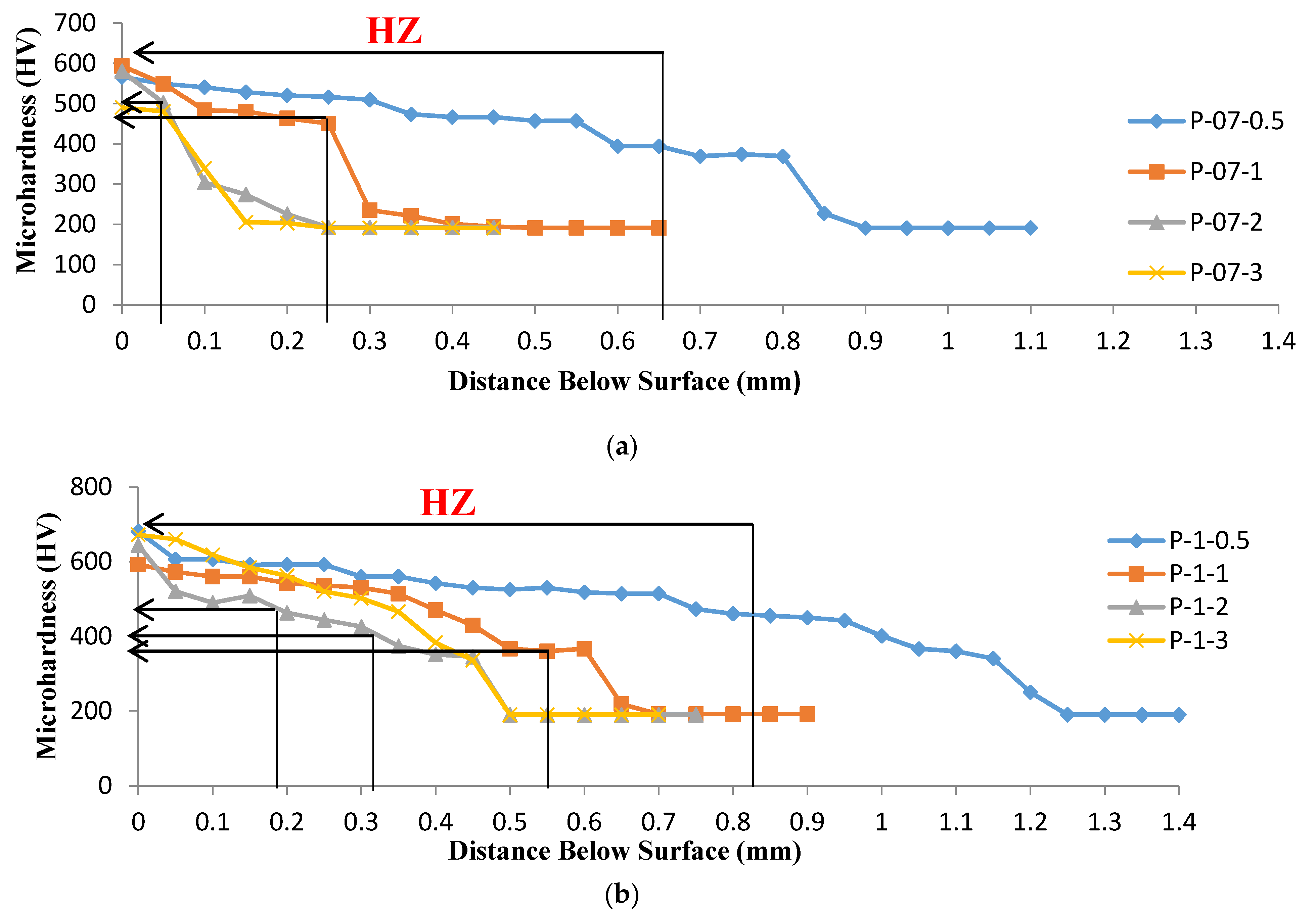

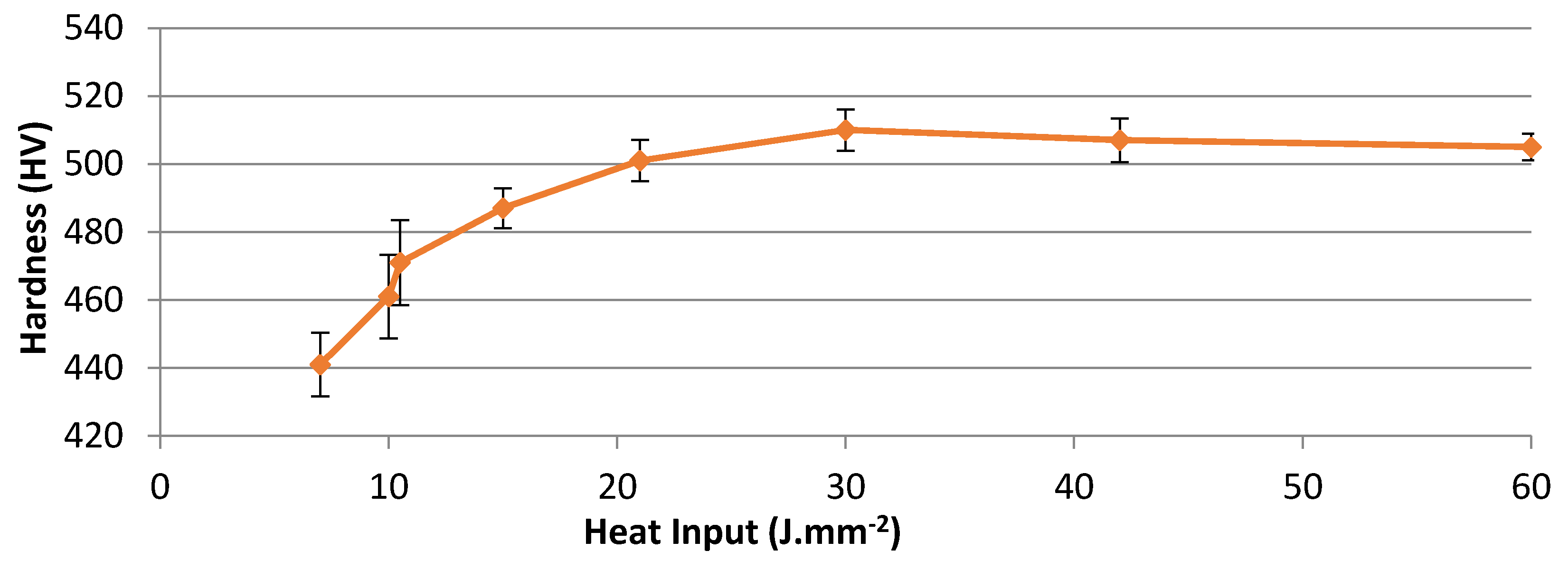

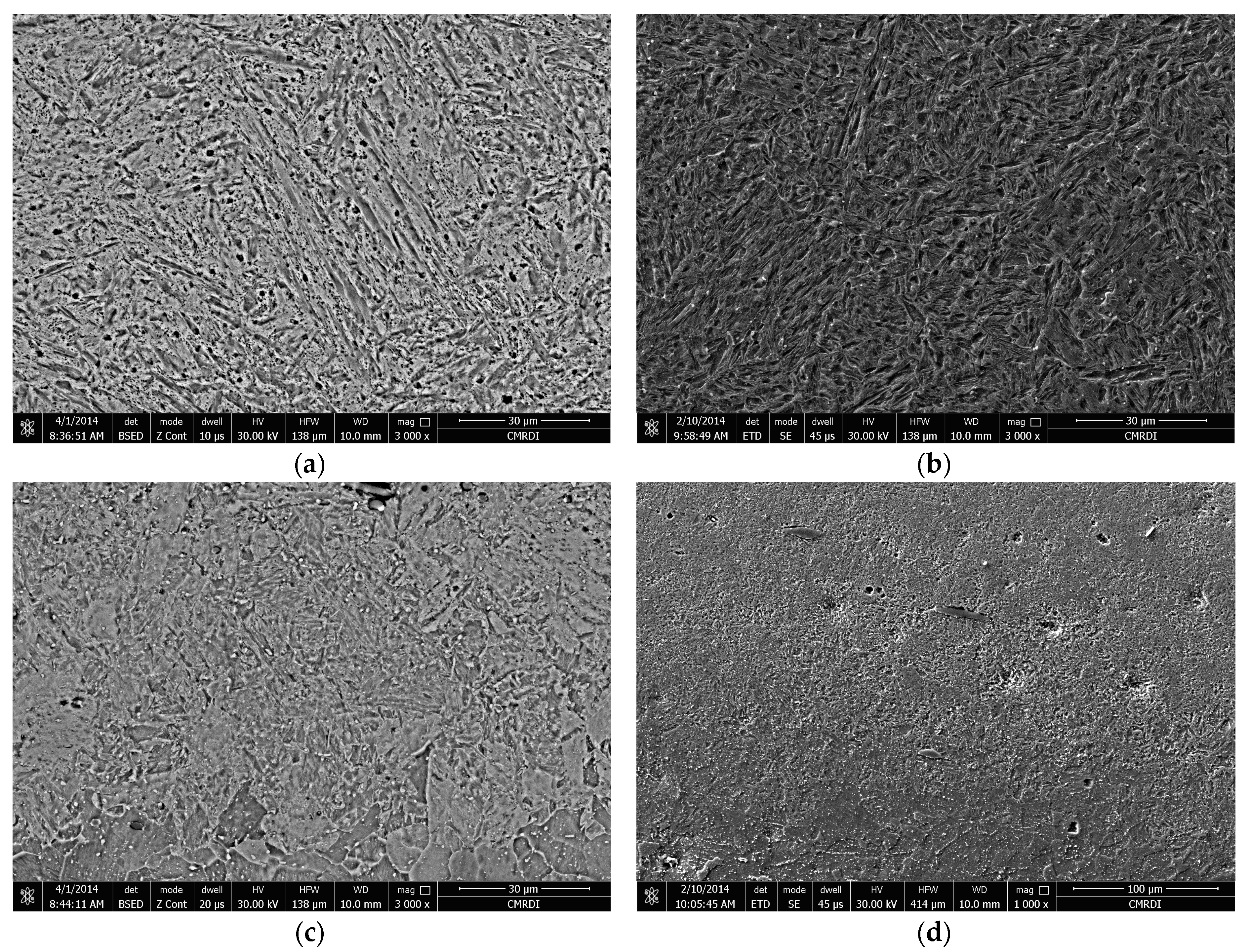

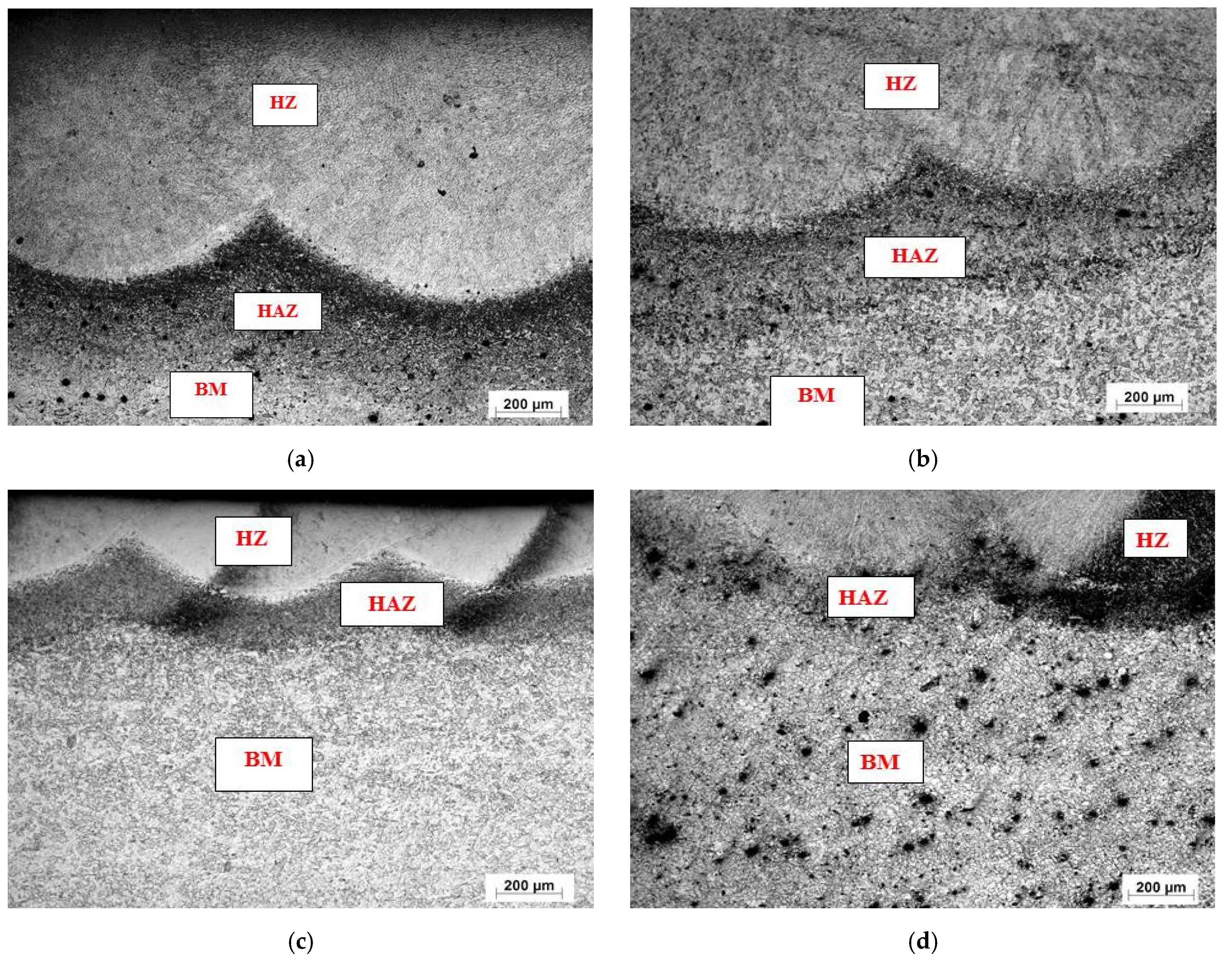

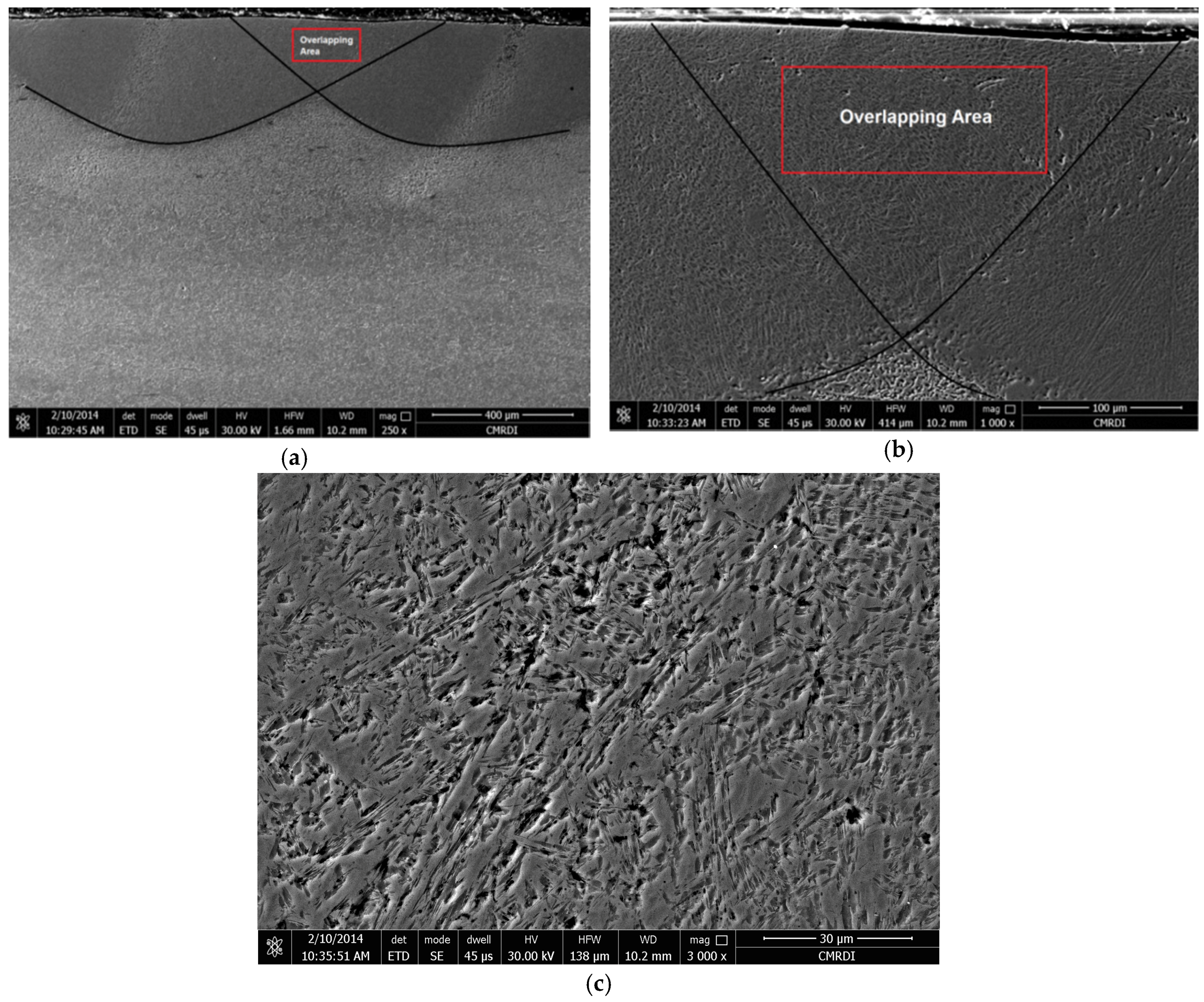

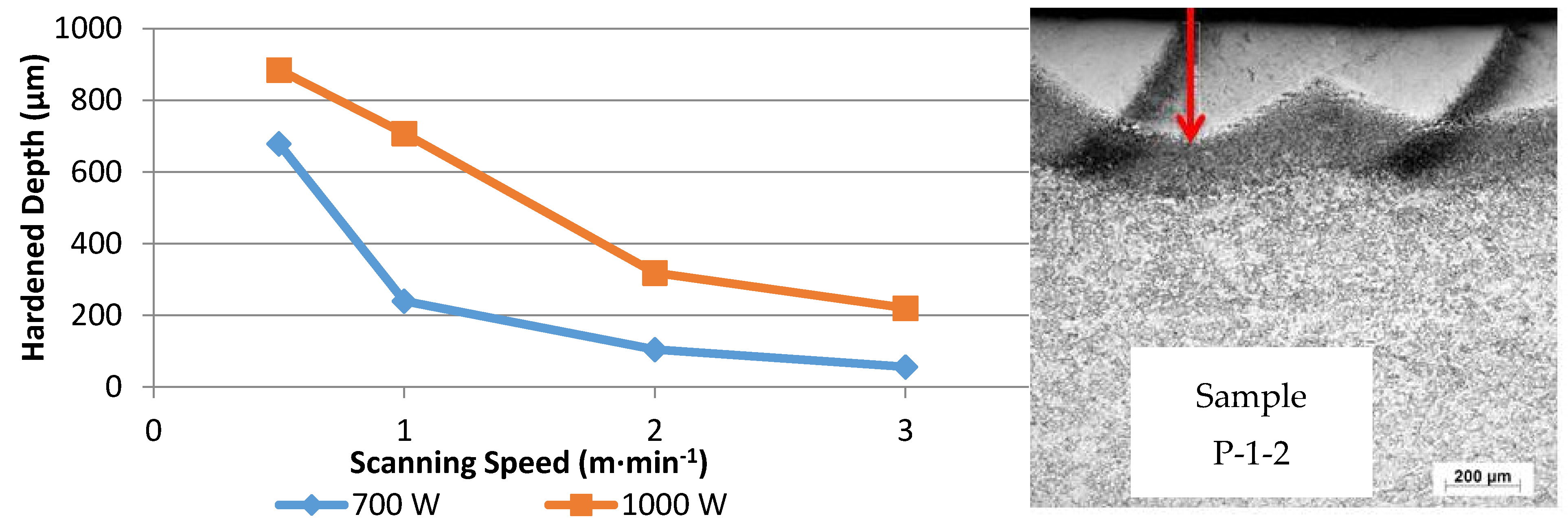

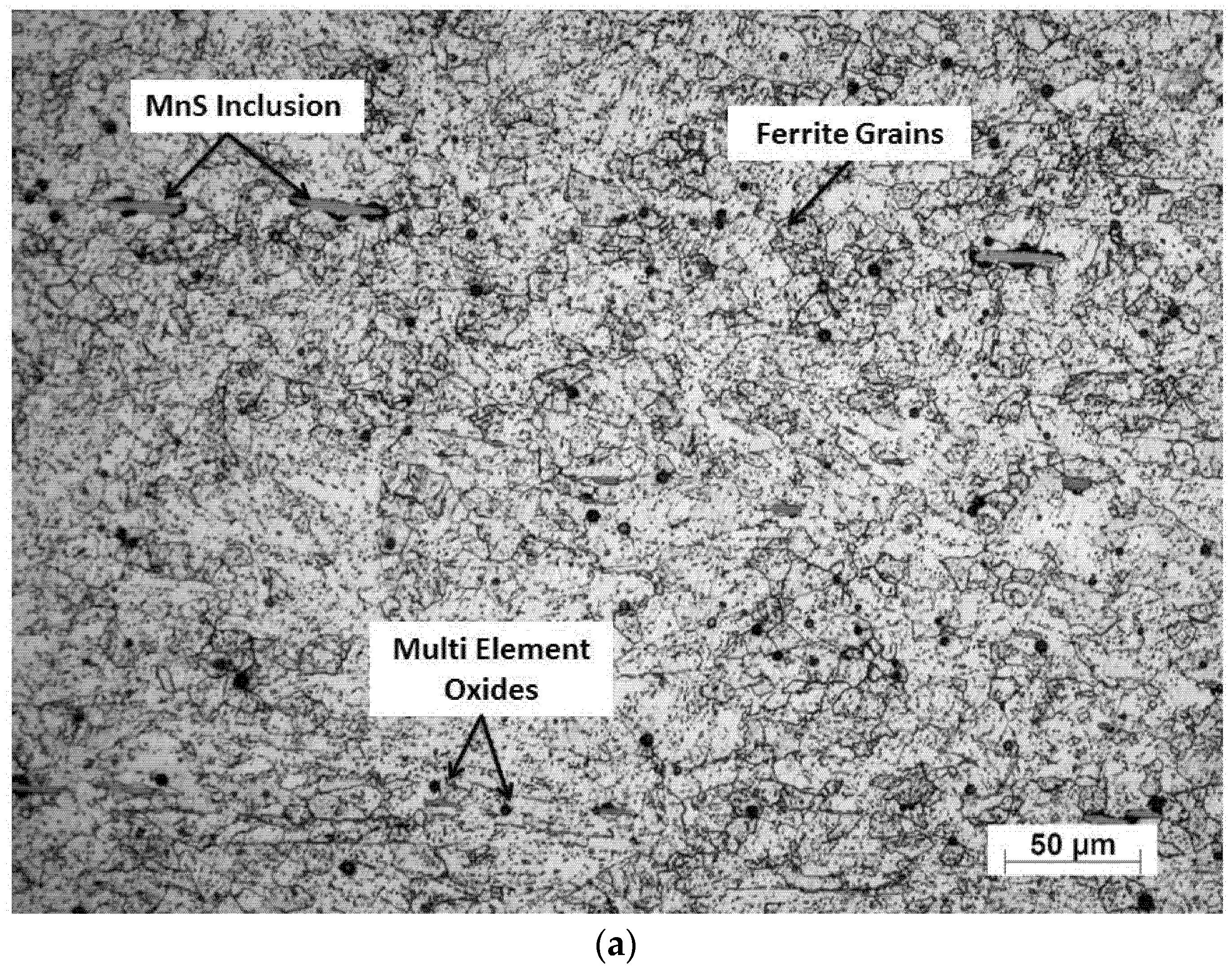

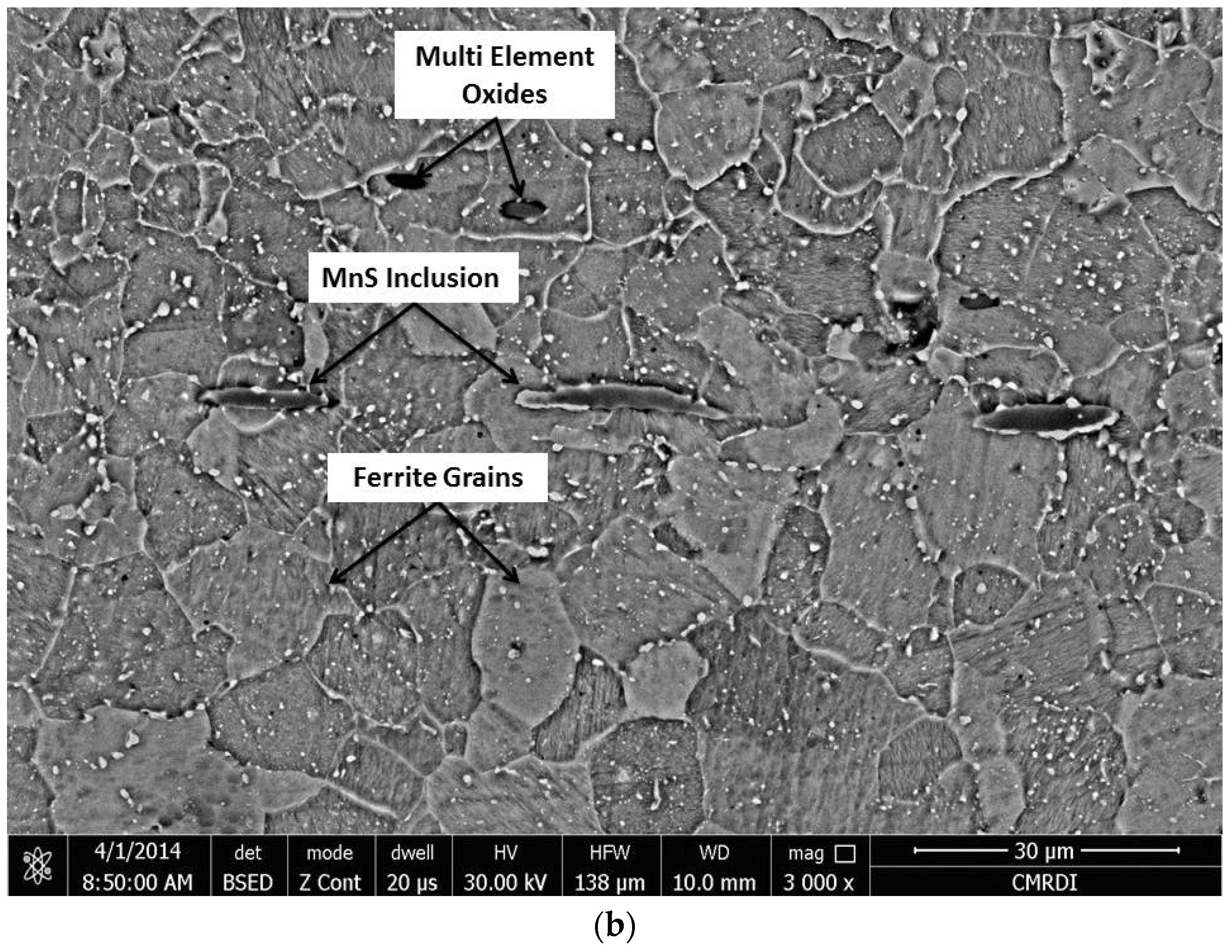

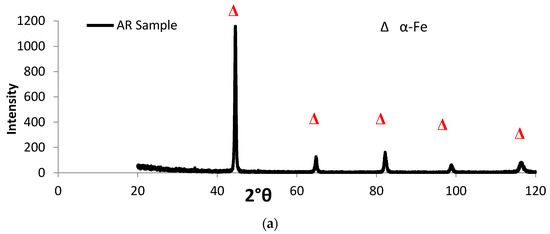

Laser surface treatment was carried out on AISI 416 machinable martensitic stainless steel containing 0.225 wt.% sulfur. Nd:YAG laser with a 2.2-KW continuous wave was used. The aim was to compare the physical and chemical properties achieved by this type of selective surface treatment with those achieved by the conventional treatment. Laser power of different values (700 and 1000 W) with four corresponding different laser scanning speeds (0.5, 1, 2, and 3 m•min−1) was adopted to reach the optimum conditions for impact toughness, wear, and corrosion resistance for laser heat treated (LHT) samples. The 0 °C impact energy of LHT samples indicated higher values compared to the conventionally heat treated (CHT) samples. This was accompanied by the formation of a hard surface layer and a soft interior base metal. Microhardness was studied to determine the variation of hardness values with respect to the depth under the treated surface. The wear resistance at the surface was enhanced considerably. Microstructure examination was characterized using optical and scanning electron microscopes. The corrosion behavior of the LHT samples was also studied and its correlation with the microstructures was determined. The corrosion data was obtained in 3.5% NaCl solution at room temperature by means of a potentiodynamic polarization technique. View Full-Text
Keywords: laser surface treatment; martensitic stainless steel; macrohardeness and microhardeness; impact toughness; wear resistance; potentiodynamic polarization technique laser surface treatment; martensitic stainless steel; macrohardeness and microhardeness; impact toughness; wear resistance; potentiodynamic polarization technique
Show Figures

Figure 1

MDPI and ACS Style

Al-Sayed, S.; Hussein, A.; Nofal, A.; Hassab Elnaby, S.; Elgazzar, H. Characterization of a Laser Surface-Treated Martensitic Stainless Steel. Materials 2017, 10, 595.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
