Next Article in Journal
Bilayer Poly(Lactic-co-glycolic acid)/Nano-Hydroxyapatite Membrane with Barrier Function and Osteogenesis Promotion for Guided Bone Regeneration
Previous Article in Journal
Quantification of Wear and Deformation in Different Configurations of Polyethylene Acetabular Cups Using Micro X-ray Computed Tomography
Open AccessArticle

Influence of Ultrasound Treatment on Cavitation Erosion Resistance of AlSi7 Alloy

DIMI-Mechanical and Industrial Engineering Department, Via Branze, 38-25123 Brescia, Italy
Author to whom correspondence should be addressed.
Academic Editor: Christof Schneider
Materials 2017, 10(3), 256;
Received: 6 January 2017 / Revised: 23 February 2017 / Accepted: 24 February 2017 / Published: 3 March 2017

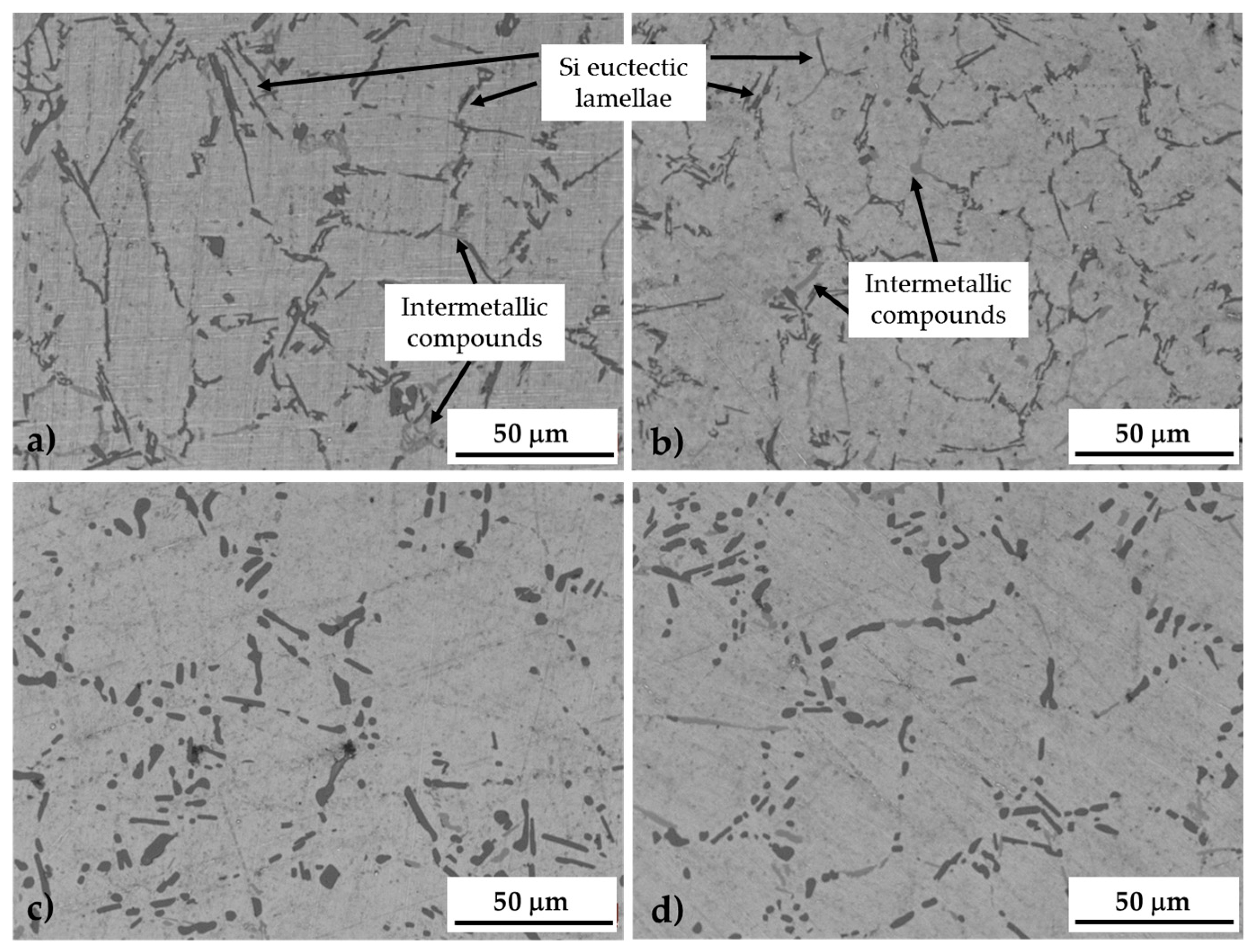

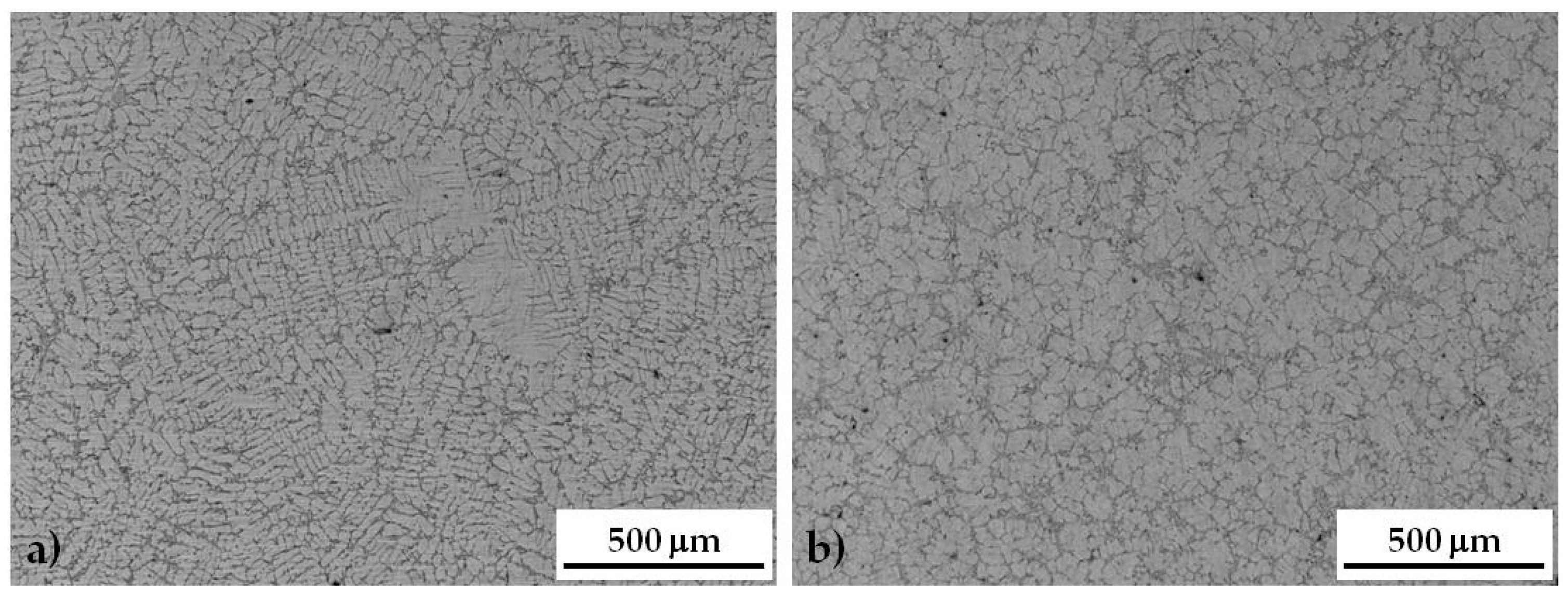

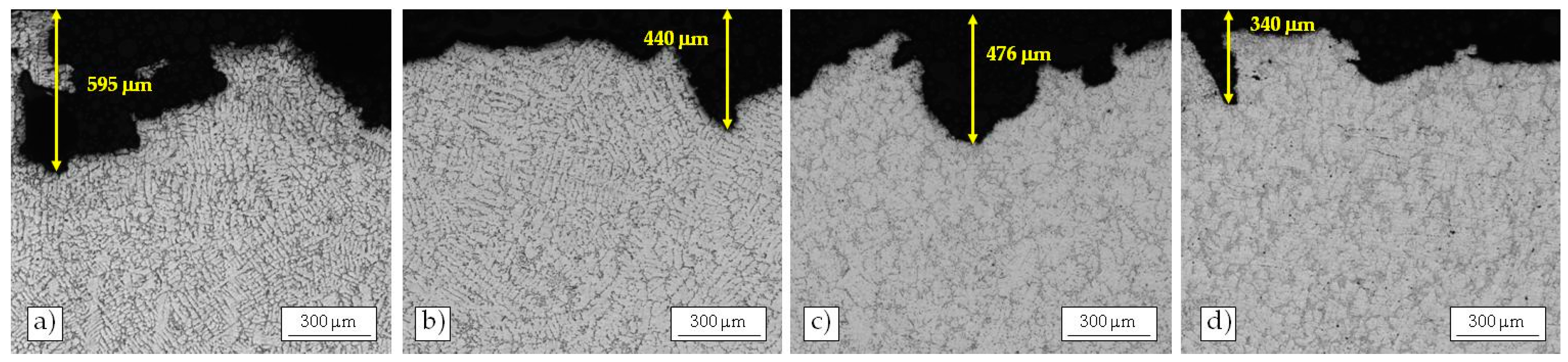

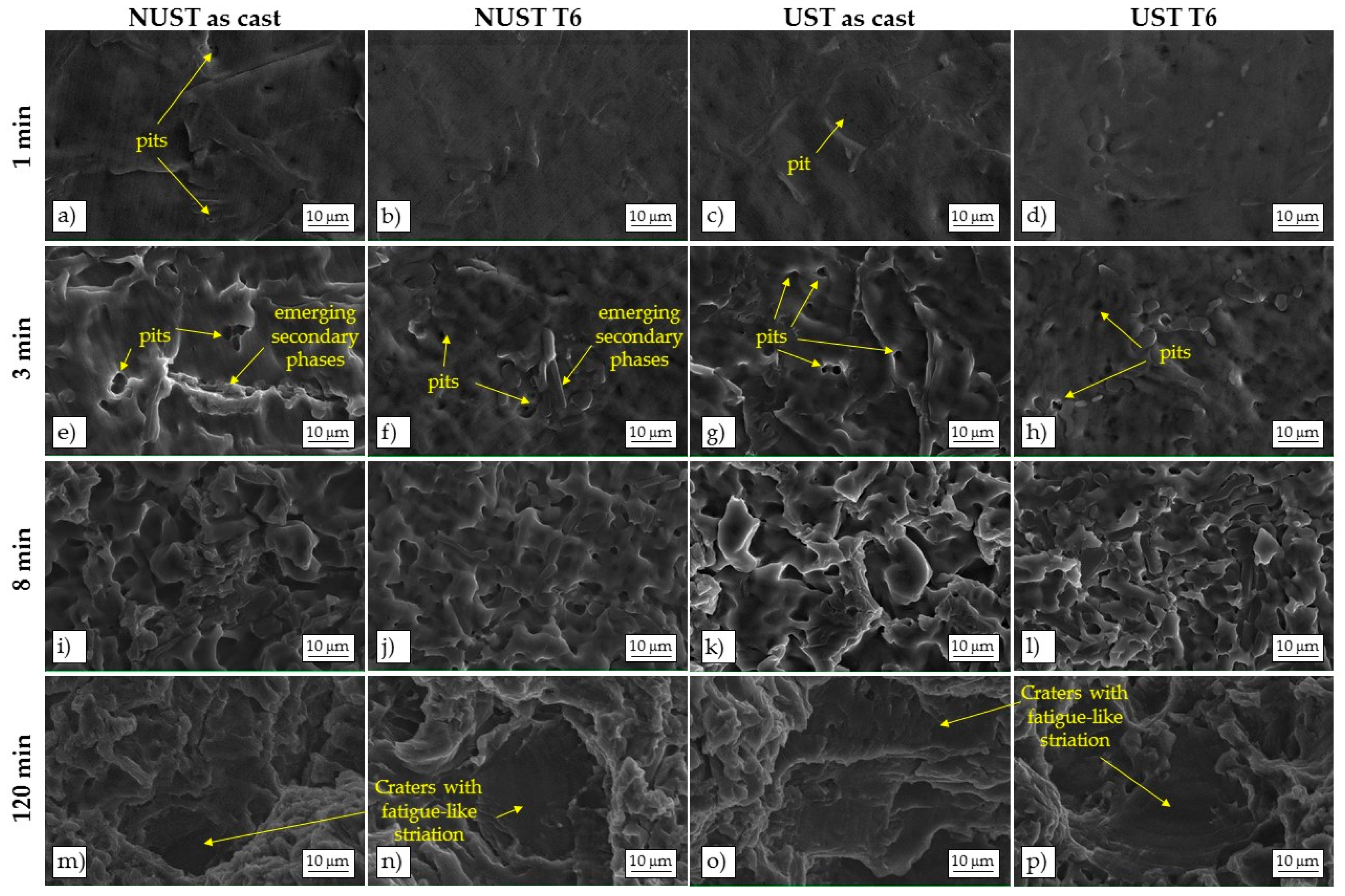

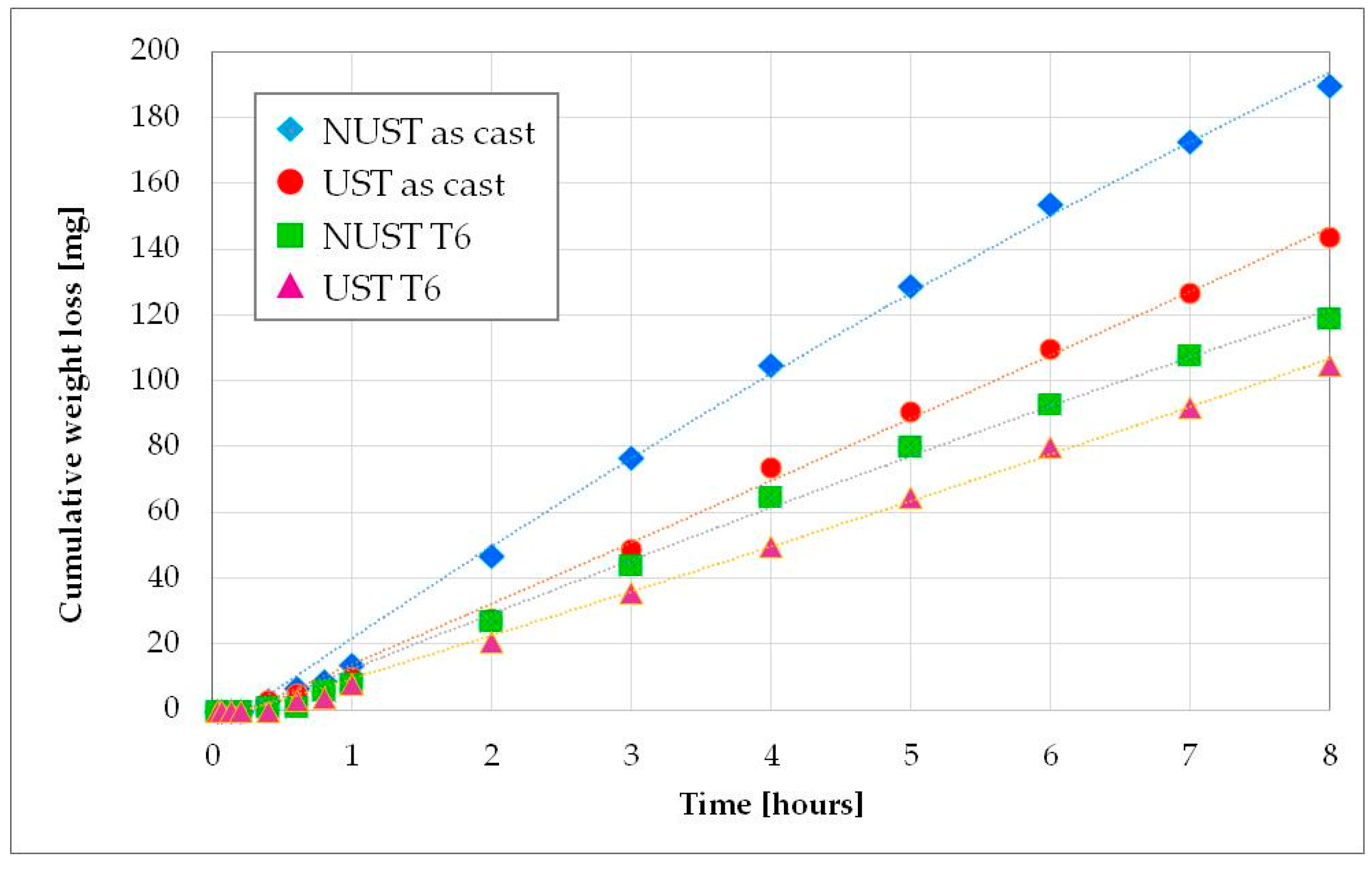

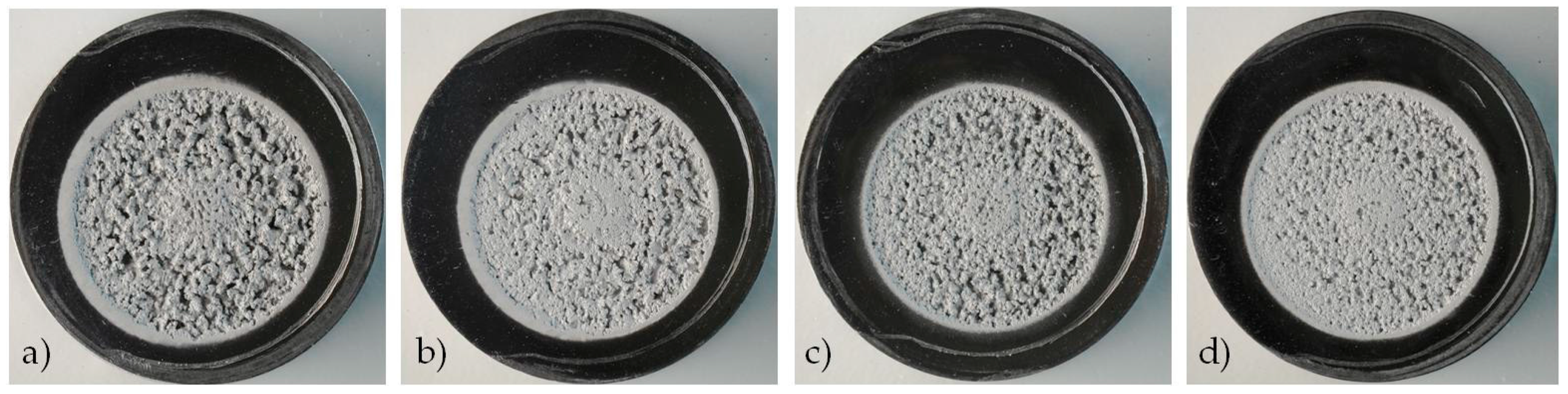

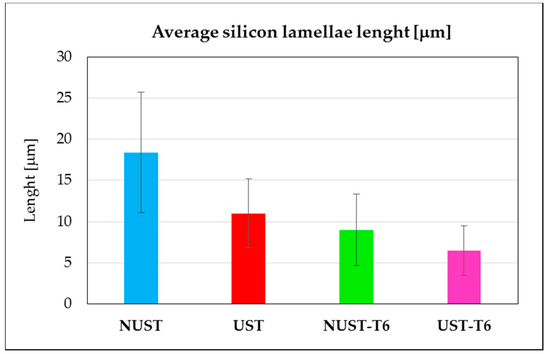

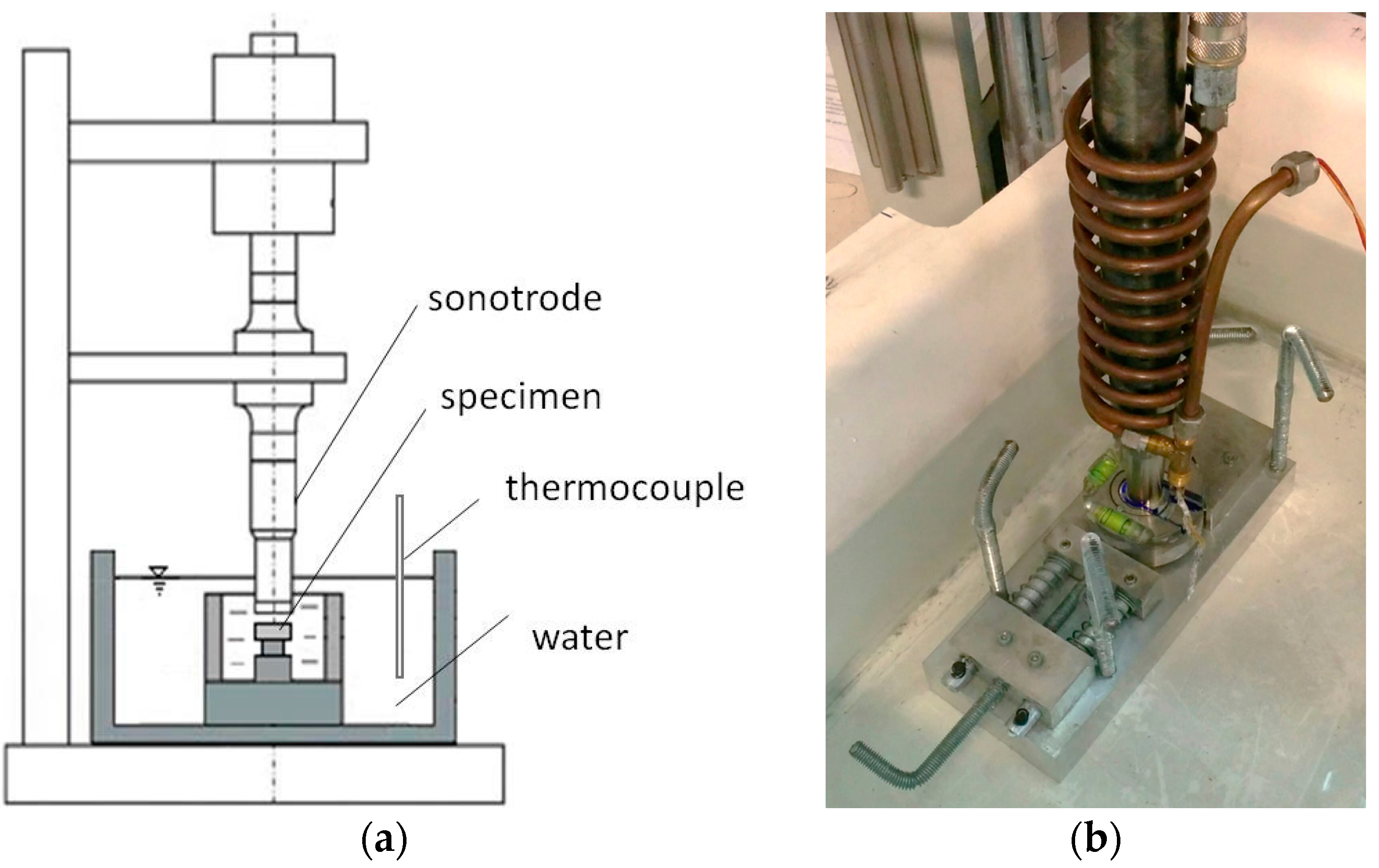

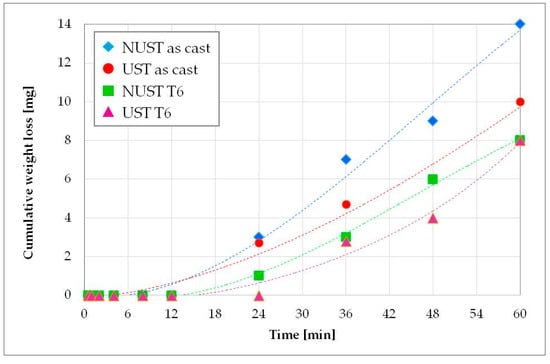

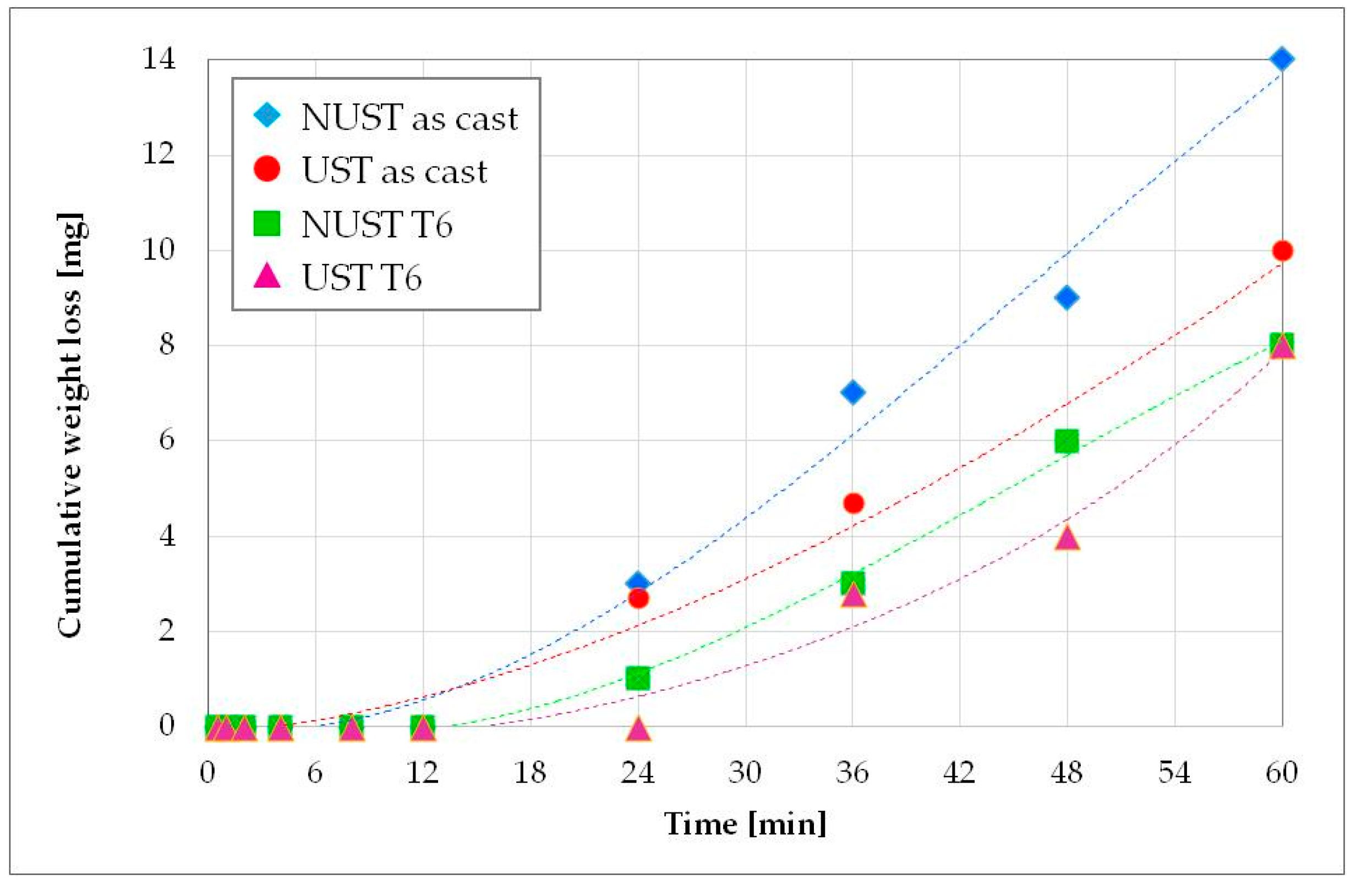

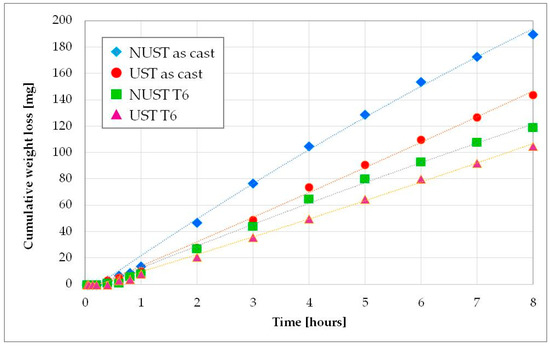

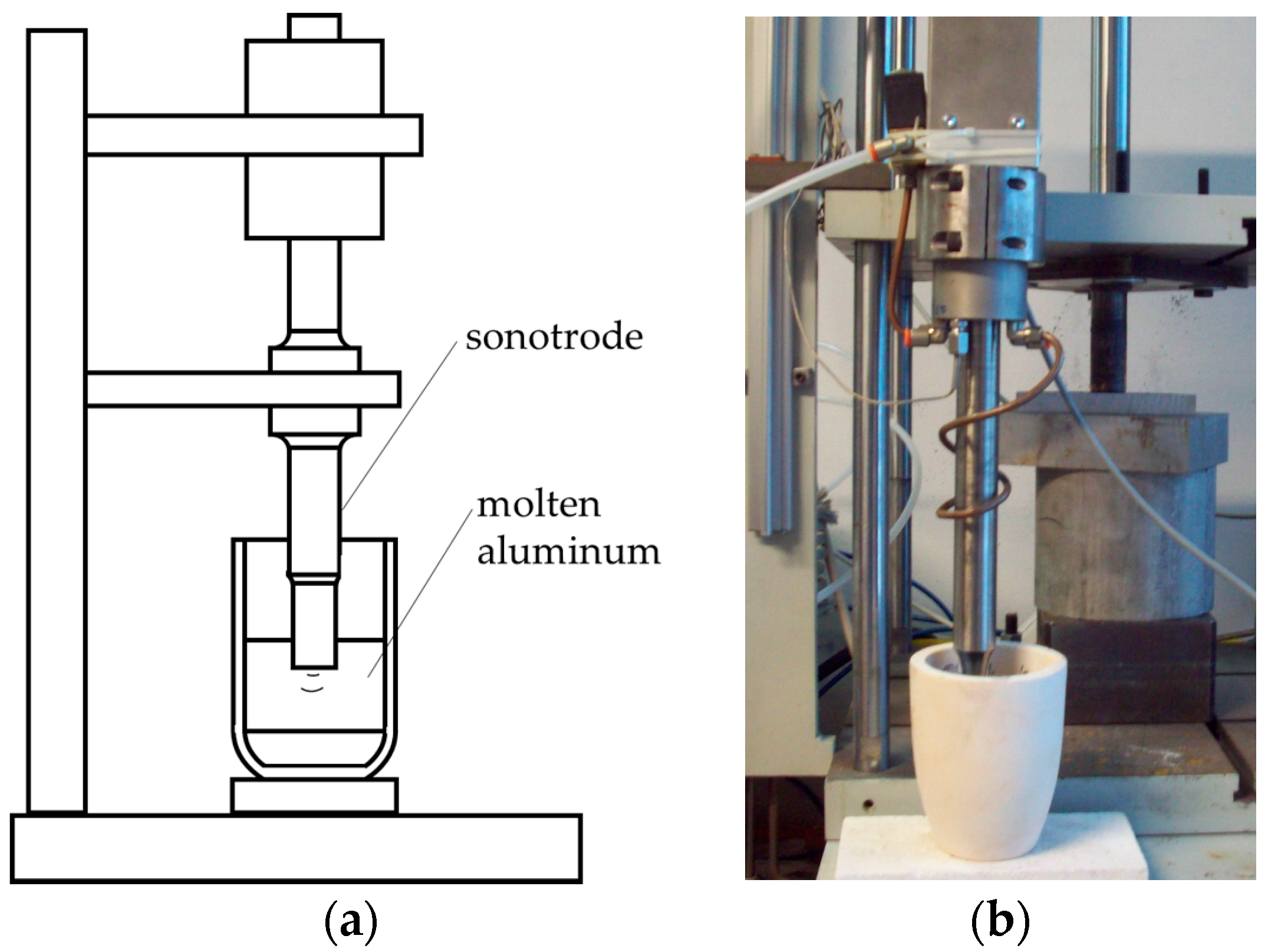

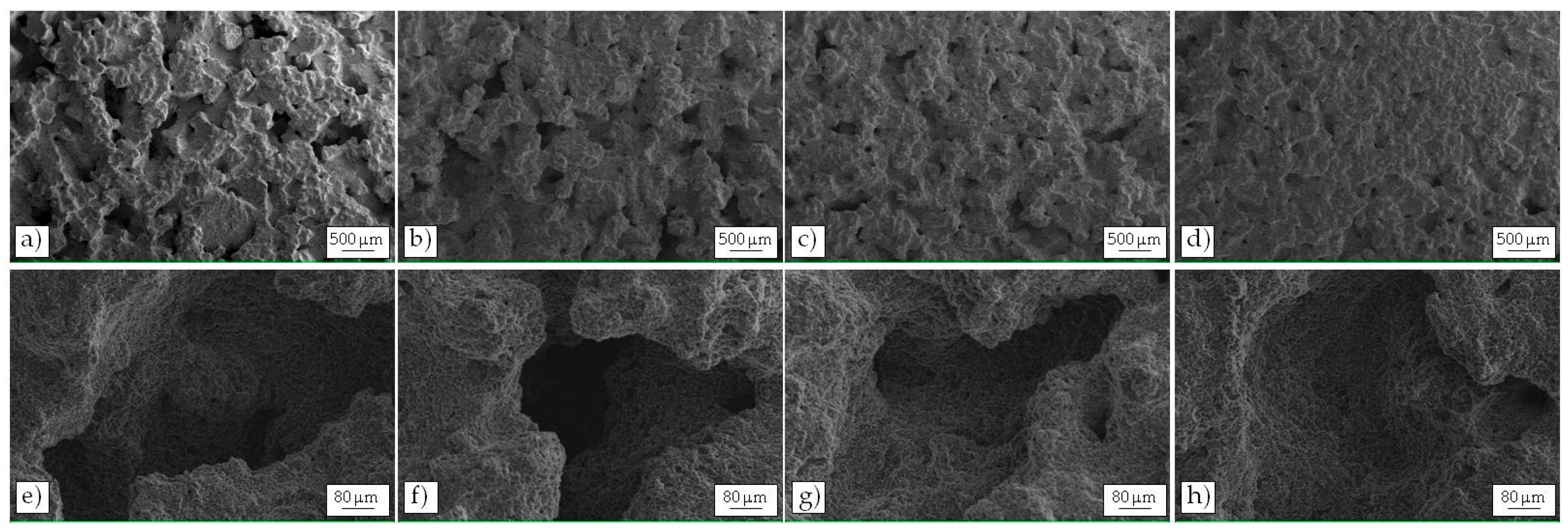

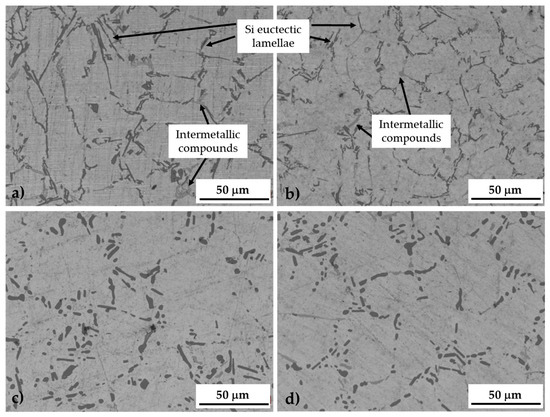

Ultrasound treatment of liquid aluminum alloys is known to improve mechanical properties of castings. Aluminum foundry alloys are frequently used for production of parts that undergo severe cavitation erosion phenomena during service. In this paper, the effect of the ultrasound treatment on cavitation erosion resistance of AlSi7 alloy was assessed and compared to that of conventionally cast samples. Cavitation erosion tests were performed according to ASTM G32 standard on as-cast and heat treated castings. The response of the alloy in each condition was investigated by measuring the mass loss as a function of cavitation time and by analyzing the damaged surfaces by means of optical and scanning electron microscope. It was pointed out that the ultrasound treatment increases the cavitation erosion resistance of the alloy, as a consequence of the higher chemical and microstructural homogeneity, the finer grains and primary particles and the refined structure of the eutectic induced by the treatment itself. View Full-Text
Keywords: cavitation erosion; ultrasound treatment; AlSi7; SEM cavitation erosion; ultrasound treatment; AlSi7; SEM
Show Figures

Figure 1

MDPI and ACS Style

Pola, A.; Montesano, L.; Tocci, M.; La Vecchia, G.M. Influence of Ultrasound Treatment on Cavitation Erosion Resistance of AlSi7 Alloy. Materials 2017, 10, 256.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Back to TopTop
