Optimization and Stabilization of Distributed Secondary Voltage Control with Time Delays and Packet Losses Using LMIs

,
,
and
1
Ecole Centrale Nantes-LS2N-CNRS, 44300 Nantes, France
2
RTE-R&D, 7C Place du Dôme, 92073 Paris La Defense, France
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.

Abstract

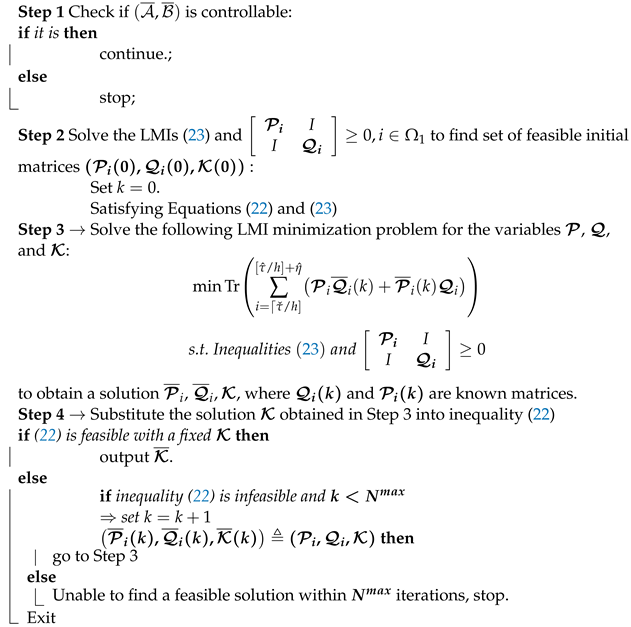

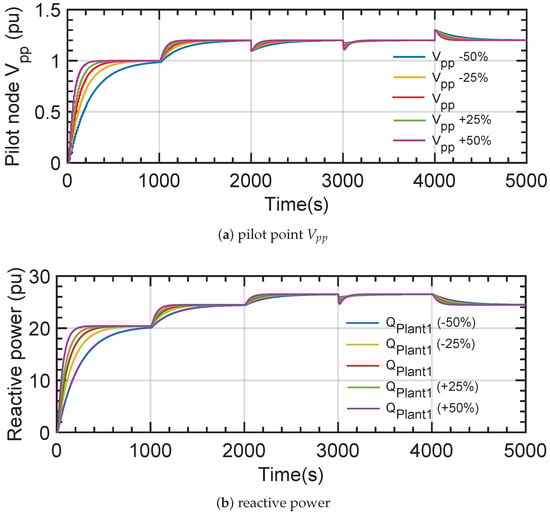

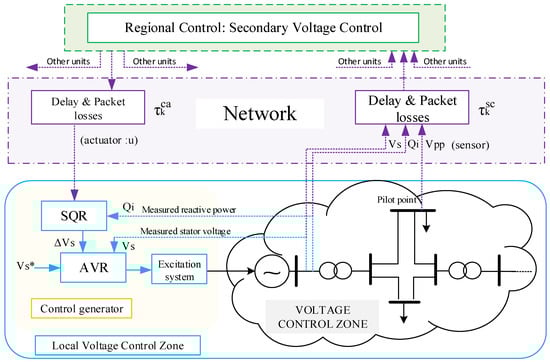

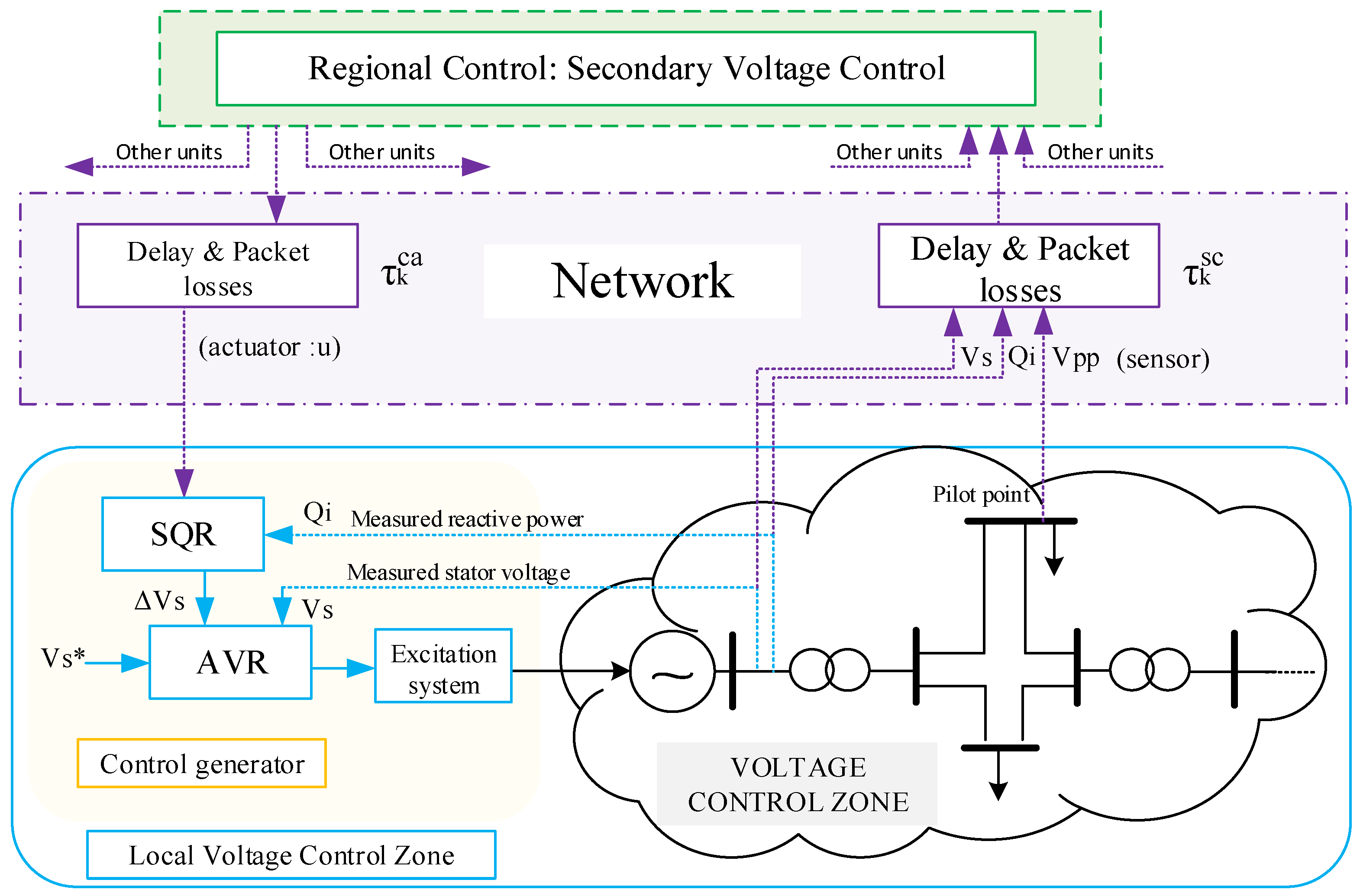

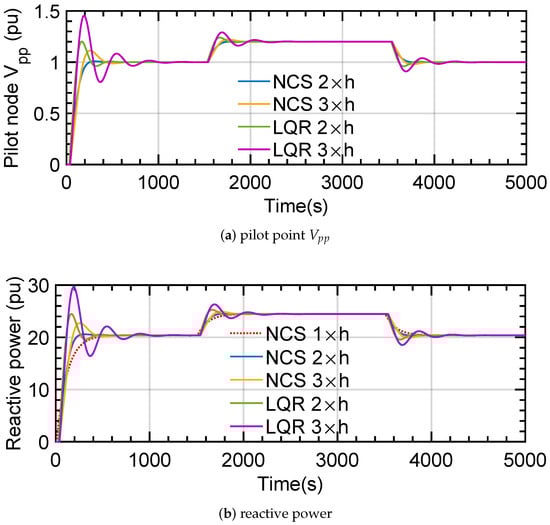

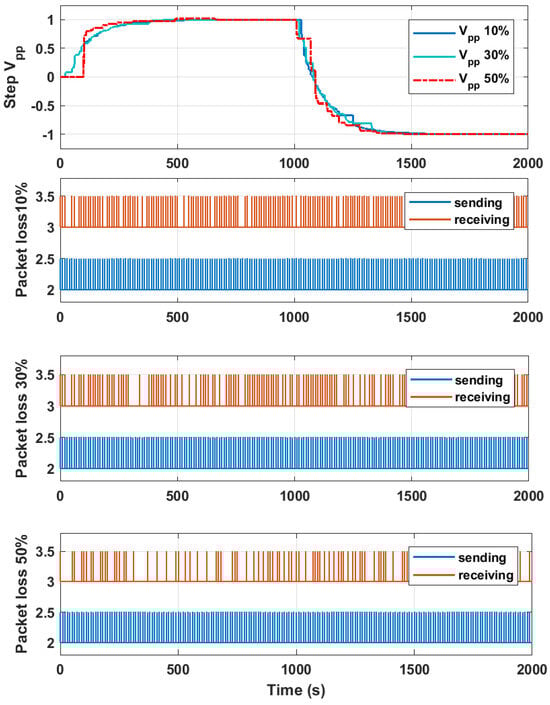

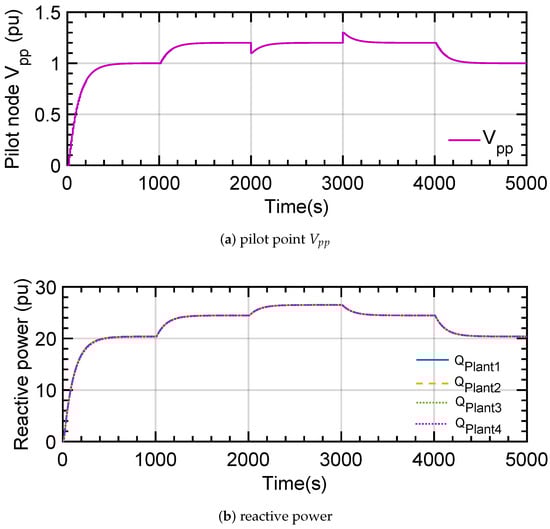

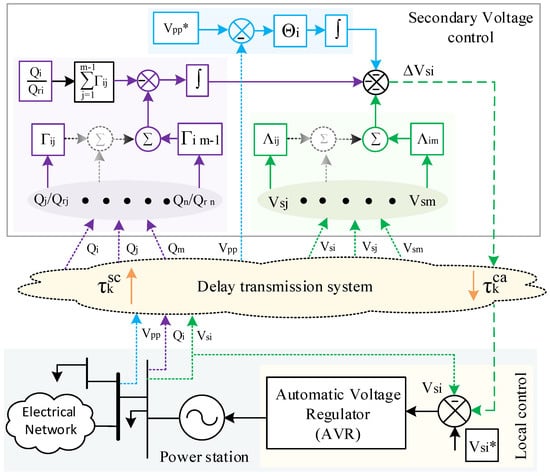

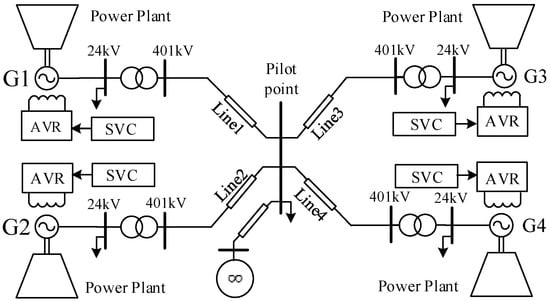

The proposed hierarchical secondary voltage control is a spatially distributed control system using communication networks which are disturbed by both a time delays and packet data dropouts. A state feedback integral control is adopted to eliminate the effect of non-zero disturbance and provide exact tracking of the references of the pilot points and alignment of the reactive powers of the generators that participate in the control. The system is modeled as a discrete-time switched system, and the control gains are synthesized by solving LMIs for a stability condition based on a state-dependent Lyapunov function. For that, the cone complementarity linearization (CCL) algorithm is used. The effectiveness of the proposed control strategy in preventing time delays and packet losses is simulated, considering the model of a realistic electric power grid under typical operational conditions using MATLAB.
