Abstract

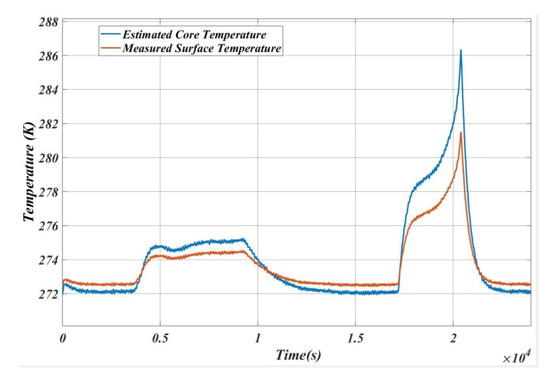

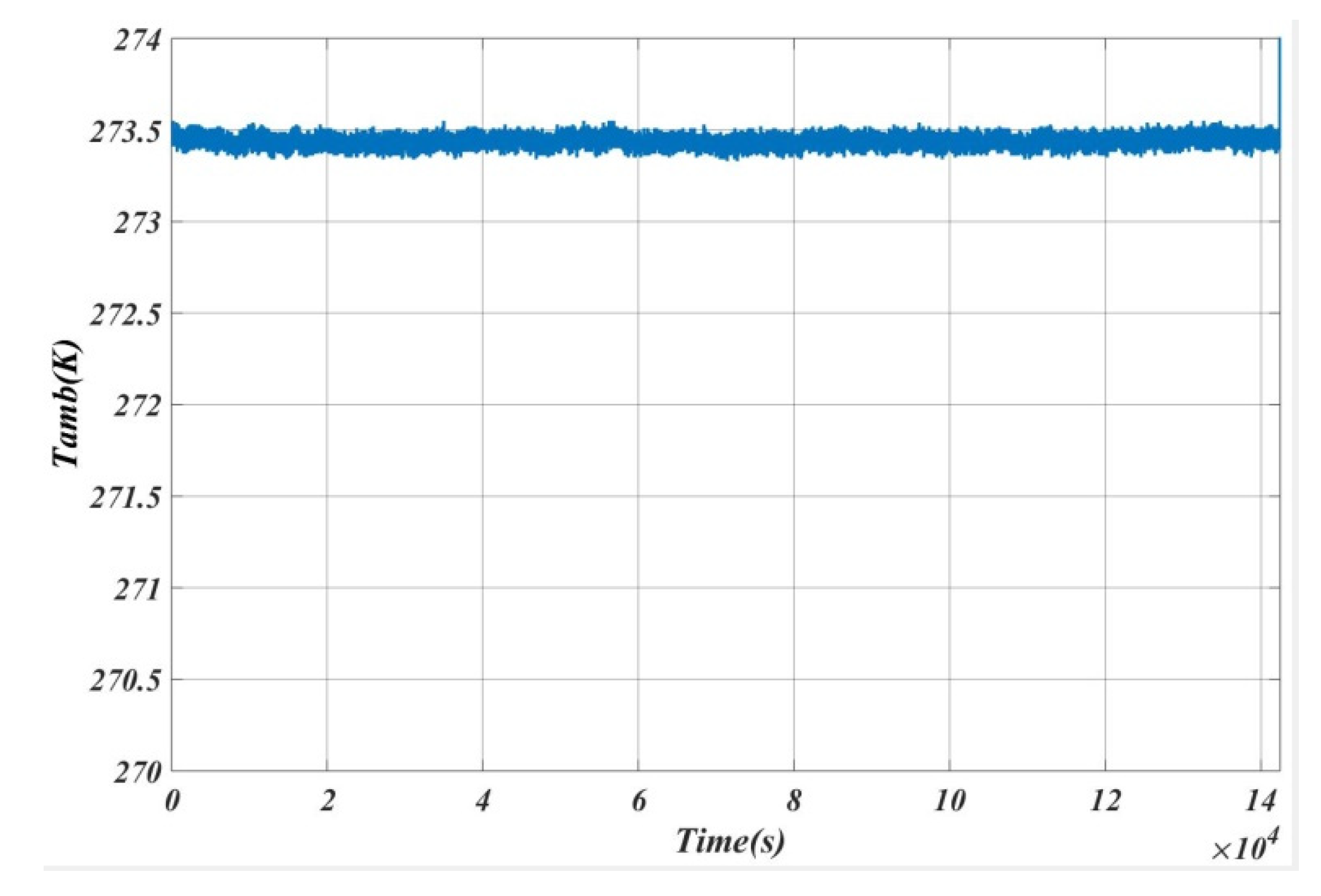

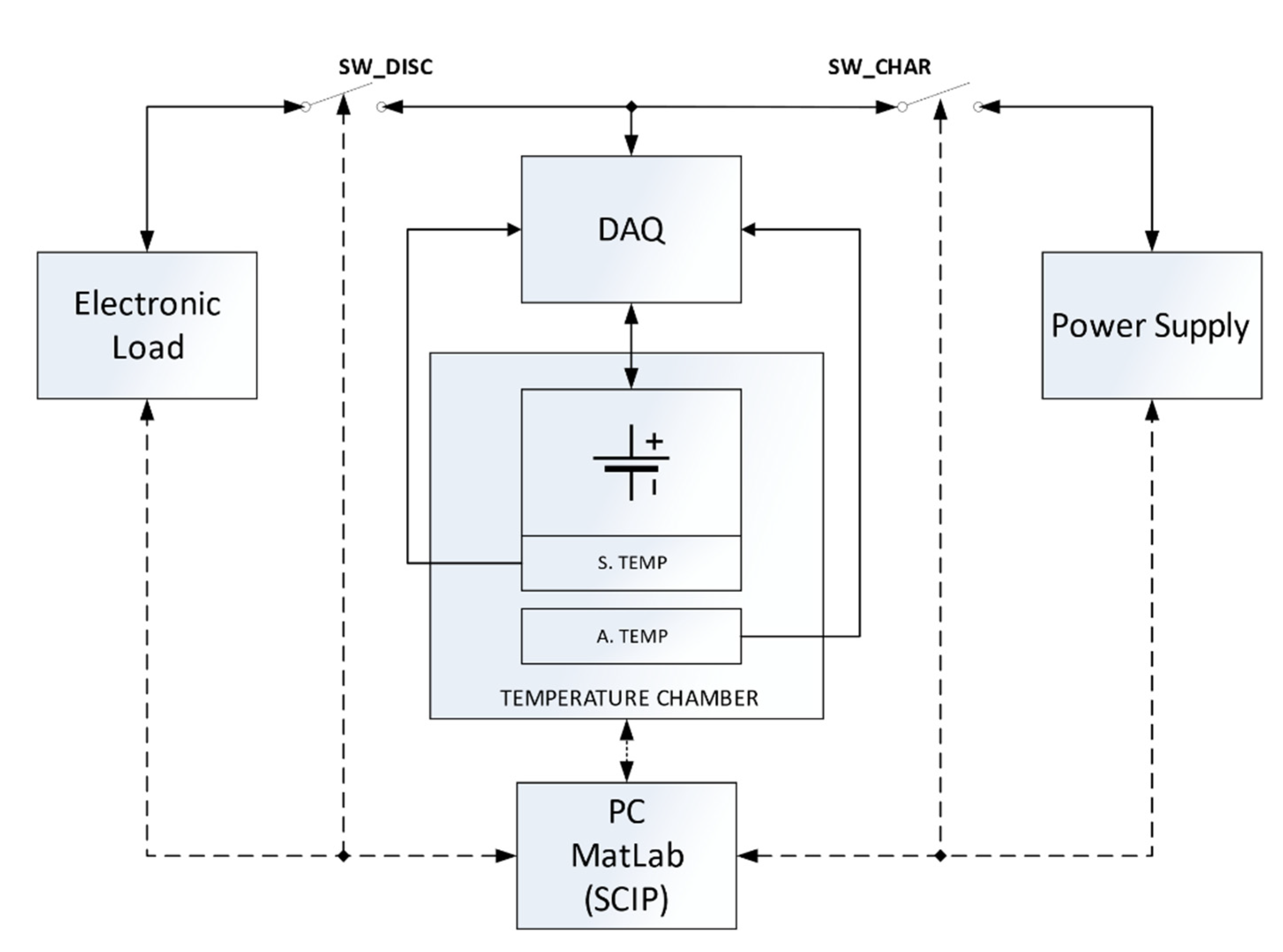

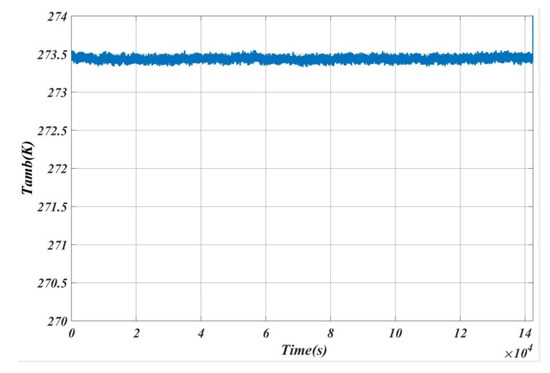

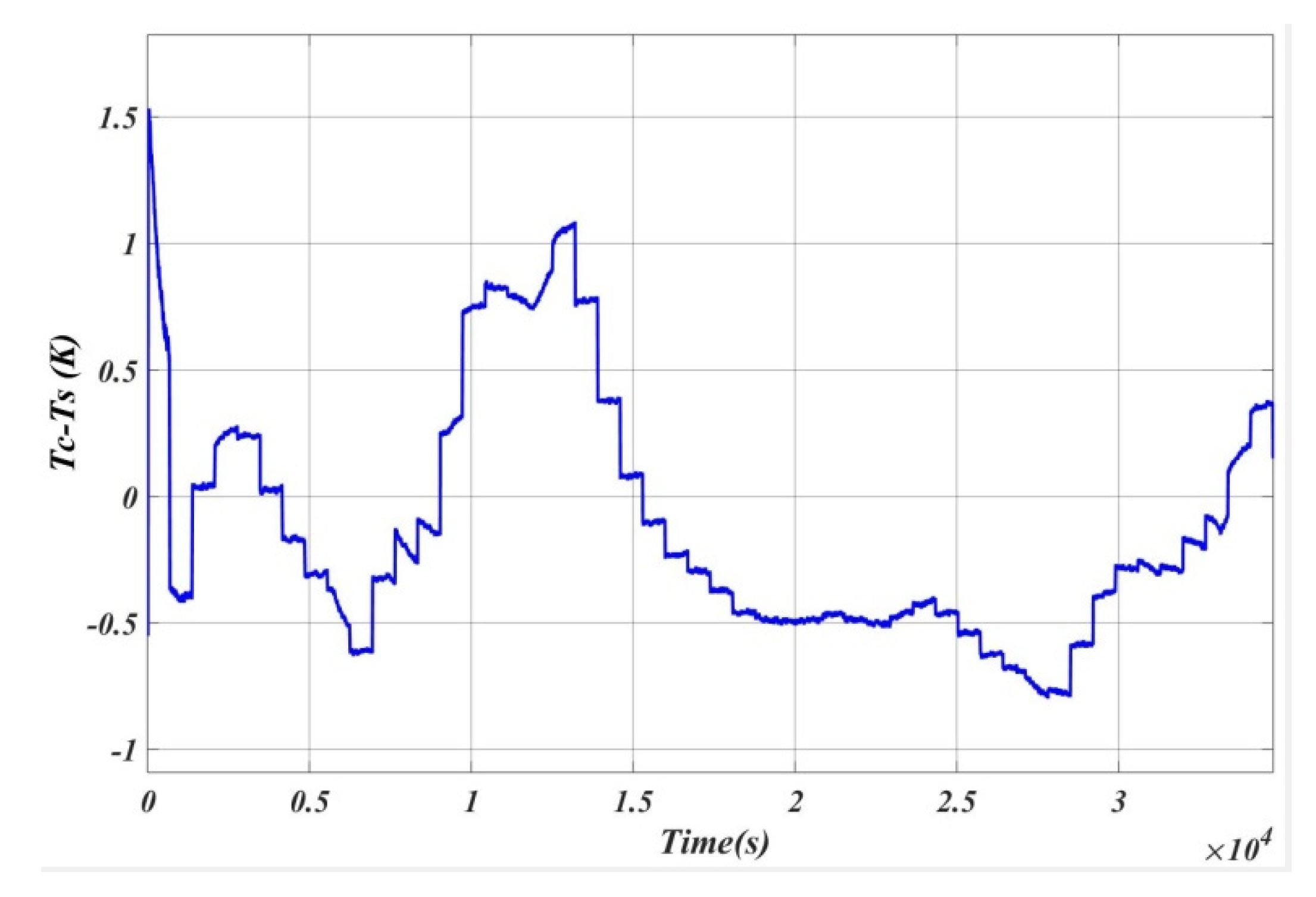

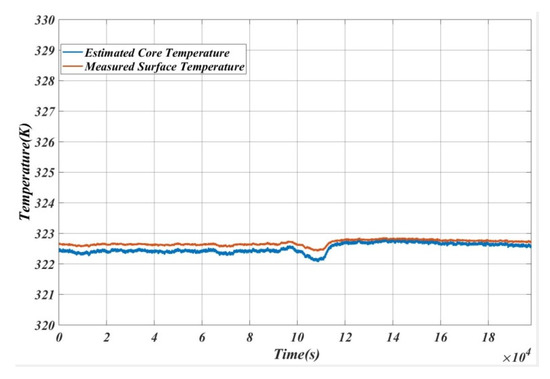

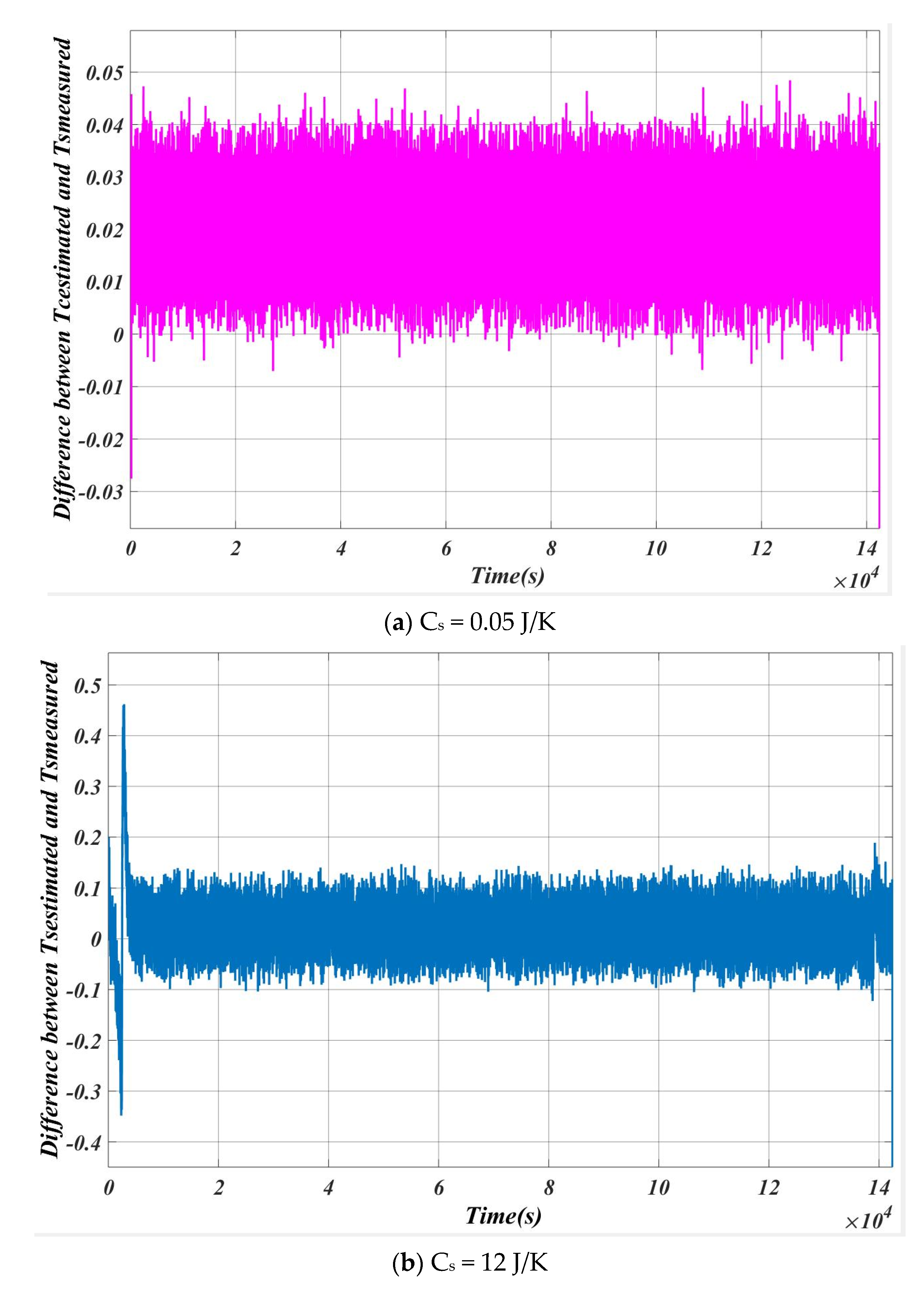

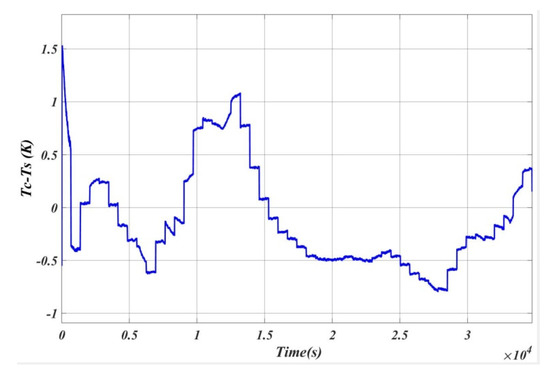

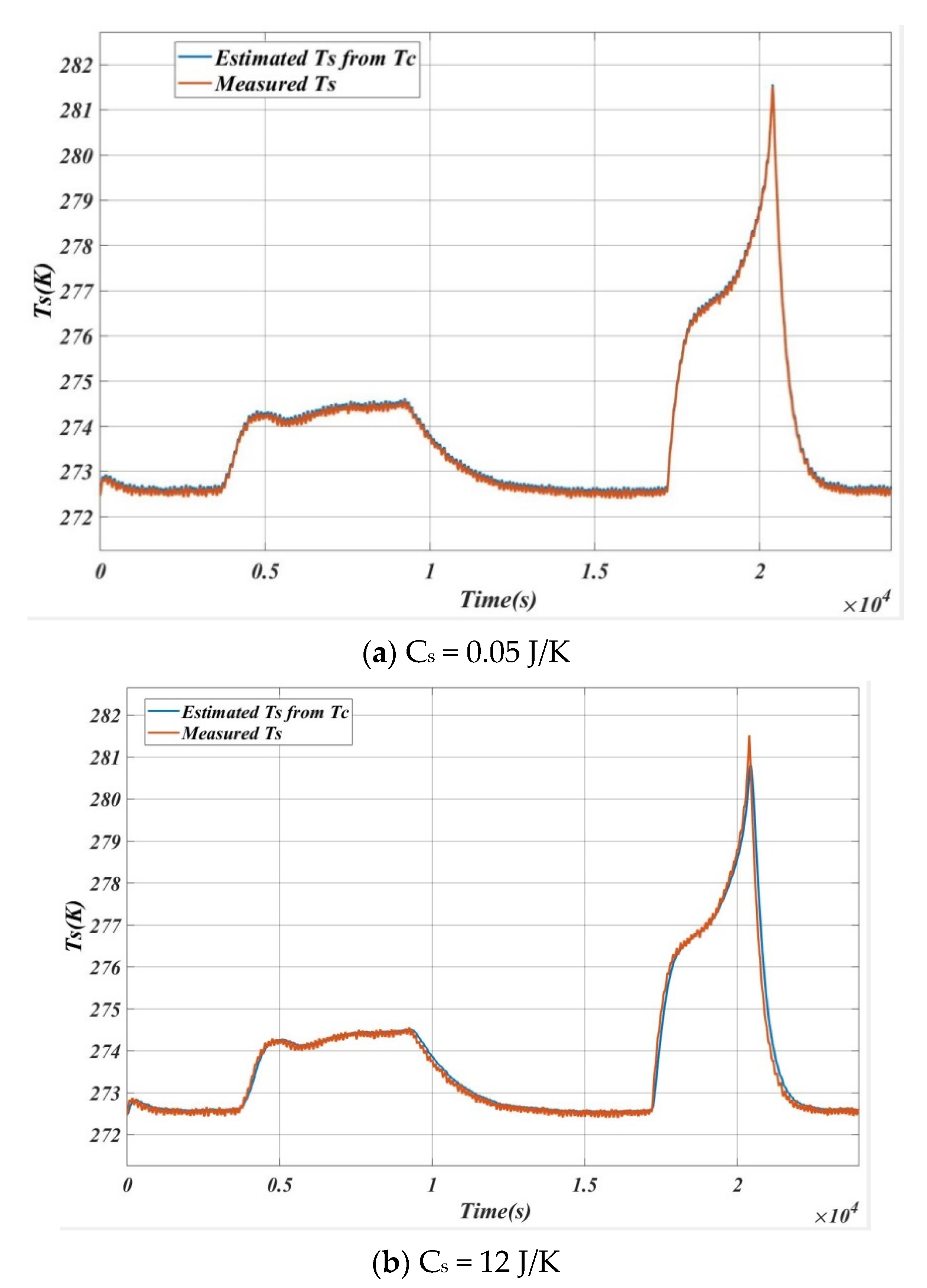

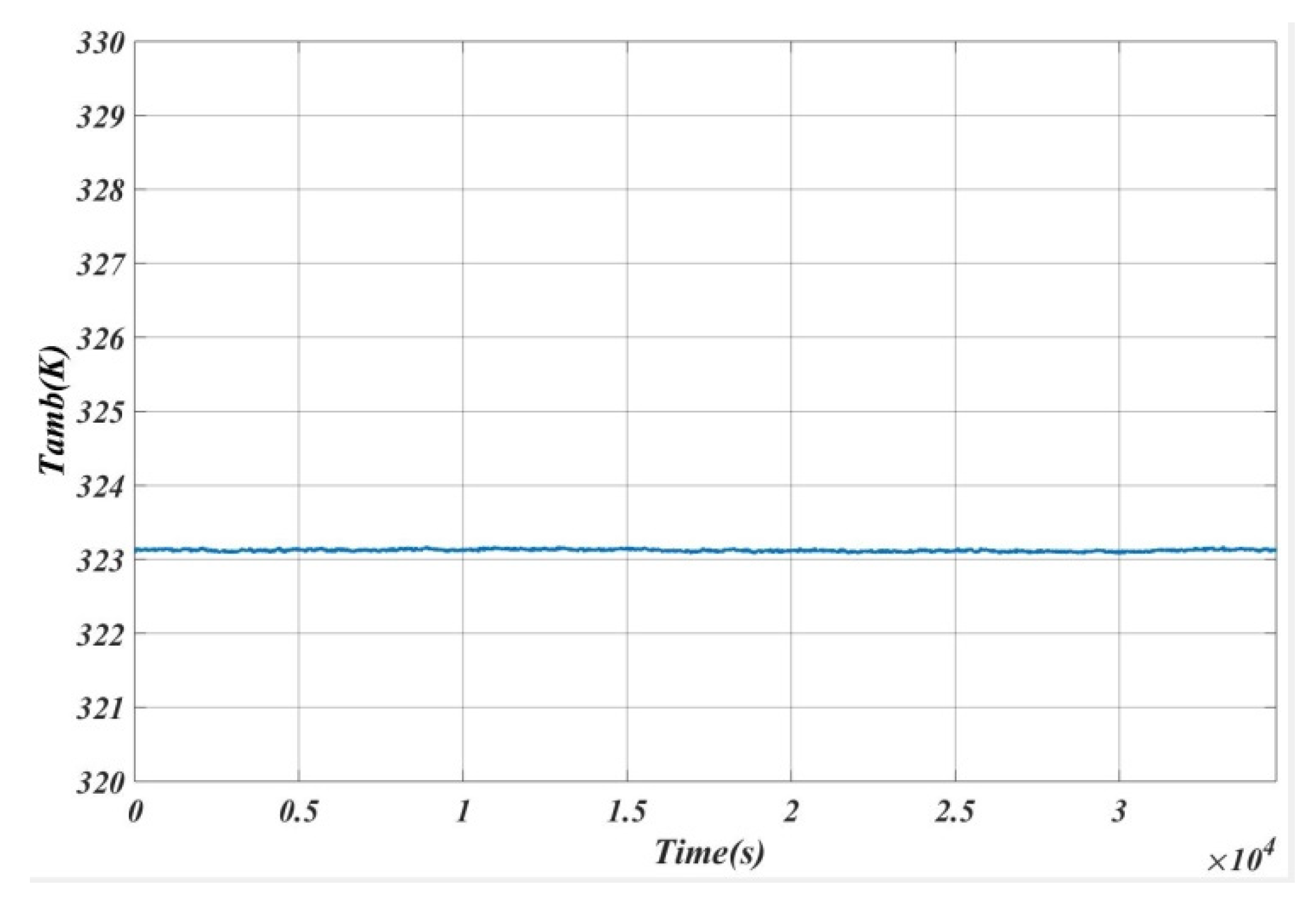

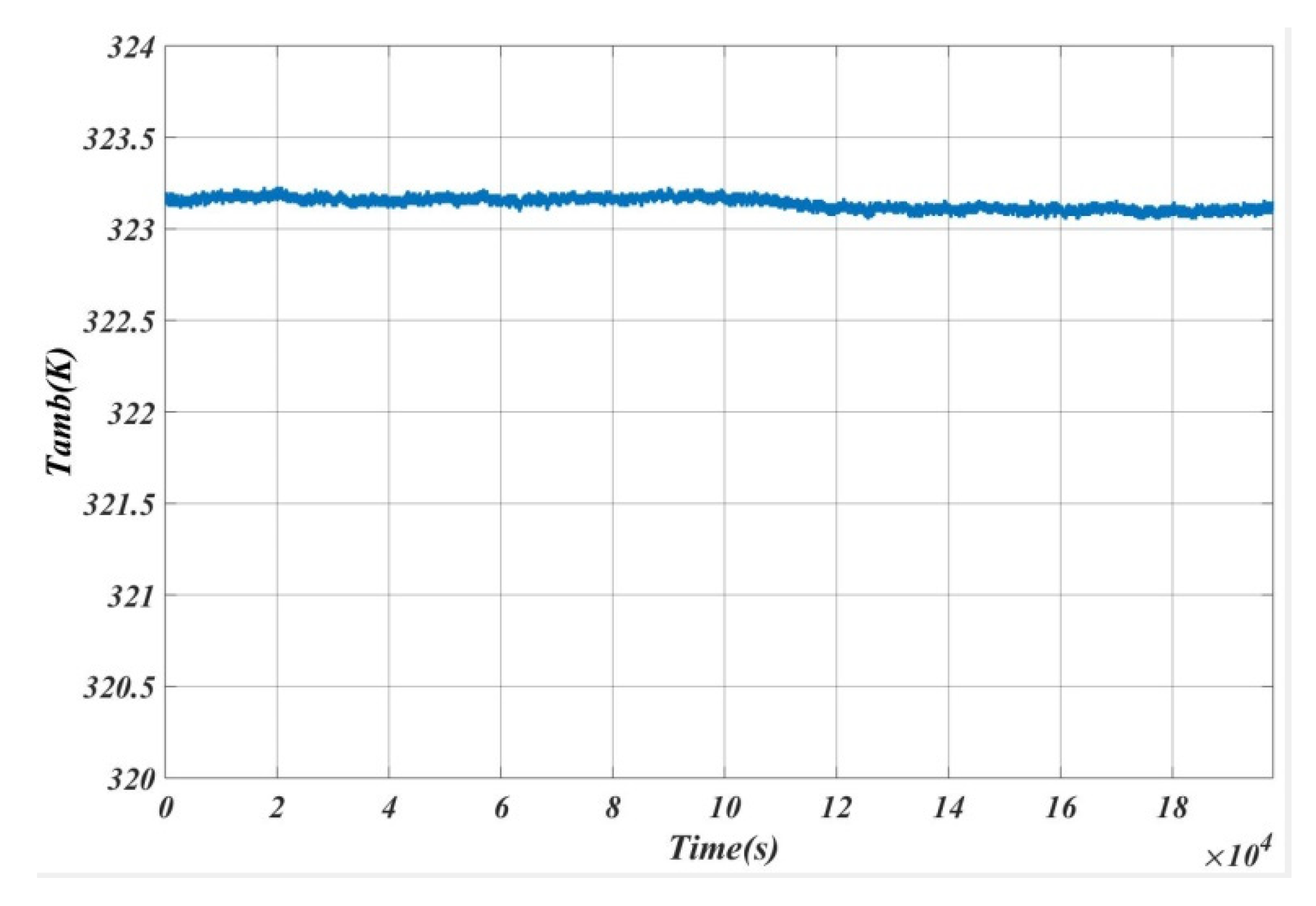

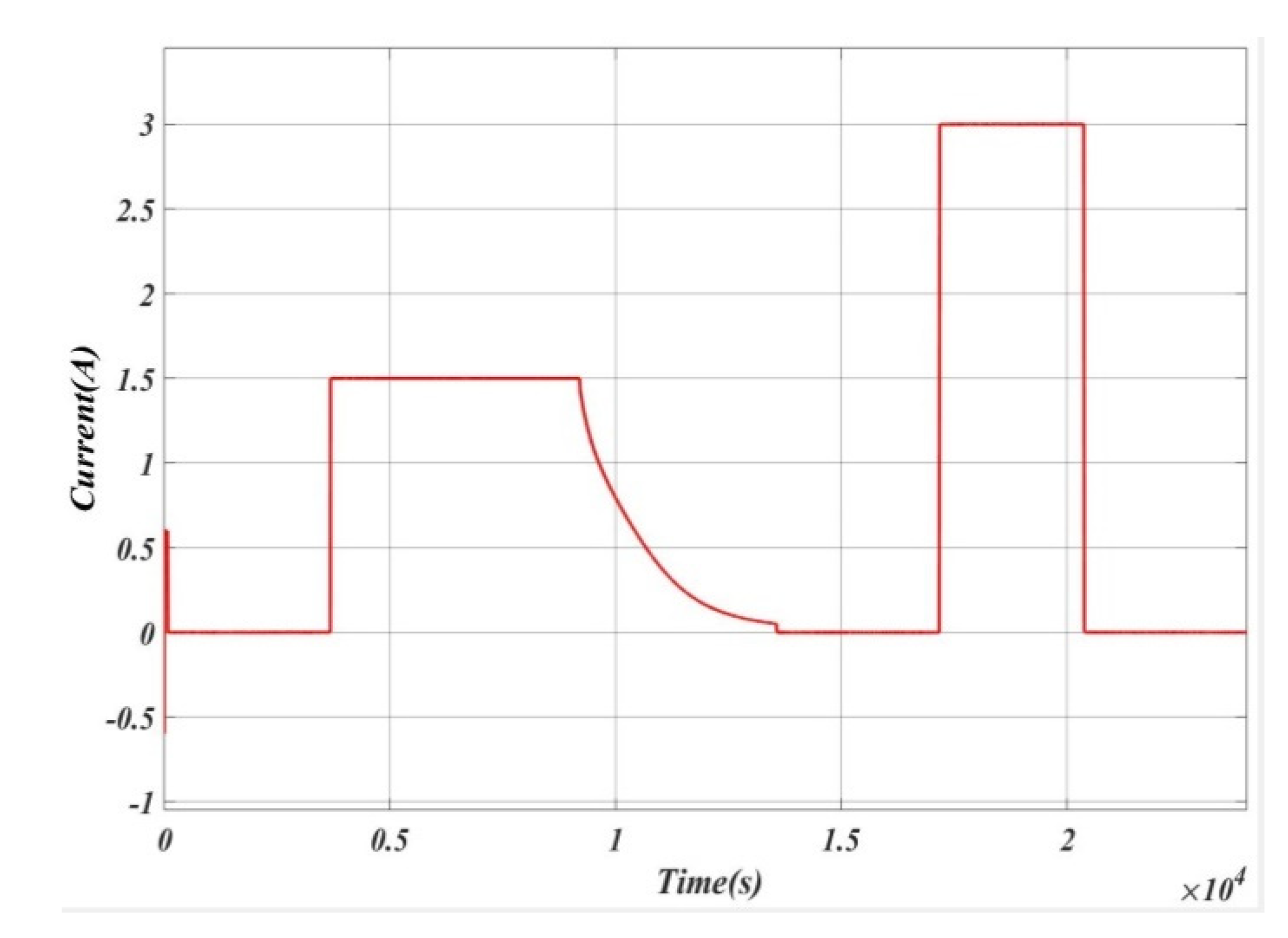

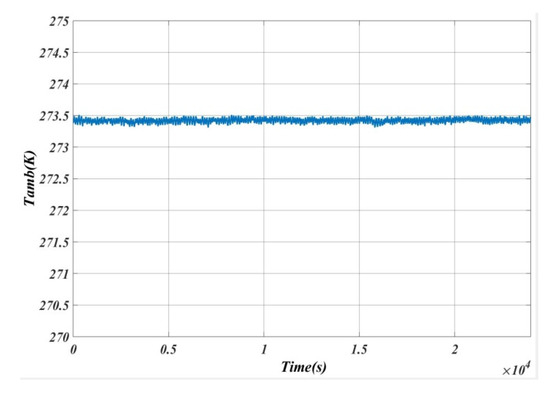

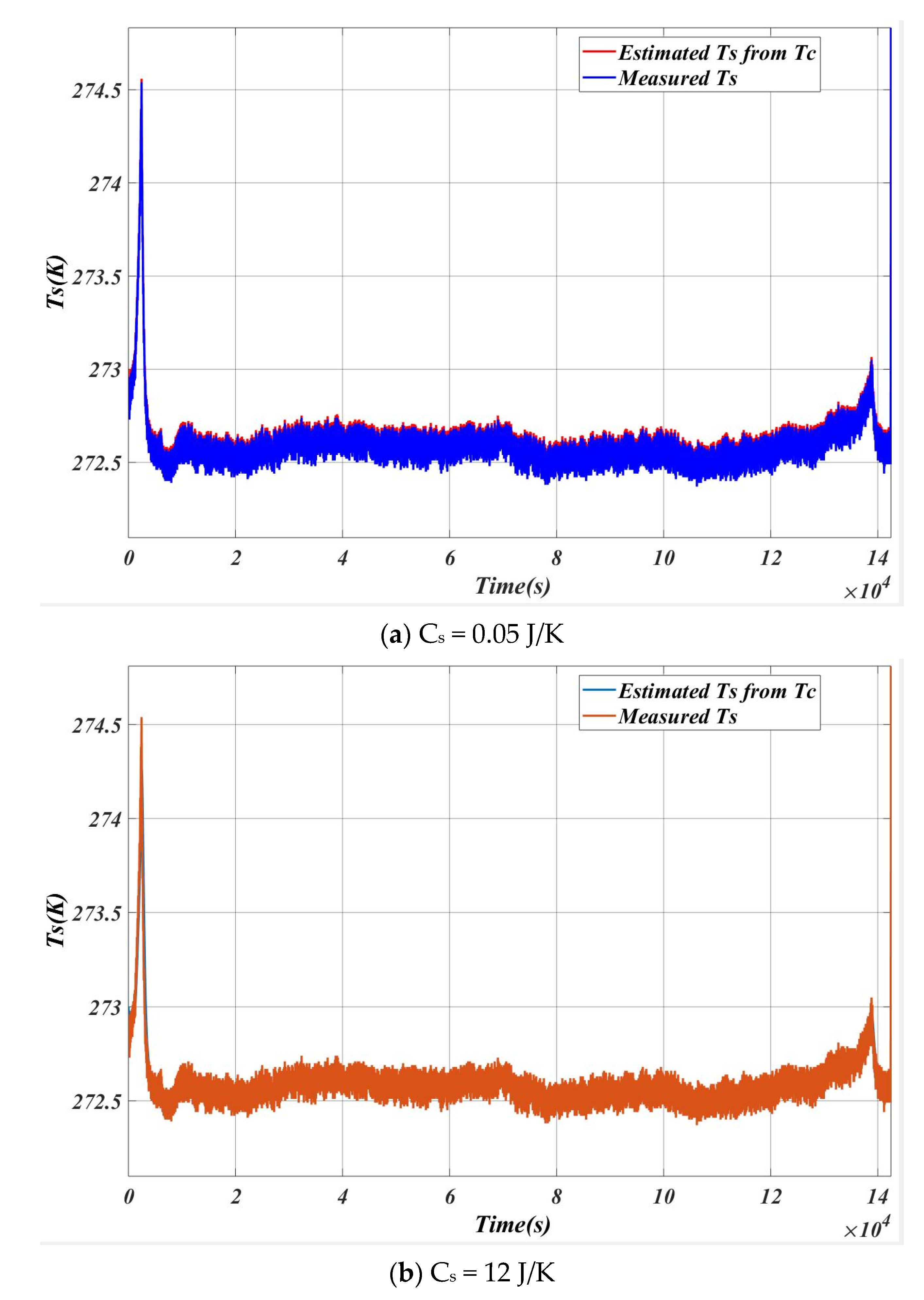

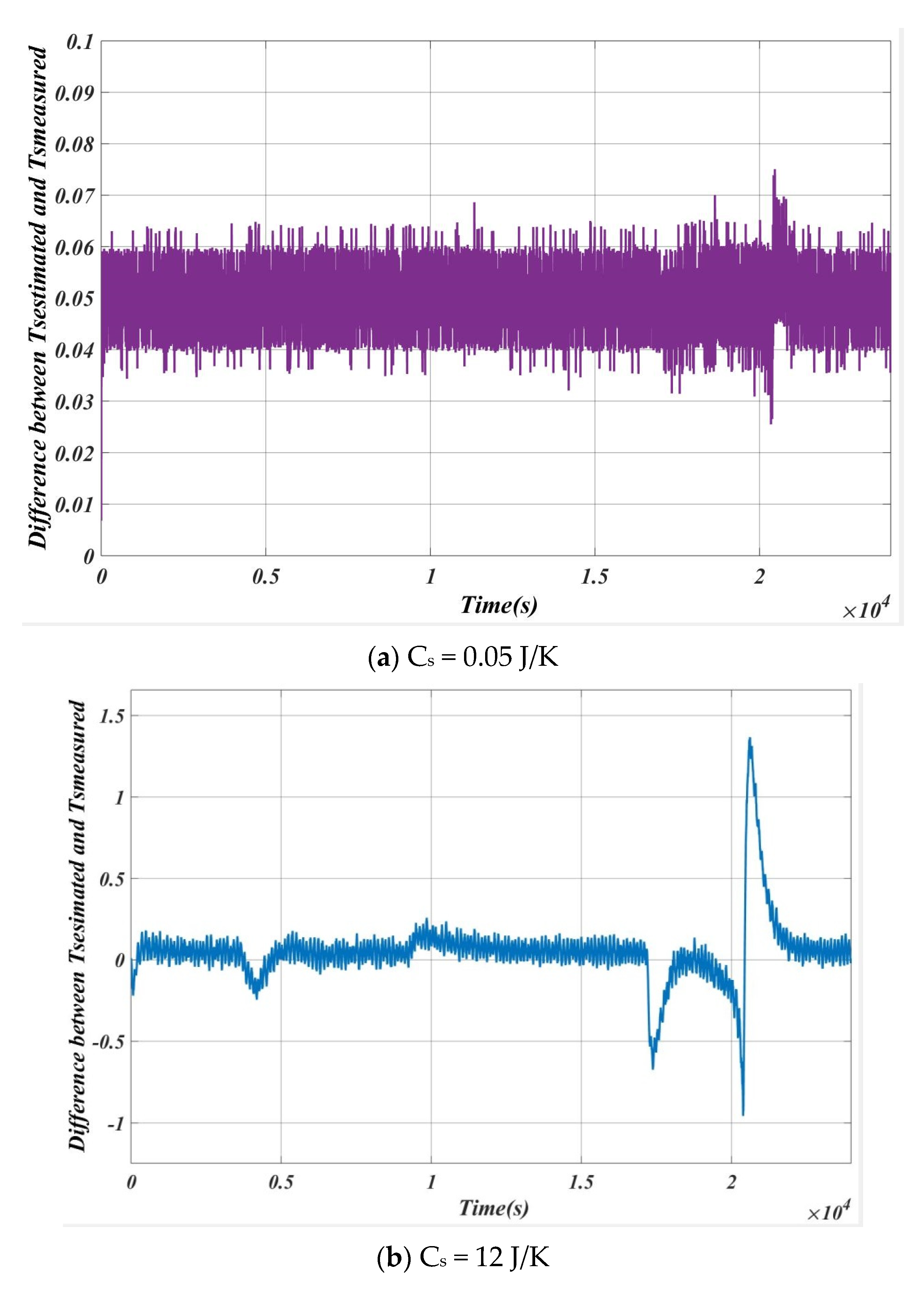

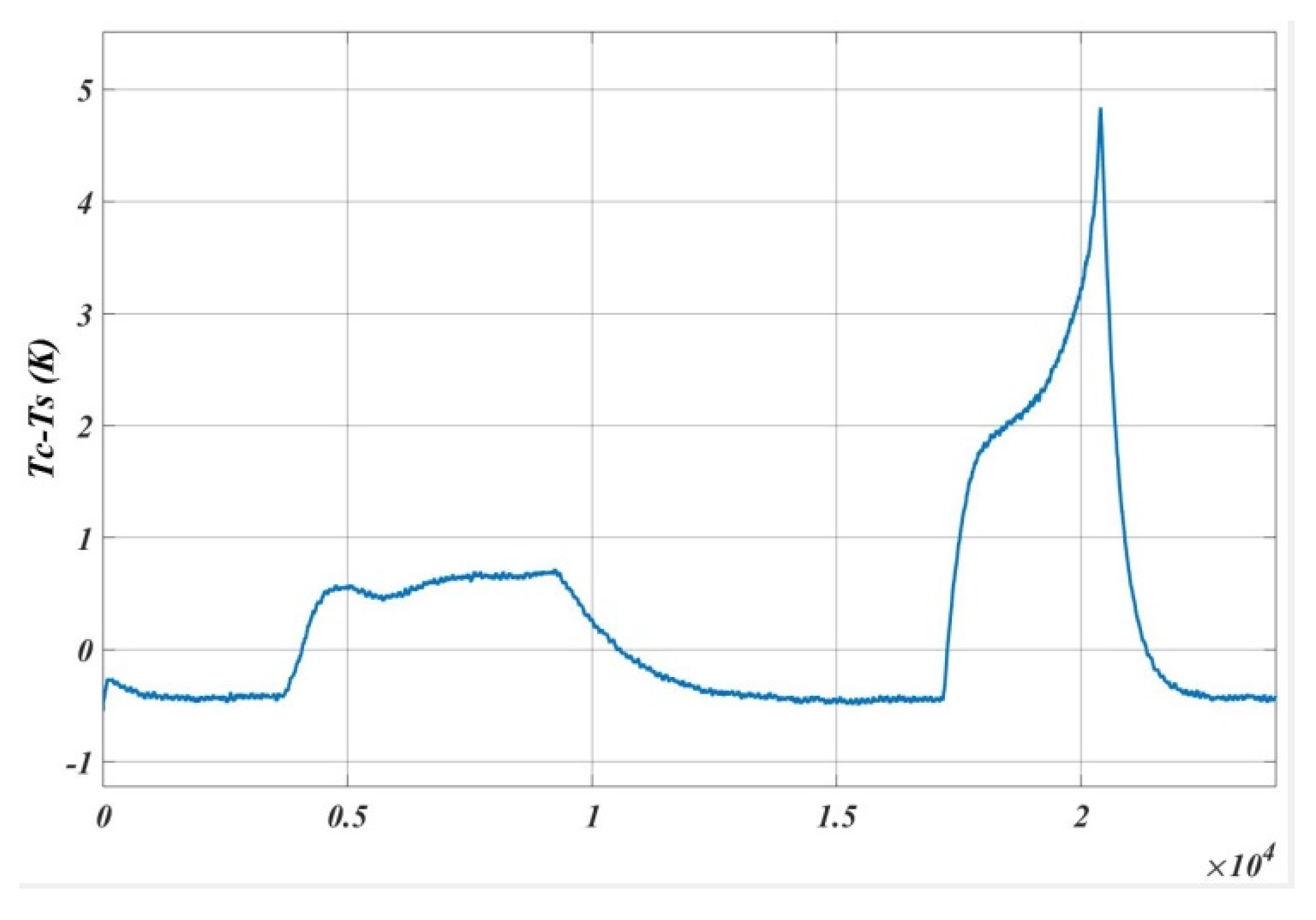

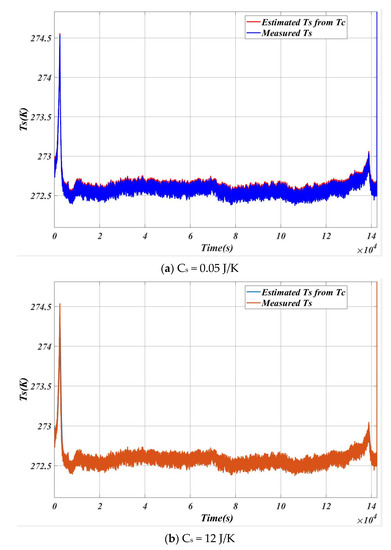

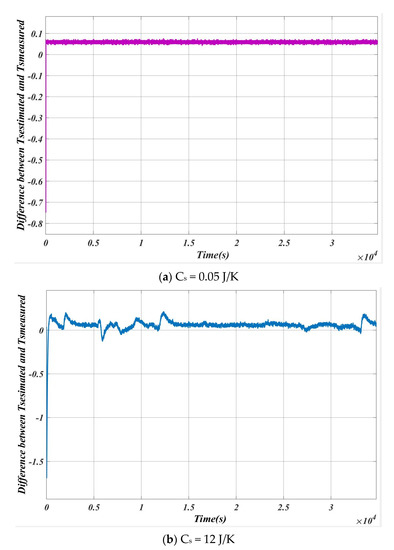

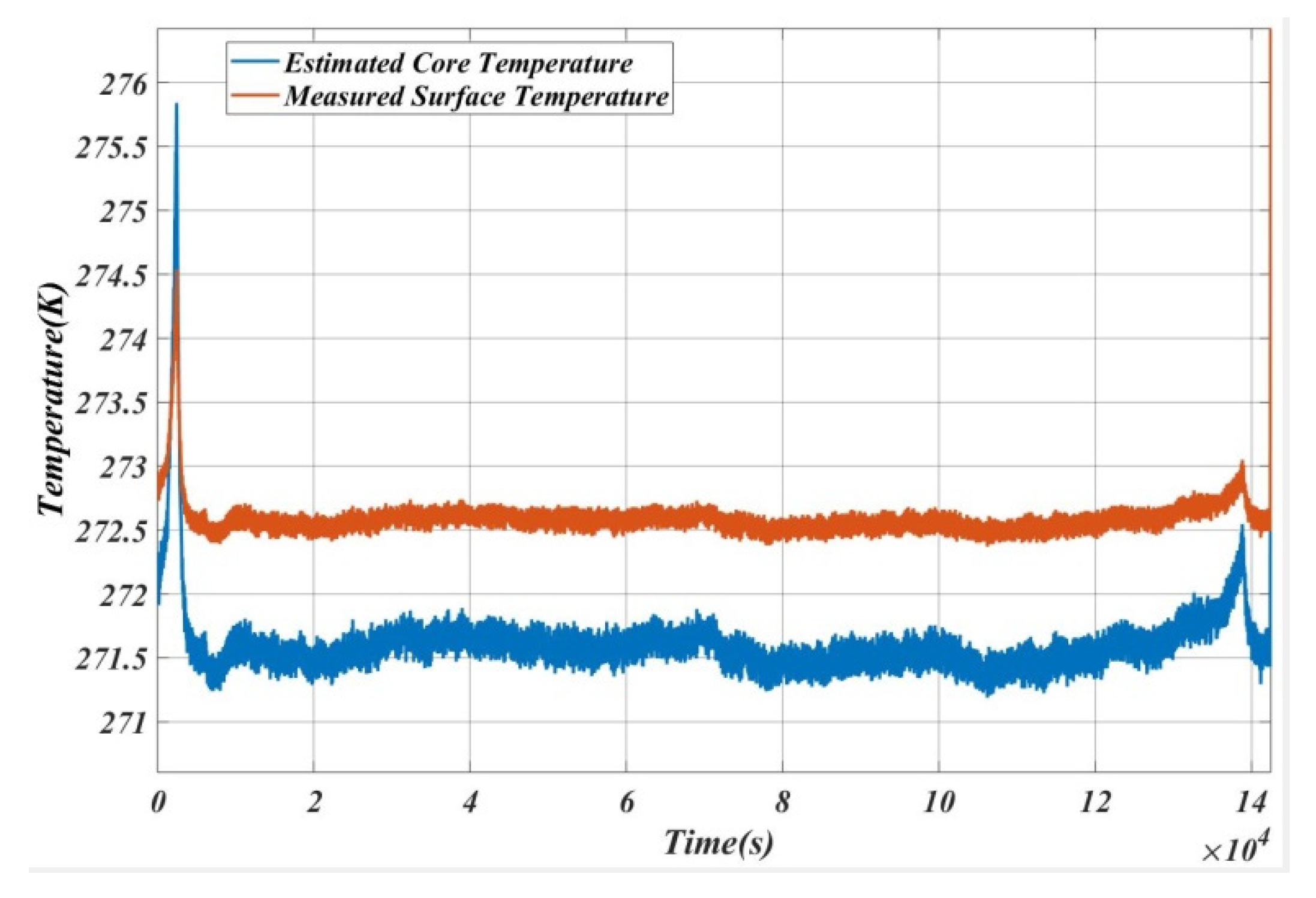

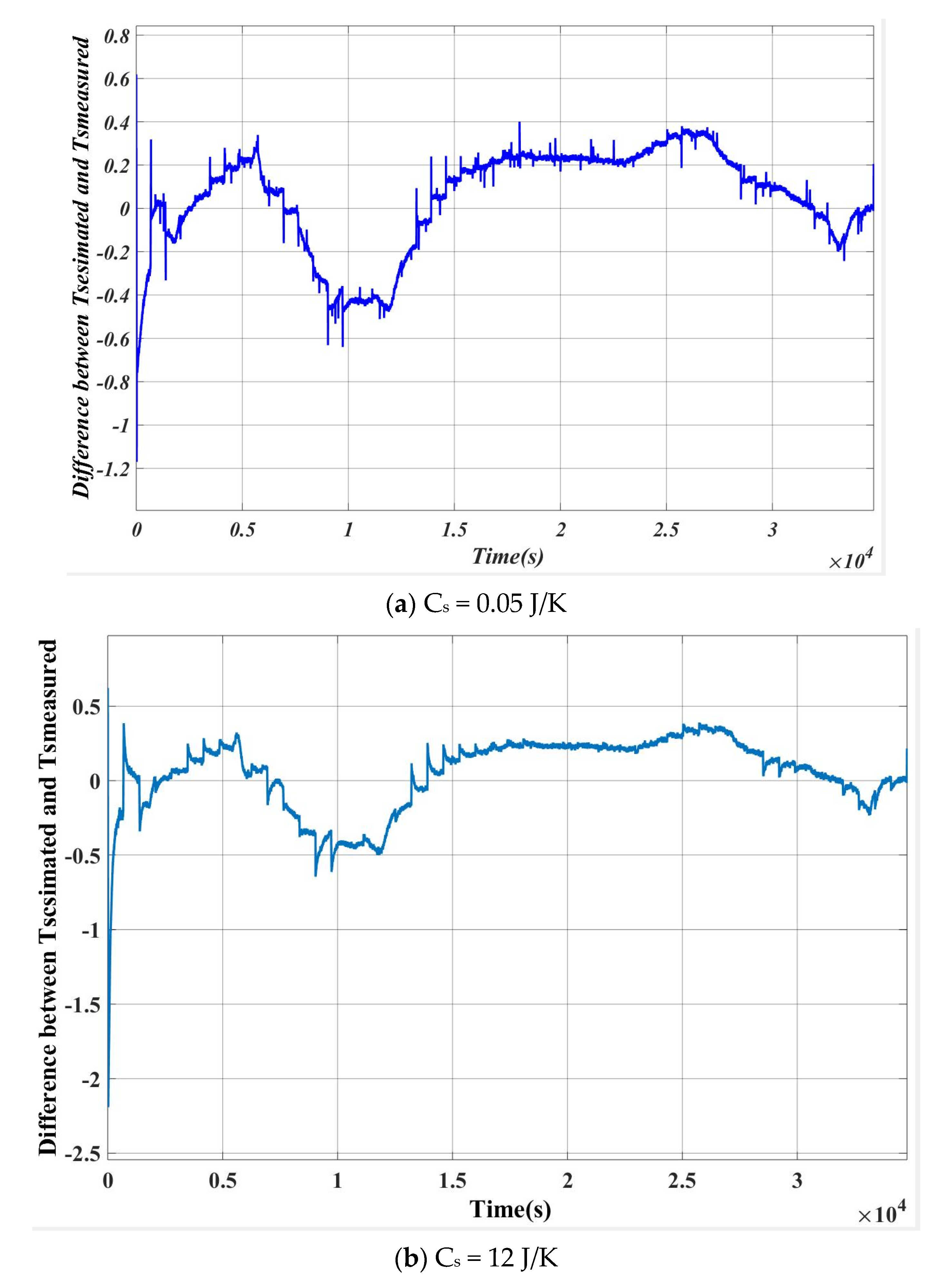

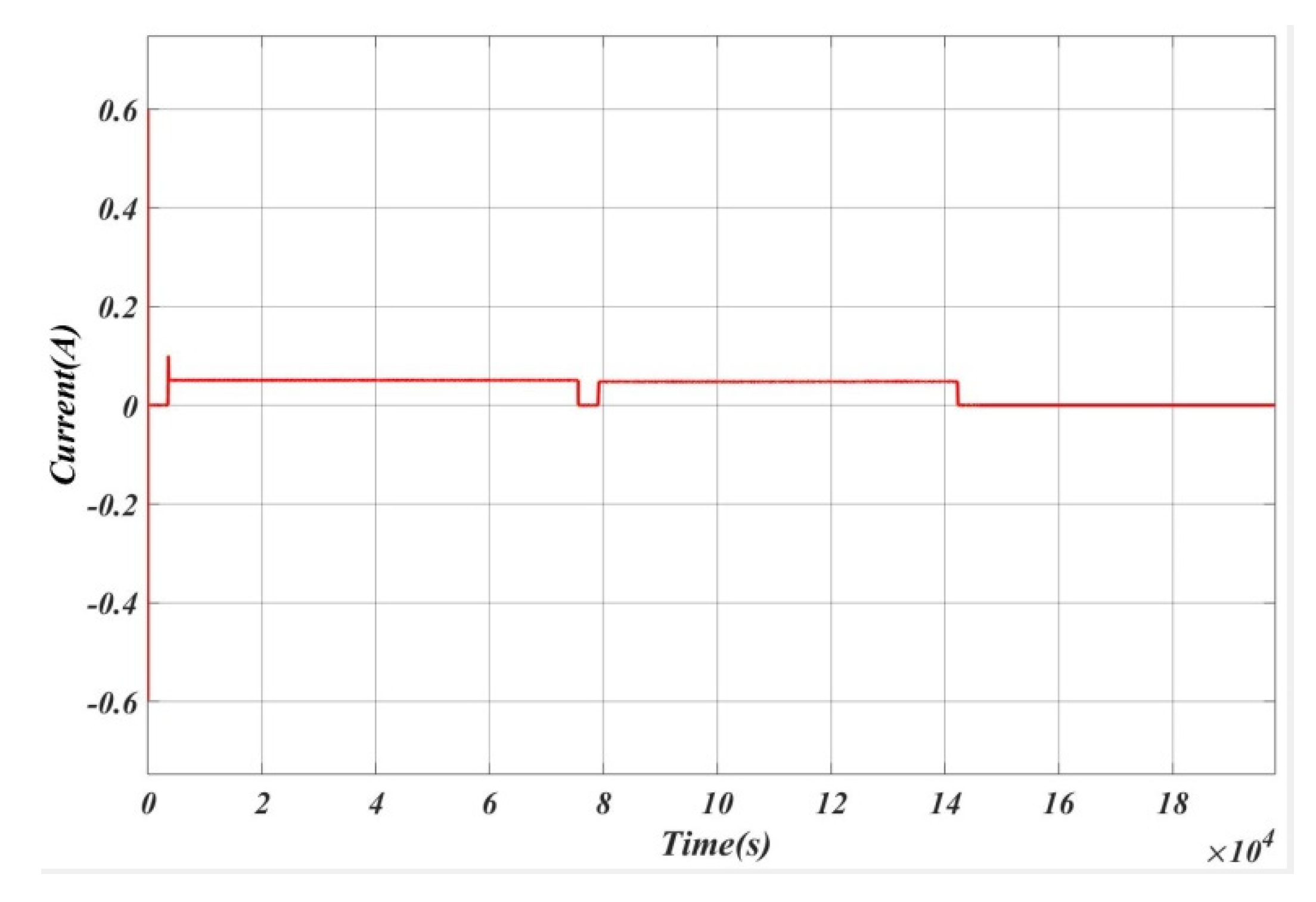

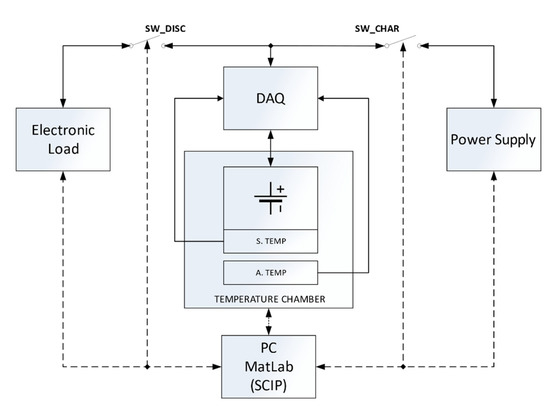

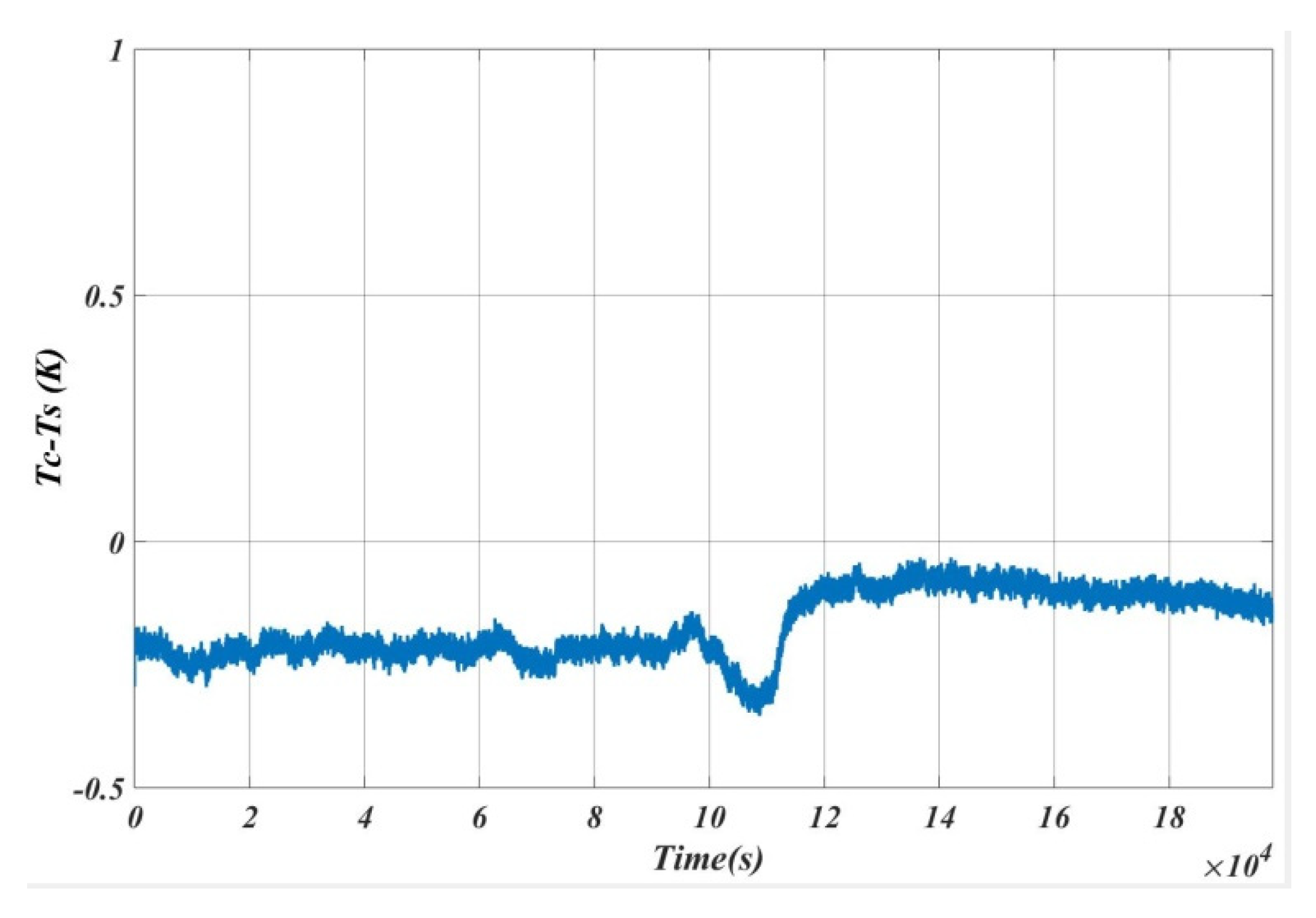

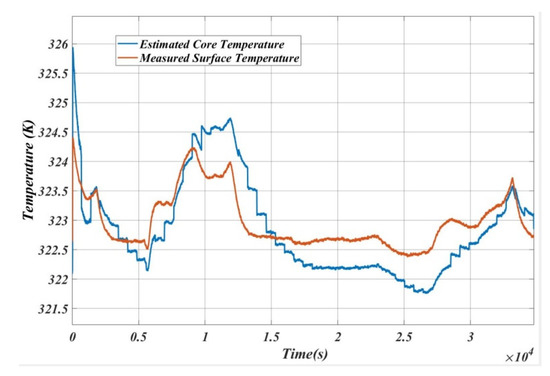

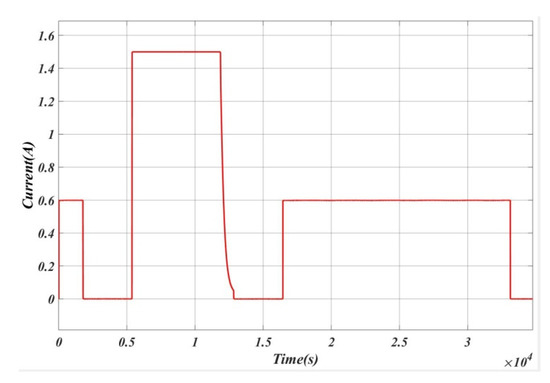

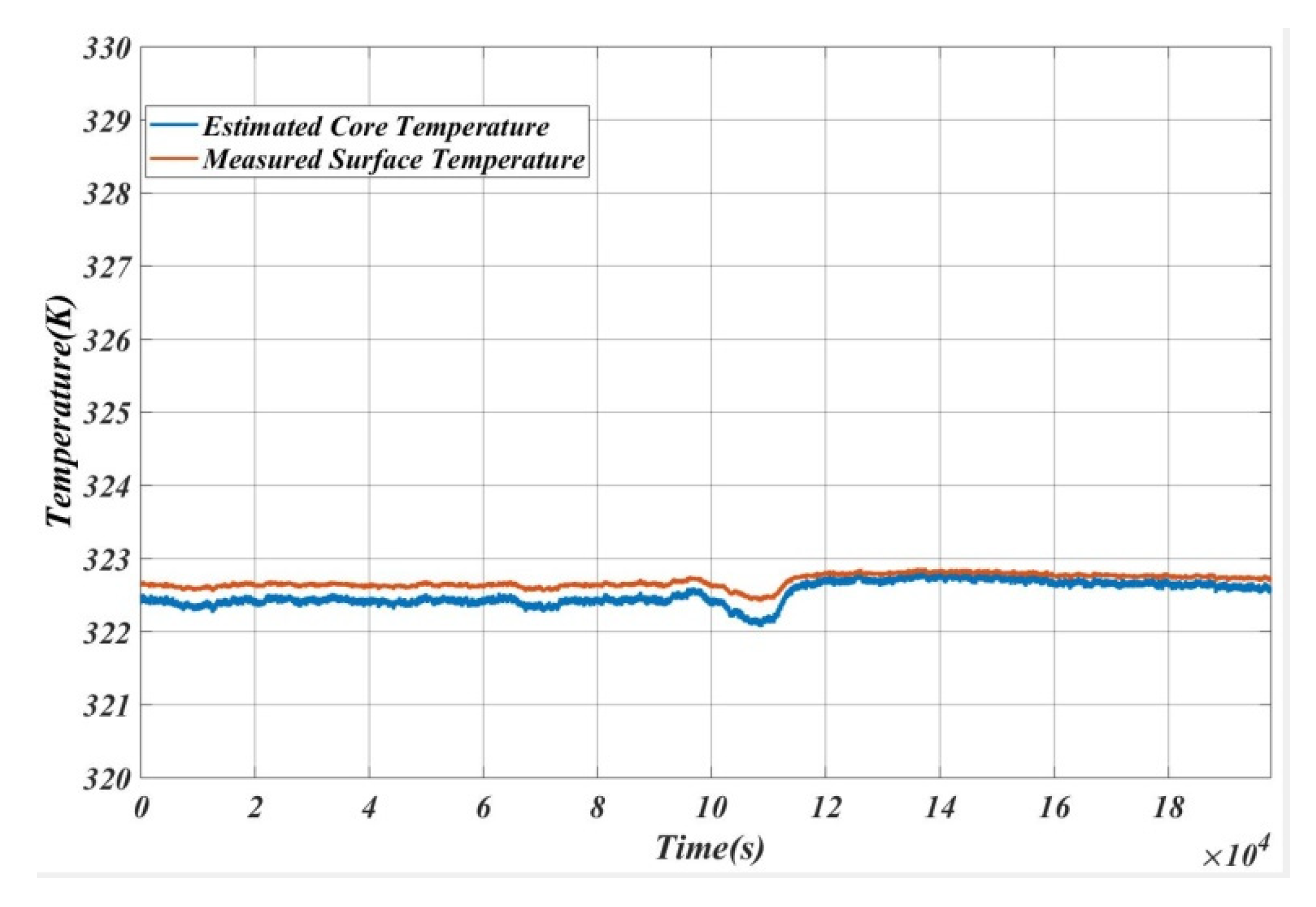

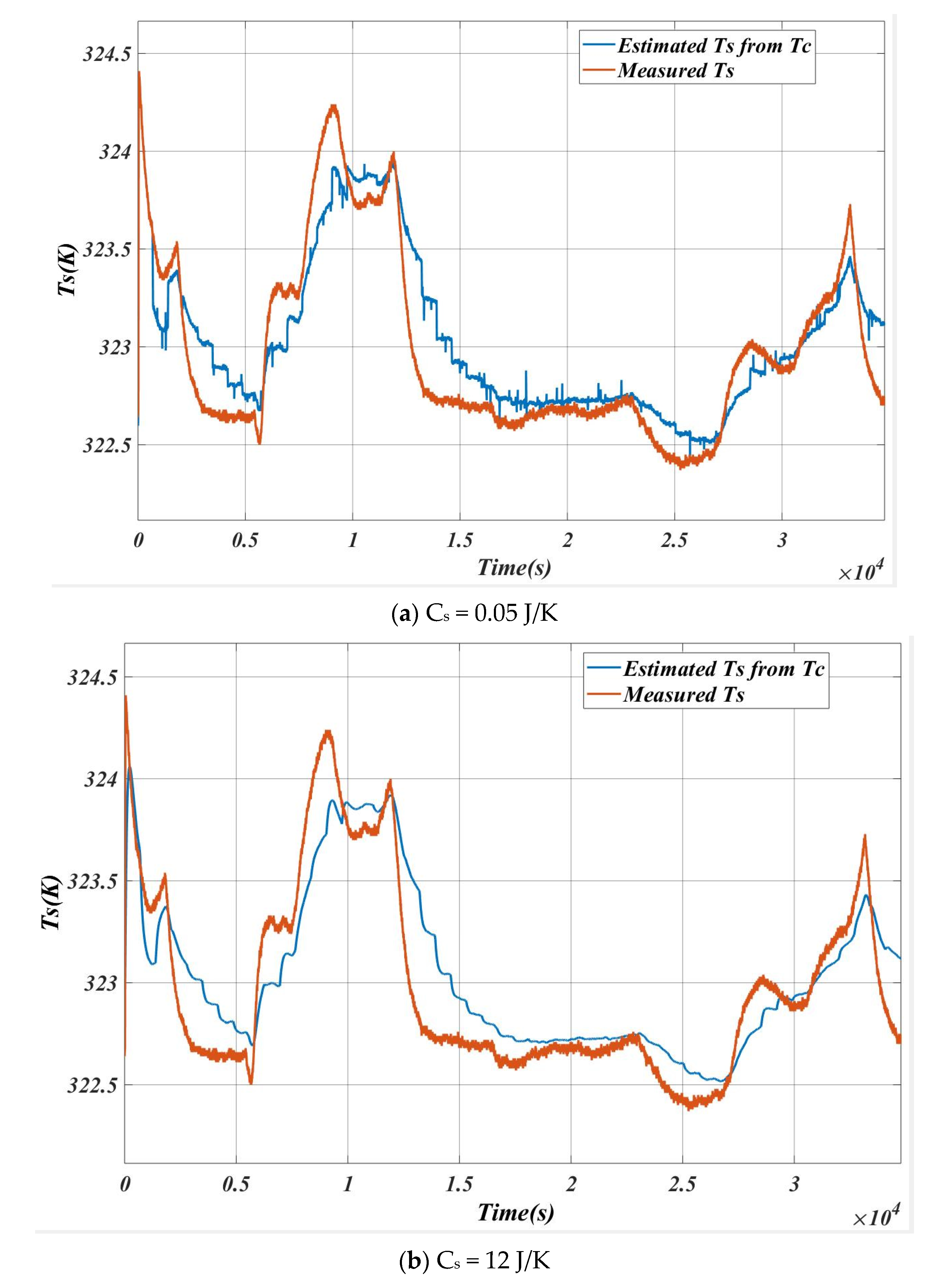

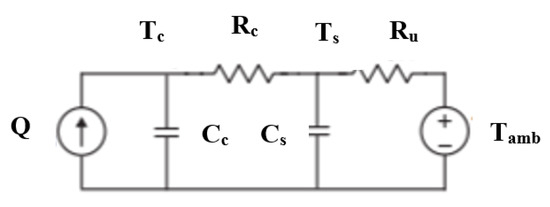

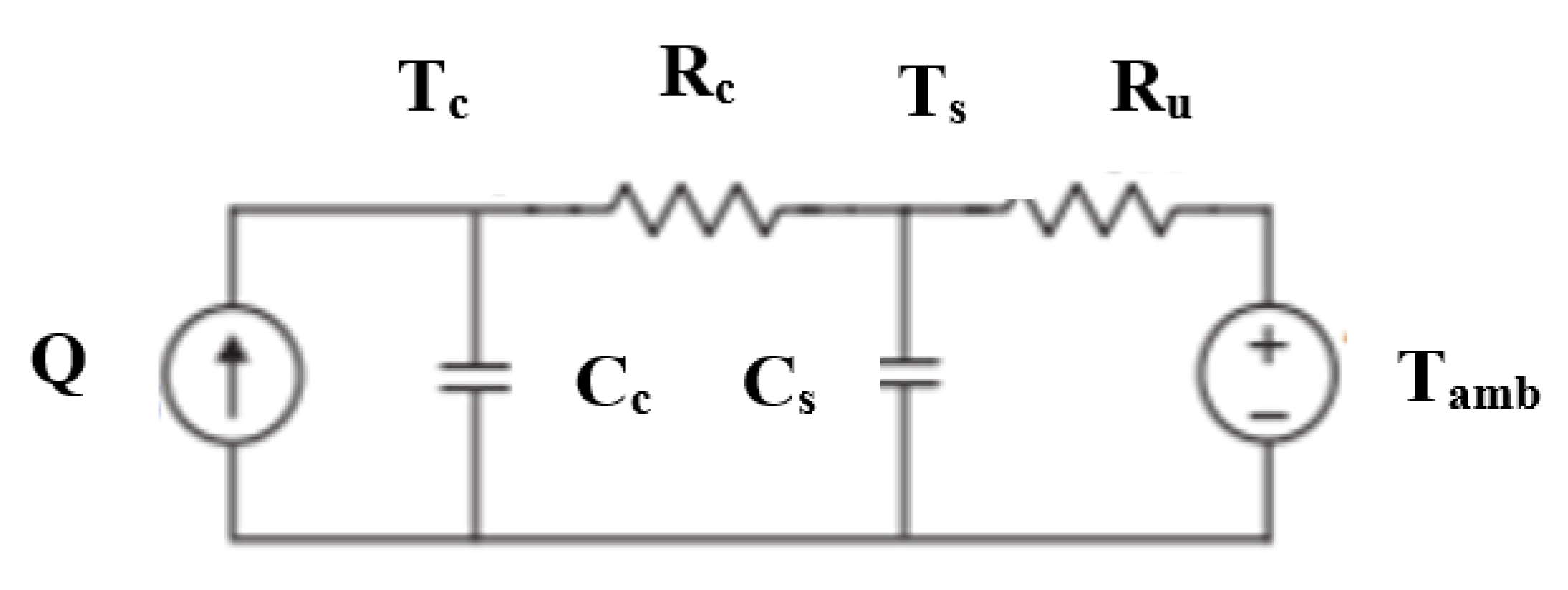

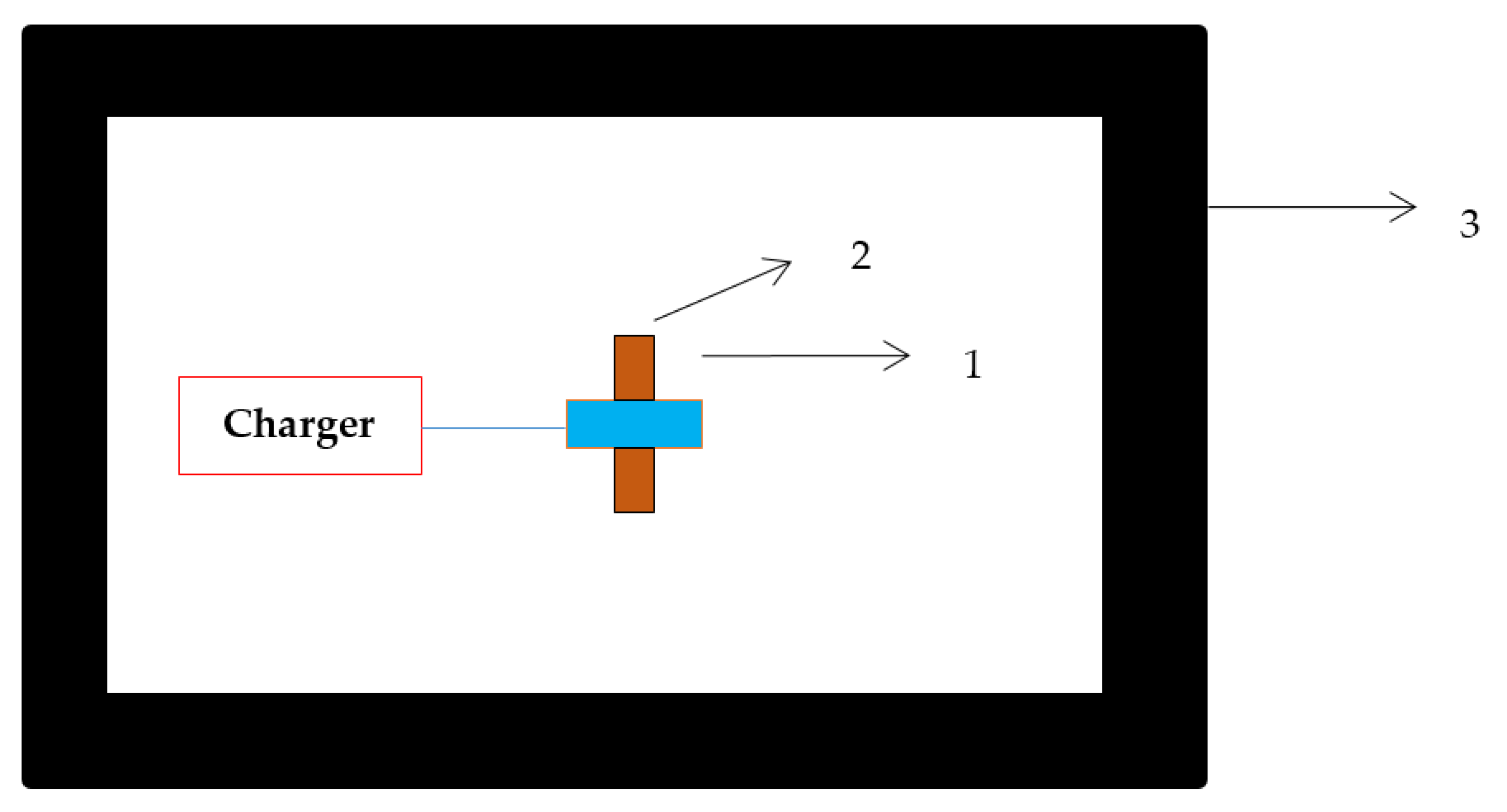

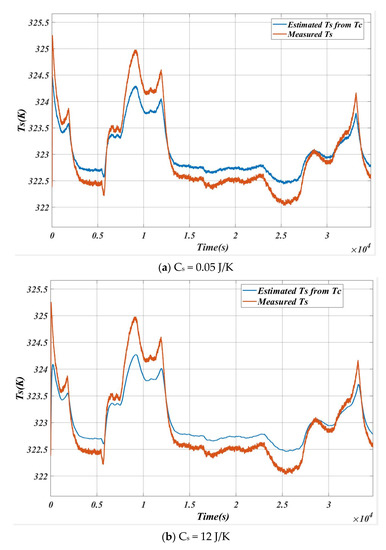

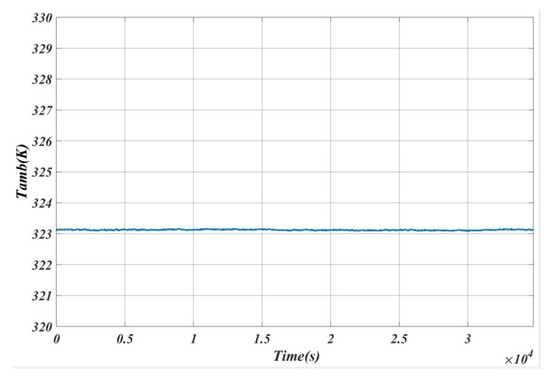

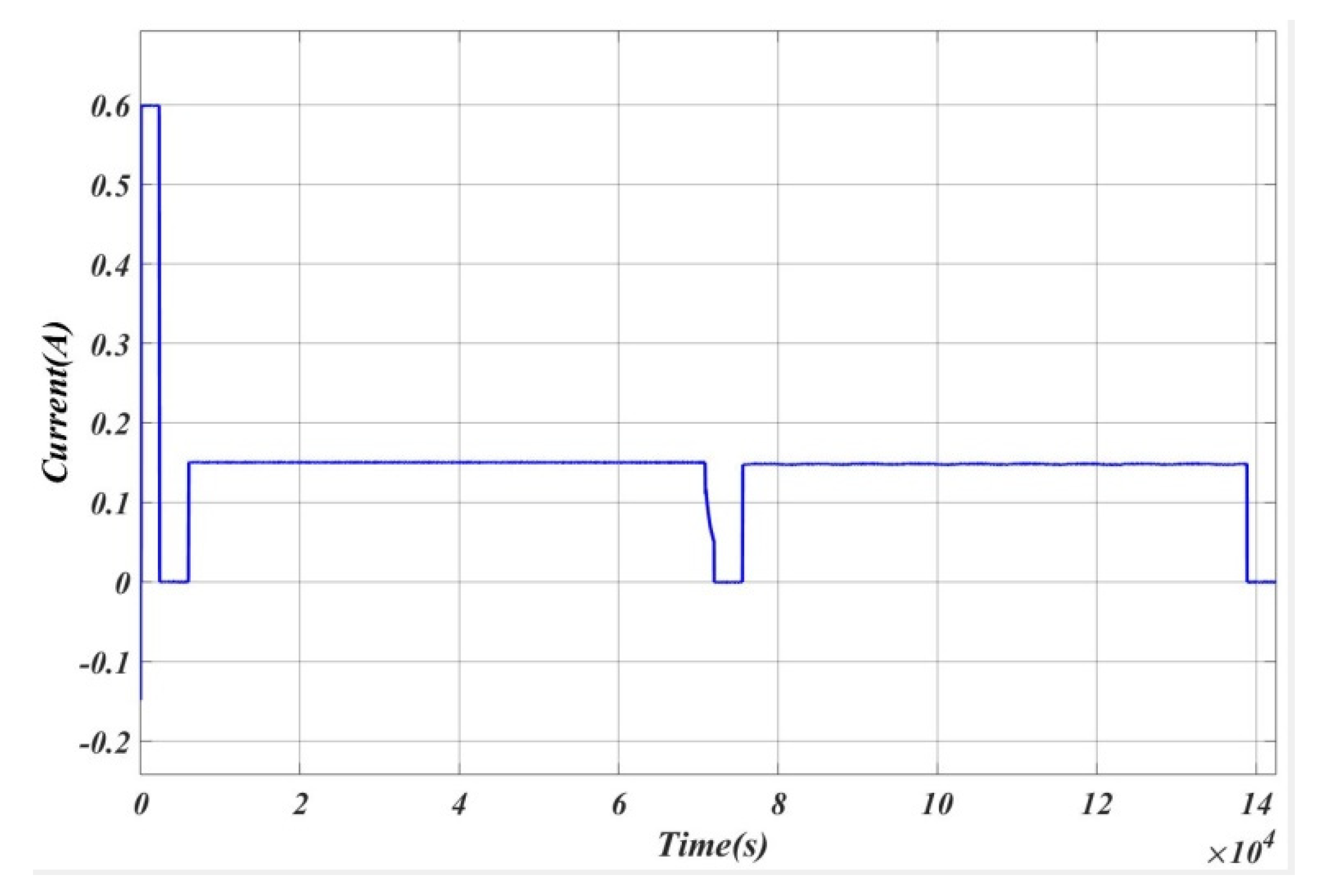

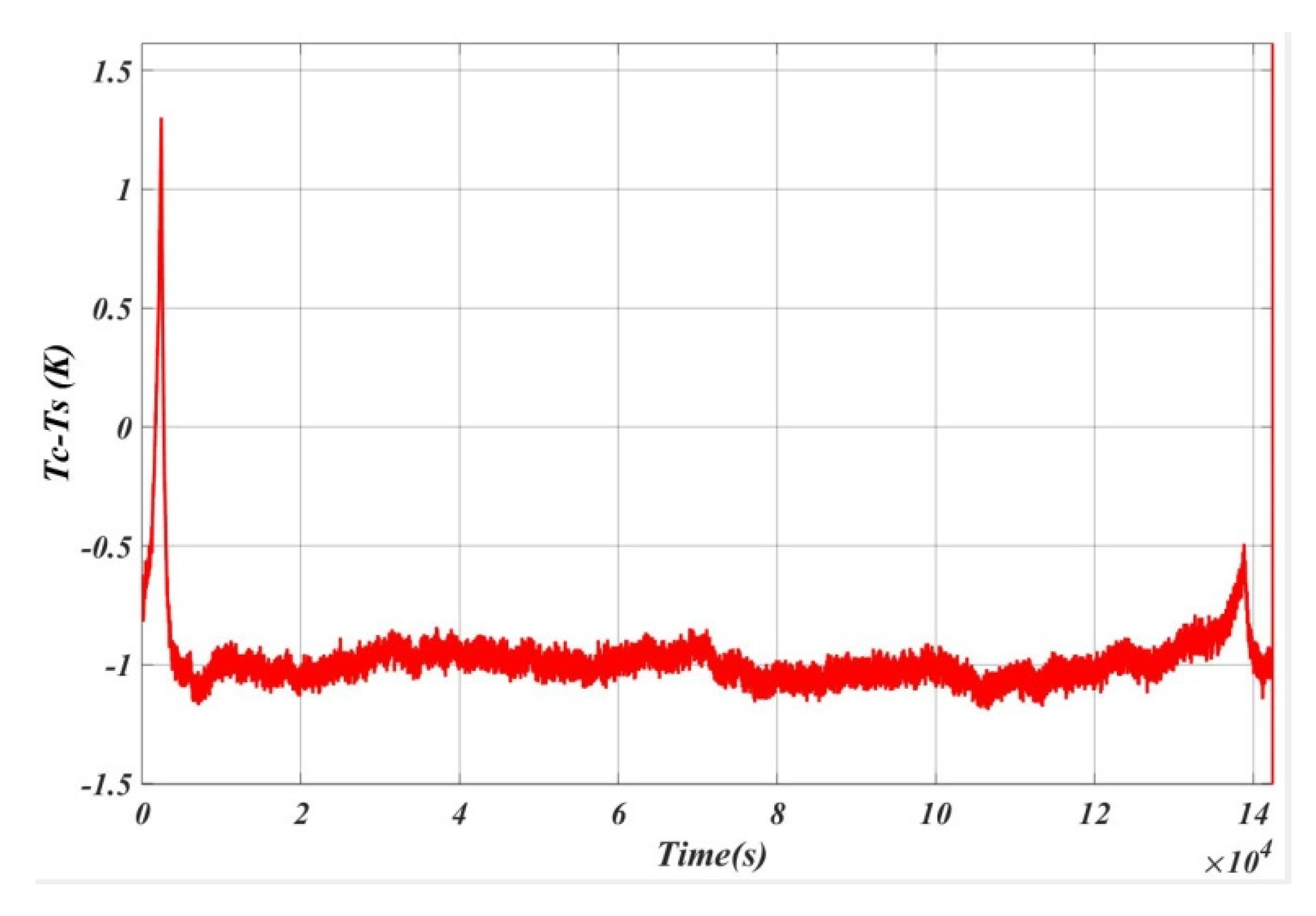

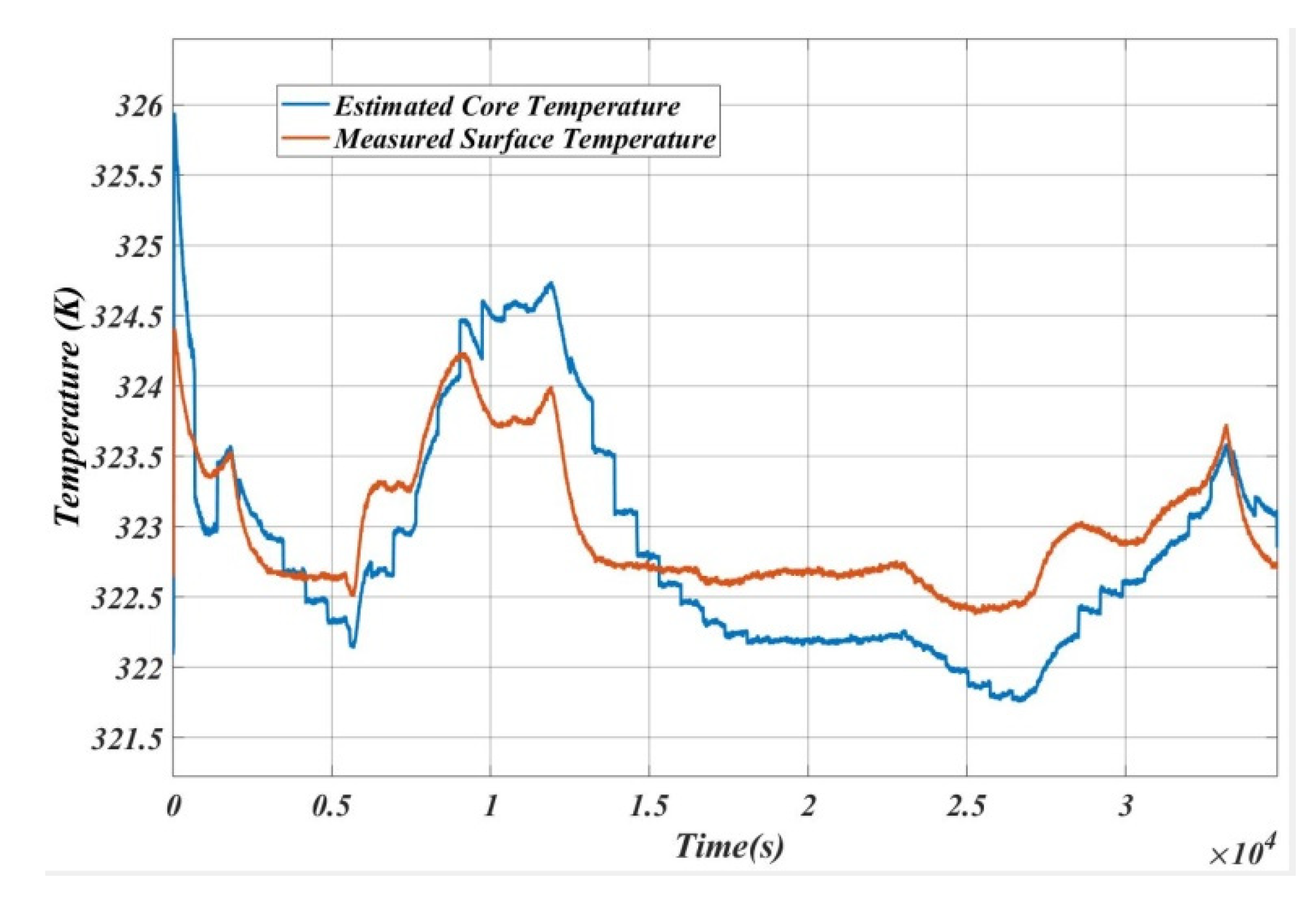

This paper deals with the estimation of core temperature (Tc) of a Lithium (Li) ion battery using measured ambient and surface temperatures. The temperatures were measured using thermocouples placed at appropriate locations. A second order thermal model was considered for the core temperature (Tc) estimation. A set of coupled linear ordinary differential equations (ODEs) were obtained by applying Kirchhoff’s current and voltage laws to the thermal model. The coupled ODEs were redefined in the discrete state space representation. The thermal model did not account for small changes in surface temperature (Ts). MATLAB/Simulink were used for modelling a Kalman filter with appropriate process and measurement noise levels. It was found that the temperatures closely followed the current patterns. For high currents, Tc dominated the surface temperature by about 3 K. Tc estimation plays a very important role in designing an effective thermal management and maintaining the state of health (SOH) during fast discharges under limits. Most of the battery management system (BMS) applications required Ts as the input to the controller. Hence, an inverse calculation for estimating Ts from known Tc was carried out and found to be reasonably accurate. It was found that the thermal parameter Cs played a major role in the accuracy of Ts prediction and must have low values to minimize errors.
