Comparison of Combustion Models for Lifted Hydrogen Flames within RANS Framework
Previous Article in Journal
The Effect of Supercritical CO2 on Shaly Caprocks
Article

Study of Excitation Characteristics of Traction Machine/Drive Systems

Center for More-Electric-Aircraft Power System, Nanjing University of Aeronautics and Astronautics, Nanjing 211106, China
*
Author to whom correspondence should be addressed.
Energies 2020, 13(1), 151; https://doi.org/10.3390/en13010151
Received: 21 November 2019 / Revised: 24 December 2019 / Accepted: 25 December 2019 / Published: 27 December 2019
(This article belongs to the Section A6: Electric Vehicles)

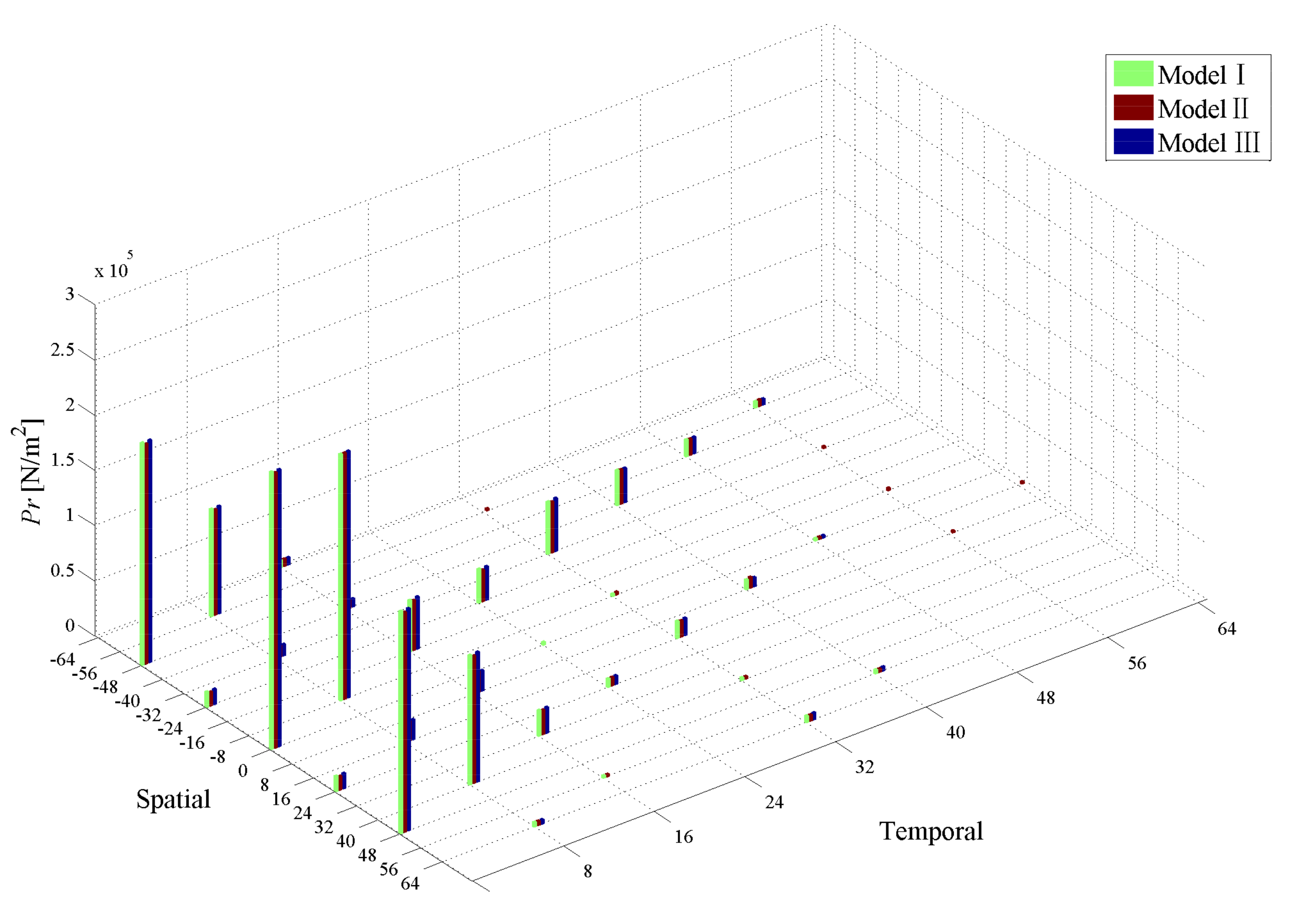

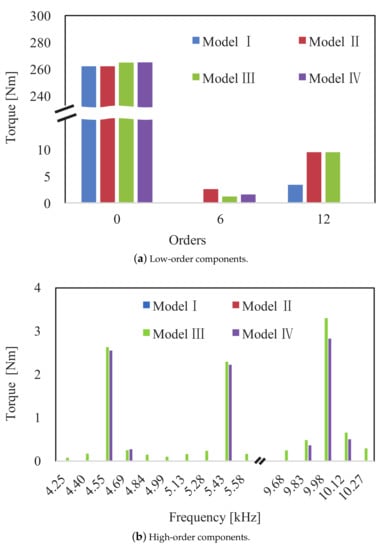

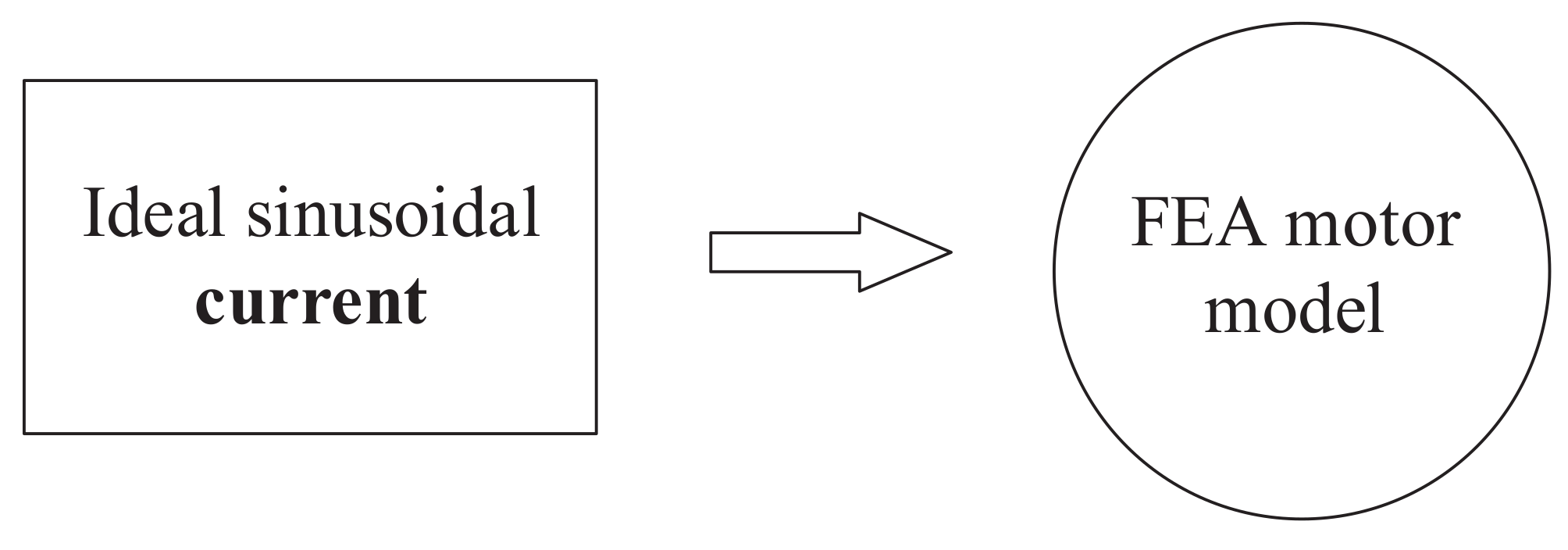

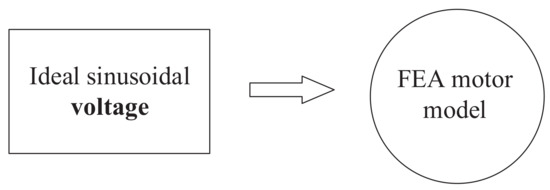

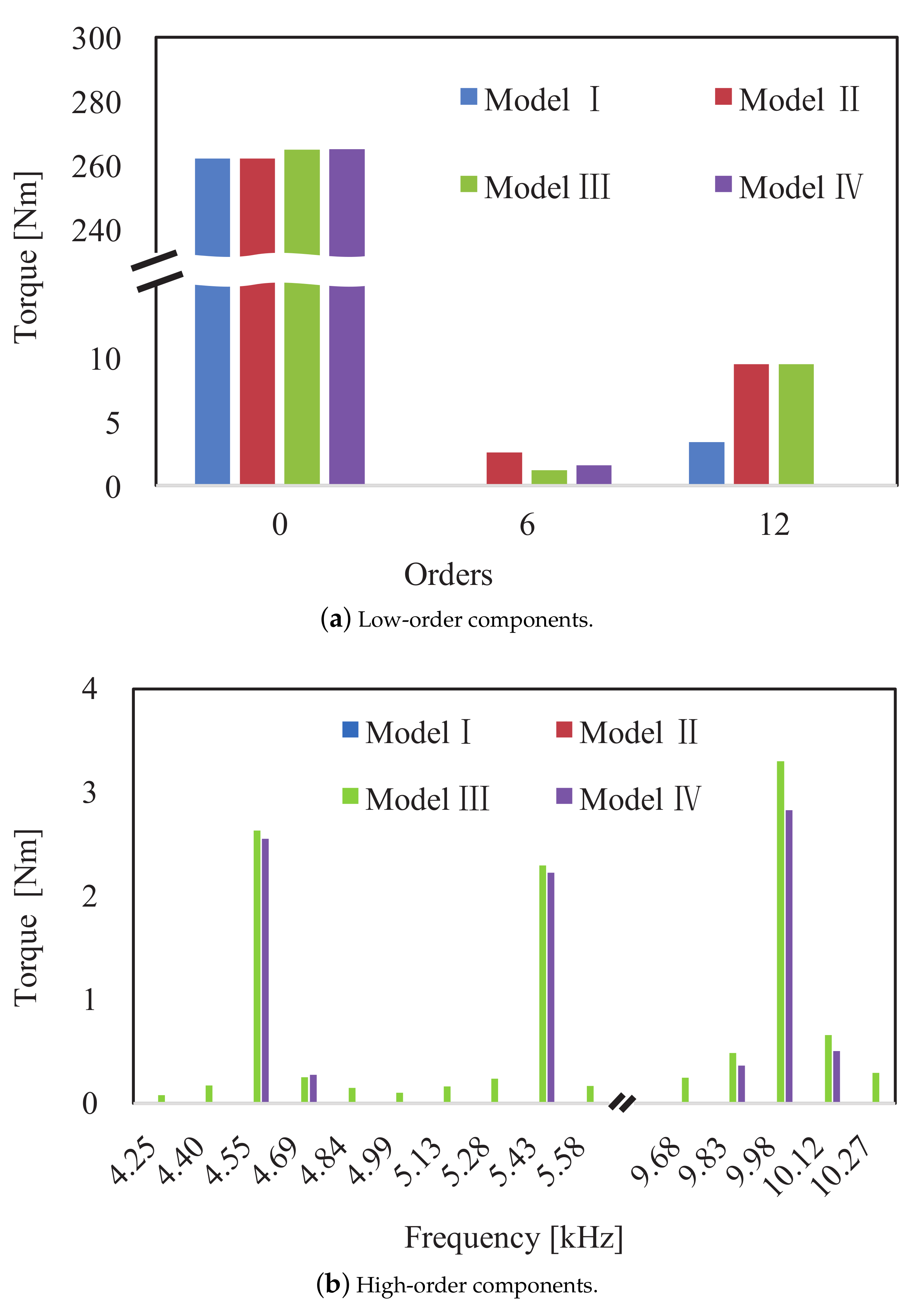

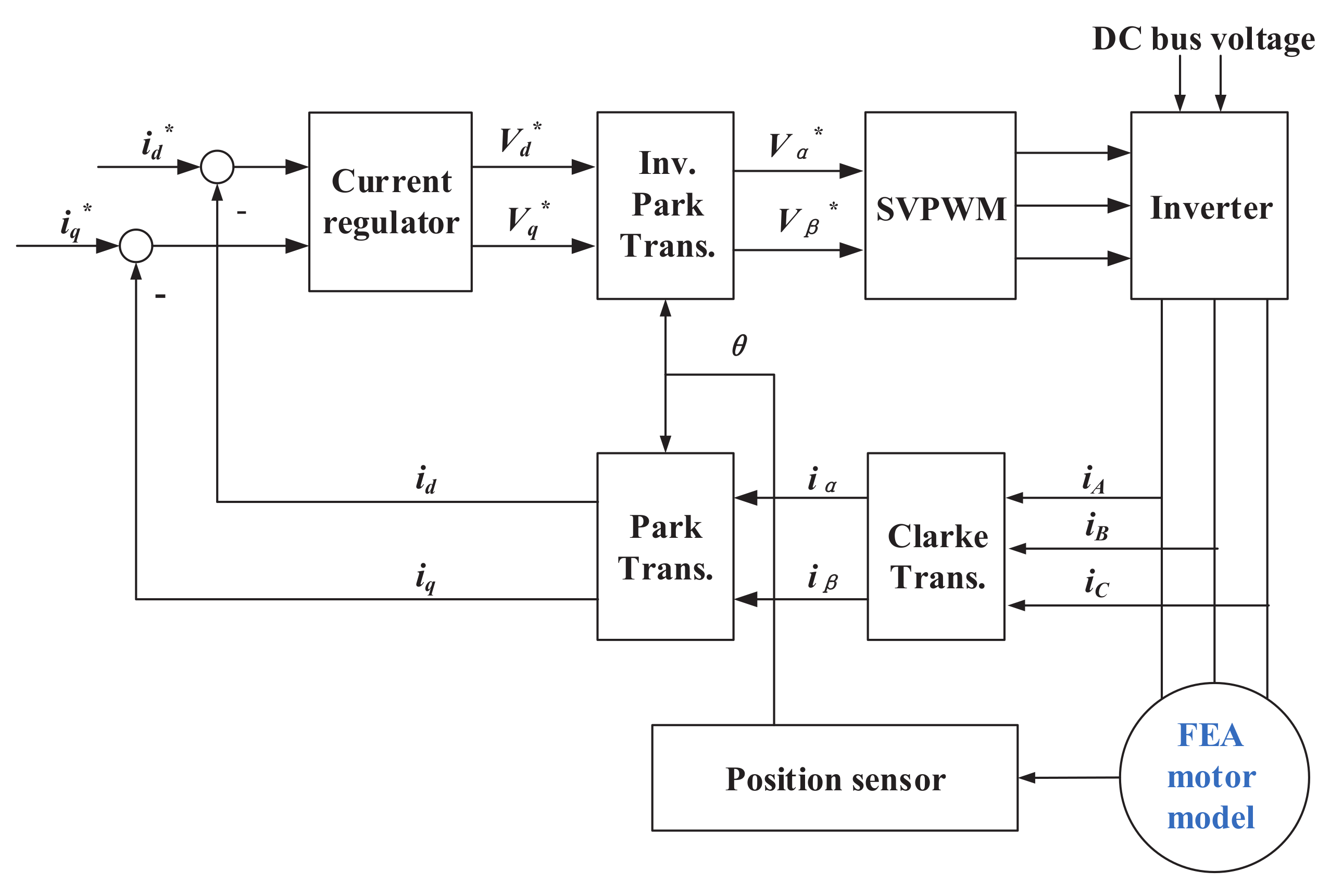

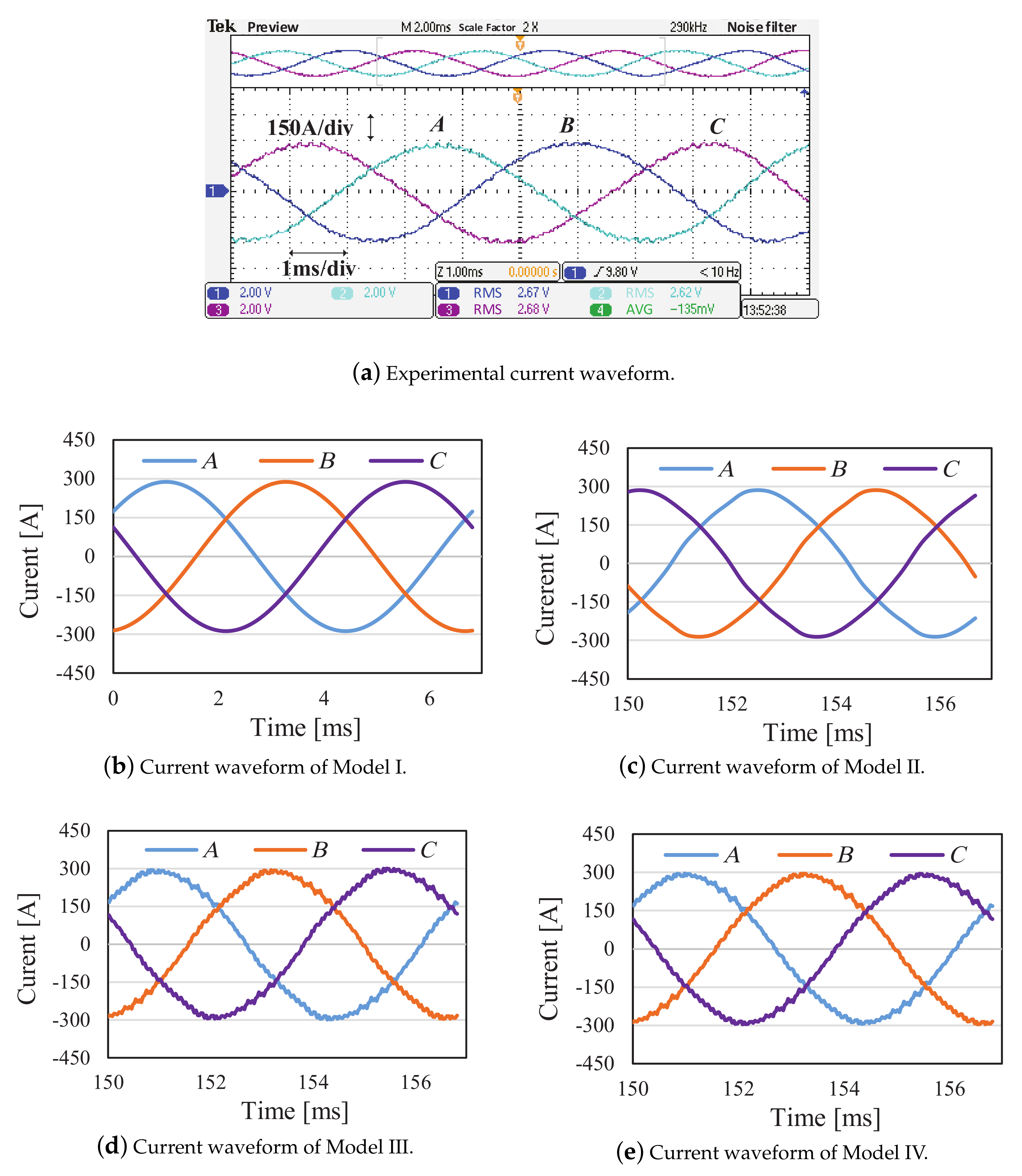

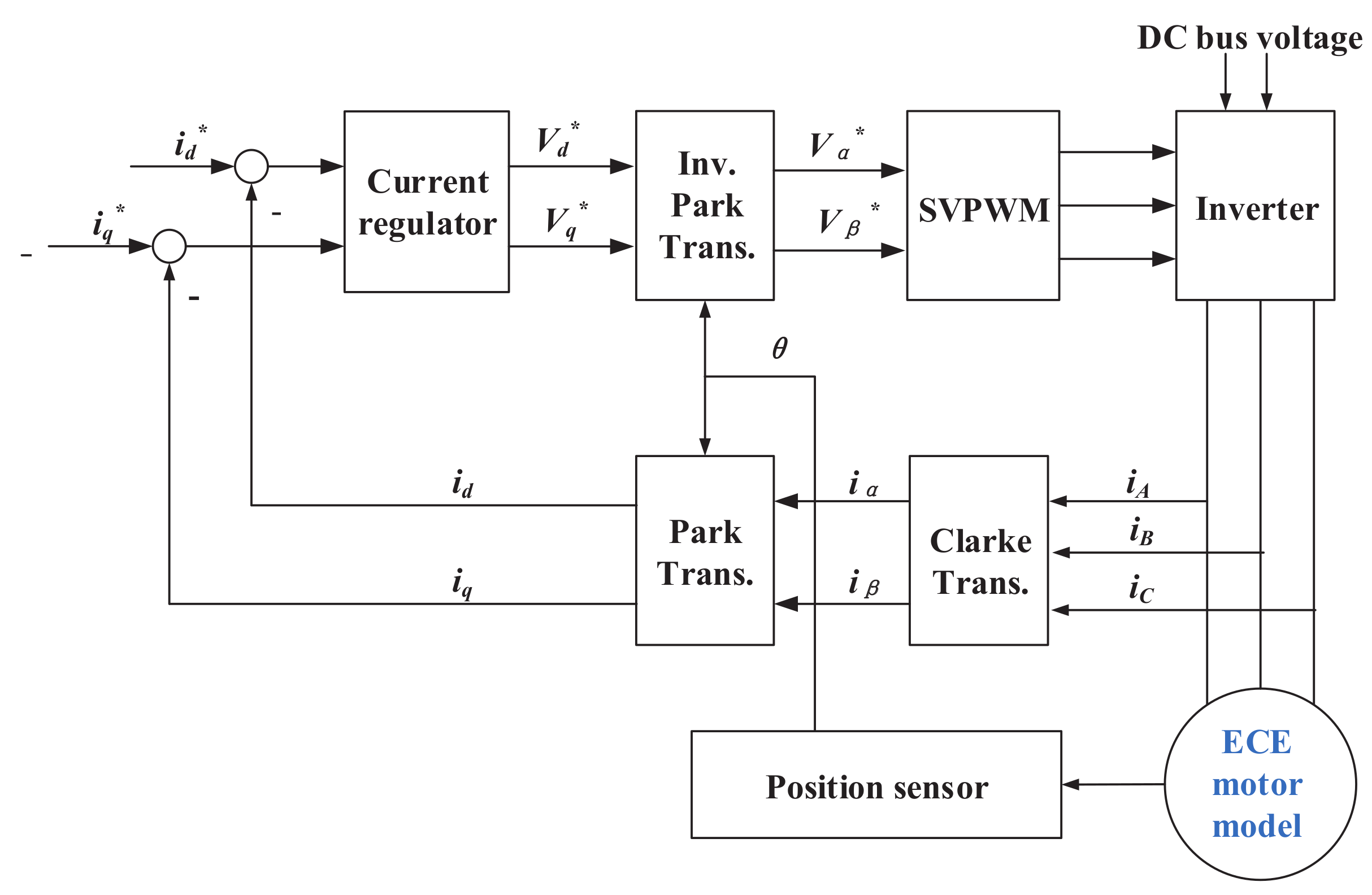

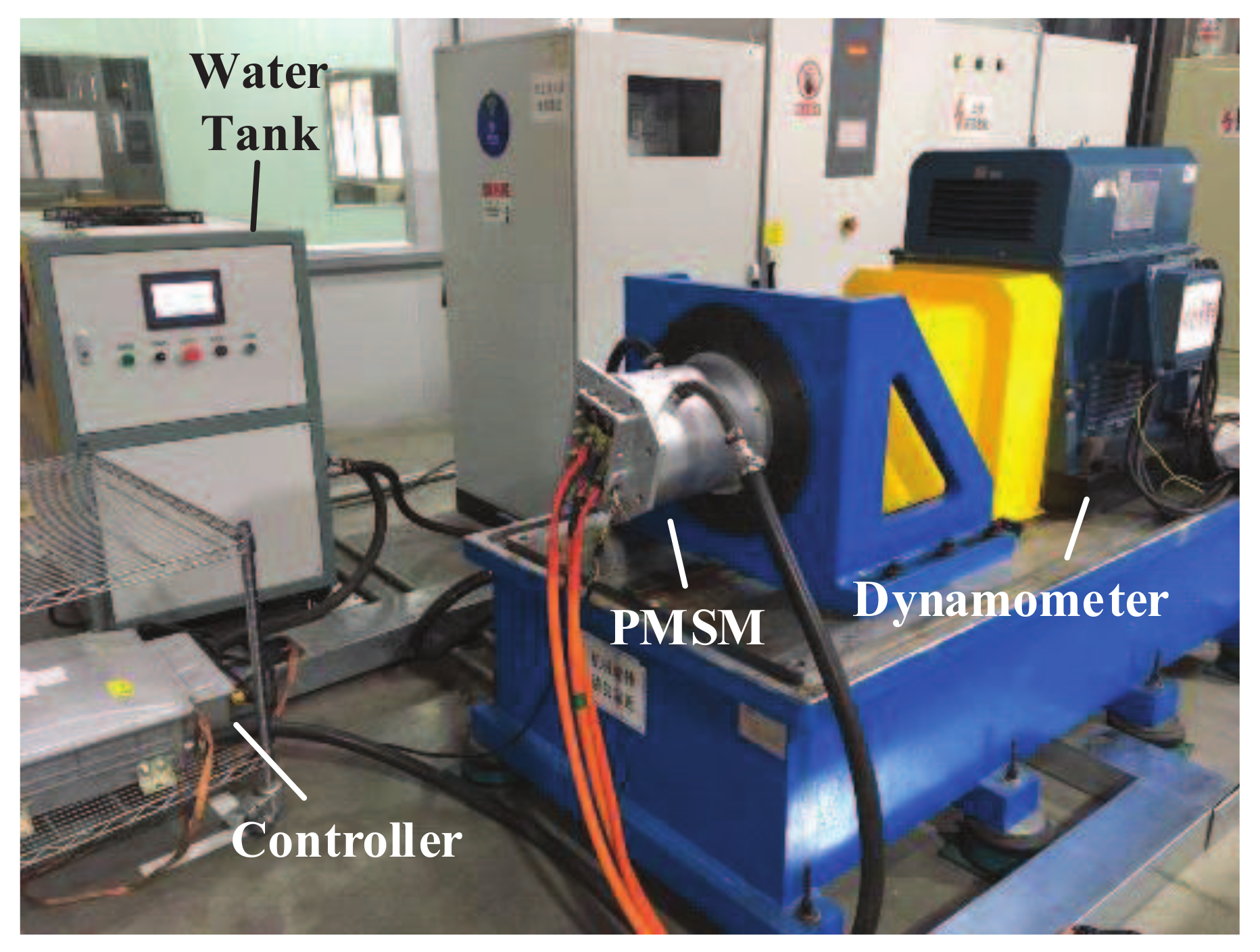

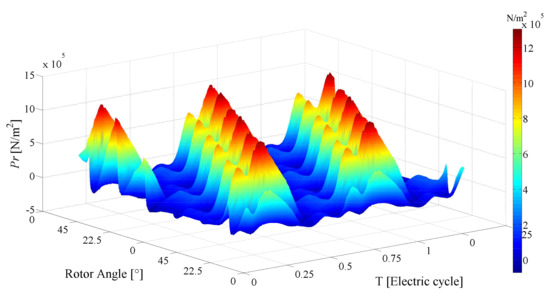

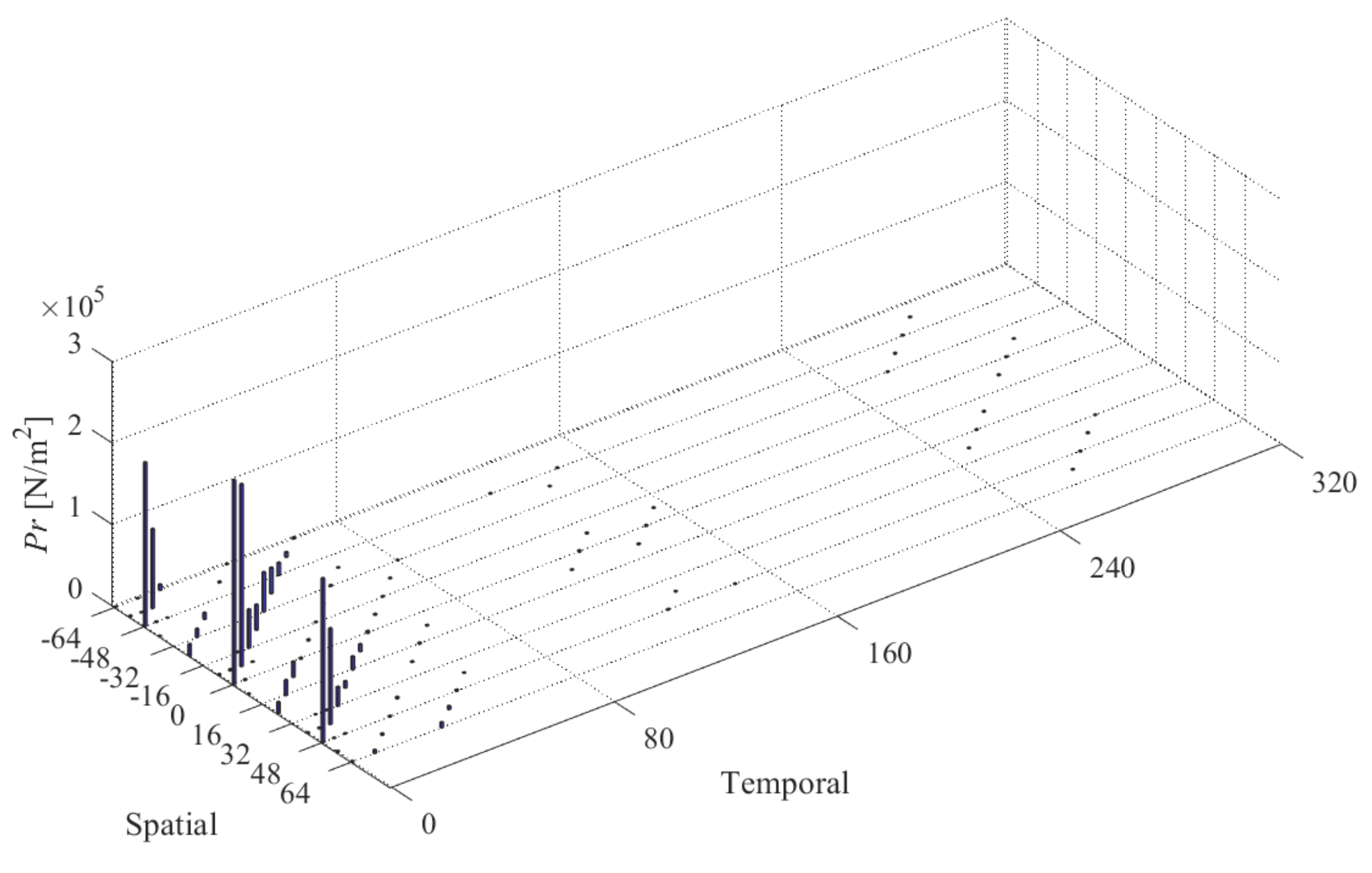

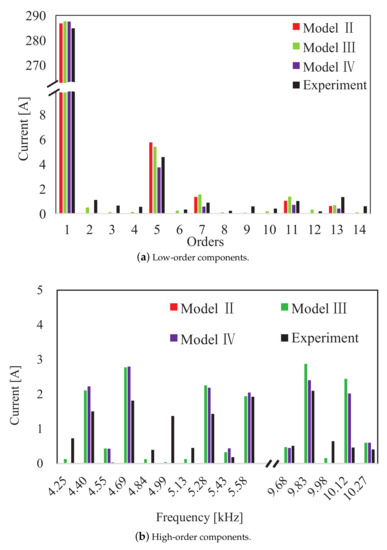

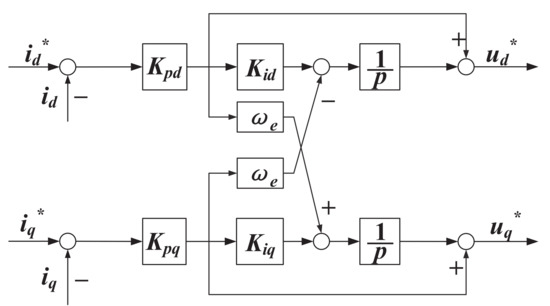

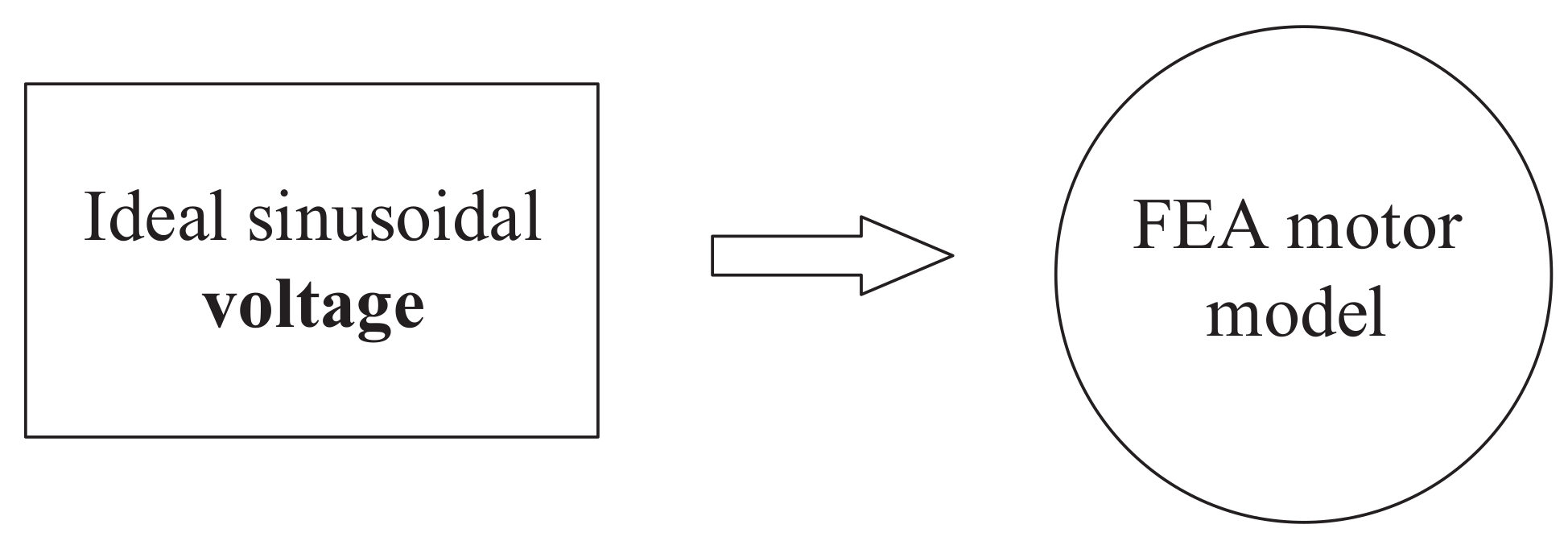

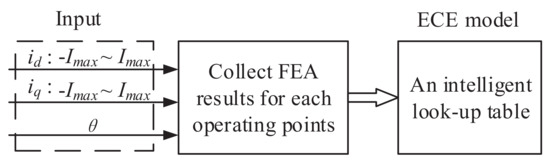

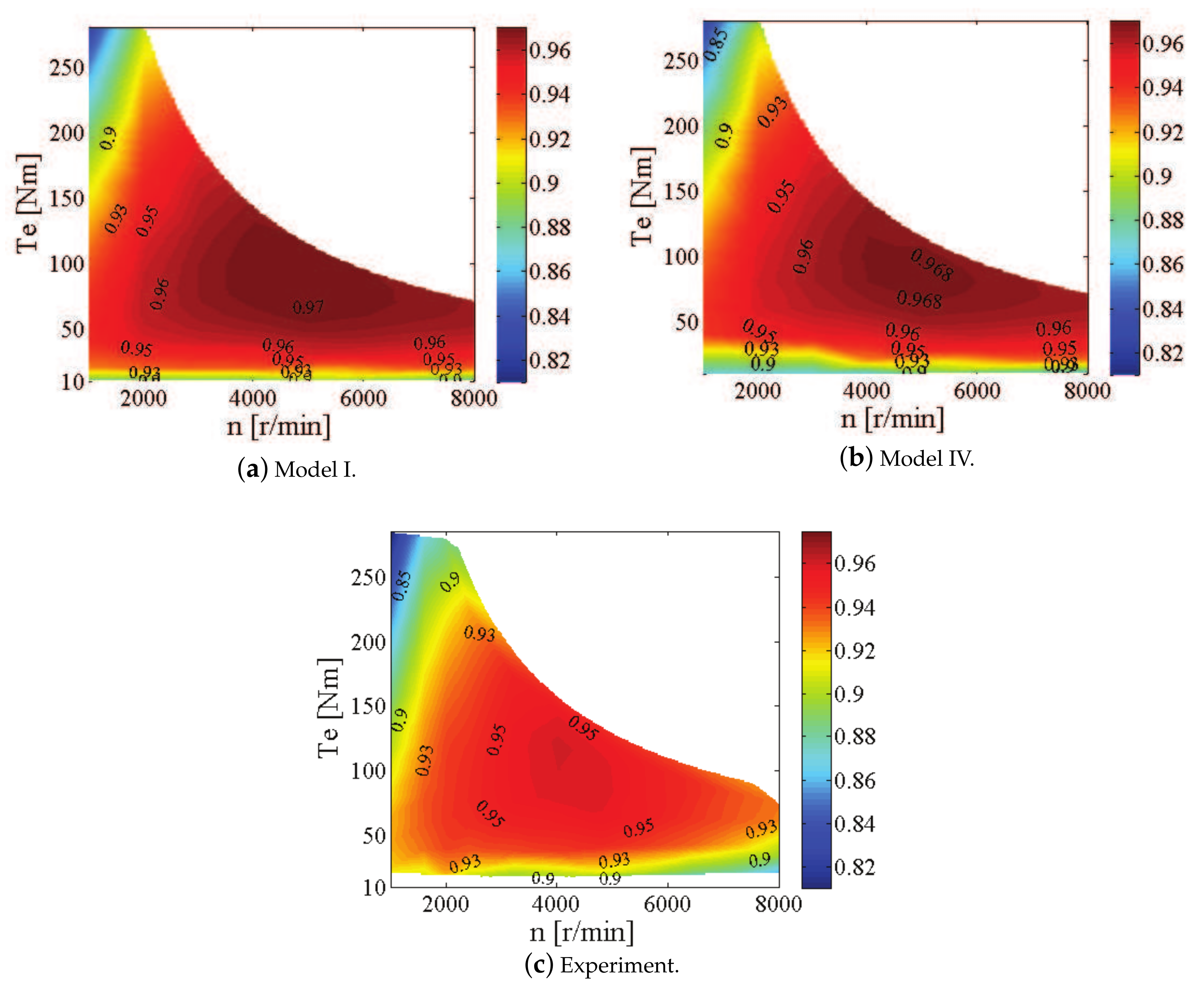

In order to accurately evaluate the performance of a traction machine/drive system, it is necessary to have an accurate excitation source which considers current harmonics. In this paper, four machine/drive systems with different excitation sources have been modeled, simulated, and studied to evaluate the effects on permanent magnet synchronous machines (PMSMs) from different perspectives. In Model I, the excitation is an ideal sinusoidal current source with no harmonics. Model II is excited by an ideal sinusoidal voltage source regardless of the pulse width modification’s (PWM’s) influence. Model III takes into account the influence of current harmonics under space vector pulse width modulation (SVPWM) control. Model IV is based on the equivalent circuit extraction (ECE) model (a look-up table motor model). We simulate these four models and study the characteristics of the excitation sources, based on the observations of current harmonics, torque, electromagnetic force, computation time, and efficiency. Experiments are also conducted to show that Model III allows the most precise study of the considered system. Model IV is a good substitution, providing similar results with a shorter running time. View Full-Text
Keywords: PMSM; excitations; current harmonics; ECE; SVPWM PMSM; excitations; current harmonics; ECE; SVPWM
