A State of Health Estimation Method for Lithium-Ion Batteries Based on Voltage Relaxation Model

,
,
,
and
1
Clean Energy Automotive Engineering Center, Tongji University, Shanghai 201804, China
2
School of Automotive Studies, Tongji University, Shanghai 201804, China
3
Institute for Applied Materials (IAM), Karlsruhe Institute of Technology (KIT), 76344 Eggenstein-Leopoldshafen, Germany
*
Author to whom correspondence should be addressed.
This article belongs to the Section E: Electric Vehicles

Abstract

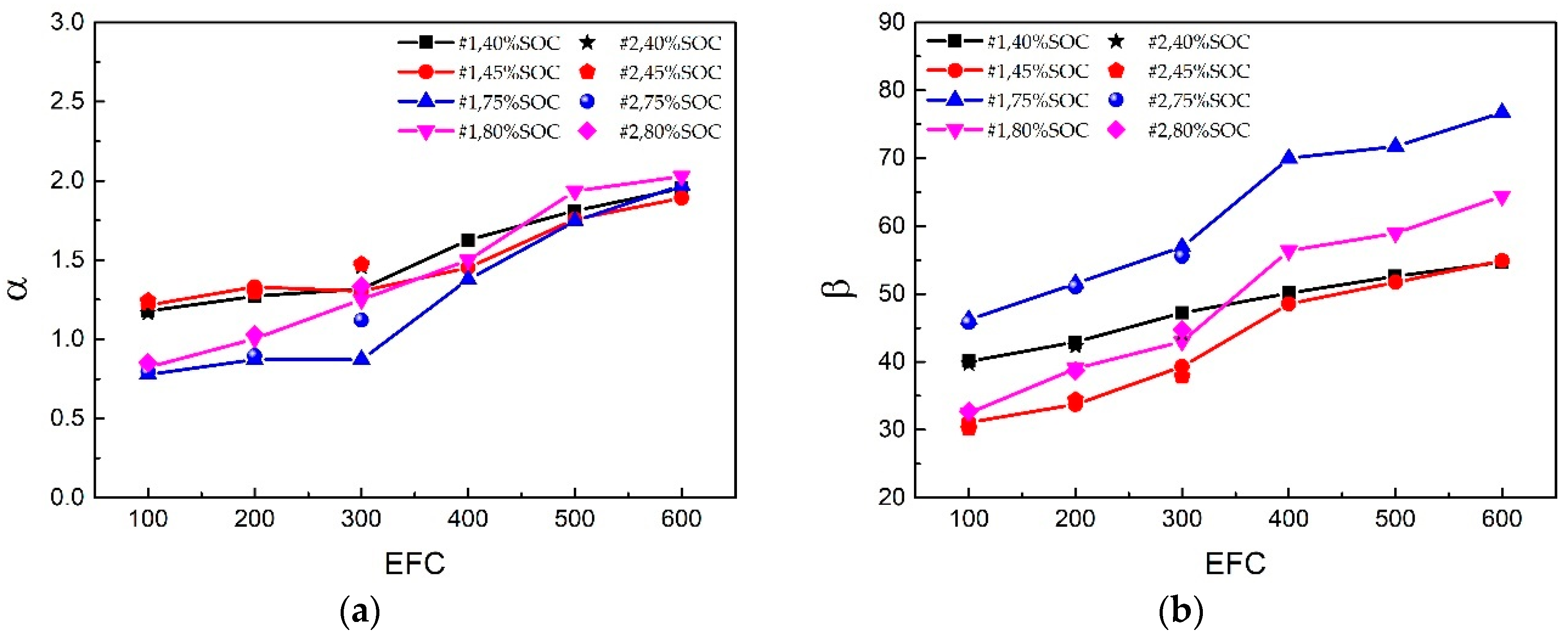

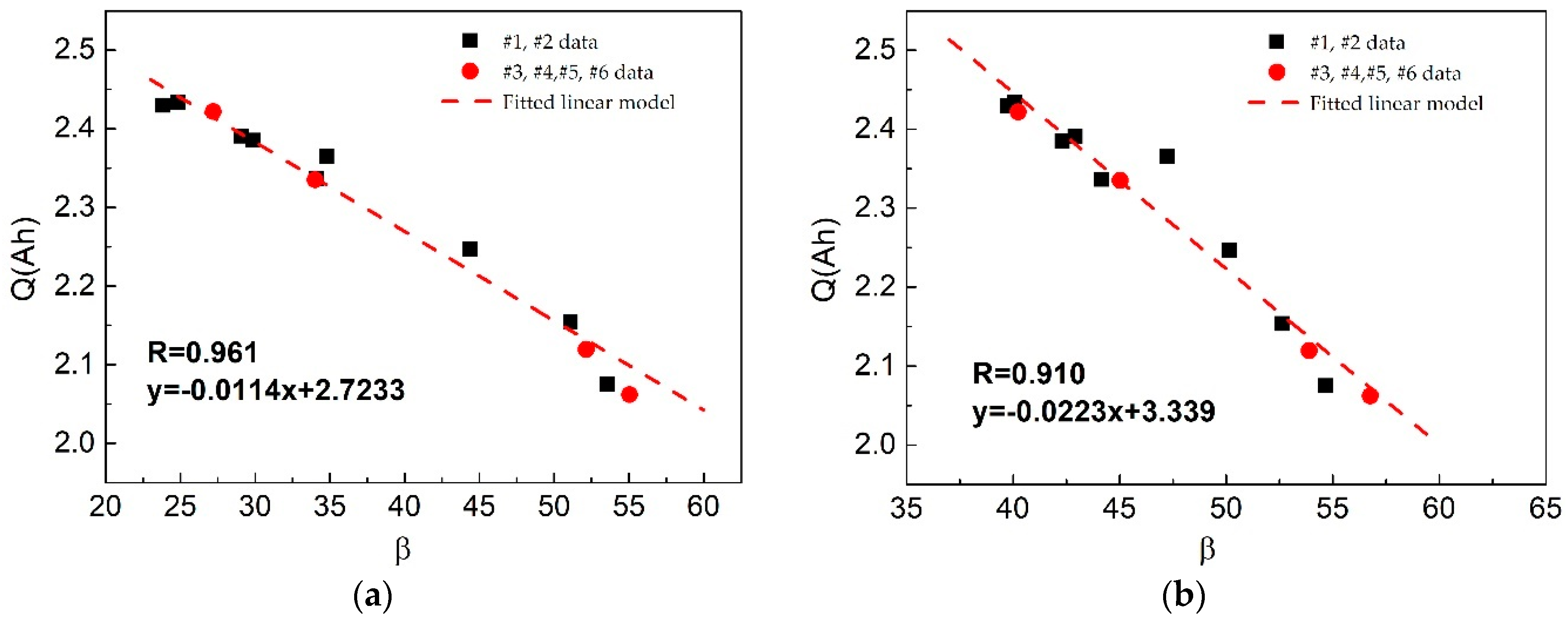

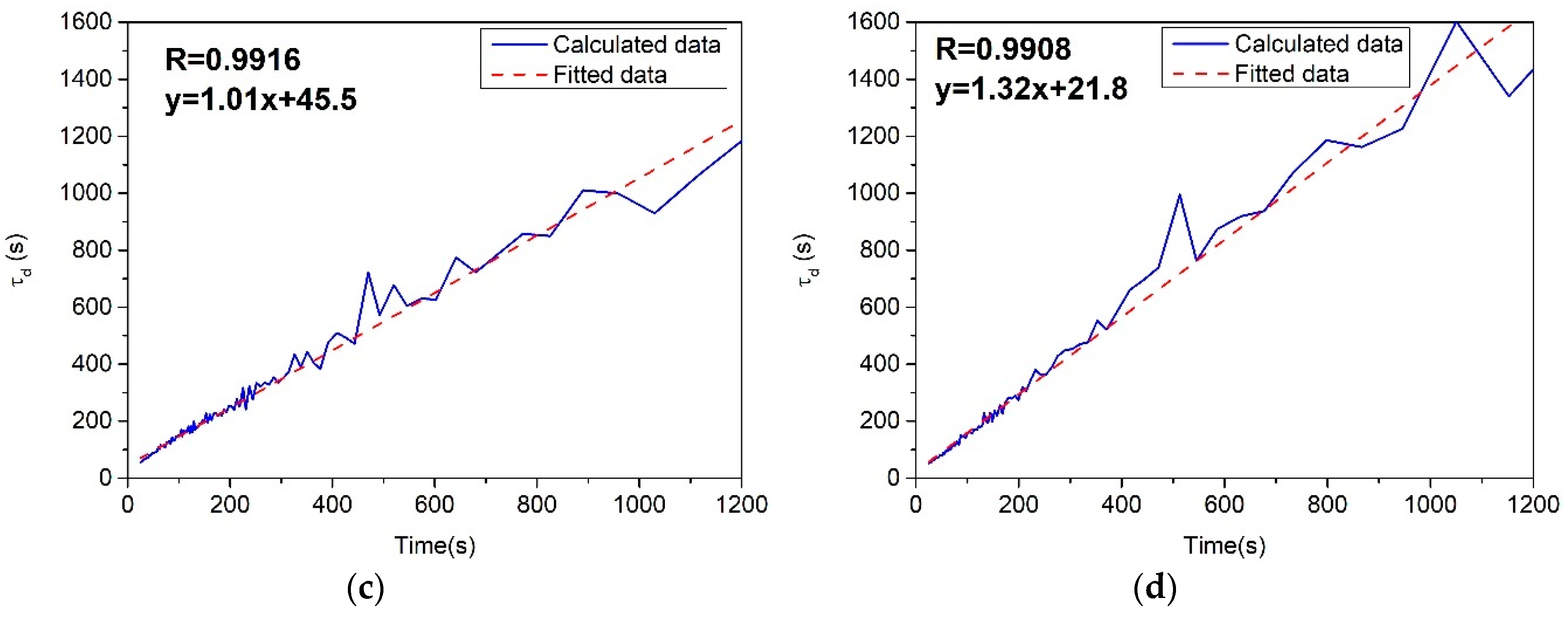

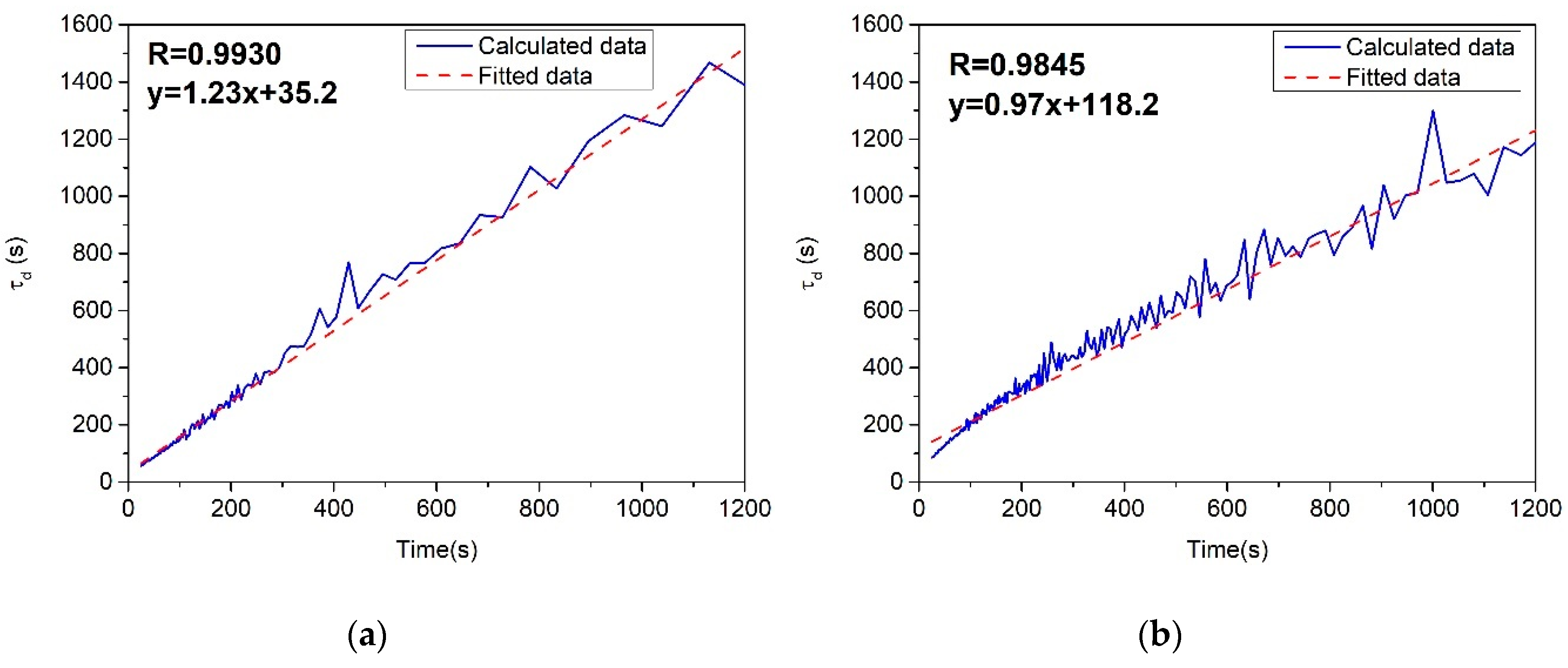

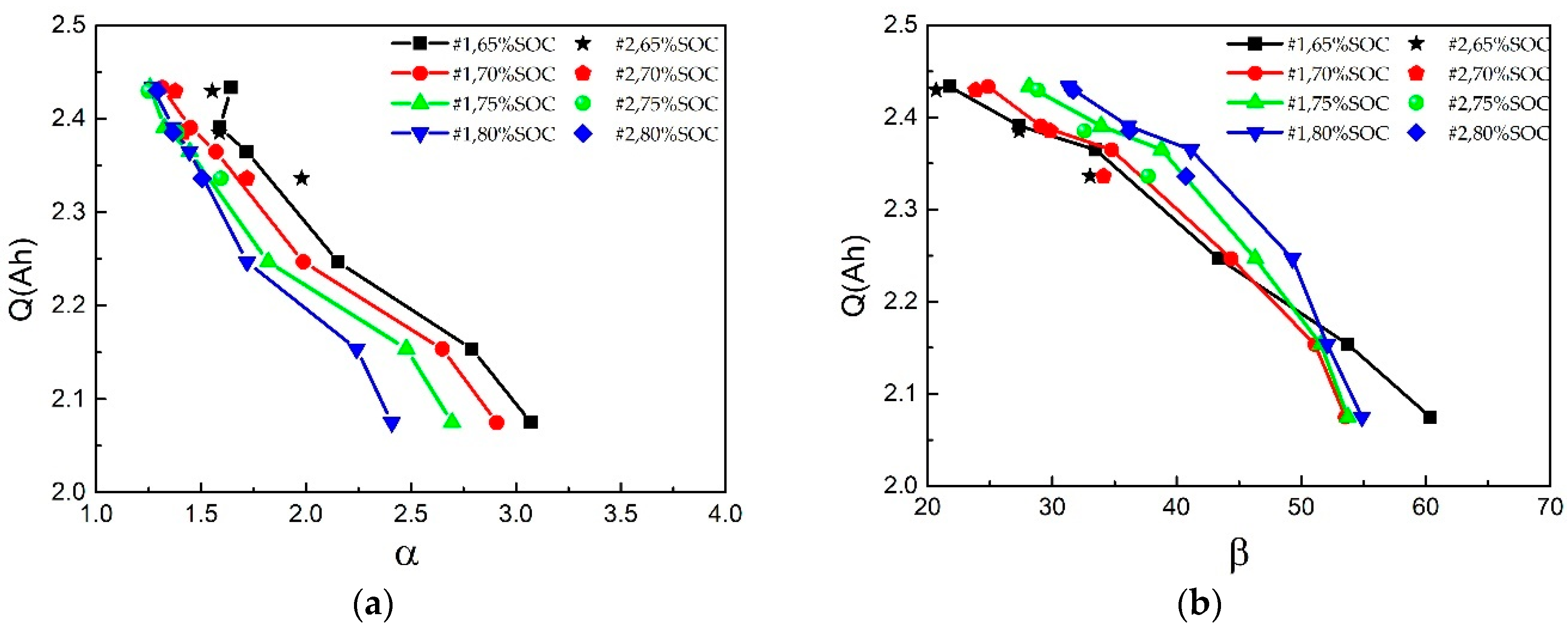

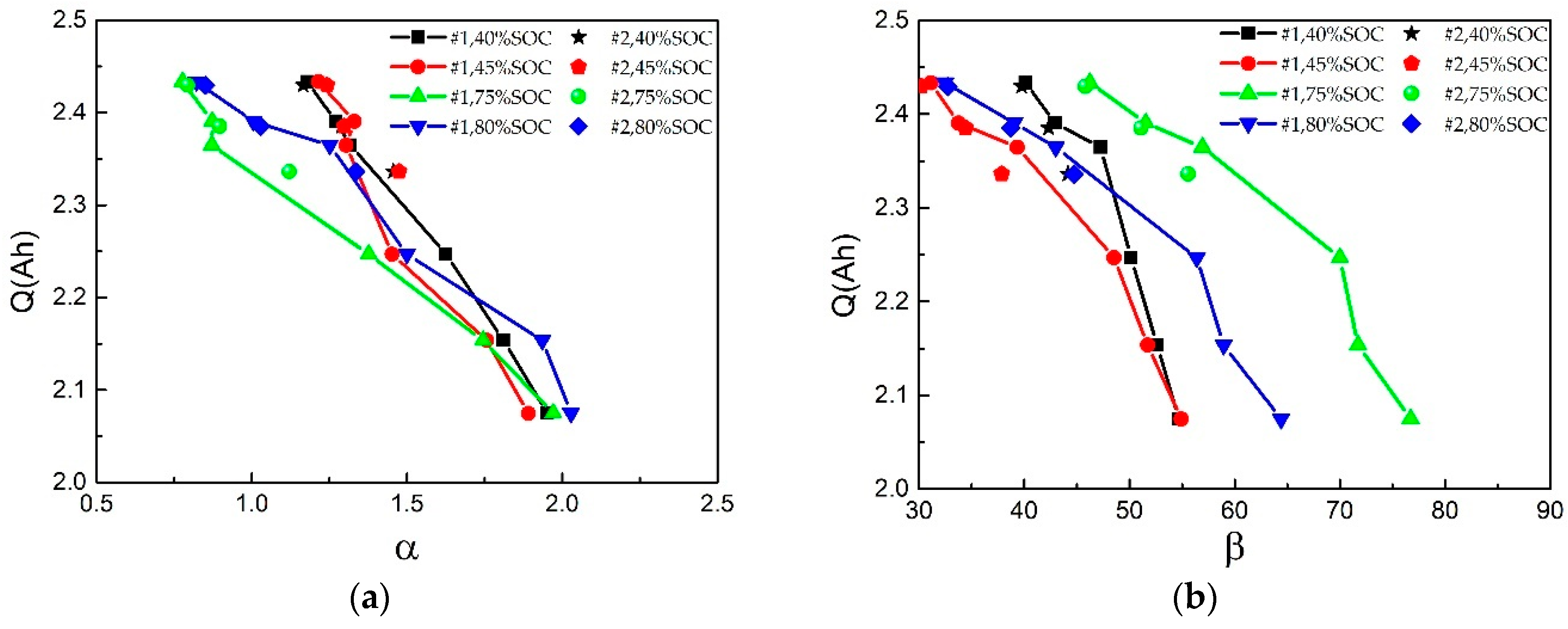

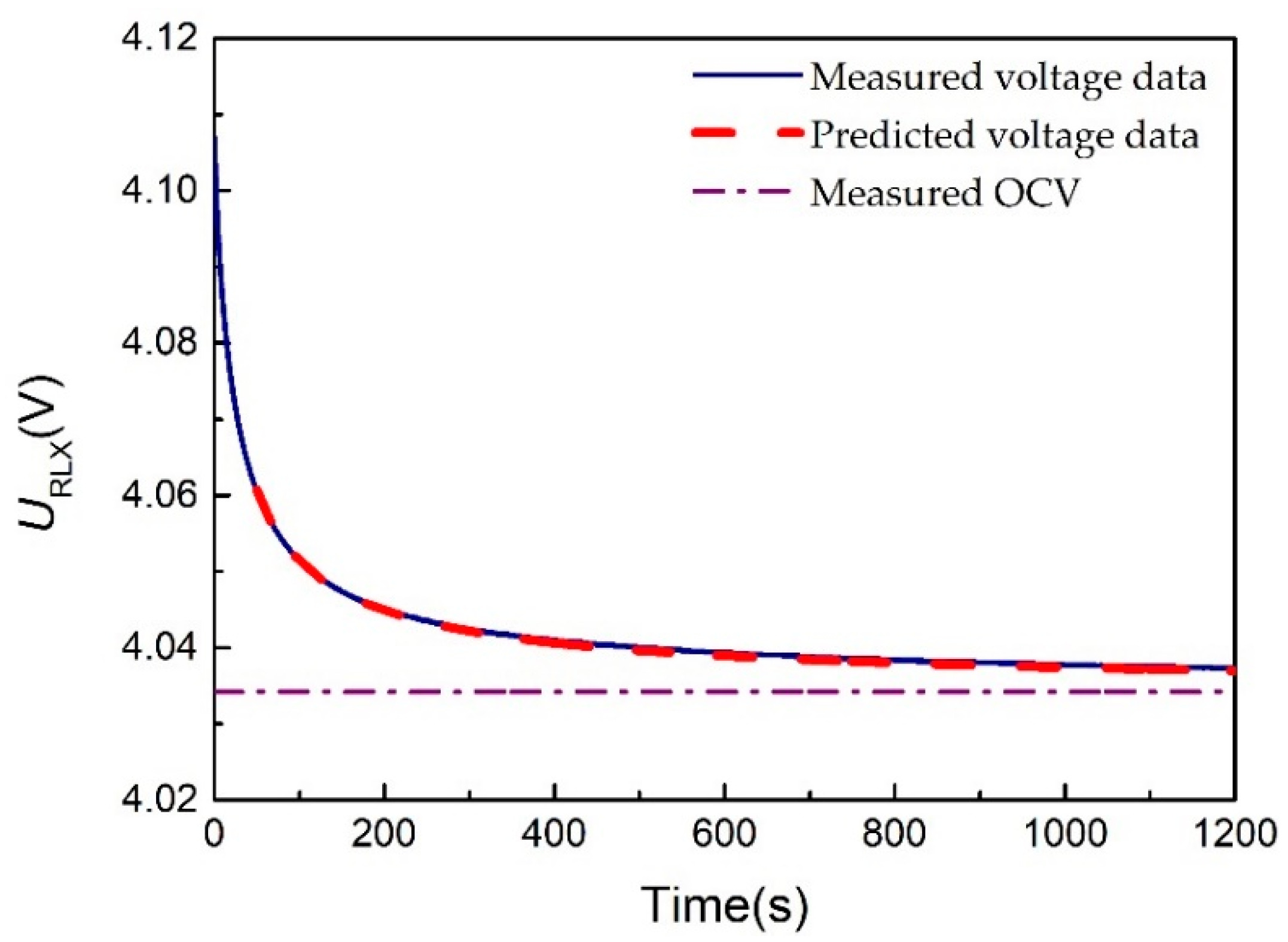

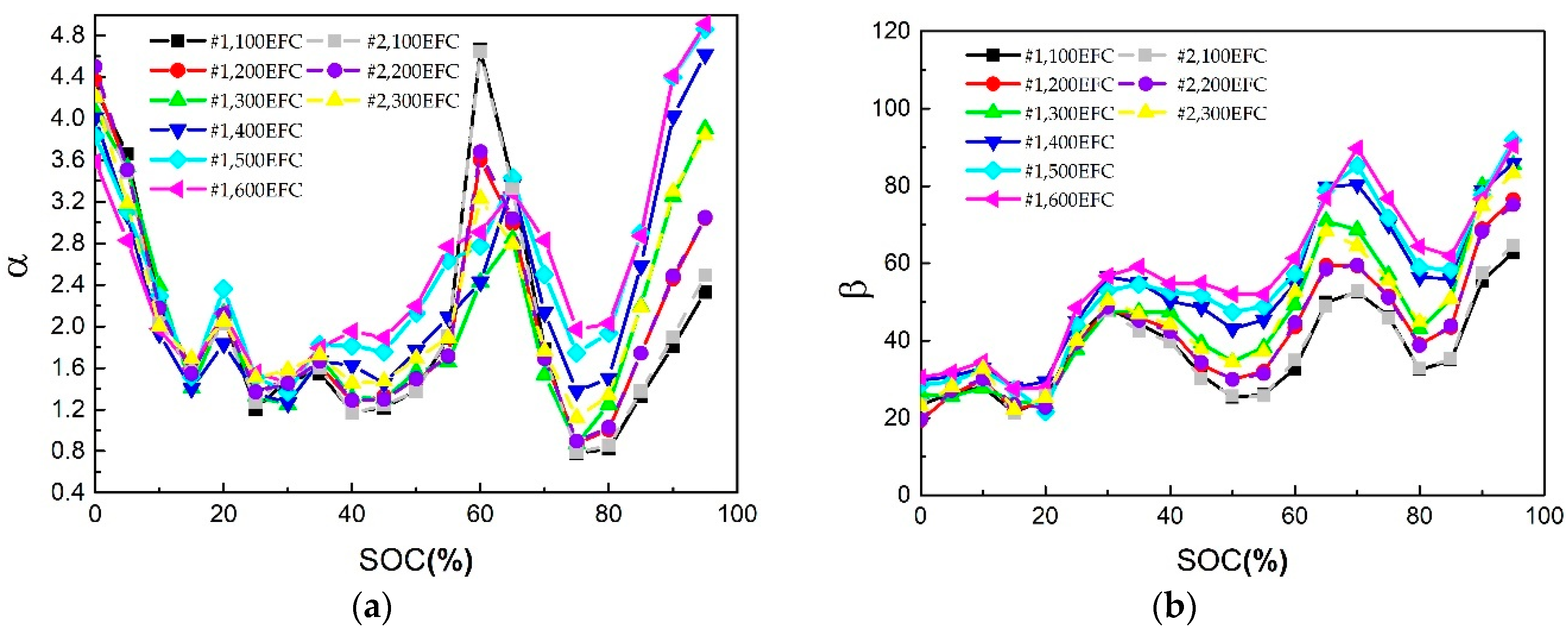

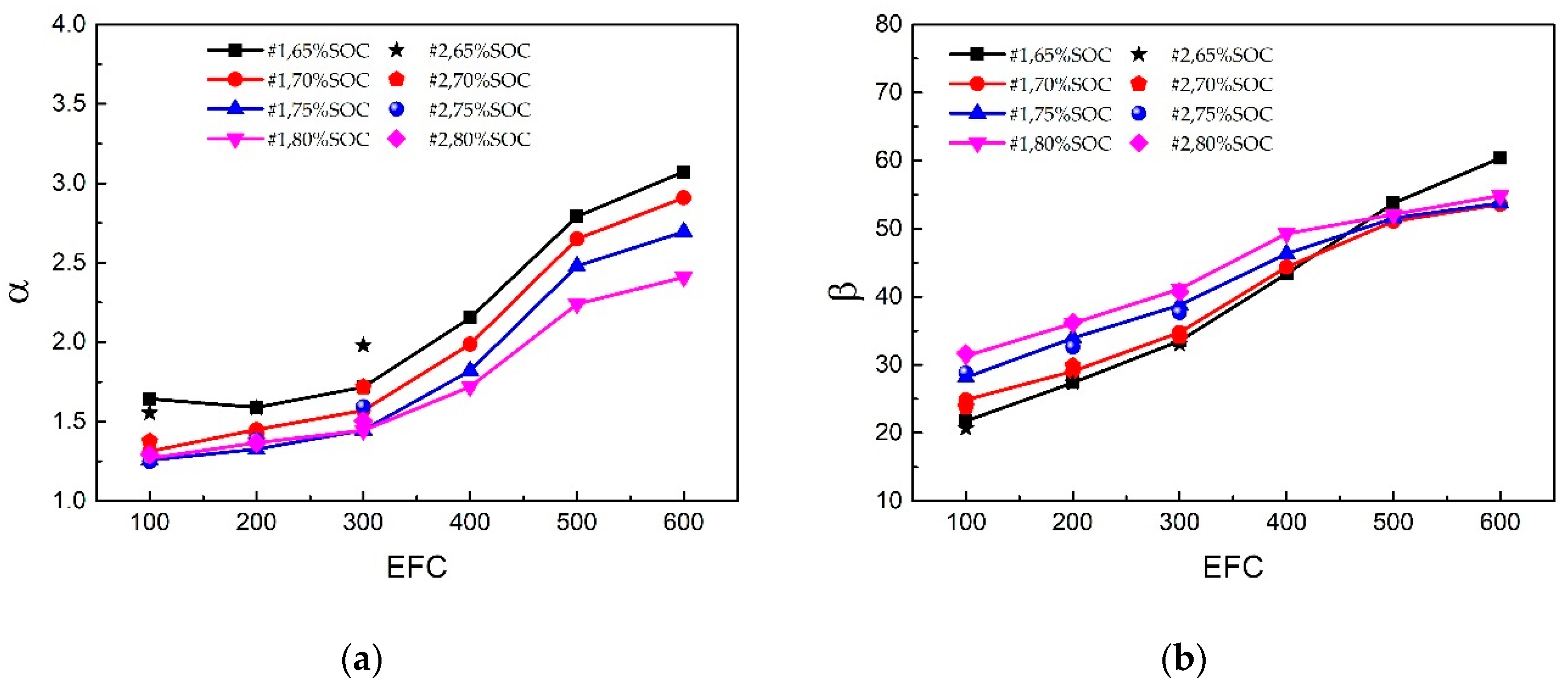

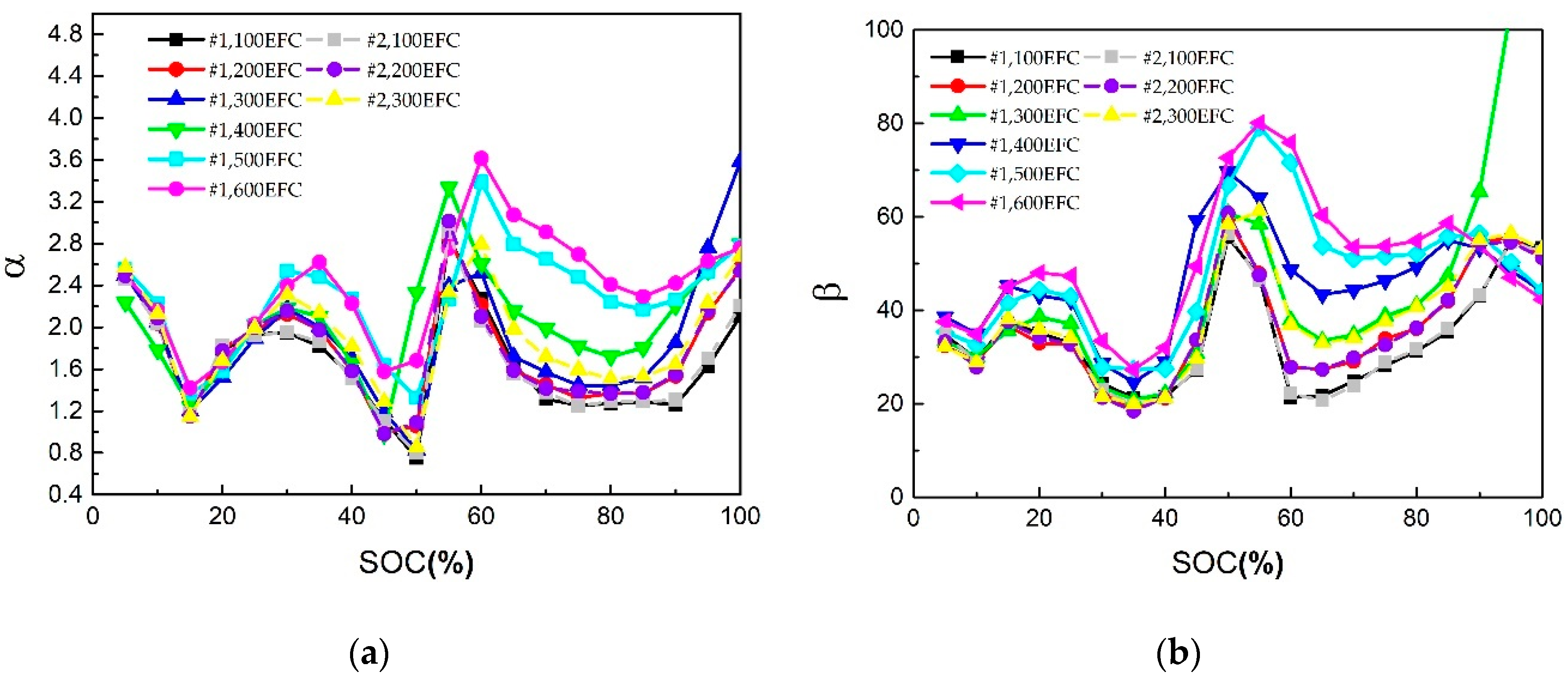

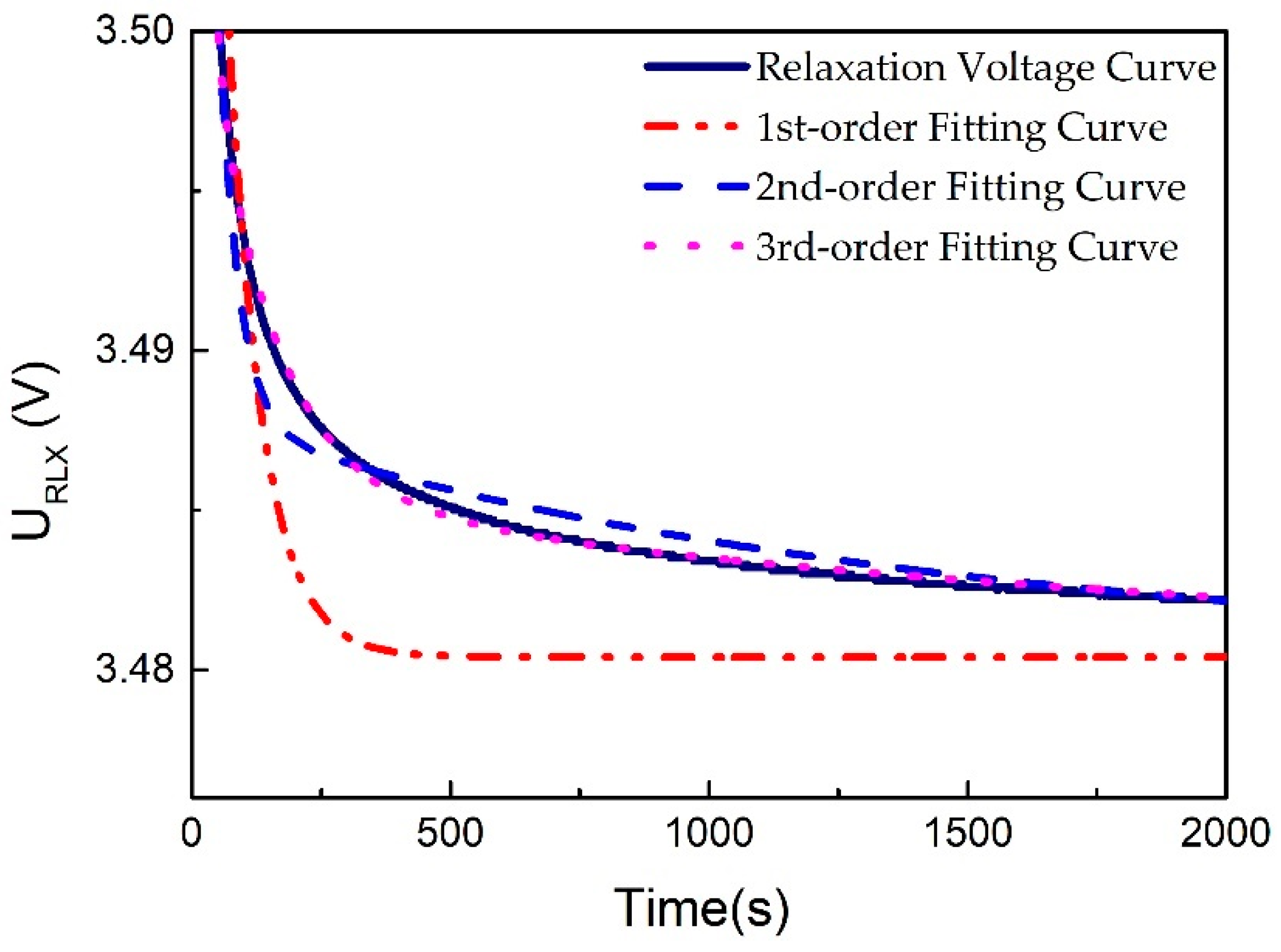

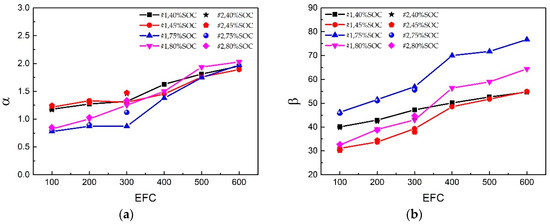

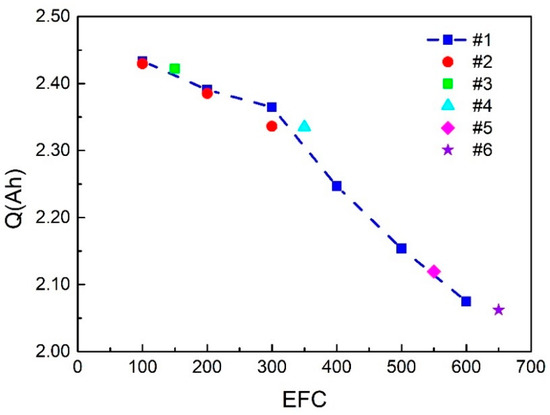

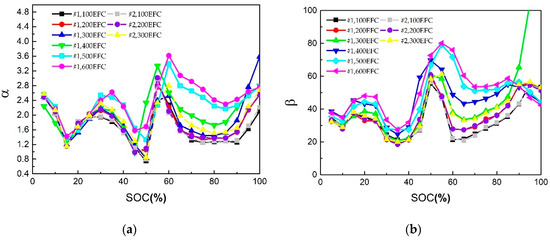

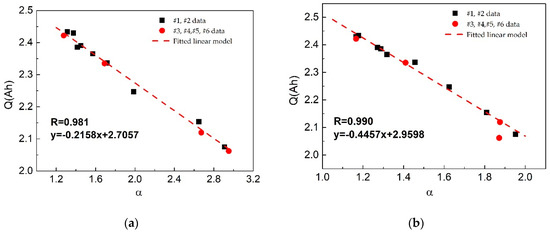

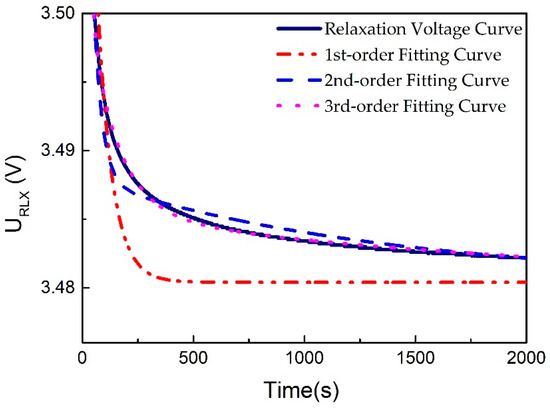

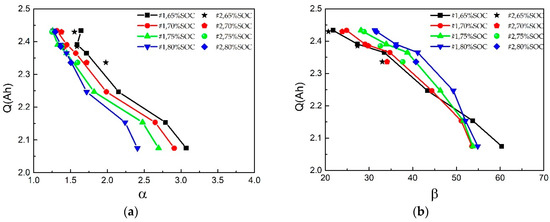

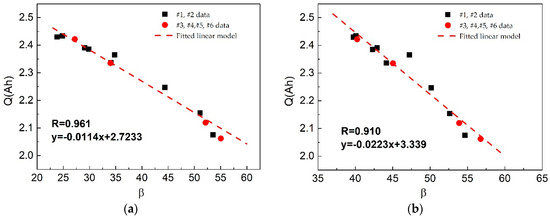

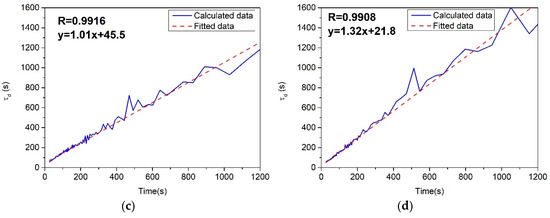

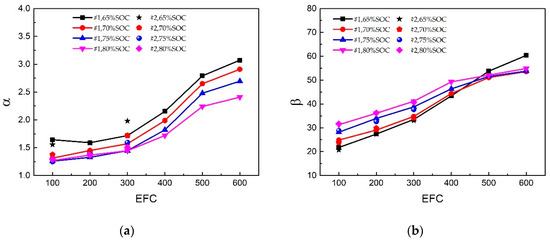

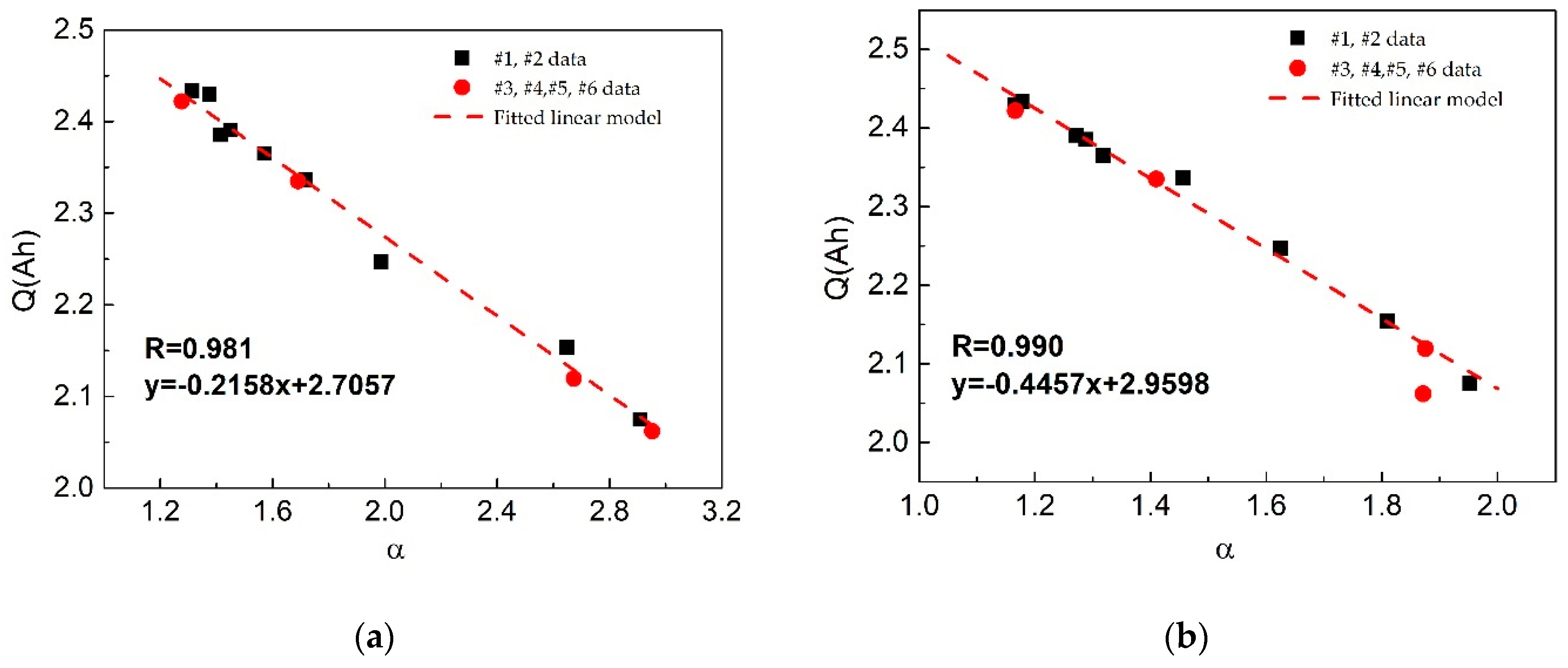

The state of health estimation for lithium-ion battery is a key function of the battery management system. Unlike the traditional state of health estimation methods under dynamic conditions, the relaxation process is studied and utilized to estimate the state of health in this research. A reasonable and accurate voltage relaxation model is established based on the linear relationship between time coefficient and open circuit time for a Li1(NiCoAl)1O2-Li1(NiCoMn)1O2/graphite battery. The accuracy and effectiveness of the model is verified under different states of charge and states of health. Through systematic experiments under different states of charge and states of health, it is found that the model parameters monotonically increase with the aging of the battery. Three different capacity estimation methods are proposed based on the relationship between model parameters and residual capacity, namely the α-based, β-based, and parameter–fusion methods. The validation of the three methods is verified with high accuracy. The results indicate that the capacity estimation error under most of the aging states is less than 1%. The largest error drops from 3% under the α-based method to 1.8% under the parameter–fusion method.
