Sensors 2008, 8(9), 5927-5941;

Influence of Fluid Cell Design on the Frequency Response of AFM Microcantilevers in Liquid Media

Center for Applied Research on Polymers and Composites (CREPEC), Department of Mechanical and Industrial Engineering, Concordia University, 1455 de Maisonneuve Blvd West, EV013.210, Montreal, Quebec, Canada
Author to whom correspondence should be addressed.
Received: 5 August 2008 / Revised: 10 September 2008 / Accepted: 12 September 2008 / Published: 25 September 2008
Full-Text   |   PDF [328 KB, uploaded 21 June 2014]

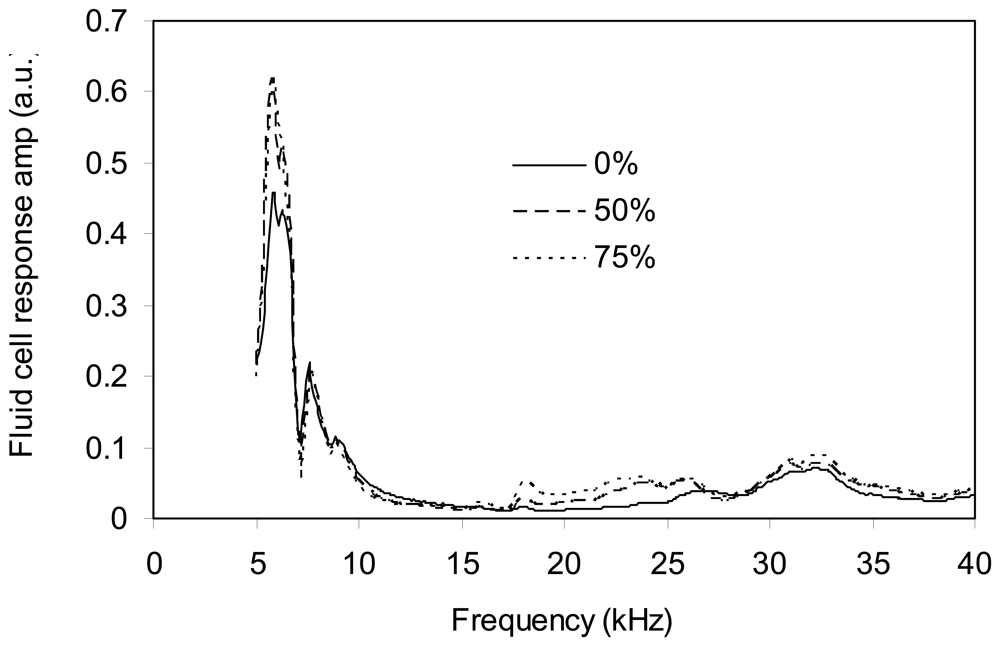

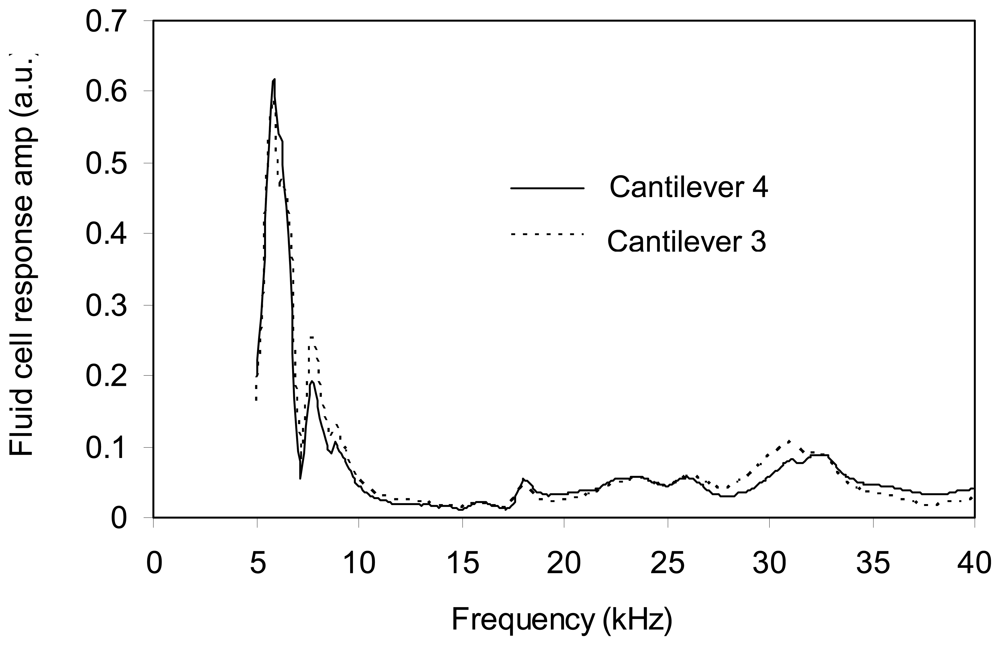

A study of the frequency response of AFM microcantilevers in liquid media contained in a commercial fluid cell is presented. Such systems exhibit complicated dynamics which are often not well described by available theories. Their dynamic behavior has a direct effect on the use of the AFM in dynamic mode while imaging in liquid or while extracting the rheological properties of the fluid. We explore the issues related to the design of the cantilever holder/fluid cell and propose an approach for evaluating, minimizing and recognizing the ultimate limitations of commercial cantilever holders. A technique for estimating the frequency response spectrum of the fluid cell itself from experimental data is presented. This spectrum can then be used to evaluate whether or not the fluid cell is suited for the desired purpose. View Full-Text
Keywords: AFM; microcantilever; frequency response; fluid cell; liquid AFM; microcantilever; frequency response; fluid cell; liquid
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Share & Cite This Article

MDPI and ACS Style

Motamedi, R.; Wood-Adams, P.M. Influence of Fluid Cell Design on the Frequency Response of AFM Microcantilevers in Liquid Media. Sensors 2008, 8, 5927-5941.
