19 February 2025

16 Pages

Analysis of the Influence of the Dynamic Characteristics of an Optical Bench on Optical Mechanical System Imaging Under Vibration Conditions

,
,
,
,
and
1
State Key Laboratory of Dynamic Optical Imaging and Measurement, Changchun Institute of Optics Fine Mechanics and Physics, Chinese Academy of Sciences, Changchun 130033, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
*
Author to whom correspondence should be addressed.
This article belongs to the Section Optical Sensors

Abstract

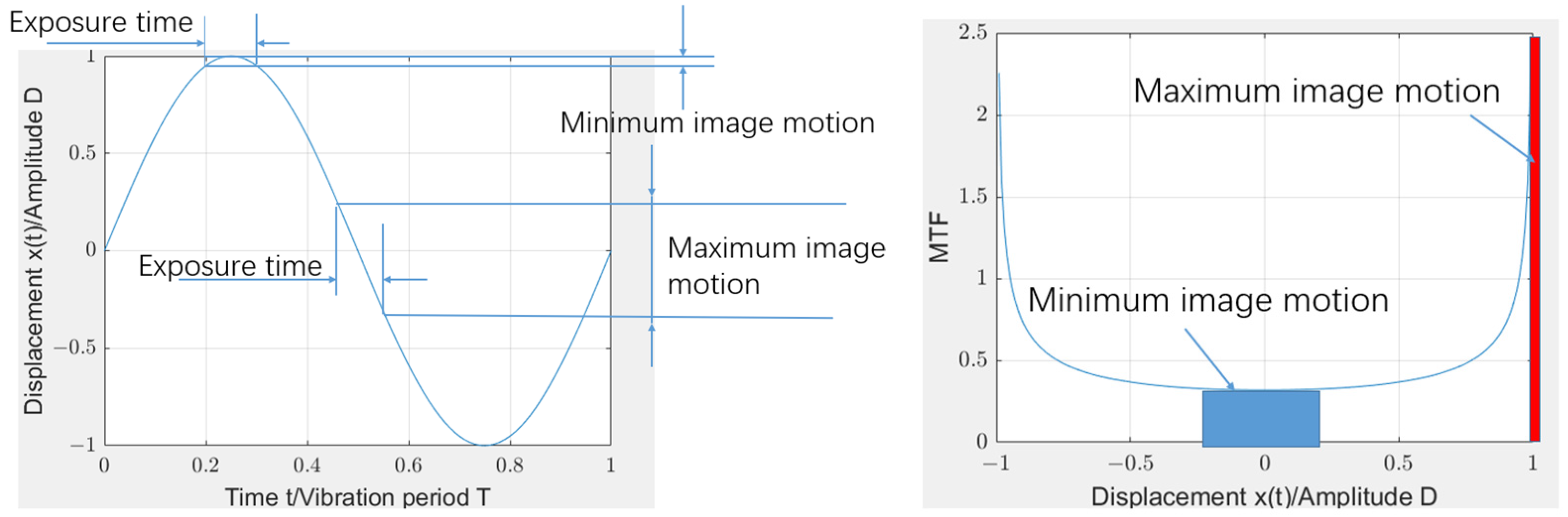

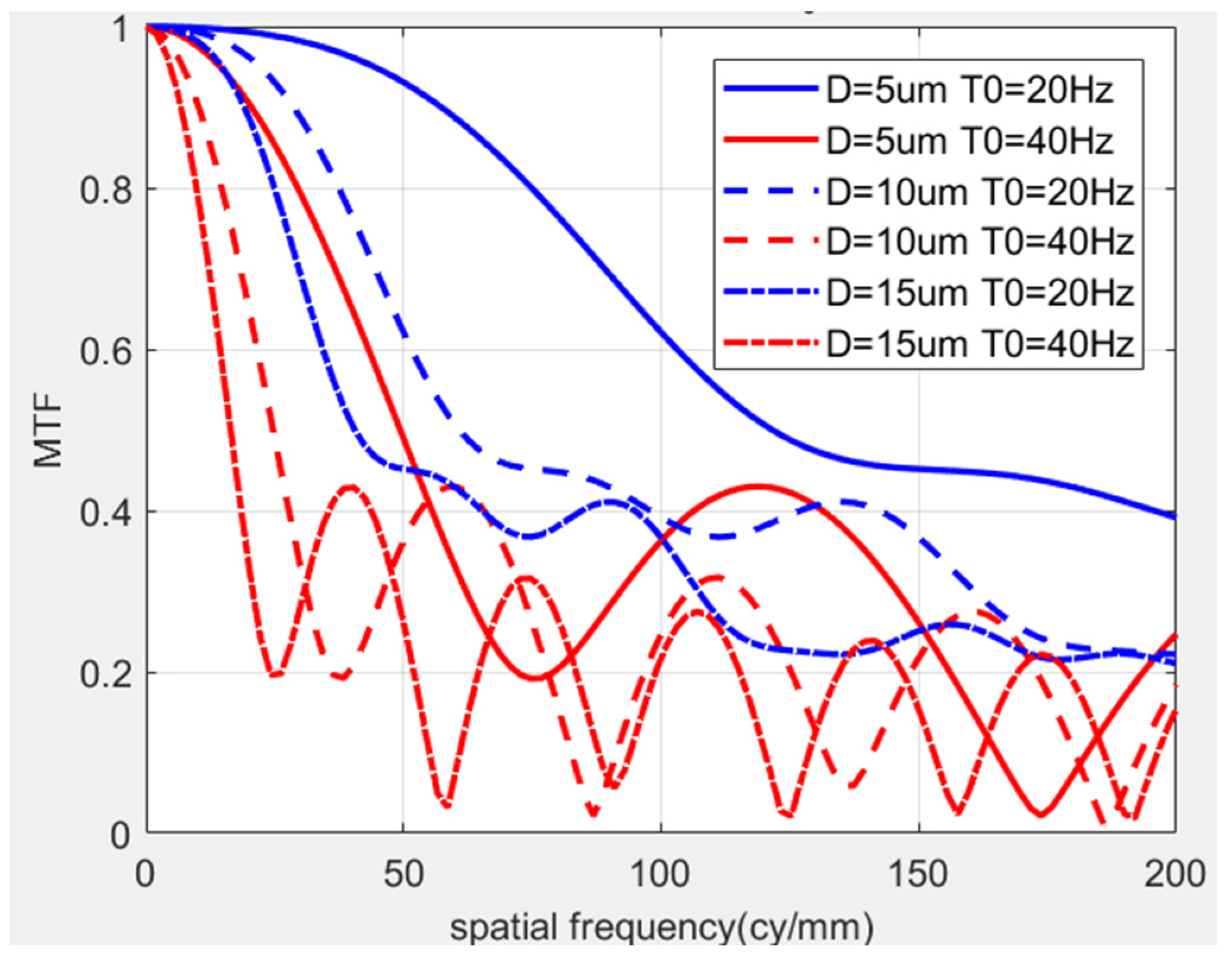

The imaging processes of optoelectronic devices are affected by vibration in the transportation platform, which can cause image shaking and blurring. Nowadays, devices often solve problems of image shaking and blurring using motion rotors. However, there is relatively little research on the influence of optical fixtures themselves under vibration conditions. This article analyzes the influence of sinusoidal vibrations on the MTF of an imaging process, pointing out the randomness of imaging effects under conditions of low-frequency vibration. To address the issue of low-frequency vibration effects, an analysis of the designs, and experimental verification, of a specific optical system mount were conducted to verify the influence of the mount’s own properties on imaging under random vibration conditions, providing a basis for the design of future optical mechanical systems.
