A Spin Valve-Based Rhombus-Shaped Micro-Object Implementing a Full Wheatstone Bridge

,
,
,
,
,
,
and
M.N. Mikheev lnstitute of Metal Physics, Ural Branch, Russian Academy of Sciences, S. Kovalevskoi Street 18, Ekaterinburg 620990, Russia
*
Author to whom correspondence should be addressed.
This article belongs to the Special Issue Challenges and Future Trends of Magnetic Sensors

Abstract

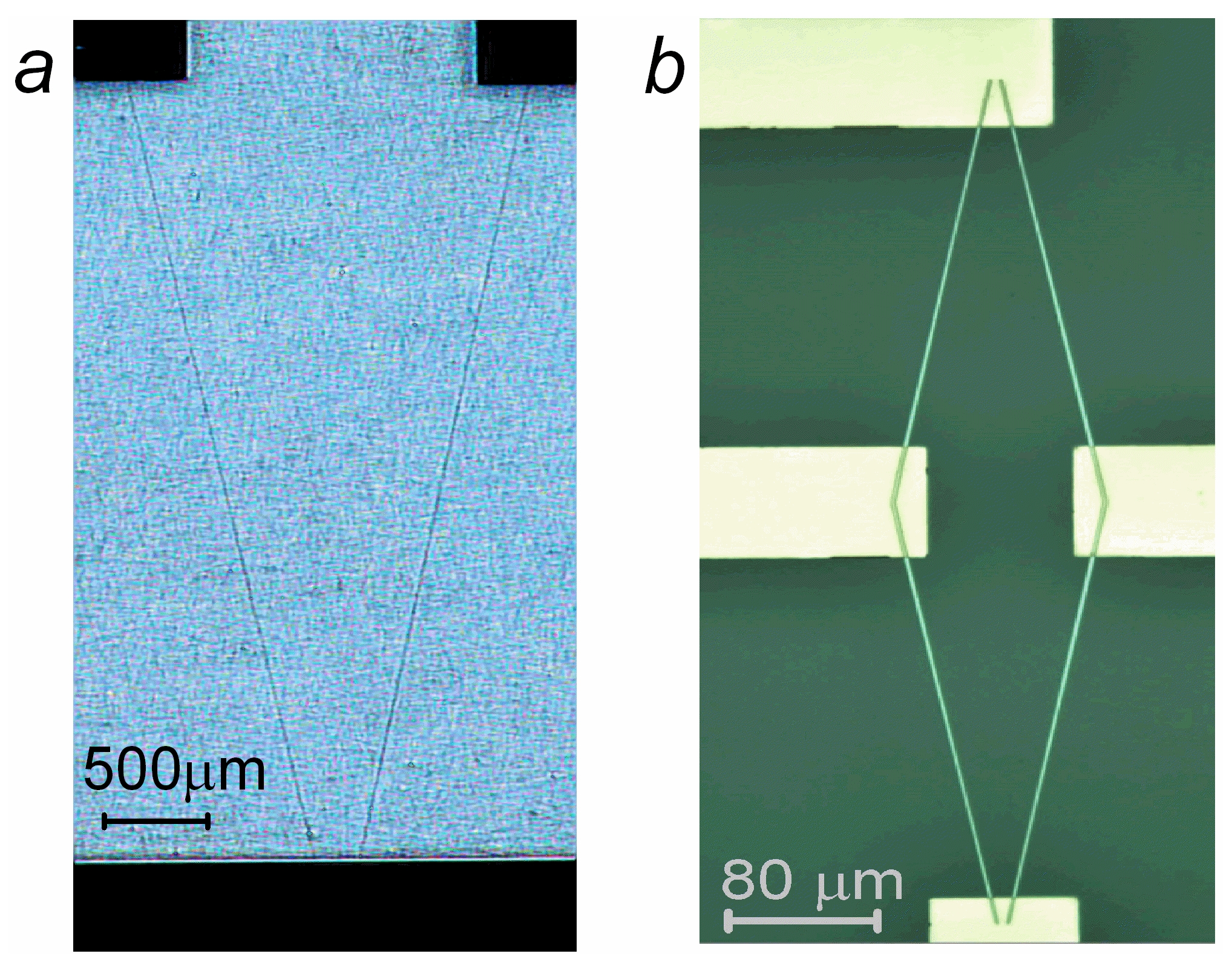

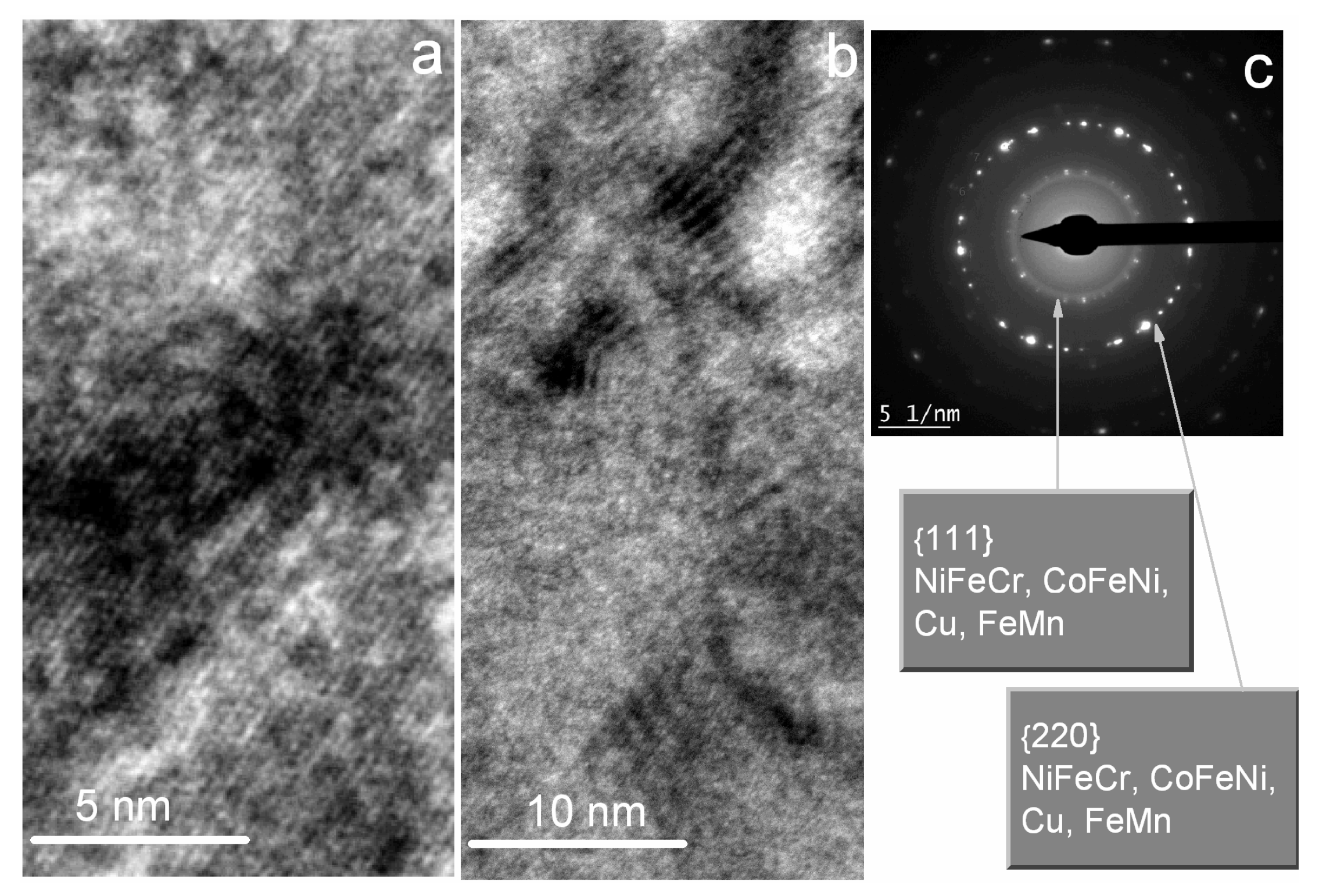

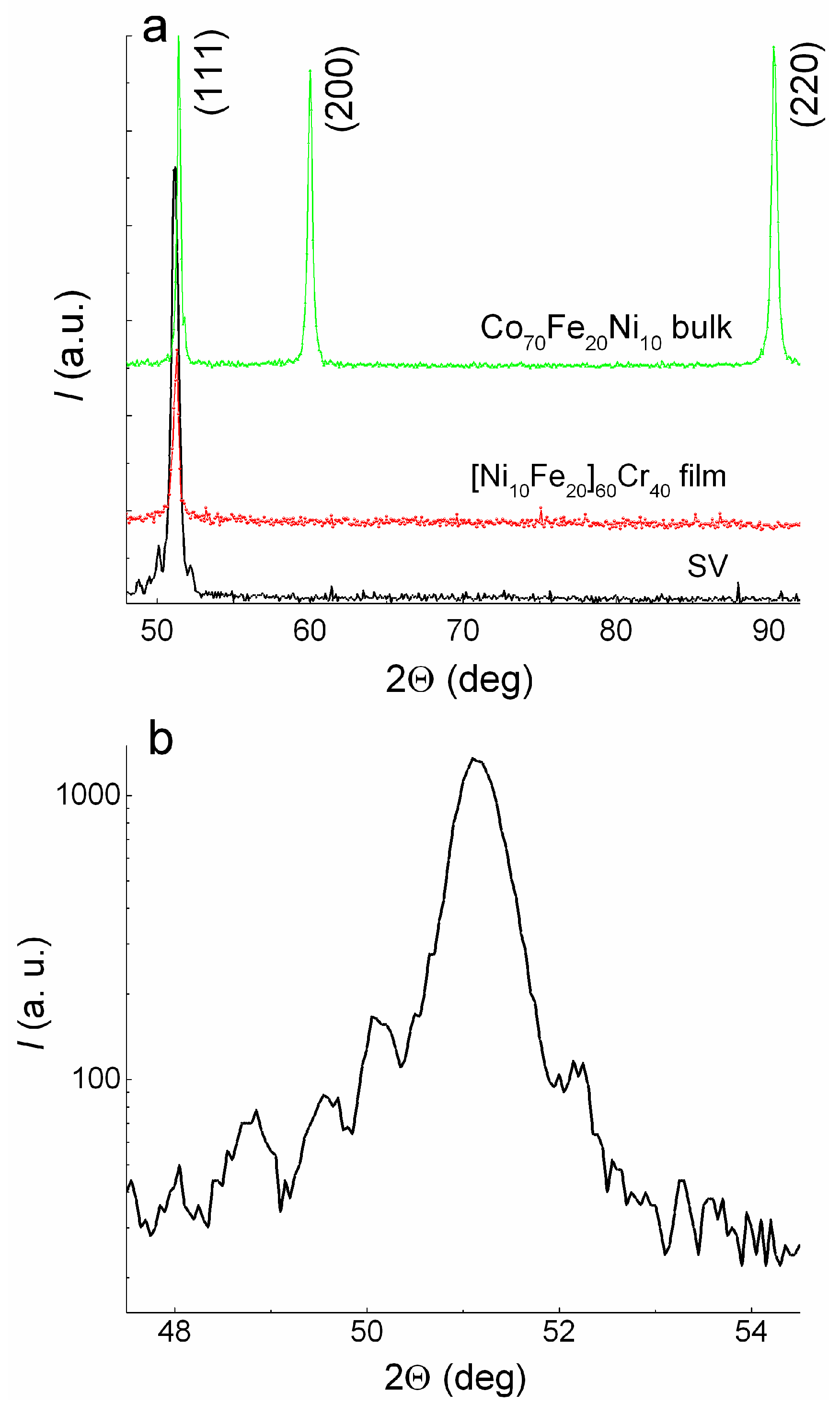

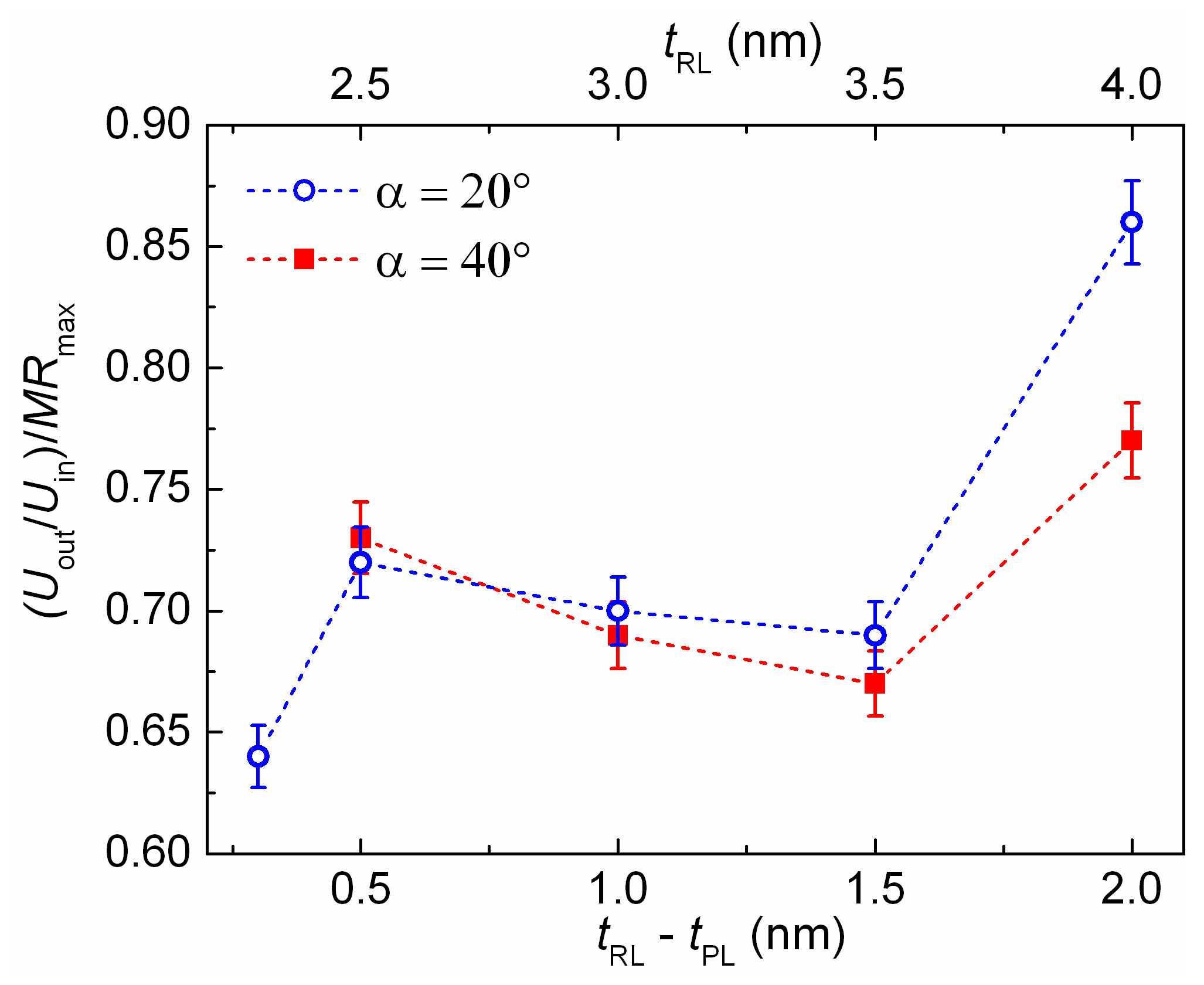

Spin valves with a synthetic antiferromagnet were fabricated via magnetron sputtering. It was shown that the fabricated spin valve layers had a perfect microstructure and smooth interfaces, and therefore, an RKKY interaction dominated in the coupling of the ferromagnetic layers separated by a copper spacer. Rhombus-shaped micro-objects were fabricated from a single spin valve film. The thermomagnetic treatment procedure was found to form unidirectional anisotropy in the micro-object such that the values of the exchange bias fields in the rhombus’ nonparallel sides were opposite in sign. For the CoFeNi/Ru/CoFeNi synthetic antiferromagnet, we determined the differences between the ferromagnetic layer thicknesses at which the thermomagnetic treatment formed the same exchange bias all over each rhombus’ side. We also fabricated a sensor element in which each side of the rhombus was the shoulder of a Wheatstone bridge. After the thermomagnetic treatment procedure, each shoulder worked as an active magnetosensitive element, enabling the device to operate as a full Wheatstone bridge. The sensor output exhibited a step shape, high sensitivity to field changes, and significant magnetic hysteresis. Such characteristics are suitable for switching devices.
