  • Systematic Review
  • Open Access

30 September 2024

22 Pages

Application of Sensor Technology in Wheelchair Sports for Real-Time Data Collection during Training and Competition and for Assessment of Performance Parameters: A Systematic Review and Future Directions

,
and
1
Chair of Biomechanics, Faculty of Engineering Science, University of Bayreuth, D-95440 Bayreuth, Germany
2
Division of Biomechatronics, Fraunhofer Institute for Manufacturing Engineering and Automation IPA, D-95447 Bayreuth, Germany
*
Author to whom correspondence should be addressed.
Sensors2024, 24(19), 6343;https://doi.org/10.3390/s24196343
This article belongs to the Section State-of-the-Art Sensors Technologies
Version Notes
Order Reprints

Abstract

This review reports on the use of sensors in wheelchair sports to monitor and analyze performance during match and training time. With rapid advancements in electronics and related technologies, understanding performance metrics in wheelchair sports is essential. We reviewed nine studies using various sensor types, including electric motors, inertial measurement units, miniaturized data loggers with magnetic reed switches, and smartphones with inbuilt accelerometers and gyroscopes, operating at frequencies from 8 Hz to 1200 Hz. These studies measured parameters such as angular and translational velocities, distance, number of starts/pushes, and other performance indicators in sports such as basketball, rugby, tennis, and racing. Despite differences in sport types and methodologies, most studies found sensor-derived data effective for assessment of performance. Future developments and research in this field should focus on multi-sensor systems that could provide real-time match analysis and deeper insights into performance metrics. Overall, sensor technologies show significant potential for improving wheelchair sport performance diagnostics, contributing to better athlete training and future wheelchair design, and enhancing competitive outcomes. This review emphasizes the need for continued innovation and standardization in applying sensor technologies in wheelchair sports.

1. Introduction

The popularity of wheelchair sports has significantly increased in recent years, with sports such as wheelchair basketball, racing, rugby, and tennis gaining traction and audience interest [1]. Recent technological advances, specifically in motion and tracking sensors such as inertial measurement units (IMUs), have greatly improved sport performance analysis. These devices, which incorporate triaxial microsensors such as gyroscopes, accelerometers, and magnetometers, provide extensive opportunities for biomechanical studies in sports [2]. Recent advancements in material and manufacturing technologies have also significantly impacted wheelchair optimization and customization to enhance sport performance. Manufacturers now design these products using anthropometric data from individual athlete users, ensuring a precise and personalized fit [3,4].
While numerous studies [5,6,7,8,9,10,11,12,13,14] in wheelchair sports have investigated controlled-environment protocols to measure performance parameters using various methods, such as ergometer and treadmill [5,14], selected and staged training activities [10,11,13], and force plate technologies [5], the literature on measuring these parameters during real standard training and competition is relatively limited. Assessing performance during simulated and actual match play is crucial for several reasons. Real and simulated match conditions provide an authentic setting where athletes face the challenges and pressures of competition, allowing for a more accurate assessment of performance under dynamic and unpredictable circumstances. This environment enables researchers and coaches to analyze and reveal pragmatic and critical metrics related to velocity, agility, and tactical effectiveness, essential for understanding athlete performance in real-time training and match settings [15]. Although there are technical challenges in implementing and analyzing real-time training and match data, these provide researchers and coaches with a wider array of kinematic performance metrics related to athletes’ activities during games. Such metrics include the number of passes, blocks, turnovers, steals, and scores, offering more comprehensive insights than assessments conducted in controlled environments. Therefore, focusing on training and match time performance analysis with sensor technology not only enhances the validity of the research findings but also holds the potential to directly contribute to improving strategy development and overall competitiveness in adaptive sports.
Other studies conducted during real training and match time have utilized the integration of inertial measurement units (IMUs), electric motors/generators, and miniaturized data loggers (MDLs) with magnetic reed switches to provide detailed kinematic data for assessing various aspects of wheelchair sport performance [16,17,18,19,20,21,22,23,24]. Van der Slikke et al. [17] demonstrated the utility of three IMUs in capturing mobility performance in wheelchair basketball, highlighting their ability to measure and display six key kinematic outcomes that accurately describe wheelchair mobility performance in match play. Another study by Chua et al. [22] on activity identification and classification in wheelchair rugby used an accelerometer attached to the frame of a rugby wheelchair and fractal dimension analysis methods to produce a two-dimensional mapping that identifies five different types of activities during a match: no activities, low-level activities, high-speed coasting, high-speed pushing, and collisions.
Monitoring the activities and performance metrics of wheelchairs and athletes during real-time training and match competitions provides deep insights into game dynamics and athlete exertions [15]. This systematic review aims to provide an updated framework of the current research on the use of sensor technology for performance analysis in wheelchair sports during training and match time. Additionally, it explores future advancements and applications, offering insights into how emerging technologies can impact performance analysis in this field.

2. Methods

2.1. Search Strategy

A literature review was performed to identify the most relevant quantitative and qualitative studies following the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines [25]. The electronic databases PubMed, Google Scholar, Elsevier (ScienceDirect), MDPI, Springer Nature, Wiley, ISBS Conference Proceedings Archive, and Taylor and Francis were queried for articles published until 31 May 2024. The search terms employed included (wheelchair) AND (IMU OR inertial measurement unit OR gyroscope OR acceleration).

2.2. Study Selection Strategy

Following the detection and removal of duplicate manuscripts, three authors (Y.W., L.B. and F.K.F) independently screened the titles, abstracts, and keywords of the records identified through the database search. If a record appeared relevant, or if its relevance was not immediately clear, the full text of the article was saved for further consideration in this review.
Articles were included if they met the following criteria:
(1)
Published in English.
(2)
Full original English peer-reviewed research articles.
(3)
Studies focusing on the use of motion and tracking sensors to measure performance parameters in wheelchair sports during standard training and/or match time.
(4)
Protocols involving experienced athlete participants.
We defined the following exclusion criteria to simplify the study selection and classification of the retrieved papers:
(1)
Studies that did not include subjects with disabilities.
(2)
Protocols involving staged and controlled drills for pure research purposes.
(3)
Protocols involving treadmill or ergometer drills.
(4)
Studies focusing on robot-assisted movement.

2.3. Data Extraction

Three authors (Y.W., L.B. and F.K.F) analyzed the articles, extracting the following information into three key tables: Table 1 details the study characteristics, including the aim, type of sport, participant experience, and participant characteristics. Table 2 outlines the sensor type and specifications, sensor location, assessment protocol, and key findings. Table 3 includes the sensor data type (e.g., acceleration, gyration) and calculated performance parameters.

2.4. Methodological Quality

This review consolidates studies that utilize sensors in wheelchair sports during training or matches. The quality of each included article was evaluated using a custom quality assessment worksheet (Table 4). The reviews by Benson et al. [26] and Campos et al. [27] served as the basis for developing a quality assessment checklist. This quality assessment comprises 13 items distributed across four subscales: reporting, external validity, internal validity (bias), and power analysis. Two authors (Y.W. and L.B.) independently evaluated the methodological quality of each study included in this systematic review.
Table 1. Study characteristics.
Table 2. Study methods and key findings.
Table 3. Study parameters.
Table 4. Quality assessment questions.

3. Results

3.1. Search Results

The systematic review identified nine manuscripts [16,17,18,19,20,21,22,23,24] that utilized various motion sensor methodologies to measure different wheelchair performance parameters during training and match time. An initial literature search of databases and publishers yielded a total of 393 potential articles. After removing 211 duplicate references and performing a title screening, 182 citations remained for abstract screening. Of these, 107 citations were rejected for not meeting the inclusion criteria or for meeting the exclusion criteria, leaving 75 citations for full-text eligibility analysis. Finally, a total of nine publications were included in this systematic review (Figure 1).

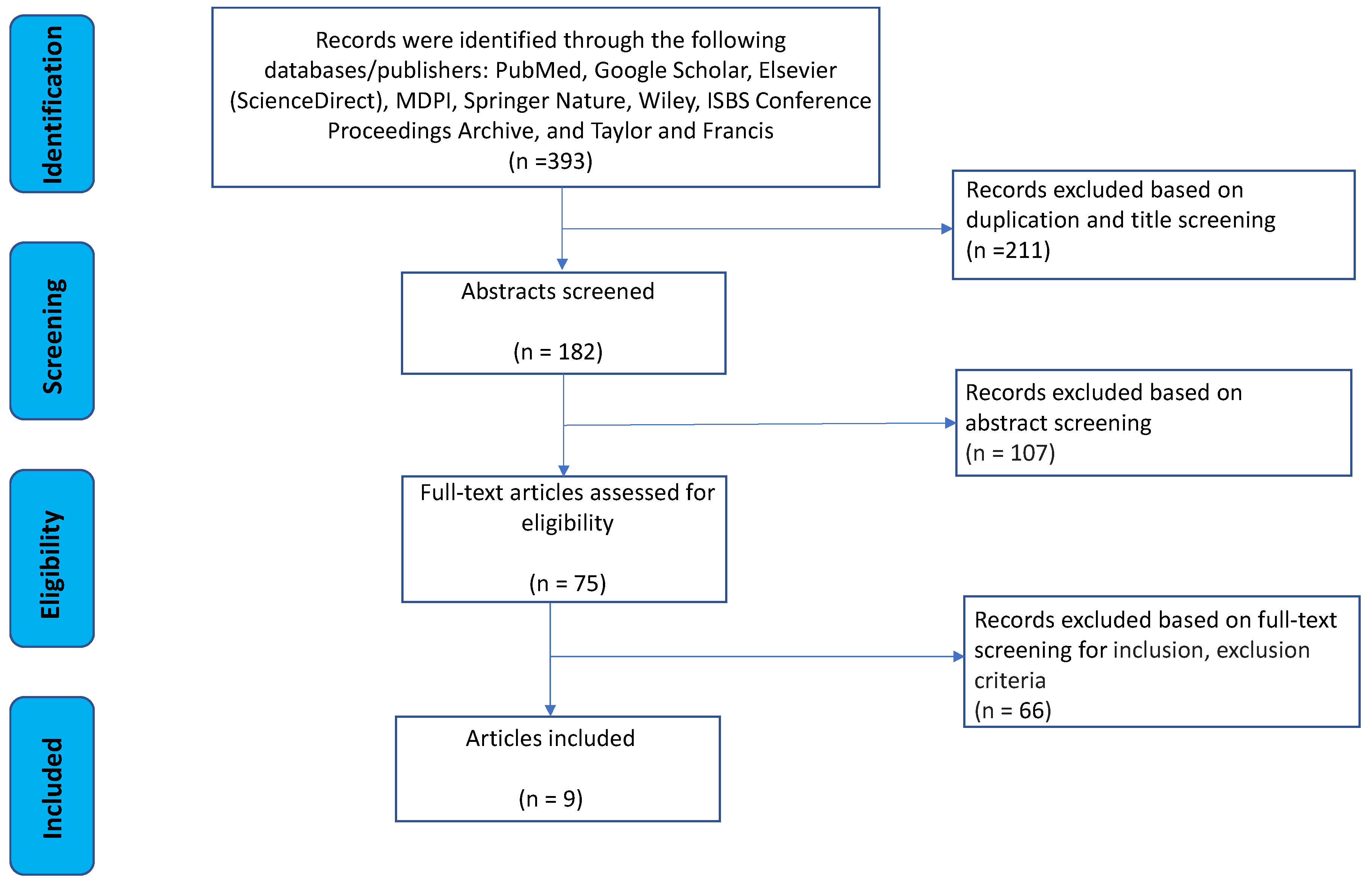

Figure 1. The strategy of the literature review process.

3.2. Study Characteristics

Table 1 summarizes the studies on performance diagnostics in wheelchair sports, highlighting diverse aims, sport types, and participant details. All the studies aimed to obtain a variety of performance parameters for wheelchair sports during match time. One study [16] developed a cost-effective system for monitoring wheelchair velocity during racing, while another created a display of key mobility features for basketball [17]. Research in wheelchair tennis [18] identified key IMU-based mobility components across different player groups. A study in wheelchair rugby [19] compared various tracking systems to measure mobility performance. Additional studies focused on comparing activity profiles in wheelchair basketball and rugby [20], evaluating wearable devices across multiple sports [21] and developing fractal dimension analysis methods for activity identification [22]. Two manuscripts [23,24] examined speed measurement techniques in racing and collected performance data in basketball.
The research covered a variety of wheelchair sports, including wheelchair racing [16,23], basketball [17,20,21,24], tennis [18,21], and rugby [19,20,21,22]. The participants’ experience varied widely, enhancing the generalizability of the findings. For instance, one study included a T53 multiple-medal-winning athlete at international competitions and a T52 athlete with ASEAN Para Games gold medals [16]. Another study involved national and international basketball players [17]). Tennis participants holding ITF rankings [18] were included in one study, while elite male rugby players were featured in another study [19]. The studies on wearable performance tools [20,21] included military veterans and elite athletes across multiple sports (basketball, rugby, and tennis). One study included high-pointer to low-pointer rugby athletes [22], while Paralympic-level racing athletes were examined by another study [23]. National-level basketball players participated in specific trials [24]. The total population sample sizes ranged from 2 to 76, encompassing adult and youth athlete players.

3.3. Study Methods and Main Findings

Table 2 provides a detailed summary of the wheelchair sensor type and specifications, location, assessment protocol, and main findings of the studies. The studies employed various sensor technologies, including an electric motor (ACC337), used as a generator at 1200 Hz [16], IMUs from X-IO technologies at 100 Hz or unspecified frequencies [17,18,21], a miniaturized data logger with magnetic reed switches at 8 Hz [19], MDLs with unspecified sampling rates [20], IMUs from X-IO technologies and Shimmer3 [21], an IMU (Apple Inc, model A1367) at 60 Hz [22], smartphones with inbuilt gyroscopes and an electric motor [23], and magnetic reed switches at 1000 Hz [24]. The sensors were attached to various parts of the wheelchair, including the frame [16,22], rear wheels axis and rear frame bar [17,19,21], axle of main wheels [19], wheel spokes [20], or rear wheels only [23,24]. The assessment protocols varied across the studies. Some studies measured kinematics during competitions and friendly matches [17,21] or during specific events like tennis tournaments [18] and simulated rugby matches [19]. Other studies recorded data during training sessions, races, and pre-match activities, such as sprints, training races, and short matches [16,20,22,23,24].
The main findings highlighted key aspects of wheelchair sport performance. Fuss and Ow [16] found that a T53 athlete reached a maximum velocity of 8 m/s, produced six times the peak push power, and generated 2.7 times more energy than a T52 athlete. Van der Slikke et al. and Rietveld et al. [17,18] identified key kinematic outcomes/components that describe wheelchair mobility performance. Another study [19] found no significant differences in mean speed or distance between a MDL and an indoor tracking system, but the MDL underestimated peak speeds. Sporner et al. [20] found significant differences in mobility patterns between basketball and rugby, with basketball showing higher average speeds and distances. Van der Slikke et al. [21] found that basketball athletes had the highest speeds, while rugby athletes had the lowest, highlighting the importance of wearable technology. Chua et al. [22] identified five distinct activities using the translational acceleration signals processed with Rényi entropy and Hausdorff dimension. Fuss [23] provided feedback on weak points and performance issues using speed profiles. Coutts [24] found that 64% of the match time was spent in propulsive action and 36% in braking, with projections for a complete game indicating travel of about 5 km at an average speed of 2 m/s.

3.4. Calculated Performance Parameters

Table 3 shows the sensor kinematic data and key calculated parameters reported by all the selected research manuscripts. The studies extracted various sensor kinematic data types from sensors placed on the wheels, focusing on measuring wheel rotation speed [17,18,19,20,21,23,24] (angular velocity) and translational acceleration [17,21]. The sensors were also located on the wheelchair frame bar, calculating the velocity from the back-EMF (electromotive force) generated by an electric motor [16,23], frame rotation [17,18,21] (angular velocity), and frame acceleration [17,21,22,23].
Fuss and Ow [16] calculated six parameters, including translational velocity and acceleration, power, and related wheelchair forces (inertial, drag, and friction). Similarly, three studies, conducted by Van der Slikke et al. [17,21] and Rietveld et al. [18], calculated six parameters, including angular and translational velocities and accelerations in wheelchair tennis, rugby, and basketball sports. Mason et al. [19] and Fuss [23] recorded several key parameters among distance, speed, stroke frequency, and push and recovery time. Sporner et al. [20] measured four parameters, including average speed and start/stop times throughout the match. Chua et al. [22] classified five activity types related to coasting, pushing, and collusion using acceleration data. Coutts [24] measured 12 parameters, including speed, force, power, and distance, over a game’s duration.

3.5. Results of the Methodological Quality Assessment

Table 4 summarizes the quality assessment of the studies on performance diagnostics in wheelchair sports, evaluating aspects of study design and reporting. All studies [16,17,18,19,20,21,22,23,24] clearly described their hypotheses, aims, or objectives, as well as their Introduction or Methods (Q1, Q2). Participant characteristics, including age and sex, were generally well described, except in four studies [21,22,23,24], which lacked mean age and gender information. The sensor characteristics were clearly described in most of the studies, though the studies by Van der Slikke et al. [17], Sporner et al. [20], Van der Slikke et al. [21], and Fuss [23] did not specify data collection sampling rate frequencies (Q4). Participant selection methods were appropriate and well described across all studies (Q5). The main findings were presented in all studies (Q6), and estimates of random variability in the data for the main outcomes were provided (Q7). The participants were representative of the populations from which they were recruited, and the settings and conditions were typical for these populations (Q8, Q9). The statistical tests used to assess the main outcomes were deemed appropriate in all studies (Q10), and the main outcome measures used were considered accurate, valid, and reliable (Q11). However, none of the studies that used an IMU device reported test–retest reliability or minimum detectable change values in the sensors (Q12), or provided a sample size justification, power description, or variance and effect estimates (Q13). This assessment highlights the strengths and areas for improvement in the design and reporting of performance diagnostics studies in wheelchair sports, emphasizing the need for comprehensive sensor data reporting and justification of sample sizes to enhance study robustness.

4. Discussion

Real-time data collected during wheelchair sport training and competitions provide valuable insights into the game’s practical dynamics and athletes’ performance parameters [15]. While multiple wheelchair studies have investigated controlled-environment protocols during standardized training regimes using treadmills and force plates, studies on real competition and training analyses are relatively limited. This systematic review reports an updated framework of the current research on the use of sensor technology for performance analysis in wheelchair sports during match and training time. This review shows how differently wheelchair sports have used sensor technologies, placed on the wheelchair, to calculate a variety of performance parameters in actual competition and training environments.
Our results show that the use of IMUs, electric motors/generators, magnetic reed switches, and MDLs is promising for quantifying athletes’ wheelchair characteristics during wheelchair sport competitions and training. The results identified nine studies [16,17,18,19,20,21,22,23,24] published between 1992 and 2024. This review covered a variety of wheelchair sports, including racing [16,23], basketball [17,20,21,24], tennis [18,21] and rugby [19,20,21,22]. Participants’ characteristics, such as age and experience level, varied from talented youth tennis players [18] to international gold medal-level professional athletes [16], indicating the generalizability of the findings. Although the studies used different sensor technologies, IMUs were the most common device for collecting kinematic data, including stand-alone IMUs or built-into-smartphone sensors. For example, Rietveld et al. [18] collected wheels and wheelchair rotation data in wheelchair tennis using three IMU sensors located on the hub of each wheel and the frame bar of the wheelchair. The study outcome described six key outcome variables that effectively show the movement capabilities of wheelchair tennis players during a match.
Table 5 shows both the benefits and challenges of different wheelchair sensor technologies for monitoring performance. Many sensors are lightweight, easy to install, and can capture motion data in real-time, such as angular velocity and translational acceleration. However, common limitations include the need for accurate data time synchronization when using multiple devices and less accuracy at higher speeds or with low-resolution sensors. Calibration and time needed for processing the data are also frequent issues that affect how reliable and efficient the data collection is.
The results also show that sensors were placed at different locations, including on one or two wheels and the frame bar of the wheelchair, to record several kinematic sensor data, such as wheel and wheelchair rotation (angular velocity), wheel (angular) acceleration, and wheelchair translational velocity and acceleration. For example, Van der Slikke et al. [21] placed three sensors on two rear wheel axes and on the rear frame bar to evaluate the effectiveness of IMUs for monitoring the wheelchair mobility performance of wheelchair tennis, rugby, and basketball athletes during match play.
From these sensor kinematic data, the studies calculated performance parameters such as match-time translational and/or angular wheelchair velocity summary data and other performance parameters, for example, the total distance, as well as wheelchair propulsion acceleration, force, power, and number of stops/starts, during the period of the match. Figure 2 provides a summary of the number of sensor kinematic data, e.g., wheel rotation (angular velocity) or wheelchair acceleration, for their respective calculated parameters and the total number of parameters per study, highlighting that studies predominantly focused between one and four sensor kinematic data types to calculate 3–12 key parameters for their respective analysis. For example, Coutts [24] calculated 12 parameters, including speed, force, power, and distance, collected from a wheel magnetic reed switch (180 deg resolution; 1000 Hz) in wheelchair basketball players during game conditions. Their study concluded that during the wheelchair basketball match, it was estimated that 64% of the time was spent in propulsive action and 36% in braking activity and projections for a complete 40 min game, which indicated that subjects would travel about 5 km at an average velocity of 2 m/s.

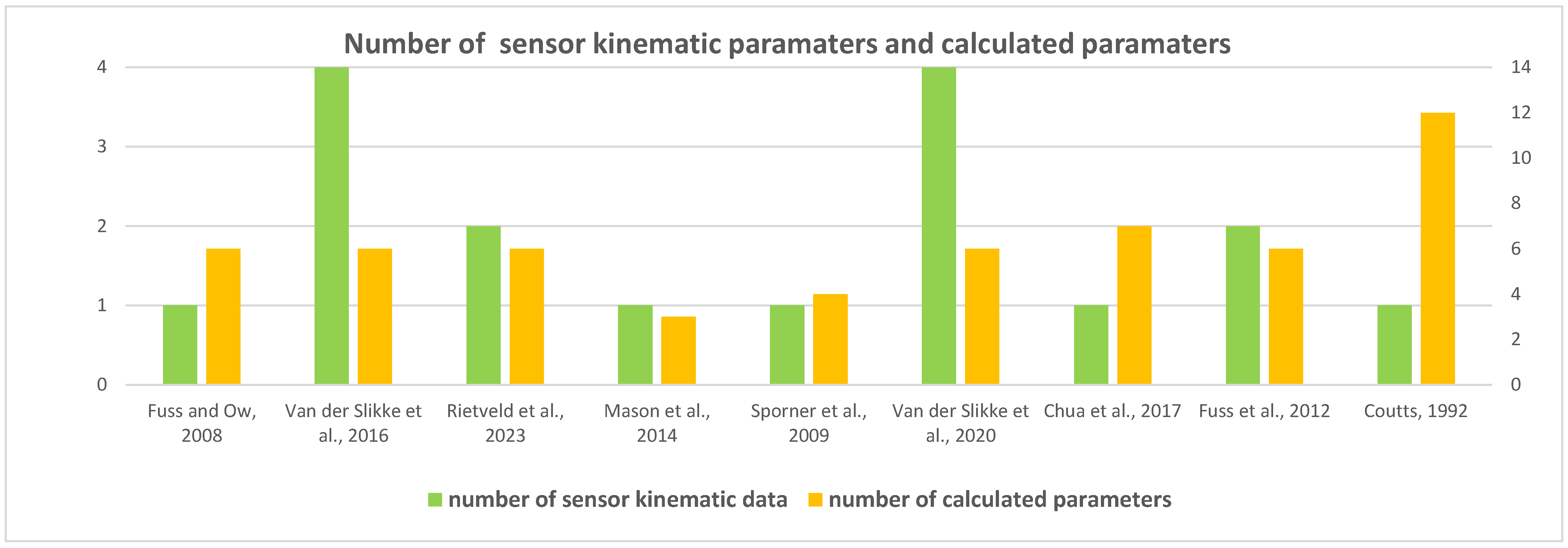

Figure 2. Summary of sensor kinematic data and calculated parameter number from selected studies [16,17,18,19,20,21,22,23,24].
Table 5. Summary description of sensor system technologies used to monitor performance.
Some of the limitations in this review are related to significant differences in sport types, athletes’ levels and ages, and match and training duration. Also, there was poor reporting on test–retest reliability and minimum detectable change values in studies that used IMU devices, and none of the studies provided sample size justification, power description, or variance and effect estimates.

5. Future Directions

The shift from pure research to the general practical application of sensors in wheelchair sports is long overdue. The focus of this systematic review is to provide the current state of the art of practical sensor applications in training and match settings. While pure research in this area aims to explore data related to staged drills (e.g., [5,28,29,30,31]), the practical application of sensors in training sessions and competitions provides processed data to coaches and high-performance managers for decision-making. The latter serves for comparing athletes and their day-to-day performance fluctuations, player selections for national teams, and player assessment and classification [22]. Despite the demand for practical applications of sensors, the inherent research is unlimited, and focuses, e.g., on the discovery of new performance parameters, improvement in signal analysis methods (incl. artificial intelligence), match data analytics, big data management, visualization of performance parameters and statistics, and effective condensing of the most essential information for the benefit of the athletes and coaches. However, to make the best use of sensor technology in such applications within wheelchair sports, several practical challenges still need to be addressed. Future research should focus on the following areas:
  • To ensure accurate data when using sensors like IMUs on both wheelchair wheels or multiple wheelchairs, precise time synchronization is critical, especially since the sensors are not physically connected (e.g., using SD cards or wireless data transmission). Millisecond-level accuracy in syncing timestamps across all sensors and tracking systems is needed to keep the recorded data reliable and correct.
  • Improving IMUs to handle the physical demands, such as high impacts and collisions, of wheelchairs ensures they are durable and reliable during intense match activity. Furthermore, making these devices easy to set up on wheelchairs and to use in both training and competitions will improve their practicality for coaches and athletes. Furthermore, misalignments of sensors, especially IMUs, should be avoided or at least corrected by calibration [32]. These misalignments can occur when the IMUs are mounted on the spokes, which are oriented at an angle to the plane of the wheel.
  • Future research should focus on developing standardized protocols for using sensors in wheelchair sports. These standardized protocols research should continue the work of Camomilla et al. [33], who reviewed the use of wearable sensors in sport performance evaluation and highlighted their potential when supported by standardized protocols. Rupf [34] demonstrated that a single IMU can reliably measure wheelchair kinematics in elite athletes, suggesting that standardization could enhance data accuracy. In addition, Li et al. [35] reinforced the need for consistent guidelines to improve athletic performance and prevent injuries. By adopting these protocols, wearable sensors in wheelchair sports can be used more effectively for performance evaluation and injury prevention.
  • Three-dimensional visualization and augmented reality (AR) technologies, combined with IMU data, can improve how athletes and coaches work with performance, movement, and game strategies. IMUs can give real-time motion insights, and with AR, athletes receive instant visual feedback to help them adjust during practice and training. Coaches can also provide real-time, data-based feedback to improve specific aspects of performance. These tools are useful for both training and reviewing after competitions, making data easier to manage and helping athletes and teams make better decisions.

6. Conclusions

This systematic review highlights the successful integration of various sensor technologies in wheelchair sports to calculate athlete performance parameters during match time. Despite the diversity in study objectives and methods, most studies demonstrated that sensor-derived data effectively met their goals. However, inconsistencies in reporting reliability and sample size justification indicate a need for standardized protocols. Future developments and research in this field should focus on the general application of sensors in wheelchair sports as a gold standard for providing real-time match data and deeper insights into performance metrics. Overall, advancements in sensor technology offer an impactful potential for enhancing wheelchair sport performance through detailed performance diagnostics to improve individual and whole-team strategies and performance.

Author Contributions

Conceptualization, Y.W., L.B. and F.K.F.; methodology, Y.W., L.B. and F.K.F.; software, Y.W., L.B. and F.K.F.; validation, Y.W., L.B. and F.K.F.; formal analysis, Y.W., L.B. and F.K.F.; investigation, Y.W., L.B. and F.K.F.; resources, Y.W., L.B. and F.K.F.; data curation, Y.W., L.B. and F.K.F.; writing—original draft preparation, Y.W., L.B. and F.K.F.; writing—review and editing, Y.W., L.B. and F.K.F.; visualization, Y.W., L.B. and F.K.F.; supervision, Y.W., L.B. and F.K.F.; project administration, Y.W., L.B. and F.K.F.; funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

All data generated in this review can be found in the text.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Heyward, O.W.; Vegter, R.J.; De Groot, S.; Van Der Woude, L.H. Shoulder complaints in wheelchair athletes: A systematic review. PLoS ONE 2017, 12, e0188410. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  2. Arlotti, J.S.; Carroll, W.O.; Afifi, Y.; Talegaonkar, P.; Albuquerque, L.; Ball, J.E.; Chander, H.; Petway, A. Benefits of IMU-based wearables in sports medicine: Narrative review. Int. J. Kinesiol. Sports Sci. 2022, 10, 36–43. [Google Scholar] [CrossRef] [Scilit]
  3. Burton, M.; Subic, A.; Mazur, M.; Leary, M. Systematic design customization of sport wheelchairs using the Taguchi method. Procedia Eng. 2010, 2, 2659–2665. [Google Scholar] [CrossRef] [Scilit]
  4. Usma-Alvarez, C.C.; Fuss, F.K.; Subic, A. User-centred Design Customization of Rugby Wheelchairs based on the Taguchi Method. J. Mech. Des. 2014, 136, 041001. [Google Scholar] [CrossRef] [Scilit]
  5. Brassart, F.; Faupin, A.; Hays, A.; Watelain, E.; Weissland, T. Relationship of Force–Velocity Profile between Field Sprints and Lab Ballistic or Cycling Ergometer for Wheelchair Basketball Players. Appl. Sci. 2023, 13, 7469. [Google Scholar] [CrossRef] [Scilit]
  6. Demeco, A.; de Sire, A.; Marotta, N.; Palumbo, A.; Fragomeni, G.; Gramigna, V.; Pellegrino, R.; Moggio, L.; Petraroli, A.; Iona, T. Effectiveness of Rehabilitation through Kinematic Analysis of Upper Limb Functioning in Wheelchair Basketball Athletes: A Pilot Study. Appl. Sci. 2022, 12, 2929. [Google Scholar] [CrossRef] [Scilit]
  7. Ferro, A.; Pérez-Tejero, J.; Garrido, G.; Villacieros, J. Relationship between sprint capacity and acceleration of wrists in wheelchair basketball players: Design and reliability of a new protocol. Int. J. Environ. Res. Public Health 2021, 18, 10380. [Google Scholar] [CrossRef] [Scilit]
  8. Klimstra, M.; Geneau, D.; Lacroix, M.; Jensen, M.; Greenshields, J.; Cormier, P.; Brodie, R.; Commandeur, D.; Tsai, M.-C. Wheelchair rugby sprint force-velocity modeling using inertial measurement units and sport specific parameters: A proof of concept. Sensors 2023, 23, 7489. [Google Scholar] [CrossRef] [Scilit]
  9. Klimstra, M.; Lacroix, M.; Jensen, M.; Greenshields, J.; Geneau, D.; Cormier, P.; Brodie, R.; Commandeur, D.; Tsai, M.-C. A simple and valid method to calculate wheelchair frame rotation using one wheel-mounted IMU. Sensors 2023, 23, 7423. [Google Scholar] [CrossRef] [Scilit]
  10. Poulet, Y.; Brassart, F.; Simonetti, E.; Pillet, H.; Faupin, A.; Sauret, C. Analyzing intra-cycle velocity profile and trunk inclination during wheelchair racing propulsion. Sensors 2022, 23, 58. [Google Scholar] [CrossRef] [Scilit]
  11. Gakopoulos, S.; Nica, I.G.; Bekteshi, S.; Aerts, J.-M.; Monbaliu, E.; Hallez, H. Development of a data logger for capturing human-machine interaction in wheelchair head-foot steering sensor system in dyskinetic cerebral palsy. Sensors 2019, 19, 5404. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  12. van Dijk, M.P.; Hoozemans, M.J.; Berger, M.A.; Veeger, D.H. Trunk motion influences mechanical power estimates during wheelchair propulsion. J. Biomech. 2024, 163, 111927. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  13. Mason, B.; Van Der Woude, L.; Lenton, J.; Goosey-Tolfrey, V. The effect of wheel size on mobility performance in wheelchair athletes. Int. J. Sports Med. 2012, 33, 807–812. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  14. De Klerk, R.; Vegter, R.J.K.; Goosey-Tolfrey, V.L.; Mason, B.S.; Lenton, J.P.; Veeger, D.H.; Van Der Woude, L.H. Measuring handrim wheelchair propulsion in the lab: A critical analysis of stationary ergometers. IEEE Rev. Biomed. Eng. 2019, 13, 199–211. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  15. Rhodes, J.; Mason, B.; Perrat, B.; Smith, M.; Goosey-Tolfrey, V. The validity and reliability of a novel indoor player tracking system for use within wheelchair court sports. J. Sports Sci. 2014, 32, 1639–1647. [Google Scholar] [CrossRef] [Scilit]
  16. Fuss, F.K.; Ow, Z.J. Performance diagnostics with instrumented racing wheelchairs: Comparison of athletes of class T52 and T53. In Proceedings of the ISBS-Conference Proceedings Archive, Seoul, Republic of Korea, 14–18 July 2008. [Google Scholar]
  17. Van der Slikke, R.; Berger, M.; Bregman, D.; Veeger, H. From big data to rich data: The key features of athlete wheelchair mobility performance. J. Biomech. 2016, 49, 3340–3346. [Google Scholar] [CrossRef] [Scilit]
  18. Rietveld, T.; Vegter, R.J.; van der Slikke, R.M.; Hoekstra, A.E.; van der Woude, L.H.; de Groot, S. Six inertial measurement unit-based components describe wheelchair mobility performance during wheelchair tennis matches. Sports Eng. 2023, 26, 32. [Google Scholar] [CrossRef] [Scilit]
  19. Mason, B.; Lenton, J.; Rhodes, J.; Cooper, R.; Goosey-Tolfrey, V. Comparing the activity profiles of wheelchair rugby using a miniaturised data logger and radio-frequency tracking system. BioMed Res. Int. 2014, 2014, 348048. [Google Scholar] [CrossRef] [Scilit]
  20. Sporner, M.L.; Grindle, G.G.; Kelleher, A.; Teodorski, E.E.; Cooper, R.; Cooper, R.A. Quantification of activity during wheelchair basketball and rugby at the National Veterans Wheelchair Games: A pilot study. Prosthet. Orthot. Int. 2009, 33, 210–217. [Google Scholar] [CrossRef] [Scilit]
  21. van der Slikke, R.M.; Berger, M.A.; Bregman, D.J.; Veeger, D.H. Wearable wheelchair mobility performance measurement in basketball, rugby, and tennis: Lessons for classification and training. Sensors 2020, 20, 3518. [Google Scholar] [CrossRef] [Scilit]
  22. Chua, J.J.; Fuss, F.K.; Subic, A. Activity identification and classification in wheelchair rugby using fractal dimensions. Sports Eng. 2017, 20, 1–15. [Google Scholar] [CrossRef] [Scilit]
  23. Fuss, F.K. Speed measurements in wheelchair sports–theory and application. Sports Technol. 2012, 5, 29–42. [Google Scholar] [CrossRef] [Scilit]
  24. Coutts, K.D. Dynamics of wheelchair basketball. Med. Sci. Sports Exerc. 1992, 24, 231–234. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  25. Liberati, A.; Altman, D.G.; Tetzlaff, J.; Mulrow, C.; Gøtzsche, P.C.; Ioannidis, J.P.; Clarke, M.; Devereaux, P.J.; Kleijnen, J.; Moher, D. The PRISMA statement for reporting systematic reviews and meta-analyses of studies that evaluate health care interventions: Explanation and elaboration. Ann. Intern. Med. 2009, 151, W-65–W-94. [Google Scholar] [CrossRef] [PubMed]
  26. Benson, L.C.; Clermont, C.A.; Bošnjak, E.; Ferber, R. The use of wearable devices for walking and running gait analysis outside of the lab: A systematic review. Gait Posture 2018, 63, 124–138. [Google Scholar] [CrossRef] [Scilit]
  27. Campos, S.; Doxey, J.; Hammond, D. Nutrition labels on pre-packaged foods: A systematic review. Public Health Nutr. 2011, 14, 1496–1506. [Google Scholar] [CrossRef] [Scilit]
  28. Bakatchina, S.; Brassart, F.; Dosseh, K.; Weissland, T.; Pradon, D.; Faupin, A. Effect of Repeated, On-Field Sprints on Kinematic Variables in Wheelchair Rugby Players. Am. J. Phys. Med. Rehabil. 2024, 103, 547–553. [Google Scholar] [CrossRef] [Scilit]
  29. Bakatchina, S.; Weissland, T.; Astier, M.; Pradon, D.; Faupin, A. Performance, asymmetry and biomechanical parameters in wheelchair rugby players. Sports Biomech. 2024, 23, 884–897. [Google Scholar] [CrossRef] [Scilit]
  30. Rietveld, T.; Vegter, R.J.K.; van der Slikke, R.M.A.; Hoekstra, A.E.; van der Woude, L.H.V.; de Groot, S. Wheelchair mobility performance of elite wheelchair tennis players during four field tests: Inter-trial reliability and construct validity. PLoS ONE 2019, 14, e0217514. [Google Scholar] [CrossRef] [Scilit]
  31. Van Der Slikke, R.M.A.; Berger, M.A.M.; Bregman, D.J.J.; Lagerberg, A.H.; Veeger, H.E.J. Opportunities for measuring wheelchair kinematics in match settings; reliability of a three inertial sensor configuration. J. Biomech. 2015, 48, 3398–3405. [Google Scholar] [CrossRef] [Scilit]
  32. Feng, T.; Yan, J.; Liu, L.; Huo, Y.; Konyakhin, I.; Wen, D.; Liu, Y.; Dang, D.D.; Li, R. Research on calibration method of MEMS gyroscope mounting error based on large-range autocollimator. IEEE Sens. J. 2023, 23, 21197–21207. [Google Scholar] [CrossRef] [Scilit]
  33. Camomilla, V.; Bergamini, E.; Fantozzi, S.; Vannozzi, G. Trends Supporting the In-Field Use of Wearable Inertial Sensors for Sport Performance Evaluation: A Systematic Review. Sensors 2018, 18, 873. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  34. Rupf, R.A.S. Assessing the Validity and Reliability of using one Inertial Measurement Unit to Measure Wheelchair Kinematics on Elite Wheelchair Court Sport Athletes. Doctoral Dissertation, University of Toronto, Toronto, ON, Canada, 2021. [Google Scholar]
  35. Li, R.T.; Kling, S.R.; Salata, M.J.; Cupp, S.A.; Sheehan, J.; Voos, J.E. Wearable Performance Devices in Sports Medicine. Sports Health 2016, 8, 74–78. [Google Scholar] [CrossRef] [Scilit]
