Enhancing Electrical Generation Efficiency through Parametrical Excitation and Slapping Force in Nonlinear Elastic Beams for Vibration Energy Harvesting

and
Department of Aerospace Engineering, Tamkang University, New Taipei City 25137, Taiwan
*
Author to whom correspondence should be addressed.
This article belongs to the Section Industrial Sensors

Abstract

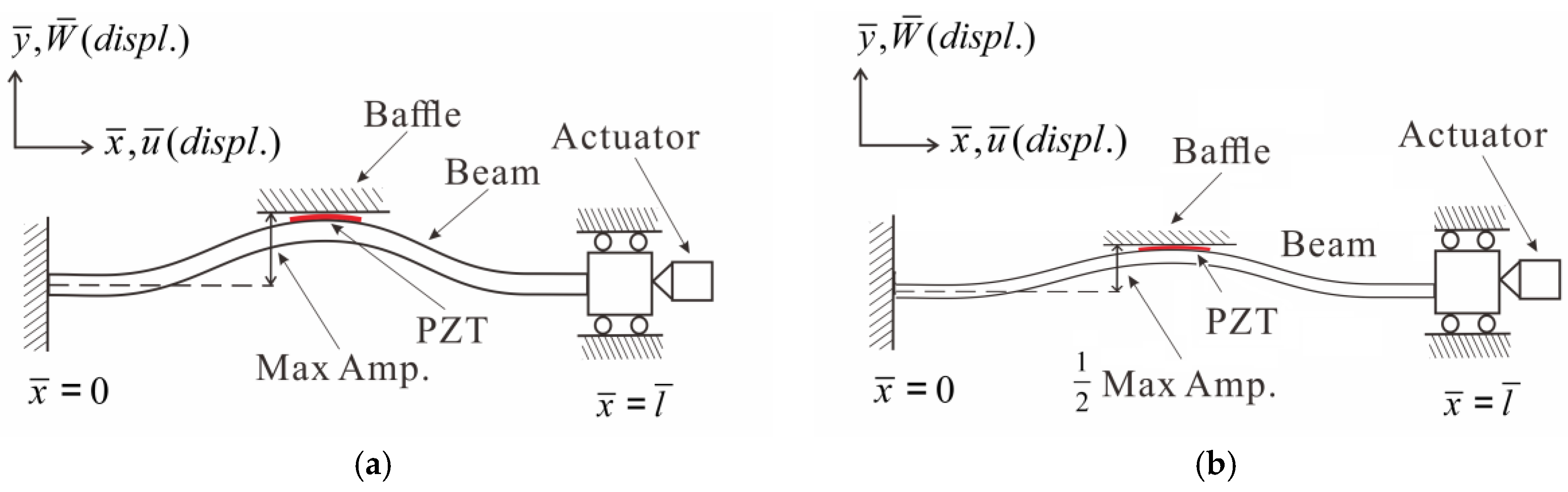

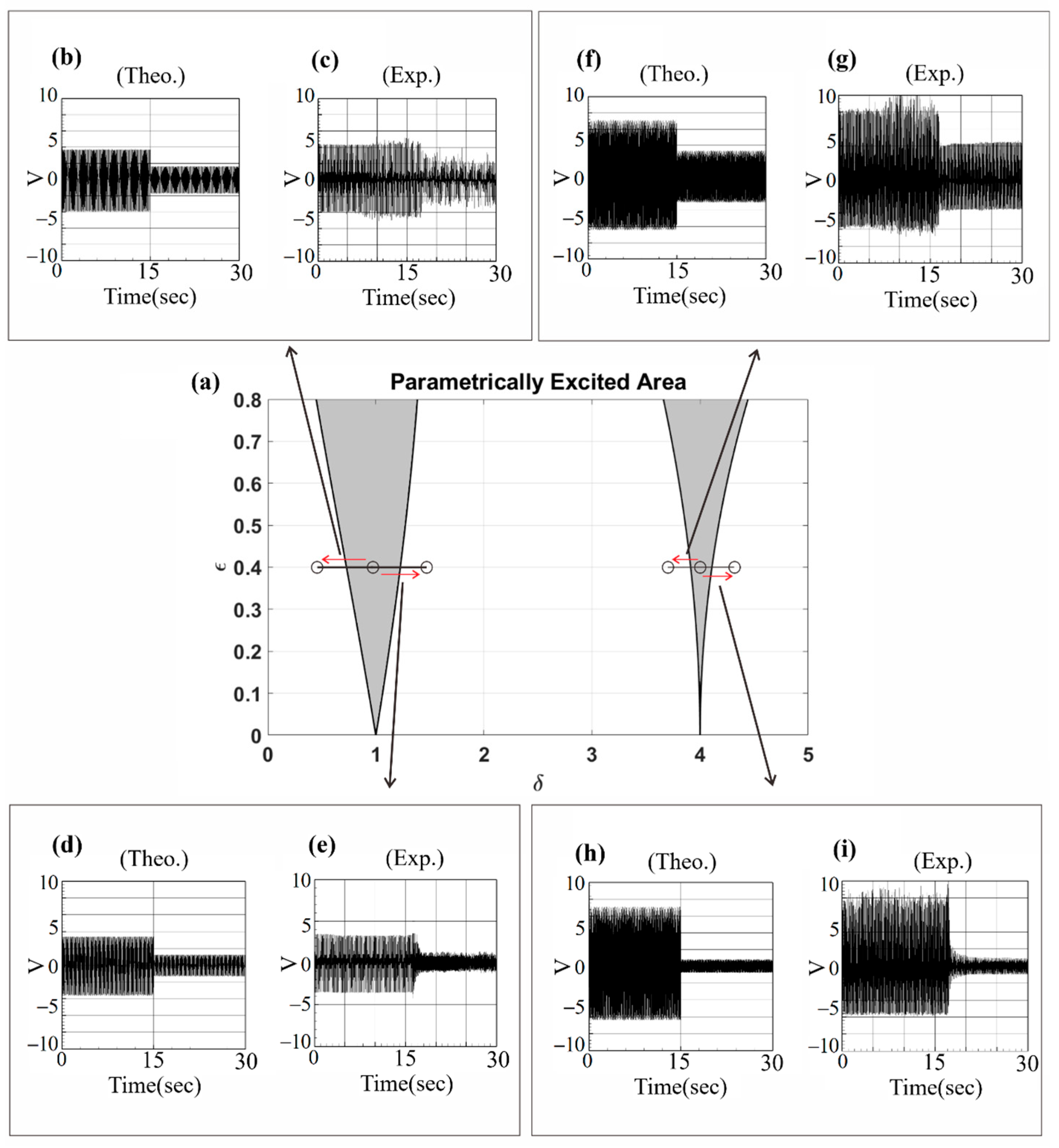

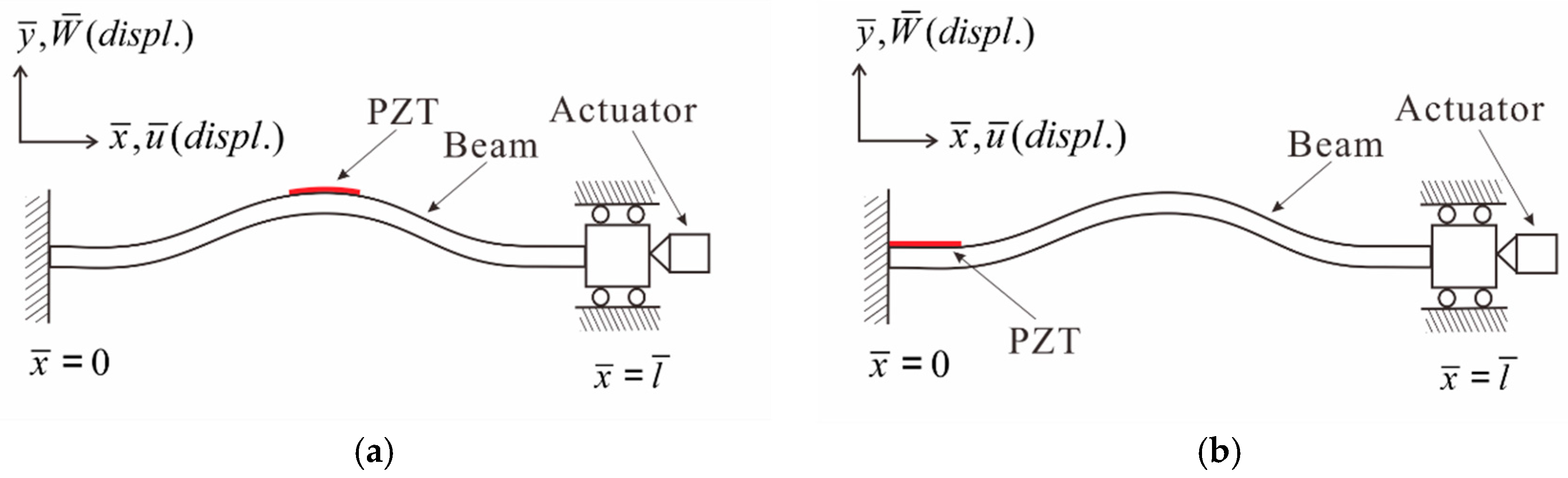

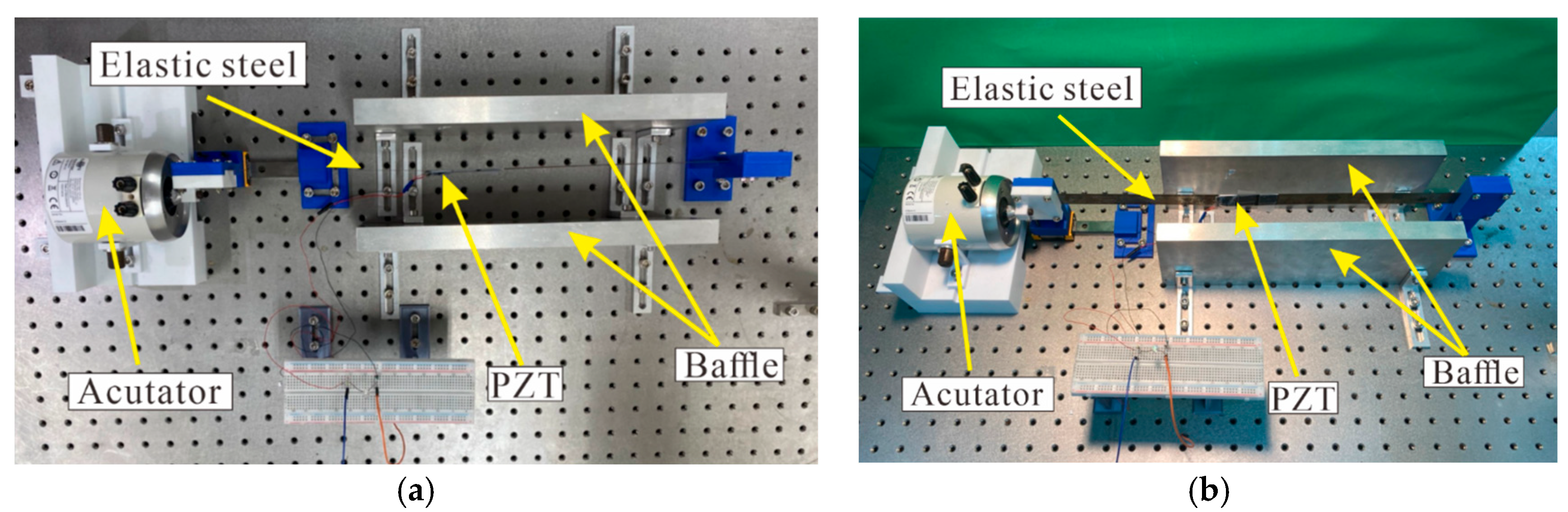

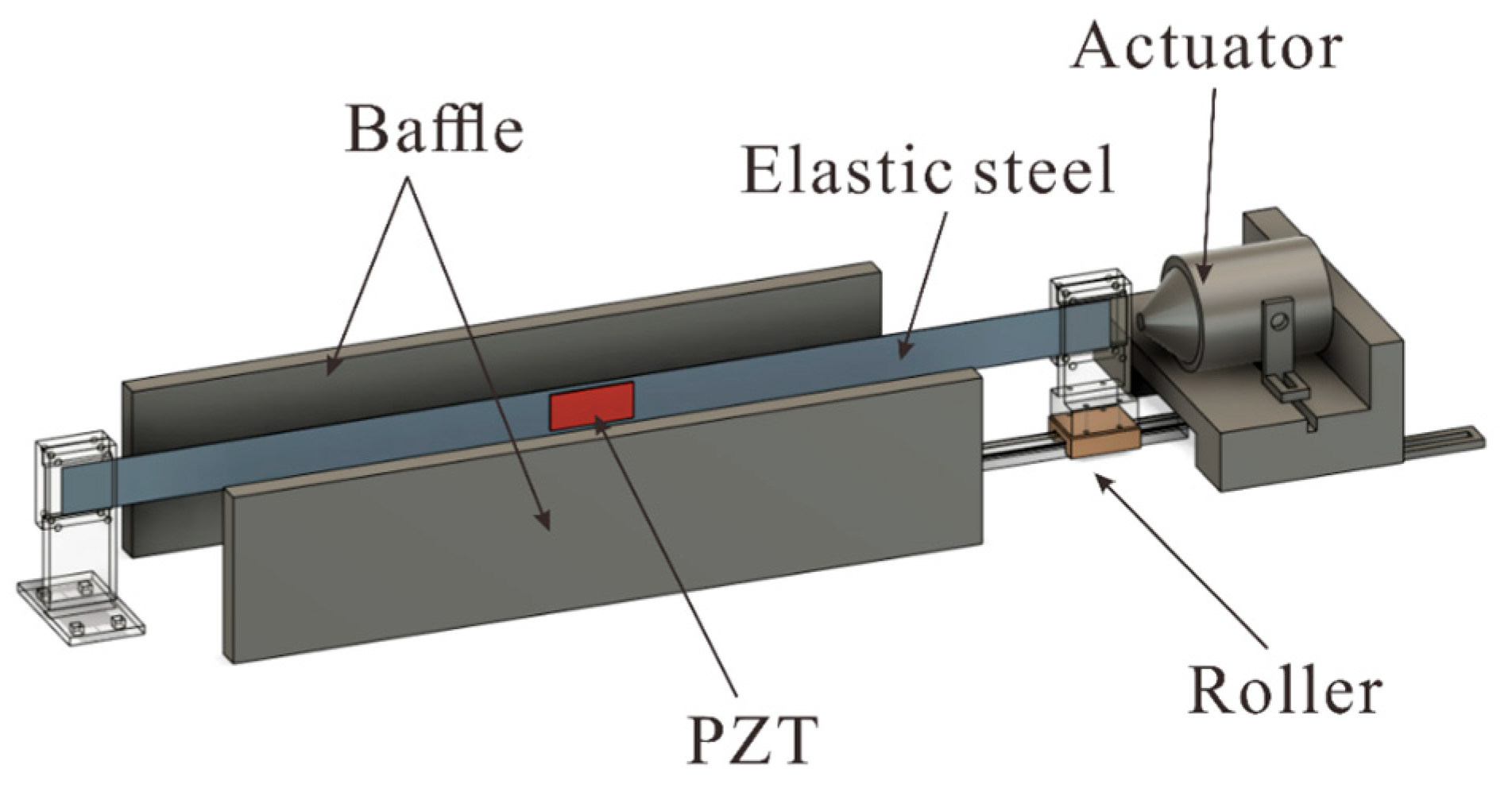

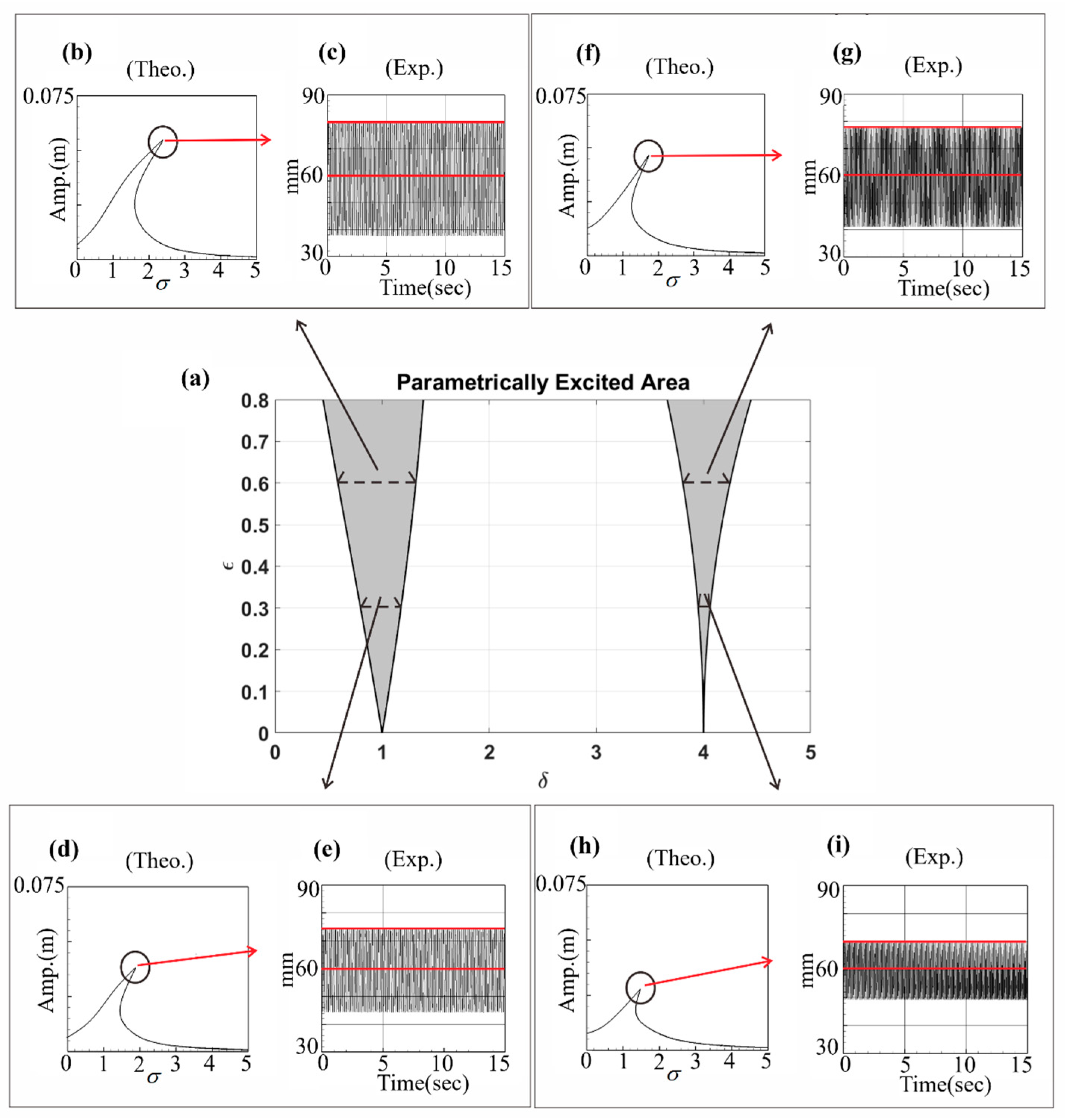

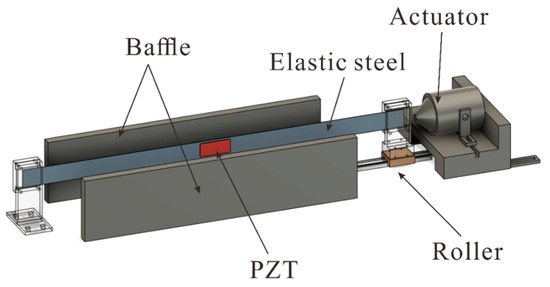

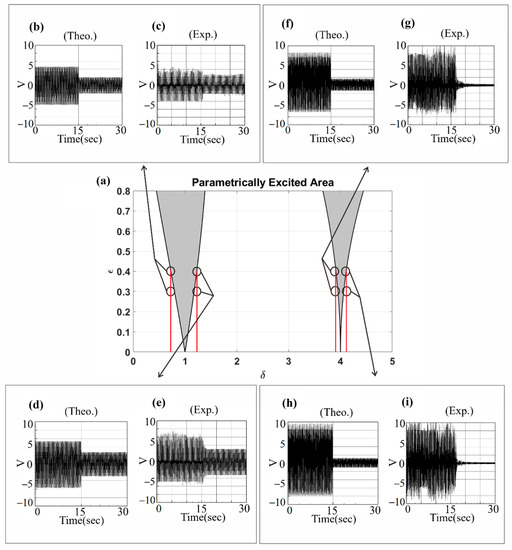

This study aims to enhance conventional vibration energy harvesting systems (VEHs) by repositioning the piezoelectric patch (PZT) in the middle of a fixed–fixed elastic steel sheet instead of the root, as is commonly the case. The system is subjected to an axial simple harmonic force at one end to induce transversal vibration and deformation. To further improve power conversion, a baffle is strategically installed at the point of maximum deflection, introducing a slapping force to augment electrical energy harvesting. Employing the theory of nonlinear beams, the equation of motion for this nonlinear elastic beam is derived, and the method of multiple scales (MOMS) is used to analyze the phenomenon of parametric excitation. This study demonstrates through experiments and theoretical analysis that the second mode yields better power generation benefits than the first mode. Additionally, the voltage generation benefits of the enhanced system with the added baffle (slapping force) surpass those of traditional VEH systems. Overall, the proposed model proves feasible and holds promising potential for efficient vibration energy harvesting applications in various industrial sectors.
