# Refractive Index Sensors Based on Long-Period Grating in a Negative Curvature Hollow-Core Fiber

^{*}

## Abstract

**:**

## 1. Introduction

_{0}coefficient is the zero-frequency Fourier component of the LPG. The main problem associated with the optical fiber refractometers is that they achieve their highest sensitivity for n values of 1.4 and higher, as mentioned by Guo et al. [6] and recently confirmed in the review work on the topic of LPG and Mach–Zehnder interferometers by Eftimov et al. [7]. Indeed, one can find a relatively recent report on a conventional, SMF-based (single-mode fiber) LPG with sensitivities of approximately 800 nm/RIU in the RI range of 1.33–1.4, while the same LPG for the RI above 1.4 achieves sensitivities in the order of thousands [8]. Higher sensitivities, ranging from 2000 nm/RIU [9] up to even 20,000 nm/RIU [10], can be obtained. However, they additionally require the use of technologies such as thin-film coating, precise etching of the fibers, working in the dispersion turning point of the LPG or others, described in more detail in the review works [7,11]. An alternative way to increase the sensitivity of LPG RI sensors is to use microstructured optical fibers (MOFs), which contain a unique type of cladding consisting of an array of air holes. Currently, we can roughly distinguish between two main types of MOFs: the photonic-crystal (PCF) and the antiresonant (ARF) fibers [12,13]. In the case of PCF-based LPGs, there have been a number of reports describing both their fabrication and optical characteristics [14,15,16], as well as their environmental sensing features [17]. The matter of using PCF-based LPGs for RI sensing has also been investigated, with the reported sensitivities ranging from 1500 [18] to 2400 nm/RIU [19] at RI below 1.4. Another important type of PCF—the hollow-core photonic bandgap fibers (HCPBFs)—has also been used as an RI sensor, exhibiting a blue wavelength shift (towards shorter wavelengths) of 280 nm when the refractive indices changed from 1.33 to 1.39, resulting in an approximate sensitivity (absolute value) of 4667 nm/RIU [20]. HCPBF-based LPGs have also been filled with liquids, but due to the liquids’ RI values being very close to or higher than the RI of the fiber, no shift in the LPG resonant peak was observed [14]. Unfortunately, PCF sensors (both solid-core and hollow-core) exhibit a major drawback associated with the rather cumbersome filling/infiltration of the small (<1 µm) holes [21,22]. ARFs, on the contrary, with their most common variation known as NCHCFs (negative curvature hollow-core fibers), are easier to fill due to the fact that their core and capillary diameters are larger [23], and they have already been used extensively in different experiments [24,25,26]. The wave-guiding mechanism of the NCHCFs is described by the inhibited coupling (IC) model [13]. However, their transmission bands can be determined using the antiresonant-reflective optical waveguide (ARROW) model [12], which allows to calculate the antiresonant wavelength (i.e. the central wavelength of the fiber’s low-loss region) from the following equation [27]:

_{g}is the refractive index of the glass (or, more generally speaking, the material of the fiber’s microstructure) and n

_{l}is the refractive index of the medium filling the microstructure of the fiber. The research which is possibly the closest to that presented in this paper was conducted by Wei et al., who numerically investigated the possibility of using a liquid-filled NCHCF as a temperature sensor, showing that such fibers can be used to design sensors with RI sensitivities as high as −3230 nm/RIU [26]. The authors of the presented paper conducted an experiment with the Kagomé-style NCHCFs, showing that the transmission windows shift in response to the different refractive index of the liquid filling the fibers, with the measured sensitivities (absolute values) being approximately 2870 nm/RIU [28]. Nevertheless, to date, the matter of using NCHCF-based LPGs has not been examined thoroughly. Huang et al. managed to convert the NCHCF into an in-line fiber filter [29] by locally heating an NCHCF with a CO

_{2}laser and creating a deformation in the NCHCF’s microstructure. In our opinion, a very similar method can be used to write an LPG into an NCHCF.

## 2. Results and Discussion

#### 2.1. NCHCF and NCHCF-Based LPG—Models and Diameters

_{LPG}= 700.5 nm and refractive index of the liquid n

_{l}= 1.33; the choice of Λ and λ

_{LPG}is described in more detail in Section 2.3. In Figure 1b, a cross-section of the NCHCF used in this study is presented. The structure is defined by the following parameters: core diameter D, capillary wall thickness t and outer capillary diameter d. The dark gray color depicts glass regions and the blue color depicts liquid regions.

_{F1}= 20 µm, d = d

_{F}

_{1}= 7 µm and t = t

_{F}

_{1}= 1 µm for fiber F1 and D = D

_{F}

_{2}= 20.8 µm, d = d

_{F}

_{2}= 6.8 µm and t = t

_{F}

_{2}= 1.1 µm for the fiber F2. The diameters of the F2 fiber section are derived from the fact that due to the glass viscosity, under CO

_{2}laser radiation (or another type of heat processing of the fiber), the capillaries will shrink, while their wall thickness and core diameter will increase. An important feature of introducing such a perturbation is that it can be expected to be fairly uniform [29].

#### 2.2. NCHCF—Optical Parameters and Sensitivity to the Refractive Index Changes

_{g}and water n

_{l}(SiO

_{2}and H

_{2}O Palik models from Lumerical

^{®}materials library) were taken into account. Although the water absorption increases the total loss, especially for the longer wavelengths, the overall shape of the antiresonant windows is maintained for both fibers (for the dispersion curves of liquids with n > 1.33 and the loss spectra of pure water, please see Appendix A).

_{l}. Indeed, in case of the F1 fiber for the m = 1 resonance, ${\lambda}_{m}^{(\mathrm{AR})}$ shifts from 761 to 572 nm and then to 424 nm for the consecutive refractive index values (n

_{l}= 1.33, 1.39 and 1.42), resulting in a total F1 wavelength shift of Δλ

_{F}

_{1}= −337 nm, while the fiber F2 exhibits an even larger shift, from 859 to 462 nm, which gives Δλ

_{F}

_{2}= −397 nm. The presented results are in good agreement with those obtained from a derivative (after n

_{l}) of Equation (3) which, after substitution of dλ

_{m}and dn

_{l}by Δλ

_{m}and Δn

_{l}, takes the following form:

_{l}= 1.42 − 1.33 = 0.09, n

_{g}= 1.455, m = 1, n

_{l}= 1.33 and considering the F1 fiber, for which t = 1 µm, we obtain Δλ

_{F}

_{1}= −270 nm. Of course, the presented results are only a crude approximation of the differentiation, which explains the ~70-nm difference between the numerical and analytical results. However, Equation (4) allows the description of the refractive index sensitivity of the NCHCFs, S

_{ΔnNCHCF}, by a simple formula [26]:

_{ΔnNCHCF}of −3744 and −4411 nm/RIU for ${\lambda}_{1}^{(\mathrm{AR})}$ for F1 and F2 fibers in the RI range of 1.33 to 1.42, respectively. Reducing the upper RI limit to 1.39 causes the sensitivities to drop to −3150 (fiber F1) and −3800 nm/RIU (fiber F2), which is still a promising result, suggesting the high potential of the NCHCFs for the RI sensing of water-based samples. An important aspect to note is that biological samples are rich in organic compounds, such as amino acids, proteins and lipids, both absorbing and emitting light in the UV–VIS region, especially in the 300–500 nm range [36]. Since the antiresonant bands of fibers F1 and F2 cover this exact wavelength range for n = 1.39 to n = 1.42, one should take additional precautions during the measurements for such high refractive index values in order to correct for any possible signal distortions, resulting from both the absorption and fluorescence of the samples.

#### 2.3. NCHCF-Based LPGs—Optical Parameters and Sensitivity of the Grating Wavelength Dip to the Refractive Index Changes

^{®}Mode Solutions software, we calculated the effective refractive indices (n

_{eff}) and mode profiles for the first three LP0k modes of the F1 and F2, as presented in Figure 3. For further calculations, we assumed Λ = 340 µm, which was expected to allow for an efficient coupling from LP01 to LP03 mode at λ = 700.5 nm and n = 1.33. There were two main reasons behind the selection of the LP03 mode: firstly, its loss was significant enough (approximately 15.4 dB/cm, compared to 0.85 dB/cm for the LP02 mode) to achieve good grating efficiency at the desired wavelength; the second reason was the small difference in n

_{eff}between the LP01 and LP03 modes, resulting in technically feasible grating periods. Transmission spectra (obtained by means of the Lumerical

^{®}Eigenmode Expansion (EME) engine) of the LPG for three different refractive index values are presented in Figure 4. One can clearly observe the appearance of the grating transmission dip, located at ${\lambda}_{1.33}^{(\mathrm{LPG})}$ = 700.5 nm for n

_{1}= 1.33, and its shifting for the consecutive RI values of 1.36 and 1.39, for which ${\lambda}_{1.36}^{(\mathrm{LPG})}$ = 683 nm and ${\lambda}_{1.39}^{(\mathrm{LPG})}$ = 661 nm. An interesting observation is that the dip itself shifts more slowly than the transmission windows of the NCHCF. When comparing the dip’s position for the three consecutive values of RI, one sees that it appears close to the rising edge, in the middle and finally close to the falling edge of the transmission window. The differences between the dip wavelengths are 17.5 and 22 nm (towards the shorter wavelengths) when changing RI from 1.33 to 1.36 and from 1.36 to 1.39, respectively, resulting in S

_{ΔnLPG}= −658 nm/RIU. Comparing this result with the sensitivities of F1 and F2 in the same RI range (−3150 and −3800 nm/RIU), one sees that the LPG sensitivity is over five-times lower than the sensitivity of the fibers F1 and F2 alone. Additionally, since the transmission windows of both fibers shift faster than the LPG dips, the total refractive index range covered by the LPG is smaller when compared to the bare fibers. The results above are intriguing since the expectations were that the already very promising RI sensing capabilities of the NCHCFs would be further enhanced by inscribing an LPG onto them.

#### 2.4. Analytical Comparison of the NCHCF and NCHCF-Based LPG Refractive Index Sensitivities

_{l}) of Equation (1). To do this, we first used the Marcatili–Schmeltzer (MS) tubular waveguide model to substitute the n

_{eff}in Equation (1) [37]:

_{l}is the refractive index of the core (in our case, the RI of the liquid filling the fiber’s core and structure), k

_{0}= 2π/λ is the wavenumber and u

_{νj}is the νth-zero of the jth-order Bessel function of the first kind. After substituting (6) to (1) and differentiating after n

_{l}, we obtain:

_{l}by Δn

_{l}in order to determine the formula describing S

_{ΔnLPG}:

_{ΔnNCHCF}and S

_{ΔnLPG.}In general, S

_{ΔnLPG}can be either positive or negative, meaning that the observed shift in the grating’s transmission dip will occur towards the longer (positive) or shorter (negative) wavelengths. On the other hand, S

_{ΔnNCHCF}is always negative due to the presence of the minus sign (see Equation (5)). In order to determine whether the sensitivity of the LPG is higher than the sensitivity of the NCHCF, two separate cases of Equation (9) (both presented in Table 1) should be analyzed.

#### 2.4.1. Case 1—S_{ΔnNCHCF} < 0, S_{ΔnLPG} > 0 and F < 2S_{ΔnNCHCF}

_{ΔnLPG}> 0 condition itself. Due to the fact that n

_{l}, Λ and N are all positive values, S

_{ΔnLPG}> 0 can further be simplified to the following inequality:

_{2}was assumed to be the only unknown variable while the rest are parameters. As a result, the following solutions were obtained:

_{l}. As for (12), in the case of the fiber analyzed in this paper, u

_{νj}= u

_{03}= 8.654 and u

_{01}= 2.405, which means that r

_{2}must be greater than 3r

_{1}. Although such NCHCFs have been presented [38], it is impossible to obtain an NCHCF-based LPG with the consecutive fiber sections differing so much in their radii. Due to the heat-based LPG inscription procedure, either by the CO

_{2}laser or electrical arc discharge, the amount of microstructure collapse for the heated fiber sections would be too severe to maintain the fiber’s waveguiding properties. Of course, one can assume coupling to different high-order LP modes, with lower values of u

_{νj}. Still, even if one chooses to couple to the LP11 mode for which u

_{νj}= u

_{11}= 3.8317 (closest to the LP01 mode), it results in r

_{2}> 1.6r

_{1}, which is still too great a difference to obtain without damaging the NCHCF structure significantly.

#### 2.4.2. Case 2—S_{ΔnNCHCF} < 0, S_{ΔnLPG} < 0 and F > 0

_{ΔnLPG}and S

_{ΔnNCHCF}are negative (i.e., their antiresonant/dip wavelengths shift towards the shorter wavelengths), which results in the following inequality when S

_{ΔnLPG}is higher than S

_{ΔnNCHCF}:

_{1}–A

_{6}coefficients presented in Table 2.

_{ΔnNCHCF}= S

_{ΔnLPG}. Additionally, from Equation (1), we know that Λ(${n}_{eff}^{f}-{n}_{eff}^{ho}$) = Nλ

_{N}, while N = 1 and λ

_{N}= 2π/k

_{0}. Thus, (15) can be further modified:

_{F}

_{1}= 10 µm, r

_{F}

_{2}= 10.4 µm and t

_{F}

_{1}= 1 µm) as well as the optical parameters (n

_{g}= 1.455, n

_{l}= 1.33, k

_{0}= 8.96957 $\times \text{}{10}^{6}\frac{1}{m}$ and u

_{01}= 2.405), we can reduce the number of variables in ${\Lambda}_{b}=4\sqrt{\frac{{A}_{1}+2\sqrt{{A}_{2}}+{A}_{3}-{A}_{4}+{A}_{5}}{{A}_{6}}}$ so that only u

_{νj}remains. Substituting this “reduced” version of the Λ

_{b}formula into (16) allows the determination of the range of u

_{νj}(i.e., the range of high-order modes) for which both the (14) and (16) conditions will be met, effectively resulting in obtaining an LPG with a higher RI sensitivity than the NCHCF alone. The final results for the LPG considered in this paper are presented in the first row of Table 3. Calculated ranges of u

_{νj}indicate that the high-order mode coupling conditions are unfavorable for such grating. For the first allowed range of u

_{υj}(equal to or smaller than 2.501) there are no known LP-type modes other than the LP01, making it impossible to satisfy the coupling conditions mentioned in Section 2.3. The second range of u

_{νj}is very high and very narrow at the same time—between 122.146 and 124.067—for which there are no LP0x-type modes, while the closest is LP139 (u

_{139}= 123.304). Unfortunately, coupling to a mode of such high order causes a major technical problem—the period of the LPG would be extremely short, in the order of single micrometers or lower (in the case of this particular mode, Λ ≈ 0.81 µm). In general, for the assumed NCHCF structure, one can draw a conclusion that obtaining an LPG based on such a fiber with its intended RI sensitivity higher than the sensitivity of the fiber alone is a very difficult task. It is important to remember that (14) and (16) are both multi-parameter inequalities, which can be analyzed with respect to different variables, i.e., for NCHCFs core radius, perturbed core radius, grating wavelength, etc. Such rigorous analysis is beyond the scope of this article; however, in order to gain at least a crude insight into the general behavior of (14), it was decided to solve it for different values of the following parameters: initial core radius of the base NCHCF (r

_{1}), core radius of the perturbed NCHCF region (r

_{2}), NCHCF capillary wall thickness (t) and the LPG wavelength (λ). The results are presented in Table 3 and can be easily compared with the ones obtained for the initial fiber. A general observation can be made that none of the parameters shift the ranges of u

_{νj}significantly towards the values that would result in feasible NCHCF-based LPGs. A simultaneous increase in r

_{1}and r

_{2}shifts the second range of allowed u

_{νj}even further towards high values, which will cause the grating lengths to be even shorter. By increasing only the r

_{2}, the values from the first range of allowed u

_{υj}also rise, but the closest possible LP-type mode in this range is LP11, for which u

_{υj}= 3.832 and corresponds to r

_{2}≈ 16 μm, effectively leading to the same conclusions as described previously in Section 2.4.1. Reduction of t expands the second range of possible u

_{νj}towards lower values, but the expansion is relatively small (from 122.146 to 121.692 for t = 1 and 0.9 µm, respectively). Additionally, further reduction of t will influence the ${\lambda}_{m}^{(\mathrm{AR})}$, causing the grating’s wavelength to be also shifted in order to match the fiber’s transmission window and increasing the range of u

_{νj}. The only omitted parameter was m, since its increase shifts the ${\lambda}_{m}^{(\mathrm{AR})}$ further towards shorter wavelengths and is likely to cause the shifted transmission window to appear in the UV region, possibly even below 250 nm, which is unfavorable not only for the aqueous samples but for the NCHCF as well. Overall, based on the analysis and presented results, an observation can be made that the calculated differences in the NCHCFs’ and NCHCF-based LPGs’ refractive index sensitivities are of a more general character.

## 3. Summary and Conclusions

_{F}

_{1}= 20 µm, t

_{F}

_{1}= 1 µm and D

_{F}

_{2}= 20.8 µm, t

_{F}

_{2}= 1.1 µm for the two investigated fibers—F1 and F2. Small differences in the diameters reflected the changes expected to appear during the LPG-inscription procedure, which is usually some kind of heat processing—either with a CO

_{2}laser or electrical arc discharge. The responses of both fibers to the change in their inner refractive index (ranging from 1.33 to 1.42) were observed as a significant shift in their antiresonant wavelengths, resulting in the calculated RI sensitivities being as high as S

_{ΔnF1}= −3744 nm/RIU and S

_{ΔnF2}= −4411 nm/RIU, showing another promising application of NCHCFs. An intuitive approach to the obtained results would be that by inscribing an LPG onto NCHCFs, one should obtain an even more sensitive RI sensor, since LPGs are also known to respond to the RI change with a shift in their own transmission dip. Additionally, inscribing an LPG onto NCHCFs should be relatively straightforward, although requiring additional care in order to avoid severe collapse of their microstructure. Combining the information above, a numerical model of an NCHCF-based LPG was made, using the altering segments of previously analyzed fibers, F1 and F2. The grating period Λ = 340 µm allowed the positioning of the LPG transmission dip at λ

_{LPG}= 700.5 nm, and by calculating the transmission spectra of the grating for three different values of the inner refractive index (1.33, 1.36 and 1.39), the shift in the dip was observed and compared to the shift in the transmission windows of the NCHCFs. The calculated RI sensitivity was S

_{ΔnLPG}= −658 nm/RIU, which is over five-times smaller than the corresponding RI sensitivity of the NCHCFs in the same RI range (−3150 and −3800 nm/RIU for fibers F1 and F2, respectively). This somewhat unexpected result was further supported by an analytical comparison of the sensitivity formulas of NCHCFs and NCHCF-based LPGs, which allows us to conclude that preparing an NCHCF-based LPG with a sensitivity higher than a bare NCHCF will be a very difficult task. Of course, the obtained results should be confirmed experimentally, especially when one considers the fact that currently available glass processing stations allow the introduction of almost any kind of point-heat-induced modifications to a fiber. Additionally, the presented analytical approach is an approximation and does not consider the mode self-coupling coefficients, and the authors believe that by including these, the analysis would become more complete, giving a better insight into the matter of propagation in this type of LPG. Finally, even though the application of NCHCF-based LPGs for RI sensing becomes questionable in light of the results presented above, the idea of such gratings should not be overlooked. Their application as, for example, in-line, narrow-band optical fiber filters is still a possibility, while the technology of heat-induced post-processing of NCHCFs is a very interesting concept in general.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Appendix A. Dispersion Curves of the Liquid Sample Models and Water Attenuation Spectrum

^{®}materials library (Palik H

_{2}O model).

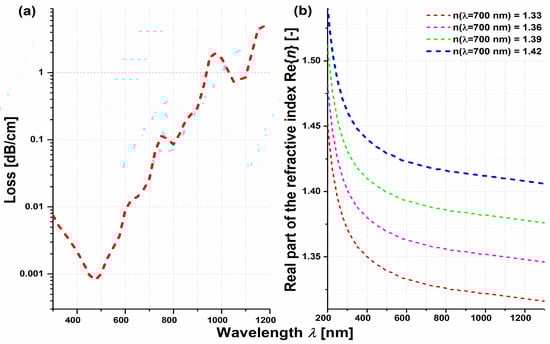

**Figure A1.**Loss spectra of pure water (

**a**) and dispersion curves of aqueous sample models (

**b**). The dispersion curves were calculated based on the real part of the refractive index of pure water (red dashed line).

## References

- Jin, L.; Jin, W.; Ju, J.; Wang, Y. Investigation of Long-Period Grating Resonances in Hollow-Core Photonic Bandgap Fibers. J. Lightwave Technol.
**2011**, 29, 1707–1713. [Google Scholar] - Erdogan, T. Fiber grating spectra. J. Lightwave Technol.
**1997**, 15, 1277–1294. [Google Scholar] [CrossRef] [Green Version] - James, S.W.; Tatam, R.P. Optical fibre long-period grating sensors: Characteristics and application. Meas. Sci. Technol.
**2003**, 14, R49–R61. [Google Scholar] [CrossRef] [Green Version] - Corres, J.M.; Matias, I.R.; Arregui, F.J. Optical Fibre Humidity Sensors Using Nano-films. In Sensors: Advancements in Modeling, Design Issues, Fabrication and Practical Applications; Huang, Y.-M.R., Ed.; Springer: Berlin/Heidelberg, Germany, 2008; pp. 153–177. [Google Scholar] [CrossRef]
- Anemogiannis, E.; Glytsis, E.N.; Gaylord, T.K. Transmission characteristics of long-period fiber gratings having arbitrary azimuthal/radial refractive index variations. J. Lightwave Technol.
**2003**, 21, 218–227. [Google Scholar] [CrossRef] [Green Version] - Guo, T.; Tam, H.-Y.; Krug, P.A.; Albert, J. Reflective tilted fiber Bragg grating refractometer based on strong cladding to core recoupling. Opt. Express
**2009**, 17, 5736–5742. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Eftimov, T.; Janik, M.; Koba, M.; Śmietana, M.; Mikulic, P.; Bock, W. Long-Period Gratings and Microcavity In-Line Mach Zehnder Interferometers as Highly Sensitive Optical Fiber Platforms for Bacteria Sensing. Sensors
**2020**, 20, 3772. [Google Scholar] [CrossRef] [PubMed] - Li, Q.-S.; Zhang, X.-L.; Shi, J.-G.; Xiang, D.; Zheng, L.; Yang, Y.; Yang, J.-H.; Feng, D.; Dong, W.-F. An Ultrasensitive Long-Period Fiber Grating-Based Refractive Index Sensor with Long Wavelengths. Sensors
**2016**, 16, 2205. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Korposh, S.; Lee, S.-W.; James, S.W.; Tatam, R.P. Refractive index sensitivity of fibre-optic long period gratings coated with SiO2nanoparticle mesoporous thin films. Meas. Sci. Technol.
**2011**, 22, 075208. [Google Scholar] [CrossRef] - Śmietana, M.; Koba, M.; Mikulic, P.; Bock, W.J. Towards refractive index sensitivity of long-period gratings at level of tens of µm per refractive index unit: Fiber cladding etching and nano-coating deposition. Opt. Express
**2016**, 24, 11897–11904. [Google Scholar] [CrossRef] [PubMed] - Xu, Y.; Bai, P.; Zhou, X.; Akimov, Y.; Png, C.E.; Ang, L.-K.; Knoll, W.; Wu, L. Optical Refractive Index Sensors with Plasmonic and Photonic Structures: Promising and Inconvenient Truth. Adv. Opt. Mater.
**2019**, 7, 1801433. [Google Scholar] [CrossRef] - Markos, C.; Travers, J.C.; Abdolvand, A.; Eggleton, B.J.; Bang, O. Hybrid photonic-crystal fiber. Rev. Mod. Phys.
**2017**, 89, 045003. [Google Scholar] [CrossRef] [Green Version] - Debord, B.; Amrani, F.; Vincetti, L.; Gérôme, F.; Benabid, F. Hollow-Core Fiber Technology: The Rising of “Gas Photonics”. Fibers
**2019**, 7. [Google Scholar] [CrossRef] [Green Version] - Wang, Y.; Jin, W.; Ju, J.; Xuan, H.; Ho, H.L.; Xiao, L.; Wang, D. Long period gratings in air-core photonic bandgap fibers. Opt. Express
**2008**, 16, 2784–2790. [Google Scholar] [CrossRef] [Green Version] - Iadicicco, A.; Ranjan, R.; Campopiano, S. Fabrication and Characterization of Long-Period Gratings in Hollow Core Fibers by Electric Arc Discharge. IEEE Sens. J.
**2015**, 15, 3014–3020. [Google Scholar] [CrossRef] - Iadicicco, A.; Campopiano, S.; Cusano, A. Long-Period Gratings in Hollow Core Fibers by Pressure-Assisted Arc Discharge Technique. IEEE Photonics Technol. Lett.
**2011**, 23, 1567–1569. [Google Scholar] [CrossRef] - Iadicicco, A.; Campopiano, S. Sensing Features of Long Period Gratings in Hollow Core Fibers. Sensors
**2015**, 15, 8009–8019. [Google Scholar] [CrossRef] [Green Version] - Rindorf, L.; Bang, O. Highly sensitive refractometer with a photonic-crystal-fiber long-period grating. Opt. Lett.
**2008**, 33, 563–565. [Google Scholar] [CrossRef] - Hu, H.; Du, C.; Wang, Q.; Wang, X.; Zhao, Y. High sensitivity internal refractive index sensor based on a photonic crystal fiber long period grating. Instrum. Sci. Technol.
**2017**, 45, 181–189. [Google Scholar] [CrossRef] - Sun, J.; Chan, C.C. Photonic bandgap fiber for refractive index measurement. Sens. Actuators B Chem.
**2007**, 128, 46–50. [Google Scholar] [CrossRef] - Tsuda, H.; Urabe, K. Characterization of Long-period Grating Refractive Index Sensors and Their Applications. Sensors
**2009**, 9. [Google Scholar] [CrossRef] [PubMed] - Antonopoulos, G.; Benabid, F.; Birks, T.A.; Bird, D.M.; Knight, J.C.; Russell, P.S.J. Experimental demonstration of the frequency shift of bandgaps in photonic crystal fibers due to refractive index scaling. Opt. Express
**2006**, 14, 3000–3006. [Google Scholar] [CrossRef] [PubMed] - Bufetov, I.; Kosolapov, A.; Pryamikov, A.; Gladyshev, A.; Kolyadin, A.; Krylov, A.; Yatsenko, Y.; Biriukov, A. Revolver Hollow Core Optical Fibers. Fibers
**2018**, 6, 39. [Google Scholar] [CrossRef] [Green Version] - Cubillas, A.M.; Jiang, X.; Euser, T.G.; Taccardi, N.; Etzold, B.J.M.; Wasserscheid, P.; Russell, P.S.J. Photochemistry in a soft-glass single-ring hollow-core photonic crystal fibre. Analyst
**2017**, 142, 925–929. [Google Scholar] [CrossRef] [Green Version] - Liu, X.-L.; Ding, W.; Wang, Y.-Y.; Gao, S.-F.; Cao, L.; Feng, X.; Wang, P. Characterization of a liquid-filled nodeless anti-resonant fiber for biochemical sensing. Opt. Lett.
**2017**, 42, 863–866. [Google Scholar] [CrossRef] - Wei, C.; Young, J.T.; Menyuk, C.R.; Hu, J. Temperature sensor based on liquid-filled negative curvature optical fibers. OSA Contin.
**2019**, 2, 2123–2130. [Google Scholar] [CrossRef] - Belardi, W. Design and Properties of Hollow Antiresonant Fibers for the Visible and Near Infrared Spectral Range. J. Lightwave Technol.
**2015**, 33, 4497–4503. [Google Scholar] [CrossRef] - Stawska, H.I.; Kolyadin, A.N.; Kosolapov, A.F.; Popenda, M.A. Hollow-Core Antiresonant Fibers—Exploring and Enhancing the Potential in Biochemical Detection Applications. In Proceedings of the 2020 22nd International Conference on Transparent Optical Networks (ICTON), Bari, Italy, 19–23 July 2020; pp. 1–4. [Google Scholar]
- Huang, X.; Yong, K.-T.; Yoo, S. A Method to Process Hollow-Core Anti-Resonant Fibers into Fiber Filters. Fibers
**2018**, 6, 89. [Google Scholar] [CrossRef] [Green Version] - Rindorf, L.; Høiby, P.E.; Jensen, J.B.; Pedersen, L.H.; Bang, O.; Geschke, O. Towards biochips using microstructured optical fiber sensors. Anal. Bioanal. Chem.
**2006**, 385, 1370. [Google Scholar] [CrossRef] - Shi, L.; Sordillo, L.A.; Rodríguez-Contreras, A.; Alfano, R. Transmission in near-infrared optical windows for deep brain imaging. J. Biophotonics
**2016**, 9, 38–43. [Google Scholar] [CrossRef] - Zhang, X.U.; Faber, D.J.; Post, A.L.; van Leeuwen, T.G.; Sterenborg, H.J.C.M. Refractive index measurement using single fiber reflectance spectroscopy. J. Biophotonics
**2019**, 12, e201900019. [Google Scholar] [CrossRef] - Rindorf, L.; Jensen, J.B.; Dufva, M.; Pedersen, L.H.; Høiby, P.E.; Bang, O. Photonic crystal fiber long-period gratings for biochemical sensing. Opt. Express
**2006**, 14, 8224–8231. [Google Scholar] [CrossRef] [Green Version] - Laura, A.S.; Yang, P.; Sebastião, P.; Yury, B.; Robert, R.A. Deep optical imaging of tissue using the second and third near-infrared spectral windows. J. Biomed. Opt.
**2014**, 19. [Google Scholar] [CrossRef] - Smith, A.M.; Mancini, M.C.; Nie, S. Second window for in vivo imaging. Nat. Nanotechnol.
**2009**, 4, 710–711. [Google Scholar] [CrossRef] [Green Version] - Chorvatova, A.; Chorvat, D. Tissue fluorophores and their spectroscopic characteristics. In Fluorescence Lifetime Spectroscopy and Imaging: Principles and Applications in Biomedical Diagnostics; Marcu, L., French, P.M.W., Elson, D.S., Eds.; CRC Press: Boca Raton, FL, USA, 2014; pp. 47–85. [Google Scholar] [CrossRef]
- Marcatili, E.A.J.; Schmeltzer, R.A. Hollow metallic and dielectric waveguides for long distance optical transmission and lasers. Bell Syst. Tech. J.
**1964**, 43, 1783–1809. [Google Scholar] [CrossRef] - Kolyadin, A.N.; Kosolapov, A.F.; Pryamikov, A.D.; Biriukov, A.S.; Plotnichenko, V.G.; Dianov, E.M. Light transmission in negative curvature hollow core fiber in extremely high material loss region. Opt. Express
**2013**, 21, 9514–9519. [Google Scholar] [CrossRef] [PubMed]

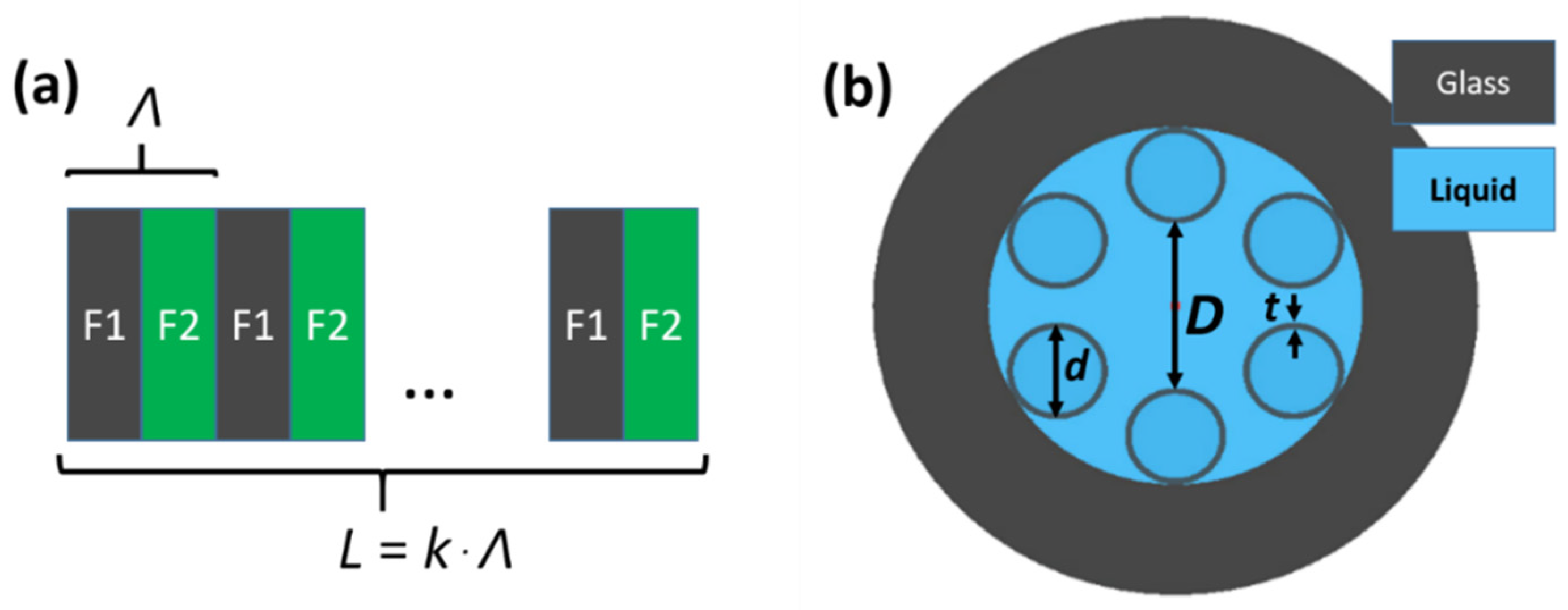

**Figure 1.**(

**a**) Model of the investigated long-period fiber grating (LPG) formed as a composition of the alternating segments of fibers F1 and F2. The total length L of the LPG is equal to the grating period Λ times k, where k = 60 is the number of repetitions of a single period. (

**b**) Cross-section of the negative-curvature hollow core fiber (NCHCF). The marked dimensions D, d and t were used to determine the optical parameters of the fiber and LPG; their values for the F1 and F2 fibers can be found in the main text below.

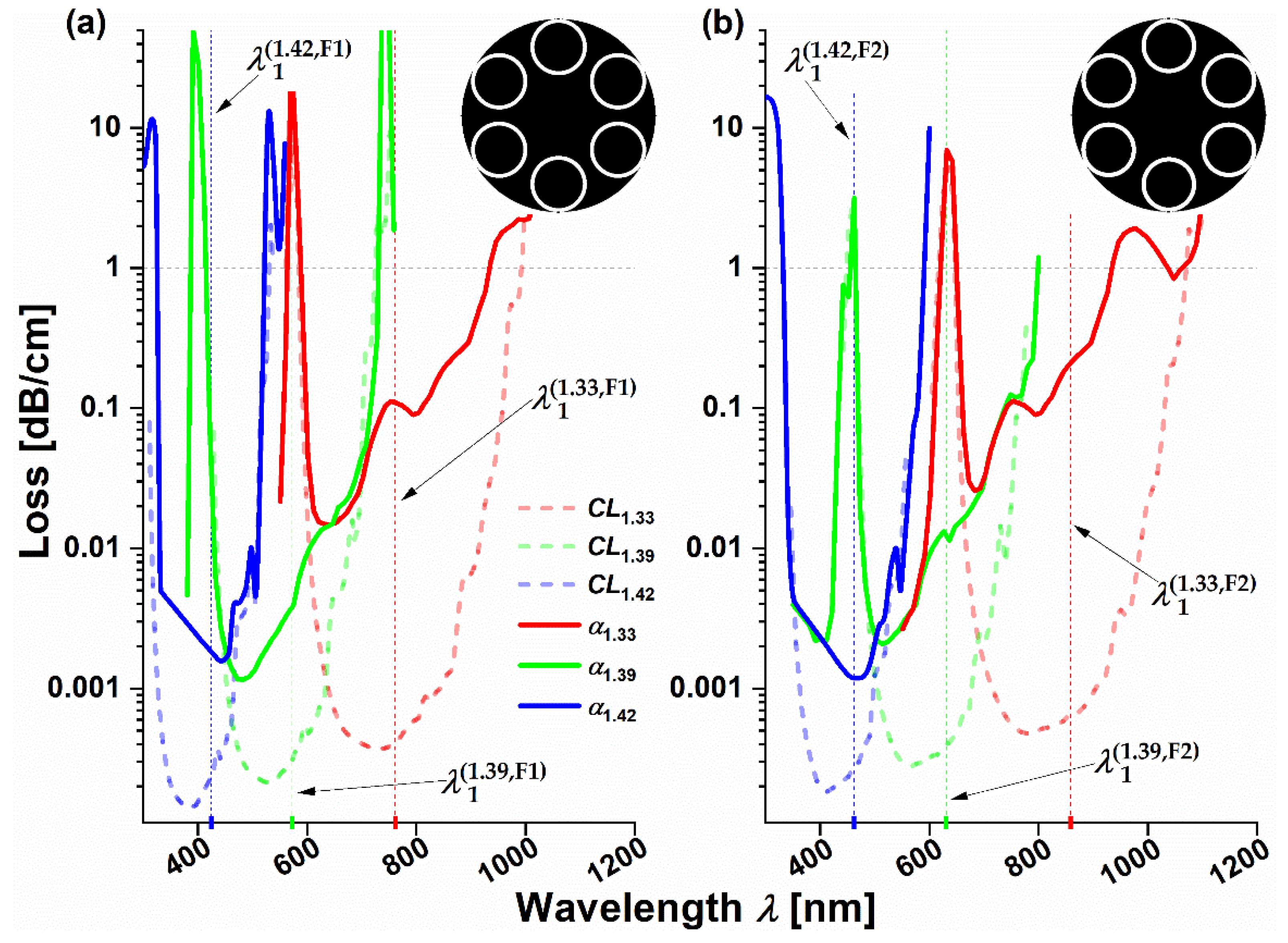

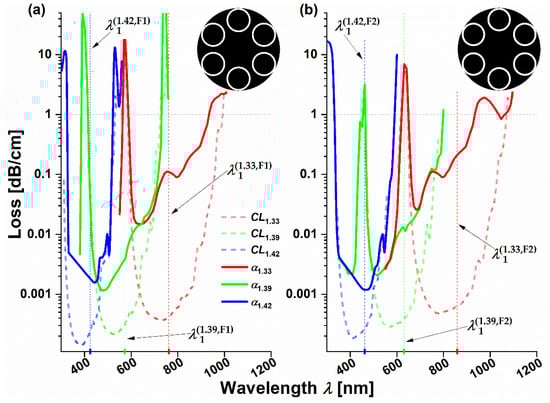

**Figure 2.**Loss spectra of fibers F1 (

**a**) and F2 (

**b**) versus the wavelength (λ) for 3 different values of the refractive index of aqueous liquids filling their microstructures: 1.33, 1.39 and 1.42. The confinement losses of both fibers (CL, dashed lines) are shown in order to better mark the presence of the antiresonant windows. The total losses (α, solid lines) of both fibers additionally account for the water absorption. The red, green and blue ticks and dotted lines at the X-axis (additionally indicated by the black arrows) mark the central wavelengths of the first-order (m = 1) antiresonant bands of F1 and F2, calculated at α = 1 dB/cm for each refractive index (RI). The respective values of ${\lambda}_{1}^{(1.33,\mathrm{F}1)}$, ${\lambda}_{1}^{(1.39,\mathrm{F}1)}$, ${\lambda}_{1}^{(1.42,\mathrm{F}1)}$ are 761, 572 and 424 nm for the fiber F1, while for the fiber F2 ${\lambda}_{1}^{(1.33,\mathrm{F}2)}$, ${\lambda}_{1}^{(1.39,\mathrm{F}2)}$ and ${\lambda}_{1}^{(1.42,\mathrm{F}2)}$ are 859, 631 and 462 nm. The insets in the upper-right corner of each spectrum show the cross-sections of the microstructures of F1 and F2, with F2 having slightly thicker capillary walls and a larger core compared to the fiber F1.

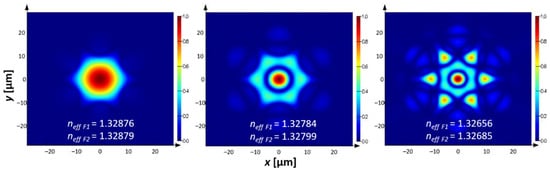

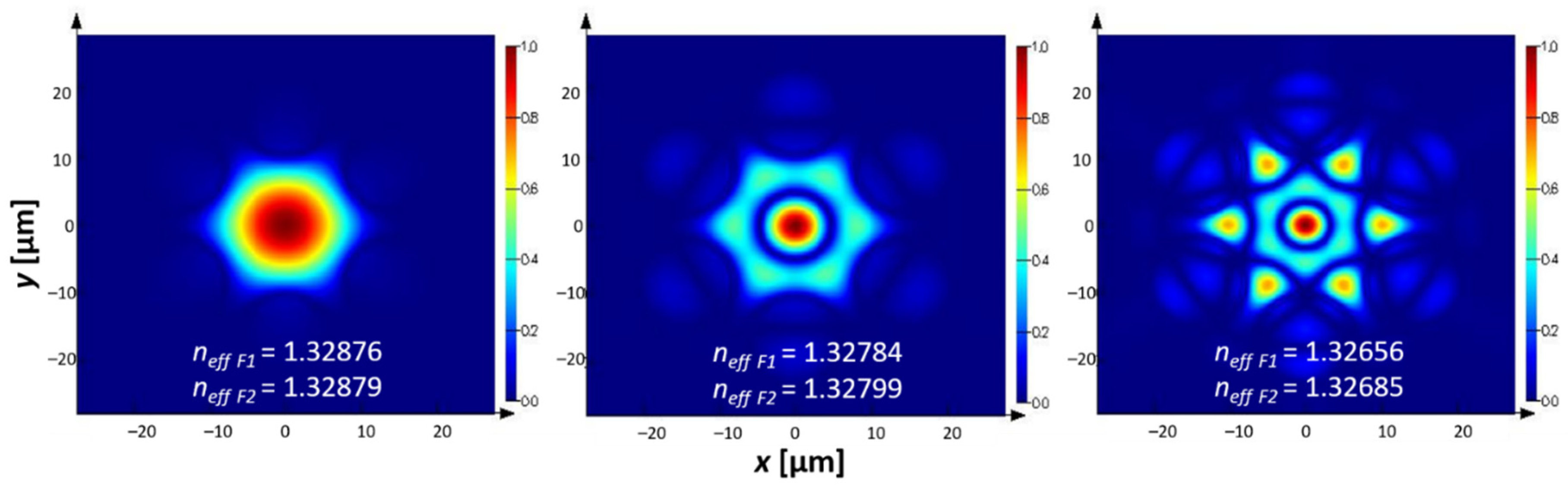

**Figure 3.**Mode profiles of the first 3 fundamental modes LP01, LP02 for the designed fibers, at the core refractive index n = 1.33. The shape of the presented mode profiles is the same for both F1 and F2, and the small difference in the diameters of both fibers does not influence this. The circular symmetry of all modes is clearly visible, satisfying the condition for efficient coupling between them [5]. Their effective refractive indices for the F1 and F2 fibers are also additionally presented.

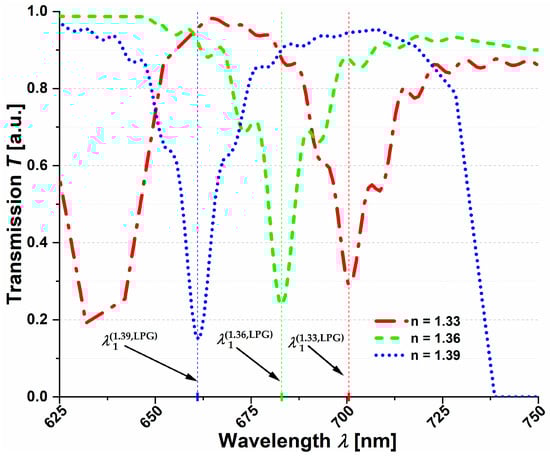

**Figure 4.**Transmission windows of the NCHCF-based LPG for 3 consecutive values of the liquid’s refractive index n. The corresponding first-order (N = 1) LPG transmission dips are described as ${\lambda}_{1}^{(1.33,\mathrm{LPG})}$, ${\lambda}_{1}^{(1.36,\mathrm{LPG})}$ and ${\lambda}_{1}^{(1.39,\mathrm{LPG})}$ and their values are 700.5, 683 and 661 nm, respectively. One can also notice the shift in the dips’ positions relative to the fiber’s transmission window, starting closer to the window’s rising edge at n = 1.33 and ending near its falling edge at n = 1.39. The rise in transmission for wavelengths close to 625 nm and n = 1.33 results from the superposition of loss characteristics of fibers F1 and F2 and should not be confused with the appearance of the second-order antiresonant window.

Case No. | S_{ΔnNCHCF} | S_{ΔnLPG} | F |
---|---|---|---|

Case 1 | S_{ΔnNCHCF} < 0 | S_{ΔnLPG} > 0 | F < 2S_{ΔnNCHCF} |

Case 2 | S_{ΔnLPG} < 0 | F > 0 |

_{ΔnLPG}< 0 and S

_{ΔnNCHCF}< 0, which demonstrates that the shift in both LPG and NCHCF occurs in the same direction (towards the shorter wavelengths). Because the two cases require different approaches, we will discuss them separately in the following sections. All the calculations presented below were conducted and analyzed by means of the Wolfram

^{®}Mathematica software.

Coefficient No. |
---|

${A}_{1}=2{(1+2m)}^{2}{t}^{2}{k}_{0}^{8}{n}_{l}^{6}({n}_{g}^{2}-{n}_{l}^{2}){N}^{2}{r}_{1}^{4}{r}_{2}^{4}$ |

${A}_{2}={(1+2m)}^{4}{t}^{4}{k}_{0}^{4}{({n}_{g}^{2}-{n}_{l}^{2})}^{2}{N}^{4}{r}_{1}^{2}{r}_{2}^{2}{({k}_{0}^{2}{n}_{l}^{2}{r}_{1}^{2}-{u}_{1}^{2})}^{3}{({k}_{0}^{2}{n}_{l}^{2}{r}_{2}^{2}-{u}_{\nu j}^{2})}^{3}$ |

${A}_{3}=3{(1+2m)}^{2}{t}^{2}{k}_{0}^{6}{n}_{l}^{4}(-{n}_{g}^{2}+{n}_{l}^{2}){N}^{2}{r}_{1}^{2}{r}_{2}^{2}({r}_{2}^{2}{u}_{1}^{2}+{r}_{1}^{2}{u}_{\nu j}^{2})$ |

${A}_{4}={(1+2m)}^{2}{t}^{2}{k}_{0}^{2}({n}_{g}^{2}-{n}_{l}^{2}){N}^{2}{u}_{1}^{2}{u}_{\nu j}^{2}({r}_{2}^{2}{u}_{1}^{2}+{r}_{1}^{2}{u}_{\nu j}^{2})$ |

${A}_{5}={(1+2m)}^{2}{t}^{2}{k}_{0}^{4}{n}_{l}^{2}({n}_{g}^{2}-{n}_{l}^{2}){N}^{2}({r}_{2}^{4}{u}_{1}^{4}+4{r}_{1}^{2}{r}_{2}^{2}{u}_{1}^{2}{u}_{\nu j}^{2}+{r}_{1}^{4}{u}_{\nu j}^{4})$ |

${A}_{6}={(1+2m)}^{4}{k}_{0}^{4}{({n}_{g}^{2}-{n}_{l}^{2})}^{2}{({r}_{2}^{2}{u}_{1}^{2}-{r}_{1}^{2}{u}_{\nu j}^{2})}^{2}$ |

**Table 3.**Solutions of inequality (16) (u

_{νj}) for different NCHCF and LPG parameters. The values in bold are changed in comparison to the parameters of the initial NCHCF and LPG, which are presented in the first row of the table. In the case of t = 0.8 µm, the λ

_{LPG}has also been changed to match the shifted first-order antiresonant bands of both NCHCFs. The antiresonance order and grating wavelength order assumed for the calculations are m = 1 and N = 1, respectively.

r_{1} (µm) | r_{2} (µm) | t (µm) | λ_{LPG} (nm) | u_{νj} |
---|---|---|---|---|

10 | 10.4 | 1 | 700.5 | (0 ≤ u_{νj} < 2.501) or (122.146 < u_{νj} ≤ 124.067) |

15 | 15.4 | 1 | 700.5 | (0 ≤ u_{νj} < 2.469) or (180.871 < u_{νj} ≤ 183.715) |

20 | 20.4 | 1 | 700.5 | (0 ≤ u_{νj} ≤ 2.453) or (239.596 < u_{νj} ≤ 243.362) |

10 | 11 | 1 | 700.5 | (0 ≤ u_{νj} < 2.645) or (129.193 < u_{νj} ≤ 131.225) |

10 | 12 | 1 | 700.5 | (0 ≤ u_{νj} < 2.886) or (140.938 < u_{νj} ≤ 143.154) |

10 | 10.4 | 0.9 | 700.5 | (0 ≤ u_{νj} < 2.501) or (121.692 < u_{νj} ≤ 124.067) |

10 | 10.4 | 0.8 | 634.0 | (0 ≤ u_{νj} < 2.501) or (134.313 < u_{νj} ≤ 137.080) |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Stawska, H.I.; Popenda, M.A.
Refractive Index Sensors Based on Long-Period Grating in a Negative Curvature Hollow-Core Fiber. *Sensors* **2021**, *21*, 1803.
https://doi.org/10.3390/s21051803

**AMA Style**

Stawska HI, Popenda MA.
Refractive Index Sensors Based on Long-Period Grating in a Negative Curvature Hollow-Core Fiber. *Sensors*. 2021; 21(5):1803.
https://doi.org/10.3390/s21051803

**Chicago/Turabian Style**

Stawska, Hanna Izabela, and Maciej Andrzej Popenda.
2021. "Refractive Index Sensors Based on Long-Period Grating in a Negative Curvature Hollow-Core Fiber" *Sensors* 21, no. 5: 1803.
https://doi.org/10.3390/s21051803
