Open AccessArticle
Sensors 2019, 19(4), 923; https://doi.org/10.3390/s19040923

A Sensor System for Detecting and Localizing Partial Discharges in Power Transformers with Improved Immunity to Interferences

1
Department of Theoretical and Experimental Electrical Engineering, Faculty of Electrical Engineering and Communication, Brno University of Technology, 616 00 Brno, Czech Republic
2
TES s.r.o., 674 01 Třebíč, Czech Republic
3
EGU - HV Laboratory a.s., 190 11 Prague, Czech Republic
*
Author to whom correspondence should be addressed.
Received: 31 December 2018 / Revised: 18 February 2019 / Accepted: 19 February 2019 / Published: 22 February 2019
(This article belongs to the Special Issue UHF and RF Sensor Technology for Partial Discharge Detection)
  |
PDF [24573 KB, uploaded 22 February 2019]
  |     |

Abstract

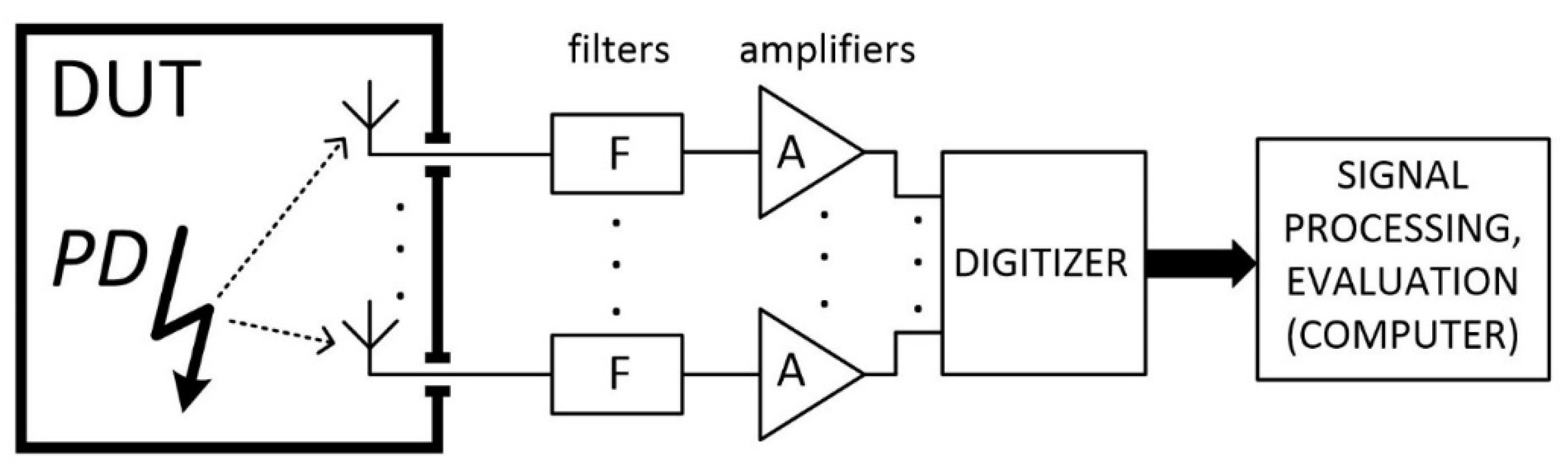

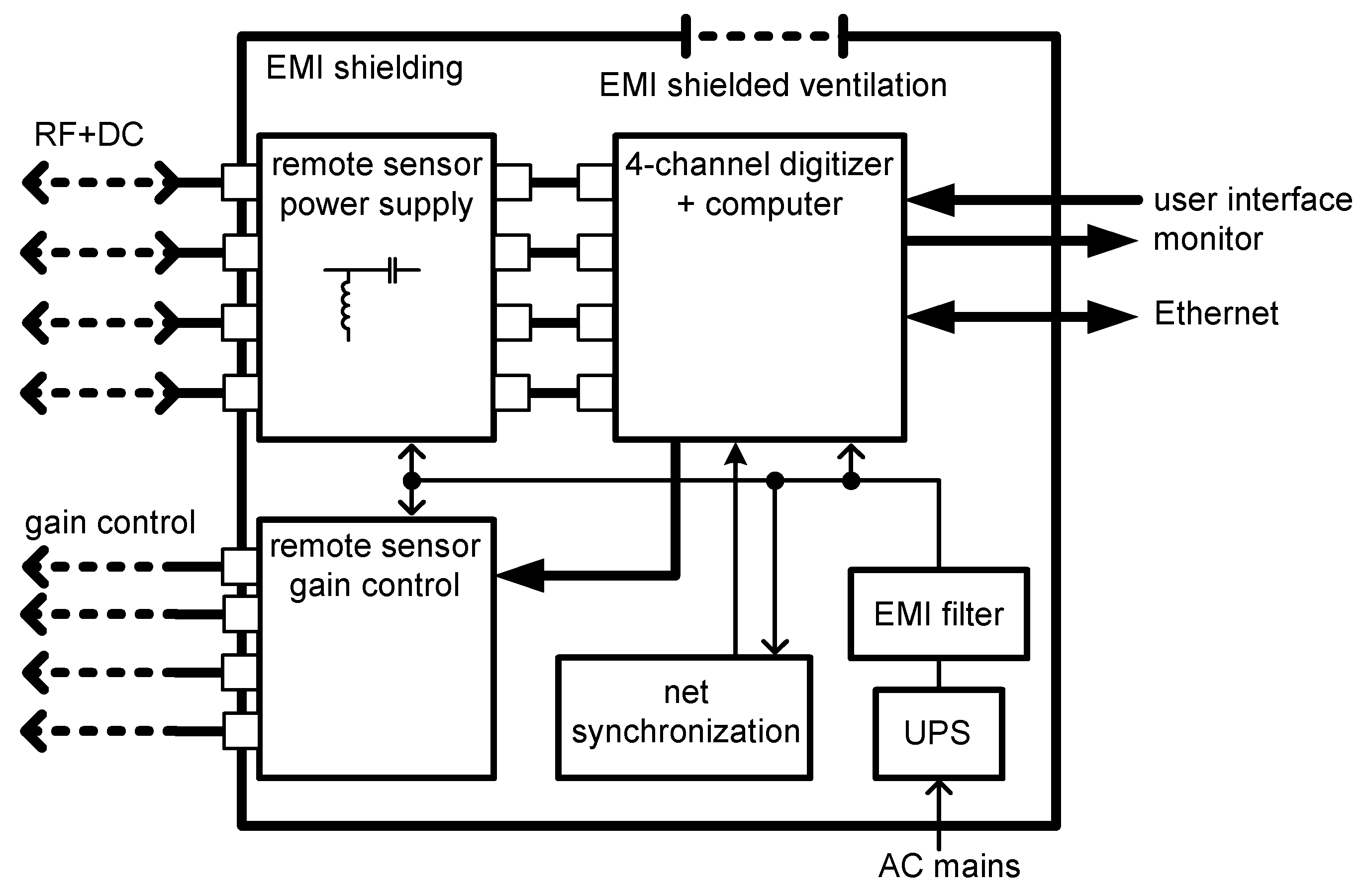

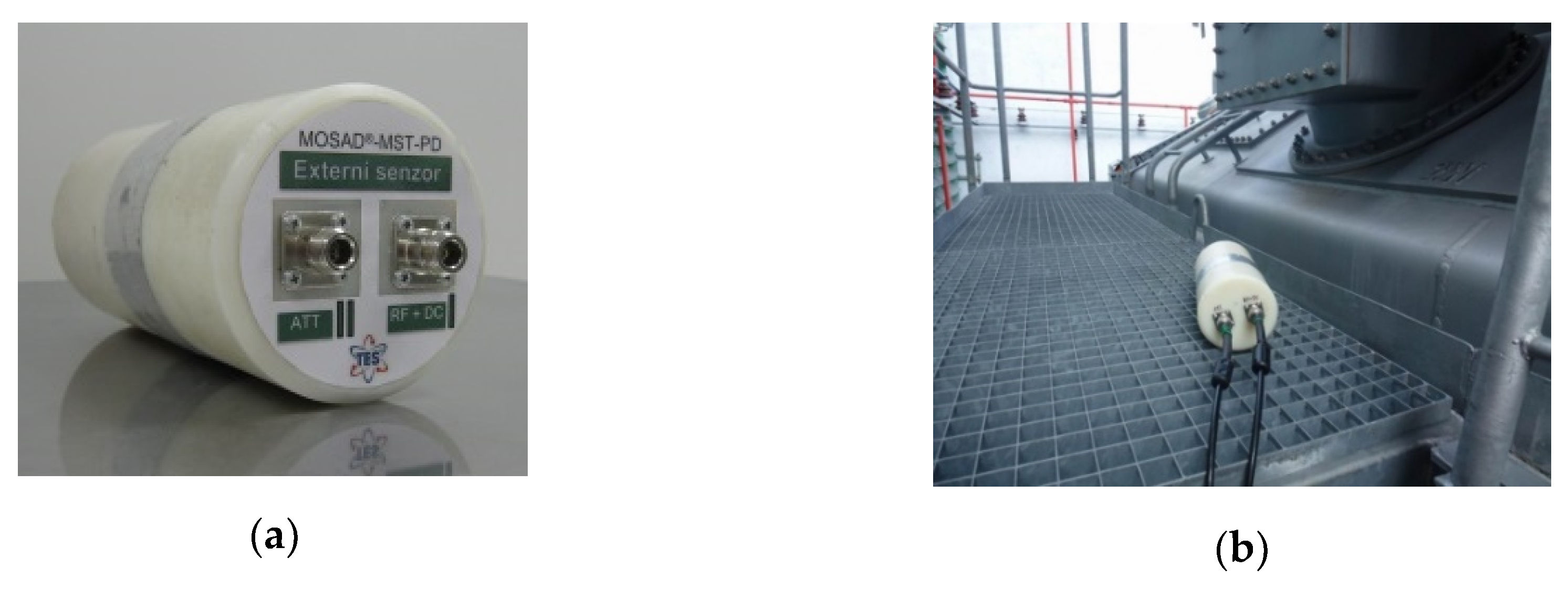

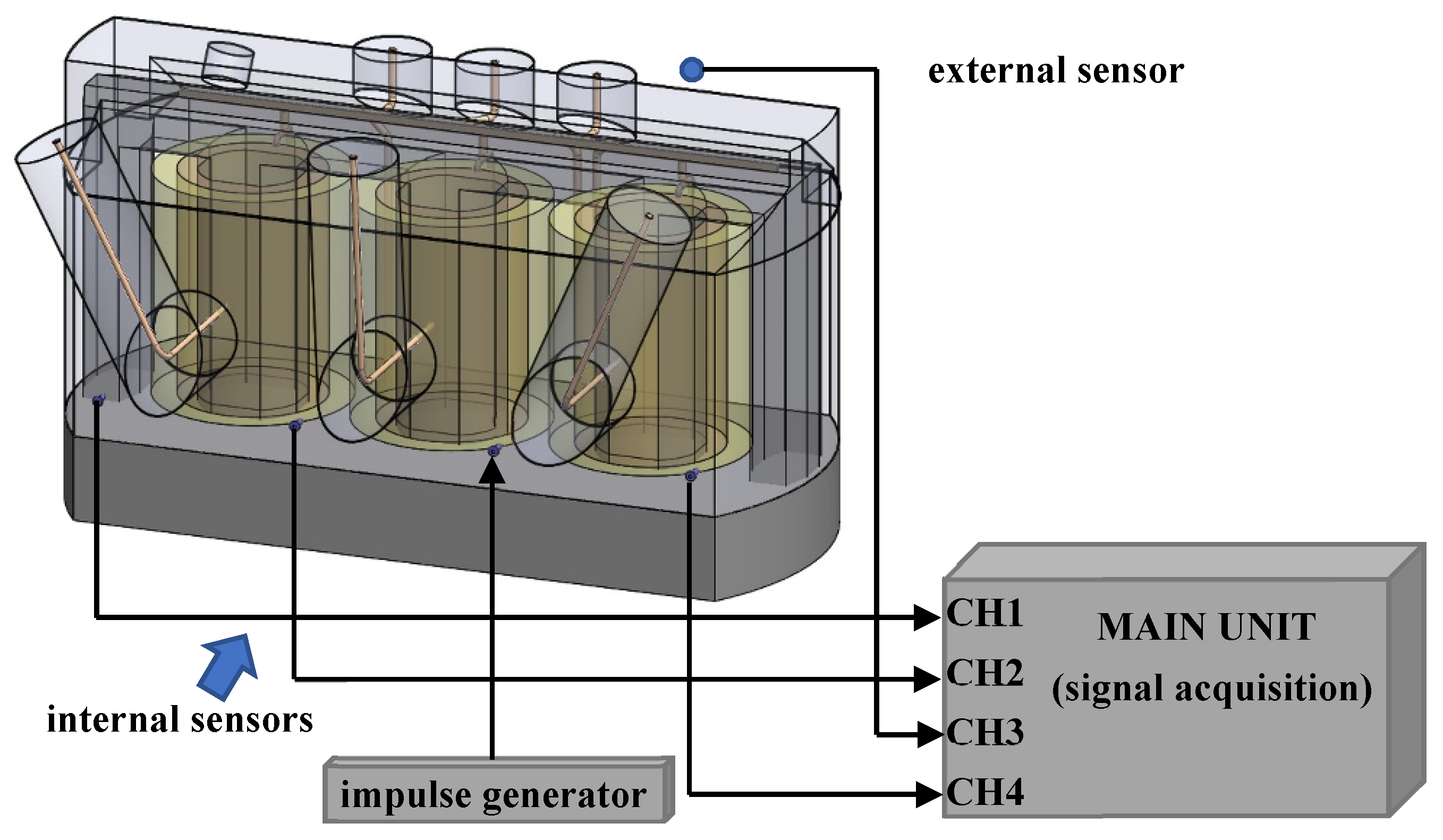

The paper reports on the solution, principles, and application results related to a system for diagnosing main transformers in power plants via the radiofrequency method. The subject of the diagnostics is the occurrence of partial discharge activity in transformers. The technical solution of the system is characterized in the introductory section of the article. There then follows a description of the operating principle and the implemented novel advanced methods for signal detection and source localization. The results obtained from practical application of the system within the diagnostics of high-power transformers are presented as well. Because ambient electromagnetic disturbance was recognized as a major issue during the system development, novel detection methods were proposed, implemented, and verified. The principal approach utilizes an external radiofrequency sensor to detect outer impulse disturbance and to eliminate disturbance-triggered acquisitions, and it also ensures direct real-time visualization of the desired impulse signals. The ability of weak signal detection was verified via artificial impulse signal injection into the transformer. The developed detection methods were completed with localization techniques for signal source estimation. The desired impulse signal was detected and localized during full operation of the main transformer, despite the presence of strong electromagnetic interference. View Full-Text
Keywords: partial discharge; ultra-high frequency; spatial localization; electromagnetic interference partial discharge; ultra-high frequency; spatial localization; electromagnetic interference
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
