Compact Inner-Wall Grating Slot Microring Resonator for Label-Free Sensing
1
State Key Laboratory of Integrated Optoelectronics, College of Electronic Science and Engineering, Jilin University, 2699 Qianjin Street, Changchun 130012, China
2
College of Information Technology, Jilin Agricultural University, 2888 Xincheng Street, Changchun 130118, China
*
Author to whom correspondence should be addressed.
Sensors 2019, 19(22), 5038; https://doi.org/10.3390/s19225038
Received: 29 September 2019
/
Revised: 2 November 2019
/
Accepted: 13 November 2019
/
Published: 19 November 2019
(This article belongs to the Special Issue Optical–Resonant Microsensors)

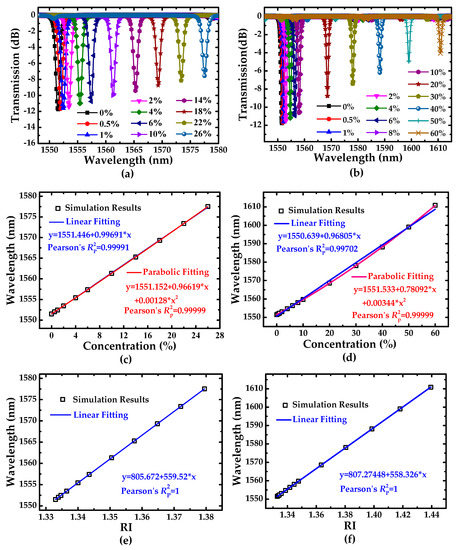

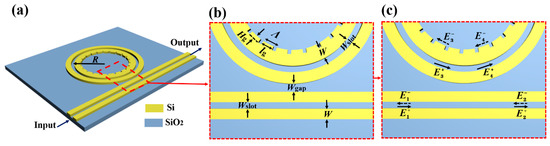

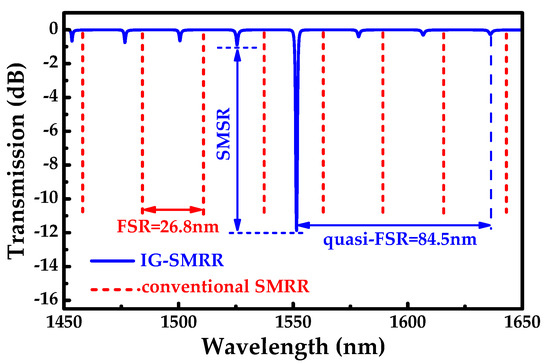

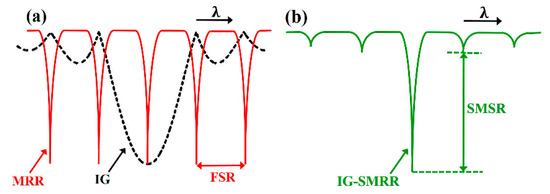

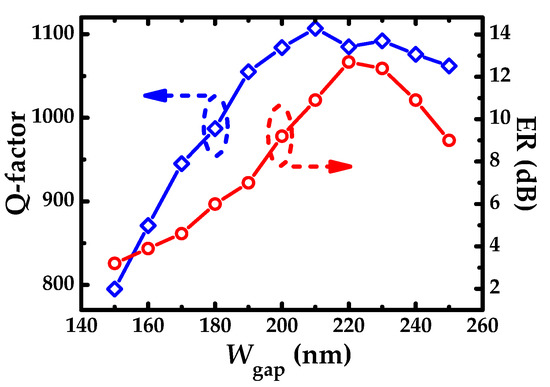

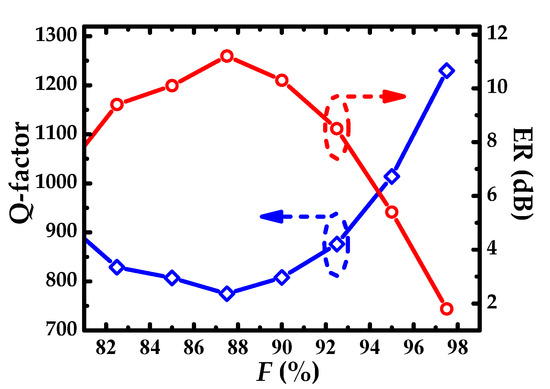

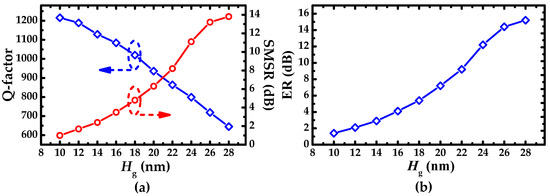

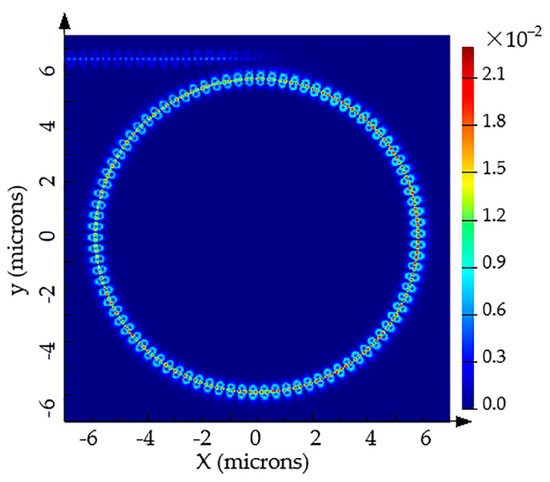

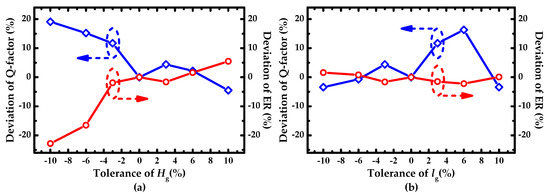

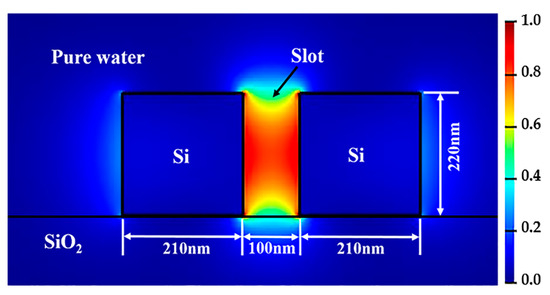

In this paper, we present and analyze a compact inner-wall grating slot microring resonator (IG-SMRR) with the footprint of less than 13 μm × 13 μm on the silicon-on-insulator (SOI) platform for label-free sensing, which comprises a slot microring resonator (SMRR) and inner-wall grating (IG). Its detection range is significantly enhanced without the limitation of the free spectral region (FSR) owing to the combination of SMRR and IG. The IG-SMRR has an ultra-large quasi-FSR of 84.5 nm as the detection range, and enlarged factor is up to over 3 compared with the conventional SMRR. The concentration sensitivities of sodium chloride solutions and D-glucose solutions are 996.91 pm/% and 968.05 pm/%, respectively, and the corresponding refractive index (RI) sensitivities are 559.5 nm/RIU (refractive index unit) and 558.3 nm/RIU, respectively. The investigation on the combination of SMRR and IG is a valuable exploration of label-free sensing application for ultra-large detection range and ultra-high sensitivity in future.
View Full-Text
▼
Show Figures
Figure 1
