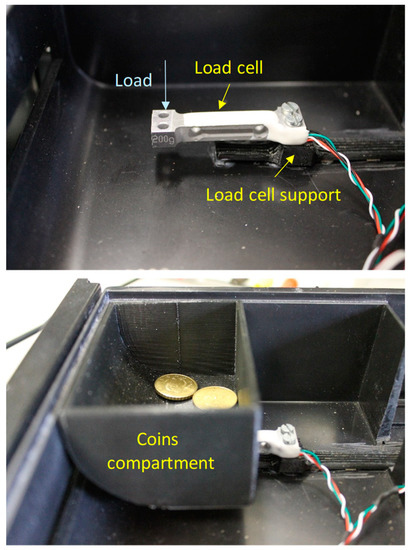

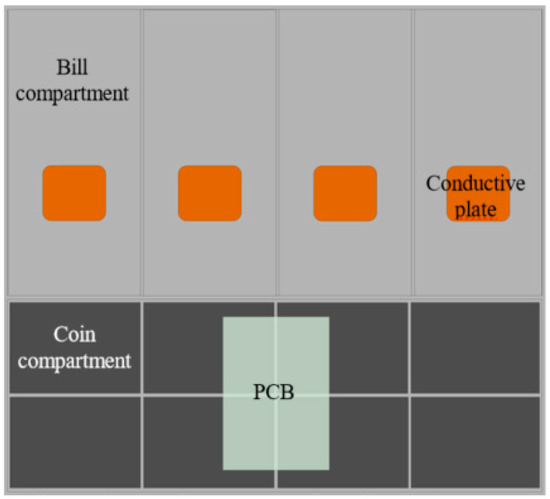

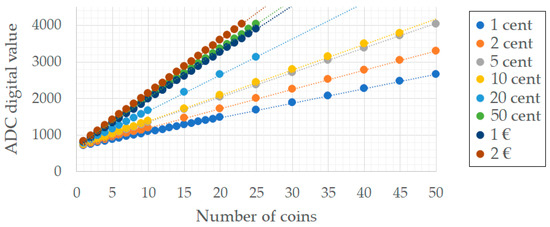

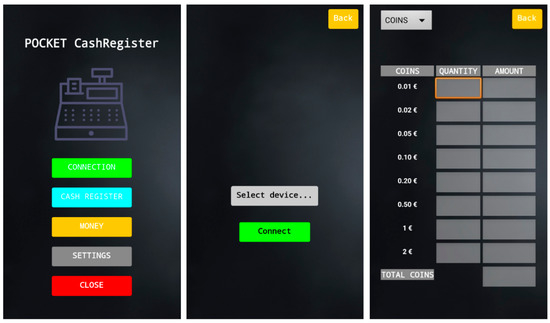

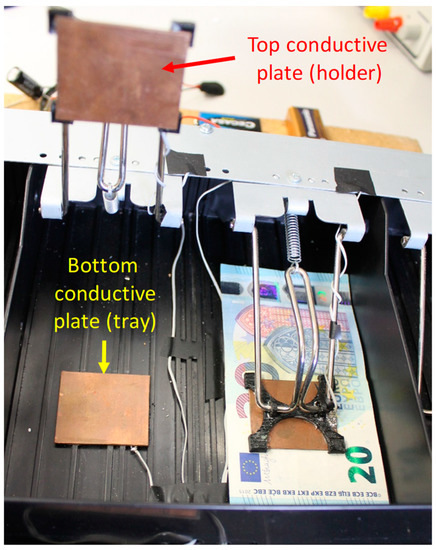

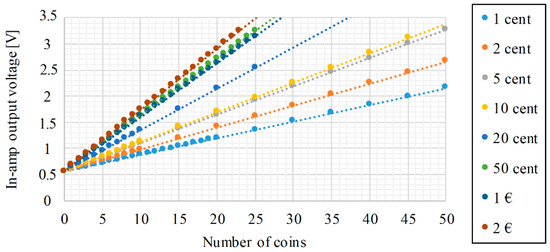

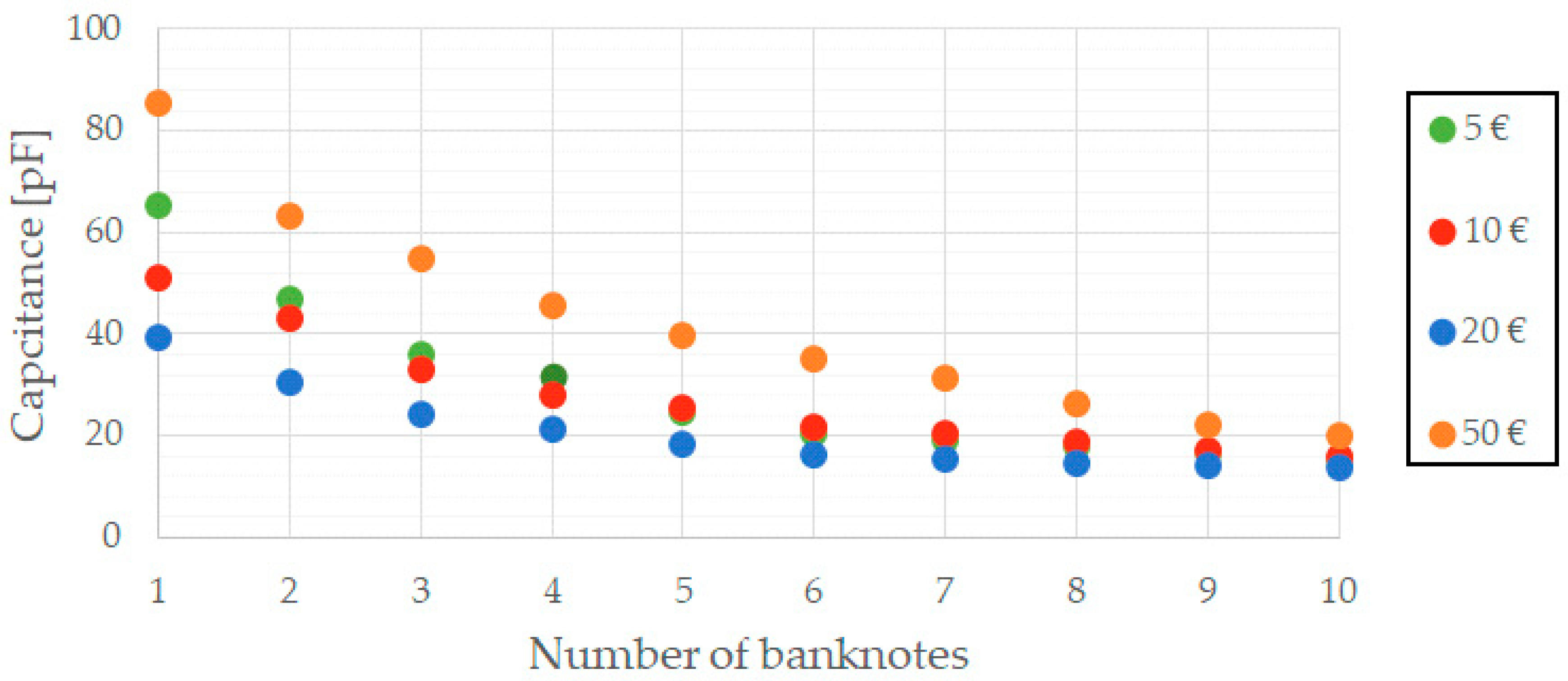

A very interesting and useful complement to classical cash-registers is presented in this paper, coming up with a real-time auto-counting solution for the money inside a cash drawer. The system allows knowing not only the total amount of money but also how many coins and banknotes there are of each value. The embedded solution developed has been intended to become a low-cost solution, allowing better control over the money and helping both owners and workers in the establishments. By using this system, new utilities including automatic final balancing, instant error handling when making operations, and the lack of certain types of banknotes or coins inside the drawer or the excess of some in a certain compartment, could be implemented. Coins-counting solution is based on their weight, and small individual scales made by load cells have been integrated in each coin compartment. With respect to the banknotes, an innovative alternative based on the electrical properties of capacitors is presented. Additionally, considering the relevance of interoperability in today’s systems, a Bluetooth module has been integrated into the system, allowing for data to be accessed remotely from any smartphone, tablet or computer within the range of the module. In this work, an Android application to both control and interact with the system has also been designed.
