1-Acetyl-17-{2-hydroxy-3-[4-(2-methoxyphenyl)piperazin-1-yl]propyl}-17-azapentacyclo[6.6.5.0^2,7.0^9,14.0^15,19]nonadeca-2,4,6,9,11,13-hexaene-16,18-dione

Abstract

The title compound was synthesized by condensation of an oxiran imide derivative with an appropriate amine and its IR, ¹H NMR, ¹³C NMR and mass spectroscopic data are reported. The synthesized compound was evaluated for its cytotoxicity and anti-HIV-1 activity in MT-4 cells.

Introduction

Currently available drugs for the treatment of HIV infections are based on combination of two types of anti-HIV-1 agents: nucleoside reverse transcriptase inhibitors (RTIs) and protease inhibitors [1]. The RTIs can be divided into nucleoside (NI) and non-nucleoside RT inhibitors (NNRTI). Several non-nucleoside inhibitors have been described, including nevirapine, thiobenzimidazolone (TIBO) derivatives, pyridinone derivatives and the bis(heteroaryl)piperazines (BHAPs), such as delavirdine and atevirdine [2]. Another arylpiperazine, vicriviroc, is currently under phase II of clinical investigation [3]. Therefore, the discovery of new BHAP analogs is actively pursued [4,5].

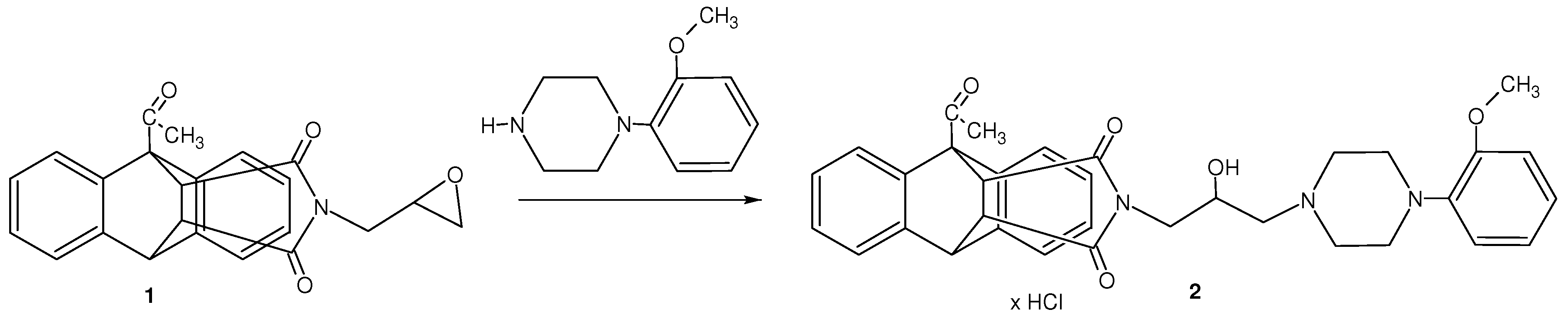

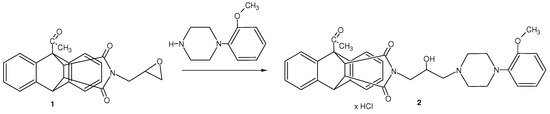

1-Acetyl-17-(oxiran-2-ylmethyl)-17-azapentacyclo[6.6.5.0^2,7.0^9,14.0^15,19]nonadeca-2,4,6,9,11,13-hexaene-16,18-dione 1 was used as a starting material. It was obtained from the reaction of imide 1-acetyl-17-azapentacyclo[6.6.5.0^2,7.0^9,14.0^15,19]nonadeca-2,4,6,9,11,13-hexaene-16,18-dione with 2-(chloromethyl)oxirane [6]. Next, it was subjected to the reaction with an amine to give the appropriate amino alcohol 2 (Scheme 1).

The synthesized compound was evaluated for its cytotoxicity and anti-HIV-1 activity in MT-4 cells [7]. The obtained compound 1 does not show activity against HIV-1. Compound concentation (µM) required to reduce the viability of mock-infected MT-4 cells by 50% is 45 (CC₅₀). Compound concentration (µM) required to achieve 50% protection of MT-4 cells from the HIV-1 induced cytopathogeneticy is 45 or less (EC₅₀).

Experimental Section

Chemistry

Synthesis of 1-acetyl-17-{2-hydroxy-3-[4-(2-methoxyphenyl)piperazin-1-yl]propyl}-17-azapentacyclo- [6.6.5.0^2,7.0^9,14.0^15,19]nonadeca-2,4,6,9,11,13-hexaene-16,18-dione hydrochloride (2)

A mixture of 1-acetyl-17-(oxiran-2-ylmethyl)-17-azapentacyclo[6.6.5.0^2,7.0^9,14.0^15,19]nonadeca-2,4,6,9,11,13-hexaene-16,18-dione (1) (0.5 g, 0.0013 mol) and (1-(2-methoxyphenyl)piperazine (0.43 g, 0.0019 mol in water/methanol (1:40) was refluxed for 50 h. The liquid was distilled off, the oily residue was purified by column chromatography (chloroform:methanol; 100:0.5 vol.). The dried residue was dissolved in methanol, and then 10 drops of HCl saturated methanol were added. The mixture was kept for 12 h at 6 °C and after that time the solvent was distilled off.

White crystals, yield 70%.

Melting point: 192 °C.

¹H NMR (400 MHz, CDCl₃) δ (ppm): 11.72 (s, 1H, NH⁺); 7.67–7.65 (m, 2H, CH_arom.); 7.43–4.40 (m, 2H, CH_arom.); 7.24–6.97 (m, 8H, CH_arom.); 4.35–4.20 (m, 2H, CH); 4.02–3.87 (m, 2H, CH₂); 3.96 (s, 3H, OCH₃); 3.71–3.40 (m, 6H, CH₂); 3.24–2.94 (m, 4H, CH₂); 2.82 (d, 3H, CH₃, J = 3.2 Hz).

¹³C-NMR (100 MHz, CDCl₃) δ (ppm): 177.05, 177.02, 176.73, 141,52, 141,47, 140.14, 140.15, 138.62, 138.58, 137.27, 127.98, 127,78, 127.69, 127.59, 127.15, 125.51, 125.39, 125.32, 125.22, 124.74, 123.92, 123.32, 121.98, 64.03, 61.51, 60.77, 56.38, 50.95, 49.22, 48.57, 48.46, 46.20, 46.15, 42.5.

ESI MS: m/z = 566.12 [M]⁺ (100%).

Elemental Analysis: Calculated for C₃₄H₃₆ClN₃O₅ x 2H₂O (638.15): C, 63.99%; H, 6.32%; N, 6.58%;. Found: C, 64.02%; H 6.30%; N, 6.55%.

Antiviral Assay Procedures

The antiviral investigations of the compound were performed in Dipartamento di Scienze e Tecnologie Biomediche, Universita di Cagliari, Monserato, Italy.

The compound was solubilized in DMSO at 200 mM and then diluted into a culture medium.

Cells and Viruses

Cell lines were purchased from American Type Culture Collection (ATCC). The absence of mycoplasma contamination was checked periodically by the Hoechst staining method. Cell lines supporting the multiplication of RNA viruses were the following: CD4⁺ human T-cells containing an integrated HTLV-1 genome (MT-4).

Cytotoxicity Assays

For cytotoxicity evaluations, exponentially growing cells derived from human haematological tumors [CD4⁺ human T-cells containing an integrated HTLV-1 genome (MT-4)] were seeded at an initial density of 1 × 10⁵ cells/mL in 96 well plates in RPMI-1640 medium supplemented with 10% fetal calf serum (FCS), 100 units/mL penicillin G and 100 µg/mL streptomycin. Cell cultures were then incubated at 37 °C in a humidified, 5% CO₂ atmosphere in the absence or presence of serial dilutions of test compounds. Cell viability was determined after 96 h at 37 °C by the 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl-tetrazolium bromide (MTT) method [7].

Antiviral Assay

Activity of the compound against Human Immunodeficiency Virus type-1 (HIV-1) was based on inhibition of virus-induced cytopathogenicity in MT-4 cells acutely infected with a multiplicity of infection (m.o.i.) of 0.01. Briefly, 50 μL of RPMI containing 2 × 10⁴ MT-4 were added to each well of flat-bottom microtitre trays containing 50 μL of RPMI, without or with serial dilutions of the test compound. Then, 20 μL of an HIV-1 suspension containing 100 CCID50 were added. After a 4-day incubation, cell viability was determined by the MTT method.
