Heteroleptic [Cr^IIIN₆] Chromophores as Partners for Lanthanide-Based Light Conversion in d-f Molecular Complexes

Abstract

The connection of a dianionic 2,2’-biimidazolate (biim²⁻) bridging unit to cis-[Cr(N^∩N)₂]³⁺ (N^∩N is a chelating didentate ligand) or cis-[Cr(N^∩N^∩N^∩N)]³⁺ building blocks (N^∩N^∩N^∩N is a chelating tetradentate ligand) produces heteroleptic pseudo-octahedral [CrN₆]⁺ chromophores. Their reduced cationic charge is compatible with the subsequent complexation of trivalent lanthanides (Ln³⁺) to give d-f {[(N^∩N)₂Cr(biim)]_nLn}⁽³⁺ⁿ⁾⁺ (n = 1–4), {[(N^∩N)₂Cr(biim)]Ln(Tp)₂}²⁺ and {[(N^∩N^∩N^∩N)Cr(biim)]Ln(Tp)₂}²⁺ adducts (Tp is tri(1H-pyrazol-1-yl)-λ⁴-borate). Moving from polyaromatic N^∩N (1,10 phenanthroline) to saturated N^∩N^∩N^∩N polyamine (cyclam) receptors controls the photophysical properties and leads to tunable light conversion in the target heterometallic complexes when Eu(III) is exploited as the activator for downshifting and Er(III) as the activator for upconversion.

1. Introduction

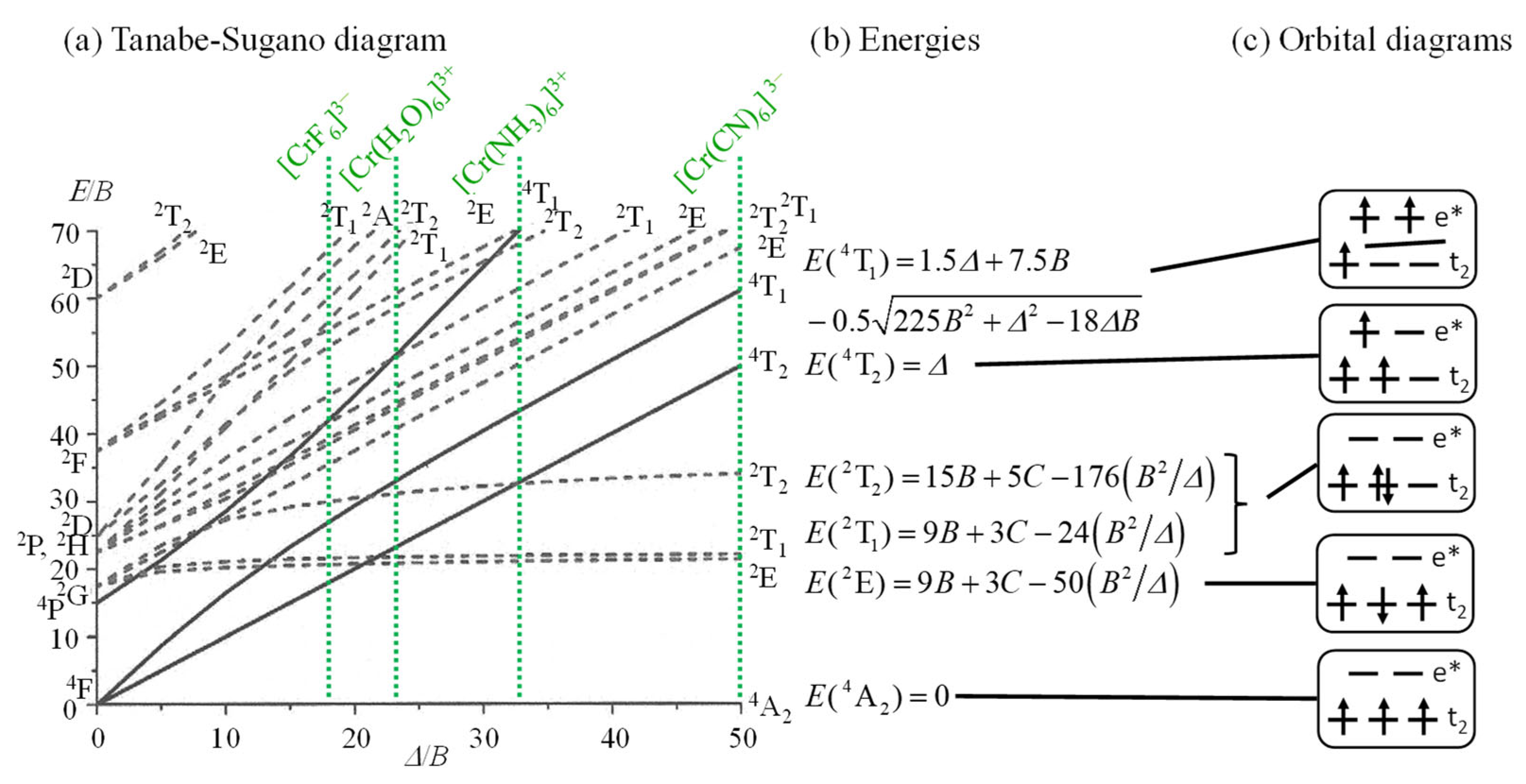

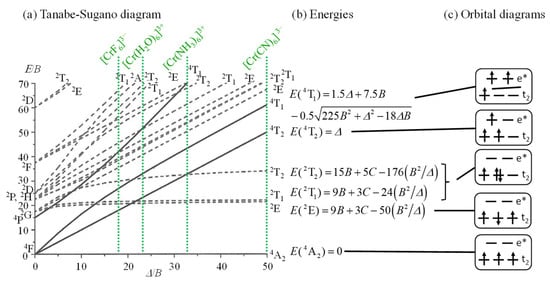

The well-known Tanabe–Sugano diagram established for pseudo-octahedral [MX₆] scaffolds possessing an open-shell d³ electronic configuration [1,2,3] applies to [Cr^IIIX₆] chromophores [4,5,6] (Figure 1), and justifies the challenging efforts undertaken in the last two decades for combining them with open-shell 4f-block trivalent cations. Firstly, the ground-state atomic term Cr(⁴A₂) is magnetically active and behaves as a ‘pure’ multiple spin center (S = 3/2) with (i) negligible magnetic anisotropy, (ii) modulable zero-field splitting, and (iii) long electronic relaxation time [7]. When Cr(III) centers are integrated into polynuclear assemblies exhibiting intermetallic ferromagnetic exchange coupling, the magnetic moment of Cr(III) can be exploited for the design of slow-relaxing single molecular magnets with accessible blocking temperatures [8,9,10]. Some specific arrangements of ferromagnetically coupled d-f chromium–lanthanide wheels and butterflies gave access to rare magneto-structural maps [11,12,13,14,15,16]. Alternatively, antiferromagnetic Cr(III)-Gd(III) coupling is highly desired for the preparation of isotropic ultra-dense assemblies inducing large magneto-caloric cooling effects [17,18,19]. The concomitant long electronic relaxation time makes the basis for (i) electron paramagnetic resonance imaging (EPRI) [20], the counterpart of (nuclear) magnetic resonance imaging (MRI), and (ii) molecular quantum bits with long coherence times [21]. Finally, the ground-state d³ electronic configuration is associated with the largest ligand-field reorganization energies accompanying ligand exchange processes in octahedral complexes [22,23]. [Cr^IIIX₆] units are therefore kinetically inert, a rare situation for 3d metal complexes, but which is highly desirable for the rational design of heterometallic d-f assemblies with no statistical scrambling in solution [24,25,26].

For pseudo-octahedral Cr(III) complexes, there are two types of excited states. The first category corresponds to quartet excited states (S = 3/2) resulting from the promotion of one or more electrons from the ground t₂ orbitals into the anti-bonding e^* orbitals with no spin-flip (full traces in Figure 1a). Upon electromagnetic excitation, the latter transitions obey the spin rule, but their absorption cross-sections are still limited by the parity (Laporte) rule (d↔d transitions are magnetically allowed but electric-dipole transitions are forbidden). Interestingly, the resulting distorted quartet excited states, when their lifetimes are long enough, can be exploited to induce photochemical transformations [27,28]. The second category refers to doublet excited states (S = ½), where one electron undergoes a spin-switch upon light excitation (dashed traces in Figure 1a). The three lowest-energy spin-flip transitions with E/B < 30, i.e., Cr(²E,²T₁,²T₂←⁴A₂) in Figure 1a, defy the spin rule and do not involve ligand-field promotion (Figure 1c). They therefore provide more limited potential for photochemistry [29,30], but are highly sought for inducing long-lived near-infrared emission [31] and tunable photophysical properties controlled by the Δ/B ratio imposed by the surrounding donor atoms [29,30,31,32,33,34,35,36,37].

Combined with the wealth of narrow spectroscopic levels characterizing the trivalent lanthanides, Ln³⁺, possessing [Xe]4fⁿ (n = 1–13) electronic configurations [38], d-f Cr(III)/Ln(III) mixtures are regularly doped into ionic solids and nanoparticles for preparing advanced optical materials in which intermetallic sensitizer-to-activator energy transfers modulate luminescence with the goal of inducing light downshifting [39,40,41,42,43,44,45,46,47] or light upconversion [48,49]. Moving toward strict stoichiometric control with satisfying reproducibility requires that the two different metals possess well-defined coordination environments mastered by specific ligands, a target not accessible for doped ionic solids. Moreover, chromium-doped ionic solids are usually restricted to weak-crystal-field [CrO₆] chromophores with 21 < Δ/B < 30 as illustrated in ruby (Δ/B = 24 [50]), whereas a pertinent exploitation of spectrochemical [51] and nephelauxetic [37,52] series covers the 18 < Δ/B < 50 range in designed coordination complexes ([CrO₆], [CrN₆], and [CrC₆] chromophores or a combination of them; Figure 1a). A first step toward the design of stoichiometric Cr(III)/Ln(III) sensitizer–activator pairs exploits ionic solids made of ion-paired complexes in [Cr(en)₃][Eu(dipic)₃] (en = ethane-1,2-diamine, dipic = pyridine-2,6-dicarboxylic acid), the latter exhibiting light downshifting [53], and in [Cr(ddpd)₂][Yb(dipic)₃] (ddpd = N,N’-dimethyl-N,N’-dipyridine-2-ylpyridine-2,6-diamine), which is active for light upconversion [54]. Closer to molecular systems, the coordination polymer {[(CN)₄Cr(μ-CN)₂Yb(H₂O)₂(dmf)₄]·H₂O} _∞ possesses Cr(μ-CN)₂Yb units, in which the two metals are connected by cyano bridges (Cr···Yb = 5.58 Å), thus ensuring efficient Cr→Yb energy transfers (k_ET ≥ 10⁸ s⁻¹) and subsequent light downshifting [55]. Preparing molecular heterometallic Cr-4f complexes in solutions remains extremely rare [56], and this is despite the attractive large intermetallic communications operating via energy transfers over long distances [57]. We are aware of only three systems in which molecular Cr↔Ln energy transfers were quantified in isolated complexes. The first approach exploits a thermodynamic self-assembly process to assemble labile Cr²⁺ and Ln³⁺ cations with multidentate segmental ligands to give the triple-helical [Cr^IILn(L1)₃]⁵⁺ complex, which is oxidized to give inert [Cr^IIILn(L1)₃]⁶⁺ helicates (Figure 2a) [56,58]. The Cr···Ln distance of 8.7 Å, combined with the lack of short bridging ligands, limits the intermetallic energy transfer rate constants to k_ET(Cr→Er) = 10²–10³ s⁻¹. The resulting long Cr(III)-based lifetime was then exploited for inducing unprecedented multi-sensitizer-based energy transfer upconversion (ETU) in the related trinuclear CrErCr helicates [56,58,59].

A second method relies on the complex-as-ligand strategy, for which a kinetically inert [Cr^IIIX₆] unit, a common characteristic of pseudo-octahedral d³ chromophores [22,23], integrates a bridging ligand designed for the complexation of a trivalent lanthanide metal. This approach was applied for the preparation of [(acac)₂Cr(ox)Ln(HB(pz)₃)₂] (X = O, Figure 2b) [57,60] and of {[(dqp)Cr(L2)]₃Ln}⁶⁺ (X = N, Figure 2c) adducts [61]. The presence of electron-rich bridging ligands connecting the two metals in the latter adducts boosts the energy transfer processes via the Dexter mechanism [62,63]. The associated rate constant for a Cr···Er distance as long as 14 Å reaches k_ET(Cr→Er) ≈ 10⁵ s⁻¹ (Figure 2c).

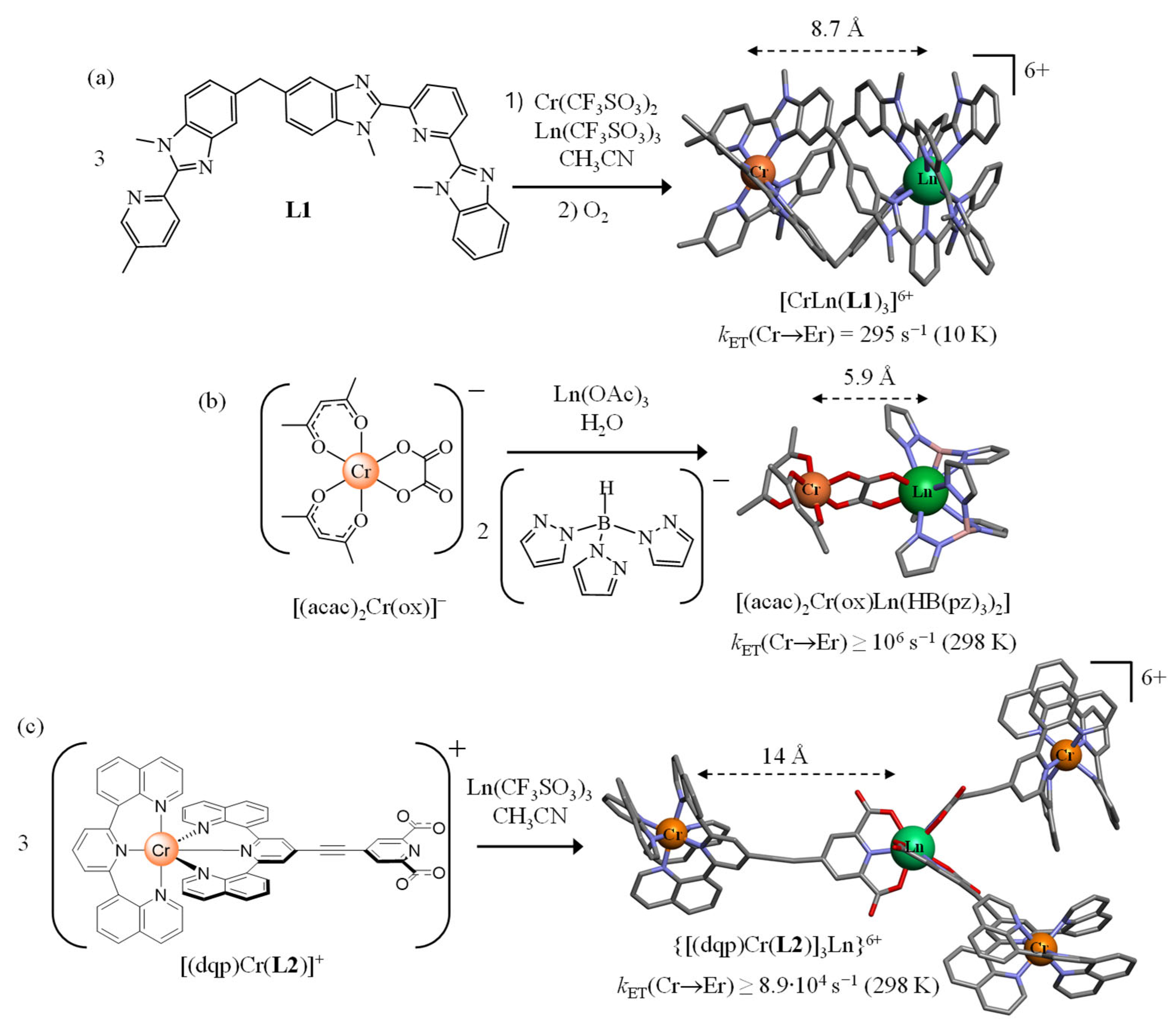

Figure 2. Synthesis of molecular structures of the three heterometallic LnCr systems (Ln = Er) in which first-order intermetallic energy transfer k_ET(Cr↔Er) rate constants were quantified in isolated molecular complexes. (a) A self-assembled [CrLn(L1)₃]⁶⁺ helicate [59], (b) a [(acac)₂Cr(ox)Ln(HB(pz)₃)₂] dyad [57,62] and (c) a {[(dqp)Cr(L2)]₃Ln}⁶⁺ tetranuclear adduct [63].

Figure 2. Synthesis of molecular structures of the three heterometallic LnCr systems (Ln = Er) in which first-order intermetallic energy transfer k_ET(Cr↔Er) rate constants were quantified in isolated molecular complexes. (a) A self-assembled [CrLn(L1)₃]⁶⁺ helicate [59], (b) a [(acac)₂Cr(ox)Ln(HB(pz)₃)₂] dyad [57,62] and (c) a {[(dqp)Cr(L2)]₃Ln}⁶⁺ tetranuclear adduct [63].

Aiming at maximizing intramolecular k_ET(Cr→Ln) rate constants for rising Visible to NIR downshifting with earth abundant metals, we prepared the heterometallic complex-as-ligand [(phen)₂Cr(H₂biim)]³⁺, for which the 2,2′-biimidazolate bridge found in its doubly deprotonated [(phen)₂Cr(biim)]⁺ form is famous for efficiently connecting additional d-block metals (Figure 3) [64]. However, and to the best of the authors’ knowledge, no connection between Cr(III) and Ln(III) in d-f dyads exploiting this promising electron-rich bridge has been reported. The binding of [(phen)₂Cr(biim)]⁺, or derivatives of it, working as complex-as-ligand with trivalent lanthanides is therefore explored in this contribution (Figure 3, right).

2. Results and Discussions

2.1. Reaction of [(phen)₂Cr(biim)]⁺ Complex-as-Ligand with M(O₃SCF₃)_n (M = La, Lu, Zn)

The complex [(phen)₂Cr(biim)]⁺ possesses biim²⁻→phen ligand-to-ligand charge transfer (LLCT) bands in the visible part of the electromagnetic spectrum, which are shifted toward higher energy upon coordination of the biimidazolate unit to an electron-deficient guest such as H⁺ [64]. The complexation of related metallic cations M^z+, instead of H⁺, to the biimidazolate bridge of [(phen)₂Cr(biim)]⁺ can thus be investigated using spectrophotometric titrations. The stepwise additions of the desired lanthanide triflate Ln(O₃SCF₃)₃ (Ln = La, Lu, O₃SCF₃⁻ = OTf⁻ in the rest of this work) to a solution of the complex [(phen)₂Cr(biim)](OTf) (6 × 10⁻⁴ M in CH₃CN) affect the absorption spectra of the solution, with a global blue shift in LLCT transitions covering the visible domain (Figure 4, Figures S1 and S2). Ln = La and Lu have been selected because they are (i) diamagnetic and compatible with parallel NMR titrations and (ii) correspond to the extreme ionic radii along the lanthanide series. Interestingly, the absorbances of the solution at 700 nm and 800 nm rapidly decrease and reach zero for 0.25 equivalents of added Ln³⁺ (Figure 4b and Figure S1a,b), in agreement with the formation of {Ln[(biim)Cr(phen)₂]₄}⁷⁺ as the ultimate complex. A model, where up to four chromium complexes can bind to each Ln³⁺, is proposed according to Equations (1)–(4) (Cr denotes [(phen)₂Cr(biim)]⁺ and charges are omitted for clarity):

$$\begin{array}{c}\mathrm{Ln}+\mathrm{Cr} \leftrightarrows \mathrm{Ln}\mathrm{Cr}\end{array}$$

(1)

$$\begin{array}{c}\mathrm{Ln}+2 \mathrm{Cr} \leftrightarrows \mathrm{Ln}{\mathrm{C}\mathrm{r}}_2\end{array}$$

(2)

$$\begin{array}{c}\mathrm{Ln}+3 \mathrm{Cr} \leftrightarrows \mathrm{Ln}{\mathrm{C}\mathrm{r}}_3\end{array}$$

(3)

$$\begin{array}{c}\mathrm{Ln}+4 \mathrm{Cr} \leftrightarrows \mathrm{Ln}{\mathrm{C}\mathrm{r}}_4\end{array}$$

(4)

Each complexation reaction is associated with its association constant ${\beta }_{1,n}^{\mathrm{L}\mathrm{n},\mathrm{C}\mathrm{r}}$:

$$\begin{array}{c}{\beta }_{1,n}^{\mathrm{L}\mathrm{n},\mathrm{C}\mathrm{r}}={\displaystyle \frac{\left[{\mathrm{L}\mathrm{n}\mathrm{C}\mathrm{r}}_n\right]}{{\left[\mathrm{C}\mathrm{r}\right]}^n\times \left[\mathrm{L}\mathrm{n}\right]}} \end{array}$$

(5)

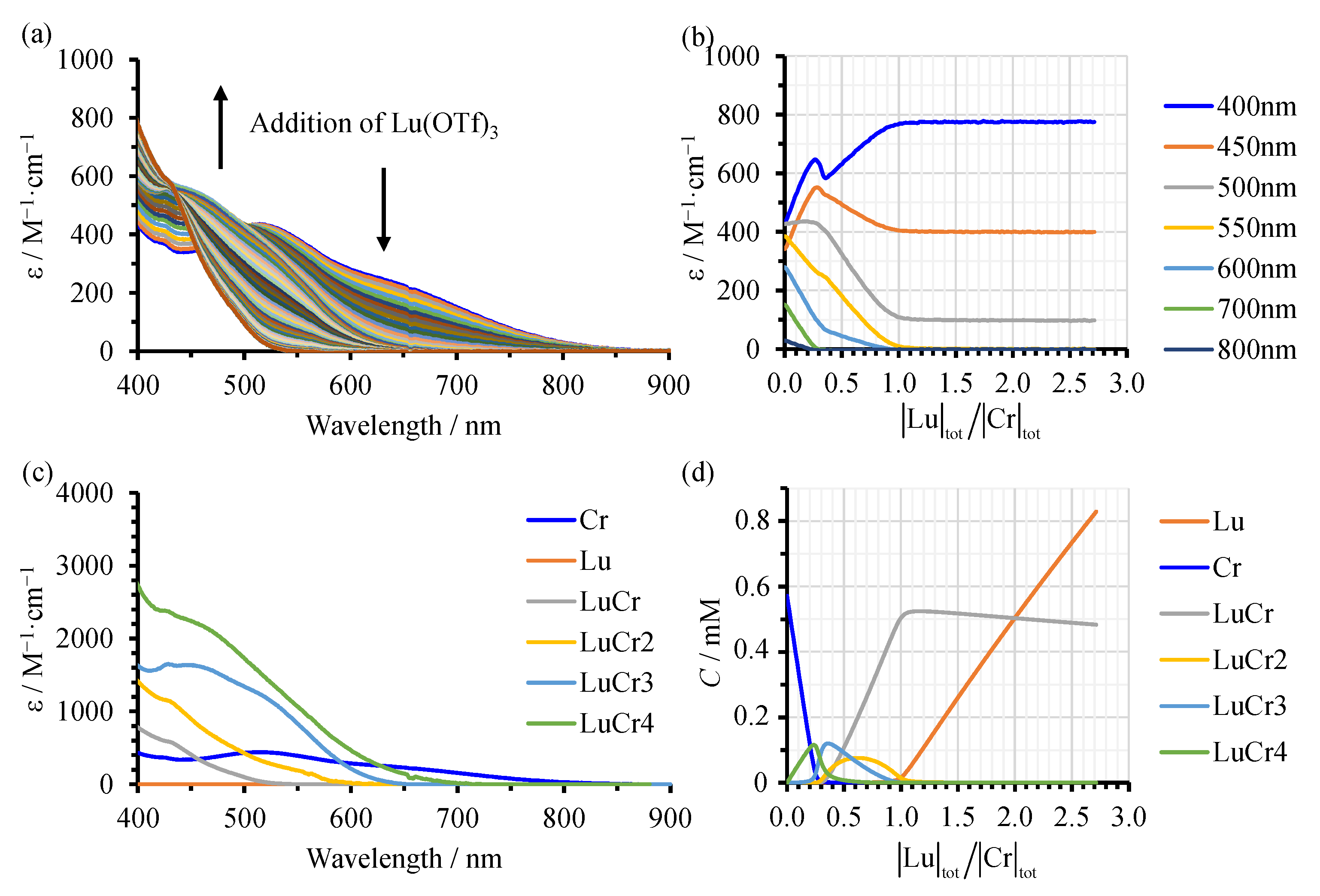

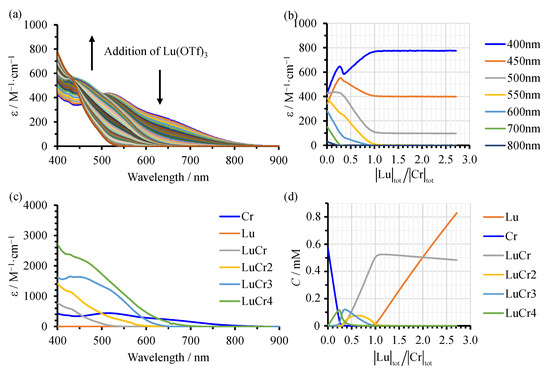

The spectrophotometric data (Figure 4a,b and Figure S1a,b) could be fitted to equilibria (1)–(4) using Evolving Factor Analysis [65,66] followed by non-linear least-squares techniques as implemented in the software ReactLab™ [67,68], which ultimately provided (i) the absorption spectra of the five individual absorbing species (Cr, LuCr_n, Figure 4c and Figure S1c), (ii) their association constants ${\beta }_{1,n}^{\mathrm{L}\mathrm{n},\mathrm{C}\mathrm{r}}$ (

Table 1. Association constants represented as $log\left({\beta }_{1,n}^{Ln,Cr}\right)$ extracted from the titration of [(phen)₂Cr(biim)]⁺ with Ln(OTf)₃ (Ln = La, Lu) or Zn(OTf)₂ in CH₃CN (293 K).

Titration	Lu/Cr	La/Cr	Zn/Cr
$\mathrm{l}\mathrm{o}\mathrm{g}\left({\beta }_{\mathrm{1,1}}^{\mathrm{L}\mathrm{n},\mathrm{C}\mathrm{r}}\right)$	9.01(3)	8.16(5)	8.4(2)
$\mathrm{l}\mathrm{o}\mathrm{g}\left({\beta }_{\mathrm{1,2}}^{\mathrm{L}\mathrm{n},\mathrm{C}\mathrm{r}}\right)$	14.8(3)	16.7(1)	14.5(6)
$\mathrm{l}\mathrm{o}\mathrm{g}\left({\beta }_{\mathrm{1,3}}^{\mathrm{L}\mathrm{n},\mathrm{C}\mathrm{r}}\right)$	21.1(5)	24.2(3)	20.1(8)
$\mathrm{l}\mathrm{o}\mathrm{g}\left({\beta }_{1,4}^{\mathrm{L}\mathrm{n},\mathrm{C}\mathrm{r}}\right)$	26.1(6)	28.8(3)	-
ΔGM,Cr/kJ·mol−1	−38(2)	−42(2)	−38(2)
ΔECr,Cr/kJ·mol−1	3(2)	2(2)	4(2)
Ionic radius of the metal/Å	1.12	1.30	0.88
Z2/R of the metal/Å−1	8.0	6.9	4.5

) and (iii) pertinent speciations in solution (Figure 4d and Figure S1d).

As expected, the addition of Ln³⁺ shifts the LLCT bands to higher energy since it acts as an electro-attractor group on the biimidazolate ligand. The higher the Ln/Cr ratio, the larger is the blue shift according to LnCr > LnCr₂ > LnCr₃ > LnCr₄ > Cr because the electro-attractive character of Ln³⁺ is reduced upon successive binding to several anionic biimidazolate binding units. One, however, notices that the absorption spectra extracted for LaCr₄, LaCr₃ and LaCr₂ (Figure S2c) are slightly more red-shifted compared to the corresponding ones for LuCr₄, LuCr₃ and LuCr₂ species (Figure 4c) because La³⁺ is a weaker electron attractor than Lu³⁺ due to its larger ionic radius (Table 1, entry 7). For comparison purposes, similar titrations using Zn(OTf)₂, which is also diamagnetic but less charged and smaller than La³⁺ and Lu³⁺, showed that a maximum of three [(phen)₂Cr(biim)]⁺ complex-as-ligands can be coordinated to a single Zn²⁺ center (Table 1, column 3 and Figure S2).

The interpretation of the association constants ${\beta }_{1,n}^{\mathrm{M},\mathrm{C}\mathrm{r}}$ (M = Lu, La and Zn) relies on the site-binding model where ${\beta }_{1,n}^{\mathrm{M},\mathrm{C}\mathrm{r}}=K_{\mathrm{s}\mathrm{t}\mathrm{a}\mathrm{t}}\times K_{\mathrm{c}\mathrm{h}\mathrm{e}\mathrm{m}}$ [69]. K_stat accounts for the purely statistical contribution produced by the change in rotational entropies [70]. It is obtained using the symmetry number method (see Supplementary File S1). K_chem refers to the chemical processes involved in the association process, which can be split into the intermolecular affinity ${\mathsf{\Delta }G}_{\mathrm{M},\mathrm{C}\mathrm{r}}=-\mathrm{R}T\mathrm{l}\mathrm{n}\left(f_{\mathrm{M},\mathrm{C}\mathrm{r}}\right)$ between the metal (M) and the complex-as-ligand (Cr), and the intramolecular interaction between the two complex-as-ligands ${\mathsf{\Delta }E}_{\mathrm{C}\mathrm{r},\mathrm{C}\mathrm{r}}=-\mathrm{R}T\mathrm{l}\mathrm{n}\left(u_{\mathrm{C}\mathrm{r},\mathrm{C}\mathrm{r}}\right)$ bound to the same metallic center (La³⁺, Lu³⁺ or Zn²⁺). Assuming that ΔE_Cr,Cr is constant for a given metal, no matter the geometric arrangement of the ligands in the selected MCr_n complex, one can write:

$$\begin{array}{c}{\beta }_{1,n}^{\mathrm{M},\mathrm{C}\mathrm{r}}=K_{\mathrm{s}\mathrm{t}\mathrm{a}\mathrm{t}}\times {\left.{\left(f\right.}_{\mathrm{M},\mathrm{C}\mathrm{r}}\right)}^n\times ({\left.u_{\mathrm{C}\mathrm{r},\mathrm{C}\mathrm{r}}\right)}^{{\displaystyle \frac{\left(n^2-n\right)}{2}}}\end{array}$$

(6)

The exponents n and (n² − n)/2 in Equation (6) represent the number of metal–ligand interactions and ligand–ligand interactions in the MCr_n complex, respectively. Transformed into free energy, Equation (6) becomes:

$$-\mathrm{R}T\left[\mathrm{l}\mathrm{n}\left({\beta }_{1,n}^{\mathrm{M},\mathrm{C}\mathrm{r}}\right)-\mathrm{l}\mathrm{n}\left(K_{\mathrm{s}\mathrm{t}\mathrm{a}\mathrm{t}}\right)\right]=n{\mathsf{\Delta }G}_{\mathrm{M},\mathrm{C}\mathrm{r}}+{\displaystyle \frac{\left(n^2-n\right)}{2}}\left({\mathsf{\Delta }E}_{\mathrm{C}\mathrm{r},\mathrm{C}\mathrm{r}}\right)$$

(7)

which can be solved for ΔG_M,Cr and ΔE_Cr,Cr with M = Zn (Equation (8)) or M = Ln (Equation (9)) using matrix formulations and multilinear least-squares methods (Table 1, entries 5,6):

$$\begin{array}{c}-\mathrm{R}T\left[\left(\begin{array}{c}ln\left({\beta }_{1,1}^{\mathrm{Z}\mathrm{n},\mathrm{C}\mathrm{r}}\right)\\ ln\left({\beta }_{1,2}^{\mathrm{Z}\mathrm{n},\mathrm{C}\mathrm{r}}\right)\\ ln\left({\beta }_{1,3}^{\mathrm{Z}\mathrm{n},\mathrm{C}\mathrm{r}}\right)\end{array}\right)-\left(\begin{array}{c}\ln \left(24\right)\\ \ln \left(120\right)\\ \ln \left(64\right)\end{array}\right)\right]={\mathsf{\Delta }G}_{\mathrm{Z}\mathrm{n},\mathrm{C}\mathrm{r}}\left(\begin{array}{c}1\\ 2\\ 3\end{array}\right)+{\mathsf{\Delta }E}_{\mathrm{C}\mathrm{r},\mathrm{C}\mathrm{r}}\left(\begin{array}{c}0\\ 1\\ 3\end{array}\right)\end{array}$$

(8)

$$-\mathrm{R}T\left[\left(\begin{array}{c}ln\left({\beta }_{1,1}^{\mathrm{L}\mathrm{n},\mathrm{C}\mathrm{r}}\right)\\ ln\left({\beta }_{1,2}^{\mathrm{L}\mathrm{n},\mathrm{C}\mathrm{r}}\right)\\ ln\left({\beta }_{1,3}^{\mathrm{L}\mathrm{n},\mathrm{C}\mathrm{r}}\right)\\ ln\left({\beta }_{1,4}^{\mathrm{L}\mathrm{n},\mathrm{C}\mathrm{r}}\right)\end{array}\right)-\left(\begin{array}{c}\ln \left(32\right)\\ \ln \left(288\right)\\ \ln \left(702\right)\\ \ln \left(224\right)\end{array}\right)\right]={\mathsf{\Delta }G}_{\mathrm{L}\mathrm{n},\mathrm{C}\mathrm{r}}\left(\begin{array}{c}1\\ 2\\ 3\\ 4\end{array}\right)+{\mathsf{\Delta }E}_{\mathrm{C}\mathrm{r},\mathrm{C}\mathrm{r}}\left(\begin{array}{c}0\\ 1\\ 3\\ 6\end{array}\right)$$

(9)

For all metals, ΔG_M,Cr is negative and represents the driving force of the intermolecular complexation reaction, while ΔE_Cr,Cr is positive, which points to stepwise anti-cooperative connections of cationic [(phen)₂Cr(biim)]⁺ complex-as-ligands to the central M^z+ centers. In fact, ΔE_Cr-Cr increases when the ionic radius of the metal decreases, but these values remain one order of magnitude smaller than the absolute value of ΔG_M,Cr and are comparable with thermal energy at room temperature.

Apart from the spectrophotometric titrations, the MCr_n complexes lack any additional characterizations. ESI-MS studies demonstrate that the cationic {Ln[(biim)Cr(phen)₂]_n}⁽³⁺ⁿ⁾⁺ aggregates do not survive in (or cannot be transferred into) the gas-phase. In solution, the slow-relaxing electron-spin paramagnetic Cr(III) centers induce fast nuclear-spin relaxation and severe line broadening, rendering the NMR signals of nearby nuclei undetectable; this is in line with the experimental ¹H-NMR spectrum of [Cr(phen)₂(biim)]⁺ being featureless [64]. Furthermore, the association constants deduced from spectrophotometric titrations show that intricate mixtures of different MCr_n species are present in solution at millimolar concentrations, and this is regardless of the M:Cr stoichiometry (Figures S3–S5). This drastically complicates selective crystallization processes, and attempts to obtain single crystals of these assemblies suitable for X-ray diffraction (XRD) were unsuccessful (Figure 5, center). With this in mind, our efforts were redirected toward the preparation of Ln-Cr dyads, where both Ln and Cr centers are coordinatively saturated (Figure 5 top and bottom).

2.2. Reaction of [(phen)₂Cr(biim)]⁺ Complex-as-Ligand with Ln(Tp)₂(OTf) (Ln = Eu, Y)

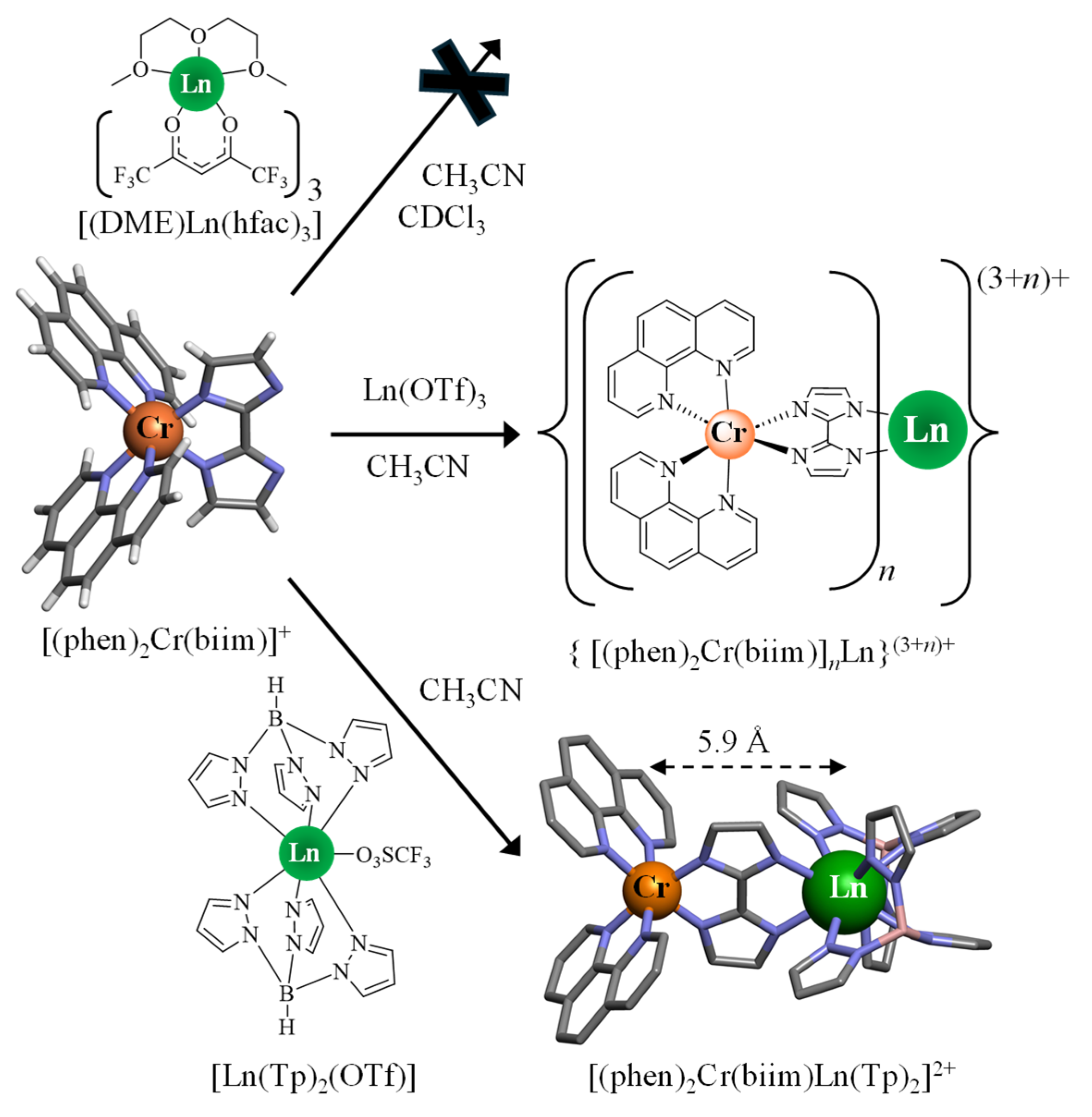

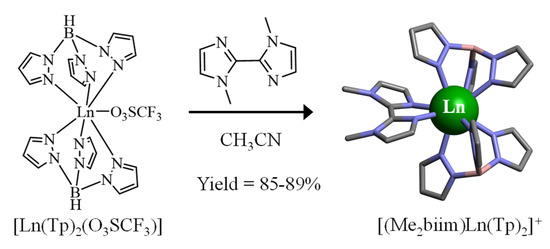

To isolate and characterize 1:1 [LnCr] dyads, we planned to react [(phen)₂Cr(biim)]⁺ guests with a lanthanide host complex bearing ancillary ligands. The starting salts [Ln(hfac)₃dig] (hfac = 1,1,1,5,5,5-hexafluoro-pentane-2,4-dione) have been widely used in our group for this purpose and were considered as suitable precursors for the formation of {[(phen)₂Cr(biim)]Ln(hfac)₃}⁺ [71]. However, these [Ln(hfac)₃] units proved to be unstable in polar solvents such as acetonitrile due to ligand scrambling [71]. This prevented clean reactions with [(phen)₂Cr(biim)]⁺, which is only soluble in polar solvents (Figure 5, top). To overcome this limitation, we turned our attention toward the alternative lanthanide [Ln(Tp)₂(OTf)] host (Tp = hydridotris(1H-pyrazol-1-yl)borate, Figure 5, bottom) [72] that Kaizaki and coworkers reacted with [(acac)₂Cr(ox)]⁻ complex-as-ligand in polar solvents to give dinuclear [(acac)₂Cr(ox)Ln(Tp)₂] dyads (Ln = La, Nd, Eu, Gd, Tb, Dy, Ho, Er, Tm, Yb, Lu, acac⁻ = pentane-2,4-dionate, Figure 2b) [57,60,73,74]. [Ln(Tp)₂(OTf)] (Ln = Eu, Y) were thus reacted with [(phen)₂Cr(biim)]⁺ in acetonitrile to form the heterometallic complexes [(phen)₂Cr(biim)Ln(Tp)₂]²⁺, which could be characterized in solution (¹H-NMR, HRMS and spectrophotometry) and in the solid state (XRD).

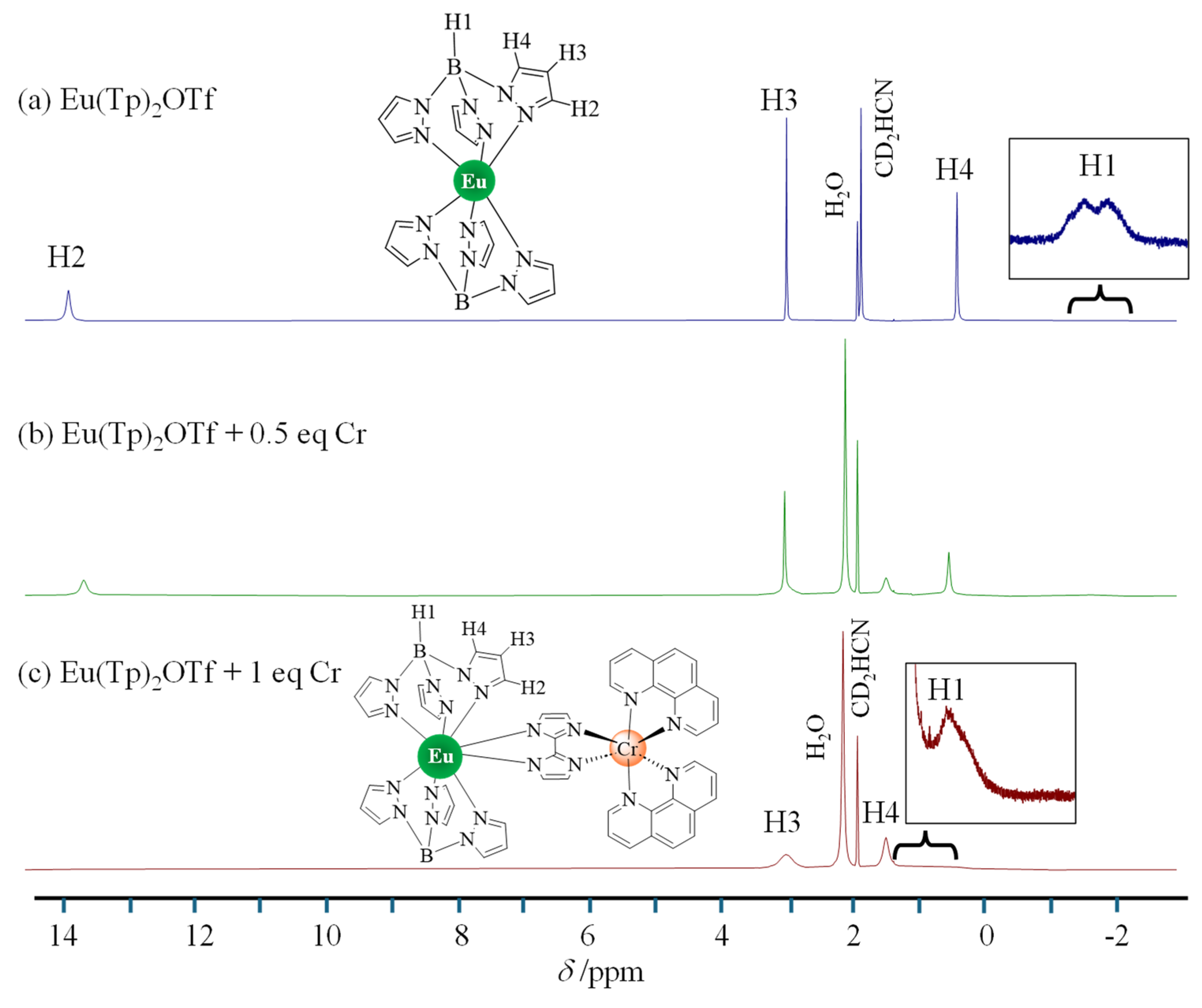

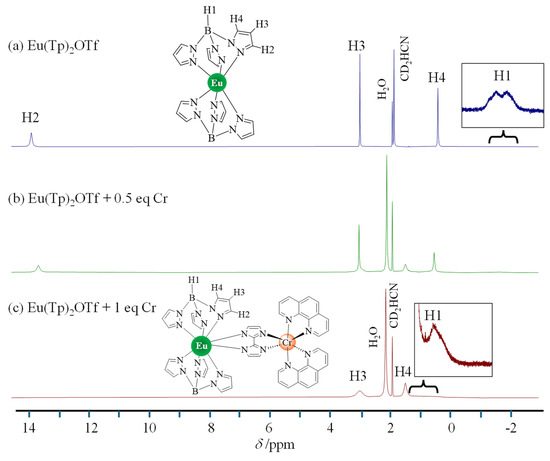

Contrary to the slow-relaxing paramagnetic LnCr_n assemblies discussed above, the fast-relaxing [Eu(Tp)₂]⁺, or even diamagnetic [Y(Tp)₂]⁺ moiety, possesses protons for which the ¹H-NMR signal can be easily tracked. Upon stepwise titrations with slow-relaxing paramagnetic [(phen)₂Cr(biim)]⁺ complex-as-ligand, the observed distance-dependent increase in line broadening of the ¹H NMR signals along the series Cr···H4 < Cr···H3 < Cr···H2 (Ln = Eu in Figure 6c and Ln = Y in Figure S6c) can be considered as solid proof of the coordination of the chromium moiety to the lanthanide cargo and the formation of the LnCr dyad in solution.

High-resolution mass spectra (HRMS) recorded for solutions of [(phen)₂Cr(biim)]OTf/Ln(Tp)₂OTf with various stoichiometric ratios in CH₃CN (Ln = Eu, Y) confirm the formation of 1:1 stoichiometric dyads displaying well-resolved signals assigned to [(phen)₂Cr(biim)Ln(Tp)₂]²⁺ and {[(phen)₂Cr(biim)Ln(Tp)₂]OTf}⁺ (Figures S7–S12). The formation of the [(phen)₂Cr(biim)Ln(Tp)₂]²⁺ dyad is accompanied by an expected color change in the solution induced by the blue shift in the biim²⁻→phen LLCT transition (Figures S13a and S14a) upon complexation, as previously discussed for the formation of {Ln[(biim)Cr(phen)₂]_n}⁽³⁺ⁿ⁾⁺ complexes (Figure 4a). We therefore similarly exploited spectrophotometric titrations to quantitively extract the association constants ${\beta }_{\mathrm{1,1}}^{\mathrm{T}\mathrm{p}\mathrm{Y},\mathrm{C}\mathrm{r}}$ = 7.6(3) and ${\beta }_{\mathrm{1,1}}^{\mathrm{T}\mathrm{p}\mathrm{E}\mathrm{u},\mathrm{C}\mathrm{r}}$ = 8.7(7) (Equation (10), Supplementary File S2):

$$\begin{array}{c}{\left[{\mathrm{L}\mathrm{n}\left(\mathrm{T}\mathrm{p}\right)}_2\right]}^{+} +{{\left[\right(\mathrm{p}\mathrm{h}\mathrm{e}\mathrm{n})}_2\mathrm{C}\mathrm{r}\left(\mathrm{b}\mathrm{i}\mathrm{i}\mathrm{m}\right)]}^{+} \leftrightarrows {\left[\right(\mathrm{p}\mathrm{h}\mathrm{e}\mathrm{n})}_2\mathrm{Cr}\left(\mathrm{b}\mathrm{i}\mathrm{i}\mathrm{m}\right){{\mathrm{L}\mathrm{n}\left(\mathrm{T}\mathrm{p}\right)}_2]}^{2+} \end{array}{\beta }_{\mathrm{1,1}}^{\mathrm{T}\mathrm{p}\mathrm{L}\mathrm{n},\mathrm{C}\mathrm{r}}$$

(10)

The resulting quantitative formation of the target [(phen)₂Cr(biim)Ln(Tp)₂]²⁺ adducts at millimolar concentrations (Figures S13d and S14d) helped in the selective crystallizations of the heteronuclear [(phen)₂Cr(biim)Ln(Tp)₂](OTf)₂ dyads (Ln = Y, Eu; Figure 5, bottom), the crystal structures of which could be solved by XRD (Supplementary File S3). The lanthanide cation is surrounded by eight nitrogen atoms in the first coordination sphere, two from the biimidazolate bridge and three from each terminal Tp⁻ ligands. The closest geometry of the first coordination sphere was determined using continuous shape measurements [75,76] and elected the square antiprism as the closest polyhedron (ideal symmetry point group D_4d, Figure S31 and Table S14 in Supplementary File S3). The Ln-N bond lengths decrease along Eu > Y > Er, in agreement with the standard lanthanide contraction trend [77]. The Ln-N distances are anecdotally shorter with the bound Tp⁻ ligand than with the biimidazolate bridge (Table S14), and the average Ln···Cr separation amounts to 5.86(2) Å (Ln = Eu, Y, Table S15). The trivalent chromium center adopts the well-known pseudo-octahedral coordination sphere distorted by the formation of three five-membered chelate rings, as previously discussed for [(phen)₂Cr(H_nbiim)]⁽ⁿ⁺¹⁾⁺ [64]. Interestingly, the Cr-N_biim distances of 2.041(5) Å in [(phen)₂Cr(biim)Ln(Tp)₂] are slightly larger than 2.024(7) Å reported for the fully protonated [(phen)₂Cr(H₂biim)]⁴⁺ complex (Table S16). This fixes the electro-attracting effect of the trivalent lanthanide [Ln(Tp)₂]⁺ bound to the biimidazolate bridge in the dyads to be comparable, or even slightly larger, than that of two protons in the solid state.

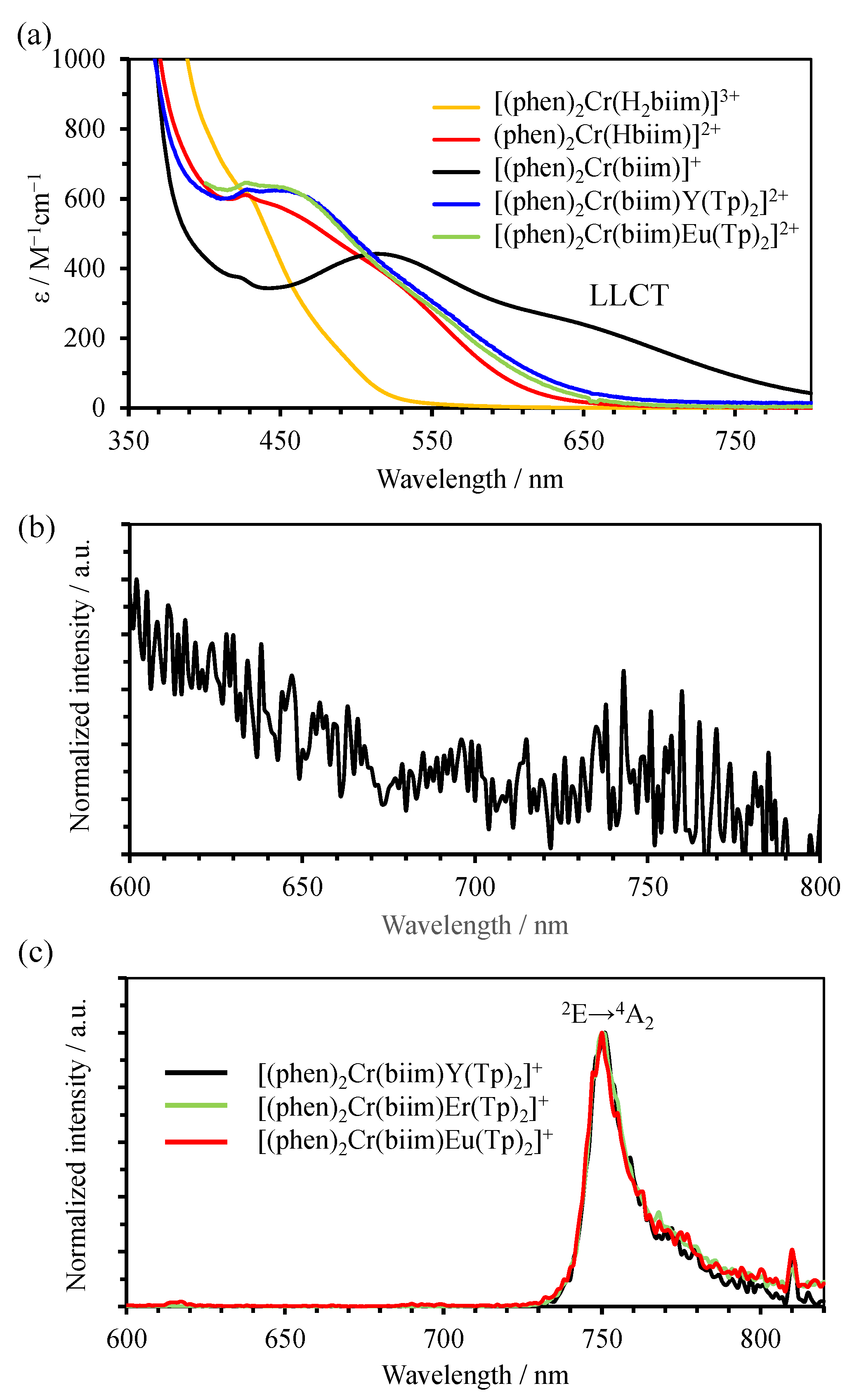

In solution, the absorption spectra recorded for [(phen)₂Cr(biim)Ln(Tp)₂]²⁺ (Ln = Y, Eu; Figure 7a) reveal that the ligand-to-ligand charge transfer (LLCT) band of the [(phen)₂Cr(biim))]⁺ moiety undergoes a blue shift upon coordination to the [Ln(Tp)₂]⁺ moiety comparable to the fixation of only a single proton to the biimidazolate bridge, as found in [Cr(phen)₂(Hbiim)]²⁺ (compare the red trace with the blue and green traces in Figure 7a). Consequently, the weak spin-forbidden chromium-centered absorption bands Cr(²E←⁴A₂) and Cr(²T₁←⁴A₂), expected around 720–750 nm in [(phen)₂Cr(biim)Ln(Tp)₂]²⁺ dyads, are masked by the more intense band foot of the LLCT transitions, and could not be identified. As a logical issue, upon excitation in the UV, the searched NIR emission bands arising from Cr(²E) and Cr(²T₁) excited states in [(phen)₂Cr(biim)Ln(Tp)₂]²⁺ are completely quenched by non-radiative energy transfer toward the broad non-emissive LLCT levels at room temperature (Figure 7b). At 77 K, the non-radiative processes slow down, and the three complexes [(phen)₂Cr(biim)Ln(Tp)₂]⁺ (Ln = Y, Eu, Er) become emissive, showing Cr(²E→⁴A₂) phosphorescence at λ_max = 750 nm (13333 cm⁻¹, Figure 7c).

We conclude that the spin-flip excited states Cr(²E) and Cr(²T₁) in [(phen)₂Cr(biim)Ln(Tp)₂]²⁺ dyads relax too fast at room temperature to act as donors that efficiently transfer their energy to the lanthanide neighbor working as the energy acceptor. This restricts their potential to be used as sensitizers at room temperature for both light downshifting and light upconversion. The required removal of the deleterious quenching by the low-energy LLCT levels was therefore considered as a priority. We thus decided to investigate similar Cr(III)-Ln(III) dyads, but replacing the phenanthrolines with the saturated cyclam ligand (1,4,8,11-tetraazacyclotetradecane) lacked accessible low-energy π* orbitals.

2.3. Synthesis and Characterization of [cyclam)Cr(biim)Ln(Tp)₂](OTf) (Ln = Eu, Y, Er) Dyads

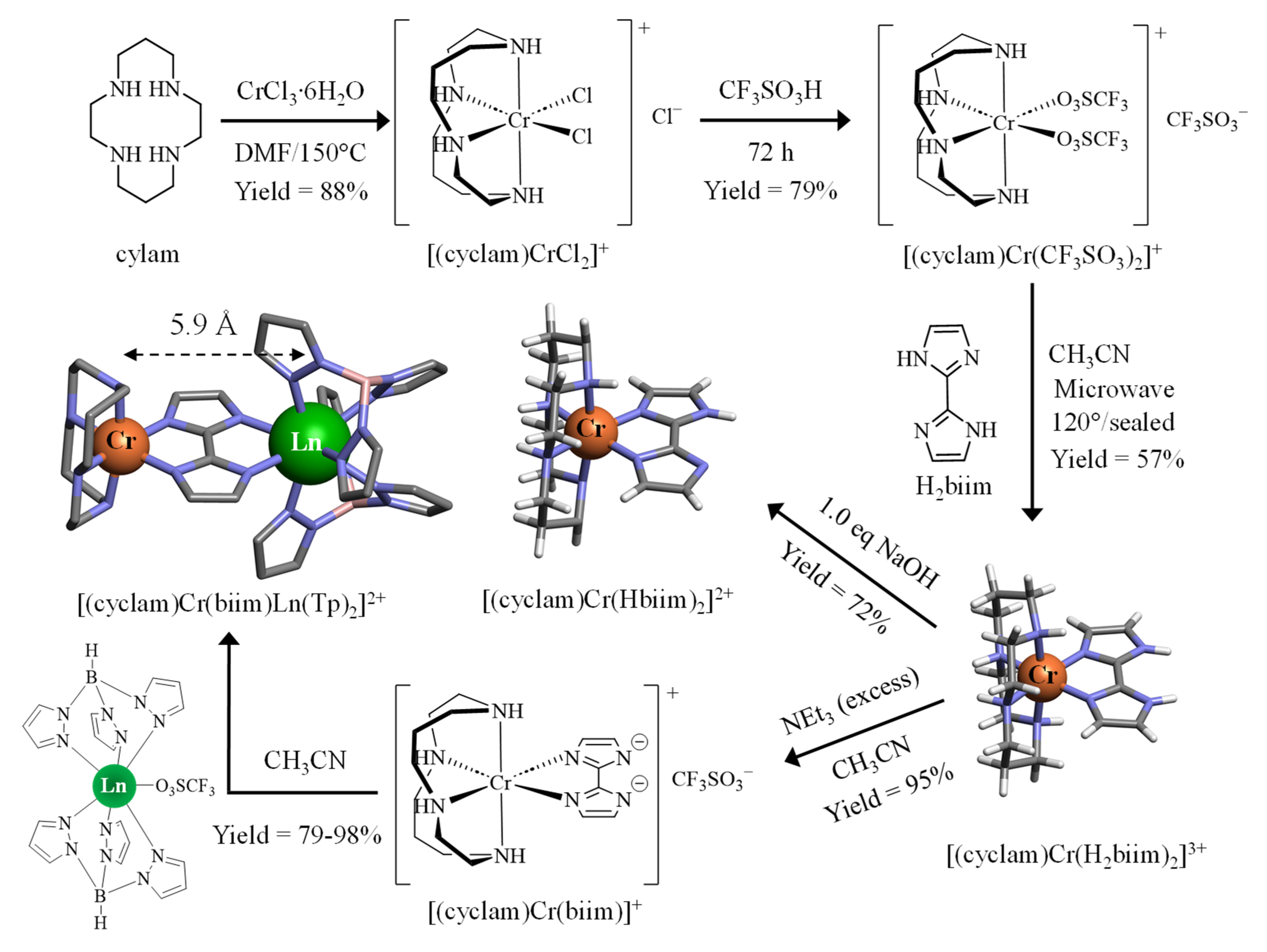

The synthesis of the heteroleptic [(cyclam)Cr(H₂biim)]³⁺ scaffold was performed using the Kane–Maguire strategy [24] and following a literature procedure [78]. The starting Cr(III) salt CrCl₃·6H₂O was reacted with 0.9 equivalent of cyclam in boiling DMF, producing cis-[Cr(cyclam)Cl₂]Cl as a purple powder (Figure 8). The cis configuration is retained thanks to a small excess of CrCl₃·6H₂O, which prevents base-catalyzed isomerization to the trans isomer [79]. Anion exchange was then performed to convert cis-[(cyclam)CrCl₂]Cl into cis-[(cyclam)Cr(OTf)₂]OTf using triflic acid and releasing HCl gas as a side product. The labile triflates could finally be substituted with a didentate H₂biim ligand to give the target [(cyclam)Cr(H₂biim)](OTf)₃ building block as an orange solid (Figure 8). Recrystallization by vapor diffusion of Et₂O into a methanolic solution produced crystals suitable for XRD studies (Supplementary File S3, Tables S3 and S4 and Figures S15 and S17).

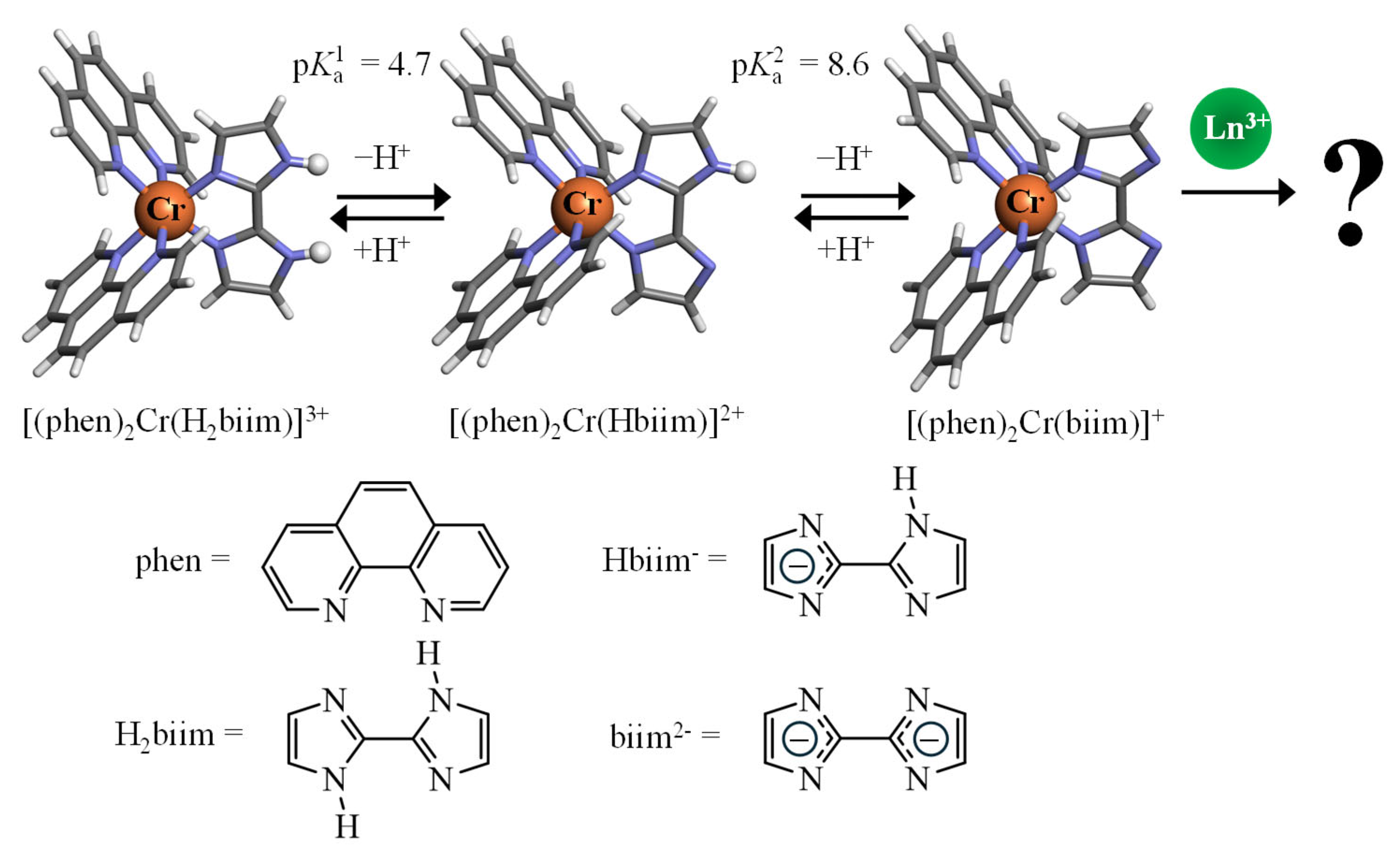

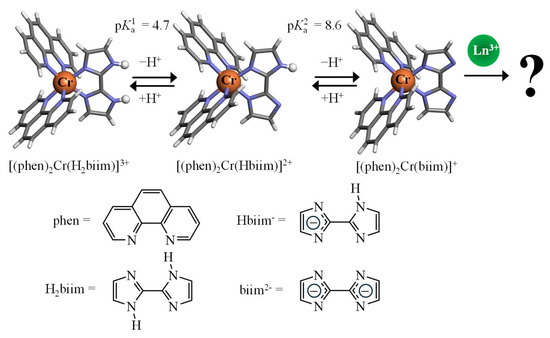

As observed with [(phen)₂Cr(H₂biim)]³⁺ (Figure 3) [64], the acidic protons of the biimidazole ligand in [(cyclam)Cr(H₂biim)]³⁺ can be removed in basic media. Reaction with one equivalent of NaOH produced [Cr(cyclam)(Hbiim)](OTf)₂, which could be isolated in good yield as an orange solid (Figure 8) and recrystallized for crystal structure determination (Supplementary File S3, Tables S5 and S6 and Figures S16 and S18). Using an excess of triethylamine in CH₃CN causes the immediate precipitation of the doubly deprotonated [(cyclam)Cr(biim)]OTf salt as an insoluble orange solid in quantitative yield (Figure 8). Its insolubility in both water and organic solvents prevented the preparation of single crystals suitable for X-ray diffraction. Similarly, it was also impossible to determine the pKa’s for the protons of [Cr(cyclam)(H₂biim)]³⁺ for solubility reasons, but one can reasonably assume values like those measured for [(phen)₂Cr(H₂biim)]³⁺ (pKa₁ = 4.67(3), pKa₂ = 8.59(11) in Figure 3) [64].

Heterogeneous mixing of the insoluble salt [Cr(cyclam)(biim)]OTf with [Ln(Tp)₂(OTf)] in acetonitrile led to their complete dissolution and the formation of the soluble heterometallic complex [(cyclam)Cr(biim)Ln(Tp)₂]²⁺. The complex could be isolated by precipitation with Et₂O or by evaporation of the solution to give [(cyclam)Cr(biim)Ln(Tp)₂](OTf)₂ in good yield (Figure 8). Recrystallization provided crystals measurable by XRD (Supplementary File S3: Ln = Y, Figure S22 and Table S9; Ln = Eu, Figures S23 and S25 and Table S10; Ln = Er, Figures S24 and S26 and Table S11). As expected, the Cr(III) metal keeps its distorted pseudo-octahedral [CrN₆] coordination sphere and Er(III) is coordinated by eight nitrogen atoms in [(cyclam)Cr(biim)Ln(Tp)₂](OTf)₂ dyads (Figure 8, d_Cr-Ln = 5.89(1) Å, Table S15) as previously discussed for [(phen)₂Cr(biim)Ln(Tp)₂](OTf)₂ (Figure 5, d_Cr-Ln = 5.86(2) Å, Table S15).

In acetonitrile solution, the ¹H-NMR spectra of the heterometallic complexes [(cyclam)Cr(biim)Ln(Tp)₂]²⁺ (Ln = Y and Eu) display measurable broad peaks for the protons of the Tp⁻ ligands, because they are sufficiently remote from the slow-relaxing paramagnetic Cr(III) center (Figures S32 and S33), as previously described for the [(phen)₂Cr(biim)Ln(Tp)₂]²⁺ dyads. The ¹H NMR data thus supports that the Cr(III)-containing unit is coordinated to the [Ln(Tp)₂]⁺ moiety in solution. In addition, millimolar solutions of [(cyclam)Cr(biim)Ln(Tp)₂]²⁺ analyzed by HRMS (Ln = Y, Eu, Er; Figures S34–S36) systematically exhibit intense signals corresponding to {[(cyclam)Cr(biim)Ln(Tp)₂]OTf}⁺ (Figures S34–S36).

2.4. Photophysical and Light Conversion Properties of [cyclam)Cr(biim)Ln(Tp)₂](OTf)₂ (Ln = Eu, Y, Er) Dyads

Having [(cyclam)Cr(H_nbiim)]⁽ⁿ⁺¹⁾⁺ (n = 0–2) and [(cyclam)Cr(biim)Y(Tp)₂]²⁺ at hand (Figure 8), the Cr(III)-centered photophysical properties, in the absence of any intermetallic Cr↔Ln energy transfers, are accessible. This is not the case for the [ErN₈] site, which is only found close to Cr(III) in [(cyclam)Cr(biim)Er(Tp)₂]²⁺. It was therefore highly desirable to access the photophysical properties of erbium complexes possessing similar coordination spheres, but in the absence of communication with the Cr(III) center. To accurately mimic the coordination environment of the Ln(III) ion, the [(cyclam)Cr(biim)]⁺ unit in [(cyclam)Cr(biim)Ln(Tp)₂]²⁺ was replaced with the didentate 1,1′-dimethyl-1H,1′H-2,2′-biimidazole (Me₂biim) ligand to give [(Me₂biim)Ln(Tp)₂]OTf (Figure 9 and Supplementary File S3: Ln = Y, Figures S27 and S29 and Table S12; Ln = Er, Figures S28 and S30 and Table S13). In acetonitrile, the ¹H-NMR spectrum of diamagnetic [(Me₂biim)Y(Tp)₂]OTf demonstrated the selective formation of the heteroleptic complex in solution (Supplementary File S4, Figure S37). Additionally, the HRMS of solutions of [(Me₂biim)Ln(Tp)₂]OTf (Ln = Y, Figure S38 and Ln = Er, Figure S39) display peaks of [(Me₂biim)Ln(Tp)₂]⁺, thus confirming the formation of the target complexes in solution. The complementary [(Me₂biim)Eu(Tp)₂]OTf adduct based on Eu(III) was prepared in situ by stoichiometric mixing of Me₂biim and [Eu(Tp)₂(OTf)] in acetonitrile.

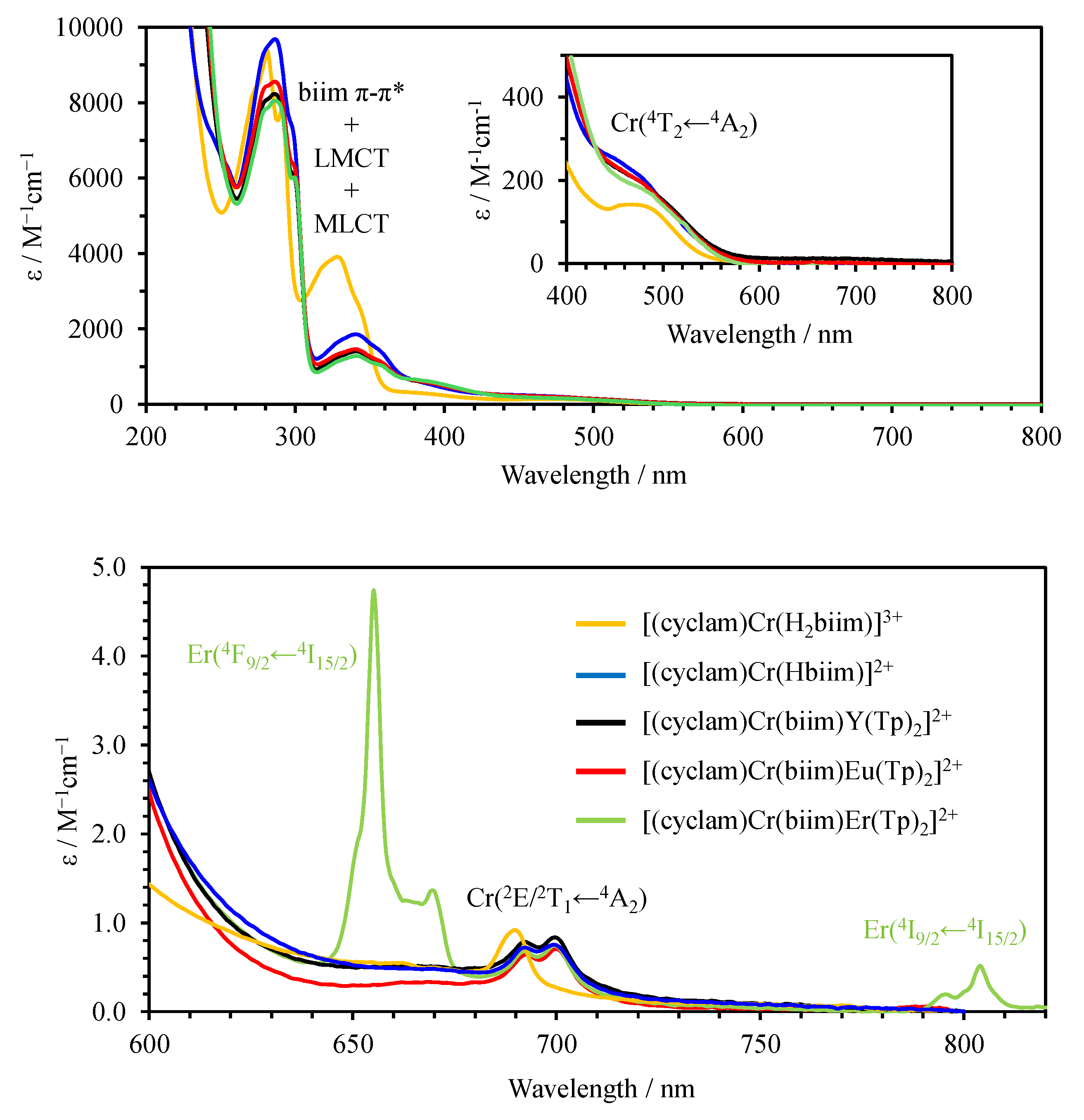

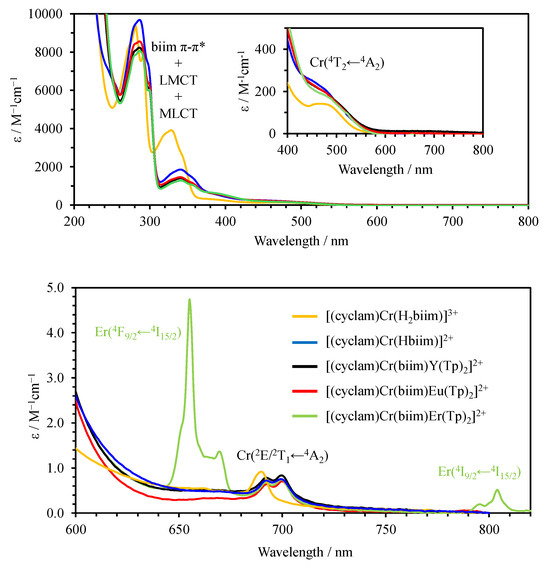

The absorption spectra of the complexes [(cyclam)Cr(H₂biim)]³⁺ (yellow traces in Figure 10) and [(cyclam)Cr(Hbiim)]²⁺ (blue traces in Figure 10) could be recorded in acetonitrile, but [(cyclam)Cr(biim)]OTf was too insoluble in all available solvents to access its photophysical properties in solution. The UV part of the absorption spectra displays intense absorption bands (ε > 10³ M⁻¹·cm⁻¹), which correspond to π*←p transitions centered on the aromatic biimidazole ring, completed with charge transfer transitions (LMCT or MLCT, Figure 10, top). Compared with [(phen)₂Cr(Hbiim)]²⁺ (Figure 7a), the absence of low-energy LLCT charge transfer bands in [(cyclam)Cr(Hbiim)]²⁺ (Figure 10) cleared the 450-800 nm visible domain from intense transitions, thus giving access to the easy detection of the weaker metal-centered spin-allowed Cr(⁴T₂←⁴A₂) transition around 500 nm (ε < 500 M⁻¹·cm⁻¹, Figure 10, top) and spin-forbidden Cr(²T₁,²E←⁴A₂) transition around 700 nm (0.55 M⁻¹·cm⁻¹ < ε < 0.67 M⁻¹·cm⁻¹, Figure 10, bottom).

The [(cyclam)Cr(biim)Y(Tp)₂]²⁺ dyad exhibits an absorption spectrum like the one of [Cr(cyclam)(Hbiim)]²⁺, thus confirming that the [Ln(Tp)₂]⁺ group has an electro-attracting strength on the biimidazolate bridge comparable to a single H⁺. These characteristics match those previously observed for [(phen)₂Cr(biim)Ln(Tp)₂]²⁺ assemblies (Section 2.2). However, the maximum of the spin-flip Cr(²T₁,²E←⁴A₂) absorption bands is blue-shifted for [Cr(cyclam)(H₂biim)]³⁺ (λ_max = 689 nm) and for the related cyclam-based [(cyclam)Cr(biim)Y(Tp)₂]²⁺ dyads (λ_max = 700 nm, Figure 10, bottom), compared to their [(phen)₂Cr(biim)Ln(Tp)₂]²⁺ analogs at 77 K (λ_max = 750 nm in Figure 7c). This results from the weaker nephelauxetic effect induced by the aliphatic cyclam ligand, compared to that produced by the polyaromatic phenanthroline units.

The complex [(cyclam)Cr(biim)Er(Tp)₂]²⁺ additionally exhibits the typical Er(^2S+1L_J←⁴I_15/2) f-f absorption bands beyond 600 nm (Figure 10, bottom, and Figure S40), which exactly fit those recorded for [(Me₂biim)Er(Tp)₂]⁺ (Figure S40). In line with the crystal structures collected in the solid state, one concludes that the didentate ligand Me₂biim mimics satisfyingly the local environment around the Er(III) ion found upon connection of [(cyclam)Cr(biim)]⁺ complex-as-ligand to Er(Tp)₂]⁺ for the dyad in solution. Finally, the radiative rate constants k_rad for the Cr(²E/²T₁←⁴A₂) and Er(^2S+1L_J←⁴I_15/2) transitions, which are crucial for estimating intrinsic emission quantum yields (vide infra), could be estimated from the absorption spectra using the Strickler-Berg Equation (11) [80,81,82]. They are collected in

Table 2. Radiative (τ_rad = 1/k_rad, Equation (12)) and total (τ_tot = 1/k_tot) emission lifetimes, and intrinsic emission quantum yield Φ_intrinsic (Equation (13)) of the Cr(²E) excited levels in [(cyclam)Cr(H₂biim)]⁺, [Cr(cyclam)(Hbiim)]²⁺ and [(cyclam)Cr(biim)Ln(Tp)₂]²⁺ (Ln = Y, Eu, Er) complexes in CH₃CN at room temperature upon excitation at λ_exc = 480 nm, and recording at λ_em = 700 nm (λ_em = 690 nm for [Cr(cyclam)(H₂biim)]³⁺).

Complex	τrad/ms	τtot/μs	Φintrinsic
[Cr(cyclam)(H2biim)]3+	7.3(4)	1.13(6)	1.6(1) × 10−4
[Cr(cyclam)(Hbiim)]2+	7.4(4)	0.42(2)	5.7(4) × 10−5
[(cyclam)Cr(biim)Y(Tp)2]2+	5.7(3)	0.25(2)	4.4(3) × 10−5
[(cyclam)Cr(biim)Eu(Tp)2]2+	6.5(3)	0.23(2)	3.5(3) × 10−5
[(cyclam)Cr(biim)Er(Tp)2]2+	4.1(7)	0.101(5); 0.51(3)	2.5(7) × 10−5

and Table S17:

$$\begin{array}{c}{k}_{\mathrm{r}\mathrm{a}\mathrm{d}}=2303\times {\displaystyle \frac{{8\pi \mathrm{c}{n}^2\tilde{\nu }}^2{g}_{\mathrm{G}\mathrm{S}}}{{\mathrm{N}}_{\mathrm{A}}{g}_{\mathrm{E}\mathrm{S}}}}\int \epsilon \left(\tilde{\nu }\right) d\tilde{\nu }\end{array}$$

(11)

Here, c is the speed of light in vacuum (cm·s⁻¹), n is the refractive index of the solvent, N_A is Avogadro’s number (mol⁻¹), g_GS is the degeneracy of the ground state, g_ES is the degeneracy of the excited state, $\tilde{\nu }$ is the barycenter of the transition in wavenumber (cm⁻¹) and $\int \epsilon \left(\tilde{\nu }\right) d\tilde{\nu }$ is the area under the absorption spectrum of each transition (M⁻¹·cm⁻²).

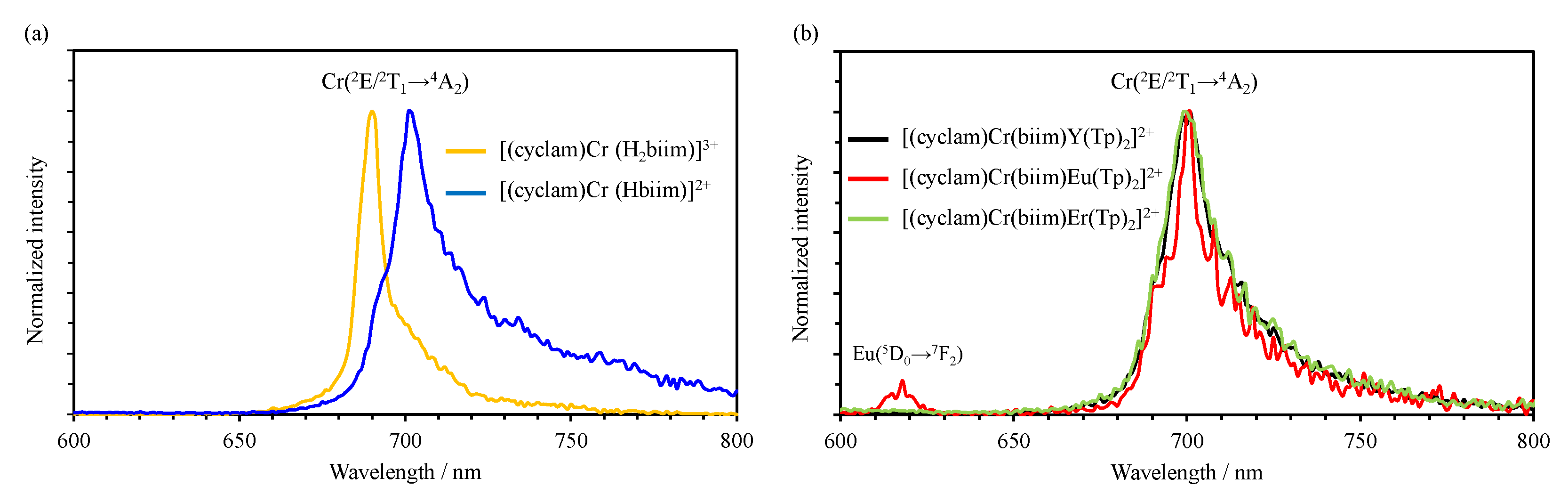

Upon excitation in the UV, the complexes [Cr(cyclam)(H₂biim)]³⁺ and [Cr(cyclam)(Hbiim)]²⁺ emit Cr(²E,²T₁→⁴A₂) phosphorescence at 690 nm (14,500 cm⁻¹) and 701 nm (14,300 cm⁻¹) respectively (Figure 11a). The emission bands are isoenergetic with the absorption bands of the transition ²E←⁴A₂, indicating negligible Stokes shifts (Figure 10). The measured total emission lifetime τ_tot reaches 1.13 μs and 0.42 μs for [Cr(cyclam)(H₂biim)]³⁺ and [Cr(cyclam)(Hbiim)]²⁺, respectively, from which the intrinsic quantum yields (Φ_intrinsic) could be estimated using Equation (12), where k_rad is the radiative rate constant (Table 2):

$$\begin{array}{c}{\mathrm{ɸ}}_{\mathrm{i}\mathrm{n}\mathrm{t}\mathrm{r}\mathrm{i}\mathrm{n}\mathrm{s}\mathrm{i}\mathrm{c}}= {\displaystyle \frac{k_{\mathrm{r}\mathrm{a}\mathrm{d}}}{k_{\mathrm{r}\mathrm{a}\mathrm{d}}{+ k}_{\mathrm{n}\mathrm{o}\mathrm{n}\mathrm{r}\mathrm{a}\mathrm{d}}}}=k_{\mathrm{r}\mathrm{a}\mathrm{d}}·{\tau }_{\mathrm{t}\mathrm{o}\mathrm{t}}\end{array}$$

(12)

Φ_intrinsic = 1.6·10⁻⁴ found for [Cr(cyclam)(H₂biim)]³⁺ and Φ_intrinsic = 5.7 × 10⁻⁵ for [Cr(cyclam)(Hbiim)]²⁺ are low compared to many other Cr(III) complexes for which the emission quantum yield can be higher than 0.1 at room temperature [31,32,35,83]. This implies efficient non-radiative relaxation pathways tentatively ascribed to the presence of the high-energy N-H bond oscillators of the cyclam ring close to the Cr(III) center [26,32,84]. To test this hypothesis, we tried to synthesize the same complex with the fully N-methylated variant of cyclam: Me₄cyclam, but all our attempts to complex this bulky ligand to Cr(III) proved to be unsuccessful (Supplementary File S5 in the ESI).

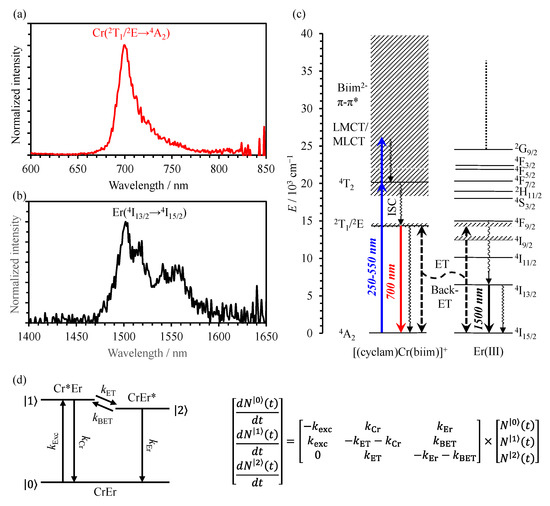

UV-Visible excitations of the complexes [(cyclam)Cr(biim)Ln(Tp)₂]²⁺ (Ln = Y, Eu, Er) at room temperature (Figure 11b), or at 77K (Figure S44), result in spin-flip Cr(²E/²T₁→⁴A₂) emissions at λ_max = 700 nm together with a trace of the forced electric-dipole hypersensitive Eu(⁵D₀→⁷F₂) band at 618 nm for the Cr-Eu pair (Figure 11b). The total Cr(²E) emission lifetimes of 0.23 ≤ τ_tot ≤ 0.25 ms recorded for Cr-Y and Cr-Eu dyads are shorter than those gathered for [Cr(cyclam)(H₂biim)]³⁺ and [Cr(cyclam)(Hbiim)]²⁺ (Table 2), pointing to a global increase in the non-radiative deexcitation rate constant of the latter excited state in the dyads. The further reduction in the lifetime to reach τ(Cr(²E))_tot = 0.1 ms in Cr-Er, combined with the observation of (i) a dual NIR Cr(²E/²T₁→⁴A₂) (Figure 12a) and IR Er(⁴I_13/2→⁴I_15/2) luminescence (Figure 12b) and (ii) a biexponential decay of the Cr(²E) donor level (Table 2 and Figure S48), suggests the operation of a reversible energy transfer (ET) process connecting the two metallic centers (Figure 12c). The latter assumption is corroborated by (i) the excitation spectrum upon analyzing the Er(⁴I_13/2→⁴I_15/2) emission at 1550 nm, which shows the spin-allowed Cr(⁴T₂→⁴A₂) transition at 525 nm acting as the main sensitizing channel (Figure S45) and (ii) the successful sensitization of the Er(⁴I_13/2→⁴I_15/2) emission by selective excitation of the spin-forbidden Cr(²E/²T₁←⁴A₂) transition using a 698 nm laser beam (Figure S46).

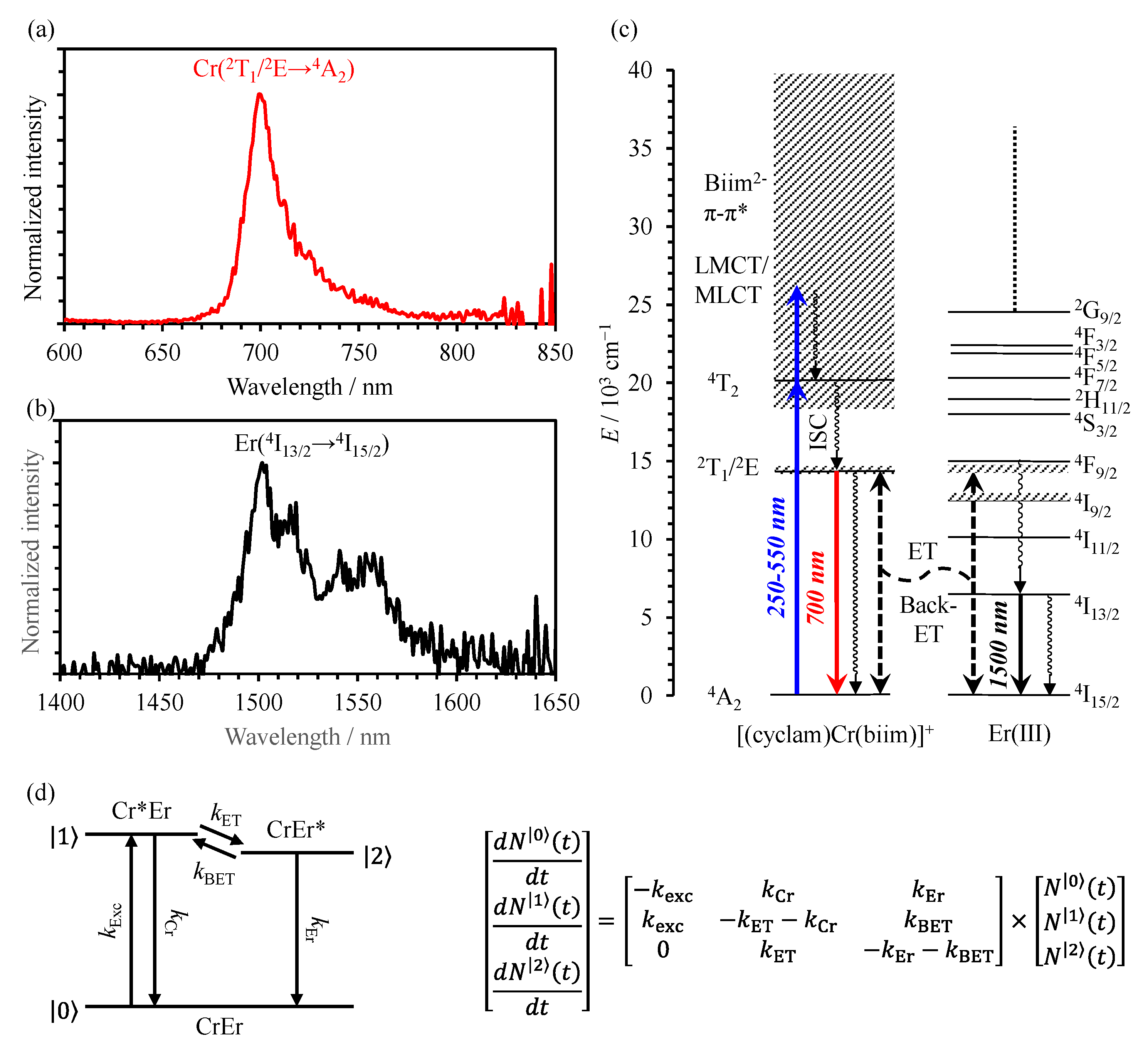

Accordingly, the Jablonski diagram modeling the intermetallic energy transfer implies Cr(²E,²T₁) acting as the donor level, while the Er(III)-centered acceptor level may be either ⁴I_9/2 or ⁴F_9/2 (Figure 12c). The associated energy diagram built in Figure 12d can be modeled with a set of three linear differential equations written in the matrix form given in Equation (13), further detailed in Figure 12d:

$$\begin{array}{c}\left[{\displaystyle \frac{d{N}^{|i⟩}}{dt}}\right]=M\times \left[N^{|i⟩}\right]\end{array}$$

(13)

Following an initial pulsed excitation, the solution of the differential Equation (13) modeling the biexponential time-dependent relaxation of the Cr^*Er level (referred to as $\left|1\right.⟩$ in the associated energy diagram of Figure 12d) is obtained using the Lagrange-Sylvester formula (Supplementary File S6) [59,85]. Reasonably fixing k_Cr as the inverse of the total emission lifetime recorded for Cr-Y (k_Cr = 1/τ_tot = 4.0 × 10⁶ s⁻¹, Table 2), the three other constants k_Er = 1.2 × 10⁶ s⁻¹, k_ET = 4.3 × 10⁶ s⁻¹ and k_BET = 2.5 × 10⁶ s⁻¹ could be estimated by a non-linear least-square fit of the relative population N^(|1⟩(t) (computed with the Lagrange-Sylvester formula) to the experimental biexponential emission trace of the Cr(²E,²T₁) excited level observed for the Cr-Er dyad (Figure S48 in Supplementary File S6). The Cr→Er energy transfer rate constant k_ET = 4.3 × 10⁶ s⁻¹ extracted with this method for [(cyclam)Cr(biim)Er(Tp)₂]²⁺ (d_Cr-Er = 5.9 Å, Table S15) is circa 50 times larger than the value of k_ET = 8.96 × 10⁴ s⁻¹ previously reported for {[(dqp)Cr(L2)]₃Er}⁶⁺ (d_Cr-Er = 14 Å, Figure 2c) [61].

The intrinsic energy transfer efficiency ${\eta }_{\mathrm{E}\mathrm{T}\mathrm{C}\mathrm{r}\to \mathrm{E}\mathrm{r}}$ can now be estimated from k_Cr and k_ET (ignoring the back-energy transfer):

$$\begin{array}{c}{\eta }_{\mathrm{E}\mathrm{T}\mathrm{C}\mathrm{r}\to \mathrm{E}\mathrm{r}}={\displaystyle \frac{k_{\mathrm{E}\mathrm{T}}}{k_{\mathrm{C}\mathrm{r}}+k_{\mathrm{E}\mathrm{T}}}}= {\displaystyle \frac{4.3\times {10}^6}{4.0\times {10}^6+4.3\times {10}^6}}=0.52\end{array}$$

(14)

It reaches ${\eta }_{\mathrm{E}\mathrm{T}\mathrm{C}\mathrm{r}\to \mathrm{E}\mathrm{r}}$ = 52% efficiency, which is favorable (optimum = 50%) for boosting energy transfer upconversion (ETU) in molecular complexes [59,86].

2.5. Looking for Light Upconversion in [(Me₂biim)Er(Tp)₂]OTf Complex and in [(cyclam)Cr(biim)Er(Tp)₂](OTf)₂ Dyad

Using high-excitation-power lasers, it is possible to excite [(Me₂biim)Er(Tp)₂]⁺ and [(cyclam)Cr(biim)Er(Tp)₂]²⁺ through the Laporte-forbidden intrashell f-f transitions of the Er(III) center at 801 nm (Er(⁴I_9/2←⁴I_15/2)) and at 966 nm (Er(⁴I_11/2←⁴I_15/2)). Standard one-photon light downshifting processes result in ultimate Er(⁴I_13/2⟶I_15/2) emission at 1550 nm (Figure 13Figures S49 and S50). Surprisingly, upon UV excitation at 250 nm, the excited levels centered on either Tp⁻ or Me₂biim ligands bound to Er(III) in mononuclear [(Me₂biim)Er(Tp)₂] only show broad ligand-centered π*⟶π emission bands (Figure S51) with no trace of Er-centered emission induced by the antenna effect (Figure 13a). This contrasts with the successful indirect UV-based sensitization of Er(III) centers observed in the [(cyclam)Cr(biim)Er(Tp)₂]²⁺ dyad, where the doubly deprotonated bridging ligand biim²⁻ ensures ultimate sensitization of Er(⁴I_13/2→⁴I_15/2) via energy transfer (Figure 12c).

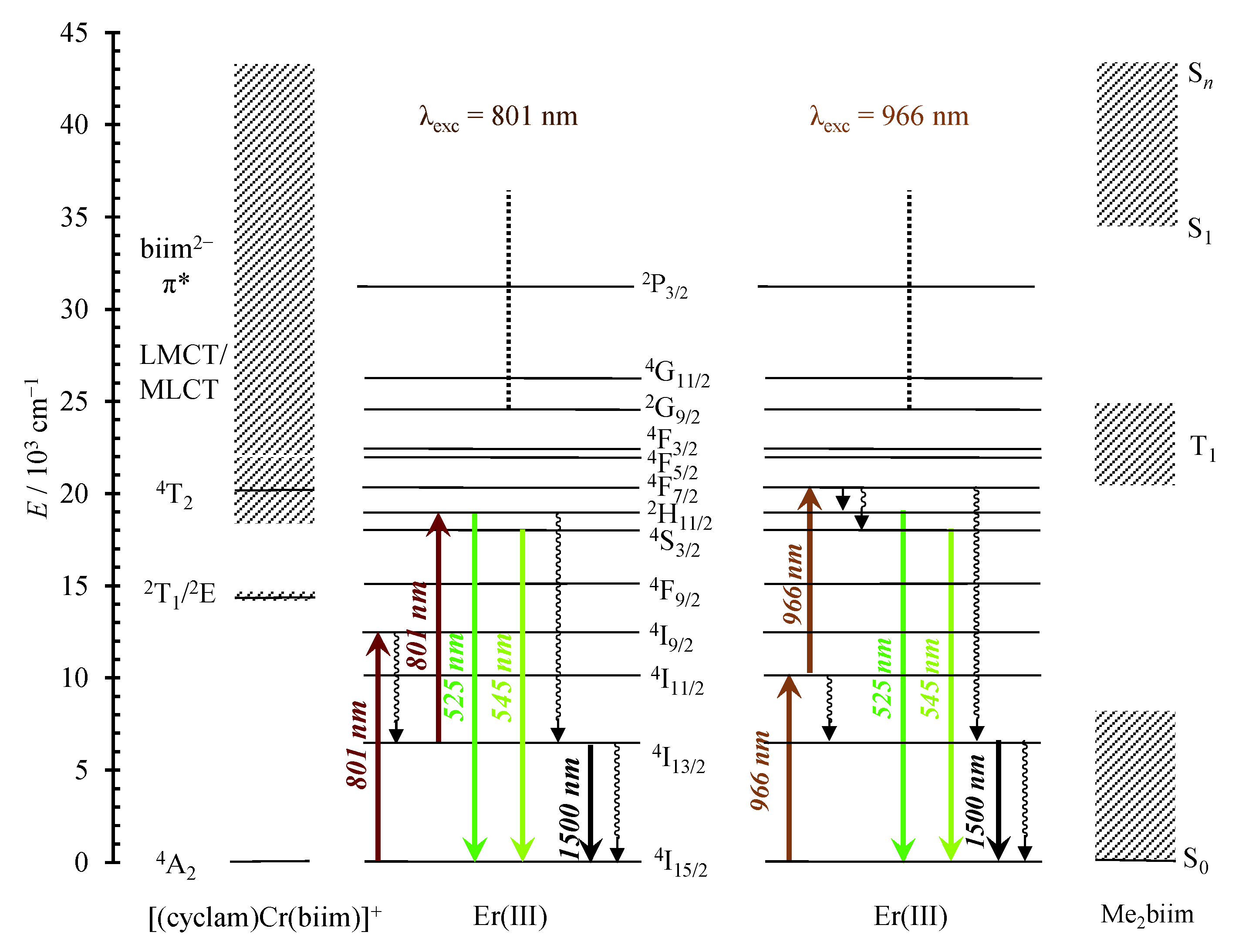

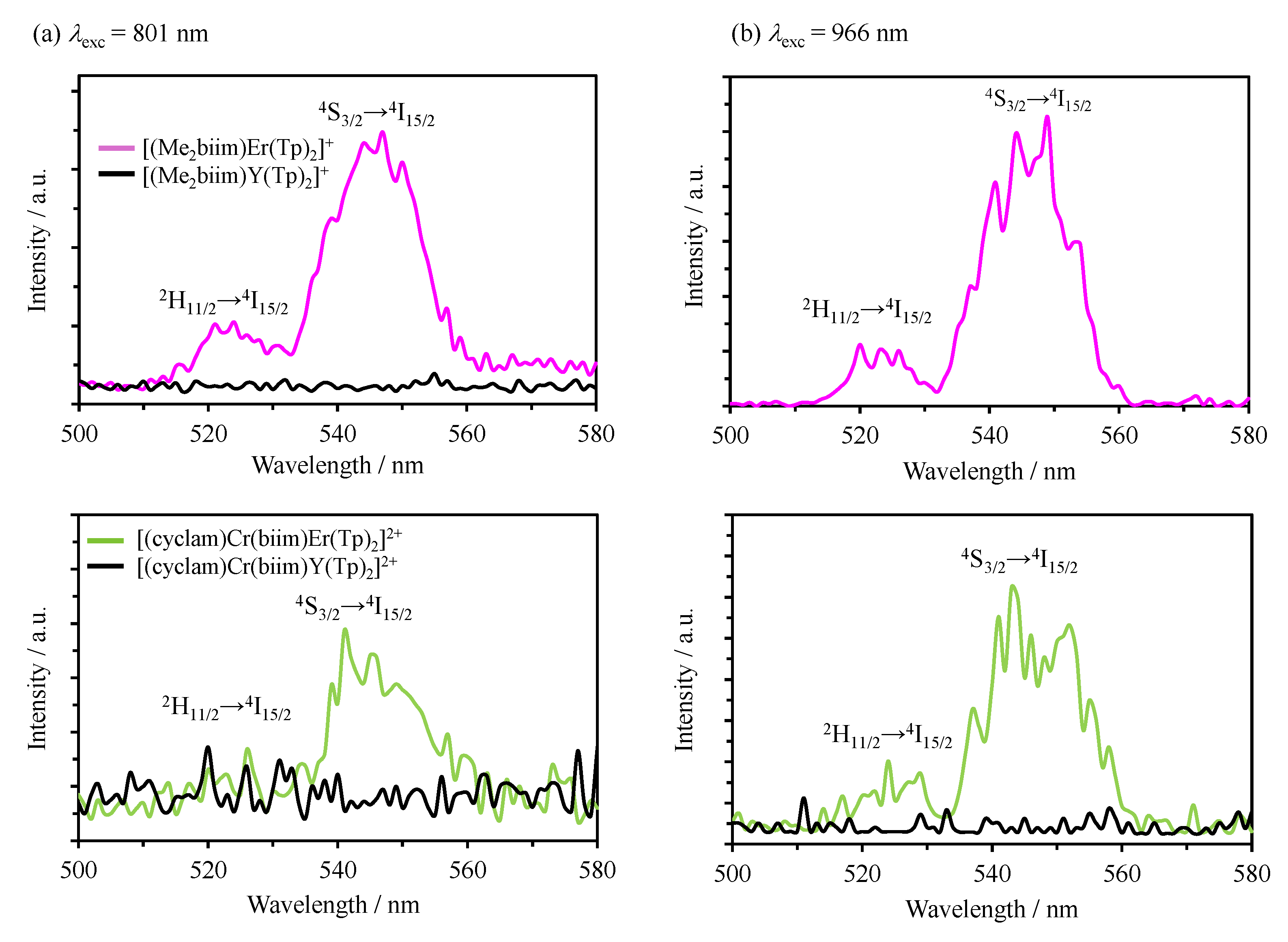

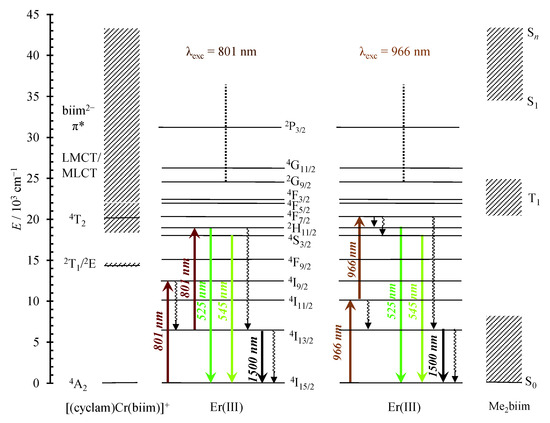

Using highly focused 801 nm and 966 nm lasers, beyond inducing the light downshifting response described above (Figure 13a), the excitation light is intense enough to induce light upconversion in solution for both [(Me₂biim)Er(Tp)₂]⁺ and [(cyclam)Cr(biim)Er(Tp)₂]²⁺ at room temperature (Figure 14). The upconversion signals are, however, very weak using the 801 nm laser (close to noise level, see Figure 14a), but become slightly more intense when using the 966 nm laser (Figure 14b) because (i) our 966 nm laser can reach higher excitation power and (ii) the Er(⁴I_11/2←⁴I_15/2) transition absorbs more efficiently the initial photon densities than the Er(⁴I_9/2←⁴I_15/2) transition (see Figure S40). The upconversion emission spectra display two bands corresponding to the blue-green Er(⁴S_3/2→⁴I_15/2) and Er(²H_11/2→⁴I_15/2) transitions. Except for excitation of [(cyclam)Cr(biim)Er(Tp)₂]²⁺ at 801 nm, which provided upconverted signals that were too weak to be safely recorded at low incident powers, the integrations of the upconverted emission bands upon 966 nm excitation for both complexes, [(Me₂biim)Er(Tp)₂]⁺ and [(cyclam)Cr(biim)Er(Tp)₂]²⁺, are strong enough to be accessible (Figures S52 and S53). They show linear log(I) vs log(P) plots, with an experimental slope close to 2, which confirms the absorption of two successive photons according to the single-center Excited State Absorption (ESA) mechanism depicted in Figure 15 and previously established for closely related mononuclear Er(III) complexes in solution [59,87]. Finally, chromium-centered excitation into the Cr(²E,²T₁←⁴A₂) at 698 nm for [(cyclam)Cr(biim)Er(Tp)₂]²⁺ gave only faint Er(⁴S_3/2→⁴I_15/2) and Er(²H_11/2→⁴I_15/2) upconverted emission bands at any temperature (Figure S54), but induced standard light-downshifting via efficient intramolecular Cr→Er energy transfer detailed in Section 2.4 (Figure 13b). One concludes that no reasonable Energy Transfer Upconversion (ETU) mechanism could be implemented for this specific Cr-Er dyad in solution.

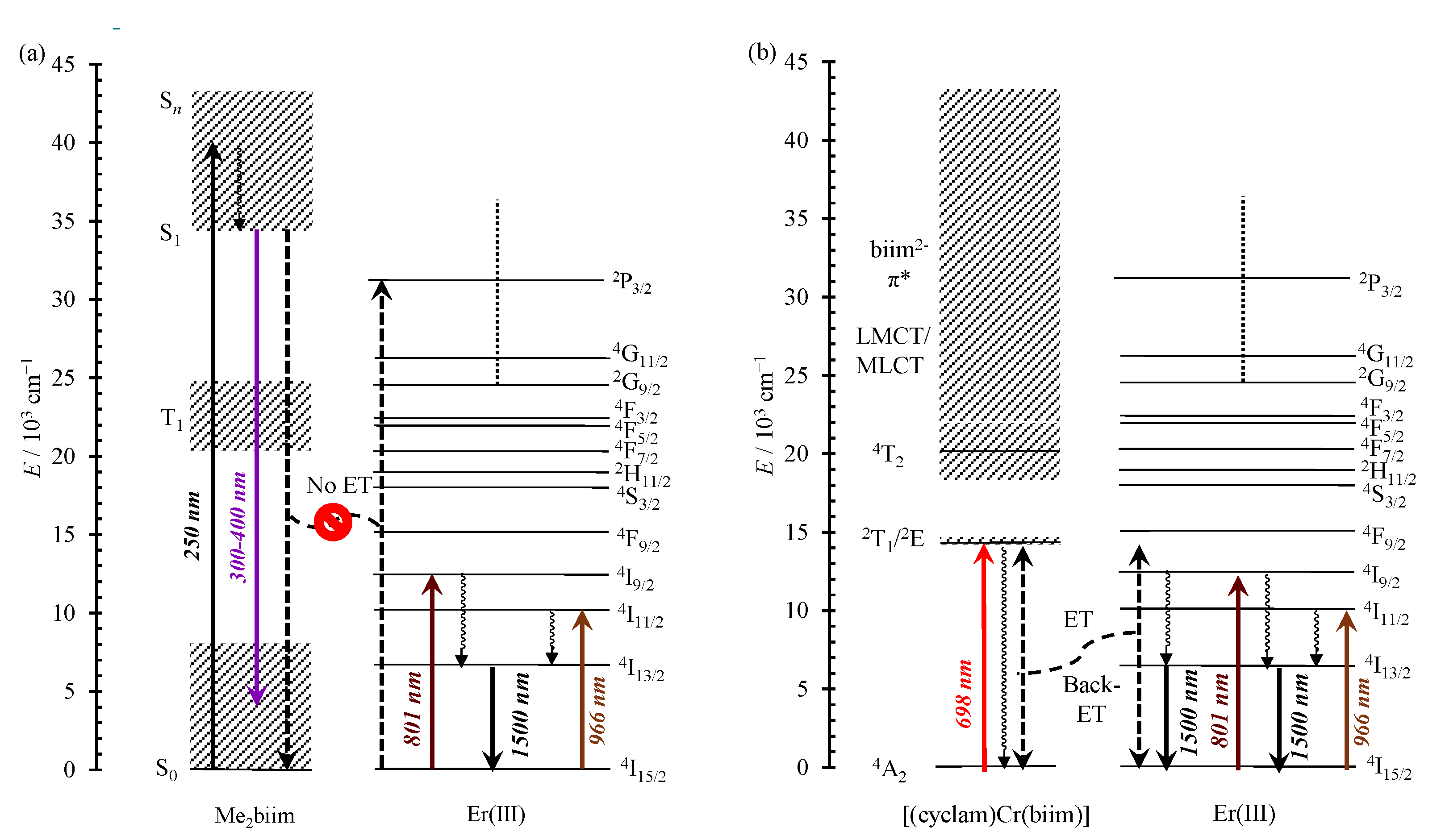

To summarize, the upconversion signals induced upon excitation at λ_exc = 698, 801 or 966 nm of [(Me₂biim)Er(Tp)₂]⁺ and [(cyclam)Cr(biim)Er(Tp)₂]²⁺ remain very weak (close to the detection limit of our setup), while other Er(III) complexes reported in the literature upconvert much more efficiently [86,88,89,90]. Furthermore, we found that the complex [(Me₂biim)Er(Tp)₂]⁺, which contains no chromium sensitizer, upconverts more efficiently than the chromium-containing [(cyclam)Cr(biim)Er(Tp)₂]²⁺ dyad upon all the light excitations explored in this work.

3. Materials and Methods

3.1. Solvents and Starting Materials

Chemicals were purchased from Sigma-Aldrich (Burlington, MA, United States) and Acros (Switzerland) and used without further purification unless otherwise stated. Dry reagents were either purchased as packed under inert atmosphere with acroseal and molecular sieves or distilled by appropriate procedures. Dry solvents were distilled over either calcium hydride or metallic sodium. Silica-gel plates (Merck (Germany), 60 F₂₅₄) were used for thin-layer chromatography, and SiliaFlash^® (Quebec, Canada) silica gel P60 (0.04–0.063 mm) and Acros (Stabio, Switzerland) silica gel 60 (0.035–0.07 mm) were used for preparative column chromatography. The complex [Cr(phen)₂(biim)]OTf was synthesized according to the published procedure [64]. Potassium hydrotris(1-pyrazolyl)borate (KTp) and its Ln(III) complexes Ln(Tp)₂OTf (Ln = Y, Eu) were adapted from the literature procedure [72].

3.2. Spectroscopic and Analytical Measurements

¹H and ¹³C NMR spectra were recorded at 298 K on a Bruker Avance (Karlsruhe, Germany) 400 MHz spectrometer equipped with BCU temperature control for variable temperature measurements. Chemical shifts are given in ppm with respect to TMS. Pneumatically-assisted electrospray (ESI-MS) mass spectra were recorded from ~1 × 10⁻⁴ M (ligands) and ~1 × 10⁻³ M (complexes) solutions on an Applied Biosystems (Foster City, CA, United States) API 150EX LC/MS System equipped with a Turbo Ionspray source. Elemental analyses were performed by K. L. Paglia from the Microchemical Laboratory of the University of Geneva. Electronic spectra in the UV-Vis region were recorded at 293 K from solutions in CH₃CN with a Perkin-Elmer Lambda 1050 (Waltham, MA, USA) using quartz cells of 0.1 or 1.0 mm path length. Solid-state absorption spectra were recorded with a Perkin-Elmer Lambda 900 using capillaries. The emission spectra were recorded using a Fluorolog (Horiba Jobin-Yvon) instrument equipped with an iHR320 imaging spectrometer, a 450 W xenon lamp illuminator (FL-1039A/40A) and a Peltier-cooled photomultiplier tube (PMT Hamamatsu R928P, Hamamatsu, Japan). The emission spectra were corrected for the wavelength-dependent sensitivity of the PMT. Time-resolved data were collected using a digital oscilloscope (Tektronix MDO4104C, Portland, OR, United States) coupled to a water-cooled photomultiplier tube (PMT Hamamatsu R928P) or to a time-gated photomultiplier module (Hamamatsu H11526-20-NF, Hamamatsu, Japan). Pulsed excitation at 355 nm was achieved using the third harmonic of a pulsed Nd:YAG laser (Quantel Q-Smart 850, Lumibird, France) or MPL-F-355nm-100mW-DB22’005 from CNI Laser (10kHz repetition rate). Variable temperature measurements were done using a closed-cycle cryosystem (Janis, CCS-900/204N, Woburn, MA, United States) with the sample sitting in the exchange gas (helium) to achieve efficient cooling. Complexes of known corrected molecular weight were dissolved in acetonitrile to obtain ~1 mM solutions that were immobilized in 2 mm-diameter cylindrical quartz cuvettes. The cuvettes, sealed with fast-drying silver agar gel, were mounted on a metallic copper sample holder. The ultrafast time-gated experiments used a pulsed laser as an excitation light source (355 nm, CNI Laser MPL-F-355, Changchun, China). Time-correlated single-photon counting was performed with a quTAG MC (quTools), and the detector of the FluoroLog (R5509-73, Horiba Scientific, Kyoto, Japan) was used as the detector.

3.3. X-Ray Crystallography

Summary of crystal data intensity measurements and structure refinements for complexes [(cyclam)Cr(H₂biim)]OTf₃, [(cyclam)Cr(Hbiim)]OTf_2, [(phen)₂Cr(biim)Ln(Tp)₂] (Ln = Y, Eu) [(cyclam)Cr(biim)LnTp)₂]OTf₂ (Ln = Y, Eu, Er) and [Ln(Tp)₂(Me₂biim)]OTf complexes (Ln = Y, Er) are collected in Supplementary File S3 with pertinent bond lengths and bond angles. ORTEP views with numbering schemes. The crystals were mounted on Hampton cryoloops with protection oil. X-ray data collections were performed with an XtaLAB Synergy-S diffractometer (Rigaku, Japan) equipped with a hybrid pixel array “hypix arc 150” detector. The structures were solved by using dual-space methods [91]. Full-matrix least-squares refinements on F² were performed with SHELXL-2020 [92]. CCDC 2550803-2550811 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Center via https://www.ccdc.cam.ac.uk/structures/ (accessed on 11 May 2026).

3.4. Synthesis

3.4.1. Synthesis of Potassium hydrotris(1-pyrazolyl)borate (KTp) [72]

In a flask, 20 g of pyrazole (291 mmol) and 4 g of KBH₄ (74.2 mmol) were mixed, and the resulting solid was heated at 190° for 2 h under reflux, until no more hydrogen evolved. The hot mixture was precipitated in toluene under stirring, then filtered. The white solid was recrystallized in anisole. A total of 13.620 g (54.0 mmol, 73%) of KTp was obtained. ¹H NMR (400 MHz, CD₃CN) δ 7.54 (d, J = 2.1, 3H), 7.44 (d, J = 1.6 Hz, 3H), 6.07 (t, J = 1.9 Hz, 3H), and 4.71 (m, 1H).

3.4.2. Synthesis of [Y(Tp)₂OTf] [72]

In a flask, 1.290 g (2.41 mmol) of Y(OTf)₃ was dissolved in 50 ml of dry THF. Molecular sieves were added to the solution to remove possible traces of water remaining in the solvent and in the salt. A total of 1.215 g (4.82 mmol) of KTp was added, and the solution was stirred at room temperature for 1 h. The THF was removed under reduced pressure, and the residue was dried under vacuum. Toluene was added, and the suspension was filtered to remove insoluble KOTf. The solution was evaporated under reduced pressure, then dried under vacuum at 100 °C for 30 min. To remove the last traces of toluene, the white solid was dissolved in 250 mL of Et₂O, and the solution was evaporated under reduced pressure. The white solid was dried under vacuum overnight. A total of 1.359 g (2.05 mmol, 85%) of YTp₂OTf was obtained. ¹H NMR (400 MHz, CD₃CN) δ 7.84 (d, J = 2.1 Hz, 6H), 7.16 (d, J = 2.1 Hz, 6H), 6.15 (t, J = 2.1 Hz, 6H), 4.74 (very br m, 2H). Anal. calc. for C₁₉H₂₀B₂F₃N₁₂O₃SY: C 34.37, H 3.04, N 25.31. Found: C 34.13, H 3.16, N 25.29.

3.4.3. Synthesis of Eu(Tp)₂OTf [72]

In a flask, 1.141 g (1.90 mmol) of Eu(OTf)₃ was dissolved in 50 ml of dry THF. Molecular sieves were added to the solution to remove possible traces of water remaining in the solvent and in the salt. A total of 0.960 g (3.81 mmol) of KTp was added, and the solution was stirred at room temperature for 1 h. The THF was removed under reduced pressure, and the flask was dried under vacuum. Toluene was added, and the suspension was filtered to remove insoluble KOTf. The solution was evaporated under reduced pressure, then dried under vacuum at 100 °C for 30 min. To remove the last traces of toluene, the white solid was dissolved in 250 mL of Et₂O, and the solution was evaporated under reduced pressure. The white solid was dried under vacuum overnight. A total of 1.003 g (1.38 mmol, 72%) of EuTp₂OTf was obtained. ¹H NMR (400 MHz, CD₃CN) δ 13.93 (s, 6H), 3.04 (d, J = 2.1 Hz, 6H), 0.46 (s, 6H), −1.06–−2.19 (very br m, 2H). Anal. calc. for C₁₉H₂₀B₂F₃N₁₂O₃SEu: C 31.39, H 2.77, N 23.12. Found: C 31.37, H 2.72, N 23.21.

3.4.4. Synthesis of [(Me₂biim)Y(Tp)₂]OTf

In a flask, 25 mg (0.15 mmol) of Me₂biim and 100 mg (0.15 mmol) of YTp₂OTf were dissolved in dry MeCN. The solution was evaporated under reduced pressure, yielding 111 mg (0.13 mmol, 89%) of [(Me₂biim)Y(Tp)₂]OTf as a white powder. Vapor diffusion of pentane into a THF solution of [(Me₂biim)Y(Tp)₂]OTf led to the formation of block-shaped crystals suitable for XRD. Anal. calc. for C₂₇H₃₀B₂F₃N₁₆O₃SY: C 39.25, H 3.66, and N 27.12. Found: C 38.76, H 3.48, N 26.78. m/z (ESI-HRMS): calcd. for [Y(Tp)₂(Me₂biim)]⁺ (C₂₆H₃₀B₂N₁₆Y⁺): 677.209, found: 677.208.

3.4.5. Synthesis of [(Me₂biim)Er(Tp)₂]OTf

In a flask, 26 mg (0.16 mmol) of Me₂biim and 120 mg (0.16 mmol) of ErTp₂OTf were dissolved in dry MeCN. The solution was stirred for 5 min at room temperature. The solution was then evaporated under reduced pressure, yielding 124 mg (0.14 mmol, 85%) of [(Me₂biim)Er(Tp)₂]OTf as a white powder. Vapor diffusion of pentane into a THF solution of [(Me₂biim)Er(Tp)₂]OTf led to the formation of block-shaped crystals suitable for XRD. Anal. calc. for C₂₇H₃₀B₂F₃N₁₆O₃SEr·1.2H₂O: C 35.01, H 3.53, and N 24.20. Found: C 34.84, H 3.29, and N 23.97. m/z (ESI-HRMS): calcd. for [Er(Tp)₂(Me2biim)]⁺ (C₂₆H₃₀B₂N₁₆Er⁺): 754.235, found: 754.235.

3.4.6. Synthesis of [Cr(cyclam)Cl₂]Cl [78,79]

A total of 1.00 g (5.00 mmol) of cyclam and 1.50 g (5.63 mmol) of CrCl₃·6H₂O were dissolved in DMF (30mL). The solution was refluxed for 20 min. The solution was cooled and filtered, and the purple precipitate was washed with 20 mL of acetone and dried. A total of 1.57 g (4.37 mmol, 88%) of cis-[Cr(cyclam)Cl₂]Cl was obtained as a purple powder.

3.4.7. Synthesis of [Cr(cyclam)OTf₂]OTf [93]

A total of 1.568 g (4.37 mmol) of cis-[Cr(cyclam)Cl₂]Cl was added to 2 mL (22.8 mmol) of trifluoromethanesulfonic acid in a Schlenk tube connected to an N₂ flux and a trap bubbler with a Na₂CO₃ aqueous solution to quench gaseous HCl. The solution was stirred for 1 h at room temperature, then 1 h at 100 °C. The mixture was cooled to 5 °C and was carefully poured into 40 mL of Et₂O. A pink precipitate started to form with a little bit of scratching to help the precipitation process. The solid was filtered and washed twice with Et₂O (40 mL). A total of 2.413 g (3.45 mmol, 79%) of cis-[Cr(cyclam)OTf₂]OTf was obtained as a pink powder.

3.4.8. Synthesis of [(cyclam)Cr(H₂biim)]OTf₃

A total of 500 mg (0.715 mmol) of [Cr(cyclam)OTf₂]OTf and 100 mg (7.45 mmol) of H₂biim were added in a vial with 10 mL of MeCN. The vial was heated for 3 h at 120° under microwave irradiation; the dark orange mixture was filtered to remove excess H₂biim. TEA (1 mL) was then added, and an orange precipitate started to form immediately. The precipitate was filtered, and the orange powder was redissolved in 5mL MeOH with 0.1 M of HOTf. The solution was filtered to remove any insoluble solid, then precipitated by adding Et₂O into the orange solution. A total of 0.338g (0.405 mmol, 57%) of [(cyclam)Cr(H₂biim)]OTf₃ was obtained as an orange powder. Anal. calc. for C₁₉H₃₀CrF₉N₈O₉S₃: C 27.37, H 3.63, and N 13.44. Found: C 27.13, H 3.68, N 13.44. m/z (ESI-HRMS,): calcd. for [Cr(cyclam)(Hbiim)]OTf⁺ (C₁₇H₂₉CrF₃N₈O₃S⁺): 534.144, found: 534.144; calcd. for [Cr(cyclam)(Hbiim)]²⁺ (C₁₆H₂₉CrN₈²⁺): 192.595, found: 192.594; calcd. for [Cr(cyclam)(biim)]⁺ (C₁₆H₂₈CrN₈⁺): 384.183, found: 384.183.

3.4.9. Synthesis of [(cyclam)Cr(Hbiim)]OTf₂

A total of 100 mg (0.12 mmol) of [Cr(cyclam)(H₂biim)]OTf₃ was dissolved in 1 mL of H₂O. A total of 120 µL of aqueous NaOH 1 M (0.12 mmol) was added to the solution. The solution was evaporated completely under reduced pressure. The orange solid was dissolved in 2 mL of methanol, and the solution was recrystallized by slow diffusion of Et₂O into the solution. A total of 59 mg (0.086 mmol, 72%) of orange crystals was collected after filtration. (ESI-HRMS): calcd. for [Cr(cyclam)(Hbiim)]OTf⁺ (C₁₇H₂₉CrF₃N₈O₃S⁺): 534.144, found: 534.144; calcd. for [Cr(cyclam)(Hbiim)]²⁺ (C₁₆H₂₉CrN₈²⁺): 192.595, found: 192.594; calcd. for [Cr(cyclam)(biim)]⁺ (C₁₆H₂₈CrN₈⁺): 384.183, found: 384.183.

3.4.10. Synthesis of [(cyclam)Cr(biim)]OTf

A total of 500 mg (0.600 mmol) of [(cyclam)Cr(H₂biim)]OTf₃ was dissolved in 10 mL of MeCN, 1.0 mL (7.2 mmol) of triethylamine was added, and an orange precipitate immediately formed. The suspension was filtered, and the solid was washed with 10 mL MeCN and 10 mL of Et₂O. A total of 305 mg (0.572 mmol, 95%) of [(cyclam)Cr(biim)]OTf was obtained as an orange powder. Anal. calc. for C₁₇H₂₈CrF₃N₈O₃S·1.15H₂O: C 36.84, H 5.51, N 20.22. Found: C 36.95, H 5.25, N 19.96. m/z (ESI-HRMS): calcd. for [Cr(cyclam)(Hbiim)]OTf⁺ (C₁₇H₂₉CrF₃N₈O₃S⁺): 534.144, found: 534.144; calcd. for [Cr(cyclam)(Hbiim)]²⁺ (C₁₆H₂₉CrN₈²⁺): 192.595, found: 192.594; calcd. for [Cr(cyclam)(biim)]⁺ (C₁₆H₂₈CrN₈⁺): 384.183, found: 384.183.

3.4.11. Synthesis of [(cyclam)Cr(biim)Y(Tp)₂]OTf₂

A total of 60 mg (0.090 mmol) of [Y(Tp)₂OTf] was dissolved in 5 mL of MeCN, and 52 mg (0.098 mmol) of [Cr(cyclam)(biim)]OTf was added to the solution. The solution was heated to help the solution solubilize. The solution was filtered to remove any excess insoluble [Cr(cyclam)(biim)]OTf. A total of 50 mL of Et₂O was added to the clear orange solution. A precipitate started to appear after a few minutes and was filtered after 2 h. The solid was washed with Et₂O and dried. A total of 101 mg (0.084 mmol, 93%) of [(cyclam)Cr(biim)Y(Tp)₂]OTf₂ was obtained as an orange powder. Anal. calc. for C₃₆H₄₈B₂CrF₆N₂₀O₆S₂Y·3.15H₂O: C 34.47, H 4.36, N 22.33. Found: C 34.56, H 4.27, N 21.95. m/z (ESI-HRMS): calcd. for [(cyclam)Cr(biim)Y(Tp)₂]OTf⁺ (C₃₅H₄₈B₂CrF₃N₂₀O₃SY⁺): 1048.253, found: 1048.253.

3.4.12. Synthesis of [(cyclam)Cr(biim)Eu(Tp)₂]OTf₂

A total of 70 mg (0.096 mmol) of [Eu(Tp)₂OTf] was dissolved in 5 mL of MeCN, and 50 mg (0.094 mmol) of [Cr(cyclam)(biim)]OTf was added to the solution. The solution was heated to help the solution to solubilize. The solution was filtered to remove any excess of insoluble [Cr(cyclam)(biim)]OTf. A total of 50 mL of Et₂O was added to the clear orange solution. A precipitate started to appear after a few minutes and was filtered after 2 h. The solid was washed with Et₂O and dried. A total of 93 mg (0.074 mmol, 79%) of [(cyclam)Cr(biim)Eu(Tp)₂]OTf₂ was obtained as an orange powder. Anal. calc. for C₃₆H₄₈B₂CrF₆N₂₀O₆S₂Eu·3.2H₂O: C 32.80, H 4.16, N 21.25. Found: C 32.84, H 4.09, N 21.19. m/z (ESI-HRMS): calcd. for [(cyclam)Cr(biim)Eu(Tp)₂]OTf⁺ (C₃₅H₄₈B₂CrF₃N₂₀O₃SEu⁺): 1112.268, found: 1112.267.

3.4.13. Synthesis of [(cyclam)Cr(biim)Er(Tp)₂]OTf₂

A total of 30 mg (0.056 mmol) of [Er(Tp)₂OTf] was dissolved in 10 mL of MeCN, and 42 mg (0.057 mmol) of [Cr(cyclam)(biim)]OTf was added to the solution. The mixture was stirred until the powder completely solubilized. The orange solution was evaporated under reduced pressure. A total of 70 mg (0.055 mmol, 98%) of [(cyclam)Cr(biim)Er(Tp)₂]OTf₂ was obtained as an orange powder. Anal. calc. for C₃₆H₄₈B₂CrF₆N₂₀O₆S₂Er·2.3H₂O: C 32.82, H 4.02, N 21.27. Found: C 32.77, H 3.91, N 21.16. m/z (ESI-HRMS): calcd. for [(cyclam)Cr(biim)Er(Tp)₂]OTf⁺ (C₃₅H₄₈B₂CrF₃N₂₀O₃SEr⁺): 1126.282, found: 1126.286.

4. Conclusions

The doubly deprotonated complex-as-ligand [(phen)₂Cr(biim)]⁺ binds to Ln(III) triflate (Ln = Lu or La) to give heterometallic d-f assemblies {Ln[(biim)Cr(phen)₂]_n}⁽ⁿ⁺³⁾⁺ with stoichiometric ratios 1 ≤ n ≤ 4. Reaching such high nuclearity for the LnCr₄ complex, despite the considerable charge repulsion, is a clear indication that the biimidazolate ligand is a valuable and attractive bridging ligand for connecting Cr(III) cations to trivalent lanthanides. However, the successive anti-cooperative association steps limit the thermodynamic formation constants so that intricate mixtures of different LnCr_n species exist in solution at millimolar concentrations, which prevents easy access to individual and well-defined assemblies.

Reaction of [(phen)₂Cr(biim)]⁺ complex-as-ligand with the coordinately unsaturated lanthanide complex [Ln(Tp)₂]⁺ in acetonitrile led to the selective formation of stable and fully characterized heterometallic [(phen)₂Cr(biim)Ln(Tp)₂]²⁺ (Ln = Y, Eu) dyads. The short intermetallic distance (5.9 Å) ensured by the compact biimidazolate bridge is appropriate for energy transfer between the metallic centers following light excitation. However, the visible tail of the biim²⁻→phen LLCT band efficiently quenches the doublet Cr(²E,²T1) excited state at room temperature, thus preventing its use as a donor for ultimate lanthanide sensitization.

Replacement of the two polyaromatic didentate phen ligands with an aliphatic tetradentate cyclam leads to closely related [(cyclam)Cr(biim)Ln(Tp)₂]²⁺ dyads in solution (Ln = Y, Eu, Er). The targeted removal of low-energy LLCT bands makes Cr(²E,²T₁) excited centers of the latter dyads emissive at room temperature following UV excitation. Moreover, a remarkably efficient intramolecular Cr→Er energy transfer (k_ET = 4.3 × 10⁶ s⁻¹, ${\eta }_{\mathrm{E}\mathrm{T}\mathrm{C}\mathrm{r}\to \mathrm{E}\mathrm{r}}$ = 52%) is responsible for infrared Er(⁴I_13/2→⁴I_15/2) emission at 1550 nm following visible Cr(⁴T₂←⁴A₂) excitation at 500 nm, or Cr(²T₁,²E←⁴A₂) excitation at 698 nm.

Focusing laser excitation beams at 801 nm (Er(⁴I_9/2←⁴I_15/2)), or at 966 nm (Er(⁴I_11/2←⁴I_15/2)), induces weak upconverted signals at 525 nm (Er(²H_11/2→⁴I_15/2)) and 545 nm (Er(⁴S_3/2→⁴I_15/2)) in the [(cyclam)Cr(biim)Er(Tp)₂]²⁺ dyad and its mononuclear model complex [(Me₂biim)Er(Tp)₂]⁺ (ESA mechanism). However, the Cr(III) sensitizer does not contribute to the light upconversion. Attempts to directly excite Cr(²E,²T₁←⁴A₂) excitation at 698 nm for inducing an alternative energy transfer upconversion (ETU) mechanism failed. Indeed, the upconversion quantum yield for the ETU mechanism ${\Phi }^{\mathrm{u}\mathrm{p}}\left(\mathrm{E}\mathrm{T}\mathrm{U}\right)$ for a sensitizer (Cr)–acceptor (Er) dyad can be estimated with Equation (15) [86]:

$$\begin{array}{c}{{\Phi }^{\mathrm{u}\mathrm{p}}\left(\mathrm{E}\mathrm{T}\mathrm{U}\right)}_{\mathrm{C}\mathrm{r}-\mathrm{E}\mathrm{r}}\approx \left[\left({\displaystyle \frac{{\lambda }_{\mathrm{p}}}{\mathrm{h}\mathrm{c}}}\right){\times \sigma }_{\mathrm{C}\mathrm{r}}^{0\to 1}\times P\right]{\eta }_{\mathrm{E}\mathrm{T} 1}\times {\eta }_{\mathrm{E}\mathrm{T} 2}\times {\tau }_{\mathrm{E}\mathrm{r}}^1{\times \Phi }_{\mathrm{E}\mathrm{r}}^{\mathrm{r}\mathrm{a}\mathrm{d}\left(2\to 0\right)}\end{array}$$

(15)

λ_p is the excitation wavelength with intensity P, and h and c are the Planck constant and the speed of light; ${\sigma }_{\mathrm{C}\mathrm{r}}^{0\to 1}$ is the absorption cross-section of the sensitizer, which is directly proportional to the absorption coefficient ${\epsilon }_{\mathrm{C}\mathrm{r}}^{0\to 1}$ of the Cr(²E,²T₁←⁴A₂) transition; ${\tau }_{\mathrm{E}\mathrm{r}}^1$ is the lifetime of the first excited state of the acceptor working as relay, ${\Phi }_{\mathrm{E}\mathrm{r}}^{\mathrm{r}\mathrm{a}\mathrm{d}\left(2\to 0\right)}$ is the intrinsic radiative quantum yield of the transition 2→0 of the doubly excited acceptor, ${\eta }_{\mathrm{E}\mathrm{T} 1}$ and ${\eta }_{\mathrm{E}\mathrm{T} 2}$ are the intrinsic energy transfer efficiency from the excited sensitizer to the first (0→1) and second transition of the acceptor (1→2), respectively. Using a Cr(III)-based sensitizer for implementing ETU on the Er(III) partner in [(cyclam)Cr(biim)Er(Tp)₂]²⁺ provides a too small absorption cross-section ${\sigma }_{\mathrm{S}}^{0\to 1}$ (Figure 10, ε_Cr = 0.8 M⁻¹·cm⁻¹ at 698 nm) for overcoming the deleterious short ${\tau }_{\mathrm{E}\mathrm{r}}^1$ (within the microsecond domains [87]) and the faint intrinsic quantum yields ${\Phi }_{\mathrm{E}\mathrm{r}}^{\mathrm{r}\mathrm{a}\mathrm{d}\left(2\to 0\right)}$ (within the 10⁻⁶–10⁻⁵ range for molecular erbium complexes [86]). Optimizing the energy transfer rate constants will not solve this issue because the energy transfer efficiency $n_{\mathrm{E}\mathrm{T} 1}$ = 0.52 operating in [(cyclam)Cr(biim)Cr(Tp)₂]²⁺ is already favorable and $n_{\mathrm{E}\mathrm{T} 2}$ can never exceed 1.
