A Quinoxaline−Naphthaldehyde Conjugate for Colorimetric Determination of Copper Ion

by
Sutapa Sahu
1,
Yeasin Sikdar
1,2,
Riya Bag
1,
Michael G. B. Drew
3,
José P. Cerón-Carrasco
4,* and
Sanchita Goswami
1,*
1
Department of Chemistry, University of Calcutta, 92, A.P.C. Road, Kolkata 700009, India
2
Department of Chemistry, The Bhawanipur Education Society College, 5, Lala Lajpat Rai Sarani, Kolkata 700020, India
3
Department of Chemistry, University of Reading, Whiteknights, Reading RG6 6AD, UK
4
Centro Universitario de la Defensa, Academia General del Aire, Universidad Politécnica de Cartagena, C/Coronel López Peña S/N, Santiago de La Ribera, 30720 Murcia, Spain
*
Authors to whom correspondence should be addressed.
Molecules 2022, 27(9), 2908; https://doi.org/10.3390/molecules27092908
Submission received: 7 March 2022 / Revised: 20 April 2022 / Accepted: 28 April 2022 / Published: 3 May 2022
(This article belongs to the Special Issue Photophysics and Photochemistry in Complex Molecular Systems)
Browse Figures
Review Reports Versions Notes

Abstract

This work facilitates detection of bivalent copper ion by a simple Schiff base probe QNH based on a quinoxaline−naphthaldehyde framework. The detailed study in absorption spectroscopy and theoretical aspects and crystal study of the probe and probe−copper complex has been discussed. The detection limit of the probe in the presence of Cu2+ is 0.45 µM in HEPES−buffer/acetonitrile (3/7, v/v) medium for absorption study. The reversibility of the probe−copper complex has been investigated by EDTA. The selective visual detection of copper has been established also in gel form.

1. Introduction

Metals are unavoidable particulates in our surroundings and contain a wide panel of industrial applications [1,2,3]. However, metals are also related to our living systems, those of which include transition metals, alkali metals, and alkaline earth metals during biological machinery [4,5]. They are present in environment as well as biological systems in a very traceable form that is not easy to distinguish. The main concern about the metal ions is that they may be toxic if present in a higher amount than their permissible limit [6]. Detecting metal ions in very trace amounts seems to be a hurdle for researchers, so continuous experiments are in progress on this particular topic.
Cu2+ was one of the most found elements after Fe3+ and Zn2+ on Earth’s surface. A trace amount of Cu2+ is considered an essential nutrient for the human body [7]. Cu2+ is the main component of a variety of enzymes such as superoxide dismutase (SOD1), cytochrome−c−oxidase (Cyt−O), tyrosinase, etc [8]. Its versatile role in chemistry, biochemistry, industry, and the medicinal field allows it to easily contaminate our environment [9]. Excess consumption of Cu2+ in the human body can lead to serious health issues, such as Wilson’s disease [10,11], Alzheimer’s disease [12], Menkes disease [13], Parkinson’s disease [14], transmissible spongiform encephalopathy [15], etc. Due to its wide usage, it is crucial to discover new strategies for detecting trace amounts of Cu2+ readily and in an inexpensive way.
Colorimetric chemosensors are preferable for detection of analytes, as no expensive tools are needed for the experiments which, in turn, results in a more effective and less time–consuming detection than other methods [16,17]. This can be recognised by the naked eye and easy monitoring can be possible. Several works have been reported for colorimetrically Cu2+ detection (Table S1) [9,18,19,20,21,22,23,24,25,26,27].
Quinoxaline moiety is one of the units that has recently grabbed our attention due to its excellent colorimetric signalling unit behaviour [28,29]. The two N atoms present in the ring not only extend the conjugation in the ring, but are also preferred as a good chelating unit [28]. Schiff base moiety with extended conjugation and –OH and –NH binding sites are effective for photoactive detection of metal ions [30,31].
Quinoxaline and naphthaldehyde-based Schiff base chemosensors (QNH) have been reported in literature by Das and co-workers for colorimetric detection of Cu2+ in methanol/aqueous HEPES−buffer (9/1, v/v) [31]. Aiming at further expanding the practical use of that new probe, we herein perform a joint experimental and theoretical study of QNH in HEPES−buffer/acetonitrile (3/7, v/v) medium for Cu2+. The reversibility of the QNH with Cu2+ in the presence of EDTA has been also assessed. The QNH + Cu2+ complex was further exposed to a different amino acid solution and shows a response in the presence of histidine.

2. Results and Discussion

2.1. Synthesis and Characterization

The probe QNH was synthesized in two simple steps, as discussed in the experimental section. In the first step, the heterocyclic quinoxaline moiety with ketone functionality (compound 1) had been synthesized, and in the second step reaction with the 2–hydroxy–1 naphthaldehydehydrazide (compound 2), the condensed product we found in orange powder-like form in 73% yielded in methanol, as illustrated in Scheme S1. QNH crystallized by layering technique in CHCl3 and diethyl ether solvent and the dark orange diamond-shaped single crystal we obtained was further used in characterization and spectral studies.
The probe is fully characterized in terms of CHN analysis, FT−IR, 1H NMR, ESI−MS spectral analysis (Figures S2, S3 and S5), and single–crystal XRD method before its application. The FT−IR spectrum confirms the peak at 1623 cm−1 for the generation of imine bond (C=N). The 1H NMR spectrum shows peaks at δH 8.2–7.3 for aromatic protons, δH 9.86 for aldehyde proton, and δH14.1 for the –OH proton. The ESI−MS spectrum shows peak at 401.14 amu for the [C26H17N4O]+ species. The single crystal X–ray diffraction experiment was also performed with the orange diamond–shaped single crystal to determine the structure of the probe (Figure S1). The QNH crystallizes in tetragonal space group I 41/a.

2.2. Crystal Structure Description

The probe QNH has been crystallized by diffusion of diethyl ether into the chloroform solution of QNH. The single crystal found was orange in colour and a diamond shape. QNH crystallizes in tetragonal space group I 41/a. From the crystal structure we found that the quinoxaline moiety and naphthalene moiety exist in the same plane and a chloroform molecule found as solvent. The two-imine bond length C12–N2 is 1.321 Å and C11–N1 is 1.307Å, which we found to be similar to that reported in the literature. The bond angle C12–N2–N1 is 113.40° and C11–N1–N2 is 112.39°, which indicates the sp2 hybridized the N1 and N2 atoms. All carbon and nitrogen atoms are sp2 hybridized and only one oxygen is sp3 hybridized. From the supramolecular 2D structure, the moiety chain has been progressed by intermolecular H–bonding between O1···H15–C15 (Figure S20, Table S4) and a short interaction between two probe units, by quinoxaline and naphthaldehyde moiety (Figure S20, Table S5). The extended supramolecular 2D packing diagram has been shown in Figure S19. The QNH + Cu2+ complex crystallizes in triclinic space group P −1 and has two distinct units (labelled as A and B) (Figure S18). In both units Cu2+ binds in a penta-coordinate way with one oxo oxygen (O1) of naphthalene moiety, one nitrogen (N1) of imine bond, one nitrogen (N3) of quinoxaline moiety, and two DMF solvent moiety.

2.3. Naked Eye Sensing

After the characterization of the probe, the initial testing of the probe has been performed in the presence of different metal ions (Mn+ = Na+, K+, Ca2+, Mg2+, Cr3+, Cd2+, Hg2+, Pb2+, Mn2+, Fe3+, Co2+, Ni2+, Cu2+, Zn2+ and Al3+) available in their chloride and perchlorate salts in HEPES−buffer/acetonitrile (3/7, v/v) medium at room temperature. The probe shows a distinct colour change from colourless to purple, visible to bare eyes, only in the presence of the Cu2+ ion in HEPES−buffer/acetonitrile (3/7, v/v) medium (Figure 1). Depending on this response, the further spectral studies of the probe in the presence of the Cu2+ ion has been performed further in HEPES−buffer/acetonitrile (3/7, v/v) medium at room temperature.

2.4. Photophysical Studies of QNH towards Cu2+

The UV–Visible spectra of the probe QNH (10–5 M) shows peak intensity at 477 nm and 425 nm. The UV–Visible spectra of the probe in the presence of various metal ions (Na+, K+, Ca2+, Mg2+, Hg2+, Ni2+, Fe3+, Cu2+, Co2+, Cd2+, Zn2+, Mn2+, Pb2+, Al3+, and Cr3+) are recorded in HEPES−buffer/acetonitrile (3/7, v/v) medium. The probe QNH changes its colour from colourless to purple (Figure 1) in the presence of the Cu2+ ion, and in spectral behaviour a new peak at 552 nm had appeared (Figure S7). The probe QNH did not show any selectivity towards anions in the UV–Visible spectrum.
To properly investigate the sensing behaviour of QNH in the presence of Cu2+, the titration experiment was performed. Upon gradual addition of Cu2+, the 477 nm and 425 nm characteristic peaks of the probe are gradually decreased, and a new peak is generated at 552 nm with an isosbestic point at 484 nm. The peak at 552 nm reached its maxima upon addition of 5 equivalent of Cu2+ solution (Figure 2). The isosbestic point indicates there is equilibrium between the probe and the probe in the presence of Cu2+. It also indicates that only one species has been generated from the probe upon binding with Cu2+. The shifting of peak maxima of the probe from 425 nm to 552 nm upon addition of Cu2+ might be explained by intra ligand charge transfer (ILCT) process. The quinoxaline moiety commonly acts as an electron withdrawing segment and the electron-rich naphthalene moiety as a donor, so inside the probe, there may be electron densities in motion. In the Cu2+ complex the absorption peak is the result of the ILCT band, due to the fact that the colour change from colourless to purple occurred.
From the UV–Visible titration result, the limit of detection (LOD = 3σ/s, where σ is the standard deviation of the blank solution and s is the slope of the calibration curve) [32] calculated for Cu2+ was 4.5 × 10–7 M (Figure S9).
To check the selectivity of QNH with Cu2+ in the presence of other metal ions, a competitive study had been performed with the probe in the presence of 5 equivalent of other metal ions followed by addition of Cu2+ ion. In results, Cu2+ shows a selective response among all the cations in HEPES−buffer/acetonitrile (3/7, v/v) medium (Figure S8). This study indicates the probe can be a selective sensor for Cu2+ apart from the other metal ions in semi-aqueous medium.
According to linear Benesi–Hildebrand expression, the measured absorbance [1/(A − A0)] at 552 nm varied as a function of 1/[Cu2+] in a linear relationship. This indicates the formation of 1:1 stoichiometry between Cu2+ and probe QNH. The association constant is found 79.9 × 104 M–1 (Figure S11).
The stoichiometric ratio was further investigated by Job′s plot analyses. The molar fraction of the ligand was shown the highest value 0.5 at 552 nm, which also indicates 1:1 stoichiometry between Cu2+ and probe QNH (Figure S10). The ESI–MS spectrum of QNH in the presence of Cu shows the 100% peak at 462.06 amu for the species [C26H15CuN4O]+ (Figure S3). Both Job’s plot and mass spectrum, the binding stoichiometry of the probe and the probe with Cu2+, can be concluded as 1:1 equivalent. The 1H NMR spectrum of the probe with Cu2+ cannot be recorded due to the paramagnetic behaviour of Cu2+.
The optical phenomenon of probe QNH in the presence of Cu2+ was checked in different pH levels from 4–10. The effectivity of the probe towards Cu2+ was observed from pH range 6–8 and highest in pH 7. This indicates the probe most effectively detects Cu2+ in physiological pH (Figure S12).
The absorbance of probe QNH has been checked in the presence of different anions of Cu2+ salts and found that QNH effectively shows the same result for all the different forms of Cu2+ ion (Figure S13).
The reversibility test of QNH + Cu2+ solution was checked in the presence of EDTA in HEPES−buffer/acetonitrile (3/7, v/v) medium. In the presence of EDTA, the characteristic 552 nm peak of the QNH + Cu2+ complex had disappeared, and only peaks of QNH with 477 nm and 425 nm appeared, indicating reversible coordination between QNH and Cu2+ (Figure S14). This reversibility experiment has been studied further in several cycles with a sequential addition of QNH + Cu2+ solution and EDTA. From the result, it can be concluded that QNH is not a chemodosimeter in the presence of Cu2+ and the probe can be recovered even after the experiment.

2.5. Theoretical Study and the Elucidation of a Proposed Model

DFT and time-dependent DFT (TD−DFT) calculations were performed to assess the nature of the excited states that govern the observed changes in the absorption spectra. In the implemented computational protocol, the structure of the QNH probe was fully optimized in the absence and the presence of Cu2+. To be consistent with the experimental evidence, the latter chemical model accounts for the probe in its deprotonated form. The theoretical absorption wavelength for the QNH (471 nm) and the QNH−Cu2+ counterpart (525 nm) agrees with the experimental profile. It is known that the interaction of the metal ions with sensors might yield metal-to-ligand charge transfer (MLCT), ligand-to-metal charge transfer (LMCT), and intra-ligand charge transfer (ILCT) mechanisms. The analysis of the vertical transitions reveals that in both systems, these two characteristic peaks correspond to the HOMO → LUMO transition, which is associated with an ILCT transition (see Figure 3).

2.6. Absorption Spectroscopic Studies of QNH–Cu2+ Complex towards Histidine

Amino acids are the main building block of proteins. Several works have reported about the affinity of Cu2+ with different amino acids [25,33]. Therefore, we have studied the effect of amino acid towards our Cu2+ complex. The absorption study of the complex has been carried out in the presence of different amino acids (Gly, Ala, Phe, Val, Ser, Cys, Leu, Ile, Pro, Lys, His, Trp) in HEPES−buffer/acetonitrile (3/7, v/v) medium (Figure 4). In the presence of histidine, the absorption peak of Cu2+ complex at 552 nm has disappeared and the absorption spectra has a similarity with the QNH probe itself. The colour changes from purple to colourless, visible to the naked eye.
Furthermore, we have performed the UV–Visible titration experiment of QNH–Cu2+ complex in the presence of histidine to investigate the binding properties. Upon gradual addition of histidine, the complex peak at 552 nm gradually decreases. The isosbestic point at 488 nm indicates the presence of an equilibrium between QNH–Cu2+ complex and histidine (Figure S15). The detection limit (LOD = 3σ/s, where σ is the standard deviation of the blank solution and s is the slope of the calibration curve) for histidine has been found 1.35 × 10−6 M (Figure S16). From the UV–Visible experiments, we noticed the similarity between the probe and QNH–Cu2+ complex with histidine. Due to high affinity between Cu2+ and histidine, the Cu2+ binds readily with histidine residue, leaving the probe molecule free. The schematic representation has been depicted in Scheme 1.

2.7. Application

To check the feasibility of the probe in other solvent mediums, we also checked our probe in solid and gel mediums. The gel has been prepared as the method described in literature using Poloxamer–407 [34,35]. Furthermore, in both the phases, the probe QNH shows a colour change from colourless to purple in the presence of Cu2+. The result, visible to the naked eye, has been shown in Figure S17.

2.8. Proposed Sensing Mechanism of Cu2+ by QNH

Quinoxaline moiety has been known for its good colorimetric sensing behaviour. From the experimental findings, there are 1:1 interactions present between the probe QNH and Cu2+, and the colour change appears from colourless to purple. From the molecular structure of the complex, we found that the deprotonation of −OH group of QNH happened and the Cu2+ ion bind in a penta-coordinate way by two nitrogen, one oxygen and two solvent molecule in 1:1 ratio. Upadhyay et al. also reported a quinoxaline−salicylaldehyde based probe for Cu2+ in ethanol: H2O medium [28]. Here, due to the presence of naphthalene moiety, the electron density of the overall molecule resides from naphthalene to quinoxaline. Therefore, the presence of naphthalene moiety increases the donor acceptor extended conjugation between the probe, which affects binding with the Cu2+ ion; a strong intra ligand charge transfer (ILCT) band appears at 552 nm (Figure 5) in agreement with the theoretical value predicted by TD-DFT (525 nm).

3. Conclusions

Our contribution touches upon a problem of interest in analytical chemistry, e.g., the design of selective and sensitive determination methods of copper (II) [36,37,38,39,40,41,42]. We have performed the follow-up work of quinoxaline–naphthaldehyde-based probe QNH and its selective detection of Cu2+ in HEPES−buffer/acetonitrile (3/7, v/v) medium. The probe has been characterized by IR, NMR, and ESI–MS spectroscopy. This work is the elaborate description of the affinity of QNH towards Cu2+. The spectral and theoretical findings suggest the binding of Cu2+ enhance the ILCT mechanism pathway. The reversibility of probe QNH was also studied as it can be easily recovered and reused. The affinity towards histidine is also discussed here. The crystal structure of probe QNH in CHCl3 and QNH + Cu2+ complex has been produced and characterized by single crystal X-ray diffraction method. The tune of the absorption band by the interaction of the probe with Cu2+ ion is reproduced through TD–DFT, which further supports the proposed sensing mechanism. That agreement confirms DFT as a valuable tool in the design of more efficient probes in the future.

4. Experimental Section

4.1. Materials and Physical Methods

Ninhydrin, o–phenylenediamine, 2−hydroxy naphthaldehyde, and hydrazine hydrate were purchased from Sigma–Aldrich, Kolkata, India and used as received. The salts of cations were also purchased from Sigma–Aldrich, Kolkata, India. Solvents for the syntheses were purchased from commercial sources and used as received. 1H NMR spectra were recorded in CDCl3 with TMS as internal standard on a Bruker, AV300 Supercon Digital NMR system with dual probe. The FT–IR spectra were recorded from KBr pellets in the range of 400−4000 cm–1 on a Perkin−Elmer Spectrum 100 spectrometer (Perkin-Elmer, Shelton, CT, USA). Elemental analyses for C, H, and N were performed on Perkin–Elmer 2400 II analyzers (Perkin-Elmer, Waltham, MA, USA). The ESI-MS experiments were performed on a Waters Xevo G2-S QTOF mass spectrometer (Waters, Milford, CT, USA). The crystallographic data was recorded on a Bruker Nonius Apex II CCD diffractometer (Bruker, Karlsruhe, Germany). The absorption spectral studies were performed on a Hitachi UV–Visible U–3501 spectrophotometer (Hitachi, Fukuoka, Japan).

4.2. Single-Crystal X-Ray Crystallography

A high-quality single crystal of QNH was chosen and mounted on a Bruker Nonius Apex II CCD diffractometer equipped with a graphite monochromator and Mo-Kα (λ = 0.71073Å) radiation. The diffraction data were collected with exposure time of 5 s/frame and at 296 K. The structure was solved by direct methods and refined by full–matrix, least–squares techniques based on F2, using SHELXL−2016/6software package [43]. A multi–scan empirical absorption correction was applied using the SADABS program [44]. All non–hydrogen atoms were refined in the anisotropic approximation against F2 of all reflections and determined from the difference Fourier maps. All the hydrogen atoms are isotropically refined. The crystallographic figures have been generated using Mercury 3.9 and Diamond 3.0 codes [45]. The structure refinement parameters and crystallographic data of ligand QNH and its copper complex are listed in Tables S2 and S3. CCDC 2156635 and 2156636 contain the crystallographic data in CIF format. This data can be obtained free of charge from the Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/datarequest/cif.

4.3. Computational Details

Ab initio calculations have been previously used for both copper (I) and copper (II)-based compounds [46,47,48]. Herein, we adapt a similar protocol by using the Gaussian 16 suite of programs [49]. The geometries of both the QNH and QNH−Cu2+ model systems were fully optimized within the DFT framework. These model systems used crystal structures as the starting material. The M06 functional [50] was implemented in combination with the def2−SVP basis set to describe all the atoms except the Cu2 centre, which was treated with def2−ECP [51]. That latter basis set replaces the core electrons with the effective core potentials to account for scalar relativistic effects without increasing the computational cost [52]. A vibrational analysis is subsequently conducted to ensure that all optimization processes correctly lead to stable minima (no imaginary frequencies). The optimized structures are eventually used to simulate vertical transition energies and compute the frontier molecular orbitals. Solvent effects were included to account for the effect of the acetonitrile environment. An implicit approach was used, the well-known Polarizable Continuum Model (PCM) [53]. We stress that a systematic assessment of the TD-DFT performance is a prerequisite for mimicking chemosensor, as model systems need to be designed with a heterogenic series of metallic centres. However, the selection of that specific level of theory is guided by an available benchmarking [54], and consequently M06 is accurate enough for our purposes.

4.4. Synthesis of the Ligand (QNH)

Indeno[1,2−b]quinoxalin−11−one (compound 1) and 2−hydroxy naphthaldehyde hydrazide (compound 2) were prepared from the literature procedure [28,55]. In methanolic solution (10 mL) of indeno[1,2–b]quinoxalin–11–one (116 mg, 0.5 mmol), 2−hydroxy naphthaldehyde hydrazide (93 mg, 0.5 mmol) in methanol was added dropwise and refluxed for 2 h (Scheme S1). The orange-coloured precipitate was filtered through suction filtration and air dried, yield = 73% (146 mg, 0.36 mmol). Anal. calc. for C26H16N4O: C, 77.99; H, 4.03; N, 13.99; Found: C,77.2; H,4.02; N,13.1; 1H NMR (300 MHz, CDCl3, 290 K, TMS) δH (ppm): 14.14 (s, −OH), 9.86 (s, 1H), 8.27−7.78 (m, 8H), 7.64−7.33 (m, 6H); FT–IR (KBr, cm−1): 3066, 2945, 1903, 1623, 1576, 1528, 1460, 1392, 1336, 1288, 1233, 1185, 1113, 1073, 1025, 958, 870, 818, 734, 535; ESI−MS (m/z), ion: Calculated: 400.13 amu, Found: 401.14 amu [QNH + H+].

4.5. Synthesis of the Cu2+ Complex (QNH)

0.01 mmol (4 mg) QNH was dissolved in 5 mL 1:1 DMF:methanol. Then, 0.01 mmol (3.7 mg) copper perchlorate hexahydrate was added. The colour changes from light yellow to purple instantly. The solution was then refluxed for 4 h. Afterwards, the reaction mixture was cooled to room temperature and was layered with diethyl ether as solvent. After 4 weeks, rectangular cuboid-shaped black bronze-coloured crystal came on the side walls of the layering tube. ESI−MS (m/z) Calculated: 462.06 Found: 462.061 [C26H15CuN4O]+ (Figure S4). FT–IR (KBr, cm−1): 3054, 1606, 1522, 1451, 1423, 1346, 1198, 1114, 1072, 1030, 763, 619. (Figure S6)

4.6. Sample Preparation for Spectroscopic Studies

All the stock solutions were prepared using spectroscopy graded acetonitrile and working solutions were prepared using spectroscopy graded acetonitrile and HEPES buffer. The spectral studies of the probe QNH was carried out in 3:7 HEPES buffer (pH = 7.4, 25 mM): acetonitrile medium. All experiments were carried out at room temperature of 298 K. The stock solutions of the cations were prepared by the perchlorate salts. In the UV–Visible experiment, a stock solution of 10−3 (M) QNH was filled in a quartz optical cell of 1.0 cm optical path length to achieve a final concentration of the solution of QNH (10−5 (M) in 2000 µL. After 1 min, each spectral data was recorded with the addition of cation solution by using a micropipette.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/molecules27092908/s1, 1H NMR, ESI-MS, FT-IR spectrum of probe QNH, spectrophotometric study, and Cartesian atomic coordinates for all model structures. Scheme S1: Synthetic procedure of QNH; Figure S1: Molecular structure of QNH. Color code: C = pista green; N = blue; O = red; H= gray; Cl = bright green; Figure S2: 1H NMR spectrum of QNH in CDCl3; Figure S3: ESI-MS spectrum of QNH; Figure S4: ESI-MS spectrum of QNH + Cu2+ complex; Figure S5: FT-IR spectrum of QNH; Figure S6: FT-IR spectrum of QNH + Cu2+ complex; Figure S7: Absorbance spectra of QNH (10–5 M) in presence of 5 equiv. of various cations (Na+, K+, Ca2+, Mg2+, Hg2+, Ni2+, Fe3+, Cu2+, Co2+, Cd2+, Zn2+, Mn2+, Pb2+, Al3+, Cr3+) in (3:7, v/v) HEPES buffer: acetonitrile medium; Figure S8: Absorption intensity of QNH (10–5 M) in the presence of 5 equiv. of different cations in absence of same equiv. of Cu2+ in solution [the green bar portion]. Absorption intensity of a mixture of QNH (10–5 M) with 5 equiv. of other cations followed by addition of 5 equiv. of Cu2+ to the solution (λabs = 552 nm) [the orange blue bar portion]; Figure S9: Determination of the detection limit of QNH in presence of Cu2+ in (3:7, v/v) HEPES buffer: acetonitrile medium at 552 nm; Figure S10: Job’s plot for the identification of stoichiometry using absorbance values at 552 nm; Figure S11: Benesi-Hildebrand plot for determination of binding constant of QNH with Cu2+; Figure S12: Absorbance of QNH in absence and in presence of Cu2+ at different pH values; Figure S13: Absorbance spectra of QNH in present different anion Cu2+ of salts. (Inset: Bar plot of QNH in present different anion Cu2+ of salts); Figure S14: (A) Absorption spectrum of QNH shows reversibility towards Cu2+ in presence of EDTA in (3:7, v/v) HEPES buffer: acetonitrile medium. (B) The reversible colorimetric switch by alternate addition of Cu2+ and EDTA into the (3:7, v/v) HEPES buffer: acetonitrile medium. (C) Visual color change of QNH showing reversibility towards Cu2+ in presence of EDTA; Figure S15: (A) UV–Visible titration of QNH–Cu2+ complex (10–5 M) in the presence of various concentration of histidine. (Downward arrow indicates gradual decrease of absorption at 552 nm with increasing concentration of externally added histidine) (Inset: Visual color change of QNH in presence of Cu2+ followed by histidine). (B)Absorbance of QNH–Cu2+ complex at 552 nm as a function of [histidine]); Figure S16: Determination of the detection limit of Histidine in (3:7, v/v) HEPES buffer: acetonitrile medium at 552 nm; Figure S17: Visual change of QNH in presence of Cu2+ in A) paper strip and B)gel form; Figure S18: Crystal structure of QNH + Cu2+ metal complex. (Inset: The geometry of the two Cu centre of the complex in unit A and unit B). Color code: C = pista green; N = blue; O = red; H= gray; Cl = bright green; Cu = cyan; Figure S19: The supramolecular 2D packing diagram of the QNH showing the propagation via H–bonding and short ring–interactions, forms a 2D sheet like structure; Figure S20: The supramolecular 1D packing diagram of QNH via (A) H–bonding interaction along b axis with enlarged version and c axis view of the interaction; (B) short ring–interactions with enlarged version and c axis view of the interaction; Table S1: Colorimetric Cu2+ sensing receptors found in the literature; Table S2: The crystallographic data for QNH; Table S3: The crystallographic data for QNH + Cu2+; Table S4: Analysis of X–I∙∙∙J (H bonding) interactions in QNH. (Bond lengths (Å), bond angles (°)); Table S5: Analysis of short ring–interactions with Cg∙∙∙Cg distances (Å) in QNH.

Author Contributions

Conceptualization, Y.S., S.S. and R.B.; software, J.P.C.-C.; validation, J.P.C.-C. and S.G.; formal analysis, S.S. and R.B.; investigation, S.S., R.B., M.G.B.D. and Y.S.; writing—original draft preparation, S.S.; writing—review and editing, R.B., Y.S., M.G.B.D., J.P.C.-C. and S.G.; supervision, S.G. and J.P.C.-C.; funding acquisition, R.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Shailabala Biswas Research Foundation, University of Calcutta, India (ET/T/385−dt−27/02/2018) and University Grants Commission, India (Sanction No. F1-17.1/2017-18/RGNF-2017-18-SC-WES-37660/(SA-III/Website)).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available upon request from the corresponding author.

Acknowledgments

S. Sahu is thankful to Shailabala Biswas Research Foundation, University of Calcutta, Kolkata, India. R. Bag is thankful to University Grants Commission, India (Sanction No. F1-17.1/2017-18/RGNF-2017-18-SC-WES-37660/(SA-III/Website)) for the financial support. The CAS–V (UGC) of the Department of Chemistry, University of Calcutta, is gratefully acknowledged. DST-FIST and DST-PURSE are acknowledged for providing Single crystal XRD and ESI−MS facility at Department of Chemistry, University of Calcutta. This work has used the computational facilities provided by the Plataforma Andaluza de Bioinformática installed at the Universidad of Málaga (Spain).

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

The samples of the compounds are available from the authors.

References

  1. Wang, H.; Zhu, Q.-L.; Zou, R.; Xu, Q. Metal-organic frameworks for energy applications. Chem 2017, 2, 52–80. [Google Scholar] [CrossRef] [Scilit]
  2. Lai, C.-H.; Lu, M.-Y.; Chen, L.-J. Metal sulfide nanostructures: Synthesis, properties and applications in energy conversion and storage. J. Mater. Chem. 2012, 22, 19–30. [Google Scholar] [CrossRef] [Scilit]
  3. Liu, W.; Yin, X.-B. Metal–organic frameworks for electrochemical applications. Trends Anal. Chem. 2016, 75, 86–96. [Google Scholar] [CrossRef] [Scilit]
  4. Aron, A.T.; Ramos-Torres, K.M.; Cotruvo, J.A.; Chang, C.J. Recognition- and reactivity-based fluorescent probes for studying transition metal signalling in living systems. Acc. Chem. Res. 2015, 48, 2434–2442. [Google Scholar] [CrossRef] [Scilit]
  5. Assche, F.V.; Clijsters, H. Effects of metals on enzyme activity in plants. Plant Cell Environ. 1990, 13, 195–206. [Google Scholar] [CrossRef] [Scilit]
  6. Kumar, M.; Puri, A. A review of permissible limits of drinking water. Indian J. Occup. Environ. Med. 2012, 16, 40–44. [Google Scholar]
  7. Narayanaswamy, N.; Govindaraju, T. Aldazine-based colorimetric sensors for Cu2+ and Fe3+. Sens. Actuators B Chem. 2012, 161, 304–310. [Google Scholar] [CrossRef] [Scilit]
  8. Tigineh, G.T.; Liu, L.-K. A simple and facile colorimetric chemosensor for selective detection of Cu2+ ion in aqueous solution. Bull. Chem. Soc. Ethiop. 2017, 31, 31–38. [Google Scholar] [CrossRef] [Scilit]
  9. Kim, M.S.; Jung, J.M.; Kang, J.H.; Ahn, H.M.; Kim, P.-G.; Kim, C. A new indazole-based colorimetric chemosensor for sequential detection of Cu2+ and GSH in aqueous solution. Tetrahedron 2017, 73, 4750–4757. [Google Scholar] [CrossRef] [Scilit]
  10. Huster, D. Wilson disease. Best Pract. Res. Clin. Gastroenterol. 2010, 24, 531–539. [Google Scholar] [CrossRef] [Scilit]
  11. Zimbrean, P.C.; Schilsky, M.L. Psychiatric aspects of Wilson disease: A review. Gen. Hosp. Psychiatry 2014, 36, 53–62. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  12. Goedert, M.; Spillantini, M.G. A century of alzheimer’s disease. Science 2006, 314, 777–781. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  13. Tümer, Z.; Møller, L.B. Menkes disease. Eur. J. Hum. Genet. 2010, 18, 511–518. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  14. Dauer, W.; Przedborski, S. Parkinson’s Disease: Mechanisms and Models. Neuron 2003, 39, 889–909. [Google Scholar] [CrossRef] [Scilit]
  15. Collins, S.J.; Lawson, V.A.; Masters, C.L. Transmissible spongiform encephalopathies. Lancet 2004, 363, 51–61. [Google Scholar] [CrossRef] [Scilit]
  16. Sahu, S.; Sikdar, Y.; Bag, R.; Maiti, D.K.; Cerón–Carrasco, J.P.; Goswami, S. Visual detection of fluoride ion based on ICT mechanism. Spectrochim. Acta -A Mol. Biomol. Spectrosc. 2019, 213, 354–360. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  17. Sahu, S.; Sikdar, Y.; Bag, R.; Cerón–Carrasco, J.P.; Goswami, S. A novel quinoxaline-rhodamine conjugate for a simple and efficient detection of hydrogen sulphate ion. Compounds 2021, 1, 4. [Google Scholar] [CrossRef] [Scilit]
  18. Chang, I.J.; Choi, M.G.; Jeong, Y.A.; Lee, S.H.; Chang, S.-K. Colorimetric determination of Cu2+ in simulated wastewater using naphthalimide-based Schiff base. Tetrahedron Lett. 2017, 58, 474–477. [Google Scholar] [CrossRef] [Scilit]
  19. Hu, Y.; Zhang, J.; Lv, Y.-Z.; Huang, X.-H.; Hu, S.-L. A new rhodamine-based colorimetric chemosensor for naked-eye detection of Cu2+ in aqueous solution. Spectrochim. Acta -A Mol. Biomol. Spectrosc. 2016, 157, 164–169. [Google Scholar] [CrossRef] [Scilit]
  20. Liu, H.; Cui, S.; Shi, F.; Pu, S. A diarylethene based multi-functional sensor for fluorescent detection of Cd2+ and colorimetric detection of Cu2+. Dye. Pigm. 2019, 161, 34–43. [Google Scholar] [CrossRef] [Scilit]
  21. Roy, P.; Das, S.; Aich, K.; Gharami, S.; Patra, L.; Mondal, T.K. A new highly selective and ratiometric chromogenic sensor for Cu2+ detection. J. Indian Chem. Soc. 2017, 94, 755–760. [Google Scholar]
  22. Pannipara, M.; Sehemi, A.G.A.; Assiri, M.; Kalama, A. A colorimetric turn-on optical chemosensor for Cu2+ ions and its application as solid state sensor. Opt. Mater. 2018, 79, 255–258. [Google Scholar] [CrossRef] [Scilit]
  23. Patil, P.A.; Sehlangia, S.; Pradeep, C.P. Dipicolinimidamide functionalized chromogenic chemosensor for recognition of Cu2+ ions and its applications. Sens. Int. 2021, 2, 100075. [Google Scholar] [CrossRef] [Scilit]
  24. Shi, S.-M.; Li, Q.; Hu, S.-L. A new hydrazone-based colorimetric chemosensor for naked-eye detection of copper ion in aqueous medium. J. Chem. Res. 2019, 43, 426–430. [Google Scholar] [CrossRef] [Scilit]
  25. Tavallali, H.; Deilamy-Rad, G.; Karimi, M.A.; Rahimy, E. A novel dye-based colorimetric chemosensors for sequential detection of Cu2+ and cysteine in aqueous solution. Anal. Biochem. 2019, 583, 113376. [Google Scholar] [CrossRef] [Scilit]
  26. Zhang, Y.; Wang, Y.-T.; Kang, X.-X.; Ge, M.; Feng, H.-Y.; Han, J.; Wang, D.-H.; Zhao, D.-Z. Azobenzene disperse dye-based colorimetric probe for naked eye detection of Cu2+ in aqueous media: Spectral properties, theoretical insights, and applications. J. Photochem. Photobiol. A Chem. 2018, 356, 652–660. [Google Scholar] [CrossRef] [Scilit]
  27. Zhao, M.; Zhang, Y.; Zheng, X.; Li, Z.; Xu, S. High selective and sensitive optical probe with effective recognition for Cu2+ based on a novel aniline squarylium dye. Inorg. Chem. Commun. 2020, 121, 108198. [Google Scholar] [CrossRef] [Scilit]
  28. Kumar, A.; Kumar, V.; Diwan, U.; Upadhyay, K.K. Highly sensitive and selective naked-eye detection of Cu2+ in aqueous medium by a ninhydrin–quinoxaline derivative. Sens. Actuators B Chem. 2013, 176, 420–427. [Google Scholar] [CrossRef] [Scilit]
  29. Goswami, S.; Chakraborty, S.; Adak, M.K.; Halder, S.; Quah, C.K.; Fun, H.-K.; Pakhira, B.; Sarkar, S. A highly selective ratiometric chemosensor for Ni2+ in a quinoxaline matrix. New J. Chem. 2014, 38, 6230–6235. [Google Scholar] [CrossRef] [Scilit]
  30. Abu–Dief, A.M.; Mohamed, I.M.A. A review on versatile applications of transition metal complexes incorporating Schiff bases. Beni-Suef Univ. J. Appl. 2015, 4, 119–133. [Google Scholar] [CrossRef] [Scilit]
  31. Das, A.; De, S.; Das, G. Naphthyl-functionalized ninhydrin-derived receptor for ‘CHEF’-based sequential sensing of Al(III) and PPi: Prospective chemosensing applications under physiological conditions. J. Photochem. Photobiol. A Chem. 2021, 418, 113442. [Google Scholar] [CrossRef] [Scilit]
  32. Analytical Methods Committee. Recommendations for the definition, estimation and use of the detection limit. Analyst 1987, 112, 199–204. [Google Scholar] [CrossRef] [Scilit]
  33. Kim, Y.S.; Park, G.J.; Lee, S.A.; Kim, C. A colorimetric chemosensor for the sequential detection of copper ion and amino acids (cysteine and histidine) in aqueous solution. RSC Adv. 2015, 5, 31179–31188. [Google Scholar] [CrossRef] [Scilit]
  34. Bhowmik, M.; Kumari, P.; Sarkar, G. Effect of xanthan gum and guar gum on in situ gelling ophthalmic drug delivery system based on poloxamer−40. Int. J. Biol. Macromol. 2013, 62, 117–123. [Google Scholar] [CrossRef] [Scilit]
  35. Pereira, G.G.; Kechinski, C.P. Formulation and characterization of poloxamer 407: Thermoreversible gel containing polymeric microparticles and hyaluronic acid. Quim. Nova 2013, 36, 1121–1125. [Google Scholar] [CrossRef] [Scilit]
  36. Li, M.; Huang, X.; Yu, H. A colorimetric assay for ultrasensitive detection of copper (II) ions based on pH-dependent formation of heavily doped molybdenum oxide nanosheets. Mater. Sci. Eng. 2019, 101, 614–618. [Google Scholar] [CrossRef] [Scilit]
  37. Shojaeifard, Z.; Hemmateenejad, B.; Shamsipur, M.; Ahmadi, R. Dual fluorometric and colorimetric sensor based on quenching effect of copper (II) sulfate on the copper nanocluster for determination of sulfide ion in water samples. J. Photochem. Photobiol. A 2019, 384, 112030. [Google Scholar] [CrossRef] [Scilit]
  38. Chen, X.; Lu, Q.; Liu, D.; Wu, C.; Liu, M.; Li, H.; Zhang, Y.; Yao, S. Highly sensitive and selective determination of copper(II) based on a dual catalytic effect and by using silicon nanoparticles as a fluorescent probe. Mikrochim. Acta 2018, 185, 188. [Google Scholar] [CrossRef] [Scilit]
  39. Kalaiyarasan, G.; Joseph, J. Efficient dual-mode colorimetric/fluorometric sensor for the detection of copper ions and vitamin C based on pH-sensitive amino-terminated nitrogen-doped carbon quantum dots: Effect of reactive oxygen species and antioxidants. Anal. Bioanal. Chem. 2019, 411, 2619–2633. [Google Scholar] [CrossRef] [Scilit]
  40. Mohammadi, A.; Khalili, B.; Saberi Haghayegh, A. A novel chromone based colorimetric sensor for highly selective detection of copper ions: Synthesis, optical properties and DFT calculations. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2019, 222, 117193. [Google Scholar] [CrossRef] [Scilit]
  41. Cao, Y.; Liu, Y.; Li, F.; Guo, S.; Shui, Y.; Xue, H.; Wang, L. Portable colorimetric detection of copper ion in drinking water via red beet pigment and smartphone. Microchem. J. 2019, 150, 104176. [Google Scholar] [CrossRef] [Scilit]
  42. Khoshmaram, L.; Saadati, M.; Karimi, A. A simple and rapid technique for the determination of copper based on air-assisted liquid–liquid microextraction and image colorimetric analysis. Anal. Methods 2020, 12, 3490–3498. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  43. Sheldrick, G.M. A short history of SHELX. ActaCryst. 2008, A64, 112–122. [Google Scholar]
  44. Sheldrick, G.M. SADABS, a Software for Empirical Absorption Correction, Version 2.05; University of Göttingen: Göttingen, Germany, 2002. [Google Scholar]
  45. Bradenburg, K. Diamond, Version 3.0; Crystal Impact GbR: Bonn, Germany, 2005. [Google Scholar]
  46. Curtis, K.; Panthi, D.; Odoh, S.O. Time-Dependent Density Functional Theory Study of Copper(II) Oxo Active Sites for Methane-to-Methanol Conversion in Zeolites. Inorg. Chem. 2021, 60, 1149–1159. [Google Scholar] [CrossRef] [Scilit]
  47. Melekhova, A.A.; Novikov, A.S.; Luzyanin, K.V.; Bokach, N.A.; Starova, G.L.; Gurzhiy, V.V.; Kukushkin, V.Y. Tris-isocyanide copper(I) complexes: Synthetic, structural, and theoretical study. Inorg. Chim. Acta 2015, 434, 31–36. [Google Scholar] [CrossRef] [Scilit]
  48. Bozic-Weber, B.; Chaurin, V.; Constable, E.C.; Housecroft, C.E.; Meuwly, M.; Neuburger, M.; Rudd, J.A.; Schönhofera, E.; Siegfried, L. Exploring copper(I)-based dye-sensitized solar cells: A complementary experimental and TD-DFT investigation. Dalton Trans. 2012, 41, 14157–14169. [Google Scholar] [CrossRef] [Scilit]
  49. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16, Revision A.03; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  50. Zhao, Y.; Truhlar, D.G. The M06 suite of density functionals for main group thermochemistry, thermochemical kinetics, non− covalent interactions, excited states, and transition elements: Two new functionals and systematic testing of four M06−class functionals and 12 other functionals. Theor. Chem. Acc. 2008, 120, 215–241. [Google Scholar]
  51. Weigend, F.; Ahlrichs, R. Balanced Basis Sets of Split Valence, Triple Zeta Valence and Quadruple Zeta Valence Quality for H to Rn: Design and Assessment of Accuracy. Phys. Chem. Chem. Phys. 2005, 7, 3297–3305. [Google Scholar] [CrossRef] [Scilit]
  52. Cerón-Carrasco, J.P.; Ruiz, J.; Vicente, C.; de Haro, C.; Bautista, D.; Zúñiga, J.; Requena, A. DFT simulation of structural and optical properties of 9−Aminoacridine half−sandwich Ru(II), Rh(III), and Ir(III) antitumoral complexes and their interaction with DNA. J. Chem. Theory Comput. 2017, 13, 3898–3910. [Google Scholar] [CrossRef] [Scilit]
  53. Tomasi, J.; Mennucci, B.; Cammi, R. Quantum mechanical continuum solvation models. Chem. Rev. 2005, 105, 2999–3094. [Google Scholar] [CrossRef] [Scilit]
  54. Sciortino, G.; Meréchal, J.-D.; Fábián, I.; Lihi, N.; Garribba, E. Quantitative prediction of electronic absorption spectra of copper(II)–bioligand systems: Validation and applications. J. Inorg. Biochem. 2020, 204, 110953. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  55. Shyamal, M.; Mazumdar, P.; Maity, S.; Samanta, S.; Sahoo, G.P.; Misra, A. Highly selective turn-on fluorogenic chemosensor for robust quantification of Zn(II) based on aggregation induced emission enhancement feature. ACS Sens. 2016, 1, 739–747. [Google Scholar] [CrossRef] [Scilit]
Molecules 27 02908 g001
Figure 1. Visible colour change of QNH after addition of cations in HEPES−buffer/acetonitrile (3/7, v/v) medium. The concentration of the metals in all vials is 10−4 M.
Figure 1. Visible colour change of QNH after addition of cations in HEPES−buffer/acetonitrile (3/7, v/v) medium. The concentration of the metals in all vials is 10−4 M.
Molecules 27 02908 g001
Molecules 27 02908 g002

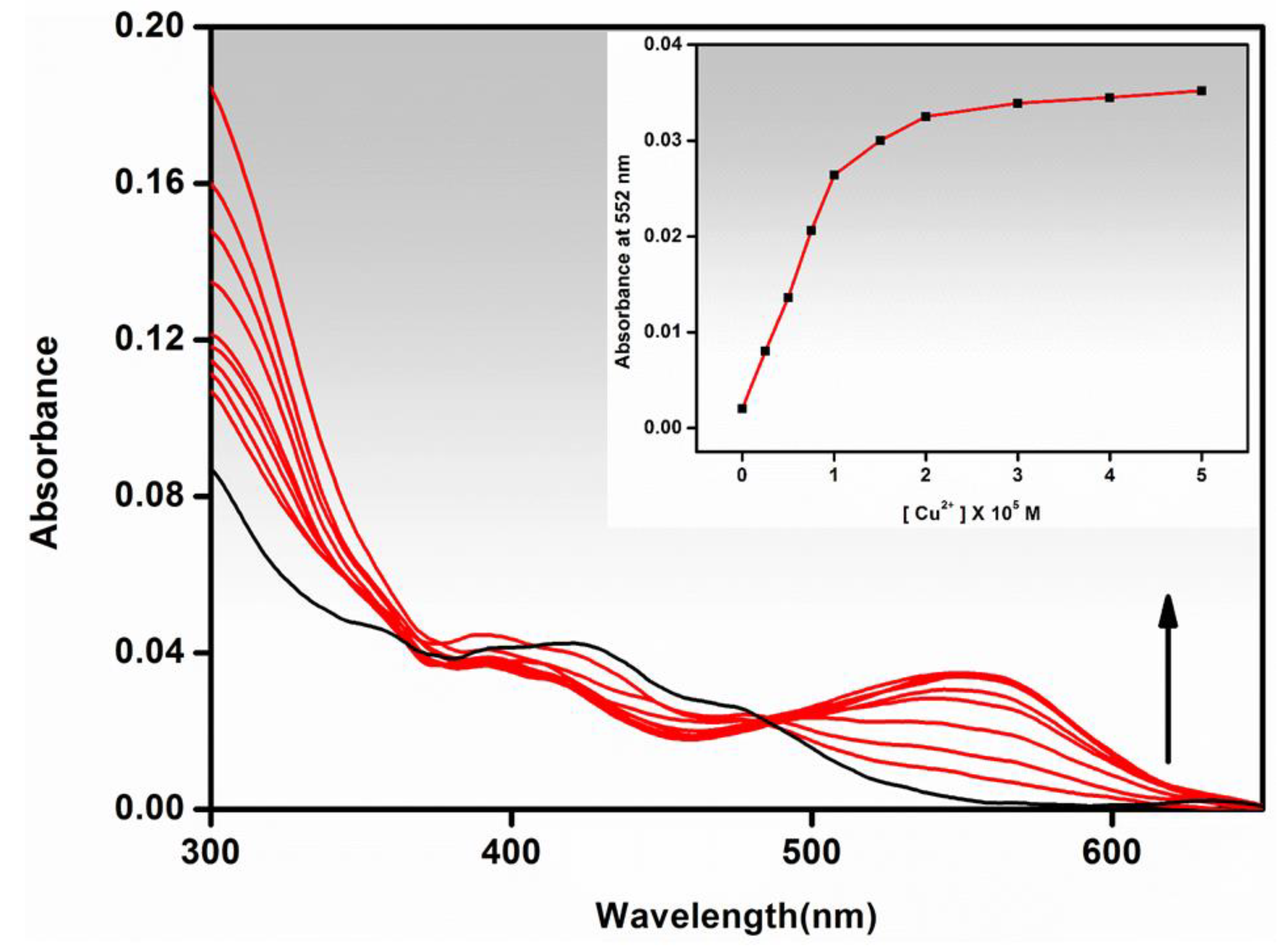

Figure 2. UV–Visible titration of QNH (10–5 M) in the presence of various concentrations of Cu2+. (Upward arrow indicates gradual increase in absorption at 552 nm with increasing concentration of externally added Cu2+). (Inset: absorbance of QNH at 552 nm as a function of [Cu2+]).
Figure 2. UV–Visible titration of QNH (10–5 M) in the presence of various concentrations of Cu2+. (Upward arrow indicates gradual increase in absorption at 552 nm with increasing concentration of externally added Cu2+). (Inset: absorbance of QNH at 552 nm as a function of [Cu2+]).
Molecules 27 02908 g002
Molecules 27 02908 g003
Figure 3. The left panel shows the computed absorption spectra of QNH and QNH in the presence of Cu2+, plotted with blue and black lines, respectively. The right panel shows computed frontier molecular orbitals (HOMO and LUMO) for QNH and QNH−Cu2+ model systems. Values in parenthesis are the theoretical absorption wavelengths in nm. Surfaces are generated with an isovalue of 0.02.
Figure 3. The left panel shows the computed absorption spectra of QNH and QNH in the presence of Cu2+, plotted with blue and black lines, respectively. The right panel shows computed frontier molecular orbitals (HOMO and LUMO) for QNH and QNH−Cu2+ model systems. Values in parenthesis are the theoretical absorption wavelengths in nm. Surfaces are generated with an isovalue of 0.02.
Molecules 27 02908 g003
Molecules 27 02908 g004

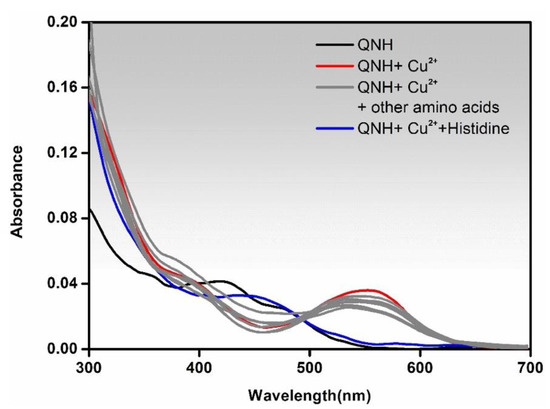

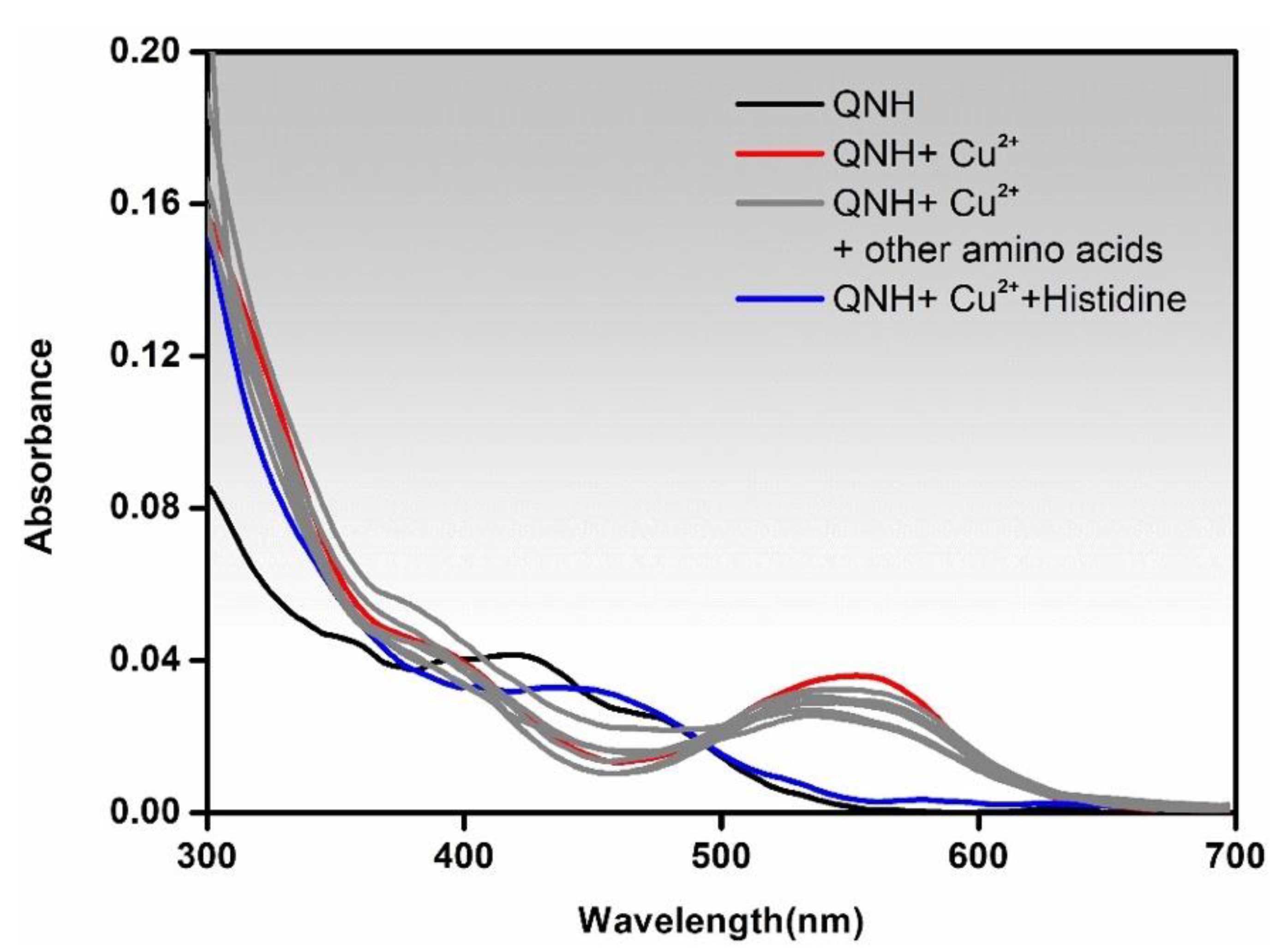

Figure 4. Absorption spectrum of QNH–Cu2+ complex in the presence of different amino acids in (3:7 v/v) HEPES buffer: acetonitrile medium.
Figure 4. Absorption spectrum of QNH–Cu2+ complex in the presence of different amino acids in (3:7 v/v) HEPES buffer: acetonitrile medium.
Molecules 27 02908 g004
Molecules 27 02908 sch001

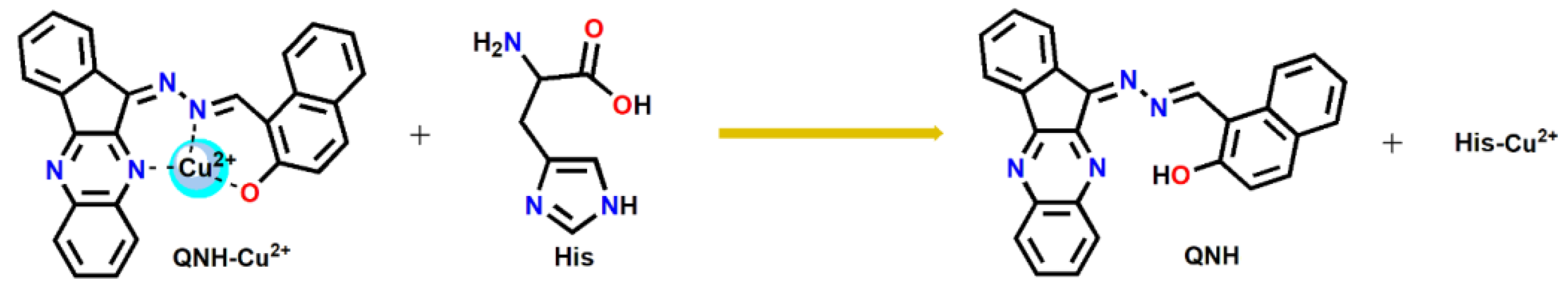

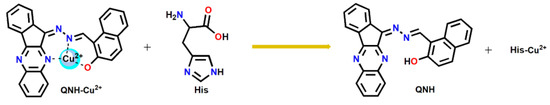

Scheme 1. Schematic representation of QNH–Cu2+ complex in the presence of histidine.
Scheme 1. Schematic representation of QNH–Cu2+ complex in the presence of histidine.
Molecules 27 02908 sch001
Molecules 27 02908 g005

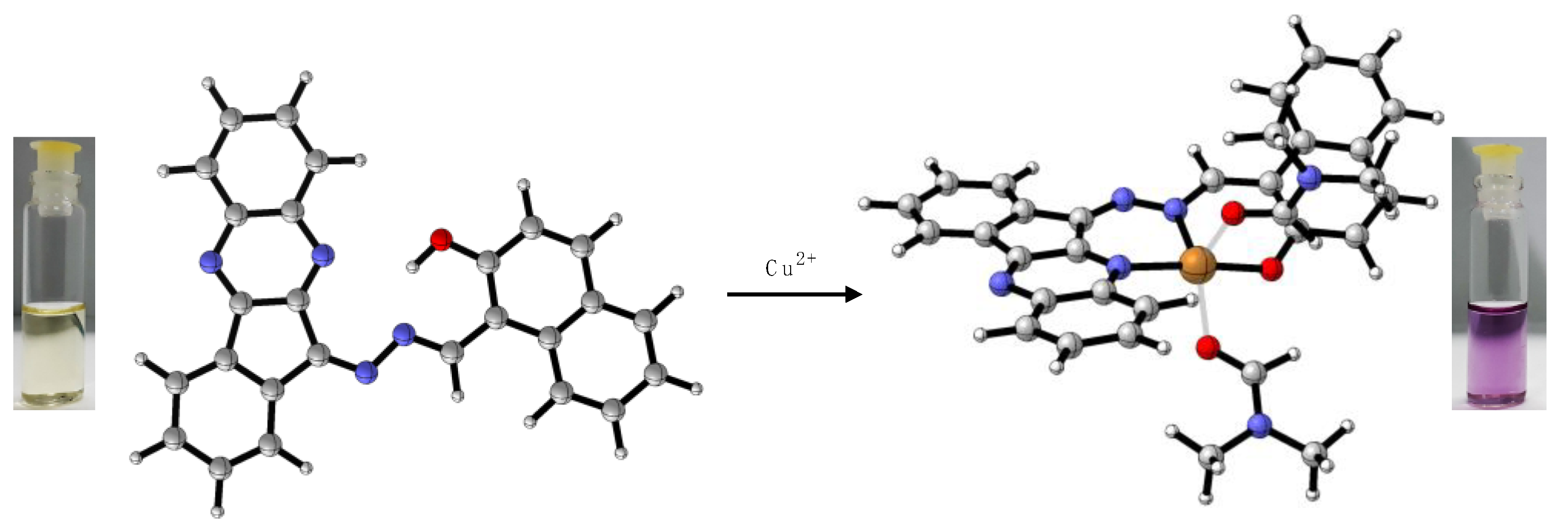

Figure 5. Proposed sensing mechanism of Cu2+ by QNH. The displayed chemical structures shown as ball and sticks correspond to the DFT-optimized models. Colour code: C = grey; H = white; N = blue; O = red; Cu = brown.
Figure 5. Proposed sensing mechanism of Cu2+ by QNH. The displayed chemical structures shown as ball and sticks correspond to the DFT-optimized models. Colour code: C = grey; H = white; N = blue; O = red; Cu = brown.
Molecules 27 02908 g005
