A Study on Pre-Oxidation of Petroleum Pitch-Based Activated Carbons for Electric Double-Layer Capacitors

by
Jong-Woo Kim
,
Dae-Won Kim
,
Seul-Yi Lee
* and
Soo-Jin Park
*
Department of Chemistry, Inha University, 100 Inharo, Incheon 22212, Korea
*
Authors to whom correspondence should be addressed.
Molecules 2022, 27(10), 3241; https://doi.org/10.3390/molecules27103241
Submission received: 20 April 2022 / Revised: 10 May 2022 / Accepted: 17 May 2022 / Published: 18 May 2022
(This article belongs to the Topic Nanomaterials for Sustainable Energy Applications)
Browse Figures
Versions Notes

Abstract

Electric double-layer capacitors (EDLCs) are an excellent electrochemical energy storage system (ESS) because of their superior power density, faster charge–discharge ability, and longer cycle life compared to those of other EES systems. Activated carbons (ACs) have been mainly used as the electrode materials for EDLCs because of their high specific surface area, superior chemical stability, and low cost. Petroleum pitch (PP) is a graphitizable carbon that is a promising precursor for ACs because of its high carbon content, which is obtained as an abundant by-product during the distillation of petroleum. However, the processibility of PP is poor because of its stable structure. In this study, pre-oxidized PP-derived AC (OPP-AC) was prepared to investigate the effects of pre-oxidation on the electrochemical behaviors of PP. The specific surface area and pore size distribution of OPP-AC were lower and narrower, respectively, compared to the textural properties of untreated PP-derived AC (PP-AC). On the other hand, the specific capacitance of OPP-AC was 25% higher than that of PP-AC. These results revealed that pre-oxidation of PP induces a highly developed micropore structure of ACs, resulting in improved electrochemical performance.

Graphical Abstract

1. Introduction

With the sharply increasing human population and the life expectancies with advanced technology, energy shortages and global warming are becoming serious issues [1]. The identification of renewable energy sources and the development of efficient energy storage devices for low-carbon and sustainable economic development have become important [2,3,4,5]. Electrochemical energy storage and conversion systems, such as fuel cells, metal/air batteries, supercapacitors, etc., have attracted great attention as promising technologies to address the rapid energy demands and environmental concerns [6].
Electric double-layer capacitors (EDLCs) have been regarded as the most important energy storage devices with potentially excellent power densities, safeties, and specific capacitances, as well as fast charge–discharge rates and long-cycle lives for practical applications [7,8]. Since the 19th century, when von Helmholtz [9] first proposed the concept and model of double layers, EDLCs have been extensively utilized for various applications, including uninterruptible power supplies and memory backup systems [10]. However, their low energy density limits their adoption in a wider range of applications. The energy storage behaviors of EDLCs are mainly limited by the accumulation of electronic and ionic charges at the interface between the electrode and electrolyte; therefore, it is well-documented that a large specific surface area of the electrodes is crucial to obtaining a high specific capacitance [11,12].
Recently, several researchers have reported that the pore size distribution also plays an important factor in determining the excellent electrode materials for EDLCs. Qu et al. have discussed in detail the relationship between the intrinsic pore size distribution and their electrochemical performance for EDLCs [13]. Chmiola et al. also reported that energy storage capacitance was increased abnormally in non-aqueous solvents when the pore size was less than 1 nm [14]. This result was attributed to the high level of ionic motion and the reduced dielectric constant in pores smaller than the size of their solvated shell under the action of potential. When the ions are compressed through the pores, the solvated shell is highly distorted, which brings the ion center closer to the electrode surface, thus leading to increased capacitance.
To achieve high specific capacitances, many researchers have therefore focused on various carbonaceous materials, such as carbon nanotubes (CNTs), graphene, carbon sphere, and activated carbons (ACs), which have been known to have a large specific surface area and high porosity [15,16,17]. CNTs-based supercapacitors are relatively lower than that of amorphous carbons or porous carbons [18]. The surface of CNTs has some impurities that are hard to be removed and have difficulty to dispersion in solvents due to high van der Waals forces. Thus, CNTs can achieve high power density and high specific capacitance by means of additional treatments, including a multiple-step purification using a mixed strong acid and harsh oxidation, but the processes are quite expensive, and the long-term stability of such materials has not been reached so far. These results have restricted the large-scale applications of EDLCs, and the accompanied numerous environmental pollutions are also serious matters to be considered. In the case of graphene, graphene has been regarded as the most promising candidate for the electrode materials for EDLCs since it has high electrical conductivity and a high theoretical specific surface area of over 2600 m2 g−1. However, the specific surface area of graphene is usually much lower than the theoretical one, and above all things, there is a big challenge in solving the problems for the commercialization of adequate EDLCs [19].
Among the various carbonaceous materials for EDLC electrodes, ACs have generally been the choice for producing the electrodes because of advantages such as a large specific surface area, stable physical and chemical properties, good electrical conductivity, and low cost. To prepare excellent porous ACs with high micropore volume and specific surface area, many attempts have recently been made via activation processes, including physical and chemical activation. In physical activation, suitable oxidizing gasifying agents (O2, CO2, and H2O) are employed to produce porosity, generally at a high temperature. Physical activation is an inexpensive and simplified method, but ACs were produced with low specific surface area, resulting in low capacitances. On the other hand, in chemical activation, carbonaceous materials are mixed with chemical agents (NaOH, KOH, ZnCl2, and H3PO4). KOH is most widely used due to the highest specific surface area that can be obtained compared to other chemical agents. Although both activation processes develop the porosity of carbon materials, forming small mesopores and micropores, chemical activation exhibits excellent performance in terms of developing porosity. In addition, it requires a lower activation temperature and shorter activation time than physical activation.
Carbon source as a precursor of ACs was a consideration factor for high specific surface area and excellent electrochemical performance. Various raw materials have been used as precursors to obtain ACs, including biomass, plants, and polymers [20,21,22]. Pitch, a by-product of coal cracking or crude oil distillation industry, is regarded as one of the most promising precursors for ACs because of its low-ash, high-carbon yields and easily graphitizable feature. Therefore, pitch-based ACs offer numerous advantages over other raw carbonaceous materials.
Petroleum pitch (PP), as one of the pitch-based carbons, is considered a promising precursor candidate because of its high carbon content, low price, as well as different characteristic structures and properties [23,24,25,26,27]. However, PP is limited in exhibiting high specific surface area and microporosity because of its stable micro-graphite structure, low softening point, and hard-to-create micropores due to their structural firmness [28]. Therefore, PP requires additional treatments to be used as an ACs precursor, including pre-heat treatments, solvent extractions, and melt filtrations [29,30,31,32]. Surface oxidation is another simple strategy to overcome the limitations of PP. Wu et al. synthesized mesoporous carbon from rice husks for supercapacitors using the pre-oxidation method in the air [33]. This result showed that their specific capacitance reached 176 F g−1 at a current density of 50 mA g−1, with a high specific surface area of 2009 m2 g−1. Xing et al. have also examined the effects of pre-oxidizing ACs in air, demonstrating that the pre-oxidation of ACs accelerates the decomposition of aromatic structures during activation, resulting in the formation of abundant oxygen-containing groups on the carbon surface [34]. Kierzek et al. summarized a variety of ACs as electrode materials for EDLCs [35]. Many research studies of EDLCs have been conducted using various carbon sources. However, few reports have described the use of pre-oxidized PP-derived ACs for EDLCs.
In this study, pre-oxidized PP-derived activation carbon (OPP-AC) was successfully prepared by oxidation at 300 °C in oxygen and subsequent chemical activation to obtain highly developed microporous carbons. The elemental compositions, surface chemical state, crystalline structural properties, surface morphologies, textural properties, and electrochemical performances were investigated by characterizing the prepared samples using elemental analysis, X-ray photoelectron spectroscopy (XPS), X-ray diffraction (XRD), Raman spectroscopy, scanning electron microscopy (SEM), N2 adsorption–desorption measurement, and galvanostatic measurement, respectively. The experimental data revealed that OPP-AC exhibits a higher (357 F g−1) specific capacitance than untreated PP-based AC (PP-AC) (285 F g−1), whereas the specific surface area of OPP-AC (1246 m2 g−1) was lower than that of PP-AC (1327 m2 g−1). The experimental data obtained in this study suggested that pre-oxidation facilitates the development of micropores in the ACs, which can be critical to forming nano-channels for rapid penetration of the electrolyte ions into the porous structure, leading to improved electrochemical performance.

2. Materials and Methods

2.1. Preparation of Precursor Sample

Petroleum pitch (PP) procured from Carbonix Co., Korea, and pre-oxidized petroleum pitch (OPP) were both used as precursors to prepare ACs. The OPP sample was prepared by the pre-oxidation of PP at 300 °C for 2 h at a heating rate of 5 °C min−1 under the flow of oxygen (200 cc min−1).

2.2. Preparation of Activated Carbons

First, the KOH impregnation was initiated by adding 2 g of PP (or OPP) to a 50 mL ethanol solution containing 6 g of KOH. The mixture was stirred at room temperature for 5 h and then dried at 110 °C for 24 h. The KOH-impregnated PP (or OPP) was heated to 800 °C at 5° C min−1 in an electrical furnace in a nitrogen atmosphere. After being held for 2 h at 800 °C and naturally cooled, the resulting mixture was neutralized in 1 M HCl and washed with distilled water until neutralization. Finally, the pitch-based ACs were dried at 110 °C in a vacuum oven for 24 h. The prepared non-oxidized and pre-oxidized ACs are denoted as PP-AC and OPP-AC, respectively.

2.3. Characterization

Elemental analysis was conducted to investigate the elemental compositions of samples using a FLASH EA 1112 (Thermo Electron Co., West Palm Beach, FL, USA). The surface chemical states of the prepared samples were confirmed by X-ray photoelectron spectroscopy (XPS, Thermo Scientific, Waltham, MA, USA). The structural characteristics of the prepared samples were confirmed by X-ray diffraction (XRD, BRUKER/D2 PHASER, Karlsruhe, Germany) using a CuKα (λ = 0.154 nm) radiation and Raman spectroscopy (Raman, HORIBA, Kyoto, Japan). The XRD patterns were recorded between 10° and 80° at a scanning rate of 5° min−1. The surface morphologies of the prepared samples were observed by scanning electron microscopy (SEM, Hitach S-4300, Tokyo, Japan). N2 adsorption–desorption isotherms were recorded using a BELSORP measuring instrument (BEL Inc., Toyonaka, Japan) at 77 K to examine the porosities of the prepared samples. All samples were degassed at 160 °C for 10 h before the measurement. The specific surface area was calculated using the Brunauer–Emmett–Teller (BET) equation [36]. The total pore volume was estimated based on the N2 adsorption at a P P0−1 of 0.99. The total micropore volume was calculated by applying the Dubinin–Radushkevich (D-R) equation, and the mesopore volume was determined by subtracting the total micropore volume from the total pore volume [37]. Furthermore, the NLDFT method was used to examine the micropore size distribution [38].
The electrochemical measurements were conducted in three-electrode cells, containing a Pt wire as the counter electrode, Ag/AgCl as the reference electrode, and the prepared samples coated onto nickel foam as the working electrode. For the working electrodes, the samples, carbon black, and polyvinylidene fluoride (PVDF) (80:10:10, w/w), were mixed and then dispersed in N-methyl-2-pyrrolidone (NMP). Subsequently, the mixture was coated onto a nickel-foam current collector, approximately 1 × 1 cm2 in size, which was dried at 100 °C for 12 h. Cyclic voltammetry (CV) and galvanostatic charge–discharge behaviors were examined using an electrochemical analyzer (Iviumstat, Ivium Technologies, The Netherlands) to estimate the electrochemical performance within the potential range of 1.0–0 V in a 6 M KOH solution [39,40,41].

3. Results and Discussion

3.1. Characterization

The elemental compositions of the prepared samples are listed in Table 1. The oxygen contents of OPP (4.0 wt%) and OPP-AC (11.2 wt%) were found to be higher than those of untreated PP (0.6 wt%) and PP-AC (9.9 wt%) because pre-oxidation introduces oxygen moieties onto pitch molecules [42]. Meanwhile, the hydrogen contents in OPP (4.1 wt%) and OPP-AC (5.5 wt%) were found to be reduced by the pre-oxidation than those of PP (5.3 wt%) and PP-AC (6.0 wt%). Lower H/C atomic ratios of pre-oxidized samples (OPP and OPP-AC) indicated an increased degree of aromaticity [43]. To further explore the surface chemical compositions of the prepared samples, we performed XPS measurements, as shown in Figure 1. All the samples exhibited the C 1s core-level spectrum of graphitic carbon at 285.0 eV, which also has a broad and asymmetric tail towards higher binding energy due to satellite peaks in the range of 288.5–292.5 eV. The peaks of O 1s at 532.1 eV were also observed. The oxygen content of OPP was found to be 5.6 at.%, which is seven-time higher than that of PP (0.8 at.%). This means that the pre-oxidization process provided considerable oxygen moieties onto the PP surfaces. After the chemical activation, the oxygen contents of PP-AC and OPP-AC increased to 13.2 and 15.2 at.%, respectively. These results indicated that KOH activation introduced new oxygen-functional groups onto the carbon surfaces. It is interesting to note that the KOH rapidly entered the carbon frameworks of OPP due to a possible pathway between KOH and surface defects (e.g., oxygen moieties and voids), resulting in a further increase in oxygen content (~15.2 at.%) in OPP-AC [44].
The XRD patterns of the prepared samples are shown in Figure 2a. Two broad diffraction peaks were observed at approximately 25° and 43°, corresponding to the C(002) and C(100) planes, respectively [45]. The C(002) peak of OPP-AC was found to be relatively lower than that of PP-AC, which can be attributed to the disruption of the microcrystalline structure during pre-oxidation, resulting in a reduction of the C(002) peak [46]. The interplanar distance ( d ) and crystallite thickness (Lc) of samples calculated by Bragg and Scherrer equations [47,48]:
n   λ = 2 d   s i n θ
L c = K   λ β   c o s θ
where n is diffraction order, λ represents the wavelength of the X-rays (0.154 nm), θ indicates the angle of the chosen peak, K is the Scherrer constant, and β is the full width at half-maximum.
As shown in Table 2, the pre-oxidized samples (1.644 nm of OPP and 1.017 nm of OPP-AC) had slightly lower Lc values than their corresponding non-treated samples (1.728 nm of PP and 1.270 nm of PP-AC), respectively. This indicated that pre-oxidation influences the microcrystalline structures, thereby decreasing the crystallinity [49]. The d002 value of the activated carbons (0.371 nm of PP-AC and 0.375 nm of OPP-AC) increased compared to their corresponding precursors (0.360 nm of PP and 0.363 nm of OPP) because of the disordering of the microstructures by chemical activation [50,51]. In addition to XRD, Raman spectroscopy was carried out to observe the microcrystalline properties of the prepared samples (Figure 2b). These results exhibited two characteristic peaks of 1340 and 1579 cm−1 corresponding to the D-band and G-band, respectively. The D-band is caused by a defect of graphitic structures, whereas the G-band is associated with the in-plane bond-stretching of sp2 hybridized graphitic structure. The relative intensity of D- and G-band (ID/IG) is often used to estimate the degree of defects in carbon frameworks [52,53]. The ID/IG ratios of PP and OPP were 0.82 and 1.05, respectively. The increase is attributable to pre-oxidization, resulting from the introduction of the oxygen-function groups on the carbon surfaces. The increased ratios of PP-AC and OPP-AC showed 1.17 and 1.19, respectively, meaning the highly disordered graphitic structures due to the chemical activation. These are consistent with the XRD results.
The surface morphologies were observed using SEM measurements. As shown in Figure 3a,b, OPP exhibits roughness on its surface, whereas PP has a smooth surface because of the presence of oxygen moieties arising from the pre-oxidation [32]. The external surfaces of the prepared AC samples shown in Figure 3c,d revealed newly developed macropores caused by the external surface decomposition by KOH activation [54]. A higher number of pores were observed in OPP-AC compared to those in PP-AC. This result indicated that the pre-oxidation treatment facilitates the formation of new pores during the activation reaction [55].
In order to investigate the textural properties, N2 adsorption analysis was performed at 77 K. As displayed in Figure 4a, all samples except PP have very steep initial N2 uptakes at low relative pressures (P P0−1 < 0.1). The steep rise in these isotherms followed by a sharp knee is due to the capillary filling of micropores. These results also corresponded with the Type-Ι isotherms based on IUPAC classifications, indicating typical microporous carbon [56]. The textural properties of the samples are detailed in Table 3. Micropore volumes of prepared samples were evaluated using the Dubinin–Radushkevich (D-R) equation, which is well-fitted for microporous carbons [37]:
W = W 0 e x p [ − B ( T β ) 2 L o g 2 ( P P 0 ) ]
where W represents the amount of liquid adsorbed at P P0−1, W 0 indicates the total amount of adsorbate in the micropores, B is the adsorbent constant, and β is the affinity coefficient.
The equation has a semi-empirical origin and is based on the assumptions of a change in the potential energy between the gas and adsorbed phases and the characteristic energy of a given solid. This equation provides a macroscopic behavior of adsorption loading for a given pressure.
After pre-oxidation, OPP has a specific surface area of 118 m2 g−1, which is approximately 60 times higher than that of PP (2 m2 g−1). OPP also has a much higher total pore volume (0.12 cm3 g−1) and micropore volume ratio to total pore volume (58%) than those of PP (0.03 cm3 g−1 and 33%), as shown in Table 3. These results clearly indicated that pre-oxidation is crucial in improving the textural properties of PP. Notably, PP-AC exhibited a higher specific surface area (1327 m2 g−1) and total pore volume (0.74 cm3 g−1) than that of OPP-AC (1246 m2 g−1 and 0.70 cm3 g−1). However, PP-AC and OPP-AC have an almost similar value of the micropore volumes (approximately 0.59 cm3 g−1), and the pore size distribution of OPP-AC was much narrower than that of PP-AC, as shown in Figure 4b. This indicated that pre-oxidation promotes a highly developed micropore structure [57]. The pore size distributions also show that OPP-AC had a higher peak at smaller pore width of 0.6 nm than that of PP-AC (0.7 nm). These results suggested that pre-oxidation provided much smaller micropores in the carbon frameworks.

3.2. Electrochemical Performances of the Pitch-Based Activated Carbon Samples

As shown in Figure 5, the electrochemical performance of prepared samples was investigated based on cyclic voltammetry (CV) curves recorded in the range of 10–100 mV s−1 in a 6 M KOH electrolyte solution. The CV curves of all the samples exhibited a quasi-rectangular shape, indicating ideal capacitance behaviors [58]. Moreover, all recorded CVs retained their original shapes upon increasing the scan rate from 10 to 100 mV s−1. These results suggest that all the samples exhibited good rate capability and high stability across the scan rate range [59]. The CV curve area of OPP-AC was found to be larger than that of PP-AC, indicating its higher electrochemical performance compared to that of PP-AC [60]. This can be attributed to the nano-channels formed by micropores due to pre-oxidation, resulting in rapid penetration of the electrolyte ions [61].
The galvanostatic charge–discharge curves of the prepared samples were obtained as functions of current density, as shown in Figure 6. The charge–discharge duration of the prepared samples increased with a decrease in current density from 1.0 to 0.2 A g−1. The charge–discharge curves of the prepared samples exhibited an almost triangular shape, indicating their excellent rate capabilities and reversibility [62,63]. A longer discharging time than the charging time observed in OPP-AC could be attributed to the oxygen moieties on the electrode surface, resulting from the interactions between the electrode and electrolyte [64].
The specific capacitances ( C s p ) of the prepared samples are listed in Table 4. These are calculated based on the galvanostatic charge–discharge method using the following equation [65]:
C s p = I Δ t m Δ V
where C s p represents the specific capacitance (F g−1), I indicates the current, Δ t is the discharge time, m represents the mass of the active material, and Δ V is the potential window.
The estimated C s p values of OPP-AC and PP-AC were found to be 357 and 285 F g−1, respectively, at a current density of 0.2 A g−1. The higher C s p value of OPP-AC is because of the well-developed micropores, which promote efficient ionic transfers between the electrode and electrolyte [66]. The cyclic stability of the prepared samples was also evaluated at a current density of 0.2 A g−1 in 6 M KOH electrolyte, as shown in Figure 7. The specific capacitances of PP-AC and OPP-AC were maintained at more than 89% and 94%, respectively, for the initial capacitances after 500 cycles. The OPP-AC showed superior cycling stability, resulting from oxygen moieties due to the higher wettability [67].
Several studies also reported this interesting phenomenon of higher specific capacitance even though the electrodes exhibited a quite low specific surface area. A possesses of the efficient pore sizes of electrode materials should facilitate the electrolyte ions to access the pores, enhancing the electrochemical performance of EDLCs. You et al. prepared lignin-based activated carbon fibers (LACFs) by electrospinning and subsequent steam activation for electrochemical behaviors. They reported that LACF-105 and LACF-180 (here, the numbers at the end of the specimen refer to the different amounts of water consumed during the steam activation) exhibited specific surface areas of 2185 and 2447 m2 g−1, respectively. The pore size distribution of LACF-105 was predominant in the pore size range of 0.5–0.14 nm, whereas that of LACF-180 appeared in the range of 1.4–3.0 nm. Additionally, the specific capacitance was found to be 133.3 F g−1 at the current density of 1 A g−1 in LACF-105, which is approximately two times higher than that of 63.5 F g−1 in LACF-180. It is clearly indicated that the smaller pore sizes that emerged from the steam activation play a key role in enhancing the EDLCs’ performance [68]. Tian et al. investigated flute type-microporous activated carbons (FTMAC) from cotton stalk via KOH activation as a function of the KOH agent amount for electrochemical behaviors. The weight ratios of KOH to the carbonized cotton stalk were denoted at the end of FTMAC. FTMAC-4 showed the highest specific capacitance of 254 F g−1 at a current density of 0.2 A g−1, although FTMAC-4 exhibited a lower specific surface area of 1964 m2 g−1 than that of FTMAC-5 of 2251 m2 g−1 [69]. Additionally, Chmiola et al. prepared carbide-derived carbons (CDC) to study the effect of the pore sizes on the electrochemical behaviors. This result showed that the specific surface area and specific capacitance do not have a linear relationship. They demonstrated that micropores smaller than 1 nm have significantly influenced the improvement of specific capacitances [14]. In the case of graphene materials for EDLCs, He et al. synthesized porous graphene nanosheets (CGNSs) from petroleum pitch using KOH activation as a function of activation temperature. The specific surface area of 2132 m2 g−1 in the CGNS3-1073 was found to be slightly lower than that of 2216 m2 g−1 in the CGNS3-1173. However, the electrochemical performances, including specific capacitance and cycle stability of the CGNS3-1073, were much higher than those of CGNS3-1173. This can be attributable to the much smaller micropores formed in the CGNSs, facilitating the ions to access the electrode surfaces [28]. Thus, as observed, it is suggested that the designing of carbon materials with efficient pore sizes is critical to enhancing electrochemical performances. In addition, we listed several reports of PP-based porous materials for EDLCs in order to compare our results with others [23,29,70,71,72,73,74]. Table 5 lists the specific capacitances of PP-based EDLCs and the specific surface areas at different evaluation conditions. It was found that our result exhibited among the highest in the comparison, even though it had a quite lower specific surface area. A linear relationship between the specific surface area and the specific capacitances is also not shown [75,76].

4. Conclusions

In this study, the pre-oxidized petroleum pitch (PP)-derived activated carbon (OPP-AC) was successfully prepared for use in electric double-layer capacitors (EDLCs). These experimental results revealed that OPP-AC and PP-AC exhibit specific capacitances of 357 and 285 F g−1, respectively, at a current density of 0.2 A g−1. These results can be attributed to the narrower pore size distribution and the efficient pore sizes of OPP-AC. Therefore, this study demonstrated that the pre-oxidation process affects the development of micropores in the OPP-AC, providing efficient nano-channels to enhance electrochemical performance. Consequently, pre-oxidation is a promising strategy to ensure the high performance of EDLCs through effective micropore generation.

Author Contributions

Conceptualization, J.-W.K., D.-W.K. and S.-Y.L.; methodology, J.-W.K. and D.-W.K.; investigation, D.-W.K.; data curation, J.-W.K.; writing—original draft preparation, J.-W.K.; writing—review and editing, S.-Y.L. and S.-J.P.; supervision, S.-Y.L. and S.-J.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by Korea Electric Power Corporation (Grant number: R21XO01-5). This work was also supported by an Inha University Research Grant, South Korea.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Shao, H.; Wu, Y.C.; Lin, Z.F.; Taberna, P.L.; Simon, P. Nanoporous carbon for electrochemical capacitive energy storage. Chem. Soc. Rev. 2020, 49, 3005–3039. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  2. Simon, P.; Gogotsi, Y. Materials for electrochemical capacitors. Nat. Mater. 2008, 7, 845–854. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  3. Miller, J.R.; Simon, P. Materials science—Electrochemical capacitors for energy management. Science 2008, 321, 651–652. [Google Scholar] [CrossRef] [Scilit]
  4. Chu, S.; Majumdar, A. Opportunities and challenges for a sustainable energy future. Nature 2012, 488, 294–303. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  5. Pomerantseva, E.; Bonaccorso, F.; Feng, X.L.; Cui, Y.; Gogotsi, Y. Energy storage: The future enabled by nanomaterials. Science 2019, 366, eaan8285. [Google Scholar] [CrossRef] [Scilit]
  6. Winter, M.; Brodd, R.J. What are batteries, fuel cells, and supercapacitors? (vol 104, pg 4245, 2003). Chem. Rev. 2005, 105, 1021–1021. [Google Scholar] [CrossRef] [Scilit]
  7. Simon, P.; Gogotsi, Y. Perspectives for electrochemical capacitors and related devices. Nat. Mater. 2020, 19, 1151–1163. [Google Scholar] [CrossRef] [Scilit]
  8. Chen, S.H.; Qiu, L.; Cheng, H.M. Carbon-Based Fibers for Advanced Electrochemical Energy Storage Devices. Chem. Rev. 2020, 120, 2811–2878. [Google Scholar] [CrossRef] [Scilit]
  9. Helmholtz, H.V. Ueber einige Gesetze der Vertheilung elektrischer Ströme in körperlichen Leitern, mit Anwendung auf die thierisch-elektrischen Versuche (Schluss.). Ann. Phys. 1853, 165, 353–377. [Google Scholar] [CrossRef] [Scilit]
  10. Zhang, C.; Lv, W.; Tao, Y.; Yang, Q.H. Towards superior volumetric performance: Design and preparation of novel carbon materials for energy storage. Energy Environ. Sci. 2015, 8, 1390–1403. [Google Scholar] [CrossRef] [Scilit]
  11. Forse, A.C.; Merlet, C.; Griffin, J.M.; Grey, C.P. New Perspectives on the Charging Mechanisms of Supercapacitors. J. Am. Chem. Soc. 2016, 138, 5731–5744. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  12. Miller, J.R.; Outlaw, R.A.; Holloway, B.C. Graphene Double-Layer Capacitor with ac Line-Filtering Performance. Science 2010, 329, 1637–1639. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  13. Qu, D.Y.; Shi, H. Studies of activated carbons used in double-layer capacitors. J. Power Sources 1998, 74, 99–107. [Google Scholar] [CrossRef] [Scilit]
  14. Chmiola, J.; Yushin, G.; Gogotsi, Y.; Portet, C.; Simon, P.; Taberna, P.L. Anomalous increase in carbon capacitance at pore sizes less than 1 nanometer. Science 2006, 313, 1760–1763. [Google Scholar] [CrossRef] [Scilit]
  15. Wang, Q.; Ma, M.; Cui, K.; Li, X.; Zhou, Y.; Li, Y.; Wu, X. Mechanochemical synthesis of MAPbBr3/carbon sphere composites for boosting carrier-involved superoxide species. J. Environ. Sci. 2021, 104, 399–414. [Google Scholar] [CrossRef] [Scilit]
  16. Wang, Q.; Yu, S.; Qin, W.; Wu, X. Isopropanol-assisted synthesis of highly stable MAPbBr3/p-g-C3N4 intergrowth composite photocatalysts and their interfacial charge carrier dynamics. Nanoscale Adv. 2020, 2, 274–285. [Google Scholar] [CrossRef] [Scilit]
  17. Han, L.; Qin, W.; Jian, J.H.; Liu, J.W.; Wu, X.H.; Gao, P.; Hultman, B.; Wu, G. Enhanced hydrogen storage in sandwich-structured rGO/Co1-xS/rGO hybrid papers through hydrogen spillover. J. Power Sources 2017, 358, 93–100. [Google Scholar] [CrossRef] [Scilit]
  18. Peng, C.; Zhang, S.W.; Jewell, D.; Chen, G.Z. Carbon nanotube and conducting polymer composites for supercapacitors. Prog. Nat. Sci.-Mater. 2008, 18, 777–788. [Google Scholar] [CrossRef] [Scilit]
  19. Torad, N.L.; Salunkhe, R.R.; Li, Y.Q.; Hamoudi, H.; Imura, M.; Sakka, Y.; Hu, C.C.; Yamauchi, Y. Electric Double-Layer Capacitors Based on Highly Graphitized Nanoporous Carbons Derived from ZIF-67. Chem.-Eur. J. 2014, 20, 7895–7900. [Google Scholar] [CrossRef] [Scilit]
  20. Kim, C.H.; Lee, S.Y.; Park, S.J. Efficient micropore sizes for carbon dioxide physisorption of pine cone-based carbonaceous materials at different temperatures. J. CO2 Util. 2021, 54, 101770. [Google Scholar] [CrossRef] [Scilit]
  21. Kostoglou, N.; Koczwara, C.; Stock, S.; Tampaxis, C.; Charalambopoulou, G.; Steriotis, T.; Paris, O.; Rebholz, C.; Mitterer, C. Nanoporous polymer-derived activated carbon for hydrogen adsorption and electrochemical energy storage. Chem. Eng. J. 2022, 427, 131730. [Google Scholar] [CrossRef] [Scilit]
  22. Zhang, Y.; Heo, Y.J.; Son, Y.R.; In, I.; An, K.H.; Kim, B.J.; Park, S.J. Recent advanced thermal interfacial materials: A review of conducting mechanisms and parameters of carbon materials. Carbon 2019, 142, 445–460. [Google Scholar] [CrossRef] [Scilit]
  23. Lee, J.W.; Lee, H.I.; Park, S.J. Facile synthesis of petroleum-based activated carbons/tubular polypyrrole composites with enhanced electrochemical performance as supercapacitor electrode materials. Electrochim. Acta 2018, 263, 447–453. [Google Scholar] [CrossRef] [Scilit]
  24. Li, M.; Liu, D.; Men, Z.W.; Lou, B.; Yu, S.T.; Ding, J.W.; Cui, W.L. Effects of different extracted components from petroleum pitch on mesophase development. Fuel 2018, 222, 617–626. [Google Scholar] [CrossRef] [Scilit]
  25. Vilaplana-Ortego, E.; Lillo-Rodenas, M.A.; Alcaniz-Monge, J.; Cazorla-Amoros, D.; Linares-Solano, A. Isotropic petroleum pitch as a carbon precursor for the preparation of activated carbons by KOH activation. Carbon 2009, 47, 2141–2142. [Google Scholar] [CrossRef] [Scilit]
  26. Seo, S.W.; Choi, Y.J.; Kim, J.H.; Cho, J.H.; Lee, Y.S.; Im, J.S. Micropore-structured activated carbon prepared by waste PET/petroleum-based pitch. Carbon Lett. 2019, 29, 385–392. [Google Scholar] [CrossRef] [Scilit]
  27. Kwak, C.H.; Kim, D.; Bai, B.C. Correlation of EDLC Capacitance with Physical Properties of Polyethylene Terephthalate Added Pitch-Based Activated Carbon. Molecules 2022, 27, 1454. [Google Scholar] [CrossRef] [Scilit]
  28. He, X.J.; Zhang, N.; Shao, X.L.; Wu, M.B.; Yu, M.X.; Qiu, J.S. A layered-template-nanospace-confinement strategy for production of corrugated graphene nanosheets from petroleum pitch for supercapacitors. Chem. Eng. J. 2016, 297, 121–127. [Google Scholar] [CrossRef] [Scilit]
  29. Choi, J.Y.; Park, S.J. Effect of manganese dioxide on supercapacitive behaviors of petroleum pitch-based carbons. J. Ind. Eng. Chem. 2015, 29, 408–413. [Google Scholar] [CrossRef] [Scilit]
  30. Chae, S.; Xu, Y.B.; Yi, R.; Lim, H.S.; Velickovic, D.; Li, X.L.; Li, Q.Y.; Wang, C.M.; Zhang, J.G. A Micrometer-Sized Silicon/Carbon Composite Anode Synthesized by Impregnation of Petroleum Pitch in Nanoporous Silicon. Adv. Mater. 2021, 33, 2103095. [Google Scholar] [CrossRef] [Scilit]
  31. Avid, B.; Battsetseg, M.; Purevsuren, B.; Shiirav, G.; Kuznetsov, P.N.; Kuznetsova, L.I.; Kamenskii, E.S. Properties of pitch-like materials obtained using coal extraction. Carbon Lett. 2021, 32, 605–614. [Google Scholar] [CrossRef] [Scilit]
  32. Lee, S.M.; Lee, S.H.; Jung, D.H. Surface oxidation of petroleum pitch to improve mesopore ratio and specific surface area of activated carbon. Sci. Rep. 2021, 11, 1460. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  33. Wu, M.B.; Li, L.Y.; Liu, J.; Li, Y.; Ai, P.P.; Wu, W.T.; Zheng, J.T. Template-free preparation of mesoporous carbon from rice husks for use in supercapacitors. New Carbon Mater. 2015, 30, 471–475. [Google Scholar] [CrossRef] [Scilit]
  34. Xing, W.; Yan, Z.F. Effects of preoxidation on the surface properties of super active carbon. New Carbon Mater. 2002, 17, 25–30. [Google Scholar]
  35. Kierzek, K.; Gryglewicz, G. Activated Carbons and Their Evaluation in Electric Double Layer Capacitors. Molecules 2020, 25, 4255. [Google Scholar] [CrossRef] [Scilit]
  36. Brunauer, S.; Emmett, P.H.; Teller, E. Adsorption of gases in multimolecular layers. J. Am. Chem. Soc. 1938, 60, 309–319. [Google Scholar] [CrossRef] [Scilit]
  37. Dubinin, M. The equation of the characteristic curve of activated charcoal. Dokl. Akad. Nauk SSSR 1947, 55, 327–329. [Google Scholar]
  38. Lastoskie, C.; Gubbins, K.E.; Quirke, N. Pore size heterogeneity and the carbon slit pore: A density functional theory model. Langmuir 1993, 9, 2693–2702. [Google Scholar] [CrossRef] [Scilit]
  39. Lee, S.Y.; Kim, J.I.; Park, S.J. Activated carbon nanotubes/polyaniline composites as supercapacitor electrodes. Energy 2014, 78, 298–303. [Google Scholar] [CrossRef] [Scilit]
  40. Yeo, C.S.; Heo, Y.J.; Shin, M.K.; Lee, J.H.; Park, Y.Y.; Mun, S.J.; Ismail, Y.A.; Sinh, L.; Park, S.J.; Park, S.Y. Ultralong and Millimeter-Thick Graphene Oxide Supercapacitors with High Volumetric Capacitance. ACS Appl. Energy Mater. 2021, 4, 8059–8069. [Google Scholar] [CrossRef] [Scilit]
  41. Zhang, Y.; Park, S.J. Incorporation of RuO2 into charcoal-derived carbon with controllable microporosity by CO2 activation for high-performance supercapacitor. Carbon 2017, 122, 287–297. [Google Scholar] [CrossRef] [Scilit]
  42. Guo, C.Y.; Wang, C.Y. Effects of microstructure of precursors on characteristics of pitch based activated carbons. Microporous Mesoporous Mater. 2007, 102, 337–340. [Google Scholar] [CrossRef] [Scilit]
  43. Lee, N.; Seo, S.W.; Kwak, C.H.; Kim, M.I.; Im, J.S. Effects of Oxidation Process on Thermal Properties of Petroleum-Based Isotropic Pitch. Appl. Chem. Eng. 2020, 31, 36–42. [Google Scholar]
  44. Chen, W.; Gong, M.; Li, K.X.; Xia, M.W.; Chen, Z.Q.; Xiao, H.Y.; Fang, Y.; Chen, Y.Q.; Yang, H.P.; Chen, H.P. Insight into KOH activation mechanism during biomass pyrolysis: Chemical reactions between O-containing groups and KOH. Appl. Energy 2020, 278, 115730. [Google Scholar] [CrossRef] [Scilit]
  45. Li, W.W.; Li, R.P.; Li, C.Y.; Zhang, L. Surface characterization and electrical property of carbon fibers modified by air oxidation. Surf. Interface Anal. 2015, 47, 325–330. [Google Scholar] [CrossRef] [Scilit]
  46. Lee, S.Y.; Moore, R.B.; Mahajan, R.L. An Al-assisted GO/rGO Janus film: Fabrication and hygroscopic properties. Carbon 2021, 171, 585–596. [Google Scholar] [CrossRef] [Scilit]
  47. Klug, H.P.; Alexander, L.E. X-ray Diffraction Procedures: For Polycrystalline and Amorphous Materials; John Wiley and Sons: New York, NY, USA, 1974; pp. 618–708. [Google Scholar]
  48. Langford, J.I.; Wilson, A. Scherrer after sixty years: A survey and some new results in the determination of crystallite size. J. Appl. Crystallogr. 1978, 11, 102–113. [Google Scholar] [CrossRef] [Scilit]
  49. Jiang, B.C.; Zhang, Y.C.; Zhou, J.X.; Zhang, K.; Chen, S.Y. Effects of chemical modification of petroleum cokes on the properties of the resulting activated carbon. Fuel 2008, 87, 1844–1848. [Google Scholar] [CrossRef] [Scilit]
  50. Lee, D.H.; Choi, Y.H.; Rhee, K.Y.; Yang, K.S.; Kim, B.J. Facile Preparation and Characterization of Carbon Fibers with Core-Shell Structure from Graphene-Dispersed Isotropic Pitch Compounds. Nanomaterials 2019, 9, 521. [Google Scholar] [CrossRef] [Scilit]
  51. Chartier, A.; Van Brutzel, L.; Pageot, J. Irradiation damage in nuclear graphite at the atomic scale. Carbon 2018, 133, 224–231. [Google Scholar] [CrossRef] [Scilit]
  52. Kim, S.H.; Zhang, Y.H.; Lee, J.H.; Lee, S.Y.; Kim, Y.H.; Rhee, K.Y.; Park, S.J. A study on interfacial behaviors of epoxy/graphene oxide derived from pitch-based graphite fibers. Nanotechnol. Rev. 2021, 10, 1827–1837. [Google Scholar] [CrossRef] [Scilit]
  53. Nazir, G.; Rehman, A.; Park, S.-J. Self-activated, urea modified microporous carbon cryogels for high-performance CO2 capture and separation. Carbon 2022, 192, 14–29. [Google Scholar] [CrossRef] [Scilit]
  54. Tian, B.; Li, P.F.; Li, D.W.; Qiao, Y.Y.; Xu, D.P.; Tian, Y.Y. Preparation of micro-porous monolithic activated carbon from anthracite coal using coal tar pitch as binder. J. Porous Mater. 2018, 25, 989–997. [Google Scholar] [CrossRef] [Scilit]
  55. Li, Y.H.; Lee, C.W.; Gullett, B.K. Importance of activated carbon’s oxygen surface functional groups on elemental mercury adsorption. Fuel 2003, 82, 451–457. [Google Scholar] [CrossRef] [Scilit]
  56. Donohue, M.D.; Aranovich, G.L. Classification of Gibbs adsorption isotherms. Adv. Colloid Interface Sci. 1998, 76–77, 137–152. [Google Scholar] [CrossRef] [Scilit]
  57. Tang, R.D.; Gong, D.X.; Zhou, Y.Y.; Deng, Y.C.; Feng, C.Y.; Xiong, S.; Huang, Y.; Peng, G.W.; Li, L.; Zhou, Z.P. Unique g-C3N4/PDI-g-C3N4 homojunction with synergistic piezo-photocatalytic effect for aquatic contaminant control and H2O2 generation under visible light. Appl. Catal. B-Environ. 2022, 303, 120929. [Google Scholar] [CrossRef] [Scilit]
  58. Okabe, Y.; Suda, Y.; Tanoue, H.; Takikawa, H.; Ue, H.; Shimizu, K. Improving the characteristic of electric double layer capacitors using oxidized carbon nanoballoon. Electrochim. Acta 2014, 131, 207–213. [Google Scholar] [CrossRef] [Scilit]
  59. Lee, S.Y.; Park, S.J. Effects of CO2 activation on electrochemical performance of microporous carbons derived from poly(vinylidene fluoride). J. Solid State Chem. 2013, 207, 158–162. [Google Scholar] [CrossRef] [Scilit]
  60. Zhai, Y.P.; Dou, Y.Q.; Zhao, D.Y.; Fulvio, P.F.; Mayes, R.T.; Dai, S. Carbon Materials for Chemical Capacitive Energy Storage. Adv Mater. 2011, 23, 4828–4850. [Google Scholar] [CrossRef] [Scilit]
  61. Tanaka, S.; Nakao, H.; Mukai, T.; Katayama, Y.; Miyake, Y. An Experimental Investigation of the Ion Storage/Transfer Behavior in an Electrical Double-Layer Capacitor by Using Monodisperse Carbon Spheres with Microporous Structure. J. Phys. Chem. C 2012, 116, 26791–26799. [Google Scholar] [CrossRef] [Scilit]
  62. Xu, Q.; Wei, C.Z.; Fan, L.L.; Rao, W.D.; Xu, W.L.; Liang, H.; Xu, J. Polypyrrole/titania-coated cotton fabrics for flexible supercapacitor electrodes. Appl. Surf. Sci. 2018, 460, 84–91. [Google Scholar] [CrossRef] [Scilit]
  63. Lu, S.T.; Wang, Z.D.; Yan, H.; Wang, R.; Lu, K.; Cheng, Y.W.; Qin, W.; Wu, X.H. High rate and cycling stable Li metal anodes enabled with aluminum-zinc oxides modified copper foam. J. Energy Chem. 2020, 41, 87–92. [Google Scholar] [CrossRef] [Scilit]
  64. Bakhshandeh, M.B.; Kowsari, E. Functionalization of partially reduced graphene oxide by metal complex as electrode material in supercapacitor. Res. Chem. Intermed. 2020, 46, 2595–2612. [Google Scholar] [CrossRef] [Scilit]
  65. Wang, H.W.; Yi, H.; Chen, X.; Wang, X.F. Asymmetric supercapacitors based on nano-architectured nickel oxide/graphene foam and hierarchical porous nitrogen-doped carbon nanotubes with ultrahigh-rate performance. J. Mater. Chem. A 2014, 2, 3223–3230. [Google Scholar] [CrossRef] [Scilit]
  66. Xia, X.H.; Ma, Q.; Yi, S.Q.; Chen, H.; Liu, H.B.; Chen, Y.X.; Yang, L. A facile one-pot fabrication of flowerlike graphene-based particles for electric double-layer capacitors. Mater. Chem. Phys. 2014, 148, 631–638. [Google Scholar] [CrossRef] [Scilit]
  67. Ghosh, S.; Barg, S.; Jeong, S.M.; Ostrikov, K. Heteroatom-Doped and Oxygen-Functionalized Nanocarbons for High-Performance Supercapacitors. Adv. Energy Mater. 2020, 10, 2001239. [Google Scholar] [CrossRef] [Scilit]
  68. You, X.Y.; Koda, K.; Yamada, T.; Uraki, Y. Preparation of electrode for electric double layer capacitor from electrospun lignin fibers. Holzforschung 2015, 69, 1097–1106. [Google Scholar] [CrossRef] [Scilit]
  69. Tian, X.; Ma, H.G.; Li, Z.; Yan, S.C.; Ma, L.; Yu, F.; Wang, G.; Guo, X.H.; Ma, Y.Q.; Wong, C.P. Flute type micropores activated carbon from cotton stalk for high performance supercapacitors. J. Power Sources 2017, 359, 88–96. [Google Scholar] [CrossRef] [Scilit]
  70. Lee, E.; Kwon, S.H.; Choi, P.R.; Jung, J.C.; Kim, M.S. Activated carbons prepared from mixtures of coal tar pitch and petroleum pitch and their electrochemical performance as electrode materials for electric double-layer capacitor. Carbon Lett. 2015, 16, 78–85. [Google Scholar] [CrossRef] [Scilit]
  71. Tan, M.H.; Zheng, J.T.; Li, P.; Noritatsu, T.; Wu, M.B. Preparation and modification of high performance porous carbons from petroleum coke for use as supercapacitor electrodes. New Carbon Mater. 2016, 31, 343–351. [Google Scholar] [CrossRef] [Scilit]
  72. Wu, T.T.; Jin, B.Y.; Li, H.Q.; Bi, H.H.; Lu, H.H.; He, X.J. Foam-like porous carbons with ultrahigh surface area from petroleum pitch and their supercapacitive performance. Chem. Phys. Lett. 2021, 783, 139058. [Google Scholar] [CrossRef] [Scilit]
  73. Liu, M.J.; Wei, F.; Yang, X.M.; Dong, S.A.; Li, Y.J.; He, X.J. Synthesis of porous graphene-like carbon materials for high-performance supercapacitors from petroleum pitch using nano-CaCO3 as a template. New Carbon Mate.r 2018, 33, 316–323. [Google Scholar] [CrossRef] [Scilit]
  74. He, X.J.; Liu, Z.D.; Ma, H.; Zhang, N.; Yu, M.X.; Wu, M.B. Shell-like hierarchical porous carbons for high-rate performance supercapacitors. Microporous Mesoporous Mater. 2016, 236, 134–140. [Google Scholar] [CrossRef] [Scilit]
  75. Barbieri, O.; Hahn, M.; Herzog, A.; Kotz, R. Capacitance limits of high surface area activated carbons for double layer capacitors. Carbon 2005, 43, 1303–1310. [Google Scholar] [CrossRef] [Scilit]
  76. Raymundo-Pinero, E.; Kierzek, K.; Machnikowski, J.; Beguin, F. Relationship between the nanoporous texture of activated carbons and their capacitance properties in different electrolytes. Carbon 2006, 44, 2498–2507. [Google Scholar] [CrossRef] [Scilit]
Molecules 27 03241 g001

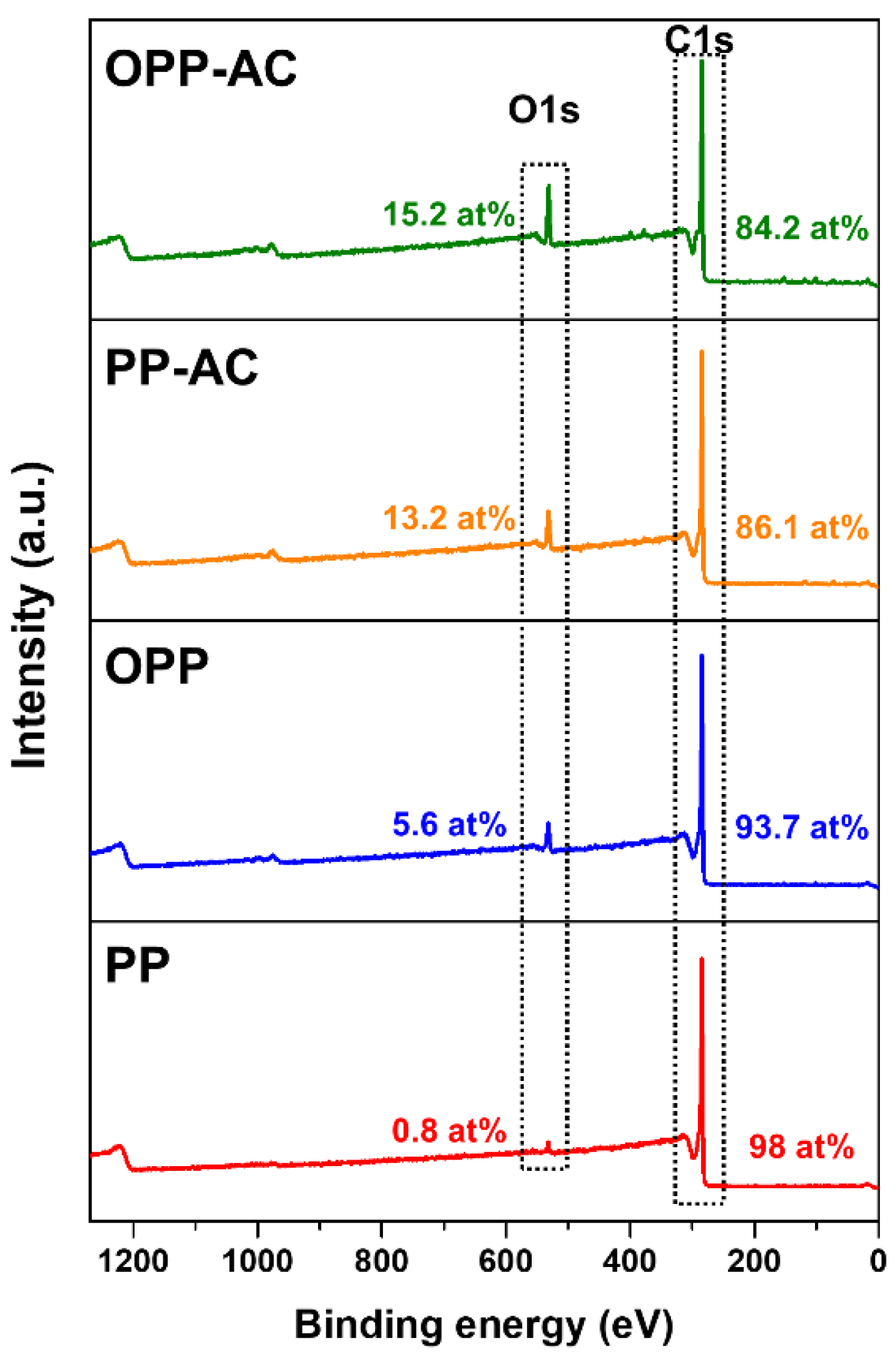

Figure 1. XPS spectra of PP, OPP, PP-AC, and OPP-AC.
Figure 1. XPS spectra of PP, OPP, PP-AC, and OPP-AC.
Molecules 27 03241 g001
Molecules 27 03241 g002

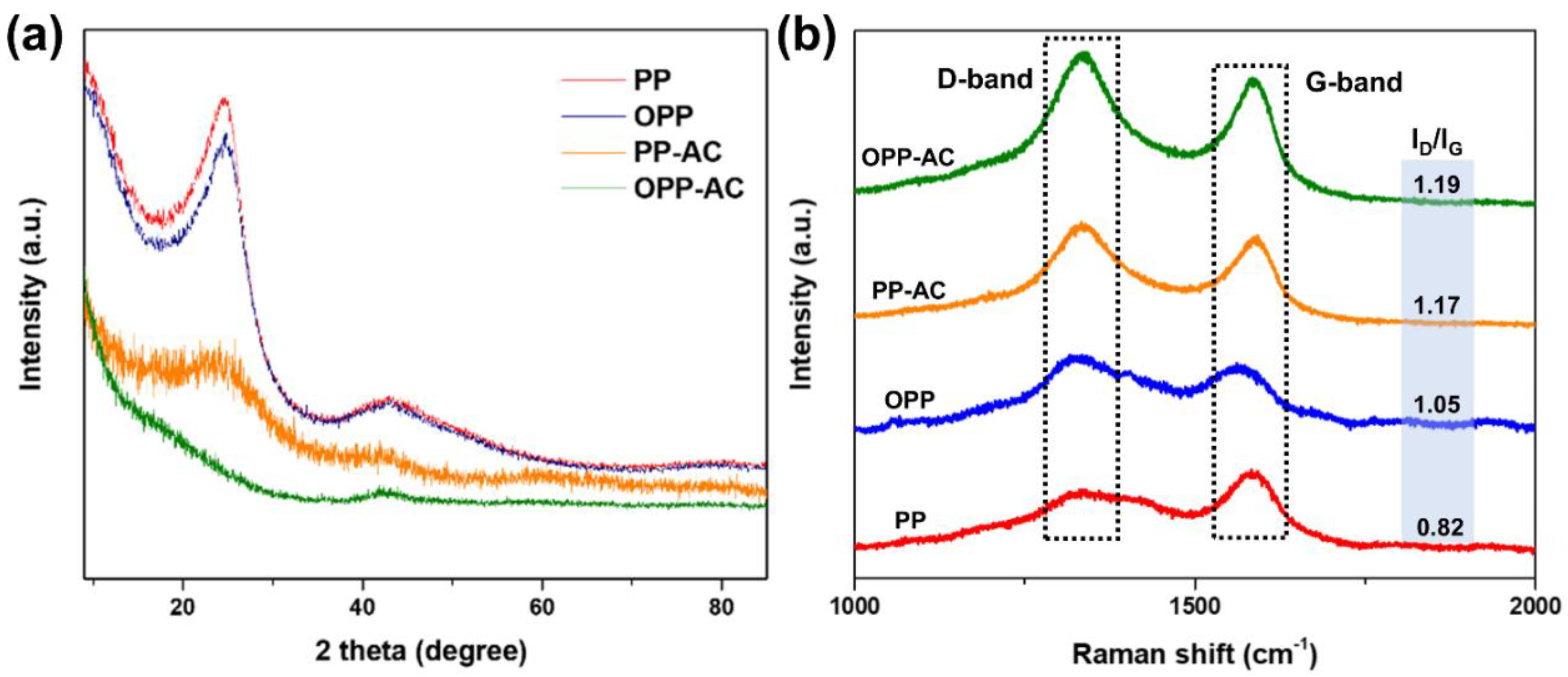

Figure 2. (a) X-ray diffractions and (b) Raman spectra of PP, OPP, PP-AC, and OPP-AC.
Figure 2. (a) X-ray diffractions and (b) Raman spectra of PP, OPP, PP-AC, and OPP-AC.
Molecules 27 03241 g002
Molecules 27 03241 g003
Figure 3. Scanning electron microscopy images of (a) PP, (b) OPP, (c) PP-AC, and (d) OPP-AC (scale bar: 500 nm).
Figure 3. Scanning electron microscopy images of (a) PP, (b) OPP, (c) PP-AC, and (d) OPP-AC (scale bar: 500 nm).
Molecules 27 03241 g003
Molecules 27 03241 g004

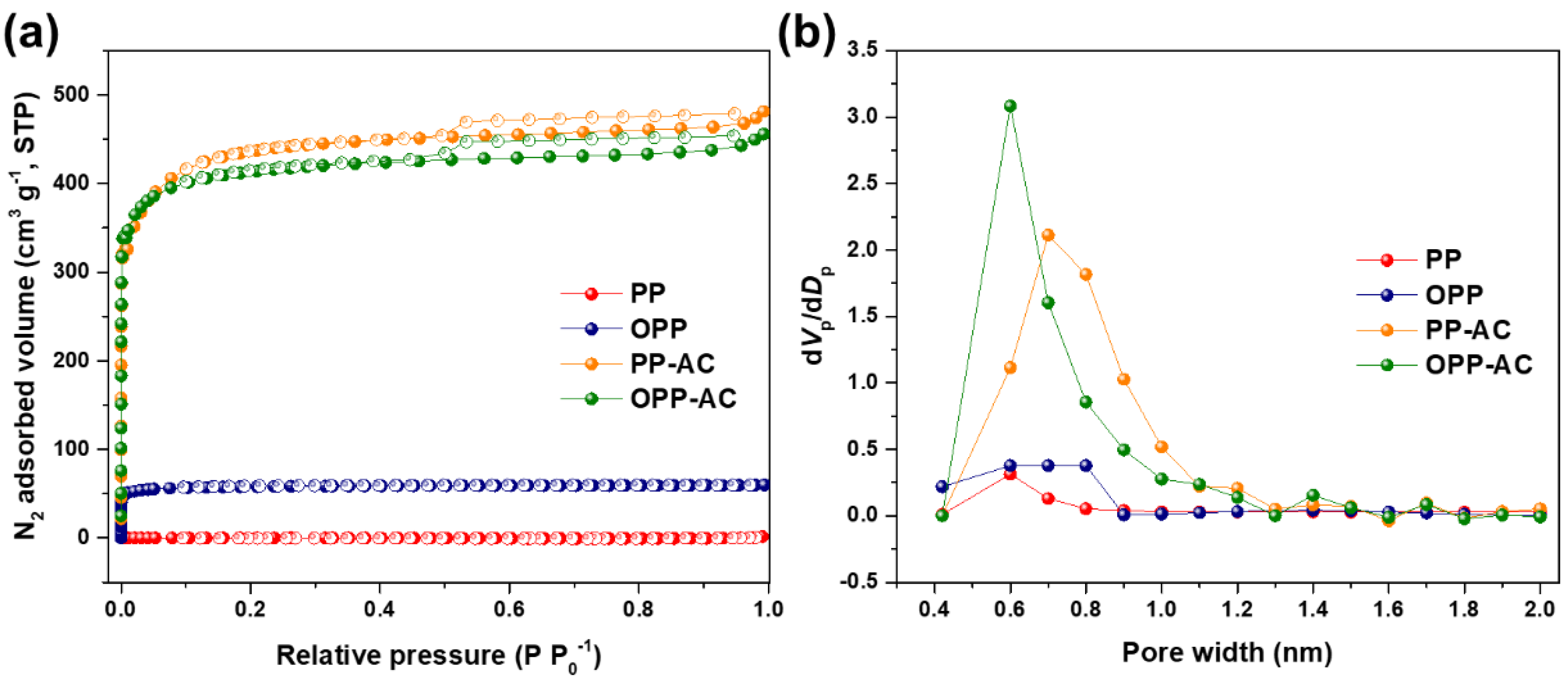

Figure 4. (a) N2 adsorption-desorption isotherms of the prepared samples at 77 K and (b) the pore size distributions using NLDFT method.
Figure 4. (a) N2 adsorption-desorption isotherms of the prepared samples at 77 K and (b) the pore size distributions using NLDFT method.
Molecules 27 03241 g004
Molecules 27 03241 g005
Figure 5. Cyclic voltammetry curves of (a) PP, (b) OPP, (c) PP-AC, and (d) OPP-AC at scan rates from 10 to 100 mV s−1 in 6 M KOH electrolyte.
Figure 5. Cyclic voltammetry curves of (a) PP, (b) OPP, (c) PP-AC, and (d) OPP-AC at scan rates from 10 to 100 mV s−1 in 6 M KOH electrolyte.
Molecules 27 03241 g005
Molecules 27 03241 g006
Figure 6. Charge–discharge curves of (a) PP, (b) OPP, (c) PP-AC, and (d) OPP-AC with different current densities from 0.2 to 1.0 A g−1 in 6 M KOH electrolyte.
Figure 6. Charge–discharge curves of (a) PP, (b) OPP, (c) PP-AC, and (d) OPP-AC with different current densities from 0.2 to 1.0 A g−1 in 6 M KOH electrolyte.
Molecules 27 03241 g006
Molecules 27 03241 g007

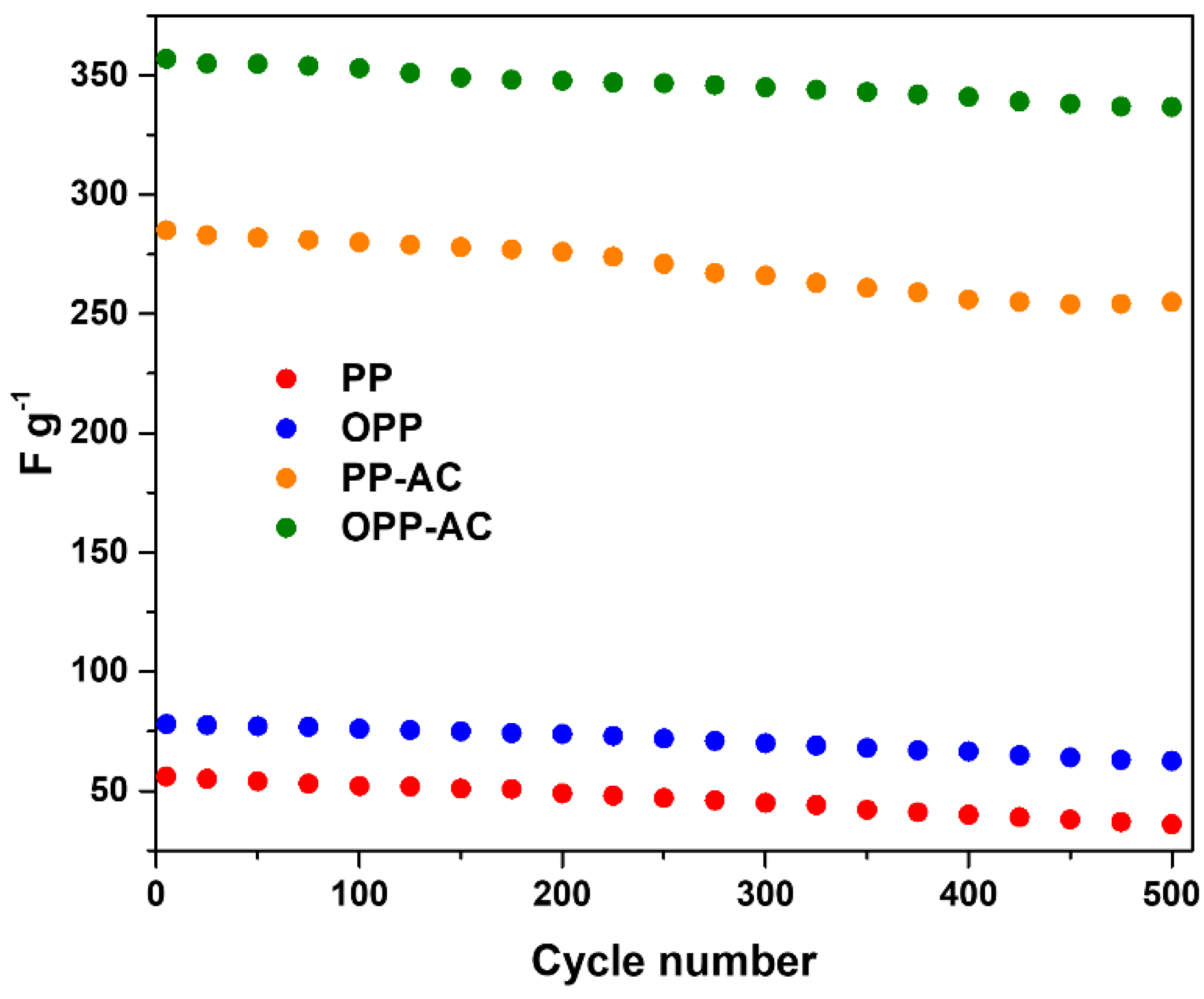

Figure 7. Cycling performance of the prepared samples at a current density of 0.2 A g−1 in 6 M KOH electrolyte.
Figure 7. Cycling performance of the prepared samples at a current density of 0.2 A g−1 in 6 M KOH electrolyte.
Molecules 27 03241 g007
Table 1. Elemental analysis of PP, OPP, PP-AC, and OPP-AC.
Table 1. Elemental analysis of PP, OPP, PP-AC, and OPP-AC.
SpecimensC (wt%)N (wt%)H (wt%)S (wt%)O (wt%)H/C
PP89.00.15.30.50.60.7
OPP88.50.14.10.54.00.6
PP-AC83.70.16.00.39.90.9
OPP-AC82.90.15.50.311.20.8
Table 2. Microcrystalline structural parameters of PP, OPP, PP-AC, and OPP-AC.
Table 2. Microcrystalline structural parameters of PP, OPP, PP-AC, and OPP-AC.
Specimensd002 (nm) aLc (nm) b
PP0.3601.728
OPP0.3631.644
PP-AC0.3711.270
OPP-AC0.3751.017
a Interplanar distance (nm) determined from Bragg’s equation. b Crystallite thickness (nm) determined from Scherrer’s equation.
Table 3. Porous structural parameters of PP, OPP, PP-AC, and OPP-AC.
Table 3. Porous structural parameters of PP, OPP, PP-AC, and OPP-AC.
SpecimensSBET a
(m2 g−1)		Vtotal b
(cm3 g−1)		Vmicro c
(cm3 g−1)		Vmeso d
(cm3 g−1)		Vmicro/Vtotal e
(%)
PP20.030.010.0233
OPP1180.120.070.0558
PP-AC13270.740.590.1580
OPP-AC12460.700.590.1184
a SBET: specific surface area computed using BET equation at a relative pressure range of 0.001–0.01. b Vtotal: total pore volume determined at P P0−1 of 0.99. c Vmicro: micropore (0–2 nm) volume determined from the D-R method. d Vmeso: mesopore (2–50 nm) volume determined by subtracting the micropore volume from the total pore volume. e Vmicro/Vtotal: micropore volume ratio to total pore volume (%).
Table 4. Specific capacitances of PP, OPP, PP-AC, and OPP-AC.
Table 4. Specific capacitances of PP, OPP, PP-AC, and OPP-AC.
Specimens0.2 A g−10.5 A g−11.0 A g−1
PP563936
OPP786346
PP-AC285200182
OPP-AC357228195
Table 5. Comparison of specific capacitances of petroleum pitch-based EDLCs.
Table 5. Comparison of specific capacitances of petroleum pitch-based EDLCs.
SpecimensElectrolyteCurrent Density
(A g−1)		Specific Surface Area
(m2 g−1)		Specific Capacitance
(F g−1)		Ref
OPP-AC6 M KOH0.2 (1.0)1246357 (195)This work
PP/Polypyrrole1 M Na2SO41.060282[23]
PP/MnO20.5 M Na2SO40.578792[29]
PP/Coal tar pitch1 M TEABF41.02967132[70]
PP-based ACs6 M KOH0.052964300[71]
PP-based ACs6 M KOH0.053516320[72]
PP-based ACs6 M KOH0.051922293[73]
PP-based ACs6 M KOH0.052646296[74]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kim, J.-W.; Kim, D.-W.; Lee, S.-Y.; Park, S.-J. A Study on Pre-Oxidation of Petroleum Pitch-Based Activated Carbons for Electric Double-Layer Capacitors. Molecules 2022, 27, 3241. https://doi.org/10.3390/molecules27103241

AMA Style

Kim J-W, Kim D-W, Lee S-Y, Park S-J. A Study on Pre-Oxidation of Petroleum Pitch-Based Activated Carbons for Electric Double-Layer Capacitors. Molecules. 2022; 27(10):3241. https://doi.org/10.3390/molecules27103241

Chicago/Turabian Style

Kim, Jong-Woo, Dae-Won Kim, Seul-Yi Lee, and Soo-Jin Park. 2022. "A Study on Pre-Oxidation of Petroleum Pitch-Based Activated Carbons for Electric Double-Layer Capacitors" Molecules 27, no. 10: 3241. https://doi.org/10.3390/molecules27103241

APA Style

Kim, J.-W., Kim, D.-W., Lee, S.-Y., & Park, S.-J. (2022). A Study on Pre-Oxidation of Petroleum Pitch-Based Activated Carbons for Electric Double-Layer Capacitors. Molecules, 27(10), 3241. https://doi.org/10.3390/molecules27103241

Article Metrics

Back to TopTop
