  • Proceeding Paper
  • Open Access

7 November 2023

11 Pages

Determination of the Dynamic Behavior of Thin-Walled Hollow-Box Sandwich Beams †

and
1
proMetheus, Instituto Politécnico de Viana do Castelo, Rua Escola Industrial e Comercial Nun'Álvares, 34, 4900-347 Viana do Castelo, Portugal
2
Division of Dynamics, Lodz University of Technology, Stefanowskiego 1/15, 90-924 Lodz, Poland
*
Author to whom correspondence should be addressed.
†
Presented at the 4th International Electronic Conference on Applied Sciences, 27 October–10 November 2023; Available online: https://asec2023.sciforum.net/.

Abstract

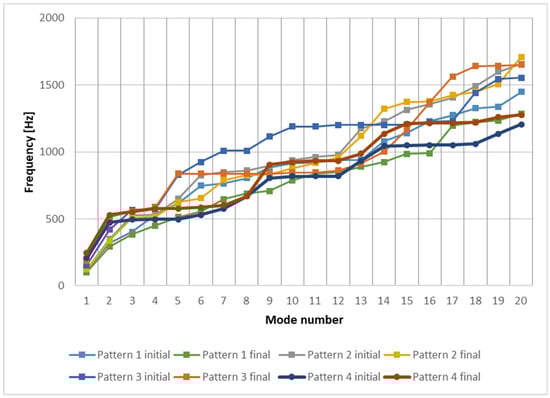

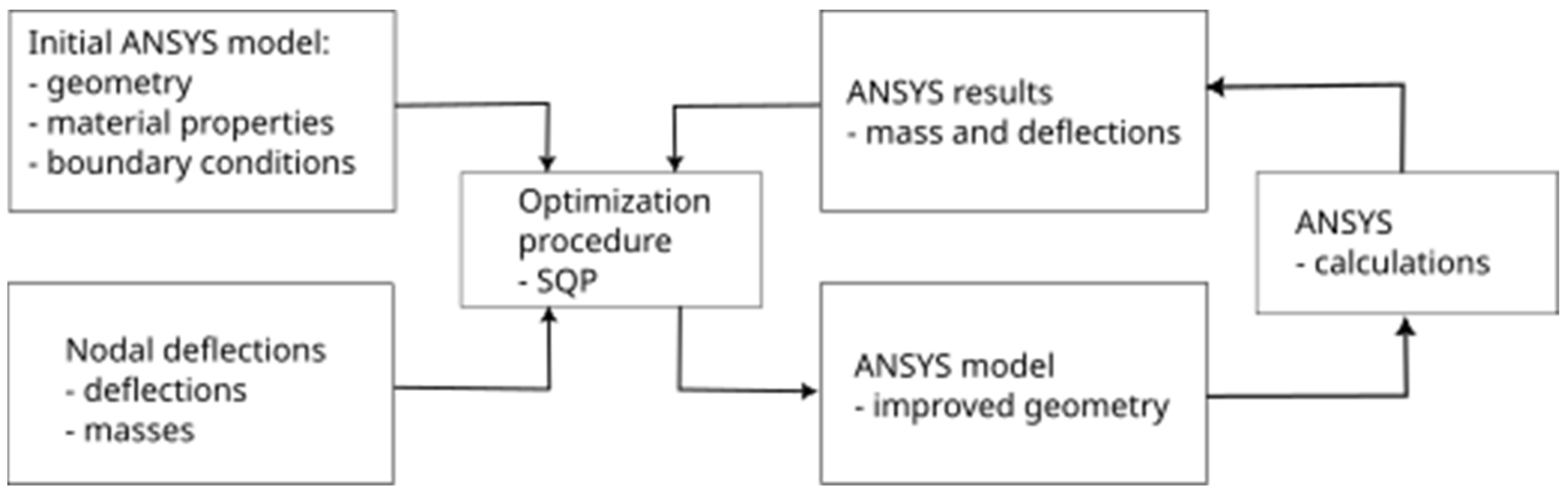

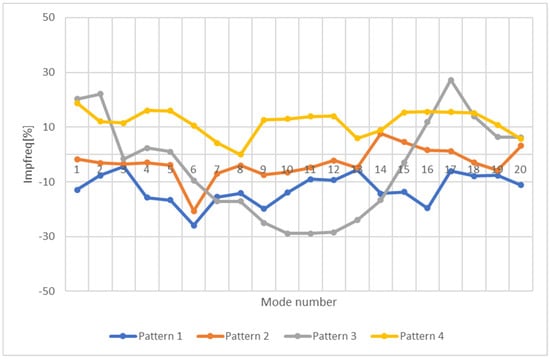

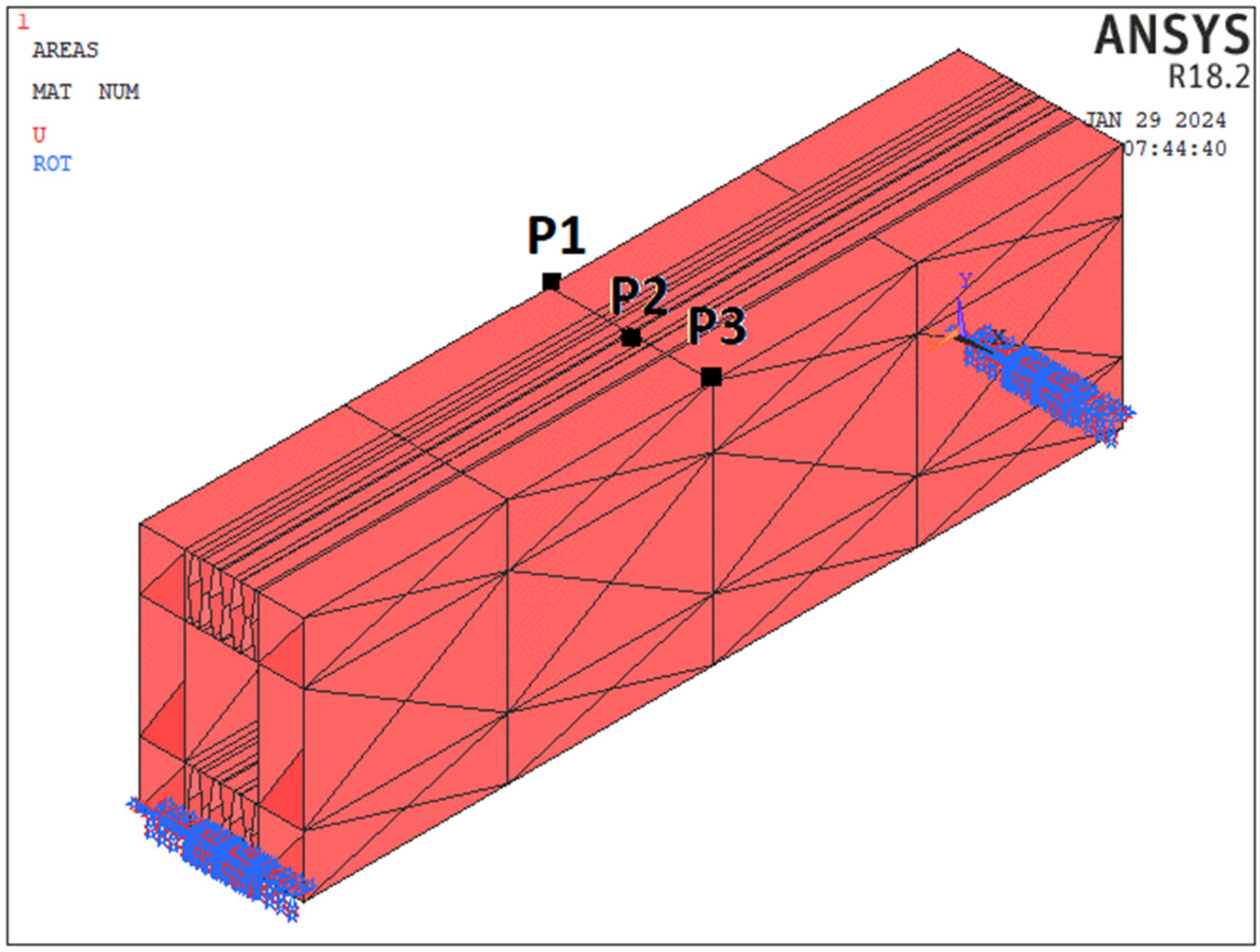

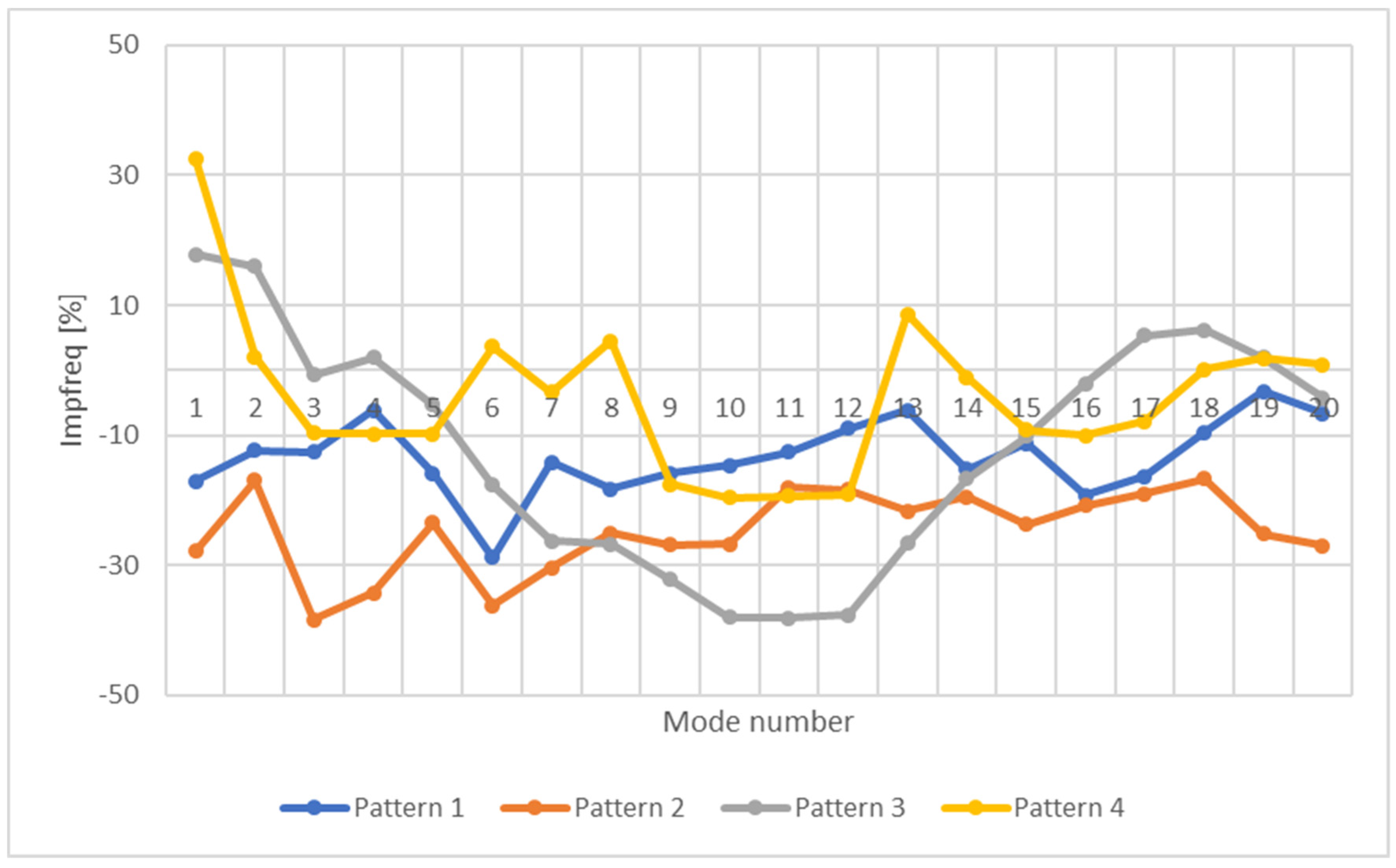

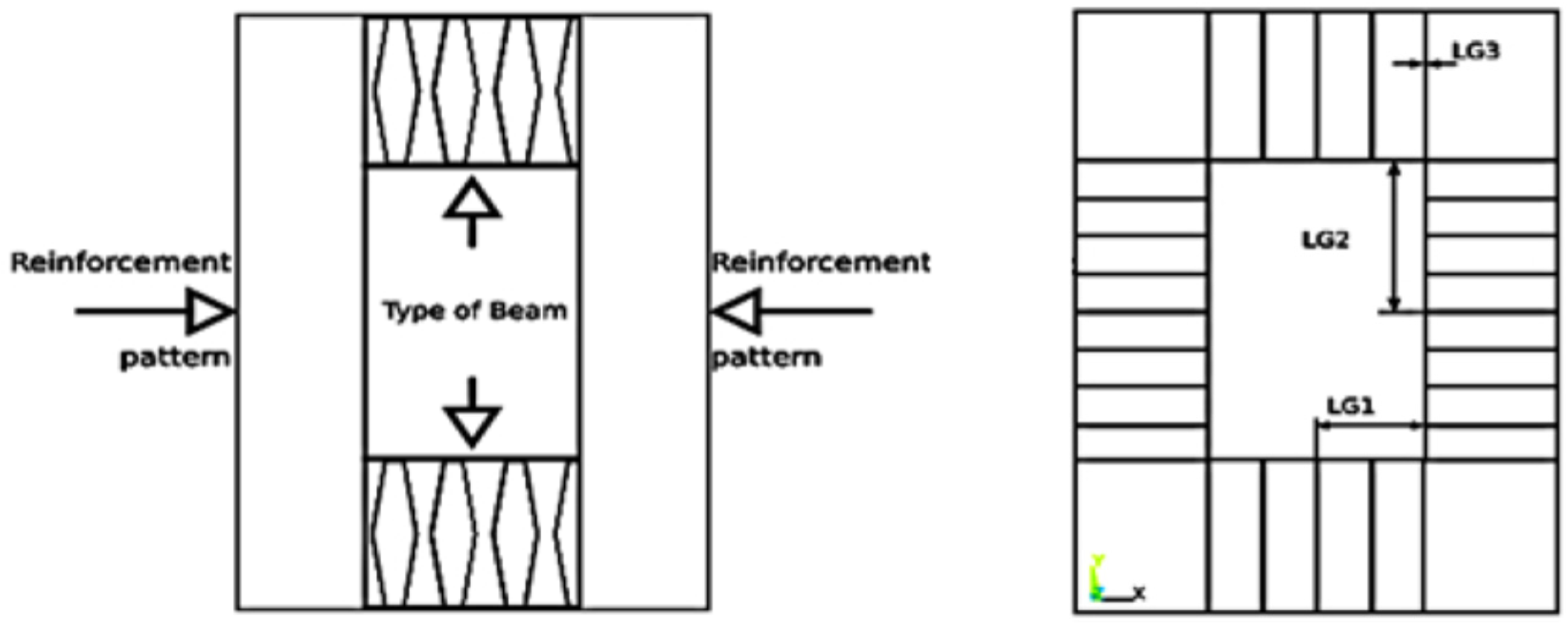

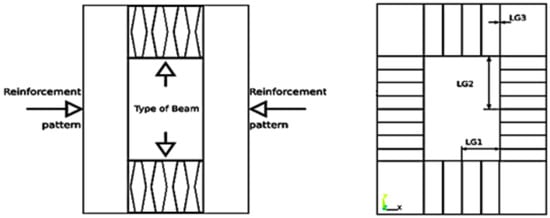

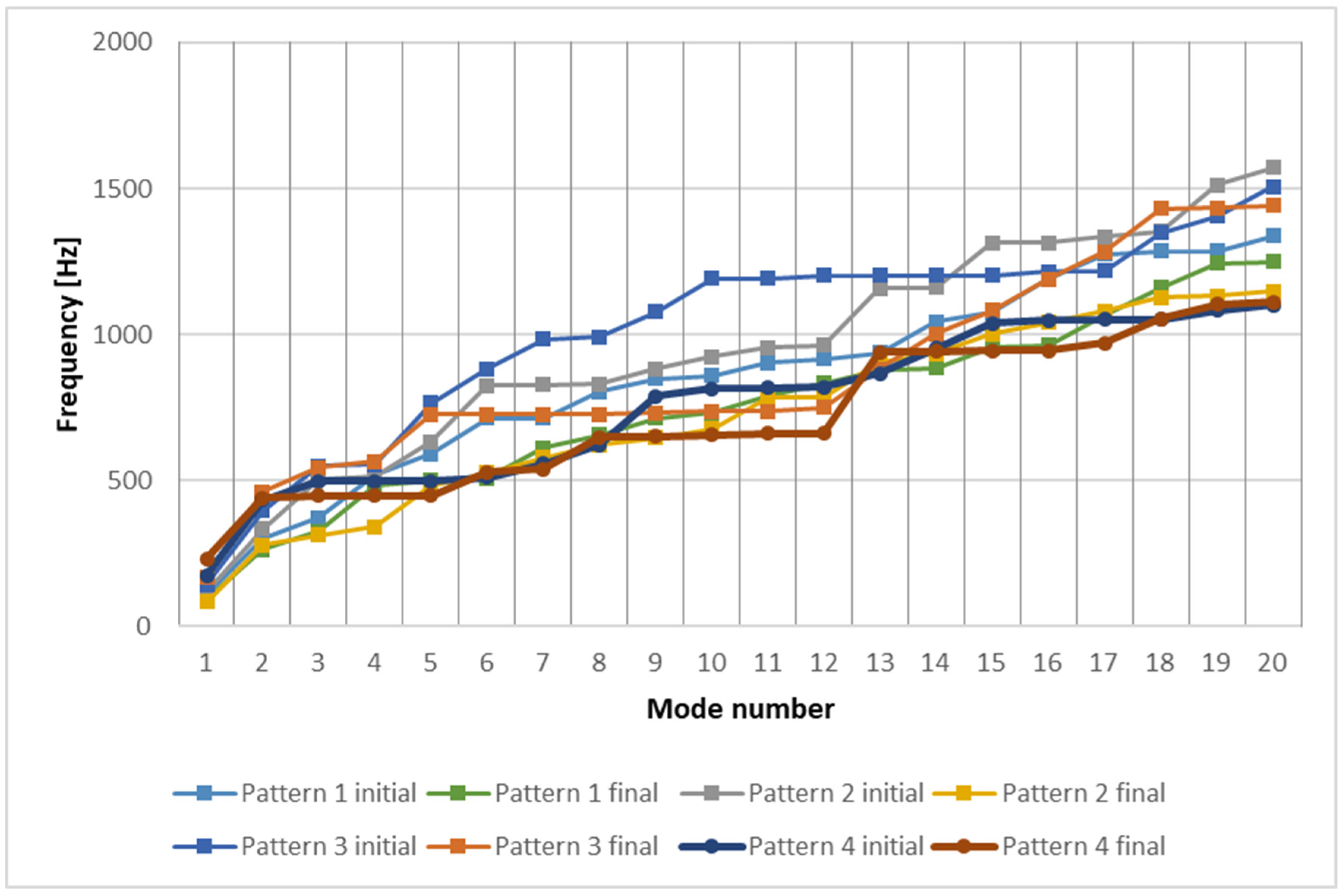

Sandwich geometries, mainly panels and beams, are widely used in several transportation industries, namely aerospace, aeronautics, and automotive. They are known for some advantages in structural applications: high specific stiffness, low weight, and possibility of design optimization prior to manufacturing. This study aims to discover the dynamic behaviour of a model of novel sandwich type of beam simply supported-at-its-ends by use of finite element method. There are 12 geometries studied herein, with the same base configuration. The models were previously subjected to a design optimization routine. The dynamic behavior of the initial models in relation to their final versions is considered. The influence of the geometry on the characteristic frequencies is discussed, as well as its improvement in relation to the initial models. It is shown that the statically optimized models represent a significant improvement over the initial ones. In some cases, the improvement surpasses 20%. It can, therefore, be concluded that the design optimization approach, developed for static analysis, might be moderately effective in improving the modal behavior of the studied beams.
