Control of Unmanned Vehicles in Smart Cities Using a Multi-Modal Brain–Computer Interface †

,
and
V.A. Trapeznikov Institute of Control Sciences of Russian Academy of Sciences, Profsoyuznaya Street 65, Moscow 117342, Russia
*
Author to whom correspondence should be addressed.
†
Presented at the 15th International Conference “Intelligent Systems” (INTELS’22), Moscow, Russia, 14–16 December 2022.

Abstract

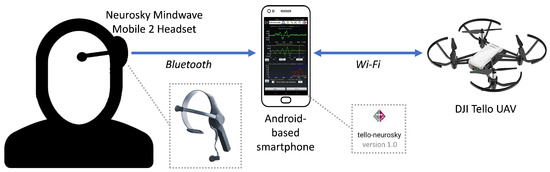

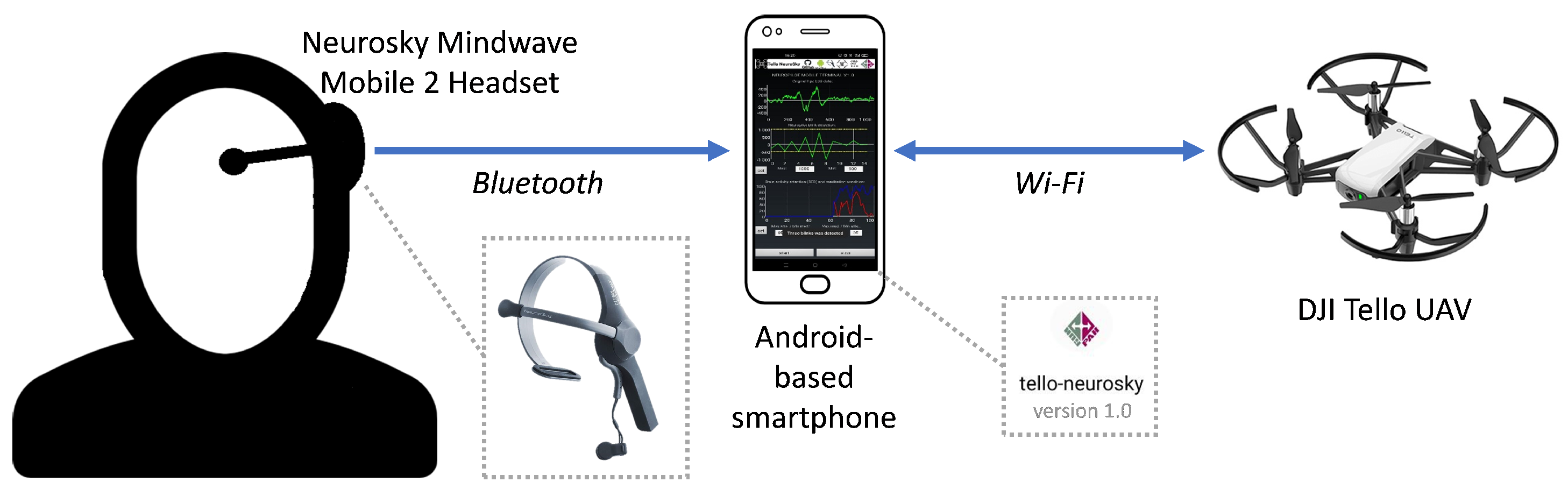

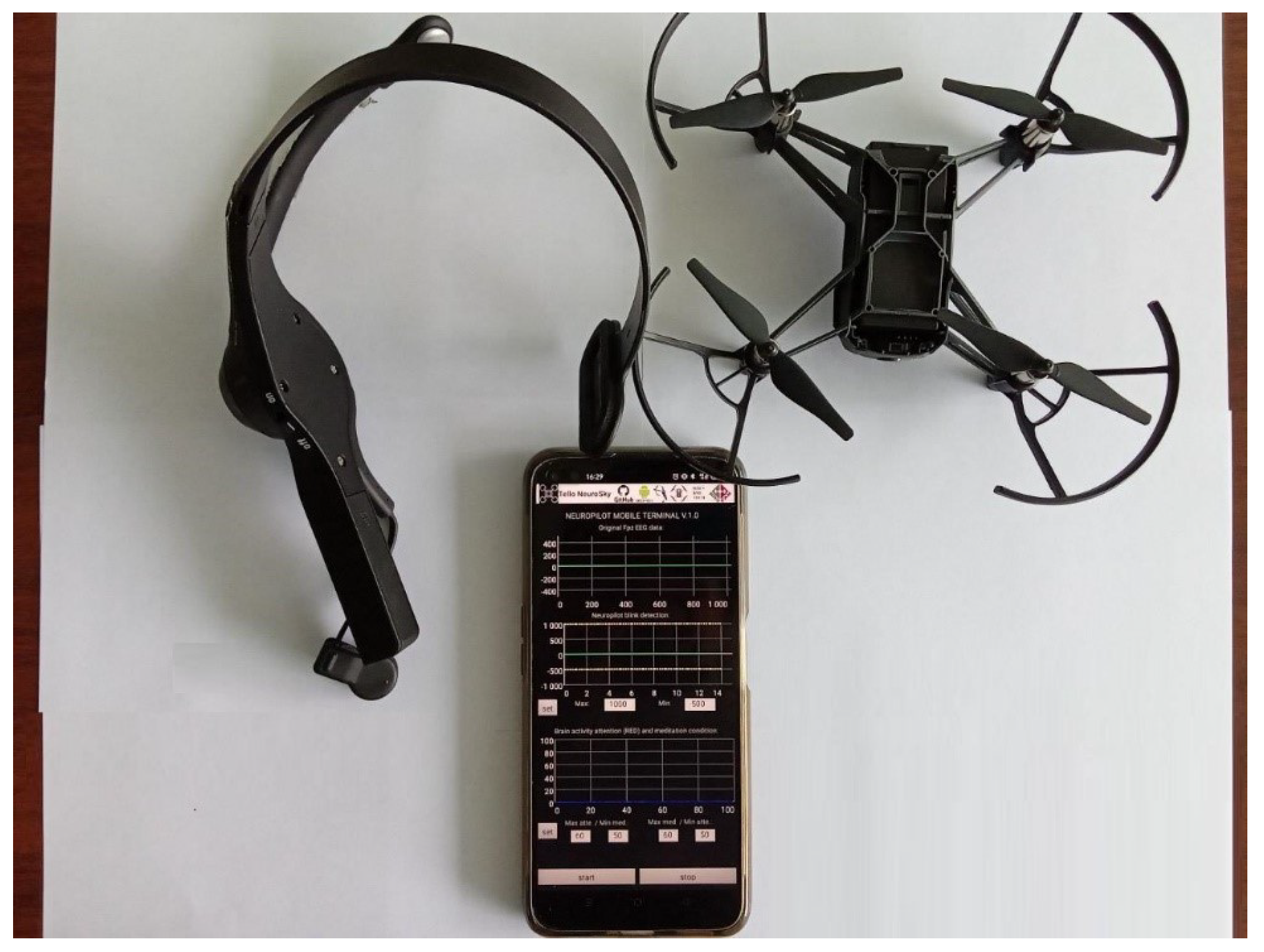

The article presents an overview of several studies in the field of Brain–Computer Interfaces (BCIs), the requirements for the architecture of such promising devices, as well as multi-modal BCI for drone control in a smart-city environment. Distinctive features of the proposed solution are the simplicity of the architecture (the use of only one smartphone for both receiving and processing bio-signals from the headset and transmitting commands to the drone), an open-source software solution for signal processing, generating, and sending commands to the unmanned aerial vehicle (UAV), as well as multimodality of the BCI (the use of both electroencephalographic (EEG) and electrooculographic (EOG) signals of the operator). For bio-signal acquisition, we used the NeuroSky Mindwave Mobile 2 headset, which is connected to an Android-based smartphone via Bluetooth. The developed Android application (Tello NeuroSky) processes signals from the headset and generates and transmits commands to the DJI Tello UAV via Wi-Fi. The decrease (depression) and increase of α- and β-rhythms of the brain, as well as EOG signals that occur during blinking were the triggers for UAV commands. The developed software allows the manual setting of the minimum, maximum and threshold values for the processed bio-signals. The following commands for the UAV were implemented: take-off, landing, forward movement, and backwards movement. Two threads of the smartphone’s central processing unit (CPU) were utilized when processing signals in the software to increase the performance: for signal processing (1-D Daubechies 2 (db2) wavelet transform) and updating data on the diagrams, and for generating and transmitting commands to the drone.
