  • Proceeding Paper
  • Open Access

31 December 2021

5 Pages

Optimal Analysis of 40 Gbps Dispersion Compensated Optical Fiber System †

and
Department of Electrical Engineering, University of Gujrat, Gujrat 50700, Pakistan
*
Author to whom correspondence should be addressed.
†
Presented at the 1st International Conference on Energy, Power and Environment, Gujrat, Pakistan, 11–12 November 2021.

Abstract

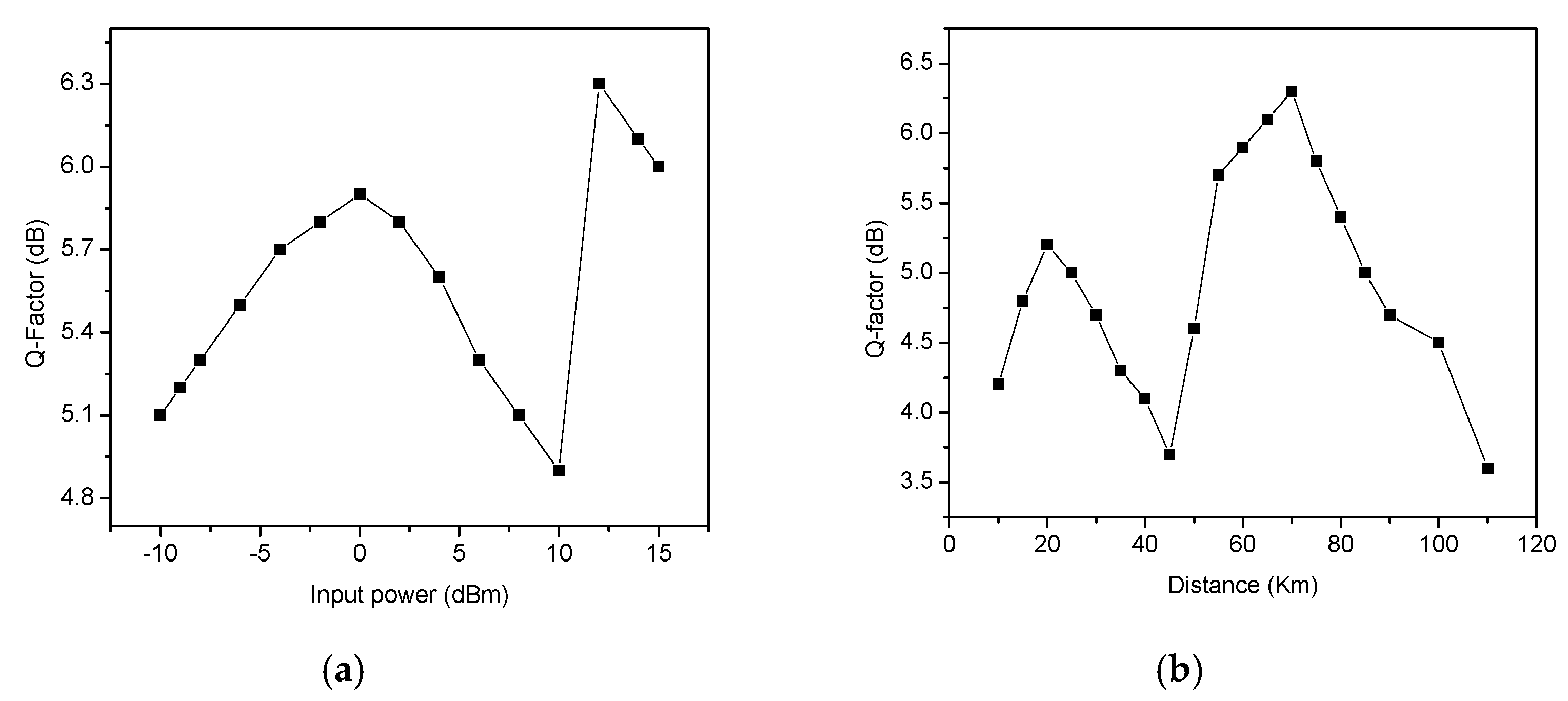

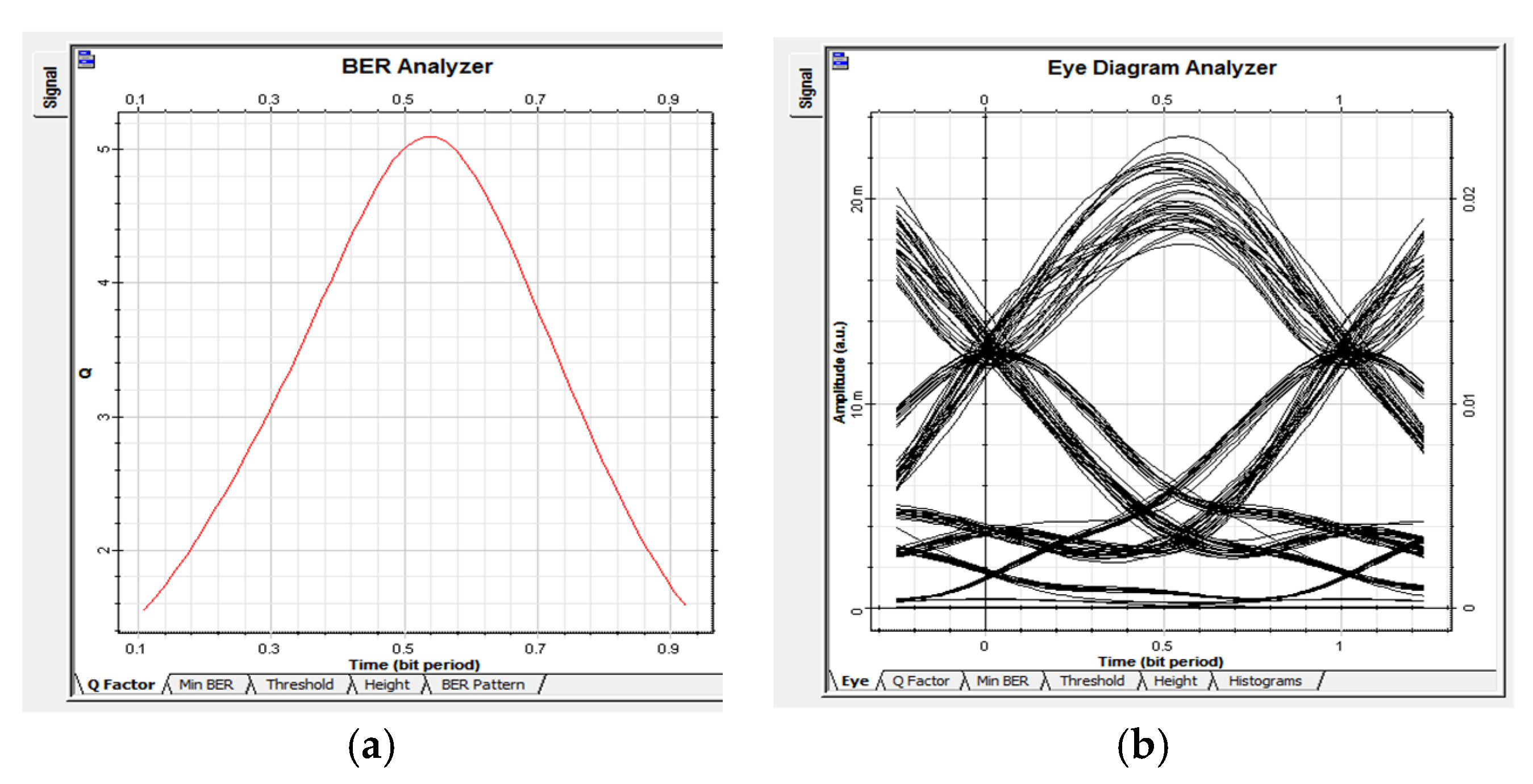

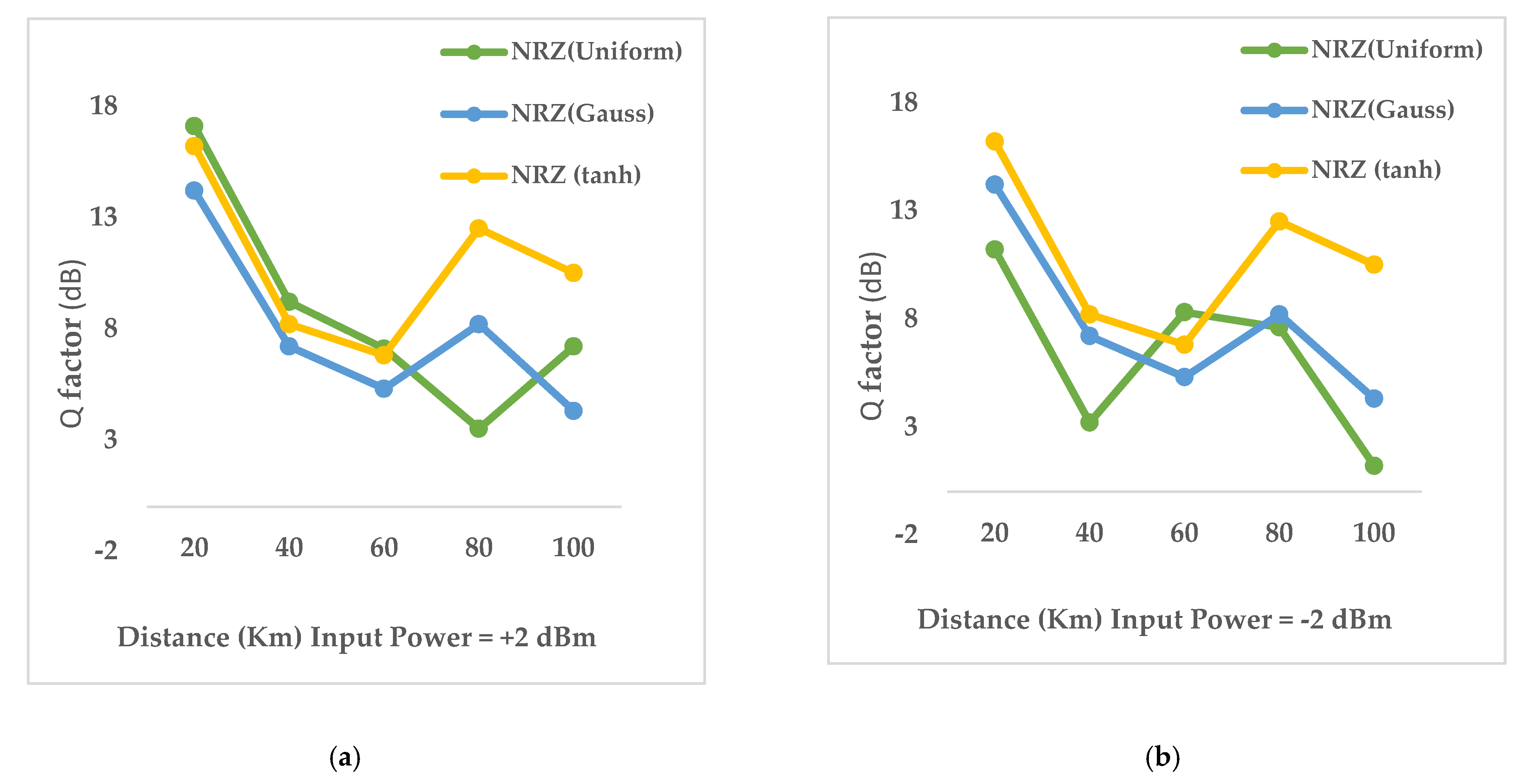

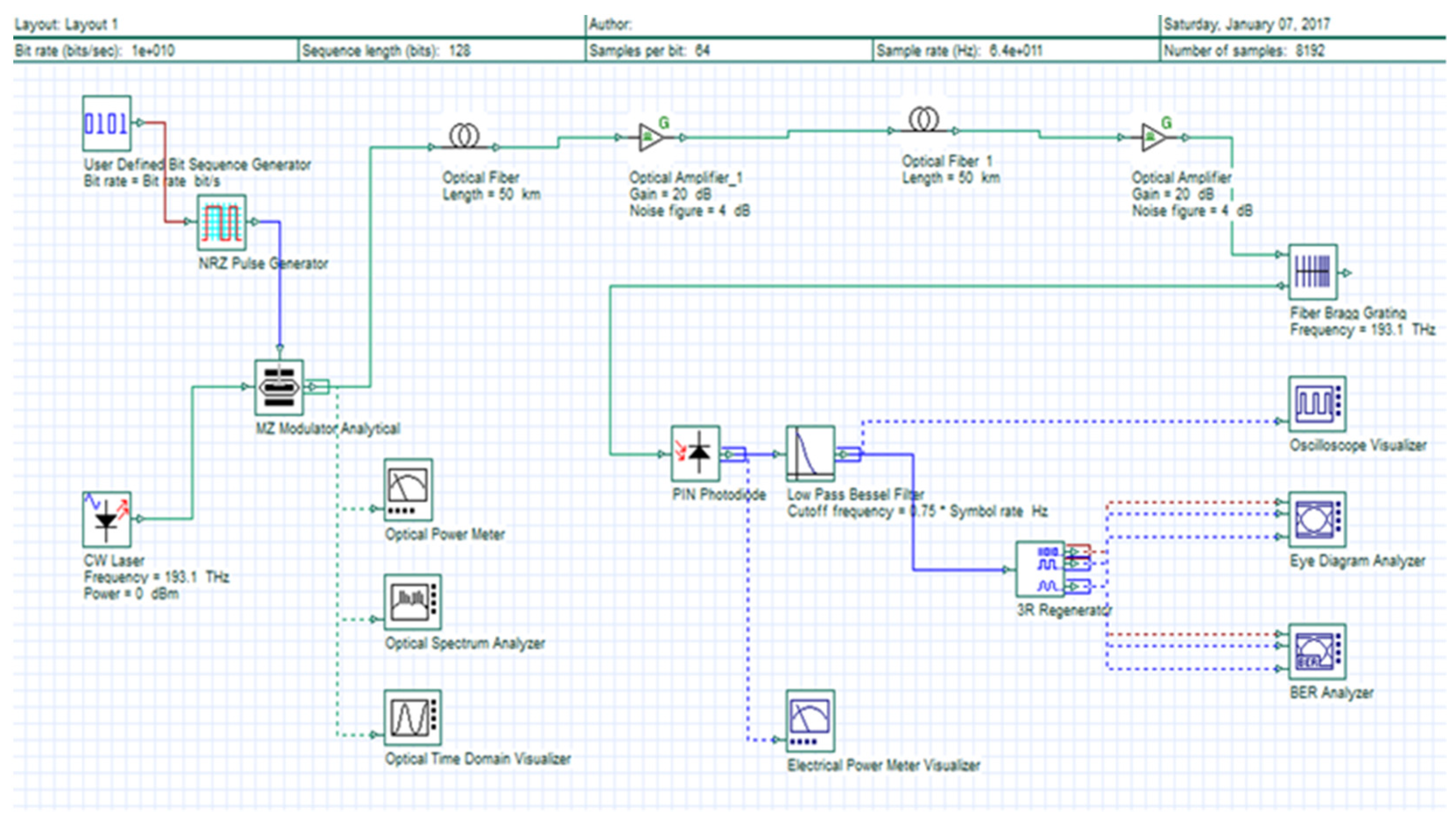

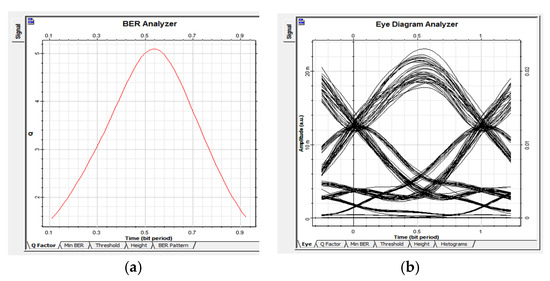

Dispersion is one of the main factors that limit the development of optical fiber communication systems regarding data rate and long distance transmission of the signal. This is because of increases in dispersion with the increase in data rate and distance, resulting in signal degradation. In this work, we propose an optimal dispersion compensated optical fiber system, which is designed on the basis of Q-factor, eye height, and bit error rate. The system operates at a bit rate of 40 Gbps and a distance of 100 km. According to the optimization scheme, the system is simulated using the modulation format Non Return to Zero (NRZ) with uniform and Linear Chirped Apodized Fiber Bragg Grating (LCAFBG) as dispersion compensator. After deciding the Fiber Bragg Grating (FBG) structure, other key parameters are simulated to meet the requirements. The simulation results show that using NRZ modulation format with a LCAFBG Tanh profile gives better performance.
