3 October 2024

16 Pages

A Numerical Framework of Simulating Flow-Induced Deformation during Liquid Composite Moulding

,
,
and
1
Institute of Earth and Space Science, King Abdulaziz City for Science and Technology, Riyadh 12354, Saudi Arabia
2
Department of Materials, The University of Manchester, Manchester M13 9PL, UK
3
Northwest Composites Centre, University of Manchester, Manchester M13 9PL, UK
4
School of Aeronautics and Astronautics, Purdue University, West Lafayette, IN 47907, USA

Abstract

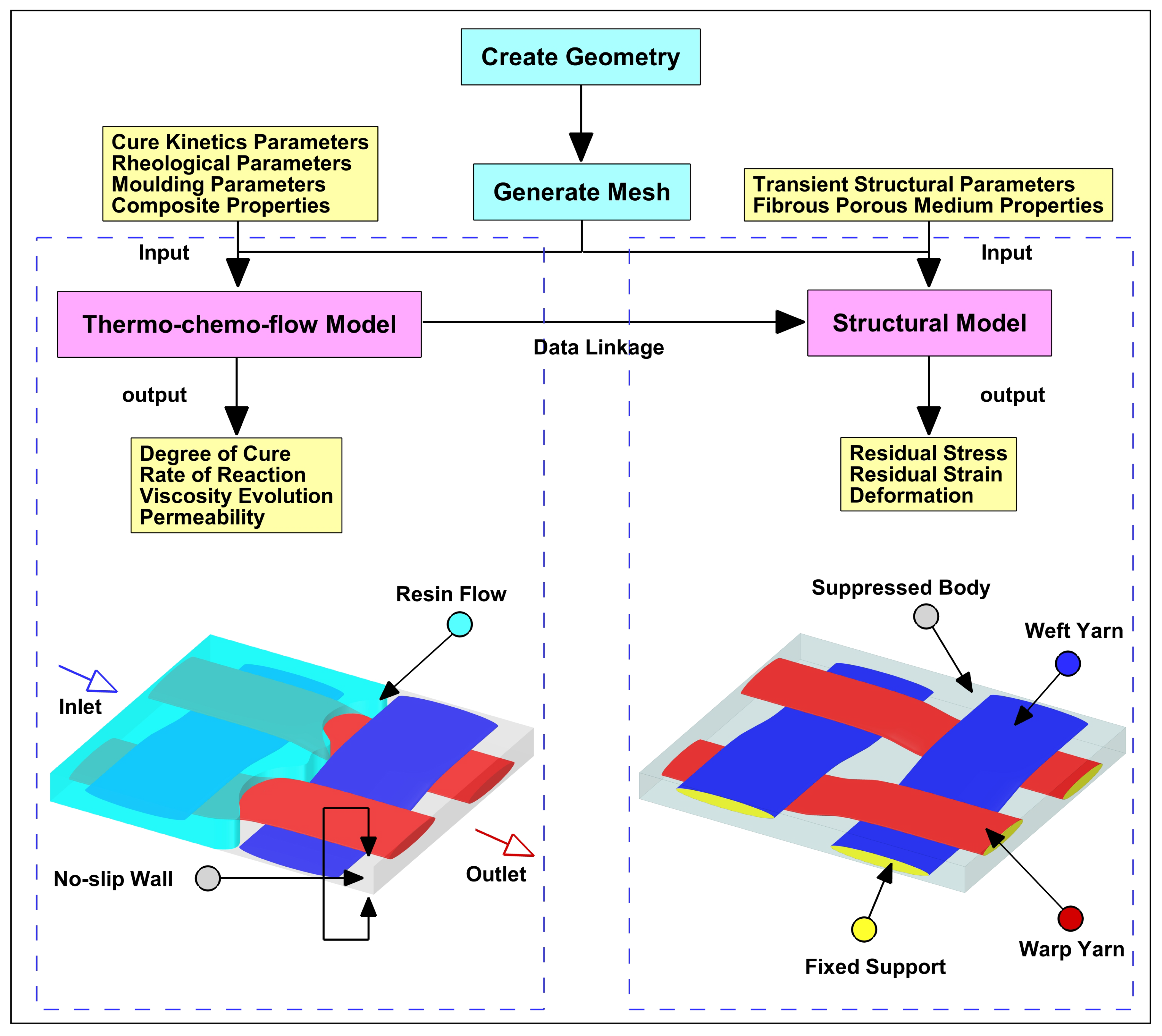

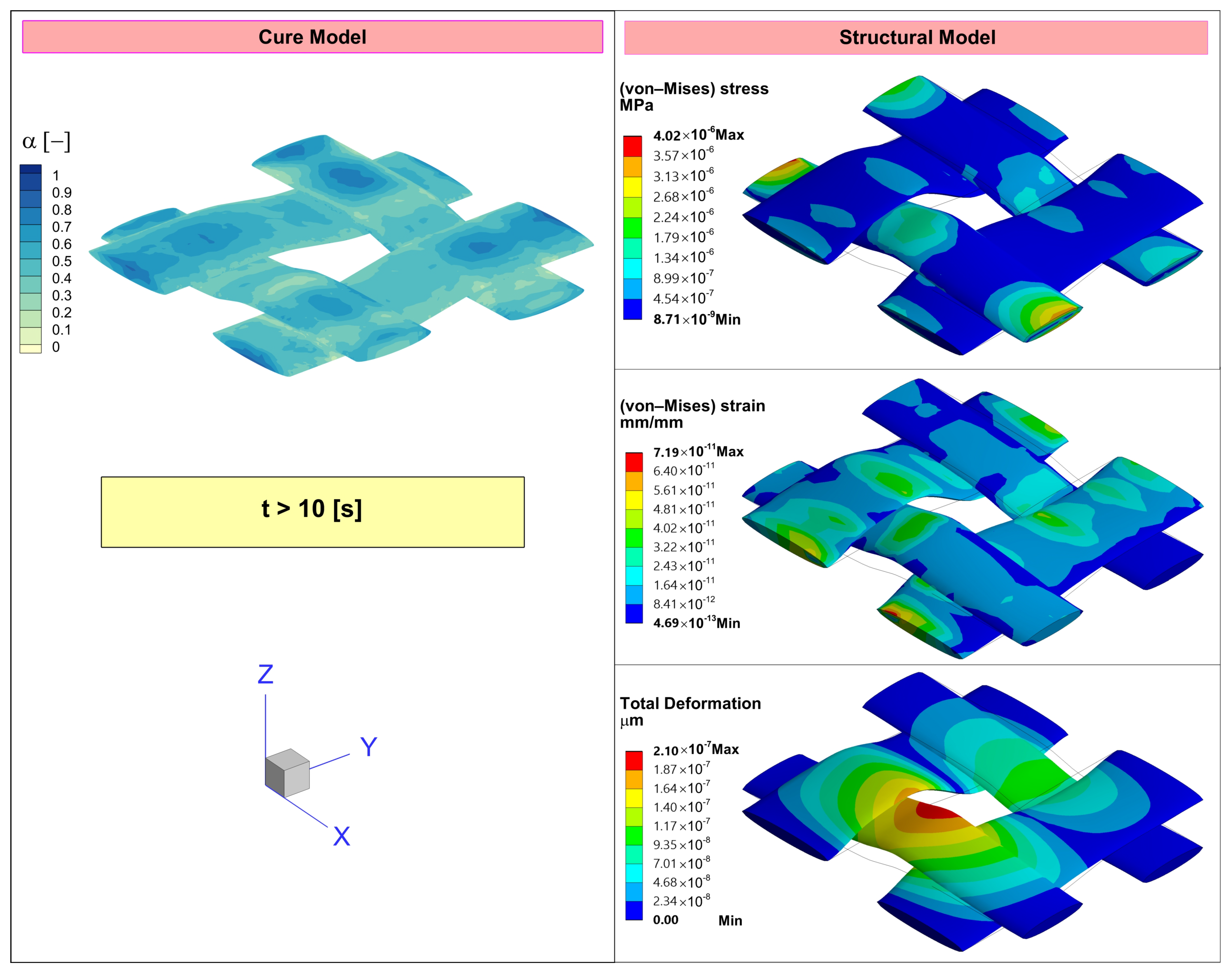

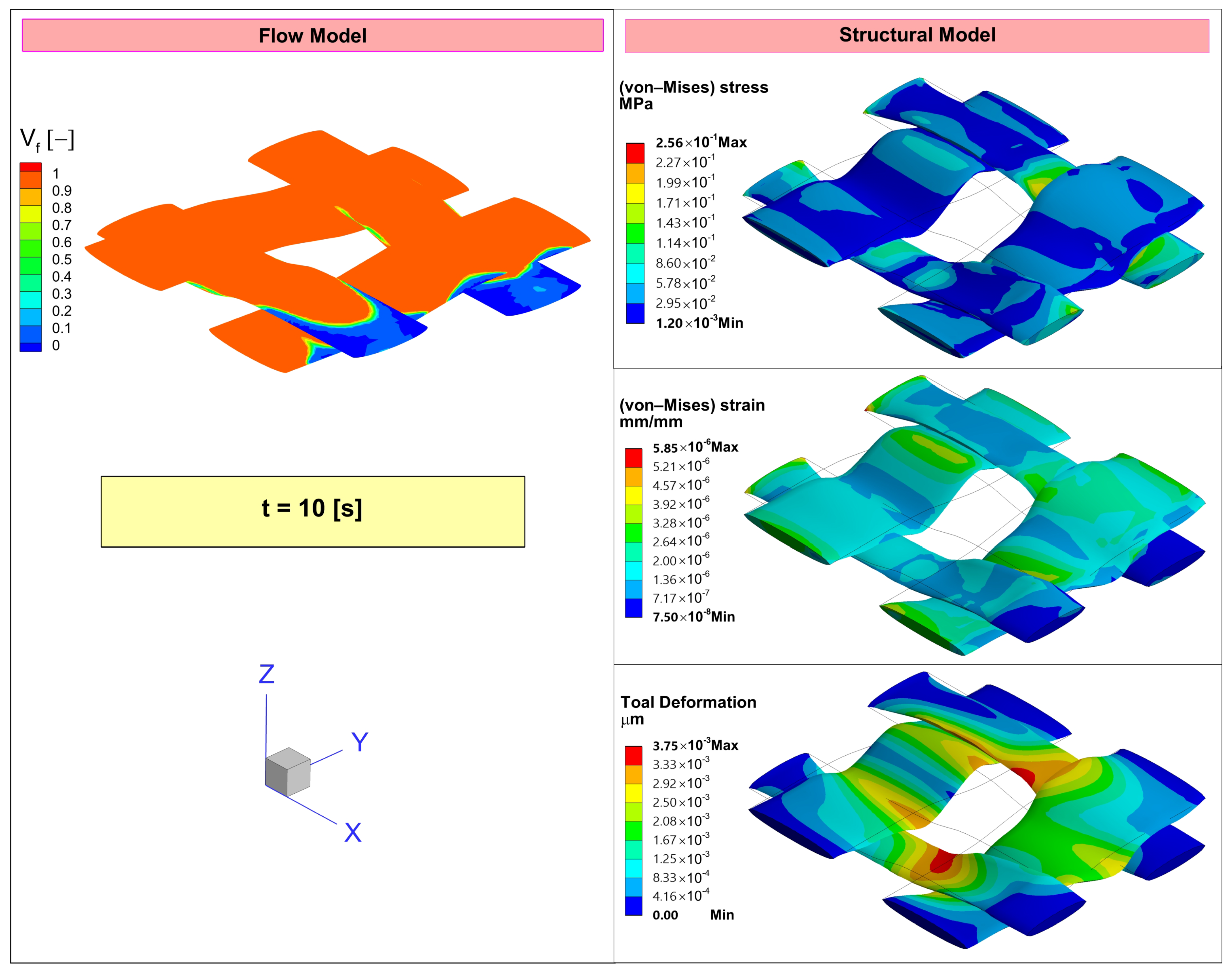

Fibre deformation (or shearing of yarns) can develop during the liquid moulding of composites due to injection pressures or polymerisation (cross-linking) reactions (e.g., chemical shrinkage). On that premise, this may also induce potential residual stress–strain, warpage, and design defects in the composite part. In this paper, a developed numerical framework is customised to analyse deformations and the residual stress–strain of fibre (at a micro-scale) and yarns (at a meso-scale) during a liquid composite moulding (LCM) process cycle (fill and cure stages). This is achieved by linking flow simulations (coupled filling–curing simulation) to a transient structural model using ANSYS software. This work develops advanced User-Defined Functions (UDFs) and User-Defined Scalers (UDSs) to enhance the commercial CFD code with extra models for chemorheology, cure kinetics, heat generation, and permeability. Such models will be hooked within the conservation equations in the thermo-chemo-flow model and hence reflected by the structural model. In doing so, the knowledge of permeability, polymerisation, rheology, and mechanical response can be digitally obtained for more coherent and optimised manufacturing processes of advanced composites.
