Platinum-Decorated TiO₂: One Step Fast Monometallic Impregnation and Plasma Effect on Nanoparticles

Abstract

In the present work, N-TiO_2−x/Pt was synthesized using a homemade nitrogen plasma (AC) discharge system. The overall procedure use of low-power nitrogen plasma (100 watts) with 1 and 2 h of plasma discharge to successfully impregnate platinum nanoparticles on P25 titanium dioxide. The obtained samples were characterized using X-ray diffraction (XRD), UV–Vis diffuse reflectance spectroscopy (DRS), X-ray photoelectron spectroscopy (XPS), and high-resolution transmission electron microscopy (HRTEM). The results reveal the incorporation of metallic Pt up to 2.9% on the surface of TiO₂ by increasing the duration of plasma discharge by up to two hours with a constant power of 100 watts. Likewise, the incorporation of nitrogen atoms into a lattice crystal was also favored, confirming a direct relationship between the amount of Pt and nitrogen atoms introduced in TiO₂ as a function of the duration of plasma treatment. By characterizing nanoparticles loaded on a N-TiO_2−x/Pt surface, we show that joined platinum nanoparticles have two different patterns, and the boundary between these two regions coalesces. The results demonstrate that the use of nitrogen plasma to impregnate platinum nanoparticles on the surface of TiO₂ to obtain N-TiO_2−x/Pt allows wide and relevant physics and chemistry applications.

1. Introduction

In recent decades, due to the optical properties, chemical stability, and great oxidizing potential of catalysts based on TiO₂, numerous studies have been carried out regarding the production of these materials [1,2,3,4,5]. Their photocatalytic properties have successfully enabled the elimination of pollutants in water flows and air [6,7,8] through reactions induced by photogenerated electron–hole pairs occurring on the TiO₂ semiconductor surface [9]. Such capabilities have generated great interest in TiO₂ compounds. However, because the absorption range of TiO₂ is restricted to the UV region of the electromagnetic spectrum, the photonic efficiency of this material is less than ~10% [10]. To improve the activity and photocatalytic performance of TiO₂, different strategies have been used, such as nonmetallic doping (especially with nitrogen) and transition metal impregnation, including Au, Ag, Cu, and Pt, on the titanium dioxide surface, which act as photogenerated electron traps [3]. The methodologies that have been used for metal impregnation on TiO₂ are varied, which are also dependent on the metal to be impregnated. For instance, chemical deposition and liquid impregnation have been successfully applied to deposit silver (Ag-NPs) or platinum nanoparticles (Pt-NPs) using AgNO₃ and H₂PtCl₆ compounds as metal precursors, respectively [11,12,13]. In another study, a postdeposition method was used to obtain TiO₂/Au by impregnating gold nanoparticles (Au-NPs) from a colloidal solution of Au using HAuCl₄ as a metal precursor [14]. Likewise, the flame spray pyrolysis process (FSP) has demonstrated its versatility for incorporating monovalent fluoride into the crystalline lattice of titanium oxide in the production of F-doped TiO₂/Pt. In this case, hydrated hexachloroplatinic acid was used as a precursor of platinum metal, and hexafluorobenzene was used as a fluorine precursor [15]. It is noteworthy that investigations using chemical processes for metal impregnation have made great progress; the excellent and promising results demonstrate the good synergy of these metals with titanium oxide. Thus, the metal–titania relationship has opened new areas of research in photocatalysis.

On the other hand, platinum is one of the most promising and active metals for increasing the photocatalytic efficiency of TiO₂ because it produces the highest Schottky barrier to facilitate the electrons capture, and therefore the electron–hole pair recombination rate decreases [16]. Pt-TiO₂ has been used in many photocatalytic reactions under visible light irradiation, for example, in the degradation of Rhodamine B, photocatalytic oxidation of formaldehyde and glycerol [17,18,19]. Similarly, Pt-TiO₂ was used for the oxidation-reduction of benzoic acid [20] and in the degradation of different azo dyes, such as amaranth, sunset yellow, and tartrazine [13], as well as in redox reactions such as water splitting for the generation of hydrogen [21]. Pt-TiO₂ has been achieved mainly by chemical processes, including the Flame Spray Pyrolysis process (FSP). In this work, we discuss the preparation of Pt-TiO₂ applying nitrogen plasma where titanium powder is exposed to the nitrogen plasma to obtain N-TiO_2−x/Pt powder photocatalysts.

In a previous work, it has been demonstrated that argon and nitrogen plasma synthesis methods have yielded good results for the impregnation of gold and copper particles on titanium oxide [22,23]. Moreover, this approach has proven to be an effective and environmentally friendly technology due to the rapid production of compounds without the generation of chemical byproducts. This new methodology has also been used with great success to induce phase changes in titanium oxide from amorphous TiO₂ [24], and to the best of our knowledge, Pt impregnation on semiconductor materials applying nitrogen plasma are scarce. Taking advantage of the previous experience of our research group, we explored the feasibility of producing N-TiO_2−x/Pt in a single stage by studying the effect of nitrogen plasma to promote Pt metal impregnation and nitrogen doping. The characterization of the catalysts obtained through the XRD, XPS, and DRS studies are presented.

2. Materials and Methods

2.1. Materials

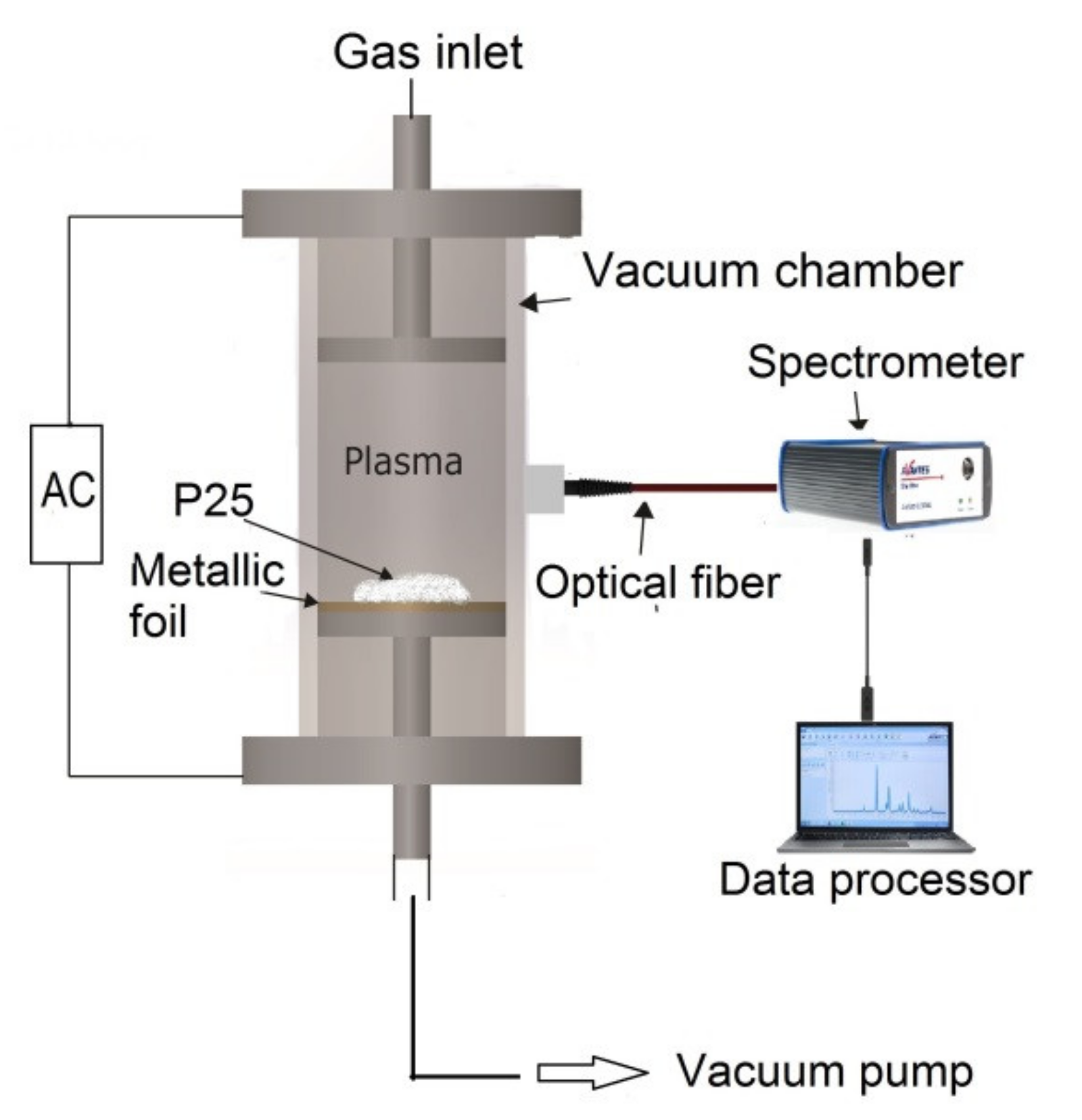

Degussa P25 titanium oxide (Evonik Ind. AG) and a metal foil of platinum (Pt) with a thickness of 0.025 mm and 99.9% purity (Sigma-Aldrich) were used. The used working gas was nitrogen with 99.99% purity (Praxair). The methodology for platinum monometallic impregnation was already reported by R. Trejo-Tzab et al. [22,23], which consists of covering the lower electrode with the metal to be impregnated: in this case, Pt foil. Therefore, titanium oxide P25 (200 mg) was dispersed on the Pt foil. A diffusion pump LABCONCO (Mod 195 A65412906) was used to evacuate the plasma chamber and to maintain a working pressure of 8.5 × 10⁻² Torr. A nitrogen flow inside the plasma reactor was kept at constant pressure, while a discharge was applied between electrodes, producing nitrogen plasma inside the reactor using a power of 100 watts. The sample was analyzed after 1 and 2 h of plasma discharge in a “batch” process. However, after one hour, it was mechanically homogenized in an agate mortar. Thus, N-TiO_2−x/Pt samples were obtained; the experimental setup is shown in Figure 1.

2.2. Characterization

Optical emission spectroscopy (OES) was used to follow up the emission of the nitrogen plasma at all times during the plasma treatment. The studies were performed with a Starline UV–Vis spectrophotometer (AvaSpec-3648, Avantes, Apeldoorn, The Netherlands). The crystal structure of the samples was analyzed using X-ray diffraction (XRD, Bruker D8 Advance, Billerica, MA, USA) with a Cu kα source (1.5418 Å wavelength, operating at 30 mA). The patterns were recorded in a 2θ interval from 10 to 90°, and the diffraction patterns were analyzed using the ICDD database (International Center for Diffraction Data, PDF2016). The surface composition and chemical valence of samples was determined by X-ray photoelectron spectroscopy (XPS) (Thermo Fisher Scientific K-alpha system with a Kα source, 1400 eV, Waltham, MA, USA). The energy values were calibrated considering the C 1s signal (284.6 eV). All samples were pretreated during 15 s with argon to exclude surface impurities. The XPS equipment uses an internal standard to correct charge variations. Diffuse reflectance spectroscopy (DRS) studies were performed to determine the energy bandgap changes in the samples after the plasma treatments. The UV–Vis diffuse reflectance spectra were obtained with a Starline spectrophotometer model AvaSpec-3648 equipped with an integration sphere (AvaSphere-50-REFL, Apeldoorn, The Netherlands) and a UV–Vis deuterium–halogen light source (AvaLight DH-S-BAL, Avantes, Apeldoorn, The Netherlands). The shape and particle size were determined by high-resolution transmission electron microscopy, HRTEM (JEOL, Mod. JEM 2100 operating at 200 kV, Tokyo, Japan).

3. Results and Discussion

3.1. Optical Emission Spectroscopy (OES)

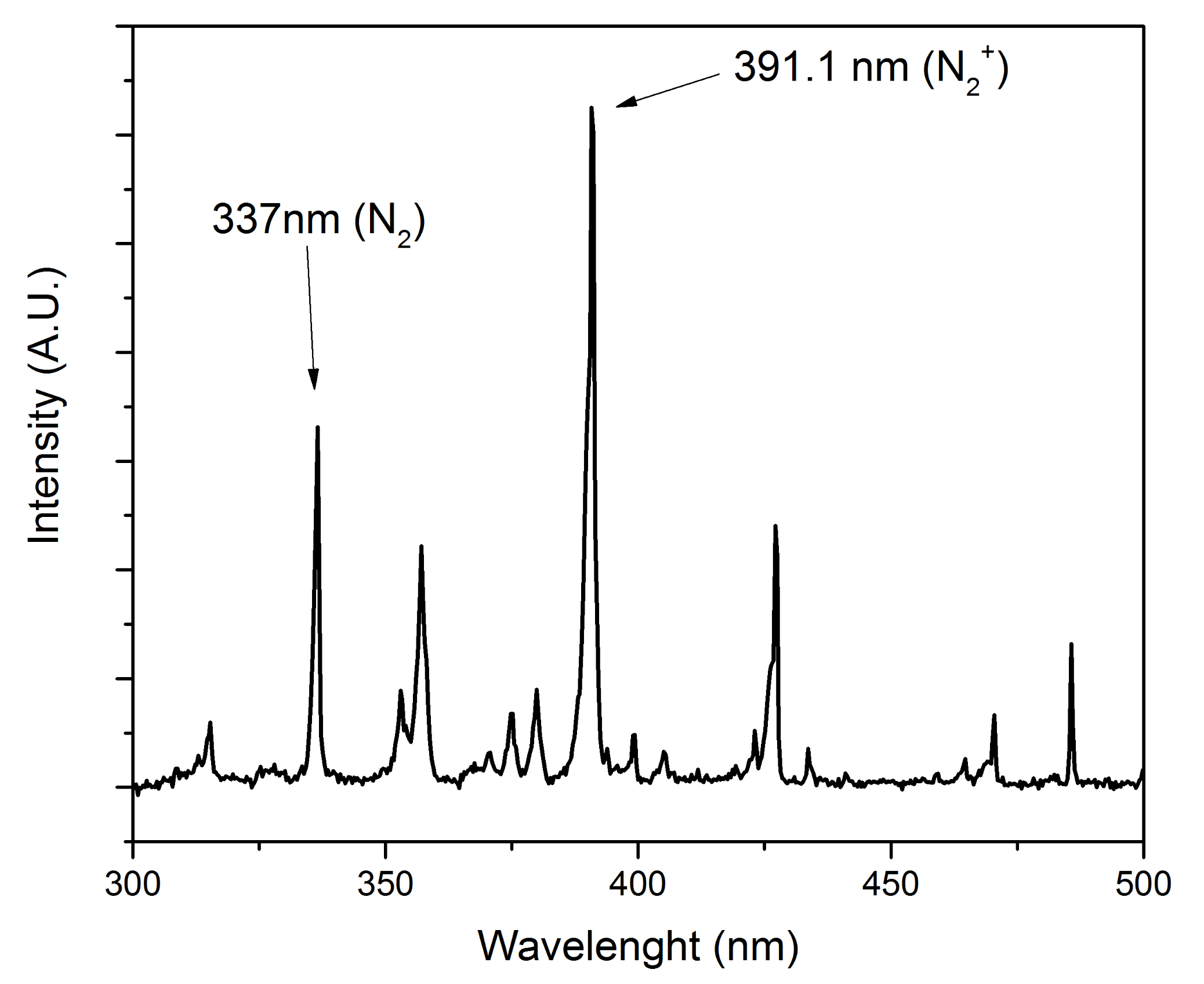

Figure 2 shows the optical emission spectral data of N₂ plasma. The peaks with the highest emission intensities, located at 337 nm and 391.1 nm, are due to emission produced by radiative decay corresponding to the N₂ molecule and N₂⁺ ion emission, respectively. The electronic state population observed for N₂, as well as that for the N₂⁺ ion, is mainly due to direct excitation of N₂ and N₂⁺ from their ground state, produced by impacting electrons having energies above their excitation threshold. In the emission spectrum, the intensity of both peaks is proportional to the electron density of N₂ and N₂⁺. The obtained emission spectra are in agreement with previous studies carried out by other research groups, for instance, Qayyum et al. and Abdel-Fattah et al., who reported emission peaks similar to those found in the present work [25,26].

3.2. X-ray Diffraction (XRD)

Quantitative analyses of the crystalline phases in the samples, that is to say, the weight fractions of anatase (%wt_A) and rutile (%wt_R), were determined by means of Spurr–Meyer’s method applying the following equation [27]:

$${\%\mathrm{wt}}_{\mathrm{A}}=\frac{1}{1+1.265\left(\frac{{\mathrm{I}}_{\mathrm{R}}}{{\mathrm{I}}_{\mathrm{A}}}\right)}\times 100$$

(1)

$${\%\mathrm{wt}}_{\mathrm{R}}=100-{\%\mathrm{wt}}_{\mathrm{A}}$$

(2)

where I_A and I_R correspond to the integrated intensities of anatase (101) and (110) rutile reflections. The same XRD reflections were also used to calculate the average crystallite sizes applying the Scherrer equation:

$$\mathrm{L}=\frac{0.9\mathsf{\lambda }}{\mathsf{\beta }\cos \mathsf{\theta }}$$

(3)

where L is the crystal size and corresponds to the average value of the volume-weighted particle size distribution, λ is the wavelength of the X-rays, β is the full width in radians subtended by the half-maximum intensity width of the powder pattern peak which is the observed FWHM, and θ is the Bragg angle.

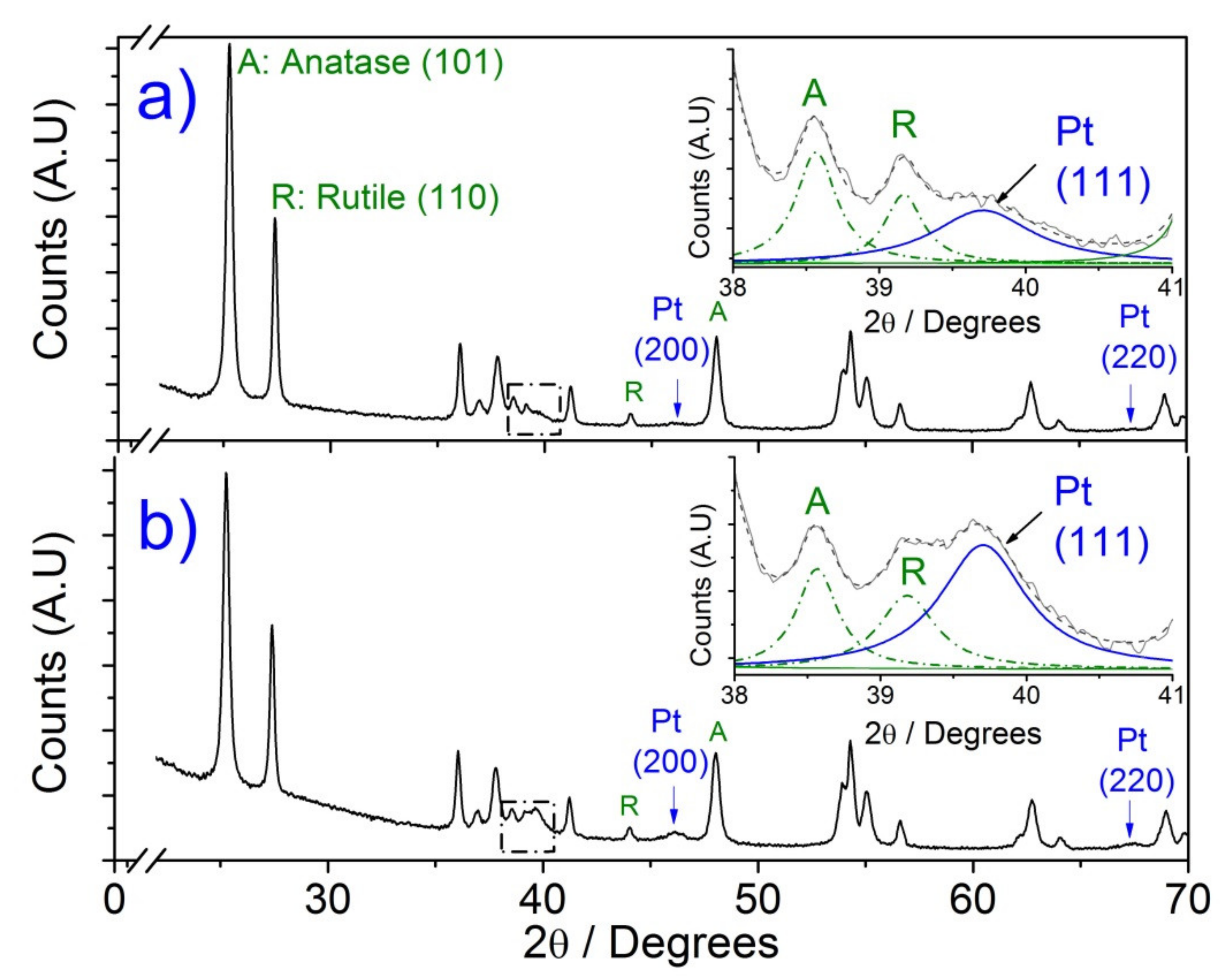

XRD analyses of the monometallic TiO₂/Pt sample obtained after 1 h and 2 h (Figure 3) show that the intensity of the main peaks of anatase (101) and rutile (110) do not present significant changes after having been subjected to the nitrogen plasma. Likewise, they show that the crystallinity of P25 TiO₂ does not change after the plasma treatments. This means that their composition ratio confirmed using the Spurr–Meyer’s equations remains constant in a range of 70% anatase and 30% rutile. On the other hand, the average crystalline domain size of pure P25 TiO₂ was calculated from the Scherrer equation with a crystallite size of about 26 ± 3 nm, and no significant changes in crystalline size after plasma treatment were found. Furthermore, through the XRD analysis shown in Figure 3, we can see the characteristic (111), (200), and (220) diffraction peaks of platinum, which are observed at 39.7°, 46.0°, and 67.3° (2θ) values, respectively. These peaks are more intense for the samples subjected to 120 min of treatment. The insets located in Figure 3a,b show a deconvolution analysis carried out in the samples, where an additional diffraction peak was observed at 39.70° (2θ) and was indexed to the (111) plane corresponding to metallic Pt. The intensity of this peak was stronger after 2 h of plasma treatment than that obtained for 1 h, confirming that nitrogen plasma promotes the impregnation of Pt particles on the titanium oxide surface. Likewise, the intensity of (200) and (220) diffraction planes corresponding to Pt were more evident in the XRD pattern after 2 h of plasma processing.

3.3. X-ray Photoelectron Spectroscopy (XPS)

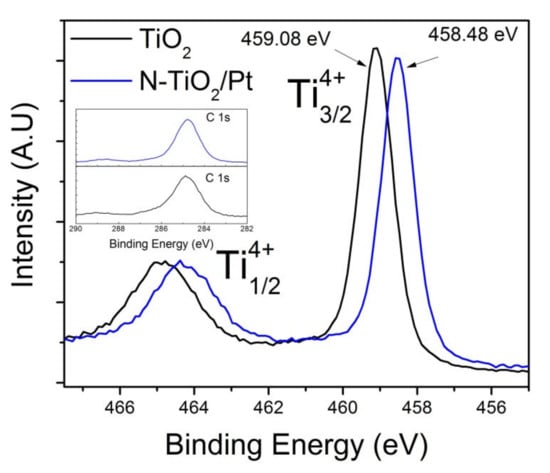

X-ray photoelectron spectroscopy (XPS) was used to analyze the chemical states of the elements in samples obtained after plasma treatments. The XPS spectra of Ti 2P are shown in Figure 4 and exhibit the characteristic Ti 2P binding energies, labeled as Ti 2P_3/2 and Ti 2P_1/2 doublets, which are associated with the Ti⁴⁺ valence state on oxygen lattice. A binding energy shift can be observed in N-TiO_2−x/Pt sample after 2 h nitrogen plasma treatment compared to the standard TiO₂; however, no shifting was observed for C 1s peak position (see inset in Figure 4). An important variation in the position of the band attributable to Ti(IV) in the Ti-O bond can be observed, when compared to the TiO₂ spectrum. The shift to a lower binding energy of Ti 2P_3/2 detected for N-TiO_2−x/Pt can be caused by nitrogen doping, as shown in the N 1s XPS spectra (Figure 5b). This observation has been confirmed by other research groups who correlate the shift to a lower binding energy with substitutional and interstitial nitrogen atoms into the TiO₂ matrix [28].

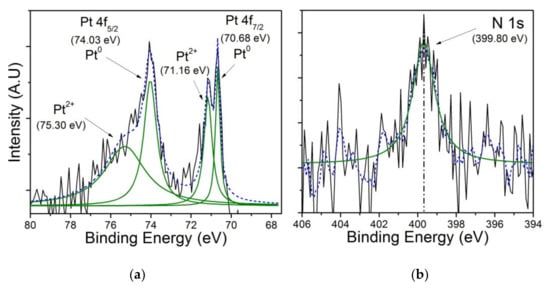

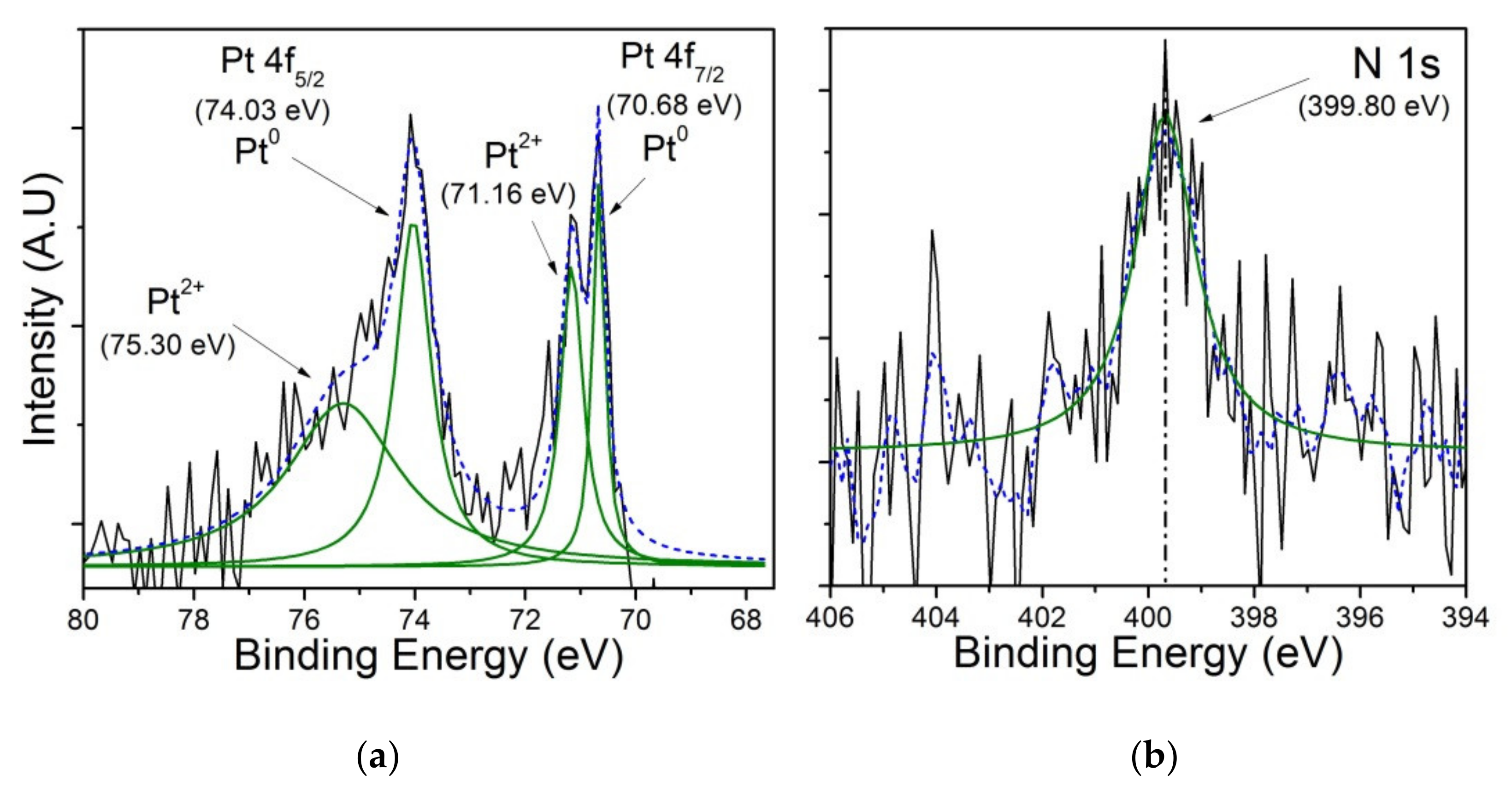

On the other hand, the characteristic signals of platinum can be seen in Figure 5a. The Pt 4f binding energies are observed at 70.68 eV (Pt 4f _7/2) and 74.03 eV (Pt 4f _5/2) and are ascribed to metallic platinum (Pt⁰). Moreover, it shows an additional two peaks at 71.16 eV (Pt 4f _7/2) and 75.30 eV (Pt 4f _5/2), which suggests the presence of platinum in its Pt²⁺ oxidation state, which means that PtO is also observed on the TiO₂ surface, and in this study, PtO₂ was not observed. However, in the XRD analyses (Figure 3), platinum oxide phase was not observed, and they only show metallic platinum (Pt) and titanium oxide phases; it is likely that the platinum oxide concentration is outside the equipment detection limit. These results agree with those of other studies carried out by different research groups that have applied chemical methods for incorporating platinum onto a TiO₂ surface; they report the presence of metallic platinum and platinum oxide on the material [20,29,30].

Figure 5b shows the nitrogen N 1s XPS spectrum, and a signal at 399.8 eV was observed. Viswanathan and Krishanmurthy et al. [31] attribute this signal to nitrogen occupying an interstitial site with a Ti-O-N bond in TiO₂ doped with nitrogen. This signal has been confirmed elsewhere, in which it is mentioned that a peak detected in the range from 396 to 404 eV indicates the replacement of oxygen by nitrogen atoms to form N-Ti-O and Ti-N-O bonds [20,31]. Valentin et al. propose that both substitutional and interstitial doping generate changes in the UV and UV–Vis optical properties of titania, which are related to the improvement of catalytic processes [32]. Due to the observed presence of Pt on the TiO₂ surface and interstitial nitrogen doping, it is proposed that the material obtained after 2 h of nitrogen plasma treatment is N-TiO_2−x/Pt.

The weight percentage of platinum and nitrogen in TiO₂, considering the XPS analysis, is presented in

Table 1. Weight percent of Pt and N in N-TiO_2−x/Pt (XPS analysis).

Treatment Time (h)	% Weight
	Pt	Nitrogen
1	1.6	0.38
2	2.9	0.47

. The analysis was carried out on the signals corresponding to N 1s, as previously demonstrated while studying nitrogen-doped TiO₂. The energy binding value for N 1s was determined at 399.2 +/− 0.2 eV. A mathematical fitting was carried out for the N 1s signal in the HR-XPS spectrum for the nitrogen-doped TiO₂ compound, to calculate their related chemical content. The percentage of platinum metal and nitrogen increased in the samples when the time of plasma treatment increased up to 2 h, higher than those subjected to 1 h treatment. Therefore, the Pt and N content was about 80% and 24% higher, respectively, in comparison to that of the samples that underwent 1 h of plasma treatment. As confirmed by XPS analyses, the increase in both elements is proportional to the plasma processing time.

3.4. Diffuse Reflectance Spectroscopy (DRS)

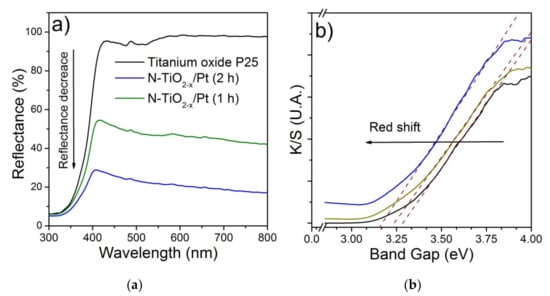

The reflectance and absorbance spectra of the metal-impregnated samples after 1 h and 2 h nitrogen of plasma treatments are presented in Figure 6. The diffuse reflectance UV–Vis spectra (DRS) for the standard (TiO₂ P25) and for the plasma-treated samples are shown in Figure 6a. The K/S relation that was obtained from the DRS data was determined by applying the Kubelka–Munk equation given by the following equation:

$$\frac{\mathrm{K}}{\mathrm{S}}=\frac{{\left(1-\mathrm{R}\right)}^2}{2\mathrm{R}}$$

(4)

The absorbance spectrum of the samples was obtained (Figure 6b), which allowed us to evaluate the band gap of each sample. The method is based on extrapolation of the straight line of the UV–Vis spectrum until it intersects with the x-axis of the wavelength or the band-gap energy (Figure 6). This wavelength intersection defines the band-gap energy for the semiconductor under consideration as E_bg = hc/λ_int.

Applying this method, one can observe that the nitrogen plasma treatment time is proportional to the incorporation or impregnation of platinum and nitrogen, which progressively reduces the bandwidth, as shown in

Table 2. Band gap of N-TiO_2−x/Pt samples considering different treatment times and 100 watts of power.

	P25	TiO2/Pt
Power		100 watts
Time		1 h	2 h
Band Gap (eV)	3.28	3.23	3.17

. Therefore, one can conclude that the absorption of photons is related to the impregnated or incorporated amount of Pt⁰/nitrogen on the crystalline lattice of the sample’s surface, resulting in lower energy absorption.

3.5. High-Resolution Transmission Electron Microscopy (HRTEM)

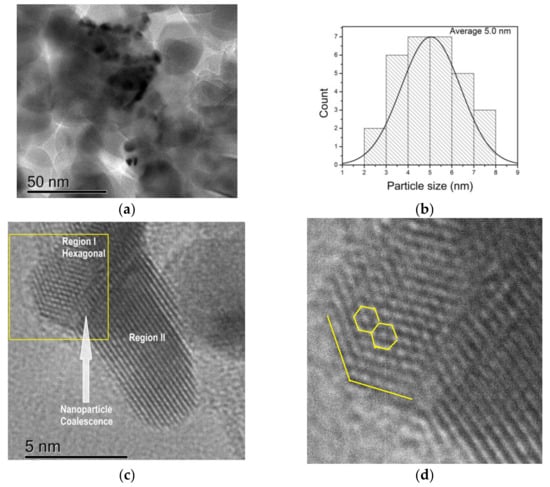

HRTEM images of the samples are shown in Figure 7. The Pt nanoparticles were found successfully dispersed on the titanium oxide surface (Figure 7a). Therefore, a statistical analysis was performed by measuring the nanoparticles size from the HRTEM images. Thus, a histogram of the particle size distribution of Pt NPs in the N-TiO_2−x/Pt composite (Figure 7b) shows a narrow distribution in the range of 2–8 nm. Platinum NPs, with an average diameter of 5.0 nm, are well dispersed on the TiO₂ surface.

HRTEM images reveal lattice fringe spacings corresponding to the Pt (111) plane. The interplanar spacing of the lattice fringes was 2.38 Å and 2.22 Å for Region I and Region II, respectively (Figure 7c). These results are consistent with the (111) d-spacing reported by others research groups for metallic Pt NPs [33,34]. It is noteworthy that we observed two different crystalline patterns (Region I and Region II). Additionally, it can be seen that the boundary between these two regions (Figure 7c) is due to the coalescence induced by the crystallization of Pt nanoparticles. Grammatikopoulos et al. [35] applied classical molecular dynamics simulations to study the mechanisms driving the coalescence phenomena. They demonstrated that the driving force for the coalescence is due to the surface energy minimization associated with dangling bonds density and distribution. On the other hand, they also observed coalescence-assisted crystallization during the sintering of amorphous nanoparticles, reporting that the rotation started a seedless crystallization wave, which propagated through them, leading to near-perfect single or polycrystalline fcc structures.

Our hypothesis is that the mechanism described above is responsible for obtaining two platinum crystalline patterns. This nanoparticle was probably left in an intermediate crystallization state.

On the other hand, Figure 7d shows that the coalescence of a single Pt NPs, due to the plasma effect, has two different patterns: nano-hexagonal and fcc lattice fringes, suggesting that the nucleation of the hexagonal platinum crystal is along the [111] direction. Other researchers have reported having obtained similar symmetries in platinum, silver, and gold nanoparticles using chemical reduction procedures [34,36,37]. It is known that nucleation and growth are related to surface energy and growth rate, and their size depends on the growth rate and directions. The results obtained in the present work must be further studied to understand the crystallization process so as to be able to control the shape or size of the metallic nanoparticles by applying an energetic plasma to induce decorated specific surfaces.

4. Conclusions

The obtained N-TiO_2−x/Pt compound was successfully prepared by a novel nitrogen plasma method. After two hours of treatment, the crystal lattice and surface of TiO₂ contained up to 0.47% and 2.9% (wt%) of nitrogen and metallic platinum, respectively. Our results regarding the energy gap reveal that, under this method of synthesis, the band-gap value is reduced from 3.28 to 3.17 eV. These results demonstrate the effectiveness of the proposed methodology to carry out the simultaneous process of impregnating platinum metal particles on a titania surface and achieving nitrogen doping in a single step. Likewise, this method allows obtaining different patterns on a single metallic nanoparticle; therefore, the formation of a hexagonal shape opens a new window for the study of this phenomenon induced through plasma to obtain effective composite materials. In comparison to other used techniques to induce metal surface decoration, this method is environmentally safe, has low energy requirements, and can be carried out in a relatively short period time, representing a promising approach for the synthesis of N-TiO_2−x/Pt catalysts.
