Open AccessArticle
J. Imaging 2018, 4(6), 76;

Single-Shot X-ray Phase Retrieval through Hierarchical Data Analysis and a Multi-Aperture Analyser

Department of Medical Physics and Biomedical Engineering, University College London, Gower Street, London WC1E 6BT, UK
Author to whom correspondence should be addressed.
Received: 11 May 2018 / Revised: 29 May 2018 / Accepted: 5 June 2018 / Published: 6 June 2018
(This article belongs to the Special Issue Phase-Contrast and Dark-Field Imaging)
Full-Text   |   PDF [644 KB, uploaded 7 June 2018]   |

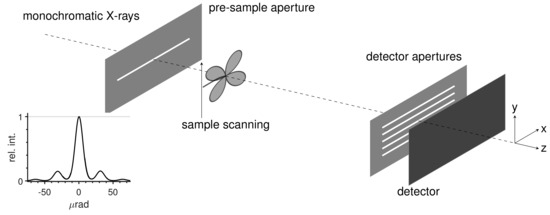

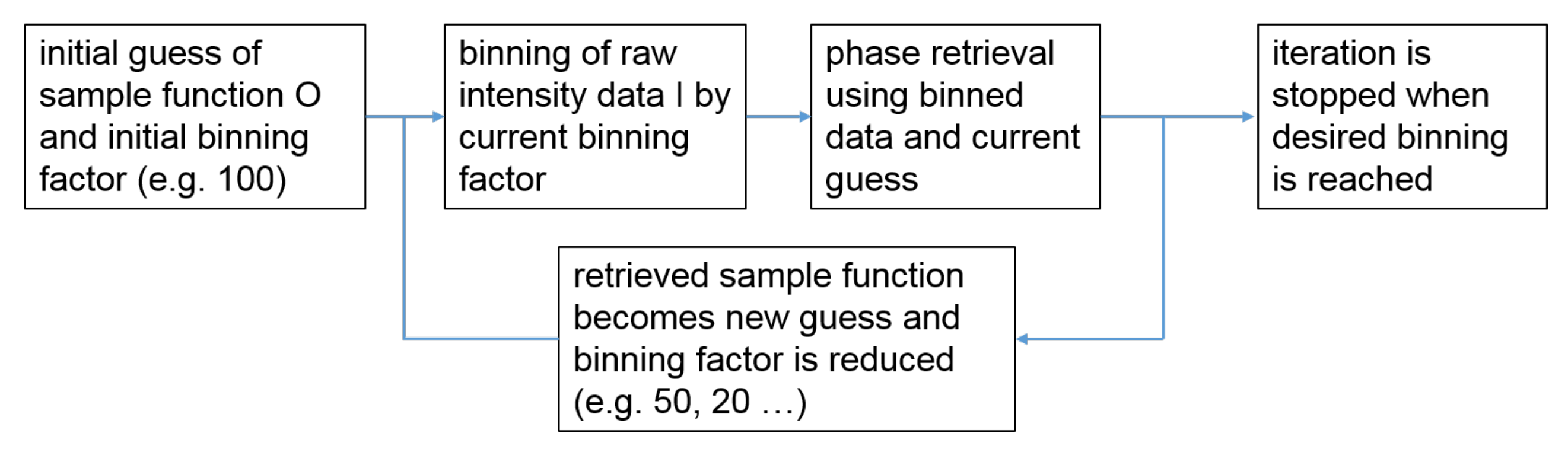

A multi-aperture analyser set-up was recently developed for X-ray phase contrast imaging and tomography, simultaneously attaining a high sensitivity and wide dynamic range. We present a single-shot image retrieval algorithm in which differential phase and dark-field images are extracted from a single intensity projection. Scanning of the object is required to build a two-dimensional image, because only one pre-sample aperture is used in the experiment reported here. A pure-phase object approximation and a hierarchical approach to the data analysis are used in order to overcome numerical instabilities. The single-shot capability reduces the exposure times by a factor of five with respect to the standard implementation and significantly simplifies the acquisition procedure by only requiring sample scanning during data collection. View Full-Text
Keywords: X-ray imaging; phase-contrast imaging; dark-field imaging X-ray imaging; phase-contrast imaging; dark-field imaging

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Endrizzi, M.; Vittoria, F.A.; Olivo, A. Single-Shot X-ray Phase Retrieval through Hierarchical Data Analysis and a Multi-Aperture Analyser. J. Imaging 2018, 4, 76.
